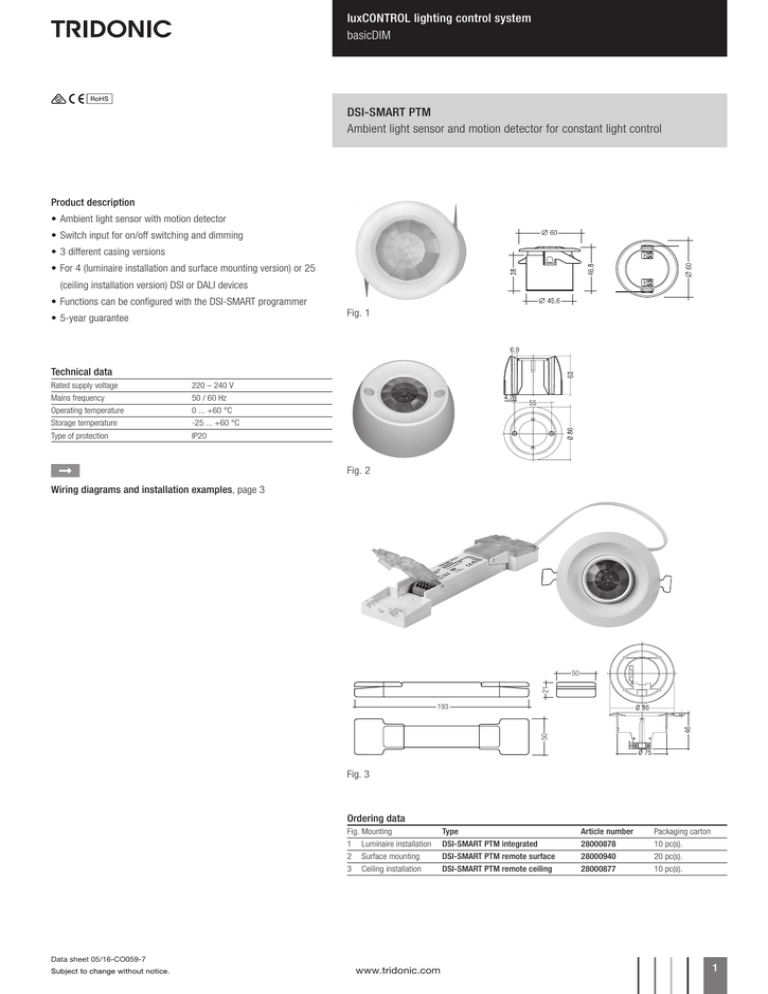

luxCONTROL lighting control system
basicDIM
DSI-SMART PTM
Ambient light sensor and motion detector for constant light control
Product description
•Ambient light sensor with motion detector
•Switch input for on/off switching and dimming
•3 different casing versions
•For 4 (luminaire installation and surface mounting version) or 25
(ceiling installation version) DSI or DALI devices
•Functions can be configured with the DSI-SMART programmer
•5-year guarantee
Fig. 1
Technical data
Rated supply voltage
220 – 240 V
Mains frequency
50 / 60 Hz
Operating temperature
0 ... +60 °C
Storage temperature
-25 ... +60 °C
Type of protection
IP20
È
Fig. 2
Wiring diagrams and installation examples, page 3
21
50
50
193
Fig. 3
Ordering data
Fig. Mounting
Type
Article number
Packaging carton
1
Luminaire installation
DSI-SMART PTM integrated
28000878
10 pc(s).
2
Surface mounting
DSI-SMART PTM remote surface
28000940
20 pc(s).
3
Ceiling installation
DSI-SMART PTM remote ceiling
28000877
10 pc(s).
Data sheet 05/16-CO059-7
Subject to change without notice.
www.tridonic.com
1
luxCONTROL lighting control system
basicDIM
Specific technical data
Type
Supply
Power
Detection
Output, standby Light measurement at
the sensor head1
Inputs
Dimming switch
Outputs
Digital control line
DSI/DALI2
Control output per physical Maximum DSI cable length
output (devices)
at 1.5 mm²
DSI-SMART PTM integrated
1.7 W
1.5 W
5 – 500 lx
single
1
4
250 m
DSI-SMART PTM remote surface
1.7 W
1.5 W
5 – 500 lx
single
1
4
250 m
DSI-SMART PTM remote ceiling
3.9 W
1.3 W
5 – 500 lx
single
1
25
250 m
1 The measured value at the sensor head corresponds to approx. 10 to 1,500 lux on the surface measured.
2 ACCESSORIES
DALI from DSI SMART PTM V1.1
For parameterization the DSI SMART Programmer from V2.01 is required.
REMOTECONTROL IR6
Product description
•Optional infra-red remote control
•Switching on and off (On/Off button)
•Dimming (Up/Down button)
•Activation of automatic lighting control
•Setting the threshold control point (Set button)
ACCESSORIES
Ordering data
Type
Article number
Dimensions L x W x H Packaging carton
REMOTECONTROL IR6
28000647
86.5 x 40.5 x 7.2 mm 500 pc(s).
DSI SMART Programmer
Product description
•Optional infra-red programming unit for DSI-SMART PTM
•Settings can be read and modified
•Programmable functions such as light level, time delay,
P.I.R., bright-out, power up, start, override
•5-year guarantee
Ordering data
Type
Article number
Packaging carton
Weight per pc.
DSI-SMART Programmer
28000843
1 pc(s).
0.35 kg
Data sheet 05/16-CO059-7
Subject to change without notice.
www.tridonic.com
2
luxCONTROL lighting control system
basicDIM
Wiring diagram for DSI-SMART PTM (luminaire installation and surface-mounted boxes)
L
N
*
N
L
DSI SMART PTM
DSI/DALI
2
3
4
PCA
6 D1 / DA
7 D2 / DA
2
3
4
max. 4 DSI or
DALI ballasts
PCA
6 D1 / DA
7 D2 / DA
Standards
EN 55015
EN 60669-2-1
EN 61000-3-2
EN 61000-3-3
EN 61347-2-11
EN 61547
EN 62386-101
Glow-wire test
according to EN 60598-1 passed.
* must be the same
phase as for L
DALI standard
DSI-SMART PTM is deisgned to control control gear
with DALI standard IEC 60929 (DALI V0).
Wiring diagram for DSI-SMART PTM (ceiling installation box)
L
N
*
N
L
DSI SMART PTM
DSI/DALI
Sensor
2
3
4
6 D1 / DA
7 D2 / DA
PCA
max. 25 DSI or
DALI ballasts
2
3
4
PCA
6 D1 / DA
7 D2 / DA
* must to be the
same phase as
for L
Switch
DSI-SMART PTM has an input terminal for an external switch. Any number of switches can be connected in parallel to the terminal.
Short press (> 50–600 ms):
ON/OFF
Long press (> 600 ms):
Dim up/down
A change in the light value deactivates lighting regulation only temporarily. As soon as the luminaire has been automatically switched on again (motion detection) or manually switched off and on again, regulation is activated again.
2 x short press:
The overwritten setpoint light value is stored (luminaire acknowledges by flashing twice)
Function is lockable via the DSI programmer 1
Installation
•DSI/DALI is not SELV. The installation instructions for mains voltage
therefore apply.
•The maximum cable length between the external switch and
DSI-SMART PTM is 100 m.
•The cable between he ceiling sensor and the base module must not be extended.
•A synchronous operation of DALI and DSI ballasts at the same control gear is not possible.
•The maximum cable length of the DSI / DALI control signal (for a cable cross-section of 1,5 m2) must not be exceeded.
•Any number of push to make switches may be connected in parallel to the inputs.
•Do not connect standard switches to the input.
DSI/DALI interface
The interface selection DSI or DALI is made by the DSI SMART Programmer. 1
Cable types and cable cross-sections
Solid wire with a cable cross-section of 0.5 mm² to 1.5 mm².
wire preparation:
0.5 – 1.5 mm²
9 mm ±1
1From DSI SMART PTM V1.1
For parameterization the DSI SMART Programmer from V2.01 is required.
Data sheet 05/16-CO059-7
Subject to change without notice.
www.tridonic.com
3
luxCONTROL lighting control system
basicDIM
Installation
Luminaire installation box:
Ø
Ø
75
52
m
m
m
m
min. 100
Ceiling installation box:
Motion detector
Ambient light control
Motion detection
Light level recognition area
90°
h
d1
h*
m
d1
m
d2
m
1.7
3.4
1.6
2.0
4.0
1.9
2.3
4.6
2.2
2.5
5.0
2.3
2.7
5.4
2.5
3.0
6.0
2.8
3.5
7.0
3.3
4.0
8.0
3.7
h
50°
d2
* The recommended maximum room height is 4 m.
Calculation of the diameter:
d = 2 × tan(0,5 × a) × h
The following operating modes can be set for the motion detector via the DSISmart Programmer:
Active
The light is switched on or off automatically depending on
whether or not there is a person in the room.
Off Only
The motion detector only switches the connected lighting
off. The luminaires are switched on manually via the
connected external switch or infra-red control. If the „sec
level„ is active, the lights will not be switched on although
a motion is detected.
Never Off
If it has not detected any movement the sensor dims to the
“second light value” parameter and remains at this value
Inactive
The motion sensor is deactivated. The light must be switched on or off manually.
Switch-off delay
This is the time after which the lighting is switched off if no movement is
detected. It can be set via the “time delay” parameter.
Second light value
On the DSI-Smart PTM you can set whether the light is to be switched off after
the switch-off delay or dimmed to the second light value. The light value and
the dwell time (how long the value is held) can be set via the “when vacant” and
“sec. level” parameters.
Manual-off delay
If the system is switched off manually via the switch or remote control the moti-
on sensor is deactivated. At the end of a 10 minutes delay if motion has not
been detected the motion sensor is activated again. If the sensor detects motion
during the “Manual Off” delay, the time will be reset to the start.
The following operating modes can be set for lighting control via the DSI-Smart
Programmer:
Active
Constant light control is active.
Inactive
Constant light control is deactivated. The lighting is switched
on at 100%.
The value is set with the “light-level” parameter. If the value is set to “max” then
lighting control is deactivated. For all other values lighting control is active.
Setpoint adjustment
• DSI-SMART Controller: Pressing the Set button stores the current light value as a new setpoint.
• DSI-SMART Programmer: Via the “light-level” parameter
• External switch: Briefly pressing the switch twice stores the current light value as a new setpoint. (Function is lockable via the DSI programmer)
Bright-out
If the nominal illuminance (e.g. 500 lux) is exceeded for 10 minutes by more
than 150 % (e.g. 750 lux), the lighting is switched off even if motion is detected.
The lighting is switched on again when the measured light value falls below the
setpoint.
The bright-out function is displayed by a green status indication LED at the
sensor.
This function can be deactivated via the DSI-SMART Programmer.
Data sheet 05/16-CO059-7
Subject to change without notice.
www.tridonic.com
4
luxCONTROL lighting control system
basicDIM
User-definable parameters
DSI-SMART PTM have the following user-definable parameters:
The values shown in bold are the factory default settings.
Parameter
Range
Factory setting
Description
light-level
1-100/max/man
70
Light level in steps from 1 to 100.
The “max” option lets you set the units at maximum output. (DSI 255)
”man” indicates whether the control value has been overwritten with the SET functions
of the SMART controller.
time delay
30 s-60 min/con
20
Delay before switching off after the last detection of movement.
The options are as follows:
30 seconds, 1, 2, 3, 5, 10, 15, 20, 30, 45 and 60 minutes, and “con” (continuous)
when
vacant
off
30 s-60 min/con
The “off“ setting causes the luminaire to switch off at the end of the switch-off delay.
The “low” setting causes the luminaire to fade to the “sec. Level” parameter and switch off only at the end of
the “second” delay set. The options are as follows:
off, 30 seconds, 1, 2, 3, 5, 10, 15, 20, 30, 45 and 60 minutes, and continuous (“never OFF” function)
sec. level
1-100
1
Second light value to which the system fades at the end of the switch-off delay. (In connection with the “when
vacant” parameter“)
P.I.R
active
inactive
off only
The “active” setting switches the light on or off automatically depending on whether or not there is someone in
the room.
With the “inactive” setting the DSI-SMART, in combination with “time delay continuous”, can be used only for
controlling the light level.
In the “off only” setting the light has to be switched on manually (switch, remote control) but is switched off by
the motion sensor.
bright-out
yes
No
The “yes” setting switches the light off as soon as the light value exceeds 150% of the control value for more
than 10 minutes. If the actual value falls below 100% the light is switched on again.
In the “no” setting the luminaires remain at the minimum light value.
Power up
on
off
In the “on” setting the luminaire switches on after a power outage.
In the “off” setting the luminaire does not switch on after a power outage. After 15 seconds the motion sensor
is active again.
hold
overwrite
on
off
In the “off” setting the DSI-SMART is reset to automatic mode when the control value is overwritten with the
SMART controller or with the switch after an on/off cycle initiated by a movement interruption
(end of delay time).
If “on” is selected the luminaire switches on again with the overwritten value (manual light value) unless the
overwritten value was an OFF command, in which case DSI-SMART returns to automatic mode so people do not
enter a dark room.
PTM Set 1
on
off
In the „on“ setting the possibility to store of the lighting control value is activated by 2 short keypresses,
in the „off“ setting it is locked.
DALI or DSI 1
DSI
DALI
Preselection of the type of interfaces DSI oder DALI
1From DSI SMART PTM V1.1
For parameterization the DSI SMART Programmer from V2.01 is required.
1
light - level
time - delay
2
sec. level
when vacant
Description
1
see
parameterlist
motion in the room
light level
Parameter
2
delay time
Data sheet 05/16-CO059-7
Subject to change without notice.
www.tridonic.com
5
