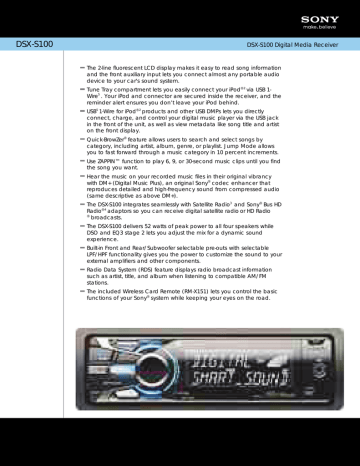

DSXS100 MFG SPEC SHEET
DSX-S100
DSX-S100 Digital Media Receiver
The 2-line fluorescent LCD display makes it easy to read song information
and the front auxiliary input lets you connect almost any portable audio
device to your car's sound system.
Tune Tray compartment lets you easily connect your iPod®2 via USB 1Wire5 . Your iPod and connector are secured inside the receiver, and the
reminder alert ensures you don’t leave your iPod behind.
USB5 1-Wire for iPod®2 products and other USB DMPs lets you directly
connect, charge, and control your digital music player via the USB jack
in the front of the unit, as well as view metadata like song title and artist
on the front display.
Quick-BrowZer® feature allows users to search and select songs by
category, including artist, album, genre, or playlist. Jump Mode allows
you to fast forward through a music category in 10 percent increments.
Use ZAPPIN™ function to play 6, 9, or 30-second music clips until you find
the song you want.
Hear the music on your recorded music files in their original vibrancy
with DM+ (Digital Music Plus), an original Sony® codec enhancer that
reproduces detailed and high-frequency sound from compressed audio
(same descriptive as above DM+).
The DSX-S100 integrates seamlessly with Satellite Radio3 and Sony® Bus HD
Radio®4 adaptors so you can receive digital satellite radio or HD Radio
®
broadcasts.
The DSX-S100 delivers 52 watts of peak power to all four speakers while
DSO and EQ3 stage 2 lets you adjust the mix for a dynamic sound
experience.
Built-in Front and Rear/Subwoofer selectable pre-outs with selectable
LPF/HPF functionality gives you the power to customize the sound to your
external amplifiers and other components.
Radio Data System (RDS) feature displays radio broadcast information
such as artist, title, and album when listening to compatible AM/FM
stations.
The included Wireless Card Remote (RM-X151) lets you control the basic
functions of your Sony® system while keeping your eyes on the road.
DSX-S100
DSX-S100 Digital Media Receiver
Amplifier Section
Features
Flip-down Face with Front Aux In The 2-line fluorescent LCD display
makes it easy to read song information and the front auxiliary input lets
you connect almost any portable audio device to your car's sound
system.
Integrated Tune Tray Tune Tray compartment lets you easily connect
your iPod®2 , Walkman® player or other USB device via USB 1-Wire5 .
Your iPod and connector are secured inside the receiver, and the
reminder alert ensures you don’t leave your device behind.
Quick-BrowZer® with Jump Mode feature Search and select songs by
category, including artist, album, genre, or playlist. Jump Mode allows
you to fast forward through a music category in 10 percent increments.
ZAPPIN™ function Use ZAPPIN function to play 6, 9, or 30-second music
clips until you find the song you want.
MP3/WMA playback1 with DM+ Hear the music on your recorded files in
their original vibrancy with DM+ (Digital Music Plus), an original Sony
® codec enhancer that reproduces detailed and high-frequency sound
from compressed audio.
Satellite Radio3 / HD Radio™ ready4 The DSX-S100 integrates
seamlessly with Satellite Radio3 and HD Radio4 Sony® Bus adaptors so
you can receive digital satellite radio or HD Radio broadcasts.
Speaker Impedance: 4-8 Ohms
Max power output: 52 watts x 4 at 4 ohms
Tuner
FM Usable Sensitivity: 10 dBf
Selectivity: 75 dB at 400 kHz
S/N Ratio: 70 dB (mono)
Frequency Response: FM: 20-15,000 Hz
Stereo Separation: 40 dB at 1 KHz
Power
Output Power: 52W x4 Watts Max Power - CEA2006 Standard Power Output: 17 Watts
RMS per channel into 4 Ohms, 4 channels driven from 20 Hz to 20 kHz with less
than 1% THD+N.
Current Drain: 3 - 5 amps
Input Voltage: 12 V DC car battery (negative ground)
Inputs and Outputs
RCA Audio Output(s): Front and Rear/Sub selectable RCA pre-amp outputs
Digital Audio Input(s): Ability to use all forms of USB devices may vary as not all
devices are compatible.
This unit can be connected to the following iPods. Update your iPod to the latest
software before you use it.
iPod Nano 1st generation*
EQ3, DSO and 52 Watts x 4 High Power The DSX-S100 delivers 52 watts
of peak power to all four speakers while DSO and EQ3 stage 2 lets you
adjust the mix for a dynamic sound experience.
iPod Nano 2nd generation (aluminum)
Selectable Pre-outs with LPF/HPF Built-in Front and Rear/Sub selectable
pre-outs with selectable LPF/HPF functionality gives you the power to
customize the sound to your external amplifiers and other components.
iPod 5th generation (video)*
Radio Data System Radio Data System (RDS) feature displays radio
broadcast information such as artist, title, and album when listening to
compatible AM/FM stations.
iPod Touch
Wireless Card Remote included The included Wireless Card Remote
(RM-X151) lets you control the basic functions of your Sony® system
while keeping your eyes on the road.
Specifications
Convenience Features
On-Screen Clock: 12H
Dimmer Adjust: Slectable Auto adjust or manual on/off
Key Illumination: Blue
General
iPod Nano 3rd generation (video)
iPod Classic
This unit is compliant with MSC (Mass Storage Class) and MTP (Media Transfer
Protocol) type USB devices compliant with the USB standard.
This unit cannot recognize USB devices via a USB hub.
If you have any questions or problems concerning your unit that are not covered
in the owners manual, consult your nearest Sony dealer.
USB Port(s): USB - Full Speed
Antenna Terminal(s): AM/FM Antenna Input Terminal
12V Trigger Output(s):
Power antenna
Amplifier turn on
Remote Jack: Optional wired remote terminal
Audio In:
Front Aux with variable level: -8dB ∼ +18dB
Color: Dark Titanium
Audio
Preout Impedance: 220 ohms
Preout Voltage: 2 volt
S/N Ratio: Audio Power: CEA2006 S/N 80 dBA
Station Preset(s): 18 FM / 12 AM
Digital-to-Analog Converter: 24bit
Tuner Frequency Range:
FM:Tuner Frequency Range(MHz): 87.5-107.9
AM:Tuner Frequency Range(kHz): 530-1710
Tuner Type: SSIR-EXA with RDS
Volume Control: Tel/Nav Attenuation
Band: AM / FM
1
Format(s) Supported: MP3/WMA/AAC files
Equalizer: EQ3: 3 band EQ
Low +/- 10 dB at 60 Hz
Mid +/- 10 dB at 1 kHz
High +/- 10dB at 10 kHz
Convenience
Tilt Range: 0-45° mounting angle
Display
Technology: LCD
Display Color: Black color / Negative
Text Displayed: Source, artist, track, playback time, menu and clock
Text Lines: 2 lines of information
Sony Electronics Inc. •16530 Via Esprillo •San Diego, CA 92127
USB input
Sony Bus terminals
Infrared Port: Wireless remote input
Dimensions
Weight: 1.3 kg (2 lb. 14 oz.)
Measurements: 178 x 50 x 179mm
Supplied Accessories
Parts for installation and connections (1 set)
RM-X151 wireless remote
XA-50IP USB connector for iPod
Optional Accessories
Replacement remote: RM-X151
CD changer (6 discs): CDX-T69
Source selector: XA-C40
Aux-in selector: XA-300
HD Radio® tuner: XT-100HD
®
Walkman player USB adapter: XA-50WM
Color: Dark Titanium
UPC Code: 027242787438
1. Not all MP3, WMA, AAC files may playback due to file variations. Copyright protected ACC-LC files cannot
be played back.
2. Ability to use all generations of iPod products may vary as not all products are compatible. Compatible
with iPod® touch, iPod Nano 3rd generation, iPod classic, iPod Nano 2nd generation, iPod 5th generation,
iPod Nano 1st generation, iPod 4th generation, iPod mini.
3. Satellite radio service requires a satellite radio tuner and service subscription, sold separately.
4. HD Radio™ capability requires an optional HD Radio tuner (XT-100HD).
5. Ability toPlease
use all forms
visit
of USBthe
devices
Dealer
may vary
Source
as not all for
devices
current
are compatible.
information at
© 2010 Sony Electronics Inc. All rights
reserved. Reproduction in whole or in part without written permission is
www.sony.com/dealersource
prohibited. Sony, Quick-Browzer, Walkman, Xplōd, ZAPPIN, and the Sony and Xplōd logos are trademarks of
Sony. iPod is a trademark of Apple Inc. All other trademarks are trademarks of their respective owners.
and specifications are subject to change without notice. Non-metricLast
weights
and measures
are
•1.800.222.7669 Features
•www.sony.com
Updated:
02/23/2011
approximate and may vary.
