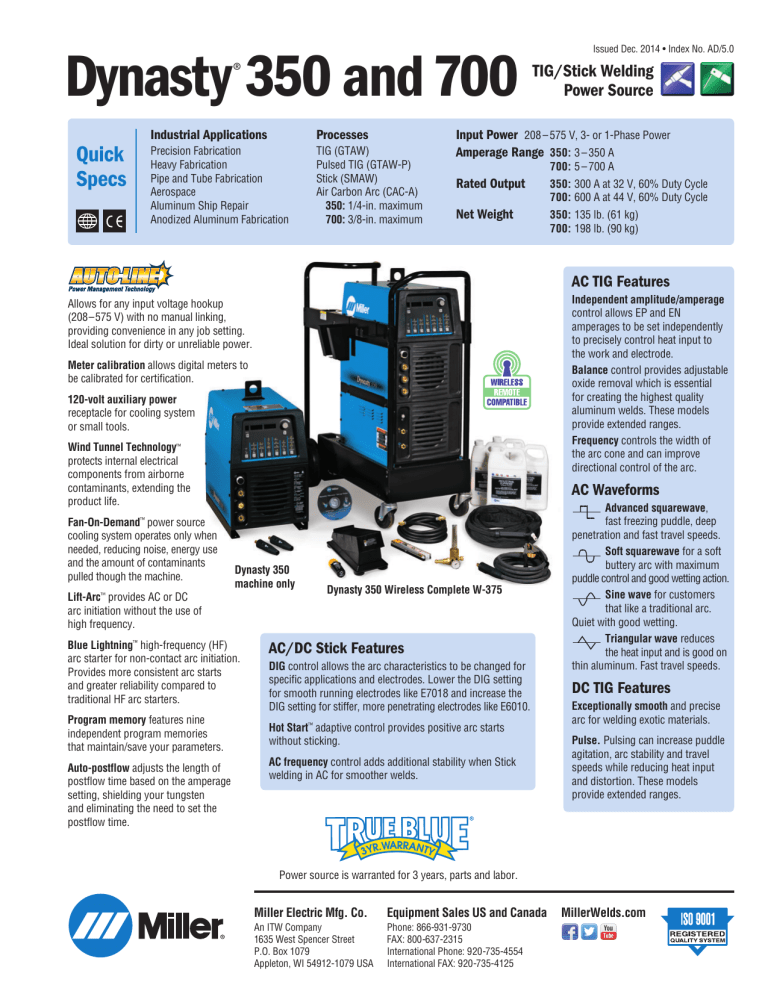

Issued Dec. 2014 • Index No. AD/5.0
Dynasty 350 and 700
®
Quick
Specs
Industrial Applications
Processes
Precision Fabrication
Heavy Fabrication
Pipe and Tube Fabrication
Aerospace
Aluminum Ship Repair
Anodized Aluminum Fabrication
TIG (GTAW)
Pulsed TIG (GTAW-P)
Stick (SMAW)
Air Carbon Arc (CAC-A)
350: 1/4-in. maximum
700: 3/8-in. maximum
TIG/Stick Welding
Power Source
Input Power 208 – 575 V, 3- or 1-Phase Power
Amperage Range 350: 3 – 350 A
700: 5 – 700 A
Rated Output
350: 300 A at 32 V, 60% Duty Cycle
700: 600 A at 44 V, 60% Duty Cycle
Net Weight
350: 135 lb. (61 kg)
700: 198 lb. (90 kg)
AC TIG Features
Independent amplitude/amperage
control allows EP and EN
amperages to be set independently
to precisely control heat input to
the work and electrode.
Balance control provides adjustable
oxide removal which is essential
for creating the highest quality
aluminum welds. These models
provide extended ranges.
Frequency controls the width of
the arc cone and can improve
directional control of the arc.
Allows for any input voltage hookup
(208–575 V) with no manual linking,
providing convenience in any job setting.
Ideal solution for dirty or unreliable power.
Meter calibration allows digital meters to
be calibrated for certification.
120-volt auxiliary power
receptacle for cooling system
or small tools.
Wind Tunnel Technology™
protects internal electrical
components from airborne
contaminants, extending the
product life.
Fan-On-Demand™ power source
cooling system operates only when
needed, reducing noise, energy use
and the amount of contaminants
pulled though the machine.
AC Waveforms
Dynasty 350
machine only
Lift-Arc™ provides AC or DC
arc initiation without the use of
high frequency.
Blue Lightning™ high-frequency (HF)
arc starter for non-contact arc initiation.
Provides more consistent arc starts
and greater reliability compared to
traditional HF arc starters.
Program memory features nine
independent program memories
that maintain/save your parameters.
Auto-postflow adjusts the length of
postflow time based on the amperage
setting, shielding your tungsten
and eliminating the need to set the
postflow time.
Dynasty 350 Wireless Complete W-375
AC/DC Stick Features
DIG control allows the arc characteristics to be changed for
specific applications and electrodes. Lower the DIG setting
for smooth running electrodes like E7018 and increase the
DIG setting for stiffer, more penetrating electrodes like E6010.
Hot Start™ adaptive control provides positive arc starts
without sticking.
AC frequency control adds additional stability when Stick
welding in AC for smoother welds.
Advanced squarewave,
fast freezing puddle, deep
penetration and fast travel speeds.
Soft squarewave for a soft
buttery arc with maximum
puddle control and good wetting action.
Sine wave for customers
that like a traditional arc.
Quiet with good wetting.
Triangular wave reduces
the heat input and is good on
thin aluminum. Fast travel speeds.
DC TIG Features
Exceptionally smooth and precise
arc for welding exotic materials.
Pulse. Pulsing can increase puddle
agitation, arc stability and travel
speeds while reducing heat input
and distortion. These models
provide extended ranges.
Power source is warranted for 3 years, parts and labor.
Miller Electric Mfg. Co.
Equipment Sales US and Canada
An ITW Company
1635 West Spencer Street
P.O. Box 1079
Appleton, WI 54912-1079 USA
Phone: 866-931-9730
FAX: 800-637-2315
International Phone: 920-735-4554
International FAX: 920-735-4125
MillerWelds.com
Specifications (Subject to change without notice.)
Model
Dynasty
350
Input
Power
Welding
Amperage
Range
3-phase
3– 350 A
1-phase
Dynasty
700
3-phase
1-phase
3– 350 A
5 – 700 A
5 – 700 A
Rated
Output
Amps Input at Rated Load Output, 50/60 Hz
208 V 230 V 400 V 460 V 575 V KVA KW
250 A at 30 V,
100% duty cycle
29
26
15
13
10
10.3
9.9
300 A at 32 V,
60% duty cycle
35
32
18
16
13
12.7
12.1
180 A at 27.2 V,
100% duty cycle
35
32
—
15
12
7.4
6.8
225 A at 29 V,
60% duty cycle
47
43
—
21
17
9.8
9.1
500 A at 40 V,
100% duty cycle
75
68
39
34
27
27
26
600 A at 44 V,
60% duty cycle
97
88
51
44
35
35
34
360 A at 34 V,
100% duty cycle
82
74
—
37
30
17
16
450 A at 38 V,
60% duty cycle
115
104
—
52
42
24
22
Certified by Canadian Standards Association to both the Canadian and U.S. Standards.
Max.
Open-Circuit
Voltage
75 VDC
(10 –15 VDC*)
75 VDC
(10 –15 VDC*)
Net
Weight
Dimensions
H: 24.75 in. (629 mm)
W: 13.75 in. (349 mm)
D: 22 in. (559 mm)
135.5 lb.
(61 kg)
with TIGRunner®
H: 43.125 in. (1146 mm)
W: 23.125 in. (587 mm)
D: 43.75 in. (1111 mm)
with
TIGRunner®
308 lb.
(140 kg)
H: 34.5 in. (876 mm)
W: 13.75 in. (349 mm)
D: 22 in. (559 mm)
198 lb.
(90 kg)
with TIGRunner®
H: 53.125 in. (1400 mm)
W: 23.125 in. (587 mm)
D: 43.75 in. (1111 mm)
with
TIGRunner®
370 lb.
(168 kg)
All CE models conform to the applicable parts of the IEC 60974 series of standards.
*Indicates sense-voltage for Lift-Arc TIG and Low OCV Stick.
™
Control Panel
11
12
10
13
9
1
9. Amperage Control
10. Encoder Control
11. Ammeter Display
12. Voltmeter Display
13. Memory Display
Additional Setup Parameter Values
Preprogrammed Starts
Dynasty 350
.020 – 3/16 in. tungsten
Dynasty 700
.040 –1/4 in. tungsten
f
2
3
4
5
6
7
8
Control Panel Parameter Values
1. Memory
36 Combinations
(9 AC TIG)
(9 AC Stick)
(9 DC TIG)
(9 DC Stick)
2. Polarity
AC/DC
3. Process/
TIG: HF Impulse, Lift Arc
Arc Starting
STICK: Adaptive Hot Start
4. Output Control Standard Remote,
2T Trigger Hold, Output ON
5. Pulser Control
Pulses per Second DC: 0.1– 5000 PPS
AC: 0.1– 500 PPS
Peak Time
5 – 95%
Background Amps 5 – 95%
2
6. Sequencer Control
Initial Amps
Dynasty 350: 3 – 350 A
Dynasty 700: 5 –700 A
Initial Slope
0.0 – 50.0 seconds
Final Slope
0.0 – 50.0 seconds
Final Amps
Dynasty 350: 3 – 350 A
Dynasty 700: 5 –700 A
7. Gas/DIG Preflow 0.0 – 25.0 seconds
Postflow
Auto Postflow,
Adjust 0.0 – 50 seconds
DIG
0 –100%
8. AC Waveshape
EN Amperage
3 – 350 A/5 –700 A
EP Amperage
3 – 350 A/5 –700 A
Balance
30 – 99%
AC Frequency
20 – 400 Hz
Programmable Starts
Amperage
Dynasty 350: 3 – 200 A
Dynasty 700: 5 – 200 A
Time
0 – 200 milliseconds
Ramp Time
0 – 250 milliseconds
Minimum Amperage Dynasty 350: 3 – 25 A
Dynasty 700: 5 – 25 A
Additional Triggers 3T, 4T, Mini Logic,
4T Momentary
Waveshapes
Advance Squarewave,
Soft Squarewave, Sine
Wave, Triangular wave
Amplitude Lock
EN EP Same,
EN EP Independent
Spot/Weld Timer
0.0 – 999 seconds
OCV
Low OCV, Normal OCV
Stick-Stuck Check
On/Off
Lockouts
Four levels
Arc Timer
0.0 – 9999 hours
and 0 – 59 minutes
Cycle Counter
0 – 999,999 cycles
Meter Calibration
±0 – 20.0 amps
±0 – 20.0 volts
Performance Data
DUTY CYCLE
Dynasty 350
%
3-PHASE
AMPERAGE
30%
60%
100%
%
Dynasty 700
350 A
300 A
250 A
30%
60%
100%
1-PHASE
AMPERAGE
10%
30%
60%
100%
3-PHASE
AMPERAGE
%
1-PHASE
AMPERAGE
%
350 A
250 A
225 A
180 A
700 A
600 A
500 A
10%
30%
60%
100%
700 A
500 A
450 A
360 A
TIG Upgrade Chart
Which Machine is Right for You?
Why Upgrade?
Syncrowave 350
UPGRADE
Dynasty 350
Maximum Thickness Capacity
1/2-in. Aluminum
5/8-in. Aluminum
High Frequency Arc Starting
Continuous HF
Start Only
AC Frequency Control
(Aluminum TIG)
Fixed at 60 Hz
Variable 20–400 Hz
AC Waveforms
(Aluminum TIG)
Soft Squarewave
Advanced Squarewave
Soft Squarewave
Dynasty 350 Benefits
Increases aluminum thickness.
Start Only limits HF interference issues.
Higher frequencies provide better arc control
and faster travel speeds.
Advanced Squarewave =Travel faster
Soft Squarewave = Maximum puddle control
Sine Wave
Triangular Wave
Sine Wave = Traditional characteristics
Triangular Wave = Reduced heat input
Waveshaping controls maintain the point. The
benefits are: reduced heat input into your part,
smaller weld beads, better starting and more
control of the arc.
Weld Aluminum
with Pointed Tungsten
(Aluminum TIG)
Portability
496 lb. (225 kg)
135 lb. (61 kg)
Easier to move because of size and weight.
Power Flexibility
Manual Link
208/230/460 V
1-Phase
Auto-Line™
208–575 V
1-Phase or 3-Phase
Auto-Line™ allows the unit to operate on any
voltage. 1- or 3-phase. Even generators!
Line Draw at 300 Amps
110 A, 230 V, 1-Phase
32 A, 230 V, 3-Phase
Line requirement to operate is much less. Smaller
electrical service needed, smaller breaker/fuses
and power cord.
Precise Controls
Some Digital Controls
All Digital Controls
Accuracy and repeatability with all digital controls.
3
AC Waveshape Controls
Feature
Setting
AC Balance Control
Reduces balling
action and helps
maintain point
Minimum visible
oxide removal (etching)
50% EN
Increases balling
action of the
electrode
Visible oxide
removal (etching)
% EN
Wider profile
ideal for buildup work
60 Hz
Current
Bead
% EP
0
% EN
Note: Decreasing the AC Frequency
softens the arc and broadens the weld
puddle for a wider weld.
Visible oxide
removal (etching)
Time
Current
120 Hz
%
EP
0
% EN
%
EP
Narrower profile
for fillet welds
and automated
applications
100A EP
200A EN
Current
Independent AC Amperage
Control
0
EP+
More current
in EN than EP:
Faster travel speeds
and deeper
penetration
EN –
Time
Current
200A EP
100A EN
0
EP+
EN –
Time
Bead
Visible oxide
removal (etching)
% EN
Time
4
Bead
% EP
0
AC Frequency Control
Allows the EN and EP amperage
values to be set independently. Adjusts
the ratio of EN to EP amperage to
precisely control heat input to the
work and the electrode. EN amperage
controls the amount of heat directed
to the work, while EP amperage
dramatically affects the arc cleaning
action (along with the AC Balance
control). Increased EN amperage also
provides deeper penetration and
allows for increased travel speeds.
Bead
% EP
% EN
Time
Controls the width of the arc cone.
Increasing the AC Frequency
provides a more focused arc and
increased directional control.
Weld Effect
0
Time
Current
Note: Set the AC Balance control for
adequate arc cleaning (etching) action at
the sides and in front of the weld puddle.
AC Balance should be fine-tuned
according to the amount of etching
desired.
75% EN
Current
Controls arc cleaning action.
Adjusting the % EN of the AC wave
controls the width of the etching zone
surrounding the weld.
Arc Effect
More current
in EP than EN:
Shallow penetration,
increased balling
and etching
Bead
Minimum visible
oxide removal (etching)
Bead
Visible oxide
removal (etching)
AC Waveshape Controls (Continued)
AC Waveform Selection
Select from four different AC waveforms to optimize the arc characteristic for your application. Choose from:
Advanced Squarewave
Soft Squarewave
All the benefits of
advanced square,
fine tuned to provide
a smooth, soft arc
with maximum
puddle control and
good wetting action.
(+)
Fast transitions for
responsive and
dynamic arc.
0
(–)
Amps
Amps
(+)
0
(–)
Time (1 AC Cycle)
Time (1 AC Cycle)
Sinewave
0
(–)
(+)
Amps
Square transitions
eliminate the need for
continuous HF, while
the sinewave peaks
soften the arc.
(+)
Amps
Triangular Wave
0
(–)
Time (1 AC Cycle)
Time (1 AC Cycle)
Unconventional wave
provides the punch of
the peak amperage,
while reducing overall
heat input. Quick puddle
formation reduces weld
time — limiting heat
input and reducing weld
distortion, especially
on thin materials.
Pulsed TIG Controls
High-Speed Pulsed TIG Controls
• PPS Pulses per second (Hz): DC = 0.1 – 5,000 PPS / AC = 0.1 – 500 PPS
• % ON – % Peak Time: 5 – 95% (Controls the amount of time during each pulse cycle at the PEAK amperage.)
• Background Amps: 5 – 99% (Sets the low-pulse amperage value as a % of the Peak Amps.)
Conventional Pulsed TIG
Peak
Amps
Peak Time %
Background
Amps
(% of Peak)
High-Speed Pulsed TIG
Peak
Amps
Peak Time %
Background
Amps
(% of Peak)
Pulse Cycle
Typically from 1 to 10 PPS. Provides a heating and cooling effect
on the weld puddle and can reduce distortion by lowering the
average amperage. This heating and cooling effect also produces a
distinct ripple pattern in the weld bead. The relationship between
pulse frequency and travel speed determines the distance between
the ripples. Slow pulsing can also be coordinated with filler metal
addition and can increase overall control of the weld puddle.
Pulse Cycle
In excess of 40 PPS, Pulsed TIG becomes more audible than visible —
causing increased puddle agitation for a better as-welded microstructure.
Pulsing the weld current at high speeds — between a high Peak and a
low Background amperage — can also constrict and focus the arc.
This results in maximum arc stability, increased penetration and
increased travel speeds (Common Range: 100 – 500 PPS).
The Arc-Sharpening effects of high speed pulsing are expanded to new
dimensions. The ability to pulse at 5,000 PPS further enhances arc
stability and concentration potential — which is extremely beneficial to
automation where maximum travel speeds are required.
5
Dynasty 350 and 700 Models/Packages
®
Machines and Preconfigured
Water-Cooled Packages
Order machine only or use a single stock number to
order a complete preconfigured system.
#907 204 001 and
#907 101 001
packages shown.
#907 204 and
#907 101
models shown.
Machine Only
#951 627
package shown.
TIGRunner® Package (Machine/Cart/Cooler)
Complete Package (Machine/Cart/Cooler/Torch Kit/Remote)
Dynasty 350 (CSA)
Dynasty 350 (CE)
#907 204
#907 204 021
Dynasty 350 (CSA)
#907 204 001
Dynasty 350 (CSA) w/Foot Control, W-375
#951 626
Dynasty 350 (CSA) w/Wireless Foot Control, W-375 #951 627
Dynasty 700 (CSA)
Dynasty 700 (CE)
#907 101
#907 101 021
Dynasty 700 (CSA)
#907 101 001
Dynasty 700 (CSA) w/Foot Control
Dynasty 700 (CSA) w/Wireless Foot Control
Comes with:
• 8-ft. power cord (no plug) (350 model)
• Setup DVD and quick reference guide
• Two 50-mm Dinse-style connectors (350 model)
• Two thread-lock connectors (700 model)
• One thread-lock water-cooled connector
(700 model)
Comes with:
• 8-ft. power cord (no plug) (350 model)
• Setup DVD and quick reference guide
• Runner™ cart #300 244
• Coolmate™ 3.5 #300 245
#951 403
#951 404
Comes with:
• 8-ft. power cord (no plug) (350 model)
• Setup DVD and quick reference guide
• Runner™ cart #300 244
• Coolmate™ 3.5 #300 245 and 4 gallons of coolant #043 810
• W-375 torch kit #301 268 (350 model) or
W-400 (WP-18SC) torch kit #300 186 (700 model)
• Remote control #194 744 (foot) or
Remote control #300 429 (wireless foot)
#907 204 001
Dynasty 350
TIGRunner® shown
with four bottles
of #043 810
Low-Conductivity
Coolant.
Build a
Water-Cooled
Package
Select desired
stock number
for each step.
#194 744 remote shown.
Step #1 • Select Dynasty TIGRunner® and Coolant
Dynasty 350 TIGRunner
Dynasty 700 TIGRunner
#907 204 001
#907 101 001
&
Low-Conductivity Coolant
(must be ordered in quantities of four)
#043 810
#301 268 kit shown.
Step #2 • Select Remote Control
Wireless Foot
RFCS-14 HD Foot
RCC-14 E/W Fingertip
RCCS-14 N/S Fingertip
RMS-14 Pushbutton
RMLS-14 Momentary/Maintained
RHC-14 Hand
Wireless Hand
Step #3 • Select Torch Kit
#300 429
#194 744
#151 086
#043 688
#187 208
#129 337
#242 211 020
#300 430
W-250 (WP-20) Kit
#300 185
W-375 Kit
#301 268
(recommended for 350 model)
W-400 (WP-18SC) Kit
#300 186
(recommended for 700 model)
Genuine Miller Accessories
®
Water-Cooled Torch Kits
W-250 (WP-20) Torch Kit #300 185
Weldcraft™ W-250 (WP-20) 25-foot (7.6 m)
TIG torch with Dinse-style connector
Torch cable cover
Work clamp with 15-foot (4.6 m) 1/0 cable
and Dinse-style connector
Flowmeter regulator
Gas hose (regulator to machine)
AK4C torch accessory kit includes nozzles,
collets, collet bodies and 2% ceriated
tungsten electrodes (1/16, 3/32 and 1/8 inch)
6
W-375 Torch Kit #301 268
Recommended for Dynasty 350
Weldcraft™ W-375 25-foot (7.6 m) TIG torch
with Dinse-style connector
Torch cable cover
Work clamp with 15-foot (4.6 m) 1/0 cable
and Dinse-style connector
Flowmeter regulator
Gas hose (regulator to machine)
AK4C torch accessory kit includes nozzles,
collets, collet bodies and 2% ceriated
tungsten electrodes (1/16, 3/32 and 1/8 inch)
W-400 (WP-18SC) Torch Kit #300 186
Recommended for Dynasty 700
Weldcraft™ W-400 (WP-18SC) 25-foot (7.6 m)
TIG torch with thread-lock connector
Torch cable cover
Work clamp with 12-foot (3.7 m) 4/0 cable
with thread-lock connector
Flowmeter regulator
Gas hose (regulator to machine)
AK18C torch accessory kit includes nozzles,
collets, collet bodies and 2% ceriated
tungsten electrodes (3/32, 1/8 and 5/32 inch)
Genuine Miller Accessories (Continued)
®
Water-Cooled TIG Torch
Connector #195 377
For Dynasty ® and
Maxstar ® 350. 50-mm
Dinse-style with water return line. For use with
all Weldcraft™ water-cooled torches.
Water-Cooled TIG Torch
Connector #225 028
For Dynasty ® and Maxstar ®
700. 50-mm thread-lock
with water return line. For
use with all Weldcraft™
water-cooled torches.
Runner™ Cart #300 244
Designed to accommodate
Dynasty® or Maxstar® 350
or 700 power sources and
a Coolmate™ 3.5 Cooler.
Cart features single
cylinder rack, foot pedal
holder, three cable/torch
holders, and two TIG
electrode filler holders.
Remote Controls and Switches
Wireless Remote Foot
Control #300 429
For remote current and
contactor control. Receiver
plugs directly into the
14-pin receptacle of Miller
machine. 90-foot (27.4 m) operating range.
Wireless Remote Hand
Control #300 430
For remote current and
contactor control. Receiver
plugs directly into the
14-pin receptacle of Miller
machine. 300-foot (91.4 m) operating range.
RCCS-14 Remote
Contactor and Current
Control #043 688
North/south rotary-motion fingertip control
attaches to TIG torch using two hook-and-loop
fasteners. Includes 26.5-foot (8 m) cord and
14-pin plug.
Coolmate™ 3.5
#300 245
Designed to integrate
with the Dynasty® and
Maxstar® 350 and 700
power sources. For use with water-cooled torches
rated up to 600 amps. 3.5 gallon capacity.
RCC-14 Remote
Contactor and Current
Control #151 086
East/west rotary-motion fingertip control
attaches to TIG torch using two hook-and-loop
fasteners. Includes 26.5-foot (8 m) cord and
14-pin plug.
Low-Conductivity TIG Coolant #043 810
Sold in multiples of four in one-gallon recyclable
plastic bottles. Miller coolants contains a base of
ethylene glycol and deionized water to protect
against freezing to -37° Fahrenheit (-38° C) or
boiling to 227° Fahrenheit (108° C).
RFCS-14 HD Foot Control #194 744
Maximum flexibility is accomplished with a
reconfigurable cord that can exit the front, back
or either side of the pedal. Foot pedal provides
remote current and contactor control. Includes
20-foot (6 m) cord and 14-pin plug.
Automation Interface Connection Kit
#195 516 Field
Provides control of power source welding
parameters through a 28-pin receptacle. The
28-pin receptacle replaces the standard 14-pin
receptacle and requires a PLC controller to
operate the power source. Ideal for automated
equipment integration.
RHC-14 Hand Control
#242 211 020
Miniature hand control for
remote current and contactor
control. Dimensions: 4 x 4 x
3.25 inches (102 x 102 x 83 mm). Includes
20-foot (6 m) cord and 14-pin plug.
Weld Current Sensor #300 179 Field
Detects when work clamp is not connected and
prevents expensive damage to disconnect
devices and input power cord and wiring.
RMLS-14 Switch
#129 337
Momentary- and
maintained-contact rocker switch for contactor
control. Push forward for maintained contact
and backward for momentary contact. Includes
26.5-foot (8 m) cord and 14-pin plug.
RMS-14 On/Off Control
#187 208
Momentary-contact switch for contactor control.
Rubber-covered pushbutton dome switch ideal
for repetitive on-off applications. Includes
26.5-foot (8 m) cord and 14-pin plug.
Extension Cables for 14-Pin Remote Controls
#242 208 025 25 ft. (7.6 m)
#242 208 050 50 ft. (15.2 m)
#242 208 080 80 ft. (24.4 m)
Educational Materials
To order, please call Miller Literature at 866-931-9732
or visit MillerWelds.com/resources/tools.
Gas Tungsten Arc Welding (TIG) Publication
#250 833
Simulator and Setup CD-ROM #233 558
Setup DVD #251 116
Video topics include tungsten selection, setup
menus, DC pulse, sequencer, balance and
frequency settings. (Included with machine.)
TIG Welding Gloves
Classic TIG
Welding Gloves
#249 199 Large
#249 200 X-Large
Unlined pigskin leather palm
with reinforced palm patch.
Performance TIG Gloves
#263 345 X-Small (Women’s)
#263 346 Small (Women’s)
#263 347 Medium
#263 348 Large
#263 349 X-Large
Completely unlined, goat grain
leather with triple-padded palm.
Performance TIG/Multitask
Gloves
#263 352 Small
#263 353 Medium
#263 354 Large
#263 355 X-Large
Goat grain leather with dualpadded palm and wool back.
Tungsten
Tungsten
Amp Range
2% Ceriated (AC/DC)
2% Lanthanated (AC/DC)
1/16 in. (1.6 mm)
70 –150 A
WC116X7
WL2116X7
3/32 in. (2.4 mm)
140 – 250 A
WC332X7
WL2332X7
1/8 in. (3.2 mm)
225 – 400 A
WC018X7
WL2018X7
5/32 in. (4.0 mm)
300 – 500 A
WC532X7
WL2532X7
7
Ordering Information
Equipment and Options
Stock No.
Description
Dynasty 350
#907 204
Auto-Line 208 – 575 VAC, 50/60 Hz, CSA. 8-ft. power cord
Dynasty® 350 International
#907 204 021
Auto-Line™ 380 – 575 VAC, 50/60 Hz, CE. 8-ft. power cord
Dynasty® 350 TIGRunner ®
#907 204 001
Auto-Line™ 208 – 575 VAC, 50/60 Hz, CSA. 8-ft. power cord. Requires coolant
Dynasty® 350 Wireless Complete W-375
#951 627
Auto-Line™ 208 – 575 VAC, 50/60 Hz, CSA. 8-ft. power cord
Dynasty® 350 Complete W-375
#951 626
Auto-Line™ 208 – 575 VAC, 50/60 Hz, CSA. 8-ft. power cord
Dynasty 700
#907 101
Auto-Line™ 208 – 575 VAC, 50/60 Hz, CSA
Dynasty 700 International
#907 101 021
Auto-Line™ 380 – 575 VAC, 50/60 Hz, CE
Dynasty 700 TIGRunner
#907 101 001
Auto-Line™ 208 – 575 VAC, 50/60 Hz, CSA. Requires coolant
Dynasty® 700 Complete
with Wireless Remote Foot Control
#951 404
Auto-Line™ 208 – 575 VAC, 50/60 Hz, CSA
Dynasty® 700 Complete with Foot Control
#951 403
Auto-Line™ 208 – 575 VAC, 50/60 Hz, CSA
Water-Cooled Torch Kits
#300 185
#300 990
#301 268
#300 186
W-250 (WP-20)
W-280 (WP-280)
W-375 (recommended for Dynasty 350)
W-400 (WP-18SC) (recommended for Dynasty 700)
Water-Cooled TIG Torch Connectors
#195 377
#225 028
Connects Weldcraft ™ water-cooled torches to Dinse-style connector
Connects Weldcraft ™ water-cooled torches to Dynasty 700
(thread-lock connector included with 700 models)
Weldcraft ™ A-200 (WP-26) TIG Torch
#WP-26-25-R
For Dynasty 350 only. 25-ft. (7.6 m) cable. Requires #195 379 connector
®
®
®
®
®
Qty.
™
TIG Torches, Kits and Connectors
Tungsten
See page 7
Remote Controls
Wireless Remote Foot Control
#300 429
Foot control with wireless 90-ft. (27.4 m) operating range
Wireless Remote Hand Control
#300 430
Hand control with wireless 300-ft. (91.4 m) operating range
RCCS-14
#043 688
North/south fingertip control
RCC-14
#151 086
East/west fingertip control
RFCS-14 HD
#194 744
Heavy-duty foot control
RHC-14
#242 211 020
Hand control
RMLS-14
#129 337
Momentary/maintained rocker switch
RMS-14
#187 208
Momentary rubber dome switch
Extension Cables
See page 7
Accessories
Runner™ Cart
#300 244
Coolmate™ 3.5
#300 245
120 VAC, 50/60 Hz, CE. Requires coolant
TIG Coolant
(Must be ordered in quantities of four)
#043 810
1-gallon plastic bottle. Protects against freezing to
-37° Fahrenheit (-38° C) or boiling to 227° Fahrenheit (108° C)
Automation Interface Kit
#195 516
Field. Provides required automation connections
Weld Current Sensor
#300 179
Field. Installation required
Dinse-Style Connector 50 mm (1 male)
#042 418
Used to connect weld cable to Dinse terminal machine
Thread-Lock Connectors (2 male)
#225 029
Used to connect weld cable to Dynasty 700 or Maxstar 700
Dinse-Style Connector 50 mm
(1 male, 1 female)
#042 419
Used to extend weld cables
Dinse/Tweco® Adapter
#042 465
Male Dinse to female Tweco
Dinse/Cam-Lok Adapter
#042 466
Male Dinse to female Cam-Lok
Gas Tungsten Arc Welding (TIG) Publication
#250 833
Simulator and Setup CD-ROM
#233 558
Setup DVD (included with machine)
#251 116
TIG Welding Gloves
Date:
Distributed by:
© 2013 Miller Electric Mfg. Co.
See page 7
Total Quoted Price:
Price
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
