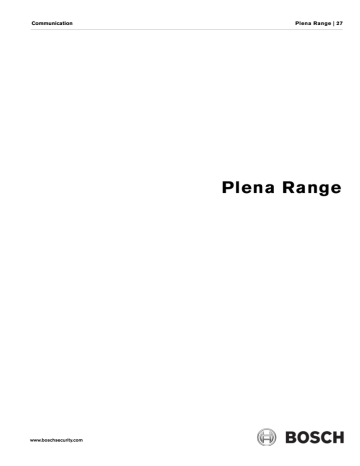

Plena Range | 27
Plena Range
www.boschsecurity.com
28 | Plena Range
LBB 19xx/10 Plena Mixer
Amplifiers
Communication
Functions
All microphone inputs have a phantom power supply to provide
power to condenser microphones and selectable speech filters
for improved intelligibility. Microphone inputs 3 and 4 can also
be switched to line sensitivity. Furthermore, separate music
inputs are available with their own input selector and volume
control.
Microphone input 1 can be given priority over all other
microphone and music inputs. Priority is given upon contact
closure on the 5-pin DIN connector or if the signal level on input
1 exceeds a predefined value (VOX).
A 2-tone chime can be selected to precede a priority
announcement.
A telephone or emergency input with VOX activation is provided
that takes overall priority, and has its own preset volume control.
The Plena mixer amplifier is a high-performance, versatile fourmicrophone inputs mono mixer amplifier, capable of fulfilling a
wide variety of public address requirements at surprisingly low
cost.
Features
• Range of single and dual zone mixer amplifiers from 30 W to
120 W
• Four low-noise balanced inputs for microphone or line
• Selectable priority & vox switching on microphone input 1
• Optional 2-tone chime to precede announcements
• Separate overruling emergency input with vox
• Loudspeaker connections for normal, call-only and mix-only
zones
• Choice of CD, tuner or auxiliary music inputs
An interconnection input and output enables external sound
processing equipment to be connected, such as an equalizer or
the Plena feedback suppressor between the preamplifier section
and the power amplifier. A tape output is provided and
a LED VU-meter allows the master output to be monitored.
The Plena mixer amplifiers come in a range of output powers.
This power is directly available on 70 V and 100 V constant
voltage outputs and on a low impedance output for 8 ohm load.
Moreover, the amplifiers have a separate 70 V/100 V Call Only
output for addressing areas where only priority announcements
are required, and a 70 V/100 V Mix Only output for areas where
no priority announcements should be heard. The Call Only
output can also be used for 3-wire remote volume control
override.
Additional Plena power amplifiers can be connected in a loopthrough arrangement to the balanced line output if more output
power is needed than the built-in power stage can deliver.
The LBB 1914/10 offers the same functionality as the
LBB 1912/10 but also has two front-panel switches to direct the
amplifier output to two separate zones. This is useful if some
announcements or background music should only be heard in
part of a building. Priority calls, however, are always routed to
both zones, even if unselected for e.g. music.
Parts Included
Quantity
Components
1
LBB 19xx Plena Mixer Amplifier
1
Power cord
Certifications and Approvals
EMC emission
acc. to EN 55103-1
EMC immunity
acc. to EN 55103-2
www.boschsecurity.com
Communication
Plena Range | 29
Technical Specifications
Electrical
Mains Voltage
Electrical
Impedance
22 kOhm
115 Vac/230 VAC,
S/N (flat at max volume)
>70 dB
±10%, 50/60 Hz
S/N (flat at min volume/muted)
>75 dB
Headroom
>25 dB
Max mains power consumption
LBB 1903/10
100 VA
LBB 1906/10
200 VA
Sensitivity
LBB 1912/10, LBB 1914/10
400 VA
Impedance
>10 kOhm
VOX
threshold 50 mV
Max mains inrush current
Emergency/telephone (Screw, balanced)
LBB 1903/10
4.5 A/9 A (230 Vac/115 VAC)
LBB 1906/10
5 A/10 A (230 Vac/115 VAC)
LBB 1912/10, LBB 1914/10
8 A/16 A (230 Vac/115 VAC)
S/N (flat at max volume)
Battery Voltage
24 VDC, +20%/-10%
Interconnection (Cinch)
Max battery current
100 mV – 1 V adjustable
attack time 150 ms
release time 2 s
>65 dB
Nominal Level
1V
LBB 1903/10
1.6 A
Impedance
>10 kOhm
LBB 1906/10
3A
Outputs
LBB 1912/10, LBB 1914/10
6A
Master Output (3-pin XLR, balanced)
Performance
Frequency Response
Distortion
Nominal Level
1V
50 Hz – 20 kHz (+1/-3 dB,
Impedance
<100 ohm
@ -10 dB ref. rated output)
Tape Output (Cinch, 2 x mono)
<1% @ rated output power,
Nominal Level
350 mV
1 kHz
Impedance
1.5 kOhm
Bass Control
-8/+8 dB @ 100 Hz
Interconnection (Cinch)
Treble Control
-8/+8 dB @ 10 kHz
Nominal Level
1V
Inputs
Impedance
<100 ohm
Input 1 (5-pin DIN, balanced with phantom power,
Loudspeaker outputs (Screw, floating)
6.3 mm phone jack)
Max / rated output power 70 / 100 V
Input 2 (3-pin XLR, balanced with phantom power,
LBB 1903/10
6.3 mm phone jack)
LBB 1906/10
90 W / 60 W
180 W / 120 W
Sensitivity
1 mV
LBB 1912/10, LBB1914/10
45 W / 30 W
Impedance
>1 kOhm
8 Ohm Output
S/N (flat at max volume)
63 dB
LBB 1903/10
16 V (30 W)
S/N (flat at min volume/muted)
> 75 dB
LBB 1906/10
22 V (60 W)
CMRR
> 40 dB (50Hz-20kHz)
LBB 1912/10, LBB 1914/10
31 V (120 W)
Headroom
> 25 dB
Output power @ 24 V battery
-1 dB ref. rated power
Speech Filter
-3 dB @ 315 Hz, high-pass,
6 dB/oct
Phantom Power Supply
16 V via 1.2 kOhm
VOX (input 1 only)
attack time 150 ms
release time 2 s
Input 3,4 (3-pin XLR, balanced with phantom power,
Environmental
Operating Temperature
-10°C to +45ºC
Storage Temperature
-40°C to +70ºC
Relative Humidity
<95%
Acoustic Noise Level of Fan
<40 dB SPL @ 1m
6.3 mm phone jack)
Sensitivity
(LBB1912/10 & LBB1914/10)
1 mV (microphone),
200 mV (line)
Impedance
>5 kOhm (line)
LBB 1903/10
S/N
>63 dB (microphone),
(flat at max volume)
>70 dB (line)
S/N
>75 dB
(flat at min volume/muted)
CMRR
>40 dB (50 Hz-20 kHz)
Headroom
>25 dB
-3 dB @ 315 Hz, high-pass,
6dB/oct
16 V via 1.2 kOhm (microphone)
Music Input (Cinch, stereo converted to mono)
Sensitivity
www.boschsecurity.com
(19", 2U )
Weight
100 dB
Phantom Power Supply
100 x 430 x 270 mm
(WxH)
>1 kOhm (microphone),
Dynamic Range
Speech Filter
Dimensions
200 mV
approx. 5 kg
LBB 1906/10
approx. 8.5 kg
LBB 1912/10, LBB 1914/10
approx. 10.5 kg
19" Mounting Brackets
LBC 1901/00
to be ordered separately
30 | Plena Range
Communication
Ordering Information
Model & Description
LBB 1903/10 Plena Mixer Amplifier
45W/30 W, 100 VA, 4.5 A / 9 A (230 Vac/ 150 Vac)
LBB 1906/10 Plena Mixer Amplifier
90 W / 60 W, 200 VA, 5 A / 10 A (230 Vac/ 150 Vac)
LBB 1912/10 Plena Mixer Amplifier
180 W/120 W, 100 VA, 8 A / 16 A (230 Vac/ 150 Vac)
LBB 1914/10 Plena Mixer Amplifier
180 W /120 W, 100 VA, 8 A / 16 A (230 Vac/ 150 Vac);
2 front panel switchers

www.boschsecurity.com
32 | Plena Range
LBB 1920/00 Plena Universal PreAmplifier
Communication
In order to get a message through (although the local volume
may be set to a low volume level for e.g. background music),
override relay contacts are provided for overriding local
loudspeaker volume controls. Upon closing one of the input
channel priority contacts, this relay will be activated. For the
emergency input another VOX activated relay is provided to
trigger external equipment or for local volume control override.
An overload protected 24 VDC output is available to supply
power to external relays, so no additional external power supply
is required.
In parallel to the balanced XLR master output an additional
microphone level output is available on DIN. This provides a
signal to e.g. a mixing desk or microphone mixer amplifier.
A tape output is also available.
The Plena Pre-Amplifier is a high-performance, versatile fourinput channel mono mixer pre-amplifier, capable of fulfilling a
wide variety of public address requirements.
Features
A monitor selector with headphone connector and
LED VU-meter allows for monitoring of the master output or one
of the input channels.
Parts Included
• Four universal low-noise input channels for microphone or line
Quantity
Component
• Separate tone control, speech filter and direct output per
channel
1
LBB 1920/00 Plena Universal Pre-amplifier
1
Power cord
• Selectable blocking, serial and mixing priorities
1
Plena CD
• Multifunctional inter-connection point
1
19”mounting brackets
• Priority and emergency relay outputs
• Master volume control
Certifications and Approvals
EMC emission
acc. To EN 55103-1
EMC immunity
acc. To EN 55103-2
Functions
All input channels provide a choice of a balanced 3-pin XLRconnector for microphone or line level (selectable), a balanced
5-pin DIN-connector for microphone or line level with priority
contact, or a line level stereo cinch-connector, converted to
mono. Microphone inputs have a phantom power supply. Each
input channel has its own volume and tone control, a selectable
speech filter to reduce the bass content of the speech signal for
improved intelligibility, and a balanced direct output on XLR after
the channel controls.
Three priority modes are available for the input channels. In the
blocking mode the input channel that is activated first gets
priority over all other input channels. In the serial mode input
channel 1 has priority over channels 2, 3 and 4, channel 2 has
priority over channels 3 and 4, and channel 3 has priority over
channel 4. Each of the input channels can be mixed to the
master output, irrespective of priority, by separately setting that
channel to the mixing mode.
Balanced XLR interconnection input and output are provided in
combination with an insertion/cascade selector. In insertion
mode an external sound processing device, e.g. an equalizer,
can be connected between these connections. In the cascade
mode, multiple LBB1920/00 pre-amplifiers can be cascaded to
increase the number of input channels to 8, 12, or even more.
Internally the interconnection input can be switched as an
emergency input with a signal level detector (VOX). If an
emergency audio signal is detected, this input overrules all other
inputs and even bypasses the master volume control. The
emergency input has its own internal volume preset.
www.boschsecurity.com
Communication
Plena Range | 33
Technical Specifications
Electrical
Mains Voltage
Interconnection
Interconnection/emergency input (3-pin XLR, balanced)
230 VAC / 115 VAC, ±15%,
Sensitivity
50 / 60 Hz
Max Mains Power
100 mV – 1V adjustable
25 VA
Consumption
200 mV (interconnection),
(emergency)
Impedance
>10 kOhm
45 mV (emergency)
Battery Voltage
24 VDC, +20% / -10%
VOX Threshold
Max Battery Current
1A
Interconnection Output (3-pin XLR, balanced)
Max Mains Inrush Current
1.5 A @ 230 VAC / 3 A @ 115 VAC
Nominal Level
200 mV
Impedance
<100 ohm
Performance
Frequency Response
50 Hz – 20 kHz (+1 / -3 dB)
Relays
Distortion
<0.5 %
Priority Relay Contacts
30 V, 1 A
Bass Control
±10 dB @ 100 Hz
Emergency Relay Contacts
30 V, 1 A
Treble Control
±10 dB @ 10 kHz
DC Supply Output Voltage
24 V, 250 mA max
Channel Separation
>70 dB @ 1 kHz
Priority Mute
>40 dB
Environmental
Inputs
Operating Temperature
Mic/Line inputs 1-4 (3-pin XLR/5-pin DIN, balanced)
Storage Temperature
-40°C to +70°C
Sensitivity
1 mV (microphone), 200 mV (line)
Relative Humidity
<95%
Impedance
>1 kOhm (microphone),
Dimensions
100 x 430 x 270 mm
>5 kOhm (line)
-10°C to +55°C
(19" wide, 2U high)
S/N
>63 dB (microphone), >70 dB
Weight
approx. 5 kg
(flat at max volume)
(line)
19" mounting brackets
included
S/N
>75 dB
(flat at min volume/muted)
Ordering Information
CMRR
>40 dB (50 Hz – 20 kHz)
Model & Description
Headroom
>25 dB
LBB 1920/00 Plena Universal Pre-Amplifier
Speech Filter
-3 dB @ 315 Hz,
high-pass, 6 dB / oct
Phantom Power Supply
16 V via 1.2 kOhm, in mic mode only
Line Inputs 1-4 (Cinch, unbalanced, stereo converted to mono)
Sensitivity
200 mV
Impedance
22 kOhm
Dynamic Range
100 dB
S/N (flat at max volume)
>70 dB
S/N (flat at min volume/muted)
>75 dB
Headroom
>25 dB
Outputs
Direct outputs 1-4 (3-pin XLR, balanced)
Nominal Level
1V
Impedance
<100 ohm
Master Output (3-pin XLR, balanced)
Nominal Level
1V
Impedance
<100 ohm
Master Output (5-pin DIN, balanced)
Nominal Level
4 mV (microphone level)
Impedance
<100 ohm
Tape Output (Cinch, 2 x mono)
Nominal Level
350 mV
Impedance
<1 kOhm
Headphone Output (6.3mm jack stereo, signal mono)
Nominal Level
3V
Impedance
<100 ohm
www.boschsecurity.com
34 | Plena Range
LBB 1925/10 Plena System PreAmplifier
Communication
An emergency/telephone input with signal level detector (VOX)
and rear volume preset may detect an audio signal and has the
highest priority to all zones. Two trigger inputs (contact closure)
control alarm or time signals to selectable zones. Many different
chine tones are available for selection. Furthermore, a PC audio
input with RS-232 control has been provided for PC control of
zones or automatic messaging in combination with the Plena
message manager.
There are six levels of priority available for BGM, microphone,
call stations, trigger inputs and emergency input.
The LBB1925/10 has a set of relays for zone-switching the
power amplifier output(s) to different loudspeaker groups.
The Plena system pre-amplifier is a high-performance, versatile
call and BGM (background music) mono pre-amplifier, capable
of fulfilling a wide variety of public address requirements.
It provides dual channel operation for calls and BGM
simultaneously for up to a maximum of six different zones, using
two Plena booster amplifiers. In addition, single channel
operation is possible with only one Plena Amplifier.
Features
Each of the zones can be switched between the call channel
(upon call-station selection or all-call microphone or emergency
activation), the BGM channel (upon front panel selection), or off.
In order to get a message through (although the local volume
controls may be set to a low volume level for e.g. background
music), override relay contacts are provided for each zone to
separately override local loudspeaker volume controls. Both the
3-wire and 4-wire override schemes are supported. Upon a call
or an activated trigger input these contacts will be activated for
the appropriate zones, together with an additional voltage-free
contact (Call Active) for control purposes.
• 6-zone system pre-amplifier, with single or dual channel
operation
Parts Included
• Two inputs for call stations
Quantity
Component
• Universal input for microphone/line, with speech optimized
tone control
1
LBB 1925/10 PLENA System Pre-amplifier
1
Power cord
• Three inputs for BGM selection and music optimized tone
control
1
Plena CD
1
19”mounting brackets
• Front panel zone selection for BGM and call station zone
selection for calls
• PC and trigger inputs for automated calls, alarm tones and
chimes to selected zones.
Functions
The call channel provides two inputs for Plena call stations,
LBB 1941/00 (all-call) or LBB 1946/00 (6-zone), with loopthrough capability, and a universal balanced input, having the
choice of a 3-pin XLR connector for microphone or line level
(selectable), or a 5-pin DIN-connector with all-call priority
contact, which may also start one of the available chime
attention signals.
Certifications and Approvals
EMC emission
acc. to EN 55103-1
EMC immunity
acc. to EN 55103-2
Installation/Configuration Notes
A 24 VDC output is available to supply power to external relays,
so no external power supply is required. A headphone connector
and LED VU-meter allows for monitoring of the master output.
The microphone input has a selectable speech filter for improved
intelligibility, a volume control, and bass and treble tone controls
with shelving characteristics optimized for speech. The call
channel is available on the balanced XLR master output.
The BGM channel provides three inputs on stereo Cinchconnectors, converted to mono, with front panel selection,
volume control and bass and treble tone controls with shelving
characteristics optimized for music. The BGM channel has a
direct output on balanced XLR for dual channel operation. It can
also feed the master output, with the lowest priority, for single
channel operation. The routing of BGM can be selected by
means of zone selector switches on the front panel.
www.boschsecurity.com
Communication
Plena Range | 35
Interconnection
Technical Specifications
Electrical
Mains Voltage
Interconnection/emergency input (3-pin XLR, balanced)
230 VAC / 115VAC, ±15%,
Sensitivity
50 / 60 Hz
200 mV (interconnection),
100 mV – 1 V adjustable
Max Mains Power Consumption
25 VA
Battery Voltage
24 VDC, +20%/-10%
Impedance
>10 kOhm
Max Battery Current
1A
VOX Threshold
45 mV emergency
Max Mains Inrush Current
1.5 A @ 230 Vac / 3 A @ 115 VAC
Interconnection output (3-pin XLR, balanced)
Nominal Level
200 mV
Frequency Response
50 Hz – 20 kHZ (+1/-3dB)
Impedance
<100 ohm
Distortion
<0.5%
Relays
Bass Control
±10 dB @ 100 Hz
Priority Relay Contacts
30 V, 1 A
Treble Control
±10 dB @ 10 kHz
Emergency Relay Contacts
30 V, 1 A
Channel Separation
>70 dB @ 1 kHz
DC Supply Output Voltage
24 V, 250 mA max
Priority Mute
>40 dB
Performance
Inputs
(emergency)
Environmental
Mic in
Operating Temperature
-10°C to +55ºC
Sensitivity
1 mV (microphone), 200 mV
Storage Temperature
-40°C to +70ºC
(line)
Relative Humidity
<95%
Impedance
>1 kOhm (mic.),
Dimensions
100 x 430 x 270 mm
>63 dB (mic.), >70 dB (line)
Weight
approx. 5 kg
S/N (flat at min volme/muted)
>75 dB
19" Mounting Brackets
included
CMRR
>40 dB (50 Hz – 20 kHz)
>5 kOhm (line)
S/N (flat at max volume)
(19" wide, 2U high)
Headroom
>25 dB
Ordering Information
Speech Filter
-3 dB @ 315 Hz,
Model & Description
high-pass, 6 dB/oct
LBB 1925/10 Plena System Pre-Amplifier
Phantom Power Supply
16 V via 1.2 kOhm, in mic. mode
only
3 Cinch inputs (unbalanced, stereo converted to mono)
Sensitivity
200 mV
Impedance
22 kOhm
S/N (flat at max volume)
>70 dB
S/N
>75 dB
(flat at min volume/muted)
Headroom
>25 dB
Outputs
Master Out (3-pin XLR, balanced)
Nominal Level
1V
Impedance
<100 ohm
Music Output (3-pin XLR, balanced)
Nominal Level
1V
Impedance
<100 ohm
Tape Output (Cinch, 2 x mono)
Nominal Level
350 mV
Impedance
<1 kOhm
Headphone output (6.3mm jack stereo, signal mono)
Nominal Level
3V
Impedance
<100 ohm
Zone Relays
250 V / 5 A
www.boschsecurity.com
36 | Plena Range
LBB 193x/x0 Plena Booster
Amplifier
Communication
Functions
The amplifiers are protected against overload and short circuits.
A temperature-controlled fan ensures high reliability at high
output power and low acoustic noise at lower power output.
Additionally, all booster amplifiers have an overheat protection
circuit that switches off the power stage if the internal
temperature reaches a critical limit due to poor ventilation or
overload. On the LBB 1938/00 this is shown by the front panel
overheat indicator.
The LBB 1930/x0 and LBB 1935/x0 has a balanced input and a
loop-through connector for easy connection of multiple booster
amplifiers to increase the available output power.
The LBB 1938/00 has two balanced inputs with priority control,
each with a loop-through facility. This allows for easy and
automatic switching between e.g. a local music source and a
priority announcement from a remote system. An additional
100 V line input is provided to connect the booster amplifiers to
a 100 V loudspeaker line, for additional output power e.g. on
remote locations.
The Plena series offers three types of booster amplifier:
the LBB 1930/x0 is a 120 W booster amplifier,
the LBB 1935/x0 is a 240 W booster amplifier and the
LBB 1938/00 is a very powerful 480 W booster amplifier.
These are high-performance mono amplifiers capable of fulfilling
a wide variety of public address requirements at a surprisingly
low cost. The LBB 1930/x0 and LBB 1935/x0 use the same
compact 19", 2U high housing for table-top use and rack
mounting, while the LBB 1938/00 comes in a 19”, 3U high
housing for table-top use and rack mounting.
Features
• 120 W, 240 W and 480 W booster amplifiers in a compact
housing
• 70 V/100 V and 8 ohm outputs
Sensitivity or level control is located on the rear of the unit to
avoid accidental setting change. A VU-meter with LED-bar
shows the output level.
The amplifiers have 70 V and 100 V outputs for constant voltage
loudspeaker systems and a low impedance output for 8 Ohm
loudspeaker loads.
The LBB 1938/00 has two separate priority controlled 100 V
outputs for zones that only need announcements made via the
priority input, and for zones that will not get any announcements
made via the priority input.
The booster amplifiers operate both on mains power and on a
24 V battery power supply for emergency back-up, with
automatic switchover.
The LBB 1938/00 has a front panel LED that indicates when the
unit is battery operated.
• Balanced line inputs and loop-through outputs
• 100 V input for slave operation on 100 V speaker line
Parts Included
• Temperature controlled fan for high reliability
Quantity
Component
• Mains and battery back-up operation
1
LBB 193x Plena Booster Amplifier
1
19" mounting brackets
1
Power cord
Certifications and Approvals
EMC emission
acc. to EN 55103-1
EMC immunity
acc. to EN 55103-2
www.boschsecurity.com
Communication
Plena Range | 37
Technical Specifications
Electrical
Electrical
Max/rated Output Power
Mains Voltage
70 / 100 V Output
LBB 1930/00, LBB 1935/00
230 VAC / 240 VAC, ±10%,
LBB 1930/50, LBB 1935/50
110 VAC, ±10%, 50 / 60 Hz
LBB 1938/00
230 VAC, ±10%, 50 / 60 Hz
50 / 60 Hz
8 ohm Output
Max Mains Power Consumption
LBB 1930/x0
400 VA
Output Power @ 24 V
LBB 1935/x0
800 VA
Battery Operation
LBB 1938/00
1600 VA
Max Mains Inrush Current
180 W / 120 W
LBB 1935/x0
360 W / 240 W
LBB 1938/00
720 W / 480 W
LBB 1930/x0
31 V (120 W)
LBB 1935/x0
44 V (240 W)
LBB 1938/00
62 V (480 W)
-1 dB ref. rated power
Environmental
LBB 1930/00
8A
LBB 1930/50
16 A
LBB 1935/00
9A
LBB 1935/50
19 A
LBB 1938/00
19 A
Battery voltage
24 VDC, +20% / -10%
Max Battery Current
Operating Temperature
-10 to +55ºC
Storage Temperature
-40 to +70ºC
Relative Humidity
<95%
Acoustic Noise Level of Fan
LBB 1930/x0, LBB 1935/x0
<45 dB SPL @ 1 m
LBB 1938/00
<48 dB SPL @ 1 m
Dimensions
LBB 1930/x0
6A
LBB 1935/x0
11 A
LBB 1938/00
30 A
LBB 1930/x0, LBB 1935/x0
100 x 430 x 270 mm
LBB 1938/00
145 x 430 x 370 mm
(19" wide, 2U high, with feet)
Performance
(19" wide, 3U high, with feet)
Frequency Response
50 Hz – 20 kHz (+1/-3 dB,
@ -10 dB ref. rated output)
Distortion
<1%@rated output power, 1 kHz
S/N (flat at max volume)
Weight
LBB 1930/x0
approx. 12.5 kg
LBB 1938/00
approx. 25 kg
LBB 1930/x0
>80 dB
>85 dB
Ordering Information
LBB 1938/00
>90 dB
Model & Description
Inputs
approx. 10.5 kg
LBB 1935/x0
LBB 1935/x0
LBB 1930/00 Plena Booster Amplifier
Line input (3-pin XLR, 6.3mm phone jack, balanced)
LBB 1930/x0, LBB 1935/x0
180 W / 120 W, 400 VA, 8 A, 31 V (120W)
LBB 1930/50 Plena Booster Amplifier
Sensitivity
1V
Impedance
20 kOhm
CMRR
>25 dB (50 Hz - 20 kHz)
Line Input 1, 2 (3-pin XLR, balanced)
LBB 1938/00
180 W / 120 W, 400 VA, 16 A, 31 V (120W)
LBB 1935/00 Plena Booster Amplifier
360 W / 240 W, 800 VA, 9 A, 44 V (240W)
LBB 1935/50 Plena Booster Amplfier
360 W / 240 W, 800 VA, 19 A, 44 V (240W)
Sensitivity
1V
Impedance
20 kOhm
CMRR
>25 dB (50 Hz - 20 kHz)
100 V Input (Screw, unbalanced)
Sensitivity
100 V
Impedance
330 kOhm
Outputs
Line Loop-through Output (3-pin XLR, 6.3mm phone jack, balanced)
LBB 1930/x0, LBB 1935/x0
Nominal Level
1V
Impedance
Direct connection to line input
Line Loop-through Output 1,2 (3-pin XLR, balanced)
LBB 1938/00
Nominal Level
1V
Impedance
Direct connection to line input
Loudspeaker Outputs (Screw, floating)
www.boschsecurity.com
LBB 1930/x0
LBB 1938/00 Plena Booster Amplifier
720 W / 480 W, 1600 VA, 19 A; 62 V (480W), 2 balanced inpts,
front panel LED, 2 separate controlled 100 V outputs
38 | Plena Range
LBB 1941/00 Plena Call Station
Communication
Functions
A green LED on the call station gives visible feedback on the
active state of the microphone.
This call station features selectable gain, a selectable speech
filter and a limiter for improved intelligibility, even if the speaker
moves in front of the microphone.
The call station provides a balanced line level output, and can be
positioned up to 500 m away from the amplifier using CAT-5
extension cables. Inside the LBB 1925/00 different priority
levels and pre- and post-call chimes can be assigned for this call
station.
Parts Included
Quantity
Component
1
LBB 1941/00 Plena Call Station
1
5m cable terminated with a lockable 8-pin DIN
connector
1
Loopthrough 8-pin DIN socket to add an additional call
station LBB 1941/00 or LBB 1946/00
The Plena call station is a stylish, high-quality call station with a
stable metal base design, a flexible microphone stem and a
unidirectional condenser microphone. It is intended for making
calls to all zones (i.e. all-call) in a PA system built around the
LBB 1925/00 system pre-amplifier. In addition to table-top use,
the special design enables the unit to be neatly flush-mounted in
desk tops.
Certifications and Approvals
EMC emission
acc. to EN 55103-1
EMC immunity
acc. to EN 55103-2
Features
• Stylish all-call call station, intended for LBB 1925/00 system
pre-amplifier
• Unidirectional condenser microphone on flexible stem
• Momentary PTT- key for calls
• Selectable gain, speech filter and limiter for improved
intelligibility
• Stable metal base design
• Fixed 5 m cable and loop-through connector for additional
call stations.
www.boschsecurity.com
Communication
Plena Range | 39
Technical Specifications
Electrical
Power Supply
Voltage Range
18 – 24 V
Current Consumption
<30mA
(24 V supplied by LBB1925/00)
Performance
Nominal Sensitivity
85 dB SPL (gain preset 0 dB)
Nominal Output Level
700 mV
Maximum Input Sound Level
110 dB SPL
Gain Preset
+6 / 0 / -15 dB
Limiter Threshold
2V
Compression Ratio Limiter
1:20
Distortion
<0.6 % (maximum input)
Equivalent Input Noise Level
25 dB SPLA
Frequency Response
100 Hz – 16 kHz
Speech Filter
-3dB @ 315 Hz, high-pass,
6 dB / oct
Output Impedance
200 ohm
Environmental
Operating Temperature
-10 to +55°C
Storage Temperature
-40 to +70°C
Relative Humidity
<95%
Dimensions
40 x 100 x 235 mm (base)
390mm stem length
(with microphone)
Cable Length
5m
Weight
approx. 1 kg
Ordering Information
Model & Description
LBB 1941/00 Plena Call Station
www.boschsecurity.com
40 | Plena Range
LBB 1946/00 Plena 6-zone Call
Station
Communication
Functions
This call station features selectable gain, a selectable speech
filter and a limiter for improved intelligibility, even if the speaker
moves in front of the microphone. Because the call station
provides a balanced line level output, it can be positioned up to
100 m away from the amplifier, using CAT-5 extension cables.
Dipswitches on the bottom of the call station can be used to
select different pre- and post-call chimes, as well as the priority
level. Selected zones are indicated with LEDs on the call station,
and an additional bi-color LED gives visible feedback on the
active state of the microphone and the system. Green indicates
microphone on or chime active (flashing LED); amber indicates
that the system is occupied by a source with a higher priority or
operation error (flashing LED).
Parts Included
Quantity
Component
1
LBB 1946/00 Plena Call Station
1
5m cable terminated with a lockable 8-pin DIN
connector
1
Loopthrough 8-pin DIN socket to add an additional call
station LBB 1941/00 or LBB 1946/00
The Plena 6-zone call station is a stylish high-quality call station
with a stable metal base design, a flexible microphone stem and
a unidirectional condenser microphone. It is intended for making
calls to selected zones (1 to 6 and all-call) in a PA system built
around the LBB 1925/00 system pre-amplifier. In addition to
table-top use, the special design enables the unit to be neatly
flush-mounted in desk tops.
Features
• Stylish 6-zone call station, intended for LBB 1925/00 system
pre-amplifier
• Unidirectional condenser microphone on flexible stem
• Six zone selection keys, all-call key and momentary PTT-key
for calls
• Selectable gain, speech filter and limiter for improved
intelligibility
• Selectable priority levels and different pre- and post-call
chimes
• LED indications for zone selection, system occupation and
call station status
www.boschsecurity.com
Communication
Plena Range | 41
Technical Specifications
Electrical
Power Supply
Voltage Range
18 – 24 V
(24 V by LBB 1925/00)
Current Consumption
<30 mA
Performance
Nominal Sensitivity
85 dB SPL (gain preset 0 dB)
Nominal Output Level
700 mV
Maximum Input Sound Level
110 dB SPL
Gain Preset
+6 / 0 / -15 dB
Limiter Threshold
2V
Compression Ratio Limiter
1:20
Distortion
<0.6% (maximum input)
Equivalent Input Noise Level
25 dB SPLA
Frequency Response
100 Hz – 16 kHz
Speech Filter
-3 dB @ 315Hz, high-pass,
Output Impedance
200 ohm
6 dB / oct
Selections
Chimes
18 different combinations
Priorities
2 different priorities
Environmental
Operating Temperature
-10°C to +55°C
Storage Temperature
-40°C to +70°C
Relative Humidity
<95%
EMC Emission
acc. to EN 55103-1
EMC Immunity
acc. to EN 55103-2
Dimensions
Base
40 x 100 x 235 mm
Stem Length with Microphone
390 mm (15.35 inch)
Cable Length
5 m (196.85 inch)
Weight
approx. 1 kg
(1.57 x 3.97 x 9.25 inch)
Ordering Information
Model & Description
LBB 1946/00 Plena 6-zone Call Station
www.boschsecurity.com
42 | Plena Range
LBB 1950/10 Plena Table-Top UniDirectional Condeser
Microphone
Communication
Functions
The microphone is powered by the phantom power supply of the
amplifier to which it is connected.
Its PTT (Press-To-Talk)-key not only switches on the microphone
but also provides priority contacts, matching the Plena range of
amplifiers. The switching characteristic of the PTT-key can be
selected internally between momentary (on as long as pressed)
and toggle (press to switch on, press again to switch off).
It is equipped with a fixed, flexible 2 m cable and a 5-pin DIN
connector for the balanced signal and the priority contacts. If the
priority contact is not required, the microphone can be
connected to amplifiers with 3-pin XLR-inputs, using the DIN to
XLR adapter.
A green LED indicates that the microphone is active when the
PTT-key is pressed.
Parts Included
Quantity
Component
1
LBB 1950/10 PLENA Table-top Microphone
1
DIN to XLR adapter
Certifications and Approvals
The Plena table-top microphone is a stylish, high-quality tabletop unidirectional condenser microphone, mainly intended for
making calls in a PA system. Its heavy metal base and rubber
feet ensure a stable position on any flat surface. The special
design also allows the unit to be neatly flush-mounted in desk
tops.
EMC emission
acc. to EN 55103-1
EMC immunity
acc. to EN 55103-2
Features
• Stylish table-top uni-directional condenser microphone on a
flexible stem
• Phantom powered by amplifier
• Momentary or toggle PTT-key for calls, with priority contact
• Green LED, indicating microphone active
• Stable metal base design with fixed 2 m cable and lockable
DIN connector
• Separate DIN to XLR adapter.
www.boschsecurity.com
Communication
Plena Range | 43
Technical Specifications
Electrical
Phantom Power Supply
Voltage Range
12 – 48 V
Current Consumption
<8 mA
Performance
Sensitivity
0.7 mV @ 85dB SPL
(i.e. 2 mV / Pa)
Maximum Input Sound Level
110 dB SPL
Distortion
<0.6% (maximum input)
Equivalent Input Noise Level
28 dB SPLA
(i.e. S/N66dBA ref. 1Pa)
Frequency Response
100 Hz – 16 kHz
Output impedance
200 ohm
Environmental
Operating Temperature
-10°C to +55°C
Storage Temperature
-40°C to +70°C
Relative Humidity
<95%
Dimensions
Base
40 x 100 x 235 mm
Stem Length with Microphone
390 mm (15.35 inch)
Cable Length
2 m (78.75 inch)
Weight
approx. 1 kg
(1.57 x 3.97 x 9.25 inch)
Ordering Information
Model & Description
LBB 1950/10 Plena Table-Top Uni-Directional Condeser Microphone
LBC 1102/02 Cable Transformer
for galvanic separation
LBC 1208/40 Microphone Cable
three-pole XLR; 10 m
LBC 1080/00 Microphone Cable
Length 100 m; 2 x 0.13 mm2
LBC 1082/00 Microphone Cable
Length 100 m; 2 x 0.75 mm2
LBC 1081/00 Microphone Cable
Length 100 m; 4 x 0.14 mm2
www.boschsecurity.com
44 | Plena Range
LBB 1961/00 Plena BGM Source
Communication
Functions
The CD-player not only plays normal audio CDs but also CD-Rs
with MP3-encoded files. It has mono operation in accordance
with public address needs and allows for a whole day of highquality uninterrupted music play-back from a single MP3-disc.
Music may be organized on a disc in multiple folders with music
selection for different occasions, with programming facilities for
up to 999 tracks. Repeat and random play modes are also
provided.
The digitally controlled FM/AM tuner uses a frequency
synthesizer for accurate capture of radio stations and has 10
presets for FM and 10 presets for AM to store favorite radio
stations.
The Plena BGM source unit is the ideal high-quality source for
background music (BGM) in public address systems. The unit
comprises a CD-player and a digitally controlled FM/AM tuner in
a compact 2U-high, 19”-wide housing. It is typically used in
shops, supermarkets, restaurants, bars, canteens, gymnasiums,
showrooms and other places where BGM creates the right
atmosphere. The unit can be connected to all types of public
address amplifiers. The unit's appearance is in line with the
range of Bosch Plena products.
Both the CD-player and the tuner operate simultaneously on
different outputs to facilitate two-channel BGM distribution.
The output level of both outputs can be adjusted via rear panel
presets. A combined output is also available for connection to a
system without an input selector. The combined output provides
the tuner signal as long as the CD-player is not playing.
If the CD-player is active, then the CD-player signal is provided
on that output.
Parts Included
Features
• Mono source unit for background music
• CD-player for audio and MP3 CD/CD-R
• FM/AM tuner with 15 presets and digital control
Quantity
Component
1
LBB 1961/00 Plena BMG Source
1
19”mounting brackets
1
Power cord
• Simultaneous operation of CD-player and tuner
• Separate outputs and level controls for CD-player and tuner
• Combined CD-player/tuner output with priority for the CDplayer
Certifications and Approvals
EMC emission
acc. to EN 55103-1
EMC immunity
acc. to EN 55103-2
Safety
acc. to EN 60065
www.boschsecurity.com
Communication
Plena Range | 45
Technical Specifications
Electrical
Mains Voltage
230/115 VAC, ±15%, 50/60 Hz
Max Power Consumption
25 VA
Tuner
Tuning Range
FM
87.5 - 108 MHz
(EUROPE, 50 kHz)
87.5 - 108 MHz
(ASIA/AMERICA, 100 kHz)
AM
531 - 1602 kHz
(EUROPE, 9 kHz)
530 - 1610 kHz
(ASIA/AMERICA, 10 kHz)
Sensitivity
FM
2 µV (26 dB S/N)
AM
30 µV (20 dB S/N)
Performance
Frequency Response
30 Hz - 15 kHz (+1/-3 dB, FM)
Distortion
<1%
S/N
>63 dB (1 mV, FM)
CD-PLAYER
Audio CD
Frequency Response
20 Hz - 20 kHz (+1/-3 dB)
Distortion
<0.1%
S/N
>80 dB
MP3 CD/CD-R
Supported Bit Rates
CBR 32 kbps - 320 kbps and VBR,
mono and stereo
Genral
Data Buffer Shock Protection
8 MB
Lifetime
>10.000 CD play cycles
Memory For Track Selection
999 tracks (MP3)
99 tracks (audio CD)
Outputs
Tuner Output (Cinch, 2x mono)
Nominal Level
200 mV
CD-Player Output (Cinch, 2x mono)
Nominal level
500 mV
Mixed Output (Cinch, 2x mono)
Nominal Level
200 mV
Environmental
Operating Temperature
+5°C to +55°C
Storage Temperature
-25°C to +55°C
Relative Humidity
<95%
Dimensions
100 x 430 x 270 mm
(19" wide, 2U high)
Weight
Ordering Information
Model & Description
LBB 1961/00 Plena BGM Source
www.boschsecurity.com
approx. 4.2 kg
46 | Plena Range
LBB 1965/00 Plena Message
Manager
Communication
Trigger Inputs
The trigger inputs have a serial priority, i.e. input 1 has priority
over input 2, input 2 over input 3, et cetera. The high priority
trigger inputs 1-6 are only accessible as contacts on the rear
panel to avoid accidental use. The lower priority trigger inputs
7-12 are also available as trigger switches on the front panel.
Emergency and Evacuation Messages
The Plena message manager is a high performance, highly
versatile stand-alone digital message player. Applications range
from spot announcements in supermarkets and theme parks to
warning and evacuation messages in emergency situations.
Features
• Highly flexible stand-alone digital message player
• Up to 12 messages and 12 trigger inputs
• Uploads messages from a PC in WAV-format
• Compliant with standards for emergency sound systems
• Zone control for Plena system pre-amplifier LBB 1925/10
• Front panel control and remote control
Functions
Messages
Up to 12 messages can be stored in the internal 64Mbit
EEPROM, without the need for data retention battery backup.
Each message can have any length within the total available
capacity. Messages and configurations are uploaded from a PC
via RS-232 into the memory, after which the unit operates
without PC connection. The standard WAV-format is used for
the messages, and sample rates of 8 kHz up to 24 kHz with
16-bit word length (linear PCM) are supported. This gives up to
500 s of recording time with CD-quality signal-to-noise ratio. The
use of linear PCM instead of some sort of compressed audio
format (like MP3, ADPCM and u-law/A-law) ensures high-quality
playback of all types of audio signals, including sound effects
and special tones, e.g. attention chimes.
The unit has 12 contact closure trigger inputs for
announcements. Each can be configured for a sequence of up
to 4 messages out of the available ones. In this way some
messages may be used in different combinations with other
messages, optimizing flexibility and used storage space.
Together with this sequence, for each trigger input, a zone
selection can be configured for the LBB 1925/10, the Plena 6zone system pre-amplifier. The LBB 1965/00 communicates this
selection to the LBB 1925/10 via an RS-232 link. Continuous
activation of a trigger input repeats the corresponding message
sequence.
The LBB 1965/00 can also be used for playing emergency/
evacuation messages; it fulfills the IEC60849 standard. The
content of all messages is constantly being supervised. The
microcontroller uses a watchdog circuit. The D/A-converter is
supervised by a low-frequency pilot tone. The high-priority
trigger inputs 1-6 can be set to be supervised for cable shorts
and breaks. The mains input availability is supervised. A 24 V
battery back-up connection with automatic switch-over is
provided. Plus, a 20 kHz pilot tone can be mixed with the output
signal for supervision of the link to the next amplifier and even for
loudspeaker supervision in combination with 20 kHz detectors.
Any failure results in a red LED fault indication and activation of a
fault output contact.
Loop Trough Facility
The LBB 1965/00 provides a loop-through facility with balanced
XLR and unbalanced Cinch inputs and outputs. This allows for
insertion of the unit into an existing audio link. As long as no
announcements are playing the signal input is routed to the
output. If an announcement is started, the input signal is
interrupted and the announcement is routed to the output.
Updating
Messages and configuration settings are uploaded from a PC.
After uploading, the configuration for trigger inputs/switches
7-12 can be updated by using just the front-panel switches,
without the need for a new upload or even a PC.
A headphone connection is provided for monitoring the
message content.
Parts Included
Quantity
Component
1
LBB 1965 Plena Message Manager
1
19" mounting brackets
1
Power cord
Certifications and Approvals
EMC emission
acc. to EN 55103-1
EMC immunity
acc. to EN 55103-2
www.boschsecurity.com
Communication
Plena Range | 47
Technical Specifications
Electrical
Mains Voltage
Environmental
Operating Temperature
-10°C to +55ºC
230 VAC/115 VAC, ±10%, 50/60
Storage Temperature
-40°C to +70ºC
Hz
Relative Humidity
<95%
Max Power Consumption
50VA
Dimensions
56 x 430 x 270 mm
Max Mains Inrush Current
1.5 A @ 230 VAC / 3 A @ 115
Weight
approx. 3 kg
VAC
Battery Voltage
24 VDC, +20% / -10%
Max Battery Current
1A
Messages
WAV-file, 16-bit PCM, mono
Supported Sample Rates (fs)
24 kHz, 22.05 kHz, 16 kHz
12 kHz, 11.025 kHz, 8 kHz
Frequency Response
@ fs=24kHz
100 Hz – 11 kHz (+1/-3 dB)
@ fs=22.05kHz
100 Hz – 10 kHz (+1/-3 dB )
@ fs=16kHz
100 Hz – 7.3 kHz (+1/-3 dB )
@ fs=12kHz
100 Hz – 5.5 kHz (+1/-3 dB)
@ fs=11.025kHz
100 Hz – 5 kHz (+1/-3 dB)
@ fs=8kHz
100 Hz – 3.6 kHz (+1/-3 dB)
Distortion
<0.1% @ 1 kHz
S/N (flat at max volume)
>80 dB
Memory Capacity
64 Mbit EEPROM
Recording/Playback Time
500 s @ fs=8 kHz …
Number of Messages
max. 12
Supervision EEPROM
Continuous checksum control
167 s @ fs=24 kHz
Supervision DAC
1 Hz pilot tone
Data Retention Time
>10 years
Inputs
Loop-through audio input 1 (3-pin XLR, balanced)
Sensitivity
1V
Impedance
20 kOhm
CMRR
>25 dB (50Hz-20kHz)
Loop-through audio input 2 (Cinch, unbalanced)
Sensitivity
1V
Impedance
20 kOhm
Outputs
20 kHz, ±10%, level adjustable
Line Output 1 (3-pin XLR, balanced)
Nominal Level
1 V, adjustable
Impedance
<100 ohm
Line Output 2 (Cinch, unbalanced)
Nominal Level
1 V, adjustable
Impedance
<100 Ohm
Controls
Trigger inputs (Screw)
Activation
Contact closure
Supervision
On trigger inputs 1-6, selectable
Supervision Method
Cable loop resistance check
Control Outputs (Screw)
Message Active Relay
100 V, 2 A (voltage free, SPDT)
Fault Relay
100 V, 2 A (voltage free, SPDT)
RS232 (9-pin D-sub)
PC to LBB1965/00
115 kb/s, N, 8, 1, 0 (upload)
LBB 1965/00 - LBB 1925/10
19.2 kb/s, N, 8, 1, 0 (zone control)
www.boschsecurity.com
Ordering Information
Model & Description
Data Format
Supervision Pilot Tone
(19" wide, 1U high, with feet)
LBB 1965/00 Plena Message Manager
48 | Plena Range
LBB 1968/00 Plena Feedback
Suppressor
The LBB 1968/00 Plena feedback suppressor uses a powerful
DSP with a revolutionary patented algorithm to suppress
acoustic feedback. It eliminates feedback by actively filtering out
the unwanted room reverb using an echo-cancellation and dereverberation algorithm. By adding masked (inaudible) noise to
the output signal or by shifting the frequency of the output signal
by 5 Hz, the Plena feedback suppressor is able to detect the
reverb component of the signal and remove it before feedback
occurs, leaving the original signal intact.
Communication
Functions
The adaptive filter can be switched between fast mode and
accurate mode. The fast mode is for situations where the
microphone position changes over time, like in a discussion
system with multiple switching microphones. The accurate mode
is for situations with a fixed microphone position, such as on a
pulpit where the acoustical environment is more stable. The
adaptive filter is allowed to converge more slowly to suppress
the reverb components even more.
Depending on the acoustical environment and the chosen mode
of operation, up to 12 dB of additional gain is possible before
acoustic feedback occurs. The Plena feedback suppressor also
features a built-in automatic mixer for the two microphone inputs.
In many situations, like on a rostrum, pulpit or conference table,
two microphones are used to better capture the voice of a
moving speaker, although this often increases the risk of
acoustic feedback.
To counter this, the automatic mixer in the Plena feedback
suppressor automatically reduces the gain of the microphone
with the lowest signal input, and increases the gain of the
microphone with the highest signal input. In this way it ‘tracks’
the moving speaker for optimum speech intelligibility and the
maximum feedback margin is maintained by keeping the
summed gain constant. The automatic mixer function remains
operational even when the feedback suppressor is switched to
‘bypass’.
Features
• Patented feedback suppression algorithm
Parts Included
• Suppresses feedback before it occurs
Quantity
Components
• Automatically adapts to the acoustical situation
1
LBB 1968/00 Plena Feedback Suppressor
• Up to 12 dB additional gain before feedback occurs
1
19“ mounting brackets
• Balanced line or microphone input with phantom supply
1
Power cord
• Second microphone input with automatic mixer
Certifications and Approvals
EMC emission
acc. to EN 55103-1
EMC immunity
acc. to EN 55103-2
www.boschsecurity.com
Communication
Plena Range | 49
Technical Specifications
Electrical
Environmental
Operating Temperature
-10°C to +55°C
Mains Voltage
230 VAC/115 VAC, ±10%, 50/60Hz
Storage Temperature
-40°C to +70°C
Max Power Consumption
50 VA
Relative Humidity
<95%
Max Mains Inrush Current
1.5A @ 230 VAC / 3A @ 115 VAC
Dimensions
56 x 430 x 270 mm with feet, without
Performance
mounting brackets 19" 1U with
Sample Rate (fs)
32 kHz
Frequency Response
125 Hz – 15 kHz
mounting brackets, without feet
Weight
approx. 3 kg
Distortion
<0.1% @ 1 kHz
Gain (bypass mode)
0 dB Line in 24/36/48 dB Mic in
Ordering Information
Gain (active mode)
0 dB Line in 24/36/48 dB Mic in
Model & Description
S/N
>90 dB
LBB 1968/00 Plena Feedback Suppressor
Signal Delay
< 11 ms
Inputs
Line / Mic Input 1 (3-pin XLR, 5-pin DIN, balanced)
Max Input Level
18 / 6 / -6 dBV Line in
-18 / -30 / -42 dBV Mic in
Impedance
10 kohm / 2 kohm (Line / Mic)
CMRR
>25 dB (50 Hz-20 kHz)
Phantom Power
16 V (Mic only, switchable)
Priority Control
Loopthrough of pin 4 and 5 of DIN
Mic input 2, Mic (3-pin XLR, 5-pin DIN, balanced)
Max Input Level
-18 / -30 / -42 dBV
Impedance
2 kohm
Phantom Power
16 V (switchable)
Priority Control
Loop-through of pin 4 and 5 of DIN
Line Input 3, Line (Cinch, unbalanced)
Max Input Level
18 / 6 / -6 dBV
Impedance
20 kohm
Outputs
Line Output 1 (3-pin XLR, balanced)
Max Output Level
18 / 6 / -6 dBV (Line in)
6 dBV (Mic in)
Impedance
<100 ohm
Line Output 2 (Cinch, unbalanced)
Max output level
18 / 6 / -6 dBV (Line in)
6 dBV (Mic in)
Impedance
<100 ohm
Mic Output 3 (5-pin DIN, balanced)
Max Output Level
-22 / -34 / -46 dBV (Line in)
-34 dBV (Mic in)
Impedance
<100 ohm
Priority Control
Loop-through of pin 4 and 5 of DIN
from inputs
Controls And Indicators
Power Switch
Bypass / Active Switch
with yellow / green LED
Calibrate Button
To start fast calibration cycle
Signal Indicators
Overload @ 0 dBFS, red
Present @ -40 dBFS, green
Auto Mix enabled, green
Calibrate, yellow
www.boschsecurity.com
50 | Plena Range
LBB 1970/00 Plena BGM/Paging
System
Communication
Microphone Inputs
The announcement part of the unit has 3 balanced microphone
inputs. Microphone input 1 has a DIN socket on the rear for a
priority microphone (e.g. the LBB 1950/00) with selectable
priority, 2-tone chime to precede a priority announcement,
speech filter and phantom power, and a phone jack input on the
front for a dynamic microphone (e.g. the LBC 2900/15) with
selectable VOX activation. Presets are provided for adjusting the
music ducking level and the volume of the chime. Microphone
inputs 2 and 3 have XLR sockets with selectable phantom
power, and are mixed with the BGM. All microphone inputs and
the music source have their own volume control, with a shared
bass and treble tone control and a shared master volume
control.
Outputs
The Plena BGM/paging system is the versatile all-in-one solution
to cover all needs for background music (BGM), making
announcements and paging people. This high-performance yet
affordable unit is very easy to install and operate.
It is typically used in shops, supermarkets, restaurants, bars,
schools, canteens, gymnasiums, garages and other places
where BGM creates the right atmosphere and also where
amplified speech needs to be clearly heard.
Features
• All-in-one solution for background music and paging
• CD-player for audio and MP3 CD/CD-R
The powerful 120 W output section has two transformer-isolated
100 V constant voltage outputs for driving 100 V-loudspeakers
in two separate zones. The 100 V-technique reduces line losses
on longer distances and allows for easy parallel connection of
multiple loudspeakers. Both zones may be individually selected
from the front panel, and the output level in each zone can be
individually set. Each zone also has a low-voltage output for
connection to 8 Ohm transformerless loudspeakers (e.g.
consumer-type loudspeakers). A separate 100 V Call Only
output is provided for addressing an area where BGM is not
required but where priority announcements are. A voltage-free
Call Active contact is available for overriding local volume
controls during priority calls or other purposes. A LED VU-meter
monitors the output.
• FM/AM tuner with 15 presets and digital control
• Dual-zone 120 W mixer amplifier with volume control per zone
• Selectable priority and VOX switching on microphone input 1
• Optional 2-tone chime to precede announcements
Parts Included
Quantity
Component
1
LBB 1970/00 PLENA BMG/Paging System
Functions
CD Player
This unit has a CD-player that plays audio CDs and CD-Rs with
MP3-encoded files. It has mono operation in accordance with
public address needs and allows for a whole day of high-quality
uninterrupted music playback from a single MP3-disc. Music
may be organized on a disc in multiple folders for music
selections for different occasions.
Certifications and Approvals
EMC emission
acc. to EN 55103-1
EMC immunity
acc. to EN 55103-2
Safety
acc. to EN 60065
FM/AM Tuner
The digitally controlled FM/AM tuner uses a frequency
synthesizer for accurate capture of radio stations and has 10
presets for each waveband to store favorite programs. An
auxiliary (music) input and tape output are provided for
connecting external equipment like a DVD-player or cassette
deck.
www.boschsecurity.com
Communication
Plena Range | 51
Technical Specifications
Electrical
Electrical
CD-Player
Mains Voltage
230/115 VAC, ±10%, 50/60 Hz
Max Power Consumption
400 VA
Frequency Response
Max/Rated Output Power
180 W / 120 W
Distortion
<0.1%
Max Mains Inrush Current
8A @ 230 VAC / 16A @ 115 VAC
S/N
>80 dB
Performance
Audio CD
20 Hz - 20 kHz (+1/-3 dB)
MP3 CD/CD-R
Frequency Response
60 Hz – 18 kHz (+1/-3 dB, @
Supported Bit Rates
-10 dB ref. rated output)
CBR 32 kbps - 320 kbps and VBR,
mono and stereo
Distortion
<1% @ rated output, 1 kHz
Bass Control
-8/+8 dB @ 100 Hz
Data Buffer
Treble Control
-8/+8 dB @ 10 kHz
Lifetime
>10.000 CD play cycles
Memory for Track
999 (MP3), 99 (audio CD)
Inputs
General
Input 1 (5-pin DIN, balanced with phantom power, 6.3 mm phone
Selection
jack)
Outputs
8 MB (shock protection)
Sensitivity
1 mV
Tape output (Cinch, 2x mono)
Impedance
>1 kOhm
Nominal Level
350 mV
S/N (flat at max volume)
63 dB
Impedance
1 kOhm
S/N (flat at min volume/
75 dB
Loudspeaker Outputs (Screw, floating)
100 V Outputs
120 W rated (all zones together)
Headroom
25 dB
Zone Output Attenuation
100/70/50/35/25/18 V for 0/-3/-6/-9/-
Speech Filter
-3 dB @ 315 Hz, high-pass,
Taps
12/-15 dB (120/60/30/15/8/4 W)
6 dB / oct
8 Ohm Outputs
18 V (40 W rated per zone)
Phantom Power Supply
12 V (5-pin DIN)
Call Active Relay (Screw)
VOX
trigger level 0.4 mV
Contacts
attack time 200 ms
Environmental
muted)
voltage free, max 100 V, 2 A
(on 6.3mm phone jack)
release time 2 s
ducking level adjustable
Input 2,3 (3-pin XLR, balanced with phantom power)
Sensitivity
1m V
Impedance
>1 kOhm
S/N (flat at max volume)
63 dB
S/N (flat at min volume/
75 Db
muted)
Headroom
25 dB
Phantom Power Supply
12 V
Operating Temperature
-25°C to +55°C
Relative Humidity
<95%
Acoustic Noise Level Of
<35 dB SPL @ 1m,
Fan
temperature controlled
Dimensions
144 x 430 x 320 mm
(19" wide, 3U high)
Weight
approx. 11.6 kg
Rack building
not recommended
Auxiliary input (Cinch, stereo converted to mono)
Ordering Information
Sensitivity
200 mV
Model & Description
Impedance
22 kOhm
S/N (flat at max volume)
70 dB
S/N (flat at min volume/
75 dB
muted)
Headroom
25 dB
Tuner
Tuning Range
FM
87.5 - 108 MHz(EUROPE, 50 kHz)
87.5 - 108 MHz(ASIA / USA, 100 kHz)
AM
531 - 1602 kHz(EUROPE, 9 kHz)
530 - 1610 kHz(ASIA / USA, 10 kHz)
Sensitivity
FM
2 µV (26 dB S/N)
AM
30 µV (20 dB S/N)
Performance
Frequency Response
30 Hz - 15 kHz (+1/-3 dB, FM)
Distortion
<1%
S/N
>63 dB (1 mV, FM)
www.boschsecurity.com
+5°C to +45°C
Storage Temperature
LBB 1970/00 Plena BGM/Paging System
52 | Plena Range
PLN-1LA10 Plena Loop Amplifier
Communication
Functions
The loop amplifier can be connected to a mixing amplifier’s line
level output, or it can accept up to two microphone/line signals
directly. A 100 V priority input is available for uplink to a voice
alarm system. This input can be monitored for the presence of a
pilot tone. The built-in supervision monitors all key functions of
the loop amplifier, and the fault state is available on a fail-safe
relay. This means it is possible to use the Plena Loop Amplifier in
an IEC 60849 compliant system and include the induction loop
in the supervised transmission paths.
The Plena Loop Amplifier is a cost-effective amplifier designed to
drive a wire loop installed in the floor or ceiling of a venue up to
600 m2 per amplifier. This solution enables hearing-aid users in
the area enclosed by the wire loop to hear all announcements,
soundtrack or music. Hearing-aid users can set their devices to
the T-mode setting to receive the signal coming from the loop to
receive excellent audio-quality announcements, without the
background noise or reverberation that normally impairs
intelligibility for people with hearing difficulties.
For added ease of use the Plena Loop amplifier is fitted with a
limiter to limit the output field strength to the prescribed
100 mA/m. This circuitry can also be set to function as an
Automatic Gain Control (AGC), so those soft signals are
boosted for intelligibility while loud signals are attenuated so that
all information is presented at a comfortable listening level.
To adjust the sound to the program material and the
environment, tone controls and a metal loss compensation
circuit is available. After installation the controls can be locked to
prevent unwanted access.
Even though one Loop Amplifier can cover up to 600 m2, the
Plena Loop Amplifier is stackable (master/slave configuration),
to cover very large areas. Also, low spill schemes are supported.
Its unique quadrate configuration provides uniform field
strengths over multiple loops.
Features
• High power current driven amplifier
Parts Included
• Two mic/line inputs, one priority input (100 V)
Quantity
• Selectable frequency range and tone controls
1
PLN-1LA10 Loop amplifier
• Limiter and Automatic Gain Control (AGC)
1
Mounting brackets
• Integrates in an IEC 60849 compliant system
1
Power cord
1
Plena CD
Component
Certifications and Approvals
EMC emission
acc. to EN 55103-1
EMC immunity
acc. to EN 55103-2
Safety
acc. to EN 60065
Induction Loop Systems
Acc. to EN 60118-4
Acc. to IEC118-4
www.boschsecurity.com
Communication
Plena Range | 53
Technical Specifications
Electrical
Environmental
Operating Temperature
+5°C to +45°C
Mains Voltage
230 / 115 VAC, ±10%, 50/60 Hz
Storage Temperature
-25°C to +55°C
Max Power Consumption
500 VA
Relative Humidity
<95%
Max Output Current
10 A
Acoustic Noise Level Of Fan
<35 dB SPL @ 1m,
Max Mains Inrush Current
7 A @ 230 VAC / 14A @ 115 VAC
Performance
Frequency Response
temperature controlled
Dimensions
60 Hz – 10 kHz
94 x 430 x 320 mm
(19" wide, 2U high)
(+1/-3 [email protected] -10 dB ref. rated output)
Weight
approx. 11.6 kg
Distortion
<1% @ rated output, 1 kHz
Rack building
Mounting kit included
Bass Control
-8/+8 dB @ 100 Hz
Treble Control
-8/+8 dB @ 10 kHz
Inputs
Input 1 and 2
Controls
Supervision
On/off monitor functionality and
Metal Loss Compensation
Dynamic, level dependent equalizer
5 khz / 10 kHz LPF (speech/music)
3-pin XLR, balanced mic/line level
(switchable)
presence of pilot tone on priority input
Sensitivity
1 mV/ 1 V (mic. / line)
Frequency Range
Impedance
>1 kOhm
Pre/Post – Master/Slave
Dynamic Range
100 dB
VU monitors pre limiter/AGC level or
post limiter/AGC level
S/N
75 dB (flat at max volume)
Headroom
25 dB
Ordering Information
Phantom Power
16 V switchable
Model & Description
VOX Functionality
Switchable input 1 mutes input 2
PLN-1LA10 Plena Loop Amplifier
Sensitivity
-20 dB ref nominal input
Priority Input
Screw terminals
Sensitivity
100 V transformer balanced
Impedance
>100 kOhm
S/N
63 dB (flat at max volume)
Headroom
25 dB
Pilot Tone Detection
-20 dB ref 100 V (10 V)
Pilot Tone Threshold
-26 dB ref 100 V (5 V)
Master Input
1/4" TS Jack
Only intended for slave output of another PLN-1LA10
Plugging a jack into this input disables all other inputs and the limiter.
The unit becomes a slave to the connected master. Only the master
control on the front panel will function. To monitor the level switch the
VU meter switch to “post”
Outputs
Line Output
XLR balanced
Nominal Level
1V
Impedance
200 ohm
Loop Output
Screw terminal
Output current
10 A
Slave Outputs
1/4”TS Jack 0° – 90°
Only intended for Master input of other PLN-1LA10
Fault Relay
Screw terminals
Contacts
Voltage free, max 100 V, 2 A
www.boschsecurity.com
Induction Loop Amplifier 8900 191 80001
