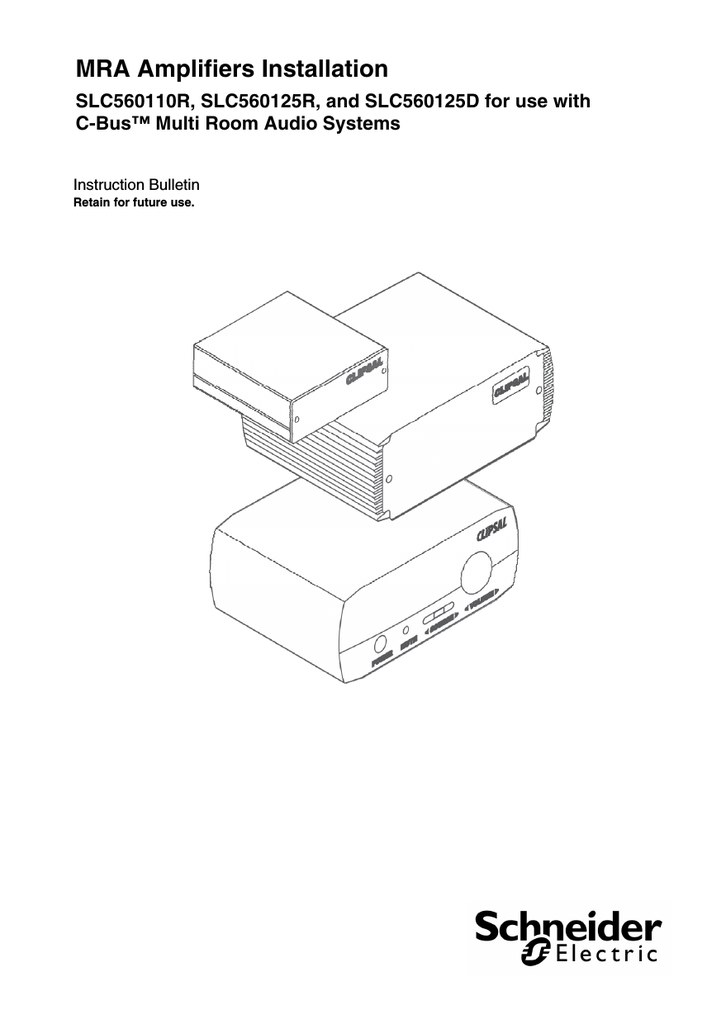

MRA Amplifiers Installation
SLC560110R, SLC560125R, and SLC560125D for use with
C-Bus™ Multi Room Audio Systems
Instruction Bulletin
Retain for future use.
MRA Amplifiers Installation
Instruction Bulletin
63249-420-339 A1
06/2010
HAZARD CATEGORIES AND SPECIAL SYMBOLS
Read these instructions carefully and look at the equipment to become
familiar with the device before trying to install, operate, service, or maintain
it. The following special messages may appear throughout this bulletin or on
the equipment to warn of potential hazards or to call attention to information
that clarifies or simplifies a procedure.
The addition of either symbol to a “Danger” or “Warning” safety label
indicates that an electrical hazard exists which will result in personal injury if
the instructions are not followed.
This is the safety alert symbol. It is used to alert you to potential personal
injury hazards. Obey all safety messages that follow this symbol to avoid
possible injury or death.
Danger indicates an immediately hazardous situation which, if not
avoided, will result in death or serious injury.
Warning indicates a potentially hazardous situation which, if not
avoided, can result in death or serious injury.
Caution indicates a potentially hazardous situation which, if not
avoided, can result in minor or moderate injury.
Caution, used without the safety alert symbol, indicates a potentially
hazardous situation which, if not avoided, can result in property
damage or improper operation.
NOTE: Provides additional information to clarify or simplify a procedure.
2
© 2010 Schneider Electric. All Rights Reserved.
63249-420-339 A1
06/2010
MRA Amplifiers Installation
Instruction Bulletin
PLEASE NOTE
Electrical equipment should be installed, operated, serviced, and maintained
only by qualified personnel. This document is not intended as an instruction
manual for untrained persons. No responsibility is assumed by Schneider
Electric for any consequences arising out of the use of this manual.
FCC CLASS B
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:



Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
 Consult the dealer or an experienced radio/TV technician for
help.
Changes or modifications to this device that are not expressly
approved by Schneider Electric could void the user's authority to
operate this equipment.
© 2010 Schneider Electric. All Rights Reserved.
3
MRA Amplifiers Installation
Instruction Bulletin
63249-420-339 A1
06/2010
PRODUCT LABEL
Refer to the warning label appearing on the product illustrated
below. Refer to the "Notices" section at the beginning of this bulletin
for definitions of the symbols appearing on the label. Carefully read
and follow the safety precautions both on the equipment and
contained in this bulletin before attempting to install or maintain
electrical equipment.
IMPORTANT SAFETY INSTRUCTIONS
The appliance coupler shall remain readily operable once the product is
installed.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that product heat.
9. Do not defeat the purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider that the other. A grounding
type plug has two blades and a third grounding prong. The wide blade or
the third prong are provided for your safety. If the provided plug does not
fit into your outlet, consult an electrician for replacement of the obsolete
outlet.
10. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where the exit from the
apparatus.
11. Only use the attachments/accessories specified by the manufacturer.
12. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long
periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way such as power
supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
4
© 2010 Schneider Electric. All Rights Reserved.
63249-420-339 A1
06/2010
MRA Amplifiers Installation
Instruction Bulletin
INTRODUCTION
These installation instructions describe a stand alone Amplifier
installation without a Matrix Switcher. This configuration includes
connections to a power supply, loudspeakers, and a local stereo
audio source. Connections to additional MRA Amplifiers can also be
made.
For installation instructions with a Matrix Switcher, refer to the Matrix
Switcher Installation Bulletin.
After the Remote Amplifier is installed, refer to the MRA Remote
Amplifiers User Guide for operating instructions.
MULTI ROOM AUDIO AMPLIFIERS
A Multi Room Audio (MRA) Amplifier is part of a C-Bus enabled
audio distribution system. C-Bus input units control the amplifier.
Examples of C-Bus input units that control MRA amplifiers include
Saturn™ and Neo™ wall switches, DLT™ switches, and Color
Touchscreens. The Multi Room Audio (MRA) Amplifiers distribute
audio to an assigned zone within a home or office as part of the
MRA System.
Three types of MRA amplifiers are shown in the figure below. A
MRA layout may contain any combination of these amplifiers. A
single amplifier is a valid configuration, and several amplifiers can
be used or linked together on a C-Bus network.
Figure 1: Catalog Numbers - MRA Amplifiers
KEY:
A. SLC560110R Low
Power Remote
Amplifier
B. SLC560125R
Remote Amplifier
C. SLC560125D
Desktop Amplifier
All types of MRA amplifiers have connections for line level stereo
inputs, speakers and C-Bus. When several amplifiers are connected
together, a digital audio cable distributes the audio program from
amplifier to amplifier.
© 2010 Schneider Electric. All Rights Reserved.
5
MRA Amplifiers Installation
Instruction Bulletin
63249-420-339 A1
06/2010
Figure 2: Desktop Amplifier (SLC560125D) Rear Panel
KEY:
A. Speaker outputs
B. Digital audio input
C. Zone output
D. Local source
E. Headphones
F. C-Bus network
G. Unit and C-Bus
Indicators
H. Digital audio output
I. Optical input
J. Infrared (IR) target
K. External power
Figure 3: Remote Amplifier (SLC560125R) Rear Panel
KEY:
A. Speaker outputs
B. Digital audio input
C. Zone out
D. Local source
E. Power indicator
F. C-Bus network
G. Unit and C-Bus
Indicators
H. Digital audio output
I. Optical input
J. Infrared (IR) target
K. External power
Figure 4: Low Power Remote Amplifier (SLC560110R) Rear Panel
KEY:
A. Speaker outputs
B. Infrared (IR) target
C. Digital input
D. Local source
E. Unit and C-Bus
indicators
F. C-Bus network
G. (Factory)
Programming
H. External power
6
© 2010 Schneider Electric. All Rights Reserved.
63249-420-339 A1
06/2010
MRA Amplifiers Installation
Instruction Bulletin
FEATURES AND CAPABILITIES
MRA amplifiers can be used in a standalone configuration without
an MRA Matrix Switcher. Using a standalone MRA amplifier:







A stereo input source from a CD player, PC sound card, MP3
player, or other line-level source is plugged in. Contact a C-Bus
installer for a convenient stereo source input wall plate
connection, if desired.
Each amplifier in the installation is individually controlled using
C-Bus. Controls include volume, tone, and muting the speakers.
The Amplifier can be controlled through C-Bus input switches, a
hand held remote control, and the Desktop Amplifier's manual
front panel controls. The desktop model also has a power
standby mode.
Additional amplifiers can be added in other rooms. The program
source is distributed from the first amplifier to other rooms.
MRA is included in scenes.
Timers and schedules are used.
The user can plan for future expansion including multiple audio
zones and multiple source selection using the MRA Matrix
Switcher.
© 2010 Schneider Electric. All Rights Reserved.
7
MRA Amplifiers Installation
Instruction Bulletin
63249-420-339 A1
06/2010
SAFETY PRECAUTIONS
This section contains important safety precautions that must be
followed before attempting to install or maintain electrical
equipment. Carefully read and follow the safety precautions below.
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH

Apply appropriate personal protective equipment (PPE) and
follow safe electrical work practices. See NFPA 70E.

This equipment must be installed and serviced by qualified
electrical personnel.

Turn off all electrical power supplying this equipment before
working on or inside the equipment.

Always use a properly rated voltage sensing device to confirm
that power is off.

Replace all devices, doors, and covers before turning on power
to this equipment.
Failure to follow these instructions will result in death or
serious injury.
The amplifiers can produce sounds loud enough to cause
permanent hearing loss.
HAZARD OF PERMANENT HEARING LOSS

Keep volume controls at low levels when selecting program
sources or when connecting local audio sources to an MRA
amplifier.

Plug the headphones into the MRA amplifier before placing the
ear pieces on your head or in ears.

Do not allow children to use the MRA equipment without
adequate supervision.
Failure to follow these instructions will result in serious injury.
8
© 2010 Schneider Electric. All Rights Reserved.
63249-420-339 A1
06/2010
MRA Amplifiers Installation
Instruction Bulletin
The MRA units require adequate ventilation.
HAZARD OF OVERHEATING

Do not cover or block the vents on the matrix switcher, MRA
amplifiers or power supplies.

Provide a clear space around the equipment, at least 2 inches
(50 mm) to the front and rear and 0.6 inches (15 mm) above.
Failure to follow these instructions can result fire, overheating
equipment, or serious injury.
EQUIPMENT PLACEMENT
When installing the amplifier and speakers, choose a location close
to the audio input source and wall power outlet to reduce the
amount of cable needed. Consider the proximity to the C-Bus input
units that control the amplifier as well.
For multiple amplifier installations, the amplifiers may be set up in
either a centralized or distributed layout:


Use a centralized layout for configurations with multiple Low
Powered Amplifiers, especially if the Amplifiers are installed in a
19-inch equipment rack. Networking and digital audio cable runs
are shorter, and speaker wire runs are longer in a centralized
layout. Also, multiple power outlets are needed at one location.
Use a distributed layout to install amplifiers in convenient
locations in a home. For example, a remote amplifier could be
installed in a space above a ceiling, and use concealed
speakers. Networking and digital audio cable runs are longer,
and speaker wire runs are shorter in a distributed layout.
© 2010 Schneider Electric. All Rights Reserved.
9
MRA Amplifiers Installation
Instruction Bulletin
63249-420-339 A1
06/2010
SELECTING A LOCATION
Consider the following factors when selecting a location.






Verify that adequate ventilation is available for cooling the
Amplifier.
Keep the Amplifier uncovered.
The Amplifier is intended for indoor use only. Do not expose
it to any liquid.
A 120V power outlet is required for the Amplifier to plug into.
Ensure at least 1.97in. (50mm) of free space is available at
each side of the Remote (SLC560125R) and Desktop
(SLC560125D) Amplifiers. Allow at least 0.59in. (15mm) of
free space directly above the units for ventilation. NOTE:
This does not apply to the Low Power Remote Amplifier
(SLC560110R).
Ensure and speaker wires do not present a tripping hazard.
WIRING DIAGRAMS
Wiring diagrams are provided for typical installations using one
amplifier and multiple amplifiers.
NOTE: Multiple amplifiers have one analog input source and a
digital audio connection between the amplifiers.
Follow these guidelines and precautions when making wiring
connections.
EQUIPMENT DAMAGE OR IMPROPER OPERATION

Do not plug a C-Bus network cable into a Digital Audio socket.
Connecting C-Bus cables to the Digital Audio sockets damage
the amplifier.

Speaker wiring is polarity sensitive. Use consistent speaker
wiring practices to preserve polarity and optimal sound quality.
Follow the speaker manufacturer's recommendations for
connecting multiple speakers to an amplifier.

Keep all cable runs as short as possible.
 Use high-quality cables appropriate for the application.
Failure to follow these instructions can cause damage to the
MRA system or poor quality sound
10
© 2010 Schneider Electric. All Rights Reserved.
63249-420-339 A1
06/2010
MRA Amplifiers Installation
Instruction Bulletin
Wiring Diagram-Standalone Amplifier
The wiring diagram below shows the connections for one amplifier
with a single pair of speakers.
Figure 5: Typical Cable Connections - Single Amplifier/Standalone Audio Source
KEY:
A. MRA Amplifier
B. Audio input (LOCAL
IN)
C. C-Bus network
cable
D. External power
E. Power supply
F. Wall power outlet
G. Speakers
Multiple Amplifiers in Standalone Configuration
If more than one amplifier is connected to a standalone
configuration, the digital audio feature of the amplifiers is used. Only
one source input can be active for all connected amplifiers.
Connecting multiple sources causes poor sound quality. Before
connecting two or more Amplifiers:

confirm each standalone MRA Amplifier has its own power
supply and speakers.
 mark the digital audio cables so they are not confused with
the C-Bus network cables.
NOTE: Never plug C-Bus network cables into digital audio or
LAN sockets, or vice versa.

use an RJ45 Tee connector at the digital audio socket for
Low Power Amplifiers that are connected to an upstream or
a downstream Amplifier.
 confirm positive and negative speaker wires are wired
correctly to ensure the best sound quality.
 install a ferrite filter on each digital audio cable.
See the figure below for a typical installation. For other
configurations refer to the Multi Room Audio Matrix Switcher
Installation Instruction Bulletin.
© 2010 Schneider Electric. All Rights Reserved.
11
MRA Amplifiers Installation
Instruction Bulletin
63249-420-339 A1
06/2010
Figure 6: Typical Cable Connections - Two Amplifiers/Single Audio Source
KEY:
A. MRA Amplifier
B. Audio input (LOCAL
IN)
C. C-Bus network
cable
D. ¹ Digital audio out
² Digital audio in
E. Power supply
F. Wall power outlet
G. Speakers
NOTE: All amplifiers in a standalone layout share a common stereo
input that is connected to the first amplifier. The C-Bus input devices
individually control each amplifier.
12
© 2010 Schneider Electric. All Rights Reserved.
63249-420-339 A1
06/2010
MRA Amplifiers Installation
Instruction Bulletin
CONNECTING THE SPEAKERS
The MRA Remote and Desktop Amplifiers use spring-type
connectors. The Low Power Remote Amplifier uses a screw-type
connector.
HAZARD OF IMPROPER AUDIO, C-BUS AND SPEAKER
CONNECTIONS

Connect all audio and C-Bus cables to the appropriate terminal
location of each unit.

Connect all speakers in phase. Follow the manufacturer's wiring
instructions.

Do not short the positive and negative speaker wires together.

Do not make any connection between speakers connected to
different amplifiers.
 Do not connect any speaker wires to ground.
Failure to follow these instructions can result in equipment
damage, improper operation, or poor sound quality.
1. Remove the power supply from the wall power outlet.
NOTE: Unplugging the power supply causes the amplifier to
return to its default values for volume and tone settings or to the
settings programmed using C-Bus Toolkit. To restore power to
the amplifiers, follow the instructions in the section - Powering
On the Amplifiers.
2. Connect the loudspeakers to low-impedance, stranded speaker
cable.
NOTE: The impedance of the cables should not exceed 5% of
the impedance of the speakers. As a general rule, the larger the
diameter of the speaker cable's conductors, the lower the
impedance.
3. Connect the other end of the speaker cable to the output
terminals on the Amplifier. Observe the positive (+) and negative
(-) markings on the Amplifier. Refer to the Amplifer Loudspeaker
Connections image.
NOTE: Consistently connect the cables to the speakers
throughout the installation. If speaker wire polarity is incorrect,
sound quality will be poor.
© 2010 Schneider Electric. All Rights Reserved.
13
MRA Amplifiers Installation
Instruction Bulletin
63249-420-339 A1
06/2010
In certain cases multiple speakers may be connected to each
channel of the Amplifier. Contact your C-Bus Installer if you are
unsure about cable connections or terminals.
Figure 7: Amplifier Loud Speaker Connections
1. MRA Remote Amplifier
A. Left speaker positive (+) and negative
(-)
B. Right speaker positive (+) and negative
(-)
2. MRA Low Power Remote Amplifier
C. Loudspeaker connection
CONNECTION TO THE C-BUS NETWORK
Each Amplifier has a connection to the C-Bus network. C-Bus wall
switches control the volume, bass and treble settings for the
amplifier through the network. C-Bus Toolkit configuration software
is used to configure wall switches to control the Amplifiers.
Both the MRA Remote and Desktop Amplifiers use RJ45 plugs for
C-Bus connection. The MRA Low Power Remote Amplifier is
terminated with a screw type connector. Refer to the C-Bus
connection information below for connection information on MRA
Remote and Desktop Amplifiers, then the MRA Low Power Remote
Amplifier.
1. Rear Panel of MRA
Desktop and Remote
Amplifiers
A. Local Source Inputs
B. Headphones Connection
C. C-Bus Network
D. C-Bus and Unit Indicators
2. Rear Panel of MRA Low
Power Remote Amplifier
E. Local Source Input
F. C-Bus Network
G. C-Bus and Unit Indicators
14
Figure 8: Connections
to the C-Bus Network
© 2010 Schneider Electric. All Rights Reserved.
63249-420-339 A1
06/2010
MRA Amplifiers Installation
Instruction Bulletin
Desktop and Remote Amplifier's Connection to the Network
Connection to the C-Bus Network
The C-Bus network is connected to the MRA Remote and Desktop
Amplifiers through two polarity sensitive RJ45 inputs located on the
MRA Remote and Desktop Amplifiers. Connect the unit to the C-Bus
network with Category 5 unshielded twisted pair C-Bus network
cable, and a wired RJ45 plug. Refer to the "Wiring Connections Key
Diagram" figure, and the "RJ45 Pin Connections" table for wiring
and pin connection information.
NOTE: To clearly distinguish C-Bus from other UTP Cat5 cables, it
is recommended to use a different colored cable, or clearly label the
C-Bus UTP Cat5 cable.
NOTE: The Category 5 unshielded twisted pair C-Bus network cable
and the wired RJ45 plug are provided by the installer.
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
Do not connect line voltage to any C-Bus terminal.
Failure to follow this instruction can result in personal injury or
equipment or property damage.
Figure 9: Wiring Connections Key Diagram
KEY:
A. C-Bus positive (+):
blue + orange
B. C-Bus negative (-):
blue/white +
orange/white
C. Remote OFF:
brown + brown/white*
D. Remote ON: green
+ green/white*
© 2010 Schneider Electric. All Rights Reserved.
15
MRA Amplifiers Installation
Instruction Bulletin
63249-420-339 A1
06/2010
Table 1: RJ45 Pin Connections
RJ Pin
C-Bus Connection
Color
1
Remote ON*
Green/White
2
Remote ON*
Green
3
C-Bus Neg (-)
Orange/White
4
C-Bus Pos (+)
Blue
5
C-Bus Neg (-)
Blue/White
6
C-Bus Pos (+)
Orange
7
Remote OFF*
Brown/White
8
Remote OFF*
Brown
*Not internally connected.
Low Power Remote Amplifier's Connection to the Network
Connection to the C-Bus Network
The MRA Low Power Remote Amplifier is connected to the C-Bus
network through a C-Bus network cable that uses unshielded
twisted pair (UTP) Category 5 data cable.
For optimal performance, use the connections recommended below
for each end of the cable. Attach the bootlace terminals to the
twisted pairs of the C-Bus network cable.
NOTE: The C-Bus network connection is polarity sensitive. The
polarity is marked on the unit beside the terminals.
NOTE: Do not solder wires used to connect the unit to the C-Bus
network through the terminal block connections.
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
Do not connect line voltage to any C-Bus terminal.
Failure to follow this instruction can result in personal injury or
equipment or property damage.
16
© 2010 Schneider Electric. All Rights Reserved.
63249-420-339 A1
06/2010
MRA Amplifiers Installation
Instruction Bulletin
Table 2: C-Bus Cable Conductor Assignments
Terminal
C-Bus Network
Connection
Cable Color
Not connected
Remote ON*
Green-White
Not connected
Remote ON*
Green
C-Bus Neg (–)
C-Bus Neg (–)
Orange-White
C-Bus Neg (–)
C-Bus Neg (–)
Blue-White
C-Bus Pos (+)
C-Bus Pos (+)
Blue
C-Bus Pos (+)
C-Bus Pos (+)
Orange
Not connected
Remote OFF*
Brown-White
Not connected
Remote OFF*
Brown
*Not internally connected.
CONNECTING A STEREO SOURCE
For best audio quality, always use high quality audio cables and
keep the cable lengths as short as possible. The MRA amplifiers
use line level signals only. Connecting high-level speaker outputs
from audio source equipment will result in poor sound quality.
Examples of audio equipment you can connect include, CD and
DVD players, PC sound cards (line output, not speaker outputs),
and MP3 players that have a line output.
Normally, the volume of the input source is not adjustable and the
MRA amplifier controls the volume. Use C-Bus and the MRA
amplifier to adjust tone settings as well.
More than one MRA amplifier can be installed in a standalone
configuration, but only one stereo input source can be used for all of
the connected amplifiers. Connecting multiple sources will cause the
sound quality to suffer.
There are two possible connector types for audio cable attachment
to the amplifier. Refer to the table below.
Table 3: Local IN Connector Details
Amplifier type
LOCAL IN connector
SLC560125D Desktop and
SLC560125R Remote
Left (L) RCA phono jack
Right (R) RCA phono jack
SLC560125R Low Power Remote
3.5 mm stereo jack
Connect the stereo audio cable from the source equipment to the
location shown in the figure below.
© 2010 Schneider Electric. All Rights Reserved.
17
MRA Amplifiers Installation
Instruction Bulletin
63249-420-339 A1
06/2010
Figure 10: MRA Amplifiers - Local IN Connections
KEY:
1. Remote Amplifier
(SLC560125R) and
Desktop Amplifier
(SLC560125D)
A. LOCAL IN source
connections using
RCA plugs
2. Low Power Remote
Amplifier
(SLC560110R)
B. LOCAL IN source
connections using
3.5mm stereo plug
Optical Input for Remote and Desktop Amplifiers
Amplifier Type
How to Use OPTICAL IN
SLC560125R MRA
Remote Amplifier
OPTICAL IN can be used with a standalone MRA Remote
Amplifier; however an OPTICAL IN and LOCAL IN source
cannot be connected at the same time. Disconnect the
LOCAL IN cables before connecting an OPTICAL IN source.
SLC560125D MRA
Desktop Amplifier
Both an OPTICAL IN and LOCAL IN source can be
connected through the MRA Desktop Amplifier; however the
OPTICAL IN and LOCAL IN connections cannot be used at
the same time. Use the source switch to toggle between
these sources.
NOTE: Optical input is not available for the Low Power Remote
Amplifier (SLC560110R).
18
© 2010 Schneider Electric. All Rights Reserved.
63249-420-339 A1
06/2010
MRA Amplifiers Installation
Instruction Bulletin
SELECTING AN AMPLIFIER POWER SUPPLY
Each Amplifier used in a standalone configuration requires a power
supply connected to the Amplifier's external power socket. Use only
the power supplies specified below. Do not substitute any other
power supply.
Catalog Number Description
SLC5600P243750T MRA High Temperature Switch Mode Amplifier Power Supply:
24Vdc @ 3.75A. Required for all high temperature locations.*
SLC5600P241250
Low Power Remote Amplifier Power Supply: 24Vdc @ 1.25A.
Only suitable for the Low Power Remote Amplifier.
*NOTE: Use the High Temperature Switch Mode Amplifier Power
Supply for all amplifier types when installing in warm to hot
locations. The High Temperature Power Supply includes a cable
adapter for use with the Low Power Amplifier.
NOTE:The Low Power Remote Amplifier Power supply can only be
used with the Low Power Remote Amplifier.
Connecting the Power Supply
The High Temperature Power Supply connects to the Amplifier and
power outlet through a power cord. When using the High
Temperature Power Supply with the Low Power Amplifier, use the
cable adapter provided with the power supply.
The Low Power Remote Amplifier Power Supply is a plug pack
design that plugs directly into a power outlet.
For additional information, and specifications for each power supply,
refer to the instruction bulletin provided with the Power Supply.
1. Plug the end of the power supply output cable into the External
Power Connector on the back panel of the MRA Amplifier. Refer
to the Amplifier External Power Connection figure.
2. Install ferrite filters (not provided) on the power supply cable
between the power supply and MRA Amplifier. The filter halves
latch when closed over the cable.
3. After the C-Bus cable, loudspeakers, and audio input are
connected, connect the power supply to a power outlet.
© 2010 Schneider Electric. All Rights Reserved.
19
MRA Amplifiers Installation
Instruction Bulletin
63249-420-339 A1
06/2010
Figure 11: Amplifier External Power Connection
1. SLC560125R Remote
Amplifier or SLC560125D
Desktop Amplifier
A. External Power
Connector
B. Infrared (IR) target
connector*
2. SLC560110R Low Power
Remote Amplifier
C. External Power
Connector
D. Infrared (IR) target
connector*
E. Programming (factory
use only)
*NOTE: The IR Target connector is used with the Matrix Switcher.
Refer to the C-Bus Multi Room Audio Matrix Switcher Installation
Bulletin for IR Target applications.
TESTING THE AMPLIFIERS
For additional instructions, including how to power on the Amplifiers,
refer to the MRA Amplifier User Guide. Follow these guidelines
when testing the functionality of the installation.




20
Configure the C-Bus wall switches to control the volume,
bass/treble, and muting before connecting an audio source.
Refer to the wall switch instruction bulletins, and the C-Bus
Toolkit Software Data Bulletin for information.
Power off Amplifiers before connecting audio sources or network
cables. Mute the speakers before connecting or disconnecting.
Use an MP3 player or other equipment as an audio source.
Do not Megger test the C-Bus network cable.
© 2010 Schneider Electric. All Rights Reserved.
63249-420-339 A1
06/2010
MRA Amplifiers Installation
Instruction Bulletin
CARE AND CLEANING INSTRUCTIONS
Follow the precautions below to properly clean and care for the unit.







Clean regularly using a soft lint free cloth.
Only use a mild, non-abrasive cleaner such as window cleaner
lightly sprayed onto the lint free cloth to clean the unit.
Ensure hands are dry and clean before operating the unit.
Only use non-abrasive objects to operate the unit. Hard, sharp
objects may cause damage.
Leave the unit uncovered to allow adequate ventilation.
Only use the unit indoors.
Properly shade the unit so that it is not exposed to direct sunlight
for extended periods.
TROUBLESHOOTING
Symptom
Possible Explanation
There is no sound after switching the Amplifier ON
(sound worked previously).
Confirm the volume is not set to minimum, or muted
(on a Desktop Amplifier).
After switching the Amplifier ON, the default volume,
bass, or treble settings have changed.
If a power failure occurs when the Amplifier is ON, the
volume, bass, or treble settings are saved and
become the new defaults.
The Amplifier switches off when the volume is loud.
The Amplifier switches OFF if insufficient current is
available. This may occur if the Amplifier receives its
power from a Matrix Switcher.
Cannot hear any sound when using the optical input.
Some digital audio formats, such as surround sound,
are incompatible with the MRA System.
© 2010 Schneider Electric. All Rights Reserved.
21
MRA Amplifiers Installation
Instruction Bulletin
63249-420-339 A1
06/2010
STANDARDS
The Amplifier complies with the following Standards:
Table 4: U.S. and Canadian Product Safety Standards and U.S.
FCC Regulations
Standards/Regulations
Title
CSA C22.2 No. 205
Signal Equipment
UL60065
Video and Similar Electronic Apparatus
FCC Part 15
Class B Digital Device for Home or Office Use
SPECIFICATIONS
Table 5: MRA Desktop and Remote Amplifiers
Parameter
Description
Supply voltage
27 V DC (powered by Matrix Switcher via digital audio connection) and/or
24 V DC @ 3.75 A (via external switch mode power supply) or 21 V AC @
3.5 A (via external linear power supply)
Nominal voltage requirements
Draws 15–36 V DC @ 22 mA from the C-Bus network
Power consumption
90 W maximum
Network clock and burden
Software selectable
Analog input signal level
(local inputs)
2.8 V peak-to-peak maximum (47 kOhm)
Maximum power output
28 W RMS into 4 Ohm (0.514% THD)
D/A conversion
16 bit PCM
Frequency response
40 Hz–20 kHz (±1 dB)
Total harmonic distortion
(1 kHz, 20 W RMS into 4 Ohm)
0.36% (using analog input)
Signal-to-noise ratio
> 67 dB (peak, unweighted)
Operating environment
Temperature: Desktop Amp: 50–104°F (10–40°C)
Remote Amp: 50–158°F (10–70°C)
Relative humidity: 10–90%, noncondensing
Overall Dimensions
Desktop Amp: 8.45 in. (L) x 7.09 in. (W) x 2.81 in. (H)
(21.46 cm [L] x 18 cm [W] x 7.14 cm [H])
Remote Amp: 8.33 in. (L) x 6.89 in. (W) x 2.78 in. (H)
(21.16 cm [L] x 17.5 cm [W] x 7.06 cm [H])
Weight
Desktop Amp: 3.91 lb (1.77 kg)
Remote Amp: 4.39 lb (1.99 kg)
22
© 2010 Schneider Electric. All Rights Reserved.
63249-420-339 A1
06/2010
MRA Amplifiers Installation
Instruction Bulletin
Table 6: MRA Low Power Remote Amplifier
Parameter
Description
Supply Voltage
27V DC when powered by the Matrix Switcher (via digital audio
connection), and/or 24V DC @ 1.25A when using the external
power supply or switch mode power supply
Nominal voltage requirements
Draws 15 to 36V DC @ 22mA from the C-Bus network
Power consumption
30W maximum
Network clock and burden
Software selectable
Analog input signal level (local inputs)
2.8 V peak-to-peak maximum (47 kOhm)
Maximum power output
10 W RMS into 4 Ohm (0.514% THD)
D/A conversion
16 bit PCM
Frequency response
40 Hz - 20 kHz (±1 dB)
Total harmonic distortion
(1 kHz, 20W RMS into 4 Ohm)
0.36% (using analog input)
Signal-to-noise ratio
> 67 dB (peak, unweighted)
Operating environment
Temperature: 50-158°F (10-70°C)
Relative humidity: 10-90%, noncondensing
Overall Dimensions
6.32 in. (L) x 4.8 in. (W) x 1.6 in. (H)
(15.8 cm [L] x 12 cm [W] x 4 cm [H])
Weight
1.33lb (0.60 kg)
© 2010 Schneider Electric. All Rights Reserved.
23
MRA Amplifiers Installation
Instruction Bulletin
SUPPORT AND SERVICE
Contact the Customer Information Center for technical support by
phone at 1-888-778-2733 or e-mail at
[email protected].
Contact your local Schneider Electric service representative or
C-Bus™ system certified installer for repairs or service to your
network.
You may also find helpful information on our web site at
www.Schneider-Electric.us.
Schneider Electric, USA
320 Tech Park Drive, Suite 100
La Vergne, TN, 37086
1-888-778-2733
www.schneider-electric.us
Schneider Electric and logo are trademarks or registered trademarks of
Schneider Electric and/or its affiliates in the United States and/or other
countries.
Electrical equipment should be installed, operated, serviced, and
maintained only by qualified personnel. No responsibility is assumed by
Schneider Electric for any consequences arising out of the use of this
material.
© 2010 Schneider Electric. All Rights Reserved.
63249-420-339 A1
06/2010

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
