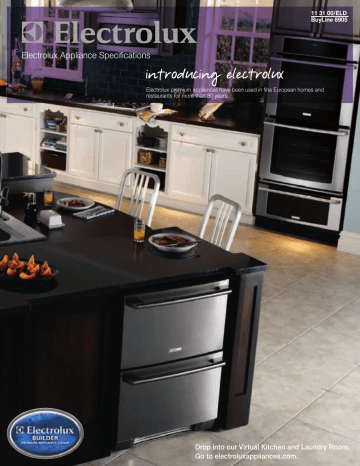

Electrolux Appliance Specifications
introducing electrolux
Electrolux premium appliances have been used in fine European homes and
restaurants for more than 80 years.
Drop into our Virtual Kitchen and Laundry Room.
Go to electroluxappliances.com.
built-in cooking
Wall Ovens / Ranges
Colors:
Wave-Touch™ Controls
Luxury-Glide™ Oven Racks
Perfect Convect3™
Luxury-Design™ Lighting
Luxury-Hold™ Door
Sure-2-Fit™ Capacity
Perfect Turkey™ Button
Convection Conversion
Stainless (S)
White (W)
Wall Ovens
Hidden Bake Element
Extra-Large Glass Window
Signature Cobalt Blue Interior
Signature Soft-Arc Oven Door and Handle Design
Black (B)
Warmer Drawers
IQ-Touch™ Controls
Luxury-Glide™ Drawer
Humidity Controls
Electric Ranges
Wave-Touch™ Controls
Perfect Set™ Element Controls
Perfect Pair™ Ovens
Flex-2-Fit™ Ceramic Glass Smoothtop
Gas Ranges
Wave-Touch™ Controls
Min-2-Max™ Burners
Extra-Large Glass Window
Warmer Drawer
Continuous Grates with Deep-Well Top
Microwaves
Wave-Touch™ Controls
IQ-Touch™ Controls
Cook-2-Perfection™
High-Performance Power
Premium Sensor Cooking
Available on select models
it’s your kitchen, so set it up your way
Overall Dimensions
(H x W x D)
EW27EW65G*
50-7/16" x 27" x 24-1/2"
EW27EW55G*
29" x 27" x 24-1/2"
EW30EW65G*
50-7/16" x 30" x 24-1/2"
EW30EW55G*
29" x 30" x 24-1/2"
EW30WD55G
11-1/4" x 30" x 26-5/8"
EW27WD55G
11-1/4" x 27" x 26-5/8"
EW30DS65G
36-9/16" - 37-7/16" x 31-1/2"
x 28-5/16"
36-9/16" - 37-7/16" x 31-1/2"
x 28-5/16"
36-9/16" - 37-7/16" x 31-1/2"
x 28-5/16"
EW30ES65G
EW30GS65G
EW30MO55H
22-1/4" x 30" x 22-11/16"
EW27MO55H
22-1/4" x 27" x 22-11/16"
EI24MO45**
18-1/16" x 27"or 30" x 18-1/16"
EI30BM55H
17-1/16" x 29-15/16" x 16-7/8"
EI30MH55G
17-1/16" x 29-15/16" x 16-3/8"
Cutout Dimensions (H x W x D)
48-7/8" x 24-7/8" x 23-1/2" min.
49-1/8" x 25-1/4" x 23-1/2" max.
27-1/4" x 24-7/8" x 23-1/2" min.
27-5/8" x 25-1/4" x 23-1/2" max.
48-7/8" x 28-1/2" x 23-1/2" min.
49-1/8" x 29" x 23-1/2" max.
27-1/4" x 28-1/2" x 23-1/2" min.
27-5/8" x 29" x 23-1/2" max.
9-7/8" x 28-1/2" x 23-5/8" min.
10-1/4" x 28-3/4" x 24" max.
9-7/8" x 25-1/2" x 23-5/8" min.
10-1/4" x 25-3/4" x 24" max.
35-3/4" x 29-15/16" x 21-3/4" min.
36-5/8" x 30-1/16" x 22-1/8" max.
35-3/4" x 29-15/16" x 21-3/4" min.
36-5/8" x 30-1/16" x 22-1/8" max.
35-3/4" x 29-15/16" x 21-3/4" min.
36-5/8" x 30-1/16" x 22-1/8" max.
21" x 27-5/8" x 20-1/8" min.
21-1/2" x 28-1/8" x 20-1/8" max.
21" x 25-1/8" x 20-1/8" min.
16-3/8" x 25-3/8" x 20-1/8" max.
16-1/4" x 25-1/4" x 20" min.
21-1/2" x 25-1/8" x 20" max.
15-1/2" x 30" x 12" min.
15-1/2" x 30" x 14" max.
15-1/2" x 30" x 12"
Voltage Rating
240V-208V /
60Hz / 30A
240V-208V /
60Hz / 20A
240V-208V /
60Hz / 40A
240V-208V /
60Hz / 20A
Connected Load (kW)
@ 240
@ 208
@ 240
@ 208
@ 240
@ 208
@ 240
@ 208
Product Weight
Volts - 6.8
Volts - 5.1
Volts - 3.4
Volts - 2.6
Volts - 8.0
Volts - 6.0
Volts - 4.0
Volts - 3.0
300 Lbs.
120V / 60Hz / 15A
@ 120 Volts - 0.45
65 Lbs.
120V / 60Hz / 15A
@ 120 Volts - 0.45
55 Lbs.
240V-208V /
60Hz / 30A
240V-208V /
60Hz / 50A
@ 240 Volts - 5.0
@ 208 Volts - 3.7
@ 240 Volts - 14.5
@ 208 Volts - 10.9
258 Lbs.
120V / 60Hz / 15A
@ 120 Volts - 1.2
250 Lbs.
120V / 60Hz / 15A
@ 120 Volts - 1.6
82 Lbs.
120V / 60Hz / 15A
@ 120 Volts - 1.6
79 Lbs.
120V / 60Hz / 15-20A
@ 120 Volts - 1.5
48 Lbs.
120V / 60Hz / 15A
@ 120 Volts - 1.71
61 Lbs.
120V / 60Hz / 15A
@ 120 Volts - 1.4
50 Lbs.
*Our Electric Wall Ovens are Star-K® Kosher Certified. Your assurance that select models contain such features as the Sabbath mode in keeping with
kosher cooking practices.
**30" or 27" Trim Kit is required and ordered by individual part number (available in 3 colors) and includes Bottom Duct Assembly – shipped in
separate box. Specifications subject to change.
NOTE: Always consult local and / or national electric and gas codes. For planning purposes only. Refer to
Product Installation Guide on the web at electroluxappliances.com for detailed instructions.
Specifications subject to change.
2
150 Lbs.
375 Lbs.
200 Lbs.
238 Lbs.
11 31 00/ELD
BuyLine 8905
Electric Wall Ovens
30" ELECTRIC
DOUBLE WALL OVEN
30" ELECTRIC
SINGLE WALL OVEN
27" ELECTRIC
DOUBLE WALL OVEN
27" ELECTRIC
SINGLE WALL OVEN
EW30EW65G (S/W/B)
EW30EW55G (S/W/B)
EW27EW65G (S/W/B)
EW27EW55G (S/W/B)
Warmer Drawers
30" WARMER DRAWER
27" WARMER DRAWER
EW30WD55G (S)
EW27WD55G (S)
Ranges
30" DUAL-FUEL
BUILT-IN RANGE
EW30DS65G (S/W/B)
30" ELECTRIC
SMOOTHTOP
BUILT-IN RANGE
30" GAS
BUILT-IN RANGE
EW30GS65G (S/W/B)
EW30ES65G (S/W/B)
Microwaves
OTR Microwaves
BUILT-IN MICROWAVE
BUILT-IN MICROWAVE
BUILT-IN MICROWAVE
OTR MICROWAVE
OTR MICROWAVE
EW30MO55H (S)
EW27MO55H (S)
EI24MO45I (B)
(S/W/B Trim Kits available)
EI30BM55H (S/W/B)
EI30MH55G (S/W/B)
For more infomation, visit us at
electroluxappliances.com
3
cooktops & freestanding ranges
Hybrid Cooktops
Colors:
Flex-2-Fit™ Elements
Perfect Set™ Controls
10" and 6" Induction Elements
Power Assist™ Function
Exceptional Temperature Control
Signature Blue LED Display
Star-K® Certified
Stainless (S)
Electric Cooktops
White (W)
Glide-2-Set™ Control Panel
Flex-2-Fit™ Elements
Signature Blue LED Display
Star-K® Certified
Black (B)
Gas Cooktops
Min-2-Max™ Burners
Cook Surface Sensors
Deep-Well Design
Professional-Grade Control Knobs
Continuous Grates
Freestanding Ranges
Wave-Touch™ Controls
Min-2-Max™ Burners (Gas Only)
Flex-2-Fit™ Elements (Electric Only)
Continuous Grates with Deep-Well Top (Gas Only)
Perfect Pair™ Ovens
Luxury-Glide™ Oven Racks
Perfect Convect3™
Convection Conversion
Luxury-Design™ Lighting
Luxury-Hold™ Door
Sure-2-Fit™ Capacity
Perfect Turkey™ Button
Star-K® Certified
Available on select models
even more innovative features
Overall Dimensions
(A x B x C)
EW36CC55G
6-1/2" x 36-3/4" x 21-3/4"
EW30CC55G
6-1/2" x 30-3/4" x 21-3/4"
EW36GC55G
4-1/4" x 36" x 21-3/4"
EW30GC55G
4-1/4" x 30" x 21-3/4"
EW36EC55G
7" x 36-3/4" x 21-3/4"
EW30EC55G
7" x 30-3/4" x 21-3/4"
EW30DF65G
48-1/2" x 29-7/8" x 29-1/4"
EW3LDF65G
48-1/2" x 29-7/8" x 29-1/4"
EW30EF65G
48-1/2" x 29-7/8" x 29-1/4"
EW30GF65G
48-1/2" x 29-7/8" x 29-7/8"
EW3LGF65G
48-1/2" x 29-7/8" x 29-7/8"
Cutout Dimensions (H x W x D)
8-1/2" x 36" x 20-3/8" min.
8-1/2" x 36-1/4" x 20-1/2" max.
8-1/2" x 29-3/4" x 20-3/8" min.
8-1/2" x 30" x 20-1/2" max.
8" x 33-7/8" x 19-1/8" min.
8" x 34-1/4" x 19-3/4" max.
8" x 27-1/4" x 19-1/8" min.
8" x 28-1/2" x 19-3/4 " max.
9" x 35-3/4" x 20-3/8" min.
9" x 36" x 20-5/8" max.
9" x 29-3/4" x 20-3/8" min.
9" x 30" x 20-5/8" max.
35-7/8" x 30" x 24" min.
36-1/8" x 30" x 24" max.
35-7/8" x 30" x 24" min.
36-1/8" x 30" x 24" max.
35-7/8" x 30" x 24" min.
36-1/8" x 30" x 24" max.
35-7/8" x 30" x 24" min.
36-1/8" x 30" x 24" max.
35-7/8" x 30" x 24" min.
36-1/8" x 30" x 24" max.
Voltage Rating
240V-208V /
60Hz / 40A
240V-208V /
60Hz / 40A
@ 240
@ 208
@ 240
@ 208
Volts - 9.9
Volts - 8.4
Volts - 8.1
Volts - 7.1
Product Weight
62 Lbs.
54 Lbs.
120V / 60Hz / 15A
@ 120 Volts - 0.001
53 Lbs.
120V / 60Hz / 15A
@ 120 Volts - 0.001
43 Lbs.
240V-208V /
60Hz / 40A
240V-208V /
60Hz / 40A
@ 240 Volts - 10.2
@ 208 Volts - 7.7
@ 240 Volts - 8.4
@ 208 Volts - 6.3
58 Lbs.
240V / 60Hz / 50A
@ 240 Volts - 4.4
260 Lbs.
240V / 60Hz / 50A
@ 240 Volts - 4.4
260 Lbs.
240V / 60Hz / 50A
@ 240 Volts - 17.0
@ 208 Volts - 12.5
240 Lbs.
120V / 60Hz / 15A
@ 120 Volts - 1.8
260 Lbs.
120V / 60Hz / 15A
@ 120 Volts - 1.8
260 Lbs.
NOTE: Always consult local and / or national electric and gas codes. For planning purposes only. Refer to
Product Installation Guide on the web at electroluxappliances.com for detailed instructions.
Specifications subject to change.
4
Connected Load (kW)
50 Lbs.
11 31 00/ELD
BuyLine 8905
Induction Hybrid & Electric Cooktops
36" INDUCTION
HYBRID COOKTOP
30" INDUCTION HYBRID
COOKTOP
36" ELECTRIC
DROP-IN COOKTOP
30" ELECTRIC
DROP-IN COOKTOP
EW36CC55G (S/W/B)
EW30CC55G (S/W/B)
EW36EC55G (S/W/B)
EW30EC55G (S/W/B)
Gas Cooktops
C
B
36" GAS
DROP-IN COOKTOP
30" GAS DROP-IN
DROP-IN COOKTOP
EW36GC55G (S/W/B)
EW30GC55G (S/W/B)
Dual-Fuel Freestanding Ranges
A
Electric Smoothtop
Freestanding Ranges
30" DUAL-FUEL
FREESTANDING RANGE
30" DUAL-FUEL
FREESTANDING RANGE
30" ELECTRIC SMOOTHTOP
FREESTANDING RANGE
EW30DF65G (S/W/B)
EW3LDF65G (LP Only) (S/W/B) EW30EF65G (S/W/B)
Gas Freestanding Ranges
C
A
30" GAS
FREESTANDING RANGE
30" GAS
FREESTANDING RANGE
EW30GF65G (S/W/B)
EW3LGF65G (LP Only) (S/W/B)
B
For more infomation, visit us at
electroluxappliances.com
5
ventilation
Wall-Mount & Island Vent Hoods
Available in:
Dual-Centrifugal Fans
Halogen Lighting
Stainless Steel Construction
Stainless Steel Filters
Convenient Timers
Optional Ductless Ventilation
LCD Electronic Controls
Stainless (S)
Downdraft Vents
Infinite-Speed Blower
Dishwasher Safe Stainless Steel Filters
External Exhaust Duct
Under-Cabinet Hoods
Stainless Steel Construction
4-Speed Fan
Dual Halogen Lights
LCD Electronic Controls
Available on select models
at home in any kitchen
Overall Dimensions (H x W x D)
16-1/2" x 35-7/16" x 19-11/16" min.
36" x 35-7/16" x 19-11/16" max.
29-7/16" x 35-7/8" x 19-11/16" min.
54-9/16" x 35-7/8" x 19-11/16" max.
29-7/16" x 29-7/8" x 19-11/16" min.
54-9/16" x 29-7/8" x 19-11/16" max
24" x 35-7/8" x 19-11/16" min.
42-9/16" x 35-7/8" x 19-11/16" max
24" x 29-7/8" x 19-11/16" min.
42-9/16" x 29-7/8" x 19-11/16" max
28" x 41-7/8" x 25-3/16" min.
57" x 41-7/8" x 25-3/16" max
28" x 35-7/8" x 25-3/16" min.
57" x 35-7/8" x 25-3/16" max
Air Delivery (CFM)
Voltage Rating
Connected Load (kW)
Product Weight
600
120V / 60Hz / 15A
@ 120 Volts - .46
49 Lbs.
600
120V / 60Hz / 15A
@ 120 Volts - .474
64 Lbs.
600
120V / 60Hz / 15A
@ 120 Volts - .474
60 Lbs.
600
120V / 60Hz / 15A
@ 120 Volts - .475
39 Lbs.
600
120V / 60Hz / 15A
@ 120 Volts - .475
36 Lbs.
600
120V / 60Hz / 15A
@ 120 Volts - .516
87 Lbs.
600
120V / 60Hz / 15A
@ 120 Volts - .516
84 Lbs.
E36DD75ESS
40" x 36" x 2-7/8"
1600
120V / 60Hz / 15A
@ 120 Volts - 1.0
50 Lbs.
E30DD75ESS
40" x 30" x 2-7/8"
1600
120V / 60Hz / 15A
@ 120 Volts - 1.0
43 Lbs.
PL36DD50E
29-1/2" x 36" x 7"
500
120V / 60Hz / 15A
@ 120 Volts - 4.0
79-1/2 Lbs.
PL30DD50E
29-1/2" x 30" x 7"
500
120V / 60Hz / 15A
@ 120 Volts - 4.0
76 Lbs.
RH36WC40G
4-3/4" x 35-7/8" x 20"
400
120V / 60Hz / 15A
@ 120 Volts - .36
30 Lbs.
RH30WC40G
4-3/4" x 29-7/8" x 20"
400
120V / 60Hz / 15A
@ 120 Volts - .36
27 Lbs.
RH36WCT6G
RH36WC60G
RH30WC60G
RH36WC55G
RH30WC55G
RH42PC60G
RH36PC60G
NOTE: Always consult local and / or national electric and gas codes. For planning purposes only. Refer to
Product Installation Guide on the web at electroluxappliances.com for detailed instructions.
Specifications subject to change.
6
11 31 00/ELD
BuyLine 8905
Wall-Mount Vent Hoods
GLASS CANOPY
WALL-MOUNT VENT HOOD
GLASS CANOPY
WALL-MOUNT VENT HOOD
CHIMNEY WALL-MOUNT
VENT HOOD
RH36WCT6G (S) (36")
RH36WC60G (S) (36")
RH30WC60G (S) (30")
RH36WC55G (S) (36")
RH30WC55G (S) (30")
Island Vent Hoods
GLASS CANOPY ISLAND
VENT HOOD
RH42PC60G (S) (42")
RH36PC60G (S) (36")
Downdraft Vents
DOWNDRAFT VENT
DOWNDRAFT VENT
E36DD75ESS (S) (36")
E30DD75ESS (S) (30")
PL36DD50E (S) (36")
PL30DD50E (S) (30")
Under-Cabinet Vent HoodsUnderCabinet Hoods
UNDER-CABINET
VENT HOOD
RH36WC40G (S) (36")
RH30WC40G (S) (30")
For more infomation, visit us at
electroluxappliances.com
7
Refrigerators / Freezers
Refrigerators
Colors:
Wave-Touch™ Controls
IQ-Touch™ Controls
Fast Ice™ & Fast Freeze™ Options
Alarm Systems
Perfect Set™ Temperature Controls
9" Tall Water/Ice Dispenser
PureAdvantage® Water & Air
Filtration System
Luxury-Design™ Lighting
Luxury-Glide™ Crispers
PerfectTemp™ Drawer (Wave-Touch™ Only)
Chill Zone™ Drawer (IQ-Touch™ Only)
Luxury-Design™ Glass Shelves
Energy-Saving Vacation Mode
Full-Extension Freezer Baskets
Star-K® Certified
ENERGY STAR® Qualified
Stainless (S)
White (W)
Black (B)
Freezers
IQ-Touch™ Controls
Digital Exterior Control Center
Alarm Systems
Frost-Free Design
Automatic Ice Maker
Versatile Racking and
Shelving Options
Enhanced Lighting
Pizza/Platter Rack
Small-Items Rack
ENERGY STAR® Qualified
Available on select models
full of cool features and they look cool, too
Voltage Rating
Connected Load (kW)
Product Weight
EW23CS70H
69-1/2" x 35-5/8" x 28-3/16"
70-1/4" x 36" x 24" min.
120V / 60Hz / 15-20A
@ 120 Volts - 1.02
300 Lbs.
EW23CS65G
69-1/2" x 35-5/8" x 28-3/16"
70-1/4" x 36" x 24" min.
120V / 60Hz / 15-20A
@ 120 Volts - 1.02
300 Lbs.
EI23CS55G
69-1/2" x 35-5/8" x 28-3/16"
70-1/4" x 36" x 24" min.
120V / 60Hz / 15-20A
@ 120 Volts - 1.02
300 Lbs.
EW26SS70H
69-1/2" x 35-5/8" x 33"
70-1/4" x 36" x 28-7/8" min.
120V / 60Hz / 15-20A
@ 120 Volts - 1.02
325 Lbs.
EW26SS65G
69-1/2" x 35-5/8" x 33"
70-1/4" x 36" x 28-7/8" min.
120V / 60Hz / 15-20A
@ 120 Volts - 1.02
325 Lbs.
EI26SS55G
69-1/2" x 35-5/8" x 33"
70-1/4" x 36" x 28-7/8" min.
120V / 60Hz / 15-20A
@ 120 Volts - 1.02
325 Lbs.
EW23SS65H
69-1/2" x 32-5/8" x 33"
70-1/4" x 33" x 28-7/8" min.
120V / 60Hz / 15A
@ 120 Volts - 1.02
300 Lbs.
EI23SS55H
69-1/2" x 32-5/8" x 33"
70-1/4" x 33" x 28-7/8" min.
120V / 60Hz / 15A
@ 120 Volts - 1.02
300 Lbs.
EILFU21G
70-5/8"-71-5/8" x 32" x 29-1/2"
115V / 60Hz / 15A
@ 115 Volts - .69
251 Lbs.
EILFU17G
65-1/2" - 66-1/2" x 32" x 27-1/2"
75" x 38" x 31-1/2" min.
76" x 38" x 31-1/2" max.
69-1/2" x 38" x 29-1/2" min.
71-1/2" x 38" x 29-1/2" max.
115V / 60Hz / 15A
@ 115 Volts - .62
225 Lbs.
Overall Dimensions
(H x W x D)
Cutout Dimensions
(H x W x D)
NOTE: Always consult local and / or national electric and gas codes. For planning purposes only. Refer to
Product Installation Guide on the web at electroluxappliances.com for detailed instructions.
Specifications subject to change.
8
11 31 00/ELD
BuyLine 8905
Counter-Depth Refrigerators
23 CU. FT.
REFRIGERATOR
23 CU. FT.
REFRIGERATOR
EW23CS70H1 (S/W/B)
EW23CS65G1 (S/W/B)
EI23CS55G2 (S/W/B)
Standard-Depth Refrigerators
26 CU. FT.
REFRIGERATOR
26 CU. FT.
REFRIGERATOR
23 CU. FT.
REFRIGERATOR
EW26SS70H1 (S/W/B)
EW26SS65G1 (S/W/B)
EI26SS55G2 (S/W/B)
EW23SS65H1 (S/W/B)
EI23SS55H2 (S/W/B)
Freezers
21 CU. FT.
UPRIGHT FREEZER
17 CU. FT.
UPRIGHT FREEZER
EILFU21G2 (S)
EILFU17G2 (S)
1
Wave-Touch™ Controls
2
IQ-Touch™ Controls
For more infomation, visit us at
electroluxappliances.com
9
Kitchen Cleanup / Laundry
Kitchen Cleanup
Kitchen Cleanup
Colors:
Wave-Touch™ Controls
IQ-Touch™ Controls
Quietest in its Class*
Largest Usable Capacity
Luxury-Quiet™ Sound Package
Sure-2-Fit™ Racking System
Multiple Wash Cycles and Options
Luxury-Hold™ Door
Luxury-Dry™ Power Dry System
Stainless Steel Interior
AquaLux™ Wash System
Auto Wash Feature
Stainless (S)
White (W)
Black (B)
Laundry
Wave-Touch Controls
IQ-Touch™ Controls
Quietest in its Class*
Largest Usable Capacity
Luxury-Quiet™ Sound Package
Fastest Wash and Dry Times
Eco-Friendly
Touch-2-Open™ / Close doors
Luxury-Design™ Lighting
Luxury-Quiet™ Sound Package
NSF®-Certified Sanitation Cycle
Individual Custom Options
Perfect Tumble™ Drying
Luxury-Dry™ System
™
Panel Ready (T)
Laundry Colors:
Turquoise Sky (TS)
Silver Sands (SS)
Island White (IW)
Mediterranean
Blue (MB)
*Based on published MSRP and specifications.
Available on select models
believe it or not
Overall Dimensions
(H x W x D)
EWDW6505G*
33-7/8" - 34-7/8" x 23-3/4" x 24-5/8"
EIDW6405H*
33-7/8" - 34-7/8" x 23-3/4" x 23-7/8"
EIDW6305G*
33-7/8" - 34-7/8" x 23-3/4" x 24-5/8"
EIDW6105G*
33-7/8" - 34-7/8" x 23-3/4" x 24-5/8"
EI15TC65H
34-3/8" - 35-3/8" x 14-7/8" x 21-1/2"
EWFLW65H
38"** x 27" x 31-1/2"
EIFLW55H
38"** x 27" x 31-1/2"
EWME/GD65H
38"** x 27" x 31-1/2"
EWE/GD65H
38"** x 27" x 31-1/2"
EIE/GD55H
38"** x 27" x 31-1/2"
Voltage Rating
Connected Load (kW)
Product Weight
120V / 60Hz / 15A
@ 120 Volts - 1.44
98 Lbs.
120V / 60Hz / 15A
@ 120 Volts - 1.44
93 Lbs.
120V / 60Hz / 15A
@ 120 Volts - 1.44
98 Lbs.
120V / 60Hz / 15A
@ 120 Volts - 1.44
98 Lbs.
34-5/8" x 15" x 24" min.
120V / 60Hz / 15A
@ 120 Volts - 0.15
161 Lbs.
38" x 54" x 31-1/2" min.1
75-3/4" x 27" x 31-1/2" min.2
38" x 54" x 31-1/2" min.1
75-3/4" x 27" x 31-1/2" min.2
38" x 54" x 32-1/4" min.1
75-3/4" x 27" x 32-1/4" min.2
38" x 54" x 31-1/2" min.1
75-3/4" x 27" x 31-1/2" min.2
38" x 54" x 31-1/2" min.1
75-3/4" x 27" x 31-1/2" min.2
120V / 60Hz / 15A
@ 120 Volts - 1.4
237 Lbs.
120V / 60Hz / 15A
@ 120 Volts - 1.4
237 Lbs.
240V / 60Hz / 30A3
120V / 60Hz / 15A4
240V / 60Hz / 30A3
120V / 60Hz / 15A4
240V / 60Hz / 30A3
120V / 60Hz / 15A4
@ 240 Volts - 6.483
@ 120 Volts - 1.14
@ 240 Volts - 6.483
@ 120 Volts - 1.14
@ 240 Volts - 6.483
@ 120 Volts - 1.14
130 Lbs.
Cutout Dimensions (H x W x D)
34" x 24" x 24" min.
35" x 24" x 24" max.
34" x 24" x 24" min.
35" x 24" x 24" max.
34" x 24" x 24" min.
35" x 24" x 24" max.
34" x 24" x 24" min.
35" x 24" x 24" max.
* Height only adjustable to 34-11/16" max. when installed in 35" max. standard cabinetry cutout
to allow for 5/16" min. clearance.
**Without 15" Pedestal
1
Side-by-Side Installation
2
Stacked Installation
3
Electric Dryer
4
Gas Dryer
NOTE: Always consult local and / or national electric and gas codes. For planning purposes only. Refer to
Product Installation Guide on the web at electroluxappliances.com for detailed instructions.
Specifications subject to change.
10
130 Lbs.
130 Lbs.
11 31 00/ELD
BuyLine 8905
Dishwashers
WAVE-TOUCH™
BUILT-IN DISHWASHER
EWDW6505G (S/W/B)
IQ-TOUCH™
BUILT-IN
DISHWASHER
IQ-TOUCH™
BUILT-IN
DISHWASHER
IQ-TOUCH™
BUILT-IN
DISHWASHER
EIDW6405H (T)
EIDW6305G (S/W/B)
EIDW6105G (S/W/B)
Can accept custom panel
and handle.
Trash Compactor
IQ-TOUCH™
UNDER-COUNTER
TRASH COMPACTOR
Washers
WAVE-TOUCH™ WASHERS
IQ-TOUCH™ WASHERS
EWFLW65H (TS/SS/IW)
EIFLW55H (MB/IW)
WAVE-TOUCH™ DRYER
IQ-TOUCH™ DRYER
EWE/GD65H (TS/SS/IW)
EIE/GD55H (MB/IW)
EI15TC65H (S)
Dryers
WAVE-TOUCH™
PERFECT STEAM™ DRYER
EWME/GD65H (TS/SS/IW)
For more infomation, visit us at
electroluxappliances.com
11
Wine Tower
Under-Counter
Available in:
Wine Tower / Under Counter
Stainless
IQ-TOUCH™
EUROPEAN TALL
WINE TOWER
IQ-TOUCH™
UNDER-COUNTER
BEVERAGE CENTER
IQ-TOUCH™
UNDER-COUNTER
WINE COOLER
EI24WC75H (S)
EI24BC65G (S)
EI24WC65G (S)
IQ-TOUCH™
UNDER-COUNTER
REFRIGERATOR
DRAWERS
IQ-TOUCH™
UNDER-COUNTER
ICE MAKER
EI15IM55G (S)
EI24RD65H (S)
life gets busy, wouldn’t some
built-in convenience be nice
Voltage Rating
Connected Load (kW)
Product Weight
EI24WC75H
75" - 76" x 23-1/2" x 27-1/2"
75-1/2" x 24-1/8" x 27" min"
120V / 60Hz / 15A
@ 120 Volts - 0.15
215 Lbs.
EI24BC65G
34" - 35" x 23-13/16" x 24-1/4"
34-3/8" x 24-1/8" x 24" min.
120V / 60Hz / 15A
@ 120 Volts - 0.15
128 Lbs.
EI24WC65G
34" - 35" x 23-13/16" x 24-1/4"
34-3/8" x 24-1/8" x 24" min.
120V / 60Hz / 15A
@ 120 Volts - 0.15
159 Lbs.
EI24RD65H
34" - 35" x 23-13/16" x 24-1/4"
34-3/8" x 24-1/8" x 24" min.
120V / 60Hz / 15A
@ 120 Volts - 0.16
128 Lbs.
EI15IM55G
34-1/8" - 35" x 14-15/16" x 23-1/4"
34-1/4" x 15-1/8" x 24" min.
120V / 60Hz / 15A
@ 120 Volts - 0.48
100 Lbs.
Overall Dimensions
(H x W x D)
Cutout Dimensions
(H x W x D)
NOTE: Always consult local and / or national electric and gas codes. For planning purposes only. Refer to
Product Installation Guide on the web at electroluxappliances.com for detailed instructions.
Specifications subject to change.
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA • 250 Bobby Jones Expressway • Augusta, GA 30907 • 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca
E08SCI 10/08
© 2008 Electrolux Home Products, Inc.
Printed in the U.S.A.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
