318628-004

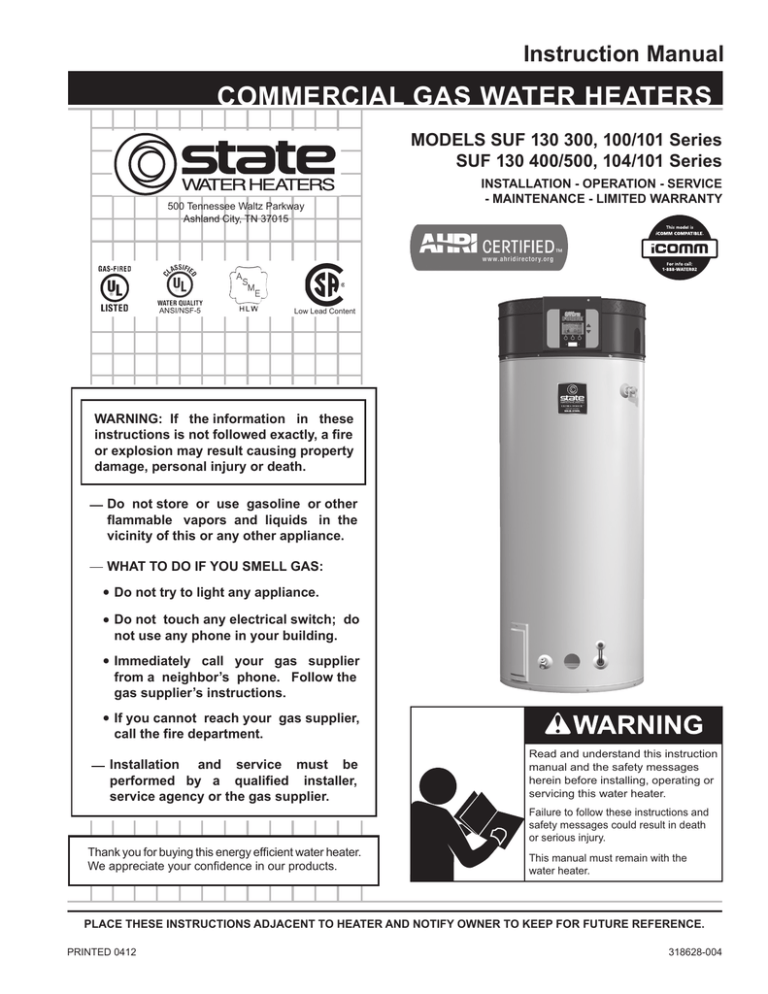

Instruction Manual
commercial gas water heaters
MODELS SUF 130 300, 100/101 Series
SUF 130 400/500, 104/101 Series
500 Tennessee Waltz Parkway
Ashland City, TN 37015
ANSI/NSF-5
INSTALLATION - OPERATION - SERVICE
- MAINTENANCE - LIMITED WARRANTY
Low Lead Content
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury or death.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not
touch any electrical switch; do
not use any phone in your building.
• Immediately
call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot
reach your gas supplier,
call the fire department.
Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
Thank you for buying this energy efficient water heater.
We appreciate your confidence in our products.
Read and understand this instruction
manual and the safety messages
herein before installing, operating or
servicing this water heater.
Failure to follow these instructions and
safety messages could result in death
or serious injury.
This manual must remain with the
water heater.
place these instructions adjacent to heater and notify owner to keep for future reference.
PRINTED 0412
318628-004
Table Of Contents
Safe Installation, Use and Service............................. 3
APPROVALS.............................................................................. 3
General Safety Information.......................................... 4
Precautions........................................................................... 4
Grounding Instructions.......................................................... 4
Hydrogen Gas Flammable.................................................... 4
Introduction........................................................................ 6
Abbreviations Used............................................................... 6
Qualifications........................................................................ 6
iCOMM™ & BACnet Compatible.......................................... 6
Preparing for the Installation................................................. 6
Features And Components............................................. 7
Basic Operation.................................................................... 7
Top View................................................................................ 8
Side Views............................................................................ 9
Installation Considerations....................................... 10
Rough In Dimensions.......................................................... 10
Gas Line Connection Size.................................................. 10
Storage Capacities.............................................................. 10
Recovery Capacities........................................................... 10
Locating the Water Heater.................................................. 11
Extended Vent Terminations............................................... 12
Optional Concentric Terminations....................................... 12
Hard Water.......................................................................... 12
Circulation Pumps............................................................... 12
Insulation Blankets.............................................................. 12
Installation Requirements.......................................... 13
Gas Pressure Requirements............................................... 13
Supply Gas Line.................................................................. 13
Supply Gas Regulator......................................................... 13
Power Supply...................................................................... 13
Mixing Valves...................................................................... 14
Dishwashing Machines....................................................... 14
Closed Water Systems........................................................ 14
Thermal Expansion............................................................. 14
Temperature-Pressure Relief Valve.................................... 15
Condensate Drain............................................................... 16
Combustible Material Storage............................................. 16
Contaminated Air................................................................ 16
Air Requirements................................................................ 17
Unconfined Space............................................................... 17
Confined Space.................................................................. 17
Fresh Air Openings for Confined Spaces............................ 18
Outdoor Air Through Two Openings.................................... 18
Outdoor Air Through One Opening..................................... 18
Outdoor Air Through Two Horizontal Ducts......................... 18
Outdoor Air Through Two Vertical Ducts............................. 19
Air From Other Indoor Spaces............................................ 19
Installation Requirements - Commonwealth of
Massachusetts.................................................................. 20
Commonwealth of Massachusetts...................................... 20
Installation of Carbon Monoxide Detectors......................... 20
Approved Carbon Monoxide Detectors............................... 20
Signage............................................................................... 20
Inspection............................................................................ 20
Exemptions......................................................................... 20
Manufacturer Requirements - Gas Equipment Venting System
Provided.............................................................................. 20
Manufacturer Requirements - Gas Equipment Venting System
Not Provided....................................................................... 20
Venting Installation....................................................... 21
General Venting Information............................................... 21
General Venting Instructions............................................... 21
Venting Requirements......................................................... 22
Venting Installation Sequence............................................. 23
Power Vent Installation....................................................... 23
Direct Vent Installation........................................................ 23
Vertical Termination Installation........................................... 24
Sidewall Termination Installation......................................... 26
Concentric Termination Installation..................................... 27
4 Inch Concentric Termination Installation.......................... 28
6 Inch Concentric Termination Installation.......................... 29
Venting Arrangements......................................................... 32
Termination Clearances Sidewall Power Vent.................... 34
Termination Clearances Sidewall Direct Vent..................... 35
Water Heater Installation............................................ 36
Condensate Drain Installation............................................. 36
Supply Gas Line Installation............................................... 37
Electrical Wiring.................................................................. 39
Water Line Connections...................................................... 40
T&P Valve Discharge Pipe.................................................. 40
Temperature Regulation.............................................. 41
High Temperature Limit Control (ECO)............................... 41
Thermostat Control............................................................. 41
Control System Operation.......................................... 42
Overview............................................................................. 42
Control System Navigation................................................. 42
User Settings & Control System Menus.............................. 45
Start Up................................................................................ 50
Prior to Start up................................................................... 50
Initial Start Up..................................................................... 50
Checking the Firing Rate.................................................... 52
High Altitude Installations.................................................... 52
Lighting The Water Heater........................................... 53
Lighting & Operation Label - SUF 130 300 100/101, SUF 130
400 & 500 101..................................................................... 53
Lighting & Operation Label - SUF 130 400 & 500 104........ 54
Troubleshooting............................................................. 55
Installation Checklist........................................................... 55
Sequence of Operation....................................................... 55
Sequence of Operation Flow Chart..................................... 56
Operational Problems......................................................... 57
Fault and Alert Conditions................................................... 58
Maintenance....................................................................... 61
General............................................................................... 61
Maintenance Schedule....................................................... 61
Draining and Flushing......................................................... 61
Filling the Water Heater...................................................... 62
Sediment Removal.............................................................. 62
Lime Scale Removal........................................................... 62
Powered Anode Rods......................................................... 63
Drain Valve and Access Panels.......................................... 63
Temperature-Pressure Relief Valve Test............................. 63
Vent System........................................................................ 63
Diagrams.............................................................................. 64
CCB - Central Control Board Layout................................... 64
SUF 130 300 Wiring Diagram............................................. 65
SUF 130 400, 500 Wiring Diagram..................................... 66
Circulation Pump Wiring Diagrams..................................... 67
Water Piping Diagrams....................................................... 68
Limited Warranty.............................................................. 75
2
Safe Installation, Use and Service
The proper installation, use and servicing of this water heater is extremely important to your safety and the safety of others.
Many safety-related messages and instructions have been provided in this manual and on your own water heater to warn you and
others of a potential injury hazard. Read and obey all safety messages and instructions throughout this manual. It is very important
that the meaning of each safety message is understood by you and others who install, use, or service this water heater.
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible
injury or death.
DANGER
DANGER indicates an imminently
hazardous situation which, if not avoided,
will result in injury or death.
WARNING
WARNING indicates a potentially hazardous
situation which, if not avoided, could result
in injury or death.
CAUTION
CAUTION indicates a potentially hazardous
situation which, if not avoided, could result in
minor or moderate injury.
CAUTION
CAUTION used without the safety alert
symbol indicates a potentially hazardous
situation which, if not avoided, could result in
property damage.
All safety messages will generally tell you about the type of hazard, what can happen if you do not follow the safety message, and
how to avoid the risk of injury.
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances
known to the State of California to cause cancer, birth defects, or other reproductive harm, and requires businesses to warn of
potential exposure to such substances.
This product contains a chemical known to the State of California to cause cancer, birth defects, or other reproductive harm. This
appliance can cause low level exposure to some of the substances listed in the Act.
APPROVALS
ANSI/NSF-5
3
Low Lead Content
General Safety Information
Precautions
Hydrogen Gas Flammable
DO NOT USE THIS Water heater IF ANY PART HAS BEEN
UNDER WATER. Immediately call a qualified service agency
to inspect the water heater and to make a determination on
what steps should be taken next.
Explosion Hazard
If the unit is exposed to the following, do not operate heater
until all corrective steps have been made by a qualified
service agency.
Flammable hydrogen gases
may be present.
1. External fire.
Keep all ignition sources away
from faucet when turning on
hot water.
2. Damage.
3. Firing without water.
Grounding Instructions
Hydrogen gas can be produced in a hot water system served
by this water heater that has not been used for a long period of
time (generally two weeks or more). Hydrogen gas is extremely
flammable. To reduce the risk of injury under these conditions, it is
recommended that a hot water faucet served by this water heater
be opened for several minutes before using any electrical appliance
connected to the hot water system. If hydrogen is present there will
probably be an unusual sound such as air escaping through the pipe
as the water begins to flow. There should be no smoking
or open flame near the faucet at the time it is open.
This water heater must be grounded in accordance with the
National Electrical Code and/or local codes. These must be
followed in all cases. Failure to ground this water heater properly
may also cause erratic control system operation.
This water heater must be connected to a grounded metal,
permanent wiring system; or an equipment grounding conductor
must be run with the circuit conductors and connected to the
equipment grounding terminal or lead on the water heater.
Verify the power to the water heater is turned off before performing any service procedures.
Read and understand this instruction
manual and the safety messages
herein before installing, operating or
servicing this water heater.
Explosion Hazard
Overheated water can cause
water tank explosion.
Failure to follow these instructions and
safety messages could result in death
or serious injury.
Properly sized temperature and
pressure relief valve must be
installed in the opening provided.
This manual must remain with the
water heater.
CAUTION
Water temperature over 125°F (52°C)
can cause severe burns instantly
resulting in severe injury or death.
Improper installation, use and service may result
in property damage.
Children, the elderly and the
physically or mentally disabled are at
highest risk for scald injury.
•
•
•
•
•
Feel water before bathing or
showering.
Temperature limiting devices such as
mixing valves must be installed
when required by codes and to
ensure safe temperatures at fixtures.
4
Do not operate water heater if flood damaged.
Inspect and anode rods regularly, replace if damaged.
Install in location with drainage.
Fill tank with water before operation.
Properly sized thermal expansion tanks are required on all
closed water systems.
Refer to this manual for installation and service.
General Safety Information
Fire or Explosion Hazard
Fire Hazard
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
For continued protection against
risk of fire:
Avoid all ignition sources if you smell gas.
Do not expose water heater controls to excessive gas
pressure.
Do not install water heater on
carpeted floor.
Do not operate water heater if
flood damaged.
Use only the gas shown on the water heater rating label.
Maintain required clearances to combustibles.
Keep ignition sources away from faucets after extended
periods of non-use.
Fire and Explosion Hazard
Read instruction manual before
installing, using or servicing
water heater.
Use joint compound or Teflon tape
compatible with propane gas.
Leak test before placing the
water heater in operation.
Disconnect gas piping and main
gas shutoff valve before leak
testing.
Install sediment trap in
accordance with NFPA 54.
Breathing Hazard - Carbon Monoxide Gas
Do not obstruct water heater air intake
with insulating blanket.
Gas and carbon monoxide detectors
are available.
Fire and Explosion Hazard
Install water heater in accordance with
the instruction manual.
Do not use water heater with any gas
other than the gas shown on the rating
label.
Excessive gas pressure to gas valve can
cause serious injury or death.
Turn off gas lines during installation.
Contact a qualified installer or service
agency for installation and service.
Breathing carbon monoxide can cause brain damage or
death. Always read and understand instruction manual.
CAUTION
Property Damage Hazard
• All water heaters eventually leak.
• Do not install without adequate drainage.
Jumping out control circuits or components can
result in property damage, personal injury or death.
•
•
Electrical Shock Hazard
•
Turn off power to the water heater
before performing any service.
•
Label all wires prior to disconnecting
when performing service. Wiring errors
can cause improper and dangerous
operation.
•
•
Verify proper operation after servicing.
•
Service should only be performed by a qualified service
agent using proper test equipment.
Altering the water heater controls and/or wiring in any way
could result in permanent damage to the controls or water
heater and is not covered under the limited warranty.
Altering the water heater controls and/or wiring in any way
could result in altering the ignition sequence allowing gas to
flow to the main burner before the hot surface igniter is at
ignition temperature causing delayed ignition which can
cause a fire or explosion.
Any bypass or alteration of the water
heater controls and/or wiring will result
in voiding the appliance warranty.
Failure to follow these instructions can
result in personal injury or death.
5
Introduction
Thank You for purchasing this water heater. Properly installed
and maintained, it should give you years of trouble free service.
Detailed installation diagrams are also found in this manual.
These diagrams will serve to provide the installer with a
reference. It is essential that all venting, water piping, gas
piping and wiring be installed as shown.
Abbreviations Used
Abbreviations found in this Instruction Manual include :
•
•
•
•
•
•
•
Particular attention should be given to the installation
of thermometers at the locations indicated in the piping
diagrams as these are necessary for checking the operation
of the water heater.
ANSI - American National Standards Institute
ASME - American Society of Mechanical Engineers
GAMA - Gas Appliance Manufacturer’s Association
NEC - National Electrical Code
NFPA - National Fire Protection Association
UL - Underwriters Laboratory
CSA - Canadian Standards Association
The principal components of the water heater are identified
in Features And Components on page 7 in this manual. Use
this reference to locate and identify various components on
the water heater.
See Installation Checklist and Troubleshooting on page 54.
By using this checklist the user may be able to make minor
operational adjustments and avoid unnecessary service
calls. However, service and diagnostic procedures should
only be performed by a Qualified Service Agency.
Qualifications
Qualified Installer or Service Agency
Installation and service of this water heater requires ability
equivalent to that of a Qualified Agency (as defined by ANSI
below) in the field involved. Installation skills such as plumbing,
air supply, venting, gas supply and electrical supply are required
in addition to electrical testing skills when performing service.
Note: Costs to correct installation errors are not covered
under the limited warranty.
2. Be sure to turn off power when working on or near the
electrical system of the water heater. Never touch electrical
components with wet hands or when standing in water.
ANSI Z223.1 2006 Sec. 3.3.83: “Qualified Agency” - “Any
individual, firm, corporation or company that either in person or
through a representative is engaged in and is responsible for (a)
the installation, testing or replacement of gas piping or (b) the
connection, installation, testing, repair or servicing of appliances
and equipment; that is experienced in such work; that is familiar
with all precautions required; and that has complied with all the
requirements of the authority having jurisdiction.”
3. The installation must conform to all instructions contained in
this manual and the local code authority having jurisdiction.
These shall be carefully followed in all cases. Authorities
having jurisdiction should be consulted before installation
begins if there are any questions regarding compliance with
local, state or national codes.
In the absence of local codes, the installation must comply
with the current editions of the National Fuel Gas Code, ANSI
Z223.1/NFPA 54 and the National Electrical Code, NFPA 70 or
CAN/CSA-B149.1, the Natural Gas and Propane Installation
Code and CSA C22.1, the Canadian Electrical Code. All
documents are available from the Canadian Standards
Association, 8501 East Pleasant Valley Road, Cleveland, OH
44131. NFPA documents are also available from the National
Fire Protection Association, 1 Batterymarch Park, Quincy,
MA 02269.
If you are not qualified (as defined by ANSI above) and licensed
or certified as required by the authority having jurisdiction
to perform a given task do not attempt to perform any of the
procedures described in this manual. If you do not understand
the instructions given in this manual do not attempt to perform
any procedures outlined in this manual.
iCOMM™ & BACnet Compatible
This water heater is compatible with the iCOMM™ remote
monitoring system. The iCOMM™ system hardware and
monitoring service is purchased separately. It allows users to
monitor critical operational, diagnostic and energy usage data
from a secure web site.
4. If after reading this manual you have any questions or do
not understand any portion of the instructions, call the toll
free number on the back cover of this manual for technical
assistance. In order to expedite your request, please have the
full Model, Serial and Series number of the water heater you
are working with available for the technician. This information
is located on the water heater’s rating label.
The iCOMM™ system can automatically notify selected
personnel via email and/or cellular phone text messages if
operational problems or user defined Alert Conditions occur.
iCOMM™ system hardware is compatible with BACnet compliant
supervisory controls and building management systems. For
more information call 888 928-3702.
5. Carefully plan the placement of the water heater. Examine
the location to ensure that it complies with the requirements
in Locating The Water Heater on page 11 and the Rough In
Dimensions on page 10.
Preparing for the Installation
6. For installation in California this water heater must be braced
or anchored to avoid falling or moving during an earthquake.
See instructions for correct installation procedures.
Instructions may be obtained from California Office of the
State Architect, 1102 Q Street, Suite 5100, Sacramento, CA
95811.
1. Read the entire manual before attempting to install or operate
the water heater. Pay close attention to the General Safety
Information on page 4 and 5. If you don’t follow the safety
rules, the water heater may not operate safely. It could cause
property damage, injury and/or death.
This manual contains instructions for the installation, operation,
and maintenance of the water heater. It also contains warnings
throughout the manual that you must read and be aware of.
All warnings and all instructions are essential to the proper
operation of the water heater and your safety.
7. Massachusetts Code requires this water heater to be
installed in accordance with Massachusetts 248-CMR 2.00:
State Plumbing Code and 248-CMR 5. See Commonwealth
of Massachusetts on page 20.
6
Features And Components
Basic Operation
Blower/Burner Assembly Detail
INTAKE AIR
(combustion air)
CONNECTION
4 INCH PVC
The water heaters covered in this manual have a helical coil
shaped heat exchanger that is submerged in the storage tank.
The water heater’s Main Burner is a radial design burner, it
is mounted on the top and fires downward through the heat
exchanger. This is a forced draft burner; hot burning gases are
forced through the heat exchanger under pressure and exit
through the exhaust/vent connection located at the bottom of the
water heater. See Figure 1 and Figure 2.
BLOWER
BURNER
ASSEMBLY
COMBUSTION
BLOWER
BLOWER
FLANGE
FLAME
SENSOR
INTAKE AIR
(combustion air)
CONNECTION
4 INCH PVC
MAIN
BURNER
(radial design)
HOT SURFACE
IGNITER
MAIN
BURNER
(radial design)
Figure 2
Hot Surface Igniter
The control system energizes the Hot Surface Igniter with 120
VAC during the igniter warm up period. When the igniter is
energized it produces sufficient heat, >1800°F (>982°C), to ignite
the Main Burner.
HEAT
EXCHANGER
Note: Care must be taken when handling the igniter to prevent
breakage.
During the igniter warm up period prior to ignition the control
system monitors the igniter current and must sense a minimum
of 2.0 AC amps for SUF 130 300 100/101 and SUF 130 400 101
series only, and 3.1 AC amps for SUF 130 400 104 series, and
SUF 130 500 101/104 series. See the Sequence Of Operation
on page 54.
HELICAL
COIL
Flame Sensor
The control system also monitors the flame sensor to confirm
a flame is present at the Main Burner. If a flame is not verified
during the ignition trial period (3-5 seconds) the control system
will immediately de-energize the 24 VAC Gas Valve. See the
Sequence Of Operation Flow Chart on page 55.
VENT (exhaust)
OUTLET
Figure 1
7
Top View
7
8
9
6
10
11
12
5
13
4
2
3
14
2
15
FRONT
1
18
17
16
Figure 3
Top View Components
rise in pressure. This switch is used to insure the Combustion
Blower is operating properly. The control system monitors
this switch and will disable heating operation if its contacts
are closed before the Combustion Blower is energized or
open any time during a heating cycle. See Sequence Of
Operation on page 54.
1. Water Heater’s 120 VAC on/off switch.
2. Powered anode rods. The water heater’s covered in this
manual are equipped with two powered (non sacrificial)
anode rods. Protective current is fed by the control system
to the titanium electrodes at the end of each anode rod. This
current flows through the water to the conductive surfaces
inside the storage tank which diminishes the corrosive effect
(rusting) of water when it comes in contact with steel.
11.Vent connection (exhaust elbow) - 4 inch PVC.
12.Combustion Blower.
13.Blocked Exhaust (vent) switch. Normally closed contacts that
open on a rise in pressure. This switch is used to insure the
Exhaust (vent) piping connected to the water heater is not
restricted. The control system monitors this switch and will
disable heating operation if its contacts are open during a
heating cycle.
3. Central Control Board (CCB) enclosure. This enclosure
houses the control system’s main circuit board. The CCB
regulates water temperature and controls all water heater
functions, see Control System Operation on page 42.
4. 120 VAC junction box. Incoming power supply and ground
connections are made here. See Power Supply on page 8.
14.VFD (variable frequency drive) blower motor drive. Used on
SUF 130 400 and SUF 130 500 models only.
5. Intake air connection - 4 inch PVC.
6. Blocked Intake Air switch. Normally closed contacts that
open on fall in pressure. This switch is used to insure intake
(combustion) air to the water heater is not restricted. The
control system monitors this switch and will disable heating
operation if its contacts are open during a heating cycle.
15.Temperature-Pressure Relief Valve. See TemperaturePressure Relief Valve on page 15.
16.Upper Temperature Probe, 1 of 2 temperature probes. The
water heater’s control system monitors this probe to detect
water temperature in the upper portion of the storage tank.
7. Water heater's 24 VAC Gas Valve.
The Upper Temperature Probe also houses the ECO (energy
cut out) switch. This is a non adjustable high temperature
limit switch. The ECO switch contacts are normally closed
and will open on a temperature rise. See High Temperature
Limit Control (ECO) on page 41.
8. Supply gas line connection. See the requirements for the
Supply Gas Line on page 13.
9. Low Gas Pressure switch. Normally open contacts that close
on a rise in pressure. This switch is used to insure supply
gas pressure is above minimum requirements. The control
system monitors this switch and will disable heating operation
if its contacts are open during a heating cycle. See Table 4
and the Gas Pressure Requirements on page 13.
17.Water outlet connection 1 1/2” NPT.
18.UIM (user interface module). The UIM includes the display circuit
board, the control system’s LCD display and operational buttons.
Used to adjust various user settings and view operational
information. See Control System Operation on page 42.
10.Blower Prover switch. Normally open contacts that close on a
8
Side Views
circuit board, the control system’s LCD display and
operational buttons. Used to adjust various user settings and
view operational information. See Control System Operation
on page 42.
1. Cleanout access panel, covers water heater cleanout
opening.
2. CCB enclosure - see Figure 3 on page 8 for description.
11.Temperature-Pressure Relief Valve. See TemperaturePressure Relief Valve on page 15.
3. 120 VAC junction box. Incoming power supply and ground
connections are made here - see requirements for Power
Supply on page 13.
12.Temperature-Pressure Relief Valve discharge pipe - see T&P
Valve Discharge Pipe Requirements: on page 15.
4. Intake air connection - 4 inch PVC.
13.Lower Temperature Probe, 1 of 2 temperature probes. The
water heater’s control system monitors this probe to detect
water temperature in the lower portion of the storage tank.
5. Supply gas line connection. See Supply Gas Line on page
13.
6. Low Gas Pressure switch, see description under Figure 3 on
page 8. See Table 4 and the Gas Pressure Requirements on
page 13.
14.Water inlet pipe - 1 1/2” NPT connection.
15.Water heater drain valve.
7. Water heater 24 VAC Gas Valve.
16.Combustion Blower.
8. Water outlet pipe - 1 1/2” NPT connection.
17.Vent connection (exhaust elbow) - 4 inch PVC.
9. VFD (variable frequency drive) blower motor drive - - see
Figure 3 on page 8 for description.
18.Condensate trap with 1/2 inch PVC drain connection. See
Figure 9 on page 16 and Condensate Drain Installation on
page 36.
10.UIM (user interface module). The UIM includes the display
5
6
8
2
7
16
8
4
7
6
5
9
10
10
3
11
2
11
12
12
17
15
13
14
14
1
LEFT SIDE
18
13
15
RIGHT SIDE
Figure 4
Figure 5
9
Installation Considerations
Rough In Dimensions
35°
V
4 I ENT
N
PV CH
C
GAS
20°
70°
4” PVC
INTAKE AIR
CONNECTION
1 1/4” SUPPLY GAS
CONNECTION
69”
(175.3 cm)
BACK
WATER
OUTLET
HEIGHT
63 INCHES
(160 cm)
69”
(175.3 cm)
INTAKE AIR
4 INCH PVC
3/4” NPT
DRAIN
FRONT
1 1/2” NPT
WATER INLET
CONDENSATE
DRAIN CONNECTION
1/2 INCH PVC
DRA
IN
VAL
VE
4” PVC
VENT CONNECTION
(exhaust elbow)
E
LV
VA
T
50.77”
(129 cm)
CLEANOUT
P
O
U
75.50”
(191.8 cm)
&
AN
33.12” (84.1 cm)
OUTSIDE
DIAMETER
T
LE
T&P
TOP
*1 1/2” NPT
WATER
OUTLET
C
FRONT
18°
4.86”
(12.34 cm)
12”
(30.5 cm)
45°
45°
* Center line of water outlet on top of the water heater is 7 inches from the front edge of the water heater.
Figure 6
These designs comply with the current edition of the American National Standard for Gas Water Heaters, Volume III, ANSI Z21.10.3
/ CSA 4.3 as an automatic circulating tank water heater, and automatic storage water heaters.
Gas Line Connection Size
Storage Capacities
Table 1
Table 2
MODEL
SERIES
NATURAL GAS
PROPANE GAS
SUF 130 300
100/101
1 1/4” NPT
1 1/4” NPT
SUF 130 400
101/104
1 1/4” NPT
1 1/4” NPT
SUF 130 500
101/104
1 1/2” NPT
1 1/4” NPT
U.S. Gallons
Model
This table shows connections sizes only. Depending on the installed equivalent length,
and/or the number of appliances connected, the supply gas line size may have to be
increased beyond the minimum required sizes - see Gas Line Sizing on page 37.
Liters
ASME
Standard
ASME
Standard
SUF-130-300
130
119.9
492
453.8
SUF-130-400
130
119.9
492
453.8
SUF-130-500
130
119.9
492
453.8
Recovery Capacities
Table 3
U. S. Gallons/Hr & Liters/Hr at Temperature Rise Indicated
Model
SUF 130 300
SUF 130 400
SUF 130 500
Type of
Gas
Natural
Propane
Natural
Propane
Natural
Propane
Input
Btu/hr
300,000
399,900
499,900
kW
88
117
146
°F
20°F
30°F
40°F
50°F
60°F
70°F
80°F
90°F
100°F
110°F
120°F
130°F
140°F
°C
11°C
17°C
22°C
28°C
33°C
39°C
44°C
50°C
56°C
61°C
67°C
72°C
78°C
GPH
1746
1164
873
699
582
499
436
388
349
318
291
269
250
LPH
6610
4406
3304
2644
2203
1888
1652
1469
1322
1201
1102
1017
945
GPH
2328
1552
1164
931
776
665
582
517
466
423
388
359
332
1259
LPH
8813
5875
4406
3525
2938
2518
2203
1958
1763
1602
1469
1356
GPH
2878
1919
1439
1151
959
822
720
640
576
523
480
443
411
LPH
10894
7263
5447
4358
3631
3113
2724
2421
2179
1981
1816
1676
1556
Recovery capacities are based on 96% thermal efficiency for SUF 130 300, SUF 130 400 and 95% thermal efficiency for SUF 130 500.
10
Locating the Water Heater
Carefully choose a location for the new water heater. The
placement is a very important consideration for the safety of the
occupants in the building and for the most economical use of
the water heater.
Fire or Explosion Hazard
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
CAUTION
Avoid all ignition sources if you smell gas.
Do not expose water heater controls to excessive gas
pressure.
Property Damage Hazard
Use only the gas shown on the water heater rating label.
Maintain required clearances to combustibles.
• All water heaters eventually leak.
Keep ignition sources away from faucets after extended
periods of non-use.
• Do not install without adequate drainage.
Read instruction manual before
installing, using or servicing
water heater.
Whether replacing an existing water heater or installing the water
heater in a new location observe the following critical points:
1. The water heater must be located indoors.
2. The water heater must not be located in an area where it will
be subject to freezing temperatures.
There is a risk in using fuel burning appliances such as gas water
heaters in rooms, garages or other areas where gasoline, other
flammable liquids or engine driven equipment or vehicles are
stored, operated or repaired. Flammable vapors are heavy and
travel along the floor and may be ignited by the water heater’s
igniter or Main Burner flames causing fire or explosion.
3. Locate the water heater so it is protected and not subject to
physical damage by a moving vehicle.
4. Locate the water heater on a level surface.
5. Locate the water heater near a floor drain. The water heater
should be located in an area where leakage of the tank or
connections will not result in damage to the area adjacent
to the water heater or to lower floors of the structure. When
such locations cannot be avoided, it is recommended that a
metal drain pan, adequately drained, be installed under the
water heater.
Flammable items, pressurized containers or any other potential fire
hazardous articles must never be placed on or adjacent to the water
heater.
Clearance To Combustible Materials
6. Locate the water heater close to the point of major hot water
usage.
The water heaters covered in this manual are approved for
installation on combustible flooring. The clearance to combustible
and non combustible construction materials is 0 inches on the
back and sides of the water heater. These water heaters are also
approved for installation in an alcove.
7. Locate the water heater close to a 120 VAC power supply.
See Power Supply on page 13 for requirements.
Note: Adequate clearance for servicing should be maintained
on all installations. See Service Clearance below.
8. Locate the water heater where an adequate supply of fresh
air for combustion and ventilation can be obtained. See Air
Requirements on page 17.
ALCOVE
9. Locate the water heater where the vent and intake air piping,
when installed, will remain within the maximum equivalent
lengths allowed. See Venting Requirements on page 22.
CLEARANCES TO COMBUSTIBLE
AND NON COMBUSTIBLE
CONSTRUCTION MATERIALS
TOP COVER
0
10.Do not locate the water heater where noise (such as
the Combustion Blower) during normal operation will be
objectionable in adjacent areas.
0
0
WATER
HEATER
FRONT
FRONT
11. Do not locate the water heater where the subsequent
installation of the vent (exhaust) or intake air terminations
would be objectionable due to noise at the termination(s).
This includes locations close to or across from windows and
doors. See Venting Installation on page 21.
TOP VIEW
FRONT VIEW
Figure 7
Service Clearance
A service clearance of 24 inches (61 cm) should be maintained
from serviceable parts such as the T&P valve, control system
components, gas valve, clean out opening, drain valve, the vent
connection (exhaust elbow) and the condensate drain. Leave as
much room as possible above the water heater and near the
exhaust elbow for this reason. See Figure 9 on page 16.
Intake Air and Vent Pipe Clearances
The minimum clearance from combustible materials for the vent
(exhaust) and intake air piping shall be 0 inches. Vent or intake
air piping passing through a combustible wall or ceiling must be
a continuous run (no joints).
11
Extended Vent Terminations
All-bronze circulating pumps are recommended for used with
commercial water heaters.
The water heaters covered by this manual can be installed using
4 inch pipe for the intake air and/or vent piping up to a maximum
of 70 equivalent feet (21.3 m). The intake air and/or vent piping
can be extended up to 120 equivalent feet (36.5 m) by installing
6 inch pipe. See the Venting Requirements on page 22.
Some circulating pumps are manufactured with sealed bearings
and do not require further lubrication. Some circulating pumps
must be periodically oiled. Refer to the pump manufacturer’s
instructions for lubrication requirements.
Insulation Blankets
The water heater ships from the factory with two (2) 4 inch
terminations that are 45° PVC elbows with a debris screen
installed. When 6 inch intake air or vent pipe is installed, factory
supplied 6 inch terminations must be used.
Contact your local distributor or call the parts department phone
number listed on the back cover of this manual to order 6 inch
termination(s).
Breathing Hazard - Carbon Monoxide Gas
Optional Concentric Terminations
Do not obstruct water heater air intake
with insulating blanket.
The water heaters covered by this manual can be installed in a
Direct Vent configuration using optional concentric terminations.
Gas and carbon monoxide detectors
are available.
Install water heater in accordance with
the instruction manual.
SUF 130 300 models installed using 4 inch vent/intake air piping
use the 4 inch concentric termination. SUF 130 300 models
installed using 6 inch vent/intake air piping use the 6 inch
concentric termination. SUF 130 400 and 500 models must use
the 6 inch concentric termination on all installations. See the
Venting Requirements on page 22 and Concentric Termination
Installation on page 27.
Breathing carbon monoxide can cause brain damage or
death. Always read and understand instruction manual.
Insulation blankets are available to the general public for external
use on gas water heaters but are not necessary with these
products. The purpose of an insulation blanket is to reduce the
standby heat loss encountered with storage tank heaters. The
water heaters covered by this manual meet or exceed the Energy
Policy Act standards with respect to insulation and standby heat
loss requirements, making an insulation blanket unnecessary.
Concentric terminations must be ordered separately. Contact
your local distributor or call the parts department phone number
listed on the back cover of this manual to order.
• 4” Concentric Termination Part # 9006328005
• 6” Concentric Termination Part # 9006144005
Should you choose to apply an insulation blanket to this
heater, you should follow these instructions. See the Features
and Components section of this manual for identification of
components mentioned below. Failure to follow these instructions
can restrict the air flow required for proper combustion, potentially
resulting in fire, asphyxiation, serious personal injury or death.
Hard Water
Where hard water conditions exist, water softening or the
threshold type of water treatment is recommended. This will
protect the dishwashers, coffee urns, water heaters, water piping
and other equipment.
• Do not apply insulation to the top of the water heater, as
this will interfere with safe operation of the blower assembly.
• Do not cover the control system LCD on top of the water
heater.
• Do not cover the Temperature-Pressure Relief Valve.
• Do not cover the instruction manual. Keep it on the side of
the water heater or nearby for future reference.
• Do obtain new warning and instruction labels from the
manufacturer for placement on the blanket directly over the
existing labels.
• Do inspect the insulation blanket frequently to make certain
it does not sag, thereby obstructing combustion air flow.
See Maintenance on page 62 for sediment and lime scale
removal procedures.
Circulation Pumps
A circulating pump is used when a system requires a circulating
loop or there is a storage tank used in conjunction with the water
heater. See the Water Piping Diagrams beginning on page 67 for
installation location of circulating pumps.
See Circulation Pump Wiring Diagrams on page 66 for electrical
hookup information. Install in accordance with the current edition
of the National Electrical Code, NFPA 70 or the Canadian
Electrical Code, CSA C22.1.
12
Installation Requirements
Gas Pressure Requirements
Table 4
Model
*Manifold Pressure
NATURAL GAS
†Minimum Supply Pressure
‡Maximum Supply Pressure
PROPANE GAS
NATURAL GAS
PROPANE GAS
NATURAL GAS
PROPANE GAS
SUF 130 300
4” W. C. (1.0 kPa)
10” W. C. (2.49 kPa)
5.2” W. C. (1.29 kPa)
11” W. C. (2.74 kPa)
10” W. C. (2.49 kPa)
12” W. C. (2.99 kPa)
SUF 130 400
N/A
10” W. C. (2.49 kPa)
5.2” W. C. (1.29 kPa)
11” W. C. (2.74 kPa)
10” W. C. (2.49 kPa)
12” W. C. (2.99 kPa)
SUF 130 500
N/A
10” W. C. (2.49 kPa)
5.2” W. C. (1.29 kPa)
11” W. C. (2.74 kPa)
10” W. C. (2.49 kPa)
12” W. C. (2.99 kPa)
* Manifold gas pressure; reading can only be taken while gas is flowing. Reading taken should be ± 0.3” W. C. of the listed value. These water heaters are certified for
use without modification for altitudes up to 10,000 feet. For elevations above 10,000 feet (3,048 meters) see High Altitude Installations on page 52.
† Minimum supply gas pressure; readings are taken while gas is not flowing (static pressure) AND while gas is flowing (dynamic pressure). Supply pressure must never
fall below the minimum values. Supply gas pressures should be measured with all gas fired appliances connected to a common main firing at full capacity. If supply
pressure drops more than 1.5” W. C. as gas begins to flow the supply gas system (gas line/regulator) may be restricted or undersized. See Table 5 and the Supply
Gas Regulator requirements below. See Supply Gas Line Installation on page 37 and Supply Gas Regulator on page 13 for sizing and installation instructions also.
‡ Maximum supply gas pressure; reading are taken while gas is not flowing (static pressure) AND while gas is flowing (dynamic pressure). Supply pressure must never
exceed this maximum value.
Supply Gas Line
generally provide good water heater operation. Some addition
adjustment maybe required later to maintain a steady gas
supply pressure.
The high efficiency water heaters covered in this manual require an
adequate volume of fuel gas for proper operation. A lack of fuel gas
volume can lead to ignition failure, rough starting and rough operation.
Increasing the supply gas pressure does not necessarily increase
the volume of gas supplied to the water heater and must remain
below the maximum supply gas pressures shown in Table 4.
4. When installing multiple water heaters in the same gas supply
system it is recommended that individual positive lock-up gas
pressure regulators be installed at each unit.
Power Supply
The minimum supply gas line sizes shown in Table 5 must be
observed on all installations to help insure an adequate volume
of fuel gas is provided. Do not use flexible gas piping.
Supply gas lines serving more than one appliance may require
larger sizes than what is shown in Table 5. See Gas Line Sizing
on page 37.
The water heaters covered in this manual require a 120 VAC,
1Ø (single phase), 60Hz, 15 amp power supply and must also
be electrically grounded in accordance with local codes or, in the
absence of local codes, with the National Electrical Code, ANSI/
NFPA 70 or the Canadian Electrical Code, CSA C22.1.
MINIMUM SUPPLY GAS LINE SIZE
Power Fluctuations and Electrical Noise
Table 5
The water heater’s control system requires a source of stable
clean electricity for proper operation. Connecting the water heater
to a branch circuit that is subject to fluctuations in voltage level or
electrical line noise such as EMI (electro magnetic interference)
or RFI (radio frequency interference) may cause erratic control
system operation and malfunction.
MODEL
*NATURAL GAS
PROPANE GAS
SUF 130 300
1 1/4” NPT
1 1/4” NPT
SUF 130 400
1 1/4” NPT
1 1/4” NPT
† SUF 130 500
1 1/2” NPT
1 1/4” NPT
A high quality power supply filter/suppressor such as the Kleen
Line model SELF/T-10 Series SC-L or equivalent must be
installed if the above conditions exist. Call the technical support
phone number listed on the back cover of this manual for more
information.
† Note that SUF 130 500 natural gas models require a 1 1/2” minimum supply
gas line size. Depending on the installed equivalent length, and/or the number
of appliances connected, the supply gas line size may have to be increased
beyond the minimum required sizes shown in this table - see Gas Line Sizing
on page 37.
Note: Malfunctions caused by the power supply and the costs
to install power supply filters are not covered under the limited
warranty.
Supply Gas Regulator
The maximum allowable gas supply pressure for this water
heater is 10.0” W. C. (2.49 kPa) for natural gas and 12.0” W.
C. (2.99 kPa) for propane gas. Install a positive lock-up gas
pressure regulator in the gas supply line if inlet gas pressure can
exceed these pressures at any time.
Dedicated Power Wiring and Breakers
Dedicated power supply wires, ground wiring and dedicated
circuit breakers often prevent electrical line noise and should be
considered when installing the water heater.
Polarity Sensitive
If a positive lock-up regulator is required follow these instructions:
The control system on the water heaters covered in this manual
is polarity sensitive; electronic flame sensing requires correct
polarity. The control system is programmed to monitor the
incoming power supply. If the Hot and Neutral wires in the 120
VAC power supply are reversed, the control system will declare
a Fault condition and lock out, heating operation will be disabled
until the power supply is correctly wired. The control system will
display the “AC Reversed” Fault message on the LCD.
1. Positive lock-up gas pressure regulators must be rated at or
above the input Btu/hr rating of the water heater they supply.
2. Positive lock-up gas pressure regulator(s) should be installed
no closer than 3 feet (1 meter) and no farther than 8 feet (2.4
meters) from the water heater’s inlet gas connection.
3. After installing the positive lock-up gas pressure regulator(s)
an initial nominal supply pressure setting of 7.0” W.C. while
the water heater is operating is recommended and will
See Electrical Wiring on page 39 for installation instructions.
13
Mixing Valves
HOT WATER
OUTLET
Water temperature over 125°F (52°C)
can cause severe burns instantly
resulting in severe injury or death.
12” TO 15”
(30-38 cm)
Children, the elderly and the
physically or mentally disabled are at
highest risk for scald injury.
TEMPERED WATER
OUTLET
Feel water before bathing or
showering.
Temperature limiting devices such as
mixing valves must be installed
when required by codes and to
ensure safe temperatures at fixtures.
CHECK
VALVE
Figure 8
The National Sanitation Foundation also recommends circulation
of 180°F (82°C) water. Where this is done, the circulation should
be very gentle so that it does not cause any unnecessary
turbulence inside the water heater. The circulation should be just
enough to provide 180°F (82°C) water at the point of take-off to
the dishwashing machine.
Some people are more likely to be permanently injured by
hot water than others. These include the elderly, children, the
infirm and the physically/mentally disabled. Table 6 shows the
approximate time-to-burn relationship for normal adult skin.
If anyone using hot water provided by the water heater being
installed fits into one of these groups or if there is a local code
or state law requiring a certain water temperature at the point of
use, then special precautions must be taken.
Adjust flow by throttling a full port ball valve installed in the
circulating line on the outlet side of the pump. Never throttle flow
on the suction side of a pump. See the Water Piping Diagrams
beginning on page 67.
In addition to using the lowest possible temperature setting that
satisfies the demand of the application a Mixing Valve should be
installed at the water heater (see Figure 8) or at the hot water
taps to further reduce system water temperature.
Note: To comply with NSF Standard 5 installation requirements
the bottom of the water heater must be sealed to the floor with a
silicone based sealant or elevated 6 inches above the floor.
Closed Water Systems
Mixing valves are available at plumbing supply stores. Consult
a Qualified Installer or Service Agency. Follow mixing valve
manufacturer’s instructions for installation of the valves.
Water supply systems may, because of code requirements
or such conditions as high line pressure, among others, have
installed devices such as pressure reducing valves, check
valves, and back flow preventers. Devices such as these cause
the water system to be a closed system.
Table 6
Time to Produce 2nd & 3rd
Degree Burns on Adult Skin
180°F (82°C)
Nearly instantaneous
170°F (77°C)
Nearly instantaneous
160°F (71°C)
About 1/2 second
150°F (66°C)
About 1-1/2 seconds
140°F (60°C)
Less than 5 seconds
130°F (54°C)
About 30 seconds
120°F (49°C)
More than 5 minutes
MIXING
VALVE
TO TANK
INLET
Water heated to a temperature which will satisfy clothes washing,
dish washing, and other sanitizing needs can scald and cause
permanent injury upon contact. Short repeated heating cycles
caused by small hot water uses can cause temperatures at the
point of use to exceed the water heater’s temperature setting by
up to 20°F (11°C).
Water Temperature
CHECK
VALVE
COLD
WATER
INLET
Thermal Expansion
As water is heated, it expands (thermal expansion). In a closed
system the volume of water will grow when it is heated. As the
volume of water grows there will be a corresponding increase
in water pressure due to thermal expansion. Thermal expansion
can cause premature tank failure (leakage). This type of failure
is not covered under the limited warranty. Thermal expansion
can also cause intermittent Temperature-Pressure Relief Valve
operation: water discharged from the valve due to excessive
pressure build up. This condition is not covered under the limited
warranty. The Temperature-Pressure Relief Valve is not intended
for the constant relief of thermal expansion.
Dishwashing Machines
All dishwashing machines meeting the National Sanitation
Foundation requirements are designed to operate with water flow
pressures between 15 and 25 pounds per square inch (103 kPa
and 173 kPa). Flow pressures above 25 pounds per square inch
(173 kPa), or below 15 pounds per square inch (103 kPa), will
result in improperly sanitized dishes. Where pressures are high,
a water pressure reducing or flow regulating control valve should
be used in the 180°F (82°C) line to the dishwashing machine and
should be adjusted to deliver water pressure between these limits.
A properly sized thermal expansion tank must be installed on
all closed systems to control the harmful effects of thermal
expansion. Contact a local plumbing service agency to have a
thermal expansion tank installed.
See Water Line Connections on page 40 and the Water Piping
Diagrams beginning on page 67.
14
Temperature-Pressure Relief Valve
CAUTION
Water Damage Hazard
Explosion Hazard
• Temperature-Pressure Relief Valve discharge
pipe must terminate at adequate drain.
Temperature-Pressure Relief Valve
must comply with ANSI Z21.22CSA 4.4 and ASME code.
T&P Valve Discharge Pipe Requirements:
Properly sized temperaturepressure relief valve must be
installed in opening provided.
• Shall not be smaller in size than the outlet pipe size of the
valve, or have any reducing couplings or other restrictions.
• Shall not be plugged or blocked.
Can result in overheating and
excessive tank pressure.
• Shall not be exposed to freezing temperatures.
• Shall be of material listed for hot water distribution.
Can cause serious injury or death.
• Shall be installed so as to allow complete drainage of both
the Temperature-Pressure Relief Valve and the discharge
pipe.
This water heater is provided with a properly rated/sized and
certified combination Temperature-Pressure Relief Valve (T&P
valve) by the manufacturer. The valve is certified by a nationally
recognized testing laboratory that maintains periodic inspection
of production of listed equipment of materials as meeting the
requirements for Relief Valves for Hot Water Supply Systems,
ANSI Z21.22 • CSA 4.4, and the code requirements of ASME.
• Must terminate a maximum of six inches above a floor
drain or external to the building. In cold climates, it is
recommended that the discharge pipe be terminated at an
adequate drain inside the building.
• Shall not have any valve or other obstruction between the
relief valve and the drain.
If replaced, the new T&P valve must meet the requirements
of local codes, but not less than a combination TemperaturePressure Relief Valve rated/sized and certified as indicated in
the above paragraph. The new valve must be marked with a
maximum set pressure not to exceed the marked hydrostatic
working pressure of the water heater (150 psi = 1,035 kPa) and
a discharge capacity not less than the water heater Btu/hr or kW
input rate as shown on the water heater’s model rating label.
Burn hazard.
Hot water discharge.
Note: In addition to the factory installed Temperature-Pressure
Relief Valve on the water heater, each remote storage tank that
may be installed and piped to a water heating appliance must also
have its own properly sized, rated and approved TemperaturePressure Relief Valve installed. Call the toll free technical
support phone number listed on the back cover of this manual
for technical assistance in sizing a Temperature-Pressure Relief
Valve for remote storage tanks.
Keep clear of TemperaturePressure Relief Valve
discharge outlet.
The Temperature-Pressure Relief Valve must be manually
operated at least twice a year. Caution should be taken to
ensure that (1) no one is in front of or around the outlet of the
Temperature-Pressure Relief Valve discharge line, and (2) the
water manually discharged will not cause any bodily injury or
property damage because the water may be extremely hot. If
after manually operating the valve, it fails to completely reset
and continues to release water, immediately close the cold water
inlet to the water heater, follow the draining instructions in this
manual, and replace the Temperature-Pressure Relief Valve with
a properly rated/sized new one.
For safe operation of the water heater, the Temperature-Pressure
Relief Valve must not be removed from its designated opening
nor plugged. The Temperature-Pressure Relief Valve must be
installed directly into the fitting of the water heater designed for the
relief valve. Install discharge piping so that any discharge will exit
the pipe within 6 inches (15.2 cm) above an adequate floor drain,
or external to the building. In cold climates it is recommended
that it be terminated at an adequate drain inside the building. Be
certain that no contact is made with any live electrical part. The
discharge opening must not be blocked or reduced in size under
any circumstances. Excessive length, over 30 feet (9.14 m), or
use of more than four elbows can cause restriction and reduce
the discharge capacity of the valve.
Note: The purpose of a Temperature-Pressure Relief Valve is
to prevent excessive temperatures and pressures in the storage
tank. The T&P valve is not intended for the constant relief of
thermal expansion. A properly sized thermal expansion tank must
be installed on all closed systems to control thermal expansion,
see Closed Water Systems and Thermal Expansion on
page 14.
No valve or other obstruction is to be placed between the
Temperature-Pressure Relief Valve and the tank. Do not connect
discharge piping directly to the drain unless a 6” (15.2 cm)
air gap is provided. To prevent bodily injury, hazard to life, or
property damage, the relief valve must be allowed to discharge
water in adequate quantities should circumstances demand. If
the discharge pipe is not connected to a drain or other suitable
means, the water flow may cause property damage.
If you do not understand these instructions or have any questions
regarding the Temperature-Pressure Relief Valve call the toll free
number listed on the back cover of this manual for technical
assistance.
15
Condensate Drain
Combustible Material Storage
The water heaters covered in this manual are condensing
appliances and require a building drain to be located in close
proximity to allow the condensate to drain safely.
Fire or Explosion Hazard
Condensate drains from the water heater at the exhaust elbow
located at the bottom. The field installed condensate drain line
must not be elevated above the condensate drain connection
on the condensate trap, see Figure 9. If the condensate does
not drain properly it will build up in the exhaust (vent) elbow.
This will restrict the flow of flue gases and cause the Blocked
Exhaust pressure switch to open its contacts. The control system
monitors all pressure switches, if the Blocked Exhaust Switch
contacts are open the control system will lock out and disable
heating operation. The “Blocked Exhaust” Fault message will
be displayed on the control system’s LCD, see Fault And Alert
Conditions beginning on page 57.
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
Avoid all ignition sources if you smell gas.
Do not expose water heater controls to excessive gas
pressure.
Use only the gas shown on the water heater rating label.
Maintain required clearances to combustibles.
Keep ignition sources away from faucets after extended
periods of non-use.
Note: If the “Blocked Exhaust “ Fault message is ever displayed
on the control system LCD, check the condensate drain first and
ensure it is not blocked.
Read instruction manual before
installing, using or servicing
water heater.
EXHAUST (VENT)
ELBOW
CLEANOUT
PLUG IS
REMOVED
TO CLEAR
DRAIN
CONDENSATE DRAIN
LINE CONNECTION
Keep appliance area clear and free of combustible materials,
gasoline and other flammable vapors and liquids.
CONDENSATE DRAIN
LINE - FIELD INSTALLED
Contaminated Air
Breathing Hazard - Carbon Monoxide Gas
FACTORY INSTALLED
CONDENSATE TRAP
Install water heater in accordance with
the Instruction Manual and NFPA 54 or
CAN/CSA-B149.1.
To avoid injury, combustion and ventilation
air must be taken from outdoors.
Do not place chemical vapor emitting
products near water heater.
BUILDING
DRAIN
Figure 9
Condensate Drain Water Trap
Breathing carbon monoxide can cause brain damage or
death. Always read and understand instruction manual.
Breathing Hazard - Carbon Monoxide Gas
Corrosion of the flue ways and vent system may occur if air for
combustion contains certain chemical vapors. Such corrosion
may result in failure and risk of asphyxiation.
Ensure a functioning water trap is
installed in the condensate drain.
Combustion air that is contaminated can greatly diminish the
life span of the water heater and water heater components
such as hot surface igniters and burners. Propellants of aerosol
sprays, beauty shop supplies, water softener chemicals and
chemicals used in dry cleaning processes that are present in the
combustion, ventilation or ambient air can cause such damage.
Gas and carbon monoxide detectors
are available.
Install water heater in accordance with
the instruction manual.
Breathing carbon monoxide can cause brain damage or
death. Always read and understand instruction manual.
Do not store products of this sort near the water heater. Air which
is brought in contact with the water heater should not contain any
of these chemicals. If necessary, uncontaminated air should be
obtained from remote or outdoor sources. The limited warranty
is voided when failure of water heater is due to a corrosive
atmosphere. (See limited warranty for complete terms and
conditions).
Do not remove the factory installed condensate trap for any
reason, see Figure 9. The water heater’s vent pipe is under
a slight positive pressure. The water trap prevents flue gases
from escaping into the installed space. See Condensate Drain
Installation on page 36.
Condensate PH Level
The condensate drains from the water heater’s covered in
this manual have PH levels between 4.3 and 5.0. Install a
commercially available neutralizing kit if required by local codes.
If the water heater will be used in beauty shops, barber shops,
cleaning establishments, or self-service laundries with dry
cleaning equipment, it is imperative that the water heater(s) be
installed in a Direct Vent configuration so that all air for combustion
is derived directly from the outdoor atmosphere through a sealed
intake air pipe. See Venting Installation on page 21.
Note: Lower PH levels are acidic. Do not connect a metal drain
line, such as copper, to the water heater for this reason. See
Condensate Drain Installation on page 36.
16
Air Requirements
to provide air for combustion, ventilation and dilution of flue
gases. However, in buildings of unusually tight construction (for
example, weather stripping, heavily insulated, caulked, vapor
barrier, etc.) additional air must be provided using the methods
described in the Confined Space section that follows.
Breathing Hazard - Carbon Monoxide Gas
Confined Space
Install water heater in accordance with
the Instruction Manual and NFPA 54 or
CAN/CSA-B149.1.
To avoid injury, combustion and ventilation
air must be taken from outdoors.
Do not place chemical vapor emitting
products near water heater.
A Confined Space is one whose volume is less than 50 cubic
feet per 1,000 Btu/hr (4.8 cm per kW) of the total input rating of
all appliances installed in the space.
Openings must be installed to provide fresh air for combustion,
ventilation and dilution in confined spaces. The required size for
the openings is dependent on the method used to provide fresh
air to the confined space and the total Btu/hr input rating of all
appliances installed in the space.
Breathing carbon monoxide can cause brain damage or
death. Always read and understand instruction manual.
Direct Vent Appliances
For safe operation an adequate supply of fresh uncontaminated
air for combustion and ventilation must be provided.
Appliances installed in a Direct Vent configuration that derive all
air for combustion from the outdoor atmosphere through sealed
intake air piping are not factored in the total appliance input Btu/
hr calculations used to determine the size of openings providing
fresh air into confined spaces.
An insufficient supply of air can cause recirculation of combustion
products resulting in contamination that may be hazardous to
life. Such a condition often will result in a yellow, luminous burner
flame, causing sooting of the combustion chamber, burners and
flue tubes and creates a risk of asphyxiation.
Exhaust Fans
Where exhaust fans are installed, additional air shall be provided
to replace the exhausted air. When an exhaust fan is installed
in the same space with a water heater, sufficient openings to
provide fresh air must be provided that accommodate the
requirements for all appliances in the room and the exhaust fan.
Undersized openings will cause air to be drawn into the room
through the water heater’s vent system causing poor combustion.
Sooting, serious damage to the water heater and the risk of fire
or explosion may result. It can also create a risk of asphyxiation.
Do not install the water heater in a confined space unless an
adequate supply of air for combustion and ventilation is brought
in to that space using the methods described in the Confined
Space section that follows.
Never obstruct the flow of ventilation air. If you have any doubts
or questions at all, call your gas supplier. Failure to provide the
proper amount of combustion air can result in a fire or explosion
and cause property damage, serious bodily injury or death.
Unconfined Space
Louvers and Grilles
An Unconfined Space is one whose volume is not less than
50 cubic feet per 1,000 Btu/hr (4.8 cubic meters per kW) of the
total input rating of all appliances installed in the space. Rooms
communicating directly with the space, in which the appliances
are installed, through openings not furnished with doors, are
considered a part of the unconfined space.
The free areas of the fresh air openings in the instructions that
follow do not take in to account the presence of louvers, grilles or
screens in the openings.
The required size of openings for combustion, ventilation and
dilution air shall be based on the “net free area” of each opening.
Where the free area through a design of louver or grille or screen
is known, it shall be used in calculating the size of opening
required to provide the free area specified. Where the louver and
grille design and free area are not known, it shall be assumed
that wood louvers will have 25% free area and metal louvers and
grilles will have 75% free area. Non motorized louvers and grilles
shall be fixed in the open position.
Makeup air requirements for the operation of exhaust fans,
kitchen ventilation systems, clothes dryers and fireplaces shall
also be considered in determining the adequacy of a space to
provide combustion, ventilation and dilution air.
Unusually Tight Construction
In unconfined spaces in buildings, infiltration may be adequate
17
Fresh Air Openings for Confined Spaces
Alternatively a single permanent opening, commencing within 12
inches (300 mm) of the top of the enclosure, shall be provided.
See Figure 11. The water heater shall have clearances of at
least 1 inch (25 mm) from the sides and back and 6 inches (l50
mm) from the front of the appliance. The opening shall directly
communicate with the outdoors or shall communicate through a
vertical or horizontal duct to the outdoors or spaces that freely
communicate with the outdoors and shall have a minimum free
area of the following:
The following instructions shall be used to calculate the size,
number and placement of openings providing fresh air for
combustion, ventilation and dilution in confined spaces. The
illustrations shown in this section of the manual are a reference
for the openings that provide fresh air into confined spaces
only. Do not refer to these illustrations for the purpose of vent
installation. See Venting Installation on page 21 for complete
venting installation instructions.
1. 1 square inch per 3000 Btu/hr (700 mm2 per kW) of the total
input rating of all appliances located in the enclosure, and
Outdoor Air Through Two Openings
2. Not less than the sum of the areas of all vent connectors in
the space.
Outdoor Air Through Two Horizontal Ducts
Figure 10
The confined space shall be provided with two permanent
openings, one commencing within 12 inches (300 mm) of the top
and one commencing within 12 inches (300 mm) of the bottom of
the enclosure. The openings shall communicate directly with the
outdoors. See Figure 10.
Figure 12
The confined space shall be provided with two permanent
horizontal ducts, one commencing within 12 inches (300 mm) of
the top and one commencing within 12 inches (300 mm) of the
bottom of the enclosure. The horizontal ducts shall communicate
directly with the outdoors. See Figure 12.
Each opening shall have a minimum free area of 1 square inch
per 4,000 Btu/hr (550 mm2 per kW) of the aggregate input rating
of all appliances installed in the enclosure. Each opening shall
not be less than 100 square inches (645 cm2).
Each duct opening shall have a minimum free area of 1 square
inch per 2,000 Btu/hr (1100 mm2 per kW) of the aggregate input
rating of all appliances installed in the enclosure.
Outdoor Air Through One Opening
When ducts are used, they shall be of the same cross sectional
area as the free area of the openings to which they connect.
The minimum dimension of rectangular air ducts shall be not less
than 3 inches.
Figure 11
18
Outdoor Air Through Two Vertical Ducts
Air From Other Indoor Spaces
The illustrations shown in this section of the manual are a
reference for the openings that provide fresh air into confined
spaces only.
Do not refer to these illustrations for the purpose of vent
installation. See Venting Installation on page 19 for complete
venting installation instructions.
Figure 14
The confined space shall be provided with two permanent
openings, one commencing within 12 inches (300 mm) of the top
and one commencing within 12 inches (300 mm) of the bottom of
the enclosure. See Figure 14.
Each opening shall communicate directly with an additional
room(s) of sufficient volume so that the combined volume of all
spaces meets the criteria for an Unconfined Space.
Figure 13
The confined space shall be provided with two permanent vertical
ducts, one commencing within 12 inches (300 mm) of the top and
one commencing within 12 inches (300 mm) of the bottom of the
enclosure. The vertical ducts shall communicate directly with the
outdoors. See Figure 13.
Each opening shall have a minimum free area of 1 square inch
per 1,000 Btu/hr (1100 mm2 per kW) of the aggregate input
rating of all appliances installed in the enclosure. Each opening
shall not be less than 100 square inches (645 cm2).
Each duct opening shall have a minimum free area of 1 square
inch per 4,000 Btu/hr (550 mm2 per kW) of the aggregate input
rating of all appliances installed in the enclosure.
When ducts are used, they shall be of the same cross sectional
area as the free area of the openings to which they connect.
The minimum dimension of rectangular air ducts shall be not less
than 3 inches.
19
Installation Requirements - Commonwealth of Massachusetts
Commonwealth of Massachusetts
Inspection
For all side wall terminated, horizontally vented power vent, direct
vent, and power direct vent gas fueled water heaters installed in
every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the
Commonwealth and where the side wall exhaust vent termination
is less than seven (7) feet above finished grade in the area of
the venting, including but not limited to decks and porches, the
following requirements shall be satisfied:
The state or local gas inspector of the side wall horizontally
vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon
monoxide detectors and signage installed in accordance with the
provisions of 248 CMR 5.08(2)(a) 1 through 4.
Exemptions
The following equipment is exempt from 248 CMR 5.08(2)(a)1
through 4:
Installation of Carbon Monoxide Detectors
1. The equipment listed in Chapter 10 entitled “Equipment Not
Required To Be Vented” in the most current edition of NFPA
54 as adopted by the Board; and
At the time of installation of the side wall horizontal vented
gas fueled equipment, the installing plumber or gasfitter shall
observe that a hard wired carbon monoxide detector with an
alarm and battery back-up is installed on the floor level where
the gas equipment is to be installed. In addition, the installing
plumber or gasfitter shall observe that a battery operated or
hard wired carbon monoxide detector with an alarm is installed
on each additional level of the dwelling, building or structure
served by the sidewall horizontal vented gas fueled equipment.
It shall be the responsibility of the property owner to secure the
services of qualified licensed professionals for the installation of
hard wired carbon monoxide detectors.
2. Product Approved side wall horizontally vented gas fueled
equipment installed in a room or structure separate from the
dwelling, building, or structure used in whole or in part for
residential purposes.
Manufacturer Requirements - Gas
Equipment Venting System Provided
When the manufacturer of Product Approved side wall
horizontally vented gas equipment provides a venting system
design or venting system components with the equipment, the
instructions provided by the manufacturer for installation of the
equipment and the venting system shall include:
In the event that the side wall horizontally vented gas fueled
equipment is installed in a crawl space or an attic, the hard wired
carbon monoxide detector with alarm and battery back-up may
be installed on the next adjacent floor level.
1. Detailed instructions for the installation of the venting system
design or the venting system components; and
2. A complete parts list for the venting system design or venting
system.
In the event that the requirements of this subdivision can not be
met at the time of completion of installation, the owner shall have
a period of thirty (30) days to comply with the above requirements
provided that during said thirty (30) day period, a battery operated
carbon monoxide detector with an alarm shall be installed.
Manufacturer Requirements - Gas
Equipment Venting System Not Provided
When the manufacturer of a Product Approved side wall
horizontally vented gas fueled equipment does not provide the
parts for venting the flue gases, but identifies “special venting
systems,” the following requirements shall be satisfied by the
manufacturer:
Approved Carbon Monoxide Detectors
Each carbon monoxide detector as required in accordance with
the above provisions shall comply with NFPA 720 and be ANSI/
UL 2034 listed and CSA certified.
1. The referenced “special venting system” instructions shall
be included with the appliance or equipment installation
instructions; and
Signage
2. The “special venting systems” shall be Product Approved by
the Board, and the instructions for that system shall include a
parts list and detailed installation instructions.
A metal or plastic identification plate shall be permanently
mounted to the exterior of the building at a minimum height of
eight (8) feet above grade directly in line with the exhaust vent
terminal for the horizontally vented gas fueled heating appliance
or equipment. The sign shall read, in print size no less than onehalf (1/2) inch in size, “gas vent directly below. Keep
clear of all obstructions.”
A copy of all installation instructions for all Product Approved
side wall horizontally vented gas fueled equipment, all venting
instructions, all parts lists for venting instructions, and/or all
venting design instructions shall remain with the appliance or
equipment at the completion of the installation.
20
Venting Installation
Requirements on page 17. If the installation space does not
provide an adequate supply of fresh air the water heater
must be installed in a Direct Vent configuration.
2. If the water heater is to be installed in a beauty shop,
barber shop, cleaning establishment, a laundry with dry
cleaning equipment or any space with contaminated air it is
imperative that the water heater(s) be installed in a Direct
Vent configuration so that all air for combustion is derived
from the outdoor atmosphere.
Breathing Hazard - Carbon Monoxide Gas
• Install vent system in accordance with codes.
• Do not operate water heater if flood damaged.
• Special consideration must be taken with installations
above 10,000 feet (3,048 m) refer to high altitude
section of this manual.
• Do not operate if soot buildup.
• Do not obstruct water heater air intake with insulating
3. The vent and intake air piping must terminate outdoors.
4. The minimum clearance from combustible materials for the
vent (exhaust) and intake air piping shall be 0 inches. Vent
piping passing through a combustible wall or ceiling must be
a continuous run (no joints).
jacket or blanket.
• Do not place chemical vapor emitting products near
water heater.
• Gas and carbon monoxide detectors are available.
• Never operate the heater unless it is vented to the
5. The water heater must be protected from freezing downdrafts
during shutdown periods.
outdoors and has adequate air supply to avoid risks
of improper operation, fire, explosion or asphyxiation.
6. The vent (exhaust) pipe must not be combined or connected
to any other appliance’s vent system or chimney.
• Analyze the entire vent system to make sure that
condensate will not become trapped in a section of
vent pipe and therefore reduce the open cross
sectional area of the vent.
7. The intake air pipe must not be combined or connected to
any other appliance’s intake air piping.
Breathing carbon monoxide can cause brain damage or death.
Always read and understand the instruction manual.
8. Locate the water heater where the vent (exhaust) and intake
air piping will remain within the maximum equivalent lengths
allowed. See Venting Requirements on page 22.
Never operate the water heater unless it is vented to the
outdoors.
9. Do not install the vent or intake air piping in a manner that will
allow water to be trapped in the piping.
The instructions in this section of the manual must be followed
to avoid choked combustion or recirculation of flue gases. Such
conditions cause sooting of the combustion chamber, burners
and flue tubes and creates a risk of asphyxiation.
10.Vent pipes must be pitched a minimum of a 1/4 inch per foot
back to the water heater (to allow drainage of condensate).
11.Do not anchor the vent or intake air pipe directly to framed
walls, floors or ceilings unless rubber isolation pipe hangers
are used to prevent vibration noise from being transmitted.
General Venting Information
The water heaters covered in this manual are operationally
equivalent to Category IV appliances and may be installed in
either a Power Vent or Direct Vent configuration.
12.Use only approved vent/intake air pipe sizes and materials.
See Venting Requirements on page 22.
13.Use only factory supplied vent and intake air or concentric
terminations. See the Venting Requirements on page 22.
Category IV Appliance
Category IV appliances operate with a positive vent (exhaust)
static pressure and with vent gas temperatures low enough to
produce condensate in the vent piping.
14.Do not locate the vent (exhaust) or intake air terminations
where they would be objectionable due to noise at the
termination(s). This includes locations close to or across from
windows and doors.
Power Vent Configuration
Power Vent configurations derive all combustion air from the
room where they are installed and discharge all flue gases to
the outdoor atmosphere through a sealed vent (exhaust) pipe.
Power vent configurations have one vent pipe connected to the
water heater which can be terminated in a vertical or horizontal
arrangement. See Figure 40 and Figure 41 on page 32.
15.Direct venting into dead air spaces such as alleys, atriums,
and inside corners can cause recirculation of flue gases.
Recirculation of flue gases will cause sooting, premature
failure of the heat exchanger and icing of the combustion
air intake during severe cold weather. To prevent the
recirculation of flue gases, maintain as much distance as
possible between the intake air and vent terminations.
Direct Vent Configuration
Direct Vent configurations derive all combustion air directly from
the outdoor atmosphere through a sealed intake air pipe and
discharge all flue gases to the outdoor atmosphere through a
sealed vent (exhaust) pipe. Direct Vent configurations have two
pipes connected to the water heater, one vent pipe and one
intake air pipe. Direct Vent configurations can be terminated in
one of six different arrangements. See Figure 42 on page 32
through Figure 47 on page 33.
16.Do not locate the vent termination over a public area where
condensate or vapor can cause a nuisance or ice hazard.
17.Ensure the screens in the factory supplied terminations are
securely installed to prevent blockage in the vent system.
These instructions must be followed on all installations.
18.Stress levels in pipe/fittings can be significantly increased by
improper installation. If rigid pipe clamps are used to hold
the pipe in place, or if the pipe cannot move freely through a
wall penetration, the pipe may be stressed, or high thermal
stresses may be formed when the pipe heats up and expands.
Install accordingly to minimize such stresses.
1. Do not install the water heater in a Power Vent configuration
unless there is adequate supply of fresh air, see Air
19.Carefully read the Venting Requirements on page 22 and then
proceed to the Venting Installation Sequence on page 23.
General Venting Instructions
21
Venting Requirements
(exhaust) and intake air piping shall be 0 inches. Vent or intake
air piping passing through a combustible wall or ceiling must be
a continuous run (no joints).
Approved Materials
Approved vent and intake air pipe materials that may be used in
the United States:
Minimum Equivalent Lengths
Four Inch Pipe
• PVC Schedule 40 (ASTM D 2241 / CSA B181.2, ASTM D
1785 / CSA B137.3
• CPVC Schedule 40 (ASTM F-411 / CSA B137.6)
• ABS (ASTM D-2661)
Approved vent and intake air pipe materials that must be used
in Canada:
The water heaters covered in this manual are certified to
a minimum length of 4 inch pipe for the vent (exhaust) of 15
equivalent feet (4.6 m). There is no minimum equivalent feet
requirement for the intake air pipe.
Six Inch Pipe
The water heaters covered in this manual are certified to
a minimum length of 6 inch pipe for the vent (exhaust) of 70
equivalent feet (21.3 m). There is no minimum equivalent feet
requirement for the intake air pipe.
• ULC S636 PVC / CPVC
Field Supplied Fittings
Field supplied fittings should be equivalent to the piping material
being installed. Field installed/supplied fittings will add equivalent
feet to the vent or intake air piping as indicated below. All field
supplied/installed fittings and piping must be factored into the
equivalent feet calculations.
Maximum Number Of Elbows
The vent pipe may have a maximum of six 90° elbows installed.
The intake air pipe may have a maximum of six 90° elbows
installed. IE: in a Direct Vent configuration each pipe can have up
to six (6) 90° elbows installed. Two (2) 45° elbows equal one (1)
90° elbow. Each 90° elbow is equivalent to 5 feet (1.5 m) of linear
pipe, 45° elbows are equivalent to 2.5 feet (0.75 m) of linear pipe.
• 90° elbows (short or long radius) are equivalent to 5 linear
feet (152 cm) of pipe.
• 45° elbows (short or long radius) are equivalent to 2.5 linear
feet (76 cm) of pipe.
Primer and Cement
Factory Supplied Fittings
The water heater ships with two (2) factory supplied 4 inch
terminations (PVC 45° elbows with debris screen). Factory
supplied vent and intake air terminations or concentric
terminations must be used. Factory supplied terminations and
installed fittings (exhaust elbow and intake air connection) add
zero equivalent feet to the vent and intake air piping.
Tetrahydrofuran (THF) primer should be used to prepare the
surfaces of pipe and fittings for solvent welding. If CPVC or ABS
pipe and fittings are used, then the proper cement must be used
for all joints, including joining the pipe to the factory provided
terminations (PVC material). PVC Materials should use ASTM
D-2564 Grade Cement; CPVC Materials should use ASTM F-493
Grade Cement and ABS Materials should use ASTM D-2235
Grade Cement.
Note: 3 inch intake air and/or vent terminations previously
installed on older SUF 130 300/400 model installations must
be replaced with factory supplied 4 inch or 6 inch terminations
depending on the installed length.
Pipe Size Requirements
Table 7
The water heaters covered in this manual are certified for the use
of 4 and 6 inch pipe for the vent (exhaust) and intake air piping.
If the installed equivalent length for the intake air or vent piping
will be 70 feet (21.3 m) or less, 4 inch pipe must be used. If the
installed equivalent length will be more than 70 feet (21.3 m), 6
inch pipe must be used.
Number of
90° Elbows
Installed
Note: Install the pipe size required for the installed equivalent
length of each pipe independently. IE: If the intake air pipe will
be 70 equivalent feet or less and the vent pipe will more than 70
equivalent feet; the intake air pipe must be installed using 4 inch
pipe and the vent must be installed using 6 inch pipe.
Maximum Equivalent Lengths
4 Inch Pipe
6 Inch Pipe
Maximum Feet (Meters)
Maximum Feet (Meters)
One (1)
65 feet (19.8 meters)
115 feet (35.0 meters)
Two (2)
60 feet (18.2 meters)
110 feet (33.5 meters)
Three (3)
55 feet (16.8 meters)
105 feet (32.0 meters)
Four (4)
50 feet (15.2 meters)
100 feet (30.5 meters)
Five (5)
45 feet (13.7 meters)
95 feet (29.0 meters)
Six (6)
40 feet (12.2 meters)
90 feet (27.4 meters)
Four Inch Pipe
6 Inch Extended Vent Terminations
The water heaters covered in this manual are certified to a
maximum length of 4 inch pipe for the exhaust venting arrangement
of 70 equivalent feet (21.3 m). The certified maximum length of
4 inch pipe for intake air piping is also 70 equivalent feet (21.3
m). IE: On Direct Vent installations both pipes can be up to 70
equivalent feet (21.3 m).
When 6 inch intake air or vent pipe is installed using standard
terminations, factory supplied 6 inch terminations must be used.
Contact your local distributor or call the parts department (phone
number listed on the back cover of this manual) to order 6 inch
termination(s).
Optional Concentric Terminations
Six Inch Pipe
SUF 130 300 models installed using 4 inch vent/intake air piping
use the 4 inch concentric termination. SUF 130 300 models
installed using 6 inch vent/intake air piping use the 6 inch
concentric termination. SUF 130 400 and 500 models must use
the 6 inch concentric termination on all installations.
The water heaters covered in this manual are certified to a
maximum length of 6 inch pipe for the exhaust venting arrangement
of 120 equivalent feet (36.5 m). The certified maximum length of
6 inch pipe for intake air piping is also 120 equivalent feet (36.5
m). IE: On Direct Vent installations both pipes can be up to 120
equivalent feet (36.5 m).
Contact your local distributor or call the parts department phone
number listed on the back cover of this manual to order.
• 4” Concentric Termination Part # 9006328005
• 6” Concentric Termination Part # 9006144005
Intake Air and Vent Pipe Clearances
The minimum clearance from combustible materials for the vent
22
Venting Installation Sequence
11.If installing 6 inch pipe transition to 4 inch pipe as shown in
Figure 15. The field installed 4” pipe between the exhaust
elbow and the 6” x 4” reducer coupling should be 18 inches
(45 cm) or less in length.
1. Read the General Venting Instructions on page 21 and
Venting Requirements on page 22 before proceeding.
These instructions and requirements must be followed on all
installations.
Direct Vent Installation
2. Determine whether the water heater will be installed in
a Power Vent or Direct Vent configuration and which vent
system arrangement will be used for the installation. See the
various venting arrangements on pages 32 and 33.
1. Read the General Venting Instructions on page 21 and
Venting Requirements on page 22 before proceeding. These
instructions and requirements must be followed in addition
to the instructions below that are specific for Direct Vent
configurations.
3. Proceed to the applicable installation instructions that follow;
Power Vent Installation or Direct Vent Installation.
2. Determine which Direct Vent arrangement will be used for
the installation. There are six (6) Direct Vent arrangement
options, see pages 32 and 33.
Power Vent Installation
1. Read the General Venting Instructions on page 21 and
Venting Requirements on page 22 before proceeding. These
instructions and requirements must be followed in addition
to the instructions below that are specific for Power Vent
configurations.
3. Determine vent and intake air pipe size to be used for the
installation; see Venting Requirements on page 22.
4. Plan the layout of the vent and intake air piping backwards
from the termination point outdoors to the water heater.
Layout the vent and intake air piping to use a minimum of
pipe and elbows.
2. Determine which Power Vent arrangement will be used for
the installation; vertical or horizontal termination. See Figure
40 and Figure 41 on page 32.
5. Install the terminations first.
If standard terminations are being used and the intake air
or vent piping will terminate vertically, through a roof, see
Vertical Termination Installation on page 24.
3. Determine the vent pipe size for the installation, see Venting
Requirements on page 22.
4. Plan the layout of the vent piping backwards from the
termination point outdoors to the water heater. Layout the
vent piping to use a minimum of pipe and elbows.
If standard terminations are being used and the intake air or
vent piping will terminate horizontally, through a sidewall, see
Sidewall Termination Installation on page 26.
5. Install the termination first.
If a concentric termination(s) will be used see Concentric
Termination Installation on page 27.
If the vent piping will terminate vertically, through a roof, see
Vertical Termination Installation on page 24.
6. When installation of the termination(s) is complete Install
necessary piping and fittings to route the intake air and vent
piping back to the water heater.
If the vent piping will terminate horizontally, through a
sidewall, see Sidewall Termination Installation on page 26.
7. The intake air and vent piping must be supported properly
to avoid bending or failure. The water heater manufacturer
recommends that the vent and intake air piping be supported
every 5 feet (152 cm) of vertical run and every 3 feet (91 cm)
of horizontal run.
6” PIPE FIELD
SUPPLIED
6” x 4” REDUCER
FIELD SUPPLIED
8. Do not install the vent or intake air piping in a manner that will
allow water to be trapped in the piping.
4” PIPE FIELD
SUPPLIED
9. A field supplied condensate Tee fitting and drain hose should
be installed in the intake air piping near the water heater in
colder climates with heavy snow accumulations and in areas
that regularly experience high humidity. The drain hose
should be routed to an adequate floor drain separate from
any other condensate drains. See Figure 16 on page 24.
EXHAUST ELBOW
VENT CONNECTION
FACTORY INSTALLED
VENT (EXHAUST) CONNECTION
Note: Snow being pulled into the intake air piping and
then melting can lead to excessive amounts of water
accumulation and damage water heater components.
Warm, humid outdoor air can lead to excessive
condensation inside the intake air piping and may also
damage water heater components.
Figure 15
6. When installation of the termination is complete install
necessary piping and fittings to route the vent piping back to
the water heater.
7. The vent pipe must be supported properly to avoid bending
or failure. The water heater manufacturer recommends that
the vent pipe be supported every 5 feet (152 cm) of vertical
run and every 3 feet (91 cm) of horizontal run.
10.All vent (exhaust) pipes must be pitched a minimum of a 1/4
inch per foot back to the water heater (to allow drainage of
condensate).
11.If installing 4 inch vent pipe connect the vent pipe to the
exhaust elbow on the water heater.
8. Do not install the vent piping in a manner that will allow water
to be trapped in the piping.
12.If installing 6 inch vent pipe transition to 4 inch pipe at the
exhaust elbow on the water heater as shown in Figure 15.
The field installed 4” pipe between the exhaust elbow and
the 6” x 4” reducer coupling should be 18 inches (45 cm) or
less in length.
9. All vent (exhaust) pipes must be pitched a minimum of a 1/4 inch per
foot back to the water heater (to allow drainage of condensate).
10.If installing 4 inch vent pipe connect the vent pipe to the
exhaust elbow on the water heater.
23
INSTALL TEE FITTING AS CLOSE TO WATER HEATER
INTAKE AIR CONNECTION AS POSSIBLE
FACTORY
INTAKE AIR
CONNECTION
14.If installing 4 inch intake air pipe connect the intake air pipe to
the intake air connection on the water heater.
INTAKE
AIR
PIPING
15.If installing 6” intake air pipe transition to 4” pipe at the intake
air connection on the water heater as shown in Figure 18.
The field installed 4” pipe between the intake air connection
and the 6” x 4” reducer coupling should be 18 inches (45 cm)
or less in length.
FIELD SUPPLIED
3” x 3” x 1/2” TEE
WITH HOSE BARB
FITTING INSTALLED
6” PIPE FIELD
SUPPLIED
CONNECT FIELD
SUPPLIED FLEXIBLE
DRAIN HOSE TO BARB
FITTING AND FORM A
LOOP WATER TRAP IN
DRAIN HOSE
4” PIPE FIELD
SUPPLIED
3” PIPE FACTORY
INSTALLED
INTAKE AIR
RUN DRAIN HOSE
TO SUITABLE FLOOR
DRAIN SEPARATELY
FROM OTHER
CONDENSATE DRAINS
6” x 4” REDUCER
FIELD SUPPLIED
COMBUSTION
4” x 3” REDUCER
BLOWER
FACTORY INSTALLED
INTAKE AIR CONNECTION
INTAKE AIR CONNECTION
INTAKE AIR CONDENSATE TEE INSTALLATION
Figure 18
Figure 16
Vertical Termination Installation
13.Ensure the Balance Plate and Intake Air Screen on the Intake
Air Connection are both removed before connecting the
intake air pipe to the water heater, see Figure 17.
1. Determine the location for the termination(s).
2. If installing only the vent (exhaust) piping in a Power Vent
configuration vertically through the roof; ensure that all
exterior vertical clearance requirements shown in Figure
19 and Figure 20 on page 25 are being maintained. These
clearances and those cited by local and national codes must
be maintained.
Breathing Hazard - Carbon Monoxide Gas
Do not obstruct water heater air intake.
Note: On flat roof installations the vent termination must be
a minimum of 24 inches (60 cm) above any parapet, vertical
wall or structure within 10 feet (3 m) horizontally. See Figure
20 on page 25.
Gas and carbon monoxide detectors
are available.
Install water heater in accordance with
the instruction manual.
3. If installing both intake air and vent piping in a Direct Vent
configuration vertically through the roof; ensure that all
exterior vertical clearance requirements shown in Figure
19 and Figure 20 on page 25 are being maintained. These
clearances and those cited by local and national codes must
be maintained.
Breathing carbon monoxide can cause brain damage or
death. Always read and understand instruction manual.
Note: Do not leave the screen inside the Intake Air
connection in Direct Vent installations. Once the intake air
pipe is installed the screen will be hidden from view and
may become clogged with debris over time. This will cause
improper combustion.
Note: On flat roof installations the intake air and the vent
terminations must be a minimum of 24 inches (60 cm) above
any parapet, vertical wall or structure within 10 feet (3 m)
horizontally. See Figure 20 on page 25.
INTAKE AIR SCREEN
(remove for Direct Vent)
4. If installing only vent piping in a Power Vent configuration
vertically through the roof the following instructions must be
followed:
BALANCE PLATE
The vent termination must be oriented facing downward as
shown in Figure 19 and Figure 20 on page 25.
The bottom edge of the vent termination must be a minimum
of 12 inches (30 cm), 18 inches (45 cm) in Canada, above
the average or expected snow level as shown in Figure 19
on page 25.
4” x 3” REDUCER
COUPLING - FACTORY INSTALLED
5. If installing both intake air and vent piping in a Direct Vent
configuration vertically through the roof the following
instructions must be followed:
INTAKE AIR CONNECTION DETAIL
Figure 17
24
10.Install the factory supplied intake air and/or vent termination(s)
using field supplied pipe and one field supplied 90° elbow as
shown in Figure 19. The short section of pipe that connects
between the field supplied 90° elbow and the factory supplied
termination must not be excessive in length. The exposed
portion of this pipe shall be no more than 2 inches (5 cm),
see Figure 19.
The intake air and vent pipes must penetrate the same side
of the roof as shown in Figure 21 on page 25.
The intake air and vent terminations must be oriented facing
downward and in the same direction as shown in Figure 21
on page 25.
The intake air and vent terminations must have a minimum
separation of 24” (61 cm) measured on center line as shown
in Figure 21 on page 25. In colder climates this separation
should be increased to at least 48 inches (122 cm).
IF LESS THAN
10 FEET (3 m)
The bottom edge of the intake air and vent terminations
must be a minimum of 12 inches (30 cm), 18 inches (45 cm)
in Canada, above the average or expected snow level as
shown in Figure 19 and Figure 21 on page 25.
24 INCHES (60 cm)
MINIMUM HEIGHT ABOVE
6. When the intake air and/or vent piping from multiple
water heaters will terminate in the same location the vent
terminations can be grouped together in close proximity 0
inches/touching. Intake air terminations can also be grouped
together in close proximity 0 inches/touching.
INTAKE AIR AND/OR VENT
TERMINATION(S) MUST BE A
MINIMUM OF 24 INCES (60 cm)
ABOVE ANY PARAPET, VERTICAL
WALL OR STRUCTURE WITHIN
10 FEET (3 m) HORIZONTALLY.
The distance between the closest vent and intake air
terminations must be a minimum of 24 inches (61 cm) as
shown in Figure 21. In colder climates this separation should
be increased to at least 48 inches (122 cm).
7. Cut a 5 inch (13 cm) diameter hole for 4 inch pipe or 7 inch
(18 cm) diameter hole for 6 inch pipe where the pipe(s) will
pass through the roof.
Note: Beware of concealed wiring and piping when cutting
through the roof.
VERTICAL TERMINATION(S) FLAT ROOF CLEARANCE
INTAKE AIR AND/OR VENT (EXHAUST)
8. Suspend the pipe(s) through center of hole using field
supplied metal strapping or equivalent support materials as
shown in Figure 19.
2” (5 cm)
MAXIMUM
FIELD
SUPPLIED
90° ELBOW
FIELD SUPPLIED
PLUMBING
ROOF BOOT
OR FLASHING
Figure 20
11.Return to Power Vent Installation on page 23 or Direct Vent
Installation on page 23 to complete the installation of the
intake air and/or vent piping between the termination(s) and
the water heater.
FACTORY SUPPLIED
STANDARD TERMINATION
POINTED DOWN TOWARDS
THE GROUND
24 INCHES (61 cm) MINIMUM
48 INCHES (122 cm) IN COLDER CLIMATES
FIELD
SUPPLIED
90° ELBOW
INTAKE AIR
TERMINATION
VENT (EXHAUST)
TERMINATION
MAINTAIN 12” (30 cm)
18” (45 cm) FOR CANADA
MINIMUM CLEARANCE
ABOVE HIGHEST ANTICIPATED
SNOW LEVEL.
FACTORY SUPPLIED
STANDARD TERMINATIONS
POINTED DOWNWARD
MAINTAIN 12” (30 cm)
18” (45 cm) FOR CANADA
MINIMUM CLEARANCE
ABOVE HIGHEST
ANTICIPATED SNOW LEVEL.
FIELD SUPPLIED
PLUMBING
ROOF BOOTS
OR FLASHINGS
FIELD
SUPPLIED
STRAP/SUPPORT
VERTICAL TERMINATION(S) INSTALLATION
INTAKE AIR AND/OR VENT (EXHAUST)
Figure 19
VERTICAL TERMINATION - DIRECT VENT
9. Slide a roof boot or equivalent flashing over the pipe and
secure roof boot or equivalent flashing to roof (see Figure 19)
and seal around the flashing.
Figure 21
STANDARD TERMINATIONS
25
Sidewall Termination Installation
(18 cm) diameter hole for 6 inch pipe where the pipe(s) will
pass through the wall.
1. Determine the location for the termination(s).
Note: Beware of concealed wiring and piping when cutting
through the wall.
2. If installing only vent (exhaust) piping in a Power Vent
configuration through a sidewall; ensure that all exterior
sidewall clearance requirements for the termination, shown
in Figure 48 on page 34, are being maintained. These
clearances and those cited by local and national codes must
be maintained.
8. Cut a length(s) of pipe being installed 3.5 inches (8.9 cm)
to 9.5 inches (24.1 cm) longer than the wall thickness at the
opening. See Figure 23.
Note: Vent Termination – exhaust gases of this water
heater are less than 140°F. In cold climates water vapor in
the exhaust gases will condense into a cloud of vapor where
the vent exits the building. This vapor can gradually discolor
exterior building surfaces. The vent termination should be
located where this vapor cloud and potential discoloration
are not a concern. Extending the exposed vent piping up to
a maximum of 6 inches (15.2 cm) from the wall helps vapor
from being trapped along a building’s face. To avoid this
problem, the vent can also be terminated vertically through
the roof, see Vertical Termination Installation on page 24.
3. If installing both intake air and vent piping in a Direct Vent
configuration through a sidewall; ensure that all exterior
sidewall clearance requirements for the terminations, shown
in Figure 49 on page 35, for the vent and intake air termination
are being maintained. These clearances and those cited by
local and national codes must be maintained.
4. If installing both an intake air and vent termination in a Direct
Vent configuration through a sidewall there must be a minimum
of 24 inches (61 cm) separation, measured on vertical center
line, between the intake air and vent terminations, see Figure
22.
9. Cement the intake air and/or vent termination to the section(s)
of pipe cut to length in the above Step.
Note: In colder climates this separation should be increased
to at least 48 inches (122 cm) between the intake air and
vent termination or any other appliance vent that discharges
moisture-laden air such as clothes dryers. This will reduce
possibility of frost over from side winds blowing exhaust
vapors to the intake air termination and is recommended for
Canadian installations.
10.Slide the included metal wall plate(s) over the pipe(s) to stop
against the intake air and/or vent termination. Place some
silicone caulking (field supplied) on the back of the wall
plate(s) to secure it to the wall.
11.Working from outside, slide the pipe and termination(s)
assembled in the above steps through the wall. Ensure the
termination(s) is pointed down towards the ground. See
Figure 23.
5. If installing both intake air and vent terminations in a Direct
Vent configuration through a sidewall the intake air and
vent terminations must be installed at the same elevation
measured on horizontal center line - see Figure 22.
VENT (EXHAUST)
TERMINATION
METAL PLATES
INSTALL INSIDE
AND/OR OUTSIDE
INTAKE AIR
TERMINATION
FROM
WATER
HEATER
ELEVATION
INSTALL ON
CENTERLINE
INCREASE EXPOSED VENT
PIPING UP TO A MAXIMUM
OF 6 INCHES (15.2 cm) FROM
WALL TO HELP PREVENT VAPOR
FROM DISCOLORING THE WALL
SURFACE IN COLDER CLIMATES
FACTORY SUPPLIED
STANDARD TERMINATION
POINTED DOWN
TOWARDS THE GROUND
COUPLING
INTERIOR WALL
KEEP INTAKE AND VENT
TERMINATION SCREENS
CLEAR OF DEBRIS
EXTERIOR WALL
SIDEWALL TERMINATION INSTALLATION
INTAKE AIR AND/OR VENT (EXHAUST)
24 INCHES (61 cm) MINIMUM
48 INCHES (122 cm) IN COLDER CLIMATES
Figure 23
SIDEWALL TERMINATION - DIRECT VENT
12.Place a bead of silicone caulking (field supplied) around the
gap between the installed pipe(s) and the wall. Apply enough
to fill the gap between the pipe(s) and wall.
STANDARD TERMINATIONS
Figure 22
13.Press the wall plate flush against the outside wall.
14.Working from the inside apply enough silicone caulking on
the back of the interior wall plate(s) to hold it in place and
slide the wall plate over the installed pipe(s).
6. When the intake air and/or vent piping from multiple water
heaters will terminate at the same location through a sidewall,
the vent terminations can be grouped together in close
proximity - 0 inches/touching. The intake air terminations
can also be grouped together in close proximity - 0 inches/
touching.
15.Install a coupling to the end of the pipe(s) inside the building.
Before the silicone caulking has time to completely set go
outside the building and ensure the termination(s) is still
pointing down towards the ground. See Figure 23.
However, the distance between the closest vent and intake
air terminations must be a minimum of 24 inches (61 cm).
In colder climates this separation should be increased to at
least 48 inches (122 cm). See Figure 22.
16.Return to Power Vent Installation on page 23 or Direct Vent
Installation on page 26 to complete the installation of the
intake air and/or vent piping between the termination(s) and
the water heater.
7. Cut a 5 inch (13 cm) diameter hole for 4 inch pipe or 7 inch
26
Concentric Termination Installation
termination. Use only Schedule 40 PVC to extend the 6 inch
concentric termination.
1. Determine which concentric termination will be installed.
SUF 130 300 models installed using 4 inch vent/intake air
piping use the 4 inch concentric termination. SUF 130 300
models installed using 6 inch vent/intake air piping use the
6 inch concentric termination. SUF 130 400 and 500 models
must use the 6 inch concentric termination on all installations,
see Venting Requirements on page 22.
When shortening the length of the termination carefully
measure and cut the larger (intake air) pipe first. Cut the
same amount of pipe off of the smaller (vent) pipe.
10.Depending on which termination(s) is being installed go to 4
Inch Concentric Termination Installation on page 28 or 6 Inch
Concentric Termination Installation on page 29.
2. Determine the location for the termination.
Note: Roof termination is preferred since it is less susceptible
to damage, has reduced chances to intake contaminants and
vent vapors are less visible.
3. When installing a concentric termination vertically through the
roof; ensure that all exterior vertical clearance requirements
for the concentric termination, shown in Figure 27 on page
28 and Figure 30 on page 29, are being maintained. These
clearances and those cited by local and national codes must
be maintained.
CONCENTRIC TERMINATION(S)
MUST BE A MINIMUM OF 10 FEET
(3 m) AWAY FROM ANY PARAPET,
VERTICAL WALL OR
STRUCTURE.
4. When installing a concentric termination vertically through a
flat roof, the termination's vent cap must be a minimum of 10
feet (3 m) away from any parapet, vertical wall or structure as
shown in Figure 24 and Figure 25.
Note: If this required distance to a parapet, vertical wall or
structure cannot be maintained, standard terminations must
be used. See Vertical Termination Installation on page 24.
5. When installing a concentric termination through a sidewall;
ensure that all exterior sidewall clearance requirements for
the termination, shown in Figure 49 on page 35, are being
maintained. These clearances and those cited by local and
national codes must be maintained.
4 INCH CONCENTRIC TERMINATION
FLAT ROOF CLEARANCE
6. When installing multiple concentric terminations vertically
through a roof or horizontally through a sidewall ensure the
required clearances between terminations and groupings of
multiple terminations are maintained. See pages 30 and 31
for more information.
Figure 24
7. Cut a 5 inch (13 cm) diameter hole for 4 inch concentric
terminations or 7 inch (18 cm) diameter hole for 6 inch
concentric terminations where they will pass through the wall
or roof.
Note: Beware of concealed wiring and piping when cutting
through the wall or roof.
CONCENTRIC TERMINATION(S)
MUST BE A MINIMUM OF 10 FEET
(3 m) AWAY FROM ANY PARAPET,
VERTICAL WALL OR
STRUCTURE.
8. When installing multiple concentric terminations vertically
through the roof in the same location the termination caps
for all concentric terminations must be at the same height
measured from ground. See Multiple Concentric Termination
Arrangements on page 31.
9. Determine if the concentric termination will need to be
shortened or lengthened to accommodate required
clearances or to ensure all vent caps are at the same height
when installing multiple terminations vertically through the
roof in the same location.
See Figure 26 on page 28 and Figure 29 on page 29 for the
maximum and minimum lengths allowed for the 4 inch and 6
inch concentric terminations.
When extending the length of a concentric termination
do not use couplings. The use of couplings will restrict
flow through the termination and may cause improper
combustion. The termination’s intake air and vent pipes must
be replaced with longer sections of the same pipe material
when extending the length of the termination.
6 INCH CONCENTRIC TERMINATION
FLAT ROOF CLEARANCE
Use only SDR-26 pipe to extend the 4 inch concentric
Figure 25
27
4 Inch Concentric Termination Installation
INTAKE AIR CONNECTION
3 INCH PVC
3” x 3” x 4”
Y FITTING
9. Return to Direct Vent Installation on page 28 to complete
the installation of the intake air and vent piping between the
concentric termination and the water heater.
INTAKE AIR PIPE
VENT PIPE
VENT
VENT CONNECTION - 3 INCH PVC
COMBUSTION
AIR
VENT CAP
VENT PIPE IS 2 1/2 INCH SDR-26 PIPE
SUPPLIED LENGTH 37 INCHES (94 cm)
MAXIMUM ALLOWABLE LENGTH 73 INCHES (185 cm)
MINIMUM ALLOWABLE LENGTH 25 INCHES (64 cm)
MAINTAIN 12” (30 cm)
18” (45 cm) FOR CANADA
MINIMUM CLEARANCE
ABOVE HIGHEST ANTICIPATED
SNOW LEVEL. MAXIMUM OF
24” (60 cm) ABOVE ROOF.
ROOF FLASHING
(field supplied)
INTAKE AIR PIPE IS 4 INCH SDR-26 PIPE
SUPPLIED LENGTH 24 INCHES (60 cm)
MAXIMUM ALLOWABLE LENGTH 60 INCHES (152 cm)
MINIMUM ALLOWABLE LENGTH 12 INCHES (30 cm)
STRAP
(field supplied)
INTAKE AIR PIPE
Y FITTING ASSEMBLY
NOTE: SECURING STRAP
MUST BE FIELD INSTALLED
TO PREVENT MOVEMENT
OF TERMINATION KIT
VENT CAP
VENT PIPE ASSEMBLY
VENT
PIPE
INTAKE
AIR PIPE
4 INCH CONCENTRIC TERMINATION KIT
FOUR PIECE KIT - FIELD ASSEMBLY REQUIRED
4 INCH CONCENTRIC TERMINATION
VERTICAL INSTALLATION
Figure 26
Figure 27
Assemble and install the 4 inch concentric termination. Refer to
Figure 26, Figure 27 and Figure 28 for these instructions:
1. Cement the Y fitting to the larger diameter intake air pipe.
2. Slide the intake air pipe and Y fitting assembly from inside the
building through the hole cut for the termination in the roof
or sidewall. Ensure no foreign materials such as insulation
accumulate inside the assembly.
NOTE: SECURING STRAP MUST BE
FIELD INSTALLED TO PREVENT
MOVEMENT OF TERMINATION KIT
IN SIDEWALL.
3. Secure the intake air Y fitting assembly using field supplied
metal strapping or equivalent support materials.
VENT
PIPE
4. On installations installed through the roof slide a field
supplied plumbing boot or roof flashing over the intake air Y
fitting assembly and secure it to the roof.
STRAP
(field supplied)
COMBUSTION
AIR
VENT
5. Seal around the plumbing boot or roof flashing.
6. Cement the vent cap onto the vent pipe. Alternately a fieldsupplied stainless steel screw may be used to secure the 2
components together when field disassembly is desired for
cleaning. A pilot hole must be drilled for the screw to prevent
damage/cracking of the vent cap and/or vent pipe.
1 INCH
MAXIMUM
INTAKE
AIR PIPE
7. Install the vent cap/vent pipe assembly into the intake air Y
fitting assembly, Ensure small diameter vent pipe is cemented
and bottomed in the Y fitting.
8. Connect the intake air and vent piping from the water heater
to the 4 inch concentric termination using field supplied 4” x
3” reducer couplings as needed.
4 INCH CONCENTRIC TERMINATION
SIDEWALL INSTALLATION
Figure 28
28
6 Inch Concentric Termination Installation
6” x 4” STANDARD
REDUCER BUSHING
11.Push the vent cap/vent pipe assembly into the intake air Y
fitting assembly until the vent cap seats properly on the large
diameter intake air pipe. Ensure the vent pipe is cemented
to the no stop-lip reducer bushing previously installed in
the Y fitting. Secure the vent cap to intake air pipe with field
supplied stainless steel screws. Install the screws through
the pre-drilled holes in the vent cap brackets. Pilot holes for
the screws must be drilled in the intake air pipe to prevent
damage/cracking.
INTAKE AIR CONNECTION
6” or 4” PVC
INTAKE AIR PIPE
6” x 6” x 6”
Y FITTING
VENT TERMINAL
WITH SCREEN
VENT PIPE
VENT
CONNECTION
4” PVC
6” x 4” NO STOP-LIP
REDUCER BUSHING
VENT
VENT CAP
STAINLESS STEEL
MAINTAIN 12” (30 cm)
18” (45 cm) FOR CANADA
MINIMUM CLEARANCE
ABOVE HIGHEST ANTICIPATED
SNOW LEVEL. MAXIMUM OF
24” (60 cm) ABOVE ROOF.
COMBUSTION
AIR
VENT PIPE IS 4 INCH SCHEDULE 40 PVC
SUPPLIED LENGTH 46 1/2 INCHES (118 cm)
MAXIMUM ALLOWABLE LENGTH 66 1/2 INCHES (169 cm)
MINIMUM ALLOWABLE LENGTH 33 1/8 INCHES (84 cm)
INTAKE AIR PIPE IS 6 INCH SCHEDULE 40 PVC
SUPPLIED LENGTH 25 3/8 INCHES (64 cm)
MAXIMUM ALLOWABLE LENGTH 45 3/8 INCHES (115 cm)
MINIMUM ALLOWABLE LENGTH 12 INCHES (30 cm)
ROOF FLASHING
(field supplied)
INTAKE AIR PIPE
Y FITTING ASSEMBLY
STRAP
(field supplied)
INTAKE
AIR PIPE
VENT CAP
VENT PIPE ASSEMBLY
NOTE: SECURING STRAP
MUST BE FIELD INSTALLED
TO PREVENT MOVEMENT
OF TERMINATION KIT
VENT
PIPE
6 INCH CONCENTRIC TERMINATION KIT
SEVEN PIECE KIT - FIELD ASSEMBLY REQUIRED
Figure 29
6 INCH CONCENTRIC TERMINATION
VERTICAL INSTALLATION
Assemble and install the 6 inch concentric termination. Refer to
Figure 29, Figure 30 and Figure 31 for these instructions:
1. Cement the Y fitting to the larger diameter intake air pipe.
Figure 30
2. Cement the 6” x 4” no stop-lip reducer bushing into the
straight (vent) end of the Y fitting.
NOTE: SECURING STRAP MUST BE
FIELD INSTALLED TO PREVENT
MOVEMENT OF TERMINATION KIT
IN SIDEWALL.
STRAP
(field supplied)
VENT
PIPE
3. If the intake air piping being installed is 4 inch pipe, cement
the 6” x 4” standard reducer bushing into the angle (intake
air) end of the Y fitting as shown in Figure 29.
4. If the intake air piping being installed is 6 inch pipe discard
the 6” x 4” standard reducer bushing. The 6 inch intake air
piping will connect directly to the angle end of the Y fitting.
COMBUSTION
AIR
VENT
5. Slide the intake air Y fitting assembly from inside the building
through the hole cut for the termination in the roof or sidewall.
Ensure no foreign materials such as insulation accumulate
inside the assembly.
INTAKE
AIR PIPE
6. Secure the intake air Y fitting assembly using field supplied
metal strapping or equivalent support materials.
1 INCH MINIMUM
3 INCH MAXIMUM
7. On installations installed through the roof slide a field
supplied plumbing boot or roof flashing over the intake air Y
fitting assembly and secure it to the roof.
6 INCH CONCENTRIC TERMINATION
SIDEWALL INSTALLATION
8. Seal around the plumbing boot or roof flashing.
9. Slide the steel vent cap onto the 4 inch vent pipe and cement
the vent terminal to the end of the vent pipe.
Figure 31
12.Connect the intake air and vent piping from the water heater
to the 6 inch concentric termination. Use field supplied 4 inch
couplings or 6” x 4” reducer couplings as needed.
10.Slide the vent cap back up the vent pipe until it touches the
vent terminal. Secure the vent cap to the vent pipe using field
supplied stainless steel screws. Pilot holes must be drilled
for the screws to prevent damage/cracking of the vent pipe.
Apply water proof silicone sealant between the vent cap and
the terminal.
13.Return to Direct Vent Installation on page 29 to complete
the installation of the intake air and vent piping between the
concentric termination and the water heater.
29
Multiple Concentric Termination Clearances
Four Concentric Terminations
When installing multiple concentric terminations vertically through
a roof or horizontally through a sidewall ensure the required
clearances (separation) between terminations are maintained.
Ensure multiple terminations are arranged or grouped as
required.
1. When installing four concentric terminations through a roof or
through a sidewall in close proximity they may be arranged
into stacked rows of two as shown in Figure 34 or lateral rows
of two as shown in Figure 35.
2. Four is the maximum number of concentric terminations that
may be installed in a group where all terminations are in close
proximity as shown in Figure 34.
Note: These clearances must be maintained to prevent the
recirculation of vent (exhaust) gases to the intake air. Clearances
are measured between the edges of the concentric termination
caps.
A
When installing multiple concentric terminations through a roof
or through a sidewall the clearances shown in Figure 32 must
be maintained.
CONCENTRIC
TERMINATION
CAPS END VIEW
A
See Multiple Concentric Termination Arrangements on page 31.
Close Proximity & Standard Clearance
1. The clearance between multiple termination caps must be 0
inches (touching) to a maximum of 2 inches (5 cm), dimension
A - Figure 32, when installing concentric terminations in close
proximity. See Figure 37 on page 31.
A = 0 - 2 INCHES (0 - 5 cm)
CLOSE PROXIMITY
FOUR CONCENTRIC TERMINATIONS
(THROUGH A ROOF OR SIDEWALL)
2. The clearance between multiple termination caps must be
increased to a minimum of 24 inches (61 cm), dimension B Figure 32, when installation in close proximity (above) is not
possible. This is the standard clearance.
CONCENTRIC
TERMINATION CAPS
END VIEW
A
Figure 34
A
CONCENTRIC
TERMINATION
CAPS END VIEW
CLOSE PROXIMITY
STANDARD CLEARANCE
A = 0 - 2 INCHES (0 - 5 cm)
B = 24 INCHES (61 cm)
OR GREATER
A = 0 - 2 INCHES (0 - 5 cm)
CLOSE PROXIMITY
(THROUGH A ROOF OR SIDEWALL)
(THROUGH A ROOF OR SIDEWALL)
Figure 35
Figure 32
Groups Of Terminations
Three Concentric Terminations
1. When installing multiple groups of concentric terminations
through a roof or through a sidewall in close proximity they
can be installed into stacked groups of four as shown in
Figure 36. Lateral groups of four as shown in Figure 35 may
be a more convenient installation arrangement for multiple
groups depending on available space.
1. When installing three concentric terminations through a roof
or through a sidewall the third termination may be installed in
close proximity as indicated by dimension A in Figure 33.
2. If close proximity installation of the third termination is not
possible the third termination may be installed as indicated
by dimension B in Figure 33.
A
B
A
B
CONCENTRIC
TERMINATION
CAPS END VIEW
A
THIRD
TERMINATION
A = 0 - 2 INCHES (0 - 5 cm)
CLOSE PROXIMITY
B = 24 INCHES (61 cm)
OR GREATER
FOUR CONCENTRIC TERMINATIONS
TWO CONCENTRIC TERMINATIONS
A
A
B
OR
CONCENTRIC
TERMINATION
CAPS END VIEW
B
A = 0 - 2 INCHES (0 - 5 cm)
CLOSE PROXIMITY
B = 24 INCHES (61 cm)
OR GREATER
THREE CONCENTRIC TERMINATIONS
B = 24 INCHES (61 cm)
OR GREATER BETWEEN
GROUPS OF FOUR
EIGHT CONCENTRIC TERMINATIONS
(THROUGH A ROOF OR SIDEWALL)
(THROUGH A ROOF OR SIDEWALL)
Figure 36
Figure 33
30
Multiple Concentric Termination Arrangements
Four Concentric Terminations
The illustrations on this page show some of the installation
arrangements for multiple concentric terminations that are
allowed.
Four concentric terminations may be installed in close proximity
as shown in Figure 38. See Figure 34 and Figure 35 on page
30 for detailed information on clearances and additional
arrangement options.
See Multiple Concentric Termination Clearances on page 30 for
detailed information on clearances and additional arrangement
options.
SIDEWALL
Note: When multiple concentric terminations are installed
through a roof in the same location all termination caps must be
at the same height measured from the ground.
Two Concentric Terminations
Two concentric terminations may be installed in close proximity
as shown in Figure 37 or with standard clearances when this
arrangement is not possible. See Figure 32 on page 30 for
detailed information on clearances. See Figure 33 on page 30
when installing three concentric terminations.
SIDEWALL
ROOF
Figure 38
Eight Concentric Terminations
ROOF
Eight concentric terminations may be installed in two stacked
groups of four, in close proximity, as shown in Figure 39. See
Figure 36 on page 30 for detailed information on clearances.
Lateral groups of four as shown in Figure 35 on page 30 may be
a more convenient installation arrangement for multiple groups
depending on available space.
SIDEWALL
Figure 37
ROOF
Figure 39
31
Venting Arrangements
Power Vent Vertical
Figure 40
Power Vent Horizontal
Figure 41
Direct Vent Vertical
Figure 42
Direct Vent Horizontal
Figure 43
32
Venting Arrangements
Direct Vent Vertical Vent Horizontal Intake
Figure 44
Direct Vent Horizontal Vent Vertical Intake
Figure 45
Direct Vent Vertical Concentric
Figure 46
Direct Vent Horizontal Concentric
Figure 47
33
Termination Clearances Sidewall Power Vent
POWER VENT
(using room air for combustion)
EXTERIOR CLEARANCES FOR SIDEWALL VENT TERMINATION
G
V
D
H
A
v E
L
v
B
FI XE D
CLOSED
V
F
OPERABLE
V
B
B
C
OPERABLE
V
B
B
FI XE D
CLOSED
V
M
X
V
K
J
A
X
V
B
V
X
VENT TERMINAL
AIR SUPPLY INLET
AREA WHERE TERMINAL IS NOT PERMITTED
Figure 48
Vent terminal clearances for “Power Vent” installations. Power Vent configurations use room air for combustion.
Canadian Installations
A
Clearance above grade,
veranda, porch, deck or 12 inches (30 cm)
balcony
B
Clearance to window
or door that may be
opened
1
6 inches (15 cm) for appliances up to
10,000 Btu/hr (3 kW), 12 inches (30
cm) for appliances between 10,000
Btu/hr (3 kW) and 100,000 Btu/hr (30
kW), 36 inches (91 cm) for appliances
above 100,000 Btu/hr (30 kW)
US Installations
2
12 inches (30 cm)
4 feet (1.2 m) below
or to side of opening;
1 foot (30 cm) above
opening
Canadian Installations
H
I
Clearance to each side
of center line extended
above meter/regulator
assembly
Clearance to service
regulator vent outlet
1
US Installations
3 feet (91 cm) within a height 15 feet
(4.5 m) above the meter/
regulator assembly
3 feet (91 cm) within a
height 15 feet (4.5 m)
above the meter/regulator
assembly*
3 feet (91 cm)
3 feet (91 cm)*
6 inches (15 cm) for appliances up
to 10,000 Btu/hr (3 kW), 12 inches
(30 cm) for appliances between
10,000 Btu/hr (3 kW) and 100,000
Btu/hr (30kW), 36 inches (91cm)
for appliances above 100,000 Btu/
hr (30 kW)
6 feet (1.83 m)
C
Clearance to
permanently closed
window
12 inches (30 cm)*
12 inches (30 cm)*
J
Clearance to a non
mechanical air supply
inlet into building or
combustion air inlet to
any other appliance
D
Vertical clearance to
ventilated soffit located
above the terminal
within a horizontal
12 inches (30 cm)*
distance of 2 feet (61
cm) from the center line
of the terminal
12 inches (30 cm)*
K
Clearance to a
mechanical air supply
inlet
E
Clearance to
unventilated soffit
12 inches (30 cm)*
12 inches (30 cm)*
L
Clearance above paved
sidewalk or paved
7 feet (2.13 m)†
driveway located on
public property
F
Clearance to outside
corner
2 feet (60 cm)*
2 feet (60 cm)*
M
Clearance under
veranda, porch, deck, or 12 inches (30 cm) ‡
balcony
G
Clearance to inside
corner
18 inches (45 cm)*
18 inches (45 cm)*
4 feet (1.2 m) below or to
side of opening; 1 foot
(30 cm) above opening.
3 feet (91 cm) above if
within
10 feet (3 m) horizontally
7 feet (2.13 m)
12 inches (30 cm) ‡
1 In accordance with the current CSA B149.1, Natural Gas and Propane Installation Code.
2 In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code.
† A vent shall not terminate directly above a sidewalk or paved driveway that is located between two single family dwellings and serves both dwellings.
‡ Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor.
* Clearance in accordance with local installation codes and the requirements of the gas supplier and the manufacturer’s installation instructions.
34
2
Termination Clearances Sidewall Direct Vent
DIRECT VENT
(using outdoor air for combustion)
EXTERIOR CLEARANCES FOR SIDEWALL VENT TERMINATION
G
V
D
H
A
v E
L
v
B
FI XE D
CLOSED
V
F
B
B
C
OPERABLE
V
OPERABLE
V
B
B
FI XE D
CLOSED
V
M
X
V
K
J
A
X
V
B
V
VENT TERMINAL
X
AIR SUPPLY INLET
AREA WHERE TERMINAL IS NOT PERMITTED
Figure 49
Vent terminal clearances for “Direct Vent” installations. Direct Vent configurations use outdoor air for combustion.
Canadian Installations
A
Clearance above grade,
veranda, porch, deck or
balcony
B
6 inches (15 cm) for appliances
up to 10,000 Btu/hr (3 kW), 12
inches (30 cm) for appliances
Clearance to window or
between 10,000 Btu/hr (3 kW)
door that may be opened
and 100,000 Btu/hr (30 kW), 36
inches (91 cm) for appliances
above 100,000 Btu/hr (30 kW)
12 inches (30 cm)
1
US Installations
2
Canadian Installations
1
US Installations
Clearance to each side
3 feet (91 cm) within a height 15
of center line extended
feet (4.5 m) above the meter/
above meter/regulator
regulator assembly
assembly
3 feet (91 cm) within a height
15 feet (4.5 m) above the
meter/regulator assembly*
I
Clearance to service
regulator vent outlet
3 feet (91 cm)
3 feet (91 cm)*
6 inches (15 cm)*
J
Clearance to a non
mechanical air supply
inlet into building or
combustion air inlet to
any other appliance
6 inches (15 cm) for appliances up
to 10,000 Btu/hr (3 kW), 12 inches
(30 cm) for appliances between
10,000 Btu/hr (3 kW) and 100,000
Btu/hr (30 kW), 36 inches (91 cm)
for appliances above 100,000 Btu/
hr (30 kW)
6 inches (15 cm) for
appliances up to 10,000
Btu/hr (3 kW), 9 inches (23
cm) for appliances between
10,000 Btu/hr (3 kW) and
50,000 Btu/hr (15 kW), 12
inches (30 cm) for appliances
above 50,000 Btu/hr (15 kW)
6 feet (1.83 m)
3 feet (91 cm) above if within
10 feet (3 m) horizontally
12 inches (30 cm)
6 inches (15 cm)
for appliances up to
10,000 Btu/hr (3 kW),
9 inches (23 cm) for
appliances between
10,000 Btu/hr (3 kW)
and 50,000 Btu/hr (15
kW), 12 inches (30 cm)
for appliances above
50,000 Btu/hr (15 kW)
H
C
Clearance to
permanently closed
window
D
Vertical clearance to
ventilated soffit located
above the terminal within
12 inches (30 cm)*
a horizontal distance of
2 feet (61 cm) from the
center line of the terminal
12 inches (30 cm)*
K
Clearance to a
mechanical air supply
inlet
E
Clearance to unventilated
12 inches (30 cm)*
soffit
12 inches (30 cm)*
L
Clearance above
paved sidewalk or
7 feet (2.13 m)†
paved driveway located
on public property
7 feet (2.13 m)†*
F
Clearance to outside
corner
2 feet (60 cm)*
2 feet (60 cm)*
M
Clearance under
veranda, porch, deck,
or balcony
12 inches (30 cm) ‡*
G
Clearance to inside
corner
18 inches (45 cm)*
18 inches (45 cm)*
6 inches (15 cm)*
2
12 inches (30 cm) ‡
1 In accordance with the current CSA B149.1, Natural Gas and Propane Installation Code.
2 In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code.
† A vent shall not terminate directly above a sidewalk or paved driveway that is located between two single family dwellings and serves both dwellings.
‡ Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor.
* Clearance in accordance with local installation codes and the requirements of the gas supplier and the manufacturer’s installation instructions.
35
Water Heater Installation
Condensate Drain Installation
than 1/2 inch PVC in size.
Installation must conform with these instructions and local
building codes.
3. Do not remove, modify or alter the factory condensate trap.
Condensate neutralizer kits are available. Contact your distributor
or Service Agency.
1. Ensure the water heater’s on/off switch is in the “off”
position.
Field supplied materials required for installation include:
2. Install a 1/2 inch PVC condensate drain line between the
condensate drain connection on the Condensate Drain Trap
and a suitable building drain, see Figure 50 and Figure 51.
Installation Instructions
• Approved PVC cement and PVC primer.
• 1/2 inch PVC pipe - minimum length to equal the distance
between the water heater and a suitable building drain.
• 1/2 inch PVC fittings (elbows and couplings) necessary to
install a condensate drain line between the Condensate
Drain Trap Assembly and a suitable building drain.
• Floor mounted standoffs to brace the drain line.
Installation Notes
3. Terminate the condensate drain piping with an elbow above
the drain. Ensure that any discharge will exit the condensate
drain line no more than 6 inches (15.2 cm) above a suitable
building drain, or external to the building, see Figure 50.
Note: In cold climates it is recommended the condensate
drain be terminated at a suitable drain inside the building.
4. Ensure the condensate drain line is not elevated above the
condensate drain connection on the trap, see Figure 51.
1. The condensate drains from the water heater’s covered by
this instruction have PH levels between 4.3 and 5.0. Install
a commercially available neutralizing kit if required by local
codes. Lower PH levels are acidic. Do not connect a metal
condensate drain line, such as copper pipe, to the water
heater for this reason.
5. Brace the condensate drain line with floor mounted standoffs
every three feet.
6. Ensure the condensate drains freely during start up, see
Start Up on page 50.
2. The field installed condensate drain line must not be less
EXHAUST (VENT)
ELBOW
CONDENSATE DRAIN
LINE - FIELD INSTALLED
CLEANOUT PLUG SHOULD
FACE TOWARDS THE FRONT
OF THE WATER HEATER FOR
SERVICE ACCESS
FACTORY INSTALLED
CONDENSATE TRAP
DRAIN LINE TO
TERMINATE NO
MORE THAN 6
INCHES (15.2 cm)
ABOVE DRAIN
BUILDING
DRAIN
Figure 50
PVC PIPE NIPPLE
½” NPT
PVC BUSHING
1 ½” SLIP x ½” SLIP
PVC TEE FITTING
1 ½” SLIP x 1 ½” SLIP x ½” NPT
½” PVC 90° ELBOW
CONDENSATE DRAIN
CONNECTION. FIELD
INSTALLED DRAIN
LINE CONNECTS HERE
PVC BUSHING
1 ½” SLIP x 1 ¼” NPT
½” PVC PIPE NIPPLE
PVC PIPE PLUG
1 ¼” NPT
½” PVC 90°
STREET ELBOW
CLEANOUT PIPE
PLUG SHOULD
BE ORIENTED TO
THE FRONT OF THE
WATER HEATER FOR
SERVICE ACCESS
CONDENSATE TRAP DETAIL
Figure 51
36
Supply Gas Line Installation
Gas Line Sizing
Contact your local gas utility company to ensure that adequate
gas service is available and to review applicable installation
codes for your area.
Do not use flexible gas piping.
Minimum required supply gas line sizes are shown in Table 5 on
page 13. Depending on the developed equivalent length and/or
the number of appliances connected to a common main, the size
of supply gas lines may have to be increased.
Be sure that the gas meter has sufficient capacity to supply the
rated gas input of the water heater as well as the requirements
of all other gas fired equipment supplied by the meter. If the
gas meter is undersized, the gas company will have to install a
properly sized gas meter.
Size the supply/main gas line(s) in accordance with Table 8 or
Table 9. The values given in Table 8 and Table 9 are for straight
lengths of iron pipe at 0.5" W. C. (125 Pa) pressure drop, which
is considered normal for low pressure systems. Note that fittings
such as elbows and tees will add to the pipe pressure drop.
Fire and Explosion Hazard
Supply Gas Line Sizing U. S. Units
Table 8
Do not use water heater with any gas
other than the gas shown on the rating
label.
Excessive gas pressure to gas valve can
cause serious injury or death.
Turn off gas lines during installation.
Contact a qualified installer or service
agency for installation and service.
Length
Normal Iron Pipe Sizes (inches)
in
Make sure gas supplied is same type listed on the water heater’s
rating label.
The water heaters covered in this manual are not intended for
operation at higher than 10.0” W. C. (2.49 kPa) for natural gas and
12.0” W. C. (2.99 kPa) for propane gas supply pressure, see Table
4 on page 13. The water heaters covered in this manual require
supply gas regulators to maintain required supply gas pressure.
Exposure to higher gas supply pressure may cause damage to the
gas controls which could result in fire or explosion. If overpressure
has occurred such as through improper testing of gas lines or
malfunction of the supply system the water heater’s gas valve
must be checked for safe operation by a Qualified Service Agency.
Ensure supply regulator vent lines and the safety vent valves are
protected against blockage. These are components of the gas
supply system, not the water heater. Vent blockage may occur
during ice storms.
Input in Thousands Btu/hr
Feet
1 1/4”
1 1/2”
2”
2 1/2”
3”
4”
10
1400
2100
3960
6300
11000
23000
20
950
1460
2750
4360
7700
15800
30
770
1180
2200
3520
6250
12800
40
660
990
1900
3000
5300
10900
50
580
900
1680
2650
4750
9700
60
530
810
1520
2400
4300
8800
70
490
750
1400
2250
3900
8100
80
460
690
1300
2050
3700
7500
90
430
650
1220
1950
3450
7200
100
400
620
1150
1850
3250
6700
125
360
550
1020
1650
2950
6000
150
325
500
950
1500
2650
5500
175
300
460
850
1370
2450
5000
200
N/A
430
800
1280
2280
4600
Supply Gas Line Sizing Metric Units
Table 9
It is important to guard against gas valve fouling from contaminants
in the gas ways. Such fouling may cause improper operation,
fire or explosion. If copper supply lines are used they must be
internally tinned and certified for gas service.
REGULATED GAS
SUPPLY LINE
MAIN GAS
SHUTOFF VALVE
TEE FITTING
SEDIMENT TRAP
(DRIP LEG)
PIPE CAP
Figure 52
Ensure all gas pipe is clean on the inside before installation.
To trap any dirt or foreign material in the gas supply line a
sediment trap (drip leg) must be installed as shown in Figure
52. The sediment trap must be readily accessible and not
subject to freezing conditions. Install in accordance with the
recommendations of the local gas utility company.
37
Length
Normal Iron Pipe Sizes (inches)
in
Input in kW
Meters
1 1/4”
1 1/2”
2”
2 1/2”
3”
4”
3.0
410
615
1160
1845
3221
6735
6.1
278
428
805
1277
2255
4626
9.1
225
346
644
1031
1830
3748
12.2
193
290
556
878
1552
3192
15.2
170
264
492
776
1391
2840
18.3
155
237
445
703
1259
2577
21.3
143
220
410
659
1142
2372
24.4
135
202
381
600
1083
2196
27.4
126
190
357
571
1010
2108
30.5
117
182
337
542
952
1962
38.1
105
161
299
483
864
1757
45.7
95
146
278
439
776
1610
53.3
88
135
249
401
717
1464
61.0
N/A
126
234
375
688
1347
Gas Line Connection
Gas Line Leak Testing
1. The water heaters covered by this manual are shipped from
the factory with a 1 1/4” supply gas connection except 500
natural gas model, see Table 1 on page 10. Short pipe nipples
and reducer couplings are factory installed to increase the
size of the water heater’s 24 VAC Gas Valve inlet, see Figure
53. Connect the supply gas line to the water heater's 24
VAC Gas Valve in accordance with all applicable local and
national code requirements. Do not use flexible gas piping.
Fire and Explosion Hazard
Use joint compound or Teflon tape
compatible with propane gas.
Leak test before placing the
water heater in operation.
2. SUF 130 500 natural gas models require a 1 1/2” minimum
supply gas line. All other water heaters covered by this manual
require a 1 1/4” minimum supply gas line. See Table 5 on
page 13.
Disconnect gas piping and main
gas shutoff valve before leak
testing.
Install sediment trap in
accordance with NFPA 54.
3. Apply thread sealing compounds (pipe dope/ Teflon tape)
sparingly and only to the male threads of the pipe joints. Do
not apply sealing compound to the first two threads. Use pipe
dope or Teflon tape marked as being resistant to the action of
liquid petroleum (LP/propane) gases.
Any time work is done on the gas supply system perform a
leak test to avoid the possibility of fire or explosion.
4. Use only a smooth jaw adjustable wrench (such as a monkey
wrench) as a back up on the body of the 24 VAC Gas Valve
when tightening the first pipe nipple into the body of the valve.
Do not use a standard pipe wrench (Stillson wrench) with
metal tooth jaws as this may permanently damage the valve.
1. For test pressures exceeding 1/2 psi (3.45 kPa) disconnect
the water heater and its Main Gas Shutoff Valve from the
gas supply piping system during testing, see Figure 52
on page 38. The gas supply line must be capped when
disconnected from the water heater.
5. Use a standard pipe wrench (Stillson wrench) as a back up
on the first pipe nipple installed above when connecting other
fittings and pipe in the supply gas line to prevent the 24 VAC
Gas Valve on the water heater from twisting during installation.
2. For test pressures of 1/2 psi (3.45 kpa) or less, the
appliance need not be disconnected, but must be isolated
from the supply gas line by closing the Main Gas Shutoff
Valve during testing.
6. To prevent damage, care must be taken not to apply too much
torque when connecting the supply gas line to the water heater.
8. Install a Main Gas Shutoff valve in the supply gas line as
shown in Figure 52 on page 37.
3. Paint all supply gas line joints and connections upstream
of the water heater with a rich soap and water solution
to test for leaks. Bubbles indicate a gas leak. Do not use
matches, candles, flame or other sources of ignition for
this purpose.
Note: Should overheating occur or the gas supply fail to shut
off, turn off the Main Gas Shutoff valve to the water heater.
4. Repair any leaks before placing the water heater in
operation.
7. Install a sediment trap (drip leg) as shown in Figure 52 on
page 37.
38
Electrical Wiring
(IE: relay coil) to this circuit. This will damage the CCB circuit
board and is not covered under the limited warranty.
All electrical work must be installed in accordance with the
National Electrical Code, ANSI/NFPA 70 or the Canadian
Electrical Code, CSA C22.1 and local requirements.
Connecting An External Supervisory Control
The enable/disable circuit is accessed from the CCB’s J6 plug
inside the CCB enclosure, see Figure 3 on page 8 to locate the
CCB enclosure. From the factory there is a short (black) jumper
wire installed between pins 8 and 11 of the J6 plug, see Figure
61 on page 63 to locate the J6 plug.
When installed, the water heater must be electrically grounded
in accordance with local codes or, in the absence of local codes,
with the National Electrical Code, ANSI/NFPA 70 or the Canadian
Electrical Code, CSA C22.1.
If any of the original wire as supplied with the water heater must
be replaced, it must be replaced with 105°C rated wiring or its
equivalent, except in the burner housing. In this case use 200°C
rated wire must be used.
Install field wiring to the enable/disable circuit:
Power Supply Connections
3. Remove the screws from the CCB enclosure cover and
carefully open the CCB enclosure. Note how strain relief for
the wiring is provided between the cover and enclosure along
one edge.
1. Turn off power at the water heater’s on/off switch and the
breaker that supplies power to the appliance.
2. Locate the CCB enclosure.
Read the requirements for the Power Supply on page 13 before
connecting power.
Correct Polarity:
The water heater’s control system is polarity sensitive and
will lock out and disable heating operation if the polarity of the
power supply is reversed. The control system will display the
“AC Reversed” Fault message on the LCD. The 120 VAC hot
wire from the power supply must connect to the black wire in the
junction box and the 120 VAC neutral wire must connect to the
white wire in the junction box for correct polarity.
4. Activate the enable/disable circuit; locate the S1 dipswitch on
the CCB, see Figure 61 on page 63.
Power supply connections must be made as follows:
6. Cut the black jumper wire in the middle.
• Toggle S1 dipswitch #2 to the open position.
• Toggle S1 dipswitch #3 to the open position.
5. Locate the black jumper wire between pin 8 and 11 on the
CCB J6 plug, see Figure 61 on page 63 and Figure 62 on
page 64.
1. Ensure the power supply is turned off at the breaker or
disconnect switch.
7. Strip approximately 1/2 inch of insulation from the two ends
of the black jumper wire.
2. Remove the junction box cover. See Figure 3 on page 8 for
junction box location.
8. Using wire nuts connect two field supplied control wires to
the two ends of the black jumper wire. Wrap electrical tape
around the wire nut connections.
3. Connect the 120 VAC hot wire from the power supply to the
black wire in the junction box on top of the water heater with a
properly sized wire nut. Wrap electrical tape around the wire
nut and wire end. See wiring diagrams Figure 62 on page 64
and Figure 63 on page 65.
9. Thread the control wires out of the CCB enclosure with the
other wiring and carefully replace the CCB enclosure cover.
Ensure all wiring is routed through the indented area provided
for strain relief. Ensure no wiring is being pinched.
4. Connect the 120 VAC neutral wire from the power supply to
the white wire in the junction box. Wrap electrical tape around
the wire nut and wire end. See wiring diagrams Figure 62 on
page 64 and Figure 63 on page 65.
10.Reinstall the CCB enclosure cover screws and tighten.
11.Route the control wires inside the junction box on the top
of the water heater, see Figure 3 on page 8 to locate the
junction box. Use an available knock-out to route the wires
inside the junction box.
5. Connect the ground wire from the power supply to the
grounding lug inside the junction box. See wiring diagrams
Figure 62 on page 64 and Figure 63 on page 65.
12.Install field supplied control wiring and conduit as required
by national and local codes between the water heater’s
junction box and the external supervisory control. Connect
the wiring from the external control to the control wires inside
the junction box using wire nuts and electrical tape.
6. Replace the junction box cover when connections are
complete.
Note: Do not apply power to the water heater before installation
is complete and the water heater is filled with water.
13.Connect the control wiring to a set of dry contacts on the
external control. Follow the control manufacturers instructions
for making connections.
Enable/Disable Circuit
The water heaters covered in this manual are equipped with
an enable/disable circuit for use with field supplied external
supervisory controls such as time clocks or building Building
Management Systems. The enable/disable circuit may be used
to disable heating operation during periods when the building is
unoccupied or there is no demand for hot water.
14.Restore power to the water heater.
Note: Whenever the external control opens the set of dry
contacts used, heating operation will be disabled. Whenever
the external control closes the set of dry contacts used, heating
operation will be enabled. A diagonal line and circle appears
over the thermometer icon on the control system’s display when
heating operation is disabled. See the Status Icons descriptions
in Table 11 on page 43.
To use the enable/disable circuit it must first be activated by
configuring the S1 dipswitch on the water heater’s CCB (central
control board), see Figure 61 on page 63. Field supplied wiring is
then installed between the water heater’s CCB and a set of “dry
contacts” (no voltage or load) on the field supplied external control.
Note: Ensure the water heater is protected from freezing
temperatures when heating operation is disabled. Damage to
the water heater caused by freezing temperatures is not covered
under the limited warranty.
Note: The water heater’s enable/disable circuit is a switching
circuit only: Do not apply external voltage or connect any load
39
Water Line Connections
T&P Valve Discharge Pipe
The water piping installation must conform to these instructions
and to all local and national code authority having jurisdiction.
Good practice requires that all heavy piping be supported.
Explosion Hazard
Read and observe all requirements in the following sections
before installation of the water piping begins:
1.
2.
3.
4.
5.
Temperature-Pressure Relief Valve
must comply with ANSI Z21.22CSA 4.4 and ASME code.
Mixing Valves on page 14.
Dishwashing Machines on page 14.
Temperature-Pressure Relief Valve on page 15.
Closed Systems and Thermal Expansion on page 14.
For multiple water heater installations see Water Piping
Diagrams beginning on page 67.
Properly sized temperaturepressure relief valve must be
installed in opening provided.
Water Piping Diagrams
Can result in overheating and
excessive tank pressure.
This manual provides detailed water piping diagrams for typical
methods of application for the water heaters, see Water Piping
Diagrams beginning 67.
Can cause serious injury or death.
The water heater may be installed by itself, or with a separate
storage tank. When used with a separate storage tank, the
circulation may be either by gravity or by means of circulating
pump. When a circulating pump is used, it is important to note
that the flow rate should be slow so that there will be a minimum
of turbulence inside the water heater storage tank.
This water heater is provided with a properly rated/sized and
certified combination temperature - pressure (T&P) relief valve
by the manufacturer. See Temperature-Pressure Relief Valve on
page 15 for information on replacement and other requirements.
CAUTION
Adjust flow by throttling a full port ball valve installed in the
circulating line on the outlet side of the pump. Never throttle flow
on the suction side of a pump. See the Water Piping Diagrams
beginning on page 67.
Water Damage Hazard
Note: In addition to the factory installed Temperature-Pressure
Relief Valve (T&P valve) on the water heater, each remote
storage tank that may be installed and piped to a water heating
appliance must also have its own properly sized, rated and
approved Temperature-Pressure Relief Valve installed.
• Temperature-Pressure Relief Valve discharge
pipe must terminate at adequate drain.
Install a discharge pipe between the T&P valve discharge opening
and a suitable floor drain. Do not connect discharge piping
directly to the drain unless a 6” (15.2 cm) air gap is provided.
To prevent bodily injury, hazard to life, or property damage, the
relief valve must be allowed to discharge water in adequate
quantities should circumstances demand. If the discharge pipe is
not connected to a drain or other suitable means, the water flow
may cause property damage.
Call the toll free technical support phone number listed on the
back cover of this manual for further assistance in sizing a T&P
valve for remote storage tanks.
Thermometers (not Supplied)
Thermometers are installed in the water piping system as a
means of detecting the temperature of the hot water supply
at critical points in the system. Field supplied thermometers
should be obtained and installed. See Water Piping Diagrams on
page 67.
T&P Valve Discharge Pipe Requirements:
• Shall not be smaller in size than the outlet pipe size of the
valve, or have any reducing couplings or other restrictions.
• Shall not be plugged or blocked.
• Shall not be exposed to freezing temperatures.
• Shall be of material listed for hot water distribution.
• Shall be installed so as to allow complete drainage of both
the Temperature-Pressure Relief Valve and the discharge
pipe.
• Must terminate a maximum of six inches above a floor
drain or external to the building. In cold climates, it is
recommended that the discharge pipe be terminated at an
adequate drain inside the building.
• Shall not have any valve or other obstruction between the
relief valve and the drain.
Water (potable) Heating And Space Heating
1. All water piping components connected to the water heater
that are for space heating applications shall be suitable for
use with potable water.
2. Toxic chemicals, such as those used for boiler treatment,
must NEVER be introduced into this system.
3. The water heaters covered in this manual may never be
connected to any existing heating system or component(s)
previously used with non-potable water heating appliance.
4. When the system requires water for space heating that
exceed safe temperatures at domestic water fixtures a mixing
valve must be installed, see Mixing Valves on page 14.
5. These water heaters cannot be used in space heating
applications only.
40
Temperature Regulation
High Temperature Limit Control (ECO)
Setting the Operating Set Point at 120°F (49°C) will reduce the
risk of scalds. Some States require settings at specific lower
temperatures.
This water heater is equipped with an ECO (energy cut out) non
adjustable high temperature limit switch. The ECO is a normally
closed switch that opens (activates) on a rise in temperature.
Table 10
The ECO is located inside the Upper Temperature Probe (two
red wires), see Figure 3 on page 41 for location. The ECO
switch contacts will open when the water temperature reaches
approximately 202°F (94°C) and close at approximately 140°F
(49°C).
Time to Produce 2nd & 3rd
Degree Burns on Adult Skin
Water Temperature
If the ECO activates (contacts open) due to abnormally high
water temperatures in the storage tank the control system will
immediately de-energize the 24 VAC Gas Valve and end the
current heating cycle. The control system will "lock out" disabling
further heating operation. The control system will display the
"Energy Cut Out (ECO)" Fault message on the LCD screen.
It is important that a Qualified Service Agent be contacted to
determine the reason for the ECO activation before resetting the
ECO. Once the reason has been determined and corrected the
ECO can be reset as follows:
180°F (82°C)
Nearly instantaneous
170°F (77°C)
Nearly instantaneous
160°F (71°C)
About 1/2 second
150°F (66°C)
About 1-1/2 seconds
140°F (60°C)
Less than 5 seconds
130°F (54°C)
About 30 seconds
120°F (49°C)
More than 5 minutes
The water heaters covered in this manual are equipped with
an electronic control system to regulate the water temperature
inside the storage tank. The control system senses temperature
from two factory installed temperature probes, one installed in
the top of the storage tank and one installed near the bottom,
See Figure 3 on page 8 and Figure 4 on page 9 for location.
Should the ECO activate, the water temperature must drop below
140°F (49°C) before the control system can be reset. Once the
water temperature has cooled below this point the power supply
to the water heater must be turned off and on again to reset the
control system.
The “Operating Set Point” is adjusted to regulate water
temperature inside the storage tank. This is an adjustable user
setting in the control system’s “Temperatures Menu.” This and
all control system menus are accessed through the UIM (user
interface module) located on the front of the water heater, see
Figure 54.
Thermostat Control
Water temperature over 125°F (52°C)
can cause severe burns instantly
resulting in severe injury or death.
The Operating Set Point is adjustable from 90°F (42°C) to 180°F
(82°C). The factory setting is 120°F (49°C). See Operating Set
Point And Differential Adjustment on page 41 for instructions on
how to adjust the Operating Set Point and other user settings.
Children, the elderly and the
physically or mentally disabled are at
highest risk for scald injury.
Set the Operating Set Point at the lowest setting which produces
an acceptable hot water supply. This will always provide the most
energy efficient operation.
Feel water before bathing or
showering.
High Temperature Applications
Temperature limiting devices such as
mixing valves must be installed
when required by codes and to
ensure safe temperatures at fixtures.
Higher operating temperatures cause more wear on all water
heaters and will decrease the life span of the appliance. Consider
installing a small booster water heater for high temperature
applications, such as commercial dishwashers, to raise the outlet
temperature from the larger primary water heater to the desired
point of use temperature.
Hot water temperatures required for automatic dishwasher and
laundry use can cause scald burns resulting in serious personal
injury and/or death. Table 10 shows the approximate time-toburn relationship for normal adult skin.
Contact your local distributor or call the technical support phone
number listed on the back cover of this manual for further
technical assistance.
The temperature at which injury occurs varies with the person’s
age and duration of exposure. The slower response time of
children, the elderly or disabled persons increases the hazards
to them. If anyone using hot water provided by the water heater
being installed fits into one of these groups or if there is a local
code or state law requiring a certain water temperature at the
point of use, then special precautions must be taken.
MANUFACTURER / MODEL INFORMATION
Tank Temperature
Operating Set Point
103°F
120°F
Status: Heating
In addition to using the lowest possible temperature setting that
satisfies the demand of the application a mixing valve can be
installed at the water heater (see Figure 8 on page 14) or at the
hot water taps to further reduce system water temperature.
OFF
DN
GAS O
N
MENU
HELP
Never allow small children to use a hot water tap or draw their own
bath water. Never leave a child or disabled person unattended in
a bathtub or shower.
The water heater should be located in an area where the general
public does not have access to set temperatures.
Figure 54
41
UP
Control System Operation
Overview
or cancel new user settings. The operational buttons are
multifunctional, their current function is defined by the text
that appears directly above each button on the LCD screen.
The Desktop Screen
The water heaters covered in this manual are equipped with an
electronic control system that regulates water temperature inside
the storage tank. Heating cycles and ignition are managed by
the control system. The ECO (energy cut out), flame sensor,
pressure switches and temperature probes are monitored by the
control system. The Combustion Blower, igniter, 24 VAC Gas
Valve and anode rods are all powered by the control system.
During normal operation the control system will display the
"Desktop" screen on the LCD which is the default screen. The
control system will return to the Desktop screen when there are
no active Fault or Alert conditions or when there has been no
user input for several minutes.
The main components of the control system are a UIM (user
interface module) and a CCB (central control board). The UIM
is located on the top front side of the water heater. The CCB is
mounted on top of the water heater inside a protective enclosure.
See Features And Components on page 7 for location of these
and all water heater components.
• Manufacturer and water heater model information is
displayed in Title Bar at the top of the Desktop screen.
Menu titles are displayed in the Title Bar when navigating
the control system menus.
• The first temperature shown on the Desktop screen, Tank
Temperature, is the temperature of the water inside the
water heater's storage tank.
• The second temperature shown on the Desktop screen
is the Operating Set Point. The Operating Set Point is the
temperature at which the control system will maintain the
water inside the storage tank.
• Beneath the Operating Set Point is the "Status" line. The
Status line shows the current operational state of the
control system in real time, see Table 12 on page 44 for a
description of the various operational states.
• The Desktop screen also displays animated "Status Icons"
to convey operational information, see Table 11 on page 43
for descriptions of the Status Icons.
Control System Navigation
All operational information and user settings are displayed and
accessed from the UIM. The UIM houses the control system's
LCD (liquid crystal display) and five snap acting (momentary)
user input buttons; an up, down and three (3) multi functional
operational buttons below the LCD, see Figure 55.
User Input Buttons
• The up and down buttons are used to navigate menus and
adjust user settings.
• The operational buttons are used to enter/exit menus,
select menu items, activate adjustment modes and confirm
UIM (user interface module)
Desktop Screen Shown
LCD Screen
Information
Display
Status Icons
Title Bar
MANUFACTURER / MODEL INFORMATION
Tank Temperature
Operating Set Point
103°F
120°F
Status: Heating
OFF
DN
GAS O
N
MENU
UP
HELP
Operational buttons are multi functional. Their current function is defined by
the text that appears directly above each button on the LCD screen.
Figure 55
42
Up & Down buttons:
navigate menus,
adjust user settings
3 Operational buttons:
enter/exit menus,
select menu items,
activate adjustment modes,
confirm/cancel changes.
Status Icons
The Status Icons are displayed on the Desktop screen and convey operational and diagnostic information. The icons are described
in the table below. See Figure 55 on page 42 and the Sequence Of Operation on page 54.
Table 11
Icon
Description
Water temperature in the tank has fallen. Shaded area of the animated thermometer icon will rise and fall in response to
water temperature in the storage tank as sensed from the Upper and Lower Temperature Probes. See Figure 3 on page 43
and Figure 4 on page 9 for location of Temperature Probes.
Water temperature in the tank has reached the Operating Set Point. The control system enters the Standby mode.
The control is unable to initiate a heating cycle. This will happen whenever a Fault condition is detected by the control system
or when the Enable/Disable circuit is an open circuit. For more information see Enable/Disable Circuit on page 39.
The Combustion Blower is being energized.
The Blower Prover pressure switch contacts have closed. The check mark icon is visual confirmation of contact closure. See
Figure 3 on page 8 for Blower Prover Switch location.
The Hot Surface Igniter is being energized. See Figure 2 on page 7 for Hot Surface Igniter location.
The igniter has been energized and the control system has sensed the required minimum igniter current. The check mark
icon is visual confirmation of minimum igniter current. See the Sequence Of Operation on page 43 for minimum current (AC
amps) information.
OFF
The 24 VAC Gas Valve is being energized.
GAS O
N
The control system has sensed flame at the Main Burner from the flame sensor. See the Sequence Of Operation Flow Chart
on page 55 and Figure 2 on page 7.
The control system has declared a Fault condition and must be inspected/serviced by a Qualified Service Agent. Fault
message details can be viewed in the Current Fault menu. Heating operation is disabled (lock out) until the condition that
caused the Fault is corrected. Power to the water heater must be cycled off and on to reset the control system.
Note: Cycling power will not reset the control system if the condition that caused the Fault has not been corrected.
The control system has declared an Alert condition and must be inspected/serviced by a Qualified Service Agent. The water
heater will continue to operate during an Alert condition.
43
Operating States
The current operational state of the water heater is displayed on the Desktop screen as the "Status." The common operational states
are described in the table below. See Figure 55 on page 42 and the Sequence Of Operation on page 54.
Table 12
State
Description
Standby
The water heater is not in an active heating cycle. IE: the Tank Temperature is at or above the Operating Set Point.
Input Verification
The control system is conducting a diagnostic check at the beginning of a heating cycle.
Short Cycle Delay
The control system is waiting for a pre-defined time period to expire before initiating a heating cycle. This prevents "shortcycling" which can greatly accelerate wear on components such as the Hot Surface Igniter and Combustion Blower.
Note: If the control system is in this operational state increase the Differential setting in the Temperatures menu to lengthen
heating cycles.
Pre-Purge
The Combustion Blower is energized to flush residual flue gases from the combustion chamber prior to ignition.
Igniter Warm Up
The Hot Surface Igniter is energized and is currently warming up to ensure proper ignition.
See the Sequence Of Operation on page 54 for minimum current (AC amps) information.
Ignition Activation
The 24 VAC Gas Valve is energized and opens to allow fuel gas to flow to the Main Burner.
Ignition Verification
The control system is monitoring the flame sensor for the required minimum flame sensing current.
See the Sequence Of Operation on page 54 for minimum flame sensing current (DC micro amps) information.
Inter-Purge
The Combustion Blower is energized to flush residual fuel gas from the combustion chamber after a failed ignition attempt.
Heating
Ignition was successful, flame sensing current has been established. The water in the storage tank is being heated.
Post-Purge
The Combustion Blower is energized to flush residual flue gases from the combustion chamber at the end of a heating
cycle.
Fault
The control system has detected a Fault condition. Heating operation is disabled until the Fault condition is corrected. Power
to the water heater must be cycled off and on to reset the control system.
Note: Cycling power will not reset the control system if the condition that caused the Fault has not been corrected.
Control System Menus
From the Desktop screen pressing the Operational directly below "Menu" on the LCD will display the "Main Menu" this is where all
control system menus are located. The table below describes the control system menus.
Table 13
Menu
Description
Temperatures
Most commonly accessed menu. Contains the Operating Set Point and Differential user settings.
Heater Status
This menus displays the current state of all pressure switches and the ECO (open/closed). The on/off status of the
Combustion Blower, gas valve, igniter, flame sensor and other monitored water heater components are displayed in
this menu.
Display Settings
Temperature units (°F or °C), the LCD appearance (brightness/contrast) and backlight delay user adjustable settings
are located in this menu.
Heater Information
Elapsed time of operation, total heating cycle time, heating cycle count, heating on time along with UIM and CCB
software revisions can be viewed in this menu.
Current Fault
Displays any current Alert or Fault messages.
Fault History
This control system menu retains a list of the last nine (9) Fault and Alert messages with a time stamp. The newest
event will replace the oldest.
Fault Occurrence
This control system menu retains a running total of how many times each Fault condition has occurred since the water
heater was first installed.
Restore Factory Defaults
This control system feature allows the user to restore control system user settings to their factory default settings.
Display Settings preferences ARE NOT changed when factory defaults are restored.
Help Screens
Text based operational and user information explaining how to change user settings, navigate the control system menus
and icon descriptions.
44
User Settings & Control System Menus
Temperatures Menu
Operating Set Point And Differential Adjustment
The Operating Set Point is adjustable from 90°F (42°C) to 180°F (82°C). The factory setting is 120°F (49°C). The Differential is
adjustable from 2° to 20°. The factory setting is 8°. These user settings are accessed from the Temperatures menu. The following
instructions will explain how to adjust these settings and navigate the control system menus.
When the water temperature sensed by the control system from the two (upper and lower) Temperature Probes reaches the Operating
Set Point the control system will end the heating cycle. A heating cycle will be activated again when the sensed water temperature
drops below the Operating Set Point minus the Differential setting.
Note: Lower Differential settings may cause excessive heating cycles (short-cycling) which can cause premature failure of
components such as the Hot Surface Igniter. Set the Differential at the highest setting which produces an acceptable hot water
supply. Set the Operating Set Point to the lowest setting which produces an acceptable hot water supply for most efficient use.
Description/Action
Display
From the Desktop screen, press the Operational Button under
MENU. The "Main Menu" screen will be displayed.
MANUFACTURER / MODEL INFORMATION
Tank Temperature
Operating Set Point
Status: Standby
MENU
The Main Menu is where all control system menus are listed,
see Table 13 on page 44 for a complete list and description of
control system menus. Use the Up and Down Buttons to view
all control system menus from the Main Menu.
120°F
120°F
HELP
Main Menu
Temperatures
Heater Status
Display Settings
Heater Information
Current Fault
With Temperatures menu selected (highlighted in black) in
the Main Menu screen, press the Operational Button under
“SELECT” to enter the Temperatures menu.
If the Temperatures menu is not selected use the Up and Down
Buttons to select this menu item.
SELECT
With the Operating Set Point selected in the Temperatures
menu, press the Operational Button underneath “CHANGE” to
activate the adjustment mode for this menu item.
BACK
HELP
Temperatures
Operating Set Point
Differential
Tank Temperature
Upper Temperature
Lower Temperature
(Heater Regulated to Tank)
Upper Probe Offset
If Operating Set Point is not selected use the Up and Down
Buttons to select this menu item.
Note: Higher Temperature settings increase wear and
operating costs. Set the Operating Set Point to the lowest
setting which produces an acceptable hot water supply. This
will always provide the most energy efficient operation and
longer life.
CHANGE
With the adjustment mode for the Operating Set Point activated
the selection bar will change from a black fill to a black outline.
Use the Up and Down Buttons to change the current setting.
Press the Operational Button under "UPDATE" to save the
new setting. Press the Operational Button under "CANCEL" to
discard changes and return to the previously saved setting.
Note: Use this same procedure to change the Differential
setting and other adjustable user settings in the control system
menus.
0°F
HELP
Temperatures
Operating Set Point
Differential
Tank Temperature
Upper Temperature
Lower Temperature
(Heater Regulated to Tank)
Upper Probe Offset
UPDATE
45
BACK
120°F
8°F
120°F
122°F
118°F
140°F
8°F
120°F
122°F
118°F
0°F
CANCEL
Temperatures Menu (cont)
Description/Action
Display
• Tank Temperature - non adjustable - control system
sensed temperature (averaged from upper and lower
temperature probes).
• Upper Temperature - non adjustable - control system
sensed temperature from the Upper Temperature Probe.
• Lower Temperature - non adjustable - control system
sensed temperature from the Lower Temperature Probe.
• (Heater Regulated to Tank) - non adjustable configuration information.
• Upper Probe & Lower Probe Offset - adjustable user
setting, range -5° to +5° (factory setting 0°).
Note: These settings should only be used if the hot water
supply temperature varies greatly from the Operating Set
Point setting.
The Upper and Lower Probe Offsets are used to calibrate
control system temperature sensing. This can improve the
precision of temperature control in the storage tank and at
points of use. This feature can also be used to compensate
for building recirculation loops (hot water returning to the
storage tank) that may cause the heating cycles to terminate
prematurely.
Example: If the current sensed temperature from a
temperature probe is 120°F (49°C) and the Offset setting for
that probe is adjusted to a value other than 0°, the control
system would calibrate or “offset” the sensed temperature
from the probe and the averaged tank temperature. Heating
cycles would be activated and deactivated based on the
calibrated (offset) temperature.
Top of Menu
Temperatures
Operating Set Point
Differential
Tank Temperature
Upper Temperature
Lower Temperature
(Heater Regulated to Tank)
Upper Probe Offset
CHANGE
BACK
140°F
8°F
120°F
122°F
118°F
0°F
HELP
Bottom of Menu
Temperatures
Differential
Tank Temperature
Upper Temperature
Lower Temperature
(Heater Regulated to Tank)
Upper Probe Offset
Lower Probe Offset
CHANGE
BACK
8°F
120°F
122°F
118°F
0°F
0°F
HELP
These settings are adjusted in the same way described
for the Operating Set Point And Differential Adjustment on
page 45.
Heater Status Menu
Description/Action
Display
Select Heater Status from the Main Menu and press the
Operational Button under "SELECT" to enter this menu. This
menu contains non adjustable operational information. Use the
Up & Down Buttons to navigate the menu.
Heater Status
• Status - displays the current Operating State, see Table 12
on page 44.
• ECO Contact, Low Gas PS, Blocked Inlet PS, Blocked
Outlet PS, Blower Prover PS - displays the current state
of the switch contacts; open or closed.
• Blower On, Igniter On, Gas Valve On - displays whether
or not the control system is currently energizing these water
heater components; yes = energized, no = de-energized.
• Igniter Current - displays whether or not the control
system has detected the required minimum current, see
Sequence Of Operation on page 54.
• Flame Detected - displays whether or not the control
system has detected Main Burner flame during ignition from
the flame sensor.
• External Input Enable - displays whether or not the S1
dipswitches have been configured to activate the enable/
disable circuit, see Enable/Disable Circuit on page 39.
• Ignition Trials - displays whether or not the S1 dipswitches
have been configured to allow 1 or 3 trials for ignition
before declaring an "Ignition Failure" Fault condition, see
the CCB - Central Control Board Layout on page 63.
46
Top of Menu
Status
ECO Contact
Low Gas PS
Blocked Inlet PS
Blocked Outlet PS
Blower Prover PS
Blower On
Standby
Closed
Closed
Closed
Closed
Open
No
BACK
HELP
Bottom of Menu
Heater Status
Blower On
Igniter On
Igniter Current
Gas Valve On
Flame Detected
External Input Enable
Ignition Trials
BACK
No
No
No
No
No
No
3
HELP
Display Settings
Description/Action
Display
Select Display Settings from the Main Menu and press the
Operational Button under "SELECT" to enter this menu. This
menu contains adjustable display options for viewing information
on the UIM’s LCD screen. Use the Up & Down Buttons to
navigate the menu.
Display Settings
• Temperature Units - Adjustable user setting that changes
temperature units display to Celsius °C or Fahrenheit °F.
• Backlight Delay - Adjustable user setting that determines
how long the UIM’s LCD backlight remains illuminated after
a key has been pressed. Available settings are; Always Off,
10, 30 or 60 seconds and Always On.
• Contrast - Adjustable user setting to adjust the UIM’s LCD
screen contrast between text and background.
Note: These settings are adjusted in the same way
described for the Operating Set Point And Differential
Adjustment on page 45.
Temperature Units
Backlight Delay
Contrast
°F
30s
60%
CHANGE
HELP
BACK
Heater Information
Description/Action
Display
Select Heater Information from the Main Menu and press the
Operational Button under "SELECT" to enter this menu. This
menu contains non adjustable operational information.
Heater Information
• Elapsed Time - Total accumulated time the control system
(water heater) has been energized.
• Burner On Time - Total accumulated time the control
system has been in the heating operating state; burner run
time.
• Cycle Count - Total accumulated count of heating cycles.
• CCB Version - Software version for central control board.
• UIM Version - Software version for user interface module.
Note: Historical data is stored in the CCB's memory. If this
CCB is replaced during servicing the historical data on the
CCB being replaced will be lost. The data stored in the new
circuit board will no longer reflect the entire history of the
water heater.
The Elapsed Time, Burner On Time and Cycle Count indicate
age, usage and wear.
If the Cycle Count per day is high (divide cycle count by
days to determine cycles per day) or the cycle duration is
short (determine burner on time total minutes, divide burner
on time total minutes by cycle count) consider rasing the
Differential setting to avoid short cycling and excessive
component wear, see Operating Set Point And Differential
Adjustment on page 45.
This historical data can also be used to assist facilities
managers in forecasting planned replacement of equipment
to help avoid lengthy and costly hot water supply
interruptions.
47
Elapsed Time
Burner On Time
10 day 0 hrs 0 mins
5 hrs 22 mins
00000035
X.XX
X.XX
Cycle Count
CCB Version
UIM Version
CHANGE
BACK
HELP
Current Fault
Description/Action
Display
Select Current Fault from the Main Menu and press the
Operational Button under "SELECT" to enter this menu. This
menu contains non adjustable operational information. Use the
Up & Down Buttons to navigate the menu.
Blocked Exhaust
This menu contains the current Fault or Alert error message.
The time the Fault or Alert message occurred appears directly
below. A brief description of what causes the particular Fault or
Alert condition appears below that. Pressing the Operational
Button under "ADVANCED" will give more detailed service
information and a list of possible causes for the Fault or Alert
condition. See Fault And Alert Messages on page 58 for more
detailed information and diagnostic procedures.
If there is no Fault or Alert condition active this menu will not
contain any information, "(none)" will be shown next to Current
Fault in the Main menu.
Fault occurred 2 mins ago
The exhaust is blocked or
restricted. Ensure
condensate hose is draining.
Call a service professional:
Your Company Name Here
(press [DOWN] for more....)
CHANGE
BACK
ADVANCED
Fault History
Description/Action
Display
Select Fault History from the Main Menu and press the
Operational Button under "SELECT" to enter this menu. This
menu contains non adjustable operational information. Use the
Up & Down Buttons to navigate the menu.
Fault History
This menu contains a list of the last nine (9) Fault and Alert
messages with a time stamp. The newest event will replace the
oldest.
Press the Operational Button under "VIEW" to view details for
each Fault or Alert message stored.
1:
Blocked Air Intake (A7)
51 mins ago
Blocked Exhaust (A8)
54 mins ago
Low Gas Pressure (A6)
57 mins ago
Blower Prover Failure (AC)
2:
3:
4:
VIEW
BACK
HELP
Fault Occurrence
Description/Action
Display
Select Fault Occurrence from the Main Menu and press the
Operational Button under "SELECT" to enter this menu. This
menu contains non adjustable operational information. Use the
Up & Down Buttons to navigate the menu.
Fault Occurrence
This menu contains a running total of how many times each
Fault condition has occurred since the water heater was first
installed.
Note: Historical data is stored in the CCB's memory. If this CCB
is replaced during servicing the historical data on the CCB being
replaced will be lost. The data stored in the new circuit board will
no longer reflect the entire history of the water heater.
Ignition Failure
ECO
Low Gas Pressure
Blocked Intake Air
Blocked Exhaust
Thermostat Input 4
Blower Prover
10
0
10
0
0
0
3
BACK
HELP
Restore Factory Defaults
Description/Action
Display
Select Restore Factory Defaults from the Main Menu and press
the Operational Button under "SELECT" to enter this menu.
Restore Factory Defaults
To restore the adjustable user settings to their factory default
settings press the Operational Button underneath “YES.” The
display will show text confirming the factory default settings
have been restored.
Are you sure you want to
restore the system to factory
defaults?
Press the Operational Button underneath “BACK” to exit the
Restore Factory Defaults menu.
YES
48
NO
Service Contact Information
The control system has a discrete menu that Installing contractors and/or service agents can access to enter contact information for
their customers. This contact information will be displayed with all Fault and Alert messages.
Description/Action
Display
From the Desktop Screen (see Figure 55 on page 42) press
and hold down the middle (unmarked) Operational Button for 30
seconds and then release it.
This will launch a discrete menu where personalized contact
information can be entered.
Using the UP and DOWN buttons select (highlighted in black)
the "Show Contact Information" menu item.
Service Contact Information
Show Contact Information
Change Contact Name
Change Contact Phone
Current Contact Info:
No
(000) 000-0000
Access Code
Press the Operational Button under "CHANGE" to activate the
adjustment mode for this parameter.
CHANGE
With the adjustment mode for "Show Contact Information"
activated the selection bar will change from a black fill to a
black outline.
BACK
HELP
Service Contact Information
Show Contact Information
Change Contact Name
Change Contact Phone
Current Contact Info:
Use the Up and Down Buttons to change the setting from
"No" to "Yes" and press the Operational Button underneath
"UPDATE" to save the new setting.
Yes
(000) 000-0000
Access Code
Note: The Access Code at the bottom of the Service Contact
Information screen is for manufacturing engineering purposes
only. There are no user settings or information accessed
through this menu item.
UPDATE
Using the UP and DOWN buttons select (highlighted in black)
the "Change Contact Name" menu item.
CANCEL
Service Contact Information
Show Contact Information
Change Contact Name
Change Contact Phone
Current Contact Info:
Press the Operational Button under "SELECT" to open the
Change Contact Name menu.
Yes
(000) 000-0000
Access Code
SELECT
BACK
Follow the on screen instructions to enter your name or the
name of your company. There is a maximum of 20 character
spaces for this purpose.
Enter the service contact below:
When finished press the Operational Button "UPDATE" to save
the new Contact Name. The control system will return to the
discrete menu.
NAME: _
HELP
Use the -> and <- keys to move between
characters. Use the UP and DOWN keys to
change the character.
<Using the UP and DOWN buttons select (highlighted in
black) the "Change Contact Phone" menu item and press the
Operational Button under "SELECT".
->
UPDATE
Service Contact Information
Follow the on screen instructions to enter a new Contact Phone
number and press the Operational Button under "UPDATE" to
save the new phone number.
When the new Contact Name and Contact Phone number
have both been updated, press the Operational Button under
"BACK" to return to the Desktop screen.
Show Contact Information
Change Contact Name
Change Contact Phone
Current Contact Info:
YOUR COMPANY NAME HERE
(123) 456-7890
Access Code
BACK
49
Yes
HELP
Start Up
Prior to Start up
4. Check for gas leaks, see Gas Line Leak Testing on page 38
and repair any leaks found.
Installation and start up of this water heater requires abilities
and skills equivalent to that of a licensed tradesman in the field
involved, see Qualifications on page 6.
Initial Start Up
Required Test Equipment
Do not place the water heater in operation if any part has been
under water. Immediately call a qualified service technician to
inspect the water heater and to replace any part of the control
system and any gas control which has been under water.
• Two U-tube manometers, recommended ranges; 0-14” W.C.
(0-3.5 kPa) and 0-35” W.C. (0-8.7 kPa) or pressure gauges.
• Two digital manometers can be used in place of U-tube
manometers or pressure gauges. Recommended ranges;
-14.00 to +14.00” W.C. (0-3.5 kPa) resolution 0.01” W.C.
and 0-35” W.C. (0-8.7 kPa) resolution 0.10” W.C.
Note: All test equipment must be acclimated to ambient
temperature before calibration and use.
Light the water heater in accordance with the Lighting and Operation
Instruction label on the water heater and in this manual on page 53.
The water heaters covered by this manual are equipped with
an electronic control system (see page 42) which automatically
sequences the Combustion Blower, pre and post purging of the
combustion chamber, the Hot Surface Igniter, the 24 VAC Gas
Valve, Main Burner ignition, and flame sensing. The control
system will lock out after three unsuccessful ignition attempts.
Preparation
1. Using the control system menus, change the Operating Set
Point to the lowest temperature setting, see Operating Set
Point And Differential Adjustment on page 45.
Before attempting start up, thoroughly study and familiarize
yourself with the exact Sequence Of Operation, see the written
Sequence Of Operation on page 54 and the Sequence Of
Operation Flow Chart on page 55.
2. Turn the water heater’s on/off switch to the “off” position.
3. Close the Main Gas Shut Off Valve, see Figure 52 on page 37.
Be certain that the water heater is full of water, that air is purged
from the gas and water lines and that there are no leaks in the
gas and water lines. Ensure all inlet water valves are open.
4. Push in the gas control knob slightly and turn to the
“off”position, see Figure 56 on page 51.
Filling The Water Heater
6. Connect one manometer (higher range) to an available test
port on the supply gas line at the water heater. There is a
1/8" NPT Tee fitting and pipe nipple installed for the Low
Gas Pressure switch on the inlet side of the 24 VAC Gas
Valve with a 1/8" NPT plug for this purpose. For SUF 130 400
and 500 natural gas models, connect the manometer to the
supply gas pressure test port, Fig 57 on page 52.
5. Wait five (5) minutes for any residual gas to clear.
Follow these steps to fill the water heater prior to start up.
1. Close the heater drain valve.
2. Open a nearby hot water faucet to permit the air in the system
to escape.
3. Fully open the cold water inlet valve allowing the piping and
water heater to fill with water.
7. Connect one manometer (lower range) to the manifold gas
pressure tap at the outlet of the 24 VAC Gas Valve, see
Figure 56 on page 51 and Figure 57 on page 52 for location.
4. Close the hot water faucet opened in Step 2 as water starts to flow.
Supply Gas Line Purging
8. Open the Main Gas Shutoff Valve.
9. Measure and record the supply gas pressure, this is a “static”
supply gas pressure reading; while the water heater is not
firing. Adjust supply gas pressure as necessary, see Supply
Gas Pressure Adjustment on page 51.
Fire or Explosion Hazard
Gas line purging is required with new piping or systems in
which air has entered.
Lighting The Water Heater
To avoid risk of fire or explosion purge discharge must not
enter into confined areas or spaces where ignition can occur.
1. Push in the gas control knob slightly and turn to the “on”
position, see Figure 56 on page 51.
The area must be well ventilated and all sources of ignition
must be deactivated or removed.
2. Turn the water heater’s on/off switch to the “on” position.
3. Wait for the control system to complete its boot up sequence.
The Desktop screen showing the current Operating Set
Point and Tank Temperature will be displayed on the control
system’s LCD when the boot up sequence is complete.
Use only the gas shown on the water heater rating label.
Keep ignition sources away from faucets after extended
periods of non-use.
4. Using the control system menus and UIM (user interface
module), change the Operating Set Point to a setting higher
than the current tank temperature displayed on the control
system LCD plus the Differential setting to activate a call for
heating. See Control System Operation on page 42.
Read instruction manual before
installing, using or servicing
water heater.
5. Record the manifold gas pressure when the 24 VAC Gas
Valve is energized and the Main Burner is ignited, the
animated gas valve icon will be displayed on the Desktop
screen of the control system’s LCD when the control system
energizes the 24 VAC Gas Valve, a animated flame icon will
appear when Main Burner ignition is successful, see the
Status Icons descriptions in Table 11 on page 43.
1. Close the Main Gas Shutoff Valve, see Figure 52 on page 37.
2. Purge all air from the supply gas line up to the water heater’s
Main Gas Shutoff Valve.
3. When all air has been purged from the supply gas line, tighten
all supply gas line connections.
50
Note: A pressure drop of more than 1.5” W. C. (0.37 kPa) when
the Main Burner ignites is an indication of an inadequate supply
of gas and can lead to ignition failure, rough starts and/or rough
operation. If a drop of more than 1.5” W. C. (0.37 kPa) in supply
gas pressure occurs when the Main Burner ignites, ensure the
supply gas lines and regulator(s) are properly sized and installed.
See the requirements for Supply Gas Regulator and Supply Gas
Line on page 13. See Supply Gas Line Installation on page 51
and Supply Gas Regulator on page 13. Ensure all requirements
and installation instructions are maintained.
6. Compare the actual manifold gas pressure reading recorded
above to the required minimum/maximum values given
in Table 4 on page 13. Adjust manifold gas pressure as
necessary, see the instructions that follow.
7. Record the supply gas pressure when the 24 VAC Gas Valve
is energized and the Main Burner is ignited. This is a “dynamic”
gas pressure reading; while the water heater is firing.
8. Compare the actual supply gas pressure reading recorded
above to the required minimum/maximum values given in
Table 4 on page 13. Adjust supply gas pressure as necessary,
see the instructions that follow.
MANIFOLD GAS
PRESSURE REGULATOR
COVER SCREW
Manifold Gas Pressure Adjustment
This "Manifold Adjustment" section does not apply to SUF 130
400 and 500 Natural Gas 104 Series. These gas valves are
modulating, its offset and throttle settings are factory-preset.
GAS CONTROL
KNOB
HONEYWELL
Fire and Explosion Hazard
INLET
ON
OFF
Under no circumstances should the
input exceed the rate shown on the
water heater’s rating label.
Overfiring could result in fire or
explosion.
Gas and carbon monoxide detectors are
available.
OUTLET
MANIFOLD GAS
PRESSURE TAP
1/8’ NPT PLUG
ALL 300,000 NATURAL AND PROPANE BTU/HR MODELS AND 400,000 & 500,000 PROPANE MODELS
24 VAC GAS VALVE TOP VIEW
Figure 56
Supply Gas Pressure Adjustment
Breathing Hazard - Carbon Monoxide Gas
Under no circumstances should
the input exceed the rate shown
on the water heater’s rating label.
Fire and Explosion Hazard
Overfiring could result in damage to
the water heater and sooting.
Do not use water heater with any gas
other than the gas shown on the rating
label.
Excessive gas pressure to gas valve can
cause serious injury or death.
Turn off gas lines during installation.
Contact a qualified installer or service
agency for installation and service.
Gas and carbon monoxide detectors
are available.
Breathing carbon monoxide can cause brain damage or
death. Always read and understand instruction manual.
Ensure the "dynamic" supply gas pressure is above the minimum
requirements in Table 4 on page 13 before any adjustments are
made to the manifold gas pressure. Attempts to adjust manifold
gas pressure during periods of low supply gas pressure could
result in overfiring when the supply gas pressure returns to
normal. See Supply Gas Pressure Adjustment on this page.
Supply gas pressure shall be measured while the water heater is
not firing (static pressure) and while the water heater is firing at
full capacity (dynamic pressure).
If the supply gas pressure to the water heater is not between
the required minimum and maximum values given in Table 4 on
page 13 adjust the supply gas regulator as necessary. Adjust the
supply gas regulator(s) per the regulator manufacturer’s instructions
to achieve the required “static” and “dynamic” supply gas pressure.
If necessary, adjust the manifold gas pressure as follows:
1. Follow the instructions for Initial Start Up on page 50 to
connect manometers to the supply and manifold gas pressure
taps and to start the water heater.
2. Remove the manifold gas pressure regulator cover screw,
see Figure 56 on this page 51.
Multiple Appliance Installations:
In multiple water heater installations or in installations where
the installed water heater(s) share a common gas supply main
with other gas fired appliances; the supply gas pressures shall
be measured at each water heater with all gas fired appliances
connected to a common main firing at full capacity.
3. Using a small flat tip screw driver turn the adjustment screw
clockwise to increase manifold gas pressure and counter
clockwise to decrease manifold gas pressure.
Note: Turn the manifold gas pressure adjustment screw
in small increments (no more than 1/4 turn) and allow the
manifold gas pressure to stabilize for several minutes before
making further adjustments.
On multiple water heater installations the supply gas line regulators
shall be adjusted to provide gas pressure to each water heater
within the minimum and maximum supply pressure requirements
listed in Table 4 on page 13 with all gas fired appliances connected
to a common gas main firing at full capacity.
4. Replace the gas pressure regulator cover screw.
5. Cycle the burner on and off several times to check operation.
51
To Turn Off Gas
1. Change the Operating Set Point to the lowest temperature
setting, see Operating Set Point And Differential Adjustment
on page 45.
2. When the water heater has completed its shut down sequence
and enters the standby mode, turn the water heater’s on/off
switch to the “off” position.
3. Push in the gas control knob slightly and turn to the “off”
position, see Figure 56 on page 51 and Figure 57 on this
page.
4. Close the Main Gas Shutoff Valve, see Figure 52 on page 37.
High Altitude Installations
Fire and Explosion Hazard
Under no circumstances should the
input exceed the rate shown on the
water heater’s rating label.
Overfiring could result in fire or
explosion.
Gas and carbon monoxide detectors are
available.
Figure 57
Checking the Firing Rate
If firing rate adjustment is required follow these instructions to
determine the actual firing rate of the water heater:
1. Ensure there are no other gas fired appliances connected to
the gas meter firing during this test.
2. Contact the gas supplier to determine the heating value, in
Btu per cubic foot, of the gas supply.
3. Connect a manometer to the manifold gas pressure tap.
Follow the instructions for Initial Start Up on page 50.
Breathing Hazard - Carbon Monoxide Gas
4. Start the water heater and ensure it is firing.
Under no circumstances should
the input exceed the rate shown
on the water heater’s rating label.
5. Check the manifold gas pressure, refer to Table 4 on page 13
for correct pressure. See Manifold Gas Pressure Adjustment
on page 51 if adjustment is necessary.
6. Locate the gas meter serving the water heater.
Overfiring could result in damage to
the water heater and sooting.
7. Time how long (in seconds) it takes for one cubic foot of gas
to be used while the water heater is firing with a stop watch.
Gas and carbon monoxide detectors
are available.
8. Use the formula below to “clock” the gas meter and determine
the actual firing rate of the water heater based on the heating
value (Btu per cubic foot) of the gas supply:
3600
T
Breathing carbon monoxide can cause brain damage or
death. Always read and understand instruction manual.
The water heaters covered by this manual are certified for use
without modification for altitudes up to 10,000 feet.
x H = Btu/hr
Example:
3600
12.6
•
•
•
•
Most gas utility companies de-rate their gas for high altitudes,
making it unnecessary to install high altitude orifices.
x 1050 = 300,000 Btu/hr (87.9 kW)
For installations above 10,000 feet call the technical support
phone number listed on the back cover of this manual for further
technical assistance. Call the local gas or utility company to verify
Btu per cubic foot content before calling for technical assistance
and have that information available.
3600 = seconds in one hour.
T = time, in seconds, to burn one cubic foot of gas.
H = heating value of gas in Btu per cubic foot.
Btu/hr = actual firing rate of the water heater.
Note: 1050 Btu per cubic foot is a standard value for
natural gas. Standard propane gas Btu content is 2500
Btu per cubic foot. Btu values may change in certain
areas and at high elevations. Check with the local gas
utility company.
Note: The actual firing rate of the water heater must not exceed
the input rating on the water heater's rating label under any
circumstances.
Note: Due to the input rating reduction at high altitudes, the
output rating of the water heater is also reduced and should be
compensated for in the sizing of the equipment for applications.
52
Lighting The Water Heater
Lighting & Operation Label - SUF 130 300 100/101, SUF 130 400 & 500 101
The instruction label below is affixed to the water heater's covered by this manual at the factory and must be followed when lighting
and operating the water heater.
FOR YOUR SAFETY READ BEFORE OPERATING
WARNING
IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY A FIRE OR EXPLOSION
MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
A. This appliance does not have a pilot. It is equipped with
an ignition device which automatically lights the burner.
Do not try to light the burner by hand.
telephone. Follow the gas supplier’s instructions.
•
B. BEFORE OPERATING smell all around the appliance area
for gas. Be sure to smell next to the floor because some
gas is heavier than air and will settle on the floor.
If you cannot reach your gas supplier, call the fire
department.
C. Use only your hand to push in or turn the gas control
knob. Never use tools. If the knob will not push in or
turn by hand, don’t try to repair it, call a qualified service
technician. Force or attempted repair may result in fire
or explosion.
“WHAT TO DO IF YOU SMELL GAS”
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use any telephone
in your building.
•
Immediately call your gas supplier from a neighbor’s
D. Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect
the appliance and to replace any part of the control system
and any gas control which has been under water.
OPERATING INSTRUCTIONS
1.
9. Set thermostat to desired setting.
STOP! Read the safety information above on this
label.
10. If the appliance will not operate, follow the instructions
“To Turn Off Gas To Appliance” and call your service
technician or gas supplier.
2. Set thermostat to lowest setting.
3. Turn off all electrical power to the appliance.
GAS
CONTROL
KNOB
4. This appliance is equipped with an ignition device which
automatically lights the burner. Do not try to light the
burner by hand.
6. Wait five (5) minutes to clear out any gas. If you then
smell gas,
STOP! Follow “B” in the safety information
above on
this label. If you don’t smell gas, go on to
the next step.
ON
IN
7. Turn gas control knob counterclockwise
to “ON”.
OFF
8. Turn on all electrical power to the appliance.
TO TURN OFF GAS TO APPLIANCE
1. Set the thermostat to lowest setting.
2. Turn off all electrical power to the appliance if service is to be performed.
3. Push in gas control knob slightly and turn clockwise
Honeywell
1/2 PSI
5. Push in gas control knob slightly and turn clockwise
to “OFF”.
to “OFF”. Do not force.
53
Lighting & Operation Label - SUF 130 400 & 500 104
The instruction label below is affixed to the water heater's covered by this manual at the factory and must be followed when lighting
and operating the water heater.
54
Troubleshooting
Installation Checklist
Sequence of Operation
The list below represents some of the most critical installation
requirements that, when overlooked, often result in operational
problems, down time and needless parts replacement. This
is not a complete list. Before performing any troubleshooting
procedures use the list below to check for installation errors.
Costs to correct installation errors are not covered under the
limited warranty. Ensure all installation requirements and
instructions in this manual have been maintained and followed.
Read the Sequence of Operation below before attempting to
correct any operational problems. Refer to the Features And
Components section beginning on page 7 for the location of
various water heater components described below. See the
Sequence Of Operation Flow Chart on page 55 also.
1. When the control system is first powered, during boot up, it will
display water heater model information during initialization.
After a few moments the control system LCD which is part
of the UIM (user interface module) will display the default
screen known as the "Desktop" screen.
Water Heater Location
1. Ensure proper clearances to combustibles are maintained
and there is sufficient room to service the water heater. See
Clearances on page 11.
2. If the control system determines that the actual water
temperature inside the tank is below the programmed
Operating Set Point minus the Differential setting, a heating
cycle is activated.
2. Ensure the area is free of corrosive elements and flammable
materials. See the instructions on page 16.
Venting
3. The control system then performs selected diagnostic system
checks. This includes confirming the low gas pressure,
blocked exhaust, blocked intake and ECO (energy cut
out) switch contacts are closed. The Blower Prover Switch
contacts are confirmed open.
3. Ensure the intake air and/or vent (exhaust) piping is the correct
size for the installed length. See Venting Requirements on
page 22.
4. Ensure the maximum equivalent feet of pipe has not been
exceeded for the intake air and/or vent pipe. See Table 7 on
page 22.
4. If all diagnostic checks are successfully passed, the control
system energizes the Combustion Blower for pre-purge.
5. The control system must confirm the Blower Prover Switch
contacts close after the Combustion Blower is energized.
5. Ensure the maximum number of elbows has not been
exceeded in the intake air and/or vent pipe. See Venting
Requirements on page 22.
6. If the Blower Prover Switch contacts are confirmed closed
the control system energizes the Hot Surface Igniter for the
igniter warm-up period.
6. Ensure the balance plate and intake air screen are removed
from the intake air connection on the water heater when
installing the water heater in a Direct Vent configuration. See
Figure 17 on page 24.
7. The control system monitors the igniter current and must
sense a minimum of 2.0 AC amps for SUF 130 300 100/101
series and SUF 130 400 101 series only, and 3.1 AC amps
for SUF 130 400 104 series, and 500 101/104 series.
7. Ensure all exterior clearances for the intake air, vent and
concentric terminations are maintained. See Vertical
Termination Installation on page 24, Sidewall Termination
Installation on page 26 and Concentric Termination
Installation on page 27. These clearances and those cited by
local and national codes must be maintained.
8. If igniter amperage is confirmed at or above the required
minimum the control system energizes the 24 VAC Gas
Valve allowing gas to flow to the Main Burner.
9. The control system de-energizes the Hot Surface Igniter.
Gas Supply And Piping
10.The control system monitors the flame sensor to confirm a
flame is present at the Main Burner. If a flame is not verified
during the ignition trial period the control system will try for
ignition up to two more times. If flame can not be verified after
three trials for ignition, the control system will lock out and
display the “Ignition Failure” Fault message.
8. Ensure a supply gas regulator has been installed for each
water heater. See the requirements for a Supply Gas Regulator
on page 13 and Supply Gas Regulator on page 13.
9. Ensure the supply gas line to each water heater meets
the minimum supply gas line size requirements. See the
requirements for the Supply Gas Line on page 13 and the
installation instructions on page 37 and 38.
11.If a flame is verified, the control system will enter the
heating mode where it will continue heating the water until
the Operating Set Point is reached. At this point, the control
system will de-energize the 24 VAC Gas Valve and enter the
post-purge cycle (approximately 30 seconds).
Condensate Drain
10.Ensure the condensate drain is properly connected to the
exhaust elbow on the water heater with a water trap to
prevent vent gases from escaping into the installed space
and draining freely to a suitable floor drain. See Figure 9 on
page 16 and Condensate Drain Installation on page 36.
12.The Combustion Blower will run for the duration of the postpurge cycle to purge the water heater of all combustion
gases. When the post-purge cycle is complete, the blower is
de-energized and will coast to a stop.
Electrical Connections
11.Ensure the power supply connections to the water heater are
polarity correct. See the requirements for the Power Supply
on page 13 and Electrical Wiring on page 36.
13.The control system now enters the standby mode while
continuing to monitor the internal storage tank water
temperature and the state of other system devices. If the
tank temperature drops below the Operating Set Point minus
the Differential setting, the control will automatically return to
Step 2 and repeat the operating cycle.
12.Ensure the water heater is properly grounded. Flame sensing
requires an adequate earth ground. If the water heater is not
properly grounded it will cause Ignition Failure.
55
Sequence of Operation Flow Chart
If tank temperature drops below Operating Set Point minus
Differential setting a heating cycle is activated
Control System performs diagnostic checks
Normal State of all pressure switches and ECO are checked
Blower Prover pressure switch verified open
All other pressure switches and ECO are verified closed
NO
Control System Locks Out
Displays Fault Msg
Combustion Blower is energized
Pre-Purge cycle
Blower Prover switch contacts confirmed
closed by control system
NO
Control System Locks Out
“Blower Prover Open”
Fault Msg is displayed
Igniter is energized for warm up period
Does Control System sense minimum
Igniter amps?
NO
24 VAC Gas Valve is energized
gas flows to Main Burner
Control System Locks Out
“Low Igniter Current”
Fault Msg is displayed
2.0 minimum AC amps
300,000 N & P and 400,000 P
Btu/hr Models
Is flame sensed at the Main Burner ?
(control system monitors the flame sensor)
YES
NO
Water is heated to
set point
24 VAC Gas Valve
de-energized
24 VAC Gas Valve
de-energized
30 second
Inter-Purge cycle
30 second
Post-Purge cycle
Retries up to
two more times
Water heater goes
into standby mode
Control System
Locks Out
“Ignition Failure”
Fault Msg is
displayed
Figure 58
56
3.1 minimum AC amps
400,000 N and 500,000 N & P
Btu/hr Models
Operational Problems
• Excessive manifold gas pressure - see Table 4 on page 13
and Manifold Gas Pressure Adjustment on page 51.
• Vent (exhaust) gas recirculation at the vent and intake air
pipe terminations on Direct Vent installations - see Direct
Vent Installation on page 23.
• Excessive equivalent lengths of intake air and/or vent
(exhaust) piping installed - see Venting Requirements on
page 22.
• Debris clogging/blocking the intake air screen(s) - see
Figure 17 on page 24 and Figure 22 on page 26.
• Debris clogging/blocking the Main Burner - see Figure 2 on
page 7.
Momentary Ignition
Read and understand this instruction
manual and the safety messages
herein before installing, operating or
servicing this water heater.
Failure to follow these instructions and
safety messages could result in death
or serious injury.
This manual must remain with the
water heater.
CAUTION
This section of the manual is intended to be an aid in correcting
common operational problems, it is not all inclusive. The installer
may be able to observe and correct certain problems which
might arise when the water heater is first put into operation or
when it is re-fired after a prolonged shutdown. However, only
qualified service agents, as defined in Qualifications on page 6,
using appropriate test equipment, should perform any service
procedures on the water heater.
Burn Hazard
Note: Call the technical support phone number listed on the
back cover of this manual for further technical assistance or to
locate a qualified service agent in your area.
•
The combustion chamber and burner sleeve
and housing become very hot during operation.
•
Do not reach into the burner housing or
combustion chamber if the water heater
is still hot.
•
Allow the water heater to cool and always use
gloves when handling the main burner.
Installation Errors
Operational problems on new installations are often the result of
installation requirements that have been overlooked rather than
failed components. IE: A "Low Gas Pressure" Fault condition
is most often caused by low supply gas pressure rather than a
defective Low Gas Pressure switch. Rough starting and rough
operation are often caused by undersized supply gas lines and/
or the absence of a supply gas regulator at the water heater.
If the Main Burner ignites momentarily but does not sustain
ignition allow the water heater to try to ignite up to two more
times until control system locks out and the Ignition Failure Fault
message is displayed on the control system's LCD. If the water
heater is experiencing rough starts - see Rough Starting, Rough
Operation on this page. For momentary ignition problems without
rough starting check the following:
Prior to performing any operational checks inspect the water
heater installation to ensure all installation requirements and
instructions have been maintained and followed. See the
Installation Checklist on page 54.
• Incorrect manifold gas pressure - see Table 4 on page 13
and Manifold Gas Pressure Adjustment on page 51.
• Undersized supply gas line (low volume of supply gas) - see
Supply Gas Line on page 13.
• Supply gas regulator is not installed per installation
requirements (erratic gas supply volume/pressures) - see
Supply Gas Regulator on page 13.
• See the list of possible causes and things to check and
repair for the Ignition Failure Fault message on page 58.
• Debris clogging/blocking the intake air screen(s) - see
Figure 17 on page 24 and Figure 22 on page 26.
• Debris clogging/blocking the Main Burner - see Figure 2 on
page 7.
Not Enough Or No Hot Water
Note: Costs to correct installation errors are not covered under
the limited warranty.
Rough Starting, Rough Operation
Fire and Explosion Hazard
Do not use water heater with any gas
other than the gas shown on the rating
label.
Excessive gas pressure to gas valve can
cause serious injury or death.
Turn off gas lines during installation.
Contact a qualified installer or service
agency for installation and service.
• No power to the water heater, check breaker, fuses and the
water heater on/off switch.
• Hot water supply valve(s) to fixtures closed.
• Operating Set Point is set too low, Differential setting is set
too high. See Control System Operation on page 42.
• Upper and/or Lower Probe Offset settings are causing the
heating cycles to terminate prematurely - see Temperatures
Menu (cont) on page 46.
• Ensure there is not any external supervisory control (using
the enable/disable circuit) disabling heating operation. See
Enable/Disable Circuit on page 39.
• The heating capacity of the water heater has been
exceeded, the water heater is unable to meet demand.
• Undersized supply gas line (low volume of supply gas) - see
Supply Gas Line on page 13.
• Supply gas regulator is not installed per installation
requirements (erratic gas supply volume/pressures) - see
Supply Gas Regulator on page 13.
• Excessive supply gas pressure - see Table 4 on page 13.
and Supply Gas Pressure Adjustment on page 51.
57
Alert Conditions
• Colder incoming water temperature lengthening the time
required to heat water to desired temperature.
• Hot water piping leaks, open faucets, water heater drain
valve leaking or open.
• Sediment or lime scale accumulation may be affecting water
heater operation. See Maintenance on page 60 for sediment
and lime scale removal procedures.
• Water heater not firing at full input rating. Check manifold
gas pressure, see instructions on page 51. Check actual
firing rate of the water heater, see instructions on page 52.
Water Is Too Hot
When the control system declares an Alert condition it will display
an Alert message on the control system's LCD with a question "?"
mark. The water heater will continue to operate during an Alert
condition but the water heater must be serviced by a qualified
service agent as soon as possible.
Resetting Control System Lock Outs
To reset the control system from a lock out condition; turn the
power supply off for approximately 20 seconds and then back on.
Keep in mind; if the condition that caused the Fault has not been
corrected, the control system will continue to lock out.
• Operating Set Point is set too high. See Operating Set Point
And Differential Adjustment on page 45.
• Upper and/or Lower Probe Offset settings improperly set see Temperatures Menu (cont) on page 46.
• Improper water piping - see diagrams beginning on
page 67.
Noisy Operation
Diagnostic Checks
Electrical Shock Hazard
• Sediment or lime scale accumulations can cause rumbling
and pounding noises during heating cycles. See the
Maintenance section of this manual beginning on page 60
for sediment and lime scale removal procedures.
• Normal operating noise of electrical components;
Combustion Blower, transformer hum, relay contact closure.
Water Leakage Is Suspected
•
•
•
•
Ensure the water heater drain valve is tightly closed.
Check cleanout opening for leaks - see Figure 4 on page 9.
Check inlet/outlet water connections and system piping.
Check the Temperature-Pressure Relief Valve.
• Excessive water temperature.
• Excessive water pressure.
• Defective Temperature-Pressure Relief Valve.
Note: Excessive water pressure is the most common cause of
Temperature-Pressure Relief Valve leakage. Excessive water
system pressure is most often caused by "thermal expansion"
in a "closed system." See Thermal Expansion and Closed Water
Systems on page 14. The Temperature-Pressure Relief Valve is
not intended for the constant relief of thermal expansion.
•
Turn off power to the water heater
before performing any service.
•
Label all wires prior to disconnecting
when performing service. Wiring errors
can cause improper and dangerous
operation.
•
•
Verify proper operation after servicing.
Failure to follow these instructions can
result in personal injury or death.
The following section, Fault And Alert Messages on page 58, lists
some of the messages the control system will display on the LCD
when there are operational problems. This is not a complete list.
Along with each of the Fault and Alert messages described there
will be a list of possible causes and things to check and repair.
Only qualified service agents, as defined in Qualifications on
page 6, using appropriate test equipment, should perform any
service procedures on the water heater.
Note: If you are not qualified and licensed or certified as required
by the authority having jurisdiction to perform a given task do not
attempt to perform any of the diagnostic or service procedures
described in the following section.
If you do not understand the instructions in the following section
do not attempt to perform any procedures.
Temperature-Pressure Relief Valve leakage due to pressure build
up in a closed system that does not have a thermal expansion
tank installed is not covered under the limited warranty. Thermal
expansion tanks must be installed on all closed water systems.
Call the technical support phone number listed on the back cover
of this manual for further technical assistance or to locate a
qualified service agent in your area.
Replacement Parts
Replacement parts may be ordered from the manufacturer,
authorized service agencies or distributors. When ordering parts
be sure to have the complete water heater Model Number, Serial
Number and Series Number available. This information can be
found on the rating label affixed to the water heater.
Jumping out control circuits or components can
result in property damage, personal injury or death.
•
Refer to the parts list included with the water heater from the
factory for more information or call the parts department or
technical support phone number listed on the back cover of this
manual for further assistance.
•
•
Fault and Alert Conditions
Fault Conditions
When the control system declares a Fault condition it will display
a Fault message on control system's LCD with an exclamation "!"
mark. The control system will lock out and disable heating operation
until condition is corrected. The water heater must be serviced by a
qualified service agent before operation can be restored.
Service should only be performed by a qualified service
agent using proper test equipment.
Altering the water heater controls and/or wiring in any way
could result in permanent damage to the controls or water
heater and is not covered under the limited warranty.
Altering the water heater controls and/or wiring in any way
could result in altering the ignition sequence allowing gas to
flow to the main burner before the hot surface igniter is at
ignition temperature causing delayed ignition which can
cause a fire or explosion.
Any bypass or alteration of the water
heater controls and/or wiring will result
in voiding the appliance warranty.
58
Fault And Alert Messages
Call the technical support phone number listed on the back cover for further technical assistance or to locate a qualified service agent
in your area.
Possible Causes - Check/Repair
Displayed Fault/Alert Message
• The water heater’s control system is polarity sensitive and will lock
out and disable heating operation if the polarity of the power supply
is reversed. The control system will display the “AC Reversed”
Fault message on the LCD in this condition. See Power Supply
Connections on page 39 for instructions on how to properly
connect the power supply.
Note: Electronic flame sensing requires correct power supply
polarity AND a proper earth ground to the water heater and the
Main Burner. The control system does not verify earth ground
but this should be checked first if ignition failure occurs. See the
Ignition Failure Fault message information below.
• The control system has failed to ignite the Main Burner.
• Water heater is not properly grounded, loose or open ground wire
to the Main Burner - see Power Supply Connections on page 39.
• Dirty/corroded flame sensor, clean flame sensor with fine steel
wool (replace if damaged) - see Figure 2 on page 7.
• Loose or open wiring to the flame sensor.
• Loose or open wiring to the 24 VAC Gas Valve.
• 24 VAC Gas Valve control knob in the "off" position - see Figure 56
on page 51 and Figure 57 on page 52.
• Supply gas turned off, low gas volume - see page 37.
• Intake air and/or vent piping is restricted or improperly installed see Venting Installation on page 21.
• Low or no manifold gas pressure to the Main Burner - see Initial
Start Up on page 50.
AC Reversed
Fault occurred 2 mins ago
Power supply to water heater
has reversed polarity.
Call a service professional:
Your Company Name Here
(press [DOWN] for more....)
CHANGE
BACK
ADVANCED
Ignition Failure
Fault occurred 2 mins ago
The water heater has failed to
ignite the burner.
Call a service professional:
Your Company Name Here
(press [DOWN] for more....)
CHANGE
• The control system has detected the Low Gas Pressure Switch
contacts are open.
• Loose or open wiring to the Low Gas Pressure Switch - see Figure
3 on page 8 for location.
• Supply gas pressure is below the required minimum pressure - see
Table 4 on page 13.
• Supply gas is turned off at the Main Shutoff Valve.
• Supply gas pressure is dropping when other gas fired appliances
on a common supply gas line are operating.
• Low volume of supply gas - see Supply Gas Line Installation on
page 37 and the requirements for the Supply Gas Line on page 13
and Supply Gas Regulator on page 13.
• The control system has detected low current (AC amps) from the
Hot Surface Igniter. The control system monitors igniter current
and will declare this Fault condition if the current is not at or above
the programmed minimum requirement - see the Sequence Of
Operation on page 54 for minimum igniter amp requirements.
• Loose or open wiring to the Hot Surface Igniter - see Figure 2 on
page 7 for igniter location.
• Damaged, worn or open circuit Hot Surface Igniter.
Note: Hot surface igniters are wearing parts. Wear is directly
related to heating cycle count. Heating cycle count can be viewed
in the Heater Information menu - see Heater Information on page
47. Increasing the Differential setting reduces heating cycle count see Operating Set Point And Differential Adjustment on page 45.
BACK
ADVANCED
Low Gas Pressure
Fault occurred 2 mins ago
The supply gas pressure to the
water heater is low.
Call a service professional:
Your Company Name Here
(press [DOWN] for more....)
CHANGE
BACK
ADVANCED
Low Igniter Current
Fault occurred 2 mins ago
Igniter current is low.
Call a service professional:
Your Company Name Here
(press [DOWN] for more....)
CHANGE
• The control system has detected the Blocked Exhaust Switch
contacts are open.
• The condensate drain is blocked filling the exhaust elbow with
water - clear the condensate drain - see Figure 9 on page 16.
• Loose or open wiring to the Blocked Exhaust Switch - see Figure 3
on page 8 for switch location.
• Restricted/blocked vent piping - condensate trapped in low point.
• Excessive equivalent pipe length, exceeded the maximum number
of 90° elbows or wrong pipe size used in the vent piping system see Venting Requirements on page 58.
• Excessive wind outdoors pressurizing the vent system piping.
• Excessive negative air pressure in the installed space.
BACK
ADVANCED
Blocked Exhaust
Fault occurred 2 mins ago
The exhaust is blocked or
restricted. Ensure
condensate hose is draining.
Call a service professional:
Your Company Name Here
(press [DOWN] for more....)
CHANGE
59
BACK
ADVANCED
Fault And Alert Messages (cont)
Call the technical support phone number listed on the back cover for further technical assistance or to locate a qualified service agent
in your area.
Possible Causes - Check/Repair
Displayed Fault/Alert Message
• The control system has detected the Blower Prover Switch
contacts are closed when they should be open at the beginning of
a heating cycle - see the Sequence Of Operation on page 54.
• Pinched/shorted Blower Prover Switch wiring - see Figure 3 on
page 8 for switch location.
• Jumper wire connected to the Blower Prover Switch - remove
jumper wire. Jumper wires must never be used, read all Warnings
on page 57.
• Excessive wind outdoors pressurizing the vent system piping.
• Excessive negative air pressure in the installed space.
Blower Prover Failure
Fault occurred 2 mins ago
The blower prover switch is
closed out of sequence.
Call a service professional:
Your Company Name Here
(press [DOWN] for more....)
CHANGE
• The control system has detected the Blower Prover Switch
contacts are remaining open after the control system has
energized the Combustion Blower - see the Sequence Of
Operation on page 54.
• Loose or open wiring to the Blower Prover Switch - see Figure 3 on
page 8 for switch location.
• Blower Prover Switch air sensing tube disconnected, kinked, filed
with condensate, damaged or leaking - repair or replace tube.
• Combustion Blower is not running when energized.
• Loose or open wiring to Combustion Blower.
• Loose, open, incorrect wiring to the VFD on SUF 130 400 and
SUF 130 500 models - see Figure 3 on page 8 and the wiring
diagram on page 65.
• The control system has detected the Blocked Intake Air Switch
contacts are open.
• Loose or open wiring to the Blocked Intake Air Switch - see Figure
3 on page 8 for switch location.
• Excessive equivalent pipe length, exceeded the maximum number
of 90° elbows or wrong pipe size used in the intake air piping
system - see Venting Requirements on page 22.
• Balance plate and/or intake air screen was not removed prior to
connecting the intake air piping to the water heater and is clogged/
blocked with debris - see Figure 17 on page 24.
• Excessive negative air pressure in the installed space.
BACK
ADVANCED
Blower Prover Open
Fault occurred 2 mins ago
The blower prover switch remains
open after the blower has been
energized.
Call a service professional:
Your Company Name Here
(press [DOWN] for more....)
CHANGE
BACK
ADVANCED
Blocked Air Intake
Fault occurred 2 mins ago
The combustion air intake is
restricted.
Call a service professional:
Your Company Name Here
(press [DOWN] for more....)
CHANGE
• The control system has detected the ECO (energy cut out) Switch
contacts are open.
• The ECO switch is a normally closed switch that opens on a
temperature rise to prevent excessive water temperature in the
storage tank. The ECO switch is inside the Upper Temperature
Probe (two red wires) - see Figure 3 on page 8 for Upper Probe
location.
• Loose or open wiring to the ECO switch in the Upper Temperature
Probe - two red wires.
• Improper water system piping and/or excessively high return
(recirculation) loop water temperature - see the Water Piping
Diagrams beginning on page 67.
BACK
ADVANCED
Energy Cut Out (ECO)
Fault occurred 2 mins ago
Tank temperature is excessive.
The water heater has been
disabled.
Call a service professional:
Your Company Name Here
(press [DOWN] for more....)
CHANGE
• The control system has not detected any voltage from the powered
anode rods - see Figure 3 on page 8 for location.
• No water in the storage tank.
• Loose or open wiring connections to the powered anode rods - see
Figure 3 on page 8 for location.
• Powered anode rod wiring shorted to ground.
• The water heater is not properly grounded - see Power Supply
Connections on page 39.
• Loose or open ground wires.
• Top fitting (3/4 inch bushing) of the powered anode rods were
saturated with water during installation - with power to the water
heater turned off, carefully remove anode rods and dry out
bushing(s).
BACK
ADVANCED
Alert:
No Anode Voltage
Alert occurred 2 mins ago
No voltage detected from
Powered Anode(s).
Call a service professional:
Your Company Name Here
(press [DOWN] for more....)
CHANGE
60
BACK
ADVANCED
Maintenance
General
Maintenance Schedule
Keep water heater area clear and free from combustible
materials, gasoline and other flammable vapors and liquids. See
Locating The Water Heater on page 11.
Table 14
Component
Water heater maintenance includes periodic tank flushing and
cleaning, and removal of lime scale. The water heater should
be inspected and adjusted to maintain proper combustion.
See Initial Start Up on page 50. A periodic inspection of the
venting system should be made. Where used, water circulating
pump(s) should be oiled according to the pump manufacturers
recommendations.
Operation
Interval
Required
Tank
Sediment
Removal
Semi Annually
Flushing
Tank
Lime Scale
Removal
Semi Annually
UN-LIME®
Anode Rods
Inspection
Cleaning
Annually
Clean Scale
Deposits
Test Operation
Semi Annually
Test
Inspection
Annually
Termination
Screens Clean
T&P Valve
Precautions
Vent System
CAUTION
Reseal/Repair
Draining and Flushing
Do not operate the water heater if it has
been exposed to or exhibits the following:
It is recommended that the water heater storage tank be drained
and flushed every 6 months to reduce sediment buildup. The
water heater should be drained if being shut down during freezing
temperatures. See Features And Components on page 7 for the
location of the water heater components described below.
•
•
•
•
Flooding at or above the level of the burner or controls.
External damage.
Firing without water.
Sooting.
Do not operate the water heater until all corrective steps
have been made by a qualified service agent.
Burn harzard.
Never operate water heater without first being certain it is
filled with water and a properly sized and rated TemperaturePressure Relief Valve is installed in the relief valve opening on
the water heater. See Temperature-Pressure Relief Valve on
page 15.
Hot water discharge.
Keep hands clear of drain
valve discharge.
To drain the water heater storage tank:
Explosion Hazard
1. Turn off the electrical supply to the water heater.
2. Turn off the gas supply at the Main Gas Shutoff Valve if the
water heater is going to be shut down for an extended period.
Overheated water can cause
water tank explosion.
3. Ensure the cold water inlet valve is open.
Properly sized temperature and
pressure relief valve must be
installed in the opening provided.
4. Open a nearby hot water faucet and let the water run until the
water is no longer hot.
5. Connect a hose to the water heater drain valve and terminate
it to an adequate drain.
Should overheating occur or the gas supply fail to shut off, turn of
the Main Gas Shutoff valve. See Figure 52 on page 37.
6. Close the cold water inlet valve.
7. Open the water heater drain valve and allow all the water to
drain from the storage tank.
Water heater maintenance includes periodic tank flushing and
cleaning, and removal of lime scale. The water heater should
be inspected and adjusted to maintain proper combustion.
Refer to the following table. A periodic inspection of the venting
system should be made. Where used, the water circulating
pump should be oiled according to the pump manufacturer's
recommendations.
8. Close the water heater drain valve when all water in the
storage tank has drained.
9. Close the hot water faucet opened in Step 4.
10.If the water heater is going to be shut down for an extended
period, the drain valve should be left open.
61
To Flush the tank perform the following steps:
Sediment and lime scale removal may be accomplished manually
through the cleanout opening furnished on the water heater, see
Figure 59.
1. Turn off the electrical supply to the water heater.
2. Ensure the cold water inlet valve is open.
3. Open a nearby hot water faucet and let the water run until the
water is no longer hot. Then close the hot water faucet.
TANK
CLEANOUT
OPENING
4. Connect a hose to the drain valve and terminate it to an
adequate drain.
5. Ensure the drain hose is secured before and during the entire
flushing procedure. Flushing is performed with system water
pressure applied to the water heater.
CLEANOUT
ACCESS PANEL
CLEANOUT
GASKET
6. Open the water heater drain valve to flush the storage tank.
7. Flush the water heater storage tank to remove sediment and
allow the water to flow until it runs clean.
8. Close the water heater drain valve when flushing is
completed.
CLEANOUT
COVER
9. Remove the drain hose.
10.Fill the water heater - see Filling The Water Heater on
page 50.
Figure 59
11.Turn on the electrical supply to place the water heater back
in operation. See Initial Start Up on page 50.
Manual Lime Scale Removal
Note: Contact your local distributor or call the parts department
phone number on the back cover of this manual to order a new
cleanout gasket. Have the new gasket available before removing
the cleanout cover.
12.Allow the water heater to complete several heating cycles to
ensure it is operating properly.
Filling the Water Heater
The cleanout opening is shown in Figure 59. To remove lime scale
manually through the cleanout opening proceed as follows:
See Filling The Water Heater on page 50.
Sediment Removal
1. Turn off the electrical supply to the water heater.
Waterborne impurities consist of the particles of soil and sand
which settle out and form a layer of sediment on the bottom of
the tank.
2. The water heater must be drained, see Draining And Flushing
on page 60, follow the instructions on how to drain the water
heater.
For convenience, sediment removal and lime scale removal
should be performed at the same time.
3. Remove outer cleanout access plate from lower side of the
water heater jacket.
Lime Scale Removal
4. Remove the cleanout cover from cleanout opening.
5. Remove lime, scale and/or sediment using care not to
damage the glass-lining.
When water is heated dissolved minerals in the water such as
calcium and magnesium carbonate (lime scale) become less
soluble. As the water temperature rises these minerals will
precipitate or “fall out” of solution.
6. Install a new cleanout gasket if required.
7. Reinstall the cleanout cover. Be sure to draw plate up tight
by tightening screws securely.
The amount of lime scale released from water is in direct
proportion to water temperature and usage. The higher the water
temperature or water usage, the more lime deposits are dropped
out of the water.
8. Close the water heater drain valve.
9. Fill the water heater - see Filling The Water Heater on page 50.
10.Turn on the electrical supply to place the water heater back
in operation. See Initial Start Up on page 50.
Water hardness also affects lime scale accumulation. With the
temperature and usage being the same, hard water will release
more lime scale than softer water.
11.Allow the water heater to complete several heating cycles to
ensure it is operating properly.
Lime scale reduces heating efficiency as it accumulates inside
a water heater. Heating transfer surfaces become coated with
lime scale deposits which increases fuel costs to operate the
water heater. Lime scale deposits can also cause rumbling
and pounding noises as air molecules trapped in the lime scale
escape when heated. Lime scale accumulation also reduces the
life span of water heaters. For these reasons a regular schedule
for deliming should be set up.
12.Check for water leakage.
13.Reinstall the cleanout access plate.
Chemical Lime Scale Removal
To dissolve and remove more stubborn lime scale deposits, UNLIME® Professional Delimer should be used.
UN-LIME® Professional Delimer is an easy to handle patented food
grade acid formulated specifically for lime scale removal from all
types of water using equipment. Hydrochloric base acids must not
be used to delime the water heaters covered in this manual.
The depth of lime accumulation in the bottom of the water
heater should be measured periodically. Inspect by removing
the cleanout cover once every 6 months at first. Deliming
maintenance should then be performed based on the time it
takes for 1 inch (2.5 cm) of lime to accumulate in the bottom of
the water heater.
Follow the instructions on the UN-LIME® to delime the water
heater.
Note: Call the parts department phone number on the back
cover of this manual to order UN-LIME® Professional Delimer.
62
See TABLE 15 for part numbers.
TEMPERATURE-PRESSURE
RELIEF VALVE
TABLE 15
UN-LIME® Professional Delimer
Part Number
Description
9005416105
4 - 1 gallon (case)
9005417105
1 - 5 gallon
DISCHARGE PIPE
Powered Anode Rods
Figure 60
To insure a long, trouble-free operating life, the water heaters
covered in this manual are factory equipped with a powered
anode system. The anode rods (2) are of a permanent design
and do not need replacing unless damaged. Inspection and
cleaning should be performed once a year.
If the Temperature-Pressure Relief Valve on the water heater
weeps or discharges periodically, this may be due to thermal
expansion.
Note: Excessive water pressure is the most common cause of
Temperature-Pressure Relief Valve leakage. Excessive water
system pressure is most often caused by "thermal expansion"
in a "closed system." See Thermal Expansion and Closed Water
Systems on page 14. The Temperature-Pressure Relief Valve is
not intended for the constant relief of thermal expansion.
Note: Follow the instructions to drain the water heater storage
tank on page 60 first. Remove the powered anodes from the
water heater by loosening the 3/4" NPT bushing that forms the
top of the anodes. Do not disassemble the retaining nut and
wire terminal from the top while installed in the water heater, the
anode's electrode may fall inside the tank. Remove the entire
anode rod from the water heater prior to inspection. Clean the
anode rods with a soft cloth and reinstall. Follow the instructions
for filling the water heater on page 50 when finished.
Temperature-Pressure Relief Valve leakage due to pressure build
up in a closed system that does not have a thermal expansion
tank installed is not covered under the limited warranty. Thermal
expansion tanks must be installed on all closed water systems.
Drain Valve and Access Panels
Do not plug the Temperature-Pressure Relief
Valve opening. This can cause property damage, serious injury or death.
The water heaters covered in this manual are equipped with
a drain valve, see Features And Components on page 7 for
location. The water heaters covered in this manual are also
equipped with a cleanout opening for sediment and lime scale
removal. See Figure 59 on page 61.
Temperature-Pressure Relief Valve Test
Explosion Hazard
Temperature-Pressure Relief Valve
must comply with ANSI Z21.22CSA 4.4 and ASME code.
Burn hazard.
Hot water discharge.
Properly sized temperaturepressure relief valve must be
installed in opening provided.
Keep clear of TemperaturePressure Relief Valve
discharge outlet.
Can result in overheating and
excessive tank pressure.
Can cause serious injury or death.
It is recommended that the Temperature-Pressure Relief Valve
should be checked to ensure that it is in operating condition
every 6 months.
Vent System
When checking the Temperature-Pressure Relief Valve operation,
make sure that (1) no one is in front of or around the outlet of the
Temperature-Pressure Relief Valve discharge line, and (2) that
the water discharge will not cause any property damage, as the
water may be extremely hot. Use care when operating valve as
the valve may be hot.
Examine the vent system once a year. Points of inspection are
as follows:
1. Check for obstructions and/or deterioration of the intake air
and/or vent piping and the intake air and vent terminations.
Replace immediately where needed.
To check the relief valve, lift the lever at the end of the valve
several times, see Figure 60. The valve should seat properly and
operate freely.
2. The debris screens in the intake air and vent terminations
should be should be cleaned of foreign material and soot.
See Figure 22 on page 26.
If after manually operating the valve, it fails to completely reset
and continues to release water, immediately close the cold water
inlet to the water heater and drain the water heater, see Draining
And Flushing on page 60. Replace the Temperature-Pressure
Relief Valve with a properly rated/sized new one, see TemperaturePressure Relief Valve on page 15 for instructions on replacement.
Note: Do not reach inside the vent hood when the heater
is in operation.
3. Check all vent system connections for leakage and repair or
reseal as necessary.
63
Diagrams
CCB - Central Control Board Layout
CCB (CENTRAL CONTROL BOARD)
1
1
1
2
2
2
1
3
3
4
2
4
4
5
J2
J3
J1
J4
J5
J6
Spare
Retries
OPEN
Yes
Tstat
2 3 4
Use
Type
1
1 Retry
Ext
Input
3
No
15
12
9
6
3
14
11
8
5
2
13
10
7
4
1
Vent
Spare
J7
S1 DIPSWITCH
4
3
2
1
J9
J13
J10
1
5
1
3
2
6
J15
2
4
3
7
1
4
8
2
J16
J11
Use
Yes
Type
Tstat
Spare
OPEN
Ext
Input
3
Retries
1
1 Retry
2 3 4
S1 DIPSWITCH DETAIL
No
Vent
Spare
Dipswitch Operation:
Along one side of the dipswitch array there are numbers, 1-4. On the other side of the dipswitch
is the word “OPEN.” The dipswitches are rocker type switches, if one side of the rocker is down the
other side will be up. Pressing a rocker down on the side of the array labeled “OPEN,” opens the switch.
Pressing a rocker down on the side of the array labeled with the numbers 1-4 closes the dipswitch.
CHANGING NUMBER OF IGNITION TRIALS BEFORE LOCK OUT
NOTE: Always turn off power to the water heater before changing dipswitch settings.
Set dipswitch #4 to the open position for 1 trial for ignition before Ignition Failure lock out. Set dipswitch
#4 to the closed position for 3 trials for ignition before Ignition Failure lock out.
Figure 61
64
SUF 130 300 Wiring Diagram
24 VAC
GAS VALVE
LOW GAS
PRESSURE SWITCH
BLOCKED
AIR INTAKE
BLOWER
PROVER
BLOCKED
EXHAUST
1
J5 J4
UIM
J16
J6
13
2
15
4
14
5
10
6
7
8
11
ENABLE/DISABLE CIRCUIT
JUMPER WIRE BETWEEN PINS
8 AND 11 ON J6 PLUG
HOT SURFACE IGNITER
1 BLACK
2 WHITE
FLAME SENSOR
RED
1 RED (ECO)
3 BLACK
UPPER TEMPERATURE PROBE
4 RED (ECO)
1 BLACK
ANODE 1
2 BLACK
LOWER TEMPERATURE PROBE
1 GREEN
2 BLUE
ANODE 2
120 VAC 1 Ø POWER
1 BLACK
1
COMBUSTION
BLOWER
2
2 WHITE
J3
1 2 RED
2 GREEN
3 WHITE
GREEN
GREEN
GREEN
GREEN
1 BLACK120 VAC HOT
BLACK
RED
J1
WHITE
3 WHITE 120 VAC NEUTRAL
ON/OFF
SWITCH
4 YEL 24 VAC
4 YEL 24 VAC
GROUND STRIP
TRANSFORMER
50VA
BURNER GROUND
(BURNER BOLT)
INSIDE CCB
ENCLOSURE
Figure 62
65
JUNCTION
BOX
USER INTERFACE MODULE
J13
J2
J7
J15 J10
CCB (CENTRAL CONTROL BOARD)
2 BLACK
WHITE
BLACK
GROUND
N
L
120 VAC NEUTRAL
120 VAC HOT
SUF 130 400, 500 Wiring Diagram
LOW GAS
PRESSURE SWITCH
24 VAC
GAS VALVE
BLOCKED
INTAKE AIR
BLOWER
PROVER
BLOCKED
EXHAUST
1
J5 J4
UIM
J16
J6
13
2
15
4
14
5
10
6
7
8
11
ENABLE/DISABLE CIRCUIT
JUMPER WIRE BETWEEN PINS
8 AND 11 ON J6 PLUG
HOT SURFACE IGNITER
1 BLACK
2 WHITE
FLAME SENSOR
RED
1 RED (ECO)
3 BLACK
UPPER TEMPERATURE PROBE
4 RED (ECO)
1 BLACK
ANODE 1
2 BLACK
LOWER TEMPERATURE PROBE
1 GREEN
2 BLUE
WHITE/BLACK
WHITE/GREEN
WHITE
WHITE/YELLOW
1
2
6
0V
NOTE: COMBUSTION BLOWER MOTORS
ON 400,000 & 500,000 Btu/hr MODELS ARE
THREE PHASE (3Ø) MOTORS.
+15V
L l1
VFD
GREEN
T2
T3
N
WHITE
L
BLACK
T1
VARIABLE
FREQUENCY
DRIVE
5
ANODE 2
AI1
BLACK
WHITE
RED
BLACK, WHITE AND RED WIRES MUST BE
WIRED AS SHOWN OR THE MOTOR WILL
TURN BACKWARDS. THIS MAY CAUSE THE
CONTROL SYSTEM TO LOCK OUT ON
“BLOWER PROVER OPEN” FAULT.
GREEN
J3
1
RED
2
GREEN
3
WHITE
COMBUSTION
BLOWER
GREEN
GREEN
GREEN
GREEN
GREEN
1 BLACK120 VAC HOT
BLACK
RED
J1
WHITE
3 WHITE 120 VAC NEUTRAL
ON/OFF
SWITCH
4 YEL 24 VAC
4 YEL 24 VAC
GROUND STRIP
TRANSFORMER
50VA
BURNER GROUND
(BURNER BOLT)
INSIDE CCB
ENCLOSURE
Figure 63
66
JUNCTION
BOX
USER INTERFACE MODULE
J13
J2
J7
J15 J10
CCB (CENTRAL CONTROL BOARD)
2 BLACK
WHITE
BLACK
GROUND
N
L
120 VAC NEUTRAL
120 VAC HOT
Circulation Pump Wiring Diagrams
CIRCULATING PUMP WIRING DIAGRAM
STORAGE TANK OR BUILDING RECIRCULATION
NOTE: USE SEPARATE 120 VAC POWER
SUPPLY FOR PUMP CIRCUIT. DO NOT
SHARE POWER WITH APPLIANCE AS THIS
MAY CAUSE ELECTRICAL LINE NOISE AND
LEAD TO ERRATIC CONTROL SYSTEM
OPERATION.
FIELD SUPPLIED TEMPERATURE CONTROL
INSTALLED IN THE STORAGE TANK
OR CIRCULATING LOOP RETURN LINE
L1 HOT
120 VAC
POWER
CIRC
PUMP
MOTOR
L2 NEUTRAL
Figure 64
CIRCULATING PUMP WIRING DIAGRAM
DISHWASHER LOOP WITH TOGGLE SWITCH
DISHWASHER
TOGGLE
SWITCH
FIELD SUPPLIED TEMPERATURE
CONTROL INSTALLED IN THE
CIRCULATING LOOP RETURN LINE
NOTE: USE SEPARATE 120 VAC POWER
SUPPLY FOR PUMP CIRCUIT. DO NOT
SHARE POWER WITH APPLIANCE AS THIS
MAY CAUSE ELECTRICAL LINE NOISE AND
LEAD TO ERRATIC CONTROL SYSTEM
OPERATION.
L1 HOT
120 VAC
POWER
CIRC
PUMP
MOTOR
L2 NEUTRAL
Figure 65
67
68
FINISHED FLOOR
WARNING: THIS DRAWING SHOWS SUGGESTED
PIPING CONFIGURATION AND OTHER DEVICES;
CHECK WITH LOCAL CODES AND ORDINANCES
FOR ADDITIONAL REQUIREMENTS.
ONE WATER HEATER, SINGLE TEMPERATURE
WITH BUILDING RECIRCULATION
3. See Temperature-Pressure Relief Valve on page 15.
2. See Dishwashing Machines on page 14.
1. See Mixing Valves on page 14.
Before installation of water piping review the following:
Water Piping Diagrams
PIPE T&P TO
OPEN DRAIN
HOT WATER OUTLET
EXPANSION
TANK
COLD
WATER
SUPPLY
LINE TEMPERATURE
CONTROL
HOT WATER
RETURN
WATER FLOW SWITCH
TANK OR LINE TEMPERATURE
CONTROL
DRAIN
TEMPERATURE GAGE
CHECK VALVE
FULL PORT BALL VALVE
CIRCULATING PUMP
PRESSURE RELIEF VALVE
TEMPERATURE & PRESSURE
RELIEF VALVE
LEGEND
7. If a pump is being installed in a recirculation loop between the water heater and a
commercial dishwasher wire according to Figure 64 or Figure 65 on page 66.
6. If a pump is being installed between a water heater and storage tank or on a building
recirculation loop wire according to Figure 64 on page 66.
5. See Water Line Connections on page 40.
4. See Closed Systems and Thermal Expansion on page 14.
69
EXPANSION
TANK
COLD WATER
SUPPLY
TEMPERED WATER
RETURN
LINE TEMPERATURE
CONTROL
WARNING: THIS DRAWING SHOWS SUGGESTED
PIPING CONFIGURATION AND OTHER DEVICES;
CHECK WITH LOCAL CODES AND ORDINANCES
FOR ADDITIONAL REQUIREMENTS.
HOT WATER
RETURN
ONE WATER HEATER, TWO TEMPERATURE
WITH HIGH TEMPERAURE LOOP RECIRCULATION
WITH BUILDING RECIRCULATION
3. See Temperature-Pressure Relief Valve on page15.
2. See Dishwashing Machines on page 14.
1. See Mixing Valves on page 14.
Before installation of water piping review the following:
Water Piping Diagrams
TEMPERED
WATER
TO FIXTURES
LINE TEMPERATURE
CONTROL
12” TO 15”
MINIMUM
HOT
COLD
MIXING VALVE
HOT WATER
OUTLET
WATER FLOW SWITCH
DRAIN
PIPE T&P TO
OPEN DRAIN
TEMPERATURE GAGE
CHECK VALVE
MIXING VALVE
FULL PORT BALL VALVE
TANK OR LINE TEMPERATURE
CONTROL
CIRCULATING PUMP
PRESSURE RELIEF VALVE
TEMPERATURE & PRESSURE
RELIEF VALVE
LEGEND
7. If a pump is being installed in a recirculation loop between the water heater and a
commercial dishwasher wire according to Figure 64 or Figure 65 on page 66.
6. If a pump is being installed between a water heater and storage tank or on a building
recirculation loop wire according to Figure 64 on page 66.
5. See Water Line Connections on page 40.
4. See Closed Systems and Thermal Expansion on page 14.
70
HOT WATER
OUTLET
ALT. COLD WATER
CONNECTION
TANK TEMPERATURE
CONTROL
EXPANSION
TANK
COLD WATER
SUPPLY
HOT WATER
RETURN
LINE TEMPERATURE
CONTROL
WATER FLOW SWITCH
TANK OR LINE TEMPERATURE
CONTROL
DRAIN
TEMPERATURE GAGE
CHECK VALVE
FULL PORT BALL VALVE
CIRCULATING PUMP
PRESSURE RELIEF VALVE
TEMPERATURE & PRESSURE
RELIEF VALVE
LEGEND
7. If a pump is being installed in a recirculation loop between the water heater and a
commercial dishwasher wire according to Figure 64 or Figure 65 on page 66.
6. If a pump is being installed between a water heater and storage tank or on a building
recirculation loop wire according to Figure 64 on page 66.
5. See Water Line Connections on page 40.
4. See Closed Systems and Thermal Expansion on page 14.
NOTE:
The water heater’s Operating Set Point should be set 5° higher than the Tank Temperature Control in the auxiliary storage tank.
FINISHED
FLOOR
PIPE T&P TO
OPEN DRAIN
WARNING: THIS DRAWING SHOWS SUGGESTED
PIPING CONFIGURATION AND OTHER DEVICES;
CHECK WITH LOCAL CODES AND ORDINANCES
FOR ADDITIONAL REQUIREMENTS.
ONE WATER HEATER, SINGLE TEMPERATURE
WITH VERTICAL STORAGE TANK FORCED RECIRCULATION
WITH BUILDING RECIRCULATION
3. See Temperature-Pressure Relief Valve on page15.
2. See Dishwashing Machines on page 14.
1. See Mixing Valves on page 14.
Before installation of water piping review the following:
Water Piping Diagrams
STATE
STORAGE TANK
71
STATE
STORAGE TANK
ALTERNATE TANK
TEMPERATURE
CONTROL LOCATION
TANK TEMPERATURE
CONTROL
HOT WATER
OUTLET
EXPANSION
TANK
WATER FLOW SWITCH
DRAIN
COLD WATER
SUPPLY
HOT WATER
RETURN
LINE TEMPERATURE
CONTROL
TEMPERATURE GAGE
CHECK VALVE
MIXING VALVE
FULL PORT BALL VALVE
TANK OR LINE TEMPERATURE
CONTROL
CIRCULATING PUMP
PRESSURE RELIEF VALVE
TEMPERATURE & PRESSURE
RELIEF VALVE
LEGEND
7. If a pump is being installed in a recirculation loop between the water heater and a
commercial dishwasher wire according to Figure 64 or Figure 65 on page 66.
6. If a pump is being installed between a water heater and storage tank or on a building
recirculation loop wire according to Figure 64 on page 66.
5. See Water Line Connections on page 40.
4. See Closed Systems and Thermal Expansion on page 14.
NOTE:
The water heater’s Operating Set Point should be set 5° higher than the Tank Temperature Control in the auxiliary storage tank.
FINISHED
FLOOR
PIPE T&P TO
OPEN DRAIN
WARNING: THIS DRAWING SHOWS SUGGESTED
PIPING CONFIGURATION AND OTHER DEVICES;
CHECK WITH LOCAL CODES AND ORDINANCES
FOR ADDITIONAL REQUIREMENTS.
ONE WATER HEATER, SINGLE TEMPERATURE
WITH HORIZONTAL STORAGE TANK FORCED RECIRCULATION
WITH BUILDING RECIRCULATION
3. See Temperature-Pressure Relief Valve on page 15.
2. See Dishwashing Machines on page 14.
1. See Mixing Valves on page 14.
Before installation of water piping review the following:
Water Piping Diagrams
72
FINISHED
FLOOR
HOT WATER
OUTLET
WARNING: THIS DRAWING SHOWS SUGGESTED
PIPING CONFIGURATION AND OTHER DEVICES;
CHECK WITH LOCAL CODES AND ORDINANCES
FOR ADDITIONAL REQUIREMENTS.
PIPE T&P TO
OPEN DRAIN
TWO WATER HEATERS, SINGLE TEMPERATURE
WITH BUILDING RECIRCULATION
3. See Temperature-Pressure Relief Valve on page 15.
2. See Dishwashing Machines on page 14.
1. See Mixing Valves on page 14.
Before installation of water piping review the following:
Water Piping Diagrams
PIPE T&P TO
OPEN DRAIN
EXPANSION
TANK
COLD WATER
SUPPLY
HOT WATER
RETURN
LINE TEMPERATURE
CONTROL
WATER FLOW SWITCH
TANK OR LINE TEMPERATURE
CONTROL
DRAIN
TEMPERATURE GAGE
CHECK VALVE
FULL PORT BALL VALVE
CIRCULATING PUMP
PRESSURE RELIEF VALVE
TEMPERATURE & PRESSURE
RELIEF VALVE
LEGEND
7. If a pump is being installed in a recirculation loop between the water heater and a
commercial dishwasher wire according to Figure 64 or Figure 65 on page 66.
6. If a pump is being installed between a water heater and storage tank or on a building
recirculation loop wire according to Figure 64 on page 66.
5. See Water Line Connections on page 40.
4. See Closed Systems and Thermal Expansion on page 14.
73
FINISHED
FLOOR
HOT WATER
OUTLET
PIPE T&P TO
OPEN DRAIN
WARNING: THIS DRAWING SHOWS SUGGESTED
PIPING CONFIGURATION AND OTHER DEVICES;
CHECK WITH LOCAL CODES AND ORDINANCES
FOR ADDITIONAL REQUIREMENTS.
THREE WATER HEATERS, SINGLE TEMPERATURE
WITH BUILDING RECIRCULATION
3. See Temperature-Pressure Relief Valve on page 15.
2. See Dishwashing Machines on page 14.
1. See Mixing Valves on page 14.
Before installation of water piping review the following:
Water Piping Diagrams
PIPE T&P TO
OPEN DRAIN
PIPE T&P TO
OPEN DRAIN
EXPANSION
TANK
COLD WATER
SUPPLY
HOT WATER
RETURN
LINE TEMPERATURE
CONTROL
WATER FLOW SWITCH
TANK OR LINE TEMPERATURE
CONTROL
DRAIN
TEMPERATURE GAGE
CHECK VALVE
FULL PORT BALL VALVE
CIRCULATING PUMP
PRESSURE RELIEF VALVE
TEMPERATURE & PRESSURE
RELIEF VALVE
LEGEND
7. If a pump is being installed in a recirculation loop between the water heater and a
commercial dishwasher wire according to Figure 64 or Figure 65 on page 66.
6. If a pump is being installed between a water heater and storage tank or on a building
recirculation loop wire according to Figure 64 on page 66.
5. See Water Line Connections on page 40.
4. See Closed Systems and Thermal Expansion on page 14.
74
FINISHED
FLOOR
PIPE T&P TO
OPEN DRAIN
HOT WATER
OUTLET
WARNING: THIS DRAWING SHOWS SUGGESTED
PIPING CONFIGURATION AND OTHER DEVICES;
CHECK WITH LOCAL CODES AND ORDINANCES
FOR ADDITIONAL REQUIREMENTS.
FOUR WATER HEATERS, SINGLE TEMPERATURE
WITH BUILDING RECIRCULATION
3. See Temperature-Pressure Relief Valve on page 15.
2. See Dishwashing Machines on page 14.
1. See Mixing Valves on page 14.
Before installation of water piping review the following:
Water Piping Diagrams
PIPE T&P TO
OPEN DRAIN
PIPE T&P TO
OPEN DRAIN
PIPE T&P TO
OPEN DRAIN
EXPANSION
TANK
COLD WATER
SUPPLY
HOT WATER
RETURN
LINE TEMPERATURE
CONTROL
WATER FLOW SWITCH
TANK OR LINE TEMPERATURE
CONTROL
DRAIN
TEMPERATURE GAGE
CHECK VALVE
FULL PORT BALL VALVE
CIRCULATING PUMP
PRESSURE RELIEF VALVE
TEMPERATURE & PRESSURE
RELIEF VALVE
LEGEND
7. If a pump is being installed in a recirculation loop between the water heater and a
commercial dishwasher wire according to Figure 64 or Figure 65 on page 66.
6. If a pump is being installed between a water heater and storage tank or on a building
recirculation loop wire according to Figure 64 on page 66.
5. See Water Line Connections on page 40.
4. See Closed Systems and Thermal Expansion on page 14.
Limited Warranty
State Water Heaters, the warrantor, extends the following LIMITED WARRANTY to the owner of this water heater.
1.THE TANK
If the glass-lined tank in this water heater shall prove upon examination by the warrantor to have leaked due to natural corrosion from potable water therein,
during the first THREE years after initial installation, the warrantor will supply a replacement tank less burner and controls or a complete new State water heater
of equivalent size and current model at the warrantor's option. Some government agencies are requiring energy efficient standards for water heaters. In the
event regulations prohibit sale of a model of equivalent size and construction, State will provide a model which complies with the regulations of your area, in
which case the consumer will be charged the difference in price between the like replacement and the energy efficient model required. The warranty on the
replacement water heater will be limited to the unexpired term of the original warranty.
2.ALL OTHER PARTS
If within ONE year after initial installation of this water heater, any part or portion shall prove upon examination by the warrantor to be defective in material or
workmanship, the warrantor will repair or replace such part or portion at its option.
3.CONDITIONS AND EXCEPTIONS
This warranty shall apply only when the water heater is installed in accordance with local plumbing and building codes, ordinances and regulations, the printed
instructions provided with it and good industry practices. In addition, a temperature and pressure relief valve, certified by CSA and approved by the American
Society of Mechanical Engineers, must have been installed.
a.This warranty shall apply only when the water heater is:
(1) owned by the original purchaser;
(2) used at temperatures not exceeding the maximum setting of its thermostat;
(3) used at water pressure not exceeding the working pressure shown on the heater;
(4) used when operated free of the damaging effects of uncontrolled water hammer;
(5) used when filled with potable water, free to circulate at all times;
(6) used in a non-corrosive and non-contaminated atmosphere;
(7) used with factory approved anode(s) installed;
(8) in its original installation location;
(9) in the United States, its territories or possessions, and Canada;
(10) sized in accordance with proper sizing techniques for commercial water heaters;
(11) bearing a rating plate which has not been altered, defaced or removed except as required by the warrantor;
(12) fired at the factory rated input using the fuel stated on the rating plate;
(13) maintained in accordance with the instructions printed in the manual included with the water heater.
b.Any accident to the water heater, any misuse, abuse (including freezing) or alteration of it, any operation of it in a modified form, or any attempt
to repair tank leaks will void this warranty.
c.This warranty is void if a device acting as a backflow prevention device (check valves etc.) is installed in the cold water supply the heater is
connected to, unless an effective method of controlling thermal expansion is also installed at the heater(s) and operational at all times.
The temperature and pressure relief valve installed on the heater is not an acceptable method.
4.SERVICE AND REPAIR EXPENSES
Under the limited warranty the warrantor will provide only a replacement water heater or part thereof. The owner is responsible for all other costs. Such costs
may include but are not limited to:
a. Labor charges for service removal, repair or reinstallation of the water heater or any component part;
b. Shipping, delivery, handling, and administrative charges for forwarding the new heater or replacement part from the nearest distributor and returning
the claimed defective heater or part to such distributor.
c. All cost necessary or incidental for any material and/or permits required for installation of the replacement.
5.LIMITATIONS ON IMPLIED WARRANTIES
Implied warranties, including the warranty of merchantability imposed on the sale of this heater under state law are limited to one (1) year duration for the heater
or any of its parts. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
6.CLAIM PROCEDURE
Any claim under the warranty should be initiated with the dealer who sold the water heater, or with any other dealer handling the warrantor’s
products. If this is not practicable, the owner should contact:
U.S. Customers
Canadian Customers
State Water Heaters
State Water Heaters
500 Tennessee Waltz Parkway
P. O. Box, 310 - 768 Erie Street
Ashland City, TN 37015
Stratford (Ontario) N5A 6T3
Telephone: 1-(800)-365-0024
Telephone: 1-(800) 265-8520
a. The warrantor will only honor replacement with identical or similar water heater or parts thereof which are manufactured or distributed by the warrantor.
b. Dealer replacements are made subject to in-warranty validation by warrantor.
7.DISCLAIMERS
NO OTHER EXPRESS WARRANTY HAS BEEN OR WILL BE MADE IN BEHALF OF THE WARRANTOR WITH RESPECT TO THE MERCHANTABILITY
OF THE HEATER OR THE INSTALLATION, OPERATION, REPAIR OR REPLACEMENT OF THE WATER HEATER. THE WARRANTOR SHALL NOT BE
RESPONSIBLE FOR WATER DAMAGE, LOSS OF USE OF THE UNIT, INCONVENIENCE, LOSS OR DAMAGE TO PERSONAL PROPERTY OR OTHER
CONSEQUENTIAL DAMAGE. THE WARRANTOR SHALL NOT BE LIABLE BY VIRTUE OF THIS WARRANTY OR OTHERWISE FOR DAMAGE TO ANY
PERSONS OR PROPERTY, WHETHER DIRECT OR INDIRECT, AND WHETHER ARISING IN CONTRACT OR TORT.
a. Some states do not allow the exclusion or limitation of the incidental or consequential damage, so the above limitations or exclusions may not apply to you.
b. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Fill in the following for your own reference. Keep it. Registration is not a condition of warranty. The model and serial number are found on the heater’s rating plate.
Date Installed________________________Model No.____________________________________________Serial No._______________________________________
Dealer’s Name _____________________________________________________________________Phone No.____________________________________________
Dealer’s Address______________________________________________City and State________________________________________Zip Code________________
FILL IN WARRANTY AND KEEP FOR FUTURE REFERENCE.
75
500 Tennessee Waltz Parkway, Ashland City, TN 37015
Phone: 800-365-0024 • Fax: 800-644-9306
www.statewaterheaters.com
Was this manual useful for you? yes no
Thank you for your participation!
