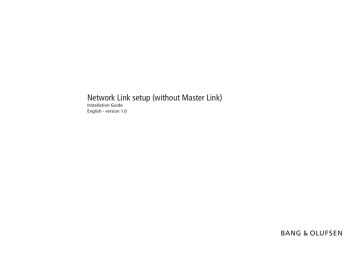

Network Link setup (without Master Link)
Installation Guide
English - version 1.0
Technical room
Living room
Bedroom
BeoPlay V1
Network Link
Internet
BeoVision 11
Network Link
ISP Router
Network Link
Router
Office
Switch
BeoPlay V1
Network Link
Network Link
Network Link
Network Link
Network Link setup
Network Link setup (without Master Link) is a setup consisting of Network Link products only.
In such a setup, it is possible to distribute sound from any TV to another. Once the settings are made on the TV to be distributed to, the source list
will be updated. Then it is possible to listen to the different sources, which are connected to the TV to be distributed from.
Connecting
The cables from the ISP Router to the Network Link Router and from the Network Link Router to the Switch are Ethernet cable. The cables from
the switch to the Network Link products are Network Link Product cable.
Disconnect all the products in the setup from mains. Connect the Ethernet cable between the ISP Router, Network Link Router and Switch.
Connect the Network Link Product cables between the Switch and the Network Link products. Connect the products to mains.
Option settings
In a Network Link setup the option setting is only relevant in relation to the IR adressing. Therefore the Network Link TV only have 3 options
settings that are 1, 2 and 4.
- Option 1 - If the Network Link video product is placed in the same room as a Bang & Olufsen audio product.
- Option 2 - If the Network Link product is the only Bang & Olufsen product in the room.
- Option 4 - If the Network Link video product is placed in the same room as other Bang & Oufsen video products. (Activate LINK before source)
In the example shown the option settings are as follow.
Living room (BeoVision 11) in option 2. Bedroom (BeoPlay V1) and office (BeoPlay V1) in option 2.
Products settings
The TV to be distributed to need to have the correct settings in the B&O CONNECT menu.
Access the menu - SETUP MENU > PRODUCT INTEGRATION -> B&O CONNECT.
In the B&O CONNECT menu on the TV the following options are present, CONNECT TO, SHARE SPEAKERS and VM OPTION.
CONNECT TO - select which product to be distributed from.
SHARE SPEAKERS - select YES or NO depending on whether you want to share the TV speakers with the above selected product or not.
VM OPTION - select the correct option setting.
In the example shown the settings on the Bedroom TV (BeoPlay V1) and the Kitchen TV (BeoPlay V1) are as follow.
CONNECT TO - BeoVision 11.
SHARE SPEAKERS - NO.
VM OPTION - 2
