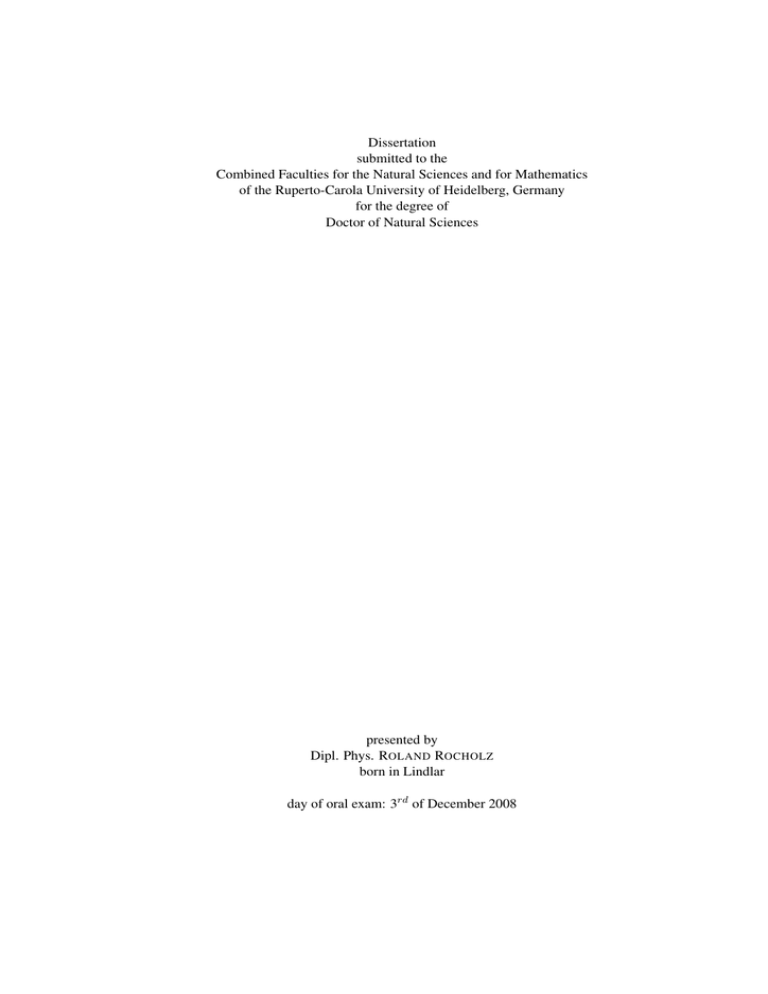

Dissertation
submitted to the
Combined Faculties for the Natural Sciences and for Mathematics
of the Ruperto-Carola University of Heidelberg, Germany
for the degree of
Doctor of Natural Sciences
presented by
Dipl. Phys. ROLAND ROCHOLZ
born in Lindlar
day of oral exam: 3rd of December 2008
Spatio-Temporal Measurement of
Short Wind-Driven Water Waves
Referees:
Prof. Dr. B ERND JÄHNE
Prof. Dr. W ERNER A ESCHBACH -H ERTIG
Abstract: Spatio-temporal measurements of wind-driven short-gravity capillary waves are reported for a wide range of experimental conditions, including wind, rain and surface slicks. The experiments were conducted in a linear wind wave flume and for the water surface elevation η(x, y, t)
both components of the slope field s = ∇η were measured optically. For this the color imaging
1/2
slope gauge (CISG) was realized, comprising a range of wavenumbers k = kx2 + ky2
from
60 to 4500 rad/m. The instrument was improved to achieve a sampling rate of 312.5 Hz, which
now allows for the computation of 3D wavenumber-frequency spectra S(kx , ky , ω). Using a new
calibration method it was possible to correct for the intrinsic nonlinearities of the instrument in the
slope range up to ±1. In addition, the Modulation Transfer Function (MTF) was measured and
employed for the contrast restoration of the data. The results are generally consistent with former
measurements. But, the shape of the saturation spectra in the vicinity of k ∼ 1000 rad/m stands
in contradiction to former investigations where a sharp spectral cutoff (∝ k −2 or ∝ k −3 ) is commonly reported. The new MTF corrected spectra show just a gentle decrease (between ∝ k −0.5
and ∝ k −1 ) for k > 1000 rad/m, which has implications for the modeling of the energy fluxes in
the wave field. Concerning the dispersion relation, a first approach for a quantitative evaluation
of the wavenumber-frequency spectrum is shown. This includes estimates of the surface tension
and the Doppler shift due to the surface shear flow and the wave-wave modulations. The wave
measurements were accompanied by synchronized and spatially coinciding measurements of the
surface temperature by means of infrared imagery. The temperature data is mapped onto an animated graphical model of the reconstructed surface elevation using a new interactive visualization
tool. This allows for an investigation of intermittent small scale processes that are influencing the
transfer of heat and gases at the air-water interface, such as microscale wave breaking, small scale
Langmuir circulations, and the impact of rain drops.
Zusammenfassung: Ergebnisse zur raum-zeitlichen Messung von kleinskaligen windgetriebenen Wasserwellen werden für einen weiten Bereich experimenteller Bedingungen (Wind, Regen, Oberflächenfilme) präsentiert. Die Experimente wurden in einem linearen Wind-WellenKanal durchgeführt und beide Komponenten des Gradienten der Wasseroberflächenauslenkung
s(x, y, t)= ∇η(x, y, t) wurden optisch gemessen. Dazu wurde eine bildgebende Technik (CISG)
1/2
eingesetzt. Der Bereich der erfassten Wellenzahlen k = kx2 + ky2
reicht von 60 bis 4500 rad/m.
Die CISG wurde verbessert, um eine Bildwiederholrate von 312.5 Hz zu erreichen, wodurch
nun die Berechnung von 3D Wellenzahl-Frequenz-Spektren S(kx , ky , ω) möglich ist. Eine neue
Methode zur Kalibrierung wurde entwickelt, die erstmals die Korrektur der intrinsischen Nichtlinearitäten des Instruments für einen Neigungsbereich bis zu ±1 ermöglicht. Desweiteren wurde die
Modulationsübertragungsfunktion (MTF) gemessen und zur Kontrast-Restauration eingesetzt. Im
allgemeinen sind die Ergebnisse konsistent mit vorhergehenden Messungen. Allerdings steht die
Wellenzahlabhängigkeit der Sättigungsspektren im Bereich von k ∼ 1000 rad/m im Widerspruch
zu frühreren Untersuchungen in denen ein scharfer spektraler Abfall berichtet wurde (∝ k −2
oder ∝ k −3 ). Die neuen MTF-korrigierten Spektren zeigen hingegen nur einen sanften Abfall
(zwischen ∝ k −0.5 und ∝ k −1 ) für k > 1000 rad/m, welches von Bedeutung für die Modellierung des Energietransfers im Wellenfeld ist. Bezüglich der Dispersionsrelation wird ein quantitativer Ansatz zur Auswertung der Wellenzahl-Frequenz-Spektrums vorgestellt. Dieser beinhaltet
Abschätzungen der Oberflächenspannung sowie der Dopplerverschiebung aufgrund der Scherströmung und der Wellen-Wellen-Modulationen. Die Wellenmessungen wurden begleitet von
synchonisierten und räumlich übereinstimmenden Aufnahmen der Oberflächentemperatur mittels
einer Infrarotkamera. Mit einem neuen interaktiven Visualisierungswerkzeug werden die Temperaturdaten auf ein animiertes graphisches Modell der rekonstruierten Wasseroberfläche projiziert.
Dies erlaubt die Untersuchung der lokalisierten und sporadischen Prozesse, die den Austausch von
Wärme und Gasen an der Luft-Wasser-Phasengrenze kontrollieren, wie z.B. kleinskaliges Wellenbrechen, Micro-Langmuir-Zirkulationen und das Einschlagen von Regentropfen.
Contents
1. Introduction
1.1. Current Objectives of Laboratory Measurements . . . . . . . . . . . . . . . . . .
1.2. Objectives of this Study . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2. Theory
2.1. Basic Physical Laws . . . . . . . . . . . . . . . . . . .
2.1.1. Diffusive Transport . . . . . . . . . . . . . . . .
2.1.2. Turbulent Transport . . . . . . . . . . . . . . . .
2.1.3. Conservation of Mass . . . . . . . . . . . . . .
2.1.4. Conservation of Momentum . . . . . . . . . . .
2.1.5. Equation of Motion . . . . . . . . . . . . . . . .
2.2. Waves on the Water Surface . . . . . . . . . . . . . . .
2.2.1. Dispersion Relation for Small Amplitude Waves
2.2.2. Dispersion Relation for Finite Amplitude Waves
2.2.3. Short-Gravity Capillary Waves . . . . . . . . . .
2.3. Spectral Description of the Wave Field . . . . . . . . . .
2.3.1. Basic Concepts . . . . . . . . . . . . . . . . . .
2.3.2. The Saturation Spectrum . . . . . . . . . . . . .
2.4. Wind-Wave Interaction . . . . . . . . . . . . . . . . . .
2.4.1. Wind-Over-Waves Coupling Model . . . . . . .
2.5. Digital Imaging Background . . . . . . . . . . . . . . .
2.5.1. Spatiotemporal Sampling . . . . . . . . . . . . .
2.5.2. Modulation Transfer Function . . . . . . . . . .
2.5.3. Color Imaging . . . . . . . . . . . . . . . . . .
2.5.4. Height Reconstruction from a Gradient Field . .
3. Method - Wave Slope Imaging
3.1. Basics of the CISG Method . . . .
3.1.1. Ray Geometry . . . . . .
3.1.2. General Expression . . . .
3.1.3. Color Coded Illumination
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
1
3
4
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
7
7
7
8
8
9
9
11
11
13
14
16
16
17
20
21
24
24
28
31
33
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
35
36
36
37
38
4. Setup and Calibration
4.1. Experimental Setup . . . . . . . . . . . . . . . . .
4.2. Geometrical Calibration . . . . . . . . . . . . . . .
4.3. Registration of the IR-Images and the CISG-Images
4.4. Slope Calibration . . . . . . . . . . . . . . . . . .
4.4.1. Measurements . . . . . . . . . . . . . . .
4.4.2. Color Processing . . . . . . . . . . . . . .
4.4.3. Parameter Estimation . . . . . . . . . . . .
4.4.4. Summary . . . . . . . . . . . . . . . . . .
4.5. Measurement of the Modulation Transfer Function
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
39
39
41
44
47
49
51
52
58
60
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
ii
Contents
5. Experiments
65
6. Data Processing
6.1. Demosaicing . . . . . . . . . . . . . . . . . . . . . .
6.2. Contrast Restoration via MTF Correction . . . . . . .
6.3. Intensity Normalization . . . . . . . . . . . . . . . . .
6.4. Offset Correction . . . . . . . . . . . . . . . . . . . .
6.5. Slope Computation . . . . . . . . . . . . . . . . . . .
6.6. Mean Square Slope Computation . . . . . . . . . . . .
6.7. Computation of the Spectra . . . . . . . . . . . . . . .
6.7.1. Normalization Factors for the Discrete Spectra
6.7.2. Symmetry and Periodicity Considerations . . .
6.7.3. Implementation . . . . . . . . . . . . . . . . .
6.7.4. Ensemble Averages . . . . . . . . . . . . . . .
6.7.5. Alternative Definition for B(k) . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
69
69
72
72
72
74
74
76
77
80
81
82
82
7. Results
7.1. Surface Slope Images . . . . . . . . . . . . . . . . . . . .
7.2. Saturation Spectra . . . . . . . . . . . . . . . . . . . . . .
7.2.1. Pure Wind Conditions . . . . . . . . . . . . . . .
7.2.2. Wind & Rain Conditions . . . . . . . . . . . . . .
7.2.3. Wind & Slick Conditions . . . . . . . . . . . . . .
7.2.4. Wind & Rain & Slick Conditions . . . . . . . . .
7.2.5. Mechanical Wave Conditions . . . . . . . . . . .
7.3. Dispersion of Wind Driven Short-Gravity Capillary Waves
7.3.1. Modifications to the Linear Dispersion Relation . .
7.3.2. Interpretation of the 3D Spectral Energy Density .
7.3.3. Quantitative Evaluation . . . . . . . . . . . . . . .
7.3.4. Summary & Future Perspectives . . . . . . . . . .
7.4. Roughness of the Water Surface . . . . . . . . . . . . . .
7.4.1. Influence of Surface Slicks and Rain . . . . . . . .
7.4.2. Contribution of Windward Propagating Waves . .
7.5. Wave Visualization . . . . . . . . . . . . . . . . . . . . .
7.5.1. Height Reconstruction from the Gradient Field . .
7.5.2. Registration of the Thermographic Images: . . . .
7.5.3. Observation of Small Scale Processes . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
85
85
87
88
95
97
99
100
101
103
104
106
109
111
112
112
115
115
117
117
.
.
.
.
.
.
.
.
.
.
.
.
8. Conclusion and Outlook
123
8.1. Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
8.2. Outlook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Bibliography
125
A. Appendix
A.1. 2D Saturation Spectra for Wind&Rain&Slick Conditions
A.2. Related Wave Measurements . . . . . . . . . . . . . . .
A.3. Frequency Spectra . . . . . . . . . . . . . . . . . . . .
A.3.1. Full Range . . . . . . . . . . . . . . . . . . . .
A.3.2. Short Gravity Wave Range . . . . . . . . . . . .
A.3.3. Capillary Wave Range . . . . . . . . . . . . . .
137
137
137
138
138
140
142
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Contents
A.4. Slices Through the Frequency Wavenumber Spectra . . . .
A.5. Covariance of Wave Slope and Height . . . . . . . . . . .
A.6. Monolayer Surface Slicks . . . . . . . . . . . . . . . . . .
A.7. MTF Target . . . . . . . . . . . . . . . . . . . . . . . . .
A.8. Camera . . . . . . . . . . . . . . . . . . . . . . . . . . .
A.9. Normalization Factor in the modified 3d-DFT . . . . . . .
A.10.Derivation of the General Expression for the Ray Geometry
B. Erratum
iii
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
144
158
159
159
160
161
162
167
1. Introduction
The statistical description of wind-driven waves on the water surface is important in the chain that
is leading from remote sensing of the ocean to reliable estimates for the exchange rates of heat,
gas, and momentum between the atmosphere and the ocean [44, 49].
Approximately 30-40% of the fossile fuel-produced carbon dioxide is absorbed by the oceans
[41]. This highlights the importance of air-sea transfer processes in the context of the climate
change debate [14]. Nonetheless, the current constraints on the spatial and temporal variability
of the oceanic uptake are rather poor, in large part because of the uncertainty in regional air-sea
CO2 fluxes [41]. Using semi empiric gas exchange parameterizations based on wind speed leads
to estimates of the oceanic uptake ranging from 1 to 3 ·1012 kg carbon per year [110, 169].
The gas transfer across the air-water interface is governed by the interplay of molecular diffusion
and turbulent transport. At some distance from the interface, turbulent transport always exceeds
diffusive transport. But as turbulent motions cannot penetrate the interface, the size of the turbulent
eddies gradually decreases toward the surface, where they are attenuated by viscous forces [82]1 .
Consequently, there exists a thin boundary layer in which the molecular diffusion dominates. The
thickness of this boundary layer depends on the diffusion coefficient of the tracer and the intensity
of the turbulent motions close to the surface. The main resistance for the transport of sparingly
soluble gases2 is therefore due to the water-sided mass boundary layer, which extends only over
about 20 − 200 µm [79].
In the past decades, experiments in the laboratory and in the open ocean have provided evidence
that transfer velocities3 are particularly influenced by small scale surface waves in the decimeter
to millimeter range [48, 72, 145]. This is attributed to instabilities of the waves, which induce near
surface turbulence, i.e. thinning of the mass boundary layer. The most prominent effect is called
microscale wave breaking [12], which depicts the breaking of steep wind-driven waves without
air entrainment [175]. Another mechanism that is suspected to influence the air-water transfer is
called Langmuir Circulation4 , which are due to nonlinear interaction between the waves and the
shear flow [121, 158, 165].
Much progress has been made regarding the measurement techniques for the investigation of
air-sea interaction processes. Especially the introduction of quantitative visualization techniques
based on image processing has improved the non-intrusive access to the aqueous boundary layer
[75]. For instance, by means of infrared imagery, it is possible to measure the local heat transfer
across the wavy water surface (e.g. Garbe et al. [53], Schimpf et al. [148]). Also the imaging
technique for the measurement of water waves has been continuously improved over the past two
decades (e.g. Balschbach [9], Fuß [50], Jähne and Riemer [84], Klinke [93], Zhang and Cox [181]).
These visualization techniques have gained much attention since they allow for an identification
of the intermittent physical processes which control the air-sea interaction. An example is given in
figure 1.1 which shows simultaneous measurements of the water surface slope and the temperature
field for a microscale breaking wave, measured by Zappa et al. [176]. Based on the infrared
1
Note, this is rather the depiction of the small eddy model than an incontrovertible fact. There are different conceptual
models addressing the interplay of turbulent and diffusive transport, see for instance [37, 52, 147].
2
e.g. carbon dioxide, methane, and fluorochlorocarbons [83].
3
The transfer velocity is equal to the flux divided by the concentration difference.
4
Langmuir Circulations are near-surface helix circulations in the water, with the axis almost parallel to the wind.
2
1. Introduction
Figure 1.1.: Observation of a microscale breaking wave. The infrared images (top row) show the water
surface temperature. In this experiment the water bulk is warm compared to the surface that is constantly
cooled due to evaporation. The areas of significantly enhanced surface temperature (labeled with red borders) therefore indicate the disruption of the aqueous thermal boundary layer due to sub-surface turbulence.
In the images of the water surface slope (bottom row) these areas are found to coincide with the turbulent
wake of a microscale breaking wave (adopted from Zappa et al. [176]).
images, areas of enhanced subsurface turbulence were identified. These areas are found to coincide
with the wake of a microscale breaking wave, see figure 1.1.
Moreover, the wave slope imaging enables a detailed statistical description of small scale winddriven waves, i.e. two-dimensional wavenumber spectra. The publication of the first systematic
measurements of such spectra by Jähne and Riemer [84, 1990] has strongly influenced the attempts
to model the energy and momentum transfer from the turbulent wind field to waves (e.g. [8, 44,
58, 99]). Note that also the momentum is transferred through the viscous boundary layer5 [166].
Therefore, the wave models provide a link between the spectral description of the wave field and
the estimation of air-sea exchange of gases or heat. Admittedly, this link is not yet fully established
and still an active research field (e.g. [30, 31, 115, 160]).
Despite the progress that has been made for the modeling and the measurement concerning the
air-sea interaction, in both disciplines the knowledge is still rather fragmented. There are many
variables influencing the wave field and the air-water gas transfer, e.g. wind forcing, cleanliness of
the water surface, rain, sub-surface currents, salinity and stratification, convection, chemical enhancement, and marine biology. The global transfer rates are traditionally estimated from empirical correlations between the wind speed and mass transfer rates. Moreover, the global wind speed
estimates are themselves based on empirical parameterizations by means of radar backscatter,
which is measured by satellites. Consequently, there are efforts to introduce new transfer velocity
parameterizations that are directly based on the surface roughness obtained by radar backscatter,
e.g. Frew et al. [49]. This approach also accounts for the inhibition of the wave field by sur5
Note, there are additional components of the stress carried by the waves and balanced by the wave growth.
1.1. Current Objectives of Laboratory Measurements
3
face contaminations6 . With respect to rain the transfer velocity estimates are unrealistically high
[49, 66]. Thus, there is a need to further investigate the influence of rain on both, the wave field and
the transfer velocity. The interpretation of radar backscatter from the ocean depends on a detailed
understanding of the physics of electromagnetic scatter [8]. This also incorporates a statistical description of the hydrodynamic conditions in terms of the two-dimensional wavenumber spectrum
[96, 126].
The observations of microscale breaking waves reveal that the exchange processes highly vary
on time scales of a fraction of a second and horizontal spatial scales of several centimeters. In
contrast, the relevant spatial scales for global modeling and remote sensing are several orders of
magnitude larger. Thus, for the transfer estimates an adequate integration has to be performed,
which takes the small scale intermittency into account [83].
Measurement of the small-scale variations in the open ocean are difficult. Infrared imagery
was already deployed for field studies [64, 167], but for instance boundary layer visualizations
and wave imaging techniques are not readily applicable in the open ocean. For the evaluation of
infrared data the characteristics of the wave field need to be incorporated in order to establish a link
to the surface roughness parameterizations for gas transfer. The investigation of the intermittent
processes therefore manly relies on laboratory measurements.
1.1. Current Objectives of Laboratory Measurements
The context of the laboratory investigation of air-sea interaction was described in the preceding
section. Based on this, some of the objectives of the laboratory measurements in the context of
this study are outlined.
• There is a lack of new systematic measurements of the wavenumber spectra of wind-driven
waves, i.e. since the mid 1990’s only very few data was published. This is unsatisfactory
with respect to the validation of wave modeling attempts. So far, the effects of rain and
surface slicks on the wave spectra have not yet been systematically investigated. In addition,
the capabilities of wave imaging techniques have been considerably improved.
One objective of wave imaging in the laboratory is therefore to provide new wave data that is
comprising a wide range of conditions (e.g. wind, rain, surface slicks). A long term goal is to
collect wave spectra from different facilities in combination with gas transfer measurements
in order to quantify the influence of the facility geometry (e.g. fetch7 , water channel width
and depth, aerodynamic conditions, flow in the water bulk, linear vs. annular geometry).
• For the investigation of intermittent small-scale processes (e.g. microscale breaking and
micro Langmuir circulations) spatially and temporally coinciding measurements of the heat
transfer and the wave field are desired. Moreover, the aim is to study the temporal evolution
of the surface flow structures, for that high frame rates are requested.
• The evaluation of gas transfer rates obtained from budget measurements in a linear wind
wave flume are complicated by the fetch dependence of the wave field. One goal is therefore,
to make an inter-comparison of simultaneous measurements of the local heat transfer and
the spatially averaged gas transfer. This comparison is needed for the estimation of the
bias in the gas transfer velocities that is introduced by the integration over inhomogeneous
conditions.
6
7
Surface contaminations are due to anthropogenic pollution (e.g. oil slicks) and marine biology (e.g. algae blooms).
Fetch: distance over which wind acts on the water surface.
4
1. Introduction
• Using multiple trace gases with different diffusion coefficients allows for the determination
of the Schmidt-Number exponent n8 . For the verification of the Schmidt-Number scaling
between the transfer velocities of heat and gas the measurement of the gradual transition of n
is required. Moreover, given the knowledge of the Schmidt-Number exponent, a physically
based parameterization of the transfer velocity with the water surface roughness is expected
to become available.
• Measurements under rain conditions are needed for the quantification of the rain effect on
the transfer velocities and on the wave field. The long term goal is to extend the transfer
velocity parameterization for the rain conditions.
• Due to the availability of higher frame rates of modern CCD cameras it is possible to resolve
the wave frequencies by the wave imaging technique. This allows for the computation of
wavenumber-frequency spectra. The evaluation of the wavenumber-frequency spectra of
wind-driven water waves needs to be explored with respect to the dispersion relation.
1.2. Objectives of this Study
The scope of this study was the improvement of the color imaging slope gauge for the spatiotemporal wave measurement and the evaluation of the wave data with respect to the above listed
wave-related objectives.
The aspired innovation of the wave imaging method comprises:
• Adaption of the color imaging slope gauge (CISG) for the setup in the rain tower section
of the linear wind-wave tunnel in Hamburg, Germany. The CISG technique was chosen in
order to measure both components of the water surface slope simultaneously.
• Development of a new calibration method that allows for a correction of the intrinsic nonlinearities of the instrument. With former calibration methods only linear calibrations could
be realized in practice.
• Development of a new method for the in-situ measurement of the Modulation Transfer Function (MTF). The MTF is desired for a correction of the wavenumber dependent loss in the
image contrast, which directly influences the quality of the wavenumber spectra.
• Deployment of a new camera with a higher frame rate in order to measure the frequencies
of the waves in addition to the 2D wavenumber vector.
For the investigation of the small-scale processes it is desired to combined the wave imaging with
the infrared imagery by means of:
• Synchronization of the wave imaging (CISG) with the infrared imaging system (ACFT)
(together with Dr. Schimpf).
• Geometrical registration of the obtained image sequences.
• Reconstruction of the water surface elevation from the slope image sequences. This facilitates a combined visualization of the wave field and the infrared data, which is desired for a
direct comparison of the observations in space and time.
8
Schmidt-Number exponent n depicts the scaling behavior between the transport of momentum and the transport of
gas or heat. From theory follows n = 2/3 for a smooth surface, and n = 1/2 for a rough surface. Depending on the
actual hydrodynamic conditions n varies between these two extremes [37].
1.2. Objectives of this Study
5
• Investigation of the spatio-temporal characteristics of micro Langmuir circulations in reference to the waves.
• Investigation of microscale wave breaking in reference to the surface temperature field.
• Investigation of the evolution of rain drop impacts on the water surface and the resulting
disturbances in the aqueous thermal boundary layer.
The acquisition of wave image sequences with high temporal resolution opens new perspectives
for the spectral evaluation of the wave data. The computation of wavenumber-frequency spectra
was not possible for the CISG method up to now. Therefore new computer scripts needed to be
developed for the data evaluation. The evaluation of the spectral data comprises:
• Computation and interpretation of two-sided wavenumber spectra, including rain and surface slick conditions. Two-sided representations become available, since not only the orientation but also the direction of the 2D wavenumber vector can be determined when exploiting
the frequency information. In former studies only the orientation of the wavenumber vector
could be determined, leading to an 1π ambiguity.
• Evaluation of the 3D power spectra S(ω, k) with respect to the dispersion relation. In principle, the spectral volume contains information about the surface shear flow, the wave-wave
interactions, and surface slick contaminations. The deviations between the measured dispersion relation and the theoretical dispersion relation were explored in order to infer these
informations.
• Quantification of the rain effect on the surface roughness. The rain-induced ring waves are
isotropic, whereas the wind-driven waves are directed. This can be exploited for quantification of the surface roughness contribution by rain.
The wave measurement, conducted in the period between Mai and July 2007 at the linear wind
wave flume of the University of Hamburg, is part of the experimental campaign for the project
Impact of Wind, Rain, and Surface Slicks on Air-Sea CO2 Transfer Velocity - Tank Experiments9 .
9
The project is a collaboration of the research group of Prof. Dr. Detlef Stammer, University of Hamburg, and the
research group of Prof. Dr. Bernd Jähne, University Heidelberg.
2. Theory
In this chapter we touch on two topics, namely fluid mechanic in the sections 2.1 through 2.4, and
digital imaging in section 2.5. Both topics are equally important for this study.
2.1. Basic Physical Laws
A brief depiction of some fundamental laws of fluid mechanics is given in this section, covering
the basic transport equations, the conservation laws and the equation of motion. Subsequently, the
most important aspects of waves on the water surface will be introduced in section 2.2.
2.1.1. Diffusive Transport
The diffusive flux j of a concentration c is described by Fick’s first law
j = −D∇c,
(2.1)
where D is a diffusion constant. In absence of concentration sinks or sources (such as chemical
reactions) the only way to change the concentration with time is a divergence of the flux. This is
expressed by the continuity equation in Lagrangian specification
Dc
= −∇j,
Dt
(2.2)
D
where Dt
is the material derivative, indicating that the observer moves with a fluid volume element. Inserting (2.1) in (2.2) yields Fick’s second law of unsteady diffusion
Dc
= D∆c.
Dt
(2.3)
In contrast to the Lagrangian specification one can describe the same situation in the Eulerian
specification, where the concentration and the velocity of the medium are taken as field variables
within a fixed frame of reference. The material derivative is related to the field variables according
to
D
∂
=
+ u∇,
(2.4)
Dt
∂t
where u(x, t) is the velocity field of the flow and the term u∇ is called the advective derivation
[102]. From (2.3) and (2.4) follows the transport equation in the fixed frame of reference
∂c
= D∆c − u∇c.
∂t
(2.5)
So far it has not been stated what kind of concentration is actually transported. One usually thinks
of some scalar concentration of gas or heat, so that the constant D is the molecular diffusivity or
heat conductivity, respectively. It is also possible to consider the momentum of the fluid particles
as a vectorial concentration. But in this case also additional forces have to be considered. The
momentum transport is the subject of section 2.1.5.
8
2. Theory
ρ
µ
ν ≡ µ/ρ
D
D
Dt
c
j
u = [u, v, w]T
Φ
η
σ
H
g
c
ω
k
k
Meaning
density
dynamic viscosity
kinematic viscosity
diffusion constant
material derivative
concentration (section 2.1.1)
flux
flow velocity
velocity potential
surface elevation
surface tension
water depth
acceleration due to gravity
phase velocity (section 2.2.1)
angular frequency
wavenumber vector
magnitude of the wavenumber vector
Units
kg/m3
Pa s
m2 /s
e.g. m2 /s
1/s
e.g. mol/m3 or kg/m3
e.g. (mol or kg) · 1/(m2 s)
m/s
m2 /s
m
N/m
m
m/s2
m/s
rad/s
rad/m
rad/m
Table 2.1.: Nomenclature for the sections 2.1.1 to 2.2.1
2.1.2. Turbulent Transport
Turbulent motions can be treated as statistical fluctuations superimposed on the mean flow. Therefore it is convenient to express the flow velocity as
u = U + u0 ,
(2.6)
u0 (t) = u(t) − u(t),
(2.7)
with
so that u0 denotes the fluctuating part and U = u(t) depicts the mean flow. Similarly, for the
concentration of a scalar tracer we write c = C + c0 . Inserting into Fick’s second law (2.3) and
integrating over time yields
∂C
+ U∇C = −∇J = −∇ u0 c0 − D∇C .
∂t
(2.8)
The averaged flux J is therefore consisting of the averaged flux due to molecular diffusion D∇C
and some extra term u0 c0 which is attributed to the turbulent transport of a scalar tracer.
2.1.3. Conservation of Mass
The law of conservation of mass states that the rate of change of mass in a fixed volume V must
be equal to the flux across the boundaries A of the volume
Z
Z
∂ρ
dV = −
ρ u · dA.
(2.9)
V ∂t
A
Using the divergence theorem of Gauss gives
Z ∂ρ
+ ∇ · (ρ u) dV = 0.
∂t
V
(2.10)
2.1. Basic Physical Laws
9
This equation must hold for any fixed volume and thus requires that the integrand vanishes
∂ρ
+ ∇(ρ u) = 0.
∂t
(2.11)
Equation (2.11) is called the continuity equation. By expanding the ∇(ρu) term and using the
definition of the material derivative (2.4) we get the continuity equation in the Lagrangian specification
Dρ
∂ρ
+ ρ ∇u + u ∇ρ =
+ ρ ∇u = 0.
(2.12)
∂t
Dt
Water in a wind wave flume is an incompressible fluid, therefore the continuity equation can be
simplified in our case. Fluids are called incompressible if the magnitude of ρ1 Dρ
Dt in (2.12) is small
compared to each of the components
for an incompressible fluid
∂u ∂v
∂x , ∂y
∇u =
and
∂w
∂z .
Neglecting
1 Dρ
ρ Dt
gives the continuity equation
∂u ∂v ∂w
+
+
= 0.
∂x ∂y
∂z
(2.13)
2.1.4. Conservation of Momentum
Newtons law demands, that the net force on an infinitesimal fluid element must be equal the mass
times the acceleration
∂τij
Dui
ρ
= ρgi +
,
(2.14)
Dt
∂xj
where gi is the i-component of the net body force, acting on the center of mass of the fluid element,
∂τ
and ∂xijj is the i-component of the surface force per unit volume. Equation (2.14) is often referred
as Cauchy’s equation of motion. The stress tensor τij is symmetric and for incompressible fluids
it can be written as
τij = −pδij + 2µeij ,
(2.15)
where p is the mean pressure, δij is the Kronecker delta, and eij is the strain rate tensor
∂uj
1 ∂ui
eij ≡
+
,
2 ∂xj
∂xi
(2.16)
see Kundu [102, chapter 10.10]. The relation (2.15) is called constitutive equation for an incompressible fluid.
2.1.5. Equation of Motion
The fundamental equation of motion for a fluid volume element is called the Navier-Stokes equation. It is similar to the transport equation (2.3), if we insert the momentum ρu for the concentration and replace the diffusion constant by the kinematic viscosity µ. But in contrast to (2.3) we
have to introduce additionally source terms that were explicitly excluded in the considerations of
section 2.1.1. Here, we introduce these source terms from physical reasoning. More formally the
Navier-Stokes equation can be found by substituting the constitutive equation (2.15) in Cauchy’s
equation of motion (2.14), see for instance Kundu [102]. For water in a wave flume we can write
the Navier-Stokes equation as
ρ
Du
= −∇p + ρg + µ∇2 u.
Dt
(2.17)
This states, that the acceleration ρ Du
Dt of the incompressible fluid volume element is due to a
pressure gradient −∇p, the body force ρg, and molecular viscous friction µ∇2 u. The influence
10
2. Theory
of the centrifugal force or the Coriolis force, resulting from the earths rotation, can be neglected
as long as the angular frequencies of the considered motions are large compared to the earths
angular frequency [129]. For a wind wave flume this is always the case. The material derivative
of the momentum Du
Dt in (2.17) indicates, that this equation holds in the Lagrangian description,
following the fluid particle. In a fixed frame of reference the material derivative can be replaced
using (2.4) to find the expression for the rate of change of momentum as a field variable
ρ
Du
∂u
=ρ
+ ρ(u∇)u.
Dt
∂t
(2.18)
Inserting (2.18) into (2.17) leads to the Navier-Stokes equation in the Eulerian specification
ρ
∂u
+ ρ(u∇)u = −∇p + ρg + µ∇2 u.
∂t
(2.19)
This can be expanded, using the identity
1
(u∇)u = (∇ × u) × u + ∇u2
2
(2.20)
and the definition of the vorticity ω ≡ ∇ × u. It follows
ρ
1
∂u
+ ρ(ω × u) + ρ (∇u2 ) = −∇p + ρg + µ∇2 u.
∂t
2
(2.21)
The nonlinear term (u∇)u in the Navier-Stokes equation prohibits general analytical solutions,
unless further assumptions are made.
Common Approximations: Studying water wave phenomena, some common approximations are made to simplify the Navier-Stokes equation. First of all, the term describing the viscous
friction can be neglected since
∂u
ρ
µ∇2 u,
(2.22)
∂t
which is generally found to be true far from the boundary of the flow field1 [102]. Secondly, the
fluid is assumed to be irrotational
∇ × u = 0,
(2.23)
which can be seen as a consequence of equation (2.22) and Kelvin’s circulation theorem if the
motion is regarded to be generated from rest, see [102]. This simplifies the problem, since in the
Navier-Stokes aquation the term ρ(ω × u) = ρ(∇ × u) × u vanishes.
Due to the assumption of irrotationality the velocity vector can be written as the gradient of a
scalar potential Φ
u ≡ ∇Φ.
(2.24)
With this definition of the velocity potential Φ and the above approximations the Bernoulli equation for unsteady irrotational flow
Z
∂Φ 1 2
dp
∇
+ uj +
+ g z = 0,
(2.25)
∂t
2
ρ
can be derived from the Navier-Stokes equation (2.21) (see [102, p. 118–121] for details). The
equations (2.24) and (2.25) are used in section 2.2.1 for the derivation of the dispersion relation of
water waves.
1
The water-sided viscous boundary layer typically extends over 0.6-2.0 mm [37].
2.2. Waves on the Water Surface
11
z
a
z=0
η
x
H
z = -H
Figure 2.1.: Coordinate system and wave nomenclature
2.2. Waves on the Water Surface
Deep water surface waves are dispersive, i.e. the phase speed is a function of the wavelength. The
dispersion relation is depicted in the following sections 2.2.1 and 2.2.2. Section 2.2.3 gives an
explanation for the naming conventions of small scale waves, e.g. short-gravity capillary waves.
2.2.1. Dispersion Relation for Small Amplitude Waves
The theory for monochromatic linear and nonlinear wave propagation was already developed in
the 19th century by Airy [3], Stokes [153, 154], and Boussinesq [22]. Here we present a brief deduction of the dispersion relation for small amplitude water waves and irrotational flow, following
Kundu [102]. The waves are called small amplitude waves if the amplitudes a are small compared
to the water depth H and if they are small compared to the wavelengths λ. The first condition
a/H 1 allows us to neglect the difference between the undisturbed water depth and the instantaneous water depth, so that we can evaluate the velocity potential at z = 0 instead of z = η. The
second condition a/λ 1 implies that the slopes of the waves are small. This justifies to treat
the free surface as a linear superposition of plane waves. Moreover, the small slope condition is
∂2η
used to approximate the curvature 1/r of the surface as ∂x
2 when dealing with the influence of the
surface tension. This approximation is used in the formulation of the dynamic boundary condition
(2.33).
The condition that the flow is irrotational allows for the definition of a velocity potential Φ such
that
∂Φ
∂Φ
u=
w=
,
(2.26)
∂x
∂z
where u and w are the components of the fluid velocity u in x and z direction respectively. The
waves are considered to propagate in the x-direction only, and the coordinate system is chosen as
in figure 2.1. Using the incompressible form of the continuity equation (2.13)
∂u ∂w
+
= 0,
∂x
∂z
and substituting (2.26) into (2.27) yields the Laplace equation
∇u =
(2.27)
∂2Φ ∂2Φ
+
= 0.
(2.28)
∂x2
∂z 2
The crucial ingredients for the solution of the Laplace equation at the free surface are the boundary
conditions. The velocity potential is subject to the kinematic boundary conditions that the vertical
velocity component vanishes at the bottom (2.29) and that the fluid particles at the surface never
leave the surface (2.30)
∂Φ
= 0
at z = −H
(2.29)
∂z
∂Φ
∂η
=
at z = η ≈ 0.
(2.30)
∂z
∂t
∆Φ =
12
2. Theory
Figure 2.2.: Measured phase velocity in the capillary wave range from Behroozi and Perkins [13] for pure
water at 20◦ C. The solid line is the theoretical phase velocity (2.35), using the surface tension value of
(72.8 ± 0.1) · 10−5 N/cm. The measurements were performed using laser interferometry on standing capillary
waves that were generated in a small basin.
For the surface displacement we assume a single sinusoidal wave
η = a cos(kx − ωt).
(2.31)
This is motivated by the idea that we can decompose any small disturbance into sinusoidal components by Fourier analysis. The solution for the velocity potential is then
Φ=
aω cosh k(z + H)
sin(kx − ωt),
k
sinh kH
(2.32)
which is derived in detail in most text books on fluid mechanics, e.g. [102, 129]. The relation
between ω and k is now dictated by another boundary condition, the dynamic boundary condition.
This is, that the pressure just below the free surface is always equal to the ambient pressure.
Therefore the velocity potential must fulfill the Bernoulli equation (2.25). The Bernoulli equation
can be linearized under the assumption off small amplitudes, small slopes and irrotational flow,
which allows an evaluation at z = 0 instead of z = η. The dynamic boundary condition is then
∂Φ
σ ∂2η
=
− gη
∂t
ρ ∂x2
at z = 0,
(2.33)
where the first term on the right hand side reflects the pressure change due to the surface tension σ
and the second term is due to the ‘hydrostatic’ pressure [102, chapter 7. 7]. The dispersion relation
is to be found by inserting the respective derivatives of (2.31) and (2.32) in the dynamic boundary
condition (2.33)
s σ 2
ω = kg 1 + k tanh kH.
(2.34)
ρg
For the phase velocity c =
ω
k
follows
s
c=
g σ
+ k tanh kH.
k
ρ
(2.35)
This result is in excellent agreement with measurements on monochromatic small amplitude
waves, see figure 2.2. However, for a wind-wave field the situation is more complex and the
validity of the linear dispersion relation is not guaranteed since finite amplitude effects and nonlinear interaction between waves may become important. Moreover, even if the phase velocity of a
freely propagating wave is well described by equation (2.35), the phase speed, measured in a fixed
frame of reference, may be influenced by Doppler shifts due to an underlying mean current or the
2.2. Waves on the Water Surface
3
10
λ [m]
0.1
1
0.01
13
λ [m]
0.1
1
3
10
0.01
2
ω [rad/s]
cp [cm/s]
10
2
10
1
10
0
10 0
10
1
1
10
2
10
k [rad/m]
3
10
4
10
10 0
10
1
2
10
3
10
k [rad/m]
10
4
10
Figure 2.3.: Frequency ω(k) (left) and phase velocity c(k) (right) of water waves.
orbital modulation of a longer wave [108, 155, 170]. Additionally, the surface tension can not
always be treated as a known constant. This is because even slight contaminations of the water air
interface with surface active materials can lead to rigorous changes in the surface tension, which
consequently changes the dispersion of the capillary waves [4, 19, 159].
The dispersion relation (2.34) and the phase velocity (2.35) for waves on a clean water surface
are shown in figure 2.3 as a solid line. The dashed line depicts a reduction of the surface tension
to 60% of the value for the clean case, e.g. caused by a monolayer surface slick. The dotted line
exemplifies the influence of a surface drift current of U = 10 cm/s, leading to a Doppler shift
ωd = k · U , which adds to the linear dispersion relation2 . The wavenumber and frequency range
that is relevant for this study is marked by a rectangle in the left plot. We can see that in both
cases the dispersion relation for the small scale waves is significantly altered. The minimum of the
phase speed, that is observed for the clean surface at a wavenumber k = 369 rad/m (λ = 1.7 cm),
is shifted towards greater wavenumbers in the presence of a surface slick.
2.2.2. Dispersion Relation for Finite Amplitude Waves
λ
η
λ
η
η
λ
Figure 2.4.: Sketch of different wave forms. Top: sinusoidal small amplitude wave. Bottom: Stoke’s limiting
profile of an finite amplitude wave. (modified after Gross [57])
Since deep water waves are dispersive an accumulation of nonlinear effects is usually prevented,
which limits the growth in amplitude. This is because the different Fourier components propagate
at different speeds and become separated from each other. However, nonlinear steepening can
2
Note, for this 1D example we have assumed that the surface drift current is in alignement with the wavenumber
vector, whereas in general we have to consider the vector product k · U for the Doppler shift contribution.
14
2. Theory
cancel out the dispersive spreading, resulting in finite amplitude waves of unchanging form, as
argued by Kundu [102]. There exist a few analytic solutions for the dispersion relation of finite
amplitude waves. We will briefly mention two solutions: the Stoke’s waves, which are pure gravity
waves of unchanging form, and the Crapper waves, which represent a special solution for steep
capillary waves. A comprehensive deduction can be found for instance in Kinsmann [90]. An
instructive review about nonlinear gravity and capillary-gravity waves and interaction is given by
Dias and Kharif [38].
Stoke’s Waves: Stokes [153] showed that a solution for the surface elevation of pure gravity
waves in deep water and irrotational flow can be given by a Fourier series
1
3
η = a cos (k (x − ct)) + ka2 cos (2k (x − ct)) + k 2 a3 cos (3k (x − ct)) + . . . ,
2
8
(2.36)
where the phase speed is given by
r
c=
g
(1 + k 2 a2 ),
k
(2.37)
where a is the amplitude [90, 102]. These waves are no longer sinusoidal, i.e. they have a flattened
trough and a peaked crest. The amplitude is limited with a maximum possible value of amax =
0.07λ, for which the crest exhibits an angle of 120o [102]. In this limiting case, the wave form
can be approximated by the arc of a circle, see figure 2.4, and the orbital motion of particles at the
surface can be approximated by a superposition of an uniform translation and the backward swing
of a pendulum, see Longuet-Higgins [112].
Crapper Waves: Crapper [34] showed that for pure capillary waves of finite amplitude an
analytic solution exists, which gives the phase speed as a function of the wave steepness 2πδ = k a,
s
σk
π 2 δ 2 −1/2
c=
1+
,
(2.38)
ρ
4
so that the effect of wave steepness is to slow down the capillary waves, in contrast to the situation
of finite amplitude gravity waves [90]. Here, a is the maximum value of the surface elevation for
the corresponding wave number k.
2.2.3. Short-Gravity Capillary Waves
The linear dispersion relation (2.34) was derived in the preceding section without explicitly distinguishing gravity waves from capillary waves. Generally speaking, gravity waves are big enough
not to be significantly affected by the surface tension so that their restoring force is solely due to
gravity. In contrast, the restoring force for capillary waves is predominantly due to the surface
tension [102].
Both restoring forces are equally important in the vicinity of λ = 1.7 cm, where the phase speed
attains its minimum (see figure 2.3 (right)). For that we call waves in the range between a few
decimeters down to several millimeters wavelength short-gravity capillary waves. Because of its
importance for the air-sea interaction we are particularly interested in this regime.
Furthermore, one can distinguish deep water waves from shallow water waves. For deep water
waves we have kH 1 so that tanh(kH) ≈ 1 and it is convenient to restrict the following
discussion to the deep water case, which is an appropriate approximation throughout this study.
2.3. Spectral Description of the Wave Field
15
Figure 2.5.: Fetch 2.4 m; wind speed 6 m/s; modified after Huhn [70]
The dispersion relation for deep water gravity waves follows from the linear dispersion relation
(2.34) as
σ 2
ω 2 = gk
for
k 1
and
kH 1.
(2.39)
ρg
For deep water short gravity capillary waves we yield
ω 2 = gk +
σ 3
k
ρ
for
kH 1,
(2.40)
and accordingly for pure capillaries we have
ω2 =
σ 3
k
ρ
for
σ 2
k 1
ρg
and
kH 1,
(2.41)
Figure 2.5 shows a typical example for how wind driven short gravity capillary waves look like.
In front of the short gravity wave (λ ≈ 5.4 cm) we can observe capillary waves that are bound to
the longer wave and therefore called parasitic capillary waves. The denotation parasitic indicates
that these waves extract energy from the short gravity wave, rather than being directly generated
by the wind [99].
Since the parasitic capillaries (k, ω) are stationary with respect to the short gravity wave (K),
their frequency - measured in a frame of reference moving with the phase speed C = ω(K)/K of
the short gravity wave - is zero
ω − k C = 0.
(2.42)
Using the dispersion relations (2.39) for the short gravity wave and (2.41) for the capillary waves,
we obtain
ρg
k=
,
(2.43)
σK
which is the approximate relationship between the wavenumbers of the dominant wave (K) and
its parasitic capillary waves (k) propagating at the same phase speed [99].
The photograph from figure 2.5 was taken at very short fetch3 . Further characteristic examples
for the wave field at somewhat longer fetch and higher wind speeds are given in figure 2.6. The
most energetic waves, i.e. the short gravity waves with the largest wavelength, are called dominant
waves. Figure 2.6 gives an impression of the evolution of the wave field and the dominant waves
scales for different wind speeds. A systematic description of the three dimensional evolution of
wind waves in the short-gravity capillary range can be found in Caulliez and Collard [28].
16
2. Theory
Figure 2.6.: Characteristic photographs of short gravity-capillary waves in a wind wave tank at a fetch of
10.65 m. left: uref = 3.6 m/s; middle: uref = 7.6 m/s; right: uref = 13.6 m/s; (adopted from Ebuchi et al.
[43])
Symbol
x
t
k
ω
η(x, t)
η̂(k, ω)
R(r, τ )
X(k, ω)
Ψ(k)
Φ(ω)
r
τ
B(k)
Meaning
horizontal position vector (2d)
time
wavenumber vector (2d)
angular frequency
water surface elevation
complex amplitude function for η
autocorrelation of η
energy density spectrum
wavenumber energy density spectrum
frequency energy density spectrum
position shift (2d)
time shift
saturation spectrum
Physical Unit
m
s
rad/m
rad/s
m
m3 s
m2
m4 s
m4
m2 s
m
s
-
Table 2.2.: Nomenclature
2.3. Spectral Description of the Wave Field
To say it in the words of Phillips [132, Chapter 4.1, page 72]: "The waves found on the surface of
the sea are almost always random in the sense that the detailed configuration of the surface varies
in an irregular manner in both space and time. Only the various statistical measures of the motion
can be regarded as significant observationally or predictable theoretically."
The conventions and concepts for the spectral and statistical description of the wavy water
surface are based on definitions by Phillips [132], Pierson and Stacy [136], Longuet-Higgins [111],
and Donelan et al. [39]. In section 2.3.1 we present the fundamental concepts and definitions,
followed by a brief introduction of the saturation spectrum, in section section 2.3.2. Later, in
section 6.7 we will elaborate on the link between the conventional continuous representations of
the spectra and the discrete counterparts that are actually measured.
2.3.1. Basic Concepts
The water surface elevation η(x, t) is conventionally measured as the displacement from the mean
free surface level, so that the expectation value is zero. For the specification of the wave field,
higher moments are of central importance [111].
3
fetch: distance over which wind acts on the water surface.
2.3. Spectral Description of the Wave Field
17
Consider the autocorrelation of the surface displacement
R(r, τ ) = η(x, t)η(x + r, t + τ )
=
1
T →∞ X→∞ Y →∞ T XY
(2.44)
Z TZ XZ
Y
η(x, t)η(x + r, t + τ )dxdt,
lim lim lim
0
0
(2.45)
0
which is independent of the location and time for a homogeneous and stationary wave field. We
call the wave field homogeneous, if the instantaneous covariance R(r, τ = 0) is an even function of
the position shift r. The wave field is called stationary, if the covariance at a fixed point R(r = 0, τ )
is an even function of the time shift τ .
The wave energy density spectrum is defined as the Fourier transform of the autocorrelation
ZZZ
1
X(k, ω) ≡
R(r, τ )e− i(kr−ωτ ) drdτ .
(2.46)
(2π)3
Reversely we rewrite the autocorrelation by the inverse Fourier transform of the wave energy
density spectrum
ZZZ
R(r, τ ) ≡
X(k, ω)ei(kr−ωτ ) dkdω.
(2.47)
The variance of the surface elevation is given by
ZZZ
2
η =
X(k, ω)dkdω,
(2.48)
which is easy to see by setting r and τ in (2.47) and (2.44) to zero. The energy of waves in the small
wavenumber range is proportional to the variance of the surface elevation [102]. This explains
why X(k, ω) is interpreted as the energy density contribution per unit volume in wavenumber
frequency space. We can obtain reduced spectra from the energy density spectrum by integrating
over wavenumbers or frequencies. The wavenumber energy spectrum and the frequency energy
spectrum are
Z
Ψ(k) =
X(k, ω)dω,
(2.49)
and
ZZ
Φ(ω) =
X(k, ω)dk,
(2.50)
respectively. For instance, frequency energy spectra are typically obtained, when capacitance wires
are used to measure the surface elevation at a single point. Wavenumber energy spectra can be
retrieved from surface imaging even if the temporal resolution is low and does not allow to resolve
the frequencies. For the measurement of the frequency-wavenumber spectrum X higher temporal
sampling rates are desired that were, until recently, not achievable with imaging techniques.
Using the new slope imaging technique we obtain discrete 3D slope spectra, presented in the
sections 7.2 and 7.3. In section 6.7.1 we will explicitly show, how these discrete spectra are related
to the conceptual definitions that were given here.
2.3.2. The Saturation Spectrum
The wavenumber spectrum is often presented in form of the dimensionless saturation spectrum
B(k), which is defined as
B(k) = k 4 Ψ(k).
(2.51)
18
2. Theory
This quantity also called the degree of saturation4 because in the pioneering work Phillips [131]
assumed B to be only a function of the direction of waves relative to the wind, once that an equilibrium of the spectral energy fluxes for the wave-field is established. Based on purely dimensional
grounds Phillips [131] argued that the wavenumber spectrum in the gravity-wave range must be of
the form
Ψ(k) ∝ f (Θ)k −4 ,
(2.52)
where k is the norm of the wavenumber vector k, f (Θ) is an angular spreading function and Θ
is the angle between the wind and the wavenumber vector. The idea was that any excursion of
the spectral density above B(k) would be relieved immediately by wave breaking. Although the
concept of the saturation spectrum as an upper limit asymptote to the spectrum, independent of
wind stress, turned out not to be tenable, the representation of wind wave spectra in this form
is very convenient. One practical aspect is that multiplication with k 4 leads to an considerable
reduction of the dynamical range of the spectra.
Wavenumber Dependency: There exist several models for gravity waves predicting the
shape of the saturation spectrum. Phillips [130] obtained
β
B(k) = √ f (θ) u∗ k 1/2 ,
g
(2.53)
for wavenumbers large compared with that of the dominant wave5 from a local balance of the
spectral flux due to (i) exchange among different wave groups by nonlinear interactions, (ii) input
from the turbulent wind field and (iii) dissipation by wave-breaking, assuming that these fluxes are
of equal importance. In (2.53) β is an empirical scaling factor (see [130] for a discussion about
the constraints on the empirical constants). The k 1/2 dependency is also found by Kitaigorodskii
[91] using the hypothesis of a general similarity in the spatial statistical characteristics for the
wavenumbers well below those associated with capillary ripples and those directly influenced by
viscosity. His idea was that the energy of the wind input to the wave field primarily occurs at
large scales and is then followed by a Kolmogoroff-type energy cascade to smaller scales where
finally the energy is dissipated. The first systematic measurements of two dimensional saturation
spectra in the short gravity-capillary range, performed in the Delft wind wave facility by Jähne and
Riemer [84] using an imaging slope gauge (see section 3), revealed that the k 1/2 is approximately
valid for high wind speeds even for wavenumbers up to k = 200 rad/m, see figure 2.7. For low
wind speeds the degree of saturation showed a strong decrease from the small energy containing
wavenumbers towards higher wavenumbers. In the wavenumber range of about 200-800 rad/m a
plateau in the degree of saturation was reached. For wavenumbers k > 800 rad/m a strong decrease
in the spectral energy was found by Jähne and Riemer [84] that is referred to as the spectral cutoff.
The early appearance of this cutoff is in contrast to the assumption that the cutoff is determined by
a balance between the wind input and viscous dissipation, which is expected to set in at 6283 rad/m
by Apel [8]. Later measurements by Klinke [93] and Zhang [177] confirmed a spectral cutoff at
a somewhat higher wavenumbers of about 1000-1200 rad/m. The cutoff was therefore adapted as
a characteristic feature of the wind wave spectra for the attempts to construct a unified spectral
model for the long and short waves by Apel [8] and Elfouhaily et al. [44] which are widely used
for inverse modeling and interpretation of scatterometer and altimeter data (e.g. [49, 114]). From
a comparison of modeled saturation spectra by Pierson and Moskowitz [135], Apel [8], Romeiser
et al. [144], and Elfouhaily et al. [44] one can see that the models differ significantly while all
Another name for the saturation spectrum is curvature spectrum, because k4 Ψ(k) is related to the second derivative
of the surface elevation.
5
but still in the gravity wave range
4
2.3. Spectral Description of the Wave Field
19
Figure 2.7.: Measured omnidirectional saturation spectrum integrated over all wave directions. wind speeds
(u10 in m/s) as indicated; left: from Jähne and Riemer [84]; fetch 100 m. right: adopted from Apel [8],
measurements performed in the Marseille facility by Klinke and Jaehne (1992), fetch 24 m.
models implement a spectral cutoff around 1000 rad/m, as shown in figure 2.8. However, the
former measurements in the high wavenumber range are influenced by the Modulation Transfer
Function (section 2.5.2) of the optical system which has been only vaguely accounted for [84].
A similar limitation also occurs for measurements with a laser slope gauge, where the diameter
of the laser beam limits the spatial resolution, so that even from frequency spectra no definitive
conclusion about the cutoff can be drawn [106, 159]. Note, that this statement is in contradiction
to the discussion of the cutoff at high wavenumbers that is given in the book by Jones and Toba
[88]. In chapter 7 we show experimental results that encourage a reexamination of this issue.
Angular Spreading: The directionality of the saturation spectra with respect to the wind direction, expressed by spreading function f (θ) in (2.52), strongly depends on the fetch and wave
age (c/u∗ ). Klinke [93] found that in the short gravity capillary wave range at infinite fetch the
spreading is multimodal at low wind speeds and unimodal at high wind speeds. In case of laboratory measurements the angular spreading also depends strongly on the geometry of the wind wave
facility. Therefore Klinke [93] concludes: "The significant variations of the angular spreading
in different laboratory data indicates that the oceanic angular dispersion should not be modeled
using wind wave tunnel data". There are very few reliable measurements of the spreading function for high wavenumbers from the open ocean. Most measurements were performed using an
array of laser slope gauges or amplitude wires and are restricted to long waves due to the spatial
separation of the probes (e.g. for Donelan et al. [39]: k < 3.14 rad/m). For their unified spreading
function Elfouhaily et al. [44] assumed that long waves are aligned with the mean wind direction
in steady conditions and that shorter waves are more dispersive. From radar observations they
conclude that short-gravity waves lose their directionality while gravity-capillary waves become
more directional, for details see [44]. Several alternative parametric forms of the spreading function have been proposed in the literature. Prominent examples are the cosp (Θ)-form (p ∈ N)
[11, 27, 122, 137] or a sech2 -form proposed by Donelan et al. [39] and extended by Kukulka and
Hara [101]. The angular distribution of the saturation spectrum in the gravity-capillary range is
of special interest in the light of the resonant condition for wave-wave interaction. If the spread
is narrow, the lowest order for wave-wave interaction is that of quartets [63, 130]. At high wind
speeds, when the distribution of the short waves is broad also triad interaction can occur and become dominant over the quartet interaction [108, 177].
20
2. Theory
Figure 2.8.: Comparison of spectral models of Pierson and Moskowitz [135] (dotted line), Apel [8] (dashdotted line), Romeiser et al. [144] (dashed line), and Elfouhaily et al. [44] (solid line) in wind direction, for
wind speeds of 5, 10, and 15 m/s. The first three spectra have been symmetrized with respect to the wind
direction for comparison with the Elfouhaily et al. spectrum, which is inherently symmetrical. (Adopted from
Lyzenga [114])
2.4. Wind-Wave Interaction
The coupling between the wave field and the vertical momentum flux from the wind is (for instance) described by the Wind-Over-Waves Coupling model (WOWC) in terms of the saturation
spectrum, the dispersion relation, and the wind profile. The WOWC model was developed by
Makin et al. and Kuduryavtsev et al. [97–100, 117, 118] for the open sea. Recently this model
was also applied to laboratory wave fields by Makin et al. [115] and Caulliez et al. [30]. In section
2.4.1 a concise description of the model is given which essentially follows Makin et al. [115].
The vertical momentum flux from the wind is commonly characterized by the friction velocity
u∗ , which is related to the mean total stress τ0 = ρu0x u0z according to [102]
r
u∗ =
τ0
.
ρ
(2.54)
If u∗ is measured far away from the surface then the wave-induced stress components can be
neglected. In most situations the wind profile U (z) is assumed to be logarithmic, and u∗ can be
calculated from the profile
u∗
z
U (z) =
ln ,
(2.55)
κ
z0
2.4. Wind-Wave Interaction
z
21
z
zz = z
0
Figure 2.9.: Logarithmic velocity distributions near a smooth and a rough surface. (modified after [102])
where z0 is the roughness length and κ = 0.41 is the Von Karman constant. The roughness length
z0 is the height where the logarithmic profile over a rough surfaces gives U = 0, see figure 2.9.
2.4.1. Wind-Over-Waves Coupling Model
The WOWC model is based on the conservation for the integral momentum
u2∗ = τ ν + p
∂η
,
∂x
(2.56)
∂η
is the form drag of the water surface. In this
where τ ν is the viscous surface stress, and τ f = p ∂x
section the stress components are normalized by the density of air ρa . The form drag of the water
surface is a correlation of the pressure field with the wave slope in the along wind direction which
is here aligned to the x-direction
∂η
τf = p
= psx .
(2.57)
∂x
This term is always dominant over the viscous stress, except for very low wind speeds [116]. In the
WOWC model the water surface is described for stationary and spatial homogeneous conditions in
terms of the saturation spectrum B(k) which is introduced in section 2.3. The spectrum is assumed
to be symmetric around the mean wind direction. The mean wind direction is again assumed to
coincide with the mean direction of wave propagation. The form drag (2.57) can be related to
geometrical properties of the surface and to the properties of the energy exchange between the
waves and the wind. This means, that the stress at the water surface is directly coupled to the sea
state which is described by the wave spectrum.
The wave-wind coupling is different if large-scale wave-breaking occurs or not. This is reflected
in different contributions to the model for the form drag τ f = τwf + τsf which are described in the
following sections.
Non-Separated Sheltering Mechanism
In case of a regular wavy surface (no large-scale wave-breaking) the energy flux from the wind to
the waves is described by the so called non-separated sheltering mechanism [32]. The corresponding wave-induced stress is denoted by τwf . The stress supported by microscale breaking waves is
also included in τwf , as long as no airflow separation exists, i.e. the surface is streamlined. The
22
2. Theory
WOWC model expresses the wave-induced stress as
Z Z
f
τw =
β(k, Θ)c2 B(k, Θ) cos Θ dlnk dΘ,
(2.58)
were B(k, Θ) is log-polar representation of the saturation spectrum (section 2.3), and c = c(k)
is the phase speed of the wave component. The dimensionless energy flux to waves, denoted
by β, can be parametrized by means of the wind profile and the roughness length of the surface
[116, 122, 152]
u 2
∗
β = Cβ
cos2 θ,
(2.59)
c
where θ is the angle enclosed by the mean wind direction and the direction of the wave vector. The
proportionality coefficient Cβ in (2.59) takes into account, that the growth rate for fast traveling
waves reduces to zero. It can be expressed as [30]
Cβ =
cβ
π
,
ln
κ
kzc
(2.60)
where cβ ≈ 1.5 is an empirical constant [116] and zc is the height of the critical layer, where
U (zc ) = c so that the relative velocity between the wind and the waves vanishes.
We can summarize (2.58) to (2.60): the wave-induced stress due to the non-separated sheltering
mechanism τwf can be computed with the knowledge of a) the saturation spectrum B(k, θ), b) the
phase speed of the waves c(k), and c) the wind profile above the water surface U (z).
Air-Flow Separation Mechanism
In case of large-scale breaking waves a significant augmentation of the local stress occurs [10].
This is explained by the airflow separation (AFS) which emerges at the crest of the breaking
waves. The WOWC model splits the contribution to the form drag by airflow separation τsf in two
parts,
τsf = τsfeq + τsfd ,
(2.61)
where τsfeq is the stress supported by the AFS from the equilibrium range of short gravity waves,
and τsfd is supported by the AFS according to dominant wind waves.
For the equilibrium range the form drag is modeled as
Z Z
b γ
f
τseq =
u2 β(k, θ)B(k, θ) cos θ dlnk dΘ.
b θ k<kb s
(2.62)
The empirical constants are the characteristic slope of the breaking wave b = 0.5 and b = 0.01,
see Makin et al. [115]. Recently the empirical value for b was refined as 0.62 in the study of
Caulliez et al. [30]. The integration is only carried out over the low wavenumber range k < kb ≈
2π
0.3 m , because shorter waves rather generate parasitic capillaries than break [99]. The pressure
drop which is induced by the air flow separation is represented by ∆p = 12 γu2s , where γ ≈ 1 is an
empirical constant [30]. The co-moving reference wind speed us is taken as the mean wind speed
at the characteristic height of the breaking wave zb = 1/k in a reference frame that is attached to
the breaking wave with the phase velocity c
us = U (zb ) cos θ − c.
(2.63)
The co-moving reference wind speed is additionally restricted with min(us ) ≥ 0, so that there is
no negative contribution by waves that are actually traveling faster than the wind.
2.4. Wind-Wave Interaction
The contribution to the form drag by dominant waves is modeled as
2
b γ 2
f
usd exp − T2 ,
τsd =
2π
d
23
(2.64)
with
us = U (zd ) − c(kp ),
(2.65)
where zd = b /kp is the level just above the breaking dominant wave, which is defined as the wave
corresponding to the spectral peak kp . In (2.64) d is the dominant wave steepness, and T is a
threshold steepness (tuning constant, see also Makin et al. [115] and Caulliez et al. [30]).
Viscous stress
Inside the viscous sublayer the wind profile is linear, see figure 2.9. The thickness of viscous
sublayer δ is given by
ν
δ=d ,
(2.66)
u∗
where ν is the kinematic viscosity (ν ≈ 18 Pa s, at sea level for air and T=291K) and d = 20 is a
constant. E.g. for u∗ = 0.5 m/s delta is about 0.3 mm. The viscous stress is obtained by matching
the linear profile with the logarithmic profile above it, which yields
τ ν = (κd)−1
δ 2
u ,
z0 ∗
(2.67)
where z0 is the roughness parameter from equation (2.55).
Total resistance of the water surface
Finally, the total resistance of the sea surface can be written as
u2∗ = τ ν + τwf + τsfeq + τsfd ,
which relates the wind stress to the properties of the wave field.
(2.68)
24
2. Theory
2.5. Digital Imaging Background
Digital imaging has a huge impact on the techniques for the experimental investigation of smallscale air-sea interactions. Using digital cameras for measurements allows for quantitative and
multidimensional investigations even at small scales at the wavy water surface, where conventional
intrusive probes are no longer applicable.
In the following sections we will briefly introduce some issues of digital imaging that are essential in the context of this study. In section 2.5.1 we consider the spatiotemporal discrete sampling
and its implications for the structure of the spectra, with emphasis on the understanding of the
aliasing effect.
The section 2.5.2 deals with the contrast damping in the image formation and image processing
steps, which is described by the Modulation Transfer Function.
Our method applies color imaging, i.e. the color in each pixel of the image delivers information
about the water surface gradient. Even though nowadays almost everyone has a single chip digital
camera that makes beautiful color images, in the context of this study it is not enough to regard
the color imaging as a process in a black box. Therefore a typical concept of color interpolation is
introduced in section 2.5.3, which is used with slight modifications also for the data processing in
section 6.1.
Using standard digital image processing operations, we can reconstruct the surface elevation
from the gradient field. One approach for the reconstruction is introduced in section 2.5.4 which
provides the basis for section 7.5.
2.5.1. Spatiotemporal Sampling
An image sequence is basically a 3D array of numbers gm,n,o that are commonly called gray
values. Let m and n denote the indices of the individual sensor elements or respectively the spatial
coordinates, and let o be the frame index of the sequence which corresponds to the temporal scale.
The sensor elements (or pixel) are typically arranged on a regular rectangular grid. For convenience
we assume that the grid spacing δx is the same in both spatial directions6 . If the sensor has M
times N elements, and the reproduction scale of the optics is β [mm/pixel], then we get the field
of view X · Y according to
X = M ∆x
Y
= N ∆x,
(2.69)
where we have used the abbreviation ∆x ≡ β · δx for the real world length that corresponds to the
edge length of one pixel. For the timespan of the sequence with O images we likewise have
T
= O∆t,
(2.70)
where ∆t is the time interval between two consecutive images. In general, the discrete spatial
coordinates are given rm,n = [m, n]T · ∆x and the discrete time is to = o · ∆t.
Due to the limited field of view we loose information about variations that have bigger spatial
scales than X and Y in the respective directions. The finite timespan causes a loss of information
about temporal variations on longer time scales than T . Information loss means that the original
form of the continuous signal can no longer be exactly reconstructed from the image sequence.
Conversely, the smallest spatial and temporal variations in the continuous signal that can be
exactly reconstructed are given by the Sampling theorem. The Sampling theorem basically says
6
Most modern CCDs are having square pixels (δx = δy), whereas in the past one occasionally had to deal with
differing grid spacing (δx 6= δy).
2.5. Digital Imaging Background
25
~
k = 0.000
0.256
0.512
0.768
1.024
1.280
1.536
1.792
2.048
2.304
Figure 2.10.: Moirè effects occur if the wavelength of the structure λ is smaller than the minimal wavelength
λmin which is given by the Sampling Theorem. For the illustration k̃ = λmin
is varied from top to bottom as
λ
indicated. For k̃ > 1 the Sampling Theorem is no longer fulfilled, which leads to an incorrect reproduction of
the structure in the discrete image.
that we need at least 2 discrete sampling points per wavelength of the continuous signal [77]
λmin = 2∆x
(2.71)
τmin = 2∆t.
(2.72)
where λ stands for the wavelength of spatial variations and τ is the period of temporal variations.
If the observed scene contains structures that are smaller than λmin then artifacts are introduced
that are know as Moiré effects, see illustration in figure 2.10. The fine structures appear with
incorrect wavelengths, and - in 2D - even under different directions [77]. The same kind of problem
occurs if temporal changes a the scene exhibit a shorter time scale than τmin . The corresponding
artifacts are called aliasing, in order to be able to distinguish between the cause of the artifacts.
The aliasing is discussed in more detail on page 27.
Wavenumber Frequency Domain
The image sequence can be transformed into a discrete 3D wavenumber frequency spectrum ĝu,v,w
according to
M
−1 N
−1 O−1
X
X
X
gm,n,o w−mu
w−nv
wow
(2.73)
ĝu,v,w =
O ,
M
N
m=0 n=0 o=0
which is the Discrete Fourier Transform (DFT) of the sequence, where we have used an abbreviation for the discrete Fourier kernel wQ ≡ exp(2π i /Q) [77]. Here, the indices u and v in the
spectral domain are corresponding to the discrete wavenumber vector
2π
u/M
u/X
ku,v =
·
=
· 2π,
(2.74)
v/N
v/Y
∆x
and w is corresponding to the angular frequency
ωw = w
2π
2π
=w ,
O∆t
T
(2.75)
26
2. Theory
with u ∈ [0..M − 1], v ∈ [0..N − 1], and w ∈ [0..O − 1], respectively. Note, in this study
the physically motivated definitions k = 2π/λ and ω = 2π/τ are used, in contrast to common
definitions in the image processing context, where the factor 2π is usually omitted. The Sampling
Theorem can be reformulated here as follows: If the spectrum of the continuous function is band
limited, e.g. vanishing for k > kN , then it can be reconstructed from samples with a distance
∆x = π/kN [77]. Conversely, from a given spatial resolution ∆x follows the so-called Nyquist
wavenumber
π
2π
kN =
(2.76)
=
∆x
λmin
which gives the limit in the Sampling Theorem. The same applies for the temporal sampling and
thus the Nyquist frequency is given by
ωN =
π
2π
=
.
∆t
τmin
(2.77)
For the wavenumbers ku,v the Sampling Theorem is only fulfilled, if the indices are within the
circle that is defined by
r u 2 v 2 1
+
= ,
(2.78)
M
N
2
e.g. kM/2,0 = kN or k0,N/2 = kN .
Important Properties of the Discrete Fourier Transform: The Discrete Fourier Transform has a number of specific properties, all of which are comprehensively discussed in Jähne [77,
Section 2.3.4]. Here, only some of these properties, which are important for the interpretation of
the spectra, are outlined as follows:
• Symmetry:
The spectrum of a real valued function is Hermitian:
∗
ĝ−u,−v,−w = ĝu,v,w
,
(2.79)
where ∗ denotes complex conjugation.
• Periodicity:
The spectrum shows a periodicity:
ĝu,v,w = ĝu+iM, v+jN, w+kO ,
∀i, j, k ∈ Z
(2.80)
• Separability:
The kernel of the Fourier transform is separable.
Because of the symmetry property we know that the spectrum contains redundant information.
Therefore we can restrict the spectral volume to half the size, compared to the spectral volume
in equation (2.73). Moreover, combining the symmetry and periodicity, we can define the spectral volume to have the complete wavenumber plane (with positive and negative wavenumbers),
whereas the frequency axis is restricted to positive values only7 . The spectral components with
negative wavenumbers are obtained using the periodicity and symmetry relations
∗
∗
ĝ−u,−v,w = ĝu−M,v−N,w = ĝu,v,−w
= ĝu,v,O−w
.
7
(2.81)
Note that the reduction of the size of the spectral volume needs to be compensated by a factor of two, when applying
Parseval’s Theorem as for instance in section 6.5
2.5. Digital Imaging Background
u = -M/2
D
w = O/2
A
0
C
u = M/2
B
w = -O/2
27
D
A
C
B
D
A
D
C
B
C
D
A
C
B
A
Figure 2.11.: Periodic reproduction of the dispersion curve in the discrete Fourier domain.
Therefore we can rewrite (2.73) as
M/2
ĝu,v,w =
X
N/2
X
O/2
X
gm,n,o w−mu
w−nv
wow
O .
M
N
(2.82)
m=−M/2 n=−N/2 o=0
The separability can be exploited for a splitting of the 3D transformation. For instance, at first a
1D temporal transformation from the real valued sequence into a complex valued spectrum can be
performed, followed by a 2D spatial transformation from complex to complex for each slice of the
spectrum in the orthogonal direction. This is an effective way to handle the huge amount of data
with respect to memory availability.
The Aliasing Effect: The periodicity and symmetry properties of the spectrum enable a more
specific discussion of the aliasing and Moire-effects. In figure 2.11 an illustration is shown that
is referring to the actual limitations of our instrument and the dispersion relation of water waves
which in this case provides a deterministic relationship ω(k). For convenience we assume, that
the sampling in space is meeting the criterion of the Sampling Theorem, whereas the temporal
sampling is too coarse. Thus, we are expecting aliasing but not Moire effects, which is physically
motivated from the discussion of the results in section 7.3.
The sketch in figure 2.11 depicts one ω–k slice through the centerline of the 3D spectrum8 . The
actual spectrum that we describe with equation 2.82 is given by the segments A and D which are
highlighted in yellow. In analogy to solid state physics we might associate the central segments
A, B, C, and D with the first Brillouin zone. All other segments illustrate the periodic replication
of the spectrum. The wavenumber and frequency indices corresponding to the boarders of the first
Brillouin zone are given in the sketch of the replication to the left of the first zone.
The solid blue line is depicted to represent the continuous spectrum of the signal. For this
illustration we have adopted the blue line to the dispersion shell ω(k) for small scale water waves,
which is given by equation (2.34). The physical units are shown in the plot that is included to the
right of figure 2.11.
8
Without loss generality we might think of the slice for which ky = 0 or respectively ku,0 .
28
2. Theory
Now, due to the discrete sampling, the discrete spectral volume is not large enough to contain
the complete dispersion shell. We can see, for instance, that the blue curve leaves the yellow
segment A and enters into a segment B of the periodic reproduction. Therefore the spectral energy
is observed at a frequency index w = − O2 + i rather than w = + O2 + i. Here i ∈ 1.. O2 represents
the excess of the index w over the index O/2, which is corresponding to the frequency Nyquist
limit. Note that, due to the symmetry, the spectral energy in segment B is transformed under a point
reflection at the origin into segment D, which alternates the frequency index from w = − O2 + i
to w = O2 − i and the wavenumber indices from u to −u and from v to −v. It is important
to notice that we are dealing with a point symmetry, even though the illustration could give the
misleading impression of the existence of an axis symmetry9 . Ultimately, we measure the spectral
energy which is associated with ω and k at a frequency ω 0 = 2ωN − ω and at a wavenumber
k0 = −k. From this we can see that we still get the right magnitude of the wavenumber vector,
but it seems that the corresponding spectral energy belongs to a wave that is propagating in the
opposite direction. In contrast, the frequency does no longer have the right magnitude, which is
-in this case- even decreasing as the actual frequency increases. This discussion could be extended
ad infinitum, taking even higher order aliasing into account, which for instance occurs when the
blue line leaves segment B at the high frequency end and enters again at the low frequency end in
segment A. Instead, we get an immediate impression of the location of the aliased spectral energy,
if we regard the red dash-dot lines within the first Brillouin zone, which are stemming from the
periodic reproductions of the blue curve in the neighboring Brillouin zones.
If the blue line in figure 2.11 would be extended for wavenumber values greater than the Nyquist
wavenumber, we would of course observe Moirè effects which can be discussed in a analogy to
the aliasing.
Spectral Leakage: There is one more peculiarity of the discrete spectra. From the continuum of possible frequencies and wavenumbers, only those which coincide with the basis of the
Discrete Fourier Transform are projected onto a single basis vector10 . All other frequencies and
wavenumbers will exhibit non-zero projections on the entire basis set. This is commonly referred
to as spectral leakage and is the result of processing finite-duration and finite-size sequences. Frequencies and wavenumbers other than those of the DFT basis are not periodic in the observation
window, which leads to discontinuities in the periodic extension of the signal. These discontinuities are responsible for the leakage over the entire basis set. In order to reduce this effect,
the sequence is usually multiplied by a weighting function which smoothly approach zero at the
boarders of the observation window. There is a variety of windowing functions that are commonly
used. A comprehensive review about spectral leakage and the properties of the most prominent
windowing functions is given in the article by Harris [62], which also this paragraph is predicated
on.
2.5.2. Modulation Transfer Function
Any imaging system shows certain contrast damping as a function of the structure size in the
image. This contrast modulation can be measured by means of the Modulation Transfer Function
(MTF), which is defined as the magnitude of the Optical Transfer Function. In this section we will
give the context that is needed to understand the MTF measurement and MTF correction, which
is described in section 6.2. With the MTF correction it is possible - at least to a certain extend - to
restore the contrast. The MTF correction is essential if the magnitude of the spectral amplitudes
9
10
The symmetry ambivalence in the illustration is due to the cylinder symmetry of the dispersion relation.
See Jähne [77, chapter 2.3.2] for the depiction of the DFT as a projection.
2.5. Digital Imaging Background
29
Imax
Imin
d
Figure 2.12.: The contrast is depending on the distance d of two structure elements in the image plane and
on the width of the point spread function.
for different wavenumbers are to be quantitatively compared, e.g. in case of wind wave saturation
spectra.
Contrast and the Point Spread Function: Consider a point light source in the object space
that is imaged on a digital sensor. The image of that point will have a certain spatial extend with
varying intensity. This is due to blurring effects and because the digital image of the point is
discrete and therefore its extend is at least as big as one pixel of the sensor. The image of such a
point (or delta peak) is called the Point Spread Function (PSF). In general the PSF is a function of
all three spatial coordinates, but here we only consider the slice that is defined by the sensor plane
and assume that the object is well focused on that plane. For most cases we can think of the PSF
as a Gaussian shaped peak.
The link between the PSF and the contrast becomes clear, if we consider two point light sources
in the object space that are separated by a varying distance. If their distance d on the image plane
is in the order of the width of the PSF, then their intensity distributions will have a considerable
overlap, see figure 2.12. Due to this overlap the difference between the peak intensity and the
minimal intensity between the two peaks will decrease as a function of d. If we denote the intensity
at the maximum of one of the Gauss peaks by Imax and the intensity in the middle between the
two peaks by Imin , then we can define the contrast as
C=
Imax − Imin
,
Imax + Imin
(2.83)
which is therefore a measure of intensity11 differences [124].
From this example we can see, that the width of the PSF leads to a decrease in contrast with
decreasing size d of intensity patterns in the object space. The width of the PSF may stem from
different sources, such as physical limitations of the optics, discrete sampling, or image processing
filters. The above considerations are similar to those for the diffraction limit of optics which yield
the Rayleigh criterion [77], but here we are interested in the gradual loss of contrast, not only in
the limiting case. Moreover, the contrast damping that is stemming from the discrete sampling
or from image processing filters may exceed the damping due to the limitations of the optics by
orders of magnitudes.
In most cases we can assume that the optical system is a linear shift invariant system (LSI), so
that the image of any complex object can be thought as a linear superposition of images of points
on that object. This assumption holds, as long as the PSF is not dependent on position [77]. With
this assumption we also exclude motion blur effects, because these effects may depend on time
and position. With the LSI assumption we can regard the formation of the image g 0 (x) as an ideal
11
Strictly speaking we would need to say luminance instead of intensity, but we assume that intensity and luminance
are proportional to each other.
30
2. Theory
projection g(x) of the object on the image plane, which is then convolved with the PSF
g 0 (x) = PSF ∗ g(x).
(2.84)
Later, we refer to the ideal projection g(x) on the image plane as the a priori image. Accordingly
we call the acquired image g 0 (x) the a posteriori image.
Point Spread Function and Modulation Transfer Function: Since convolution corresponds to a simple multiplication in Fourier space it is convenient to examine the contrast damping
in this domain. The Fourier transform of the Point Spread Function is called the Optical Transfer
Function (OTF),
PSF(x)
◦−•
OTF(k),
(2.85)
where the OTF is a complex valued function. For the spectra we can rewrite (2.84) as
gˆ0 (k) = OTF(k) · ĝ(k).
(2.86)
Regarding the contrast we are only concerned with the magnitude of the transfer function, which
is called the Modulation Transfer Function (MTF)
MTF(k) ≡ |OTF(k)| .
(2.87)
For an ideal imaging system, the MTF would be constant for all wavenumbers, which means that
the PSF would be a delta peak, resulting in g 0 = g according to (2.84). In contrast, real optical
systems always have a PSF of finite width, which was explained above. The width of the MTF is
reciprocal to the width of the PSF, which is a general property of the Fourier transform. Thus if the
blurring effects are strong, then the MTF is narrow. For a digital sensor we know that the size of
the sensor element defines the maximum wavenumber that is sampled correctly. This wavenumber
is called the Nyquist wavenumber k̃. To see the effect of the discrete sampling, we may regard
the sampling step as a convolution of the ideal projection g with a rectangular box function.
Then
√
follows that the amplitude damping at the Nyquist wavenumber is MTF(k̃) = 1/ 2, see Jähne
[77, chapter 9.2.5].
Deconvolution: It is possible to reverse the amplitude damping effect, if the MTF is known.
The restored spectral amplitudes |ĝ| are gained by multiplying the spectral amplitudes of the a
posteriori image |gˆ0 | by the inverse of the MTF
|ĝ| = MTF−1 · |gˆ0 |,
(2.88)
which is of course only possible for wavenumbers where the MTF is non-zero. Note that the
deconvolution in (2.88) does not improve the signal to noise ratio and that it does not allow for
restoring spectral information that was completely lost in the acquisition of g 0 (see [77, chapter
17.5.3]). But still, the inverse filtering with the MTF restores the contrast, which is essential if the
magnitude of the spectral amplitudes for different wavenumbers are to be quantitatively compared,
i.e. in case of wind wave saturation spectra.
MTF Measurement from Spectra: The idea to measure the MTF is straight forward if the
a priori spectrum ĝ is known and if it is non-zero for all wavenumbers. Then we can use the prior
knowledge about the a priori spectrum along with the a posteriori spectrum to compute the MTF
using (2.88).
2.5. Digital Imaging Background
Bayer mosaic
red channel
green channels
g1
blue channel
g1
g2
=
31
g1
g2
g1
g2
g2
Figure 2.13.: Bayer mosaic layout of the color filter array. Modified after [109]
There exist several approaches to measure the MTF that use a priori knowledge about the
spectrum [20, 35, 36, 120]. For instance one can try to realize a point light source and assume, that
the a priori spectrum is constant. Though theoretically easy, this approach is barely useful, since
a point light source is hard to realize in practice. A second example is the edge exposure method.
Here, for instance, images of a knife blade are taken, with an homogeneous illumination from the
back. Then the image is a step-like function of which the spectrum is also known. This approach
has the disadvantage, that the orientation of the edge matters and one has to perform multiple
measurements under different orientations. A third class of approaches try to use special noise
characteristics [42], e.g. for white noise the spectrum should be flat. In practice this is realized
using a so called Imaged Random Test Pattern.
For the MTF measurements in this work a method was desired that was applicable directly in
the experimental setup. Therefore we designed a MTF target, see figure 4.25. This target is a
thin metal stencil with circular holes of different diameters on a regular grid. An a posteriori
image is taken with a homogeneous background illumination as in the edge exposure method. The
circle diameters are chosen such that the a priori spectrum (which is an superposition of several
Bessel functions) is non-zero everywhere [157]. Even in a single image of the MTF target we
have edges with all possible orientations. Thus there is no need make more than one image for
the measurement of the MTF in the full wavenumber plane. Unlike in the other methods, we
compute the a priori spectrum via a model based reconstruction of the target. This is done using
the geometrical properties in the a posteriori image to scale and rotate the a priori image with sub
pixel accuracy, at higher resolution, and featuring sharp edges. The application of this new method
is explained in detail in section 4.5.
2.5.3. Color Imaging
Modern digital color cameras are mostly having a single CCD sensor. The sensor material itself
does not distinguish between the wavelengths of the incident light. Therefore the world looks gray
for such a camera, even if we applied different color filters. In order to retrieve one colored image,
we have to combine the gray value information of several images that are taken with different color
filters.
A very elegant way to acquire images on a single chip sensor with different filters at the same
time is to use a color filter array (CFA). The most prominent example for a CFA is the so called
Bayer mosaic layout12 . This Bayer mosaic was also employed for the camera that was used for the
experiments in this study, so that we will restrict the discussion of color imaging to that example.
With an Bayer mosaic, each individual pixel is equipped with a filter for one of the primary colors
red, green and blue (R,G, and B). The filters are arranged on the chip in a certain pattern that is
shown in figure 2.13. One can think of the CFA as four sub grids: two for green, one for red and
one for blue. These sub grids are slightly shifted, relative to each other, and they only have half
the spatial resolution of the original CCD.
Because of the CFA the actual acquired digital data constitutes a mosaic-like gray value image
which is called the raw image. The task to convert the gray value information on the sub grids for
12
US Patent3971065
32
2. Theory
the primary colors into a final image which contains full color information at each pixel is called
demosaicing. The final color image is typically composed of three color channels R,G, and B. For
most cameras the demosaicing can already be performed internally. However, this feature is not
always useful, e.g. if high frame rates are desired as in this study. This is because the demosaicing
consumes time and increases the data volume per image. Additionally, there are many different
approaches to solve the demosaicing task, having different pros and cons. If the demosaicing is
performed internally in real time, the build-in algorithm is predominantly chosen with respect to
its computational efficiency which might not be the optimal processing solution. Surveys on state
of the art demosaicing techniques are presented for instance by Li et al. [109] and Lukac [113].
In our case, only the so called component-wise approaches are suitable, since all other approaches
already make inferences from the combination of the colors which is not allowed in case of the
CISG data.
Using sub sampling of the raw image by a factor of two and with different offsets is the easiest
way to retrieve the three color channels from the raw image. The sub sampling only delivers one
of the four sub grids that are shown in figure 2.13. With this simple method, the color channels are
not affected by any interpolation and not corrected for the spatial shift of the sub grids. While less
interpolation and thus less smoothing might be desirable, the spatial shift is especially undesirable
in our context because a spatial shift introduces a phase shift in the Fourier domain (shift theorem
[77]).
To overcome the problem of shifted grids it is necessary to perform an interpolation of the data
from the different sub grids onto a congruent sub grid. For example consider that the raw image g
is convoluted by the following set of filter kernels
1
4
hR ≡
0
1
4
0
0
0
1
4
0
1
4
0
hG ≡
1
4
0
1
4
0
1
4
0
1
4
hB ≡
0
0
0
0
0
1
0
0
0 .
0
The convolution masks are chosen such that the congruent grid is the blue subgrid of the raw image
g. Therefore, after the convolution
gR = g ∗ hR
g G = g ∗ hG
gB = g ∗ hB ,
(2.89)
only the blue subgrid is extracted from the three resulting images
R = S↓2,b (gR )
G = S↓2,b (gG )
B = S↓2,b (gB ),
(2.90)
where S↓2,b stands for the subsampling operator that retrieves the blue subgrid. Now R contains
the average values of the surrounding red pixels on the blue subgrid. Correspondingly the same
holds for G. In contrast, the image B has the unchanged content of the original blue subgrid.
This kind of demosaicing was already used by Fuß [50] and it has the advantage of simplicity and
computational efficiency, since the masks are separable. The disadvantage of this filter set is, that
the transfer function show strong non-isotropy. Additionally the smoothing for the different color
channels is not comparable, which means that the PSF is different.
For the evaluation of the CISG data the isotropy of the demosaicing is crucial. Moreover we
desire that the color channels can be treated as equivalent with regard to the modulation transfer
function, see section 2.5.2. Therefore we tested and actually used a set of filter kernels that were
2.5. Digital Imaging Background
33
Figure 2.14.: Example for the height reconstruction from the measured gradient field s = [sx , sy ]T = ∇h of
small scale water waves. The measured data is shown in the top images. The reconstructed height (from
equation (2.94)) is shown below as a 3D plot with equally scaled axes. [data: Run031, frame 294. The wind
is blowing from the right to the left with 4 m/s.]
proposed by Scharr [146]. These filter kernels are optimized for isotropy and homogeneity. The
demosaicing, based on these optimized filters, is conceptually the same as explained above. The
properties and the application of these filters are the subject of section 6.1.
2.5.4. Height Reconstruction from a Gradient Field
The measurement technique of this study is related to the shape from shading paradigm of computer vision [77], i.e. the gray value of the image is related to the gradient of the object that is
imaged. Some algorithms for the shape reconstruction based on the gradient information have
been developed in the computer vision community (e.g. [1, 2, 67]). As a matter of fact, the 2D
surface gradient s(x) = [sx , sy ]T can be integrated to yield the surface elevation h(x), except for
an additive constant.
In this section we briefly introduce an elegant way to perform the integration in the Fourier
domain. This approach was first presented by Frankot and Chellappa [47] and it was already
successfully used by several investigators for the reconstruction of the wavy water surface [9, 50,
178]. Integration in the Fourier domain is very convenient, since it automatically enforces the
integrability of the gradient field. With numerical schemes that work in the spatial domain some
complications are experienced since the integrability of the gradient fields might be violated due
to measurement errors, see Frankot and Chellappa [47] for details.
Height reconstruction means, that we are searching for the elevation function h(x) that fulfills
the requirements
∂h(x)
= sx (x)
∂x
∂h(x)
= sy (x)
∂y
◦−•
i kx ĥ(k) = sˆx (k)
◦−•
i ky ĥ(k) = sˆy (k).
(2.91)
34
2. Theory
On the right hand side we have translated the relation into the Fourier domain, where the partial derivatives ∂x and ∂y correspond to a multiplication with i kx and i ky [77]. Combining the
information of both slope components we can write
i kx sˆx (k) + i ky sˆy (k) = − kx2 + ky2 ĥ(k),
(2.92)
where we have added the right hand side equations (2.91) after a multiplication with i kx and i ky ,
respectively. For k 2 ≡ kx2 + ky2 6= 0 this can be transformed into
ĥ(k) =
− i kx sˆx (k) − i ky sˆy (k)
,
k2
(2.93)
and for k = 0 we set ĥ to zero in order to handle the division by zero. Note that we also loose
the information that is contained in the spectral coefficients sˆx (k = 0) and sˆy (k = 0) which are
corresponding to the mean gradients hsx i and hsy i, respectively [77].
Hence, the surface elevation h(x) can be obtained by the Inverse Fourier Transform
−1 kx sˆx (k) + ky sˆy (k)
,
(2.94)
h(x) = FT
i k2
except for the plain that is defined by the mean gradients and an integration constant.
This method is used - with only a minor modification - for the reconstruction of the water surface
height in this study, exemplified in figure 2.14. Further examples are given in section 7.5.1 which
deals with an interactive visualization of the wave field. In this section we also discuss some
peculiarities of the implementation.
3. Method - Wave Slope Imaging
There exist a variety of methods for the measurement of waves at the water surface. Most prominent examples are the wire gauge [106], the laser slope gauge [69] and its extension the scanning
laser slope gauge [16], the reflective slope gauge [107], which is similar to the sun glitter method
by Cox and Munk [33], the stereo imaging, which was applied from the beginning of the 20th
century [103] until recently [50], the radar altimeter [49] and the radar scatterometer [24, 60], et
cetera, and finally the imaging slope gauge [84, 181].
All these methods are non-intrusive, except for the wire gauge. For the family of slope gauges
the gradient s = [∂x , ∂y ]T η of the water surface is measured, which is advantageous because the
dynamical range of the surface slope is much smaller than the dynamical range of the surface elevation. Therefore the slope gauges are also suitable to measure small scale waves in the presence
of larger waves. For the slope measurement the refraction or the reflection of light is exploited
in different manners. Reviews comprehending the pros and cons of the above listed methods can
be found in Fuß [50], Balschbach [9], Klinke [93], Rocholz [142], Lange et al. [106], Jähne et al.
[81, 85], to only name a few, so that we abstain from going into details.
Here, the most important statement is that all of these methods where either not fast enough to
keep track with the rapidly moving waves or it was not possible to gain the spatial resolution that
is needed to measure the tiny capillary waves.
It is a severe technical challenge to get a high spatial and temporal resolution at the same time.
In this regard the greatest achievement could be made using the scanning laser slope gauge, which
operated with 74.8 Hz sampling rate while resolving wavenumbers in the range of 25-1000 rad/m
[17, 162]. The laser scanning systems do not reach the spatial resolution of imaging techniques
(see table A.1), and conversely the imaging techniques were mostly limited to frame rates of 3050 Hz. From the linear dispersion relation that was plotted in figure 2.3 it is obvious that this frame
rate was not sufficient to seize the dispersion of the small scale waves. The spectral evaluation of
imaging slope gauge data was therefore predominantly restricted to the 2D wavenumber domain.
For this study the imaging slope gauge technique was improved to achieve a sampling rate of
312.5 Hz, while resolving wavenumbers in the range of 60-4500 rad/m. Therefore we obtain image sequences that comprise the frequencies and the 2D wavenumber vector of the water waves
at the same time and consequently can be used for a direct 3D Fourier transform. The resulting wavenumber-frequency spectra contain the same information as obtained by fast point probes
such as the laser slope gauge, but in addition we have the possibility to distinguish the frequency
spectrum for the wavenumber vector in its magnitude and direction.
The instrument is named color imaging slope gauge (CISG) because a color coding is used
to measure the surface slope [9, 181]. In section 3.1 the fundamental ideas of the method are
introduced. The technical realization of the CISG and its calibration is shown in chapter 4. Since
the instrument and its calibration are closely connected, it should already be pointed out that a new
calibration method was developed that allows for a compensation of intrinsic nonlinearities that
are prevalent for this method for higher slopes, see section 4.4.
36
3. Method - Wave Slope Imaging
camera at z = infinity
looking vertically down
ray
principal axis
z
air
α
x
water surface
η(x)
90°
β γ
water
γ
glass window
air
δ
lens
δ
air
f = focal distance
of the lens
∆x
illumination
screen
Figure 3.1.: Sketch of the ray geometry of the imaging slope gauge.
3.1. Basics of the CISG Method
The calculation of the water surface slope from the color of the CISG-images is based on light
refraction and color coding. Here, the basic design of the CISG Method and principal relationships
are explained. The implementation of the method is shown in section 4.1. The general expression,
describing the trace of rays between the illumination and the digital camera is given in section
3.1.2. The CISG illumination implements a color coding for the origin of each light ray. The
design of this color illumination is described in section 3.1.3.
3.1.1. Ray Geometry
The Color Imaging Slope Gauge consist of two main components, namely a digital color camera
and a position coding light source. The camera is assumed to be at infinite distance and vertically
looking down to the water surface. The light source is located below a glass window in the bottom
of the wind wave flume. A sketch of the idealized ray geometry is shown in figure 3.1. Consider
the trace of one light ray from the camera to the light source as indicated in the figure. At first the
ray is parallel to the principal axis of the camera1 . Then, at the wavy water surface it undergoes
refraction. A second refraction occurs when the ray leaves the water body through the horizontal
glass window in the bottom of the tank. The big Fresnel lens, which is part of the light source,
images all rays with the same inclination angle δ onto the same spot of the illumination screen,
(see figure 3.1). This is because the illumination screen is located at focal distance f to the lens
1
This can be achieved by an object-space telecentric lens, see [142], or as an approximation by being far away from
the water surface.
3.1. Basics of the CISG Method
37
and the principal axis is parallel to the principal axis of the camera. We call this arrangement a
telecentric illumination (see also figure 4.4 and [142]). Let ∆x denote the distance between the
spot where the light ray pierces the illumination screen and the piercing point of the principal axis.
Now, because of the telecentric lens we can express ∆x in terms of the the azimuthal inclination δ
of the light ray at the entrance of the light source
∆x =
tan δ 2
.
f
(3.1)
The illumination screen is area extended and therefore the camera receives light for a range of
angles δ. In one dimension the position on the screen can be coded by an intensity gradient. In
two dimensions the position can be identified using color gradients. This is discussed in section
∂η
3.1.3. In 1D the relationship between the water surface slope s ≡ ∂x
= tan α and the angle δ is
given by
tan δ
√
tan α = p
,
(3.2)
n2w + tan2 δ(n2w − 1) − 1 + tan2 δ
where nw is the refractive index of water. This one-dimensional relationship is derived and extended to 2D in the appendix A.10.
3.1.2. General Expression
A light ray that leaves the telecentric illumination with an azimuthal angle δ is refracted at the
water surface in direction to the camera if and only if the following condition is fulfilled
|tan δ|
sx
cos Φ
√
·p
s=
=
,
(3.3)
2
2
sin Φ
sy
nw + (nw − 1) tan2 δ − 1 + tan2 δ
where s is the water surface slope, Φ is the polar angle of the light ray and nw denotes the refractive
index of water. The condition follows from Snell’s law for the ideal setup3 and is deduced in the
appendix A.10. The azimuthal angle δ is again related to the position
cos Φ
X
=r
(3.4)
sin Φ
Y
on the illumination screen. We choose the principal axis of the fresnel lens to be the origin of the
coordinate system√
on the illumination screen in which the positions X and Y are measured, so that
the distance r = X 2 + Y 2 corresponds to ∆x in section 3.1.1 and figure 3.1. As in equation
(3.1) we have
√
r
X2 + Y 2
| tan δ| = =
,
(3.5)
f
f
with f being the focal length of the telecentric Fresnel lens. Consequently, we can write the water
surface slope in terms of the ray origin on the illumination screen
1 X
1
sx
p
=
·p
(3.6)
sy
f Y
n2w + (n2w − 1) (X 2 + Y 2 )/f 2 − 1 + (X 2 + Y 2 )/f 2
1
X
p
=
·p
.
(3.7)
2
2
2
2
Y
f nw + (nw − 1) (X + Y 2 ) − f 2 + (X 2 + Y 2 )
2
3
please see page 167
idealizations: a) the camera is at infinite distance and is looking vertically down to the water surface; b) the glass
window at the flume bottom has zero horizontal inclination
38
3. Method - Wave Slope Imaging
Figure 3.2.: Position coding with a superposition of three linear color wedges in red, green and blue as in
(3.9).
Linear Approximation: The general expression√(3.6) can be simplified very much if the focal
length f is large compared to the screen deflection X 2 + Y 2 :
1
sx
X
≈
·
.
(3.8)
sy
Y
f (nw − 1)
For instance, the relative error of this linearization is −6%, using the values for |sx | = 1, sy = 0
and the focal length f = 39 cm, which are adapted to the actual geometrical limitations of the
instrument, see section 4.
3.1.3. Color Coded Illumination
Both slope components can be retrieved from color images at the same time, since the position
[X, Y ]T on the illumination screen is color coded. A very elegant design of the color coding was
introduced by Balschbach [9] and also used by Fuß [50]. This design is a superposition of three
linear wedges in red, green and blue
1
1
1
red ∝ − X − Y +
2
2
2
1
green ∝
X
+
2
1
1
1
blue ∝ − X + Y + ,
(3.9)
2
2
2
see also figure 3.2. The choice of the coefficients is such that the intensity (the sum of the three
colors) is supposed to be independent of the position. However, deviations from the ideal configuration are hardly avoidable, due to the complex interplay of the light source spectrum, the
actual spectral transmittance of the color coding screen, the spectral sensitivity of the camera, and
the alignment of the light source. Therefore, the assumed transformation from color space to the
positions is of the form
R = I · (rx X + ry Y + R0 /I0 )
G = I · (gx X + gy Y + G0 /I0 )
B = I · (bx X + by Y + B0 /I0 ),
(3.10)
where
I0 = (R0 + G0 + B0 )/3
I = (R + G + B)/3.
(3.11)
This transformation models a relative stretching and rotation of the coordinate systems, as well
as individual offsets R0 , G0 , B0 , and allows spacial inhomogenity of the intensity I(x, y). The
subscripts 0 indicate that the constants are retrieved from images with zero surface slope. The
zero-slope condition defines the origin of both coordinate systems.
4. Setup and Calibration
The CISG was set up during the WiSSCy campaign (see chapter 5) at the linear wind wave flume
of the University of Hamburg, located at the Bundesanstalt für Wasserbau (BAW) in Hamburg,
Germany. In section 4.1 we will describe the technical details concerning the facility and the wave
imaging setup. The calibration comprises i) the geometrical calibration of the CISG camera in
section 4.2, ii) the registration of the infrared camera and the CISG camera in section 4.3, iii)
the determination of the color-slope relationship in section 4.4 , and iv) the measurement of the
Modulation Transfer Function in section 4.5.
4.1. Experimental Setup
4
3&5
16
8
Figure 4.1.: Schematic of the modified wind-wave tank of the University of Hamburg. Upper Panel: side
view. Lower Panel: top view. 1: diffuser, 2: beach, 3: IR camera, 4: CO2 -laser, 5: imaging slope gauge
camera, 6: imaging slope gauge illumination, 7: CO2 analyzer, 8: rain generator, 9: wire gauge, 10: laser
optics, 11: laser slope gauge, 12: anemometer, 13: honeycomb, 14: wave flap, 15 blower, 16: mirrors for the
imaging slope gauge camera and the IR camera, A: Plexiglas enclosure, B: sheet metal air tunnel adaptor,
C: sheet metal tunnel. Note that the blower is located in a separate room. (Sketch modified after [23])
Figure 4.1 shows a schematic of the linear wind wave tank in Hamburg. The wave imaging
camera was mounted 4.3 m above the water surface in a rain tower at a fetch of approximately
14.4 m. The total length of the water flume is 26 m. Figure 4.2 shows a true to scale drawing of
the rain tower section. In this drawing the rain generator itself is not shown. The rain generator
consists of water tubs with needles in the bottom. The rain rate could be controlled by adjusting
the water level in the tubs. The camera system was just below these tubs and looking down via
an adjustable mirror to a glass window in the tank bottom. Below this glass window the light
source was set up with the principal axis pointing vertically through the center of the window. It
was not possible to position the mirror for the camera exactly over the center of the glass window.
40
4. Setup and Calibration
Figure 4.2.: CISG-Setup in the rain tower section of the linear wind wave flume. The section is located at a
fetch of between 12.6 and 14.8 m.
Otherwise the camera system would have caused considerable shading of the rain area. As a
compromise the azimuthal angle of the camera’s principal axis was adjusted to be 2◦ in the alongwind direction.
For the camera a lens with 90 mm focal length was used. The size of the image footprint was
22.3 cm in the along-wind direction and 10.4 cm in the cross-wind direction. For the total deviation
from the assumption of vertical rays in the object space the divergence of the rays at the border
of the image has to be accounted for in addition to the inclination of the principal axis. From the
given geometry the total deviation for the along-wind direction is 2.0◦−1.5◦ at the leeward boarder
of the image and 2.0◦ +1.5◦ at the windward boarder of the image. For the cross-wind direction
we have ±0.74◦ . The maximum relative deviation from the ideal ray geometry as expressed by
(3.2) is therefore to be found at the windward border of the image. A detailed analysis of the
influence of the inclined camera rays can be found in Fuß [50, chapter 4.2]. Following this analysis
the maximum relative error for the slope measurement, based on a linear calibration, is smaller
than 7%.
4.2. Geometrical Calibration
41
The f-number of the lens was set to 5. Therefore the depth of sharpness was ±8.5 cm around
the mean water level. This value is calculated assuming a circle of confusion corresponding to the
size of one pixel. The mean water height during the experiments was (51 ± 3) cm. The greatest
dominant waves at this fetch did not exceed amplitudes of 5 cm even for the highest wind speed.
The effective aperture of the illumination was 45 cm, due to the glass window at the tank bottom
and the aperture of the fresnel lens. This aperture leads to a geometrical limitation for the maximum leeward slope that can be measured at the windward border of the image. The light source
consists of 20 fluorescent tubes1 , a diffusion screen2 , a transparency 3 , and a fresnel lens4 , see
figure 4.3. In order to avoid fluctuations in the light intensity a 250V DC power supply5 was used
to power the high frequency power supply units6 of the lamps.
The camera7 operated with a reduced resolution of 640×298 pixel, so that a frame rate of
312.5 Hz could be achieved. The integration time was set to 1 ms. For the combined measurement
of the active thermography system and the CISG it was possible to synchronize both cameras.
The image footprint of the thermography system completely overlapped the footprint of the wave
imaging camera and a registration was performed, see section 4.3. In the course of the measurement campaign we experienced a breakdown of the CISG camera because of the extraordinary
humidity in the rain tower. Thus it was necessary to exchange the camera at the 14th of June 2007.
4.2. Geometrical Calibration
For a quantitative evaluation of the images we need to know the reproduction scale of the imaging
system. A rough estimate of the magnification factor β of the optical system is
β=
Z
4300 mm
≈
= 47.7,
f
90 mm
(4.1)
where we have used a pin hole camera model, the object distance Z ≈ 4300 mm, and the focal
length of the camera lens f = 90 mm. The edge length of one pixel is 7.4 µm and the pixels are
quadratic. This estimate leads to a corresponding real world pixel edge length of ∆x = ∆y ≈
0.353 mm.
Estimating ∆x by using (4.1) is prone to errors, mainly because a high accuracy measurement
of the distance Z is difficult. Hence the scaling factor for the transformation from the pixel coordinates system to the world coordinate system was additionally determined from a geometrical
calibration. For geometrical calibration we used images of the MTF target. An example of this
target is shown in figure 4.5. The MTF target is a thin metal stencil with circular holes of different
diameters that are arranged on a regular grid. The grid spacing is 10.0 mm±10 µm. The calibration images have been acquired in-situ as described in section 4.5. Form the calibration images the
grid coordinates were extracted. This involves a segmentation step, followed by a computation of
1
fluorescent tubes: Osram Dulux L 55W, light color 840
diffusion screen: Plexiglas Satinice OD010DF, colorless, transmission 82%, throwing power 0.35, angle of half
intensity 25◦
3
transparency: Duratrans, RGB-exposure technique; print shop: DiPixelprinter, Heidelberg, contact person: Jons
Richter
4
fresnel lens: Fresnel Optics GmbH, part number: SC2045; focal length 391.2mm; facet pacing 0.508mm; Fresnel
conjugate 6096.0mm; plano conjugate 419.0mm; clear aperture 457.2mm
5
DC power supply: manufacturer: Heiden Electronics; model: 1124-250
6
power supply units for the fluorescence tubes: Quicktronic QT 2x55/230, Osram
7
camera: manufacturer: Allied Vision Technologies; model: AVT-Pike032c; standard resolution of the color-filter
array 640×480 pixel; frame rate at standard resolution: 200 Hz; chosen parameters for the measurements: integration
time = 1ms, brightness = 120, gain=32, white balance = UB464 VR300
2
42
4. Setup and Calibration
Mirror
Camera:
AVT Pike 032c
(f = 90 mm)
15.2 cm off axis
17.3 cm camera to mirror
420.7 cm
Image sector
at the water surface
(22.3cm x 10.4cm)
Fresnel lens (f = 39.1cm, Ø = 45cm)
Threaded rod
Light source
Color coded illumination screen
(30 cm x 30 cm)
20 fluorescent tubes
Radial cooler fan
Figure 4.3.: Setup of the optical components.
optical axis
δ
lens
f
∆x
colored
illumination
screen
Figure 4.4.: Sketch of the telecentric color coded illumination. The ray inclination δ in the space above the
lens is related to the ray deflection ∆x from the origin on the illumination screen tan δ = ∆x
, where f is the
f
focal distance of the lens. The illumination screen is color coded, so that ∆x corresponds to a certain color.
4.3. Registration of the IR-Images and the CISG-Images
a)
43
b)
Figure 4.5.: a) Grid detection for the geometric calibration. The crosses indicate the detected centers of the
circles of the MTF target. Only a subregion of the MTF target image is shown. The real-world grid spacing is
10.0 mm. b) Original image of the MTF target.
the center of gravity for each circle, using the gray values as weights. The world coordinates are
given by a model function. Let the affine transformation between the image coordinates and the
world coordinates be given by



 
x
c cos α −c sin α Tx
x
 −y 
=  c sin α c cos α Ty   y 
.
1
1
0
0
1
world
(4.2)
The only parameter that we are interested in is the scaling factor c, which determines the reproduction scale. The translation parameters Tx , Ty and the angle of rotation α can be arbitrary in
this context. The 2x2 sub matrix
c cos α −c sin α
(4.3)
c·R=
c sin α c cos α
is a rotation matrix with, multiplied by a scaling factor c. The scaling factor can be computed from
the square root of the determinant of the sub matrix
c=
p
det (c · R),
(4.4)
where we have used that det R ≡ 1. The negative sign of the y-coordinate in equation (4.2) is due
to the transition from a left handed image coordinate system to a right handed world coordinate
system.
Results: Using the set of 88 image coordinate pairs from figure 4.5 a) the overdetermined
system of equations was solved for the transformation matrix in a least squares sense. The result
is
 

 
x
0.3491 0.0080
5.9742
x
 y 
=  0.0081 −0.3489 83.4557   y 
.
(4.5)
1 world
0
0
1.0000
1 image
From (4.4) follows a scaling factor of ∆x = ∆y = c = (0.3491 ± 0.0030) mm/pixel which is
in good agreement with the estimate from the magnification factor. For the wavy water surface
we have to consider variations in the distance between the camera and the surface in the order of
±5cm. This leads to fluctuations of ∆x in the order of ±1.2% (where equation (4.1) has been
used). A summary of the quantities that are affected by the geometric calibration is given in
table 4.1.
44
4. Setup and Calibration
reproduction scale
image size
minimal wavenumber
Nyquist wavenumber
Quantity
∆x = ∆y
X = 640 · ∆x
Y = 298 · ∆x
kxmin = 2π
X
kymin = 2π
Y
kxnyq = kynyq = 0.5 ·
π
∆x
Value
(0.3491± 0.0030)
(223.4 ± 1.9)
(104.0 ± 0.9)
(28.12 ± 0.24)
(60.40 ± 0.52)
(4500 ± 38)
Unit
mm/pixel
mm
mm
rad/m
rad/m
rad/m
Table 4.1.: Results of the geometric calibration. Symbols x and y correspond to the along wind and cross
wind direction, respectively. The factor 0.5 in the calculation for the Nyquist wavenumbers stems from the
reduction of the resolution in the color interpolation, see section 6.1.
Figure 4.6.: Schematic drawing showing the overlapping footprints of the CISG camera (yellow) and the IR
camera (green), as well as the scanning range of the infrared laser (red). (by Dr. Uwe Schimpf)
4.3. Registration of the IR-Images and the CISG-Images
During the WiSSCy measurement campaign the wave imaging was combined with the Active
Controlled Flux System (ACFT) that was deployed by Dr. Uwe Schimpf for the measurement
of the local heat flux. The ACFT system is basically consisting of i) a high power CO2 -laser,
ii) a scanning mirror for the laser, and iii) an infrared camera (IR camera). The scanning laser is
depositioning heat within the top 20 µm of the water surface and consequently enforces a local heat
flux. The infrared camera measures the water surface temperature with a temperature resolution
of about 0.020 K.
The CISG camera and the IR camera were (optionally) synchronized and had overlapping image
footprints on the water surface, as shown in the schematic drawing in figure 4.6. The image
footprint of the IR-camera was larger, so that the CISG image was completely enclosed. Both
cameras were separated by a distance of approximately 30 cm in y-direction, i.e. perpendicular
to the mean wind direction. In order to map the thermographic data on the wave images we need
to compute the perspective projection of the IR-images on the CISG images. Image registration
means to use the resulting mapping function, which leads - in our case - to fully synchronized and
co-located image sequences of the wave slope and the Active Thermography.
For the computation of the perspective projection we used images of a checker-board pattern
made of copper and plastic that is visible in the IR images as well as in the color images. This target was fixed at the mean water level for the acquisition of calibration images. In both calibration
4.3. Registration of the IR-Images and the CISG-Images
45
images the grid points of the checker-board pattern were extracted with subpixel accuracy, using
the geometric camera calibration toolbox by Jean-Yves Bouguet[21]. Then the grid point coordiR
nates were used as controll points for the Matlab
function cp2tform, yielding the perspective
transformation matrix. Using the transformation matrix we computed the corner coordinates of
the color image in the IR image domain.
Since the CISG camera had to be exchanged during the course of the measurement campaign
we had to perform these steps twice, yielding two sets of corner points
points[0]
points[1]
points[2]
points[3]
=
=
=
=
{238.8748
{106.4029
{109.5777
{241.0080
, 85.0057};
, 89.9214};
, 151.1468};
, 146.3073};
valid before June the 14th 2007, and
points[0]
points[1]
points[2]
points[3]
=
=
=
=
{168.6401
{36.3000
{39.5682
{171.5244
,
,
,
,
77.8098};
83.8252};
145.7987};
138.7481};
valid after June the 14th 2007. Overlays of the two sets of calibration images and the location of
the corner points are shown in figure 4.8. The actual registration of the image sequences was then
R
performed by the Heurisko
build-in operator TransformPerspectiveByPoints. This operator extracts the data from the IR-image within the polygon defined by the corner points and
performs an interpolation onto a regular grid that is the CISG image domain, see figure 4.7. The
registration is not corrected for changes of the mean water level or for distance changes due to
the waves amplitudes. These changes of the object distance are in the order of 1%. This leads
to minor relative shifts of the images, because the perspective transformation assumes a constant
object distance and a planar object. However, the registered image sequences now allow for a
direct visual comparison of the moving wave field and the thermal signature of the infrared laser
on the water surface, see section 7.5. Figure 4.9 shows two examples for the registration results.
These images show impacts of rain drops that as blue dots in the false color temperature overlay.
The images of raindrop impacts are chosen to give an impression of the accuracy of the images
registration, see image caption for details.
Figure
4.7.:
Arrangement
of
the
corner
points
for
R
TransformPerspectiveByPoints, Source: Heurisko
6.0 documentation
the
R
Heurisko
operator
46
4. Setup and Calibration
a)
b)
Figure 4.8.: Location of the CISG image (confined by the corner points, marked by the red stars) within the
IR image domain. a) Overlay of the calibration images from Mai the 14th 2007. b) Overlay of the calibration
images from June the 14th 2007 after the exchange of the CISG camera.
Figure 4.9.: Examples for the registered color overlay of the temperature images on the visualization [89]
of the water surface. The water height is reconstructed from the slope measurement and rendered in a
perspective view, see section 7.5. The colors of the overlay correspond to the temperature, where blue
indicates cold and red means warm areas. In the top image several impacts of cold rain drops on the
water surface are clearly collocated in the temperature overlay and the wave rendering, indicating that the
registering was accurate. In contrast, the rain drops signatures show a slight residual shift in the bottom
example.
4.4. Slope Calibration
47
Lens float
Sinusoidal float
(“frozen wave“)
Spherical bowl
Wavelet float
Slope roboter
Figure 4.10.: CISG images of different calibration targets that have been deployed during the WiSSCy
campaign.
4.4. Slope Calibration
The color in each pixel of the CISG images changes according to the slope of the water surface
that is observed by the pixel. The principal relationship between the color and the slope is given by
the combination of the ray tracing equation (3.7) and the color coding scheme of the illumination
(3.10). However, for the real setup there are several reasons that prohibit the simple use of these
equations for the slope calibration. The main reason is that the color coding scheme cannot be
perfectly realized by a color transparency. Additionally, the ideal ray geometry is hardly met in
reality and we have to consider a misalignment of the optical components (camera, mirror, water
surface at rest, glass window, Fresnel lens, illumination screen). Thus we need to perform slope
calibration measurements in order to determine the functional relationship f between the three
color components c = [r, g, b]T and the two components of the slope s = [sx , sy ]T
f
c ∈ R3 −
→ s ∈ R2 .
(4.6)
Of course, one can not perform a calibration at the free water surface. But using calibration
targets we can force the interface to a known shape. For instance, Klinke [93] used a plexiglass
float that defines a target function with eleven distinct slope values. This target, herein called the
wavelet target, is shown in figure 4.11 a). For the calibration measurement the wavelet target is
floating on the water surface, so that no air is enclosed under the float and no water is on top. The
thickness of the plexiglass causes a minor displacement of the light rays, but does not change the
rays inclination and can therefore be neglected. A similar calibration target, e.g. used by Jähne
and Schultz [86], is the frozen wave, which is a sinusoidal float. The slope of the frozen wave
48
4. Setup and Calibration
a)
b)
air
r
side view
0.00
0.25
-0.50
0.75
-1.00
1.25 -1.25
1.00
-0.75
0.50
-0.25
glass
0.00
water
R
top view
Figure 4.11.: Slope calibration targets. a) Sketch of the wavelet calibration target. The numbers indicate
slope values for the different segments of the plexiglass float. (modified after [93]). b) Sketch of the lens
float. The slope is a function of the position r on the lens, compare (4.7). (modified after [9])
and the wavelet target only changes in one direction. In order to comprise the 2D slope domain
it is therefore necessary to make calibration images with different orientations of the targets. If
the calibration function f is additionally dependent on the pixel position, then the calibration
measurement and its evaluation become quite complex. The example images for the frozen wave
and the wavelet target in figure 4.10 exemplify how the calibration images vary according to the
orientation and position.
To overcome the difficulties arising from the orientation dependency, Balschbach [9] and later
Fuß [50] used another type of calibration target which we call a lens float. This target consists of
planoconvex lenses that are embedded into the bottom of a float as shown in figure 4.11 b). The
lenses have the shape of a spherical segment with known radius R, so that the lens slope sL can be
computed as a function of the distance r = [∆x, ∆y]T from the lenses centers
sL =
−r
p
R2
− |r|2
.
(4.7)
The index of refraction of the lens material is different from that of water. In order to translate
lens surface slope (4.7) into water surface slope, also the second refraction at the flat lens bottom
needs to be taken into account [9, 50, 76].
The lenses produce a continuous target function for both slope components. Therefore a single
calibration image already delivers the information for the 2D slope domain and can be used to
determine the calibration function f . This relies on the assumption that f can be considered as
constant over the lens, i.e. the position dependency is weak within the spatial extend of one lens,
which is true if a telecentric illumination is implemented. The position dependency can be checked
by comparing the calibration for the lenses at the different positions in the image. Consequently,
the employment of the lens float yields a considerable improvement of the calibration routine,
compared to the frozen wave and the wavelet target. But still the calibration measurements with
lens floats show some difficulties. First of all, it is not always possible to guarantee that the
water body is completely at rest and that the float is perfectly balanced. Secondly, the use of
equation (4.7) implies that the lens center can be accurately detected, which is not always true. For
these reasons it is hard to automatize the evaluation of the calibration images. Example images
made with different calibration targets acquired during the WiSSCy campaign are shown in figure
4.10. A systematic investigation of the calibration function with respect to height order position
dependencies turns out to be very involved when using the floating targets (e.g. [50]).
This was the motivation to revive a method that was used for the calibration of a laser slope
gauge (LSG) in the 70’s and 80’s. This method is based on mechanically adjustable slope of a
4.4. Slope Calibration
49
z
x
spindle
y
φ
gaiter
glass window
water body
Figure 4.12.: LSG calibration apparatus
glass window rather than on a floating target. Figure 4.12 shows the apparatus that was build for
the calibration of an LSG. Basically it consists of a glass window that is put in the water while a
gaiter8 prevents that water floods the glass from above. The inclination of the glass window can be
adjusted by a spindle. Additionally, it was possible to alter the orientation of the apparatus so that
the decomposition of the total inclination into the two slope components could be freely chosen.
Thus the evaluation of the calibration data gathered by such a method is less susceptible to errors
due to the determination of the target slope.
For the CISG calibration the window size of the apparatus in figure 4.12 was to small. Thus
we build a bigger apparatus with an open aperture of 15 cm, see figure 4.13. We will refer to
this slope calibration apparatus as the slope robot. The inclination of the glass window of the
slope robot is dictated by the supporting points of three spindles that are driven by step motors.
The vertical displacement of the spindles can be controlled via a computer interface and with an
accuracy better than ±0.1 mm. This gives an estimate of the maximum absolute error of the slope
of the glass window that is ∆smax = 0.0013, where the trihedral geometry of the spindles has
been incorporated. Apart from the slope it is also possible to adjust the mean height to investigate
the height dependency without the need to change the mean water level. The glass window is
surrounded by a baby swimming pool that serves as a gaiter and displaces the water, see figure 4.14.
The contact between the spindles and the glass window is enforced by the buoyancy of the pool and
some counter weights. For the WiSSCy slope calibration measurements a rubber band was fixing
the position of one of the spindles, since fixation with a bearing was not possible. In principal
the slope calibration was performed by a computer script that was commanding the settings of the
slope robot and acquiring an image with the CISG camera for each slope configuration. The slope
limit from the geometry of the slope robot is |s| < 1. In practice it was necessary to manually
control that the contact between the spindles and the glass window was always established and
that the spindles did not stagnate because of too high forces and torsional moments. The actual
slope limitation due to these issues was |s| < 0.56. The occurrence of stagnation could be detected
by the sound of the step motors and by controlling the zero point at the end of the measurement.
The slope zero point was controlled by a surveyor’s level at the beginning and at the end of each
calibration measurement.
The benefit of the usage of the slope robot is an ideal data set for calibration, i.e. a set for the
slope vector si and a corresponding color image sequence ci .
4.4.1. Measurements
During the course of the WiSSCy campaign the slope robot was set up several times to perform
calibration measurements. The distinct dates and conditions are listed in table 4.4.1. Additionally,
for each experiment, calibration images have been acquired, using the different kinds of floating
targets that are shown in figure 4.10. With these measurements the quality of the calibration could
8
german: Faltenbalg
50
4. Setup and Calibration
Figure 4.13.: The slope robot. a) The robot is mounted on a frame in the water filled wind wave flume. The
swimming pool displaces the water from the top of the glass window. The inclination of the glass window is
adjusted by three spindles. b) Sketch of the basic mechanical components of the apparatus.
Figure 4.14.: Sideview of the slope robot in operation.
be monitored.
For the main calibration measurements (Run013 and Run157) the trajectory of the slope robot
was programmed to be like a spiral on a regular grid, as shown in figure 4.15. The regular grid
was chosen because this is very convenient for the evaluation of the calibration. With the spiral
trajectory the traverse path of the spindles is reduced considerably, compared to a regular scanning
of the slope domain. The spiral started at the origin of the sx –sy plane. The robot returned to the
initial position after the outermost coordinate was reached. This is used for a quality control as
explained in the preceding section.
In the main calibration measurements the mean water height (at the center of the open aperture)
was kept constant. For the measurements Run384 through Run387 the height was also varied. The
slope is varied along a line in the sx –sy plane. The orientation of the line was chosen to be 0, π4 , π2
and 3π
2 for the four consecutive measurements. For each slope configuration the height was varied
in seven steps from −30 mm to 30 mm around the mean water level.
4.4. Slope Calibration
Run
009
010
011
012
013
014
104
105
106
156
157
384
385
386
387
388
Date
Time
Slope-Range
07.05.07
07.05.07
07.05.07
08.05.07
08.05.07
08.05.07
13.06.07
13.06.07
13.06.07
18.06.07
18.06.07
03.07.07
03.07.07
03.07.07
03.07.07
03.07.07
17:58:26
18:19:27
18:25:43
11:36:33
12:21:24
17:31:33
18:25:00
18:52:00
19:27:00
09:17:05
09:37:52
09:26:12
10:09:36
10:48:54
11:23:04
11:50:20
0.05
0.05
0.4
0.4
0.4
0.5
0.1
0.1
0.4
0.5
0.4
0.4
0.4
0.4
0.4
0.3
51
Grid
sx ,sy ,h
3,3,1
3,3,1
7,7,1
3,3,1
15,15,1
7,7,1
7,7,1
7,7,1
7,7,1
7,7,1
11,11,1
17,1,7
17,1,7
17,1,7
17,1,7
7,7,1
Number of Images
14
14
58
14
242
58
58
58
58
58
133
121
121
121
121
58
Table 4.2.: Calibration measurements with the slope robot. For the measurements Run009 through Run157
and Run388 the slope components are set to values on a regular grid, while the mean height is kept constant.
For Run384 through Run387 the slope components are chosen to lie on a line with certain orientation and
for each slope setting the mean height is varied in seven steps.
0.5
0.4
0.3
0.2
sy
0.1
0
−0.1
−0.2
−0.3
−0.4
−0.5
−0.5
−0.4
−0.3
−0.2
−0.1
0
sx
0.1
0.2
0.3
0.4
0.5
Figure 4.15.: Trajectory of the slope configuration of the robot for Run013.
4.4.2. Color Processing
The slope calibration is based on the images after some color processing steps. At first, the raw
images are converted into color images via demosaicing, see section 6.1 and 2.5.3. As a second
step the color channels are corrected for intensity fluctuations by normalization. The third step
is a pixelwise correction for a constant offset. Let C denote the multi-channel images after the
demosaicing9


Ri,j
Ci,j ≡  Gi,j  ,
(4.8)
Bi,j
where i, j are the pixel indices for the y and x direction respectively. As for the color coding
scheme (3.11) we define the pixelwise intensity Ii,j as the mean value of the three colors
Ii,j ≡
9
Ri,j + Gi,j + Bi,j
.
3
Here, the MTF correction is dispensable since a flat plane is being imaged.
(4.9)
52
4. Setup and Calibration
R
B
G
200
200
140
150
150
120
100
100
100
50
0.4
50
0.4
80
0.4
0.2
0.2
0.2
sy
0
sy
−0.2
0
sy 0
−0.2
−0.4
0
−0.5
0.5
−0.4
−0.2
0
−0.5
sx
0.5
−0.4
sx
r
g
b
0.5
0.5
0
0
0
−0.5
0.4
−0.5
0.4
−0.5
0.4
0.2
0.2
0.2
sy 0
sy
−0.2
0
sy
−0.2
−0.5
0
0.5
sx
−0.4
0.5
sx
0.5
−0.4
0
−0.5
0
−0.2
−0.5
0
sx
0.5
−0.4
−0.5
0
0.5
sx
Figure 4.16.: Variation of the color components R, G, B with the slope sx , sy . Dataset: Run013. Top
row: The colors have not yet been offset corrected or normalized. Bottom row: color channels after offset
correction and intensity normalization showing much better linearity.
For convenience we skip the pixel indices i, j in the following and note that all operations are point
operations if not mentioned explicitly elsewise. Now let Co denote the offset image and let Io be
the corresponding intensity image. The resulting multi-channel image c after the color processing
can then be formally written as
 
r
 g  ≡ c ≡ C − Co ,
(4.10)
I
Io
b
compare Balschbach [9] and Fuß [50]. The effectiveness of the color preprocessing is evident from
figure 4.16. This figure shows how the color components vary with the slope for the calibration
Run013. The color components before the preprocessing steps are displayed in the top row. From
the color coding design we would expect a linear relationship if the intensity and the offset were
independent from the slope. One can see obvious deviations from this linearity, which is mainly
due to variation in I. The bottom row shows the same data after the preprocessing according to
(4.10). The nonlinearities are almost perfectly compensated for.
4.4.3. Parameter Estimation
The robot calibration data sets are used to estimate the parameters that allow to compute the slope
components by a polynomial function of the colors. The linear behavior that is demonstrated in
4.4. Slope Calibration
53
0.5
0.4
0.3
0.2
sy
0.1
robot
fit O(1)
0
−0.1
−0.2
−0.3
−0.4
−0.5
−0.5
0
sx
0.5
Figure 4.17.: Results for the robot slope calibration Run013. Fit-model: linear. Fit parameters are based on
the same run.
0.5
0.4
0.3
0.2
sy
0.1
robot
fit O(3)
0
−0.1
−0.2
−0.3
−0.4
−0.5
−0.5
0
sx
0.5
Figure 4.18.: Results for the robot slope calibration Run013. Fit-model: cubic. Fit parameters are based on
the same run.
residual sx
fit O(3), Run013
0.01
0
−0.01
residual sy
−0.5
−0.4
−0.3
−0.2
−0.1
0
sx
0.1
0.2
0.3
0.4
0.5
−0.4
−0.3
−0.2
−0.1
0
sy
0.1
0.2
0.3
0.4
0.5
0.01
0
−0.01
−0.5
Figure 4.19.: Residuals of the higher order model fit for Run013.
54
4. Setup and Calibration
figure 4.16 (bottom row) suggests a pure linear combination
s = Q c,
(4.11)
where Q is the 2×3 parameter matrix. Indeed all former practical calibrations for the imaging
slope gauges were somehow restricted to such a linear model (e.g. [9, 50, 93, 141]), except for the
early works by Zhang and Cox [181] who used different color coding schemes.
Linear Model:
We want to compute the parameter matrix Q in (4.11) from the calibration measurements. At first
we determine the pseudo inverse of the transpose of this matrix in the least squares sense. For this
we can follow the formalism for solving an overdetermined discrete inverse problem as described
in Jähne [77]. The robot slope settings sx and sy define the model matrix


sx1 sy1

 sx
 2 sy2 
,
(4.12)
S≡ .
.
.. 

 ..
s xN
syN
where N is the number of data points in the calibration set which is given by the number of steps
of the calibration multiplied by the number of pixels that are taken for the evaluation. The data
matrix is given by the slope–corresponding color values after the color preprocessing


r1 g1 b1
 r2 g2 b2 


D≡ .
(4.13)
.
..
 ..

.
rN
gN
bN
The linear equation system can then be written as
SP = D,
(4.14)
where P is a 2×3 parameter matrix which is the pseudo inverse of QT . We can solve the system
of equations for P by multiplying the equation by the Moore-Penrose pseudo inverse S−1 [95].
In Jähne [77] it is explicitly shown that this procedure yields an estimate for the parameter matrix
that minimizes the norm of the residual in the least squares sense
||er ||22 = ||D − Spr ||22 → minimum
||eg ||22 = ||D − Spg ||22 → minimum
||eb ||22 = ||D − Spb ||22 → minimum.
(4.15)
The vectors pr , pg and pb are the columns of the matrix P. As a second step the matrix QT
is determined by computing the pseudo inverse of P, based on a singular value decomposition10 .
Then we can rewrite the problem as ST = Q DT , corresponding to (4.11). As error measures we
compute the residual of the slope components ||esx ||22 and ||esy ||22 , which finally gives the unbiased
variance between the ground truth and the measured slopes from
1
||esx ||22
N −f
1
σy2 =
||esy ||22 ,
N −f
σx2 =
10
R
For this, the Matlab
function pinv was used.
(4.16)
4.4. Slope Calibration
55
where N − f is the number of degrees of freedom (here f = 3) [77]. The resulting parameter
T
matrices Q = P−1 and error measures for different calibration measurements are listed in
table 4.3. The quality of the fit can be assessed visually with sx –sy scatter diagrams as in figure
4.17. The diagram shows the result for the linear fit (blue circles) for Run013 along with the
target slope values (red crosses) of the slope robot. We can see that the linear model fits well
only for |s| < 0.2. Deviations are obvious for higher slope values, especially in the first and third
quadrant of the slope coordinate system. A better slope calibration is achieved using a higher order
polynomial model, which is described in the following.
Higher order model:
The deviations from linearity that are visible in figure 4.17 can be effectively compensated using a
higher order polynomial model for the fit. Extensive tests on the calibration data revealed that the
simplest model which has a good performance is of the form
s=Q
r g b r2 g 2 b2 r3 g 3 b3
T
,
(4.17)
where Q is a 2×9 calibration parameter matrix. Let D be the extended N×9 data matrix defined
by


r1 g1 b1 r12 g12 b21 r13 g13 b31
 r2 g2 b2 r2 g 2 b2 r3 g 3 b3 
2
2
2
2
2
2 

(4.18)
D≡ .
..
..
..
..
..
..
..
..  ,
 ..
.
.
.
.
.
.
.
. 
2
2
3
3
rN gN bN rN
gN
b2N rN
gN
b3N
then we can again write (4.17) as the matrix equation
ST = Q DT ,
(4.19)
where S, defined in (4.12), holds the robot slope values as for the linear model.
The method of matrix inversion that we used for the linear model fails if we try to solve for
R
the parameter matrix Q by extending the data matrix D. Instead we use the Matlab
nonlinear
optimization function lsqnonlin in order to minimize the cost function
E(Q) =
N
X
i=1
N
X
si − Q (Di )T 2 ,
|ei (Q)| =
2
(4.20)
i=1
where E contains the two components for the L2 norm of the residuals, and i is the index of
the calibration data points. The resulting parameter matrices Q and error measures for different
calibration measurements are listed in table 4.3.
Applying this higher order model to the data of Run013 reduces the variances σx2 and σy2 by a
factor of 6.4 and 26.9, respectively, in comparison to the linear model results. This is also apparent
from figure 4.18 which shows the result for the same data as in figure 4.17. With the calibration
based on equation (4.17) the target slope values are within the error bounds due to noise. The fit
residuals are displayed in figure 4.19, showing that the deviations are within a ±0.01 range for
slopes within a range of ±0.4 for both slope components. Concerning the slope magnitude11 the
deviation is consequently less than 2% for |s| = 0.56.
11
|s| =
p
s2x + s2y
56
4. Setup and Calibration
0.5
0.5
0.4
0.4
0.3
0.3
0.2
0.2
0.1
robot
fit O(1)
0
−0.1
sy
sy
0.1
−0.1
−0.2
−0.2
−0.3
−0.3
−0.4
−0.4
−0.5
−0.5
robot
fit O(3)
0
0
sx
0.5
−0.5
−0.5
0
sx
0.5
Figure 4.20.: Results for the robot slope calibration Run106. Fit coefficients are based on Run013. Left:
linear calibration. Right: cubic calibration.
sx
sy
1
0
−1
1
0
−1
Figure 4.21.: The geometrically expected slope of the spherical bowl (top row) and the calibration result
(bottom row) for the nonlinear calibration. (Data: Run144. Calibration parameters: Run157).
Extrapolation: The robot calibration data cover a slope range of at most |s| ≤ 0.7. See for
instance figure 4.22. As pointed out in Jähne et al. [85] about 30% of the slopes of the wind
wave field are found within the range between 0.4 and 1.0 for a high windspeed of 14 m/s, and
only 0.44% of the slope values are higher than 1 for that wind condition. This estimate is based
on measurements of the slope distribution performed with a laser slope gauge in the Marseille
wind/wave flume [87]. Hence, we have to check how the calibration model performs for higher
slopes. Especially overshooting must be prevented to avoid artifacts in the wave spectra, e.g.
spectral leakage due to discontinuities. The extrapolation can be checked by an evaluation of the
slope targets. Here we show the result for the sequences taken with the spherical bowl slope target.
Images of this target are shown in the third row of figure 4.10. The bowl is made of thin transparent
plastic and has a radius of R = (10.15±0.15)cm. The deepest point of the free floating sphere was
marked simply by a little rolling marble. The position of the marble defines the coordinate system
of the bowl (r = s = 0). From the reproduction scale and the sphere radius we get the slope for
each pixel by using equation (4.7). For the bowl we do not need to consider a second refraction as
for the lens float. The range of target slopes that are given by the spherical bowl images is about
±1. With this we can qualitatively evaluate the extrapolation of the calibration for higher slopes.
To exemplify this, in the top row of Figure 4.21 the geometrically expected slope components are
displayed. The result of the calibration is shown in the bottom row for comparison. As we can
see, the calibration performs well. A closer look at the data reveals that extrapolated slope values
tend to be slightly underestimated within −8%. This is a very satisfactory result with respect to
the high absolute slope range.
4.4. Slope Calibration
57
0.6
0.4
sy
0.2
robot
fit O(3)
0
−0.2
−0.4
−0.4
−0.2
0
sx
0.2
0.4
0.6
Figure 4.22.: Results for the cubic robot slope calibration Run156. Fit coefficients are based on Run157.
Inter–Variability: The variability of the calibration can be checked by an inter-comparison
of the calibration result for the different measurements. Figure 4.20 exemplifies the accuracy
of the slope computation for Run106, using the calibration parameters from Run013 which was
performed more than one month earlier, see table 4.4.1. The comparison with figure 4.18 demonstrates the good repeatability of the calibration. No significant inter–variability is found. However,
because of the camera exchange, the calibration parameters are different for the measurements
Run001–Run107 and Run108–Run447. An example for the calibration result after the camera
exchange is shown in figure 4.22 for the sake of completeness.
Position–Dependency: The parameter estimation already makes implicit use of the assumption that the calibration does not depend on the pixel position, because spatially averaged color
values have been used for the entries in the data matrix. The color averages have been taken over
the whole open aperture (diameter 15 cm) in the images of the slope robot. This is justified by the
fact that the scatter12 in the color values after the color processing steps is reasonable low, see for
instance figure 4.23 where the standard error of the averaged color components is displayed. In
addition to this, the position dependency has been checked qualitatively with the sequences of the
lens float. In summary we can state that the calibration shows no significant position dependency,
except for some systematic deviations at the windward boarder of the image. These deviations are
attributed to reflections between the Fresnel lens and the glass window that cannot be corrected
for.
Height–Dependency: In section 3.1.2 we have seen, that the ideal ray trace does not depend
on the height of the water column. This is because the height influence is compensated by an
implementation of the telecentric illumination. Anyhow, as pointed out by Fuß [50], the compensation is not always perfect, mainly because of aberration effects of the fresnel lens. For the
WiSSCy campaign the wave amplitudes are small compared to measurements at the Heidelberg
Aeolotron13 . In our case, even for the highest wind speeds, the maximal wave amplitudes are well
within ±7% of the mean water level. We can check the influence of height variations based on
the evaluation of the measurements Run384–Run386. For these runs the mean water height was
varied additionally in a manner that was already described in section 4.4.1. From figure 4.24 it is
apparent that we have no height dependency of the slope calibration. For each slope configura12
Note that any color variations, and thus variations in the calibrated slope, are due to position and height effects at the
same time.
13
The Hamburg facility is a linear flume with limited fetch whereas the Aeolotron is a circular facility with infinite
fetch with much higher wave amplitudes for a given wind speed.
58
4. Setup and Calibration
-4
1.4
x 10
red
green
blue
standard error of the mean
1.2
1
0.8
0.6
0.4
0.2
0
-0.4
-0.2
0
0.2
color mean value
0.4
0.6
Figure 4.23.: Standard error of the color averages. (Data: Run013)
0.3
0.3
0.2
0.2
0.1
0.1
sy fit
sx fit
Test calibration for height dependency, Run386
0
0
-0.1
-0.1
-0.2
-0.2
-0.3
-0.3
-0.2
0
sx robot
0.2
-0.2
0
sy robot
0.2
Figure 4.24.: Check for height dependency of the calibration. The mean height was varied in seven steps
over a range of ±35 mm for each robot slope setting (data: Run386). For each robot slope setting the seven
corresponding slope values after the calibration almost collapse on single points. Thus, there appears no
effect on the slope calibration due to the height variation.
tion the seven datapoints taken at different heights are reproducing calibrated slope values without
significant deviations.
4.4.4. Summary
We have shown that the calibration of the CISG is improved by a nonlinear model that is used to
fit the slope-color relationship. The absolute errors for small slopes (|s| < 0.4) are smaller than
±0.01, which is about the level of accuracy that can be achieved with respect to noise and the 8bit
gray value discretization. For high slopes (|s| ∼ 1) the uncertainties are in the range of -10%,
which is actually quite good in comparison with former studies. The recent implementation of the
CISG shows no significant position dependency for the calibration. However, some symstematic
errors can be observed at the windward boarder of the image. These errors are due to reflections
between the fresnel lens and the glas window and therefore can not be corrected. No height
dependency is observed within the range of the wave amplitudes. This comprehensive study of the
calibration has become possible by the deployment of the slope robot. For future studies the robot
needs to be improved such that the calibration measurement can indeed be performed without
manual assistance.
Run157
Run013
σx2
σy2
Q
σx2
σy2
Q
cubic
0.6659 0.3867 −1.1457 −0.0405 −0.2964 0.3996 0.3692 0.1483 −1.2396
0.4367 −0.8395 0.3946 −0.3129 −0.0133 −0.1340 0.4715 −1.0230 0.7609
4.6121e-004
2.5757e-004
0.6491 0.4295 −1.1948 −0.0243 −0.3177 0.4341 0.3179 −0.0234 −0.7739
0.4652 −0.8735 0.3920 −0.3414 −0.0935 −0.1932 0.4708 −0.7824 0.6105
8.5975e-004
4.8839e-004
Table 4.3.: Slope calibration parameters for the first and the second part (after camera exchange) of the WiSSCy campaign.
linear
0.6647 0.3774 −1.2104
0.4511 −0.9069 0.4033]
2.9560e-003
6.9264e-003
0.6387 0.4064 −1.2488
0.0615 −1.3341 −0.0193
2.3997e-003
9.0114e-003
4.4. Slope Calibration
59
60
4. Setup and Calibration
Figure 4.25.: This example shows a section of the acquired a posteriori image of the MTF target along with
the result of an automatic feature detection, drawn as red and green overlays. The green overlays indicate
unit cells of the stencil pattern. Each unit cell consist of 9 circular holes. In this particular image section
only two unit cells are complete and could be used for an MTF measurement. The red overlays indicate the
segementation of individual holes in the stencil of which only the biggest have to be identified correctly to
estimate the reproductions scale and the rotation of the grid.
a)
b)
Figure 4.26.: a) Model based construction of the a priori unit cell with respect to the reproduction scale and
the rotation of the grid. The a priori unit cell is constructed with seven times higher resolution compared to
the original image resolution. b) One of the a posteriori unit cells in figure 4.25. The red line connects the
biggest circle with the second biggest circle and allows for a determination of the grid rotation angle with
respect to the model.
4.5. Measurement of the Modulation Transfer Function
The inverse filtering for the contrast correction was introduced in section 2.5.2. In order to perform
the deconvolution we need to know the Modulation Transfer Function (MTF) for the CISG. Here
we describe the measurement of the MTF based on the a posteriori image g 0 (x) of the MTF target
and a model based construction of the a priori image g(x). According to equation (2.88) we get
the MTF from the fraction of the magnitude of the a posteriori image spectrum gˆ0 (k) compared to
the magnitude of the a priori image spectrum ĝ(k)
MTF =
|gˆ0 (k)|
,
|ĝ(k)|
(4.21)
see section 2.5.2. In our case (of a digital one chip CCD camera) the overall contrast damping is
due to several reasons of different nature
• the physical limitations of the optics, such as aberration, finite depth of field, and the diffraction limit,
4.5. Measurement of the Modulation Transfer Function
a)
61
b)
Figure 4.27.: a) Difference image between the a priori unit cell and the a posteriori unit cell from figure
4.26. The green line indicates the location for the line profile that is shown in b).
• the spatial discretization on the sensor,
• the digital post processing steps, such as demosaicing,
• and motion blur.
The MTF measurement covers only effects that are compatible with the assumption of linear shift
invariance and therefore the MTF does not account for motion blur in this particular case.
Acquisition of the a posteriori image: For the measurement a target was used, that was
specially designed so that it was possible to perform the acquisition of the a posteriori images
directly in the experimental setup of the CISG (section 4.1). The MTF target is a thin metal stencil
with circular holes of different diameters on a regular grid, shown in figure 4.5 b). The a posteriori
image is taken with a homogeneous background illumination. For this the target was lying on a
diffusing screen in a plexiglass float that was floating on the water surface. The float is horizontally
balanced by the water surface and illuminated by the CISG illumination from below. The diffusion
screen was used to eliminate structures in the background, such as scratches in the float material.
The a posteriori image is processed by the same demosaicing steps as described in section 6.1.
Since the interpolation of the three color channels is performed with different filter kernels we
need to investigate the MTF of each channel separately. In the following paragraphs the name a
posteriori image stands for one of the color channels or for an average image.
Segmentation of the a posteriori unit cells: A section of the a posteriori image is shown
in figure 4.25 along with the result of an automatic feature detection, drawn as red and green overlays. The green overlays indicate unit cells of the stencil pattern. Each unit cell consist of 9 circular holes. The red overlays indicate individual holes in the stencil, arranged on a 10.0 mm±10 µm
grid. For the algorithm it is only important to find the biggest hole C1 in the center and the second
biggest hole C2 at one corner of each unit cell. Once the unit cells in the image were detected,
a stack of sections of these unit cells was build. The sections are taken as squares and all values
outside the circumference of the green circle were set to the background gray value. This was done
in order to exclude information from the neighboring unit cells. Each section of the unit cell was
normalized to the maximum intensity within the section. After that, bad cells that contain only
parts of a unit cell had to be removed from the stack. For the example in figure 4.25 only two
unit cells are complete and could have been used for the following steps. In contrast, the results
of the MTF measurements that are shown later are based on stacks that are containing at least 14
unit cells. Using the line that connects the centers of the holes C1 and C2 the rotation angle α and
reproduction scale β of the unit cells were measured with subpixel accuracy. Since the MTF target
62
4. Setup and Calibration
is a rigid body and the image distortion was very low an average of the values for α and β over
the ensemble of unit cells was taken. In order to reduce noise, an averaging over the stack of unit
cells was performed, yielding the a posteriori unit cell that we will from now on denote by g 0 (x)
(instead of the a posteriori image).
Model based construction of the a priori unit cell: The corresponding a priori unit cell
g(x) was then constructed, using the parameters α and β along with a model for the unit cell14 .
This was done with a seven times higher resolution, compared to the a posteriori image. Due to
the higher resolution it was possible to model sharp edges and restrict the resulting discretization
artefacts in the spectra to wavenumbers that are beyond the wavenumber range of the original
image. Thus, the a priori unit cell can be regarded as quasi continuous with regard to the resolution
of the a posteriori unit cell. Then also the a posteriori unit cell was sampled up by a factor of
seven, using constant replication of the gray values and thus keeping the spectral information the
same. The a priori unit cell and the a posteriori unit cell are shown in figure 4.26 for a direct
comparison. The difference of both images is shown in figure 4.27, along with a line profile
that gives an impression of the strength of the smoothing at the edges and the noise level. The
smoothing of the edges results from the contrast damping that we want to comprise.
Retrieval of the MTF: Once we have g(x) and g 0 (x) at the same resolution we get ĝ(k) and
gˆ0 (k) from a 2D Fourier transform of each of them. The diameters of the nine circles in the unit
cell were chosen such that the a priori spectrum ĝ(k) (which is an superposition of several Bessel
functions) is non-zero everywhere. Thus we can retrieve the MTF using (4.21) for the whole k
plane. Because of the up sampling of g(x) and g 0 (x) during the construction of the a priori unit
cell we are only interested in the part of the spectrum that covers the original wavenumber range.
This part is extracted to yield the intrinsic MTF.
Results for the different color channels: The result for the MTF of the three individual color channels (R,G,B) and for the average gray image (R+G+B)/3 is shown in figure 4.28.
Because of the fact that the PSF and thus the MTF show nearly a perfect polar symmetry it is
convenient to transform the spectrum from the Cartesian coordinate system to a polar coordinate
system. The MTF shows a decrease to about 60% for a wavenumber of 2000 rad/m, which is about
the edge of the interesting range in the wave spectra. This implies that the power spectral density
for |k| = 2000 rad/m is reduced to 36%, which illustrates the importance of the MTF correction.
In the polar representation we can easily see that the demosaicing filters introduce some minor
deviations from the polar symmetry, but only for wavenumbers higher than 3000 rad/m. Since a
deviation from the polar symmetry for lower wavenumbers is not observed we average over all
polar angles to get omnidirectional representations of the MTFs which are plottet in figure 4.29.
The errorbars represent the standard error with respect to the average over the angles. In this unidirectional representation we observe, that the contrast damping for the blue channel is stronger
than for the red and green channel. This is no effect of the demosaicing filters, because the filters
for red and blue are the same, except for the orientation. Apparently the lens focusing is a little
better for red light than for the blue light. We chose the MTF curve for the gray image to represent
the overall MTF for the correction of the spectra, minimizing the differences in the three color
channels. The black line in figure 4.29 shows a 4th degree polynomial fitted to the MTF curve for
the gray image. This polynomial allows to compute the MTF for an arbitrary representation of the
wave spectra.
14
The rotation has to be accounted for because also the gaps between the holes in the stencil carry spectral information
and no simplification based on symmetry can be applied at this point.
4.5. Measurement of the Modulation Transfer Function
63
Figure 4.28.: Modulation Transfer Function after the demosaicing step. Top left: for the average image of
the three color channels. Top right: red channel. Bottom left: green channel. Bottom right: blue channel.
The MTF drops to about 60% for wavenumbers around 2000 rad/m. For the three color channels one can
see slight deviations to the average MTF under certain orientations only for wavenumbers greater than 3000
rad/m.
1.4
4
3
2
1.2 MTF = - 0.008875*z + 0.03732*z + 0.01899*z - 0.3577*z + 0.5879
where z = (k - 2050)/1214
1
blue channel
red channel
green channel
gray channel
4th degree
MTF
0.8
0.6
0.4
0.2
0
0
500
1000
1500
2000 2500
k [rad/m]
3000
3500
4000
Figure 4.29.: Unidirectional MTF. Discussion see text.
4500
5. Experiments
The measurements that are presented in this study have been conducted as part of the project
Impact of Wind, Rain, and Surface Slicks on Air-Sea CO2 Transfer Velocity - Tank Experiments,
which for convenience will be referred to as the WiSSCy-Project. The project is a collaboration of
the research group of Prof. Dr. Detlef Stammer, University of Hamburg, and the research group of
Prof. Dr. Bernd Jähne, University Heidelberg. The funding was provided by the German Research
Foundation (DFG) under the contracts JA-395/13 and and STA-410/5-2.
Several aspects of air-sea interaction have been addressed with the experiments, especially the
influence of wind, rain, and surface slicks as already apparent from the project title. The main focus of the project was the measurements of the gas transfer velocity aiming for a parameterization
that is comprising a wide range of experimental conditions. In this context a statistical description
of the properties of the wave field is desired, which has been compassed by means of the wave
imaging technique that is described in section 3.1. In addition to the parameterization of transfer
rates, we aim on a better understanding of the intermittent processes that controll the air-water
exchange of gases and heat. For this we deployed infrared imagery1 in combination with the wave
imaging2 , both instruments being synchronized at a high frame rate (312.5 Hz) and observing the
same patch of the water surface. The infrared imagery is used to measure the local heat transfer,
which can now be observed in direct reference to the waves.
The experiments have been carried out using the linear wind-wave tank of the University of
Hamburg, see section 4.1. The facility was upgraded with an air circulation and an improved rain
tower. The air circulation now allows for invasion experiments, in addition to evasion experiments, so that it can be investigated if rain-induced gas transfer is symmetrical or asymmetrical.
The rain section covered about 10% of the total water surface and the rain drops reached about
90% of their terminal velocity. The upgrade of the wind wave tank has been carried out by the
Hamburg research team3 , who was also responsible for the measurements and simulations of the
flow characteristics of the wind wave tank.
Bulk transfer rates for CO2 have been measured using water samples that were taken at different
positions along the tank and at different heights in the water column several times over the course
for each experiment4 . Further gas transfer measurements for the tracers H2 , He, CH4 , F12, N2 O,
and volatile aromatic hydrocarbons have been made5 using IR spectroscopy, UV spectroscopy, and
gas chromatography. These measurements also allow for the estimation of the Schmidt-Number
exponent and the rate of gas leakage.
The campaign was conducted in the period from the 9th of May to the 4th of July 2007. Table
5.1 shows the experimental conditions that were covered, with 3 to 24 hours of measurement per
condition.
Wave Measurements: The acquisition of the wave image sequences was operated in two different modes. In the first mode, referred to as the statistic measurements, the time interval between
1
infrared imagery: Dr. Uwe Schimpf
wave imaging: Roland Rocholz
3
Facility upgrade & flow characterization: Dr. M. Gade, A.-K. Anweiler, P. Rosendahl and Dr. P. Lange
4
CO2 measurement: A.-K. Anweiler
5
Multi-tracer measurement: Kerstin Richter
2
66
5. Experiments
wind speed [m/s]
2
3
4
5
6
8
10
12
14
date
11 May 14 May 09 May 18 June
15 May
10 May
29 June 21 June 18 June
condition
clean
clean
clean
clean
clean
clean
clean
clean clean
date
29 June 14 June
condition
clean
clean
date
16 June
15 June
20 June
26 June
29 June
condition
rain (3/3)
rain (6/3)
rain (3/3)
rain (3/3) rain (3/3)
date
04 July
02 July
03 July
condition
mech. Wave
OLA rain (3/3) OLA rain (3/3)
rain & wave
date
19 June
27 June
28 June
condition
OLA
PME rain (3/3) PME rain (3/3)
Table 5.1.: Experimental conditions. To give one example how to read the items, "PME rain (3/3)" indicates:
3 hours of measurement with surface slick PME but without rain, followed by 3 hours of measurement with
rain and surface slick PME.
two consecutive images was about 2 times larger than the longest period of the waves. Therefore
the set of 5000 images per sequence can be assumed to be statistically independent. These image
sequences are used for the computation of the long time wave field statistics, i.e. mean square slope
(sections 6.6 and 7.4.1). In the second mode, referred to as the continuous measurements, the maximum frame rate with an inter frame interval of 0.0032 s was chosen. Moreover, for a set of 150
sequences in the continuous mode the wave imaging camera was synchronized with the infrared
camera. The continuous measurements are the basis for the computation of the wavenumberfrequency spectra (used in section 7.2 through 7.4.2) and for the combined visualization of the
water waves and temperature fields (section 7.5). A comprehensive table6 for the WiSSCy wave
measurements is included in the technical report [143].
Wind Profile Measurements: For a conclusive presentation of the results the knowledge of
the friction velocity is desired. The friction velocity is usually extracted from measurements of
the wind profiles. For a linear wind wave flume the shape of the wind profile varies with fetch
due to a growth of the boundary layer thickness at the flume ceiling and at the same time because
of the fetch dependent roughness height of the wave field, see figure 5.1. The concepts have
been introduced in section 2.4.1. For the Hamburg wind wave flume the situations is even more
complicated because of the influence of the rain tower which is a huge cavity in the ceiling at a
fetch between 12.6 m and 14.8 m. In addition, for the conditions with surface slicks or rain the
u∗ -uref relationship is no longer unique.
The measurements of the wind profiles, exemplified in figure 5.3, have been conducted7 one
year after the actual WiSSCy campaign using a windmill anemometer [7]. The delayed measurement is justified for the pure wind conditions, which are reproducible. For the other conditions,
we can only make estimates of the influences. Unfortunately, the u∗ measurements have been
accomplished just a few days before the deadline of this thesis. Therefore these values could not
be incorporate into the results from the wave measurements which are always presented in terms
of the reference wind speed uref . The u∗ -uref relationship is presented in figure 5.2 as the basis
for a supplementary analysis. Note that the wind profile measurements could only be performed
closely before and after the rain tower section, so that the data from fetch 17.5 m and 11.5 m needs
to be interpolated for the wave measurement site at a fetch of 14.4 m.
Heat/Gas Transfer Rates: A concluding analysis of the heat transfer and gas transfer measurements is still pending. Preliminary results are available from Richter [140] and Anweiler
[7][6][5].
6
7
447 images sequences have been acquired for the CISG wave and calibration measurements.
wind profile measurements: A.-K. Anweiler
5. Experiments
67
70
uRef = 1.8 m/s
uRef = 5 m/s
uRef = 7 m/s, no rain
uRef = 9 m/s
uRef = 7 m/s, rain
friction velocity (cm s−1)
60
50
40
30
20
10
0
0
2
4
6
8
10
fetch (m)
12
14
16
18
20
Figure 5.1.: Friction u∗ velocity vs. fetch. (from Anweiler [7])
70
2
3
2
3
u* = +2.9386*uRef +0.2897*uRef −0.0085*uRef
u* = +3.5554*uRef +0.3505*uRef −0.0103*uRef
60
u =
*
u =
friction velocity (cm s−1)
*
2
+3.9564*u +0.3900*u
Ref
Ref
2
+4.3943*u +0.4332*u
Ref
Ref
3
Ref
3
Ref
−0.0115*u
−0.0128*u
50
40
30
20
fetch 3.5 m
fetch 7.5 m
fetch 11.5 m
fetch 17.5 m
10
0
0
2
4
6
8
10
−1
reference wind speed (m s )
Figure 5.2.: Friction velocity u∗ vs. reference wind speed uref . (from Anweiler [7])
Figure 5.3.: Measured wind profiles. (from Anweiler [7])
6. Data Processing
Each image sequence is processed through a chain of operations, which is displayed in figure 6.1
in form of a flow chart. A single sequence typically contains 5000 images which are delivered by
the camera as RAW images with 8 bit gray value resolution1 . The RAW image size is 640 times
298 pixel. These images are decomposed into three color images with half the size of the RAW
image. This step is called demosaicing, which was introduced in section 2.5.3. In section 6.1 we
present the properties of the interpolation that was actually implemented for the color retrieval.
After the demoisaicing follows the contrast restoration for the color channel images by means
of an inverse filtering with the measured Modulation Transfer Function, see section 6.2. Before
the color images enter the slope calibration an intensity normalization and an offset correction
is performed. Formally these two color processing steps are equivalent to the steps in the slope
calibration that was treated in section 4.4.2, equations (4.8) to (4.10). However, some additional
aspects have to be considered for the processing of the actual wave image sequences. We discuss
the issue of intensity normalization of the wave image sequences in section 6.3. In section 6.4
the offset correction is treated and it is shown how to retrieve an estimate for the color offset if
no zero-measurements are available. All color processing steps are performed with 16bit floating
point precision. The slope computation, see section 6.5, reduces the number of image sequences
from three ([R, G, B]) to two ([sx , sy ]). The slope sequences for both components, each 0.9Tbyte,
are stored on hard drives.
Once the calibrated slope sequences have been computed, the further analysis follows different
pathways. On the one hand we use the slope sequences in the space-time domain to compute the
mean squared slope, section 6.6, and for a visualization of the wave field, section 7.5. On the
other hand, we use the sequences as input for a 3D Fast Fourier Transform which yields the power
spectral density of the surface slope, see section 6.7.
6.1. Demosaicing
The single chip sensor of the used camera is a so called color filter array (CFA). Each individual
pixel is equipped with a filter for one of the primary colors red, green and blue (R,G, and B). The
spectral sensitivity of the sensor-filter combination is shown in figure 6.2. The filters are arranged
on the chip in a so called Bayer mosaic layout (US Patent3971065) as shown in figure 2.13. In
order to retrieve the actual color images a demosaicing step needs to be performed, which was
introduced in section 2.5.3.
The camera firmware already implements a demosaicing algorithm. However, for the WiSSCy
experiments the images were captured in raw format with 8bit gray value resolution. The raw
format was chosen in order to achieve the maximum possible frame rate. Moreover, since we use
an off-line demosaicing procedure we have full control over the demosaicing quality, so that we
do not rely on the camera producers choice.
For the demosaicing of the CISG image sequences we applied a component wise interpolation
using an optimized set of filter kernels that were proposed by Scharr [146]. This filter set fulfills
our requirements on isotropy and homogeneity, i.e. the transfer functions for the three different
1
Internally the camera works with a higher dynamical range of 14 bit. Note that the camera exhibits a color filter array,
see section 2.5.3.
70
6. Data Processing
Raw Image Sequence
ubyte [5000][298][640]
Demosaicing
[R,G,B] Color Channels
float [3][5000][149][320]
MTFCorrection
Intensity Normalization
Offset Correction
Slope
Calibration
[sx(x,t), sy(x,t)]
float [2][5000][149][320]
•Height Reconstruction
•Wave Visualization
•<s2>-Parameterization
temporal 1d-FFT
using 2500
frames
[S^x(x,ω), S^y(x,ω)]
fcomplex [2][1251][149][320]
frames
0..2499
2500..4999
spatial 2d-FFT
[S^x(k,ω), S^y(k,ω)]
fcomplex [2][1251][149][320]
frames
0..2499
2500..4999
Ensemble Averaged
Power Spectrum
^
^
S(k,ω) = Σ |Sx| + |Sy|
float [1251][149][320]
2
2
Saturation
Spectrum B
Figure 6.1.: Flow chart for the data processing.
6.1. Demosaicing
71
Figure 6.2.: Spectral sensitivity of the camera Pike F-032C. Source: AVT Pike Technical Manual, V2.0.0, 07
July 2006, Allied Vision Technologies GmbH, Germany
color channels are comparable with respect to the wavenumber dependence and they exhibit only
minor directionality. The filter kernels are shown along with their transfer functions in figure 6.3.
The filters are applied on the raw image, resulting in three color channel images aligned with
respect to subgrid g1 , compare figure 2.13. On the other subgrids r, g2 , and b the color information
is mixed. Thus, as a second step the resulting images are sub-sampled by a factor of two in order
to retrieve only the color information on subgrid g1 of the filter results. Due to this sub sampling
step the resulting Nyqyist wavenumber is half that of the raw image (which is here set to one) ,
e.g. it is corresponding to the Nyquist wavenumber of the color subgrids. The optimized transfer
functions therefore show a minimum for kN = 0.5. All three filters show almost the same decline
of the transfer function for wavenumbers smaller than kN . The decline is approximately isotropic
and can partially be corrected by the MTF correction, see section 4.5 and 6.2.
Figure 6.3.: Squared magnitude of the transfer functions for the optimized filter kernels by Scharr [146] for
the color interpolation (upper row). Corresponding filter masks (lower row). The dots in the kernel matrices
correspond to the g1 subgrid from which the filter results are retrieved by the consecutive sub sampling step.
The x and y axes in the plots for the transfer functions are representing the wavenumbers, normalized to the
Nyquist wavenumber of the raw image. For the sub-sampled color channels the new Nyquist limit is half that
of the raw image. The optimized filter kernels therefore go to zero for k = 0.5.
72
6. Data Processing
6.2. Contrast Restoration via MTF Correction
The measurement of the Modulation Transfer Function enables us to correct the color images for
the contrast damping that results from the image acquisition as well from the demosaicing. The
general procedure is explained in the sections 2.5.2 and 4.5. For the contrast correction in the
data processing chain we use the polynomial fit on the omnidirectional measured MTF, which
is displayed in figure 4.29. For each color channel image a 2D Fourier transform is performed
just after the demosaicing step. The spectra are multiplied by the inverse of the MTF. In order
to avoid the amplification of noise, the spectral amplitudes are left unchanged for wavenumbers
where the MTF is less than 33%, which is the case for |k| > 3019 rad/m. The contrast corrected
color channel images are then retrieved via the inverse Fourier transformation. This procedure
is computationally quite expensive, because of the image-wise transformations. However, it was
implemented this way because otherwise the memory management would have been unfavorable.
Note that the MTF correction could be implemented much easier, if the data processing chain
would comprise only linear operators. In this case we could have just divided the resulting spectra
by an effective MTF correction function, using the linearity of the Fourier transformation. Since
the CISG implementation is usually employing an intensity normalization, this more effective
approach is not tenable. Moreover, the slope calibration in this study is using an polynomial
model and therefore we have to perform the constrast restoration right at the beginning of the data
processing, i.e. after the demosaicing step.
6.3. Intensity Normalization
Ideally the intensity image I as defined in equation (4.9) is independent of the image position
(i, j) and also independent of the observed water surface slope. This idea is based on several
assumptions:
1. The color transparency print is a perfect realization of the color coding design which dictates
that I is independent of the screen position, see section 3.1.3.
2. The diffusion screen acts as a perfect Lambertian radiator, meaning that the radiant emmittance is independent of the ray inclination δ in equation (3.3).
3. The spectral emissivity of the fluorescence tubes is matching the spectral filter characteristics
of the color transparency.
4. The screen is homogeneously illuminated from below.
5. There are no dirt particles in the water or scratches in the glass window.
In practice these assumptions are only approximately fulfilled. In particular the assumption of a
Lambertian radiator can hardly be realized. The undesirable effects due to the angular characteristic of the light source is most pronounced in the ISHG-Method, where the intensity information
is explicitly used for the height measurement, see Rocholz [142]. For the CISG-Method we can
compensate for any intensity loss as long as the first assumption holds by normalizing each color
component with I, see also Balschbach [9] and Fuß [50]. After the normalization the three color
channels are no longer independent, which has to be considered in the slope calibration.
6.4. Offset Correction
In case of a flat water surface the ideal ray geometry implies that each pixel of the camera observes
the center of the light source and therefore retrieves the same color information, see equation
6.4. Offset Correction
73
color drift
relative intensity
1.1
<Ro>/<Io>
1.05
<Go>/<Io>
<Bo>/<Io>
1
<Rs>/<Is>
<Gs>/<Is>
0.95
<Bs>/<Is>
0.9
0.85
0
50
100
150
200
250
run number
300
350
400
450
Figure 6.4.: Changes of the relative mean color contribution during the course of the experiment. Index o
indicates mean values based on zero measurements for the flat water surface that could only be made at the
beginning of each day. For these measurements the light source was switched on approximately 45 minutes
in advance to avoid further changes due to the temperature drift of the lamps. Index s indicates mean values
based on the statistic measurements at the wavy water surface that have been performed several times a
day and therefore reflect diurnal variations. Note that the abscissa shows run numbers which is not a linear
time measure, compare [143].
Offset Profile for Zero Measurement [Run064]
1
normalized intensity
0.8
0.6
0.4
0.2
0
0
50
100
150
200
x pixel position
250
300
350
Figure 6.5.: Color offset for a zero measurement.
(3.7) and section 3.1.3. In other words, the color that is observed for a flat water surface (zero
measurements) defines the origin of the coordinate system on the illumination screen. However,
images of the flat water surface show a slight spatial trend in the colors with variations around
the mean in the order of ±5%, see figure 6.5. This observation can be explained by two facts.
First and most important, the Fresnel lens deviates from a ideal lens and shows all kinds of optical
aberration (see e.g. [50]). Secondly, the inclination of the principal axis and the ray divergence
that is due to the geometry of the setup (see section 4.1) lead to an offset that depends on the image
position. A first order correction of the spatial trend of the colors can be done by subtracting an
appropriate offset image. The offset image defines the pixelwise color offset for zero slope of the
water surface.
Despite of the spatial color trend there is another important reason to perform an offset correction. During the course of the experiments there were considerable changes in the mean color
histograms. The color histograms were equalized using a so called white balance step during the
setup of the experiment. After this initial histogram equalization the camera parameters were not
changed again, because this would have affected the individual gain of the color channels. The
color specific gain is not allowed to change since this would affect the slope calibration. The slope
calibration can be interpreted as measuring distances in the color space. Changes in the white balance correspond to a non isotropic sheer operation in color space and therefore affect the distance
74
6. Data Processing
measures. We can explain the observed temporal changes in the mean color histograms by three
main effects
• The spectrum of the fluorescence tubes changes in time because of temperature drifts and
aging.
• The transmittance of the color transparency is changing in time because of aging.
• The color of the water is changing during the course of the experiment because of growth of
algae.
Figure 6.4 shows the relative change of the mean color contribution over the course of the experiment. One can clearly see a global trend of the green channel that corresponds to the algae
contamination of the water body. A comparison of the mean color histograms for the zero measurements and the statistics measurements (with respect to the time since the light source was
switched on) revealed that the light source has a diurnal color drift [143]. Because of this diurnal
variation is was not appropriate to follow the approach of Balschbach [9] and Fuß [50]. They used
zero measurements at the flat water surface to compute an ensemble averaged offset image that
defined Co and Io in equation (4.10). During the WiSSCy campaign it was only possible to make
this kind of zero measurements before the start of each experiment, which then lasted the whole
day. Therefore the offset correction for all image sequences was based on averages of the image
sequences itself. This is based on the idea that the mean surface slope is zero. Since the color coding and the ray geometry is nearly linear (see equation (3.8)) the mean surface slope corresponds
to the mean color image. Therefore we define the offset image as
Co ≡ hCiN ,
(6.1)
where < >N denotes an ensemble average of N frames2 . Using the offset image definition (6.1)
for the color processing, equation (4.10), in combination with a linear calibration automatically
yields zero mean slope components.
6.5. Slope Computation
The image sequences for the two slope components s = [sx (x, t), sy (x, t)]T of the water surface
are obtained from the preprocessed color image sequence [r, g, b]T according to the higher-order
model
T
s = Q r g b r2 g 2 b2 r3 g 3 b3
,
that was introduced in section 4.4.3. Depending on the date of the measurement, different calibration parameters matrices Q from table 4.3 are utilized.
6.6. Mean Square Slope Computation
The mean square slope mss is the sum of the variances of the slope components and therefore a
measure for the roughness of the water surface
mss = σs2x + σs2y
(6.2)
= (sx − sx )2 + (sy − sy )2
= s2x − sx 2 + s2y − sy 2
≈ s2x + s2y
2
in most cases: N = 5000
(6.3)
6.6. Mean Square Slope Computation
75
The approximation (6.3) is valid as long as the measurements are unbiased, so that sx = sy = 0.
In our case, the offset correction already ensures a zero mean of both slope components.
There are various ways to compute the variances according to the possibilities to combine spatial
and temporal averaging. In order to have an estimate of the variance that characterizes the stationary and homogeneous wave field we need to ensure that either the individual slope measurements
are statistically independent or that the mss value converges. Since we have a great number of
data points3 for each experimental condition, there is no need to be concerned about the convergence, as long as the experimental conditions are indeed stationary and homogeneous. A detailed
analysis of this issue for the WiSSCy campaign is carried out in the technical report Rocholz [143].
In order to make a statement about the minimum number of frames for an appropriate ensemble
average, we need to distinguish the modes for the acquisition of the image sequences. In the first
mode, referred to as the statistic measurements, the time interval between two successive images
was about 2 times larger than the longest period of the waves, so that we assume the set of 5000
images per sequence to be statistically independent. In the second mode, referred to as the continuous measurements, the maximum frame rate with an inter frame interval of 0.0032 s was chosen,
so that from image to image only gradual changes are apparent. For the statistic measurements under stationary conditions, typically N = 360 images are sufficient for an ensemble average of the
mean square slope. This was tested by a comparison of the subset ensemble average mssN to the
total ensemble average msstot with the requirement that the probability of a significant difference
of more than 6% is less than 1%, using the t-statistics [143]. Hence, each statistic measurement
can be processed by a central moving ensemble average of 360 images, yielding a time series of
the mss for the timespan of the sequence (typically 45 minutes). From these time series it can be
decided, whether or not the wave field is called stationary [143]. For the continuous measurement
the timespan is only 16 s, and therefore the ensemble average is always computed over the whole
sequence of 5000 images.
In addition to averaging in the space time domain, we can compute the mean square slope by
means of a simple summation of the power spectral density
M
−1 N
−1 O−1
X
X
X
1
mss =
(s2x + s2y ) = 2
MNO
m=0 n=0 o=0
M/2
X
N/2
X
O/2 X
ˆ 2 ˆ 2
Sx + Sy ,
(6.4)
u=−M/2 v=−N/2 w=0
where Parseval’s Theorem and the definition of the DFT have been used4 , see sections 2.5.1 and
6.7.1. Moreover, splitting the spectral volume into different segments for the summation yields the
contribution of each segment to the mean square slope. For instance, for the continuous measurements we can distinguish between the contribution of leeward5 and windward6 propagating waves
to the mean square slope according to
M/2
mssleeward = 2
X
N/2
X
O/2 X
ˆ 2 ˆ 2
+
S
Sy x
u=0 v=−N/2 w=0
msswindward = 2
−1
X
N/2
X
O/2 X
ˆ 2 ˆ 2
Sx + Sy ,
(6.5)
u=−M/2 v=−N/2 w=0
see section 7.4.2.
Typically the number of data points per sequence is 2×5000×320×149=4.768·108 and typically 6 sequences are
acquired for each condition.
4
Note that for the usage of equation (6.4) the windowing function that is applied before the DFT is required to be
normalized so that the integral of its transfer function is one. Moreover, for (6.4) it is assumed that the spectral
energy for ω = 0 is zero (otherwise we need to discard the factor of two 2 for this slice of the spectrum).
5
leeward means with the wind in the back, corresponding to kx > 0
6
windward means facing the wind, corresponding to kx < 0
3
76
Symbol
η(x, t)
ηm,n,o
η̂(k, ω)
η̂u,v,w
η̂0u,v,w
X(k, ω)
Ψ(k)
Ψu,v
Φ(ω)
Φw
S(k, ω)
0
Su,v,w
Su,v,w
B(k)
Bu,v
6. Data Processing
Meaning
water surface elevation
sampled water surface elevation
complex amplitude function for η
3d-DFT of the sampled water surface elevation
scaled 3d-DFT of the sampled water surface elevation
energy density spectrum
wavenumber energy density spectrum
discrete wavenumber energy density spectrum
frequency energy density spectrum
discrete frequency energy density spectrum
3d power spectrum of the slope
discrete 3d power spectrum
discrete 3d power spectrum
saturation spectrum
discrete saturation spectrum
Equation
(6.6)
(6.18)
(6.6)
(6.21)
(6.23)
(2.46)
(2.49)
(6.30)
(2.50)
(6.31)
(6.11)
(6.25)
(6.26)
(2.51) (6.40)
(6.32) (6.40)
Physical Unit
m
m
m3 s
m
m3 s
m4 s
m4
m4
m2 s
m2 s
m4 s2
m4 s2
-
Table 6.1.: Nomenclature
Another way to compute the mss is to perform a 2D Gauss-fit for the joint probability density
function of the slope components to yield the variances σs2x and σs2y , see for instance Balschbach
[9].
Mean square slope values that are reported in this thesis are computed in different ways, depending on which approach was the most suitable. The actual method is specified along with the
values. An inter-comparison of the results of the different approaches has been carried out in Rocholz [143], yielding an assignment of stationarity for each individual sequence and experiment.
This assignment of stationarity is necessary in order to appropriately compute ensemble averages
of the 3D power spectral density (section 6.7) and for the interpretation of peculiarities in the
gas/heat transfer measurements with respect to changes of the wave field.
6.7. Computation of the Spectra
On the one hand, the computation of the spectra is straight forward. We only need to apply the
DFT to the data. On the other hand, the quantitative presentation of the spectra requires a careful
examination concerning the normalization. In the related literature different scaling factors are
used without explicit reference. Sometimes the authors even abdicate any scaling to present the
spectra in arbitrary units. This leads to the inconvenient fact that results that are presented in
different publications are often only qualitatively comparable. In the following section 6.7.1 we
will therefore address the scaling of the DFT so that the result is consistent with the basic concepts
that reach back to the definitions by Phillips [132] which were presented in section 2.3.1. We
make some basic considerations about the implications due to the symmetry and periodicity of the
spectral volume in section 6.7.2. Followed by descriptions of the implementation in section 6.7.3,
and the averaging of the power spectral density in section 6.7.4. Finally an alternative definition
for the saturation spectrum B(k) is proposed in section 6.7.5. The re-definition comprises only a
minor difference to Phillips definition. It is proposed in order to preserve the information about
the actual directionality of the wave field in the B(k) representation.
6.7. Computation of the Spectra
77
6.7.1. Normalization Factors for the Discrete Spectra
The basic concept for the statistical description of the wave field has been introduced in section 2.3.1, where the standard continuous formulations of the spectra and the correlation function
were used. However, we are neither measuring the surface elevation directly nor are we dealing
with continuous data. Here, we are dealing with digital image sequences of the water surface
slope which are processed by the Discrete Fourier Transform to yield the discrete counterparts of
X(k, ω), Φ(ω), Ψ(k), and B(k) (see table 6.1). It is not necessary to make a reconstruction of the
surface elevation in order to evaluate the autocorrelation function, as it might be suggestive from
equation (2.46). Instead we can use the basic relationship between the slope spectra sˆx , sˆy and the
elevation spectrum η̂ (equations (6.9) and (6.10)).
While the general procedure is clear and can be found throughout the literature (e.g. [9, 74]), we
are concerned about the correct normalization factors so that the results are really corresponding
to the continuous definitions with the correct physical units. Unfortunately, it seems that in some
cases different authors use different normalization factors to scale the DFT results. Since the
saturation spectrum is dimensionless and often times only the spectral shape is of interest, this
difference in not always important. However, in order to be able to compare data, for instance
measured by a wire gauge and an imaging slope gauge, it is of course essential to take care about
the physical units and dimensions. Usually the discrepancies in the different data sets can be
compensated by scaling of the data or stretching of the coordinate system. But still, the situation is
unsatisfactory since in this way an inter-comparison of measurements is always a bit tricky. From
the authors point of view, we need to guarantee that the spectra are really just a discrete version of
the continuous counterparts.
For this we explicitly show the link between the discrete and continuous descriptions. This
eventually gives the answer on how to normalize the DFT results. At first we stick to the continuous Fourier transform to show the fundamental relationships. As a second step we investigate the
modifications for the discrete case.
Assume that the water surface has a certain boundary in the horizontal extend so that outside
of this boundary the surface elevation η(x, t) is vanishing to zero. Further, assume some kind
of temporal window so that η vanishes outside of this time window.7 Then η becomes square
integrable and we can represent it by a Fourier integral
ZZZ
η(x, t) =
η̂(k, ω)ei(xr−ωt) dkdω,
(6.6)
where η̂(k, ω) is a complex valued amplitude function. Now x and t are restricted to the space-time
volume defined by the extend of the boundary and the time window. For convenience we regard
the space-time volume as a cuboid with the side lengths X, Y, and T. This is also the situation we
have, using image sequences.
The partial derivative ∂j in the spatial domain corresponds to a multiplication with i ·kj in the
Fourier domain [77]. Therefore the components of the surface slope s = ∇η are represented by
ZZZ
sx =
i kx η̂(k, ω)ei(kx−ωt) dkdω
(6.7)
ZZZ
sy =
7
i ky η̂(k, ω)ei(kx−ωt) dkdω.
Both assumptions are not that unnatural. E.g. imagine a storm over a lake.
(6.8)
78
6. Data Processing
Likewise we can write
ŝx (k, ω) = i kx η̂(k, ω)
(6.9)
ŝy (k, ω) = i ky η̂(k, ω).
(6.10)
Now we define the power spectrum S of the slope as the sum of the squared magnitude of the
slope components
S(k, ω) ≡ |ŝx |2 + |ŝy |2 = k 2 |η̂|2 ,
(6.11)
where k 2 = kx2 + ky2 is the squared magnitude of the wavenumber vector. The relation between S
and X becomes clear if we rewrite (2.48) with the restriction to the above mentioned space-time
volume T XY
Z TZ XZ Y
ZZZ
1
2
2
η =
η (x, t)dxdt =
X(k, ω)dkdω.
(6.12)
T XY 0 0 0
Now, using Parseval’s theorem
ZZZ
ZZZ
2
3
|η̂(k, ω)|2 dkdω
|η(x, t)| dxdt = (2π)
and the right hand side of (6.11) we get
ZZZ
ZZZ
(2π)3
1
S(k,
ω)dkdω
=
X(k, ω)dkdω.
T XY
k2
(6.13)
(6.14)
The fact, that we have to divide by T XY explains why we call k −2 S(k, ω) and S(k, ω) the
power spectral density of the surface elevation and power spectral density of the surface slope,
respectively.
The extend of the space-time volume defines the minimal size of the wavenumber-frequency
volume element which is needed for the discrete Fourier transform, see also section 2.5.1. The
grid spacing in the discrete Fourier domain is given by
∆kx =
2π
,
X
∆ky =
2π
,
Y
∆ω =
2π
T
(6.15)
3
In this light the factor T(2π)
XY can be interpreted as a discrete volume element in the Fourier domain.
Up to this point we have written the spectra in terms of a continuous Fourier transform, so that
the equations are more easy to read. Now, since we have restricted the spatial domain to a cubic
volume in space and time, it is easy to switch to a discrete representation. Let M , N , O denote the
number of sampling points in the cuboidal space-time volume, so that X = M ∆x, Y = N ∆y,
and T = O∆t, where ∆x, ∆y, and ∆t represent the grid spacing for the discrete sampling in the
respective directions (compare section 2.5.1). With equation (6.15) we can also
M=
X
2π
=
,
∆kx ∆x
∆x
N=
2π
Y
=
,
∆ky ∆y
∆y
O=
2π
T
=
.
∆ω∆t
∆t
(6.16)
Let ηm,n,o be the sampled version of η(x, t) on the space-time grid at the points m∆x, n∆y, and
o∆t. Alike, let η̂u,v,w be the sampled version of η̂(k, ω) on the wavenumber-frequency grid at the
points u∆kx , v∆ky , and o∆ω. Then, the discretized version of the exponential function in the
inverse Fourier transform is
−ow
nv
exp (i(u∆kx m∆x + v∆ky n∆y − w∆ω o∆t)) ≡ wmu
M wN wO ,
(6.17)
6.7. Computation of the Spectra
79
where we use abbreviations for the discrete Fourier kernel wQ ≡ exp(2π i /Q) [77]. The discrete
counterpart of the 3d Fourier transform in (6.6) can now be written as
ηm,n,o =
M
−1 N
−1 O−1
X
X
X
−ow
nv
η̂u,v,w wmu
M wN wO .
(6.18)
u=0 v=0 w=0
The forward 3d-DFT is equivalently
η̂u,v,w =
M
−1 N
−1 O−1
X
X
X
1
ηm,n,o w−mu
w−nv
wow
O .
M
N
MNO
(6.19)
m=0 n=0 o=0
So far, following the conventional definitions of the Discrete Fourier Fransform, we skipped the
increments dx, dk, dt, and dω in the discretization step. This leads to the inconvenient fact,
that the physical units of the spectral components are no longer the same as in the continuous
description. Anyhow, we can fix that problem by choosing a different normalization factor in the
forward transform. We define a modified discrete spectrum η̂0u,v,w which satisfies the modified
inverse transform
ηm,n,o =
M
−1 N
−1 O−1
X
X
X
−ow
nv
η̂0u,v,w wmu
M wN wO ∆kx ∆ky ∆ω,
(6.20)
u=0 v=0 w=0
where only the discrete increments have been included in analogy to the continuous transformation. In other words, we defined the modified spectrum as
η̂0u,v,w ≡ η̂u,v,w /(∆kx ∆ky ∆ω).
(6.21)
Then the modified forward transform is alike the continuous forward transform
η̂0u,v,w =
M −1 N −1 O−1
1 X XX
wow
w−nv
ηm,n,o w−mu
O ∆x∆y∆t.
N
M
(2π)3
(6.22)
m=0 n=0 o=0
The consistency concerning the normalization factor is explicitly shown in the appendix A.9. Note,
that η̂0u,v,w is the adequate discrete representation of the continuous function η̂(k, ω), in contrast
to η̂u,v,w which has not the appropriate physical units
η̂0u,v,w ≈ η̂(k, ω)
(6.23)
≈
/ η̂(k, ω).
(6.24)
η̂u,v,w
Actually, Sˆxu,v,w ≡ i u∆kx η̂u,v,w and Sˆy u,v,w ≡ i v∆ky η̂u,v,w are the spectra that we obtain,
when applying the Discrete Fourier Transform on the surface slope image sequences Sxm,n,o and
Sy m,n,o . Consequently, the power spectral density which is an appropriate approximation for the
continuous representation of S(k, ω) in (6.11) is given by
0
Su,v,w
≡
1
Su,v,w ≈ S(k, ω),
(∆kx ∆ky ∆ω)2
(6.25)
where we have given the name Su,v,w to the power spectral density, as it is computed using the
Discrete Fourier Transform (DFT)
2 2 ˆ
ˆ
Su,v,w ≡ Sxu,v,w + Sy u,v,w .
(6.26)
80
6. Data Processing
The energy spectral density X(k, ω) can now be approximated in terms of the computed power
spectral density, using (6.14), (6.16), and (6.26)
X(k, ω) ≈ Xu,v,w =
Su,v,w
1
.
2
(∆kx ∆ky ∆ω) ku,v
(6.27)
2 . From (2.48) and (6.27) follows,
Here, it is convenient to express k 2 in the discretized form ku,v
that we get the variance of the surface displacement just by a summation over the slope power
spectrum weighted with the inverse of the squared wavenumber magnitude
η2
=
M
−1 N
−1 O−1
X
X
X
u=0 v=0 w=0
Su,v,w
.
2
ku,v
(6.28)
Likewise, the mean squared slope s2 , also referred to as mss, is given by
−1 N
−1 O−1
X
X
X
2 M
s =
Su,v,w .
(6.29)
u=0 v=0 w=0
For the wavenumber spectral energy density (2.49) and the frequency spectral energy density
(2.50) we obtain
Ψ(k) ≈ Ψu,v
O−1
1 X
1
Su,v,w
=
2
(∆kx ∆ky ) ku,v
(6.30)
w=0
Φ(ω) ≈ Φw =
M −1 N −1
1 X X Su,v,w
.
2
(∆ω)
ku,v
(6.31)
u=0 v=0
The equations (6.27)-(6.31) are the basis for the computation of the spectral energies in the correct
physical units. The spectral energies only have the right quantity if the appropriate scaling factors
are applied. The scaling factors are dictated by the discretization grid.
According to the basic definition (2.51) and the discrete approximation of the wavenumber
spectral density (6.30) we get
B(k) ≡ k 4 Ψ(k) ≈ Bu,v =
O−1
X
1
2
ku,v
Su,v,w ,
(∆kx ∆ky )
(6.32)
w=0
for the 2D saturation spectrum.
6.7.2. Symmetry and Periodicity Considerations
In calculations where summation or integration along the frequency axis are incorporated we have
to pay attention to the symmetry and periodicity of the spectra8 in order not to disguise valuable information. Here, we will only elaborate on the necessary considerations concerning the saturation
spectrum.
The summation in (6.32) is carried out over the whole range of frequencies and thus even over
frequencies that are beyond the Nyquist frequency, i.e. indices larger than O/2. This leads to the
fact that the saturation spectrum is point symmetric around the origin of the wavenumber plane
B(k) = B(−k).
8
see also section 2.5.1
(6.33)
6.7. Computation of the Spectra
81
However, this symmetry is not related to the actual physical properties of the wave field, e.g. if
only a single wave train is propagating in the positive x direction we expect to find a spectral peak
for some positive wavenumber, but not as well for the corresponding negative wavenumber9 . This
is because from the physical point of view negative frequencies are not desired, whereas in this
example the negative wavenumber is associated with a negative frequency10 , since the direction
of propagation is positive. As we can see, the actual directionality - and thus asymmetry - of the
wave field is concealed due to the summation over the whole range of frequencies. To avoid this,
we can split the summation into parts as follows
B+ (k) ≡
O/2
X
1
2
k
Su,v,w
(∆kx ∆ky ) u,v
B0 (k) ≡
1
k 2 Su,v,0
(∆kx ∆ky ) u,v
B− (k) ≡
1
k2
(∆kx ∆ky ) u,v
w=1
−1
X
Su,v,w ,
(6.34)
w=−O/2
so that in total we still have B(k) = B+ (k) + B0 (k) + B− (k). The part B0 (k) corresponds to
structures in the images that do not move at all (ω = 0), so that it can be neglected in the following.
The negative frequency part B− (k) can be expressed in terms of the positive frequency part
B+ (k) because
B− (k) =
=
1
k2
(∆kx ∆ky ) u,v
−1
X
Su,v,w
w=−O/2
O/2
X
1
2
k
Su,v,−w
(∆kx ∆ky ) u,v
w=1
=
O/2
X
1
2
k
S−u,−v,w
(∆kx ∆ky ) u,v
w=1
= B+ (−k),
(6.35)
where we have used the symmetry of the power spectrum Su,v,−w = S−u,−v,w . Therefore the
saturation spectrum is completely determined by B+ according to
B(k) = B+ (k) + B+ (−k),
(6.36)
which implies the symmetry relation that was given in equation (6.33) at the beginning of this
discussion.
6.7.3. Implementation
As explained in section 2.5.1, we can exploit the separability of the DFT for a splitting of the
3D transformation. At first a 1D temporal transformation from the real valued sequence into a
complex valued spectrum is performed, followed by a 2D spatial transformation from complex
to complex for each slice of the spectrum in the orthogonal direction (see also figure 6.1). This
is an effective way to handle the huge amount of data with respect to memory limitations on a
9
10
but the DFT holds: cos(k0 x) ◦−• 12 (δ(k − k0 ) + δ(k + k0 )) [77]
Negative frequencies follow from the periodicity ωN + ω 0 ⇔ ω 0 − ωN , see section 2.5.1
82
6. Data Processing
32bit operating system11 . In order to reduce the size of the resulting spectral volume, each image
sequence was split in two parts (frame 1..2500 and 2501..5000). Using the periodicity and the
symmetry property we retrieve the discrete spectra
M/2
Sˆxu,v,w =
X
N/2
X
O/2
X
sxm,n,o w−mu
w−nv
wow
O
M
N
(6.37)
sym,n,o w−mu
w−nv
wow
O .
M
N
(6.38)
m=−M/2 n=−N/2 o=0
and
M/2
Sˆy u,v,w =
X
N/2
X
O/2
X
m=−M/2 n=−N/2 o=0
R
The computation was performed using the Heurisko12
fast Fourier transform operators in combination with cosine windowing function. The spectral volume is twosided with respect to the
wavenumbers, whereas for the frequency only positive values are considered (this was explained
in detail in the sections 2.5.1 and 6.7.2).
6.7.4. Ensemble Averages
Sequences that were acquired under the same experimental conditions are used to compute ensemble averaged power spectra. The typical number of image sequences for the average is 6. Due to
the splitting of the sequences into halves and because we have two slope components, the number
of 3D Discrete Fourier Transformations that are incorporated into the ensemble averaged power
spectral density is typically 24 (corresponding to the DFT of 60000 images). Let A denote a set of
NA sequences that are incorporated into the ensemble average. Then we can specify the resulting
power spectral volume as
2 2 1 X ˆ
ˆ
(6.39)
Su,v,w = hSu,v,w iA =
Sxi,u,v,w + Sy i,u,v,w ,
NA
i∈A
where the index i denotes the serial number of the sequences and the complex valued spectral
volumes are given by Sˆx = DFT(sx ) and Sˆy = DFT(sy ) (see preceding section).
6.7.5. Alternative Definition for B(k)
We will use a slightly different definition of the saturation spectrum
O/2
X
2
2
k
Su,v,w
B(k) ≡ 2 · B+ (k) =
(∆kx ∆ky ) u,v
,
(6.40)
w=1
instead of the definition in equation (6.32). From equation (6.36) we can see that, strictly speaking,
this is not in agreement with the basic definitions of the saturation spectrum given by Phillips [130].
Phillips’ saturation spectrum is symmetric by definition, whereas 2 · B+ (k) is not symmetric.
However, we are indeed interested in the asymmetry, because this gives information about the
2π-directionality of the wave field, see section 7.2. The factor of two is included in equation
(6.40) because the values of B+ (k) are to low by a factor of two13 with respect to the total energy
that is associated with the wavenumber k. Note that, despite the symmetry, we are still consistent
11
Actually the operating system was already 64bit. However, the software could not yet exploit the total amount of
available memory of 8 Gbyte.
12
Heurisko version 6.2.beta from the 9th of July 2008
13
for the DFT holds: cos(ω0 t) ◦−• 21 (δ(ω − ω0 ) + δ(ω + ω0 ))
6.7. Computation of the Spectra
83
with Phillips’ definitions in consideration of the normalization in equation (6.30), yielding Ψ(k) ≈
Ψu,v , which is of central importance for any quantitative inter-comparison of the spectra.
In former studies ensemble averages of onesided 2D slope spectra have often been used to
compute the directional saturation spectrum
B(k) ≈ Bu,v ∝ 2 ·
N
1 X
Su,v
N
u > 0, kx > 0,
(6.41)
i=1
e.g. Balschbach [9], Fuß [50], Jähne [74], Klinke [92]. Therefore in these cases the symmetry
relation (6.33) is still valid, leading to an intermixture of the spectral energy from leeward and
windward propagating waves (i.e. an 1π ambiguity). Also the one-sided spectra of the surface
slope were multiplied by two, so that the total spectral energy is completely contained in the
integral over the onesided representations [73].
The bottom line is: in order to preserve the directionality of the wave field and to be consistent
with the energetic level from former publications we use the definition (6.40) for the saturation
spectrum B(k) in departure from Phillips [130] definition (6.32) with respect to the symmetry.
7. Results
In chapter 6 we have presented the whole chain of the operations that lead from the raw image
sequences to the two component slope vector field s(x, t) and further to the ensemble averaged 3D
power spectral density of the surface slope S(k, ω). Here we proceed with the physical evaluation
of the data (i.e. at the outward directed arrows in the flowchart 6.1). Before we go into details,
some typical slope image pairs are presented in section 7.1, which give an impression about the
wave field under different experimental conditions. Then a comprehensive discussion about the
saturation spectra is given in section 7.2 - divided in sub section for the different conditions. The
saturation spectrum is a reduced form of the spectral density, obtained by an integration over all
frequencies1 . In contrast, the evaluation of the dispersion relation in section 7.3 predominantly
deals with the spectral volume, which of course comprehends even more information about the
wave field. In the context of transfer velocity parameterizations the spectral volume is commonly
reduced to a scalar, namely the mean square slope, which is addressed in section 7.4. Last but not
least we go back to the space-time domain in section 7.5, where observations are discussed that
can be made with a new visualization for the combined measurements of the surface temperature
and the wave field.
7.1. Surface Slope Images
Several examples of slope image pairs for different conditions are displayed in the following paragraphs. The slope components sx and sy are displayed to the left and right, respectively, and the
gray scale is limited to the slope range [−1 . . . 1]2 . In the images the wind is always blowing from
the right to the left. The field of view is approximately 22.3×10.4 cm2 .
Microscale breaking waves can be observed for medium to high wind speeds. The microscale
breaking does not produce foam, but it is apparent from the disordered structures behind the wave’s
crest. In front of the breaking short gravity wave, we can observe tiny parasitic capillary waves.
This example corresponds to a reference wind speed of uref = 8 m/s.
1
2
... and a scaling with k2 , to be complete.
Occasionally the reproduction in printed versions is unsatisfactory, please refer to the electronic version.
86
7. Results
The influence of surface slicks can be very pronounced. In the linear wind wave flume, with a
limited fetch, the mono-molecular surface film OLA (see A.6 for details) prevents the growth of
waves so that the water surface is flat, even though this example is taken at the same reference
wind speed as in the preceding example (uref = 8 m/s).
Parasitic capillary waves are propagating at the same speed in front of the crest of a short gravity
wave ( uref = 4 m/s).
A very rough water surface resulting from strong wind forcing uref = 14 m/s. Note that, for a
few pixels the surface slope exceeds the capabilities of the CISG (see section 4.1) which leads to
missing data that is apparent as black or white dots.
Rain drop impacts form craters and ring waves, which also leads to a very rough surface. (rain
rate ≈ 57 mm/h; uref = 4 m/s).
7.2. Saturation Spectra
87
7.2. Saturation Spectra
The saturation spectra presented in this section are giving insights in the two-dimensional spatial
structures of the wave field for the Hamburg linear wind wave tank (at a fetch of 14.4 m) under a
wide range of experimental conditions, including surface slicks and rain. The wavenumber range
includes short gravity waves with k > 100 rad/m (λ ≈ 6 cm) and capillary waves up to k < 2300
rad/m (λ ≈ 2.7 mm).
For the presentation the limit |k|<2300 is chosen well below the Nyquist wavenumber3 because
beyond 3000 rad/m artifacts stemming from the CCD sensor and noise are influencing the signal.
Moreover, the color images are contrast corrected by inverse filtering with the MTF, see section
6.2. The recovery of the spectral energy works only reliably as long as the MTF is high enough,
say 33% which is the case for k > 3000 rad/m. Additionally, from the Nyquist frequency of 982
rad/s and from the linear dispersion relation we expect aliasing effects for wavenumbers greater
than 2300 rad/m.
Here, unlike former onesided directional wave spectra, we present twosided spectra. This is
possible, because the spatiotemporal measurement allows for a determination of the direction in
which the waves are propagating. Therefore the directional spectra cover a range of 2π for the
wave direction, whereas most of the reported measurements only give the orientation rather than
the direction of the wavenumber components, which leads to an 1π ambiguity (e.g. [68, 93]). The
computation of the saturation spectra, based on the definitions from the sections 2.3 and 6.7.5, is
performed according to
O/2
B(k) ≡ 2 · B+ (k) ≈ Bu,v
X
1
2
=
Su,v,w
ku,v
·2·
(∆kx ∆ky )
,
(7.1)
w=1
where
Su,v,w
2 2 ˆ
ˆ
≡ Sxu,v,w + Sy u,v,w .
(7.2)
is the power spectral density of the surface slope. The indices u and v are the grid points in the
wavenumber plane, ranging from −M/2 to +M/2 and −N/2 to +N/2 respectively, where M
and N correspond to the sensor size in the x and y direction. The index w ranges from 1 to O/2 and
represents the positive frequency axis, where O = 2500 is the number of images that were used for
the 3D Fourier transform, see also section 6.7.3. The spectra are based on ensemble averages of the
power spectral density computed over 4-24 sets of 2500 images, acquired at constant experimental
conditions, see also section 6.7.4.
The saturation spectra are presented in groups, according to the experimental condition, see
figures 7.1 through 7.13. Each individual plot is accompanied by a title that can be read in terms
of the experimental conditions, e.g. u062 stands for a reference windspeed of 6.2 m/s; r057
stands for a rain rate of 57 mm/h; s2 stands for slick type 2 (see table A.6 for the slick type
coding); w1 stands for a superimposed mechanical wave with a frequency of 1 Hz.
It is well established to display the 2D saturation spectra after a transformation of the wavenumber space from the cartesian coordinate system to a polar coordinate system (e.g. [9, 84, 92, 93]).
This enables to compare the degree of saturation for a given wavenumber magnitude k = (kx2 +
ky2 )1/2 and for its polar angle Φ = atan(ky /kx ), which gives the direction of the wavenumber
vector relative to the wind direction. Based on this representation two descendant diagrams are
commonly used for the discussion and modeling. These are the omnidirectional spectra B(k)
which follow from an integration over the polar angles
Z π
B(k) =
B(k, Φ)dΦ
(7.3)
−π
3
Nqyuist wavenumber kN = 4488 rad/m
88
7. Results
and the angular spreading function which follows from an average over the wavenumber magnitudes.
In the following sections the characteristics of the spectral distributions are discussed, starting
with the pure wind condition in section 7.2.1. The influence of rain is shown in section 7.2.2.
Section 7.2.3 deals with the results for surface slick conditions. The saturation spectra for the
combination of rain and surface slicks are shown in section 7.2.4. Finally, section 7.2.5 displays
the results for a condition where a 1 Hz mechanically generated was superimposed on the wind
wave field.
7.2.1. Pure Wind Conditions
The 2D saturation spectra for wind speeds in the range of 3 m/s to 14 m/s are displayed in figure
7.1. The overall picture is very consistent with previous measurements at limited fetch and pure
wind conditions. Thanks to the advances in the measurement technique and the data evaluation
there are some new aspects that need to be adressed. Especially concerning the wavenumber
dependence a new look at the cutoff at high wavenumbers is recommended.
The spectra are presented on a polar–logarithmic wavenumber grid, where Φ gives the direction
of the wave propagation relative to the mean wind direction. The spectral components for Φ =
±180◦ correspond to structures that are traveling against the wind. In case of rain conditions
we expect a significant isotropic spectral contribution due to ring waves from rain drops, which
is discussed in section 7.2.2 and shown in figure 7.8. However, under conditions without rain the
waves are expected to travel in the leeward direction (along with the wind) as long as no significant
wave breaking is observed. Behind breaking crests a turbulent wake is frequently observed (e.g.
see examples in section 7.1). The turbulent wake is visible in the slope images as disordered
structures that are linked to the subsurface turbulence. Therefore an enhancement of the windward
spectral energy can be a hint of wave breaking. Anyhow, most of the spectral energy found in the
windward direction is due to aliasing, which leads to a point reflection around the origin in the
kx –ky plane, see also section 2.5.1. Aliasing does not occur for very low wind speeds (u < 3 m/s)
under normal conditions (top left in figure 7.1). But we can already observe characteristic humps
in the windward direction for the saturation spectra in figure 7.1 for all wind speeds greater or
equal 4 m/s. The spectral energy contained in these humps is consequently missing in the leeward
direction, which might give the misleading impression of a spectral cutoff beyond 1000 rad/m.
This artifact is not to be confused with the cutoff at high wavenumbers that had been observed
for instance by Zhang [177] or Klinke [93]. In fact, the typical k −3 behavior in the cufoff range
seems to be compensated for if we apply the MTF correction, which can be assessed best regarding
the direct comparison of the omnidirectional saturation spectra with and without MTF correction
presented in figure 7.2. This observation will be discussed in more detail at the end of the next
paragraph.
Wavenumber Dependence
For a low wind speed (uref = 3 m/s) the degree of saturation shows a k −2.5 decrease in the
range between spectral peak of the dominant wave at kp = 111 rad/m and k ≈ 400 rad/m where
B(k) fades into a local minimum, see figures 7.1 and 7.24 . For higher wind speeds the scales
of the dominant waves (k < 100 rad/m) cannot be resolved in the saturation spectra due to the
finite image size. Using the dispersion relation, the wavenumbers of the dominant waves can be
inferred from the peak frequency ωp of the frequency spectra, presented in section A.3.2. However,
the spectral energy in the short gravity range is affected by the energy of the dominant wave so
4
Figure 7.2 displays the the omnidirectional saturation spectra, i.e. B(k, Φ) integrated over Φ = −π...π.
7.2. Saturation Spectra
89
Figure 7.1.: Twosided and MTF corrected saturation spectra for windspeeds 3.0,4.0,5.2,6.2,8.1,10.0,12.0,
and 14.0 m/s at fetch 14.4 m.
90
7. Results
−1
10
−1
10
0.5
-0.5
0.5
-0.5
k
k
k
k
Omnidirectional B
-2
-1
k
−2
10
k
−2
10
-3
k
−3
10
−3
10
-2.5
k
−4
10
2
10
k [rad/m]
3
10
−4
10
2
10
k [rad/m]
3
10
Figure 7.2.: Omnidirectional saturation spectra. Wind speeds are 3.0, 4.0, 5.2, 6.2, 8.1, 10.0, 12.0, and
14.0 m/s (according to low to high degree of saturation). The additional circles correspond to the empirical
formula (7.4) for the degree of saturation at k = 750 rad/m given by Apel [8]. left: with MTF correction; right:
without MTF correction.
that a local minimum of the degree of saturation is observed in this range. For medium wind
speeds of 4 m/s through 6 m/s the local minimum is gradually filled up and shifted toward smaller
wavenumbers while the decrease toward the minimum is less steep. This is because the wavelength
of the energy containing dominant waves increases, so that their spectral energy has less influence
on the captured wavenumber range, despite the fact that the short gravity waves produce parasitic
capillary waves. The dip in the capillary-gravity range is a common feature for medium wind
speeds and small fetch. Zhang [177] showed that this can be attributed to the effect of capillary
blockage of both capillary-gravity wind waves and parasitic capillary waves (see also Phillips
[133]).
In the range of gravity-capillary and capillary waves, to the right of the local minimum of
each spectrum, the degree of saturation gently rises, following approximately a k 0.5 trend. This
is consistent with measurements by Jähne and Riemer [84], Klinke [93], Klinke and Jähne [94]
and Balschbach [9] performed in a variety of wind-wave tanks (Delft, Marseille, Urbana, Heidelberg). An increase of B with k 0.5 is characteristic for an equilibrium range, which was originally
modeled by Phillips [130] and Kitaigorodskii [91] for short gravity waves, see section 2.3.2. But
strictly speaking, these models are not readily expected to be valid in that wavenumber range
since capillary effects have been excluded and the dispersion relation for deep water gravity waves
(ω 2 = g · k) was used for the derivation of the 0.5 power law. For the given wavenumber range the
capillary effects can no longer be neglected since the ratio of the gravitational force to the surface
tension force is already smaller than one for wavenumbers greater than k = 364 rad/m, where the
phase velocity attains its minimum.
The degree of saturation for the capillary waves reaches a maximum at wavenumbers between
700 rad/m and 1500 rad/m. For the lowest wind speed the wavenumber at the peak of this maximum is approximately described by equation (2.43), indicating that parasitic capillary waves
strongly contribute to the degree of saturation [99]. For higher wind speed, the expected wavenumber of the parasitic capillaries would already be greater than 2700 rad/m, which is not covered by
our analysis due to the limited resolution.
The MTF corrected omnidirectional spectra in figure 7.2 (left) show that the degree of saturation
for medium to high wind speeds decreases according to a k −0.5 to k −1.0 power law for wavenumbers greater ∼1000 rad/m. The incidence of a change in the wavenumber dependence beyond
1000 rad/m is in correspondence with former observations. But, the strength of the decrease is
considerably less and stands in contradiction to what has apparently become part of the general
knowledge in our community. I.e. former measurements by e.g. Jähne and Riemer [84], Klinke
7.2. Saturation Spectra
91
[93], and Zhang [177] showed a sharp spectral cutoff with a wavenumber dependence according
to k −2 to k −3 power laws (see for instance figure 2.7). The appearance of this cutoff in the former
measurements was interpreted as a characteristic feature of the fully developed wave field [92].
Since then, the cutoff feature has guided the modeling approaches for the energy fluxes in the
capillary range, e.g. Kudryavtsev et al. [99], Apel [8], Elfouhaily et al. [44], Lyzenga [114], see
also figure 2.8. Klinke [92] found the cutoff wavenumber5 to be independent of the wind forcing.
Based on this finding it was argued in Jones and Toba [88, chapter 4.3.6] that the spectral energy
could not be solely modeled by a balance between the wind input and viscous dissipation, as postulated by the Donelan and Pierson [40] model. In the model by Kudryavtsev et al. [99] a spectral
cutoff B(k) ∝ k −2 is obtained for the parasitic capillaries from an energy balance assuming that
the nonlinear dissipation of the dominant waves is equal to the energy losses of the capillaries due
to molecular viscosity. These examples are given to illustrate the impact of the cutoff observation
for the wave modeling.
As described above, the MTF corrected spectra only gently decrease in the vicinity of 10002300 rad/m. Presumably this behavior might even be observable for higher wavenumbers up to
6300 rad/m where the viscous dissipation (∝ k 2 [104]) is believed to be predominant [8] and
finally leading to a viscous cutoff.
Spectral cutoff in the vicinity of 1000 rad/m: Feature or Artifact? Now, even for the recent measurement we would diagnose a cutoff for wavenumbers greater 1000 rad/m if we omitted
the MTF correction, see figure 7.2 (right). In this case we would testify a wavenumber dependence
following k −2 to k −3 , in compliance to former measurements. Therefore we can attribute the discrepancies to the MTF correction which was not incorporated into former evaluations. For digital
images, the MTF is mainly determined by the spatial discretization, see sections 2.5.2 and 4.5.
Since the resolution for most measurements was in the same order of magnitude (see table A.1)
it is plausible that the cutoff wavenumbers from different experiments was found to be consistent.
Moreover, also the wind speed independence of the cutoff wavenumbers could be explained by the
influence of the MTF. Therefore, in the light of the new measurements, it is likely that the spectral
cutoff in the vicinity of 1000 rad/m is an artifact, but not a feature of the wave field. This implies
the need for a reexamination of the whole issue.
However, also the MTF corrected spectra presented in this work may have some undetermined
biases so that this question cannot be finally answered here. There are two sources that artificially
enhance the high wavenumber spectral energy:
1. The MTF correction also amplifies the spectral energy of noise.
2. Extremely high slopes (|s| > 1) cannot be measured due to the finite size of the illumination
(see section 4.1), this occasionally leads to missing data (discontinuities) which in turn affect
the spectral energy at all scales.
Here the influence of noise is not crucial since its contribution to the spectral energy is only noticeable for measurements where the surface is essentially flat - this is the case for very low wind
speeds u ≤ 2 m/s or with strong surface slicks as shown in section 7.2.3. For the clean surface
condition and wind speeds greater 3 m/s the noise level is at max -35 dB. In contrast, the second
issue may have a significant influence for high wind speeds as the incidence of steep waves and
wave breaking increases. But still, since former instruments also suffer from this problem, the
actual discrepancy cannot be explained by this.
5
The cutoff wavenumber was obtained from the intersections of two straight lines in the log-log representation. While
one line was describing the spectral increase in the equilibrium range, the other line was describing the spectral cutoff
beyond 1000 rad/m.
92
7. Results
k = 194 rad/m
−1
10
−2
10
y(x) = a x^n
a = 4.3496e-005
n = 2.5127
R = 0.99854 (log)
−2
10
−3
−3
10
10
−4
B
B
y(x) = a x^n
a = 0.0016
n = 0.39882
R = 0.99441 (log)
10
y(x) = a x^n
a = 2.3542e-007
n = 6.5072
R = 0.98307 (log)
−4
10
−5
−5
10
10
−6
10
k = 391 rad/m
−1
10
y(x) = a x^n
a = 1.1022e-005
n = 2.9397
R = 0.99628 (log)
−6
0
10
1
10
2
10
u
10
0
1
10
−2
10
−3
10
y(x) = a x^n
a = 1.4054e-006
n = 5.4709
R = 0.9932 (log)
−4
10
y(x) = a x^n
a = 4.9188e−006
n = 3.3615
R = 0.99575 (log)
y(x) = a x^n
a = 1.4415e-005
n = 3.9418
R = 0.9989 (log)
−3
10
−5
10
y(x) = a x^n
a = 4.9822e-004
n = 1.3377
R = 0.994 (log)
B
B
10
k = 1447 rad/m
−1
10
y(x) = a x^n
a = 1.1318e-004
n = 2.2033
R = 0.99717 (log)
−2
10
ref
k = 786 rad/m
−1
10
2
10
u
ref
−4
0
10
1
10
u
ref
2
10
10
0
10
1
10
u
2
10
ref
Figure 7.3.: Wind speed dependence of the degree of saturation for selected wavenumbers as indicated.
The additional dash dot curve in the lower left plot corresponds to the empirical formula (7.4) for the degree
of saturation at k = 750 rad/m given by Apel [8].
The contrast damping unavoidably occurs in the acquisition and post-processing of the slope images as long as the spatial resolution is in the same order of magnitude as the smallest wavelengths
occurring within the wind wave field. As mentioned earlier, the MTF correction can compensate
for the contrast modulation, but only to a certain extend since the MTF measurement for high
wavenumbers is also affected by uncertainties. Therefore, new measurements with higher spatial
resolution are requested in order to answer the questions that arise from the analysis in this work.
Wind Speed Dependence
The wind speed dependence of the degree of saturation at certain wavenumbers is shown in figure
7.3. Note, the degree of saturation is displayed as a function of reference wind speed instead of u∗
because at the time of this analysis the u∗ -uref relationship was not yet available. Therefore we
assumed, as a first order approximation, that u∗ and uref are proportional6 . Under this assumption the power law relations remain unchanged and can be compared with results by Klinke [93],
Balschbach [9] and Hwang [71]. For capillary waves with wavelengths in the range of 1.7-0.8 cm
(391-780 rad/m) the degree of saturation follows approximately an u2ref power law for medium
to high wind speeds. For the shorter capillary waves with λ = 0.43 cm (1447 rad/m) there is a
steep increase in the degree of saturation for low wind speeds (∝ u4ref ) and also for high wind
1.3
speeds (∝ u3.4
ref ) while for medium wind speeds the increase is less steep (∝ uref ). In the short
gravity range λ = 3.2 cm (194 rad/m) there is only a very weak wind speed dependency (∝ u0.4
ref )
6
The u∗ -uref relationship, shown in section 5 became available just a few days before the deadline of this thesis.
From figure 5.1 one can see, that the approximation u∗ ∝ uref leads an overestimation of u∗ for uref < 5 m/s and
an underestimation for uref > 5 m/s.
7.2. Saturation Spectra
−2
10
93
k = 100 rad/m .. 2300 rad/m
−3
<B(k)>
10
u030r000s0w0
u040r000s0w0
u052r000s0w0
u062r000s0w0
u081r000s0w0
u100r000s0w0
u120r000s0w0
u140r000s0w0
−4
10
−5
10
−6
10
−180−135 −90 −45
0
Φ [°]
45
90 135 180
Figure 7.4.: Angular Spreading averaged over the whole wavenumber range.
for medium wind speeds, followed by an u3ref power law for wind speeds greater than 8 m/s. In
comparison with data by Klinke [93] and Balschbach [9] no clear conclusion about the wind speed
dependence can be drawn. The dependency is sensitive to the choice of the wavenumbers relative
to the position of the capillary peak. This can be partially explained by the fact that the laboratory
wave fields have not yet fully established an equilibrium range, so that waves in the capillary range
strongly depend on the fetch limited upgrowth of the dominant waves. Moreover, as pointed out by
Hwang [71], the wind speed dependence of the degree of saturation from laboratory measurements
are not directly comparable to the available measurements from the open ocean.
Based on data by Klinke [92] the model by Apel [8] gives a formula for the degree of saturation
for k=750 rad/m
h
−u i
BA (u) = exp −4.95 + 3.45 1 − e 4.7m/s ln 10 ,
(7.4)
where u is a reference wind speed. As a qualitative check for the order of magnitude BA (u) was
computed using (7.4) along with the reference wind speed of our measurement. These values are
plotted as additional circles in figure 7.2 and as a dash-dot line in the bottom left plot in figure 7.3.
The levels of the degree of saturation are surprisingly consistent, taking into account that neither
the fetch nor the wind speed are strictly comparable.
Angular Spreading
As stated in section 2.3.2, the angular distribution of the saturation spectrum in the gravitycapillary range is of special interest in the light of the resonant condition for wave-wave interaction.
If the spread is narrow, the lowest order for wave-wave interaction is that of quartets [63, 130]. At
high wind speeds, when the distribution of the short waves is broad also triad interaction can occur
and become dominant over the quartet interaction [177].
Angular profiles are obtained by averaging the 2D saturation spectra over all wavenumbers,
see figure 7.4. Additionally, in order to make a qualitative distinction between the short gravity wavenumber and the capillary wavenumber ranges, the average was compute over selected
94
7. Results
−2
10
k = 100 rad/m .. 370 rad/m
k = 371 rad/m .. 2300 rad/m
−2
10
−3
10
−3
10
−4
<B(k)>
<B(k)>
10
−5
10
−4
10
−6
10
−5
−7
10
−180−135 −90 −45
0
Φ [° ]
45
90 135 180
10
−180−135 −90 −45
0
Φ [° ]
45
90 135 180
Figure 7.5.: Angular Spreading. Left: short-gravity range; Right: capillary range. (legend, same as figure
7.4)
0
|cosp(Φ)|
10
−1
10
p=1
2
3
4
5
−2
10
−180 −135 −90 −45
0
45
Φ [°]
90
135 180
Figure 7.6.: Angular Spreading. Model curves |cosp (Φ)| for different values of p as indicated.
7.2. Saturation Spectra
−2
10
95
k = 100 rad/m .. 2300 rad/m
<B(k)>
u020r057s0w0
u040r057s0w0
u060r057s0w0
u080r057s0w0
u101r057s0w0
−3
10
−180−135 −90 −45
0
Φ [°]
45
90 135 180
Figure 7.7.: Angular spreading for the wind and rain conditions. (Note, the relative enhancement of spectral
level for the condition u040r057 is presumably due to an anomalous high rain rate.)
wavenumber ranges, see figure 7.5. For low to medium wind speeds the spectral energy is confined within an ±45◦ cone which gradually increases with wind speed. The directional distribution
in the short gravity range is always broader than the spread in the capillary range. (Note that the
angular resolution for the long waves is rather poor. This can be seen directly in the 2D spectra, figure 7.1, that show step-like behavior for small wavenumbers according to limitations in
the angular resolution.) In the capillary range a slight asymmetry can be observed which might
be due to the geometry of the tank and the location of the image section. For high wind speed
(u ≥ 10 m/s) the angular spreading even extends over ±90◦ which can be an indicator for wave
breaking. Additionally, the modulation of short wind waves by the orbital motion of the long
waves may contribute to the signal beyond |90◦ |. Due to the 180◦ ambiguity of former measurements both effects could not be quantified from spectral analysis even though it is already apparent
from the visual inspection of the image sequences. As a matter of fact, the angular distribution is
also affected by aliasing which is discussed right in the beginning of section 7.2.1. The aliasing
primarily leads to the humps in the capillary distribution close to |180◦ |. To overcome this artifact
a higher camera frame rate is necessary.
Model curves of |cosp (Φ)|-type7 , as introduced in section 2.3.2, are shown in a semi-logarithmic
plot in figure 7.6. In comparison with the data from the Hamburg wind wave tank we see that in
the capillary regime for low wind speeds p must have a value of at least 5, while for higher wind
speed and longer waves p must gradually go down to 1.
7.2.2. Wind & Rain Conditions
Rain strongly contributes to the degree of saturation in the capillary wave range. For low to
medium wind speeds the saturation spectra are clearly dominated by the isotropic rain signal, see
figure 7.8. Only for wind speeds greater 8 m/s the angular distribution recovers its directionality
from the wind driven components of the wave field as apparent from figure 7.7. The spectral
energy of the long waves is less, compared to pure wind conditions, which can be explained by
wave damping due to the sub surface turbulence that is induced by the rain. This observations is
consistent with measurements by Yang et al. [172] who performed measurement with a scanning
laser slope gauge 31 cm away from the downwind edge of their rain module. To the authors
knowledge no two-dimensional saturation spectra for rain conditions are available by now. For
our experiments only a single rain rate with a fixed drop size could be realized. Thus, only first
impressions of the rain influence on the wave spectra can be given here. In the context of gasexchange investigations it was found that the drop size distribution has significant influence on the
7
usually the range is only ±π.
96
7. Results
Figure 7.8.: Twosided and MTF corrected saturation spectra for windspeeds 2.0, 4.0,6.0,8.0, and 10.1 m/s
at fetch 15 m with a rainrate of 57 mm/h.
7.2. Saturation Spectra
97
−2
10
−3
Omnidirectional B
10
−4
10
2
k
−5
10
u020r000s0w0
u052r000s0w0
u081r000s0w0
u040r000s1w0
u060r000s2w0
u080r000s2w0
u060r000s4w0
u083r000s4w0
−6
10
2
10
3
k [rad/m]
10
Figure 7.9.: Omnidirectional saturation spectra for slick conditions (dash dot lines) and selected pure wind
conditions (solid lines).
correlation between the transfer velocity and the measured surface roughness [65]. The shape of
the spectra is of great interest for the interpretation of radar backscatter as pointed out by Braun
et al. [25]. For that, future investigations combining the slope imaging with radar measurements
are desired.
The omnidirectional saturation spectra, corresponding to figure 7.8, are shown in the comparison
of the wind&rain and the wind&rain&slick conditions in figure 7.11. The enhancement factor for
the degree of saturation that is due to rain is exemplified in figure 7.12, see also the discussion
section 7.2.4.
7.2.3. Wind & Slick Conditions
For the experiments with the mono-layer surface slicks8 PME and OLA the water surface is essentially flat. The saturation spectra for the slick conditions are thus comparable to the spectrum
from a very low wind speed 2 m/s, except for the small wavenumber range, see figure 7.10. Only
for a wind speed of 8.3 m/s the PME slick broke up and waves could develop. The general shape
of the spectra from the flat water surface is dominated by the noise signal. Since the saturation
spectra are proportional to k 2 times the slope spectra, also the contribution of noise appears as an
increase in the degree of saturation, following a k 2 -power law. Due to the MTF correction, which
also amplifies the spectral energy of noise, the actual increase in the high wavenumber range of
the saturation spectra shows an k 2.7 behavior. From a comparison to the pure wind case (see figure
7.9 and section 7.2.1) we can see that the energy level of the noise is still orders of magnitude
lower than the energy of the wind waves, e.g. for 1580 rad/m the degree of saturation for a wind
speed of 5 m/s is 15 times higher than the noise level that can be inferred from the 2 m/s saturation
spectrum.
Despite the general trend that is due to noise we can observe enhanced spectral energy around
Φ = ±90 that might be due to waves that are produced by vibration and reflections in the tank,
see figure 7.10. However, crosswind traveling waves are not observed by visual inspection of the
image sequences and therefore we cannot rule out the possibility that this is an artifact.
8
Further informations about the surface slicks are to be found in the appendix A.6
98
7. Results
Figure 7.10.: Twosided and MTF corrected saturation spectra for a very low windspeed (2 m/s top left) and
with surface slicks (4, 6, 8 m/s). Slick type as coded in table A.6.
7.2. Saturation Spectra
99
−1
Omnidirectional B
10
u020r057s0w0
u040r057s0w0
u060r057s0w0
u080r057s0w0
u101r057s0w0
u059r057s2w0
u080r057s2w0
u059r057s4w0
u082r057s6w0
−2
10
−3
10
2
3
10
10
k [rad/m]
Figure 7.11.: Omnidirectional saturation spectra for rain conditions, with and without surface slicks.
u
ref
4
= 6 m/s
Rain Enhancement of B
10
3
10
2
10
1
10
0
10
clean
Slicktype 2: OLA
−1
10
2
3
10
10
k [rad/m]
Figure 7.12.: The enhancement of the degree of saturation due to rain for clean and slick conditions.
7.2.4. Wind & Rain & Slick Conditions
The combination of wind, rain and surface slicks leads to saturation spectra that look very much
like those for wind and rain conditions alone. The 2D saturation spectra are displayed in the
appendix, figure A.1. Regarding the omnidirectional spectra 7.11 we can see that the degree of
saturation for the slick conditions, compared to clean conditions, is diminished for k>500 rad/m.
This is consistent with our expectation, based on former investigations of wave damping with the
same surface slicks by Gade et al. [51]. The enhancement of the degree of saturation due to rain
is shown in figure 7.12 for a clean surface and a surface slick condition. The enhancement curves
Bu060r000s2w0
u062r000s0w0
correspond to B
(dash-dot line) and B
Bu060r057s0w0 (solid line). From this example we can
u059r057s2w0
see that especially for the combination of rain and surface slicks the rain effect is very pronounced.
The rain enhancement factor for the clean surface condition is in the range of 1 to 10, while for
the surface slick condition it goes up to a factor of 1800. For the surface slick conditions in the
absence of rain we observed an increase of B(k) for higher wavenumbers corresponding to noise,
compare figure 7.9. This explains the decline of the rain enhancement factor for the slick condition
at higher wavenumbers.
100
7. Results
Figure 7.13.: Twosided and MTF corrected saturation spectra with additional 1Hz mechanical wave.
−1
Omnidirectional B
10
−2
10
u040r000s0w0
u040r057s0w0
u040r000s0w1
u040r057s0w1
−3
10
−4
10
2
10
3
k [rad/m]
10
Figure 7.14.: Omnidirectional saturation spectra with superimposed mechanical wave (dash-dot line) in
comparison to similar conditions without the mechanical wave.
7.2.5. Mechanical Wave Conditions
The wind wave fields measured in the laboratory differ from open ocean measurements[93]. One
important difference is the lack of gravity waves in the laboratory wind wave fields due to the
limited fetch. This has implications for the gravity-capillary regime for several reasons: (i) short
and steep gravity waves may generate parasitic capillaries [132]; (ii) straining may be imposed on
the capillaries as they propagate through the orbital velocity field of the gravity waves [125, 155,
177]; (iii) the momentum input to smaller waves by the wind field may be altered, e.g. through the
non-separated sheltering mechanism [116]; (iv) capillary blockage may occur for gravity waves
with k > 12 rad/m [177]; (v) breaking of the gravity waves.
In order to come closer to field conditions in the wind wave tank, mechanically generated waves
with a frequency of 1 Hz (k ≈ 4.16 rad/m) have been superimposed to the wind wave field for a
selected wind speed of 4 m/s. The wavelength of the mechanical wave is too big and its amplitude
to low, so that the above mentioned influences (i), (iv) and (v) are still not expected to be relevant.
However, at least a qualitative check whether or not (ii) and (iii) are significantly influencing the
saturation spectra in the short-gravity capillary range can be made. Concerning the mechanical
wave it should be noted that: the wave form was not perfectly sinusoidal (easily to be seen from
harmonics in the frequency spectra in figure A.6); the amplitude was within ±4 cm; the wavelength
(λ = 1.5 m) is not within the wavenumber range of the instrument.
The saturation spectrum for the mechanical wave and a wind speed of 4 m/s is shown in figure
7.13 on the left. The result with additional rain is displayed on the right in the same figure.
7.3. Dispersion of Wind Driven Short-Gravity Capillary Waves
101
Figure 7.15.: Examples of the frequency wavenumber spectra, measured by Hara et al. [59]. (a) along wind
direction 0o . (b) oblique direction 45o .
The superposition of the mechanical wave results in an overall decrease of the degree of saturation in the short-gravity capillary wave range, which is in qualitative agreement with measurements of frequency spectra under similar experimental conditions by Makin et al. [115]. From
the omnidirectional spectra in figure 7.14 we can see that the maximum in the capillary range is
significantly shifted towards smaller wavenumbers. For the pure wind condition the maximum
degree of saturation in the capillary regime was around 1500 rad/m whereas with the mechanical
wave a maximum is observed for 785 rad/m. A definitive attribution of this observation to the
above mentioned influences due to the long waves is behind the scope of this analysis.
Comparing the omnidirectional spectra obtained with and without mechanical wave in combination with rain (figure 7.14) we see that the spectral shape is almost the same. The degree of
saturation without the mechanical wave is a factor of 1.6 lower, which is possibly due to variations
in the rain rate over the course of the experimental campaign.
For the condition without rain we observe a change of the degree of saturation in the shortgravity capillary wave range, whereas the influence of rain appears to be dominant over the influence of the swell.
7.3. Dispersion of Wind Driven Short-Gravity Capillary Waves
The dispersion relation ω(k) of water waves is a key property for the interpretation of many kinds
of measurements of the wave field. For instance, it is necessary for a conversion of frequency spectra (e.g. measured using point probes such as wire gauges or laser slope gauges) into wavenumber
spectra[30]. Also for the modeling of the energy fluxes between different wavenumbers requires
the knowledge of the dispersion relation because most approaches are based on conservative equations for the action spectrum9 . In many cases it is simply assumed that the short waves satisfy the
theoretical dispersion relation.
Measurements using laser interferometry on monochromatic small amplitude standing capillary
waves in a small basin showed that the linear dispersion relation, that was introduced in section
2.2.1, is in excellent agreement with the experimental data [13].
9
The action spectrum is defined as N (k) ≡
g
Ψ(k),
ω
see Phillips [130] for details.
102
7. Results
However, in the case of a wind driven wave field the simple usage of the theoretical dispersion
relation is not always appropriate since the short wind waves are subject to strong Doppler shifts
due to near-surface drift currents and the modulation by longer gravity waves [60]. Moreover, the
surface tension, that mainly determines the phase velocity of the capillary waves, can not be treated
as an a priori constant. This is because in any natural environment, as well as in tank experiments,
the water is hardly ever free of contamination from surface active material. It has been shown that
the surface contamination strongly influences the exchange between ocean and atmosphere [48].
If we aim at a physical relationship that links the exchange processes to the wave field, we cannot
ignore changes of the surface tension.
Comprehensive data for the dispersion of gravity waves is available since the 1970’s. Gotwols and Irani [56, 1980] published frequency wavenumber spectra for wavenumbers smaller than
3 rad/m and frequencies up to 19 rad/m, acquired with a video based technique. Another method
makes use of microwave Doppler spectrometry, e.g. Plant and Wright [138] and Wright and Keller
[171]. Nowadays conventional marine radar instruments can be used to compute the surface drift
currents from the Doppler shift of the spectra [149, 150, 174]. However, the spatial resolution of
these techniques does not allow for a precise measurement of the dispersion for wavelengths in the
cm to mm range.
In order to measure the dispersion relation of small scale wind driven waves one needs an instrument that provides the combined spatio-temporal information at high resolution. This is an exigent
experimental challenge and therefore the amount of available data is very poor. Basically, there
exist three main approaches. One is based on a cross-correlation method, which delivers the mean
phase shift as a function of the wavenumber between two consecutive measurements of the surface
topography [80, 164, 179]. The phase shift of one single wave component is simply the product
of the frequency and the time interval between the two measurements. This method suffers from
one severe problem: computing the mean phase shift leads to a mutual cancellation of the symmetric parts of the wavenumber spectrum. A second approach is based on scale decompositions
of the wave field in combination with image velocimetry algorithms [26, 46, 141, 179]. For the
decomposition the images are processed by filters that are similar to bandpass filters, which does
not ensure that the spectral energy that is corresponding to a specific physical wave component is
really completely contained in the corresponding wavenumber band. Another complication is the
spatial averaging of the resulting velocity vectors with respect to the directions of the wavenumber vectors on the different scales10 . However, using this technique Zhang et al. [182] concluded:
"Solid evidence is found that short wind waves in the wave facilities are predominately dispersive
rather than bounded to the dominant wave components. The capillaries are closely resonant with
the longer wave components. They can extract energy directly from the long waves and may be
important dissipation sources of longer wave components especially at low wind speeds."
Until now, direct measurements of the frequency wavenumber spectrum could only be acquired
with the scanning laser slope gauge technique [17]. Hara et al. [59, 1997] published the most comprehensive data for the short-gravity capillary regime measured in a wind wave tank. Examples
are shown in figure 7.15. Their effective range of wavenumber was between 20 and 800 rad/m and
the Nyquist frequency was 218 rad/s. The results revealed that for their experiments a significant
portion of the short wind wave energy was contained in wave modes that propagate with the dominant waves rather than at their phase speed predicted by the dispersion relation. These wave modes
were called generalized bound waves which spanned a much wider range of wavenumbers than
those typically associated with parasitic capillary waves [59]. Until now the scanning laser slope
gauges is state of the art for the measurement of frequency wavenumber spectra [18, 161, 163].
Moreover, this technique has already been successfully deployed in the open ocean [15]
10
For this a physical decomposition of the superimposed motion is desired [Personal communication with Martin
Schmidt, HCI, Uni Heidelberg].
7.3. Dispersion of Wind Driven Short-Gravity Capillary Waves
103
In the following sections we show the first measurement of the frequency wavenumber spectrum
obtained by an imaging slope gauge. Before we give a qualitative interpretation of the spectral
energy distribution we have to discuss how the dispersion relation is expected to deviate from the
linear theory in the case of wind driven water waves. Then the qualitative interpretation already
allows to discuss the physical aspects and the features that are due to artifacts, separately. As a
second step we show a first approach to treat the data for an quantitative analysis, which yields
estimates of the surface drift velocity, the modulation of short waves by long waves, and the surface
tension.
7.3.1. Modifications to the Linear Dispersion Relation
As mentioned before, the dispersion relation of freely propagating short-gravity capillary waves is
well described by the linear theory which gives
s σ
ωT (k, σ) = kg 1 + k 2 tanh kH,
(7.5)
ρg
where g, ρ, and H are treated as constants, see section 2.2.1. The surface tension σ is treated as
a variable, which is explained below. In our situation we have to account for several aspects that
can alter the ω(k) relationship.
First of all we have to include the Doppler shift ωd that results from the mean shear flow at the
water surface
ωd (k, U) = k · U(k) = k U (k) cos(Φ),
(7.6)
where U(k) is the velocity vector of the mean shear flow. The explicit wavenumber dependence
is depicted here to indicate that the flow velocity (as seen by the wave) is given by an weighted
average over the penetration depth of the wave (see Young et al. [174] for details). The cosine
dependency of the Doppler shift leads to an increase of the phase velocity for waves that are
traveling in direction of the flow (Φ = 0) and to a decrease for waves traveling in the opposite
direction. For measurements in the centerline of a linear wind wave tank the direction of the mean
surface current is assumed to coincide with the direction of the wind.
Secondly, the small scale waves are modulated by the orbital motion of longer waves. To a
first order approximation we may assume that the relative phases of the long and the short waves
are randomly distributed and that the long waves are sinusoidal. Under this assumption the long
wave modulation only leads to a broadening of the dispersion shell but leaves the mean value
hω(k)i unchanged. However, dominant waves are usually having a Stokes wave profile, so that
the orbital velocity is higher at the crests and lower at the trough, compared to the linear theory
[59]. In addition, in many cases a significant portion of the small scale waves is made up of
parasitic capillary waves which are coupled to the forward front of the dominant wave crest. This
asymmetry can cause an upward Doppler shift ωw in addition to the Doppler shift due to the
surface drift. Due to the directionality of the short gravity waves (see page 93) no equivalent to the
relationship (7.6) can be given for ωw .
Thirdly, the value of the surface tension varies, especially if artificial surface slicks are applied.
The monolayer surface slicks PME and OLA that have been used in this study can reduce the
surface tension down to about 10% of the value for pure water [105]. As a matter of fact, even for
the conditions without surface slicks the surface tension is expected to vary because of residual
contaminations of any surface active material that can hardly be avoided. Moreover, the surface
tension is a function of the temperature, which might have a significant local effect if cold rain is
impinging on a warm surface. Any reduction of the surface tension leads to a decrease in ωT (k, σ).
In this case the effect is not depending on the waves direction.
104
7. Results
For the discussion of the wavenumber-frequency spectra the different influences are taken into
account, formally summarized as
hω(k)i = hωT (k, σ) + ωd (k, U) + ωw (k)i .
(7.7)
7.3.2. Interpretation of the 3D Spectral Energy Density
In this section we will discuss the structure of the 3D spectral energy density for one example that
is shown in figure 7.16. The experimental condition (wind speed 8 m/s, rain rate 57 mm/h, surface
slick type 2 (OLA)) is chosen such that all contributions to the effective dispersion relation can be
discussed. For convenience we use the term dispersion shell for the center of mass of the measured
spectral distribution. In other words: the dispersion shell is the expectation value of ω using the
3D power spectral density S(k, ω) in terms of a probability density function
R
ωS(k, ω)dω
hω(k)i = R
,
(7.8)
S(k, ω)dω
which is of course only valid as long as the relation between k and ω is unambiguous. On basis of
the measurements we approximate (7.8) by
Pw=O/2
ωu,v =
ωw Su,v,w
w=0
,
PO/2
w=0 Su,v,w
(7.9)
where O is the number of frames that were used for the computation of the spectrum. In addition
to the matter of ambiguity, for unbiased estimate ωu,v we would require that S(k, ω) vanishes for
w → O/2 and w → 0. Unfortunately this is not true due to the limited frame rate and the limited
timespan of the measurement. But still we can detect the occurrence of a bias by checking the
requirements. The first step, before computing the dispersion shell, is therefore a visual inspection
of the spectral volume.
What is displayed: In figure 7.16 several slices through the 3D spectrum are shown. These
slices display the specral energy density in false colors with a logarithmic color map. The range
of the color map is adapted to the dynamical range of each slice separately, so that the dispersion
shell is visible in each slice. Therefore the colors from different slices are not directly comparable
to each other. Each slice corresponds to a specific polar angle Φ in the wavenumber domain, where
Φ = 0 is aligned to the direction of the wind. The wavenumber and frequency axis are the same for
all plots. The diagram in the middle shows the scaling of the axis and the dispersion relation from
the linear theory for pure water, which is also included in each slice for reference. Even according
to the linear theory the frequency is beyond the Nyquist frequency ωN 11 for k > 2300 rad/m. The
corresponding spectral energy re-enters the spectrum under a point reflection at the origin of the
2D wavenumber plain (or accordingly at polar angles in the range between 90o and 270o ) and
at frequencies that obey ω 0 = 2ωN − ω. The expected location of the aliased spectral energy is
indicated as a dash-dot line. The aliasing is explained in more detail in section 2.5.1.
What can be observed:
Please regard the different slices in figure 7.16.
• Because in this example a rain condition was selected we can see significant features in the
spectral energy for all directions of wave propagation Φ.
11
ωN = 981.7 rad/s
7.3. Dispersion of Wind Driven Short-Gravity Capillary Waves
105
u080r057s2w0
Φ = 135o
Φ = 90o
Φ = 45o
ω [rad/s]
800
600
400
200
Φ = 180o
Φ = 225o
1000 2000
k [rad/m]
Φ = 270o
3000
Φ = 0o
Φ = 315o
Figure 7.16.: ω-k slices through the 3D power spectrum with different directions relative to the wind, as
indicated. Explanation, see text.
• Looking at the cross wind directions 90o and 180o we observe that the dispersion shell is
very close to the linear theory. In the capillary range we can see that hω(k)i is actually below
the reference curve, which is due to the reduction of the surface tension by the monolayer
surface slick. The spread of the dispersion shell can be interpreted in terms of modulation
due to wave-wave interaction. In these directions, perpendicular to the wind and the surface
current, no Doppler shifts can be identified, which is in agreement with our expectation.
• For the along wind direction 0o the dispersion shell is fiercely shifted toward higher frequencies, which is due to the Doppler shifts stemming from either the shear flow or wave-wave
interaction. Note that the Doppler shift and the influence of the surface tension partially
annihilate each other. At the very low frequency end we can see that the spectrum is contaminated by spectral leakage from the dominant waves that are not well resolved by the
instrument and which can not completely be removed by the windowing function that was
used for the Fourier transformation.
• Below the reference curve in the 0o -slice another tiny feature can be seen that looks like a
straight line. A straight line corresponds to a constant phase speed, which is in this case
approximately 0.20 m/s and therefore less than the minimum phase speed 0.23 m/s for clean
water. According to the linear theory the surface tension needs to be reduced to about
0.04 N/m (compared to σclean = 0.07197 N/m for T = 25o C) to yield a minimum phase
speed of 0.20 m/s, but only for k = 491 rad/m (λ = 1.28 cm). Waves with such a small wave-
106
7. Results
Figure 7.17.: left: Expectation value for ω (equation (7.9)). right: Standard deviation for ω (equation 7.12).
length are not expected to have bound waves. Since the feature extents to about 1500 rad/m
it is presumably linked to higher harmonics, e.g. produced by slope discontinuities from
the craters of the rain drop impacts. This also means that the above estimate of the surface
tension might have no physical meaning.
• In the directions 45o and 315o the dispersion shell looks alike in the along wind direction,
but obviously the Doppler shift is reduced, corresponding to the cos(Φ) proportionality in
equation (7.6). No severe spectral leakage is observed at the low frequency end. Comparing
the two slices at the high frequency end it seems that the spectral energy in the 45o direction
is more pronounced than in the 315o direction.
• Regarding the slices for wavenumbers in the windward directions 135o , 180o , and 225o we
notice some ambiguity in the spectral distribution for wavenumbers greater than 1500 rad/m.
The features in the high frequency range are due to the aliasing, which would be expected to
coincide with the dashed reference curve if the theoretical dispersion relation for pure water
would be tenable. The actual dispersion shell is drastically shifted to lower frequencies
because in the upstream direction the surface current Doppler shift contribution is negative
and adds to the reduction of ω caused by the surface slick.
• With respect to the wavenumber range, the frequency range, as well as the resolution within
the spectral volume we have achieved considerable advances in comparison to existing data.
For a direct comparison of the abundance of the spectra, take for instance the quadrant to
the bottom right in figure 7.15 (a), which corresponds to the Φ = 0o slice in figure 7.16 despite the differences in the experimental conditions.
7.3.3. Quantitative Evaluation
In the preceding discussion we have gained a qualitative understanding of the structure of the 3D
spectral energy density and how it is related to physical aspects that modify the dispersion shell of
the wind driven wave field. For the quantitative analysis, based on the expectation value hω(k)i,
we need to remove the ambiguities due to the aliasing and spectral leakage that was discussed in
the foregoing section. Here, we implement this in a rather crude way. A binary image M (k) is
constructed that is used to mask out biased values after we computed the dispersion shell according
to equation (7.9). We define the mask M in the following way

ωN
if
S974
/S0ωN > 0.1%
 0
0
if
S039 /S0ωN > 1%
M (k) =
,
(7.10)

1
else
7.3. Dispersion of Wind Driven Short-Gravity Capillary Waves
107
where Sab is an abbreviation for a summation of the spectral energy density over the frequency
range [a, b] rad/s.
b
X
b
Sa ≡
Su,v,w .
(7.11)
w=a
The first condition in (7.10) discards wavenumbers that are suspected to be biased due to aliasing.
Wavenumbers affected by severe spectral leakage are masked out by the second condition.
For the same experimental condition as in figure 7.16 the dispersion shell is displayed on the
left in figure 7.17. The expectation value is computed according to (7.9) and multiplied with the
mask M . The result is shown as a function of the polar coordinates, which makes it easy to see
the differences due to the angular dependency of the Doppler shift. In general, this representation
shows the Doppler shift by the surface drift as a cosine shaped envelope. For this special case
we observe that the Doppler shift in the direction Φ = 0 is less pronounced than for Φ = ±45o .
This anomaly is presumably due to the asymmetry in the width of the dispersion shell in the
windward direction for small wavenumbers, compare figure 7.16. Another reason could be the
Doppler shift contribution from the wave-wave interaction, if this contribution is stronger for the
±45o directions. The width of the dispersion shell is displayed in terms of the standard deviation
stdω in figure 7.17 to the right, which in correspondence to (7.9) is computed according to
v
u
ωN
X
u
SoωN
stdu,v = t ω 2
Su,v,w (ωu,v,w − hωu,v i)2 .
(7.12)
ωN
N
(So ) − So w=0
The standard deviation of ω is expected to be related to all kinds of modulations, stemming from
nonlinear wave-wave interaction as well as from the modulation due to the orbital motions on
different scales. However, as a matter of fact, stdω is also influenced by noise and artifacts, which
makes a strict assignment precarious. Note that the distribution of the spectral energy for a given
wavenumber is not always shaped like a Gauss function. Especially for low wavenumbers the
distribution is asymmetric and the expectation value for omega is shifted to lower frequencies,
compared to the peak of the distribution for a given wavenumber and direction.
Model Fit: Based on the modified dispersion relation (7.7) we can perform a fit to the dispersion
shell according to the model function
hω(k, Φ)i = a(k) + k · b(k) cos(Φ − c(k)),
(7.13)
where the parameter a can be identified with the linear dispersion relation ωT (k, σ), the parameter b gives the amplitudes of the cosine modulation due to the Doppler shift, and c accounts for
little deviations of the direction of the surface current from the wind direction. The wavenumber
dependency is depicted here, because we perform this fit for each wavenumber separately. The fit
is illustrated for one selected wavenumber in figure 7.18.
It is not possible to distinguish the Doppler shift contributions from gravity waves and from
the shear flow. Therefore b and c only account for the mean Doppler shift, assuming that the
directionality of both contributions is the same. However, we can already infer from figure 7.17
that this assumption is only a first order approximation.
The model fit for the dataset u080r057s2w0 yields the parameters a, b, and c as a function of
wavenumber which are displayed in figure 7.19. The fit result, based on this set of parameters,
is shown in figure 7.20 along with a plot of the relative deviation between data and fit. In this
case the model represents the data only within −10 to +30 %, which is not surprising with respect
to the anomaly of the dispersion shell that we have already discussed above. Therefore the fit
parameter b gives only an estimate of the order of magnitude of the Doppler velocity, which is
108
7. Results
Figure 7.18.: Illustration of the model fit according to (7.13) for a selected wavenumber as indicated.
(+ symbol : data u080r057s0w0; dotted line: ω(k) from linear theory for pure water.)
250
4
0.16
0.155
200
0.15
c [o]
b [m/s]
a [rad/s]
3.5
150
0.145
3
100
0.14
50
200
400
600
800
k [rad/m]
1000
1200
0.135
200
400
600
800
k [rad/m]
1000
1200
2.5
200
400
600
800
k [rad/m]
1000
1200
Figure 7.19.: Fit parameter, data: u080r057s2w0
Figure 7.20.: Left: Fit by the model function 7.13 with parameters as shown in figure 7.19. Right: Deviation
of the fit result from the measured expectation value.
7.3. Dispersion of Wind Driven Short-Gravity Capillary Waves
109
u080r057s2w0
300
(<ω> − ωd) [rad/s]
250
y(x) = ((9.8065 x) (1 +
σ / (997.0479 9.8065)
x^2) tanh(0.5 x))^0.5
σ = 0.04295
R = 0.99795 (lin)
200
150
100
50
300
400
500
600
700
k [rad/m]
800
900
1000
Figure 7.21.: Fit for the surface tension on parameter a in figure 7.19.
around 14.5 cm/s. For wavenumbers between 600 and 900 rad/m the Doppler velocity rises linearly, which might be directly linked to the velocity gradient in the surface shear flow. This is
an interesting aspect that should be adressed by future investigations where also direct measuerements of the shear flow should be incorporated. The mean direction in the Doppler term, given by
the parameter c, varies slightly around 3o in correspondance to the assumption that wind direction
and mean Doppler velocity are in alignement. The frequency a can be intepreted as the theoretical
dispersion minus the Doppler shift. Therefore it can be used for an attempt to yield the surface
tension by fitting the theoretical curve with σ as a free parameter. This is shown in figure 7.21,
where also the pure water relationship is shown as a dashed line for reference. In this case we
get σ = 0.043 N/m, with an coefficient of determination of R2 = 0.996. Note that a monolayer
surface slick was applied in combination of rain.
7.3.4. Summary & Future Perspectives
The condition that was selected for this case study allowed to demonstrate a first approach to
evaluate the physical aspects that alter the dispersion relation. It was shown, that we can - at
least in principle - extract valuable information about the shear flow, the wave-wave interaction,
and the influences of surface slicks from the new spatio-temporal measurements. However, the
temporal resolution is still not high enough, which leads to severe difficulties that arise from the
aliasing. Masking out the biased values of the dispersion shell works well as a first approach, but it
conversely discards to much valuable information. Moreover, the case study showed that we need
to improve the model approach in order to distinguish the Doppler shift contribution of the shear
flow from the contribution due to wave-wave interaction. For this a model for the wave-wave
interaction that directly incorporates the measured angular spreading at different scales (section
7.2.1) might presumably be helpful. The interaction between short surface waves and surface
shear is modeled in some detail by Zhang [180].
A systematic analysis of the complete data set from the WiSSCy campaign is beyond the scope
of this study. It should be noted, that in some cases the model fit performs significantly better than
for the show case, whereas in some other cases the approach fails. The frequency wavenumber
slices for all 26 conditions are included in the appendix A.4 for the sake of completeness. This
comprehensive overview should give an impression about the variety of features in the 3D spectra
and in turn it should serve as a guidance for future investigations.
It would be desirable to combine the slope imaging with direct measurements of the shear flow
110
7. Results
as well as of the surface tension in order to validate the results. One approach that could be applicable even for the recent data set could be the shear flow estimation from active thermography, which
was introduced by Garbe et al. [54]. It would be a milestone for the experimental investigations
of air-sea interaction if the velocity gradient in the shear flow can be correctly inferred from the
measurement of the dispersion relation, because with conventional techniques the measurement of
the flow velocities near the wavy surface is very challenging [29].
Another promising application of the new technique can be seen in the context of the Wind
Over Waves Coupling Model, which was introduced in section 2.4.1. In the recent publication
by Caulliez et al. [30, (2008)] they write: "..., in this range wave kinematics strongly depends
on direction of wave propagation, as well as upon drift current and longer wave modulations.
Therefore to model the wave dispersion for the different wind and fetch conditions to derive the
wavenumber spectrum in the small scale wave equilibrium region from the observed frequency
spectrum, still looks out of reach....". The bottom line is that the linear dispersion relation is used
for the model. Therefore the incorporation of direct measurements of the dispersion relation can
be expected to lead to a considerable improvement concerning the description of the interaction
between wind and waves.
7.4. Roughness of the Water Surface
111
−1
mean square slope <s2>
10
clean
clean & rain
slick PME
slick PME & rain
slick OLA
slick OLA & rain
mech. wave
mech. wave & rain
fit for clean
−2
10
−3
10
2
4
6
uref [m/s]
8
10
12 14
Figure 7.22.: Surface roughness s2 as a function of the reference wind speed for different conditions of
the WiSSCy 2007 campaign.
7.4. Roughness of the Water Surface
The mean square slope s2 , also referred to as mss, is a measure for the roughness of the water
surface. It was shown that mss is a better parameter for the description of air-water transfer rates
than the conventional wind speed parameterizations [48, 82]. This is the case because the transfer
of heat or gas is mainly controlled by the water sided diffusive boundary layer, which is in turn
influenced by the amount of turbulence that is induced by instabilities of the surface waves. Even
though wind is the main mechanism for the generation of waves it is not the only criterion which
defines the state sea surface. Most prominent is the influence of even very little contaminations
with surface active material12 , referred to as surface slicks, which effectively inhibit the generation
of capillary waves. Therefore the actual sea state and consequently air-sea exchange can be very
different although the wind speed is the same.
Another reason for the interest in mss is its accessibility by means of remote sensing from
satellites. This is important in the context of global climate modeling. Frew et al. [49] introduces
a new approach to estimation of global air-sea gas transfer velocity fields using dual-frequency
altimeter backscatter13 . This represents a potential alternative to commonly used parameterizations
based on wind speed (e.g. [110, 168, 169]).
From remote sensing it is only possible to retrieve information that is averaged over the mesoscale14 .
But the processes involved in air-sea interaction act on the centimeter to millimeter scales - as can
be seen in section 7.5.3 - so that from remote sensing alone it is not possible to really understand
what is happening on the surface.
In section 7.4.1 we show the diversification of the mss-uref relationship in cases of rainfall and
slick contamination. Since the mss parameterization of transfer rates seems to overestimate the
transfer velocity in cases of rain [65], we provide a first approach to separate the mss contribution
by rain from the mss contribution by the wind driven waves in section 7.4.2.
12
e.g. from algae blooms or pollution.
... which in this case is related to the mean square slope in the wavenumber band 40-100 rad/m.
14
mesoscale: medium spatial scale 5-100 km.
13
112
7. Results
7.4.1. Influence of Surface Slicks and Rain
Figure 7.22 shows a plot of mss versus the reference wind speed in order to given an impression
of how the surface roughness is changed by intense rainfall or monomolecular surface slicks. A
polynomial fit to the data for the clean surface condition (symbol +) is included as a red dashed
line. This fit has no strict physical meaning and is shown to easily compare the other experimental
conditions to the clean surface case.
For instance we can see that the rain15 (symbol ×) constitutes as much surface roughness as
typically observed for high wind speeds in the range of 10-12 m/s. The fact that the scatter for the
rain condition is higher than for all other conditions might be explained by variations in the rain
rate over the course of the campaign.
In contrast to rain, surface slicks lead to an immense reduction of mss for low wind speeds and
small fetches16 . In our laboratory measurements at 17 m fetch the monolayer slicks OLA and PME
(see appendix A.6 for details) prevented any waves for wind speeds smaller than 8 m/s. Above that
wind speed that the slicks occasionally broke up and waves developed. In the field the situation
might be more complicated, since the fetch is typically longer and one can frequently observe
smooth patches next to rough patches of the water surface. This is one one of the reasons why
the uncertainties of transfer estimates based on any integral measurement of wind speed or surface
roughness over the mesoscale are typically in the order of 20-30% [49, 127].
In section 6.6 we have introduced several ways to compute the mean square slope from the images of the water surface slope. The data points shown in figure 7.22 are stemming from ensemble
averages over 5000 statistically independent images, see section 6.6. Only stationary conditions
have been selected for this plot, so that we omitted the errorbars. For a more detailed description
please refer to Rocholz [143]. A detailed analysis of the gas and heat transfer rates of the WiSSCycampaign with respect to a mean square slope parameterization is still pending, while preliminary
results are available from Richter [140] and Anweiler [7][6][5]
7.4.2. Contribution of Windward Propagating Waves
Ho et al. [65] showed
that the transfer rate k600 in a rain-driven system is no longer in distinct
correlation with s2 . While for a particular drop size the data was well correlated, different drop
sizes produced separate linear relationships. They conclude that the ring waves from the rain
are not directly coupled to the near surface turbulence that is controlling the gas exchange and
therefore direct measurements of the enhanced turbulence are needed.
However, with the new measurement technique we are able to distinguish between waves that
propagate leeward17 and waves that propagate windward18 . Generally speaking, the wind driven
waves travel with the air flow so that they only contribute to the leeward part of the energy spectrum. In contrast, the ring waves from rain drops contribute equally to the leeward and windward
spectral energy. Therefore we might be able to separate the mean square slope contribution from
the ring waves and the wind driven waves by a comparison of the leeward and windward parts of
the spectra according to equation (6.5) in section 6.6. This information could be useful for future
applications of transfer models that incorporate the intermittent nature of the air-see exchange,
such as the composite model [78] which is described in detail by Degreif [37, chapter 2.6].
The roughness contribution from waves that are propagating against the wind (i.e. windward)
can be assessed from figure 7.23, where the contribution msswindward and mssleeward are displayed in red and blue symbols as a function of the total mss. We can see that the leeward con15
rainrate 57 mm/h, drop diameter 2.9 mm
fetch: distance over which wind acts on the water surface.
17
leeward: having the wind in the back.
18
windward: having the wind in the face.
16
7.4. Roughness of the Water Surface
113
tribution to the total mean square slope is always greater than the windward contribution, which is
again due to the fact that wind driven water waves hardly travel against the mean wind direction.
Moreover, we can see that the leeward contribution is about 80% to 90% for moderate windspeeds (3 m/s < uref < 8 m/s, 0.02 < mss < 0.06) and no-rain conditions. For the same condition but higher wind speeds the leeward contribution drops to about 80%. This can be explained
by two reasons a) there is the undesirable effect of aliasing (see sections 2.5.1, 7.3, and 7.2.1) and
b) there are some real structures propagating against the wind. What could these real windward
traveling structures be? When a dominant wave breaks, it leaves behind irregular and undirected
surface structures which can be attributed to the turbulent wake that is found behind the breaking
crest in the water body. This is demonstrated in section 7.5.3. Since these structures are undirected,
about half of their contribution to the surface roughness is found in the windward partition. Following this idea the enhancement of the windward contribution could be interpreted as an indicator
for enhanced turbulence production by the waves. Another reason for windward traveling structures under no-rain conditions could be the occurrence of strong modulation of capillary waves by
the orbital motion due to longer gravity waves.
The situation in presence of surface slicks and without rain is similar to the situation for moderate wind speeds and the clean surface condition. For the slick conditions we can distinguish
whether or not the wind forcing is strong enough to break up the slick to generate wind waves.
If wind waves are present, then the leeward contribution is 90%. In absence of waves we find a
greater scatter which is explained by the poor signal to noise ratio.
Drastic changes in the partition are expected under the influence of raindrops. This is because
the resulting ring-wave patterns are intrinsically isotropic. From the measurements under rain and
slick conditions, when the wind is not strong enough to produce significant wind waves, we find
that the windward contribution rises to about 45%. The fact that the leeward contribution is still
55% and therefore higher than the windward contribution can be explained by two reasons. Firstly
the wind can drive the small scale waves once they exist, and secondly because the downwind
part of the imaging section was not as much exposed to the rain as the upwind part. This was
due to technical reasons (see section 4.1) and leads to some asymmetry: the leeward traveling
ring waves can be followed longer within the images because they are not that much disturbed
by neighbouring raindrop impacts (e.g. see figure 7.30). Moreover, the windward traveling ring
waves disappear from the imaging section in a shorter time. For the measurements with the PME
slick at uref = 8 m/s the windward partition was only about 35%, because the wavefield was
comparable to the clean surface and rain conditions.
For the clean surface condition with rain we can observe that the windward contribution to the
mss is in the range of 30% to 45%. From this we can estimate the portion due to wind driven
waves to be in the range of 40% to 10% - according to mss − 2 · mmswindward - if we assume
that the windward contribution is completely determined by the isotropic ring waves. This kind
of estimate could be incorporated in some composite model in order to improve the mean square
slope parameterization of transfer rates as explained at the outset.
114
7. Results
leeward (blue) and windward (red) contribution to <s2>
0.14
no rain, no slick
no rain, no slick
no rain, with slick
no rain, with slick
with rain, no slick
with rain, no slick
with rain, with slick
with rain, with slick
0.12
0.1
100%
90%
80%
<s2> contribution
70%
0.08
60%
50%
0.06
40%
0.04
30%
20%
0.02
10%
0
0
0.02
0.04
0.06
0.08
0.1
0.12
0.14
<s2>
leeward (blue) and windward (red) contribution to <s2>
100%
90%
80%
70%
60%
50%
40%
-1
10
30%
<s2> contribution
20%
10%
-2
10
no rain, no slick
no rain, no slick
no rain, with slick
no rain, with slick
with rain, no slick
with rain, no slick
with rain, with slick
with rain, with slick
-3
10
-2
-1
10
10
2
<s >
Figure 7.23.: Contribution to the mean square slope from windward traveling waves (red) and leeward
traveling waves (blue). Both plots display the same data just in different representations.
7.5. Wave Visualization
115
7.5. Wave Visualization
The co-located and synchronized 2D measurements of the surface slope and active thermography
provide insights into the influence by the passing waves on the near surface turbulence.
Over the course of the WiSSCy campaign we have acquired 150 synchronized image sequences,
encompassing the variety of experimental conditions, see section 5. Each sequence comprises
5000 frames, acquired with a frame rate of 312.5 Hz, i.e. a time span of 16 s.
Concerning this huge amount of data a visualization is desired that allows for a direct comparison of the features in the images. In many cases, a visual inspection of image sequences is
performed using color overlays or side by side displays. Displaying the images in different colors on top of each other can be misleading for the human perception. A side by side display of
corresponding images makes a direct comparison difficult, especially when the image content is
changing as for a movie display of an image sequence. Therefore, a visualization tool was developed by Jung [89] which maps the thermal images onto a 3D graphical model of the surface
elevation. This tool is based on OpenGL and receives three image sequences
• the reconstructed water surface height h(x, t) (in units of pixel/mm)
• and both slope components sx (x, t) and sx (x, t)
as primary input19 . The primary input is used for a 3D rendering of the water surface with interactive control for the projection. The surface slopes are incorporated for the shading model, in order
to make even the small scale waves visible. As secondary input
• the registered thermographic images
can be provided20 . This additional data is mapped onto the virtual water surface using false color
that is defined by a programmable color map.
7.5.1. Height Reconstruction from the Gradient Field
In section 2.5.4 the method of Frankot and Chellappa [47] for the height reconstruction was introduced. The discrete version of equation (2.93) can be written as
(
−1 2
i 2πku,v
kxu,v sˆxu,v + kyu,v sˆy u,v
for
[u, v] 6= [0, 0]
ĥu,v =
,
(7.14)
0
for
[u, v] = [0, 0]
where the wavenumber grids are defined by
kxu,v
= ku,0
kyu,v
= k0,v
2
ku,v
∀ v
∀ u
2
2
= (kxu,v ) + (kyu,v ) .
(7.15)
The surface elevation hm,n follows from the inverse DFT. Not only the information about the mean
surface height is lost by setting ĥ0,0 ≡ 0 to handle the devision by zero. Also the mean surface
gradient is lost at the same instance, because the spectral components sˆx0,0 and sˆy 0,0 are excluded
from the reconstruction. However, it is easy to add the plane that corresponds to the mean gradient
to the result of the Fourier reconstruction
h(x) = FT−1 ĥ(k) + hsx (x)i x(x) + hsy (x)i y(x),
(7.16)
19
20
Required format for the input: 32 bit float
Note, the secondary input is not restricted to thermographic images. Any sequence which corresponds to the primary
input can be used.
116
7. Results
Figure 7.24.: Example for the periodic reproduction of the slope image by mirroring. The original image
is highlighted by the surrounding dash-dot rectangle. The gray values are now continuous at the image
boarders. However, the directions of the gradient vectors are still dis-continuous at the axis of reflection.
where we choose the coordinate system such that the origin is at the center of the field of view.
This automatically yields
hhsx i x + hsy i yi = 0,
(7.17)
so that also the mean of the elevation function h is always zero.
The accuracy of the height reconstruction has been investigated using artificial data, since for the
water surface itself no ground truth is available. The reconstruction performs reasonably well, even
if we add an realistic amount of white noise. The pixel wise absolute errors are within three times
the standard deviation of the noise, if we discard unavoidable artifacts that arise in the boarder
regions of the images, typically within the outer 10 pixels. Note that for the height reconstruction
we omit the windowing function, since this would cause even more artificats in the boarder regions
when inverting the windowing at the end. The effects of the boundary and noise have also been
explored by Zhang [178], coming to similar conclusions. Here, we only have extended the method
in consideration of the mean gradient.
Concerning the real data, we can compare the gradient fields before and after the reconstruction,
which yields reasonable results, though we cannot really quantify the accuracy from this, since it
is partially limited by the applied derivative filters. However, from these test we can state that in
our case the Fourier integration is the method of choice, whereas in other situations - especially
in cases where the accuracy of the gradient field is not homogeneous in space - one might need to
use a regularized reconstruction as proposed by O’Sullivan et al. [128].
Balschbach [9] and Fuß [50] have proposed a periodic reproduction of the slope images before
the computation of the spectra, in order to avoid the discontinuities of the gray values at the image
boarders. This is achieved by a specific mirroring of the data, which is exemplified in figure
7.24. From this example we can see that the discontinuities in the magnitude of the gradient can
be intercepted by this method. However, the polar orientation of the gradient vector now shows
systematic discontinuities at the axis of reflection, leading to the same kind of artifacts as without
enforcing the periodicity of the gradient magnitudes. Therefore, we omitted this approach from
the height reconstruction in this study.
In the examples that will follow (section 7.5.3) we can see that the addition of the mean gradient plane in equation (7.16) leads to much more realistic wave profiles, compared to former
reconstructions where the long wave contribution was discarded (e.g. [9]). Of course, the reconstruction can only reproduce the long wave amplitudes to some extend. It is limited by the finite
size of the field of view for which the mean gradient is determined. This is reflected by the fact,
that the integration constant corresponding to the mean surface elevation within the field of view
(which might be a function of time) is still unknown.
7.5. Wave Visualization
117
7.5.2. Registration of the Thermographic Images:
In section 4.3 we have described the registration procedure of the thermographic images with
respect to the slope images.
The registration of the calibrated IR images is performed for all synchronized measurements.
For that we obtain image sequences of the surface temperature that are in correspondence to the
height sequences and therefore can be used as secondary input for the visualization tool. Ultimately, the surface temperature evolution can be inspected in direct reference to the waves.
7.5.3. Observation of Small Scale Processes
In this section we display several examples of the wave visualization, with emphasis on the dynamical aspects, such as microscale wave breaking and micro Langmuir circulation. All examples
have some common features
• the wind is blowing from the right to the left in the images,
• the field of view is 22.3 cm×10.4 cm,
• the time interval in-between two consecutive frames is 0.0032 s for the actual sequence, but
in the figures we will adjust the time increment as indicated by the frame numbers,
• the false colors represent the temperature at the water surface,
• the water surface elevation is displayed in perspective and true to scale, with an offset of
3 cm to indicate the water body, which is 52 cm deep in reality.
Microscale Wave Breaking
Figure 7.25 shows a typical microscale breaking event. The experimental conditions are: clean
surface and a wind speed of 6 m/s. The time interval between the displayed images21 is 0.032 s.
The CO2 laser scans over a small region at the upstream boarder of the images and deposits heat
within the top 20 µm of the water surface. The laser was switched on just before the first frame was
acquired, so that the water surface is hot in the scanning region, but cool elsewhere. For the whole
time, the laser continuously heats the surface in the scan region, which is apparent as the red line
at the right edge of each frame. In frame 10 we see that a steep short-gravity wave enters the field
of view. As the wave propagates to the left we can observe that heated parcels of the surface water
are trapped just behind the crest of the wave. The temperature in this trapped region decreases
in time because of the heat exchange with surrounding water and air parcels, as well as because
of shearing and turbulent deformation of the parcels itself. Starting with frame 40 we can see
that the wave breaks and relieves the warm water as pale streaks in its wake. In the frames 60-80
the microscale wave breaking is visible due to the disordered surface structures behind the crest.
Zappa et al. [176] showed that the surface area which is disrupted by micro-breaking is strongly
correlated with enhanced air-water transfer. This is also apparent from the visualization of other
micro-breaking events, where we can frequently observe that the induced sub-surface turbulence
influences the thermal signature for up to about three periods22 of the dominant waves. This has
to be taken into account when comparing the frequency of micro scale breaking events with the
surface renewal rate [55]. The intermittent nature of microscale breaking leads to variations of
the transfer processes on time scales of a fraction of a second and the horizontal spatial scales of
several centimeters. This has severe implications on large scale averaging of transfer velocities
21
22
corresponding to 10 frames of the original sequence
e.g. for 8 m/s windspeed the period of the dominant wave in our experiments was about 0.42 s
118
7. Results
o
16.89 C
Scan Region of the CO2 Laser
frame 10
frame 20
frame 30
frame 40
frame 50
frame 60
frame 70
frame 80
.4
10
frame 00
o
19.03 C
cm
22.3 cm
Figure 7.25.: Microscale breaking wave at 6 m/s wind speed.
as pointed out in detail by Jähne et al. [83]. From frame 30 through frame 80 we can see that in
the region where the laser heats the surface, some elongated structures develop. These streaks are
oriented in direction of the wind, i.e. the mean shear flow. This is an indication to the formation
of coherent flow structures which are explained in the following paragraph.
Micro Langmuir Circulation
For the same condition as in the preceding paragraph, just 50 frames (0.16 s) later, we can observe
the formation of elongated streaks in figure 7.26. The short gravity wave that is visible in frame
150 is the dominant wave which is subsequent to the micro breaker from frame 80 in figure 7.25.
This subsequent wave is apparently not steep enough to break, but we can see that it leads to a significant horizontal transport of the heated water surface parcels. Moreover, the thermal signature
exhibits streaks that might be attributed to upwelling and downwelling zones of (micro) Langmuir
o
16.89 C
Scan Region of the CO2 Laser
frame 130
frame 140
frame 150
frame 160
frame 170
frame 180
o
19.03 C
.4
10
cm
22.3 cm
Figure 7.26.: Micro Langmuir Circulation at 6 m/s wind speed.
7.5. Wave Visualization
119
circulations, as depicted by the sketch in figure 7.27. The Langmuir circulations are vortices that
are parallel to the water surface and oriented in direction of the shear flow. The shear flow is
mainly responsible for the generation of these circulations [134] but there also exists interaction
of the turbulence with passing waves, which is sketched in figure 7.28 (see [158] for details).
Figure 7.27.: Upwelling and downwelling zones due to Langmuir Circulations (modified after Polton and
Belcher [139]).
Figure 7.28.: Schematic diagram showing the vorticity strechting and compression induced by the orbital
motion at the crest and at the trough of a surface wave, in a frame of reference travelling with the wave
(adopted from Teixeira and Belcher [158]).
Veron and Melville [165] and Melville et al. [123] have experimentally investigated the coupling between such-small scale Langmuir circulations and the wind-driven water waves. They
studied the generation and evolution of Langmuir circulations in laboratory experiments for incipient winds. The streaks that we observe in figure 7.26 look similar to the observations of Veron
and Melville [165] after about 20 s of wind forcing23 , while in general the experimental conditions
are not readily comparable. However, the interpretation of these structures may be guided by the
former findings.
We assume that the structures are not due to thermal instability, i.e. convection. Then, Langmuir
circulations can be seen as an additional mechanism that enhances the vertical mixing in the subsurface flow under natural conditions24 . Concerning the air-water transfer the question is always,
whether or not the vortices can penetrate into the diffusive boundary layer for gases or heat25 .
Recently Hara et al. [61] introduced an eddy renewal model that incorporates the influence of coherent vortices into the estimation of gas and heat fluxes from the infrared imagery. This model
may also be used to yield the distribution of eddy sized and eddy intensities. Since the apparent
Langmuir circulation originates from an instability of the surface shear flow [123] it is suspected
to effectively constitute mixing between the water surface and the water bulk, i.e. thinning of the
effective viscous boundary layer thickness.
23
with 5 m/s wind speed
i.e.: without active heating of the surface
25
The diffusive boundary layer at the top of the ocean for carbon dioxide and methane has a thickness of about 20200 µm [83]. For heat the boundary layer thickness is in the range of 0.1-1 mm [148].
24
120
7. Results
Moreover, the streak signatures can be observed under a wide range of wind speed conditions.
This includes low to moderate wind speeds, see figure 7.29, where no micro-scale wave breaking
takes place. Therefore, we hypothesize that the small-scale Langmuir circulation - in addition
to microscale breaking [151, 176] - plays a significant role for the air-sea exchange [Personal
communication with B. Jähne] [166, 167]. The presented visualization is giving insights of how
persistent the flow structures are. These observations encourage a more detailed study concerning
our hypothesis. In addition, by virtue of the high frame rate of 312.5 Hz we are able to directly
study the evolution and interaction of Langmuir cells and wind driven waves. Future investigations
should incorporate measurements of the 3D subsurface turbulence in combination to the wave
imaging and infrared imagery. This would allow for a more detailed analysis of the streak features
and a verification of the predictions from the eddy renewal model concerning the eddy sizes and
intensities [61].
u = 3 m/s
o
18.91 C
o
15.57 C
u = 4 m/s
o
17.14 C
o
14.63 C
Figure 7.29.: Streaks appear also for low wind speeds.
Rain Drop Impacts
Figure 7.30 displays consecutive frames for a rain condition. Before we go into detail it is worth
mentioning - even though not surprising - that the surface roughness is drastically different compared to the no-rain condition with the same wind speed (e.g. compare with figure 7.29 to the
right). Additionally, we observe that short gravity waves are hardly existent for the rain condition
at this moderate wind speed, although the rain tower section only covers a small range of the flume,
see section 4.1.
The rain drops are cold compared to the water surface and can therefore easily be identified as
blue dots in the temperature overlays in figure 7.30. Note, in the IR image a rain drop is actually
already visible before it hits the surface, but due to the focusing of the camera one can see only
drops that are close to the water surface.
For the first frame (1405) two markers have been included. Marker A is next to the spot where
the next rain drop hits the surface. Marker B is located next to rain drop craters from two impacts
that occurred approximately 7-10 frames (0.022-0.032 s) earlier.
Though with these still images it is a bit tricky to see, one can study the rain drop impacts to
some detail and follow their evolution in time. The rain drop impinging at position A forms a
crater, which develops in size for about 7 frames (0.022 s) before it begins to collapse. At position
B we can observe how the crater is collapsing and at the same time it is disturbed by the wind wave
field. Using the visualization tool (i.e.: the animation instead of still images), one can distinguish
the isotropically propagation ring waves from the directional wind driven waves. To the authors
knowledge these are the first measurements of the combined effect of rain and wind on the water
waves at this high spatial an temporal resolution. A review of common features and visualization
techniques for drop impacts on a quiescent water surface can be found in Fedorchenko and Wang
[45] and Yarin [173]. Braun [23] and Yang et al. [172] investigated the influence of rain on the
wind driven water surface using point measurements of the slope and height and radar backscatter.
Ho et al. [65], Ho et al. [66], and Takagaki and Komori [156] studied the mechanisms and the
net-effect of rain-induced air-water gas exchange. They found that rainfall enhances the turbulent
7.5. Wave Visualization
121
o
21.67 C
frame 1405
frame 1406
frame 1407
frame 1408
frame 1409
frame 1410
frame 1411
frame 1412
frame 1413
frame 1414
frame 1415
frame 1416
A
o
22.17 C
B
10.4
cm
22.3 cm
Figure 7.30.: Impacts of cold rain drops on a warmer water surface. Wind speed 4 m/s.
mixing near the free surface on the liquid side, and the enhancement results in an increase of the
gas transfer across the air-water interface. Ho et al. [66] concludes: "The mechanisms behind raininduced gas exchange, and the interaction of rain- and wind-generated waves and turbulence,
should be examined in greater depth". This is especially important for the mean square slope
parameterization of gas transfer rates, since Ho et al. [65] found, that the gas transfer velocities in
case of rain do not fall on the same line as for the ordinary conditions. This issue is also addressed
in section 7.4.2.
From the observations in figure 7.30 and the visualization of other sequences we get the impression, that the rain drops hit through the water surface without much influence on the surface
temperature next to the crater. Therefore it seems that the turbulence that is generated by the impact is not reaching into the skin layer of the water surface that controlls the heat exchange. Our
measurements only comprise one distinct drop size ( 2.9 mm) and one rain rate (57 mm/h), so
we can not make a general statement about this by now. Moreover, an analysis incorporating the
results of the measurements of the turbulent kinetic energy is still pending.
8. Conclusion and Outlook
Due to the improvement that was achieved for the color imaging slope gauge (CISG)
we are able to investigate the wavenumber-frequency spectrum of short wind-driven
water waves at higher spatio-temporal resolution and accuracy than ever possible.
8.1. Conclusion
One of the most surprising insights is that the spectral energy exhibits no cut-off
for wavenumbers higher than 1000 rad/m (section 7.2.1, page 91), which is contradictory to former findings. This discrepancy is attributed to the fact that the
wavenumber dependent contrast damping, which is inherent to the data acquisition
and processing, was not corrected for in the former studies. In this study the contrast
damping was corrected for by means of a deconvolution using the measured Modulation Transfer Function (MTF). For the measurement of the MTF a new method
was developed that can be applied in-situ, i.e. within the experimental setup (section 4.5).
The high temporal resolution (∆t = 0.0032 s) of the wave imaging now allows
for the computation of the dispersion shell, which includes valuable information
about the hydrodynamic conditions (section 7.3). A detailed physical interpretation
of the 3D power spectral density S(kx , ky , ω) is given by means of one case study
(section 7.3.2). In addition, a quantitative approach is introduced to evaluate the
dispersion of the capillary waves. This yields estimates for the reduction of the surface tension due to surface slicks and for the Doppler shifts, which are caused by the
surface shear flow and the wave-wave interaction (section 7.3.3). The results are encouraging, while at the same time it becomes clear that the temporal sampling rate is
still not sufficient to avoid aliasing. Already for wavenumbers larger 1500 rad/m the
wave frequency occasionally exceeds the Nyquist frequency of 982 rad/s, e.g. due
to the Doppler shift caused by long wave orbital motion. This introduces aliasing in
the discrete spectral volume, which in turn leads to difficulties in the evaluation, i.e.
ambiguity in the frequency that is associated with a certain wavenumber component.
The wave measurements were conducted in a linear wind wave tank as part of
the WiSSCy project (section 5), covering a wide range of experimental conditions:
wind, rain, surface slicks, and a mechanically generated long wave. An active infrared imaging system (ACFT) was deployed by a co-worker for the measurement
of the local heat transfer. The infrared camera of the ACFT system and the CISG
camera were synchronized at a frame rate of 312.5 Hz and observed the same patch
on the water surface. The registration of the image sequences was performed (sections 4.3 and 7.5.2) and the water surface elevation was reconstructed from the
gradient field (section 7.5.1) for a set of 150 combined measurements of the waves
and the water surface temperature. An interactive visualization tool (section 7.5)
no spectral
cut-off
MTF
correction
MTF measurement
3D spectral
density
dispersion
relation
aliasing
campaign
synchronized
infrared
imagery
wave visualization
124
microscale
breaking
&
Langmuir
circulation
raindrop
impacts
mss decomposition
higher
accuracy
slope robot
8. Conclusion and Outlook
maps the surface temperature field in false color onto an animated 3D graphical
model of the surface elevation. This new visualization provides insights into the
wave related small scale processes that are controlling the local air-water transfer
of heat and gases, i.e.: microscale wave breaking and (mirco) Langmuir circulation
(section 7.5.3). The thermal streaks that are interpreted as an indication for Langmuir circulation were observed for a wide range of wind speeds. Therefore it is
hypothesized that small scale Langmuir circulation plays a significant role for the
air-sea exchange.
Moreover, the impact of raindrops on the wind-driven wave field can be studied
in great detail. Apparently, the raindrops hit through the surface without much influence on the water sided thermal boundary layer at the interface next to the crater
(section 7.5.3, page 120). This indicates that rain induced sub surface turbulence
might not necessarily lead to significantly enhanced air-water transfer rates.
From the spatio-temporal measurements it is possible to distinguish wave components that are propagating along with the wind or against the wind. This enables
a decomposition of the spectral energy, e.g. separating the wind driven waves from
ring wave patterns caused by rain drop impacts (section 7.4.2).
The CISG measurements always rely on a calibration of the color-slope relationship. Commonly the calibration is performed with a linear model, disregarding the
inherent non-linearities which are due to the ray geometry and the color coding
transparent sheet. In this study, higher accuracy was obtained by the implementation of a third order polynomial calibration model (section 4.4.3). This could be
achieved by the development of a new in-situ calibration method utilizing a slope
robot (section 4.4.1).
8.2. Outlook
WOWC
new
camera
DNS
LIF
New methods for the analysis of wind-driven small scale waves are now at hand.
With this, the understanding of the complex interaction between wind and waves
will presumably be pushed forward, e.g. via a direct validation of the Wind Over
Waves Coupling model (WOWC) predictions.
The spectral cut-off issue needs to be clarified because of its importance for the
modeling of energy fluxes in the wave field. This can be achieved simply by using
a new camera with higher spatial resolution, for that the MTF is still high enough to
allow for a contrast correction up to high wavenumbers (at least 6000 rad/m). Additionally, higher frame rates (> 1000 Hz) are desired to avoid the aliasing dilemma,
which hinders the quantitative evaluation of the dispersion relation. Already now
cameras are forthcoming, which are approaching our requirements.
Basically two tracks exists, which will be followed in order to support the analysis
of the observations that are made by the combined ACFT and CISG visualization.
On the one hand, direct numerical simulations (DNS) will be carried out in order
to validate the conceptual models that are used. On the other hand, new multidimensional visualization techniques - based on laser induced fluorescence (LIF) are being developed to gain insight for the enhancement of near-surface turbulence
due to waves.
Bibliography
[1] A. Agrawal, R. Chellappa, and R. Raskar. An algebraic approach to surface reconstruction
from gradient fields. In International conference on computer vision (ICCV), 2005.
[2] A. Agrawal, R. Raskar, and R. Chellappa. What is the range of surface reconstructions from
a gradient field. In European conference on Computer Vision (ECCV), 2006.
[3] G. B. Airy. On tides and waves. In Encyclopaedia Metropolitana, pages 241–396. B.
Fellowes, London, 1845.
[4] W. Alpers. The damping of ocean waves by surface films: A new look at an old problem.
Journal of Geophysical Research, 94(C5):6251–6265, May 1989.
[5] A. Anweiler and M. Gade. Tank Experiments on the Influence of Rain on Air-Sea CO2Exchange. AGU Fall Meeting Abstracts, pages A914+, Dec. 2007.
[6] A.-K. Anweiler. Ergebnisse der CO2-Austauschmessungen am Wind-Wellen-Kanal der
Universität Hamburg im Rahmen des Projekts WiSSCy. Technical report, Institut für
Meeresforschung, Universität Hamburg, Germany, 2008.
[7] A.-K. Anweiler. Tank experiments on the influence of rain-induced turbulence on air-water
CO2 exchange. PhD thesis, University of Hamburg, 2008. in preperation.
[8] J. R. Apel. An improved model of the ocean surface wave vector spectrum and its effects
on radar backscatter. Journal of Geophysical Research, 99:16269–16292, Aug. 1994.
[9] G. Balschbach. Untersuchungen statistischer und geometrischer Eigenschaften von
Windwellen und ihrer Wechselwirkung mit der wasserseitigen Grenzschicht. PhD thesis,
Institut für Umweltphysik, Universität Heidelberg, February 2000.
[10] M. L. Banner. The influence of wave breaking on the surface pressure distribution in windwave interactions. J.Fluid Mech., 211:463–495, 1990.
[11] M. L. Banner, I. S. F. Jones, and J. C. Trinder. Wavenumber spectra of short gravity waves.
Journal of Fluid Mechanics, 198:321–344, 1989.
[12] M. L. Banner and O. M. Phillips. On the incipient breaking of small-scale waves. J.Fluid
Mech., 65:647–656, 1974.
[13] F. Behroozi and A. Perkins. Direct measurement of the dispersion relation of capillary
waves by laser interferometry. American Journal of Physics, 74(11):957–961, 2006.
[14] N. Bindoff, J. Willebrand, V. Artale, A. Cazenave, J. Gregory, S. Gulev, K. Hanawa, C. Le
Quéré, S. Levitus, Y. Nojiri, C. Shum, L. Talley, and A. Unnikrishnan. Observations:
Oceanic climate change and sea level. In S. Solomon, D. Qin, M. Manning, Z. Chen,
M. Marquis, K. Averyt, M. Tignor, and H. Miller, editors, Climate Change 2007: The Physical Science Basis. Contribution of Working Group I to the Fourth Assessment Report of
the Intergovernmental Panel on Climate Change. Cambridge University Press, Cambridge,
United Kingdom and New York, NY, USA., 2007.
126
Bibliography
[15] E. J. Bock, J. B. Edson, and F. N. M. et. al. Overview of the CoOP experiments: Physical
and chemical measurements parameterizing air-sea gas exchange. In M. A. Donelan, W. M.
Drennan, E. S. Saltzman, and R. Wanninkhof, editors, Gas Transfer at Water Surfaces,
volume 127 of Geophysical Monograph, pages pp. 39–44. American Geophysical Union,
2002.
[16] E. J. Bock and T. Hara. Optical measurements of ripples using a scanning laser slope gauge.
In Optics of the Air-Sea Interface, volume 1749, page 272ff, 1992. Part II: Data analysis
and interpretation from a laboratory.
[17] E. J. Bock and T. Hara. Optical measurements of capillary-gravity wave spectra using a
scanning laser slope gauge. Journal of Atmospheric and Oceanic Technology, 12(2):395–
403, April 1995.
[18] E. J. Bock, T. Hara, N. M. Frew, and W. R. McGillis. Relationship between air-sea gas
transfer and short wind waves. Journal of Geophysical Research-Oceans, 104(C11):25821–
25831, 1999. J NOV 15.
[19] E. J. Bock and J. A. Mann. On ripple dynamics II. a corrected dispersion relation for surface
waves in the presence of surface elasticity. Journal of Colloid And Interfacial Science, 129,
2:1989, 1989.
[20] G. D. Boreman and E. Dereniak. Method for measuring transfer function of changedcoupled devices using laser speckle. Opt. Eng., 24:148–150, 1986.
[21] J.-Y. Bouguet.
Camera calibration toolbox for matlab, http://www.vision.
caltech.edu/bouguetj/calib_doc/. 2008.
[22] J. Boussinesq. Théorie des ondes et des remous qui se propagent le long d’un canal rectangulaire horizontal, en communiquant au liquide contenu dans ce canal des vitesses sensiblement pareilles de la surface au fond. J. Math. Pures Appl., 17 (2):55–108, 1872.
[23] N. Braun. Laboruntersuchungen zum Einfluss von künstlichem Regen auf eine Wasseroberfläche mit Hilfe von Wellendraht-, Laser- und Radarsonden. PhD thesis, Universität
Hamburg, 1998.
[24] N. Braun and M. Gade. Multifrequency scatterometer measurements on water surfaces
agitated by artificial and natural rain. Int. J. Remote Sens., 27:27–39, 2006.
[25] N. Braun, M. Gade, and P. Lange. The effect of artificial rain on wave spectra and multipolarisation x band radar backscatter. Int. J. Remote Sens., 23(20):4305–4322, 2002.
[26] H. Carstens. Ein Skalenraumverfahren zur Orts/Wellenzahl-Raum-Analyse winderzeugter
Wasserwellen. Master’s thesis, University of Heidelberg, 1998.
[27] G. Caudal. A physical model for the narrowing of the directional sea wave spectra in the
short gravity to gravity-capillary range. Journal of Geophysical Research (Oceans), 107:
3148 – 12; 1–9, Oct. 2002.
[28] G. Caulliez and F. Collard. Three-dimensional evolution of wind waves from gravitycapillary to short gravity range. Eur. J. Mech. B/Fluids, 18:3,389–402, 1999.
[29] G. Caulliez, R. Dupont, and V. Shrira. Turbulence generation in the wind-driven subsurface
water flow. In C. S. Garbe, R. A. Handler, and B. Jähne, editors, Transport at the Air Sea
Interface, pages 103–117. Springer-Verlag, 2007.
Bibliography
127
[30] G. Caulliez, V. Makin, and V. Kudrayavtsev. Drag of the water surface at very short fetches:
observations and modelling. Journal of Physical Oceanography, 2008. In Press.
[31] L. Cavaleri, J. Alves, F. Ardhuin, A. Babanin, M. Banner, K. Belibassakis, M. Benoit,
M. Donelan, J. Groeneweg, T. Herbers, and P. Hwang. Wave modelling - the state of the
art. Progress in Oceanography, 75:603–674, 2007.
[32] J. Cohen and S. Belcher. Turbulent shear flow over fast moving waves. J. Fluid Mech., 386:
345–371, 1999.
[33] C. Cox and W. Munk. Statistics of the sea surface derived from sun glitter. Journal of
Marine Research, 13(2):198–227, 1954.
[34] G. D. Crapper. An exact solution for progressive capillary waves of arbitrary amplitude.
Journal of Fluid Mechanics, 2:532–540, 1957.
[35] A. Daniels, G. D. Boreman, A. D. Ducharme, and E. Sapir. Random targets for modulation
transfer function testing. In G. C. Holst, editor, Proc. SPIE Vol. 1969, p. 184-192, Infrared
Imaging Systems: Design, Analysis, Modeling, and Testing IV, Gerald C. Holst; Ed., volume 1969 of Presented at the Society of Photo-Optical Instrumentation Engineers (SPIE)
Conference, pages 184–192, Aug. 1993.
[36] A. Daniels, G. D. Boreman, A. D. Ducharme, and E. Sapir. Random transparency targets
for modulation transfer function measurement in the visible and infrared regions. Optical
Engineering, 34:860–868, Mar. 1995.
[37] K. Degreif. Untersuchungen zum Gasaustausch - Entwicklung und Applikation eines
zeitlich aufgelösten Massenbilanzverfahrens. PhD thesis, Institut für Umweltphysik, University of Heidelberg, 2006.
[38] F. Dias and C. Kharif. Nonlinear gravity and capillary-gravity waves. Annual Review of
Fluid Mechanics, 31(1):301–346, 1999.
[39] M. A. Donelan, J. Hamilton, and W. H. Hui. Directional spectra of wind-generated waves.
Royal Society of London Philosophical Transactions Series A, 315:509–562, Sept. 1985.
[40] M. A. Donelan and W. J. Pierson. Radar scattering and equilibrium ranges in windgenerated waves with application to scatterometry. Journal of Geophysical Research, 92:
4971–5030, May 1987.
[41] M. A. Donelan and R. Wanninkhof. Gas transfer at water surfaces - conepts and issues.
American Geophysical Union, 2002.
[42] A. D. Ducharme and G. D. Boreman. Holographic elements for the modulation transfer
function testing of detector arrays. Opt. Eng., 34(8):2455–2458, 1995.
[43] N. Ebuchi, H. Kawamura, and Y. Toba. Fine structure of laboratory wind-wave surfaces
using an optical method. Boundary-Layer Meteorol., 39:133, 1987.
[44] T. Elfouhaily, B. Chapron, K. Katsaros, and D. Vandemark. A unified directional spectrum
for long and short wind-driven waves. Journal of Geophysical Research, 102(C7):15781–
15796, July 15 1997.
[45] A. I. Fedorchenko and A.-B. Wang. On some common features of drop impact on liquid
surfaces. Physics of Fluids, 16(5):1349–1365, May 2004.
128
Bibliography
[46] R. Fitzenberger. Lokale Transformationsmethoden zur Auswertung von Wellenneigungsbildern der Wasseroberfläche im Bereich kleinskaliger Oberflächenwellen. Diplomarbeit,
Institut für Umweltphysik, Fakultät für Physik und Astronomie, Univ. Heidelberg, 1997.
[47] R. T. Frankot and R. Chellappa. A method for enforcing integrability in shape from shading
algorithms. IEEE Trans. Pattern Anal. Mach. Intell., 10(4):439–451, 1988.
[48] N. M. Frew, E. J. Bock, U. Schimpf, T. Hara, H. Haußecker, J. B. Edson, W. R. McGillis,
R. K. Nelson, B. M. McKeanna, B. M. Uz, and B. Jähne. Air-sea gas transfer: Its dependence on wind stress, small-scale roughness, and surface films. Journal of Geophysical
Research, 109(C8):C08S17, 2004.
[49] N. M. Frew, D. M. Glover, E. J. Bock, and S. J. McCue. A new approach to estimation
of global air-sea gas transfer velocity fields using dual-frequency altimeter backscatter. J.
Geophys. Res., 112:C11003, 2007.
[50] D. Fuß. Kombinierte Höhen- und Neigungsmessung von winderzeugten Wasserwellen am
Heidelberger Aeolotron. Dissertation, University of Heidelberg, Heidelberg, Germany,
2004.
[51] M. Gade, W. Alpers, H. Hühnerfuss, and P. A. Lange. Wind wave tank measurements of
wave damping and radar cross sections in the presence of monomolecular surface films.
Jounral of Geophysical Research, 103(C2):3167–3178, Feb 1998.
[52] C. S. Garbe. Measuring Heat Exchange Processes at the Air–Water Interface from Thermographic Image Sequence Analysis. PhD thesis, University of Heidelberg, Heidelberg,
Germany, December 2001.
[53] C. S. Garbe, D. Banerjee, U. Schimpf, and B. Jähne. Aktive Thermografie für die Untersuchung von Transportprozessen. In Thermografie-Kolloquium, pages 1–8. Deutsche
Gesellschaft für Zerstörungsfreie Prüfung e.V., 2007.
[54] C. S. Garbe, K. Degreif, and B. Jähne. Estimating the viscous shear stress at the water
surface from active thermography. In C. S. Garbe, R. A. Handler, and B. Jähne, editors,
Transport at the Air Sea Interface - Measurements, Models and Parameterizations, pages
223–239. Springer-Verlag, Berlin, Heidelberg, 2007.
[55] C. S. Garbe, H. Haußecker, and B. Jähne. Measuring the sea surface heat flux and probability distribution of surface renewal events. In E. Saltzman, M. Donelan, W. Drennan,
and R. Wanninkhof, editors, Gas Transfer at Water Surfaces, volume 127 of Geophysical
Monograph, pages 109–114. American Geophysical Union, 2002.
[56] B. L. Gotwols and G. B. Irani. Optical determination of the phase velocity of short gravity
waves. Journal of Geophysical Research, 85:3964–3970, 1980.
[57] M. G. Gross. Oceanopgraphy, a view of the earth. Prentice-Hall, Inc., 1982.
[58] T. Hara and S. E. Belcher. Wind forcing in the equilibrium range of wind-wave spectra. J.
Fluid Mech., 470:223–245, 2002.
[59] T. Hara, E. J. Bock, and M. Donelan. Frequency-wavenumber spectrum of wind-generated
gravity-capillary waves. Journal of Geophysical Research, 102(C1):1061–1072, January
15 1997.
Bibliography
129
[60] T. Hara, E. J. Bock, and D. Lyzenga. In situ measurements of capillary-gravity wave spectra
using a scanning laser slope gauge and microwave radars. Journal of Geophysical Research,
99(C6):12593–12602, June 15 1994.
[61] T. Hara, E. VanInwegen, J. Wendelbo, C. S. Garbe, U. Schimpf, B. Jähne, and N. Frew.
Estimation of air-sea gas and heat fluxes from infrared imagery based on near surface turbulence models. In C. S. Garbe, R. A. Handler, and B. Jähne, editors, Transport at the Air
Sea Interface - Measurements, Models and Parametrizations. Springer-Verlag, 2007.
[62] F. J. Harris. On the use of windows for harmonic analysis with the discrete fourier transform.
In Proceedings of the IEEE, volume 66-1, January 1978.
[63] K. Hasselmann. On the nonlinear energy transfer in a gravity wave-spectrum. part 1: General theory. J. Fluid Mech., 12:481, 1962.
[64] H. Haußecker, U. Schimpf, and B. Jahne. Measurements of the air-sea gas transfer and
its mechanisms by active and passive thermography. In U. Schimpf, editor, Proc. IEEE
International Geoscience and Remote Sensing Symposium IGARSS ’98, volume 1, pages
484–486 vol.1, 1998.
[65] D. T. Ho, W. E. Asher, L. F. Bliven, P. Schlosser, and E. L. Gordan. On mechanisms of
rain-induced air-water gas exchange. Journal of Geophysical Research, 105(C10):24,045–
24,057, October 2000.
[66] D. T. Ho, C. J. Zappa, and W. R. e. a. McGillis. Influence of rain on air-sea gas exchange:
Lessons from a model ocean. Journal of Geophysical Research, 109:C08S18, 2004.
[67] B. K. P. Horn. Robot Vision. MIT Press, Cambridge, MA, 1986.
[68] N. E. Huang, Y. Toba, Z. Shen, J. Klinke, B. Jähne, and M. L. Banner. Ocean wave spectra
and integral properties. In I. S. F. Jones and Y. T. a, editors, Wind Stress over the Ocean,
pages 82–123. Cambridge University Press, Cambridge, UK, 2001.
[69] B. A. Hughes, R. W. Grant, and R. W. Chappell. A fast response surface-wave slope meter
and measured wind-wave moments. Deep-Sea Res., 24:1211–1223, 1977.
[70] F. Huhn. A simple instrument for the measurement of the slope and height distributions of
small scale wind-driven water waves. Master’s thesis, Institute for Environmental Physics,
University of Heidelberg, 2008.
[71] P. A. Hwang. Spatial measurements of small-scale ocean waves. In B. J. Monahan, editor,
Air-Water Gas Transfer - Selected papers from the Third International Symposium on AirWater Gas Transfer, pages 153–164, 1995.
[72] B. Jähne. On the transfer processes at a free air-water interface. Habilitation, Institut für
Umweltphysik, Fakultät für Physik und Astronomie, Univ. Heidelberg, 1985. IUP D-200.
[73] B. Jähne. Protokollbuch Wellen II. Seite 146, Vermerk bezüglich des Faktors 2 in der
Auswertungen der Spektren von Delft 1988, August 1989.
[74] B. Jähne. Motion determination in space-time images. In O. Faugeras, editor, Proc. Computer Vision – ECCV 90, Lecture Notes in Computer Science 427, pages 161–173, New
York, 1990.
130
Bibliography
[75] B. Jähne. Impact of quantitative visualization and image processing on the study of smallscale air-sea interaction. In B. Jähne and E. Monahan, editors, Air-Water Gas Transfer,
Selected Papers, 3rd Intern. Symp. on Air-Water Gas Transfer, pages 3–12, Hanau, 1995.
AEON.
[76] B. Jähne. Analytische Beschreibung der Bildgebung bei der kombinierten Neigungs- und
Höhenmessung von Windwellen. Technical report, Institut für Wissenschaftliches Rechnen,
Universität Heidelberg, Germany, 2004.
[77] B. Jähne. Digitale Bildverarbeitung, 6. Auflage. Springer, 2005.
[78] B. Jähne and E. J. Bock. Physically-based modelling of air-sea gas transfer. In E. Saltzman,
M. Donelan, W. Drennan, and R. Wanninkhof, editors, Gas Transfer at Water Surfaces,
volume 127 of Geophysical Monograph. American Geophysical Union, 2002. Interdisziplinäres Zentrum für Wissenschaftliches Rechnen und Institut für Umweltphysik, Universität Heidelberg.
[79] B. Jähne and H. Haußecker. Air-water gas exchange. Annual Reviews of Fluid Mechanics,
30:443–468, 1998.
[80] B. Jähne, J. Klinke, P. Geißler, and F. Hering. Image sequence analysis of ocean wind
waves. In S. Sideman and K. Hijikata, editors, Imaging in Transport Processes, pages
257–268, New York, 1993. Begell House Publishers.
[81] B. Jähne, J. Klinke, and S. Waas. Imaging of short ocean wind waves: a critical theoretical
review. J.Opt.Soc.Am., 11(8):2197–2209, 1994.
[82] B. Jähne, K. O. Münnich, R. Bösinger, A. Dutzi, W. Huber, and P. Libner. On the parameters
influencing air–water gas exchange. Journal of Geophysical Research, 92(C2):1937–1949,
February 1987.
[83] B. Jähne, C. Popp, U. Schimpf, and C. Garbe. The influence of intermittency on air/water
gas transfer measurements. In C. S. Garbe, R. A. Handler, and B. Jähne, editors, Transport
at the Air Sea Interface. Springer-Verlag, 2007.
[84] B. Jähne and K. Riemer. Two-dimensional wave number spectra of small-scale water surface waves. J.Geophys.Res., 95(C7):11531–11646, 1990.
[85] B. Jähne, M. Schmidt, and R. Rocholz. Combined optical slope/height measurements of
short wind waves: principles and calibration. Measurement Science & Technology, 16(10):
1937–1944, 2005.
[86] B. Jähne and H. Schultz. Calibration and accuracy of optical slope measurements for short
wind waves. In L. Estep, editor, Optics of the Air-Sea Interface: Theory and Measurements,
volume 1749 of SPIE Proceedings, pages 222–233, 1992.
[87] B. Jähne, T. Wais, L. Memery, G. Gaulliez, L. Merlivat, K. O. Münnich, and M. Coantic.
He and Rn gas exchange experiments in the large wind-wave facility of IMST. J. Geophys.
Res., 90:11,989–11,998, 1985.
[88] I. S. F. Jones and Y. Toba. Wind Stress over the Ocean. Cambridge University Press,
Cambridge,UK, 2001.
Bibliography
131
[89] M. Jung. Miniforschungsbericht - Entwicklung einer Visualisierung von Messdaten mittels
OpenGL. Technical report, Institut für Wissenschaftliches Rechnen, Universität Heidelberg,
2008.
[90] B. Kinsmann. Wind Waves. Prentice-Hall, Englewood Cliffs, 1965.
[91] S. A. Kitaigorodskii. On the theory of the equilibrium range in the spectrum of windgenerated gravity waves. JPHO, 13:816–827, 1983.
[92] J. Klinke. 2D wave number spectra of short wind waves – results from wind wave facilities
and extrapolation to the ocean. Optics of the Air-Sea Interface: Theory and Measurement,
Proc. SPIE - Int. Soc. Opt. Eng., 1749:1–13, July 1992.
[93] J. Klinke. Optical Measurements of Small-Scale Wind Generated Water Surface Waves in
the Laboratory and the Field. PhD thesis, University of Heidelberg, Heideleberg, Germany,
1996.
[94] J. Klinke and B. Jähne. Two-dimensional wave number spectra of short wind waves: results
from wind-wave facilities and extrapolation to the ocean. In L. Estep, editor, Optics of the
Air-Sea Interface: Theory and Measurement, volume 1749 of Presented at the Society of
Photo-Optical Instrumentation Engineers (SPIE) Conference, pages 245–257, Dec. 1992.
[95] K. R. Koch. Parameter Estimation and Hypothesis Testing in Linear Models. SpringerVerlag, Heidelberg, Germany, 1988.
[96] V. Kudryavtsev, D. Akimov, J. Johannessen, and B. Chapron. On radar imaging of current
features: 1. Model and comparison with observations. Journal of Geophysical Research
(Oceans), 110:7016–+, July 2005.
[97] V. Kudryavtsev and V. Makin. On the impact of short waves on the wind growth rate of long
surface waves. EGS XXVII General Assembly, Nice, 21-26 April 2002, 27:3500–+, 2002.
[98] V. N. Kudryavtsev and V. K. Makin. Aerodynamic roughness of the sea surface at high
winds. Boundary-Layer Meteorology, 125:289–303, Nov 2007.
[99] V. N. Kudryavtsev, V. K. Makin, and B. Chapron. Coupled sea surface atmosphere model.
2. spectrum of short wind waves. J. Geophys. Res., 104:7625–7640, 1999.
[100] V. N. Kudryavtsev, C. Mastenbroek, and V. K. Makin. Modulation of wind ripples by long
surface waves via the air flow: a feedback mechanism. Boundary-Layer Meteorology, 83:
99–116, 1997.
[101] T. Kukulka and T. Hara. Momentum flux budget analysis of wind-driven air-water interfaces. Journal of Geophysical Research, 110:C12020, 2005.
[102] P. K. Kundu. Fluid Mechanics. Academic Press, San Diego, CA, 4th edition, 2007.
[103] W. Laas. Photographische Messung der Meereswellen. Zeitschr. d. Vereins Dtsch. Ingenieure, 49:S.1889 ff. S.1937 ff. und S.1976 ff., 1905.
[104] H. Lamb. Hydrodynamics. Cambridge University Press, 1932.
[105] P. A. Lange and H. Hühnerfuss. Horizontal surface tension gradients induced in monolayers
by gravity water wave action. Journal of Physical Oceanography, 14:1620–1628, 1984.
132
Bibliography
[106] P. A. Lange, B. Jähne, J. Tschiersch, and I. Ilmberger. Comparison between an amplitudemeasuring wire and a slope-measuring laser water wave gauge. Rev. Sci. Instrum., 53(5):
651–655, May 1982.
[107] H. Lauer. Untersuchung der Neigungsstatistik von Wasseroberflächenwellen mittels eines
schnellen, bildaufnehmenden Verfahrens. Dissertation, Universität Heidelberg, 05 1998.
[108] P. LeBlond and L. A. Mysak. Wave in the Ocean. Elsevier Science Publishing Company,
1978.
[109] X. Li, B. Gunturk, and L. Zhang. Image demosaicing: a systematic survey. In Visual Communications and Image Processing 2008. Edited by Pearlman, William A.; Woods, John W.;
Lu, Ligang. Proceedings of the SPIE, Volume 6822, pp. 68221J-68221J-15 (2008)., volume 6822 of Presented at the Society of Photo-Optical Instrumentation Engineers (SPIE)
Conference, Jan. 2008.
[110] P. S. Liss and L. Merlivat. Air-sea gas exchange rates: Introduction and synthesis. In
P. Buat-Menard, editor, The role of air-sea exchange in geochemical cycling, pages 113–
129. Reidel, Boston,MA, 1986.
[111] M. S. Longuet-Higgins. The statistical analysis of a random, moving surface. Journal of
Marine Research, 249:321–387, February 1957. A. 966.
[112] M. S. Longuet-Higgins. Why is a water wave like a grandfather clock? Physics of Fluids,
22:1828–1829, Sept. 1979.
[113] R. Lukac. Single-sensor imaging in consumer digital cameras: a survey of recent advances
and future directions. Journal of Real-Time Image Processing, 1(1):45–52, 2006.
[114] D. R. Lyzenga. Ocean wave spectrum and dissipation rate derived from cmod4 model
function. Journal of Geophysical Research (Oceans), 109:C07019; 1–11, July 2004.
[115] V. K. Makin, H. Branger, W. L. Peirson, and J. P. Giovanangeli. Stress above wind-pluspaddle waves: Modeling of a laboratory experiment. Journal of Physical Oceanography,
37(12):2824–2837, 2007.
[116] V. K. Makin and V. Kudrayavtsev. Coupled sea surface-atmosphere model - 1. wind over
waves coupling. Journal of Geophysical Research, 104(C4):7613–7623, 1999.
[117] V. K. Makin and V. N. Kudryavtsev. Impact of dominant waves on sea drag. BoundaryLayer Meteorology, 103:83–99, 2002.
[118] V. K. Makin, V. N. Kudryavtsev, and C. Mastenbroek. Drag of the sea surface. BoundaryLayer Meteorology, 73:159–182, 1995.
[119] J. A. Mann. Dynamic surface tension and capillary waves. Surface and Colloid Science,
13:145–212, 1984.
[120] W. C. Martin. Determination of optical transfer functions by direct measurement. Photogrammetria, 33(4):133–144, 1977.
[121] J. C. McWilliams, P. P. Sulliivan, and C.-H. Moeng. Langmuir turbulrnce in the ocean.
Journal of Fluid Mechanics, 334:1–30, 1997.
Bibliography
133
[122] J. F. Meirink, V. K. Makin, and V. N. Kudryavtsev. Note on the growth rate of water waves
propagating at an arbitrary angle to the wind. Boundary-Layer Meteorology, 106(1):171–
183, 2003.
[123] W. K. Melville, R. Shear, and F. Veron. Laboratory measurements of the generation and
evolution of langmuir circulations. Journal of Fluid Mechanics, 364:31–58, 1998.
[124] A. Michelson. Studies in Optics. University of Chicago Press, 1927.
[125] S. J. Miller, O. H. Shemdin, and M. S. Longuet-Higgins. Laboratory measurements of
modulation of short-wave slopes by long surface waves. Journal of Fluid Mechanics, 233:
389–404, 1991.
[126] F. W. Millet, K. F. Warnick, J. R. Nagel, and D. V. Arnold. Physical Optics-Based Electromagnetic Bias Theory With Surface Height Slope Cross-Correlation and Hydrodynamic
Modulation. IEEE Transactions on Geoscience and Remote Sensing, 44:1470–1483, June
2006.
[127] T. Naegler, P. Ciais, K. Rodgers, and I. Levin. Excess radiocarbon constraints on air-sea
gas exchange and the uptake of CO2 by the oceans. Geophysical Research Letters, 33(11):
L11802, 2006.
[128] F. O’Sullivan, J. Huang, K. R. Choudhury, G. Caulliez, and V. Shrira. Regularized reconstruction of water surfaces from noisy gradient information via plane-wave superposition.
Inverse Problems, 24(3):034016 (21pp), 2008.
[129] J. Pedolsky. Waves in the Ocean and Atmosphere. Springer, 2003.
[130] O. Phillips. Spectral and statistical properties of the equilibrium range in wind-generated
gravity waves. Journal of Fluid Mechanics, 4:426–434, 1985.
[131] O. M. Phillips. The equilibrium range in the spectrum of wind-generated waves. Journal of
Fluid Mechanics, 156:505–531, 1958.
[132] O. M. Phillips. The dynamics of the upper ocean. Cambridge University Press, 1969.
[133] O. M. Phillips. The dispersion of short wavelets in the presence of a dominant long wave.
Journal of Fluid Mechanics, 107:465–485, 1981.
[134] W. R. C. Phillips. Langmuir circulations beneath growing or decaying surface waves. Journal of Fluid Mechanics, 469:317–342, 2002.
[135] W. J. Pierson and L. Moskowitz. A proposed spectral form for fully developed wind seas
based on the similarity theory of S. A. Kitaigorodskii. Journal of Geophysical Research,
69:5181, Dec. 1964.
[136] W. J. J. Pierson and R. A. Stacy. The elevation, slope, and curvature spectra of a wind
roughened sea surface. Technical report, School of Engineering and Science New York
University University Heights, 1973.
[137] W. J. Plant. A relationship between wind stress and wave slope. Journal of Geophysical
Research, 87(C3):1961–1967, March 20 1982.
[138] W. J. Plant and J. W. Wright. Phase speeds of upwind and downwind traveling short gravity
waves. Journal of Geophysical Research, 85:3304–3310, 1980.
134
Bibliography
[139] J. A. Polton and S. E. Belcher. Langmuir turbulence and deeply penetrating jets in an
unstratified mixed layer. Journal of Geophysical Research (Oceans), 112:C09020 – 1–11,
Sept. 2007.
[140] K. Richter. Bestimmung des Schmidtzahlexponenten und Transferraten für die WiSSCy2007 Multi-Tracer Experimente. Technical report, Institut für Umweltphysik, Universität
Heidelberg, 2008. in preparation.
[141] K. Riemer. Analyse von Wasseroberflächenwellen im Orts-Wellenzahl-Raum. Doktorarbeit,
Univ. Heidelberg, 1991.
[142] R. Rocholz. Bildgebendes System zur simultanen Neigungs- und Höhenmessung an kleinskaligen Wind-Wasserwellen. Diploma thesis, University of Heidelberg, 2005.
[143] R. Rocholz. WiSSCy Messkampagne in Hamburg, Mai bis Juli 2007 - Kalibrierung der
Color Imaging Slope Gauge & Auswertung der Wellenmessungen. Technical report, Institut
für Umweltphysik, Universität Heidelberg, 2007.
[144] R. Romeiser, W. Alpers, and V. Wismann. An improved composite surface model for the
radar backscattering cross section of the ocean surface. 1. theory of the model and optimization/validation by scatterometer data. Journal of Geophysical Research, 102(25):
25237–25250, 1997.
[145] J. Saylor. The role of capillary waves in oceanic air/water gas exchange. Tellus B, 51(3):
616–628, 1999.
[146] H. Scharr. Optimale Interpolation von Farbbildern mit Bayer-Muster. Technical report, Interdisziplinäres Zentrum für Wissenschaftliches Rechnen, Ruprecht-Karls-Universität Heidelberg, Germany, 2000.
[147] U. Schimpf. Untersuchung des Gasaustausches und der Mikroturbulenz an der Meeresoberfläche mittels Thermographie. PhD thesis, University of Heidelberg, Heidelberg, Germany,
2000.
[148] U. Schimpf, C. Garbe, and B. Jähne. Investigation of transport processes across the sea
surface microlayer by infrared imagery. Journal of Geophysical Research-Oceans, 109
(C8):C08S13, 2004.
[149] J. Seemann. Interpretation der Struktur des Wellenzahl-Frequenzspektrums von RadarBildsequenzen des Seegangs. PhD thesis, Universität Hamburg, 1997.
[150] C. M. Senet, J. Seemann, and F. Ziemer. The near-surface current velocity determined
from image sequences of the sea surface. IEEE Transactions On Geoscience And Remote
Sensing, 39, 3:492 – 505, 2001.
[151] M. H. K. Siddiqui, M. R. Loewen, C. Richardson, W. Asher, and A. T. Jessup. Turbulence generated by microscale breaking waves and its influence on air-water gas transfer.
Geophysical Monograph 127, American Geophysical Union, pages 11–16, 2002.
[152] R. W. Stewart. The air-sea momentum exchange. Boundary-Layer Meteorology, 6:151–167,
1974.
[153] G. G. Stokes. On the theory of oscillatory waves. Trans. Camb. Philos. Soc., 8:441, 1847.
Bibliography
135
[154] G. G. Stokes. On the theories of the internal friction of fluids in motion, and of the equilibrium and motion of elastic solids. Transactions of the Cambridge Philosophical Society, 9
(II):8–106, 1849.
[155] S. Stolte. Modulation des Kurzwelligen Seegands durch langwelligen Seegang und Wind:
experimentelle Untersuchung zur Energiebilanz des kurzwelligen Seegangs und seiner
Radar - Rückstreueigenschaften. PhD thesis, Universität Hamburg, 1984.
[156] N. Takagaki and S. Komori. Effects of rainfall on mass transfer across the air-water interface. Journal of geophysical Research, 112:C06006, 2007.
[157] B. Tamburic. Measurement of the modulation transfer function through the use of regional
circular targets. Master’s thesis, Imperial College London, 2006.
[158] M. A. C. Teixeira and S. E. Belcher. On the distortion of turbulence by a progressive surface
wave. Journal of Fluid Mechanics, 458:229–267, May 2002.
[159] A. Trukenmüller. Einflüsse von Viskosität u. Oberflächenspannung auf winderzeugte
Wasseroberflächenwellen. Master’s thesis, University of Heidelberg, 1989.
[160] W. Tsai and L. Hung. Three-dimensional modeling of small-scale processes in the upper
boundary layer bounded by a dynamic ocean surface. Journal of Geophysical Research,
112:C02019, 2007.
[161] B. M. Uz. Gravity-capillary waves and their influence on air-sea interaction under nonstationary conditions. PhD thesis, University of Rhode Island, 1999.
[162] B. M. Uz, M. A. Donelan, T. Hara, and E. J. Bock. Laboratory studies of wind stress over
surface waves. Boundary-Layer Meteorology, 102(2):301–331, 2002.
[163] M. Uz, T. Hara, E. Bock, and M. Donega. Laboratory observations of gravity-capillary
waves under transient wind forcing. Journal of Geophysical Research, 108(C2):3050, 2003.
[164] K. van Gastel, P. A. E. M. Janssen, and G. J. Komen. On phase velocity and growth rate
of wind-induced gravity-capillary waves. Journal of Fluid Mechanics, 161:199–216, Dec.
1985.
[165] F. Veron and W. K. Melville. Experiments on the stability and transition of wind-driven
water surfaces. Journal of Fluid Mechanics, 446:25–65, 2001.
[166] F. Veron, W. K. Melville, and L. Lenain. Infrared techniques for measuring ocean surface
processes. Journal of Atmopheric and Oceanic Technology, 25:307–326, 2008.
[167] F. Veron, W. K. Melville, and L. Lenain. Wave-coherent air-sea heat flux. Journal of
Physical Oceanography, 38(4):788–802, 2008.
[168] R. Wanninkhof. Relationship between wind speed and gas exchange over the ocean. J.
Geophys. Res., 97:7373–7382, 1992.
[169] R. Wanninkhof and W. R. McGillis. A cubic relationship between gas transfer and wind
speed. Geophysical Research Letters, 26:1889–1892, 1999.
[170] H. Weiss. Modulation von Windwellen. Diploma thesis, Universität Heidelberg, 1997.
[171] J. W. Wright and W. C. Keller. Dopller spectra in microwave scattering from wind waves.
Phys. Fluids, 14:466, 1971.
136
Bibliography
[172] Z. Yang, S. Tang, and J. Wu. An experimental study of rain effects on fine structure of wind
wave. J. Phys. Oceanogr., 27:419–430, 1997.
[173] A. Yarin. Drop impact dynamics: Splashing, spreading, receding, bouncing... Annual
Review of Fluid Mechanics, 38:159–192, January 2006.
[174] I. Young, W. Rosenthal, and F. Ziemer. A three-dimensional analysis of marine radar images for the determination of ocean wave directionally and surface currents. Journal of
Geophysical Research, 90(C1):0148–0227, 1985. ist gescannt.
[175] C. J. Zappa, W. E. Asher, and A. T. Jessup. Microscale wave breaking and air-water gas
transfer. Journal of Geophysical Research-Oceans, 106(C5):9385–9391, 2001.
[176] C. J. Zappa, W. E. Asher, A. T. Jessup, J. Klinke, and S. R. Long. Microbreaking and the
enhancement of air-water transfer velocity. Journal of geophysical Research, 109:C08S16,
2004.
[177] X. Zhang. Capillary-gravity and capillary waves generated in a wind wave tank: Observations and theories. Journal of Fluid Mechanics, 189:51–82, 1995.
[178] X. Zhang. An algorithm for calculating water surface elevations from surface gradient.
Experiments in Fluids, 21:43–48, 1996.
[179] X. Zhang. Surface image velocimetry for measuring short wind wave kinematics. Exp
Fluids, 35:653–665, 2003.
[180] X. Zhang. Short surface waves on surface shear. J. Fluid Mech., 541:345–370, 2005.
[181] X. Zhang and C. S. Cox. Measuring the two-dimensional structure of a wavy water surface
optically: A surface gradient detector. Experiments in Fluids, 17:225–237, Aug. 1994.
[182] X. Zhang, J. Klinke, and B. Jähne. Study of advection of short wind wave by long wave
from surface slope images. In Proc. of the Symposium on the Wind-Driven Air-Sea Interface,
pages 93–97, Sydney, Australia, 1999.
A. Appendix
A.1. 2D Saturation Spectra for Wind&Rain&Slick Conditions
Figure A.1.: Twosided and MTF corrected saturation spectra with surface slicks and rain. Slick type as
coded in table A.6.
A.2. Related Wave Measurements
Facility
Image size [m]
resolution [mm]
k range [rad/m]
Reference
Marseille
Delft
Delft
Heidelberg
1996 Martha’s Vineyard
30m offshore, Nov 92
MBL West Coast, Exp., May 3 1995
MBL West Coast, Exp., May 3 1995
Hamburg
0.309–0.234
0.664–0.473
0.165–0.144
0.180–0.140
0.10–0.10 (square scan
pattern)
0.192-0.151
0.10–0.04 eight line scan
0.23-0.114
0.61–0.97
1.30—1.85
0.32–0.56
0.35–0.58
-
98-3225
52-1701
170—5592
164–5389
31-990
Klinke 1996
Jahne and Riemer 1990
Klinke 1996
Klinke 1991, 1996
Hara et al. 1994
0.30–0.63
2.0—5.0
0.7
152-4993
60—1500
28–4500
Klinke and Jahne 1995; Klinke 1996
Hwang et al. 1996
this paper
Table A.1.: Spatial resolution for wave measurements, modified after [88].
138
A. Appendix
A.3. Frequency Spectra
Frequency spectra have been computed according to equation 6.31 and are presented in section
A.3.1 for completeness. Note, we did not incorporate a factor of two in order to compensate the
one-sided nature of the frequency domain.
Since we have the combined spatial and temporal information it is also possible to compute
frequency spectra for selected wavenumber ranges, e.g. the short gravity wave range and the
capillary wave range, as exemplified in the sections A.3.2 and A.3.3. The wavenumber ranges are
given in the figure titles.
The wavenumber of the dominant waves can be inferred from the frequency at the dominant
peak, given the knowledge of the dispersion relation. For that the frequencies of the dominant
peaks have been included in the legend of the figures in section A.3.2
A.3.1. Full Range
Restriction: |θ| < 10°
0
10
−1
10
−2
10
−3
10
u030r000s0w0
u040r000s0w0
u052r000s0w0
u062r000s0w0
u081r000s0w0
u100r000s0w0
u120r000s0w0
u140r000s0w0
−4
Φ [cm2 s]
10
−5
10
−6
10
−7
10
−8
10
−9
10
−10
10
−1
10
0
10
1
10
ω [rad/s]
2
10
3
10
Figure A.2.: Frequency spectra, corresponding to figure 7.1
Restriction: |θ| < 10°
−1
10
−2
10
−3
10
−4
Φ [cm2 s]
10
u020r057s0w0
u040r057s0w0
u060r057s0w0
u080r057s0w0
u101r057s0w0
−5
10
−6
10
−7
10
−8
10
−9
10
−1
10
0
10
1
10
ω [rad/s]
2
10
3
10
Figure A.3.: Frequency spectra, corresponding to figure 7.8
A.3. Frequency Spectra
139
Restriction: |θ| < 10°
−1
10
−2
10
−3
10
−4
10
u040r000s1w0
u060r000s2w0
u080r000s2w0
u060r000s4w0
u083r000s4w0
Φ [cm2 s]
−5
10
−6
10
−7
10
−8
10
−9
10
−10
10
−1
10
0
10
1
10
ω [rad/s]
2
10
3
10
Figure A.4.: Frequency spectra, corresponding to figure 7.10
Restriction: |θ| < 10°
−1
10
−2
10
−3
10
−4
Φ [cm2 s]
10
u059r057s2w0
u080r057s2w0
u059r057s4w0
u082r057s6w0
−5
10
−6
10
−7
10
−8
10
−9
10
−1
10
0
10
1
10
ω [rad/s]
2
10
3
10
Figure A.5.: Frequency spectra, corresponding to figure A.1
Restriction: |θ| < 10°
−1
10
−2
10
−3
10
−4
10
Φ [cm2 s]
−5
10
u040r000s0w1
u040r057s0w1
u000r000s0w1
−6
10
−7
10
−8
10
−9
10
−10
10
−1
10
0
10
1
10
ω [rad/s]
2
10
3
10
Figure A.6.: Frequency spectra, corresponding to figure 7.13
140
A. Appendix
A.3.2. Short Gravity Wave Range
Restriction: |k| < 370 rad/m, |θ| < 10°
0
10
−1
10
−2
10
−3
10
u030r000s0w0 ωp = 33.0 rad/s
u040r000s0w0 ωp = 22.0 rad/s
−4
Φ [cm2 s]
10
u052r000s0w0 ωp = 18.8 rad/s
u062r000s0w0 ωp = 16.5 rad/s
−5
10
u081r000s0w0 ωp = 15.7 rad/s
u100r000s0w0 ωp = 13.4 rad/s
−6
10
u120r000s0w0 ωp = 12.6 rad/s
u140r000s0w0 ωp = 11.8 rad/s
−7
10
−8
10
−9
10
−10
10
−1
10
0
10
1
10
ω [rad/s]
2
10
3
10
Figure A.7.: Frequency spectra for the short gravity wave range, corresponding to figure 7.1
Restriction: |k| < 370 rad/m, |θ| < 10°
−1
10
−2
10
−3
10
−4
Φ [cm2 s]
10
u020r057s0w0 ωp = 22.8 rad/s
u040r057s0w0 ωp = 24.3 rad/s
u060r057s0w0 ωp = 18.8 rad/s
−5
10
u080r057s0w0 ωp = 15.7 rad/s
u101r057s0w0 ωp = 12.6 rad/s
−6
10
−7
10
−8
10
−9
10
−1
10
0
10
1
10
ω [rad/s]
2
10
3
10
Figure A.8.: Frequency spectra for the short gravity wave range, corresponding to figure 7.8
A.3. Frequency Spectra
141
Restriction: |k| < 370 rad/m, |θ| < 10°
−1
10
−2
10
−3
10
−4
10
u040r000s1w0 ωp = 10.2 rad/s
Φ [cm2 s]
−5
u060r000s2w0 ωp = 12.6 rad/s
10
u080r000s2w0 ωp = 14.9 rad/s
u060r000s4w0 ωp = 26.7 rad/s
−6
10
u083r000s4w0 ωp = 15.7 rad/s
−7
10
−8
10
−9
10
−10
10
−1
10
0
10
1
10
ω [rad/s]
2
3
10
10
Figure A.9.: Frequency spectra for the short gravity wave range, corresponding to figure 7.10
Restriction: |k| < 370 rad/m, |θ| < 10°
−1
10
−2
10
−3
10
−4
Φ [cm2 s]
10
u059r057s2w0 ωp = 11.8 rad/s
u080r057s2w0 ωp = 12.6 rad/s
−5
10
u059r057s4w0 ωp = 22.8 rad/s
u082r057s6w0 ωp = 14.9 rad/s
−6
10
−7
10
−8
10
−9
10
−1
10
0
1
10
10
ω [rad/s]
2
3
10
10
Figure A.10.: Frequency spectra for the short gravity wave range, corresponding to figure A.1
Restriction: |k| < 370 rad/m, |θ| < 10°
−1
10
−2
10
−3
10
−4
10
Φ [cm2 s]
−5
u040r000s0w1 ωp = 6.3 rad/s
10
u040r057s0w1 ωp = 6.3 rad/s
u000r000s0w1 ωp = 6.3 rad/s
−6
10
−7
10
−8
10
−9
10
−10
10
−1
10
0
10
1
10
ω [rad/s]
2
10
3
10
Figure A.11.: Frequency spectra for the short gravity wave range corresponding to figure 7.13
142
A. Appendix
A.3.3. Capillary Wave Range
Restriction: |k| > 370 rad/m, |θ| < 10°
−6
10
−7
10
u030r000s0w0 ωp = 128.8 rad/s
u040r000s0w0 ωp = 139.8 rad/s
−8
10
Φ [cm2 s]
u052r000s0w0 ωp = 114.7 rad/s
u062r000s0w0 ωp = 139.8 rad/s
u081r000s0w0 ωp = 136.7 rad/s
u100r000s0w0 ωp = 153.9 rad/s
−9
10
u120r000s0w0 ωp = 164.1 rad/s
u140r000s0w0 ωp = 124.9 rad/s
−10
10
−11
10
−1
10
0
10
1
10
ω [rad/s]
2
10
3
10
Figure A.12.: Frequency spectra for the capillary wave range, corresponding to figure 7.1
Restriction: |k| > 370 rad/m, |θ| < 10°
−6
10
−7
10
Φ [cm2 s]
u020r057s0w0 ωp = 107.6 rad/s
u040r057s0w0 ωp = 124.9 rad/s
u060r057s0w0 ωp = 109.2 rad/s
−8
10
u080r057s0w0 ωp = 119.4 rad/s
u101r057s0w0 ωp = 142.2 rad/s
−9
10
−10
10
−1
10
0
10
1
10
ω [rad/s]
2
10
3
10
Figure A.13.: Frequency spectra for the capillary wave range corresponding to figure 7.8
A.3. Frequency Spectra
143
Restriction: |k| > 370 rad/m, |θ| < 10°
−6
10
−7
10
u040r000s1w0 ωp = 22.8 rad/s
−8
10
Φ [cm2 s]
u060r000s2w0 ωp = 31.4 rad/s
u080r000s2w0 ωp = 42.4 rad/s
u060r000s4w0 ωp = 122.5 rad/s
u083r000s4w0 ωp = 146.1 rad/s
−9
10
−10
10
−11
10
−1
10
0
10
1
10
ω [rad/s]
2
10
3
10
Figure A.14.: Frequency spectra for the capillary wave range corresponding to figure 7.10
Restriction: |k| > 370 rad/m, |θ| < 10°
−6
10
−7
Φ [cm2 s]
10
u059r057s2w0 ωp = 135.9 rad/s
u080r057s2w0 ωp = 153.9 rad/s
−8
10
u059r057s4w0 ωp = 140.6 rad/s
u082r057s6w0 ωp = 102.1 rad/s
−9
10
−10
10
−1
10
0
10
1
10
ω [rad/s]
2
10
3
10
Figure A.15.: Frequency spectra for the capillary wave range corresponding to figure A.1
Restriction: |k| > 370 rad/m, |θ| < 10°
−6
10
−7
10
−8
10
Φ [cm2 s]
u040r000s0w1 ωp = 157.1 rad/s
u040r057s0w1 ωp = 119.4 rad/s
u000r000s0w1 ωp = 62.0 rad/s
−9
10
−10
10
−11
10
−1
10
0
10
1
10
ω [rad/s]
2
10
3
10
Figure A.16.: Frequency spectra for the capillary wave range corresponding to figure 7.13
144
A. Appendix
A.4. Slices Through the Frequency Wavenumber Spectra
In section 7.3 the interpretation of the 3D spectral distribution was studied for one specific experimental condition. In the figures A.17 though A.42, the ω-k slices through the 3D power spectrum
are shown for all other conditions. On page 104 you will find detailed informations for what is
displayed. For the discussion please refer to section 7.3.
Each individual plot is accompanied by a title that can be read in terms of the experimental
conditions, e.g. u062 stands for a reference windspeed of 6.2 m/s; r057 stands for a rain rate
of 57 mm/h; s2 stands for slick type 2 (see table 8.3 for the slick type coding); w1 stands for a
mechanical wave with a frequency of 1 Hz.
u020r000s0w0
Φ = 135o
Φ = 90o
Φ = 45o
ω [rad/s]
800
600
400
200
Φ = 180o
Φ = 225o
1000 2000
k [rad/m]
Φ = 270o
3000
Φ = 0o
Φ = 315o
Figure A.17.: ω-k Slices through the 3D power spectrum
A.4. Slices Through the Frequency Wavenumber Spectra
u030r000s0w0
Φ = 135o
Φ = 90o
Φ = 45o
ω [rad/s]
800
600
400
200
Φ = 180o
1000 2000
k [rad/m]
Φ = 225o
3000
Φ = 270o
Φ = 0o
Φ = 315o
Figure A.18.: ω-k Slices through the 3D power spectrum
u040r000s0w0
Φ = 135o
Φ = 90o
Φ = 45o
ω [rad/s]
800
600
400
200
Φ = 180o
Φ = 225o
1000 2000
k [rad/m]
Φ = 270o
3000
Φ = 0o
Φ = 315o
Figure A.19.: ω-k Slices through the 3D power spectrum
145
146
A. Appendix
u052r000s0w0
Φ = 135o
Φ = 90o
Φ = 45o
ω [rad/s]
800
600
400
200
Φ = 180o
1000 2000
k [rad/m]
Φ = 225o
3000
Φ = 270o
Φ = 0o
Φ = 315o
Figure A.20.: ω-k Slices through the 3D power spectrum
u062r000s0w0
Φ = 135o
Φ = 90o
Φ = 45o
ω [rad/s]
800
600
400
200
Φ = 180o
Φ = 225o
1000 2000
k [rad/m]
Φ = 270o
3000
Φ = 0o
Φ = 315o
Figure A.21.: ω-k Slices through the 3D power spectrum
A.4. Slices Through the Frequency Wavenumber Spectra
u081r000s0w0
Φ = 135o
Φ = 90o
Φ = 45o
ω [rad/s]
800
600
400
200
Φ = 180o
1000 2000
k [rad/m]
Φ = 225o
3000
Φ = 270o
Φ = 0o
Φ = 315o
Figure A.22.: ω-k Slices through the 3D power spectrum
u100r000s0w0
Φ = 135o
Φ = 90o
Φ = 45o
ω [rad/s]
800
600
400
200
Φ = 180o
Φ = 225o
1000 2000
k [rad/m]
Φ = 270o
3000
Φ = 0o
Φ = 315o
Figure A.23.: ω-k Slices through the 3D power spectrum
147
148
A. Appendix
u120r000s0w0
Φ = 135o
Φ = 90o
Φ = 45o
ω [rad/s]
800
600
400
200
Φ = 180o
1000 2000
k [rad/m]
Φ = 225o
3000
Φ = 270o
Φ = 0o
Φ = 315o
Figure A.24.: ω-k Slices through the 3D power spectrum
u140r000s0w0
Φ = 135o
Φ = 90o
Φ = 45o
ω [rad/s]
800
600
400
200
Φ = 180o
Φ = 225o
1000 2000
k [rad/m]
Φ = 270o
3000
Φ = 0o
Φ = 315o
Figure A.25.: ω-k Slices through the 3D power spectrum
A.4. Slices Through the Frequency Wavenumber Spectra
u020r057s0w0
Φ = 135o
Φ = 90o
Φ = 45o
ω [rad/s]
800
600
400
200
Φ = 180o
1000 2000
k [rad/m]
Φ = 225o
3000
Φ = 270o
Φ = 0o
Φ = 315o
Figure A.26.: ω-k Slices through the 3D power spectrum
u040r057s0w0
Φ = 135o
Φ = 90o
Φ = 45o
ω [rad/s]
800
600
400
200
Φ = 180o
Φ = 225o
1000 2000
k [rad/m]
Φ = 270o
3000
Φ = 0o
Φ = 315o
Figure A.27.: ω-k Slices through the 3D power spectrum
149
150
A. Appendix
u060r057s0w0
Φ = 135o
Φ = 90o
Φ = 45o
ω [rad/s]
800
600
400
200
Φ = 180o
1000 2000
k [rad/m]
Φ = 225o
3000
Φ = 270o
Φ = 0o
Φ = 315o
Figure A.28.: ω-k Slices through the 3D power spectrum
u080r057s0w0
Φ = 135o
Φ = 90o
Φ = 45o
ω [rad/s]
800
600
400
200
Φ = 180o
Φ = 225o
1000 2000
k [rad/m]
Φ = 270o
3000
Φ = 0o
Φ = 315o
Figure A.29.: ω-k Slices through the 3D power spectrum
A.4. Slices Through the Frequency Wavenumber Spectra
u101r057s0w0
Φ = 135o
Φ = 90o
Φ = 45o
ω [rad/s]
800
600
400
200
Φ = 180o
1000 2000
k [rad/m]
Φ = 225o
3000
Φ = 270o
Φ = 0o
Φ = 315o
Figure A.30.: ω-k Slices through the 3D power spectrum
u040r000s1w0
Φ = 135o
Φ = 90o
Φ = 45o
ω [rad/s]
800
600
400
200
Φ = 180o
Φ = 225o
1000 2000
k [rad/m]
Φ = 270o
3000
Φ = 0o
Φ = 315o
Figure A.31.: ω-k Slices through the 3D power spectrum
151
152
A. Appendix
u060r000s2w0
Φ = 135o
Φ = 90o
Φ = 45o
ω [rad/s]
800
600
400
200
Φ = 180o
1000 2000
k [rad/m]
Φ = 225o
3000
Φ = 270o
Φ = 0o
Φ = 315o
Figure A.32.: ω-k Slices through the 3D power spectrum
u080r000s2w0
Φ = 135o
Φ = 90o
Φ = 45o
ω [rad/s]
800
600
400
200
Φ = 180o
Φ = 225o
1000 2000
k [rad/m]
Φ = 270o
3000
Φ = 0o
Φ = 315o
Figure A.33.: ω-k Slices through the 3D power spectrum
A.4. Slices Through the Frequency Wavenumber Spectra
u060r000s4w0
Φ = 135o
Φ = 90o
Φ = 45o
ω [rad/s]
800
600
400
200
Φ = 180o
1000 2000
k [rad/m]
Φ = 225o
3000
Φ = 270o
Φ = 0o
Φ = 315o
Figure A.34.: ω-k Slices through the 3D power spectrum
u083r000s4w0
Φ = 135o
Φ = 90o
Φ = 45o
ω [rad/s]
800
600
400
200
Φ = 180o
Φ = 225o
1000 2000
k [rad/m]
Φ = 270o
3000
Φ = 0o
Φ = 315o
Figure A.35.: ω-k Slices through the 3D power spectrum
153
154
A. Appendix
u059r057s2w0
Φ = 135o
Φ = 90o
Φ = 45o
ω [rad/s]
800
600
400
200
Φ = 180o
1000 2000
k [rad/m]
Φ = 225o
3000
Φ = 270o
Φ = 0o
Φ = 315o
Figure A.36.: ω-k Slices through the 3D power spectrum
u080r057s2w0
Φ = 135o
Φ = 90o
Φ = 45o
ω [rad/s]
800
600
400
200
Φ = 180o
Φ = 225o
1000 2000
k [rad/m]
Φ = 270o
3000
Φ = 0o
Φ = 315o
Figure A.37.: ω-k Slices through the 3D power spectrum
A.4. Slices Through the Frequency Wavenumber Spectra
u059r057s4w0
Φ = 135o
Φ = 90o
Φ = 45o
ω [rad/s]
800
600
400
200
Φ = 180o
1000 2000
k [rad/m]
Φ = 225o
3000
Φ = 270o
Φ = 0o
Φ = 315o
Figure A.38.: ω-k Slices through the 3D power spectrum
u082r057s6w0
Φ = 135o
Φ = 90o
Φ = 45o
ω [rad/s]
800
600
400
200
Φ = 180o
Φ = 225o
1000 2000
k [rad/m]
Φ = 270o
3000
Φ = 0o
Φ = 315o
Figure A.39.: ω-k Slices through the 3D power spectrum
155
156
A. Appendix
u040r000s0w1
Φ = 135o
Φ = 90o
Φ = 45o
ω [rad/s]
800
600
400
200
Φ = 180o
1000 2000
k [rad/m]
Φ = 225o
3000
Φ = 270o
Φ = 0o
Φ = 315o
Figure A.40.: ω-k Slices through the 3D power spectrum
u040r057s0w1
Φ = 135o
Φ = 90o
Φ = 45o
ω [rad/s]
800
600
400
200
Φ = 180o
Φ = 225o
1000 2000
k [rad/m]
Φ = 270o
3000
Φ = 0o
Φ = 315o
Figure A.41.: ω-k Slices through the 3D power spectrum
A.4. Slices Through the Frequency Wavenumber Spectra
u000r000s0w1
Φ = 135o
Φ = 90o
Φ = 45o
ω [rad/s]
800
600
400
200
Φ = 180o
Φ = 225o
1000 2000
k [rad/m]
Φ = 270o
3000
Φ = 0o
Φ = 315o
Figure A.42.: ω-k Slices through the 3D power spectrum
157
158
A. Appendix
A.5. Covariance of Wave Slope and Height
Scatter diagrams for sx , sy and h are shown in figure A.43.
5
1000 randomly picked pixel pairs out of 500 images of a 312Hz sequence
4 m/s windspeed
4 correlation coefficient: 0.0193
(H−mean(H))/std(H)
3
2
1
0
−1
−2
−3
−3
5
4
−2
−1
0
1
(Sx−mean(Sx))/std(Sx)
2
3
4
1000 randomly picked pixel out of 500 image pairs of a 312Hz sequence
at 4 m/s windspeed
correlation coefficient 0.0040
(H−mean(H))/std(H)
3
2
1
0
−1
−2
−3
−4
4
(Sx−mean(Sx))/std(Sx)
3
−3
−2
−1
0
1
(Sy−mean(Sy))/std(Sy)
2
3
4
1000 randomly picked pixel out of 500 image pairs of a 312Hz sequence
at 4 m/s windspeed
correlation coefficient 0.0137
2
1
0
−1
−2
−3
−4
−3
−2
−1
0
1
(Sy−mean(Sy))/std(Sy)
2
3
4
Figure A.43.: Example for scatter diagrams of the slope components sx and sy and height H. Correlation
coefficients as indicated.
A.6. Monolayer Surface Slicks
159
A.6. Monolayer Surface Slicks
For the surface slick conditions, two different monolayer surface slicks have been utilized (OLA =
Oleyl Alcohol; PME = Hexadecanoic Acid Methyl Ester). The substances were deployed directly
at the wind entrance of the linear wave tank using a little tube that was fixed a few millimeters
above the water surface. Over the course of one experiment, the dropping rate of the substances
was intended to be constant. However, for some experiments the dropping rate was unsteady,
so that for the individual sequences a numeric code is used that allows for an distinction of the
surface slick condition, see table A.6. More informations about the wave damping of OLA and
PME can also be found in the articles: Gade et al. [51], Lange and Hühnerfuss [105], and Alpers
[4]. See Mann [119] and Bock and Mann [19] for further reading about dynamic surface tension
and capillary waves.
Code
0
1
2
3
4
5
6
Substance
no slick
OLA
OLA
PME
PME
OLA
PME
Drop Rate
0
?
3
?
3
<3
<3
Table A.2.: Number codes for the monolayer slick conditions. The dropping rate corresponds to the setting
of the flexible-tube pump.
Figure A.44.: Modified surface tension for the monolayer surface slicks (OLE and PME). Source: Lange and
Hühnerfuss [105]
A.7. MTF Target
The hole diameters for the MTF target are given in figure A.45. The usage of the target for
the MTF measurement is described in section 4.5, and for the geometrical calibration in section
4.2. The thin metal stencil, with a design resolution of 0.5 µm and an accuracy of ±10 µm, was
manufactured by Beta LAYOUT GmbH, 65326 Aarbergen, Germany (www.schablone.de).
160
A. Appendix
Punkte auf 10 mm Raster
3.9 mm
1.0 mm
3.3 mm
0.56 mm
0.82 mm
8.2 mm
2.7 mm
0.68 mm
2.2 mm
Figure A.45.: Hole diameters for a unit cell of the MTF target. The holes are arranged on a 10 mm grid.
A.8. Camera
The camera AVT-Pike032C was used for the CISG measurements, for technical details see figure
A.46. The camera lens was manufactured by Ernst Leitz Wetzlar Germany, Model ELMAR 1:4/90,
No. 1712906. The lens was augmented by an external transaxle for the focousing.
Source:
Allied Vision Technologies
AVT-Pike
Technical Manual
V2.0.0 July 2006
Figure A.46.: Technical details for AVT Pike032c, Source: http://www.alliedvisiontec.com/
A.9. Normalization Factor in the modified 3d-DFT
161
A.9. Normalization Factor in the modified 3d-DFT
Here we give a detailed derivation of the normalization factor for the power spectra that is used in
section 2.3. As in section 2.3 we have
2π
2π
2π
, ∆ky =
, ∆ω =
(A.1)
∆kx =
X
Y
T
M=
2π
X
=
,
∆kx ∆x
∆x
ηm,n,o =
N=
2π
Y
=
,
∆ky ∆y
∆y
M
−1 N
−1 O−1
X
X
X
O=
2π
T
=
,
∆ω∆t
∆t
−ow
nv
η̂u,v,w wmu
M wN wO ,
(A.2)
(A.3)
u=0 v=0 w=0
η̂u,v,w
M
−1 N
−1 O−1
X
X
X
1
ηm,n,o w−mu
w−nv
wow
=
O .
M
N
MNO
(A.4)
m=0 n=0 o=0
We define the modified spectrum η̂0u,v,w that satisfies
ηm,n,o =
M
−1 N
−1 O−1
X
X
X
−ow
nv
η̂0u,v,w wmu
M wN wO ∆kx ∆ky ∆ω,
(A.5)
u=0 v=0 w=0
or in other words we define
η̂0u,v,w ≡ η̂u,v,w /(∆kx ∆ky ∆ω),
(A.6)
so that η̂0u,v,w has the same dimensions as the continuous spectrum. We are now searching for the
normalization factor F, so that the forward transform
η̂0u,v,w = F
M
−1 N
−1 O−1
X
X
X
wow
w−nv
ηm,n,o w−mu
O ∆x∆y∆t
N
M
(A.7)
m=0 n=0 o=0
is fulfilled. Factoring out the terms ∆x∆y∆t gives
η̂0u,v,w = F ∆x∆y∆t
M
−1 N
−1 O−1
X
X
X
w−nv
wow
ηm,n,o w−mu
O
N
M
(A.8)
m=0 n=0 o=0
With (A.4) we get
η̂0u,v,w = F M N O∆x∆y∆t η̂u,v,w
(A.9)
Using (A.6) and (A.9) we have the condition for F
1
= F (M N O)∆x∆y∆t.
∆kx ∆ky ∆ω
(A.10)
This is solved using (A.2) with the result
F =
1
(2π)3
(A.11)
So that the modified forward transform can be written just like in the continuous case as
η̂0u,v,w
M −1 N −1 O−1
1 X XX
=
ηm,n,o w−mu
w−nv
wow
O ∆x∆y∆t,
M
N
3
(2π)
m=0 n=0 o=0
which is the same as (6.22).
(A.12)
162
A. Appendix
ray
air
α
90°
water
β γ
γ
δ
air
Figure A.47.: The light ray points vertically on the water surface. At the surface it undergoes refraction. A
second refraction occurs when the ray leaves the water body at a horizontal interface (e.g. glas bottom of
the tank).
A.10. Derivation of the General Expression for the Ray
Geometry
Here we give a detailed derivation of equations (3.3) and (3.2) from the sections 3.1.1 and 3.1.2.
The relationship between the ray inclination tan δ above the fresnel lens of the light box and the
water surface inclination tan α is given by the one dimensional equation
tan δ
tan α = p
n2w
+
tan2 δ(n2w
− 1) −
√
1 + tan2 δ
.
(A.13)
In the first paragraph, we explicitly go through the derivation of (A.13). The second paragraph
explains, how the extension for two dimensions is justified, so that we finally get (3.3).
1d-Derivation: Consider the light path that is sketched in figure A.47. The refraction is expressed by snells law, so we are starting with
sin α = n · sin β
n · sin γ = sin δ
β = α − γ,
(A.14)
(A.15)
(A.16)
where n is the index of refraction for water. Using the trigonometric identity
sin(α − γ) = sin α cos γ − sin γ cos α
(A.17)
sin α = n · (sin α cos γ − sin γ cos α)
(A.18)
we get
after inserting (A.16) in (A.14). Dividing (A.18) by cos α gives
tan α = n · (tan α cos γ − sin γ) .
(A.19)
A.10. Derivation of the General Expression for the Ray Geometry
163
Solving (A.19) for tan α yields
tan α =
With (A.15) and cos =
p
n · sin γ
.
n · cosγ − 1
(A.20)
1 − sin2 we have
tan α =
sin δ
p
n2 − sin2 δ − 1
.
(A.21)
Expanding the right side of (A.21) by cos−1 δ we obtain
tan α =
tan δ
q
n2
cos2
δ
− tan2 δ −
.
(A.22)
1
cos δ
Inserting
p
1
= 1 + tan2 δ
cos δ
to equation (A.22) gives
tan α =
tan δ
p
n2
· (1 +
tan2 δ)
− tan2 δ −
√
1 + tan2 δ
(A.23)
and finally
tan α =
tan δ
p
√
.
2
2
n + tan δ · (n2 − 1) − 1 + tan2 δ
(A.24)
Figure A.49 a) shows a plot for equation (A.24) and the inverse relation in b).
2d-Extension: The one dimensional expression (A.24) can be easily extended into two 2 dimensions to obtain (3.3), which is rewritten here:
|tan δ|
sx
cos Φ
√
s=
·p
=
.
(A.25)
sy
sin Φ
n2w + (n2w − 1) tan2 δ − 1 + tan2 δ
Consider the decomposition of the total slope s = tan α for the along wind and cross wind direction
s = [sx , sy ]T = | tan α|[cos Φ, sin Φ]T ,
(A.26)
where the polar angle Φ is given by the orientation of the plane that is spanned from the water
surface normal and the vertical, see figure A.48. The ray k is vertically pointing down on the
water surface. After refraction at the water surface the refracted ray k0 always lies in the plane
that is spanned by the water surface normal1 n and the vertical ez . A second refraction occurs at
the glass window at the bottom of the tank. The glass window is horizontal so that its normal is
vertical nwindow = ez . After the second refraction the ray k00 lies in the plane that is spanned by
the vertical ez and the k0 . So the ray does not change the orientation in the x–y–plane again, under
the conditions:
1. the surface normal of the glas window is in good horizontal alignment.
2. the camera vector k has no inclination to the vertical.
1
h
iT
∂z
∂z
note: n ∝ − ∂x
, − ∂y
, 1 also lies in the plane that is given by the 3–d extension of the slope in gradient space
h
iT
∂z ∂z
s = ∂x
, ∂y , 1 and the vertical ez = [0, 0, 1]T
164
A. Appendix
z=1
α
n
s
α
k
y
tan
α
φ
x
z‘ = 1
k`
γ
y‘
tan
γ
x‘
z‘‘ = 1
k``
δ
y‘’
tan
δ
x‘‘
Figure A.48.: Sketch for the orientations of the rays in the plane that is spanned by the water surface normal
n and the incident ray vector k. In the air space above the water surface the ray k points vertically down to
the surface that is inclined by the angle α against the vertical. The ray after the refraction at the water surface
is denoted by k0 . The ray inclination in the water body γ is linked to the surface inclination α according to
snells law (γ = α − sin−1 ( n1 sin α)). The orientation of k0 in the x–y–plane is defined by the orientation Φ
of the surface normal, because the tangential component of the E–field vector does not change and for that
k, n and k0 always lie in the same plane. If the ray undergoes a second refraction at a horizontal interface
between water body and air space then the ray vector k00 still lies in this plane (assumption: the glass window
with normal n0 at the tank bottom is perfectly horizontal, and thus n0 = −k).
a)
b)
analytical
analytical
−0.0037377 ⋅ x3 + −0.026175 ⋅ x2 + 0.34415 ⋅ x + −0.00093371
0.6
5
0.5
4
0.4
tan δ
6
3
0.2
1
0.1
0
0
0
0.2
0.4
2
0.6
0.8
1
tan δ
−4
residual ∆(tan α)
0.3
2
x 10
residual ∆(tan δ)
tan α
0.63641 ⋅ x4 + 1.5214 ⋅ x3 + 0.07741 ⋅ x2 + 2.9938 ⋅ x + 0.00010217
0
−2
0
0.2
0.4
0.6
tan δ
0.8
1
10
0
−4
x 10
0.5
1
tan α
1.5
2
0
0.5
1
tan α
1.5
2
5
0
−5
Figure A.49.: a) top: tan α as function of tan δ (blue) and polynomial fit for tan α < 2 (red dashed); bottom:
residual of the polynomial fit. b) top: tan δ as function of tan α (blue) and polynomial fit for tan α < 2 (red
dashed); bottom: residual of the polynomial fit
Danksagung
Ich bedanke mich herzlich bei Prof. Dr. Bernd Jähne für die Ermöglichung und Betreuung dieser
Arbeit, sowie bei Prof. Dr. Werner Aeschbach-Hertig für die freundliche Bereitschaft zur Begutachtung.
Die Windis-Arbeitsgruppe ist für mich ein Hort der Kreativität, nicht zuletzt aufgrund des
freundschaftlichen Umgangs untereinander und der vielen inspirierenden Ideen unseres Chefs.
Für die angenehme Arbeitsatmosphäre gilt es allen Kollegen zu Danken.
Besonderen Dank schulde ich Dr. Günther Balschbach für seine stete Diskussionsbereitschaft
und für sein Engagement als Mentor in der Gruppe.
Zum Gelingen diese Arbeit haben zudem Dr. Uwe Schimpf, Martin Schmidt, Dr. Kai Degreif,
Dr. Achim Falkenroth, PD Dr. Christoph Garbe, Kerstin Richter und Florian Huhn besonders
beigetragen - und zwar durch eine gelungene Mischung aus Tatkraft, Expertise und Frohsinn vielen Dank!
Ich danke den WiSSCy-Kooperationspartnern der Forschergruppe um Dr. Martin Gade aus Hamburg, insbesondere Anne-Kristin Anweiler, für die Zusammenarbeit. Die Hilfe der Deutschen
Forschungsgemeinschaft (DFG) zur Finanzierung des WiSSCy-Projekts wird dankbar anerkannt.
Das IUP schätzt sich glücklich, kompetente und kooperative Leute in der feinmechanischen
Werkstatt zu haben - mein Dank für die Unterstützung beim Bau des Roboters und der Lichtquelle
gilt insbesondere Ralph Pfeifer, Sebastian Welk, Heribert Sommer und Udo Weller.
Danke an Dr. Helmut Herrmann für die zahlreichen und schnellen Verbesserungen der Bildverarbeitungs-Software Heurisko. Auch danke ich den Machern des Online-Wörterbuchs LEO,
welches die Erstellung dieser Arbeit in (d)englischer Sprache erheblich vereinfacht hat.
Meinen lieben Freunden und meiner Familie möchte ich für ihre Geduld und ihre mentale Unterstützung in den vergangenen Monaten danken. Ich freue mich darauf schon bald wieder etwas
entspannter mit Euch das Leben zu feiern. Ganz besonders freue ich mich darauf, meine unersetzbare Agnès für ihre Liebe, ihre Geduld und ihr Verständnis zu entlohnen... in unserer baldigen
Zukunft als kleine Familie.
B. Erratum
Correction to the Registration Parameters of IR Images on Page 45: The registration
parameters on page 45 are incomplete. Due to maintenance of the IR scanner mirror between June
the 16th 2007 and June the 20th 2007 another set of parameters is required. Manual tuning of the
parameters (using rain drop impacts from Run234 as reference) lead to the set
points[0]
points[1]
points[2]
points[3]
=
=
=
=
{169.6401
{37.3000
{40.5682
{172.5244
,
,
,
,
74.8098};
80.8252};
142.7987};
135.7481};
valid after June the 20th 2007.
Concerning section 2.5.2 There is an error in the sentence:
√
"Then follows that the amplitude damping at the Nyquist wavenumber is MTF(k̃) = 1/ 2, see
Jähne [77, chapter 9.2.5]."
Correct is: MTF(k̃) = π2 .
Explanation: The Transfer Function of the rectangular box function is given by the sinc function
ǩ)
sinc = sin(π
, in terms of normalized wavenumber ǩ = k∆x
2π . Therefore the value of the Transfer
π ǩ
function for the Nyquist wavenumber (ǩ = 1/2) the Transfer Function attains a value of
2
π
sin( π2 )
π
2
=
= 0.6366.
Mistake in equation (3.1) correct is
∆x = f tan δ.
(B.1)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
