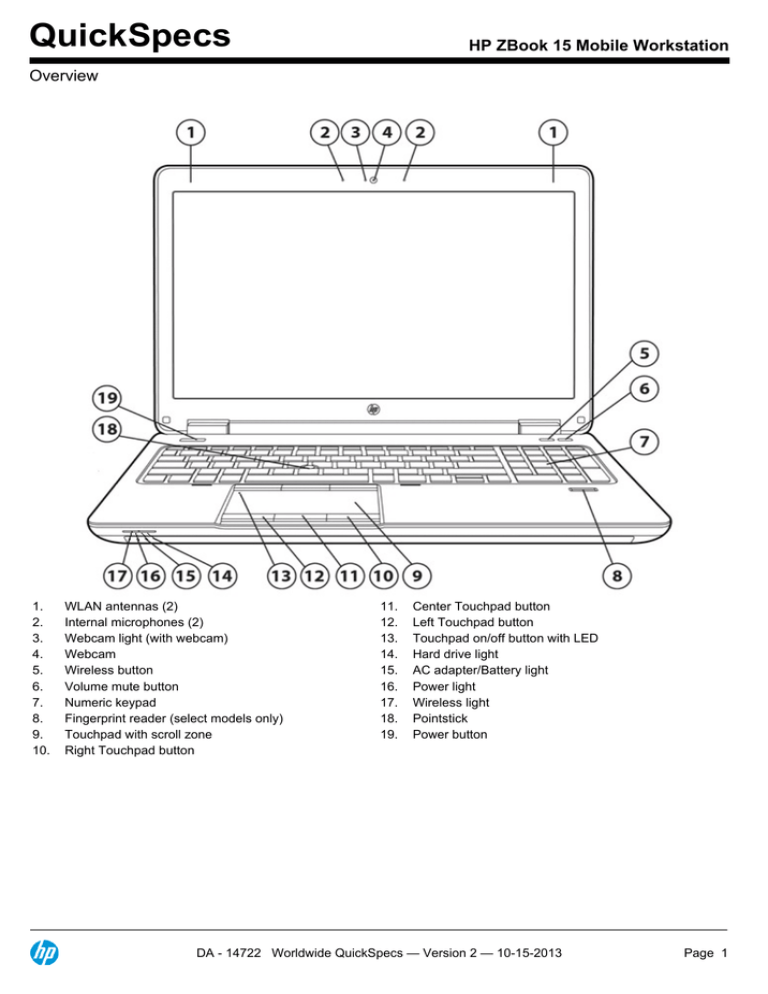

QuickSpecs
HP ZBook 15 Mobile Workstation
Overview
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
WLAN antennas (2)
Internal microphones (2)
Webcam light (with webcam)
Webcam
Wireless button
Volume mute button
Numeric keypad
Fingerprint reader (select models only)
Touchpad with scroll zone
Right Touchpad button
11.
12.
13.
14.
15.
16.
17.
18.
19.
Center Touchpad button
Left Touchpad button
Touchpad on/off button with LED
Hard drive light
AC adapter/Battery light
Power light
Wireless light
Pointstick
Power button
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 1
QuickSpecs
HP ZBook 15 Mobile Workstation
Overview
1.
Security cable slot
9.
Audio-out (headphone) jack/Audio in (microphone) jack
2.
USB 2.0 port
10. USB 3.0 port
3.
Thunderbolt port*
11. Optical drive (select models only)
4.
DisplayPort
12. External monitor port
5.
USB 3.0 charging port
13. USB 3.0 port
6.
Smart card reader
14. Power connector
7.
ExpressCard port
15. RJ-45 (network) jack/lights (2)
8.
Memory card reader
* Thunderbolt is new technology. Install all the latest drivers for your Thunderbolt device before connecting the device to
the Thunderbolt port. Thunderbolt cable and Thunderbolt device (sold separately) must be compatible with Windows. To
determine whether your device is Thunderbolt Certified for Windows, see https://thunderbolttechnology.net/products.
At A Glance
Windows 8 versions, Windows 7 versions, SuSE Linux, or FreeDOS
All new, thinner and lighter form factor and industrial design for 2013. Durable HP Duracase with magnesiumreinforced chassis, HP DuraFinish with brushed aluminum on top cover and smooth aluminum around top, right, and
left sides chassis with hematite /graphite color, HP DisplaySafe frame, latch-less design with precision aluminumalloy hinges, backlight keyboard in full aluminum deck, chemically strengthened glass touchpad, and updated system
functions indicators
Designed to meet the military standard Mil-Std-810G for vibration, dust, altitude, and high temperature operation*
Workstation-caliber NVIDIA® Quadro® discrete graphics: NVIDIA Quadro K610M (1GB GDDR5), NVIDIA Quadro
K1100M (2GB GDDR5), NVIDIA Quadro K2100M (2GB GDDR5); NVIDIA Optimus technology enabled for improved
battery life.
ISV certified to provide fast and reliable performance with workstation applications, including manipulation of 3D
textures
Choice of 4th generation Intel® Core™ i7 and i5 processors
Intel Core i7 with vPro and Core i5 with vPro technology (optional)
Intel Smart Response Technology support for higher system performance with a hard drive
HP Performance Advisor for optimal configuration, compatibility and performance
Up to four SODIMMs on configurations with quad-core processor, for system memory up to 32 GB
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 2
QuickSpecs
HP ZBook 15 Mobile Workstation
Overview
Supports multi-display, including up to four without a docking station (both with and without hybrid graphics enabled),
up to four with HP Advanced Docking Station (sold separately)without hybrid graphics enabled and up to five with HP
Advanced Docking Station (sold separately) and hybrid graphics enabled
New Thunderbolt port** for high speed data/video/audio transfer support
Thunderbolt port can be connected to monitors supporting DisplayPort 1.2 to achieve HBR2 and MST functionality.
DTS Studio Sound HD audio optimized for high fidelity audio with immersive surround sound with deep, rich bass
and crystal clear dialog without distortion at high volume
Choice of battery solutions: 8-cell (83 WHr) or 8-cell (75 WHr) HP Long Life Battery, combined with optional external
batteries for extended life.
2 discrete buttons with LED indicator for convenient one touch access - Wireless On/Off, Volume Mute
Widescreen 15.6-inch diagonal anti-glare LED-backlit display:
HD (1920x1080) eDP with standard viewing angle, FHD (1920x1080) eDP with PSR (Panel Self Refresh) with
ultrawide viewing angle, or FHD ultrawide viewing angle with HP DreamColor Technology
Upgrade Bay for optical drive, optional second hard drive, or weight saver
Flexible wireless connectivity options:
Integrated Intel Centrino® 802.11 ac 2x2 + Bluetooth 4.0 LE**, Intel Centrino 802.11 a/b/g/n 2x2 + Bluetooth
4.0 LE, or Intel Centrino a/b/g/n 2x2 wireless LAN modul
Optional integrated wireless 3G or 4G (LTE) mobile broadband module support
Choice of tool free capable, user-removable hard drive up to 1 TB with HP 3D DriveGuard protection,
or SATA 6 Gb/s 128/180/512*** GB Solid State Drive or 256 GB SED Solid State Drive
Security features including HP Client Security Manager, with central management
Low halogen****, ENERGY STAR qualified and EPEAT TBD registered in the U.S. EPEAT status varies by countryplease see epeat.net.
HP BIOS self-healing technology including HP Sure Start to prevent, detect, and remedy known and unknown BIOS
attacks.
* Testing was not intended to demonstrate fitness for DOD contracts requirements or for military use. Test results are not a
guarantee of future performance under these test conditions.
** Thunderbolt is new technology. Install all the latest drivers for your Thunderbolt device before connecting the device to
the Thunderbolt port. Thunderbolt cable and Thunderbolt device (sold separately) must be compatible with Windows. To
determine whether your device is Thunderbolt Certified for Windows, see https://thunderbolttechnology.net/products.
*** Available in October, 2013.
**** External power supplies, power cords, cables and peripherals are not low halogen. Service parts obtained after
purchase may not be low halogen.
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 3
QuickSpecs
HP ZBook 15 Mobile Workstation
Features
OPERATING SYSTEM
Preinstalled
Windows 8 Pro 64*
Windows 7 Professional (available through downgrade rights from Windows 8 Pro)**
Windows 8 64*
Windows 7 Professional 64*
SuSE Linux Enterprise (SLED 11) SP2 64bit
FreeDOS
Supported
Windows 8 Enterprise 64*
Windows 7 Professional 32***
Windows 7 Enterprise 32***
Windows 7 Enterprise 64***
Windows 7 Ultimate 32***
Windows 7 Ultimate 64***
SuSE Linux Enterprise Desktop 11 SP2 64bit
Red Hat Enterprise Linux 6.x 64bit
Certified
SuSE Linux Enterprise Desktop 11 SP2 64bit
Red Hat Enterprise Linux 6.x 64bit
* Not all features are available in all editions of Windows 8. Systems may require upgraded and/or separately
purchased hardware, drivers and/or software to take full advantage of Windows 8 functionality. See
http://www.microsoft.com for details.
** This system is preinstalled with Windows® 7 Pro software and also comes with a license and media for Windows 8
Pro software. You may only use one version of the Windows software at a time. Switching between versions will
require you to uninstall one version and install the other version. You must back up all data (files, photos, etc.) before
uninstalling and installing operating systems to avoid loss of your data.
*** Not all features are available in all editions of Windows 7. This system may require upgraded and/or separately
purchased hardware to take full advantage of Windows 7 functionality. See
http://www.microsoft.com/windows/windows-7/ for details.
PROCESSOR*
4th Generation Intel® Core™ i7-4900MQ (2.8 GHz, 1600MHz, 8 MB L3 cache, 4 cores, 47W)*
Up to 3.80 GHz with Intel Turbo Boost Technology
4th Generation Intel® Core™ i7-4800MQ (2.7 GHz, 1600MHz, 6 MB L3 cache, 4 cores, 47W)*
Up to 3.70 GHz with Intel Turbo Boost Technology
4th Generation Intel® Core™ i7-4700MQ (2.4 GHz, 1600MHz, 6 MB L3 cache, 4 cores, 47W) (no vPro support)*
Up to 3.40 GHz with Intel Turbo Boost Technology
4th Generation Intel® Core™ i7-4600M (2.90 GHz, 1600 MHz, 4 MB L3 Cache, 2 cores, 37W)
Up to 3.60 GHz with Intel Turbo Boost Technology
4th Generation Intel® Core™ i5-4330M (2.80 GHz, 1600 MHz, 3 MB L3 Cache, 2 cores, 37W)
Up to 3.50 GHz with Intel Turbo Boost Technology
Intel Dual-Core i5-4300M (2.60 GHz, 1600 MHz, 3 MB L3 Cache, 4 threads, 37W)
Up to 3.30 GHz with Intel Turbo Boost Technology
* Multi-Core is designed to improve performance of certain software products. Not all customers or software
applications will necessarily benefit from use of this technology. 64-bit computing on Intel® architecture requires a
computer system with a processor, chipset, BIOS, operating system, device drivers, and applications enabled for
Intel® 64 architecture. Processors will not operate (including 32-bit operation) without an Intel® 64 architectureenabled BIOS. Performance will vary depending on your hardware and software configurations. Intel's numbering is
not a measurement of higher performance.
NOTE: NVIDIA Optimus is enabled by default. If you choose to disable this functionality, Intel® integrated graphics will
not be used.
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 4
QuickSpecs
HP ZBook 15 Mobile Workstation
Features
CHIPSET
Mobile Intel® QM87
INTEL CORE I5 WITH VPRO/CORE I7 WITH VPRO TECHNOLOGY CAPABLE
Intel Core i5 with vPro and Core i7 with vPro technology is a selectable feature that is available on units configured
with select processors, a qualified Intel Centrino® WLAN module and a preinstalled Windows operating system. It
provides advances in remote manageability, security, energy efficient performance, and wireless connectivity. Intel
Active Management Technology 9.0 (iAMT) offers built-in manageability and proactive security for networked mobile
workstations, even when they are powered off* or when the operating system is inoperable. It can help identify threats
before they reach the network, isolate infected systems, and update mobile workstations regardless of their power
state.
*Requires a Windows operating system, network hardware and software, connection with a power source, and a
direct (non-VPN) corporate network connection which is either cable or wireless LAN.
NOTE: Some functionality of Intel Core i5 with vPro/Core i7 with vPro technology, such as Intel Active Management
technology and Intel Virtualization technology, requires additional third- party software in order to run. Availability of
future "virtual appliances" applications for Intel Core i5 with vPro/Core i7 with vPro technology is dependent on thirdparty software providers. Compatibility with future "virtual appliances" is yet to be determined.
GRAPHICS
NVIDIA Quadro K610M with 1 GB dedicated GDDR5 video memory
Microsoft DirectX 11.1 (Shader Model 5.0) and OpenGL 4.2 capable
NVIDIA Quadro K1100M with 2 GB dedicated GDDR5 video memory
Microsoft DirectX 11.1 (Shader Model 5.0) and OpenGL 4.2 capable
NVIDIA Quadro K2100M with 2 GB dedicated GDDR5 video memory
Microsoft DirectX 11.1 (Shader Model 5.0) and OpenGL 4.2 capable
NVIDIA Optimus Technology supported
NOTE: NVIDIA Quadro mobile professional graphics support up to four independent displays when using an HP
Advanced Docking station (sold separately) without hybrid graphics enabled, and up to 5 with Hybrid graphics
enabled.
DISPLAY
Internal
15.6" diagonal LED-backlit FHD SVA eDP anti-glare (1920 x 1080)
15.6" diagonal LED-backlit FHD UWVA eDP anti-glare + Panel Self Refresh (PSR) (1920 x 1080)
15.6" diagonal RGB LED-backlit FHD DreamColor UWVA eDP anti-glare (1920 x 1080)
External
Up to 32-bit per pixel color depth
Thunderbolt*
Supported as part of the daisy chain connected with Intel approved thunderbolt cables. For additional information,
please visit https://thunderbolttechnology.net/.
Thunderbolt Features
Legacy : DP 1.1a, DVI-A/D, HDMI and VGA displays attached to the end of the thunderbolt daisy chain via Intel
certified dongles
DP 1.2 redrive: DisplayPort monitors capable of supporting DP 1.2 may be directly attached to the Thunderbolt
port to achieve HBR2 and MST functionality.
DP display with miniDP connector may be attached directly to TB (Thunderbolt) port.
DP display with standard DP connector and other legacy displays (HDMI, DVI, VGA) may be attached to TB
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 5
QuickSpecs
HP ZBook 15 Mobile Workstation
Features
with the use of a dongle.
DP1.2 MST feature ("daisy-chain" feature) is supported through TB port.
* Thunderbolt is new technology. Install all the latest drivers for your Thunderbolt device before connecting the device
to the Thunderbolt port. Thunderbolt cable and Thunderbolt device (sold separately) must be compatible with
Windows. To determine whether your device is Thunderbolt Certified for Windows, see
https://thunderbolttechnology.net/products.
DisplayPort w/MST (Multi-stream Transport)
Supports resolutions up to QFHD 3840 x 2160, 24/30-bit color depth at 60 Hz, and WUXGA (1920 x 1200) monitors,
24/30-bit color depth at 120 Hz.
DisplayPort Feature
Multi-stream Transport (MST): Multi-stream Transport is a DP 1.2 feature that allows daisy chaining of DP 1.2
monitors (requires built in support of DP 1.2 MST in monitor), or the use of DP 1.2 hubs with MST to achieve 4
active displays without a docking station.
VGA
Port supports resolutions up to 2048 x 1536 at 75 Hz, and lower resolutions at up to 100 Hz
DVI-D (single link)
Video signal available through DVI port in optional HP Docking Station (sold separately), as well as through
DisplayPort to DVI-D; DisplayPort to DVI-D (dual link); and DisplayPort to HDMI adapters.
Supports resolutions up to 1600 x 1200 at both full and reduced blanking, and 1920 x 1200 at reduced blanking
NOTE: Resolutions are dependent upon monitor capability, and resolution and color depth settings.
FLASH CACHE MODULE
Optional mSATA Flash cache module support for Intel Smart Response Technology. (Available only with standard
non-SED hard drive. Cannot be combined with any solid state drive.)
STORAGE AND DRIVES
mSATA Storage Bay
128GB mini-card Solid State Drive
(NOTE: cannot be combined with the mSATA Flash Cache Module)
Primary Storage Bay
Hard Drives
320/500/750 GB 7200 rpm SMART SATA II
1 TB 5400 rpm SMART SATA II
500 GB 7200 rpm SMART SATA II Self Encrypting Drive (Planned to be available in Oct. 2013)
500 GB 5400 rpm SMART SATA II Self Encrypting Drive FIPS 140-2 compliant (Planned to be available in Oct. 2013)
HP 3D DriveGuard (Windows only)
The hard drive is mounted directly to the notebook frame, reducing the transmission of shock to the hard drive. Uses
three-axis digital motion detection with intelligent sensitivity to help protect the hard drive during normal use from
shock and vibration. The digital accelerometer temporarily halts all data transfer and parks the hard drive when abrupt
motion is detected.
Solid State Drive
128/180/512 GB SATA 6 Gb/sec
256 GB SATA 6 Gb/sec Self Encrypting Drive
NOTE: For hard drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 16 GB (for
Windows 7) of system and up to 30 GB (for Windows 8) disk is reserved for system recovery software.
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 6
QuickSpecs
HP ZBook 15 Mobile Workstation
Features
OPTICAL DRIVES
Fixed 9.5 mm SATA optical drive
Blu-ray R/RE DVD+/-RW SuperMulti DL Drive
Blu-ray ROM DVD+/-RW SuperMulti DL Drive
DVD+/-RW SuperMulti DL Drive
DVD-ROM Drive
Second hard drive
750 GB 7200 rpm SMART SATA II Hard Drive
512 GB SATA 6 Gb/sec Solid Sate Drive
256 GB SATA 6 Gb/sec Self Encrypting Drive
RAID 0 and 1 supported
Weight saver
MEMORY
Standard
DDR3L 1.35V SDRAM (1600 MHz)
Two SODIMM slots (Dual-core processor) or four SODIMM slots (Quad-core processor) supporting dual-channel
memory
2 GB, 4 GB, and 8 GB SODIMMs
Maximum
Upgradeable to 16384 MB with optional 8192 MB SODIMMs in both slots (Dual-core processor)
Upgradeable to 32768 MB with optional 8192 MB SODIMMs in all 4 slots (Quad-core processor)
Dual-channel
Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.
NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded
memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. With
Windows Starter 32-bit operating systems, the amount of usable memory is dependent upon your configuration, so
that above 3 GB all memory may not be available due to system resource requirements.
NETWORKING/COMMUNICATIONS
Wireless
Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring support for the
latest industry standards. Broadband Wireless (WWAN) requires a Windows operating system and is available in
select countries as a standard, factory configurable feature only. Integrated Bluetooth is also available (factory
configurable only) and can be combined with any of the supported wireless LAN and wireless WAN options.
Mobile Broadband options
HP hs3110 HSPA+ Mobile Broadband Module*
HP lt4111 LTE/EV-DO/HSPA+ Gobi4G Module*
HP lt4112 LTE/HSPA+Gobi4G Module (EMEA,APJ)*
All 802.11 integrated wireless LAN options
Intel Dual Band Wireless-AC 7260 802.11 ac (2x2) + Bluetooth 4.0 LE Combo
Intel Centrino® Advanced-N 6235 802.11 a/b/g/n (2x2) + Bluetooth 4.0 LE Combo
Intel Centrino® Advanced-N 6205 802.11 a/b/g/n (2x2)
Communications
Integrated Integrated Intel I217-LM Gigabit** Network Connection (vPro configurations)
* Wireless use requires separately purchased service contract. Check with your local vendor for coverage area and
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 7
QuickSpecs
HP ZBook 15 Mobile Workstation
Features
availability in your area. Connection and speeds will vary due to location, environment, network conditions, and other
factors. 4G compatibility with HSPA+ and LTE.
** The term "10/100/1000" or "Gigabit" Ethernet indicates compatibility with IEEE standard 802.3ab for Gigabit
Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a
Gigabit Ethernet server and network infrastructure is required.
AUDIO/MULTIMEDIA
Audio
DTS Studio Sound HD audio (Windows OS only)
Integrated stereo speakers
Integrated microphone (dual-microphone array when equipped with optional webcam)
Button for volume mute; function keys for volume up and down
Combo mic-in / stereo headphone-out jack
Webcam
Optional 720p HD webcam
HD format (widescreen)
Supports videoconferencing and still image capture
High quality fixed focus lens
Video capture at various resolutions up to 1280x720 resolution (720p) and up to 30fps
M-JPEG compression supports higher frame rates for video capture and videoconferencing
Improved low light sensitivity
Improved dynamic range
KEYBOARDS/POINTING DEVICES/BUTTONS & FUNCTION KEYS
Keyboard
Optional backlit keyboard with Function key control to toggle backlit brightness setting - off/full/half brightness
The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard and a drain system that
funnels fluid through a hole in the bottom of the notebook. This minimizes the risk of damage to sensitive components
underneath. The 101/102-key compatible keyboard features a full-pitch key layout with desktop keyboard features,
such as editing keys, both left and right control and alt keys, function keys, and 19.05 x 19.05 mm key pitch (center-tocenter spacing). U.S. and International key layouts are available. Other features include hot keys for instant access to
power conservation and brightness.
Pointing Devices
Touchpad with On/Off button, two-way scroll, gestures, three pick buttons
Pointstick with three additional pointstick buttons
Image sensor touchpad for enhanced performance and improved precision on scroll and gesture
Buttons and Function Keys
Separate launch buttons provide easy access to the following features: wireless on/off, volume mute. Function keys
provide control of the following features: standby mode, external display, volume down, volume up, HP Power
Assistant (Windows 7 only), and display brightness.
SOFTWARE AND SECURITY
Preinstalled Software with Windows Operating System
Windows 8
Windows 7
Security
Absolute Data Protect
Computrace* (removed from UI on activation)
Security
Computrace* (removed from UI on activation)
Device Access Manager with Just In Time Authentication
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 8
QuickSpecs
HP ZBook 15 Mobile Workstation
Features
Device Access Manager with Just In Time Authentication
DigitalPersona Fingerprint Driver
Drive Encryption (FIPS 140-2)
HP File Sanitizer (Activated via Wizard)
HP Client Security (incl. Cred Mgr and Password Mgr)
HP SpareKey
HP Trust Circles Standard
Microsoft Defender
Privacy Manager (Web only)
Validity Fingerprint Driver
Drive Encryption (FIPS 140-2)
HP File Sanitizer (Activated via Wizard)
HP Client Security (incl. Cred Mgr and Password Mgr)
HP SpareKey
HP Trust Circles Standard
Microsoft Security Essentials
Privacy Manager (Web only)
Validity Fingerprint Driver
BIOS Features
Absolute Persistence Module (for all Absolute products)
HP Sure Start
HP Automatic Drive Lock
HP BIOS Protection (Follow NIST 800-147, 155
Guidelines)
HP Disk Sanitizer (Not for SSD)
HP DriveLock
HP SpareKey
Hybrid Boot
Master Record Security (backup/restore)
Measured Boot
Power On Authentication
Pre-Boot Security
Secure Boot
Secure Erase (SSD & HDD)
Update via Network
BIOS Features
Absolute Persistence Module (for all Absolute products)
HP Sure Start
HP Automatic Drive Lock
HP BIOS Protection (Follow NIST 800-147, 155
Guidelines)
HP Disk Sanitizer (Not for SSD)
HP DriveLock
HP SpareKey
Hybrid Boot
Master Record Security (backup/restore)
Measured Boot
Power On Authentication
Pre-Boot Security
Secure Boot
Secure Erase (SSD & HDD)
Update via Network
MultiMedia
Cyberlink Power2Go
Cyberlink PowerDVD
MultiMedia
Cyberlink Power2Go
Cyberlink PowerDVD
Cyberlink YouCam BE
HP Value Add
Digital Energy Star Logo W8
Getting Started with Windows 8
HP 3D DriveGuard
HP ePrint Driver
HP Firmware & Driver Installer
HP Hotkey Support
HP Manageability
HP PageLift App
HP Performance Advisor
HP Quick Start
HP Registration App
HP Remote Graphics
HP Setup
HP Software Setup
HP Support Assistant
HP WallPaper
Internet Explorer 9
Internet Explorer 10
IE Home
System Default Settings for Win8
UEFI System Diagnostics W8
HP Value Add
HP Ceement
HP 3D DriveGuard
HP ePrint Driver
HP Hotkey Support
HP Manageability
HP PageLift Desktop App
HP Performance Advisor
HP Recovery Manager
HP Remote Graphics
HP Setup
HP Software Setup
HP Support Assistant
HP Recovery Disc Creator (HPRDC)
HP WallPaper
Internet Explorer 9
Internet Explorer 10
IE Home
Wireless Button Driver
Adobe Flash Player (Commercial)
PDF Complete, Corporate Edition
Box.Net (UK only)
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 9
QuickSpecs
HP ZBook 15 Mobile Workstation
Features
Wireless Button Driver
Amazon Kindle App
PDF Complete, Corporate Edition
Box.Net (UK only)
Box 50GB CMIT Cloud Offer
BTB Host and ISP Stub
BTB Host End Block
Bing Search for IE10
Netflix App
Skype App
Skype RTC Insertion (Windows 8.1)
Box 50GB CMIT Cloud Offer
BTB Host and ISP Stub
BTB Host End Block
Bing Search for IE9
Bing Search for IE10
Skype Desktop App
Microsoft Products
Buy Office
Microsoft Products
Buy Office
Additional Software Available from the Web
HP SoftPaq Download Manager
HP Software System Manager
HP Peak Power Manager
Workstation ISV Certifications
See the latest list of certifications at: http://www.hp.com/united-tates/campaigns/workstations/partnerships.html
HP Remote Graphics Software
The remote desktop solution for serious workstation users and their most demanding applications.
Download at: www.hp.com/go/RGS
HP Performance Advisor
HP Performance Advisor enables optimal configuration of HP Mobile Workstations delivering stability and best
performance. HP Performance Advisor will guide your system setup allowing a "custom" configuration that best
matches the workstation to user requirements.
Download at: www.hp.com/go/performanceadvisor
HP Recovery Manager
Models shipped with Windows 7 include HP Recovery Manager. HP Recovery Manager enables fast recovery of the
factory preinstalled image if the system becomes corrupted or if important system files are accidentally deleted. Up to
36 GB (for Windows 7) of system and up to 36 GB (for Windows 8) disk is reserved for system recovery software.
Security
See Software section above.
Other Standard Security Features
Integrated Smart Card Reader
HP Spare Key (requires initial user setup)
One-Step Logon
Common Criteria EAL4+ Augmented Certified Discrete TPM 1.2 Embedded Security Chip
Security lock slot
Support for Intel AT
Optional Security Features
HP Fingerprint Sensor (optional)
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 10
QuickSpecs
HP ZBook 15 Mobile Workstation
Features
Computrace* with GPS Tracking - Subscription based security solution providing the ability to track, initiate physical
recovery, conduct asset management, and perform remote data delete by utilizing GPS technology. GPS functionality
requires HP Mobile Broadband Module.
* The Computrace agent is shipped turned off, and must be activated by customers when they purchase a
subscription. Subscriptions can be purchased for terms ranging multiple years. Service is limited, check with Absolute
for availability outside the U.S.
HP CENTRAL MANAGEMENT
HP offers a variety of scalable hardware, software, and BIOS-based security features to help you defend your
organization against viruses and other threats. These integrated security features safeguard what matters to you the
most - your data, device and identity. Now, be confident your fleet of devices is protected in multiple layers of HP
Client Security protection.
HP BIOS Protection keeps you up and running with enhanced protection against virus attacks and other threats. And
if the BIOS is accidently compromised, the auto recovery feature automatically restores it to its fully functional state.
HP Sure Start detects and negates a BIOS attack with automatic recovery of the BIOS even when the installation is
accidentally compromised (i.e. power outage). When HP Sure Start heals the BIOS an event log is generated that an
IT administrator can retrieve so the business is aware of a BIOS attack. Golden copy of BIOS is stored in protected
nonvolatile memory providing redundant, hardware-based protection against a new generation of attacks. This helps
to future-proof your technology and business.
An optional fingerprint reader and integrated Smart Card Reader help keep your identity secure. The security cable
slot helps keep your notebook physically secure.
HP Drive Encryption+ with TPM enhanced security protects your data on your hard drive from unauthorized access.
Authentication is required before Windows will even start.
Or you can even permanently destroy data on your hard drive in preparation for your system disposal or redeployment
with Secure Erase.
This hardware-based solution encrypts and decrypts data as it is written or read from the hard drive and is supported
by HP Drive Encryption+. You get faster encryption performance than that of software- based encryption solutions.
+ Requires Windows. Data is protected prior to Drive Encryption login. Turning the PC off or into hibernate logs out of
Drive Encryption and prevents data access.
HP provides a separate management solution, targeted at the enterprise and the SMB:
Digital Persona Pro Workgroup: Designed for the small business customer. Provides features similar to the Active
Directory version, but for workgroups. Workgroup activation is built into HP ProtectTools, and activation of up to 5
seats is completely free.
For more information on Central Management for HP ProtectTools, refer to: http://www.hp.com/products/security
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 11
QuickSpecs
HP ZBook 15 Mobile Workstation
Features
POWER
Power Supply
External HP 150W Slim Smart AC adapter
(167.0 x 82.0 x 25.4mm)
External HP 200W Slim Smart AC adapter
(172 x 96 x 25.4mm)
Power cord included is 6-foot (1.8 meter).
Total length including external AC adapter is 12 feet (3.66 meter).
HP Fast Charge*
Primary Battery
HP 8-cell Lithium-Ion Battery (83 WHr)
HP Long Life 8-cell Lithium-Ion Battery (75 WHr) **
Secondary Battery
HP BB09 Ultra Extended Life Notebook Battery (9-cell/100 WHr)
HP ST09 Extended Life Notebook Battery (9-cell/73 WHr)
Battery Life
Battery life up to 14 hours and 15 minutes***
System Standby Time
In sleep mode 1 week
* HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast Charge does
not apply to the 8-cell primary battery, HP ST09 Extended Life Notebook Battery, or HP BB09 Ultra Extended Life
Notebook Battery.
** Available with 3-year warranty only
***Battery life will vary depending on the product model, configuration, loaded applications, features, use, wireless
functionality and power management settings. The maximum capacity of the battery will naturally decrease with time
and usage. See MobileMark07 battery benchmark http://www.bapco.com/products/mobilemark2007 for additional
details.
Power Conservation
NVIDIA Optimus technology
Hibernation
Standby
ACPI compliance
ENVIRONMENTAL
US Energy Star ®
IT ECO declaration
EPEAT Gold where HP registers commercial desktop products. See http://www.epeat.net for registration status in
your country US Federal Energy Management Program (FEMP)
NOTE: This product has received or is in the process of being certified to the following approvals and may be labeled
with one or more of these marks.
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 12
QuickSpecs
HP ZBook 15 Mobile Workstation
Features
WEIGHTS & DIMENSIONS
Weight
Starting at 6.20 lb (2.82 kg) with mini-card SSD and weight saver (no optical drive)
Starting at 6.45 lb (2.93 kg) with hard drive and DVD-R/W drive
Dimensions (w x d x h)
1.2 in (at front)/1.4 in (at rear) x 15.0 in x 10.1 in
30.5 mm (at front)/35.5 mm (at rear) x 381.5 mm x 257.0 mm
Height with DreamColor display: 1.34 in/ 34.0 mm at front; 1.54 in / 39 mm at rear
NOTE: Height varies depending upon where on the notebook the measurement is made. Weight varies by
configuration and components. Weight includes 8-cell battery, hard drive, 1 GB memory, and no optical drive. Weight
varies by configuration and components.
PORTS/SLOTS
Ports
VGA – One
DisplayPort v1.2– One
Thunderbolt* – One
Stereo microphone in / headphone-out combo jack – One
Power Connector – One
Secondary Battery Connector – One
Docking Connector – One
RJ-45 (Ethernet) – One
USB 3.0 – Two
USB 3.0 Charging Port – One
USB 2.0 – One
Security lock slot – One
Digital Media Slots
ExpressCard/54 slot – One (Supports ExpressCard/54)
SD UHS-II Flash Media slot – One (Supports next generation SD (Secure Digital), backward compatible to SDHC,
SDXC,
Integrated Smart Card Reader (Compatible with ISO 7816 compliant Smart Cards PC/SC interface support)
** Thunderbolt is new technology. Install all the latest drivers for your Thunderbolt device before connecting the device
to the Thunderbolt port. Thunderbolt cable and Thunderbolt device (sold separately) must be compatible with
Windows. To determine whether your device is Thunderbolt Certified for Windows, see
https://thunderbolttechnology.net/products
SERVICE AND SUPPORT
HP Services offers limited 3-year, 1-year and 90-day warranty options depending on country.
On-site service and warranty upgrades are also available. HP Care Pack Services extend service contracts beyond
the standard warranties. To choose the right level of service for your HP product, use the HP Care Pack Services
Lookup Tool at: http://www.hp.com/go/lookuptool. Additional HP Care Pack Services information by product is
available at: http://www.hp.com/hps/carepack.
NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 13
QuickSpecs
HP ZBook 15 Mobile Workstation
Technical Specifications
SYSTEM UNIT
Stand-Alone Power
Requirements (AC
Power)
Temperature
Relative Humidity
Shock
Random Vibration
Nominal Operating
Voltage
Average Operating
Power
19.5 V
Windows 7 (32-bit)
16.28 W
Windows 7 (64-bit)
16.8 W
NVIDIA Graphics
Max Operating Power < 150 W
or
< 200 W
Operating
32° to 95° F (0° to 35° C) (not writing optical)
41° to 95° F (5° to 35° C) (writing optical)
Non-operating
-4° to 140° F (-20° to 60° C)
Operating
10% to 90%, non-condensing
Non-operating
5% to 95%, 101.6° F (38.7° C) maximum wet bulb temperature
Operating
40 G, 2 ms, half-sine
Non-operating
200 G, 2 ms, half-sine
Operating
0.75 grms
Non-operating
Altitude (unpressurized) Operating
Non-operating
Planned Industry
UL
Standard
CSA
Certifications
FCC Compliance
ENERGY STAR®
EPEAT
1.50 grms
-50 to 10,000 ft (-15.24 to 3,048 m)
-50 to 40,000 ft (-15.24 to 12,192 m)
Yes
Yes
Yes
Select models*
< 150 W
or
< 200 W
Yes
Yes
ICES
Australia /
NZ A-Tick Compliance
CCC
Yes
Japan VCCI
Yes
Compliance
KC
Yes
BSMI
Yes
CE Marking
Yes
Compliance
* Configurations of the HP ZBook 15 that are ENERGY STAR qualified are identified as HP ZBook 15 ENERGY STAR on
HP websites and on www.energystar.gov.
** EPEAT registration varies by country. See www.epeat.net for registration status by country.
EPEAT status listed above applies to U.S.
For accessibility information on HP products, please visit: http://www.hp.com/accessibility.
DISPLAY
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 14
QuickSpecs
HP ZBook 15 Mobile Workstation
Technical Specifications
15.6" diagonal LEDActive Area (W x H)
backlit FHD UWVA eDP Dimensions (W x H)
anti-glare + Panel Self
Weight
Refresh (PSR)
Surface Treatment
(1920 x 1080)
Contrast Ratio
Refresh Rate
Brightness
Pixel Resolution
Backlight
PPI
Viewing Angle
15.6-inch LED FHD
Active Area (W x H)
UWVA (1920 x 1080) Diagonal Size
anti-glare DreamColor
Surface Treatment
Contrast Ratio
Refresh Rate
Brightness
Pixel Resolution
Backlight
PPI
Viewing Angle
Technology Type
Color Depth
Display Colors
Color Gamut
Coverage
13.54 x 7.59 in (34.4 x 19.4 cm)
15.6 in (39.6 cm)
420 g (max)
Anti-glare
600:1 (typical)
60 Hz
300 nit typical
Format
1920 x 1080 (FHD)
Configuration
RGB Stripe
LED
142
UWVA 85/85/85/85
13.54 x 7.59 in (34.4 x 19.4 cm)
15.6 in (39.6 cm)
Anti-glare
800:1 (min)
48 Hz, 50 Hz and 60 Hz
210 nits (Typ
Pitch
0.179 mm x 0.179 mm
Format
1920 x 1080 (FHD)
Configuration
RGB Stripe
RGB LED
142
±89° Horizontal, ±89° Vertical (typical)
30-bit In-Plane Switching (IPS)
10-bits/color
Over 1 billion colors (native mode)
CIE1931 (x,y) CIE 1976 (u',v')
NTSC
AdobeRGB
sRGB
109%
114%
154%
129%
127%
148%
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 15
QuickSpecs
HP ZBook 15 Mobile Workstation
Technical Specifications
15.6" diagonal LEDActive Area (W x H)
backlit FHD SVA eDP Dimensions (W x H)
anti-glare (1920 x 1080)
Weight
Surface Treatment
Contrast Ratio
Refresh Rate
Brightness
Pixel Resolution
Backlight
PPI
Viewing Angle
13.54 x 7.59 in (34.4 x 19.4 cm)
15.6 in (39.6 cm)
380 g (max)
Anti-glare
400:1 (typical)
60 Hz
300 nit typical
Format
1920 x 1080 (FHD)
Configuration
RGB Stripe
LED
142
SVA 45/45/25/35
STORAGE AND DRIVES
Internal Storage
1 TB 5400 rpm SATA
Hard Drive
Drive Weight
Capacity
Height
Width
Interface
Transfer Rate
0.25 lbs (115g)
1 TB
0.37 in (9.5 mm)
2.75 in (70 mm)
ATAATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Synchronous
300 MB/s (Drive Capability)
(maximum)
Seek Time
Single Track
4 ms
(typical reads, including Average
14 ms
settling)
Maximum
24 ms
Cache
16 MB
Rotational Speed
5400 rpm
Logical Blocks
1,953,525,168
Operating Temperature32° to 140° F (0° to 60° C) [case temp]
Features
ATA Security
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 16
QuickSpecs
HP ZBook 15 Mobile Workstation
Technical Specifications
750 GB 7200 rpm SATA Drive Weight
Hard Drive
Capacity
Height
Width
Interface
Transfer Rate
0.25 lbs (115g)
750 GB
0.37 in (9.5 mm)
2.75 in (70 mm)
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Synchronous
300 MB/s (Drive Capability)
(maximum)
Seek Time
Single Track
1.5 ms
(typical reads, including Average
11 ms
settling)
Maximum
22 ms
Cache
16 MB
Rotational Speed
7200 rpm
Logical Blocks
1,465,149,168
Operating Temperature32° to 140° F (0° to 60° C) [case temp]
Features
ATA Security
500 GB 7200 rpm SATA Drive Weight
Hard Drive
Capacity
Height
Width
Interface
Transfer Rate
0.25 lbs (115g)
500 GB
0.37 in (9.5 mm)
2.75 in (70 mm)
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Synchronous
300 MB/s (Drive Capability)
(maximum)
Seek Time
Single Track
1.5 ms
(typical reads, including Average
11 ms
settling)
Maximum
22 ms
Cache
16 GB
Rotational Speed
7200 rpm
Logical Blocks
976,773,168
Operating Temperature32° to 140° F (0° to 60° C) [case temp]
Features
ATA Security
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 17
QuickSpecs
HP ZBook 15 Mobile Workstation
Technical Specifications
500 GB 5400 rpm SATA Drive Weight
FIPS* Hard Drive
Capacity
Height
Width
Interface
Transfer Rate
0.25 lbs (115g)
500 GB
0.28 in (7 mm)
2.75 in (70 mm)
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Synchronous
300 MB/s (Drive Capability)
(maximum)
Seek Time
Single Track
1.5 ms
(typical reads, including Average
11 ms
settling)
Maximum
22 ms
Cache
16 MB
Rotational Speed
5400 rpm
Logical Blocks
976,773,168
Operating Temperature32° to 140° F (0° to 60° C) [case temp]
Features
ATA Security, TCG Opal SSC 2.0 and FIPS 140-2-level2
* FIPS-certified, hardware-based AES-256 encryption image.
500 GB 7200 rpm
SMART SATA II Self
Encrypting Drive
Drive Weight
Capacity
Height
Width
Interface
Transfer Rate
0.25 lbs (115g)
500 GB
0.37 in (9.5 mm)
2.50 in (63.5 mm)
ATA-8, SATA 2.6, 3.0 Gb/s
Synchronous
300 MB/s (Drive Capability)
(maximum)
Seek Time
Single Track
1 ms
(typical reads, including Average
12 ms
settling)
Maximum
20 ms
Cache
16 MB
Rotational Speed
7200 rpm
Logical Blocks
976,773,168
Operating Temperature32° to 140° F (0° to 60° C) [case temp]
Features
ATA Security
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 18
QuickSpecs
HP ZBook 15 Mobile Workstation
Technical Specifications
320 GB 7200 rpm SATA Drive Weight
Hard Drive
Capacity
Height
Width
Interface
Transfer Rate
0.25 lbs (115 g)
320 GB
0.37 in (9.5 mm)
2.75 in (70 mm)
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Synchronous
300 MB/s (Drive Capability)
(maximum)
Seek Time
Single Track
1.5 ms
(typical reads, including Average
11 ms
settling)
Maximum
22 ms
Cache
16 MB
Rotational Speed
7200 rpm
Logical Blocks
625,142,448
Operating Temperature32° to 140° F (0° to 60° C) [case temp]
Features
ATA Security
SATA 6 Gb/s 512 GB,
2.5-inch Solid State
Drive
Drive Weight
Capacity
Height
Width
Interface
Performance
73 Grams
512 GB
0.276 in (7 mm)
2.76 in (70 mm)
SATA Gen 3 (6 Gb/s)
Maximum Sequential Maximum Sequential Write
Read
460 MB/s
260 MB/s
Logical Blocks
1,000,215,216
Operating Temperature32° to 158°F (0° to 70°C) [case temp]
Features
ATA Security; ATA-8; SATA 3.0 DIPM; TRIM
SATA 6 Gb/s 256 GB,
2.5-inch SATA SED
Solid State Drive
Drive Weight
Capacity
Height
Width
Interface
Performance
73 Grams
256 GB
0.276 in (7 mm)
2.76 in (70 mm)
SATA 3 (6 Gb/s)
Maximum Sequential Maximum Sequential Write
Read
Up to 460 MB/s
Up to 260 MB/s
Logical Blocks
500,118,192
Operating Temperature32° to 158°F (0° to 70°C) [case temp]
Features
ATA Security; ATA-8 compliant; SATA 3.0; DIPM; TRIM
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 19
QuickSpecs
HP ZBook 15 Mobile Workstation
Technical Specifications
SATA 6 Gb/s 180 GB,
2.5-inch Solid State
Drive
Drive Weight
Capacity
Height
Width
Interface
Performance
78 Grams
180 GB
0.276 in (7 mm)
2.76 in (70 mm)
SATA Gen 3 (6 Gb/s)
Maximum Sequential Maximum Sequential Write
Read
550 MB/s
520 MB/s
Logical Blocks
351,651,888
Operating Temperature32° to 158°F (0° to 70°C) [case temp]
Features
ATA Security; ATA-8, SATA 3.0; DIPM; TRIM
SATA 6 Gb/s 128 GB,
2.5-inch Solid State
Drive
Drive Weight
Capacity
Height
Width
73 Grams
128 GB
0.276 in (7 mm)
2.76 in (70 mm)
Interface
Performance
SATA 3 (6 Gb/s)
Maximum Sequential Maximum Sequential Write
Read
415 MB/s
175 MB/s
Logical Blocks
250,069,680
Operating Temperature32° to 158°F (0° to 70°C) [case temp]
Features
ATA Security; ATA-8; SATA 3.0 DIPM; TRIM
* For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 16
GB (for Windows 7) of system and up to 30 GB (for Windows 8) disk is reserved for system recovery
Optical Drives
DVD-ROM Drive
Access Times
Random
< 140 ms CD (typical)
< 160 ms DVD (typical)
Max Data Transfer Rate24X CD-ROM
8X-DVD
Transfer Mode
UDMA Mode 5
Interface
Gen 1 SATA
Supported Media (read) CD-DA, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I,
CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CDEXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5,
DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW, DVDRAM
Supported Media (write)None
Max Media Capacity 8.5GB
(read)
Transport
Tray Loading
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 20
QuickSpecs
HP ZBook 15 Mobile Workstation
Technical Specifications
DVD+/-RW SuperMulti Access Times
DL Drive
Random
<140ms CD (typical)
< 160 ms DVD (typical)
Max Data Transfer Rate24X CD-ROM
8X DVD
24X CD-R
24X CD-RW
8X DVD+R
8X DVD+RW
8X DVD-R
6X DVD-RW
6X - DVD+R Dual Layer
6X - DVD-R Dual Layer
5X DVD-RAM
Transfer Mode
UDMA Mode 5
Interface
Gen 1 SATA
Supported Media (read) CD-DA, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I,
CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CDEXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5,
DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW, DVDRAM
Supported Media (write)CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM,
DVD+R DL, DVD-R DL
Max Media Capacity 8.5 GB
(read)
Max Media Capacity 8.5 GB
(write)
Transport
Tray Loading
Blu-ray ROM DVD+/-RW Access Times
SuperMulti DL Drive
Random
<190 ms CD-ROM (typical)
< 180ms DVD-ROM (typical)
<230 ms BD-ROM (typical)
Max Data Transfer Rate24X CD-ROM
8X DVD-ROM
24X CD-R
16X CD-RW
8X DVD+R
8X DVD+RW
8X DVD-R
6X DVD-RW
4X - DVD+R Dual Layer
4X - DVD-R Dual Layer
5X DVD-RAM
6X BD-ROM
Transfer Mode
UDMA Mode 5
Interface
Gen 1 SATA
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 21
QuickSpecs
HP ZBook 15 Mobile Workstation
Technical Specifications
Supported Media (read) CD-DA, , CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I,
CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CDEXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5,
DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW. DVDRAM, BD-ROM, BD-R, BD-RE
Supported Media (write)CD-R, CD-RW, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL,
DVD-RW, DVD-RAM
Max Media Capacity 50.0 GB
(read)
Max Media Capacity 8.5GB
(write)
Transport
Tray Loading
Blu-ray R/RE DVD+/RW SuperMulti DL
Drive
Access Times
Random
<165 ms CD-ROM (typical)
<185 ms DVD-ROM (typical)
<205 ms BD-ROM (typical)
Max Data Transfer Rate24X CD-ROM
8X DVD-ROM
24X CD-R
16X CD-RW
8X DVD+R
8X DVD+RW
8X DVD-R
6X DVD+R Dual Layer
6X DVD-R Dual Layer
5X DVD-RAM
6X BD-ROM
6X BD-R
2X BD-RE
Transfer Mode
UDMA Mode 5
Interface
Gen 1 SATA
Supported Media (read) CD-DA, , CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I,
CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CDEXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5,
DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW. DVDRAM, BD-ROM, BD-R, BD-RE
Supported Media (write)CD-R, CD-RW, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL,
DVD-RW, DVD-RAM, BD-R, BD-RE
Max Media Capacity 50.0 GB
(read)
Max Media Capacity 50.0 GB
(write)
Transport
Tray Loading
SECURITY
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 22
QuickSpecs
HP ZBook 15 Mobile Workstation
Technical Specifications
HP Fingerprint Sensor Mobile Voltage
3.0V-3.6V Single Supply
Operation
Operating Temperature14° - 167°F (-10° - 75°C)
Current consumption 36mA
Low latency wait for
950 uA
finger
Capture rate
3000 lines/sec
ESD Resistance
IEC 6100-4-2 4B (+/-15KV)
Detection Matrix
200*1 (plus another secondary line); 508 dpi, sensor area 12*3 mm
NETWORKING/COMMUNICATIONS
Intel® I217-LM Gigabit Ethernet Features
Network Connection
Power
Management
Performance
Features
Manageability
Interface
NIC Device Driver
Name
10 Mbit/s operation (10BASE-T; IEEE 802.3; IEEE 802.3 clauses 13-14)
100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses
21-30)
1000 Mbit/s operation (1000BASE-T; IEEE 802.3ab; IEEE 8023.
Clauses 40)
IEEE 802.3u Auto-Negotiation (Automatic Speed Selection)
Full Duplex Operation at all Speeds, Half Duplex operation at 10 and
100 Mbit/s
IEEE 802.1p QoS (Quality of Service) Support
IEEE 802.1q VLAN support
IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)
IEEE 802.3az EEE(Energy Efficient Ethernet)
IEEE 802.1as/1588 conformance
Jumbo Frame 9K
Auto MDI/MDIX Crossover cable detection
ACPI compliant - multiple power modes
Energy Detect Low Power Mode(Green Ethernet)
TCP/IP/UDP Checksum Offload (configurable)
Protocol Offload( ARP & NS)
Large send offload and Giant send offload
Receiving Side Scaling
MACSec Offload (802.3ae)
Intel vPro
iSCSI Boot
Wake-on-LAN from standby and hibernation (Magic Packet and
Microsoft Wake-Up Frame); Wake-on-LAN from off (Magic Packet only)
PXE 2.1 Remote Boot
Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB
(802.3x, clause 30))
Comprehensive diagnostic and configuration software suite
Virtual Cable Doctor for Ethernet cable status
PCI Express 1.1 x1 to fully support ASPM L0s/L1 and CLKREQ.
NOTE: Intel® I217-LM Gigabit interface is not PCIe compliant. It
operates at half of PCIe specification V1.1 (2.5GT/S) speed.
Intel Ethernet Network Connection I217-LM
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 23
QuickSpecs
HP ZBook 15 Mobile Workstation
Technical Specifications
HP hs3110 HSPA+
Mobile Broadband
Module
Technology/Operating Modes: WCDMA/HSDPA/HSUPA/HSPA+/AWS/GSM/EDGE/GPRS
Bands
Penta-band WCDMA/HSDPA/HSUPA/HSPA+/AWS:
850/900/1900/2100/AWS MHz
GSM/GPRS/EDGE: 850/900/1800/1900 MHz
Wireless Protocol
GSM/GPRS/EDGE: Class B, Multi-slot class 33, coding schemes CS1 Standards
CS4 and MSC1 - MSC9.
UMTS/WCDMA: Release 99 and Release 7
Advanced Receiver Type 3i
Wireless Parametric
Complies with 3GPP specifications
Standards
Maximum Data Rates GPRS/EDGE: Multi-slot Class 33, Class B
WCDMA PS: UL (384 kbps) / DL (384 kbps)
UL/DL HSPA: UL (5.76 Mbps)/ DL (7.2 Mbps)
UL/DL HSPA+: UL (5.76 Mbps)/ DL (21Mbps)
GPS
GPS Standalone, A-GPS: L1 (Internet- and Network assisted
GPS Bands
1575.42 MHz (± 1.023 MHz)
Maximum Output
WCDMA/HSPA/HSPA+ 2100/1900/900/850/AWS MHz:
Power
+24dBm (Power Class 3)
GPRS 1900/1800 MHz: +30dBm (Power Class 1)
GPRS 900/850 MHz: +33dBm (Power Class 4)
EDGE 1900/1800 MHz: +26dBm (Power Class E2)
EDGE 900/850 MHz: +27dBm (Power Class E2)
Maximum Power
2500mA (peak); 600mA (average)2700mA (peak)
Consumption
Power Consumption, 3.6 mA
Sleep Mode
Power Management
USB selective suspend, Connected Standby
Integrated notebook wireless button
Antenna Type
Dual high efficiency 5 band antennae with spatial diversity, mounted in
the display enclosure
Form Factor
M.2 Socket 2, USB 2.0 interface high speed
Weight
< 6g
HP lt4111 LTE/EVDO/HSPA+ Mobile
Broadband Module*
Technology/Operating LTE FDD all bands with diversity: 1900 MHz (Band II) , 1700/2100MHz
Bands
(Band IV (AWS), 850 MHz (Band V), 700MHz (Band XIII), 700MHZ
(Band XVII), 1900MHz G Block (Band XXV)
WCDMA/HSDPA/HSUPA/HSPA+: all bands with diversity: 2100 MHz
(Band I), 1900 MHz (Band II) , AWS 1700/2100MHz (Band IV), 850 MHz
(Band V), 800 MHz (Band VIII)
GSM/GPRS/EDGE: 1900 MHz, 1800 MHz , 850 MHz , 900 MHz
CDMA: Cellular 800MHz (BC0), PCS 1900MHz (BC1)
Wireless Protocol
3GPP Release 8 LTE Specification
Standards
WCDMA R99, 3GPP Release 5, 6 and 7 UMTS Specification
EVDO Release 0 and Release A
Wireless Parametric
Complies with 3GPP specifications Release 8 for LTE
Standards
Maximum Data Rates LTE (Category 3): 100 Mbps (Download), 50Mbps (Upload)
DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload)
HSPA+: 21.6 Mbps (Download), 5.76 Mbps (Upload)
EDGE: 236.8 kbps (Download), 236.8 kbps (Upload)
GPRS: 85.6 kbps(Download), 85.6 kbps (Upload)
GPS
Standalone GPS, A-GPS, GPS XTRA
GPS Bands
1575.42 MHz (± 1.023 MHz), GLONASS 1596-1607MHz
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 24
QuickSpecs
HP ZBook 15 Mobile Workstation
Technical Specifications
Maximum Output
Power
Maximum Power
Consumption
Power Consumption,
Sleep Mode
Power Management
Antenna Type
Form Factor
Weight
Dimensions
(Length x Width x
Thickness)
LTE: +23 dBm (+/- 1 dBm)
WCDMA: +23 dBm (+/- 1 dBm)
GSM850/900, GMSK: +32dBm (+/- 1dBm)
GSM850/900, 8PSK: +27dBm (+/- 1dBm)
DCS1800 / PCS 1900, GMSK: +29dBm (+/- 1dBm)
DCS1800 / PCS 1900, 8PSK: +26dBm (+/- 1dBm)
CDMA: +24dBm (+/- 1dBm)
LTE: 1,200 mA (peak); <900 mA (average)
WCDMA: 1,100 mA (peak); <800 mA (average)
EGPRS: 2,500 mA (peak); <700 mA (average)
2 mA
USB selective suspend, Integrated notebook wireless button
Dual high efficiency multi-band antennae with spatial diversity
M.2, 3042-S3 Key B
6g
42 mm × 30 mm × 2.3 mm
Voltage, Operating
3.135 V to 4.4 V (3.3 V +1.1V/-0.165V)
Temperature, operating-13° to 140° F (-25° to 60° C)
(from TIA/EIA/IS-98-D)
Temperature, non-40° to 185° F (-40° to 85° C)
operating, 96 hours
(from MIL-STD 202
Method 108)
Humidity, non95% relative humidity for 48 hours @ 185° F (85° C) (non-condensing)
operating
LED activity
LED Off - Radio Off; Solid LED On - Radio On
* Not available with Dreamcolor
HP lt4112 LTE/HSPA+
Gobi 4G Module
Technology/Operating LTE FDD all bands with diversity: 2100 MHz (Band I), 1900 MHz (Band
bands
II), 1800 MHz (Band III), 850 MHz (Band V), 2600 MHz (Band VII), 900
MHz (Band VIII), 700 MHz (Band XX, DD800)
WCDMA/HSDPA/HSUPA/HSPA+ all bands with diversity: 2100 MHz
(Band I), 1900 MHz (Band II), 800 MHz (Band V), 900 MHz (Band VIII)
GSM/GPRS/EDGE: 1900 MHz (Band II), 1800 MHz (Band III), 850 MHz
(Band V), 900 MHz (Band VIII)
Wireless protocol
3GPP Release 8 LTE Specification
standards
WCDMA R99, 3GPP Release 5, 6 and 7 UMTS Specification
Wireless parametric
Complies with 3GPP specifications Release 8 for LTE
standards
Maximum data rates LTE (Category 3): 100 Mbps (Download), 50Mbps (Upload)
DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload)
HSPA+: 21.6 Mbps (Download), 5.76 Mbps (Upload)
EDGE: 236.8 kbps (Download), 236.8 kbps (Upload)
GPRS: 85.6 kbps(Download), 85.6 kbps (Upload)
GPS
Standalone
GPS bands
1575.42 MHz (± 1.023 MHz), GLONASS 1596-1607MHz
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 25
QuickSpecs
HP ZBook 15 Mobile Workstation
Technical Specifications
Maximum output powerLTE: +23 dBm (+/- 2 dBm)
WCDMA: +23.5 dBm (+/- 1 dBm)
GPRS Band II, III: +29.5 dBm (+/- 1 dBm)
GPRS Band V, VIII: +32.5 dBm (+/- 1 dBm)
EGPRS Band II, III: +26.5 dBM (+/-1.5 dBm)
EGPRS Band V, VIII: +27.5 dBM (+/-1.5 dBm)
Maximum power
LTE: 1,200 mA (peak); <900 mA (average)
consumption
WCDMA: 1,100 mA (peak); <800 mA (average)
EGPRS: 2,800 mA (peak); <700 mA (average)
Power consumption, 3 mA
sleep mode
Power management USB selective suspend, Integrated notebook wireless button
Antenna type
Dual high efficiency multi-band antennae with spatial diversity
Form Factor
M.2, USB 2.0 interface
Weight
6g
Dimensions
42 mm × 30 mm × 2.3 mm
(Length x Width x
Thickness)
Voltage, Operating
3.135 V to 4.4 V (3.3 V +1.1V/-0.165V)
Temperature, operating14° to 131° F (–10° to 55° C)
(from TIA/EIA/IS-98-D)
Temperature, non–40° to 185° F (–40° to 85° C)
operating, 96 hours
(from MIL-STD 202
Method 108)
Humidity, non95% relative humidity for 48 hours @ 185° F (85° C) (non-condensing)
operating
LED activity
LED Off - Radio Off; Solid LED On - Radio On
Intel Dual Band
Wireless LAN
Wireless-AC 7260
Standards
802.11 ac (2x2) WiFi +
BT 4.0 combo Adapter*
Interoperability
Frequency Band
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
Wi-Fi certified
802.11b/g/n
2.402 - 2.482 GHz
802.11a/n
Data Rates
4.9 - 4.95 GHz (Japan)
5.15 - 5.25 GHz
5.25 - 5.35 GHz
5.47 - 5.725 GHz
5.825 - 5.850 GHz
2.402 - 2.482 GHz
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)
802.11ac : MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, and
80MHz)
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 26
QuickSpecs
HP ZBook 15 Mobile Workstation
Technical Specifications
Modulation
Security1
Network Architecture
Models
Roaming
Output Power2
Power Consumption
Power Management
Receiver Sensitivity3
Direct Sequence Spread Spectrum
BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM
IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g
mode only
AES-CCMP: 128 bit in hardware
802.1x authentication
WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
WPA2 certification
IEEE 802.11i
Cisco Certified Extensions, all versions through CCX4 and CCX
Lite
WAPI
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
IEEE 802.11 compliant roaming between access points
2.4G: +13.5dBm minimum
5G: +12dBm minimum
Maximum output power must be able to achieve modular
regulatory certification with notebooks that have antennas >20cm
from the user and peak gain of +3dBi at 2.4GHz and +4dBi at
5GHz
Transmit: 2.0 W (max)
Receive: 1.6 W (max)
Idle mode (PSP): 250 mW (WLAN Associated)
Idle mode: 100 mW (WLAN unassociated)
Radio disabled: 75 mW
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
802.11b:-95 dBm (1 Mbps), -93 dBm (2 Mbps), -91 dBm (5.5 Mbps), -88
dBm (11 Mbps)
802.11a/g:-90 dBm (6 Mbps), -89 dBm (9 Mbps), -87 dBm (12 Mbps), 85 dBm (18 Mbps), -82 dBm (24 Mbps), -79 dBm (36 Mbps), -76 dBm
(48 Mbps), -74 dBm (54 Mbps)
Antenna type
Form Factor
Dimensions
Weight
Operating Voltage
Temperature
Humidity
Altitude
LED Activity
802.11n:-69 dBm (72.2 Mbps), -66 dBm (300 Mbps)
High efficiency antenna with spatial diversity, mounted in the display
enclosure
Two embedded dual band 2.4/5 GHz antennas are provided to the card
to support WLAN MIMO communications and Bluetooth
communications
PCI-Express Half-MiniCard
0.19 x 1.06 x 1.18 in (4.75 x 26.8 x 30 mm)
3.1g
3.3v +/- 9%
Operating
14° to 158° F (-10° to 70° C)
Non-operating
-40° to 176° F (-40° to 80° C)
Operating
10% to 90% (non-condensing)
Non-operating
5% to 95% (non-condensing)
Operating
0 to 10,000 ft (3,048 m)
Non-operating
0 to 50,000 ft (15,240 m)
LED Off - Radio OFF; Solid LED On - Radio ON
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 27
QuickSpecs
HP ZBook 15 Mobile Workstation
Technical Specifications
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and
a packet error rate of 10% for 802.11a/g (OFDM modulation).
Bluetooth Specification
Bluetooth SpecificationV4.0 High Speed, V2.1+EDR, backwards compatible with V1.1, 1.2 and
2.0
Number of Available 79 (1 MHz) available channels
Channels
Data Rates and
3 Mbps data rate; throughput up to 2.17 Mbps
Throughput
Synchronous Connection Oriented links up to 3, 64 kbps, voice
channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps
asymmetric or 1306.9 kbps symmetric
Transmit Power
-6 dBm to 4 dBm (Bluetooth Class II)
Receiver Sensitivity
Better than -80 dBM at 0.1 % raw bit error rate
Power Consumption
Peak (Tx) 330 mW
Peak (Rx) 230 mW
Sleep <17 mW
Antenna
Internally integrated within module
Range
Up to 33 ft (10 m)
Electrical Interface
USB 2.0 compliant
Microsoft Windows Plug and Play compliant
Bluetooth Software
Broadcom Bluetooth for Windows
Supported
Microsoft Windows Bluetooth Software
Link Topology
Point to Point, Multipoint Pico Nets up to 7 slaves
Security
Full support of Bluetooth Security Provisions
Power Management
Microsoft Windows ACPI, and USB Bus Support
Self configurable to optimize power conservation in all operating modes,
including Standby, Hold, Park, and Sniff
Certifications
All necessary regulatory approvals for supported countries, including:
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Bluetooth Profiles
Generic Access Profile (GAP)
Supported
Service Discovery Application Profile (SDAP)
Serial Port Profile (SPP)
Dial_Up Networking Profile (DUN)
Generic Object Exchange Profile (GOEP)
Object Push Profile (OPP)
File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)
Personal Area Networking Profile (PAN)
Human Interface Device Profile (HID)
Generic Audio/Video Distribution Profile (GAVDP)
Advanced Audio/Video Distribution Profile (A2DP)
FAX Profile (FAX)
Basic Imaging Profile (BIP)
Headset Profile (HSP)
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 28
QuickSpecs
HP ZBook 15 Mobile Workstation
Technical Specifications
Hands Free Profile (HFP)
Basic Printing Profile (BPP)
VDP (Video Distribution Profile)
AVRCP (Audio Video Remote Control Profile)
* Wireless access point and internet service required. Availability of public wireless access points
limited. The specifications for the 802.11ac WLAN are draft specifications and are not final. If the
final specifications differ from the draft specifications, it may affect the ability of the notebook to
communicate with other 802.11ac WLAN devices
Intel Centrino
Wireless LAN
Advanced-N 6205 (2x2) Standards
Interoperability
Frequency Band
Antenna Structure
Data Rates
Modulation
Security1
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n*
* In countries where 802.11n is not allowed, this capability is not
enabled.
Wi-Fi certified
Cisco Compatible Extensions Program compliant with Microsoft
Windows 7, Windows Vista and XP (details at:
http://www.hp.com/go/notebooks/WLAN)
2.4 GHz and 5GHz
2 transmit; 2 receive (2x2)
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 66 possible data rates, ranging from 6 Mbps to 300 Mbps,
depending on the combination of Bandwidth, Modulation Coding
Scheme, and Guard Interval used, as defined in IEEE 802.11n
specification
Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Authentication: WPA and WPA2, 802.1x (EAP_TLS, TTLS, PEAP,
LEAP, EAP-FAST)
Authentication Protocols: PAP, CHAP, TLS, GTC, MS-CHAP, MSCHAPv2
Encryption: 64 and 128-bit WEP, AES-CCMP, CKIP, TKIP
Support for Cisco Security Features (proven compatibility with Cisco
Aironet infrastructure products through the Cisco Compatible
Extensions Program Version 4) with Microsoft Windows Vista and XP
only.
Sub-channels
Multinational support with frequency bands and channels compliant to
local regulations.
Media Access Protocol CSMA/CA (Collision Avoidance) with ACK
Network Architecture Ad-hoc (Peer to Peer)
Models
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between 2.4GHz band Access Points
Output Power (for CCK 17 dBm max
and OFDM)2
Power Consumption
Transmit: 2.3 Watts (max, with two spatial streams)
Receive: 1 Watt (max with two spatial streams)
Idle mode3: 35 mW (average)
Radio off: 20 mW (max)
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 29
QuickSpecs
HP ZBook 15 Mobile Workstation
Technical Specifications
Power Management
ACPI compliant power management
802.11 compliant power saving mode
4
Receiver Sensitivity
54 Mbps: -76 dBm, 6 Mbps: -92 dBm
Antenna Connections 2 U.FL type connectors, 50 ohm nominal impedance
Form Factor
PCI-Express Half-MiniCard
Weight
0.0075 lb (3.4 g)
Dimensions
0.12 x 1.06 x 1.18 in (3.1 x 26.8 x 30.0 mm)
Operating Voltage
3.3V +/- 9%
Temperature
Operating
32° to 176° F (0° to 80° C)
Non-operating
-40° to 176° F (-40° to 80° C)
Humidity
Operating
10% to 90% (non-condensing)
Non-operating
5% to 90% (non-condensing)
Altitude
Operating
0 to 10,000 ft (3,048 m)
Non-operating
0 to 50,000 ft (15,240 m)
LED Activity
LED Off - Radio OFF; Solid LED On - Radio ON
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. In Power Save Polling mode and on battery power.
4. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and
a packet error rate of 10% for 802.11a/g (OFDM modulation).
5. WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft
Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN
supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows
Vista.
Intel Centrino®
Advanced-N 6235
802.11 a/b/g/n (2x2) +
Bluetooth 4.0 LE
Combo
Wireless LAN
Standards
Interoperability
Frequency Band
Antenna Structure
Data Rates
Modulation
Security1
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
Wi-Fi certified
Cisco Compatible Extensions Program compliant with Microsoft
Windows 7, Windows Vista and XP (details at:
http://www.hp.com/go/notebooks/WLAN)
802.11b/g/n
2.402 - 2.482 GHz
802.11a/n
4.9 - 4.95 GHz (Japan)
5.15 - 5.25 GHz
5.25 - 5.35 GHz
5.47 - 5.725 GHz
5.825 - 5.850 GHz
2 transmit; 2 receive (2x2)
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)
Direct Sequence Spread Spectrum
CCK, BPSK, QPSK, 16-QAM, 64-QAM
IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g
mode only
AES-CCMP: 128 bit in hardware
802.1x authentication
WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
WPA2 certification
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 30
QuickSpecs
HP ZBook 15 Mobile Workstation
Technical Specifications
IEEE 802.11i
Cisco Certified Extensions, all versions through CCX4 and CCX
Lite
WAPI
Sub-channels
Multinational support with frequency bands and channels compliant to
local regulations.
Network Architecture Ad-hoc (Peer to Peer)
Models
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between band Access Points
Output Power2
2.4G: +13.5dBm minimum
5G: +12dBm minimum
Power Consumption
Transmit: 2.0 Watts
Receive: 1.6 Watts
Idle mode3: 250 mW (WLAN Associated)
Idle mode: 100 mW (WLAN unassociated)
Radio off: 75 mW
Power Management
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
4
Receiver Sensitivity
802.11g:-90 dBm (6 Mbps), -89 dBm (9 Mbps), -87 dBm (12 Mbps), -85
dBm (18 Mbps), -82 dBm (24 Mbps), -79 dBm (36 Mbps), -76 dBm (48
Mbps), -74 dBm (54 Mbps)
802.11b:-95 dBm (1 Mbps), -93 dBm (2 Mbps), -91 dBm (5.5 Mbps), -88
dBm (11 Mbps)
802.11g:-90 dBm (6 Mbps), -89 dBm (9 Mbps), -87 dBm (12 Mbps), -85
dBm (18 Mbps), -82 dBm (24 Mbps), -79 dBm (36 Mbps), -76 dBm (48
Mbps), -74 dBm (54 Mbps)
802.11n:-69 dBm (150 Mbps), -66 dBm (300 Mbps)
Antenna Connections 2 U.FL type connectors (output impedance of 50 ± 2 ohms)
Form Factor
PCI-Express Half-MiniCard
Weight
3.1g
Dimensions
0.12 x 1.06 x 1.18 in (3.1 x 26.8 x 30.0 mm)
Operating Voltage
3.3V +/- 9%
Temperature
Operating
14° to 158° F (-10° to 70° C)
Non-operating
-40° to 176° F (-40° to 80° C)
Humidity
Operating
10% to 90% (non-condensing)
Non-operating
5% to 95% (non-condensing)
Altitude
Operating
0 to 10,000 ft (3,048 m)
Non-operating
0 to 50,000 ft (15,240 m)
LED Activity
LED Amber - Radio OFF; LED White - Radio ON
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. In Power Save Polling mode and on battery power.
4. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and
a packet error rate of 10% for 802.11a/g (OFDM modulation).
5. WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft
Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN
supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows
Vista.
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 31
QuickSpecs
HP ZBook 15 Mobile Workstation
Technical Specifications
HP Integrated Module with Bluetooth 4.0+EDR Wireless Technology
Bluetooth Specification4.0+EDR Compliant
Dimensions
1.18 x 0.26 x 0.13 in (30 x 6.5 x 3.25 mm)
Frequency Band
2402 to 2480 MHz
Number of Available 79 (1 MHz) available channels
Channels
Data Rates and
3 Mbps data rate; throughput up to 2.17 Mbps
Throughput
Synchronous Connection Oriented links up to 3, 64 kbps, voice
channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps
asymmetric or 1306.9 kbps symmetric
Transmit Power
-1.5 dBm to 4 dBm (Bluetooth Class II)
Receiver Sensitivity
Better than -20 dBM at 0.1 % raw bit error rate
Power Consumption
Peak (Tx) 330 mW
Peak (Rx) 230 mW
Sleep <17 mW
Antenna
Internally integrated within module
Range
Electrical Interface
Bluetooth Software
Supported
Link Topology
Security
Power Management
Certifications
Bluetooth Profiles
Supported
Up to 33 ft (10 m)
USB 2.0 compliant
Microsoft Windows Plug and Play compliant
Broadcom Bluetooth for Windows
Microsoft Windows Bluetooth Software
Point to Point, Multipoint Pico Nets up to 7 slaves
Full support of Bluetooth Security Provisions
Microsoft Windows ACPI, and USB Bus Support
Self configurable to optimize power conservation in all operating modes,
including Standby, Hold, Park, and Sniff
All necessary regulatory approvals for supported countries, including:
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Serial Port Profile (SPP)
Service Discovery Application Profile (SDAP)
Dial-Up Networking (DUN)
Generic Object Exchange Profile (GOEP)
Object Push Profile (OPP)
File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)
Personal Area Networking Profile (PAN)
Human Interface Device Profile (HID)
FAX Profile (FAX)
Basic Imaging Profile (BIP)
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 32
QuickSpecs
HP ZBook 15 Mobile Workstation
Technical Specifications
AUDIO/MULTIMEDIA
AUDIO/MULTIMEDIA - DTS SOUND+
Hardware
Audio Output Quality
Implementation
Function Key
Volume Controls
Full Duplex
Microphone In
Headphone/Line Out
Integrated Microphone
IDT 92HD91
Volume up, volume down, and mute
Frequency Response
Signal to Noise Ratio
Total Harmonic
Distortion
Noise Floor
20 Hz - 20 kHz
>85 dB
0.01%
Yes
Stereo
Stereo
Yes, dual digital microphone array when equipped with optional webcam
-110 dB
Play/Record Sampling 8 kHz - 48kHz
Rate(s)
DAC
16, 20 or 24-bit
ADC
16 or 20-bit
Internal Stereo SpeakerPower Rating
Impedance
2 Watts
4 ohms
POWER
HP 200W Slim Smart
AC Adapter
Dimensions
Weight
Input
6.77 x 3.80 x 1.0 in (172 x 96 x 25.4 mm)
1.65 lb (748 g)
100 to 240 VAC
Input Efficiency
87% min at 115 VAC
Input frequency range
47 to 63 Hz
Input AC current
2.9 A at 90 VAC, 1.45 A at 180 VAC
Output
Output power
200W
DC output
19.5V
Hold-up time
5 msec at 115 VAC input
Output current limit
<16A, Over voltage protection- 29V max
automatic shutdown
Connector
3 pin/grounded, mates with interchangeable cords
Environmental Design Operating
32° to 104° F (0° to 40° C)
temperature
Non-operating (storage) -4° to 149° F (-20° to 65° C)
temperature
Altitude
0 to 10,000 ft (0 to 3,048 m)
Humidity
20% to 80%
Storage Humidity
10% to 90%
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 33
QuickSpecs
HP ZBook 15 Mobile Workstation
Technical Specifications
HP 150W Slim Smart
AC adapter
EMI and Safety
Certifications
CE Mark- full compliance with LVD and EMC directives; Worldwide
safety standards- IEC950, EN60950, UL1950, Class 1, SELV; Agency
approvals- C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC
Class B, CISPR22 Class B, CCIB, NOM-1 NYCE; MTBF- over 200,000
hours at 25°C ambient condition.
Dimensions
Weight
Input
6.59 x 3.23 x 1.0 in (167.5 x 82 x 25.4 mm)
1.25 lb (565 g)
100 to 240 VAC
Input Efficiency
87% min at 115 VAC
Input frequency range
47 to 63 Hz
Input AC current
<2.7 A at 90 VAC
Output power
150W
DC output
19.50V +5.0%/-5.0%
Hold-up time
5 msec at 115 VAC input
Output current limit
<15A, Over voltage protection- 29V max
automatic shutdown
Output
Connector
3 pin/grounded, mates with interchangeable cords
Environmental Design Operating
41° to 95° F (5° to 35° C)
temperature
Non-operating (storage) -4° to 185° F (-20° to 85° C)
temperature
Altitude
0 to 10,000 ft (0 to 3,048 m)
Humidity
10% to 95%
Storage Humidity
10% to 95%
EMI and Safety
Worldwide safety and EMC approvals including CE, UL, CSA or cUL,
Certifications
GS, Australian Electric Permit, C-tick, NOM, CCC, KC, GOST, SABS, S
mark, BSMI, ISC, PSE, PSB and SII.
HP 8-cell Lithium-Ion
Battery (83 WHr)
Dimensions (H x W x L)
Weight (max)
Cells/Type
Energy
Temperature
Battery Re-Charge
Time
Fuel Gauge LED
Warranty
Compatible with
optional Travel Battery
0.8 x 2.1 x 10.6 in (2 x 5.3 x 27cm)
0.99lb (0.442 kg)
Lithium-Ion
Voltage
14.8V
Amp-hour capacity
5.6Ah
Watt-hour capacity
83Wh
Operating (Charging)
32° to 113° F (0° to 45° C)
Operating (Discharging) 14° to 122° F(-10° to 50° C)
Non-operating
-4° to 122° F (-20° to 50° C)
System in OFF or
2.5 hours
Standby Mode
System ON
3 to 5 hours
No
1 year
Yes
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 34
QuickSpecs
HP ZBook 15 Mobile Workstation
Technical Specifications
HP Long Life 8-cell
Dimensions (H x W x L)
Lithium-Ion Battery (75 Weight (max)
WHr)
Cells/Type
Energy
Temperature
Battery Re-Charge
Time
0.8 x 2.1 x 10.6 in (2 x 5.3 x 27cm)
0.99lb (0.442 kg)
8-cell; Lithium-Ion
Voltage
14.4V
Amp-hour capacity
5.1Ah
Watt-hour capacity
75Wh
Operating (Charging)
32° to 113° F (0° to 45° C)
Operating (Discharging) 14° to 140° F (-10° to 60° C)
Non-operating
-4° to 140° F (-20° to 60° C)
System in OFF or
2.5 hours
Standby Mode
System ON
3 to 5 hours
No
3 year
Yes
Fuel Gauge LED
Warranty*
Compatible with
optional Travel Battery
* 3-year platform warranty is required for a 3-year Long Life Battery warranty.
Optional HP BB09 Ultra Dimensions (H x W x L)
Extended Life
Weight (max)
Notebook Battery
Cells/Type
(secondary battery)
Energy
Temperature
Battery Re-Charge
Time
Fuel Gauge LED
Warranty
Compatible with
optional Travel Battery
1.2 x 5.9 x 11.4 in (3x15x29cm)
1.5lb, (.682kg)
Lithium-Ion
Voltage
11.25V
Amp-hour capacity
8.85Ah
Watt-hour capacity
100Wh
Operating (Charging) 32° to 113° F (0° to 45° C)
Operating
14° to 122° F(-10° to 50° C)
(Discharging)
Non-operating
-4° to 122° F (-20° to 50° C)
System in OFF or
3.5 to 5 hours
Standby Mode
System ON
4 to 7 hours
Yes
1 year
No
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 35
QuickSpecs
HP ZBook 15 Mobile Workstation
Technical Specifications
Optional HP ST09
Extended Life
Notebook Battery
("Travel Battery")
(secondary battery)
Dimensions (H x W x L)
Weight (max)
Cells/Type
Energy
Temperature
Battery Re-Charge
Time
Fuel Gauge LED
Warranty
Compatible with
optional Travel Battery
1.2 x 6.1 x 12 in (3x15.5x30.5cm)
1.2lb, (.550kg)
Lithium-Ion Polymer
Voltage
11.1V
Amp-hour capacity
6.6Ah
Watt-hour capacity
73Wh
Operating (Charging) 32° to 113° F (0° to 45° C)
Operating
14° to 122° F(-10° to 50° C)
(Discharging)
Non-operating
-4° to 122° F (-20° to 50° C)
System in OFF or
3.5 to 5 hours
Standby Mode
System ON
4 to 7 hours
Yes
1 year
Yes
ENVIRONMENTAL
TBD
COUNTRY OF ORIGIN
China
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 36
QuickSpecs
HP ZBook 15 Mobile Workstation
Options and Accessories (sold separately and availability may vary by country)
Type
Memory
Description
HP 4 GB DDR3L-1600 1.35V SODIMM
HP 8 GB DDR3L-1600 1.35V SODIMM
Part #
H6Y75AA#xxx
H6Y77AA#xxx
Cases
HP Business Top Load Case (fits up to 15.6")
HP Business Backpack (fits up to 17.3")
HP Essential Top Load Case (up to 15.6")
HP Professional Leather Case (up to 17.3")
HP Business 4 Wheel Roller Case (fits up to 17.3")
H5M92AA
H5M90AA
H2W17AA#xxx
H4J94AA
H5M93AA
Docking
HP Adjustable Dual Monitor Stand
HP Adjustable Display Stand
HP 230W Docking Station
HP 120W Advanced Docking Station
HP 230W Advanced Docking Station
AW664AA#xxx
AW663AA#xxx
A7E34AA#xxx
A7E36AA#xxx
A7E38AA#xxx
Input/Output - Mice
HP Wireless Mobile Mouse
HP Stylish USB KB/Mouse
H2L63AA
H4B80AA#xxx
Adapters
HP 90W Slim AC Adapter
HP 150W Smart AC Adapter (slim)
HP 90W Slim Combo Adapter w/USB Adapter
H6Y83AA#xxx
AL192AA#xxx
H6Y84AA#xxx
Storage - External
Storage
HP External USB Optical Drive (expected availability 10/1/13)
HP 750 GB 7200rpm Primary SATA Hard Drive
HP Upgrade Bay 750 GB Hard Drive
HP BNB Notebook Upgrade Bay 500 GB Hard Drive
F2B56AA#xxx
H2P67AA
H2P66AA
LX733AA
Batteries
HP ST09 Extended Life Notebook Battery
HP BB09 Ultra Extended Life Notebook Battery
HP AR08XL Notebook Battery
QK639AA
QK640AA
E7U26AA
Health and Education HP 20-Notebook Managed Charging Cart
HP 20-Notebook Charging Cart
HP 30-Notebook Managed Charging Cart
HP 30-Notebook Charging Cart
QL489AA#xxx
QL488AA#xxx
QL490AA#xxx
H4F31AA#xxx
Security
HP Docking Station Cable Lock
HP UltraSlim Keyed Cable Lock
AU656AA#xxx
H4D73AA
Wireless
HP hs3110 HSPA+ Mobile Module
HP lt4112 LTE/HSPA+ 4G Mobile Module (EMEA, APJ only)
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
E5M76AA
E5M74AA
Page 37
QuickSpecs
HP ZBook 15 Mobile Workstation
Options and Accessories (sold separately and availability may vary by country)
Copyright © 2013 Hewlett-Packard Development Company, L.P.
All rights reserved. All trademarks are the property of their respective owners. Intel, Core, and Celeron are registered
trademarks or trademarks of Intel Corporation in the U.S. and/or other countries. Bluetooth is a registered trademark of
Bluetooth SIG, Inc., in the U.S. and other countries. Adobe is a trademark of Adobe Systems Incorporated. All other product
names mentioned herein may be trademarks of their respective companies.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind.
The warranties for HP products are set forth in the express limited warranty statements accompanying such products.
Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
DA - 14722 Worldwide QuickSpecs — Version 2 — 10-15-2013
Page 38
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
