WIRING INSTRUCTIONS BODY GRIP ROUTER 58-01-0705 TITLE

WIRING INSTRUCTIONS BODY GRIP ROUTER 58-01-0705 TITLE

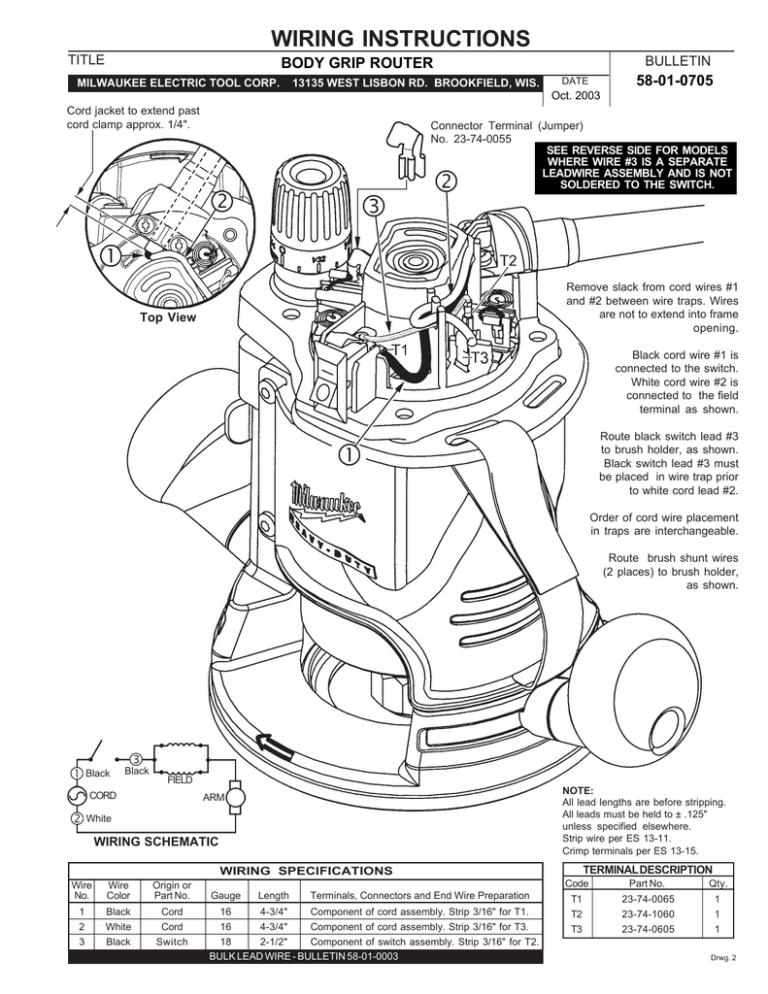

WIRING INSTRUCTIONS
TITLE
BULLETIN
BODY GRIP ROUTER
MILWAUKEE ELECTRIC TOOL CORP.
13135 WEST LISBON RD. BROOKFIELD, WIS.
58-01-0705
DATE
Oct. 2003
Cord jacket to extend past
cord clamp approx. 1/4".
Connector Terminal (Jumper)
No. 23-74-0055
SEE REVERSE SIDE FOR MODELS
WHERE WIRE #3 IS A SEPARATE
LEADWIRE ASSEMBLY AND IS NOT
SOLDERED TO THE SWITCH.
Remove slack from cord wires #1
and #2 between wire traps. Wires
are not to extend into frame
opening.
Top View
Black cord wire #1 is
connected to the switch.
White cord wire #2 is
connected to the field
terminal as shown.
Route black switch lead #3
to brush holder, as shown.
Black switch lead #3 must
be placed in wire trap prior
to white cord lead #2.
Order of cord wire placement
in traps are interchangeable.
Route brush shunt wires
(2 places) to brush holder,
as shown.
Black
Black
FIELD
CORD
NOTE:
All lead lengths are before stripping.
All leads must be held to ± .125"
unless specified elsewhere.
Strip wire per ES 13-11.
Crimp terminals per ES 13-15.
ARM
White
WIRING SCHEMATIC
TERMINAL DESCRIPTION
WIRING SPECIFICATIONS
Wire
No.
Wire
Color
Origin or
Part No.
1
2
3
Black
White
Black
Cord
Cord
Switch
Gauge
Length
Terminals, Connectors and End Wire Preparation
16
4-3/4"
Component of cord assembly. Strip 3/16" for T1.
16
4-3/4"
Component of cord assembly. Strip 3/16" for T3.
18
2-1/2"
Component of switch assembly. Strip 3/16" for T2.
BULK LEAD WIRE - BULLETIN 58-01-0003
Code
Part No.
Qty.
T1
T2
T3
23-74-0065
23-74-1060
23-74-0605
1
1
1
Drwg. 2
Cord jacket to extend past
cord clamp approx. 1/4".
Connector Terminal (Jumper)
No. 23-74-0055
SEE REVERSE SIDE FOR MODELS
WHERE WIRE #3 IS A COMPONENT
OF THE SWITCH AND IS SOLDERED
ONTO THE TOP TERMINAL.
Remove slack
from the cord wires #1 and #2
between wire traps.
Wires are not to extend into
the frame opening.
Top View
Black cord wire #1 is
connected to the switch.
White cord wire #2 is
connected to the field
terminal as shown.
Connect T1 from the black
leadwire assembly #3 to the top
terminal on the switch. Route
#3 to the brush holder and
connect T2, as shown. Black
leadwire #3 must be placed
in the wire trap prior to the
white cord lead #2.
Order of cord wire placement
in traps are interchangeable.
Route brush shunt wires
(2 places) to brush holder,
as shown.
Black
Black
FIELD
CORD
NOTE:
All lead lengths are before stripping.
All leads must be held to ± .125"
unless specified elsewhere.
Strip wire per ES 13-11.
Crimp terminals per ES 13-15.
ARM
White
WIRING SCHEMATIC
TERMINAL DESCRIPTION
WIRING SPECIFICATIONS
Wire
No.
Wire
Color
Origin or
Part No.
1
2
3
Black
White
Black
Cord
Cord
23-94-0040
Gauge
Length
Terminals, Connectors and End Wire Preparation
16
4-3/4"
Component of cord assembly. Strip 3/16" for T1.
16
4-3/4"
Component of cord assembly. Strip 3/16" for T3.
18
2-1/2"
Leadwire assembly. Strip 3/16" for T1 and T2.
BULK LEAD WIRE - BULLETIN 58-01-0003
Code
Part No.
Qty.
T1
T2
T3
23-74-0065
23-74-1060
23-74-0605
2
1
1
