PHOTO - VIDEO - PRO AUDIO
Section14
COMPUTER AUDIO HARDWARE
The
SourceBook
ProfessionalVideo
Alesis .............................................1198-1199
Apogee ........................................1200-1203
Digidesign ..................................1204-1207
Digigram .....................................1208-1209
E-MU..............................................1210-1211
Echo ..............................................1212-1215
Edirol .............................................1216-1218
Focusrite .......................................1218-1219
Lexicon.........................................1220-1221
Line 6 ......................................................1221
Lynx ..............................................1222-1225
M-Audio .......................................1226-1231
Mackie..........................................1232-1233
MOTU ...........................................1234-1242
Presonus .....................................1243-1247
RME ...............................................1248-1251
TC Electronic ..............................1252-1253
Tascam .........................................1254-1255
Obtaining information and ordering from B&H is quick and
easy. When you call us, just punch in the corresponding
Quick Dial number anytime during our welcome message.
The Quick Dial code then directs you to the specific
professional sales associates in our order department.
For Section 14, Computer Audio Hardware
use Quick Dial #: 91
1198
COMPUTER AUDIO HARDWARE
ALESIS
iO|2
Portable 24-bit / 48kHz USB Interface
The ideal audio/MIDI companion for laptop recording environments, the IO|2 is a 2-channel
portable 24-bit / 48 kHz USB audio interface. The IO|2 is equipped with two professional mic
preamps with 48v phantom power, and dedicated four-segment signal/clip LED metering. The
flexible input structure can also accomodate DI and line-level sources via 1/4” connectors. These
inputs also include 1/4˝ TRS (tip-ring-sleeve) inserts for patching signal processors such as a compressor.
The main outputs are provided on balanced 1/4” connectors and the headphone output is via a 1/4” TRS jack. MIDI I/O is also
included for sequencing and DAW mixing functionality, as well as S/PDIF digital I/O for interfacing digitally with outboard
processors and recorder / players. Compact form factor, rugged aluminum housing and laptop-optimized USB bus-powering
make it the ideal interface for travel and field applications. The IO|2 USB supports Plug and Play operation under both Mac OSX
and PC/Windows—no drivers or setup is required. Bundled with Steinberg’s Cubase LE recording software.
◆ 24-bit, 48 kHz operation with high-end A/D
and D/A conversion through integrated USB
audio interface
◆ Ultra low-latency ASIO 2.0 drivers (with
zero-latency hardware monitoring)
◆ USB bus powered with low power usage for
◆ 2 XLR mic inputs with 48v phantom power
plus two 1/4” balanced line inputs that can
accept guitar level signals
◆ 1/4” TRS inserts on input channels
◆ Dedicated 4-segment signal/clip LED meter
on both channels
◆ 1/4” balanced main outputs
◆ 1/4” TRS headphone output with dedicated
volume control
◆ 24-bit S/PDIF I/O for direct digital recording
◆ MIDI Input/Output
minimal laptop battery drain
◆ Ultra-rugged and lightweight case
iO|14
iO|2: Two-Channel Portable 24-bit/48kHz USB Audio Interface (Mfr# IO|2 • B&H# ALIO2) .................149.00
24-bit / 192kHz Firewire Interface
The IO|14 is a 24-bit /192kHz audio / MIDI interface built into a compact and sturdy tabletop
housing. Ideal for home and project studios as well as audio post suites, the IO|14 offers four
analog mic/line inputs on “combo” connectors with 48v phantom power as well as 1/4”
TRS insert jacks for adding outboard processors directly into the signal path. The rear
panel offers two 1/4” balanced line outputs plus coaxial S/PDIF I/O. Also provides 8
channels of ADAT input, an ideal way to expand the number of mic/line inputs.
Incorporates audiophile quality Cirrus converters along with Wavefront Semiconductor’s
state-of-the-art DICE II JET Jitter Elimination Technology. The IO|14 can be powered via the
Firewire bus or supplied AC adapter. Also offers five-segment signal/clip LED metering on each input
and two headphone outputs with individual level control. Bundled with Steinberg’s Cubase LE.
Step-up features from the IO|2
◆ 24-bit/192kHz support
◆ Four Alesis high definition mic/line inputs
◆ Superior Clock stability with DICE II JET Jitter
◆ Inserts on every analog channel and
Elimination Technology
◆ Audiophile Cirrus converters provide maxi-
mum dynamic range on inputs and outputs
◆ Two of the inputs are switchable to Hi-Z
inputs for direct guitar and bass recording.
phantom power switchable in pairs
◆ Eight channels of ADAT input up to 48 kHz
(four channels up to 96kHz)
◆ Two line-level outputs, two discrete stereo
headphone outputs
iO|14: Four-Channel 24-bit/192kHz Firewire Audio Interface (Mfr # IO/14 • B&H # ALIO14) ..................CALL
PHOTO - VIDEO - PRO AUDIO
www.bhphotovideo.com
Create customizable monitoring mixes using the flexible,
routable Hardware Direct Monitoring and HDM Control Panel.
COMPUTER AUDIO HARDWARE
ALESIS
1199
iO|26
24-bit / 192kHz Firewire Interface
The iO|26 is a portable table top interface that steps up from the iO|14 with a
total of eight mic / line inputs, up to sixteen ADAT inputs and a total of eight
analog outputs to support surround mixing applications.It also provides
inserts on each of the mic/line inputs. The iO|26 features 2 headphone
outputs, line-level inserts on the mic preamps, 48v phantom power, 5-segment
signal/clip meters, and full MIDI and S/PDIF I/O. With ADAT lightpipe inputs for additional
connectivity, the iO|26 gives you forward-thinking expansion potential, no matter what your
recording sessions may demand. Flexible, routable Hardware Direct Monitoring allows you to send a
customized, latency-free mix to each output pair. Powered via the Firewire bus or supplied AC adapter.
Step-up features from the i|O14
◆ 8 high definition mic/line inputs with inserts in
◆ Phantom power is swithcable for each
input channel pair
every channel. Two of the inputs are switchable
for high-impedance inputs for direct guitar and
bass recording and another two inputs can
provide a stereo turntable input.
◆ Sixteen channels of ADAT input up to
48kHz (8 channels up to 96kHz)
◆ Eight 1/4” TRS line level outputs
◆
No latency monitoring of analog and
digital sources
iO|26: 26-input/10-output 24-bit/192kHz Firewire Audio Interface (Mfr # IO/26 • B&H # ALIO26) .........................................................................................................399.00
iO|CONTROL
FireWire Audio Interface and Control Surface
The iO|Control combines up to 12 channels of simultaneous audio input with a full
featured control surface in a compact, low latency Firewire interface. Ideal hardware
solution for users who need high quality audio with hands on control, in a portable
system. Features four analog inputs (two XLR and two balanced 1/4” line inputs), as
well as an additional eight ADAT inputs. The control surface provides quick, intuitive
control over the your DAW’s frequently used commands with a smooth jog wheel to shuttle,
zoom and enter data. Six fully-assignable buttons provide different functions for setting markers,
loop points and automation modes. DAW input tracks can be addressed with dedicated Mute, Solo and Record-Enable
buttons per track. Additionally, you can control up to 12 parameters, such as volume, pan and aux sends, via four 360° knobs,
each of which can be switched between three different layers. LCD provides instant visual feedback of knob and button
position and assignments. All controls are fully programmable, mappable to software parameters and can be recalled and
stored to 20 preset locations. Compatible with DAW software products that support the Mackie HUI protocol.
◆ Four simultaneous analog input channels
◆
(2 XLR preamp inputs and 2 balanced 1/4”
line inputs) up to 24-bit/96kHz
◆ Two 1/4” balanced outputs, and a head-
Mute, Solo and Record-Enable buttons per
track
◆ 20 recallable presets for the control surface
◆ Custom Jog/Zoom/Data dial for fast and easy
commands before sending them out to a
DAW
DAW control
phone output, each with level control
◆ Template inserts and overlays provided for
◆ Expandable audio inputs via ADAT Lightpipe
all popular DAW programs
◆ Preview Button verifies knob and button
◆ Includes template inserts and overlays for
popular DAW programs and Cubase LE.
iO|Control Firewire Interface and Control Surface (Mfr # IOCNTRL • B&H # ALIOCONTROL) .............................................................................................................................CALL
(212) 444-6601 • 1-800-947-9901 • Quick Dial 91
PHOTO - VIDEO - PRO AUDIO
1200
COMPUTER AUDIO HARDWARE
APOGEE
DUET
Professional 2-Channel FireWire Audio Interface for Macintosh
Housed in a slender, ultra-compact chassis, Duet is a 24-bit /96kHz FireWire audio interface with a
small footprint designed for use with Macintosh computers. It offers compatibility with any Core
Audio compliant application, and it has control functions integrated into Apple’s Logic Pro,
Soundtrack Pro and GarageBand software. This lets you create a simple and elegant yet
powerful personal audio system that can take on tasks from tracking and editing to mixing
and mastering. Duet features two channels of Apogee’s legendary A/D and D/A conversion with two premium, digitally controlled microphone preamps offering switchable
+48V phantom power, and 75 dB of gain, as well as two 1/4” unbalanced high impedance
instrument inputs. Two channels of reference quality output are also available via the 1/4” speaker
connections and studio quality headphone output. The large, multi-function controller knob allows you to easily select the
input or output source and set gain or level. Apogee’s Maestro software application also allows you to assign the knob for
advanced control of MIDI devices and software parameters.
◆ Two channels of professional-quality
◆ Multi-segment LED meters to display input
24-bit/96kHz audio input and output
◆ Two balanced XLR inputs with 75dB of gain
and selectable 48v phantom power
◆ Integration and control with Apple's Logic
or output levels
Pro, Logic Express, GarageBand and Final Cut
Studio (Soundtrack Pro)
◆ High-level stereo headphone output
◆ Compatible with any Core Audio-compliant
◆ Two unbalanced high impedance
◆ Multi-function controller knob for volume,
and input gain and assignable MIDI control
audio application
instrument inputs
◆ Two unbalanced -10 dBV line outputs for
powered speakers
Duet: 2-channel Firewire Audio Interface for Macintosh (Mfr# DUET • B&H# APD) ................................495.00
MINI-DAC
2-Channel 192kHz D/A Converter
Mini-DAC is a professional quality 192kHz D/A converter—and the ultimate
portable and compact solution for studio playback, reference monitoring,
USB connectivity to your DAW, and location/ENG. Mini-DAC provides AES,
optical (ADAT, S/MUX & S/PDIF) S/PDIF Coax, USB inputs, and analog output
level control. Also included with Mini-DAC is “digital-thru-mode”, a unique
USB technology allowing the connection of non-USB digital devices to a
computer/DAW.
◆ Enjoy true plug and play with Apple’s Core
Audio. Simply plug Mini-DAC into your
computer via USB and it will appear as a
hardware option in Logic, Bias, Peak, and
other Core Audio compatible DAWs.
◆
With Mini-DAC’s ability to interface directly
with your computer and virtually any DAW
via USB, you get maximum flexibility for a
myriad of input formats.
PHOTO - VIDEO - PRO AUDIO
◆
“Digital-thru-mode” allows interfacing of
non-USB digital devices with your computer.
To use digital-thru-mode, set Mini-DAC´s
input selector to “USB”… connect any twochannel digital device like Apogee’s Rosetta,
and you have USB enabled an A/D converter
and interfaced it with a computer or DAW.
◆
With comprehensive level control and a high
quality headphone output, you can hear
exactly what you are committing to while
recording. And when mixing down, MiniDAC provides the optimum stereo image
and the most faithful analog reproduction of
recorded digital audio that money can buy.
Min-DAC: 2 -channel 192kHz D/A Converter (Mfr# MINIDAC • B&H# APMINIDAC) ....................................715.00
FireWire Option for Min-DAC: (Mfr # MINI-DAC-OPT-FIREWIRE • B&H # APFWOMD) .....................................349.95
www.bhphotovideo.com
COMPUTER AUDIO HARDWARE
APOGEE
1201
ENSEMBLE • ENSEMBLE MOBILE
Digitally-Controlled, Multi-Channel FireWire Audio Interfaces
Ensemble is a multi-channel 24-bit/192kHz digital
audio interface with18 inputs and outputs.
Designed specifically for use with Macintosh,
it is controllable natively from Apple’s Logic Pro
software. Ensemble features eight channels of
premium 24-bit/192kHz A-D/D-A conversion including four digitally controlled 75db mic preamps. There are also eight
channels of ADAT I/O, two channels of S/PDIF coax and optical I/O, and a Firewire port. Ensemble combines the converters
with additional features such as “SoftLimit”, “UV22HR”, and ultra-low jitter “Intelliclock”. For those that want to add Apogee
quality to an existing setup, the “Stand-Alone
Mode” enables access to Ensemble’s functions, via
the unit’s digital outputs, without being connected
by Firewire to your Mac.
A battery-powered version of Ensemble, the Ensemble Mobile offers an “on-location” solution for capturing studio-perfect
recordings anywhere. Power is supplied via an XLR-4 connector. Can also be powered by plugging it in with the supplied
external AC to DC power adaptor. Ensemble Mobile will work with any DC power source with voltage between 11 and 16v,
and can run off a 7AH battery for about four hours.
Whether in the studio or on location, Ensemble and Ensemble Mobile are the ideal choice for professionals seeking a
high-definition, integrated audio solution.
FEATURES
◆ 2 fully balanced inserts on mic pre channels
Standalone Mode
◆ Stand-Alone Mode offers the option of using Ensemble as a high-end converter and mic pre,
◆ Four Hi-Z instrument inputs capable of
independent of the computer. Using the included Maestro software and a Mac, configure your
low latency and routing settings only once. Ensemble will remember the settings, even when
disconnected from the computer and allows access to all front panel settings, such as mic pre
gain and output levels, which are fully functional while in Stand-Alone Mode.
handling high level instruments
◆ Two individual, controllable and assignable
high level headphone outputs
◆ Two, six or eight channel monitor outputs
◆ Eight channels of ADAT I/O and two
channels of SPDIF I/O
◆ FireWire 400 I/O, compatible with OS X Core
Audio (no driver required)
◆ “Soft Limit” for maximum digital input level
without overs
◆ “UV22HR” for superior dither of 24 bit
resolution down to 16-bit
◆ Advanced, dual-stage “Intelliclock”
◆ Complete integration and control with
Apple’s Logic Pro Software
◆ They give you all of the tools you need in
one elegant, easy-to-use interface. They are
“Made for Mac” and can be used with any
of Mac Core Audio application, such as
Metacorder, ADR Studio, Final Cut Studio
and many more.
Maestro — Mixing and Control Application
Bundled with Ensemble,
Maestro software provides
control, routing and mixing
functionality. It offers a whole
new level of precision control
that elegantly integrates
Ensemble hardware with OS X applications to create a powerful native audio production.
Maestro features full Ensemble functionality control, multiple low latency mixers, hardware
control panels and a routing matrix compatible with Rosetta 800, Rosetta 200, AD-16X and
DA-16X. The VBus architecture, designed for use with Symphony PCI-e and PCI Express cards,
delivers 32-channels per card of virtual routing between any Core Audio application, and
zero latency with minimal processing power that ensures maximum performance.
Ensemble: 18 In/Out 24-Bit/192kHz FireWire Audio Interface (Mfr# ENSEMBLE • B&H# APE) ....................Call
Ensemble Mobile: Battery-powered version of Ensemble (B&H# APEM) ...................................................Call
(212) 444-6601 • 1-800-947-9901 • Quick Dial 91
PHOTO - VIDEO - PRO AUDIO
1202
COMPUTER AUDIO HARDWARE
APOGEE
ROSETTA 200 • ROSETTA 800
2- and 8-Channel 24-bit/192kHz A/D-D/A Converters
The Rosetta 200 offers premium A/D and
D/A conversion at sample rates of up to
192k, along with Apogee’s renowned
SoftLimit overshoot protection, and
advanced “Intelliclock” to deliver Apogee’s
latest and greatest technology in a
two-channel format. Features CODA, that
includes three tools designed specifically to
meet the demands of the hi-def digital. These include Apogee’s Aptomizer, a Level Normalizer, Sample Rate Conversion (SRC), and UV22HR, Apogee’s
legendary dithering technology. Additionally, it features two channels of AES/EBU, ADAT/SMUX and S/PDIF digital I/O, as well as 16 channels of MIDI,
and full channel metering.
The eight channel Rosetta 800 combines
Apogee’s legendary conversion quality
with flexibility that complements any
digital audio workstation. Supports
24-bit 96 kHz as standard, with an optional
upgrade to support 192kHz sample rates.
And, like the Rosetta 200, the Rosetta 800
features Apogee’s “SoftLimit”, “UV22HR”,
and their advanced ultra-low jitter “Intelliclock” technologies. The Rosetta 800 also offers eight channels of ADAT and AES/EBU I/O.
Both the Rosetta 200 and Rosetta 800 feature expansion card slots to accommodate Apogee’s optional X-Series interface cards which facilitate direct
connection to Apogee’s Symphony and Symphony Mobile card systems, Pro Tools HD and Mix systems, as well as a direct FireWire connection to
computers that supports FireWire 400 and 800 standards.
ROSETTA 200 - 2 Channel 24-Bit/192kHz A/D and D/A Converter (Mfr# ROSETTA 200 • B&H# APR200)..............................................................................................1795.50
ROSETTA 800 - 8 Channel 24-Bit/96kH A/D and D/A Converter (Mfr# ROSETTA80019 • B&H# APR800192)................................................................................................CALL
SYMPHONY
Multi-Channel Interfaces for Macintosh
The Symphony PCI Express Card (for PCIe compatible Mac Pro computers) and
Symphony Mobile Express Card (for MacBook Pro) are multi-channel interface
cards that bridge Apogee’s Rosetta, AD-16X and DA-16X converters with Mac
computers via the X-Symphony option card. Fitting inside the converters themselves,
the X-Symphony option card provides a simple and rock solid connection to the
Symphony PCI Express or Mobile Express Card, leaving other digital I/Os available.
Both Cards Feature
◆ Thirty two channels of 24-bit 192 kHz digital I/O via a single thirty two
channel PC32 bi-directional connector.
◆ Simple connection with a single PCI-32 cable.
Symphony Only
◆ PCIe interface card compatible with Mac Pro desktop computers.
◆ Up to three Symphony cards can be installed per system for a total of
96 channels at 192 kHz.
◆ Compatibility with any CoreAudio software applications.
◆ Maestro Software for advanced control and routing. Includes
Apogee’s VBus for virtual routing between CoreAudio applications.
Symphony PCI-E - PCI-Express Card (Mfr# SYMPHONYPCIE • B&H# APSE) ......Call
PHOTO - VIDEO - PRO AUDIO
www.bhphotovideo.com
Symphony Mobile Only
◆ Express card compatible with any Apple MacBook Pro computer.
Symphony Mobile - (Mfr# SYMPHONY MOBILE • B&H# APSM) ..............................Call
COMPUTER AUDIO HARDWARE
APOGEE
1203
AD-16X • DA-16X
16-Channel 24-bit/192kHz A/D and D/A Converters
Apogee’s latest and most
advanced conversion
systems, the AD-16X and
the DA-16X take the
legendary quality of Apogee a
huge step forward. Designed
to interface seamlessly with
the latest hard-disk recording
systems, the AD-16X and DA-16X offer 16 channels of Apogee quality and 24-bit/192kHz A/D and D/A conversion in a
compact, convenient 1RU high package. Features such as a redesigned power supply, the C777 clocking technology
found in Big Ben, and optional Pro Tools HD and Firewire expansion cards, make them the most powerful and flexible
conversion combination ever.
FEATURES
◆ With up to 192kHz standard sample rates,
the AD-16X and DA-16X combine Apogee’s
legendary conversion quality with the very
latest in high-definition digital to provide
unrivaled flexibility and quality.
◆
16 channels of AES, ADAT/SMUX input and
output
◆
Adaptive Loop Filtering (ALF) for optimum
clock performance and minimum jitter
◆ Intuitive front panel calibration
◆
Word Clock I/O and termination switch
C777 Clocking used by Big Ben
SoftLimit: Maximize Levels, Minimize Overs
Apogee’s C777 clocking technology uses an all
digital process developed with the most
advanced Direct Digital Synthesis (DDS)
technology and DSP-based digital filtering.
With a stable, crystal-based digital PLL
handling the clocking, the AD-16X/ DA-16X can
intelligently manipulate incoming signals and
adapt to them accordingly. Results in the most
aggressive jitter reduction ever and an
astonishing and noticeable difference in sound
quality.
One of the greatest difficulties in digital
recording is getting an adequate level without
clipping and unwanted distortion. Soft Limit is
an analog peak limiter that enables the capture
of an additional 4-6 dB of level without going
into an ‘over’ condition. Can be applied to a
single channel or all channels. Short of
purchasing a very expensive stand-alone
compressor/limiter, there is currently no
product on the market that handles this
process better than SoftLimit.
◆ Balanced analog inputs and outputs are
organized into two groups of eight channels
on 25-pin D connectors.
◆ LEDs indicate signal status on each channel,
with the intensity modulated by the signal
level to give an “analog-like” display. On the
AD-16X a second LED per channel indicates
“overs”, which may be user-configured.
◆ They incorporate Apogee’s UV22HR—the
industry-standard word-length reduction
system. Reduces word length from the converter’s 24-bits to 16-bit for CD mastering,
web, etc, or 20-bit for DVD. High resolution
detail is retained without creating artifacts.
◆
Specially designed synchronous switching
power supply works in conjunction with
Apogee’s very stable low jitter clock and filtering technology to provide superior heat
and noise performance and an improved
transient response.
Connect Directly to Pro Tools HD
or FireWire Enabled Computer
The AD-16X and DA-16X offer an expansion
card slot that greatly increases connectivity.
Add an optional X-Series HD card and connect
them directly to your computer via your HD
Core Card. Using Logic, Nuendo or any of the
many native DAW’s? Add an X-Firewire card to
your X-Series hardware. With the optional
X-FireWire card installed, you'll be able to connect the AD-16X and DA-16X natively to any
Firewire input device, with low latency and
without the need for additional hardware.
High Performance Output (DA-16X Only)
The DA-16X uses Apogee’s electronically
balanced line drivers to simulate true
transformer behavior. The circuitry is an ultra
low output impedance, high current driver,
capable of running levels up to 26dBu to the
most complex or low impedance loads. Studios
utilizing vintage audio-equipment will find this
particularly valuable. Ultimately, the output
performance of the DA-16X achieves perfect
symmetry when used in balanced mode (even
with an unsymmetrical load) and no increased
distortion when used unbalanced.
DA-16X: Digital to Analog Converter (Mfr # DA16X • B&H # APDA16X) .......................................................3145.00
AD-16X: Analog to Digital Converter (Mfr # AD16X • B&H # APAD16X) .......................................................3145.00
X-HD Expansion Card: Connects Digidesign's Pro Tools HD Systems and the AD-16X or
DA-16X Converters (Mfr # XDIGIHD • B&H # APXDH) .............................................................................................535.50
(212) 444-6601 • 1-800-947-9901 • Quick Dial 91
PHOTO - VIDEO - PRO AUDIO
1204
COMPUTER AUDIO HARDWARE
DIGIDESIGN
MBOX 2 Family
USB and FireWire Interfaces
The Mbox 2 family is Digidesign’s affordable Pro Tools LE systems. Characterized by their totally portable designs, diverse yet
flexible feature sets, and ultra-affordable prices, the Mbox 2, Mbox 2 Pro and Mbox 2 Mini each offer professional features to
complement your recording and mixing needs in a studio that easily fits into your backpack. For professionals and musicians
on the go, the ultra-small Mbox 2 Micro allows Pro Tools editing, sequencing, and mixing anywhere you go. And because the
entire Mbox 2 family includes award-winning, industry-standard Pro Tools software, everything you create with an Mbox 2
family member can be used in professional, Pro Tools-equipped music and post-production studios around the world.
Mbox 2 Pro
The FireWire-powered Mbox 2 Pro is a portable, high-definition audio/MIDI
production system that delivers professional sound, analog and digital I/O galore
(6x8 simultaneous channels of I/O), and plenty of studio-grade features for the
post professional. quality. Packing a variety of connection options into a compact
interface, Mbox 2 Pro puts powerful multitrack recording and mixing capabilities
into your hands. Mbox 2 Pro also includes award-winning, industry-standard Pro Tools LE software,
over 50 effects and instrument plug-ins, and the Pro Tools Ignition Pack — a collection of powerful tools
to get you started creating right away. Also available is the Mbox 2 Pro Factory system which includes the following plugins: Moogerfooger Analog
Delay, JOEMEEK SC2T Photo Optical Compressor, JOEMEEK VC5T Meequalizer, Cosmonaut Voice, Digidesign Maxim, and an iLok USB Smart Key.
◆ Professional sound quality (24-bit/96 kHz)
◆ 2 channels of S/PDIF digital I/O (RCA)
◆ Powered by FireWire (6-pin) or included
◆ Built-in phono preamp input (RCA) for direct
power supply
◆ BNC Word Clock I/O with support for sample
◆ 6 simultaneous inputs/8 outputs
◆ 4 analog inputs (two XLR/1/4” TRS combo
jacks and two 1/4” TRS jacks)
◆ 6 analog outputs (1/4” jacks)
◆ 2 instrument DI inputs on the front panel
rates up to 48kHz
◆ Dedicated monitor outputs with volume
turntable connection
control
◆ 1 MIDI input and output (16 channels
◆ 2 stereo headphone outputs with
in/ 16 channels out)
independent volume controls
◆ MIDI Time Stamping (MTS) support for
◆ 48V phantom power for condenser
superior timing and accuracy
microphones
◆ Low-latency monitoring
M-Box 2 Pro - 6-In/8-Out FireWire Interface with Pro Tools LE and Pro Tools Ignition Pack for Mac and Windows (Mfr# 9900-39149-00 • B&H# DIMB2P)......CALL
Mbox 2 Pro Factory Bundle –Same as above, plus adds high-end plug-ins (Mfr# 9900-39149-02 B&H# DIMB2PF) ...............................................................................CALL
Mbox 2
Digidesign’s most popular personal studio system, the USB-powered Mbox 2 features high-quality sound and zero-latency
monitoring as well as a wide range of analog and digital connections (4x2 simultaneous channels of I/O), and MIDI I/O.
Delivering professional performance in an incredibly compact package, Mbox 2 also includes award-winning, easy-to-use
Pro Tools LE software. Projects created with Mbox 2 and Pro Tools LE open on Pro Tools|HD and Pro Tools M-Powered
systems — providing instant compatibility with countless Pro Tools–equipped projects and professional studios. Also
available is the Mbox 2 Factory system which includes the following plugins: Moogerfooger Analog Delay, JOEMEEK SC2T
Photo Optical Compressor, JOEMEEK VC5T Meequalizer, Cosmonaut Voice, Digidesign Maxim, and an iLok USB Smart Key.
◆
100% USB powered for maximum portability
◆
Zero-latency monitoring
◆
2 analog inputs, 2 analog outputs
◆
48v phantom power for condenser mics
◆
2 channels of S/PDIF digital I/O
◆
Separate source selection and gain control per channel
◆
Superior sonic performance
◆
Headphone output with dedicated volume control
◆
1x1 MIDI I/O (16 channels in/16 channels out)
◆
Dedicated studio monitor volume control
Mbox 2 - 4-In/4-Out USB Interface with Pro Tools LE and Pro Tools Ignition Pack for Mac and Windows (Mfr# 9900-17246-00 • B&H# DIMB2) ........................CALL
Mbox 2 Factory Bundle - Same as above, plus adds high-end plug-ins (Mfr # 9900-17246-02 • B&H # DIMB2F) .....................................................................................CALL
PHOTO - VIDEO - PRO AUDIO
www.bhphotovideo.com
COMPUTER AUDIO HARDWARE
DIGIDESIGN
1205
MBOX 2 Family
Mbox 2 Mini
Ultra compact and USB-powered, the Mbox 2 Mini is
the world’s smallest, most affordable Pro Tools LE
recording, editing, and mixing system ever. Like its
siblings (Mbox 2 and Mbox 2 Pro), the Mbox 2 Mini
delivers high-quality sound and analog I/O (2x2
simultaneous channels of I/O) and includes powerful
creation tools for composing, recording, and mixing music. Whether
recording or a seasoned pro on the go, Mbox 2 Mini packs professional features into a robust,
easy-to-use audio workstation. And with its diminutive size, Mbox 2 Mini literally puts the power
of Pro Tools in the palm of your hand. And because Pro Tools is the industry standard, you can use
your Mbox 2 Mini-recorded sessions in any Pro Tools-equipped studio around the world.
◆ Professional sound quality (up to 24-bit/
◆ Compact, rugged metal enclosure for
48 kHz)
maximum portability and durability
◆ Two simultaneous analog inputs and outputs
◆ One XLR analog input for connecting a
◆ Powered by USB (USB 1.1 connection,
cable included)
◆ Front-panel volume control and monitor
microphone
◆ Two ¼” line-/instrument-level (DI) analog
inputs for connecting guitars, basses,
keyboards, synthesizers, drum machines,
and more
◆ Zero-latency monitoring
mute switch
◆ Two ¼” analog monitor outputs
◆ Stereo headphone output
◆ 48V phantom power
◆ Kensington Security Lock
Mbox 2 Mini - 2 In/2-Out USB Interface with Pro Tools LE and Pro Tools Ignition Pack for Mac and
Windows (Mfr# 9900-55898-00 • B&H# DIMB2M) ..........................................................................................................CALL
Pro Tools LE Software
◆ 32 simultaneous audio tracks (128 virtual
audio tracks), expandable to 48 tracks
◆ Fully integrated MIDI sequencing with
256 simultaneous MIDI tracks
◆ Includes over 50 effects and instrument
plug-ins
◆ Support for streaming ReWire
applications
◆ Unique Beat Detective LE automatic
groove analysis and correction tool
◆ Supports the Digidesign Command|8
and Control|24 control surfaces for
hands-on mixing
◆ Huge selection of compatible third-party
options
Pro Tools Ignition Pack
Mbox 2 Micro
Software bundle included with
Mbox 2 Pro, Mbox 2 and Mbox Mini.
The smallest, most portable USB-powered Pro
Tools LE system, the Mbox 2 Micro enables Pro
Tools users to edit, sequence, and mix sessions
created on Pro Tools|HD, Pro Tools LE, and Pro
Tools M-Powered systems on the go, as well as
compose music with virtual instruments and
loops. The size of a typical USB flash drive, Mbox 2 Micro offers high-quality 24-bit/48 kHz sound, a
1/8” stereo output for headphone or speaker monitoring (no audio inputs), and a convenient
volume wheel, providing the freedom of true editing, sequencing, and mixing mobility.
◆ Propellerhead Software Reason Adapted
◆ Slick yet rugged anodized aluminum casing
that’s small enough to fit in any size pocket,
making it the ultimate mobile Pro Tools
editing and mixing solution.
◆ Ultra-portable, rugged anodized aluminum
design– small enough to fit in any size
pocket–for on-the-go editing, mixing, and
music creation.
◆ High-quality sound up to 24-bit, 48 kHz
(higher sample rates require pre-conversion).
◆ 1/8” stereo output jack for headphone or
speaker monitoring (no audio inputs).
◆ Convenient volume wheel for quick
headphone adjustments.
◆ Powered by USB (USB 1.1 connection,
includes USB extension cable).
Mbox 2 Micro - Portable USB Interface with Pro Tools LE Software for Macintosh and Windows
(Mfr# 9900-58064-00 • B&H# DIMB2MQ) .......................................................................................................................249.00
◆ Ableton Live Lite Digidesign Edition
◆ FXpansion BFD Lite
◆ IK Multimedia SampleTank 2 SE,
AmpliTube LE, IK Multimedia T-RackS EQ
◆ Celemony Melodyne uno essential
◆ Pro Tools Method One instructional DVD
◆ Bunker 8 REX File CD
◆ 1-year membership to Broadjam.com
(212) 444-6601 • 1-800-947-9901 • Quick Dial 91
PHOTO - VIDEO - PRO AUDIO
1206
COMPUTER AUDIO HARDWARE
DIGIDESIGN
003 Factory • 003 Rack
FireWire-based Pro Tools LE Audio/MIDI Workstations
The 003 Factory and 003 Rack let you attain the same high audio production quality as commercial facilities in your own
personal or project studio with truly professional results. With an extensive range of audio and MIDI I/O, high-definition
audio resolution, Pro Tools LE software, FireWire connectivity, and an unprecedented bundle of powerful software, they
provide everything you need to compose, perform, record, sequence, edit, mix, master, and promote your creations.
003 Factory
The 003 Factory is a complete and full-featured Digital Audio Workstation
comprising a control surface/mixer with analog, digital and MIDI
input and output, and Digidesign Pro Tools LE software.
Communicates with a computer via a single FireWire cable.
The control surface provides eight touch-sensitive faders, eight
assignable knobs, ten scribble strips, and a complete control
section, in addition to four microphone preamps with phantom power
and individual high-pass filters. Transport controls and the usual solo, mute,
and select/record arm switches are also included.
003 Rack
The 003 Rack is a complete and full-featured Digital
Audio Worksation offering all of the same inputs and
outputs as the 003 Factory in a streamlined 2U rackmountable chassis, providing a complete professional
studio in a space-saving package. Otherwise identical,
the 003 Rack Factory adds $3000 worth of professional-grade Digidesign and Bomb Factory plug-ins, plus Pro Tools
Ignition Pack 2 Pro.
003 Factory and 003 Rack Both Feature
003 Factory and 003 Rack offer an extensive array of analog and digital audio and MIDI I/O, making them the ideal hub of
any home or project studio, or a powerful complement to an existing setup. You can connect just about any instrument and
device found in your studio to 003 Factory or 003 Rack. Plug in your guitar for direct recording, connect line-level instruments
such as synths or samplers, or capture sound from any source though a connected microphone — their premium mic preamps deliver the utmost sound clarity. And with their studio-grade 24-bit/96 kHz audio resolution, you can expect stunning,
high-definition sound every time.
In addition, they provide the I/O you need to connect MIDI gear, optical devices (such as ADAT), and S/PDIF digital equipment,
and also feature BNC Word Clock I/O to sync to other external devices in your studio. They can also function in standalone
MIDI mode, allowing you to integrate it into your MIDI setup sans computer. Plus, FireWire connectivity ensures high-speed
data transfers between them and Windows- or Mac-based systems. 003 Factory and 003 Rack feature multiple options for
monitoring your sessions as well as other external devices. Dedicated stereo studio monitor outputs allow you to always have
reference monitors connected without sacrificing audio outputs, while a stereo pair of alternate control room outputs let you
hook up a second set of speakers to allow easy switching between two studio monitor sources. Two headphone outputs with
level control, enable you to run two discrete monitor headphone mixes separately from your main mix.
PHOTO - VIDEO - PRO AUDIO
www.bhphotovideo.com
COMPUTER AUDIO HARDWARE
DIGIDESIGN
1207
003 Factory • 003 Rack
Alternate source input allows monitoring from a connected external device.
They are bundled with cross-platform Pro Tools LE software fully compatible
with Digidesign Pro Tools HD systems. Also bundled with the 003 Factory
and 003 Rack are the standard Digidesign DigiRack plug-ins and a
comprehensive bundle of plug-ins from other manufacturers.
The 003 Rack includes the Digidesign Ignition Pack 2,
the 003 Factory includes the the premium Ignition Pack
2 Pro bundle. Together, the systems provides everything
needed to capture, edit, and output high-quality audio,
with the user needing to provide only microphones, monitors, and a computer.
◆
High-speed FireWire connectivity
◆
18 simultaneous channels of audio I/O
◆
8 channels of ADAT optical I/O or two
channels of S/PDIF optical I/O
◆
Dedicated studio monitor output, plus
alternate control room output
◆
24-bit/96 kHz resolution
◆
2 channels of S/PDIF digital I/O
◆
◆
8 analog inputs, 8 analog outputs
◆
◆
4 professional mic preamps; 48V phantom
power enabled on channel pairs
1 MIDI input, 2 MIDI outputs (16 channels
in/32 channels out)
Alternate Source input for external device
monitoring
◆
◆
Dual headphone outputs with individual
source and level controls
BNC Word Clock I/O
003 Factory (Only)
With its touch-sensitive, motorized faders and motion-sensitive encoders, knobs, and switches, 003 Factory gives you direct hands-on access to the
power of Pro Tools, enabling you to control multiple aspects of your mix with much more speed and accuracy than mixing with a mouse alone.
With 003 Factory you can easily control recording and playback, mute or solo tracks, grab control of track volumes, pan tracks, assign sends, insert
plug-ins and tweak parameters, assign and write mix automation, scrub video, and more right from the control surface. And since 003 allows you to
control your mix with your hands instead of relying on your computer screen, you can close your eyes and concentrate on using your most significant
mixing tool — your ears.
003 Factory also provides essential visual feedback through its LCD display and plethora of LED indicators on the control surface so you can see how
and what you’re affecting in your session. Keep an eye on your audio levels on the control surface instead of looking away at a screen as you adjust
volume or gain thanks to a bank of 5-segment LEDs that function as volume/gain meters. The same LEDs also double as automation status indicators,
letting you know — at a glance — which write mode is enabled on each track when you’re automating mixes.
◆
Integrated Control Surface
◆
8 touch-sensitive motorized faders
◆
8 motion-sensitive rotary encoders for
pan/send/meter/plug-in control
◆
Dedicated mute, solo, and select/record arm
switches per channel
◆
6-character, 2-line LCD display per channel
displays track name; pan, send, fader, and
plug-in values; and timeline position
◆
Easily assign inserts and sends from the
control surface
◆
Dedicated transport control
◆
5-segment LED display for viewing metering
and automation mode status
◆
Standalone MIDI Mode functionality
◆
Jog/Shuttle wheel
◆
Dedicated automation controls and LEDs
003 Factory with Pro Tools LE and Ignition Pack 2 Pro ((Mfr# 9900-38030-00 • B&H# DID003F) .................................................................................................................Call
003 Rack with Pro Tools LE and Ignition Pack 2 (Mfr# 9900-38730-00 • B&H# DID003R) ................................................................................................................................Call
003 Rack Factory with Pro Tools LE and Ignition Pack 2 Pro (Mfr# 9900-38730-02 • B&H# DID003RF) .....................................................................................................Call
Premium Software Bundle (Included with 003 Factory and 003 Rack Factory)
Premium Factory software bundle adds over $3000 in professional Digidesign and Bomb Factory plug-ins.
◆
Digidesign Bomb Factory BF-3A Classic
Compressor
◆
Digidesign Cosmonaut Voice
◆
Digidesign D-Fi bundle (Lo-Fi, Sci-Fi, Recti-Fi,
Vari-Fi)
◆
Digidesign JOEMEEK VC5T Meequalizer
◆
Digidesign SansAmp PSA-1
◆
Digidesign JOEMEEK SC2T Photo Optical
Compressor
◆
Digidesign Tel-Ray Variable Delay
◆
Digidesign Voce Spin, Voce Chorus/Vibrato
Digidesign Maxim, Moogerfooger Analog
Delay, Moogerfooger Ring Modulator
◆
iLok USB Smart Key
◆
(212) 444-6601 • 1-800-947-9901 • Quick Dial 91
PHOTO - VIDEO - PRO AUDIO
1208
COMPUTER AUDIO HARDWARE
DIGIGRAM
UAX220-MIC • UAX220V2
Portable USB Audio Interfaces
The UAX220-Mic and UAX220v2 are professional USB Audio interfaces for broadcast
and other demanding pro audio applications. Both units feature two high quality
analog inputs and outputs, with 24-bit / 96kHz A/D-D/A conversion and amaximum
sample rate of 48kHz, and are USB 1.1 compliant with true Plug-and-Play
connectivity for Windows XP, Mac OS X, and Linux. Housed in their compact
and sleek enclosures, the UAX220-Mic and UAX220v2 feature a hardwired, 2’
breakout cable for connection to your computer and your analog gear. The
UAX220-MIC offers two professional grade mic preamps, ideal for sound acquisition
UAX220-MIC
on location and and in the studio, while the UAX220v2 is a line level device that is
ideally suited for broadcast applications, taking audio feeds from another unit, such as a mic preamp or mixer.
◆ Two by two high-quality balanced analog
line inputs and outputs with 24-bit 96kHz
A/D-D/A converters and a maximum sample
rate of 48kHz.
◆ Zero-latency direct monitoring with
mono/stereo switch.
◆ Professional Neutrik XLR connectors and
Neutrik headphone jack with lock.
◆ USB Audio compliant (no driver to install);
powered via USB (no power supply needed).
◆ Special recording modes include: 1+2 allows
both inputs to be recorded mixed to one
mono track; loop back – allows you to
capture digital recording of the played
streams, to record a web radio for instance
or a DVD soundtrack.
◆ Dedicated headphone output stage
supporting low impedance headphones,
with independent level control.
◆ Buttons for fast, intuitive control.
VX222-MIC - 2 Input / 2 Output USB 1.1 Audio Interface (Mfr# VB1834A0201 • B&H# DIUAX220MIC) ....................................................................CALL
◆ Support Windows XP, Mac OS X and Linux.
◆ DirectSound, Core Audio, ALSA, and Virtual
PCX management. ASIO management via
third-party interface.
◆ Compatible with laptop padlocks
UAX220-MIC only
◆ Continuous 0-55 dB gain and 48V phantom
power on each input.
UAX220v2 - 2 Input / 2 Output USB 1.1 Audio Interface (Mfr # VB1833A0201 • B&H # DIUAX220V2) .....................................................................CALL
VXPOCKET V2 • VXPOCKET 440
Laptop Sound Cards

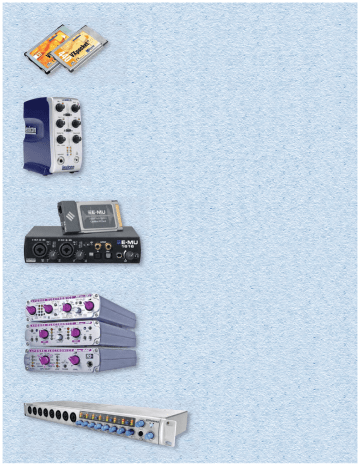

Digigram VXpocket series sound cards are 32-bit PCMCIA/Type II PC Cards designed for use
with laptop computers, offering serious audio performance for working on location or in
the studio. Comprised of the two channel VXpocket v2, and the four channel VXpocket
440, both systems provide 24-bit performance with PC applications using Microsoft’s WAVE
protocol and ASIA, Mac applications using Core Audio and ASIA, as well as Linux
applications using the ALSA standard. Both cards feature S/PDIF I/O, for use with
digital recorders and players and an LTC (SMPTE) time-code input — all using coaxial
connectors. A breakout cable is provided with XLR connectors for the analog inputs/output, and a stereo mini-jack for headphone monitoring. The VXpocket v2 has two balanced
analog mono inputs at mic or line level and two balanced analog outputs. The VXpocket 440
features four balanced mic/line analog inputs and four balanced analog outputs. The number of
active stereo inputs and outputs available varies with the sampling frequency and bit rate selected.
VXpocket v2 - 2 Input / 2 Output PCMCIA Laptop Audio Sound Card for
Mac or Windows (Mfr # SG141800302 • B&H # DIVXPV2) ...................................................Call
PHOTO - VIDEO - PRO AUDIO
www.bhphotovideo.com
VXpocket 440 Professional PCMCIA Sound Card - Mac/Win
(Mfr # SG144600501 B&H # DIVXP440) ..............................................................................Call
COMPUTER AUDIO HARDWARE
DIGIGRAM
1209
VX222v2
High Quality PCI Sound Card
The VX222v2 brings Digigram's outstanding audio quality and famous
reliability to demanding professional audio applications such as broadcast,
post-production, music or live performance. The VX222v2 includes balanced two by
two analog inputs and outputs with 24-bit converters, as well as a stereo AES/EBU
input/output. It can be used with a wide choice of audio applications using Digigram’s
np Runtime, Microsoft’s Wave and DirectSound, Apple’s Core Audio, or Steinberg’s ASIO.
Special features include two General Purpose Interface (GPI) inputs and outputs.
◆ Universal PCI compatibility (3.3V ready) short-length (7”) PCI format.
◆ Full-duplex soundcard with two balanced analog inputs/outputs,
supporting +4dBu and -10dBV.
◆ A 15-pin D-Sub connector provides a breakout to two balanced XLR
inputs and outputs as well as an 1/8” stereo headphone output, via
an included cable.
◆ A second 15-pin D-Sub connector provides a breakout to balanced.
digital stereo I/O in AES/EBU or S/PDIF formats.
◆ Dedicated Wave mixer, as well as ASIO and Mac control panel
◆ 8 kHz to 48 kHz sample rates are supported up to 24 bit.
VX222v2 - 2 Input / 2 Output PCI Audio Card for Mac and Windows
(Mfr # VB153100202 • B&H # DIVX222V2) .....................................................................CALL
C E N T R A N C E MicPort Pro
USB Mic Pre
The MicPort Pro is a compact and professional USB mic
preamp with true Plug-and-Play compatibility for Windows
and Mac. The rugged and slender housing features an
inline XLR connector with variable input gain, and
switchable 48V phantom power for use with any dynamic
or condenser mic. Features 24-bit/96kHz performance with
low-noise circuitry for maximum audio fidelity, and a loud
1/8˝ headphone output with a dedicated level control and
a direct-circuit design for zero-latency monitoring. No
drivers to install, just plug into your Mac or PC and to
record– a lifesaver when working with multiple computer
systems. The MicPort Pro is ideal for interviews and broadcast, podcasting, vocal and field recording, or any
application that requires portability without compromising quality.
◆ Integrated XLR connector plugs right into
your dynamic or condenser microphone.
◆ High fidelity A/D converter captured
vocals at full 24-bit/96kHz resolution
◆ Low-noise, solid state mic preamp with
input level control knob
◆ USB bus powered – no batteries or
external power supply needed
◆ Loud headphone amp with output
level control knob, and zero-latency
monitoring
◆ Rugged anodized aluminum construction
◆ 48V phantom power internally
generated based on 5V of input so
even condenser mics can be used
with laptops
MicPort Pro - with 6’ USB cable
(Mfr# CE1801 • B&H# CECE1801) .............149.95
(212) 444-6601 • 1-800-947-9901 • Quick Dial 91
PHOTO - VIDEO - PRO AUDIO
1210
COMPUTER AUDIO HARDWARE
E-MU
1616 PCI • 1616M PCI
PCI Digital Audio Systems
E-MU’s 1616 PCI and 1616M PCI Digital Audio Systems deliver everything
you need to produce audio on a PC with professional results. They feature
premium 112dB S/N ratio (1616 PCI) and master-grade 120dB S/N ratio
(1616M PCI) 24-bit/192kHz converters, hardware-accelerated effects and
mixing, zero-latency monitoring comprehensive sync options and seamless compatibility with most popular PC audio/sequencer applications.
Their MicroDock breakout box offers a total of 16 inputs and 16 outputs
plus 32 channels of MIDI I/O, including two E-MUXTC Class-A ultra-low
noise mic/line/hi-Z preamps with 48v phantom power and analog soft limiting circuit for clip protection. They also ship with
ASIO2 and WDM drivers for Windows as well as the E-MU Production Tools software bundle — everything you need to create,
record, edit, master and burn your music.
All 1616 Systems Feature
◆ For pristine recording and playback of your
tracks, the 1616/1616 PCI feature premium
24-bit/192kHz converters with 112dB S/N
ratio, the 1616M/1616M PCI feature mastergrade 24-bit/192kHz converters delivering an
amazing 120dB S/N ratio (same converters as
in Digidesign's ProTools HD 192 I/O).
◆ Mic/Line and true Hi-Z inputs with two XTC
Class-A, ultra-low noise preamps (-127dBu)
via Neutrik connectors, with analog soft
limiter, 48v phantom power and 60dB of gain.
◆ Ultra-portable MicroDock M offers 16 inputs
and 16 outputs plus MIDI I/O - everything
from balanced analog and turntable inputs
to ADAT and S/PDIF (switchable to AES/EBU)
◆ Four 1/4” balanced inputs, six outputs
◆ 24-bit/192kHz ADAT I/O (switchable to
S/PDIF)
◆ 24-bit/192kHz coaxial S/PDIF Out
(switchable to AES/EBU)
◆ Turntable input (with ground lug and
hardware RIAA preamp)
◆ Two sets of MIDI In/Out
◆ Stereo 1/8” Speaker Outputs
(configurable from stereo to 5.1)
◆ PCI versions feature a stereo headphone
output, the laptop versions
feature two stereo headphone/line outputs (one on card, one on MicroDock).
◆ Ultra-low latency 24-bit/192kHz ASIO2,
WDM and 64-bit drivers compatible with
popular audio/sequencer applications
◆ Over 600 hardware-accelerated stand-
alone and E-MU Power FX VST plug-in
effects with no CPU overhead
◆ PatchMix DSP zero-latency hardware mix-
ing and monitoring with super-flexible
patchbay - no external mixer needed.
◆ The modular design of the PCI version lets
you customize the system. Connect the
Sync Daughtercard to your system for
SMPTE, Word Clock and MTC sync and/or
add the E-MU 02 CardBus Card to your
laptop and take MicroDock on the road.
1616 • 1616M
Laptop Digital Audio Systems
The ultimate portable system for recording, editing and mixing, the 1616
and 1616M can use the 02 CardBus Card alone for its hardware-accelerated
effects and studio quality stereo headphone/line output or together with
the MicroDock for complete analog and digital I/O flexibility.
They feature premium 112dB S/N ratio (1616) and master-grade 120dB S/N
ratio (1616M) 24-bit/192kHz converters, hardware-accelerated effects and
mixing, zero-latency monitoring, comprehensive sync options and seamless compatibility with popular PC audio/sequencer
applications. The E-MU CardBus card can be used standalone or plugged into the MicroDock for a total of 16 inputs and 16
outputs plus two sets of MIDI I/O. They ship with ASIO2 and WDM drivers for Windows plus the E-MU Production Tools Software
Bundle —everything you need to create, record, edit, master and burn your music.
PHOTO - VIDEO - PRO AUDIO
www.bhphotovideo.com
COMPUTER AUDIO HARDWARE
E-MU
1211
Each 1616 system include the E-MU Production Tools Software Bundle —
everything you need to create, record, edit, master and burn is in the box, including:
Cakewalk SONAR LE - Audio/MIDI Production (Windows):
Features 64 audio and 256 MIDI tracks; 24-bit/192kHz recording
support; 14 studio quality real-time effects and 6 MIDI effects; audio
loop construction tools; dynamic console view; multi-port graphical
drum grid editor; multitrack piano roll view; staff notation; ReWire 2.0
support; DirectX/DXi and VST/VSTi support; MIDI clock and MTC slave;
Audio Simulation's Dreamstation soft synth DXi; and more. .
Steinberg Cubase LE - Audio/MIDI Production (Windows):
Cubase LE offers 48 audio and 64 MIDI tracks; 24-bit/192kHz professional
audio quality; a full set of audio effects plug-ins; LM-7, VB-1 and USM
virtual instruments; and MTC, MIDI-clock and VST System Link support.
Ableton Live Lite 4 - Audio/MIDI Production (Windows and Mac):
Spontaneously compose, record, remix, improvise and edit your musical
ideas. Live brings your acoustic, electronic and virtual instruments, as
well as your digital audio recordings, together in a single interface with
unparalleled ease of use. Live's specialty is composition by improvisation.
Record musical ideas, combine or create new songs, and compose on
the fly, and offers complete multitrack recording and editing for any
acoustic source, hardware synthesizer or software instrument.
Celemony Melodyne Essential - Audio Editor (Windows and Mac):
Works like a sample editor and offers the most essential of Melodyne’s
unique audio editing functions, including manual editing of intonation
and timing.
Steinberg WaveLab Lite - Audio Editor (Windows):
Light version of the popular mastering and wave editing program.
BIAS Peak Express 5 - Audio Editor (Mac):
Includes many of Peak LE's core editing features in a streamlined edition.
Peak Express 5 offers users the power of integrated 24-bit stereo
recording, precision waveform sample editing and DSP processing.
IK Multimedia Amplitube LE - Guitar Amp & FX Modeling Plug-In
(Windows and Mac):
Powerful plug-in for guitar players that puts a virtually unlimited array
of tones and effects at your fingertips. AmpliTube's stomp-box, posteffects and amp simulation capabilities make it easy to craft everything
from rich, vintage tones to unique cutting-edge sounds.
SFX Machine LT - Audio Multi-effects Plug-in (Windows and Mac):
Powerful audio multi-effects plug-in for musicians and sound designers,
featuring 21 presets such as RoboTalk, Sitar Drone and Stutter. The
plug-in provides up to six sliders for fine-tuning of each preset and
allows automated parameter control via a simple “MIDI Learn” interface.
It also provides a Randomize button for quick experimentation.
E-MU Proteus VX Software Sound Module (Windows):
24-bit/192kHz standalone/VST instrument for your PC that offers the
pristine sound quality and powerful Z-Plane filters of E-MU’s powerful
Proteus X2 Software Sound Module, plus over 1,000 sounds from E-MU’s
legendary Proteus 2000 sound module. You can also expand your
Proteus VX with any soundset from E-MU’s comprehensive sound
library. Proteus VX offers you an intuitive sound module interface to
quickly dial in your sounds, with easy-to-use librarian and search
functions to find that perfect preset in seconds, as well as two discrete
effects processors with comprehensive MIDI modulation per preset.
1616-PCI (Mfr # 70EM896106000 • B&H # EM1616P) ..............................................349.95
1616 (Mfr # 70EM897106002 • B&H # EM1616) ........................................................384.95
1616M-PCI (Mfr # 70EM896006000 • B&H # EM1616MP) .....................................434.95
1616M (Mfr # 70EM897006000 • B&H # EM1616M) ........................................................Call
0202 USB • 0404 USB USB 2.0 Audio Interfaces
0202 USB
High quality portable plug-and-play USB 2.0 audio interfaces for Mac and PC,
E-MU’s 0202 USB and 0404 USB offer pristine 24-bit/192kHz recording and playback, direct monitoring and a host of professional features. The 0202 USB features two flexible Class-A preamps: including one XLR mic /1/4” line input and
one1/4” line / Hi-Z input. The inputs can be run independently or in stereo. The 0202 USB’s compact design
makes it ideal for location recording.
The 0404 USB adds sixteen channels of MIDI I/O and delivers exceptional audio performance
utilizing premium A/D and D/A converters, superlative XTC mic / line / Hi-Z preamps, as well
as a rock-solid, ultra-low jitter clock. The 0202 USB and 0404 USB each ship with a USB cable,
and the E-MU Production Tools software bundle (see above)— everything you need to create,
record, edit and master your music.
0202 USB 2.0 (Mfr # 70EM874006000 • B&H # EM0202USB) .......................................Call
0404 USB
0404 USB 2.0 ..............................................................................................................Call
(212) 444-6601 • 1-800-947-9901 • Quick Dial 91
PHOTO - VIDEO - PRO AUDIO
1212
COMPUTER AUDIO HARDWARE
ECHO
AUDIOFIRE
FireWire Audio Interfaces
An extremely small FireWire
audio solution, no product this
size comes packed with as many
features as the AudioFire2. Fully
balanced input and output,
separately addressable headphone output, S/PDIF and MIDI
AudioFire12
AudioFire2
I/O are all included in this 3.5 x
4.25” interface. AudioFire2 is the
perfect product for any musician
on the go. Power is provided
directly from the FireWire bus or
from the supplied power source.
MIDI and S/PDIF are available via
AudioFire8
AudioFire4
a removable dongle for compact
flexibility. With the AudioFire2 you
can record 24-bit/96kHz audio with low latency monitoring on any Mac OS X desktop or notebook, or Windows XP
computer with a FireWire port.
AudioFire4 offers a compact audio interface with all the connections you need for your studio. With the flexibility of
FireWire and bus power, you can also take the AudioFire4 on the road. The AudioFire4 can record 24-bit 96kHz audio
with low latency monitoring on any Windows XP or Mac OS X computer (desktop or notebook) with a FireWire port.
AudioFire4 is the perfect center for any home studio, whether at your desk or on the road. It has 2 universal inputs with
mic preamps, phantom power, and trim knobs so you can just plug in your microphone or instrument and record
whenever or wherever you want. AudioFire4 also comes with 2 balanced analog inputs (TRS), 4 balanced analog outputs
(TRS), a stereo headphone output, 2 FireWire ports, S/PDIF I/O, MIDI I/O, and 6 channels of full duplex 24 bit 96kHz
recording and playback.
AudioFire8 offers the same high quality hardware and software found in the popular Layla3G (next page), but with the
addition of a FireWire interface. With the AudioFire8 you can record 24 bit 96kHz audio with low latency monitoring on
any Windows XP or Mac OS X computer (desktop or notebook) with a FireWire port.
AudioFire8 is the perfect center for any professional studio, whether at home or on the road. It has 2 universal inputs with
mic preamps, phantom power, channel inserts, and trim knobs so you can just plug in your microphone or instrument
and record whenever or wherever you want. AudioFire8 also comes with 6 balanced analog inputs (TRS), 8 balanced
analog outputs (TRS), a stereo headphone output, 2 FireWire ports, S/PDIF I/O, MIDI I/O, word clock synchronization,
and 10 channels of full duplex 24 bit 96kHz recording and playback.
AudioFire12 offers the same high quality hardware and software as the new AudioFire8, but with 12 balanced analog
inputs and outputs for 24 bit 192kHz recording and playback. If you already have a mixer and tons of microphone /
instrument preamps, but you need to get all that audio into your computer then the AudioFire12 is just for you.
The AudioFire12 has 12 balanced analog inputs and outputs (TRS), 2 FireWire ports, MIDI I/O, word clock synchronization,
and 12 channels of full duplex 24 bit 192kHz recording and playback.
PHOTO - VIDEO - PRO AUDIO
www.bhphotovideo.com
COMPUTER AUDIO HARDWARE
ECHO
1213
AUDIOFIRE
They All Feature
◆ Dual 6-pin FireWire (IEEE1394a) iInterface
allows you to daisy chain with additional
FireWire devices such as a hard drive.
◆ Stereo headphone output with volume knob.
◆ S/PDIF I/O at 24-bit/96kHz (except
(AudioFire12)
◆ Near zero latency hardware monitoring.
◆ MIDI I/O
◆ Low-latency drivers support all major pro
◆ Heavy-duty aluminum case.
audio software including: Low Latency ASIO
2.0, WDM kernel streaming mode, GSIF 2.0
(Gigastudio 3 w/ low latency MIDI),
CoreAudio and CoreMIDI.
AudioFire 2
◆ Bus powered with 6-pin FireWire interface, external 12v DC
power supply provided
◆ Software console for monitoring,
metering, and setting levels.
AudioFire 8 Step-up Features
◆ 2 auto-sensing universal inputs (mic/guitar/line) with meters,
trim knobs, 48v phantom power, and channel inserts
◆ 2 balanced ¼˝ analog inputs and outputs
◆ 6 balanced ¼˝ analog inputs, and 8 balanced ¼˝ analog outputs
◆ Supports full duplex 4 channel in, 6 channel out operation at
◆ Sync via word clock or S/PDIF
24 bit/96 kHz sample rate
◆ Full duplex 10 channel in/10 channel out at 24 bit/96 kHz
◆ Pocket sized (3.5in x 4.25in x 1 in)
◆ Rack mountable single space interface box
AudioFire2 (Mfr # AUDIOFIRE2 • B&H # ECAF2).........................................199.00
◆ 32-bit / 1.6 gigaflop DSP for digital mixing
AudioFire 4 Step-up Features
◆ 2 auto-sensing universal inputs (mic/guitar/line) with meters,
trim knobs and 48V phantom power.
◆ Supports full duplex 6 channel in, 6 channel out operation at
AudioFire8 (Mfr # AUDIOFIRE8 • B&H # ECAF8) ...............................................Call
AudioFire 12 Step-up Features
◆ 12 balanced ¼˝ analog inputs, and outputs
◆ Sync via word clock.
24-bit, 96 kHz sample rate
◆ 2 balanced ¼˝ analog inputs, and 4 balanced ¼˝ analog outputs
◆ Full duplex 12 channel in/12 channel out at 24 bit/192kHz
AudioFire4 (Mfr # AUDIOFIRE4 • B&H # ECAF4).........................................299.00
AudioFire12 (Mfr # AUDIOFIRE12 • B&H # ECAF12).........................................Call
Indigo DJ • Indigo I/O
CardBus Audio Interfaces
Indigo DJ offers two independent stereo 1/8 inch analog outputs; one for setting up your cue mix
on a pair of headphones, and the other for the house mix. Each output features 24-bit/96kHz
converters. Also included is a 6-ft. audio cable for RCA or 1/4 inch connections.
A unique feature of the Indigo DJ is the use of “virtual” outputs. Indigo DJ appears to software as if it has eight separate
outputs, which are digitally mixed down to the physical outputs using Indigo DJ’s “console” software and its on-board DSP.
This makes Indigo DJ compatible with all popular multi-track software. And, with Echo’s “multi-client” drivers, more than
one application (such as an editor and a software synth) can be playing back through Indigo DJ at the same time.
Notebook pro audio recording has never sounded so good, or been this convenient and affordable. Indigo IO offers one
stereo 1/8” analog input and output on a Type II Cardbus card powered by your notebook computer.
It combines this with 24-bit/96kHz converters for the quality you deserve. Also included is a 6 foot audio cable for RCA or 1/4 inch connections.
A unique feature of the Indigo IO is the use of “virtual” outputs. Indigo IO appears to software as if it has eight separate outputs, which are digitally
mixed down to the physical outputs using Indigo IO’s “console” software and its on-board DSP. This makes Indigo IO compatible with all popular
multi-track software. And, with Echo’s “multi-client” drivers, more than one application (such as an editor and a software synth) can be playing back
through Indigo IO at the same time.
Indigo DJ - 4 Output CardBus Type II Laptop Audio Playback Card for Mac and Windows (Mfr# INDIGODJ • B&H# ECID) .............................................................179.95
Indigo IO - 2-in/2-out CardBus Type II Laptop Audio Playback Card for Mac and Windows (Mfr# INDIGOIO • B&H# ECII) .................................................................CALL
(212) 444-6601 • 1-800-947-9901 • Quick Dial 91
PHOTO - VIDEO - PRO AUDIO
1214
COMPUTER AUDIO HARDWARE
ECHO
PCI Audio Interfaces
MiaMIDI
If you’re serious about digital audio, you shouldn't settle for anything less than a truly
professional audio interface.... and now with MiaMIDI you don't have to. MiaMIDI offers a
pair of balanced 1/4” analog inputs and outputs and operates at the +4dBu levels used by
pro-audio gear. It combines this with 24-bit/96kHz converters and 106 dB of dynamic range
for the quality your recordings deserve. Also included is an S/PDIF digital audio
interface for connecting to other digital audio equipment, and MIDI input/output jacks on a
custom molded cable.
A unique feature of MiaMIDI is the use of “virtual” outputs. MiaMIDI appears to software as if it has eight separate
outputs, which are digitally mixed down to the physical outputs using MiaMIDI’s “console” software and its on-board
DSP. This makes MiaMIDI compatible with all popular multi-track software. And, with Echo’s “ulti-client” drivers, more
than one application (such as an editor and software synth) can be playing back through MiaMIDI at the same time.
Please note that the MIDI functions of MiaMIDI only work under Windows ME/2000/XP(WDM) and Mac OS X.
MiaMIDI - 4 Input / 4 Output Sound Card with S/PDIF and MIDI for Mac and Windows (Mfr # MIAMIDI • B&H # ECMM) ................................................................129.00
Gina3G
Gina3G is a budge- priced, professional quality digital audio recorder. Gina3G
has all you need—you don’t even need a mixer or studio monitors to get started
here. Features two universal inputs with mic preamps, 6 balanced analog outputs, and a headphone output. ADAT lightpipe, optical and coaxial S/PDIF, and
MIDI are included as well; so as your studio grows, Gina3G will be able to work
with all your new gear. It comes with a 8' cable and PCI card that connects to
the audio interface. Gina3G is compatible with PCI and PCI-X (3.3 or 5 volt)
motherboards.
Gina3G 10 Input / 14 Output 24-Bit/96kHz PCI Interface with Breakout Box and 2 Phantom Powered Microphone Inputs - Mac OS X and Windows
(Mfr# GINA3G • B&H# ECG3G) ...................................................................................................................................................................................................................................................CALL
Layla3G
Layla3G is a PCI based multitrack digital recorder
ideal for any professional studio. It has 2 universal
inputs with mic preamps, 6 balanced analog inputs,
8 balanced analog outputs, and a stereo headphone
output. ADAT lightpipe, optical and coaxial S/PDIF,
and MIDI are included as well. Layla3G comes with a
15' cable and PCI card that connects to the audio
interface. Layla3G is compatible with PCI and PCI-X
(3.3 or 5 volt) motherboards.
Layla3G 16 Input / 16 Output (8 Analog/8 ADAT) 24-Bit/96kHz PCI Interface with Breakout Box and 2 Phantom Powered Microphone Inputs and
Tracktion Software - Mac OS X and Windows (Mfr# LAYLA3G • B&H# ECL3G)........................................................................................................................................................CALL
PHOTO - VIDEO - PRO AUDIO
www.bhphotovideo.com
COMPUTER AUDIO HARDWARE
1215
ECHO
Mia • Gina • Layla PCI Audio Interfaces
Echo Product Comparison Chart
Specification
Digital connectors
Analog outputs
Indigo io
Indigo dj
MiaMIDI
Gina3G
N/A
N/A
Coax S/PDIF
Coax and
Optical
2 1/4" (TRS),
6 1/4" (TRS)
(8 virtual)
8 1/4" (TRS)
1 stereo 1/8" 2 stereo 1/8"
Layla3G
AudioFire2
AudioFire4
AudioFire8 AudioFire12
Coax and
Coax S/PDIF
Optical
Coax S/PDIF
S/PDIF, ADAT
S/PDIF, ADAT
Coax S/PDIF
N/A
2 1/4" (TRS)
4 1/4" (TRS)
1 1/8" Stereo
8 1/4" (TRS)
12 1/4" (TRS)
2
2
2
N/A
2 universal,
12 1/4" (TRS)
2 1/4" (TRS)
6 1/4" (TRS)
Digital outputs
N/A
N/A
2
2 or 8
2 or 8
Analog inputs
1 stereo
N/A
2
2 universal
2 universal
Digital inputs
no
no
2
2 or 8
2 or 8
2
2
2
N/A
Nominal output levels
no
no
yes
yes
yes
yes
yes
yes
yes
Nominal input levels
no
no
yes
yes
yes
yes
yes
yes
yes
Default nominal level
-10
-10
+4
+4
+4
+4
+4
+4
+4
Analog input gain
no
no
no
2 universal
2 universal
no
2 universal
2 universal
no
Input / Output Clocks
no
no
S/PDIF
S/PDIF, ADAT
Word, S/PDIF,
S/PDIF
& MTC
ADAT, & MTC
Midi
no
no
yes
yes
yes
yes
yes
yes
32, 44, 48,
32, 44, 48,
32, 44, 48,
32, 44, 48,
32, 44, 48,
32, 44, 48,
32, 44, 48,
32, 44, 48,
32, 44, 48,
88, 96
88, 96
88, 96
88, 96
88, 96
88, 96
88, 96
88, 96
88, 96, 192
109dB
110dB
106dB
110dB in,
113dB in,
112dB in,
112dB in,
113dB in,
113dB in,
114dB out
114dB out
114dB out
114dB out
114dB out
114dB out
Full Duplex
yes
N/A
yes
yes
yes
yes
yes
yes
yes
GSIF compatible
yes
yes
yes
yes
yes
yes
yes
yes
yes
8
8
8
headphone
virtual
virtual
headphone
headphone
virtual
headphone
12 channels
output
output
output
output
output
headphone
output
output
bus power
supported
output
full duplex
CardBus
CardBus
PCI
PCI
PCI
FireWire
FireWire
FireWire
FireWire
Sample rates
Dynamic Range
(A-Weighted)
Other
Interface
2 1/4" (TRS)
6 1/4" (TRS)
2 universal
S/PDIF
Word
& S/PDIF
(212) 444-6601 • 1-800-947-9901 • Quick Dial 91
Word
yes
PHOTO - VIDEO - PRO AUDIO
1216
COMPUTER AUDIO HARDWARE
EDIROL
UA-1EX
USB Audio Interface
The UA-1EX is a simple ASIO-compatible 2-input/2-output USB audio interface for
Mac or Windows capable of 24-bit/96kHz operation. Designed to offer componentquality audio signals in and out of your computer, it features professional A/D and
D/A converters, ensuring accurate recording and playback and offers excellent sound
quality for connection to any RCA or S/PDIF optical device. The UA-1EX also offers an
electret condenser microphone input similar to the “MIC-IN” on most internal soundcards and a headphone output with volume control to quickly and easily listen to audio from your computer. The UA-1EX
is ideal for use with laptops where audio quality is all but ignored, offering superior audio quality, versatility, and the
utmost in portability.
◆ ASIO 2.0 (Win/Mac), WDM (Win2000/XP),
Core Audio (Mac OS X) compatibility
◆ USB Powered (no AC adaptor required)
UA-1EX
◆ S/PDIF optical In & Out
(Mfr# UA-1EX • B&H# EDUA1EX) ................................79.00
UA-25 USB Audio Interface
The UA-25 is a powerful USB Audio/MIDI interface designed to offer
premium sound quality, rugged durability, and complete portability .
The UA-25 is compact enough to travel anywhere you can take your
computer. Constructed of high-grade aluminum for the chassis; it can
withstand hard impacts that are normally associated with traveling or working in the field, and the aluminum is an
excellent shield against high-frequency interference from other electrical components. The UA-25 is USB powered, so you
never have to plug it into a wall socket, but it can still power condenser microphones with its 48V phantom power. Audio
professionals will love the UA-25 for its ability to output audio at +4dBu from the balanced 1/4" outputs, making it the
best portable audio interface to shuttle between the field and the studio.
◆ Durable solid aluminum chassis
◆ Latest audio interface technology is con-
densed into the UA-25, giving users the highest-performance 24-bit/96kHz recording and
playback via USB.
◆ Premium audio quality — The UA-25 uses
powerful analog electronics coupled with
well-matched A/D & D/A converters for superior audio fidelity.
◆ Wide variety of I/O ports — Wide range of
input and output ports in a compact case.
A pair of Neutrik XLR/TRS combo jacks with
Phantom power, Hi-Z port for guitar direct
connection, S/PDIF optical I/O ports and MIDI
IN/OUT ports.
◆ Built-in analog limiter — Reduce sudden
overloaded sounds or popping noises in your
recordings. You can often get overloaded
levels while recording on the fly. With this
switch set, you can still achieve a highquality sound while retaining a wide dynamic range. The side diagram shows the Limiter
characteristics.
◆ Zero-latency direct monitoring — The UA-25
provides ultra low latency with maximum
performance from popular music software
such as Sonar, Logic, and Cubase. You can
control Direct Monitoring from the front
panel, not only for ASIO 2.0-compatible
applications but also for others. Ideal for soft
synths controlled from MIDI devices.
◆ +4 dBu output for pro applications
◆ The bundled CD-ROM has drivers for WDM
(Windows XP/2000)/ASIO 2.0 (Windows, Mac
OS 9) and CoreAudio (Mac OS X).
◆ Balanced I/O Ports — The UA-25 generates
low-noise and has a wide-range power supply all via USB. Thanks to this, the UA-25
gives +4 dBu balanced professional audio
input and output connections.
◆ Two High-Quality Mic Preamps — Includes a
pair of high-quality microphone preamps
using premium analog components. It provides a clean recording environment to give
a perfect recording. USB-powered phantom
powered preamps
UA-25 - 2 In / 2 Out USB Audio/MIDI Interface for Mac and Windows (Mfr # UA-25 • B&H # EDUA25) .......................................................................................................CALL
PHOTO - VIDEO - PRO AUDIO
www.bhphotovideo.com
COMPUTER AUDIO HARDWARE
EDIROL
1217
UA-4FX
USB Audio/Midi Interface
The UA-4FX is a portable USB audio/MIDI interface that sets the standard for
affordable interfaces with its ultra-fast, low-latency audio and MIDI performance, 24-bit/96kHz raudio resolution, phantom-powered XLR mic input, and
built-in effects — including a COSM tube MIC preamp simulator for fattening
up your tracks. The UA-4FX also includes a copy of Cakewalk’s SONAR LE
recording software and Edirol Virtual Sound Canvas plug-in (PC), making it a
true all-in-one recording solution at an incredibly low price.
◆ 14 types of powerful, onboard effects, including COSM tube mic
◆
Route audio in and out of the UA-4FX via analog I/O or take advantage
of its S/PDIF optical output. Windows XP users can use the optical output for Dolby Digital or DTS 5.1 Surround output as well.
◆
Connect synths, modules, and controllers via MIDI, and enjoy ultra-fast,
stable performance thanks to Edirol's FPT (Fast Processing
Transmission) technology. A single USB cable provides both the MIDI
and audio links between your computer and the UA-4FX.
preamp simulator
◆ XLR input with phantom power, Hi-Z
guitar/dynamic mic input
◆
Supports WDM, ASIO 2.0, and Mac OS X Core Audio formats. Enjoy
low-latency audio performance on both platforms.
◆
With built in COSM® tube mic-preamp simulator, multi-band compressor/limiter for mastering, amp simulator and distortion/chorus/delay
for guitar, reverb, noise suppressor and more, the UA-4FX is an irresistible package for computer-recording enthusiasts on a budget.
UA-4FX - 2-In/ 2-Out Audio Interface (Mfr # UA4FX • B&H # EDUA4FX) .......149.00
UA-101
10-in/10-out USB Audio Interface
The UA-101 is a half-rack, high-speed USB audio interface designed
to turn your computer into a powerful digital audio workstation.
No other computer connection is required to get a full 10-inputs
and 10-outputs at 24-bit/96kHz to the computer. Built to offer low
latency and extraordinary stability, the UA-101 is the easiest-to-use,
yet most-powerful compact audio interface available.
◆ Offers dedicated monitor outputs, kept sepa-
rate from its channel outputs 1-8.
◆ Features all-balanced inputs and outputs
with input level selection switches on inputs
3-8, offering either +4dBu or -10dBu levels.
◆ The UA-101 uses premium analog compo-
nents perfectly matched to its A/D converters for incredible fidelity. All audio is
processed internally at 40-bit resolution to
ensure accurate recording.
◆ The UA-101 comes with a powerful software
application that allows you to route your
inputs to various outputs and adjust your
input monitor mix. This application allows
the UA-101 to be reconfigured in a variety of
ways without requiring any cable swapping
or changes in your DAW application.
◆ When connected via USB 1.1, the UA-101 will
◆ The UA-101 offers incredibly low latency
through both WDM and ASIO 2.0 support for
superior performance in your home studio.
function as a stereo audio interface at 44.1 or
48kHz with any Win98 or later PC or Mac OS
X computer. When connected to Windows
XP computer running USB 2.0, the UA-101
offers the full set of I/O options.
◆ The UA-101 allows you more freedom in
setting your recording levels with the built-in
limiter. Prevent clipping in your recordings.
Get high-quality studio recordings with a
wide dynamic range. No more worry about
clipping a live recording or losing valuable
signal because of brief loud transients.
◆ Offers both MIDI input and output to
connect external MIDI devices to your DAW.
◆ Channels 9 and 10 are dedicated S/PDIF
digital channels, offering convenient
connection to DAT, Minidisc, or other digital
sources and destinations at up to 96kHz.
UA-101 (Mfr # UA-101 • B&H # EDUA101) .......................................................................................................................................................................................................................499.00
(212) 444-6601 • 1-800-947-9901 • Quick Dial 91
PHOTO - VIDEO - PRO AUDIO
1218
COMPUTER AUDIO HARDWARE
EDIROL
FA-66 / FA-101
FireWire Audio Interfaces
The FA-66 is a 6-channel (can record and play back up to six channels at
24-bit/96kHz, or record and play back up to four channels at 24-bit/192kHz)
portable FireWire audio interface designed with the mobile recording and
performance professional in mind. It offers incredible audio fidelity, stability,
and a practical set of input and output options. It also offers two XLR/TRS
combo inputs with phantom power, plus two RCA inputs, four balanced
+4dBu outputs, optical S/PDIF I/O, a built-in analog limiter, zero-latency direct
monitoring, solid metal construction, and FireWire bus power, all in a durable compact case.
The FA-101 is a feature-packed 10-channel (can record and play back up to
10 channels at 24-bit/96kHz, or record and play back up to 6 channels at
24-bit/192kHz) portable FireWire audio interface designed with the mobile
recording and performance professional in mind.
Features two phantom-powered XLR/TRS combo jacks offer premium mic preamps for highquality recording. The back of the FA-101 hosts a number of 1/4" TRS balanced inputs & outputs: six inputs and eight outputs in all. The front-mounted S/PDIF optical I/Os transfer audio
to and from other digital devices. The built-in MIDI interface allows a synthesizer or controller
keyboard to be connected to the FA-101 for sequencing directly into a software program.
FA-66: 6 Input / 6 Output 24-Bit/192kHz Portable FireWire Interface for
Mac and Windows (Mfr# FA-66 • B&H# EDFA66) ...................................................CALL
FA-101: 10 Input / 10 Output 24-Bit/192kHz FireWire Interface for Mac
and Windows (Mfr# FA-101 • B&H# EDFA101) .........................................................CALL
FOCUSRITE
Saffire
4-input/10-output FireWire Interface with Onboard DSP
A FireWire interface with onboard DSP and 24-bit/192kHz processing, Saffire fuses state-of-the-art
hardware with integrated software to take audio interfacing one step closer to professional studios.
The bundled ‘SaffireControl’ is an intuitive software that floats comfortably over any recording software and allows extensive control over the sound of the recorded signals and the multiple (monitor
and headphone) output paths. Compression, reverb, amp modeling and EQ Saffire-powered plug-ins
are included. Up to five separate user-defined stereo mixes can be created of all incoming signals
and recorded tracks from the recording platform.
◆ Ultra-low latency Firewire 400 interface with
onboard DSP
◆ Suite of Saffire-powered plug-ins; compres-
◆ Four inputs; two Focusrite preamps and
SPDIF I/O
◆ Eight balanced outputs for creating separate
headphone/monitor mixes or 7.1 surround
monitoring.
PHOTO - VIDEO - PRO AUDIO
◆ MIDI I/O
sion, EQ, amp modeling and monitor path
reverb available on analog inputs, for recording wet and or monitoring. All four are also
available as a suite of plug-ins from within
the recording platform in use.
www.bhphotovideo.com
◆ Bundled software allows the engineer to
create up to five unique stereo mixes of all
incoming and recorded tracks.
Saffire - FireWire Audio Interface with Saffire
Control Software (Mfr# SAFFIRE • B&H# FOS) ......CALL
COMPUTER AUDIO HARDWARE
FOCUSRITE
1219
Saffire LE
4-input/10-output FireWire Interface
Six inputs and eight outputs (including stereo digital I/O) with comprehensive monitoring and I/O
control options ensure there are plenty of options for tracking and monitoring high quality audio.
Focusrite build and sound quality, intelligent front-end design and a one-click GUI solution combine
to guarantee an intuitive and trouble-free professional recording experience. Although only the
original Saffire has onboard DSP, the Saffire LE comes complete with the entire Saffire plug-in suite,
offering highly acclaimed Compression, Reverb, Amp modeling and EQ in VST and AU formats.
As with the original Saffire, input and output levels and latency-free monitoring solutions can all be controlled via the
accompanying SaffireControl LE software. This stylish application floats comfortably over any recording software, and can
shrink in size to suit a number of different recording scenarios. Together with expertly designed analogue inputs and
unrivalled digital conversion, Saffire LE is the perfect solution for discerning recording musicians on a budget.
◆ Ultra-low latency Firewire interface
◆ MIDI I/O and MIDI Thru
◆ Unprecedented audio and conversion
◆ Eight Outputs; Six balanced analogue
performance for the price
◆ Bundled Software Pack – Including Ableton
outputs for creating separate headphones/monitor mixes or 5.1 surround monitoring, plus stereo S/PDIF Out
◆ Six inputs; Two Focusrite preamps, two
balanced Line I/Ps and stereo S/PDIF I/O.
Live 5 Lite, FXpansion’s BFD Ultralite and
GURU demo version and 470MB of samples,
compiled for Focusrite by Loopmasters.
Saffire LE - (Mfr# SAFFIRE LE • B&H# FOSLE) ......249.99
Saffire Pro 10 • Saffire Pro 26
The Saffire PRO 10 and PRO 26 feature
highly integrated I/O and monitoring
control software (Saffire Control PRO),
and can allow for larger recording
solutions via the option to aggregate
multiple units, all controlled via the
same control platform.
◆
◆
Housed in a stunning 19˝ rackmount case with detachable rack ears,
the PRO 10 combines eight channels of Focusrite pre-amplification
with eight balanced line outputs, and stereo SPDIF I/O. Saffire PRO 26
combines eight pre-amps with sixteen channels of ADAT, and two
channels of SPDIF (up to 192kHz). It also employs Focusrite's high
performance 24-bit digital converters.
The pre-amps featured in Saffire PRO 10 and PRO 26 are a derivative
of the award-winning Green Series. This pre-amp design upholds the
same high bandwidth philosophy whilst boasting class-leading specifications. In addition, the converters adhere to performance specifications far beyond other similarly priced interfaces. As with all Saffire
solutions, they can be either bus-powered or powered via an external
PSU. They are also designed to take full advantage of the external PSU
and to maximize performance when powered in this way.
◆
They also feature MIDI I/O alongside a host of additional processing
features, as well as two headphones outputs with volume control
(again customizable within SaffireControl PRO) and a global monitor
control with mute and dim options,
◆
On the PRO 10, two channels with DI are also provided, eliminating
the need for a separate DI box. The PRO 26 steps up with two 'super
channels' featuring variable mic impedance and instrument input,
instantly accessible on the front fascia.
◆
Both are bundled with SaffireControl PRO which delivers a control
application that provides comprehensive custom mix solutions. It also
offers quick-select ‘tracking’ and ‘playback’ solutions, as well as both
the float and shrink/expand facilities. The PRO 10 and PRO 26 are also
bundled with the same acclaimed Compression, Reverb, Amp
Modeling and EQ VST/AU plug-ins for use in the mix.
Saffire PRO 10: 10-Input / 10-Output FireWire Digital Audio Interface for Mac and Windows (Mfr# SAFFIRE PRO 10I/O • B&H# FOSP10IO) ............................499.99
Saffire PRO 26: 26-Input / 26-Output FireWire Digital Audio Interface for Mac and Windows (Mfr# SAFFIRE PRO 26I/O • B&H# FOSP26IO) ..............................699.99
(212) 444-6601 • 1-800-947-9901 • Quick Dial 91
PHOTO - VIDEO - PRO AUDIO
1220
COMPUTER AUDIO HARDWARE
LEXICON
USB Audio Interfaces
Alpha
Alpha is a desktop recording studio that includes everything needed for
portable, professional recordings including the Alpha Studio USB I/O
mixer, Steinberg's Cubase LE multi-track PC and Mac recording software,
and the Lexicon Pantheon VST reverb plug-in.
◆ A bus-powered 2x2x2 USB I/O mixer, Alpha
◆
Conveniently powered directly from the USB
bus, Alpha can stream two channels of 44.1
or 48 kHz audio at either 16- or 24-bit resolution to Mac or PC computers.
◆
Record two tracks at once from two input
sources. Mic and line inputs have individual
level controls and peak meters.
features one XLR microphone input, two TRS
line inputs and two TRS & RCA line outs.
◆
Front panel features an ultra high-Z 1/4”
instrument input for direct to computer
recording and a 1/8” high powered
headphone output.
◆
Mono/stereo monitoring is provided, as well
as Zero-latency Direct/Playback Monitoring,
allowing for delay-free overdubs.
◆
Alpha can be used with almost any recording
software.
Alpha Studio - (Mfr# ALPHA • B&H# LEALPHA) ...99.95
Lambda
Lambda is a desktop recording studio that includes everything needed for portable,
professional recordings including the Lambda Studio USB I/O mixer and MIDI interface,
Steinberg’s Cubase LE multi-track PC and Mac recording software, and the Lexicon
Pantheon VST reverb plug-in.
◆
Lambda is a bus-powered 4x2x2 USB I/O
Mixer packaged as a complete recording
solution with Cubase LE and the Lexicon
Pantheon VST Reverb plug-in.
◆
Conveniently powered directly from the USB
bus, the Lambda Studio can stream four
channels of 44.1 or 48 kHz audio at either 16
or 24-bit resolution to Mac or PC computers.
◆
Two XLR microphone inputs with TRS inserts
and switchable phantom power.
◆
Record two tracks at once from up to four
input sources, while recording MIDI data.
◆
Rounding out the full complement of connectivity on Lambda are two TRS balanced
1/4" line inputs, two TRS balanced line outputs, 1/8" front-panel high-power headphone output jack, a front-panel instrument
input, and MIDI input/output.
◆
Mic and line inputs have individual level controls and peak meters.
◆
Mono/stereo monitoring is provided, as well
as Zero-latency Direct/Playback Monitoring,
allowing for delay-free overdubs.
◆
Lambda can be used with almost any
recording software.
◆ 2-channel, 4-segment LED bar graph meter
indicates input level, while phantom power
and USB LED indicators provide information
on the unit’s status.
Lambda Studio - 5 Input (2 Channel Record) / 2 Output Desktop Recording Studio with bundled software - (Mfr# LAMBDA • B&H# LELAMBDA) .............149.95
Omega Studio
Taking a whole-system approach to desktop recording, the Omega Studio is an
integrated 24-bit computer recording system that includes the Omega 8x4x2 USB
I/O mixer, ProTracks Plus 32-track recording software, Bias Deck SE and Pantheon
Lexicon reverb plug-in.
Differentiating itself from standard computer I/O boxes which are typically based
on a patch-bay paradigm, the Omega 8x4x2 USB I/O mixer is based on a mixer
paradigm and includes input, output and mixing functions that support a variety
of tracking/monitoring applications while requiring no additional mixing hardware.
PHOTO - VIDEO - PRO AUDIO
www.bhphotovideo.com
COMPUTER AUDIO HARDWARE
LINE 6
1221
TONEPORT GX
USB Audio Interface
Omega Studio (con’t)
◆
TheOmega I/O mixer provides 8 inputs
which are assignable in pairs to any of 4
simultaneous record channels featuring
high-resolution 24-bit A/Dconverters.
◆
Two of the inputs feature low-noise dbx micpreamps with 48v phantom power and TRS
insert points. Four TRS active balanced line
inputs accept up to +22dBu signals to allow
interfacing to unbalanced or professional
high-output level balanced equipment.
◆
S/PDIF input combined with an additional
DAC for zero-latency, direct monitoring of
the S/PDIF source to allow simultaneous
tracking of analog and digital sources.
Has a high-impedance instrument input.
Start recording with TonePort GX – the USB recording
interface that gives guitarists and bass players the
legendary sound of POD at an unprecedented price.
Small enough to clip to a guitar strap, this portable,
palm-sized powerhouse offers nothing less than
professional-grade 24-bit audio recording, with
rock-solid drivers supporting USB audio compatibility
with most popular recording platforms.
Boasting the unrivalled amp, cabinet and effect models of POD, TonePort GX delivers professionalgrade tone and hassle-free, low-latency music making in a surprisingly
affordable, portable and fun-to-use package.
◆ Portable USB recording interface
◆ Sample rate conversion: 16 and 24 bit at
◆
◆
◆ 29 stompbox and studio effect models,
including Overdrive, Delay, Reverb, Wah,
Flanger, Chorus, and more
44.1, 48 and 96 kHz
for each analog input as well as an assignable
bargraph meter for signal level monitoring.
By monitoring signal at the A/D converters,
it avoids the software-only level monitoring
that can miss clipping and ruin your track.
◆
quality tracks
◆ 1/4-inch instrument/mic input
◆ Omega I/O mixer provides a peak indicator
◆
◆ 6 vocal mic preamps for amazing, studio-
The Omega I/O mixer includes a fully
opto-isolated MIDI input to ensure that there
is no annoying ground loop hum or MIDI
talk-through noise common with many I/O
boxes and sound cards. MIDI output has
rock-solid synchronization to USB frame rate
to support applications requiring critical sync.
◆ Gearbox amp and effects modeling software
for Guitar, Bass and Vocals includes:
Designed entirely by Lexicon engineers, the
included Pantheon reverb plug-in offers 35
factory presets featuring 6 reverb types
(hall, chamber, plate, room, ambience and
custom) controlled by a user interface with
16 editable parameters.
Omega Studio - 24-bit 8 Input / 4 Output USB
Interface for Mac and Windows
(Mfr# OMEGA • B&H# LEOMEGA) ...............................CALL
along with CDs or MP3s, even at half-speed
playback without changing pitch
◆ 23 guitar/bass amp models with 29 cabinet
models
TonePort GX - USB Recording Interface for Mac and Windows (Mfr# 99-073-0140 • B&H# LITPGX) ...49.99
TONEPORT UX1 & UX2
USB Audio Interfaces
Bundled ProTracks Plus is a 32-track recording
suite for Windows that includes all the
modules you need to track, edit, process,
sequence and mix your masterpiece. Not
only does it include non-linear editing,
plug-in support, and acidized looping
features, it contains a full featured MIDI
sequencer with event editing and automation features as well as soft synth support.
For Mac users, Omega also ships with BIAS
Deck 3.5 SE recording software, which turns
a Mac into a full-fledged recording studio.
Rcord up to 64 tracks, with full CD quality
and then edit instantly, while always being
able to revert to your original recordings.
◆ GearBox music player software lets you jam
TonePort UX2
◆
TonePort UX1 features a high-quality mic
input with preamp, a guitar/bass instrument
input, stereo line inputs and outputs, stereo
headphone jack, and an analog merge
monitoring input.
◆
TonePort UX2 adds analog VU meters, a
second microphone input and preamp,
phantom power for both preamps, stereo
digital S/PDIF out, a padded instrument
input, dual footswitch jacks assignable to
MIDI functions such as start/stop and punch
in/out, and independent volume controls
for the headphone and main outputs.
TonePort UX1 and UX2 hardware interfaces are
USB-powered and compatible with Mad and
Window computers. Both include Line 6 GearBox
modeling software, which provides a must-have
collection of guitar and bass amp/cab models,
stompbox and studio effects, and models of
high-end studio microphone preamps.
◆
Both support 44.1/48KHz with 16/24-bit
recording, a 96KHz mode, and drivers for
ASIO, WDM, and Core Audio. Both feature
ToneDirect monitoring – a unique way of
hearing fully processed audio while recording with incredibly low latency regardless of
the buffer settings in your recording app.
◆
Bundled Line 6 GearBox software delivers
world-class studio tone. Includes over 40
amp and cab models, 6 models of the most
in-demand mic preamps ever created, and
24 faithful sounding effects. They also
include Line 6 Edition recording software.
TonePort UX1- USB Audio Interface (Mfr# 99-073-0105 • B&H# LITPUX1) .....................................................89.99
TonePort UX2 - USB Audio Interface (Mfr# 99-073-0115 • B&H# LITPUX2) .................................................139.99
(212) 444-6601 • 1-800-947-9901 • Quick Dial 91
PHOTO - VIDEO - PRO AUDIO
1222
COMPUTER AUDIO HARDWARE
LYNX
LynxONE
24-Bit Digital Audio/MIDI PCI Card
TRepresenting a great value in integration and professional capabilities,
LynxONE is the perfect “front-end” for any studio quality audio or MIDI
workstation. LynxONE combines studio-quality 2-channel analog I/O
(sampling rate up to 50kHz), bit-perfect AES/EBU or S/PDIF digital I/O
supporting up to 96kHz, and 32 channels of low latency MIDI to create a new
standard in interface hardware for audio and MIDI workstations. And
LynxONE’s compatibility with all popular Windows-based audio
editing and MIDI sequencing software allows users to choose their
own working environments. Applications include critical audio
recording and editing, CD mastering, restoration, audio for video,
music composition, and MIDI sequencing.
FEATURES
◆ Two-channel 24-bit A-D and D-A converters
◆ Low-jitter PPL sample clock allows the
and a simple analog signal chain ensure
exceptional sound quality. (Software
selectable +4dBu or -10dBV levels).
◆ If you are working in an all digital
environment, the LynxONE delivers bitperfect digital audio at up to 96kHz, via an
AES/EBU or S/PDIF I/O (software-selectable
in the LynxONE mixer application).
◆
Independent, 24-bit audio stream architecture
supports simultaneous four-channel
recording and playback.
◆ The flexible mixer application also provides
keyboard and mouse control over the
sample clock generator, monitor source,
analog trim and levels of all four channels,
with peak level metering.
◆ PCB layout and circuit design techniques
reject computer related noises. Offers 103dB
of “real-world” dynamic range when
installed in a typical computer.
LynxONE to be used as a slave or master timing source, enabling up to four cards to be
linked together for multi-channel operation.
◆
Low-jitter, highly adjustable sample clock
tunable to all rates 8kHz to 100kHz.
◆ Two independent MIDI ports provide 32
channels of low-latency MIDI I/O, with realtime transfer of Note On/Note Off and MTC
messages over the PCI bus for accurate timing and synchronization in music composition and MIDI sequencing applications.
◆ The ability to easily monitor the recording
inputs is a must during overdubbing sessions.
LynxONE lets you select either the analog or
digital inputs as the monitor source. This
signal can be mixed with playback audio on
either the analog or digital outputs or both
simultaneously. This capability also allows
“stand-alone” A/D or D/A conversion
completely on board LynxONE. Because
mixing is performed in hardware, recording
input-to-output delay is extremely low.
Complete software control of LynxONE’s
features is provided with the LynxONE
Mixer. As shown to the right, this
application permits keyboard and
mouse click control of volume, sample
clock generator, digital I/O format,
analog trim, and input monitoring.
Peak level meters are also provided.
◆
Clock inputs and outputs sync to word,
word*256, video clocks and to other
LynxONE’s.
◆
Supports 8, 16, 24 and 32 bit audio file
formats.
◆ Compatible with Windows-based audio
editing and MIDI sequencing software,
LynxONE delivers exceptionally high levels
of performance in critical audio recording
and editing, CD mastering, audio for video
and MIDI sequencing applications.
◆ Comes complete with balanced analog,
digital and MIDI/clock cables for easy
integration into your existing setup.
◆
MIDI/Clock cable is HD15 to standard MIDI
connectors for both inputs and outputs.
BNC for Clock input and output.
LynxONE (Mfr # LYN-L1 • B&H # LYLO) .....................Call
LynxONE MIDI/Sync Cable
(Mfr # CBL-L1IO • B&H # LYMSCL1) ............................39.95
6’ DB-25 to 3 XLRM and 3 XLRF breakout
cable (Mfr # CBL-L1AUDIO • B&H # LYACDB25X)....39.95
PHOTO - VIDEO - PRO AUDIO
www.bhphotovideo.com
COMPUTER AUDIO HARDWARE
LYNX
1223
LynxTWO
192kHz Multichannel Audio Reference Interface
Incorporating state-of-the-art technology, LynxTWO is capable of precision
and performance that exceeds stand-alone converters. The standard for signal
purity, versatile synchronization, powerful hardware mixing, and extensibility to
support a variety of multichannel formats including ADAT and TDIF.
The LynxTWO incorporates the latest generation 24-bit/192kHz converter
technology to create a PCI audio which rivals the performance of many
high-end studio converters. A choice of three multi-channel analog
configurations makes it ideal for DVD-authoring, multi-channel recording,
mastering, broadcasting, synchronization and video applications, with
non-audio digital I/O support provided for Dolby Digital.
◆
◆
◆ Has one digital I/O supporting both
24-bit analog inputs and outputs with three
options: 4-in/4-out (LynxTWO-A), 2-in/6-out
(LynxTWO-B) or 6-in/2-out (LynxTWO-C),
each with line levels of either +4dBu or
-10dBV, selectable in channel pairs through
the mixer software.
◆
32-channel software mixer controls routing,
monitoring and sample clock settings.
◆ Includes balanced audio and sync cable sets
AES/EBU and S/PDIF formats at 16, 20 and
24-bit depths, and features a sample rate
converter for up to 3.1 rate conversion from
the digital input signals.
◆ Two LStream expansion ports support
Internal port allows data routing and synchronization between multiple LynxTWO
cards, while the external port allows the
connection of ADAT, TDIF and other multichannel interfaces for system flexibility.
◆
multi-channel interface modules, with each
port offering 8-input/output channels of
24-bit/96kHz operation.
Include an LTC reader/generator which
accommodates all standard frame rates, and
a low-jitter sample clock generator capable
of locking to NTSC/AL video signals, and to
standard reference and word clock signals.
LynxTWO A: 4-In / 4-Out PCI Sound Card with Balanced Analog, AES/EBU for PC & Mac (Mfr# LYNXTWOA • B&H# LYLTA) ...............................................................Call
LynxTWO B: 2-In / 2-Out PCI Sound Card with Balanced Analog, AES/EBU for PC & Mac (Mfr# LYNXTWOB • B&H# LYLTB) ...............................................................Call
LynxTWO C: 6-In / 2-Out PCI Sound Card with Balanced Analog, AES/EBU for PC & Mac (Mfr # LYNXTWOC • B&H # LYLTC) .............................................................Call
Lynx L22 192kHz PCI Digital Audio Interface
The Lynx L22 is a professional audio interface card designed for the most demanding audio
recording, post-production, broadcast, and measurement applications. Based on
LynxTWO technology, the L22 can capture or generate signals beyond the audio
bandwidth up to 100 kHz with extreme accuracy. Using proprietary circuit topologies
and custom components in the analog stages coupled with the latest converter technology,
the L22 achieves a 117 dB dynamic range. Most importantly, advanced noise-rejection design
techniques maintain this performance in real world use from computer to computer.
◆
Large on-board buffers and extremely efficient zero-wait state DMA
engine ensure glitch-free recording and playback. Provides tolerance to
system latencies and significantly reduces load on the host CPU.
◆ Extremely flexible onboard digital mixer allows the L22 to adapt to
any studio or workstation configuration.
◆
Each of the mixer’s 16 outputs is capable of mixing signals from 16
physical inputs or 16 playback tracks with 32-bit precision.
◆ A choice of dither algorithms is available on each input to mask low-
level artifacts while reducing word widths to 8, 16, or 20 bits.
◆ The L22 provides I/O expansion via its two LStream ports. Combined,
these ports allow 16 channels of additional I/O from external ADAT,
AES/EBU, or TDIF devices. The ports can also be used to route data
and synchronize to other L22’s or LynxTWO’s to create high channelcount systems.
Lynx L22: 2-In / 2-Out PCI Card for Mac and Windows (Mfr# LYNXL22 • B&H# LYLL22) ...............................................................................................................................674.95
L22 Sync Cable (Mfr # CBL-L22SYNC • B&H # LYSCL22)...........34.95
6’ DB-25 to 2 XLRM& 2 XLRF Breakout Cable (Mfr# CBLL22AUDIO • B&H# LYACL22) .........47.95
(212) 444-6601 • 1-800-947-9901 • Quick Dial 91
PHOTO - VIDEO - PRO AUDIO
1224
COMPUTER AUDIO HARDWARE
LYNX
LS-ADAT
Multi-channel ADAT Expansion Card
The LS-ADAT is a full-function ADAT interface that provides two ADAT
lightpipe inputs and outputs and an ADAT sync input for the LynxTWO
and Lynx L22 audio cards. Operating at a sample rate of 48 kHz, the
LS-ADAT I/O channel capacity is 16. Higher sample rates are supported
using S/MUX technology: 8 channels at 96 kHz and 4 channels at 192kHz.
◆ The ADAT sync input provides two methods of sample-accurate
◆
Sample clock source can be derived
from a word clock or composite video
received by the LynxTWO. In addition, either lightpipe input or the Sync In
port can also be selected as the clock source.
◆
The LS-ADAT can also transmits time code via MTC for general compatibility
with many applications.
synchronization.
◆ In systems using ASIO compatible audio applications, the
LS-ADAT utilizes Steinberg’s ASIO Positioning Protocol for
synchronization to ADAT time code.
– Using the LS-ADAT’s cue point capability initiates recording or
playback with sample period resolution.
◆ Installs in an empty bracket internally in your computer, no PCI slot required.
Now you can easily increase the I/O capacity of the LynxTWO
and L22 digital audio cards. The LS-AES and LS-ADAT provide
high-performance multi-channel AES/EBU and ADAT
connectivity for any Windows or Macintosh based audio or
video workstation at sample rates up to 192kHz.
Channels from the expansion cards are connected directly to
the LynxTWO/L22 digital mixer. This allows almost unlimited
routing capabilities with expansion card I/O’s, as well as the
analog and digital I/O’s of the host LynxTWO or L22.
Using the LynxTWO/L22 Mixer application, “stand-alone” functions can
be configured that place no demand on the host computer. In a
LynxTWO system these functions include but are not limited to:
• Four-channel, 192 kHz analog-to-AES or analog-to-ADAT converter
• Four-channel, 192 kHz AES-to-analog or ADAT-to-analog converter
• Eight-channel AES digital patch-bay
• 16-channel ADAT digital patch bay
• AES to ADAT or ADAT to AES format converter
• Composite video or word clock to AES or ADAT synchronizer
LS-AES
LStream Expansion Card
The LS-AES is an 8-channel AES/EBU or S/PDIF LStream interface
module that is designed for use with the LynxTWO and Lynx L22. The
LS-AES provides four inputs and outputs that support professional
AES/EBU and consumer S/PDIF digital I/O formats. Connections are
transformer coupled with pro-quality sample rate conversion (SRC)
available on all inputs. The LS-AES is also compatible with Dolby
Digital and DTS encoded formats.
◆ Running at a sample rates up to 96 kHz, the
LS-AES provides eight I/O channels in singlewire mode and four channels in dualwire
mode. At 192 kHz, four channels of I/O are
available in dual-wire mode and two channels in quad-wire mode.
◆ For additional channel capacity, two LSAES
cards can be used simultaneously with one
LynxTWO or L22.
PHOTO - VIDEO - PRO AUDIO
◆ The LS-AES can handle both asynchronous
and synchronous studio configurations. SRC
can be enabled independently on each digital input to accommodate asynchronous signals from multiple digital devices
Alternatively, all inputs can be run synchronously and any input can be selected as the
system clock source. The card can also be
synchronized to a word clock or composite
video received by the host LynxTWO.
www.bhphotovideo.com
◆ For S/PDIF coaxial connections, the optional
Lynx XLR to RCA S/PDIF adapters CBLXFDRM18 and CBL-XMDRM18 are required.
The LS-AES installs in an empty bracket internally in your computer, no PCI slot required.
Includes: LS-AES Internal Card LS-AES LStream
Ribbon Cable 6' AES/EBU Breakout Cable
COMPUTER AUDIO HARDWARE
LYNX
1225
LYNX CARDS COMPARED
Analog Input Channels
Analog Output Channels
Digital Channels
Maximum Sample Rate
LynxONE
Lynx L22
LynxTWO-A
LynxTWO-B
LynxTWO-C
2
2
4
2
6
2
2
4
6
2
1 Stereo
1 Stereo
1 Stereo
1 Stereo
1 Stereo
96kHz
96kHz
96kHz
96kHz
96kHz
AES/EBU and S/PDIF Support
Yes
Yes
Yes
Yes
Yes
Bit Perfect Transfers for Dolby & DTS
Yes
Yes
Yes
Yes
Yes
2
2
2
2
LTC Reader
Yes
Yes
Yes
LTC Generator
Yes
Yes
Yes
LTC to MIDI Time Code (MTC) Conversion
Yes
Yes
Yes
LStream I/O Ports
MIDI Ports
2
Word Clock
Yes
Yes
Yes
Yes
Yes
256 Word Clock
Yes
Yes
Yes
Yes
Yes
SMPTE Longitudinal Time Code (LTC)
Yes
Yes
Yes
NTSC/PAL Composite Video Genlock
Yes
Yes
Yes
AES16
192 KHZ Multi-channel AES/EBU Interface
The AES16 offers unprecedented AES/EBU channel capacity and routing
flexibility in a single PCI card format. With support for up to 16 channels of
input and output at sample rates up to 192 kHz/24-bit, the AES16 turns your
computer into a powerful digital router or patchbay with extensive flexibility with
minimal cabling. Most importantly, the AES16 supports 192 kHz/24-bit single-wire
and dual-wire modes. Up to four AES16’s can be installed in a single computer.
◆ Offering a solution for jitter problems in AES signals, the AES16
incorporates SynchroLock technology that provides extreme jitter
tolerance at all inputs. By coupling statistical analysis with low-noise
clock generation techniques, SynchroLock is able to extract a very
clean clock from AES signals affected by long cable lengths and other
noise sources. The clock output of SynchroLock can also be used as a
very accurate word clock source for other studio devices.
◆
The AES16 includes an LStream expansion port for increasing its I/O
capabilities. Connecting a Lynx LS-ADAT adds multi-channel ADAT
lightpipe I/O and supports format conversion between AES/EBU and
ADAT. The LStream port can also be used for routing data to a second
AES16 and increasing the
channel count to 32.
The on-board digital mixer offers
flexible patch-bay style routing and
digital mixing. Zero Latency
32-channel / 32-bit digital mixer
with 16 sub outputs. Multiple dither
algorithms per channel.
◆
Glitch-free recording and playback is assured due to the AES16’s
large on-board buffers and extremely efficient zero-wait state DMA
engine. These features provide tolerance to system latencies and
significantly reduce load on the host CPU. Data transfer hardware
and software are highly optimized to provide extremely low latencies
for ASIO and other real-time applications.
AES16: Without cables (Mfr # LYN-A16 • B&H # LYAES16) ..............................CALL
AES16E: PCIe without cables (Mfr # LYN-A16E • B&H # LYAES16E) ..............CALL
AES16-XLR: Includes two sets of CBL-AES1604 breakout cables
(Mfr # LYN-A16XLR • B&H # LYAES16XLR) ................................................................CALL
AES16-SRC: Includes XLR cable sets and eight channels of onboard
sample rate conversion. (Mfr # LYN-A16SRC • B&H # LYAES16SRC)...................CALL
CBL-AES1604: 6’ 110-ohm shielded twisted pair cabling 26-pin
high-density male D-sub to four female XLR’s (AES inputs), four male
XLR’s (AES outputs), and two female BNC’s (word clock I/O).
(Mfr # CBL-AES1604 • B&H # LYCAES164) ...................................................................59.50
(212) 444-6601 • 1-800-947-9901 • Quick Dial 91
PHOTO - VIDEO - PRO AUDIO
1226
COMPUTER AUDIO HARDWARE
M-AUDIO
Fast Track USB
2x2 Mobile USB Audio Interface
If you make music with GarageBand or other software recording programs, Fast Track
USB is the easiest way to record with professional results. USB powered, it has one
input for instruments plus a microphone input for recording vocals or other acoustic
sounds. Bundled GT Player Express software gives you killer effects and virtual stomp
boxes so you don’t need any other gear to sound great. GT Player Express also plays standard
audio files like AAC, MP3 and WAV that let you learn and jam along with your favorite music at variable speeds.
◆ 24-bit/48kHz sound
◆ Stereo headphone output (1/8”)
◆ Dynamic microphone input (XLR) with gain
◆ Stereo output jacks (RCA)
control and signal LEDs
◆ Level control for headphones and main
◆ Switchable instrument/line input (1/4”)
outputs
◆ Direct hardware monitoring for synchronized
overdubs
◆ Mono switch sends input signal equally to
left and right channels
Fast Track USB - 1 Input / 2 Output USB Audio Interface with GT Player Express Software for Mac and Windows (Mfr# 9900-51948-00 • B&H# MAFTQ) .....99.95
Fast Track Pro 4x4 Mobile USB Audio/MIDI Interface
The Fast Track Pro features 2 front-panel mic/line inputs complete with phantom
power, inserts for outboard effects, balanced and unbalanced analog outputs,
S/PDIF digital I/O, MIDI I/O, and more. Fast Track Pro also features near-zero
latency direct hardware monitoring and low-latency ASIO software monitoring,
plus an A/B source switch and dual output pairs for DJ-style cueing. Compatible
with most popular PC and Mac music software, comes with Ableton Live Lite music
production software so you can make music right away
◆ Insert jack (¼” TRS) for outboard processors
◆ 2 balanced outputs (¼” TRS)
◆ S/PDIF out also supports pass-through of
AC-3/DTS surround-encoded content
◆ Mono switch for input/playback direct
monitoring
◆ 4 unbalanced outputs (RCA)
◆ ¼” TRS headphone output with level control
◆ Master output level control
◆ S/PDIF digital I/O with w/ 2-channel PCM
◆ Input/playback mix control for hardware
◆ Powered via USB or optional AC adapter
◆ 1 x 1 MIDI I/O with activity LEDs
direct monitoring
◆ Kensington lock port
Fast Track Pro - 4 Input / 4 Output Mobile USB Audio/MIDI Interface with Dual Microphone Preamps (I/O Variable According to Sample and Bit Rate)
- Mac OS X and Windows XP (Mfr# 9900-51076-00 • B&H# MAFTP) ..............................................................................................................................................................................CALL
Fast Track Ultra
High-Speed 8x8 USB 2.0 Interface with MX Core DSP Technology
Take mobile recording line to the next level with high-speed USB 2.0
connectivity, MX Core DSP mixer and four preamps with awardwinning Octane technology. Featuring both analog and digital I/O,
the Fast Track Ultra allows recording on all 8 channels simultaneously
with pristine 24-bit/96kHz fidelity—while mature low-latency drivers ensure rock-solid stability and performance. The on-board
MX Core DSP mixer processes eight hardware inputs and eight software returns to the eight hardware outputs, delivering flexible
routing and monitoring with delay and reverb. Compatible with most audio software, Fast Track Ultra lets you record the way
you want—in the studio or on the go.
PHOTO - VIDEO - PRO AUDIO
www.bhphotovideo.com
COMPUTER AUDIO HARDWARE
M-AUDIO
1227
Transit
Fast Track Ultra Features
Fast Track Ultra front
Fast Track Ultra back
◆
◆
24-bit/96kHz professional audio on all I/O
simultaneously
4 preamps with M-Audio Octane
technology:
Audio USB Interface
Small enough to fit in your pocket, Transit brings
high-resolution 24-bit/96kHz recording and playback
to any USB-compatible computer. Digital I/O lets
you transfer pristine audio between computer and
other devices. The digital output can deliver AC-3
and DTS from your computer to an external decoder
such as a surround receiver. Bus-powered design allows
you play and record virtually anywhere your laptop can go.
Transit is your ticket to ride.
◆ Mobile 24-bit/96kHz USB audio upgrade
◆ Stereo analog/optical digital input (1/8”)
◆ Stereo line/headphone output (1/8”)
◆ Accommodates self-powered stereo
microphones
◆ Includes 3.5mm (male) to TOSlink (female)
adapter
• 4 XLR mic inputs including 2 XLR/TRS
combo jacks for mic or instrument level
inputs
◆ TOSlink optical digital output allows AC-3
• 20dB pad on each preamp
Transit 2 -in/2-out Portable USB Recording Interface (Mfr# 9900-50904-00 • B&H# MAT2496USB) .....78.95
and DTS pass-through
◆ Includes Maximum Audio Tools software
bundle
• signal/peak LED indicator lights
• phantom power
◆
6 balanced line inputs and outputs
◆
2 dedicated inserts on the first two
channels
◆
S/PDIF digital I/O; built-in 1 x 1 MIDI
interface
◆
Two independent headphone outputs
with individual volume controls
◆
MX Core DSP technology allows digital
effects processing with assignable
parameters; flexible channel routing
options; and expands DSP mixing
interface to 16 x 8
◆
Full ASIO 2.0, WDM, MME, and Core Audio
support
◆
Compatible with most major audio
production software including all ASIOand Core Audio-based applications.
◆
USB bus power enables analog channels
1/2, S/PDIF I/O, and one headphone
output. Supplied power supply required
for full 8 x 8 operation.
Fast Track Ultra - USB 2.0 Recording
Interface • 8 Channels I/O • 4 Preamps
• On-Board DSP • 24-Bit/96kHz • Mac OS X
• Windows XP
(Mfr# 9900-52469-00 • B&H# MAFTU) ...................CALL
Mobile Pre
Audio / MIDI Interface
MobilePre USB is a preamp with a
built-in audio interface designed
for laptop recording such as
field recording and sampling
expeditions. In fact, it’s one of the
only completely bus-powered preamps available.
(Of course, you can use it on the desktop as well.) Three kinds of audio inputs
and outputs provide maximum flexibility for any application. Zero-latency direct
monitoring provides you with a streamlined professional recording experience.
◆ 2 x 2 16-bit/48kHz analog I/O
◆ Stereo line output (1/8”)
◆ 2 microphone inputs (XLR balanced) with
◆ Gain control knob for each input channel
48v phantom power
◆ Stereo microphone input (1/8”)
◆ 2 high-impedance instrument/line inputs
(balanced/unbalanced 1/4” TRS)
◆ 2 mono line outputs (1/4” @ -10dBV)
◆ Stereo headphone output w/level control
knob
(+40 dB max)
◆ Zero-latency hardware direct monitoring
(mono/stereo) with software level control
◆ USB-powered for total mobility
◆ Includes Ableton Live Lite 4 music
production software, so you can start
making music right out of the box.
MobilePre USB - 2 Channel USB Mic Preamp(Mfr# 9900-50764-00 • B&H# MAMP) .................................CALL
(212) 444-6601 • 1-800-947-9901 • Quick Dial 91
PHOTO - VIDEO - PRO AUDIO
1228
COMPUTER AUDIO HARDWARE
M-AUDIO
Audiophile 2496 • Audiophile 192
4-in/4-out PCI Audio / MIDI Interfaces
The Audiophile 2496 features premium digital audio
converters, elegant board design and ultra-stable
drivers just like the rest of the Delta line, but with a
simpler I/O configuration. It features Zero-Latency
monitoring, MIDI and S/PDIF I/O, software-controlled
36-bit internal DSP digital mixing/routing and supports
all computer platforms and major software programs, ensuring
seamless integration and rock-solid performance. Stepping up, the Audiophile 192 features
high-definition 192kHz sampling rate, balanced analog I/O and an amazing signal-to-noise ratio.
Audiophile 2496: 24-Bit/96kHz 4-in/4-out PCI Audio/MIDI Interface for Mac and Windows (Mfr # 9900-50765-00 • B&H # MAA2496) ..........................................CALL
Audiophile 192: 24-Bit/192kHz 4-in/4-out PCI Audio/MIDI Interface for Mac and Windows (Mfr # 9900-50768-00 • B&H # MAA192) .............................................CALL
Delta 44 • Delta 66
The Delta 44 and Delta 66 are professional PCI audio cards connected to an analog break-out
box that provide four analog 1/4” TRS audio input /outputs that are compatible with balanced
or unbalanced +4dB or -10dB signal levels. Also includes Delta Control Panel software, which
allows you to control their comprehensive routing, monitoring, and mixing capabilities. In
addition to superb sound quality and and driver support, they provide 24-bit/96 kHz recording,
zero latency monitoring, digital mixing, and controllable SCMS. Otherwise identical, the
Delta 66 adds a S/PDIF digital I/O with SCMS copy protection control (coaxial).
Delta 44: 4-Input / 4-Output PCI Sound Card with Breakout Box for Mac and PC (Mfr # 9900-50757-00 • B&H # MAD44)....................................................................CALL
Delta 66: 6-Input / 6-Output PCI Sound Card with Breakout Box for Mac and PC (Mfr # 9900-50757-00 • B&H # MAD44)....................................................................CALL
Delta 1010 • Delta 1010LT
The rack-mount Delta 1010 features superb engineering and ultra-high quality
converters. Multiple inputs accommodate numerous tracks simultaneously,
including zero-latency monitoring for seamless overdubs. Multiple outs
route individual tracks or soft synth/ sampler timbres to a mixer or directly
drive up to 7.1 surround sound systems. Analog outs remain live for
monitoring while mixing or transferring digital signals via S/PDIF. Rounding
it out is MIDI I/O and Word clock I/O for sample accurate device synchronization.
The Delta 1010LT delivers much of the same universal connectivity, high fidelity and
seamless performance as the Delta 1010 on a compact, half-size PCI card with two
color-coded breakout cables. Multiple analog I/O, MIDI, S/PDIF and surround sound
support are all here. Two inputs even have mic/line preamps on XLR connectors, saving
the expense of outboard preamps.
Delta 1010LT: 10-Input / 10-Output PCI Card for Mac and PC (Mfr # 9900-50752-00 • B&H # MAD1010LT) ..............CALL
Delta 1010: 10-Input / 10-Output PCI Card with Breakout Box for Mac and PC (B&H # MAD1010LT) .................CALL
PHOTO - VIDEO - PRO AUDIO
www.bhphotovideo.com
COMPUTER AUDIO HARDWARE
M-AUDIO
1229
PROFIRE LIGHTBRIDGE
FireWire Lightpipe Interface
The ProFire Lightbridge interfaces up to four Lightpipe devices with
a PC or Mac via FireWire—perfect for integrating digital mixers,
A-D and D-A converters and/or ADATs with most popular DAW
software. The unit is capable of 32 channels of Lightpipe I/O, two
channels of S/PDIF I/O and two-channel analog output for a total of 34 x 36 concurrent channels
at 44.1 or 48kHz sample rates. (It also supports 16-channel Lightpipe operation at 88.2 and 96kHz sample rates via the
S/MUX protocol.) The ProFire Lightbridge can output word clock as a
master, or slave to external sync on any input, and MIDI I/O also
accommodates MIDI Time Code and MIDI Machine Control.
Independent volume controls are provided for the ¼” balanced outputs
and ¼” headphone jack.
◆ 32-channel Lightpipe I/O at 44.1 or 48kHz
◆ FireWire connectivity to computer
◆ MIDI I/O (via included breakout cable)
◆ 16-channel Lightpipe I/O at 88.2 or 96kHz
◆ All analog and digital I/O active simultane-
◆ ¼” front-panel headphone out with
using S/MUX
ously (total of 34 x 36 concurrent channels at
44.1 or 48kHz; 18 x 20 at 88.2 or 96kHz)
◆ S/PDIF I/O (via included breakout cable, coax)
◆ Indicators for sample rate, Lightpipe I/O, MIDI
◆ Two ¼” TRS analog outputs with dedicated
I/O, sync source and power
level control
◆ Word clock I/O (via included breakout cable)
◆ Up to 24-bit/96kHz operation
dedicated level control
◆ Kensington lock slot
◆ Half-space rack chassis, optional mounting
tray
◆ Compatible with most major DAWs
ProFire Lightbridge: 34 Input / 36 Output FireWire Lightpipe Interface for Mac and Windows (Mfr# 9900-51815-00 • B&H# MAPFLB) .......................................CALL
FIREWIRE SOLO
FireWire Audio Interface
The FireWire Solo is designed from the ground up as an easy-to-use,
high-quality interface for songwriters to record guitars, vocals and more on the
computer. Compatible with most popular music software, this compact bus-powered
unit is small enough to go anywhere you want to take your music. In addition to the 1/4”
guitar input right on the front panel, a professional XLR microphone input also lets you record vocals and acoustic
instruments. There are also dual line inputs for effects, drum machines and other outboard gear. FireWire connectivity,
up to 24-bit/96kHz sample rate support and digital I/O all add up to outstanding sonic performance. As simple to connect
and operate as it is powerful, FireWire Solo is the foundation of your computer-based songwriting studio.
◆
High quality 24-bit/96kHz FireWire computer
interface designed for songwriters to record
with the minimum of complexity
◆
◆
Microphone, guitar and line inputs
◆ Bundled software provides flexible routing
◆
S/PDIF digital I/O
Dual FireWire ports with bus-power (+12vDC
power supply included for use with 4-pin
FireWire PCs)
and mixing with near-zero latency monitoring
◆
ASIO 2, WDM, GSIF2, MME and Core Audio
compatible
◆
Digital output also supports pass-through of
AC-3/DTS surround-encoded content
◆
Rack-mountable metal chassis
FireWire Solo: 6 Input / 4 Output FireWire Interface for Mac and Windows (Mfr# 9900-50739-00 • B&H# MAFWS) ...............................................................................CALL
(212) 444-6601 • 1-800-947-9901 • Quick Dial 91
PHOTO - VIDEO - PRO AUDIO
1230
COMPUTER AUDIO HARDWARE
M-AUDIO
FireWire 410
4-In/10-Out FireWire Mobile Recording Interface
The FireWire 410 is an audio/MIDI interface that has it all—power,
flexibility, compact size and low price. 4-in/10-out configuration
complete with preamps is perfect for personal recording, routing
discrete outputs to a mixer, or directly driving a surround sound
system.
The on-board ASIO 2-compliant mixer and software control panel
provide total routing flexibility—including monitoring with external effects.
You also get ultra-low latency software monitoring and near-zero latency hardware
direct monitoring—and two headphone outs with independent level controls. FireWire 410 can be completely bus-powered
for mobile operation (6-pin FireWire port required).
◆ 192kHz stereo out
◆ 1 x 1 MIDI I/O w/ bypass for stand-alone use
◆ Software-controlled mixing and routing
◆ 2 x 8 24-bit/96kHz analog I/O (1/4” TS)
◆ Digital I/O supports surround-encoded AC-3
◆ Powered via DC supply or FireWire bus (6-pin
◆ Dual mic/instrument preamps (Neutriks XLR/
1/4” TS). Global phantom power
◆ 66dB available preamp gain. S/PDIF digital
I/O (coaxial/optical) w/ 2-channel PCM
and DTS passthrough
FireWire port required)
◆ Low-latency software monitoring
◆ 2 convenient high-speed FireWire ports
◆ Direct hardware monitoring. 8 analog outs
◆ Includes Ableton Live Lite 4 music
can directly drive up to 7.1 surround
production software
FireWire 410: 4-Input / 10-Output FireWire Recording Interface for Mac and Windows (Mfr # 9900-50730-00 • B&H # MAFW410) ..................................................CALL
FIREWIRE 1814
8-in/14-out FireWire Audio/MIDI
Interface with ADAT Lightpipe
Complete with ADAT Lightpipe for multi-channel communication with other digital devices, the FireWire 18/14 features 8 x 4
analog I/O at up to 24-bit/96kHz, and boasts 192kHz on the first two
inputs and all four outputs. Channels 1 and 2 also include high-quality microphone/instrument preamps. S/PDIF optical
digital I/O provides 2-channel PCM, as well as pass-through of surround-encoded AC-3 and DTS material. Flexible internal
mixing allows input and output routing, including an aux bus for effects send or monitor mix.
◆ 8 x 24-bit/96kHz analog inputs (1/4” TS)
◆ 4 x 24-bit/96kHz analog outputs (1/4” TRS/TS)
◆ 2 x 4 24-bit/192kHz analog I/O capability
◆ 8 x 8 ADAT Lightpipe I/O
◆ Digital S/PDIF (coaxial) I/O w/ 2-channel PCM
◆ Dual mic/instrument preamps (Neutrik XLR/
1/4” TS) with input level controls; 20dB pad;
phantom power; signal LEDs
◆ User-assignable front-panel level control
(output, input, software return, aux send)
◆ Two independently assignable headphone
outputs with level controls (1/4" TRS)
◆ Flexible software-controlled mixing of hard-
ware and software I/O
◆ Momentary switch for A/B cueing two
software-assignable headphone sources or
switching ASIO monitoring on/off
◆ 1 x 1 MIDI I/O
◆ Aux sends on all channels and aux output
◆ Wordclock (BNC) for sync to external devices
assign allows for dedicated headphone
mixes and sends to external effects
◆ Powered via FireWire bus (6-pin FireWire port
◆ Near zero-latency hardware direct
monitoring
◆ Low-latency ASIO software direct monitoring
required) or included DC power adapter
◆ Two high-bandwidth FireWire ports
◆ Includes Ableton Live Lite 4 music
production software
FireWire 1814 18-Input / 14-Output FireWire Recording Interface for Mac and Windows (Mfr # 9900-50736-00 • B&H # MAFW1814)........................................349.95
PHOTO - VIDEO - PRO AUDIO
www.bhphotovideo.com
COMPUTER AUDIO HARDWARE
M-AUDIO
1231
FAST TRACK ULTRA 8R
High-Speed USB 8 x 8 Audio/MIDI
Interface with 8 Preamps
The Fast Track Ultra 8R features USB 2.0 connectivity, MX Core
DSP mixer, and eight preamps with award-winning Octane technology,
built into a rugged 1U rack-mountable metal chassis. 24-bit/96kHz resolution
throughout the recording and monitoring process allows you to take advantage of the
exceptional fidelity on all of the inputs and outputs simultaneously.
◆ Provides eight channels of analog inputs and
outputs plus 2-channel digital S/PDIF for
even greater flexibility.
◆
Two dedicated analog inserts on the first
two channels, allows you to insert outboard
processing before A/D conversion.
◆
Compatible with most major audio software
programs and seamlessly integrates into any
studio setup.
Fast Track Ultra 8R 8x8 USB 2.0 Audio/MIDI Interface (Mfr # 9900-52570-00 • B&H # MAFTU8R)................................................................................................................499.00
MX Core DSP Technology
Octane Preamp Technology
◆ The Fast Track Ultra 8R and the ProFire 2626
offer eight mic preamps, using M-Audio’s
Octane technology — enough channels for
miking drum kits and complete ensembles.
◆ These professional low-noise, high-gain
preamps feature +48V phantom power for
condenser mics, signal/peak LED indicator
lights and a pull-out gain knob that activates
a 20dB pad for recording at high volumes.
◆ All eight inputs accept line-level signals, and
two front-panel 1⁄4” instrument inputs are
also provided.
◆ The MX Core mixer employs an array of
eight individual DSP cores to deliver nearzero latency, effects and a sophisticated
routing matrix, accessible via an intuitive
control panel that utilizes a separate mixer
for each pair of outputs — all without burdening the computer.
◆ Apply reverb while tracking vocals to get
more out of an artist’s performance, and
take advantage of two independent headphone outputs to create separate monitor
mixes when recording multiple musicians.
◆ The mixer provides for up to a 16 x 8
configuration, allowing you to connect
microphones, synths and other outboard
gear to any of the interface's hardware
inputs, then mix them with the eight audio
streams coming from the computer
without taxing the CPU.
◆ Reverb and delay is available on the
headphone outputs with separate sends
for every channel. Now you can inspire
creativity by adding effects—without
taxing your CPU resources.
PROFIRE 2626
High-Definition 26-in/26-out FireWire Audio/MIDI Interface
The ProFire 2626 delivers up to 24-bit/192kHz audio resolution,
with onboard DSP mixing, and award-winning Octane
preamp technology. The 26 inputs and are derived from the
eight mic /line preamps, eight 1/4˝ TRS balanced line outputs,
dual eight channel ADAT I/O ports and S/PDIF I/O. Input channels one
and two are also available as Hi-Z instrument DIs. The onboard DSP mixer and
router provides a flexible solution for comprehensive studio work in any environment. You can
select from up to 52 audio streams and send them to any of the 26 hardware outputs.
◆
The eight onboard mic pres provide pristine audio fidelity with a
generous 75dB gain range, 48V phantom power and a -20dB pad.
◆ Supports ASIO, Core and Pro Tools M-Powered software, delivering
broader compatibility than any other product in its class.
◆
Customizable master volume knob can be assigned to any or all of the
analog output pairs, providing a choice of which output pair will feed
the main monitors. In addition, master level control can be assigned to
all four output pairs to uniformly attenuate up to a 7.1 surround mix.
ProFire 2626 26x26 FireWire Audio/MIDI Interface (Mfr # 9900-52397-00 • B&H # MAPF2626) .........................................................................................................................CALL
(212) 444-6601 • 1-800-947-9901 • Quick Dial 91
PHOTO - VIDEO - PRO AUDIO
1232
COMPUTER AUDIO HARDWARE
MACKIE
ONYX SATELLITE
2-Piece Portable FireWire
Recording System
An innovative approach to digital recording, the Onyx Satellite
features a two-part audio interface designed to get the best out
of computer recording in both live and studio environments. The
heart of the Satellite System is the Satellite Pod, a sleek, portable two-channel
FireWire interface that incorporates two of Mackie's acclaimed Onyx preamps, as
well as 24-bit/96kHz A/D and D/A converters. Additional Satellite Pod features include dual
headphone/control room outputs with individual level controls, two inputs, two outputs, and a rugged portable design.
◆ The Satellite Pod snaps into the Satellite Base
Station to provide AC power, additional I/O,
talkback and monitor switching functions. By
plugging the Pod into the base station, the
system becomes a two-input, six-output
FireWire audio interface with professional
features such as an advanced routing matrix,
talkback microphone, advanced monitoring
functions and surround speaker control.
◆
8 inputs (2 active at any time) can be
switched between mic, instrument or
balanced line input sources.
◆ 6 line-level outputs
◆ 24-bit/96kHz capable sound quality
◆ 6-channel volume control allows for
surround sound mixing
◆ Satellite Pod can be bus powered for field
use, or externally powered, for added
convenience
◆
Control room section provides for switching
between two separate monitor outputs for
multiple monitor speaker setups.
◆ Works with all ASIO and Core Audio
compatible software. Comes bundled with
a full version of Mackie's award-winning
Tracktion 2 software, providing a complete
out-of-the-box recording setup with professional features like a 64-bit high-definition
mix engine, unlimited track count, ReWire
and VST support, MIDI controller mapping,
external synchronization, and integrated
support for Mackie control surfaces. Also
includes a set of Mackie’s Mixing and
Mastering plug-ins.
ONYX Satellite - 2-Piece Portable FireWire Recording System for Mac and Windows (Mfr# ONYX SATELLITE • B&H# MAOSATELLITE) ..........................................184.95
ONYX 400F
10-Channel FireWire Interface
The Onyx 400F is a 10-channel, 192kHz-capable
FireWire audio interface that features flagship
Mackie Onyx microphone preamps, as well as
on-board DSP matrix mixing. The 400F’s
on-board DSP mixing matrix allows latency free
headphone mixing and routing independent of
the DAW software. This is a particularly useful feature for those operating older DAW-based systems where processing
power is limited. Front panel controls on the Onyx 400F include control-room output level, dual independent headphone
outputs with dedicated level control, dual instrument inputs, and four-segment metering for the mic inputs. The rear
panel includes four combo mic/line inputs, balanced TRS sends and returns for the first two mic inputs, four line inputs,
eight line outputs, Control Room outputs, Word Clock I/O, MIDI I/O, SPDIF I/O and two FireWire ports. The 1U rackmount
steel chassis features an extruded aluminum front panel with machined aluminum knobs. A black plastic accent strip is
flushed mounted into the front panel to complete the look.
The Onyx 400F is bundled with a complete software package which includes Tracktion, Mackie's audio recording and
MIDI production software, as well as the Mackie Final Mix mastering toolkit.
PHOTO - VIDEO - PRO AUDIO
www.bhphotovideo.com
COMPUTER AUDIO HARDWARE
MACKIE
ONYX 1200F
Studio Recording Preamp and
192kHz FireWire Interface
Onyx 400F Features
◆ Premium FireWire-based studio
recording preamp/audio interface
◆ 4 flagship Onyx mic preamps with
class-leading fidelity and dynamic range
◆ Superb AKM
24-bit/192kHz A/D and
D/A converters
◆ Internal 64-bit floating
point processing for
superior sound and
minimal CPU drain
◆ 10 x 10 DSP Matrix Mixer
with powerful software
interface and flexible, recallable routing
The Onyx 1200F is a
massive 30 x 34 channel,
24-bit/ 192kHz-capable
FireWire with 12 of
Mackie's flagship Onyx
preamps, on-board DSP
matrix mixing, advanced monitoring/headphone control section with four
user-assignable headphone outputs, two stereo control room outputs, built-in
talkback mic input, and remote switching capability.
Among the Onyx 1200F’s most innovative features is an assignable patch bay
with advanced DSP capabilities. The 1200F provides an extensive on-board
mixing interface that allows the user to route to any desired monitoring path
and phones outputs directly from the hardware inputs at near zero latency.
This functionality also allows 1200F users to patch any hardware input, or mix
any combination of hardware inputs, to any hardware output. Likewise, any
software output can be patched to any hardware destination.
◆ Onboard DSP provides custom Control
FEATURES
Room / Headphone mixes at near-zero
latency
◆ Stand-alone operation: DSP mixer retains
◆ Front panel controls include control-room
output level with A/B monitor select, four
discrete headphone outputs with level controls, two instrument inputs, and 4-segment
metering for the mic/line input channels.
settings even when computer is not
connected
◆ No channel count sacrifices, even at
192kHz sampling rate
◆ 4 additional balanced line inputs;
◆ The rear panel includes 12 combo mic/line
inputs, balanced TRS sends and returns for
the first two mic inputs, eight balanced line
outputs, dual stereo control room outputs,
Word Clock I/O, 2 x 2 MIDI I/O, dual ADAT
I/O, SPDIF I/O, AES/EBU I/O, and two FireWire
ports. Footswitch inputs are provided for
monitor switching and talkback activation.
8 balanced line outputs
◆ TRS inserts on Inputs 1, 2, 3 and 4
◆ Control Room and Dual Headphone
Outputs with independent level controls
◆ Dual FireWire ports for daisy chaining
and direct connection to Mac or PC
◆ MIDI, Word Clock and S/PDIF I/O
◆ Includes Tracktion 2 Audio Production
software and plug-in bundle
Onyx 400F
10 Input / 10 Output 24-bit/ 192kHz
FireWire Audio Interface with Tracktion
Software for Mac and Windows
(Mfr# ONYX 400F • B&H# MAO400F) .................CALL
1233
◆
The rugged, 2U rackmount steel chassis
features an attractive extruded aluminum
front panel with machined aluminum knobs.
A black plastic lens is flushed mounted into
the front panel and accommodates 12
channels of level meters.
◆ 12 flagship Onyx mic preamps with
class-leading fidelity and dynamic range
◆ 8 balanced line outputs via 25-pin D-sub
connector
◆ 16 x 16 ADAT I/O @ 48kHz (8x8 @ 96kHz, 4x4
@ 192kHz)
◆ 4 headphone outputs with volume control
and discrete stereo feeds
◆ Superb AKM 24-bit/192kHz A/D and D/A
converters
◆ Built-in control room functions include A/B
Monitor Switching, Talkback, plus stereo and
up to 7.1 surround output main volume
control
◆ Balanced TRS send and return insert jacks on
Inputs 1 and 2
◆ Dual FireWire ports for daisy chaining and
direct connection to Mac or PC
◆ Stand-alone mixer functionality for field and
studio use without computer
◆
Bundled with a complete software package
which includes Tracktion 2, Mackie’s audio
recording and MIDI production software, as
well as the Mackie Final Mix CD mastering
toolkit. Provides a complete recording/mixing/mastering solution right out of the box.
Onyx 1200F: For Mac and Windows or Standalone (Mfr# ONYX 1200F • B&H# MAO1200F) .........................Call
(212) 444-6601 • 1-800-947-9901 • Quick Dial 91
PHOTO - VIDEO - PRO AUDIO
1234
COMPUTER AUDIO HARDWARE
MOTU
2408MK3
PCI-based Audio Workstation
A cost-effective solution for recording
and editing digital audio without
sacrificing the power and flexibility
needed in today’s project and
commercial studio environments, the
2408MK3 has everything you need to turn
your computer into a powerful 24-bit/96kHz
digital audio workstation. The 2408MK3 provides 8
channels of pristine 96kHz analog recording and playback,
combined with 24 channels of ADAT and Tascam digital I/O —
the most ever offered in a single rack space audio interface. Connect up to
four interfaces to the PCI-424 card and you have a system capable of 96 simultaneous active input and output connections at 96kHz. The 2408MK3 is ideal for both
the computer-based studio with no mixing board and more elaborate studios built around a digital mixer of any size. For
the computer-based studio, the bundled PCI-424 card also features CueMix DSP, a flexible DSP-driven mixing and monitoring matrix that eliminates the need for an external mixer or patch-bay. Connect all your studio gear, including synths,
keyboards, and even effects processors. Then control it all from the desktop with no audible monitoring latency and no
processor drain on your computer.With 24 channels of digital I/O, the 2408 is ideal for connecting your computer to a
digital mixer. Both ADAT and TDIF digital connections are supported at up to 96kHz. And with built-in video and SMPTE
synch, you can slave your entire workstation directly to video or SMPTE time code with sub-frame accuracy—without a
dedicated synchronizer. The 2408mk3
is cross-platform compatibility with
Mac, Windows 98SE/Me/2K/XP and
most audio software and host-based
effects via WDM/ASIO/Sound Manager drivers. Or use the included AudioDesk workstation software for Mac, with 24-bit
recording/editing and 32-bit mixing/processing/mastering.
Inputs/Outputs
Expansion Capability
◆ The rear panel of the 2408MK3 rack-mount interface provides eight
◆ A core 2408mk3 system provides 24 inputs and outputs, but it also
1/4” balanced TRS analog inputs and outputs, an extra pair of main
analog outs (1/4” TRS), three banks of 8-channel ADAT optical
“lightpipe”, three banks of 8-channel Tascam TDIF, RCA S/PDIF (with
an extra S/PDIF output), Audio Wire and BNC word clock I/O.
◆ The extra stereo output has front panel volume control so you can
plug powered monitors directly into the 2408mk3.
◆ You can choose any three banks (up to 24 channels) to be active at
one time. This means you can hook up three ADATs, three DA-88s,
and eight analog devices all at the same time and access any three
banks - in any combination of formats. And you can freely switch
formats at any time.
offers the most expansion ever offered in a single PCI card. Up to four
interfaces can be connected to the PCI-424 for up to 96 channels of
simultaneous input and output at sample rates up to 96kHz. Think
about the possibilities: you could connect twelve 8-channel ADAT or
TDIF compatible devices including multi-channel mic preamps,
digital mixers, and A-to-D converters to your computer, along with
32 channels of analog I/O, and simultaneously record and play as
many tracks of audio as your computer allows.
◆ All four audio formats (analog, optical, TDIF and S/PDIF) support
operation at 44.1, 48, 88.2 or 96 kHz. Each 2408mk3 provides up to 24
channels of simultaneous I/O at 44.1 or 48kHz or up to 12 channels —
three 4-channel banks– of digital I/O at 88.2 or 96kHz.
2408mk3 - 24 Input / 26 Output Digital Expansion Interface for MOTU Hard Drive Recording Systems (Mfr# 2408MK3E • B&H# MA2408MK3E)....................639.95
2408mk3 (PCIe) - 24 Input / 26 Output Hard Disc Recording System with PCIe Card for Mac and Windows (Mfr# 9000 • B&H# MA2408PCIE) ........................CALL
PHOTO - VIDEO - PRO AUDIO
www.bhphotovideo.com
COMPUTER AUDIO HARDWARE
MOTU
1235
2408MK3
S/PDIF Input/Output
PCI-424 Card & Cuemix DSP
◆ The 2408MK3 provides S/PDIF digital I/O so
you can exchange digital audio with a wide
variety of other devices. But the 2408MK3
takes S/PDIF one step further than other
systems by providing an extra S/PDIF stereo
output of the main mix. You can use this
extra stereo digital output for whatever you
want. For example, you can leave it
connected to a DAT machine so that at any
time you can record a stereo mix of the
project you are working on - without having
to swap cables with another S/PDIF device
that may be connected.
For the computer-based studio, the
PCI–424 card features CueMix DSP, a
flexible DSPdriven mixing and
monitoring matrix that provides the
same near-zero monitoring latency as
today’s latest digital mixers. CueMix DSP
allows you to connect keyboards, synth
modules, drum machines, and even
effects processors and then monitor
these live inputs with no audible delay and no processor drain on the host CPU.
The CueMix DSP engine resides on the PCI–424 card, so it works across all interfaces
connected to the card. The CueMix Console software provides an on-screen mixer that
gives users hands-on control of their monitor mix, regardless of what audio software
they prefer to use. Digital Performer users have the additional option of controlling
CueMix DSP directly within DP’s mixing environment.
SMPTE & Word Clock
◆ The 2408MK3 is the first audio interface to
provide on-board video and SMPTE time
code synchronization features. This allows
you to slave your 2408MK3 system to video,
SMPTE time code or both - without a
dedicated synchronizer. The PCI-424 card
provides a DSP-driven phase-lock engine
with sophisticated filtering that provides
fast lockup times and sub-frame accuracy.
◆ The PCI-424 is expandable to 96 active
inputs/outputs. It supports sample
rates up to 192kHz and provides DSPdriven monitor mixing across 96 inputs
@96kHz with zero host buffer latency.
◆ PCI-424 resolves directly to SMPTE time
◆ S/PDIF jacks (RCA) on the rear panel can be
switched via software to become a dedicated
SMPTE LTC timecode I/O. However, because
the 2408mk3’s sync features are driven by
the PCI–424’s DSP, any analog input can be
chosen for SMPTE input, and any active
channel, digital or analog, can be chosen as
a SMPTE time code output.
code via any available analog input
with sub-frame accuracy. No separate
SMPTE synchronizer required. Also
provides word clock and ADAT Sync to
achieve sample-accurate digital
transfers between digital recorders
and the computer.
◆ Cuemix DSP allows you to mix multiple
channels into multiple mix busses or
directly assigned outputs. Manage your
monitor mix with the Cuemix Console.
◆ Cuemix Console provides independent
level and pan controls for each input on
every mix. And with CuemixDSP you
aren’t limited to four stereo mixes. You
can configure a unique mix for every
physical stereo output you have
available. This means you can have up
to 48 separate stereo mixes on a 96
output system.
◆ Supplied software also provides a complete
set of tools to generate SMPTE for striping,
regenerating or slaving other devices to the
computer. Synchronization features are
cross-platform and compatible with all
audio sequencer software.
Additional Features
◆ Includes a setup wizard for both Mac and
PC based systems that will have you up and
running in minutes. The Setup wizard is an
interactive, stand-alone director movie that
helps you connect everything together. It
even configures the 2408MK3 driver for you
when you’re done!
Legacy I/O Support
◆ Users who already own a 2408MKII or other
PCI-based MOTU recording system can
connect their legacy MOTU hardware to
the PCI–424 card of a 2408MK3 system.
◆ Switchable input levels (+4/ –10dB) for each
◆ All legacy PCI-based MOTU interfaces are
analog input pair via software.
supported, including the original 2408,
2408MKII, 1296, 1224, 24I and 308. Users
can mix and match legacy interfaces with
the new 2408MK3 as they please.
◆ 2408MK3 connects to the PCI-424 card
◆ Legacy interfaces can also take full
advantage of the PCI-424’s CueMix DSP near
zero latency monitoring.
(installs in the computer), via 6-pin IEEE
1394 cable. The PCI-424 supports cable
lengths of up to 50 feet. Long cable runs
are often necessary in studios where the
computer is housed in a separate room than
the rack–mounted 2408MK3 audio interface.
◆ Dedicated front-panel five-segment level
meters for every analog input and output.
◆ Separate front-panel volume knobs provide
independent volume control for the frontpanel headphone jack and the rear-panel
main outputs.
◆ Across-the-board software compatibility —
the 2408MK3 ships with a complete set of
drivers for Windows 98SE/Me/2K/XP and
Macintosh and is compatible with virtually
all audio software on both platforms.
◆ Core 2408MK3 system all includes
AudioDesk, MOTU’s sample–accurate workstation software for Macintosh with 24-bit
recording/editing and 32-bit automated
mixing, processing and mastering.
(212) 444-6601 • 1-800-947-9901 • Quick Dial 91
PHOTO - VIDEO - PRO AUDIO
1236
COMPUTER AUDIO HARDWARE
MOTU
24 I/O
PCI Audio Interface
The 24I/O is a single rack-space
96kHz audio interface for Macintosh
and Windows systems that fulfills the
promise of host-based hard disk recording: to
record, edit, mix process, and master multitrack
recording projects entirely inside your computer. It provides 24 balanced 1/4˝ (TRS) 96kHz analog inputs and outputs
in a single rack-space enclosure, allowing you to connect and record
from 24 simultaneous analog sources. Like the 2408MK3, a 24i/o core
system includes MOTU's next generation PCI-424 card, which provides
expansion up to 96 inputs/outputs, DSP–driven mixing and monitoring, legacy I/O
support, on-board SMPTE synchronization and Audiodesk workstation software for Macintosh.
The 24I/O rack interface which is also available separately as an expansion I/O for 24i/o or 2408mk3 systems provides
5-segment front-panel meters for every input and output and software-switchable (-10/+4) analog input levels.
Metering
◆ The 24I/O’s front panel is essentially a dedicated meter bridge for
your hard disk recording system. Audio activity for every input and
output is represented by its own five-segment LED bar graph.
Front Panel Power Switch
◆ Useful in the unlikely event you wish to turn off your 24I/O. An
interesting fact about MOTU Audio interfaces is that they are hot
swappable. This means you can power off, plug-in, add and remove
interfaces without turning your computer off or restarting. In fact, if
you already have a 2408MK3 or other PCI-424 system, adding a 24I/O
is as easy as plugging in an AudioWire cable.
24-bit analog TRS I/O
◆ The 24 analog inputs and outputs are professional-grade 1/4” TRS
(balanced/unbalanced) connectors operating at either -10dB or +4dB.
The input level can be switched via software in banks of eight inputs.
In addition, CumixDSP provides continuously variable input trim with
up to 12dB boost per channel.
Word Clock I/O
◆ The 24I/O audio interface provides industry standard word clock sync
on a single BNC connector that can be programmed for input or
output via software.When operating as a word clock input, the word
connector allows the 24I/O to synchronize smoothly with today’s
digital audio studio.When operating as a word clock output, the word
connector can be used as a master clock to drive other digital devices
in your studio, such as a digital mixer.
AudioWire
◆ Uses the second generation AudioWire introduced with the 2408MK3.
It is a high-bandwidth digital audio format capable of carrying up to
24 channels of 96 kHz digital audio in and out of the computer at the
same time. AudioWire can readily handle the 24 simultaneous inputs
and outputs of the 24I/O audio interface.
Power Supply
◆ Comes with an internal power supply and standard detachable IEC
power cable. No wall warts or line lumps.
24 I/O (PCIe) - 24 Input / 24 Output Hard Disc Recording System with PCIe Card for Mac and Windows (Mfr# 8800 • B&H# MA24IOPCIE) ..................................CALL
PHOTO - VIDEO - PRO AUDIO
www.bhphotovideo.com
COMPUTER AUDIO HARDWARE
MOTU
1237
HD192
High-Definition
192kHz Audio Interface
for Mac and PC
Designed for those who demand the very best audio
quality available, the HD192 is equipped with the latest
generation 24-bit, enhanced multi-bit 128x oversampling
192kHz converters to achieve a remarkable A-weighted
signal-to-noise ratio of 120 dB with balanced XLR
connectors throughout. Ideal for surround applications,
the HD192’s 12 inputs and 12 outputs can support two
simultaneous 5.1 mixes. And the HD192 is full of
advanced features, like AES/EBU I/O with sample rate
conversion both in and out. The PCI-424 card introduced
with the 2408mk3 is 192-kHz ready. Just connect the HD192
expansion interface to record 192-kHz audio. The HD192 can be purchased
as an expander for an existing PCI-424-based MOTU Audio System, or as a core system which includes the PCI-424 card
and Audiodesk workstation software.
Highest-Quality
A/D Converters
Front Panel Power Switch
◆ Useful in the unlikely event you wish to turn
off your HD192. An interesting fact about
MOTU Audio interfaces is that they are hot
swappable. This means you can power off,
plug-in, add and remove interfaces without
turning your computer off or restarting.
◆ The most important link in the digital
recording chain is the A/D converter. It is
the critical component that converts your
analog input signal into digital information.
The higher the quality of the A/D converter,
the better your recordings will sound. The
192kHz converters in the HD192 are the
same ones used in more expensive HD
systems.With 120dB A-weighted dynamic
range and a THD+N of 0.0005%, the HD192
is simply the best sounding front end you
can buy for your digital audio workstation.
Inputs/Outputs
◆ All 12 XLR inputs and outputs on the HD192
rear panel support operation at 44.1, 48, 88.2,
96, 176.4 and 192 kHz and use professionalgrade XLR connectors operating at +4 dB.
output allow the HD192 to synchronize
smoothly with today’s digital audio studio.
The word clock output can be used as a
master clock to drive other digital devices in
your studio, such as a digital mixer. The AES
digital I/O can be driven separately via a
dedicated word clock input. You can even
slave to a 48kHz clock source, even when
the HD192 is operating at 192-kHz.
Audio Wire
◆ The HD192 uses the same second generation
AES/EBU
◆ The HD192 features stereo AES/EBU digital
Comprehensive Metering
◆ The HD192’s front panel provides dedicated
19-segment level meters for all 12 inputs
and outputs. Two over meters are included,
a temporary over meter and an over/hold
meter that is resettable via software.
Comprehensive clock status LEDs are also
included so you can see at a glance the
current sampling rate and clock source.
Word Clock I/O
◆ An industry-standard word clock input and
I/O with built in sample rate conversion. This
gives you the ability to integrate external
digital audio sources, no matter what the
sample rate, while recording audio at higher
sample rates on the analog I/O of the
HD192. For example, you can still take
advantage of the 96-kHz digital I/O on your
favorite outboard reverb, while recording
audio at 192-kHz.
Audio Wire as the 2408MK3. It is a highbandwidth digital audio format capable of
carrying up to 24 channels of 96-kHz or 12
channels of 192-kHz digital audio in and out
of the computer at the same time.
Power Supply
◆ Like all MOTU hardware products, the
HD192 comes with an internal power supply
and standard detachable IEC power cable.
No wall warts or line lumps.
HD192 - 12 Input / 12 Output High Resolution Expansion Interface for MOTU Hard Drive Recording Systems (B&H# MAHD192E) ...................................1514.95
(212) 444-6601 • 1-800-947-9901 • Quick Dial 91
PHOTO - VIDEO - PRO AUDIO
1238
COMPUTER AUDIO HARDWARE
MOTU
ULTRALITE
Half-Rack, Bus-Powered FireWire Audio Interface
The UltraLite is a half rackspace, bus-powered FireWire audio interface
that turns a laptop or desktop Power Mac, Intel Mac or PC into a
mobile 24-bit, 96kHz recording studio with 10 inputs and
14 outputs. Housed in sturdy yet lightweight aluminum alloy,
the UltraLite provides 2 mic/instrument inputs with preamps,
48v phantom power, unique three-way pad switch and frontpanel Digital Precision Trim knobs that provide 24dB of gain in 1dB
increments for a total gain range of 60dB. The UltraLite also provides on-board
SMPTE time code synchronization features, which allow users to slave their UltraLite
system to SMPTE time code (via any analog input) without a synchronizer. The UltraLite can also generate time code and
send it to any analog output. These sync features are provided by a DSP-driven phase-lock engine with sophisticated
filtering that provides fast lockup times and sub-frame accuracy. MIDI performance is sample-accurate with supporting
software. Connect microphones, guitars, synths, keyboards, drum machines and even effects processors, and then use the
UltraLite's built in 8-bus mixer to monitor all of these live inputs via the UltraLite’s main outs, headphone jack or any
other output — with virtually no monitoring latency and no processor drain on the computer.
FEATURES
Inputs/Outputs
◆ 10 inputs with 2 mic preamps and 14 outputs
including separate mains.
◆ Six 24-bit 96kHz analog inputs and eight out-
puts on balanced/unbalanced 1/4” TRS jacks.
◆ Separate TRS main outs and front-panel
headphone jack, each with independent volume control.
◆ Stereo 24-bit 96kHz S/PDIF in/out
◆ Two mic pre-amps with switchable 48v
phantom power (mix/match condenser and
dynamic mics) and front-panel trim controls.
◆ Three-way pad switch (0, 18, 36dB) plus
24dB of adjustable trim (in 1dB increments)
provides 60dB gain range.
◆ 18dB of extra gain for the six TRS inputs.
◆ Discrete ins/outs - there’s no channel sharing
in the UltraLite; the analog I/O, mic inputs,
S/PDIF I/O, headphone out and main outs are
all handled as separate channels.
◆ Two FireWire ports - daisy-chain up to four
units on a single FireWire bus without a hub.
Operation
◆ Front-panel control - access your entire mix,
or any UltraLite setting, directly from the
front panel.
◆ Plug-and-play operation with your Mac or PC
via FireWire.
necessary for complete recording freedom.
Includes power supply for stand-alone
operation (without a computer).
audio inputs and outpus.
◆ Multiple CueMix DSP mixes - create different
monitor mixes for the main outs and headphones. Add send/return loops for outboard
gear with no latency.
◆ Just plug in any DC power adapter (10-24v,
tip positive or negative).
◆ Add additional UltraLite, 828MKII, 896,
896HD or Traveler for additional I/O.
◆ CueMix DSP near-zero monitoring system.
◆ Sample-accurate MIDI - connect a MIDI con-
◆ Bundled with
sample-accurate AudioDesk
workstation software for Mac with 24-bit
recording, editing, mixing, real-time 32-bit
effects processing & sample-accurate sync.
troller and/or sound module with no separate interface needed. MIDI I/O is sampleaccurate with supporting software.
◆ SMPTE sync and striping via any analog
input/output.
◆ Includes drivers for Mac & PC, including ASIO,
WDM, Wave, GSIF, Core Audio, and Core
MIDI. Supports all popular Macintosh and PC
audio software.
effects processing in today’s popular audio
programs.
www.bhphotovideo.com
Compact, sturdy, lighweight construction
(8.5” x 7”, WxD), ready to travel anywhere.
Easily fits in napsack, briefcase or computer
bag. Sits perfectly beside any laptop.
◆ Bus powered, no additional power supply
◆ Front panel backlit LCD metering for all
◆ 100% compatible with all host-based
PHOTO - VIDEO - PRO AUDIO
General
◆
◆
Compatible with Mac OS X 10.3 or higher
(including the new Intel Macs), Windows XP
and any audio software that supports
standard WDM/ASIO/Core Audio drivers.
UltraLight - for Mac OS X and Windows XP
(Mfr # 8400 • B&H # MAUL)..............................................549.00
UltraLight and Digital Performer 5 for Mac OS X
(B&H # MAULK) ........................................................849.00
COMPUTER AUDIO HARDWARE
MOTU
1239
8PRE
16x12 FireWire Audio Interface
The 8pre is a 1RU Firewire audio
interface that turns a laptop or
desktop Mac or PC into a 24-bit,
96kHz recording studio with
eight mic inputs, 8-channel
ADAT optical digital I/O and
MIDI I/O. When not connected to
a computer, the 8pre can also
function as an 8-channel A/D converter, making it two products in one. Designed for convenient desktop or rack-mount
operation, 8pre provides a variety of controls and status LEDs on the front panel for easy access and connectors on the
rear panel for efficient studio installation. Use the included CueMix software to mix all 16 inputs from your computer.
Eight channels of ADAT optical I/O make the 8pre an ideal companion for a digital mixer. Two ADAT lightpipe connections
work together to support a full 8 channels of optical digital I/O at any sample rate up to 96kHz.
FEATURES
Inputs/Outputs
◆
◆
16 inputs with 8 mic preamps and 12
outputs including separate phone and main
outs for a powerful desktop studio.
Eight 24-bit/96kHz analog inputs equipped
with TRS/XLR combo jacks accept either a
low-impedance XLR or high-impedance 1/4”
TRS input. Each input has switchable 48v
phantom power (to mix and match condenser and dynamic mics), 20dB pad and a
trim knob that provides up to 40dB of gain.
Operation
CueMix DSP
◆ When the 8pre isn’t connected to a computer
◆ Connect mics, guitars, synths, keyboards and
via a Firewire, the front panel “Mode” LED
changes from “Interface” to “Converter”.
In this mode, the 8pre acts as an 8-channel
analog-to-digital converter that can add 8
mic inputs to another ADAT optical-equipped
audio interface, digital mixer or other device.
drum machines, and then use the 8pre’s
built in 8-bus mixer to monitor all of these
live inputs via the 8pre's main outs,
headphone jack or any optical output pair —
with virtually no monitoring latency and no
processor drain on the computer. Users can
even create up to four separate (stereo)
monitor mixes for the main outs, headphones and optical outputs. Everything,
including talk-back and listen-back, can be
controlled from the included CueMix
Console software, just like a conventional
mixer.
◆ 5-segment LED meters for the analog inputs,
in addition to phone and main out volume.
Other status LEDs indicate clock source and
other settings.
◆ Two balanced/unbalanced 1/4” TRS
24-bit/96kHz analog main outs and
front-panel headphone jack, each with
independent volume control.
Timecode
◆ Slave the 8pre to SMPTE time code without a
synchronizer via any analog input. The 8pre
also generates time code, which can be sent
to any analog output. The 8pre provides a
DSP-driven phase-lock engine with sophisticated filtering that provides fast lockup
times and sub-frame accuracy.
◆ Eight channels of ADAT optical I/O -
provides two sets of optical connectors to
provide eight channels of optical digital I/O
even at high samples rates (88.2 or 96 kHz).
◆ Simply plug in your FireWire cable, and both
MIDI and audio are ready to go. Connect a
MIDI controller and/or sound module with
no separate interface needed. Timing is
sample-accurate with supporting software.
◆
No channel sharing in the 8pre; the mic
inputs, ADAT optical I/O, headphone out
and main outs are all handled as separate
channels.
◆ Daisy-chain up to four units on a single
FireWire bus without a hub.
◆
Included SMPTE Console software provides a
complete set of tools to generate SMPTE for
striping, regenerating or slaving other
devices to the computer. These sync features
are cross-platform and compatible with all
audio sequencer software that supports the
ASIO2 sample-accurate sync protocol.
Additional Features
◆
Includes drivers for Mac & PC, including
ASIO, WDM, Wave, GSIF, Core Audio, and
Core MIDI. Supports all popular Macintosh
and PC audio software.
◆
100% compatible with all host-based
effects processing in today's popular audio
programs.
◆
Includes AudioDesk full-featured sampleaccurate workstation software for Mac with
recording, editing, mixing, real-time 32-bit
effects processing & sample-accurate sync.
8pre: FireWire Audio Interface/Converter for Mac and Windows (Mfr # 8500 • B&H # MA8PRE) ...........CALL
8pre with Digital Performer for Mac (B&H # MA8PREK) .................................................................................CALL
(212) 444-6601 • 1-800-947-9901 • Quick Dial 91
PHOTO - VIDEO - PRO AUDIO
1240
COMPUTER AUDIO HARDWARE
MOTU
828MK3
FireWire Audio Interface with Digital Mixing and Effects
The 828mk3 is a 24-bit 192kHz capable FireWire audio
interface that provides 28 inputs and 30 outputs in a
single rackspace. All I/O is routed to an on-board
16-bus digital mixer driven by hardware-based DSP
with 32-bit floating point precision. The mixer allows
you to apply no-latency effects processing to inputs,
outputs or busses directly in the 828mk3 hardware, independent of the computer. The built in effects include reverb,
compression/limiting, and parametric EQ and they can even be even applied when the 828mk3 is operating standalone
(without a computer) as a complete rackmounted mixer. You can apply EQ and compression on every input and output
(a total of 58 channels), with enough DSP resources for at least one band of parametric EQ and compression on every
channel at 48 kHz. Input signals to the computer can be recorded wet, dry, or dry with a wet monitor mix (for musicians
during recording, for example). The included AudioDesk software gives you all the advanced features needed to record,
edit, mix, and master an audio project in your Mac.
FEATURES
◆ 24-bit/192kHz A-D and D-A converters.
CueMix FX – Digital Mixer with Effects
◆ Eight 1/4” TRS analog inputs and outputs.
Input levels can be switched between +4/-10
for each input via software. Two front panel
mic / instrument DI inputs using 1/4” / XLR
combo Neutrik connectors. The mic preamps provide plenty of gain and phantom
power and variable trim. Analog input trims
are digitally controlled on all inputs.
◆ The mic/guitar inputs features V-Limit, a
hardware limiter that helps prevent digital
clipping from overloaded input signals.
◆ Dual 1/4” Sends allow you to insert a
compressor or effects processor into the
two front panel input channels.
◆ Dedicated balanced XLR main outputs
connect directly to your monitor system.
◆ Front panel 1/4” headphone jack
◆ A dual function knob on the front panel
provides separate volume control over main
outputs and headphones.
◆ The Classic Reverb provides up to 60 secs.
of reverb time, with 5 different room types,
and flexible EQ filtering.
◆ Two forms of compression are supplied: a
◆ CueMix FX is a control software front-end
for Mac OS X, Windows XP and Vista, with
attractive graphic mixing and editing, and
a convenient tabbed interface for quick
access to all features in one window. Simply
click a “Focus” button on any channel or
bus to graphically edit the built in parametric EQ, compression and other effects.
◆ Operates side by side with any host audio
software, and it can be controlled from the
Mackie Control Universal Pro worksurface.
◆ MIDI I/O is provided for accessing a control
ADAT lightpipe interfaces (8 channels at
96kHz), switchable to stereo optical S/PDIF.
Stereo 24-bit / 96kHz coaxial S/PDIF I/O
surface or synth. Word clock input and
output (BNC) provides synchronization with
a wide variety of digital devices or a centralized word clock source.
◆ Front panel meters are provided for all I/O,
◆ The backlit LCD display provides an intuitive
◆ Sixteen channels of 24-bit digital I/O via two
plus SMPTE sync tach and lock LEDs.
◆ Dual FireWire ports – one to connect the
828MK3 to your computer and a second port
to daisy-chain additional devices.
PHOTO - VIDEO - PRO AUDIO
interface to configure your entire system. It
even allows you to use the 828mk3 as a
standalone mixer.
standard compressor with threshold, ratio,
attack, release and gain, and the vintage
sounding Leveler, an accurate model of
the legendary LA-2A optical compressor.
◆ The 7-band parametric EQ is modeled after
British analog console EQ's, featuring 4
filter styles (gain/Q profiles). LP and HP
filters are also supplied with slopes that
range from 6 to 36 dB.
◆ Each channel displays a graphic thumbnail
of EQ curves, compressor settings and
other channel specific parameters. There is
also a section for talkback and listenback.
◆ Drivers for Mac OS X and Windows (XP and
Vista) for compatibility with virtually all
audio software via WDM/ASIO/Core Audio.
◆ 1/4” SMPTE time code I/O allow you to slave
to and generate SMPTE time code without a
dedicated synchronizer. A DSP-driven
phase-lock engine with sophisticated
filtering provides fast lockup times and
sub-frame accuracy.
828MK3 FireWire Interface for Mac and PC (Mfr# 4360 B&H# MA828MK3) ..................................................749.95
www.bhphotovideo.com
COMPUTER AUDIO HARDWARE
MOTU
1241
896MK3
24-bit / 192kHz FireWire
Audio Interface
The 896mk3 is a cross-platform FireWire audio
interface with on-board effects and mixing.
Features include eight XLR/TRS “combo” style
analog inputs with high-quality Mic/Line
preamps, true hi-Z guitar inputs, a total of 28
inputs and 32 outputs, 192 kHz analog
operation, signal overload protection, a 32-bit
floating point DSP for digital mixing and effects
processing, two banks of configurable optical I/O and much more. The 896mk3 allows you to connect a wide variety of
studio gear, including microphones, guitars, synths, keyboards, drum machines and even effects processors. In addition
to the eight mic/guitar preamp inputs, the 896mk3 provides two independent headphone jacks with independent
volume knobs, one of which also controls the XLR main outs on the rear panel. This “master vol” knob can also be
programmed to control any combination of outputs (analog and/or digital). For example, it can control monitor output
for an entire 5.1 or 7.1 surround mix.
FEATURES
Mic/Line Inputs
◆ CueMix FX provides a flexible 28 input/16
bus mixer with on-board DSP effects,
including reverb with sends/returns, plus EQ
and compression on every input and output.
◆ All analog I/O can operate at sample rates
up to 192 kHz (a total of eight ‘combo’
Mic/Line analog inputs and ten XLR outputs,
including two monitor outputs).
◆ Two optical banks provide 16 channels of
ADAT optical at 48 kHz, 8 channels of S/MUX
optical I/O at 96 kHz or two banks of stereo
TOSLink at rates up to 96 kHz.
◆ AES/EBU (XLR) and RCA S/PDIF connectors
offer independent sets of stereo digital I/O.
combo jacks features an individual trim
knob, 20 dB pad switch and 48V phantom
power switch is supplied on the front panel.
◆ All eight inputs are equipped V-Limit, a
hardware limiter that helps prevent digital
clipping from overloaded input signals. With
V-Limit enabled, signals can go as high as
+12 dB above zero with no digital clipping.
Additional protection can be applied by
enabling the Soft Clip feature, which
engages just before clipping occurs and
helps reduce perceptible distortion.
Comprehensive Metering
◆ Two FireWire allow you to expand your
◆ 10-segment ladder LEDs are provided for
system with additional MOTU FireWire
audio interfaces or other devices.
◆ Two 1/4” stereo headphone outputs — one
mirrors the XLR main outs, while the other
operates as an independent stereo pair.
◆ Stand alone operation - program your mixes
at the studio and then bring the 896mk3 to
your gig. Tweka the mix on site using the
back-lit LCD and front-panel controls.
◆ Each of the eight rear panel mic/guitar
every input and output. One eight-channel
meter bank is dedicated to the eight analog
inputs. Another eight-channel meter bank
can display any input or output bank, which
the user can quickly select with a convenient
front-panel rotary encoder. Dedicated main
out meters are also provided.
Synchronization
◆ The 896mk3 employs Direct Digital
Synthesis (DDS), a DSP-driven phase lock
engine and internal clock source that
produces imperceptibly low jitter
characteristics (below the noise floor), even
when the 896mk3 is resolved to an external
clock source via either word clock or SMPTE
time code.
◆ You can slave directly to SMPTE time code,
without a dedicated synchronizer, via one of
the 896mk3's analog input jacks. A
DSP-driven phase-lock engine with sophisticated filtering provides fast lockup times
and sub-frame accuracy.
Drivers and AudioDesk
◆ CueMix FX and drivers for Mac (OS X) and
Windows (XP and Vista) for cross-platform
compatibility with virtually all audio software via WDM/ASIO/Core Audio drivers. The
included AudioDesk workstation software
for Mac provides 24-bit recording/editing
and 32-bit mixing/processing/mastering.
896mk3 (Mfr# 4460 B&H# MA896MK3)...................................................................................................................1024.95
(212) 444-6601 • 1-800-947-9901 • Quick Dial 91
PHOTO - VIDEO - PRO AUDIO
1242
COMPUTER AUDIO HARDWARE
MOTU
TRAVELER
Portable FireWire Interface
The Traveler is everything
you need to turn your
computer into a mobile
24-bit, 192kHz digital audio
workstation. Powered by
your computer's FireWire
bus, the Traveler gives you
a complete, batteryoperated studio wherever
your recording projects take you.
The Traveler provides eight channels of pristine 192kHz analog recording and playback, combined with all of the digital
I/O you need: ADAT optical, AES/EBU and S/PDIF (TOSLink and RCA). You can even expand the system by connecting
additional Traveler, 828mk3 or 896mk3 FireWire audio interfaces.
FEATURES
◆ Sturdy lightweight construction—ready to
travel with you anywhere.
◆ Compact size (14.75 x 9˝—fits easily into a
napsack, briefcase or computer bag and sits
perfectly under any laptop.
◆ Powered by computer or battery—no addi-
tional power supply necessary for complete
recording freedom.
◆ 20 channels with 4 mic inputs—all the I/O
you need.
◆ Four mic pre-amps with switchable 48-volt
phantom power, front-panel Digital Precision
Trim controls and pre-amplified sends.
◆ Individual 48V phantom power—mix and
match microphones.
◆ Record at sample rates up to 192kHz.
◆ 20 inputs / 22 outputs—there's no channel
sharing in the Traveler; the mic inputs, S/PDIF
I/O, AES/EBU I/O, and headphone out are all
handled as simultaneously active, independent channels.
◆ Eight 24-bit 192kHz outputs on
balanced/unbalanced 1/4" TRS jacks
◆ Four 24-bit 192kHz inputs on
balanced/unbalanced 1/4" TRS jacks
◆ Separate headphone jack, with independent
volume control.
◆ Stereo 24-bit 96kHz S/PDIF in/out
◆ Word clock in and out
◆ Built-in SMPTE time code sync
◆ Digital Precision Trim™—adjust preamp gain
in 1dB increments; save and recall multiple
trim setups.
◆ CueMix DSP provides latency-free monitor-
ing system.
◆ Front-panel control—access your entire mix,
or any Traveler setting, directly from the
front panel.
◆ Multiple CueMix DSP mixes—create different
monitor mixes for the main outs and headphones. Add send/return loops for outboard
gear—with no latency.
◆ 8 channels of 24-bit ADAT optical input/out-
put. Eight channels at 44.1/48kHz. Four channels at 88.2/96kHz.
◆ Sample-accurate digital transfers between
ADAT digital tape decks and the computer
via the ADAT sync port.
◆ Sample-accurate MIDI—connect a MIDI con-
troller and/or sound module with no separate interface needed. MIDI I/O is sampleaccurate with supporting software.
◆ Expandable—add additional 828mkII,
828mk3, 896mk3 or Traveler FireWire
interfaces for additional I/O.
◆ Front panel meters for all analog, digital and
MIDI I/O, plus SMPTE sync tach and lock
LEDs.
◆ Dedicated front panel clock status LEDs.
◆ Includes drivers for Mac & PC, including ASIO,
WDM, Wave, GSIF, Core Audio, and Core
MIDI. Supports all popular Macintosh and
Windows audio software.
◆ 100% compatible with all host-based
effects processing in today's popular audio
programs.
◆ Stand-alone operation—program your mixes
at the studio and then bring the Traveler to
your gig—no computer needed. Just plug in
any DC power adapter (10-24 volts, tip positive or negative). Need to tweak the mix? Do
it on site using the back-lit LCD and frontpanel controls.
◆ Includes AudioDesk full-featured sample-
accurate workstation software for the
Macintosh with recording, editing, mixing,
real-time 32-bit effects processing & sampleaccurate sync.
◆ Two FireWire ports for daisy-chaining with-
out a hub
Traveler - 20-Input / 22-Output Portable FireWire Interface for Mac and Windwos (Mfr# 8250 • B&H# MATRAVELER) .........................................................................849.95
PHOTO - VIDEO - PRO AUDIO
www.bhphotovideo.com
COMPUTER AUDIO HARDWARE
PRESONUS
1243
INSPIRE 1394
4x4 Digitally Controlled FireWire Interface
A software controlled FireWire interface, INSPIRE 1394 features four analog inputs and two
analog outputs at 24-bit/96k. Inputs include two custom-designed PreSonus mic preamps
with +48v phantom power and two instrument Hi-Z inputs on the front panel. There are
also two unbalanced RCA inputs on the rear panel that can be configured as dual mono or
stereo line level or phono (with RIAA filter). Outputs include RCA unbalanced and mini TRS
on the rear panel as well as headphone output on the front
panel. INSPIRE 1394 is completely controlled by an easy-to-use software mixer control panel. Controls include, input gain, phantom power, limiter (off/on),
preamp boost (off/on), sample rate, headphone volume, main output volume as well as
zero latency input mixing with playback mixing.
◆ Four simultaneous input channels
◆ Switchable line input or phono input (with
◆ Software Control Panel and zero latency
RIAA filter)
◆ Two microphone/instrument preamplifiers
◆ Two FireWire connectors enable daisy-chain-
◆
ing of up to four INSPIRE 1394’s together for
up to 16 simultaneous inputs at 24-bit/96k
recording rate.
Compatible with all ASIO, WDM and Core
Audio applications including Cubase,
Nuendo, Sonar, Garage Band, Logic Express,
Logic Pro and many others.
mixer
◆
Bundled with PreSonus ProPak Software
Suite including Cubase LE 48-track production software, 25 real-time effect plug-ins
and over 3GB of drum loops and samples.
INSPIRE 1394 FireWire Interface (Mfr# INSPIRE 1394 • B&H# PRI1394) .................................................................................................................................................................149.95
FIREBOX 6-input/10-output 24-bit/96K FireWire Interface
A powerful FireWire recording interface that fits in the palm of your
hand, the FireBox is a complete recording studio combining two high
quality PreSonus microphone/instrument preamps, 24-Bit/96kHz
sample rate and Steinberg’s Cubase LE 48-track recording software.
Ideal for a professional-quality and compact computer-based studio.
◆
Has the highest record/playback track count
of its size with the ability to record six inputs
and playback through ten outputs simultaneously all at pro-quality 24-bit/96kHz.
◆
Two Class-A ultra-low noise high-headroom
microphone/instrument preamplifiers with
48v phantom power on the front panel.
◆
◆
Two additional balanced TRS line inputs
along with six balanced TRS line outputs.
Two channels of S/PDIF input/output and
MIDI input/output are also included via DB9
breakout cable.
Zero-Latency DSP mixer allows you to mix all
six live inputs with a software output stream,
then route that mix to any one of its outputs,
as well as assign either that mix or a software
output stream to its headphone amplifier.
◆
High quality stereo headphone output with
volume adjustment on the front panel. The
headphone output has its own two-channel
driver stream which can be used as a
separate stereo bus or two-channel output
giving you the ability to send a “cue” mix to
the headphone output and a main mix to
the main output.
◆
◆
Powered by 6-pin FireWire bus power or via
an external power transformer.
◆
Windows XP and Mac-compatible, FireBox
comes ready-to-record with Steinberg’s
Cubase LE 48-track 24-bit/96K recording software. It also comes with the ProPak Software
Suite, which includes more than 20 real time
plug-ins, a number of virtual instruments and
over 2 GB of drum loops and samples.
MegaStudio Artist: Includes FireBox and
Cubase 4 LE, Sony Vegas Movie Studio + DVD
video editing software, eight virtual instruments, nine real-time effects, and a large selection of drum loops and sound effects. Also
includes four-hour video tutorial that covers
audio recording and video editing.
(Mfr # MEGASTUDIO ARTIST • B&H # PRMSA)...........449.95
1/3 RU-wide metal chassis fits PreSonus’
MAXRACK rackmount system and can be
racked with the TubePRE, COMP16, EQ3B
and HP4 for a neat and compact computer
recording system.
FireBox Interface: with Cubase LE Software
(Mfr # FIREBOX • B&H # PRFB)..................................299.95
Max Rack (Mfr # MAXRACK • B&H # PRMR)...........79.95
(212) 444-6601 • 1-800-947-9901 • Quick Dial 91
PHOTO - VIDEO - PRO AUDIO
1244
COMPUTER AUDIO HARDWARE
PRESONUS
FIRESTUDIO PROJECT
10 x 10 FireWire Recording System
FireStudio Project is a complete 24-bit/96K recording system
combining eight Class A XMAX mic preamplifiers, 24-bit/96k
sample rate conversion, zero-latency matrix router mixer, and
the PreSonus ProPak Software Suite. The suite includes Cubase
LE 4 48-track recording and production software, over 25 real-time plug-in
effects (EQ’s, compressors, reverbs), and over 2 GB of drum loops and samples. Great for
professional studio recording, live sound recording, performance, podcasting and more, the FireStudio
Project is designed for flexibility and ultra-high sonic performance. With the FireControl Mixer/Router you can send up to
five individual mixes to different musicians during recording so that every band member can have a custom headphone mix.
◆ High-speed FireWire (IEEE 1394) audio
interface, with up to 96K sampling rate.
◆ 8 XMAX Class A microphone preamplifiers
(+60dB gain) w/ trim control.
◆ Eight analog mic/line inputs, 2 Instrument
◆ S/PDIF Digital input and output, MIDI input
and output
◆ Separate 1/4” TRS balanced main outputs.
◆ 1/4” TRS headphone output with level
◆ Balanced Send / Return for channels 1 and 2
◆ Zero Latency Monitoring with FireControl
Mixer/Router.
control.
◆ FREE ProPak Software Suite including Cubase
LE 4 Audio Production Software
Inputs; 8 1/4” TRS balanced analog outputs.
FireStudio Project – (Mfr # FIRESTUDIO PROJECT • B&H # PRFSP) ..............................................................................................................................................................................499.95
FIRESTUDIO TUBE
16 x 10 FireWire Recording System with Two SuperChannels
FireStudio Tube is a complete 24-bit/96k
professional FireWire recording system
with sixteen inputs and ten outputs,
including two SuperChannel Tube Preamps. Additional inputs include eight Class A XMAX mic preamps and six balanced
TRS line inputs on the rear panel. Outputs include eight balanced TRS outputs and PreSonus' signature ultra loud and
clear headphone output. PreSonus’ 16x10 FireControl mixer/router delivers up to five zero-latency custom monitor mixes
easily and quickly. FireStudio Tube touts A/D/A converters with a dynamic range of over 114dB for unbelievable clarity as
well as synchronization using patented JetPLL jitter reduction technology. Bundled with a complete suite of software featuring Steinberg’s Cubase LE 4 48-track recording and production software along with a number of third party plug-ins,
loops, samples and virtual instruments delivering a complete music production solution.
◆ 16 inputs/10 outputs
The two front panel “SuperChannels” feature Class A vacuum tube mic and
instrument preamps along with full-featured analog limiters. The preamps use a
high gain, military-grade tube for maximum gain, low noise and high headroom.
Neutrik combo connectors allow both XLR mic and hi-Z instrument inputs.
Preamp controls include preamp gain and tube drive to achieve a wide range of
sounds from smooth, clean and clear, to warm tube saturation. An 80Hz high
pass filter on the front panel removes room rumble and unwanted lows. Limiter
features a VCA-based ultra fast RMS and peak detection circuit, with threshold
and gain controls, eliminating the possibility of clipping during recording while
maintaining musicality. Fast-acting LED metering on the front panel displays
preamp input and limiter gain reduction for the two tube SuperChannels.
PHOTO - VIDEO - PRO AUDIO
www.bhphotovideo.com
simultaneous record/
playback channels
◆
◆
2 SuperChannels (tube
microphone/instrument
preamplifier with analog
limiter)
8 balanced TRS outputs
◆
8 XMAX microphone
preamplifiers
◆
MIDI Input/Output
◆
16x10 FireControl DSP
mixer/router
◆
High performance A/D/A
converters (114 dynamic
range)
FireStudio Tube
16-in/10-out FireWire Interface with ProPak software suite.
(Mfr # FIRESTUDIO TUBE • B&H # PRFST) ..........................................799.95
COMPUTER AUDIO HARDWARE
PRESONUS
1245
FIRESTUDIO
26-input/26-outputFireWire Recording System
FireStudio is a 26x26 24-bit/96kHz professional recording
system combining eight XMAX Class A PreSonus mic
preamps, up to sixteen channels of optical ADAT
input/output as well as S/PDIF and MIDI input/output.
Wordclock I/O helps integrate the interface into a professional
environment, while a software Control Console delivers a 36x 36x 18 zero-latency
mixer/router. FireStudio also includes the ProPak Complete, a bundle of over 2GB of award-winning
recording and production software, virtual instruments,
plug-ins, drum loops and samples to get you started
making music immediately.
FEATURES
◆
Eight custom-designed high-voltage, discrete, XMAX Class A mic/line preamps with
trim controls. Inputs 1/2 accept instruments
as well. Preamps are characterized by high
headroom, low noise, wide dynamic range
and wide frequency range. Dual neutrik
connector accepts 1/4˝ and XLR inputs.
◆
Ultra powerful FireWire chipset deliver 26
channels of simultaneous inputs/outputs at
24-bit/96kHz. Easily handles high channel
count at high bit-rate while minimizing
latency and load on your computer.
◆
48v phantom power, switchable in banks of
four (1 - 4 and 5 - 8)
◆
Sixteen channels of optical ADAT I/O (eight
channels via 96kHz dual S/MUX)
Control Console - Zero Latency DSP Mixing/Routing
The FIRESTUDIO also includes the Control Console - a 36x36x18 DSP mixer/router for flexible
mixing and direct routing any input to any output including the headphone output, with zero
latency. The Control Console software application lives between your FireStudio interface and
your DAW software enabling the mixing and routing of input streams coming into your FireStudio
interface and playback stream coming from your DAW software. The Control Console is capable
of creating up to nine stereo mixes and then routing to the outputs of your FireStudio for headphone mixes and various aux sends. This way everyone in the band and the recording engineer
can have a custom mix. Also, the FireStudio is loaded with internal flash memory so all Control
Console Mixer and Ouput Router settings are saved and recalled in the FireStudio during power
off/on. This allows you to configure your FireStudio as a stand-alone device, without being
connected to a computer for uses such as a submixer, A/D and D/A-converter, headphone mixer,
format converter, instrument or microphone pre-amplifier!
ProPak Complete Software Suite
The PreSonus FireStudio also comes with the new ProPak Complete Software Suite, which
includes more than 20 real time plug-ins, a number of virtual instruments and over 2 GB of drum
loops and samples including: Steinberg - Cubase LE; Propellerheads Reason Adapted PreSonus
Edition; IK Multimedia - Amplitube LE; FXpansion - BFD lite; Drumagog LE; Sonoma Wire
Works-Riffworks Jr.; Wave Arts – TrackPlug LE, MasterVerb LE and more!
◆ S/PDIF I/O on RCA coaxial connectors
◆
MIDI input and output
◆
Two headphone outputs
◆ Synch is handled by JetPLL jitter reduction
technology. Incorporates noise shaping to
virtually remove all audio band jitter.
Ensures the highest converter performance
possible, resulting in better stereo separation and clearer more transparent audio.
◆
Optional Monitor Station Remote (MSR)
JetPLL delivers ultra-fast locking to any
digital format, through a wide range of
frequencies and is extremely robust, and
tolerant of wide variations in clock frequencies. Ensures near perfect clock performance
when networking audio devices thus
creating the most stable and robust
synchronization to the computer and all
devices synchronization with the FireStudio.
The optional MSR (monitor station remote) for the FireStudio is a complete
surround/stereo speaker manager, input switcher and communication system
delivering a more efficient and flexible work flow. The MSR connects to the
FireStudio via standard Cat 5 Ethernet cable to keep your work space as clean
as possible. There are also two headphone outputs on the FireStudio for even
further flexibility and convenience.
FireStudio: 26-input / 26-output 24-Bit/96kHz FireWire Recording System for Mac and Windows
(Mfr # FIRESTUDIO • B&H # PRFS) .......................................................................................................................................CALL
MSR - Monitor Station Remote for FireStudio (Mfr # MSR • B&H # PRMSR) ................................................199.95
(212) 444-6601 • 1-800-947-9901 • Quick Dial 91
PHOTO - VIDEO - PRO AUDIO
1246
COMPUTER AUDIO HARDWARE
PRESONUS
FIRESTUDIO LIGHTPIPE
ADAT Lightpipe to FireWire Interface
FireStudio LightPipe is a 24-bit/96k ADAT light pipe to
FireWire computer recording system for both PC and
Macintosh computers. The FireStudio LightPipe allows
you to convert up to 32 channels of ADAT optical light
pipe input/output to FireWire providing a multi-channel computer
interface for digital mixers, A/D and D/A converters or ADAT recorders. FireStudio
Lightpipe features JetPLL jitter elimination technology for ultra-tight synchronization and
improved imaging and clarity along with a 34x4 DSP matrix mixer allowing you to create dual stereo latency
monitor mixes. Fast-acting front panel input/output LED meters provide visual monitoring of all signals.
FireStudio LightPipe (Mfr # FIRESTUDIO LIGHTPIPE • B&H # PRFL).............................................................................................................................................................................599.95
MEGASTUDIO PRODUCER
Complete Audio &Video Production Studio
The MegaStudio Producer from PreSonus is a complete audio and video
production studio that includes the FP10 10x10 FireWire recording interface,
Steinberg's Cubase 4 LE recording software for Mac and Windows, along with
Sony Vegas Movie Studio + DVD video editing software for Windows. Additionally,
there are eight virtual instruments, nine real-time effects, and a large selection of drum loops
and sound effects. Also included with the MegaStudio Producer are more than four hours of tutorial
videos showing you step-by-step how to produce professional-quality recordings and videos taking the mystery out of
music and video production.
FP10 Interface
◆ 10x10 FireWire recording interface with 24-
bit/96k sampling rate
◆ 8 Class A XMAX microphone preamps (2
instrument inputs); 8 analog line outputs.
◆ S/PDIF input/output, MIDI input/output
◆ Zero-latency monitoring
◆ Daisy-chain up to three FP10's for 24
Virtual Instruments
Includes Reason Adapted (Synths, Sounds,
Loops), Drumagog LE (Drum replacer), BFD
Lite (Virtual studio drummer), Ultra Analog
Session (Synthesizer), PreSonus VI by SoniVox
(Virtual sample instrument), Lounge Lizard
Session (Vintage electric pianos), Amplitube LE
(Virtual guitar amplifier), KeytoSound (General
synthesizer).
Realtime Effects
Audio and Video Production
recording and production software
◆ Sony Vegas Movie Studio + DVD Architect
Multitrack video and audio editing software
and DVD creation software
Sony 1001 Sound Effects, Discrete Drums
PreSonus Edition, Cycling 74 loops, Twiddly
Bits
CD Burning
Sony CD Architect
Instructional Videos
• Cubase LE4 Demystified - video manual
mic/line inputs.
◆ Steinberg Cubase 4 LE 48-track audio
Drum Loops And Sound Effects
Includes MasterVerb (Mono and stereo reverb),
EyeQ (Graphic EQ and spectral analyzer),
Chamberverb (Reverb), Track Plug LE (Channel
Strip), Camel Crusher (Compressor), PitchCraft
(Pitch correction), FuzzPlus 2 (Guitar effect),
SFX Machine (virtual synthesizer), Pluggo Jr
(12 realtime effects plug-ins).
• Sony Vegas Movie Studio Training by VASST
• How to recording a song using the FP10
• How to make a live recording and video with
the FP10 and Sony Vegas
• How to make a music video with Sony Vegas
• Mixing a song in Cubase LE4,
• Distributing your music on TuneCore
MegaStudio Producer (Mfr # MEGASTUDIO PRODUCER • B&H # PRMSP) ..................................................................................................................................................................499.95
PHOTO - VIDEO - PRO AUDIO
www.bhphotovideo.com
COMPUTER AUDIO HARDWARE
1247
PRESONUS
AUDIOBOX USB
2x2 USB recording system
The AudioBox USB is a USB bus-powered interface with 2 mic/instrument
preamps with 48V phantom power, 2 balanced TRS outputs, MIDI
Input/Output, and a playback mixer knob on the front panel allowing you
to adjust the volume level between your recording and existing tracks. The
AudioBox USB ships complete with the PreSonus ProPak software suite
featuring Steinberg’s Cubase LE 4 as well as a bundle of third party plug-ins,
loops and drum samples. The AudioBox USB is USB bus-powered allowing you to take it anywhere inspiration hits. No
wall warts, line lumps or power cables, just plug in to a powered USB port and
you are ready to record. The AudioBox USB is housed in an all-metal chassis with
metal knobs ready to withstand the rigors of travel. Toss it in your laptop bag
and mobilize your music creation and production.
◆ 24-bit / 44.1, 48k USB audio recording
interface
◆ 2 class A XMAX microphone / instrument
◆ 48V phantom power
◆ Powered via USB
◆ 2 balanced TRS outputs
◆ 1/4˝
stereo headphone output with deicated
level control
◆ MIDI input/output
preamplifiers
AudioBox USB (Mfr# AUDIOBOX USB • B&H# PRABU) ..................................................................................................................................................................................................149.95
Presonus Audio Interface Comparison
AudioBox
USB
Inspire 1394
FIREBOX
MegaStudio
Producer
FireStudio
Project
FireStudio
Tube
FireStudio
LightPipe
FireStudio
USB
FireWire (x2)
FireWire
FireWire (x2)
FireWire (x2)
FireWire (x2)
FireWire (x2)
FireWire (x2)
Bit Depth / Sample Rate
24-bit / 48kHz
24-bit / 96kHz
24-bit / 96kHz
24-bit / 96kHz
24-bit / 96kHz
24-bit / 96kHz
24-bit / 96kHz
24-bit / 96kHz
Total Inputs and Outputs
2x2
6x6
6x8
10x10
10x10
16x8
32x32
26x26
2 x XLR/1/4˝ TRS
‘combo’
2 XLR Mic
2 1/4˝ TS Line
2 RCA Line
2 x XLR/1/4˝ TRS
‘combo’
2 x 1/4˝ TRS
8 x XLR/1/4˝ TRS
‘combo’
8 x XLR/1/4˝ TRS
‘combo’
8 x XLR/1/4˝ TRS
‘combo’
2 SuperChannels
6 x 1/4˝ TRS
—
8 x XLR/1/4˝ TRS
‘combo’
—
2 x RCA
4 x 1/4˝ TRS
8 x 1/4˝ TRS
8 x 1/4˝ TRS
4 x 1/4˝ TRS
—
8 x 1/4˝ TRS
Interface
Analog Inputs
Analog Outputs
Analog Monitor Outputs
2 x 1/4˝ TRS
2 x RCA, 1/8˝ TRS
2 x 1/4˝ TRS
4 x 1/4˝ TRS
2 x 1/4˝ TRS
2 x 1/4˝ TRS
2 x 1/4˝ TRS
2 x 1/4˝ TRS
Analog Sends/Returns
—
—
—
2 x 1/4˝ TRS
—
—
—
2 x 1/4˝ TRS
ADAT/SMUX Input Ports
—
—
—
—
—
—
4
2
ADAT/SMUX Output Ports
—
—
—
—
—
—
4
2
S/PDIF Inputs
—
—
1 Coaxial
1 Coaxial
1 Coaxial
—
—
1 Coaxial
S/PDIF Outputs
—
—
1 Coaxial
1 Coaxial
1 Coaxial
—
—
1 Coaxial
MIDI I/O
Yes
—
Yes
Yes
Yes
Yes
Yes
Multi-unit support
Headphone Output(s)
Word Clock I/O
Up to 4 Units
Up to 3 Units
Yes
via ADAT
1/4˝ TRS
1/8˝ Stereo
1/4˝ Stereo
1/4˝ Stereo
1/4˝ Stereo
1/4˝ Stereo
1/4˝ Stereo
1/4˝ Stereo
—
—
—
—
—
—
BNC
BNC
Bus-powered
Yes
Yes
Yes
—
—
—
—
No
Form Factor
Table Top
Table Top
Table Top
19” Rackmount
19” Rackmount
19” Rackmount
19” Rackmount
19” Rackmount
(212) 444-6601 • 1-800-947-9901 • Quick Dial 91
PHOTO - VIDEO - PRO AUDIO
1248
COMPUTER AUDIO HARDWARE
RME
FIREFACE 400
36-Channel, 24-Bit/192kHz Bus-Powered FireWire Audio Interface
The Fireface 400 is the only device in its class with active
jitter suppression, stand-alone functionality, complete
controllability from the front panel, highly flexible I/Os
in professional quality, and an unsurpassed 648-channel
matrix router - at sample rates up to 192 kHz.
Fireface 400 features eight balanced analog inputs and
outputs (output 7/8 are unbalanced) equipped with software controlled
switching of reference levels. Channels 1 and 2 provide two microphone inputs with a digitally controlled input stage,
individually switchable 48v phantom power and Neutrik Combo connectors for XLR and TRS. Digital connectivity is
provided by ADAT Lightpipe I/O along with coaxial S/PDIF which is AES/EBU compatible. BNC connectors allow for
inputting and outputting Wordclock. The Fireface 400 is equipped with SteadyClock, sync and clock technology that
allows the unit to function as a sync reference for a whole
studio. SteadyClock refreshes clock signals, removes jitter
and provides optimal conversion quality, irrespective of the
quality of the reference clock. With the inclusion of internal
flash memory, all settings are recalled during boot. This
allows it to be configured and used as a stand-alone device, without connection to a computer.
FEATURES
◆ Sample rates up to 192 kHz on all channels
(except ADAT)
◆ Two digitally controlled Mic Preamps in
high-end quality
◆ Two balanced universal inputs for line and
instrument signals
◆ An ADAT optical I/O allows for a connection
SteadyClock
Equipped with SteadyClock, the Fireface 400 becomes a sync reference for the whole studio.
RME's unique sync and clock technology, SteadyClock refreshes clock signals, removes jitter, and
takes care of optimal A/D-D/A conversion quality, thus guarantees a sensational sound quality,
completely independent from the reference clock's quality. SteadyClock allows the unit to control
the sample rate freely on its own. The Settings dialog includes a direct choice of the video and
audio world's most often used sample rates. Additionally, two faders can be used to set the
sample rate freely and in real-time, within the range of +/- 4% and +/- 0.4%.
and insertion of effects devices, mixing
consoles or external converters.
◆ Simple stand-alone operation with rotary
encoder and front panel display
◆ TotalMix: 648-channel mixer with 42-bit
internal resolution
◆ 54 Level Meter Peak/RMS, hardware-
calculated
◆ Full mobility with Bus Power support
TotalMix
The DSP-based TotalMix mixer allows fully independent routing and mixing of all 18 input and
output channels to all 18 physical outputs. Up to 9 totally independent stereo sub-mixes simply
mean unrivalled monitoring facilities. Copy/paste of routings, ganging and group-based
operation of faders, and the extraordinary Matrix window are just some of the mixer's unique
features. The mixer can be completely MIDI controlled, even in stand-alone operation.
Furthermore the DSP hardware calculates RMS and Peak levels for all 54 audio channels, without
causing any significant CPU load.
(Power over FireWire)
◆
Word clock input and output (BNC) plus two
MIDI I/Os (breakout cable, 5-pin DIN)
◆
Power supply accepts 100 to 240v AC, thus
it can be operated all over the world.
◆
A rear panel switch enables Bus Powered
operation, taking the power directly from
the FireWire connector.
PHOTO - VIDEO - PRO AUDIO
FireWire Technology
Fireface 400 uses RME's own FireWire techology, heavily optimized for audio. Minimum overhead,
special hardware adaptations, and a low-latency buffer concept allow a performance and compatibility considered impossible for FireWire audio until now. This includes changing latency in midoperation, latencies down to one ms, or an immediate reaction to changes of the sample rate.
Further optimizations and additional features can be added at any time by Flash Updates.
Fireface 400: FireWire Audio Interface for Mac and Windows (Mfr# FF400 • B&H# RMF400) .................CALL
www.bhphotovideo.com
COMPUTER AUDIO HARDWARE
RME
1249
FIREFACE 800
66-Channel, 24-Bit/192kHz Bus-Powered FireWire Audio Interface
Fireface 800 is the most powerful FireWire audio interface ever. Up to 56 channels record/
playback, up to 192 kHz sample rate, and true FireWire 800 equal an unsurpassed high-end, high performance and high
speed audio interface. Redefining the benchmark for FireWire audio devices, it incorporates world renowned HDSP-technology to provide maximum audio quality and flexibility combined with extremely low latency. High-end A/D and D/A
converters with 24-bit and up to 192kHz sampling frequency on all inputs/outs result in pure and unequaled audio. All
major settings are controlled by the included TotalMix software and can be stored in presets. With the Fireface 800 and
TotalMix you gain full control of the audio
signal: simultaneous recording of 28 tracks to your computer, routing the signal to the backup media on two ADAT-Ports,
making an extra mix for the digital 2-track Master via SPDIF/AES and checking every signal or every combination of signals over the integrated headphone with several different submixes.
FEATURES
◆ Top range AD/DA converters with 24 bit and
up to 192 kHz sampling frequency on all
inputs and outputs
TCO (Time Code Option)
The little module provides the Fireface 800 with a Word
Clock input and offers a synchronization to LTC and video.
Thanks to SteadyClock, the TCO not only extracts absolute
positions from these signals, but also a very clean low-jitter word clock. Thus a sample accurate timecode synchronization to audio or video sources is assured.
◆ 4 x mic inputs with Class-A design with a
maximum gain of 60dB
◆ 8 x Line In and Out, servo-balanced with
variable level settings
◆ High-Z Instrument iniput with Tube Gain
◆ LTC can be derived and generated in all
and Speaker Emulation
common formats: 24, 25, 30, and 29.97
frames; drop-frame or non-dropframe.
◆ Dedicated Headphone Out
◆ Steady Clock -technology for maximum jitter
◆
suppression
◆ Word Clock I/O, (high-speed) MIDI I/O, SPDIF
I/O coaxial (AES/EBU compatible)
◆ Time Code can be sent to the audio or
◆ 2 x ADAT digital I/Os, (1 x switchable to
video application as ASIO Positioning
Protocol (APP) or MTC. An application can
send APP or MTC to the TCO, which will
generate LTC on hardware level with
lowest jitter. Several fly-wheel functions
facilitate chase operation (adjustable
drop-out length, Continuous- or Jam-Sync).
S/PDIF optical) allow expansion using RME’s
OctaMic D or ADI-8 series converters to a
full-blown 28-channel analog input mobile
recording studio.
◆ 2 x FireWire 800 bi-lingual ports, 1 x FireWire
400 port for daisy chain options.
◆
Supports standalone operation by storing
any user setup in flash memory. It retains all
settings, including the mixer configuration,
and loads them when the powered up.
◆ Built-In switching power supply for world-
wide operation.
Commonly used Pull-Up/Pull-Down
formats (±0.1% and ±4%) can be utilized,
and PAL and NTSC video formats will be
automatically detected and processed.
◆
◆ Under Windows XP the HDSP provides the
SMPTE position as APP (ASIO Positioning
Protocol) and as MTC Sync. Under Mac OS
X the TCO-FF provides the SMPTE position
as MTC Sync.
◆ The TCO has a combined switchable Word
Clock/Video input (BNC) as well as an LTC
input (BNC). The Word Clock / Video input
on the card can comfortably be terminated
(relay-controlled) with a 75 Ohm
terminator from the settings dialog.
◆ The TCO also features an additional LTC
output (BNC) with two level settings
(configurable via jumper).
Speaker Emulation filter takes low- and high-frequency disturbances away and guarantees an
optimal basic sound even when recording directly into the computer, or when monitoring
through a mixing console.
Fireface-800 FireWire Audio Interface for Mac and Windows (Mfr# FF800 • B&H# RMF800) ..................CALL
(212) 444-6601 • 1-800-947-9901 • Quick Dial 91
PHOTO - VIDEO - PRO AUDIO
1250
COMPUTER AUDIO HARDWARE
RME
HDSP 9632
32-channel 24-Bit/96kHz PCI Card
An all-in-one solution for Windows or Mac-based systems, the HDSP 9632 features the finest
192kHz A/D and D/A converters (more than 110dB S/N ratio), up to 96 kHz ADAT I/O (SMUX),
SPDIF I/O and MIDI I/O. Separate headphone output operating at 192kHz can easily cope with
any standard studio tasks.
The HDSP 9632 comes with two unbalanced RCAbreakout cables (headphone: stereo jack). All
analog I/Os are unbalanced. Optional breakout cables like balanced analog on XLR and an XLR
AES/EBU out cable are available. This option offers real 192 kHz AES/EBU out mastering facility.
The HDSP 9632 comes with TotalMix—a DSP based 512-channel real-time mixer with zero
B&H # RMHDSP9632
latency monitoring at minimal CPU load. All inputs/ outputs can be utilized at the same time.
RME’s SyncCheck monitors all inputs and displays their actual state, while Intelligent Clock
Control keeps control of all clocks and sync-states. SteadyClock technology offers software controlled sample rates and
maximum jitter suppression with full varipitch compatibility. The analog expansion boards add 4 stereo TRS jacks with the
same performance as the on-board stereo analog I/O— up to 192 kHz, balanced and 3 different reference levels. With this a
maximum of 6 analog inputs and/or outputs can be achieved, turning the HDSP 9632 into a 16 channel I/O solution.
FEATURES
Bundled Software
◆ All settings changeable in real time
◆ Automatic and intelligent master/slave clock
◆ DIGICheck for Windows: includes professional level meters for 2, 8 or all 32 channels.
control
Oversampling Mode, Vector Audio Scope, 30-band true bandpass Spectral Analyzer, Correlation
Meter, Loudness Meter, Bit Statistics, DC and noise measurement/SNR Channel status display,
zero CPU load hardware level meters.
◆ Enhanced mixed mode: All inputs and out-
puts are simultaneously operational
◆ Unique status windows for record and play-
back, showing mode and sample rate
◆
HDSP Meter Bridge: Scalable level meter with Peak- and RMS calculation in hardware
◆
Drivers: Windows 2000/XP (full ASIO multi-client operation of MME, GSIF 2.0 and ASIO 2.0),
Mac OS X (Core Audio, Core MIDI).
◆
SteadyClock combining professional features like maximum jitter suppression at full varipitch
capabilities and software controlled sample rates.
◆ Zero Latency Monitoring for latency-free sub-
mixes and perfect ASIO direct monitoring
◆ Analog input and output level configurable
via software
Optional Accessories
◆ Speaker protection minimizes noise during
power on/off
Balanced analog breakout cable (Mfr # BO9632XLRMKH • B&H # RMBO9632XLRM) ...........................................79.50
◆ Digital inputs and outputs ground-free
transformer coupled
◆ TotalMix 512-channel mixer with 40-bit
internal resolution
◆
Balanced stereo analog in- and output, 24Bit/192kHz, > 110 dB SNR
◆
All analog I/Os capable of 192 kHz, constant
number of available channels
◆
ADAT digital I/O, supporting 96 kHz S/MUX
operation
◆
SPDIF digital I/O, 192 kHz-capable
◆
Up to 16 I/Os can be used simultaneously!
◆
Stereo headphone output,
◆
High-speed MIDI via breakout cable
PHOTO - VIDEO - PRO AUDIO
BOB1 Breakout Box: Hardware breakout box, replaces the breakout cables that originally come
with the card. (Mfr # BOB1 • B&H # RMBOB1) ...........................................................................................................129.00
Time Code Option (Mfr # TCO HDSP • B&H # RMTCOHDSP) ........................................................................................Call
AO4S-192: 4-channel analog expansion board with 24-bit/192kHz support. Designed as bracket
with 4 stereo TRS jacks, provides four servo-balanced outputs. (Mfr # AO4S • B&H # RMAO4S) ........269.00
TEB (TDIF Expansion Board): The TEB adds an 8-channel TDIF interface to the HDSP 9632.
Features include manual choice of clock reference, status LEDs and a word clock output.
(Mfr # TEB • B&H # RMTEB) ..............................................................................................................................................249.00
HDSP 9632 Word Clock Module (WCM):
The Word Clock Module (WCM) provides a galvanically isolated word clock input and two word
clock outputs (BNC connectors). Both outputs have their own driver stages, providing extermely
low jitter signal. A push switch activates 75 Ohms termination for the hi-impedance input.
SteadyClock, part of the PCI card, guarantees an excellent performance in all clock modes. Its
highly efficient jitter suppression refreshes and cleans up any clock signal, and provides it as
reference clock at the two outputs. (Mfr # HDSP9632-WCM • B&H # RMHDSP9632WC) ..................................172.50
www.bhphotovideo.com
COMPUTER AUDIO HARDWARE
RME
1251
HDSP 9652
52-channel 24-Bit/96kHz PCI Card
The HDSP 9652 card turns every computer into a powerful Digital
Audio Workstation (DAW). A 52 I/O channel computer interface
solution, it is based on the award-winning Hammerfall DSP
technology, combining superb handling and stability with
extremely low latency. All 26 inputs and 26 playback channels
can be routed and mixed independently.
Tens of thousands of installations worldwide are proof that the HDSP 9652 is a perfect partner for software-based DAWs
like Cubase, Nuendo, Logic, Wavelab, Sequoia, Sonar, Live and Reason, to name but a few. Two separate MIDI inputs and
outputs are offering additional 32-channel high-speed MIDI interfacing for all sequencer applications. The DSP hardware
calculates RMS and peak level meters for all audio channels, without any measurable CPU load. Three optical ADAT I/Os
each and a SPDIF I/O provide a total of 52 digital audio channels for simultaneous operation. The HDSP 9652 card
provides Word Clock I/O, and comes with TotalMix, RME’s DSP-based multi-channel real-time mixer.
HDSP 9652 Hammerfall: 26-Input / 26-Output 24-bit/96kHz PCI card with ADAT and S/PDIF I/O, MIDI I/O and ADAT Sync for Mac and Windows
(Mfr # HDSP9652 • B&H # RMHDSP9652) ......................................................................................................................................................................................................................................Call
SOUND DEVICES
USBPRE
2 Channel Portable Mic Preamp with USB Interface
The USBPre is a complete, portable audio interface for hard disk
recording. Designed for USB-equipped Windows and Mac computers,
it includes all the connections required for 24-bit audio acquisition with
notebook or desktop computers. Features include two active-balanced
microphone preamps with 48v phantom power, 24-bit A/D converters,
instrument DI, line-level inputs, front panel level metering, with headphone monitoring of both analog source and computer audio. USBPre
is completely bus powered, eliminating batteries or external power supplies.
◆
◆ High-impedance, low-noise DI instrument
All controls on front panel — no softwareonly features.
input
◆ Active-balanced mic and line level inputs
◆ Two channels accept microphone,
instrument, balanced-line, tape level, and
coaxial S/PDIF inputs.
◆ High-strength extruded aluminum chassis.
◆
◆
Dynamic range greater than 106 dB
(in 24-bit operation).
◆ Six-segment, LED peak input meter for
precise level control.
Flat 10 Hz to 20 kHz audio bandwidth
◆ Input type is selected per channel — allowing
two different signal types simultaneously
(both channels when S/PDIF selected).
◆ 48v phantom power for condenser mics
◆ Phono (RCA) jacks connect PC AUDIO output
to external loudspeakers or preamplifiers.
◆ Bus powering from the USB port eliminates
external power sources and batteries.
◆ Regulated internal DC/DC converter for low
noise, consistent audio quality.
◆ Mix control enables zero-delay monitoring
of source audio, computer audio, or a mix of
both source and computer audio.
USBPre: Mic Preamp for Mac or Windows
(Mfr# USBPRE15 • B&H# SOUSBPRE15) ...................549.00
(212) 444-6601 • 1-800-947-9901 • Quick Dial 91
PHOTO - VIDEO - PRO AUDIO
1252
COMPUTER AUDIO HARDWARE
TC ELECTRONIC
Konnekt 8
4-input/4-output 24-Bit/192kHz
FireWire Audio Interface
Konnekt 8 features two mic preamps which are switchable to dedicated
Hi-Z guitar inputs or balanced line inputs, two analog controlled balanced outputs, 2 AUX line in to monitor external
devices, two coaxial S/PDIF (stereo) I/O, sample accurate MIDI and FireWire connectivity. State-of-the art design allows
the unit to be used as a stand-alone mixer with the front panel light ring providing easy access, instant control and visual
feedback of important mix parameters. Bundled with Cubase LE, so you can start recording right out of the box.
◆ Two microphone preamps with switchable
phantom power
◆ Front panel Hi-Z instruments inputs for
guitar and bass
◆ Front panel control of internal mixer
parameters
◆ Analog volume control of powered speakers
◆
Full feature stand alone mode
◆ Network up to four units via a FireWire based
network to get more inputs, outputs and
effects channels
◆ Dual headphone outputs, one with auto
◆ Direct monitoring
speaker muting
◆ Low latency drivers including WDM, ASIO
and CoreAudio (Intel Macs supported)
◆ Sample accurate MIDI
◆ FireWire bus powered
◆ Cubase LE included
◆ Full sample accurate MIDI implementation
and FireWire connectivity.
Konnekt 8 - 4 Input / 4 Output 24-Bit/192kHz FireWire Audio Interface for Mac and Windows (Mfr# 967-100011 • B&H# TCK8) ......................................................Call
KONNEKT 24D
14-input/14-output 24-Bit/192kHz
FireWire Audio Interface
Konnekt 24D is a 14 in 14 out audio interface that steps up from the Konnekt 8 with real-time effects and ADAT
connectors. The Fabrik C channel strip and Fabrik R reverb known from TC’s PowerCore platform are built into the
Konnekt 24D. Both Fabrik effects feature TC’s proprietary MINT technology which allows the user to execute complex
audio adjustments simply by moving the MINT icons around the screen. Konnekt 24D’s onboard effects are designed to
work even when the unit is used in stand-alone mode, a feature that allows users to easily play and monitor without
needing to power up the computer.
◆ Built-in real-time DSP effects; Fabrik C chan-
nel strip and Fabrik R reverb based on MINT
◆ Outstanding IMPACT mic preamps
◆ True Hi-Z guitar inputs - dedicated circuits for
guitar and bass
◆ Ultimate signal path from input, through
built-in real-time effects, to the recording
application
◆ Front panel control of internal mixer
parameters
◆ Full feature stand alone mode
◆ Network up to 4 units via the TC NEAR 1394
Firewire based network to get more inputs,
outputs and effects channels
◆ Full feature direct monitoring - with effects
and also between networked units
◆ Intuitive control panel with automatic input
detection
◆ 3 DSP programs for total recall of internal
routing, mixer and effects settings
◆ Analog volume control for perfect
integration with powered speakers
◆ DICEII digital interface chip with JET Jitter
Elimination Technology
◆ Low latency drivers: WDM, ASIO and
CoreAudio (including Intel Macs)
◆ FireWire bus powered
◆ Dual headphone outputs, one with auto
speaker muting
◆ 24-bit/ 192kHz sampling rate
◆ Sample accurate MIDI
◆ 2 mic/inst/line, 2 balanced line inputs and 4
balanced line outputs, 8 ADAT and 2 S/PDIF
(optical and coaxial) inputs and outputs
◆ Inclues Cubase LE
Konnekt 24D - 14-Input / 14-Outpput 24-Bit/192kHz FireWire Audio Interface for Mac and Windows (Mfr# 967-000011 • B&H# TCK24D) ...............................CALL
PHOTO - VIDEO - PRO AUDIO
www.bhphotovideo.com
COMPUTER AUDIO HARDWARE
TC ELECTRONIC
1253
KONNEKT LIVE
FireWire Audio Interface
An audio interface for live performers, now the same high quality
audio converters and effects of TC Electronic’s Konnekt 24D are
performance-ready. Konnekt Live features extensive output routing
that enhances the audio passing through via its built-in DSP and
optimized analog output section. Bundled with Ableton Live Lite 6 TC Electronic
Edition and two DSP effects:
◆
◆
3-band master compressor built on latest
dynamics processing algorithms - the perfect
Finalizer for any venue. Unique MINT (Meta
Intuitive Navigation Technology) interface
lets users respond intuitively to what’s heard.
◆ Konnekt Live comes with a turntable cable
Konnekt's road-ready casing is designed for
life on the road. Fitting right under a laptop,
its heavy rubber frame has a solid grip on
tilted or slippery surfaces.
◆
and an onboard RIAA plug-in. The selection
of RIAA filters gives studio-quality vinyl
ripping to mix in with original music or
mash-ups.
ResFilter is a plug-in that offers state-of-theart filtering effects. Throw in resonance, 6,
12 and 24 dB slopes for even more stunning
sounds.
◆
Konnekt Live's MIDI I/O allows an external
MIDI controller to be plugged right into the
loop without a USB MIDI interface.
◆
Inter-communication-bus facilitates
controlling and tweaking multiple plug-ins
and parameters from one plug-in, crossfading between two plug-ins etc.
Konnekt Live
(Mfr# 967-200011 • B&H# TCKL) ...............................399.00
DIGITAL KONNEKT X32
Digital Patchbay, Format Converter and FireWire Audio Interface
Digital Konnekt x32 is an all-in-one digital
patchbay, format converter and FireWire audio
interface, for integrating digital outboard
effects units and keyboards with modern
digital audio workstation based studios.
As a stand-alone format converter and patchbay, Digital Konnekt x32 includes 8 channels of AES/EBU, 8 channels of S/PDIF and Toslink, 8 channels of ADAT (up to 96
kHz SMUX) and Word Clock I/O. Any input
format can be converted into either of the
other formats and aligned to any sample rate
ranging from 44.1 to 192 kHz. Digital Konnekt
x32 allows sample rate conversion on up to four separate stereo inputs at once.
◆
Konnekt Digital x32 functions as a computer interface with two
FireWire connections streaming 16 channels of audio to and from the
computer.
◆
Has balanced stereo analog and headphones outputs for monitoring
and is compatible with other TC Electronic audio interfaces.
◆
Accessed like a standard VST/AU plug-in from within a DAW, the
included Integrator plug-in enables hardware processor effects to be
used as an insert or an effect send on any track or on the master
output of the host application.
◆
The Integrator also controls routing, levels and latency compensation
of external effects processing equipment attached to Digital Konnekt
x32, allowing seamless (and painless) integration of hardware effects
processors.
◆
Extra features on the digital patchbay and interface include
complete front panel patchbay configuration, total scene recall, JET
Jitter Elimination Technology and a front panel lock to prevent
unintended button pushes.
(212) 444-6601 • 1-800-947-9901 • Quick Dial 91
PHOTO - VIDEO - PRO AUDIO
1254
COMPUTER AUDIO HARDWARE
TASCAM
US-122L • US-144
Portable USB 2.0 Audio/MIDI Interfaces
US-144
The US-122L and US-144 are audiophile-quality audio/MIDI Interfaces in a
portable package.
They feature USB 2.0 technology for 96kHz/24-bit recording with
zero latency hardware monitoring, XLR mic inputs and MIDI I/O.
Bundled with Cubase LE 48-track recording software, they are
ready to rock right out of the box.
Designed with low-profile knobs for the top - so they’re easy to slip into a
backpack, they offer a rugged metal die-cast enclosure so they’re built to last.
US-122L
◆ 2 XLR mic inputs with phantom power
◆ Up to 96kHz/24-bit high quality recordings
◆ 2 analog line inputs (1 switchable to high
◆ Zero-latency hardware monitoring
◆ S/PDIF Digital Input & Output
◆ Headphone/level control
◆ 4 in, 4 out operation (analog, S/PDIF)
◆ Bus powered for use with any PC or Mac,
◆ Separate headphone output & level controls
impedance for use with guitars, basses, etc.)
◆ 1 MIDI input, 1 MIDI output
◆ USB 2.0 equipped (also supports USB 1.1)
including laptops
US-144 Step-up Features
US-122L: 2x2 USB 2.0 Audio/MIDI Interface (Mfr # US-122L • B&H # TAUS122L) ..............................................................................................................................................129.00
US-122L TNT Bundle: Gives you everything you need to start recording on your PC or Mac. In addition to the US-122L with Steinberg’s Cubase LE,
the bundle includes Tascam's LD-74 microphone. Designed by MXL for Tascam, its large diaphragm design has a 1˝ gold-sputtered element inside,
and the specs are nearly identical to classic studio-standard vocal and instrument mics. Also includes a tabletop stand and XLR cable.
(Mfr # TNT BUNDLE • B&H # TATNTB) ...................................................................................................................................................................................................................................179.00
US-144: 4x4 USB 2.0 Audio/MIDI Interface (Mfr # US-144 • B&H # TAUS144) ....................................................................................................................................................149.00
US-1641 USB 2.0 Audio/MIDI Interface
The 1RU US-1641 is an Audio/MIDI interface
with 16 simultaneous inputs (14 analog
inputs plus S/PDIF digital inputs) and four
simultaneous outputs, eight studio-quality
mic inputs with phantom power, digital I/O,
independent monitor and headphone outputs and 16 channels of MIDI I/O. The US-1641 offers zero-latency hardware
monitoring and up to 96kHz sampling rates at 24-bit resolution. The eight mic inputs employ Tascam Pro mic pres with
60 dB of gain and phantom power for studio-quality recordings. Two balanced TRS line inputs on the front panel are
switchable to guitar level for direct-in recording of bass or guitar tracks. A built-in power supply means there's no special
wall-wart to lose, and connection to the computer is handled by USB 2.0. The US-1641 is bundled with Cubase LE4 and
Tascam’s own Continuous Velocity Piano.
◆ 16 simultaneous inputs
◆ 8 XLR mic inputs with 48V phantom power
◆ Independent monitor and headphone outputs
◆ 4 Simultaneous outputs
◆ USB 2.0 computer interface
◆ 16-channel MIDI input and output
◆ 14 x 4 Analog input/output
◆ Up to 96kHz/24-bit audio resolution
◆ Includes Steinberg Cubase LE4 and Tascam
◆ Stereo S/PDIF digital input/output
◆ Zero-latency hardware monitoring
Continuous Velocity Piano
US-1641 (Mfr # US-1641 • B&H # TAUS1641).....................................................................................................................................................................................................................399.00
PHOTO - VIDEO - PRO AUDIO
www.bhphotovideo.com
COMPUTER AUDIO HARDWARE
TASCAM
1255
FIREONE
24-bit / 96kHz FireWire Audio Interface
The FireOne is a dual channel FireWire audio interface that is equipped with
shortcut keys and a weighted jog wheel to facilitate streamlined control of your
favorite DAW. The large, weighted, backlit jog wheel allows you to zip through
your song, while the backlight provides useful feedback such as a visual
metronome. In addition to its weighted jog wheel, the FireOne has transport keys and
nine programmable function keys to control audio applications like Logic Pro, SONAR, Cubase,
Nuendo, Digital Performer, Live and Pro Tools. The edit control interface makes it a perfect choice for
editing applications like Final Cut Pro and Premiere. Bundled with Live Lite 6 TASCAM Edition, Ableton’s music creation,
production and performance software from Ableton.
◆ 2-in / 2-out FireWire audio interface
◆ Transport control keys: rewind, fast-forward,
stop, play, record
◆ Two XLR mic inputs with phantom power
and pad, 1/4” hi-z input for recording guitar.
◆ Two 1/4” stereo headphone outputs.
◆ 1/4” footswitch input
◆ Buss powered through the FireWire
◆ Eight DAW shortcut keys
connection or use the included power supply
◆ MIDI in and out
FireOne (Mfr# FIREONE • B&H# TAFO).................229.95
FW-1082 • FW-1884
FireWire Audio Interface / Control Surfaces
FW-1884
The FW-1082 and FW-1884 each combine a 24-bit 96kHz FireWire audio and
MIDI interface with a comprehensive control surface, complete with movingfaders. As a DAW controller, each unit is compatible with a wide variety of
popular applications including Digital Performer, Logic, Cubase, Nuendo,
and Cakewalk Sonar. And by emulation of HUI and Mackie Control they
can be used as a comprehensive control surface for DAW applications that
support those protocols such as Digidesign Pro Tools and more. Both the FW-1082
and FW-1884 include the latest TASCAM software bundle featuring Cubasis LE 96kHz/48-track
recording software and GigaStudio 3 LE streaming sampler.
FW-1082
FW-1884
◆ 10-in/4-out audio interface at 96kHz/24-bit including four balanced
◆ 18-channel audio input and output: eight analog, eight ADAT digital
and two S/PDIF coaxial or optical. Eight balanced XLR mic/line inputs
with quality mic preamps and phantom power. Headphone output
with level control
XLR / 1/4” TRS mic/line inputs with phantom power, four balanced 1/4”
TRS line inputs, balanced 1/4” TRS monitor outputs
◆ 1/4” TRS insert jacks for channels 1 and 2
◆
Two MIDI inputs and outputs are also included, plus S/PDIF digital I/O.
◆
Eight channel strips each feature a 60mm touch-sensitive moving
fader and select/solo/mute buttons. Also has a moving master fader.
◆
Four encoders are also available for mix control, as well as transport
and jog/shuttle controls. Stereo monitoring is included, and the
FW-1082 even mixes signals internally for stand-alone use.
◆ Headphone output with level control
FW-1082 (Mfr # FW-1082 • B&H # TAFW1082) ...........................................................CALL
◆ Eight analog outputs, allowing connection of L/R and 5.1 surround
matrices
◆ Four MIDI inputs and outputs
◆
Eight 100mm motorized touch-sensitive channel faders, master fader,
plus controls for pan, solo, mute and select functions on each channel.
◆
Tactile control for four bands of parametric EQ, a jog/shuttle wheel
and a variety of shortcut keys are also included.
FW-1884 (Mfr # FW-1884 • B&H # TAFW1884) ...........................................................CALL
(212) 444-6601 • 1-800-947-9901 • Quick Dial 91
PHOTO - VIDEO - PRO AUDIO
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
