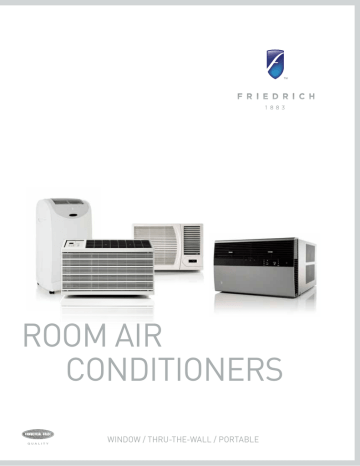

ROOM AIR
CONDITIONERS
QUALITY
WINDOW / THRU-THE-WALL / PORTABLE
CONTENTS
WHICH PRODUCT IS BEST FOR YOUR NEEDS?______________ PAGE 3
Window Air Conditioners
FIND THE BEST MODEL FOR YOU_________________________ PAGE 4
PRODUCTS_______________________________________ PAGES 5-14
ACCESSORIES_ ______________________________________ PAGE 15
SPECIFICATIONS_____________________________________ PAGE 16
INSTALLATION_______________________________________ PAGE 17
Since 1883
Friedrich has been
manufacturing products of
uncompromising quality.
Over the years the products
Thru-the-Wall Air Conditioners
FIND THE BEST MODEL FOR YOU________________________ PAGE 18
PRODUCTS______________________________________ PAGES 19, 20
SPECIFICATIONS_____________________________________ PAGE 21
have changed but the devotion to
ACCESSORIES _______________________________________ PAGE 22
quality has endured.
INSTALLATION_______________________________________ PAGE 22
Friedrich only manufactures air
conditioners, and our sole focus
is to design and build the very
best air conditioners.
You can be assured that your
Friedrich air conditioner
Portable Air Conditioners
PRODUCTS_________________________________________ PAGES 23
SPECIFICATIONS_____________________________________ PAGE 24
INSTALLATION_______________________________________ PAGE 24
will provide energy efficient
operation, ease of use and
outstanding reliability.
Learn more about Friedrich
products at friedrich.com
Hazardous Location Room Air Conditioners
PRODUCTS_______________________________________ PAGE 25,26
SPECIFICATIONS_____________________________________ PAGE 27
INSTALLATION_______________________________________ PAGE 27
2
Which Friedrich product is right for you?
W I N D OW A I R C O N DITIONERS
THRU-THE-WALL
PORTABLE
H A Z A R D O U S L O C AT I O N
Kühl™
X Star ®
CP
WallMaster®
Uni-Fit®
ZoneAire®
Hazardgard®
PERMANENT
Y
Y
Y
Y
Y
N
Y
SEASONAL
Y
Y
Y
—
—
Y
—
CAN BE INSTALLED
THRU-THE-WALL
Y
Y
Y
-except
CP05
Y
Y
—
Y
ENERGY STAR
Y
Y
Y
Y
Y
NA
NA
115V
Y
Y
Y
Y
Y
Y
—
230V
Y
—
Y
Y
Y
—
Y
HEAT PUMP
Y
—
—
Y
—
—
—
ELECTRIC HEAT
Y
Y
—
Y
Y
—
—
>17,000 Btu
Y
—
Y
—
—
—
Y
>25,000 Btu
Y
—
—
—
—
—
—
ROLLS FROM ROOM
TO ROOM
—
—
—
—
—
Y
—
ENHANCED FILTRATION
Y
—
—
—
—
—
—
DECORATOR COLORS
Y
—
—
—
—
—
—
POWER SUPPLY
COOLING W/ HEAT
EXTRA LARGE CAPACITY
SPECIAL OPTIONS
When should you install a solid side sleeve?
A solid side wall sleeve allows
for installation in thick exterior
walls where the installation of
room air units with side vents
would effect performance and
may even void the warranty.
ROOM AIR CONDITIONER
Blocked side vents restrict air flow
OR SLIMMER INSIDE
FRIEDRICH THRU-THE-WALL
Solid-side sleeve (no side vents) can be
installed in thicker walls and can be
positioned flush with exterior wall.
See the complete line of Friedrich products at friedrich.com, including ductless split systems, PTACs and other specialty
cooling solutions.
3
Find the window air conditioner that’s best for you.
U LT R A PREMIUM LINE
OVERVIEW
Description
Room size (sq. ft.)
Functions
Applications
INSTALLATION
SAFETY
HEALTH
EARTH FRIENDLY
SOUND REDUCTION
TECHNOLOGY
COMFORT & CONVENIENCE
Electronic controls
4
Programmable timer
Remote control
PREMIUM LINE
DELUXE LINE
Kühl™
Kühl+™
X Star®
X Star® + heat
CP
Top shelf design and
features. Programmability to rival central
systems. Trusted
Friedrich durability.
Designer colors.
All the elegance,
performance and
durability of Kühl,
plus heating. Choose
efficient heat pump or
toasty electric heat.
Small and powerful.
Programmable
controls. Easier
to self-install and
store.
Year ‘round
use. Heavy duty
construction for
serious durability.
Simple knob
controls.
Good value.
Available in a
large range
of cooling
capacities.
Programmable
timer.
300-2700
350-2700
100-450
300-350
100-1500
COOL
HEAT/COOL
COOL
HEAT/COOL
COOL
AT HOME OR
COMMERCIAL USE
AT HOME OR
COMMERCIAL USE
AT HOME OR
COMMERCIAL USE
AT HOME OR
COMMERCIAL USE
AT HOME OR LIGHT
COMMERCIAL USE
Y
Y
Y
—
Y
7-day with up to 4
settings per day
7-day with up to 4
settings per day
24 hr
—
CP05, CP06,
CP08, CP10 and
CP12 have 12 hr.
CP15, CP18, and
CP24 have 24 hr.
LCD
LCD
Y
—
LCD except CP15,
CP18, CP24
—
Wall thermostat capability
Y
Y
—
—
Auto restart w/setting retention
Y
Y
Y
NA
Y
Auto temp/ fan speed adjustment
Y
Y
Y
—
—
Comfortwatch technology
Y
Y
Y
—
—
Air flow directions
8
8
8
8
4
Auto swing louvers
—
—
—
—
All except CP05
Optional color fronts
Y
Y
—
—
—
Steel inner wall and extra dense
insulation
Y
Y
Y
Y
—
Vibration isolating design and
components
Y
Y
Y
Y
—
Superior airflow design
Y
Y
—
—
—
Energy Star models
Y
Y
Y
—
Y
Environmentally friendly R-410A
Y
Y
Y
Y
Y
Energy saver switch
Y
Y
Y
—
Y
RoHS compliant
Y
Y
—
—
—
Washable, antimicrobial air filter
Y
Y
Y
Y
Y
Optional carbon filter
Y
Y
—
—
—
Electronic maintenance indicator
including check filter reminder
Y
Y
—
—
—
Superior fresh air intake/stale air
exhaust
Y
Y
—
—
Stale air exhaust
only, all except
CP05
EntryGard anti-intrustion protection
Y
Y
Y
Y
Y
Insect barrier
Y
Y
Y
Y
—
All except CP05
Slide-out chassis
Power cord direction
Thru-the-wall installation option
Window installation hardware
Y
Y
Y
Y
Left or right
Left or right
Left or right
Left or right
Left or right
Y
Y
Y
Y
All except CP05
Heavy duty
Heavy duty,
available as accessory
Heavy duty
Heavy duty,
available as accessory
Standard
WINDOW AIR CONDITIONERS
KÜHL SERIES
ADVANCED
QUALITY
Friedrich conducts rigorous performance
The highest grade materials are used to
build a product that will perform reliably
season after season.
ENGINEERING
tests to ensure customer satisfaction and
safety in our own UL certified lab. Run tests
are performed- for up to 120 continuous daysunder extreme temperature conditions.
Air flow systems are tested for powerful and
precise air distribution using state-of-the
art Computational Fluid Dynamics (CFD).
Sound levels are measured and optimized in
our Friedrich sound lab to ensure ultraquiet
performance. Premium air filters are tested
for adsorption capacities and efficiencies.
The unit’s control software is tested for
constant and reliable operation. Packaging
exceeds ISTA (International Safe Transit
Association) standards in order to withstand
transportation hazards.
Advanced design technology. Extensive
product testing. It’s what you can expect from
Friedrich.
SUPERIOR
COMPONENTS
What make’s Friedrich Kühl ultra premium?
Superior components like robust, commercial
grade fan motors that run at a
lower temperature than smaller
fan motors prevent the unit from
overheating and contribute to a
longer life. Fan motors are also
totally enclosed for maximum
protection and longer life.
CONSTRUCTION
20 gauge steel is used in order to create
a more robust air conditioner cabinet that
will withstand years of hard use.
Solid sleeve top keeps out falling debris,
which can obstruct the fan and prevent it
from turning, thus damaging the unit.
Vibration and noise isolating technology.
Two resiliant rings on motor mount
prevent metal-to-metal contact, which
eliminates extra vibration and noise.
Blower wheel housing made of
solid steel for maximum sound reduction.
Scientific refrigeration design
Better design for quieter performance
Rifled copper tubing with greater surface
area for heat exchange, increasing the
efficiency of the coils, which improves
overall efficiency of the unit.
Insulated plenum prevents outside air
intrusion.
EntryGard kick-in intrusion protection
Steel retaining wire secures chassis to
the sleeve to deter ‘kick-in’ intrusion.
Firm grip handles make grasping the
chassis for installation and removal much
easier.
Aluminum rear grille Protects
the unit from damage and
vandalism. No one else offers
this feature.
High efficiency, energy efficient
compressors mounted on large,
vibration-absorbing grommets
create smooth, quiet power.
5
5
WINDOW AIR CONDITIONERS
Kühl™ is about choice.
You’ll find more options,
features and ways
to customize your
cooling experience
than you ever thought
possible in a window air
conditioning solution.
Satin Silver
( S T A N D A R D )
Kühl Control. Choose from 4 operating options:
1.SIMPLE OPERATION
Turn the unit on, select
‘MODE’ and make simple
up/down temperature
adjustments either at
the control panel or with
included remote. Unit
operates until turned off.
2.7 DAY DEFAULT PROGRAM
Turn the unit on and press
‘SCHEDULE’ to utilize
default settings. (Energy
Star® recommended
settings for optimum
energy efficiency for a
typical work week where
the home is unoccupied
during the day Monday
through Friday).
3.7 DAY CUSTOM PROGRAM
Turn the unit on and
program for your preferred
comfort levels to maximize
energy savings according
to your schedule. Up to 4
settings per day, 7 days a
week.
4.REMOTE THERMOSTAT
OPERATION
The unit can be wired to
a wall thermostat and
operated remotely. Wall
thermostats are available
from Friedrich and many
retailers and are sold
separately.
Innovative technology. Intuitive controls.
LCD PANEL AUTO DIMS WHEN
NOT IN USE
NIGHTLIGHT MODE
TEMPERATURE AND FAN
ADJUSTMENT MAINTAINS
YOUR CHOSEN COMFORT
LEVEL
BACK UP SYSTEM SAVES
SETTINGS IF POWER IS
INTERRUPTED
BUILT-IN, 7 DAY
PROGRAMMABLE
THERMOSTAT
6
24 HOUR TIMER
AUDIO FEEDBACK OPTION
AUTO RESTART RETURNS UNIT
TO PRIOR SETTINGS AFTER
POWER IS INTERRUPTED
ELECTRONIC MAINTENANCE
INDICATOR
DISPLAYS SET TEMPERATURE,
ROOM TEMPERATURE,
OUTDOOR TEMPERATURE, OR
DIGITAL CLOCK AS SELECTED
CHECK FILTER REMINDER
KEYPAD LOCKOUT OPTION
PROTECTS SETTINGS
RUGGED REMOTE CONTROL
WITH FULL LCD DISPLAY
COLOR CHOICES
O P T I O N A L
D E S I G N E R
C O L O R S
Deep Red
Designer White
Black Onyx
Cobalt Blue
Kühl Colors.
Kühl’s streamlined modern
design in Satin Silver can blend
in with any décor. Or coordinate
a look that complements your space
by using any of the six colored front covers
(sold separately at retailers or at friedrich.com).
Classic Beige
Pink Diamond
7
WINDOW AIR CONDITIONERS
Kühl™ Series
Kühl
HINGED FILTER ACCESS DOOR
FLIPS OPEN AND FILTER
SLIDES OUT
Energy Star
Models
8
Kühl +
COOLING
11700-36000 Btu
Up to 11.4 EER
COOLING
9500-24000 Btu
Up to 11.7 EER
ELECTRIC HEAT
10700-17300 Btu
HEATING
7500-23500 Btu
Electric Heat
7900-36000 Btu
Up to 11.7 EER
12
Kühl +
®
Heat Pump
The most comfortable
temperature is the one you
never notice. Kühl uses
five built-in environmental
sensors to more accurately
monitor indoor and outdoor
temperatures so that it can
maintain your ideal settings.
Kühl+ models have the ability
to cool or heat as needed so
units can operate as year-round
central systems. And, like the
most advanced central systems,
Kühl+ has auto-changeover,
which allows the unit to
automatically switch between
air conditioning and heating
functions to maintain the
desired comfort level. You won’t
have to lift a finger.
Kühl is the
first window
air conditioner
to provide the
centralized
control and
convenience
of a central air
conditioning
system.
FULL LCD DISPLAY SHOWS
MODE, FAN SPEED, SET
TEMPERATURE AND
SCHEDULE.
ADJUST TEMPERATURE
AND FAN SPEEDS,
SET AUTO MODE AND
TURN THE SCHEDULE ON
OR OFF
WIRE KÜHL TO A REMOTE
THERMOSTAT FOR CENTRAL
AIR-LIKE CONTROL
Kühl Series
ULTRA PREMIUM LINE
Comfort &
Convenience
•Built-in programmable 7 day thermostat
•24 hour timer
•Optional wired wall thermostat
•4 cooling and 4 fan-only speeds on select
models
•Automatic fan speed adjustment
•Comfortwatch technology samples the
air to more accurately maintain the set
temperature
•8-way air flow control
•Auto-changeover from cool to heat, or heat
to cool, to maintain desired temperature
(Kühl + models)
Superior Filtration
Earth Friendly
•Superior fresh air intake and stale air
exhaust vent
•Auto Fan mode saves money by conserving
energy
•Washable, antimicrobial air filter
•12 Energy Star® qualified models, including
four heat pumps
•Check filter reminder
• Optional premium filter when used in
conjunction with standard filter provides
superior air filtration with ratings as high
as MERV 6, while also adsorbing odors and
reducing ozone and VOCs
•Hinged door for easy filter access for easier
maintenance
•Electronic maintenance indicators with
error code storage
•Temperature readout can alternately display
set temperature, room temperature and
outdoor temperature, or digital clock as
selected
Installation
Features
•Control panel lockout (ON/OFF)
•Install in a window or thru-the-wall
•Scratch resistant cabinet
•Slide-out chassis for more permanent
installation and easier access for
maintenance
•LCD panel auto dims if not in use
•Nightlight mode
•7 yr. battery provides back up system that
saves settings if power is interrupted
•Includes heavy duty window installation
hardware (optional accessory on Kühl+
models)
•Rugged hardboard side panels for a more
permanent installation
Superior Sound
Reduction Technology
•Power cord can run either left or right
•Steel inner wall and extra dense insulation
materials block outdoor noise
•Front cover attaches easily and securely.
Nut driver included.
•Firm grip handles for easier chassis
installation and removal
•Environmentally-friendly R-410A refrigerant
used in all models
•Recyclable packaging
•RoHS compliant
Safety & Security Features
•EntryGard anti-intrusion protection- steel
retaining wire secures the chassis to the
sleeve to deter ‘kick-in’ intrusion
•Powercord leakage current protected
•Insect barrier
• Protective rear grille
Accessories (sold
separately)
•Optional designer colored front covers
•3 pack of premium carbon filters
•(Kuhl +) window installation kits
•Wall thermostat
•Vibration isolating design and components
diminish traditional operating noise
•Precision engineering maximizes air flow
while delivering ultraquiet operation
OPTIONAL CARBON FILTER
REMOVES ODORS AND VOCs.
ACHIEVES UP TO A MERV 6 RATING
9
WINDOW AIR CONDITIONERS
XStar® Series
XQ. 50% smaller
with programmable
controls and
commercial grade
quality.
EQ. Heat/cool
model with
mechanical
controls.
XQ
EQ
COOLING
5500-9500 Btu
Up to 12.0 EER
COOLING
7500 Btu
10.7 EER
ELECTRIC HEAT
4000 Btu
The XStar® Series is 50%
smaller than our smallest
Kühl model and fits in tighter
installations. Slide-out chassis
is perfect for either window or
thru-the-wall installations
XQ Models are programmable,
with features that include
a 24-hour ON/OFF timer, auto
adjusting Smart Fan, and a
Money Saver® setting that
reduces energy usage to save
money.
3
Energy Star
Models
10
EQ Model offers supplemental
heating in addition to cooling
performance.
®
SELECT MODE, FAN SPEED,
ADJUST TEMPERATURE AND
SET THE TIMER. (XQ MODEL
ONLY)
PREMIUM LINE
XQ
Comfort
& Convenience
Installation
Safety Features
•Slide-out chassis
•EntryGard anti-intrusion protection
•24 hour timer lets you program on/off times
•Install in window or thru-the-wall
•Insect barrier
•3 cooling speeds, plus fan-only setting
•Heavy duty installation hardware
•Smart Fan adjusts fan speed to maintain
desired temperature
•Heavy duty side curtains reduce exterior
noise/light
•Comfortwatch technology samples the
air to more accurately maintain the set
temperature
•Power cord can run either left or right out of
the side of the unit front
•Money Saver® setting saves money by
operating the fan only when cooling
•The industry’s smallest Btu slide-out
chassis (model XQ05)
•Ultraquiet operation
•8-way air flow control
•Auto restart saves settings if power is
interrupted
Health
•Washable antimicrobial filter for protection
against fungal and bacterial growth
THE SMALLEST CAPACITY
ROOM AIR CONDITIONER WITH
SLIDE-OUT CHASSIS (MODEL
XQ05, 5500 Btu)
EQ
19 3/4”
Comfort
& Convenience
Installation
•2 cooling speeds, 2 heating speeds and fanonly setting
•Install in window or thru-the-wall
•Ultraquiet operation
•Heavy duty side curtains reduce exterior
noise/light
•8-way air flow control
•Slide-out chassis
•Heavy duty installation hardware
•Power cord can run either left or right out of
the side of the unit front
Health
•Washable antimicrobial filter for protection
against fungal and bacterial growth
14”
COMPACT SIZE UNITS ARE IDEAL FOR
Safety Features
SMALL AREAS OR TIGHT SPACES. CAN
•EntryGard anti-intrusion protection
A WINDOW.
BE INSTALLED THRU-THE-WALL OR IN
•Insect barrier
11
WINDOW AIR CONDITIONERS
CP Series
CP05
CP06
CP08
CP10
CP12
COOLING
5500 Btu
10.7 EER
COOLING
6000 Btu
10.7 EER
COOLING
7800 Btu
10.8 EER
COOLING
10000 Btu
10.8 EER
COOLING
12000 Btu
10.8 EER
CP05, CP06 AND CP08
Comfort
& Convenience
Health & IAQ
Safety & Security Features
•Washable antimicrobial air filter
•EntryGard anti-intrusion protection
•12 hour timer lets you program on/off times
•Stale air exhaust
•Auto Air Sweep swing louvers* provide more
even air distribution
•3 cooling speeds, plus 3 fan-only settings
Installation Features
•Ultraquiet operation
•Slide-out chassis**
•4-way air flow control
•Install in window or thru-wall**
•Auto restart saves settings if power is
interrupted
•Standard installation hardware
Energy Management &
Compliance
•Expandable side curtains
•Power cord can run either left or right out of
the side of the unit front*
•Energy Star® qualified
•Money Saver® setting saves money by
operating the fan only when cooling
*Feature not available on CP05. **CP05 has a fixed chassis and is for window installation only.
12
DELUXE LINE
CP10 AND CP12
The CP line
is our highlyrated, deluxe line
of window air
conditioners with
programmable
controls for
convenient
operation.
Comfort
& Convenience
Health & IAQ
•12 hour timer lets you program on/off times
•Stale air exhaust
•Washable antimicrobial air filter
•Auto Air Sweep swing louvers provide more
even air distribution
•3 cooling speeds, plus 3 fan-only settings
•Ultraquiet operation
Installation Features
•Slide-out chassis
•4-way air flow control
•Install in window or thru-the-wall
•Auto restart saves settings if power is
interrupted
•Standard installation hardware
•Expandable side curtains
•Power cord can run either left or right out of
the side of the unit front
Energy Management &
Compliance
•Energy Star® qualified
Safety & Security Features
•Money Saver® setting saves money by
operating the fan only when cooling
•EntryGard anti-intrusion protection
SELECT MODE, FAN
SPEED, ADJUST
TEMPERATURE AND SET
THE TIMER.
Auto air sweep
swing louvers
for even cooling
throughout the
room
5
Energy Star
Models
®
13
WINDOW AIR CONDITIONERS
DELUXE LINE
CP Series
Up to two tons of
cooling with Auto
Air Sweep swing
louvers for even
cooling throughout
the room.
CP15
COOLING
14700 Btu
10.7 EER
CP18
COOLING
18000 Btu
10.7 EER
CP24
COOLING
24000 Btu
9.4 EER
CP15, CP18, CP24
Comfort
& Convenience
•24 hour timer lets you program on/off times
•Auto Air Sweep swing louvers provide even
air distribution
•3 cooling speeds, plus 3 fan-only settings
•Ultraquiet operation
Health & IAQ
•Washable antimicrobial air filter
•Stale air exhaust
Installation Features
•4-way air flow control
•Slide-out chassis
•Auto restart saves settings if power is
interrupted
•Install in window or thru-the-wall
•Standard installation hardware
•Expandable side curtains
Energy Management &
Compliance
•Energy Star® qualified
•Money Saver® setting saves money by
operating the fan only when cooling
•Power cord can run either left or right out of
the side of the unit front
Safety & Security Features
•EntryGard anti-intrusion protection
SELECT MODE, FAN SPEED,
AUTO SWING, ADJUST
TEMPERATURE AND SET
THE TIMER.
3
Energy Star
Models
14
®
OPTIONAL WINDOW AIR CONDITIONER ACCESSORIES
Decorative colored front covers for use with Kühl and Kühl + models
Basic colors shown below. Additional colors may be available. Ask your sales person or visit www.friedrich.com for more information.
Deep Red
Cobalt Blue
Classic Beige
Deep
Red
Cobalt
Blue
All SS, ES and YS Models
KWREDS
KWBLUS
KWCBS
KWWHTS
KWBLKS
All SM, EM and YM Models
KWREDM
KWBLUM
KWCBM
KWWHTM
KWBLKM
All SL, EL and YL Models.
KWREDL
KWBLUL
KWCBL
KWWHTL
KWBLKL
Color Front
Classic
Beige
Designer
White
Designer White
Black Onyx
Pink Diamond
Black
Onyx
Kit No.
Model
Window installation kits (Kühl+ and EQ models)
Heavy duty kits required for installation of these models in a window.
Heat/Cool Models
Kit No.
EQ08M11
WIKQ
ES12M33, ES15M33, YS10M10 and YS12M33.
KWIKS
EM18M34, EM24M34 and YM18M34.
KWIKM
EL36M35 and YL24M35.
KWIKL
Drain kit for use with Kühl and Kühl + models
Drain tube field installed to the bottom of the base pan.
Model
All Kühl Series Models
Kit No.
DC2
Cooling Sizing Guide
The following guide is based on normal room
insulation, average number of sun-exposed
windows and two-person occupancy.
Premium carbon filters for use with
Kühl and Kühl + models
FT2
Btu/h
100 - 150
5,000
Two-stage premium carbon filters for superior air filtration
including ozone and VOCs (volatile organic compounds).
Up to Merv 6 rating. Sold in packs of 3.
150 - 250
6,000
250 - 300
7,000
300 - 350
8,000
350 - 400
9,000
400 - 450
10,000
450 - 550
12,000
Model
Kit No.
All SS, ES and YS Models
KWCFS
All SM, EM and YM Models
KWCFM
All SL, EL and YL Models.
KWCFL
Remote thermostat- RT5 for use with
Kühl and Kühl + models
Digital thermostat for remote operation of Friedrich Kühl and Kühl + models.
550 - 700
14,000
700 - 1,000
18,000
1,000 - 1,200
21,000
1,200 - 1,400
23,000
1,400 - 1,600
25,000
1,600 - 1,900
28,000
1,900 - 2,700
36,000
Due to variations in room design, climate zone
and occupancy, larger areas may require the use
of multiple units to provide the optimal cooling
solution. Please consult your retail sales person.
15
WINDOW AIR CONDITIONERS
SPECIFICATIONS
H Energy Star® qualified
Energy Estimated
Efficiency
Yearly
Moisture
Ratio
Operating Removal
COP
EER
Cost
Pints/HR
Room Side
Air
Net
Circulation
Weight
CFM
Sleeve Lbs
Cooling
Capacity Btu
Heating
Capacity Btu
Volts
Rated
Cooling
Amps
Cooling
Watts
Heating
Amps
Heating
Watts
H SS08M10
7900
—
115
6.1
677
—
—
—
11.7
$54
1.0
265
S
99
H SS10M10
9500
—
115
7.7
848
—
—
—
11.2
$68
2.0
260
S
106
Model
Kühl
H SS12M10
12000
—
115
10.0
1071
—
—
—
11.2
$86
3.0
300
S
112
SS14M10
14000
—
115
12.0
1444
—
—
—
9.7
$115
3.5
325
S
116
H SS12M30
11700/11200
—
230/208
4.8/4.9
1026/982
—
—
—
11.4/11.4
$82
2.8
275
S
112
SS15M30
14500/14300
—
230/208
6.4/6.8
1405/1385
—
—
—
10.3/10.3
$112
3.5
360
S
116
H SM18M30
17500/17200
—
230/208
7.4/8.0
1635/1617
—
—
—
10.7/10.7
$131
4.6
350
M
140
H SM21M30
20800/20700
—
230/208
9.4/10.3
2080/2070
—
—
—
10.0/10.0
$166
6.0
425
M
132
H
SM24M30
23500/23300
—
230/208 11.2/11.9
2500/2479
—
—
—
9.4/9.4
$200
10.0
390
M
152
H
SL28M30
27800/27000
—
230/208 13.5/14.4
2865/2812
—
—
—
9.7/9.6
$229
8.5
600
L
193
SL36M30
36000/35700
—
230/208 19.0/20.5
4235/4200
—
—
—
8.5/8.5
$338
12.0
725
L
212
Kühl + Heat Pump
H YS10M10*
9500
7500
115
7.8
812
7.6
743
3.0
11.7
$65
1.9
285
S
109
H YS12M33
12100/12100
9400/9000
230/208
5.2/5.4
1120/1120
5.6/5.8
1132/1139
2.4
10.8/10.8
$89
3.0
265
S
115
H YM18M34
18200/17800 15500/15400 230/208
8.5/8.9
1838/1798
8.5/8.7
H YL24M35
24000/23600 23500/23200 230/208 11.1/12.0
1833/1761
2.6
9.9/9.9
$147
5.4
370
M
141
2474/2433
12.2/14.3 2610/2575
2.6
9.7/9.7
$198
7.0
600
L
197
Kühl + Electric Heat
ES12M33
11700/11200
10700/8900
230/208
4.8/4.9
1026/982
16.0/14.7 3500/2900
—
11.4/11.4
$82
2.8
275
S
113
ES15M33
14500/14300
10700/8900
230/208
6.4/6.8
1405/1385
16.0/14.7 3500/2900
—
10.3/10.3
$112
3.5
360
S
117
EM18M34
17500/17200 13000/10600 230/208
7.4/8.0
1635/1617
19.5/17.0 4200/3500
—
10.7/10.7
$131
4.6
350
M
141
EM24M34
23500/23300 13000/10600 230/208 11.2/11.9
2500/2479
19.5/17.0 4200/3500
—
9.4/9.4
$200
10.0
390
M
153
EL36M35
36000/35700 17300/14300 230/208 19.0/20.5
4235/4200
24.0/22.4 5500/4650
—
8.5/8.5
$338
12.0
725
L
213
XStar®
H XQ05M10
5500
—
115
4.5
491
—
—
—
11.2
$39
1.0
170
Q
72
H XQ06M10
6000
—
115
4.9
500
—
—
—
12.0
$40
1.0
175
Q
72
H XQ08M10
7500
—
115
6.9
701
—
—
—
10.7
$56
1.7
175
Q
71
XQ10M10
9500
—
115
9.0
970
—
—
—
9.8
$77
2.5
180
Q
71
7500
4000
115
6.9
701
11.2
1290
2.8
10.7
$56
1.9
175
Q
72
XStar® Electric Heat
EQ08M11
CP
H CP05N10A
5500
—
115
4.8
510
—
—
—
10.7
$41
1.3
135
P1
46
H
CP06F10
6000
—
115
5.1
560
—
—
—
10.7
$45
1.8
210
P6
51
H
CP08F10
7800
—
115
6.8
720
—
—
—
10.8
$58
2.3
250
P6
54
H
CP10F10
10000
—
115
8.5
920
—
—
—
10.8
$74
3.0
270
P7
73
H
CP12F10
12000
—
115
10.2
1110
—
—
—
10.8
$89
3.3
310
P7
73
H CP15F10
14700
—
115
12.0
1370
—
—
—
10.7
$110
3.5
470
P4
121
H CP18F30
18000/17600
—
230/208
8.1/8.8
1680/1640
—
—
—
10.7
$135
4.6
570
P5
141
H CP24F30
24230/23540
—
230/208 10.9/11.8
2580/2500
—
—
—
9.4
$206
7.0
590
P5
165
* Operates on 115 volt and is not equipped with supplemental heat. Will not provide heat at temperatures below 40°F.
Friedrich room air conditioners are designed to operate in outdoor temperatures from 60° F to 115° F.
R-410A
Due to continuing research in new energy-saving technology, specifications are subject to change without notice.
As an ENERGY STAR® partner, Friedrich Air Conditioning Co. has determined that the selected ENERGY STAR® (H) models
meet the ENERGY STAR® guidelines for energy efficiency.
The consumer- through the AHAM Room Air Conditioner Certification Program- can be certain that the AHAM Certification Seal
accurately states the unit’s cooling and heating capacity rating, the amperes and the energy efficiency ratio.
All models use
environmentally
friendly R-410A
refrigerant.
Estimated yearly operating cost based on a 2007 national average electricity cost of 10.65 cents per kWh.
† The estimated yearly operating cost of this model was not available at the time the range was published.
LISTED
PORTABLE AIR CONDITIONERS
183H
16
INSTALL ATION INFORMATION / SLEEVE DIMENSIONS
Sleeve
Height
Width
Depth Shell Depth to Minimum
with Front
Louvers
Extension
Into Room*
Minimum
Extension
Outside*
Thru-the-wall Installation
Finished Hole
Window Width
Minimum** Maximum
Height
Width
Max. Depth
Q
14"
19 ¾"
8 ½"
5 ½"
10 ¾"
22"
42"
P1†
12"
18 ½"
15"
5"
3 ½"
10 ¾"
20 1/8”
36"
P4
17 ½"
26"
27 5/8"
8 7/8"
5 ½"
16 5/8"
26 ½"
42"
17 ¾"
26 ¼"
8 3/8"
P5
17 ½"
26"
29 ¾"
8
7/8 ”
5 ½"
19 ½"
26 ½"
8
1/8 ”
21
3/8 "
14 ¼"
20"
8 ½”
NOT FOR THRU-WALL
42"
17 ¾"
26 ¼"
8 3/8"
1/8 ”
1/4”
18 ¾"
7 ½"
P6
14"
18
4 ½"
11"
20
36"
14
P7
15"
23 5/8"
22 1/4”
8 ¾"
4 ½"
12”
25 ¼”
39"
15 ¼"
23 7/8”
8"
S
15 15/16"
25 15/16"
29"
8 ¾"
5 ¾”
16 15/16”
27 3/8"
42"
16 3/16”
26 3/16”
7 3/8"
M
17 15/16"
25 15/16"
29"
8 ¾"
5 ¾”
16 15/16”
27 3/8"
42"
18 3/16”
26 3/16”
7 3/8”
L
20 3/16"
28"
35 ½”
16 ½"
5 3/8”
18 15/16”
29 7/8”
42"
20 3/8"
28 ¼"
15 1/8”
3/8 ”
20
7/8 ”
* Minimum extensions when mounted in a window.
** Minimum widths achieved using one side curtain assembly as opposed to both in a standard installation.
† Sleeve P1 does not have thru-the-wall hole dimensions, as these units are fixed chassis and should not be installed thru-the-wall.
NOTE: S,M and L sleeves may be installed in window with no side kits if properly installed.
Sleeve Dimensions Drawing
Circuit Rating/ Breaker
Circuit Rating
Breaker or
T-D Fuse
Model
Plug
Face
(NEMA#)
(C)
Power Cord
Length (ft.)
CP05
Wall Outlet
Appearance
7
CP06, CP08, CP10, CP12 and CP15.
All XQ MODELS.
SS08M10, SS10M10, SS12M10 and
SS14M10. EQ08M11. YS10M10.
125V - 15A
CP18. SS12M30, SS15M30, SM18M30
and SM21M30.
250V - 15A
6 - 15P
4
CP24. SM24M30 and SL28M30.
ES12M33 and ES15M33. YS12M33.
250V - 20A
6 - 20P
4
250V - 30A
6 - 30P
4
5 - 15P
6
Front
(B)
SL36M30. EM18M34, EM24M34 and
EL36M35. YM18M34 and YL24M35.
SIDE VIEW
Room Air Conditioner Model Identification Guide
S L 28 M 3 0 A
FUNCTION
S–Straight Cool
X–Straight Cool
E–Electric Heat
Letter at end of model number indicates
a modification to an existing model.
C–Straight Cool
Y–Heat Pump
MODEL SERIES
CHASSIS
Q–Portable
P–Programmable
S–Small Chassis
M–Medium Chassis
L–Large Chassis
APPROXIMATE
Btu (000) Cooling
0 –Straight Cool and
115V Heat Pump Models
1 –1 KW heat strip, Nominal
3 –3 KW heat strip, Nominal
4 –4 KW heat strip, Nominal
5 –5 KW heat strip, Nominal
VOLTAGE
1–115 Volts
3–230/208 Volts
17
Find the thru-the-wall air conditioner
that’s best for you.
WallMaster®
Uni-Fit®
Fits 27” sleeves
Fits 26” sleeves and
sleeves as small as
24 1/2”
RESIDENTIAL OR
LIGHT COMMERCIAL
RESIDENTIAL OR
LIGHT COMMERCIAL
Perfect fit for Fedder’s 27”
sleeves
Y
—
Top mounted controls
Y
—
Electronic controls
Y
Y
Sleeve size
Applications
24 hr.
12 hr.
Remote control
Y
Y
Auto restart when power is
interrupted
Y
Y
Smart Fan auto adjusting fan
Y
—
Upward angled air discharge
Y
—
Air flow direction control
6-way
3
3
Steel inner wall and extra
dense insulation
Y
Steel inner wall
Vibration isolating design and
components
Y
Y
Superior airflow design
Y
—
Energy Star models
Y
Y
Environmentally friendly R-410A
Y
Y
Energy saver switch
Y
Y
Washable, antimicrobial air filter
Y
Y
Stale air exhaust
—
Y
EntryGard anti-intrustion
protection
Y
—
Insect barrier
Y
—
EARTH
FRIENDLY
SOUND REDUCTION
TECHNOLOGY
4-way
Fan speeds
HEALTH
Programmable timer
SAFETY
COMFORT & CONVENIENCE
OVERVIEW
THRU-THE-WALL MODELS
INSTALLATION
Slide-out chassis
18
Y
Y
Left
Right
Concealed power cord option
Y
—
Internal drain kit option
Y
—
Baffle adapter kit
Y
Y
Condensate drain kit
Y
—
Power cord direction
THRU-THE-WALL AIR CONDITIONERS
WallMaster® and Uni-Fit® Series
WallMaster®
QUALITY
27” perfect fit with
commercial grade
quality.
Uni-Fit®
WALLMASTER®
UNI-FIT®
COOLING
HEATING
COOLING
HEATING
7,800-14,500 Btu
Up to 9.9 EER
7,300-11,000 Btu
8,000-13,000 Btu
Up to 9.6 EER
3,850-11,200 Btu
26” universal fit
for sleeves as
small as 24 1/2“.
When should you install a solid side sleeve?
A solid side wall sleeve allows
for installation in thick exterior
walls where the installation of
room air units with side vents
would effect performance and
may even void the warranty.
sleeve CAN BE
MOUNTED FLUSH WITH
THE EXTERIOR WALL FOR
A NEAT APPEARANCE
(optional
architectural grille
shown)
12
Energy Star
Models
ROOM AIR CONDITIONER
Blocked side vents
restrict air flow
FRIEDRICH THRU-THE-WALL
Solid-side sleeve (no side
vents) can be installed
in thicker walls and can
be positioned flush with
exterior wall
OR SLIMMER INSIDE
®
19
FIT 26” AND 27” WALL SLEEVES
WallMaster® Thru-the-wall Air Conditioners fit 27” sleeves
Comfort & Convenience
Durability & Quality
Accessories
• Easy-to-reach, top mount
controls
• Rotary compressors provide quiet,
dependable performance
• Remote control
• Premium stamped exterior
grille
• WSD sleeve (sleeve is required for
new installation and is sold and
shipped separately)
• 24 hour programmable
timer
• Smart Fan auto-adjusts
fan speed to maintain
desired temperature
• 3 speed fan
• Washable, antimicrobial
filter
• Auto restart
•Architectural grille
• Dense blower insulation
• Drain kit
• Rifled copper tubing
• Interior drain kit
• Impact resistant front cover
• Subbase
• High tech fins with sine
wave lanced louvers
increase energy efficiency by
increasing surface area for
heat exchange
• Baffle adapter kit
• Electronic defrost control
• Insect barrier
• Reversible louver allows a second
airflow option
Energy Savings
• Money Saver® setting saves money by
operating the fan only when needed
• Six Energy Star models
Installation Features
• Mounts flush with the exterior wall for
a neat appearance
• Ideal for thicker wall installations,
where side fins don’t fit
• A high efficiency replacement for 27”
sleeves including Fedders A and B*.
Sleeve measures 27” W
x 16 3/4” H
ANGLED AIR DISCHARGE FOR
SUPERIOR AIR DIStribution WHEN
THE unit IS INSTALLED LOW ON a
WALL. REVERSIBLE LOUVER FOR A
SECOND AIR FLOW OPTION.
Chassis requires WSD sleeve (sold and shipped separately)
*Installation in Fedders B sleeve requires a baffle kit. See BAK accessory under accessories.
Uni-Fit® Thru-the-wall Air Conditioners fit 26” wall sleeves
Comfort & Convenience
• Six-way air flow control
• Stale air exhaust
• Remote control
• 12 hour programmable timer
Durability & Quality
Accessories
• Rotary compressors provide quiet,
dependable performance
• USC sleeve (sleeve is required for new
installation and is sold and shipped
separately)
• Seacoast protection for corrosion
resistance in harsh environments
• 3 speed fan
• Auto restart
• Washable antimicrobial filter
Installation Features
• Defrost control
• Universal fit trim ring
Energy Savings
• Replacement exterior grille for use
with existing sleeve
TRIM RING
• Sleeve designed to fit a standard 26”
opening and sleeves as small as 24.5”
• Money Saver® setting saves money by
conserving energy
• Six Energy Star models
Chassis requires USC sleeve (sold and shipped separately)
20
IMPORTANT:
1” gap on sides and 1/2” gap at top, which allows
installation into varying sleeve sizes, can be covered by
two-piece trim ring that fits over the chassis front. Trim
ring comes standard with chassis.
THRU-THE-WALL AIR CONDITIONERS
SPECIFICATIONS
E
nergy
Estar
Model
Cooling
Capacity Btu
Heating
Capacity Btu
Volts
Rated
Cooling
Amps
Cooling
Watts
Heating
Amps
Heating
Watts
Energy
Efficiency
Ratio
EER
Star® models
Estimated
Yearly
Operating
Cost
Room
Moisture
Side Air
Removal Circulation
Pints/HR
CFM
Sleeve
Net
Weight
Lbs
WALLMASTER
Cool only

WS08C10
7800
NA
115
7.1
788
-
-
9.9
†
1.2
250
WSD
93

WS10C10
9700
NA
115
10.0
1032
-
-
9.4
$82
2.4
257
WSD
103

WS12C10
11900
NA
115
11.8
1266
-
-
9.4
$101
3.3
295
WSD
112

WS10C30
9500/9200
NA
230/208
4.5/4.7
989/958
-
-
9.6/9.6
$79
1.5
300
WSD
101

WS13C30
12600/12300
NA
230/208
6.3/6.7
1340/1309
-
-
9.4/9.4
$107
3.6
290
WSD
109
WS15C30
14500/14500
NA
230/208
8.3/8.2
1706/1706
-
-
8.5/8.5
$136
4.2
290
WSD
119
WY09C33
9300/9000
7300/7300
230/208
4.4/4.7
989/957
3.8/4.0
839/793
9.4/9.4
$79
2.1
250
WSD
103
WY12C33
12000/11800
9350/9200
230/208
6.1/6.4
1395/1372
4.8/5.1
1062/1010
8.6/8.6
$111
2.6
275
WSD
111
Heat Pump

Cool with Electric Heat
WE10C33
9500/9200
11000/9100
230/208
4.5/4.7
989/958
16.0/14.7
3550/2950
9.6/9.6
$79
1.5
300
WSD
121
WE13C33
12600/12300
11000/9100
230/208
6.3/6.7
1340/1309
16.0/14.7
3550/2950
9.4/9.4
$107
3.6
290
WSD
107
WE15C33
14500/14500
11000/9100
230/208
8.3/8.8
1706/1706
16.0/14.7
3550/2950
8.5/8.5
$136
4.2
290
WSD
116
UNI-FIT
Cool Only

US08C10
8000
-
115
7.5
830
-
-
9.6
$66
2.2
260
USC
73

US10C10
9800
-
115
9.6
1040
-
-
9.4
$83
3.2
285
USC
78

US12C10
11500
-
115
11.2
1220
-
-
9.4
$97
3.8
290
USC
80

US10C30
10000/9800
-
230/208
4.7/5.2
1060/1040
-
-
9.4/9.4
$85
3.2
285
USC
78

US12C30
11500/11200
-
230/208
5.6/6.0
1220/1190
-
-
9.4/9.4
$97
3.8
290
USC
80

US14C30
13000/12600
-
230/208
7.0/7.5
1530/1480
-
-
9.4/9.4
$122
4.0
310
USC
87
Cool with Electric Heat
UE08C13
8000
3850
115
7.5
830
10.7
1230
9.6
$66
2.2
260
USC
73
UE10C33
10000/9800
11200/9200
230/208
4.7/5.2
1060/1040
15.3/14.0
3500/2900
9.4/9.4
$85
3.2
285
USC
78
UE12C33
11500/11200
11200/9200
230/208
5.6/6.0
1220/1190
15.3/14.0
3500/2900
9.4/9.4
$97
3.8
290
USC
80
WallMaster Heat Pump heating information (shown in red) indicates heat pump heating performance. WallMaster Electric Heat heating information (shown in red)
indicates electric heat strip performance. For WallMaster Heat Pump electric heating performance refer to corresponding WallMaster Electric Heat model.
WALLMASTER HEAT PUMP
HEATING PERFORMANCE: Change-over from heat pump operation to resistance
operation on models indicated is automatic at a preset outside ambient temperature
of approximately 35°F.
Calculate the heat loss of the space to be heated. As long as the heat loss does
not exceed the resistance heating capacity rating of the unit, the heating performance will be satisfactory.
DEFROST CONTROL: Initiated at 30°F (outdoor coil temperature) and terminated
at 43°F (outdoor coil temperature). During defrost, the compressor stops and the
electric heat starts, then operates with the fan to maintain indoor comfort. Below
43°F, the unit remains in electric heat mode.
DEFROST DRAIN: Drain automatically opens at approximately 50°F to prevent
condensate from freezing inside drain pan.
Note: all models will produce condensate. If condensate disposal is desired, an
optional drain kit is available.
Plug Face/ Circuit Rating
Circuit Rating
Breaker
or T-D Fuse
Plug Face
(NEMA#)
Power Cord
Length (ft.)
US08C10, UE08C13
US10C10, US12C10
125V - 15A
5 - 15P
6
WS10C30, WS13C30,
WS15C30
US10C30, US12C30,
US14C30
250V - 15A
6 - 15P
4
WE10C33, WE13C33,
WE15C33, W Y09C33, W Y12C33
UE10C33, UE12C33
250V - 20A
6 - 20P
4
WallMaster
Model Number
Uni-Fit
Model Number
WS08C10, WS10C10,
WS12C10
Wall
Outlet
Appearance
R-410A
All models use
environmentally
friendly R-410A
refrigerant.
Power cords are located on front left of WallMaster models and on front right of Uni-Fit models.
Due to continuing research in new energy-saving technology, specifications are subject to change without notice.
As an Energy Star® partner, Friedrich Air Conditioning Co. has determined that the selected Energy Star® models
meet the Energy Star® guidelines for energy efficiency.
Estimated yearly operating cost based on a 2007 national average electricity cost of 10.65 cents per kWh.
† The estimated yearly operating cost of this model was not available at the time the range was published.
LISTED
PORTABLE AIR CONDITIONERS
183H
21
ACCESSORIES / INSTALL ATION INFORMATION
WallMaster® 27” Sleeve Exterior Grilles
WSD Sleeve
Standard Grille
Premium, stamped galvanized
steel grille with powder coat paint.
Ships with sleeve. Galvanized
steel inner and outer weather
panels also ship with sleeve.
CORRECT Vertical Louvers
IMPORTANT:
Operating the air
conditioner with incorrect
rear grille or without
Baffle Adapter Kit (on
19 3/4” deep sleeve) will
recirculate discharge air
and cause compressor
overload to trip. This will
cause the unit to shut
down temporarily and
may lead to premature
compressor failure.
WSD Sleeve
Optional Architectural Grille- AG
INCORRECT Horizontal Louvers
Installation Accessories (27” sleeve models only)
DK / Drain Kit
SB / Sub Base (Hides power cord)
IDK / Internal Drain Kit
BAK / Baffle Adapter Kit
Installed at the back of the unit and allows
for attachment to condensate disposal
system, if necessary or desired.
Used as a base for the unit when
it is desired to place the cord and
receptacle within the installation, or
simply as a base for the unit when
mounted low in the wall or in walls
less than 6 inches deep.
New construction applications where
a condensate drain system has been
built into the wall interior.
Necessary when installing in a sleeve
deeper than 16 3/4" deep, such as
Fedders B sleeve (19 3/4" deep).
16 3/4"
Fedders B
19 3/4”
Conceals power cord
Uni-Fit® 26” Sleeve Exterior Grilles
STANDARD GRILLE – Ships with USC sleeve
Expanded aluminum grille designed for use with USC sleeve.
REPLACEMENT GRILLE – Ships with US/UE chassis
Black plastic for use on existing sleeves without any grille.
USC Sleeve
Standard Grille
IMPORTANT:
When installing into an existing sleeve, consult Installation Section
of your Installation/Operation Manual to determine whether or
not the grille needs to be replaced and/or a baffle adapter should
be used.
Sleeve shown with
Replacement Grille
Sleeve/Chassis Dimensions
Model
Trim ring
Depth
with
Front
Minimum
Extension
Into Room
Minimum
Extension
Outside
Height
Width
Depth
WSD Sleeve
16 3/4"
27"
16 3/4"
23"
7 1/2"
9/16"
Chassis
15 3/4" 26 1/2"
21"
22”
–
–
Thru-the-wall
Finished Hole
Height
Width
Max. Depth
WALLMASTER
17 1/4" 27 1/4"
–
–
15 5/16"
–
UNI-FIT
USC Sleeve
15 1/2" 25 7/8" 16 3/4" 20 1/2"
US Chassis
14 3/8"
UE Chassis
14 3/8" 24 5/8"
22
24"
18 1/2” 20 1/8"
18”
19 5/8"
–
1/2"
3 3/4"
–
15 3/4" 26 1/8"
–
–
16 1/4"
–
3 1/2"
–
–
–
–
IMPORTANT:
US chassis w/front fully installed into USC sleeve extends
into room 3 3/8”. UE chassis w/front fully installed into
USC sleeve extends into room 2 7/8”. 1” gap on sides and
1/2” gap at top can be covered by two-piece trim ring that
fits over the chassis front
PORTABLE AIR CONDITIONERS
ZoneAire®
Dual hose design provides
up to 40% faster cooling and
greater energy efficiency
COOLING
9300 and 11600 Btu
Up to 9.4 EER
Features
•3-IN-1 SYSTEM: Air conditioner,
dehumidifier and fan
•Dual hoses for closed loop cooling and
exhaust functions for up to 40% faster,
more efficient cooling
Ideal for these
applications
•Workshops and garages
•Home offices
•Dorm rooms
•Self evaporative condensate system means
no bucket to empty
•Bedrooms, attics and basements
•Condensate overflow protection- if
tank should become full, the unit will
automatically shut off and unit can be
drained through the water outlet drain
•Supplemental or emergency
cooling anywhere
•Sunrooms/ enclosed patios
•24 hour timer
•3 fan speeds
•Plugs into standard 115 volt outlet
•Washable, antimicrobial air filter
•Auto restart after power outage
SELECT MODE, FAN
SPEED, ADJUST
TEMPERATURE AND SET
THE TIMER.
PORTABLE UNITS MUST BE
VENTED TO THE OUTSIDE
•Easy roll casters for portability
•Stores easily in most closets
•Window kit fits both vertical and horizontal
window openings
•All installation accessories included
EASY-TO-USE, TOP MOUNTED CONTROLS
23
SPECIFICATIONS / INSTALL ATION ACCESSORIES
DUAL HOSE DESIGN
OUTSIDE AIR
COOL AIR
SINGLE HOSE DESIGN
BOTH INDOOR AIR
AND REMOVED HEAT ARE
EXHAUSTED
ONLY HEAT REMOVED
FROM ROOM IS
EXHAUSTED
COOL AIR
INDOOR AIR
INDOOR AIR
AIR ‘LEAKAGE’ INTO ROOM
MAXIMUM EFFECTIVENESS
Only indoor air is conditioned and returned
into the room. Indoor air is not vented outside and wasted. The room is cooled up to
40% faster with greater energy efficiency.
Portable Accessories
DUAL INTAKE/ EXHAUST HOSES
(Included)
Flexible, heavy duty intake/ exhaust
hoses extend from 24” to 60”. The hoses
can be vented through a window or
through a wall opening to the outside.
WINDOW SLIDER KIT (Included)
Single hose design relies on air ‘leakage’
from doors and windows to make up for air
volume lost as indoor air is exhausted outside. The room takes longer to cool using
more energy.
Specifications
Model
P09B
P12B
11600
PERFORMANCE
Cooling Capacity
Btu
9300
Energy Efficiency Rating
EER
9.4
8.8
Air Movement
CFM
212
235
Pts/hr.
5.0
6.0
Amps
10.8
11.5
Moisture Removal
SPECIFICATIONS
Rated Current
Refrigerant Type
R410A
Power Supply
Volts
W
19 1/4”
H
33 1/2”
D
15 1/2”
Dimensions- Inches
Fits HORIZONTAL or VERTICAL WINDOWS
WINDOW OPENING:
Minimum: 26"* Maximum: 46"
* Window slider kit can be trimmed to fit a
smaller opening.
Net Weight
Model
P09B, P12B
115
Lbs.
Circuit Rating
Breaker or T-D
Fuse
Plug
Face
(NEMA#)
125V - 15A
5 - 15P
89
90
Wall Outlet
Appearance
Power
cord
length
6 ft.
R-410A
LISTED
All models use
environmentally
friendly R-410A
refrigerant.
Due to continuing research in new energy-saving technology, specifications are subject to change without notice.
24
PORTABLE AIR CONDITIONERS
183H
ROOM AIR CONDITIONERS
HAZARDOUS LOCATION
Friedrich
Hazardgard® room
air conditioner is
UL listed for use in
Class I, Division 2,
Groups A, B, C and D
hazardous locations.
HAZARDGARD®
COOLING
14500 AND 19500 Btu
Up to 9.7 EER
LISTED
PORTABLE AIR CONDITIONERS
183H
Hazardgard® is specifically designed to cool
living quarters, storage areas and other
enclosures situated in hazardous locations,
where specific volatile flammable liquids or
gases are handled or used within enclosed
containers or systems. For more than 30 years, the Friedrich
Hazardgard® has endured some of the
toughest and most unforgiving operating
conditions imaginable. Time-tested in the
field where it counts, Hazardgard is trusted
by professionals who have to get the job done.
Robust engineering with design details like
33% thicker fins extend the life of the coil.
Diamonblue Technology, our anti-corrosive
treatment, provides added endurance
and protection in coastal or corrosive
environments.
25
ROOM AIR CONDITIONERS
Durability Features
HAZARDOUS LOCATION
•Permanent split capacitor
Built to perform in the
harshest environments
•Hermetically sealed refrigeration
system
•Offshore oil rigs, on-shore oil company
offices and refineries
•Environmentally sealed on/off switch
and gold plated contacts in thermostat
for corrosion resistance.
•Petrochemical sites and propane fill-up
stations
•Solid-state control relays for
compressor and fan operation.
•Paint and varnish storage or processing
plants
•Hot gas bypass allows the air
conditioner to operate at low ambient
conditions without freezing at outdoor
ambient temperatures as low as 45° F.
•Grain alcohol processors or storage
sites
• Hermetically sealed
reciprocating
compressor is
cooled during
the refrigeration
cycle, which
allows the unit to
tolerate higher outdoor temperatures
up to 130˚ F.
• Larger, commercial grade, enclosed
fan motor with
hermetically sealed
overload for arc-free
operation. Totally
enclosed to assure
efficient operation
under adverse
electrical conditions.
•Plant areas using strong solvents or
chemicals
•Munitions plants or armories
•PVC or plastics plants and processing
points
•Recycling plants
•Furniture refinishing/stripping
workshops
•Fertilizer plants
•Office complexes where methane is a byproduct
•Hazardous materials storage
• UNIT Utilizes direct-wired, 15-amp
circuit with time-delay fuse that will
tolerate surge current without tripping
the breaker.
• 20 gauge steel is used in order to
create a more robust air conditioner
cabinet that will withstand years of hard
use.
• Diamonblue Technology Anti-corrosive
treatment provides added endurance
and protection in coastal or corrosive
environments.
Diamonblue advanced
corrosion protection
Treatment protects the
outdoor coil against
deterioration and extends the
life of the unit especially in
harsh coastal environments.
26
Built tough
Friedrich air conditioners
can be found in some
of the world’s toughest
locations. Oil companies
rely on us to cool offshore
oil rigs in the most
extreme conditions,
and military bases and
government offices all
over the world choose
Friedrich. Industrial and
high tech leaders also
trust Friedrich commercial
grade products for their
applications.
Hazardgard also meets the U.S.
National Electric Code, Article 500
requirements for Class 1, Division
2, Groups A, B, C and D Hazardous
locations.
SPECIFICATIONS / INSTALL ATION
Specifications
Cooling Capacity
Electrical Characteristics (60 Hertz)
Energy
Efficiency
Ratio AHAM
Moisture
Removal
Air Direction
Controls
Room Side Air
Circulation
(Btu/Hr.- AHAM)
Volts Rated
Amps AHAM
Watts
EER
(Pints/ Hr.)
SH15M30
14500/14000
230/208
6.9/7.5
1495/1443
9.7/9.7
6.0
8-way
375
SH20M30
19500/19000
230/208
8.7/9.6
2074/2021
9.4/9.4
4.0
8-way
375
Model
CFM
Installation Information
Dimensions
(Inches)
Depth
Overall
Model
Depth J Box
to Louvers
Window Width
(Inches)
Minimum Minimum
Extension Extension
Into Room Outside
Thru-The-Wall
Finished Hole (Inches)
Circuit Rating
Breaker or
T - D Fuse
Weight
(Lbs.)
Height
Width
)A(
Min.
Max.
Height
Width
Volts - Amps
Net
Shipping
SH15M30
15 15/16"
25 15/16”
27 3/8”
6”
3 1/16”
16 15/16”
27 7/8”
42”
16 3/16”
26 3/16”
6”
250V - 15A
140
167
SH20M30
17 15/16”
25 15/16”
27 3/8”
6”
3 1/16”
16 15/16”
27 7/8”
42”
18 3/16”
26 3/16”
6”
250V - 15A
166
170
Max. Depth
Due to continuing engineering research and technology, specifications are subject to change without notice. Manufactured under U.S. Design Patent
DES 368, 306 decorative front; Utility Patent 5, 622, 058. MAXIMUM outdoor ambient operating temperature is 130°F. MAXIMUM TEMPERATURE
RATING FOR CLASS I, DIVISION 2, GROUPS A,B,C,D.
Sleeve Dimensions Drawing
OPERATING TEMPERATURE CODE T3B
)A(
Max.
Wall
Depth
Junction
Box
Front
SIDE VIEW
LISTED
PORTABLE AIR CONDITIONERS
183H
27
friedrich.com
Friedrich is a partner in the Energy Star®
program which promotes the conservation
of energy and the protection of the
environment through the purchase of high
efficiency appliances.
Friedrich Air Conditioning Co. l 10001 Reunion Place, Suite 500 l San Antonio, TX 78216 l 800.541.6645 l fax 210.357.4480
www.friedrich.com
RETAIL PRODUCTS-11
Printed in USA
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
