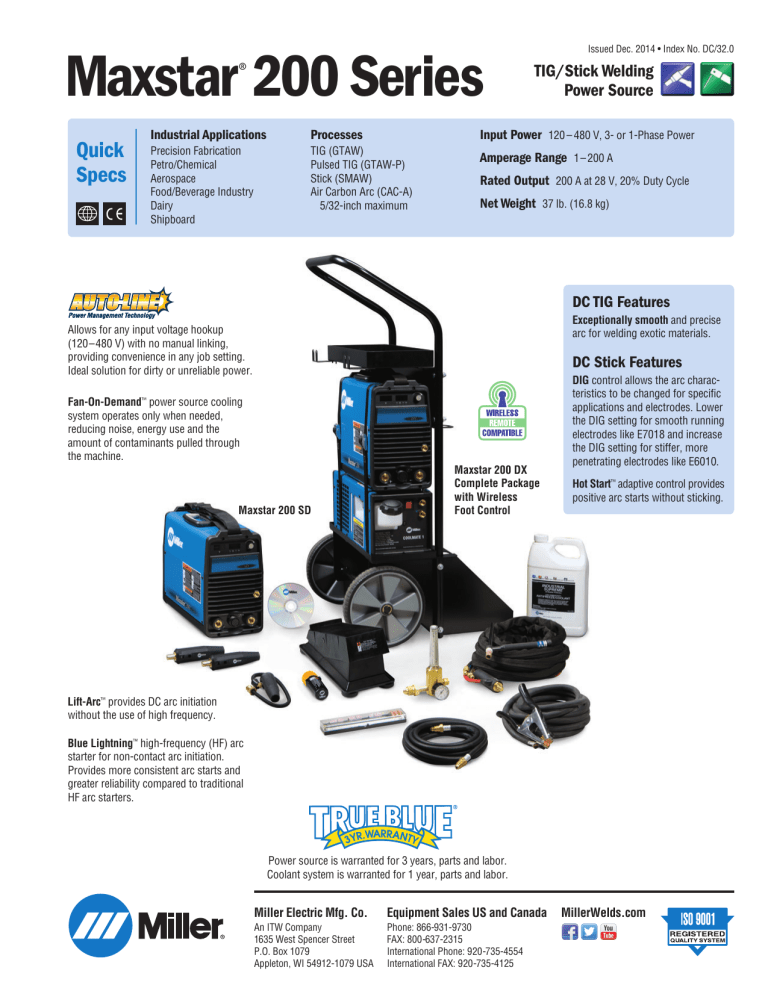

Issued Dec. 2014 • Index No. DC/32.0
Maxstar 200 Series
®
Quick
Specs
Industrial Applications
Processes
Precision Fabrication
Petro/Chemical
Aerospace
Food/Beverage Industry
Dairy
Shipboard
TIG (GTAW)
Pulsed TIG (GTAW-P)
Stick (SMAW)
Air Carbon Arc (CAC-A)
5/32-inch maximum
TIG/Stick Welding
Power Source
Input Power 120 – 480 V, 3- or 1-Phase Power
Amperage Range 1– 200 A
Rated Output 200 A at 28 V, 20% Duty Cycle
Net Weight 37 lb. (16.8 kg)
DC TIG Features
Exceptionally smooth and precise
arc for welding exotic materials.
Allows for any input voltage hookup
(120–480 V) with no manual linking,
providing convenience in any job setting.
Ideal solution for dirty or unreliable power.
DC Stick Features
Fan-On-Demand™ power source cooling
system operates only when needed,
reducing noise, energy use and the
amount of contaminants pulled through
the machine.
Maxstar 200 SD
Maxstar 200 DX
Complete Package
with Wireless
Foot Control
DIG control allows the arc characteristics to be changed for specific
applications and electrodes. Lower
the DIG setting for smooth running
electrodes like E7018 and increase
the DIG setting for stiffer, more
penetrating electrodes like E6010.
Hot Start™ adaptive control provides
positive arc starts without sticking.
Lift-Arc™ provides DC arc initiation
without the use of high frequency.
Blue Lightning™ high-frequency (HF) arc
starter for non-contact arc initiation.
Provides more consistent arc starts and
greater reliability compared to traditional
HF arc starters.
Power source is warranted for 3 years, parts and labor.
Coolant system is warranted for 1 year, parts and labor.
Miller Electric Mfg. Co.
Equipment Sales US and Canada
An ITW Company
1635 West Spencer Street
P.O. Box 1079
Appleton, WI 54912-1079 USA
Phone: 866-931-9730
FAX: 800-637-2315
International Phone: 920-735-4554
International FAX: 920-735-4125
MillerWelds.com
Specifications (Subject to change without notice.)
Rated Output
Amps Input at Rated Load Output, 50/60 Hz,
115 V 230 V 400 V 460 V KVA
KW
Max.
OpenCircuit
Voltage
1–200 A
175 A at 17 V,
60% duty cycle
—
—
10.5
0.16*
6.0
0.24*
5.2
0.25*
4.2
0.06*
4.0
0.03*
80 VDC
(9–14 VDC**)
1–200 A
1–150 A (120 V)
175 A at 17 V,
60% duty cycle
—
—
17.4
0.23*
—
—
—
—
4.0
0.05*
4.0
0.02*
150 A at 16 V,
70% duty cycle
29.7
0.42*
14.1
—
—
—
—
—
3.4
0.05*
3.4
0.03*
125 A at 15 V,
100% duty cycle
23.0
0.42*
—
—
—
—
—
—
2.6
0.05*
2.6
0.03*
Welding
Mode
Input
Power
Welding
Amperage
Range
TIG
(GTAW)
3-phase
1-phase
Stick
(SMAW)
3-phase
1–200 A
150 A at 26 V,
60% duty cycle
—
—
13.1
0.16*
7.4
0.24*
6.4
0.25*
5.2
0.06*
5.0
0.03*
1-phase
1–200 A
150 A at 26 V,
60% duty cycle
—
—
21.7
0.23*
—
—
—
—
5.0
0.05*
5.0
0.02*
1–90 A
125 A at 25 V,
50% duty cycle
34.1
0.42*
—
—
—
—
—
—
4.0
0.05*
3.8
0.03*
90 A at 24 V,
100% duty cycle
25.0
0.42*
—
—
—
—
—
—
4.0
0.05*
3.8
0.03*
Dimensions
Net Weight
H: 13.5 in.
(343 mm)
W: 7.5 in.
(191 mm)
D: 17.5 in.
(445 mm)
37 lb.
(16.8 kg)
with
TIGRunner®
80 VDC
(9–14 VDC**)
H: 46.25 in.
(1175 mm)
W: 23.5 in.
(597 mm)
D: 22.25 in.
(565 mm)
with
Contractor
Kit
69 lb.
(31.3 kg)
with
TIGRunner®
129 lb.
(58.5 kg)
*Indicates idle draw. **Sense voltage for Stick and Lift-Arc TIG.
Certified by Canadian Standards Association to both the Canadian and U.S. Standards.
All CE models conform to the applicable parts of the IEC 60974 series of standards.
Performance Data
DUTY CYCLE
110–120 V INPUT VOLTAGE
%
40%
70%
100%
2
TIG
150 A
150 A
125 A
STICK
125 A
110 A
90 A
200–480 V INPUT VOLTAGE
%
30%
40%
60%
100%
TIG
200 A
200 A
175 A
150 A
STICK
200 A
175 A
150 A
125 A
Control Panel
Maxstar 200 SD
Maxstar 200 DX/LX
5
1
2
5
1
2
6
3
4
7
6
3
7
8
9
4
Control Panel Parameter Values
1. Voltmeter Display
2. Ammeter Display
3. Process/
TIG: HF Impulse, Lift Arc
Arc Starting
STICK: Adaptive Hot Start
4. Output Control
Standard Remote,
2T Trigger Hold,
Output ON
5. Encoder Control
6. Amperage Control
7. Adjust Postflow 0.0 – 50 seconds
DIG
0 – 100%
Advanced Features on the Maxstar LX and DX:
8. Sequencer Control
Initial Amps
1– 200 A
Initial Slope
0.0 – 25.0 seconds
Final Slope
0.0 – 25.0 seconds
Final Amps
1– 200 A
9. Pulser Control
Pulses per Second 0.1 – 500 PPS
Peak Time
5 – 95%
Background Amps 5 – 95%
Additional Setup Parameter Values
Preprogrammed Starts
.020 –1/8 in. tungsten
Programmable Starts
Amperage
5 – 200 A
Time
1– 200 milliseconds
Ramp Time
0 – 250 milliseconds
Minimum Amperage 1– 20 A
Additional Triggers 3T, 4T, Mini Logic,
4T Momentary
Spot/Timer
0.1– 25.0 seconds
OCV
Low OCV, Normal OCV
Stick-Stuck Check On/Off
Available in Three Models:
SD — Provides the basic features that are required for most TIG or Stick welding applications.
Lockouts
Four levels
Arc Timer
0.0 – 9999 hours
and 0 – 59 minutes
Cycle Counter
0 – 999,999 cycles
DX — When the job demands greater control the DX provides pulse on/off, pulse frequency,
peak % time, background amperage, initial amperage, initial slope time, final slope time
and final amperage control.
LX — Automation made simple. With the Automation Interface Connector, the integrator can
quickly interface to the output disable, weld start/stop, gas start/stop inputs; valid arc,
pulse lock out, and end of weld sequence outputs.
LX Additional Features:
Initial start time
Weld cycle time
Final current time
0.0 – 25.0 seconds
0.0 – 999 seconds
0.0 – 25.0 seconds
10-Pin Remote Connection Features:
• Weld cycle start/stop
• Gas start/stop
• Final slope output signal
• Pulse output signal
• Valid arc output signal
3
Pulsed TIG Controls
High-Speed DC Pulsed TIG Controls
• PPS Pulses per second (Hz): DC = 0.1 – 500 PPS
• % ON – % Peak Time: 5 - 95% (Controls the amount of time during each pulse cycle at the PEAK amperage.)
• Background Amps: 5 – 99% (Sets the low-pulse amperage value as a % of the Peak Amps.)
Conventional Pulsed TIG
Peak
Amps
Peak Time %
Background
Amps
(% of Peak)
Peak
Amps
Peak Time %
Background
Amps
(% of Peak)
Pulse Cycle
Typically from 1 to 10 PPS. Provides a heating and cooling effect
on the weld puddle and can reduce distortion by lowering the
average amperage. This heating and cooling effect also produces a
distinct ripple pattern in the weld bead. The relationship between
pulse frequency and travel speed determines the distance between
the ripples. Slow pulsing can also be coordinated with filler metal
addition and can increase overall control of the weld puddle.
4
High-Speed Pulsed TIG
Pulse Cycle
In excess of 40 PPS, Pulsed TIG becomes more audible than visible —
causing increased puddle agitation for a better as-welded microstructure.
Pulsing the weld current at high speeds — between a high Peak and a
low Background amperage — can also constrict and focus the arc.
This results in maximum arc stability, increased penetration and
increased travel speeds (Common Range: 100 – 500 PPS).
Maxstar 200 Models/Packages
®
Maxstar 200 Power Sources
®
Maxstar 200 SD #903 701 (CSA)
Maxstar 200 DX #903 701 011 (CSA)
Maxstar 200 DX #907 354 (CE)
Maxstar 200 LX #903 701 012 (CSA)
Includes:
Adjustable shoulder strap
8-ft. (2.4 m) power cord (no plug)
Two 50-mm Dinse-style connectors
Setup DVD (#251 116)
One air-cooled TIG torch connector
(#195 378). SD and DX models only
One 14-pin and 10-pin receptacle with mating
plug. LX model only
Note: See page 6 for recommended Contractor Torch Kit.
Air-Cooled Contractor Kit Packages
Maxstar 200 DX with Contractor Kit
#951 172 (CSA) w/Foot Control
#951 173 (CSA) w/Fingertip Control
Fingertip contractor kit shown.
Packages include:
Maxstar 200 DX (#903 701 011)
RFCS-14 HD foot control (#194 744) or
RCCS-14 fingertip control (#043 688)
Weldcraft™ A-150 (WP-17) 25-ft. (7.6 m)
TIG torch
200-amp Stick electrode holder with
15-ft. (4.6 m) #4 cable
Work clamp with 15-ft. (4.6 m) #4 cable
Flow gauge regulator with gas hose
AK2C accessory kit with short back cap,
nozzles, collets, collet bodies, and 2% ceriated
tungsten electrodes (.040, 1/16, and 3/32 in.)
One air-cooled TIG torch connector
(#195 378)
Protective carrying case for accessories
Water-Cooled TIGRunner Package
®
Maxstar 200 DX TIGRunner
#903 701 022 (CSA)
Completely assembled.
Package includes:
Maxstar 200 DX (#903 701 011)
Coolmate™ 1, 120 VAC (#300 360)
One gallon of pre-mixed, low-conductivity
coolant (#043 810)
2-Wheel Trolley Cart (#300 480) with the
following features: easy-to-maneuver singlecylinder cart with cable and torch holders.
Easy to release and remove welder from cart
for even more portability. Convenient tray for
consumable storage and filler rod holders.
Notes: TIG Torch Connector must be ordered separately.
See page 6 for recommended W-250 (WP-20) Torch
Kit (#300 185).
The Coolmate 1 requires a separate source for electricity.
The Maxstar 200 does not contain auxiliary power.
Water-Cooled Complete Packages
Maxstar 200 DX
Complete Package
with Foot Control
Maxstar 200 DX Complete
#951 396 (CSA) w/Wireless Foot Control
#951 137 (CSA) w/Foot Control
#951 138 (CSA) w/Fingertip Control
Completely assembled.
Package includes:
Maxstar 200 DX TIGRunner
(#903 701 011)
Coolmate™ 1, 120 VAC (#300 360)
One gallon of pre-mixed, low-conductivity
coolant (#043 810)
Wireless Remote Foot Control (#300 429) or
RFCS-14 HD foot control (#194 744) or
RCCS-14 fingertip control (#043 688)
2-Wheel Trolley Cart (#300 480) with the
following features: easy-to-maneuver singlecylinder cart with cable and torch holders.
Easy to release and remove welder from cart
for even more portability. Convenient tray for
consumable storage and filler rod holders.
W-250 (WP-20) Torch Kit (#300 185).
See page 6 for more details.
Note: The Coolmate 1 requires a separate source for
electricity. The Maxstar 200 does not contain
auxiliary power.
5
Genuine Miller Accessories
®
2-Wheel Trolley Cart
#300 480
Easy-to-maneuver
two-wheel cart features
single-cylinder rack,
chain for cylinder,
straps (quick and
easy to detach and
carry machine), cable
holders, torch holder,
storage area, and
filler rod storage
area. Works with
Dynasty® or Maxstar® 200 and Coolmate™ 1.
Contact your distributor for filler material holders.
Universal
Carrying Cart
and Cylinder
Rack
#042 934
Holds power
source, and
gas cylinder
up to 56 inches
(142.2 cm) high measuring 6 to 9 inches
(15.2 to 22.8 cm) in diameter.
Coolmate™ 1 #300 360
120 VAC, 60 Hz. One-gallon water cooler
designed for 200 A portable welders. Features
include fin-and-tube heat exchanger, back-lit
power switch, external filter, polyethylene tank
and coolant level sight gauge.
Low-Conductivity
TIG Coolant
#043 810
Sold in multiples of
four in one-gallon
recyclable plastic
bottles. Miller
coolants contains a
base of ethylene
glycol and deionized water to protect against
freezing to -37° Fahrenheit (-38° C) or boiling to
227° Fahrenheit (108° C).
Remote Controls and Switches
#195 054
kit shown.
Contractor Kits
#195 054 150 A RFCS-14 HD Foot Pedal Kit
#195 055 150 A RCCS-14 Fingertip Kit
All-in-one TIG/Stick welding kit comes with
either a RFCS-14 HD foot control or RCCS-14
fingertip control, Weldcraft™ A-150 TIG torch,
200-amp Stick electrode holder with 15-foot
(4.6 m) cable, 300-amp work clamp with
15-foot (4.6 m) cable, flow gauge regulator with
12-foot (3.7 m) gas hose, gas hose coupler,
AK2C torch accessory kit, TIG torch connector
and protective carrying case.
Weldcraft™ A-200
(WP-26) TIG Torch
#WP-26-12-R (12 ft.)
#WP-26-25-R (25 ft.)
Torch body gas valve
models are available.
Note: A-200 (WP-26) torch
requires #195 379 connector.
Air-Cooled TIG Torch Connectors
#195 379 A-200 (WP-26)
#195 378* All others
50-mm Dinse-style for one-piece air-cooled torch.
*A-80 (WP-24) torches require 24-5 connector.
Wireless Remote
Hand Control #300 430
For remote current and
contactor control. Receiver
plugs directly into the 14-pin
receptacle of Miller machine.
300-foot (91.4 m) operating range.
RCCS-14 Remote
Contactor and Current
Control #043 688
North/south rotary-motion fingertip control
attaches to TIG torch using two hook-and-loop
fasteners. Includes 26.5-foot (8 m) cord and
14-pin plug.
RCC-14 Remote
Contactor and Current
Control #151 086
East/west rotary-motion fingertip control
attaches to TIG torch using two hook-and-loop
fasteners. Includes 26.5-foot (8 m) cord and
14-pin plug.
RFCS-14 HD Foot Control #194 744
Maximum flexibility is accomplished with a
reconfigurable cord that can exit the front, back
or either side of the pedal. Foot pedal provides
remote current and contactor control. Includes
20-foot (6 m) cord and 14-pin plug.
RHC-14 Hand Control #242 211 020
Miniature hand control for remote current and
contactor control. Dimensions: 4 x 4 x 3.25 inches
(102 x 102 x 83 mm). Includes 20-foot (6 m)
cord and 14-pin plug.
W-250 (WP-20) Water-Cooled Torch Kit
#300 185
Weldcraft™ W-250 (WP-20) 25-foot (7.6 m)
TIG torch with Dinse-style connector
Torch cable cover
Work clamp with 15-foot (4.6 m) 1/0 cable
and Dinse-style connector
Flowmeter regulator
Gas hose (regulator to machine)
AK4C torch accessory kit includes nozzles,
collets, collet bodies and 2% ceriated tungsten
electrodes (1/16, 3/32 and 1/8 inch)
Water-Cooled TIG
Torch Connector
#195 377
50-mm Dinse-style
with water return line. For use with all Weldcraft™
water-cooled torches.
6
Wireless Remote
Foot Control #300 429
For remote current and
contactor control. Receiver
plugs directly into the 14-pin
receptacle of Miller machine. 90-foot (27.4 m)
operating range.
RMLS-14 Switch
#129 337
Momentary- and maintained-contact rocker
switch for contactor control. Push forward
for maintained contact and backward for
momentary contact. Includes 26.5-foot (8 m)
cord and 14-pin plug.
RMS-14 On/Off Control
#187 208
Momentary-contact switch for contactor
control. Rubber-covered pushbutton dome
switch ideal for repetitive on-off applications.
Includes 26.5-foot (8 m) cord and 14-pin plug.
Extension Cables for 14-Pin Remote Controls
#242 208 025 25 ft. (7.6 m)
#242 208 050 50 ft. (15.2 m)
#242 208 080 80 ft. (24.4 m)
Genuine Miller Accessories (Continued)
®
Educational Materials
Performance TIG/Multitask
Gloves
#263 352 Small
#263 353 Medium
#263 354 Large
#263 355 X-Large
Goat grain leather with dualpadded palm and wool back.
TIG Welding Gloves
To order, please call Miller Literature at 866-931-9732
or visit MillerWelds.com/resources/tools.
Classic TIG
Welding Gloves
#249 199 Large
#249 200 X-Large
Unlined pigskin leather palm
with reinforced palm patch.
Gas Tungsten Arc Welding (TIG) Publication
#250 833
Ron Covell TIG Welding Basics DVD
#196 567
Performance TIG Gloves
#263 345 X-Small (Women’s)
#263 346 Small (Women’s)
#263 347 Medium
#263 348 Large
#263 349 X-Large
Completely unlined, goat grain
leather with triple-padded palm.
Setup DVD #251 116
Video topics include tungsten selection, setup
menus, DC pulse, sequencer, balance and
frequency settings. (Included with machine.)
Tungsten
Tungsten
Amp Range
2% Ceriated (AC/DC)
2% Lanthanated (AC/DC)
.040 in. (1.2 mm)
10 – 80 A
WC040X7
WL2040X7
1/16 in. (1.6 mm)
70 –150 A
WC116X7
WL2116X7
3/32 in. (2.4 mm)
140 – 250 A
WC332X7
WL2332X7
1/8 in. (3.2 mm)
225 – 400 A
WC018X7
WL2018X7
5/32 in. (4.0 mm)
300 – 500 A
WC532X7
WL2532X7
Multi-Operator Rack
4-Pack Rack (empty) #195 051
Appropriate fuses required.
Rugged enclosure provides a simple means
for protecting and transporting multiple
welding power sources for construction,
power plant turn-arounds, and shipbuilding
applications.
Light weight and small footprint for easy
transportation. Low weight enables the use
of elevators to move the rack.
Top cover protects machines from falling
debris.
Lifting eye simplifies transportation using
crane or overhead lifting device.
Lift truck side and end fork pockets.
One main disconnect box with fused circuit
breaker switches for each machine.
Common output ground connection
(for same polarity use only).
Power Source
Rack
Capacity
Input Power to Rack
Generator kW
(Required)
Rack Fuse Size
(3 per Power Source Required)*
Maxstar 200
4
230 V at 74 A
20 kW
30 A (#199 795)
460 V at 36 A
20 kW
15 A (#220 514)
4-Pack Rack Running Gear #195 114
Large 5-inch diameter wheels enable the rack to
be moved over grating and driveway gravel.
Dimensions
Net Weight
H: 50.75 in. (1289 mm)
W: 25.5 in. (648 mm)
D: 26.5 in. (673 mm)
Rack only
166 lb. (75 kg)
*Rack comes with 25 A fuses. Order appropriate fuses for primary voltage.
7
Ordering Information
Equipment and Options
Stock No.
Description
Maxstar 200 SD
Maxstar® 200 DX
Maxstar® 200 DX International
Maxstar® 200 LX
#903 701
#903 701 011
#907 354
#903 701 012
Auto-Line 120 – 480 VAC, 50/60 Hz, CSA. 8-ft. power cord
Auto-Line™ 120 – 480 VAC, 50/60 Hz, CSA. 8-ft. power cord
Auto-Line™ 120 – 480 VAC, 50/60 Hz, CE. 8-ft. power cord
Auto-Line™ 120 – 480 VAC, 50/60 Hz, CSA. 8-ft. power cord
Air-Cooled Packages
Maxstar® 200 DX Contractor Kit w/Foot Control
Maxstar® 200 DX Contractor Kit w/Fingertip Control
#951 172
#951 173
Auto-Line™ 120 – 480 VAC, 50/60 Hz, CSA. 8-ft. power cord
Auto-Line™ 120 – 480 VAC, 50/60 Hz, CSA. 8-ft. power cord
Water-Cooled Packages
Maxstar® 200 DX TIGRunner ®
#903 701 022
#951 396
Auto-Line™ 120 – 480 VAC, 50/60 Hz, CSA. 8-ft. power cord
(Torch kit and accessories sold separately)
Auto-Line™ 120 – 480 VAC, 50/60 Hz, CSA. 8-ft. power cord
#951 137
#951 138
Auto-Line™ 120 – 480 VAC, 50/60 Hz, CSA. 8-ft. power cord
Auto-Line™ 120 – 480 VAC, 50/60 Hz, CSA. 8-ft. power cord
#195 054
#195 055
#WP-26-12-R
#WP-26-25-R
#195 379
#195 378
Foot pedal
Fingertip
12-ft. (3.7 m) cable. Requires #195 379 connector
25-ft. (7.6 m) cable. Requires #195 379 connector
Connects Weldcraft™ A-200 (WP-26) torch to Dinse-style connector
Connects all air-cooled Weldcraft™ torches (except A-200) to
Dinse-style connector. A-80 (WP-24) torches require 24-5 connector
®
Maxstar® 200 DX Complete
with Wireless Remote Foot Control
Maxstar® 200 DX Complete w/Foot Control
Maxstar® 200 DX Complete w/Fingertip Control
TIG Torches, Kits and Connectors
Air-Cooled Contractor Kits
Weldcraft™ A-200 (WP-26) TIG Torch
Air-Cooled TIG Torch Connectors
W-250 (WP-20) Torch Kit
Water-Cooled TIG Torch Connector
Tungsten
Remote Controls
Wireless Remote Foot Control
Wireless Remote Hand Control
RCCS-14
RCC-14
RFCS-14 HD
RHC-14
RMLS-14
RMS-14
Extension Cables
Accessories
4-Pack Rack (empty)
4-Pack Rack Running Gear
Fuses
2-Wheel Trolley Cart
Universal Carrying Cart and Cylinder Rack
Coolmate™ 1
TIG Coolant (Must be ordered in quantities of four)
Dinse-Style Connector 50 mm (1 male)
Dinse-Style Connector 50 mm (1 male, 1 female)
Dinse/Tweco® Adapter
Dinse/Cam-Lok Adapter
Gas Tungsten Arc Welding (TIG) Publication
Ron Covell TIG Welding Basics DVD
Setup DVD (included with machine)
Date:
Distributed by:
© 2013 Miller Electric Mfg. Co.
#300 185
#195 377
Qty.
™
Connects Weldcraft™ water-cooled torches to Dinse-style connector
See page 7
#300 429
#300 430
#043 688
#151 086
#194 744
#242 211 020
#129 337
#187 208
#242 208 025
#242 208 050
#242 208 080
Foot control with wireless 90-ft. (27.4 m) operating range
Hand control with wireless 300-ft. (91.4 m) operating range
North/south fingertip control
East/west fingertip control
Heavy-duty foot control
Hand control
Momentary/maintained rocker switch
Momentary rubber dome switch
25 ft. (7.6 m)
50 ft. (15.2 m)
80 ft. (24.4 m)
#195 051
#195 114
#199 795
#220 514
#300 480
#042 934
#300 360
#043 810
#042 418
#042 419
#042 465
#042 466
#250 833
#196 567
#251 116
Order power source and fuses separately
Four 5-in. diameter wheels and brackets
230 V, 30 A individual fuse. 12 required for 4-Pack
460 V, 15 A individual fuse. 12 required for 4-Pack
120 VAC, 60 Hz. Requires coolant
1-gallon plastic bottle
Used to connect weld cable to Dinse terminal machine
Used to extend weld cables
Male Dinse to female Tweco
Male Dinse to female Cam-Lok
Total Quoted Price:
Price
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
