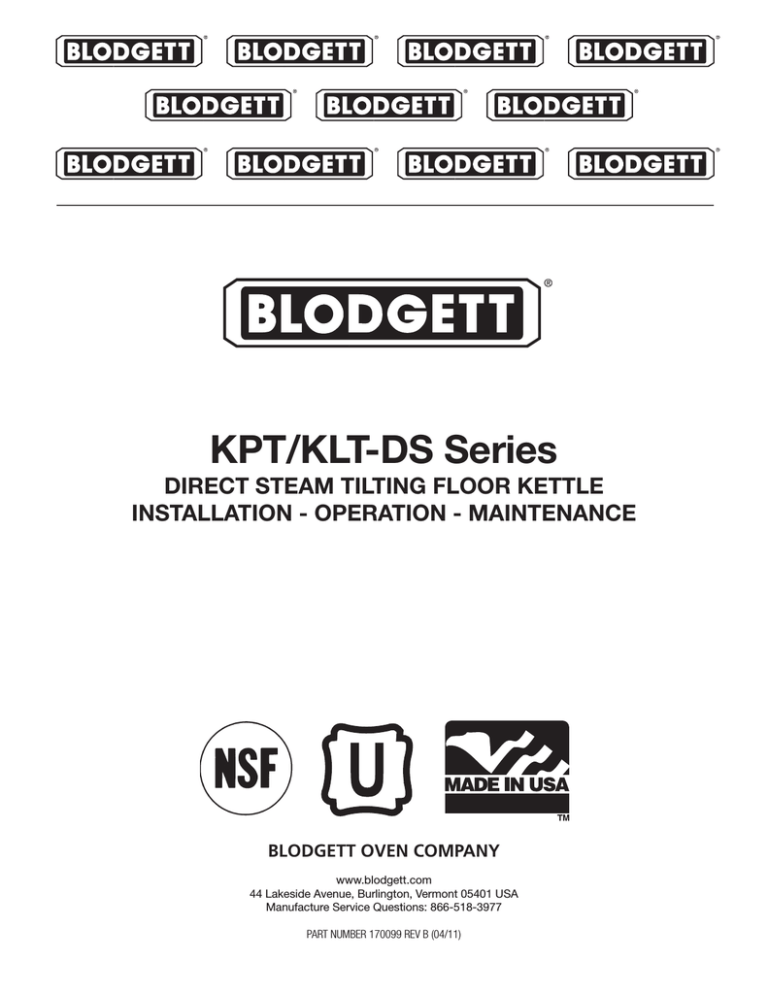

KPT/KLT-DS Series
DIRECT STEAM TILTING FLOOR KETTLE
INSTALLATION - OPERATION - MAINTENANCE
BLODGETT OVEN COMPANY
www.blodgett.com
44 Lakeside Avenue, Burlington, Vermont 05401 USA
Manufacture Service Questions: 866-518-3977
PART NUMBER 170099 REV B (04/11)
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ, UNDERSTAND
AND FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED IN THIS MANUAL.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
WARNING
Improper installation, adjustment, alteration, service or maintenance can
cause property damage, injury or death. Read the installation, operating
and maintenance instructions thoroughly before installing or servicing
this equipment.
NOTIFY CARRIER OF DAMAGE AT ONCE
It is the responsibility of the consignee to inspect the container upon
receipt of same and to determine the possibility of any damage, including
concealed damage. WE suggest that if you are suspicious of damage to
make a notation on the delivery receipt. It will be the responsibility of the
consignee to file a claim with the carrier. We recommend that you do so
at once.
IMPORTANT - READ FIRST - IMPORTANT
CAUTION: BE SURE ALL OPERATORS READ, UNDERSTAND AND FOLLOW THE OPERATING INSTRUCTIONS,
CAUTIONS, AND SAFETY INSTRUCTIONS CONTAINED IN THIS MANUAL.
WARNING: THIS UNIT IS INTENDED FOR USE IN THE COMMERCIAL HEATING, COOKING AND HOLDING OF
WATER AND FOOD PRODUCTS, PER THE INSTRUCTIONS CONTAINED IN THIS MANUAL. ANY
OTHER USE COULD RESULT IN SERIOUS PERSONAL INJURY OR DAMAGE TO THE EQUIPMENT
AND WILL VOID WARRANTY.
CAUTION: SHIPPING STRAPS ARE UNDER TENSION AND CAN SNAP BACK WHEN CUT.
CAUTION: UNIT WEIGHS 190 TO 270 LBS (85 TO 125 KG). FOR SAFE HANDLING, INSTALLER SHOULD
GET HELP AS NEEDED, OR USE MATERIALS HANDLING EQUIPMENT (E.G., FORK LIFT, DOLLY
OR PALLET JACK) TO REMOVE THE UNIT FROM THE SKID AND MOVE IT TO THE PLACE OF
INSTALLATION.
WARNING: KETTLES MUST BE INSTALLED BY PERSONNEL QUALIFIED TO WORK WITH PLUMBING.
IMPROPER INSTALLATION CAN RESULT IN INJURY TO PERSONNEL AND/OR DAMAGE TO
EQUIPMENT.
WARNING: AVOID ANY EXPOSURE TO ESCAPING STEAM. STEAM CAN CAUSE SEVERE BURNS.
WARNING: TAKE EXTREME CARE TO KEEP HOT CONTENTS FROM SPILLING OR SPLASHING ON ANYONE.
DO NOT STAND DIRECTLY IN FRONT OF KETTLE BODIES WHEN THEY ARE BEING TILTED.
WARNING: AVOID ALL DIRECT CONTACT WITH HOT EQUIPMENT SURFACES. DIRECT SKIN CONTACT COULD
RESULT IN SEVERE BURNS.
WARNING: AVOID ALL DIRECT CONTACT WITH HOT FOOD OR WATER IN KETTLES. DIRECT CONTACT
COULD RESULT IN SEVERE BURNS.
CAUTION: DO NOT OVER FILL THE KETTLE WHEN COOKING, HOLDING OR CLEANING. KEEP LIQUIDS
A MINIMUM OF 2-3” (5-8 cm) BELOW THE KETTLE BODY RIM TO ALLOW CLEARANCE FOR
STIRRING, BOILING AND SAFE PRODUCT TRANSFER.
WARNING: TAKE SPECIAL CARE TO AVOID CONTACT WITH HOT KETTLE BODY OR HOT PRODUCT WHEN
ADDING INGREDIENTS, STIRRING OR TRANSFERRING PRODUCT TO ANOTHER CONTAINER.
WARNING: WHEN TILTING KETTLE FOR PRODUCT TRANSFER:
1) WEAR PROTECTIVE OVEN MITT AND PROTECTIVE APRON.
2) USE CONTAINER DEEP ENOUGH TO CONTAIN AND MINIMIZE PRODUCT SPLASHING.
3) PLACE CONTAINER ON STABLE, FLAT SURFACE, AS CLOSE TO KETTLE AS POSSIBLE.
4) STAND TO LEFT OR RIGHT SIDE OF KETTLE (DEPENDING ON TILTING HANDLE PLACEMENT)
WHILE POURING. DO NOT STAND DIRECTLY IN POUR PATH OF HOT CONTENTS.
5) POUR SLOWLY, MAINTAIN CONTROL OF KETTLE BODY HANDLE AT ALL TIMES, AND
RETURN KETTLE BODY TO UPRIGHT POSITION AFTER CONTAINER IS FILLED OR TRANSFER IS
COMPLETE.
6) DO NOT OVERFILL CONTAINER. AVOID DIRECT SKIN CONTACT WITH HOT CONTAINER AND ITS
CONTENTS.
OM-KPT/KLT-DS
1
IMPORTANT - READ FIRST - IMPORTANT
CAUTION: KEEP FLOORS IN FRONT OF KETTLE WORK AREA CLEAN AND DRY. IF SPILLS OCCUR, CLEAN
IMMEDIATELY, TO AVOID SLIPS OR FALLS.
WARNING: FAILURE TO CHECK SAFETY VALVE OPERATION PERIODICALLY COULD RESULT IN PERSONAL
INJURY AND/OR DAMAGE TO EQUIPMENT.
WARNING: WHEN TESTING, AVOID ANY EXPOSURE TO THE STEAM BLOWING OUT OF THE SAFETY VALVE.
DIRECT CONTACT COULD RESULT IN SEVERE BURNS.
WARNING: TO AVOID INJURY, READ AND FOLLOW ALL PRECAUTIONS STATED ON THE LABEL OF THE
WATER TREATMENT COMPOUND.
CAUTION: MOST CLEANERS ARE HARMFUL TO THE SKIN, EYES, MUCOUS MEMBRANES AND CLOTHING.
PRECAUTIONS SHOULD BE TAKEN. WEAR RUBBER GLOVES, GOGGLES OR FACE SHIELD AND
PROTECTIVE CLOTHING. CAREFULLY READ THE WARNINGS AND FOLLOW THE DIRECTIONS ON
THE LABEL OF THE CLEANER TO BE USED.
CAUTION: USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY THE MANUFACTURER
OR ITS AUTHORIZED DISTRIBUTORS CAN CAUSE OPERATOR INJURY AND DAMAGE TO THE
EQUIPMENT, AND WILL VOID ALL WARRANTIES.
IMPORTANT: SERVICE PERFORMED BY OTHER THAN FACTORY AUTHORIZED PERSONNEL WILL VOID
WARRANTIES.
2
OM-KPT/KLT-DS
Table of Contents
Important Operator Warnings ....................................................... page 1-2
References.................................................................................... page 3
Equipment Description............................................................... page 4-5
Inspection & Unpacking................................................................. page 6
Installation ..................................................................................... page 7
Initial Start-Up................................................................................ page 8
Operation ...................................................................................... page 9
Sequence of Operation ................................................................ page 10
Maintenance................................................................................. page 11
Cleaning.................................................................................. page 12-13
Troubleshooting............................................................................ page 14
Parts List..................................................................................... page 15
Bucket Steam Trap........................................................................ page 16
Service Log .................................................................................. page 17
References
KLENZADE SALES CENTER ECOLAB. Inc.
370 Wabasha St. Pau , Minnesota 55102
800/352-5326 or 612/293-2233
NSF INTERNATIONAL
789 N. Dixboro Road
P.O. Box 130140
Ann Arbor, Michigan 48113-0140
ZEP MANUFACTURING CO.
1310-T Seaboard Industrial Blvd.
Atlanta, Georgia 30318
OM-KPT/KLT-DS
3
Equipment Description
The Blodgett KLT/KPT series are deep type, tilting kettles with direct steam-heated 2/3
jackets. The stainless steel kettles have welded, reinforced rims and butterfly shaped
pouring lips. The liner and pouring lip of all kettles are 316 stainless steel. They are
ASME shop-inspected, and are registered with the National Board. The kettles have a
180 emery grit interior finish and a bright semi-deluxe exterior finish.
Every unit requires a remote steam source. The steam supply is controlled by an inlet
valve, and enters the jacket through one trunnion directly into the jacket. Steam pressure
forces condensate out a dip tube through the other trunnion. Both steam and condensate
lines are concealed within the support structures of the various models. The tale at
bottom right shows the standard kettle sizes for each model.
These kettles operate safely and efficiently at various steam pressures above five PSI,
with upper pressure limits assured by the provided safety valve. Operation also requires
a globe valve on the steam inlet and a strainer, steam trap, and check valve on the
condensate outlet. These may be ordered as optional equipment.
Kettles are emptied by tilting, but optional tangent draw-offs are available. The
standard draw-off is two inch outer diameter stainless steel, with compression disc
valve and a removable stainless steel strainer that has 1/4 inch perforations. Strainers
with 1/8 inch or no perforations are also available. The table on the bottom right shows
the sizes of draw-offs which can be furnished with each model.
The kettles in this series employ a worm and gear tilting mechanism, which is
completely enclosed.
The kettles are mounted in two ways. The KPT Model is suspended in a stainless steel
yoke on a pedestal base. The outer circumference of the base is flanged down for proper
sealing to the floor. The KLT Model is supported by a tubular, stainless steel tri-leg frame
with adjustable floor flanges.
Options include:
1. Lift-off cover (for kettles smaller than 60 gallons)
2. Cover with counter-balancing actuator (for 40 gallon and larger kettles)
3. Fill faucets with swing spout
4. Basket cooking system
5. Kettle brush kit
6. Operating pressures up to 90 PSIG
4
OM-KPT/KLT-DS
Equipment Description
Kettle
Capacity
Inside
Diameter
Rim Height
Overall Width
Front-to-Back
Base Style
20DS-KPT
20 Gallons
75 liters
20 inches
508 mm
36 inches
914 mm
36-1/4 inches
921 mm
23 inches
584 mm
Yoke &
Pedestal
40DS-KPT
40 Gallons
150 liters
26 inches
660 mm
38-1/2 inches
978 mm
43 inches
1092 mm
30 inches
762 mm
Yoke &
Pedestal
60DS-KPT
60 Gallons
225 liters
30 inches
762 mm
43 inches
1092 mm
47 inches
1194 mm
34 inches
864 mm
Yoke &
Pedestal
20DS-KLT
20 Gallons
75 liters
20 inches
508 mm
36 inches
914 mm
36-1/4 inches
921 mm
29 inches
737 mm
Tubular Leg
40DS-KLT
40 Gallons
150 liters
26 inches
660 mm
36 inches
914 mm
43 inches
1092 mm
34-1/2 inches
870 mm
Tubular Leg
60DS-KLT
60 Gallons
225 liters
30 inches
762 mm
44 inches
1118 mm
47 inches
1194 mm
38-1/4
972 mm
Tubular Leg
80DS-KLT
80 Gallons
300 liters
32 inches
813 mm
48 inches
1219 mm
49 inches
1245 mm
39-1/4 inches
997 mm
Tubular Leg
MODEL
OM-KPT/KLT-DS
5
Inspection & Unpacking
CAUTION
AVOID NAILS AND SPLINTERS WHEN
REMOVING KETTLES FROM WOODEN
CRATES. WEAR SAFETY GLASSES.
CAUTION
SHIPPING STRAPS ARE UNDER TENSION
AND CAN SNAP BACK WHEN CUT.
CAUTION
UNIT WEIGHS 215 TO 295 LBS (98 TO 134
KG). FOR SAFE HANDLING, INSTALLER
SHOULD GET HELP AS NEEDED, OR USE
MATERIALS HANDLING EQUIPMENT (e.g.,
FORK LIFT, DOLLY OR PALLET JACK) TO
REMOVE THE UNIT FROM THE SKID AND
PLACE IT FOR INSTALLATION.
6
OM-KPT/KLT-DS
The kettle will arrive completely assembled and wrapped in protective plastic,
strapped and bolted on a heavy skid, enclosed in a three-wall cardboard crate. (80
gallon and larger kettles are in wooden crates.) Immediately on receipt remove the
box and plastic wrap, and inspect the unit for damage. Report any damage or an
incorrect shipment to the delivery agent.
Write down the model number, serial number and installation date, and keep this
information for future reference. Space for these entries is provided at the top of the
Service Log in the back of this manual.
When installation is to begin, cut the straps holding the unit on the skid. Lift the unit
straight up off of the skid.
Installation
WARNING
THIS UNIT MUST BE INSTALLED BY
PERSONNEL QUALIFIED TO WORK WITH
PLUMBING. IMPROPER INSTALLATION CAN
CAUSE INJURY TO PERSONNEL AND/OR
DAMAGE TO EQUIPMENT.
All Models
1. Installation under a ventilation hood is recommended. Consult local codes.
2. Install and anchor the kettle on a level surface.
3. If the steam supply pressure is greater than the maximum working pressure
stamped on the nameplate, you must install a pressure reducing valve in the
steam supply line near the kettle.
4. Connect the steam supply line to the steam inlet fitting. Include a steam control
valve and an appropriate safety valve. To obtain the full heating capability of the
kettle, the steam supply line must be as large as the steam inlet fitting.
5. The safety valve is preset to relieve jacket pressure that exceeds its rated limit.
Do not try to adjust the valve setting, and do not allow the valve outlet or lever to
be blocked.
6. Connect the kettle condensate return line to the boiler return line, or to a drain. A
suitable steam trap, strainer, and check valve must be installed.
7. Any mechanical change must be approved by the Food Service Engineering
Department.
Floor-Mounted Models
1. Install the unit on a level surface. Ensure that there is adequate clearance at the
sides and rear, as required by the specification drawings. Anchor the pedestal or
legs securely to the floor.
For proper sanitation, a continuous seal
is required between pedestals or flanges 2. Apply a continuous bead of clear silicone sealant (No. 732 or equivalent) to the
and the mounting surface.
junction between the pedestal or leg flange and the surface, as shown in the
illustration at left. Fill all cracks and crevices, and wipe excess away.
Cold water cooling option.
OM-KPT/KLT-DS
7
Initial Start-Up
IMPORTANT
BE SURE ALL OPERATORS READ,
UNDERSTAND AND FOLLOW THE OPERATING
INSTRUCTIONS, CAUTIONS, AND SAFETY
INSTRUCTIONS CONTAINED IN THIS MANUAL.
WARNING
AVOID EXPOSURE TO ESCAPING STEAM,
WHICH CAN CAUSE SEVERE BURNS.
Now that the kettle has been installed, you should test it to ensure that it is operating
correctly.
1. Remove all literature and packing materials from inside and outside of the unit.
2. Pour a small amount of water into the kettle.
3. Open the steam inlet valve.
4. When the water begins to boil, inspect all of the fittings to ensure that there are
no leaks.
5. Check the safety valve by pulling out on its chain, (or lifting its lever on older
models) far enough to let steam escape. Then let it snap back into place to
reseat the valve so that it will not leak.
6. Shut down the unit by closing the steam inlet valve.
7. Operate the tilting mechanism and draw-off valve to confirm that they function
through the whole range of normal operation.
If the unit functions as described above, it is ready for use. If the unit does not function
as intended, contact your local Certified Service Agency.
8
OM-KPT/KLT-DS
Operation
WARNING
AVOID EXPOSURE TO ESCAPING STEAM,
WHICH CAN CAUSE SEVERE BURNS.
WARNING
AVOID ALL DIRECT CONTACT WITH HOT
FOOD OR WATER IN THE KETTLE. DIRECT
CONTACT COULD RESULT IN SEVERE BURNS.
TAKE SPECIAL CARE TO AVOID CONTACT
WITH HOT KETTLE BODY OR HOT PRODUCT,
WHEN ADDING INGREDIENTS, STIRRING OR
TRANSFERRING PRODUCT TO
ANOTHER CONTAINER.
CAUTION
DO NOT OVERFILL THE KETTLE WHEN
COOKING, HOLDING OR CLEANING. KEEP
LIQUIDS AT LEAST 2-3” (5-8 cm) BELOW
THE KETTLE BODY RIM TO ALLOW
CLEARANCE FOR STIRRING, BOILING
PRODUCT AND SAFE TRANSFER.
WARNING
WHEN TILTING KETTLE FOR PRODUCT
FOR PRODUCT TRANSFER:
1) WEAR PROTECTIVE OVEN MITT AND
PROTECTIVE APRON.
2) USE CONTAINER DEEP ENOUGH TO
CONTAIN AND MINIMIZE PRODUCT
SPLASHING.
3) PLACE CONTAINER ON STABLE, FLAT
SURFACE, AS CLOSE TO KETTLE AS
POSSIBLE.
4) STAND TO LEFT OR RIGHT SIDE OF
KETTLE WHILE POURING – NOT
DIRECTLY IN POUR PATH OF HOT
CONTENTS.
5) POUR SLOWLY, MAINTAIN CONTROL
OF KETTLE AT ALL TIMES, AND
RETURN KETTLE BODY TO UPRIGHT
POSITION AFTER CONTAINER IS
FILLED OR TRANSFER IS COMPLETE.
6) DO NOT OVERFILL CONTAINER. AVOID
DIRECT SKIN CONTACT WITH HOT
CONTAINER AND ITS CONTENTS.
Before operating a cold kettle, open the petcock at the bottom of the jacket to drain
any water left by condensing steam. Close the petcock before you open the steam
inlet valve. Draining this water decreases the “hammering” you hear when steam
enters a cold jacket.
To heat the kettle, open the steam inlet valve. Adjusting the inlet valve allows the
operator to control the heating rate. Opening the valve more allows steam to flow into
the jacket faster, and thereby heats the product faster.
The kettle operates efficiently with steam pressures from five PSI to the maximum
working pressure for which the kettle was designed. The maximum allowable
pressure is stamped on the kettle nameplate. It is 25 PSI for standard units.
Once a day, while there is still steam pressure in the jacket, bleed off any entrapped
air and double check the operation of the safety valve. Pull out on its chain, or lift the
lever far enough to let steam escape. Then let it snap back into place to reseat the
valve so that it will not leak.
Tilting the Kettle
To transfer product or empty the kettle: turn the handwheel counterclockwise. The
kettle will hold its position when you stop turning the wheel. If the tilting mechanism
seems to be locked, do not use force to free the kettle. Call for assistance from a
Certified Service Agency, or refer to the Troubleshooting section of this manual.
OM-KPT/KLT-DS
9
Sequence of Operation
The following “action-reaction” outline is provided to help you understand how the
equipment functions.
When the steam inlet valve is opened, steam flows into the jacket at a pressure determined
by the boiler system, or by the pressure reducing valve which serves the kettle. In the jacket
steam releases its heat to the kettle as it condenses into water. The steam trap allows
condensate (water) to leave the kettle while holding the steam in.
When the steam supply is shut off, condensation of the remaining steam produces a
vacuum in the jacket, but the check valve in the condensate return line keeps water from
flowing back into the jacket.
10
OM-KPT/KLT-DS
Maintenance
WARNING
WHEN TESTING, AVOID ANY EXPOSURE
TO THE STEAM BLOWING OUT OF THE
SAFETY VALVE. DIRECT CONTACT
COULD RESULT IN SEVERE BURNS.
CAUTION
USE OF ANY REPLACEMENT PARTS
OTHER THAN THOSE SUPPLIED BY THE
MANUFACTURER OR AN AUTHORIZED
SUPPLIER WILL VOID ALL WARRANTIES AND
COULD INJURE THE OPERATOR OR DAMAGE
THE EQUIPMENT.
NOTICE:Contact an authorized representative when repairs are required.
Periodic Maintenance
A Service Log is provided at the back of this manual with the warranty information.
Each time maintenance is performed on your kettle, enter the date on which the work
was done, what was done, and who did it. Keep this manual on file and available for
operators to use.
Periodic inspection will minimize equipment down time and increase the efficiency of
operation. The following points should be checked:
1.
Once a day, with pressure in the jacket, check the operation of the safety valve.
Lift the lever of the safety valve until steam is released. Then release the lever
and let the valve snap shut. If the lever does not activate, or there is no evidence
of discharge, or the valve leaks, immediately discontinue use of the kettle and
contact a qualified service representative.
2. At least once every 90 days, inspect fittings and valves for signs of damage or
wear. Regularly examine trunnion packings and valve seats for wear, and replace
them when necessary.
NOTE: Service performed by other than factory authorized personnel will void all
warranties.
3. Lubricate trunnions and gears with a good grade of high temperature grease.
Grease trunnions at least once every 60 days, and grease gears when inspection
shows that they are dry.
4. If the kettle cover has an actuator, lubricate it every 90 days.
NOTE: Use only Calcium Complex Nr. 2 Grease.
OM-KPT/KLT-DS
11
Cleaning
WARNING
AVOID ANY DIRECT CONTACT WITH HOT
SURFACES. DIRECT SKIN CONTACT
COULD RESULT IN SEVERE BURNS.
CAUTION
MOST CLEANERS ARE HARMFUL TO THE
SKIN, EYES, MUCOUS MEMBRANES, AND
CLOTHING. PRECAUTIONS SHOULD BE
TAKEN. WEAR RUBBER GLOVES, GOGGLES
OR FACE SHIELD, AND PROTECTIVE
CLOTHING. READ THE WARNINGS AND
FOLLOW THE DIRECTIONS ON THE LABEL OF
THE CLEANER CAREFULLY.
CAUTION
DO NOT MIX DIFFERENT KETTLE DRAWOFF
ASSEMBLY PARTS WHEN WASHING.
THEY ARE NOT INTERCHANGEABLE
NOTICE
NEVER LEAVE A CHLORINE SANITIZER IN
CONTACT WITH STAINLESS STEEL
SURFACES LONGER THAN 30 MINUTES.
LONGER CONTACT CAN CAUSE STAINING
AND CORROSION.
A. Suggested Tools
1. Cleaner, such as Klenzade HC-10 or HC-32 from ECOLAB, Inc
2. Long- and short-handled kettle brushes in good condition
3. Brush suitable for cleaning the draw-off port
4. Sanitizer such as Klenzade XY-12
5. Film remover such as Klenzade LC-30
B. Procedure
1. Clean food-contact surfaces as soon as possible after use, preferably
while the kettle is still hot. If the unit is in continuous use, thoroughly clean
and sanitize the interior and exterior at least once every 12 hours.
2. Scrape and flush out food residues with lukewarm water. After flushing the
kettle, close the draw-off valve.
3. Prepare a hot solution of the detergent/ cleaning compound as instructed
by the supplier. Set some of this solution aside to use in cleaning the
draw-off valve and pipe.
4. Clean the unit thoroughly, inside and outside.
5. Drain the kettle.
6. Disassemble the tangent draw-off valve. Clean the draw-off pipe and each
valve part with a brush.
7.
Rinse the kettle and draw-off parts thoroughly with warm water, then
drain completely.
8. As part of the daily cleaning, clean all external and internal surfaces that
may have been soiled. Remember to check such areas as the underside of
the cover.
Scrapers or steel wool can harm
the kettle surface.
9. To remove burned-on materials, use a brush, sponge, cloth, plastic or
rubber scraper, or plastic wool with the cleaning solution. To reduce effort
required in washing, let the detergent solution sit in the kettle and soak
into the residue. Do not use abrasive materials or metal tools that might
scratch the surface. Scratches make the surface harder to clean and
provide places for bacteria to grow.
10. Do not use steel wool, which may leave particles in the surface and cause
eventual corrosion and pitting.
Use only a sponge, cloth or
plastic brush to clean the kettle.
12
OM-KPT/KLT-DS
11. The outside of the unit may be polished with a stainless steel cleaner such
as “Zepper” from Zep Manufacturing Co.
Cleaning
12. When equipment needs to be sanitized, use a solution equivalent to one
that supplies 200 parts per million available chlorine. Obtain advice on
sanitizing agents from your supplier of sanitizing products. Following the
supplier’s instructions, apply the agent after the unit has been cleaned and
drained. Drain and thoroughly rinse off the sanitizer.
13. It is recommended that each piece of equipment be sanitized just before
use.
14. If there is difficulty removing mineral deposits or a film left by hard water
or food residues, clean the kettle thoroughly and use a deliming agent, in
accordance with the manufacturer’s directions. Rinse and drain the unit
thoroughly before further use.
15. If cleaning problems persist, contact your cleaning product representative
for assistance. The supplier has a trained technical staff with laboratory
facilities to serve you.
16. If your unit is equipped with a tangent draw-off valve, disassemble it and
clean the draw-off port and each valve part with a brush.
OM-KPT/KLT-DS
13
Troubleshooting
Your kettle will operate smoothly and efficiently if properly maintained. However, the following is a list of checks to make in the event
of a problem. If the actions suggested do not solve the problem, call your qualified Service Representative. If an item on the list is
followed by an X, the work should be done by a qualified service representative.
WARNING
TO AVOID INJURY FROM SPLASHING OR SPILLING HOT CONTENTS, EMPTY THE KETTLE THROUGH THE DRAW-OFF
OR BY BAILING BEFORE ANY WORK IS DONE ON THE TILTING MECHANISM.
USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY THE MANUFACTURER AND/OR AUTHORIZED
DISTRIBUTOR CAN CAUSE INJURY TO THE OPERATOR AND DAMAGE TO THE EQUIPMENT AND WILL VOID ALL WARRANTIES.
SYMPTOM
Kettle will not heat.
WHO
WHAT TO CHECK
(* indicates work that should only be performed by a qualified service representative)
User
a. That the steam inlet valve is open.
b. That the steam supply line is turned on.
c. That the condensate return valve is open.
d. That the boiler is operating properly. Steam should be
supplied at a pressure greater than five PSI.
Authorized
e. Steam supply line for blockage. X
Service Rep Only f. Condensate return line for blockage. X
g. Steam trap operation. X
Safety valve leaks a
small amount of steam.
User
a. For contamination that prevents seating the valve. With
substantial pressure in the jacket, lift the valve lever briefly
all the way up, to blow the valve clean then let it snap back
down to seat the valve.
Authorized
b. Safety valve for defects. Defective valve MUST be replaced
Service Rep Only with a valve rated at the same pressures. X
Safety valve leaks a
large amount of steam.
Pipe fitting leaks.
Authorized
a. Steam supply pressure. X
Service Rep Only b. Safety valve for defects. Defective valve MUST be replaced
with a valve rated at the same pressures. X
User
a. Is the fitting tight?
Authorized
b. If tightening the packing gland does not stop the leak,
Service Rep Only replace the packing. X
Kettle is hard to tilt.
Kettle makes a banging
noise when steam is
turned on.
14
OM-KPT/KLT-DS
Authorized
a. Tilting gear and worm for the presence of any
Service Rep Only contamination and for proper alignment and lubrication. X
User
a. Drain water from the jacket by opening the petcock at the
bottom of the kettle before admitting steam into the jacket.
Close the petcock before opening the steam valve.
Parts List
Key
Description
Part #
1
2
3
4
5
6
7
8
8
8
9
10
11
12
13
14
15
16
17
18
19
GEAR, WORM
STEAM GLAND
PACKING, 10 RING
NUT, PACKING
ENCLOS. TILT MECH
GREASE FITTING, 90 DEG.
CARRIER ASSY GEAR
SAFETY VALVE*
3/4” SAFETY VALVE (50 PSIG)
1/2” SAFETY VALVE (50 PSIG)
TEE, CHROME PLATED, 3/4 NPT
LOCKWASHER, 3/8
SCREW CAP HEX 3/8-16X3/4
BEARING, ROLLER
WORM
SHAFT
HANDWHEEL WITH HANDLE
HANDWHEEL SHAFT
COLLAR
GREASE FITTING, 45 DEG
CASTING TRUNNION RACE
012022
012120
114824
012122
139043
012195
137880
005587
097005
012075
005618
005611
002790
12026
003129
139152
003130
137246
012099
012113
20
DRAW-OFF VALVE, 2”
(COMPLETE)
009046
20
DRAW-OFF VALVE, 3”
(COMPLETE)
012262
21
HANDLE FOR 2” TDO VALVE
HANDLE FOR 3” TDO VALVE
STEM FOR 2” VALVE
STEM FOR 3” VALVE
WING NUT FOR 2” VALVES
BONNET FOR 2”
BONNET FOR 3”
HEX NUT FOR 2”
HEX NUT FOR 3”
PETCOCK, JACKET DRAIN
170061
012209
009048
001908
009028
009047
003925
009354
003927
012070
22
STAND ASSEMBLY
(CALL FOR PART NUMBERS)
-
*CAUTION: Pressure and flow rate of replacement
valve must be the same as originally provided.
OM-KPT/KLT-DS
15
Bucket Steam Trap
Key
Description
Qty
Part #
1
GATE VALVE
1
004180
2
90° REDUCING
STREET ELBOW
1
010666
3
CLOSE NIPPLE
3
008877
4
FEMALE UNION
1
004186
5
BUCKET STEAM TRAP*
1
004183
6
SWING CHECK VALVE
1
004187
7
GLOBE VALVE
1
004222
8
CLOSE NIPPLE
2
008238
9
FEMALE UNION
1
005516
10
90° STREET ELBOW
1
008347
*NOTE: For thermostatic steam trap,
use part # 010250
STEAM
INLET SIZE
STEAM
OUTLET SIZE
USED ON
3/4" I.P.S.
3/4” I.P.S.
ALL MODELS
16
OM-KPT/KLT-DS
Service Log
Model No:
Purchased From:
Serial No:
Location:
Date Purchased:
Date Installed:
Purchase Order No:
For Service Call:
Date
Service Performed
Performed By
OM-KPT/KLT-DS
17
BLODGETT OVEN COMPANY
www.blodgett.com
44 Lakeside Avenue, Burlington, Vermont 05401 USA
Telephone: 866-518-3977
PART NUMBER 170099 REV B (04/11)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
