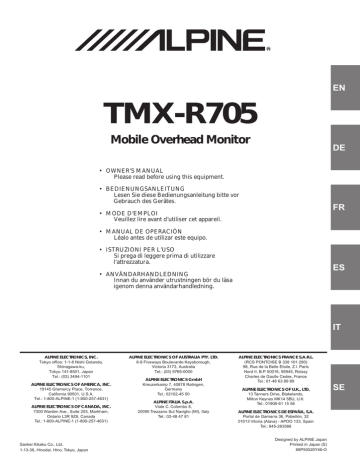

Alpine TMX-R705 Owner`s manual
R
EN
TMX-R705
Mobile Overhead Monitor
DE
• OWNER'S MANUAL
Please read before using this equipment.
• BEDIENUNGSANLEITUNG
Lesen Sie diese Bedienungsanleitung bitte vor
Gebrauch des Gerätes.
FR
• MODE D'EMPLOI
Veuillez lire avant d’utiliser cet appareil.
• MANUAL DE OPERACIÓN
Léalo antes de utilizar este equipo.
• ISTRUZIONI PER L’USO
Si prega di leggere prima di utilizzare
l'attrezzatura.
ES
• ANVÄNDARHANDLEDNING
Innan du använder utrustningen bör du läsa
igenom denna användarhandledning.
IT
ALPINE ELECTRONICS, INC.
Tokyo office: 1-1-8 Nishi Gotanda,
Shinagawa-ku,
Tokyo 141-8501, Japan
Tel.: (03) 3494-1101
ALPINE ELECTRONICS OF AMERICA, INC.
19145 Gramercy Place, Torrance,
California 90501, U.S.A.
Tel.: 1-800-ALPINE-1 (1-800-257-4631)
ALPINE ELECTRONICS OF CANADA, INC.
7300 Warden Ave., Suite 203, Markham,
Ontario L3R 9Z6, Canada
Tel.: 1-800-ALPINE-1 (1-800-257-4631)
Sankei Kikaku Co., Ltd.
1-13-38, Hinodai, Hino, Tokyo, Japan
ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.
6-8 Fiveways Boulevarde Keysborough,
Victoria 3173, Australia
Tel.: (03) 9769-0000
ALPINE ELECTRONICS GmbH
Kreuzerkamp 7, 40878 Ratingen,
Germany
Tel.: 02102-45 50
ALPINE ITALIA S.p.A.
Viale C. Colombo 8,
20090 Trezzano Sul Naviglio (MI), Italy
Tel.: 02-48 47 81
ALPINE ELECTRONICS FRANCE S.A.R.L.
(RCS PONTOISE B 338 101 280)
98, Rue de la Belle Etoile, Z.I. Paris
Nord II, B.P. 50016, 95945, Roissy
Charles de Gaulle Cedex, France
Tel.: 01-48 63 89 89
ALPINE ELECTRONICS OF U.K., LTD.
13 Tanners Drive, Blakelands,
Milton Keynes MK14 5BU, U.K.
Tel.: 01908-61 15 56
ALPINE ELECTRONICS DE ESPAÑA, S.A.
Portal de Gamarra 36, Pabellón, 32
01013 Vitoria (Alava) - APDO 133, Spain
Tel.: 945-283588
Designed by ALPINE Japan
Printed in Japan (S)
68P50520Y46-O
SE
WARNING
WARNING
This symbol means important instructions.
Failure to heed them can result in serious
injury or death.
CAUTION
This symbol means important instructions.
Failure to heed them can result in injury or
material property damage.
DO NOT OPERATE ANY FUNCTION THAT TAKES
HALT USE IMMEDIATELY IF A PROBLEM APPEARS.
YOUR ATTENTION AWAY FROM SAFELY DRIVING
YOUR VEHICLE.
Failure to do so may cause personal injury or damage to
the product. Return it to your authorized Alpine dealer or
the nearest Alpine Service Center for repairing.
Any function that requires your prolonged attention
should only be performed after coming to a complete stop.
Always stop the vehicle in a safe location before
performing these functions. Failure to do so may result in
an accident.
KEEP FINGERS AWAY WHILE THE MOTORIZED
FRONT PANEL OR MOVING MONITOR IS IN
MOTION.
KEEP THE VOLUME AT A LEVEL WHERE YOU CAN
STILL HEAR OUTSIDE NOISE WHILE DRIVING.
Failure to do so may result in personal injury or damage
to the product.
Failure to do so may result in an accident.
DO NOT MIX NEW BATTERIES WITH OLD
BATTERIES. INSERT WITH THE CORRECT BATTERY
DO NOT DISASSEMBLE OR ALTER.
Doing so may result in an accident, fire or electric shock.
USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS.
Use for other than its designed application may result in
fire, electric shock or other injury.
KEEP SMALL OBJECTS SUCH AS BATTERY OUT OF
THE REACH OF CHILDREN.
Swallowing them may result in serious injury. If
swallowed, consult a physician immediately.
DO NOT PLACE HANDS, FINGERS OR FOREIGN
OBJECTS IN INSERTION SLOTS OR GAPS.
Doing so may result in personal injury or damage to the
product.
USE THE CORRECT AMPERE RATING WHEN
REPLACING FUSES.
Failure to do so may result in fire or electric shock.
DO NOT BLOCK VENTS OR RADIATOR PANELS.
Doing so may cause heat to build up inside and may result
in fire.
2-EN
POLARITY.
When inserting the batteries, be sure to observe proper
polarity (+ and –) as instructed.
Rupture or chemical leakage from the battery may cause
fire or personal injury.
PRECAUTIONS
Temperature
To the customers using wireless headphones (sold
separately)
Be sure the temperature inside the vehicle is between
+45°C (+113°F) and 0°C (+32°F) before turning your unit
on.
If you turn ACC or power source of the monitor off while
you are listening with wireless headphones, a big noise
occurs through the headphones. So, be sure to take
wireless headphones off your ears before you turn ACC or
power source of the monitor off.
Fuse Replacement
To the customers using wired headphones (sold
When replacing the fuse(s), the replacement must be of
the same amperage as shown on the fuse holder. If the
fuse(s) blows more than once, carefully check all
electrical connections for shorted circuitry. Also have your
vehicle’s voltage regulator checked.
separately)
When you use the wired headphones with this unit, it is
recommended to use the ones of impedance of 24 – 45
ohms.
FR
Maintenance
If you have problems, do not attempt to repair the unit
yourself. Return it to your Alpine dealer or the nearest
Alpine Service Station for servicing.
Installation Location
ES
Make sure the TMX-R705 will not be exposed to:
• Direct sun and heat
• High humidity
• Excessive dust
• Excessive vibrations
• After turning the system off, a slight ghost of the image
will remain temporarily. This is an effect peculiar to
LCD technology and is normal.
• Under cold temperature conditions, the screen may
lose contrast temporarily. After a short warm-up
period, it will return to normal.
DE
Dome Light Bulb Replacement Precautions
When replacing the dome light bulb, replace with one
having the specified 12V, 5W capacity.
Use of a different capacity bulb may cause damage to the
unit.
Note that damage under such circumstances will not be
covered by the warranty.
IT
SE
3-EN
Basic Operations
Parts Names of the Overhead Monitor
Remote Sensor
Monitor Display
OPEN/CLOSE Button
Dome Light
Monitor Display Panel
Wireless Headphone Transmitter
Headphone Outputs
Two output jacks (mini-phono plug)
are provided for wired headphones.
Output level is adjusted using the
Volume UP/DN buttons on the remote
control.
NOTE
Plugging a headphone into either
jack will mute the Variable Audio Output.
RESET Switch
Immediately after installing or applying
power to the unit, it should be initialized.
Using a pencil or other pointed object,
press this RESET switch to complete the
initialization procedure.
4-EN
An SPST (Single-Pole, Single-Throw) switch (sold
separately) can be added to simplify this procedure.
Then, you can simply place it in the OFF position
when you leave the vehicle. Turn the SPST switch
back ON before using the TMX-R705. For connecting
the SPST switch, refer to the Installation.
• After turning the system off, a slight ghost of the
image will remain temporarily. This is an effect
peculiar to LCD technology and is normal.
• Under cold temperature conditions, the screen may
lose contrast temporarily. After a short warm-up
period, it will return to normal.
Closing the Monitor Display
NOTE
The TMX-R705 is a precision device. With careful
handling, its performance can be maintained at a high
level for a long time.
Opening the Monitor Display
NOTE
The TMX-R705 is a precision device. With careful
handling, its performance can be maintained at a high
level for a long time.
1
Press the OPEN/CLOSE button of the main unit
or press the POWER button, press and hold the
OPEN/CLOSE button of the supplied remote
control for at least 2 seconds.
The unit beeps 3 times and opens the monitor
automatically.
Then the power of the monitor turns on.
NOTES
• Since this is an overhead monitor, the display will be
lowered when opened and raised when closed.
If the monitor touches an obstacle while it is being
lowered, the unit will stop immediately. Should this
occur, remove the obstacle and press the OPEN/
CLOSE button again to close the monitor.
If you press the POWER button or the OPEN/CLOSE
button while the monitor is being opened or closed,
the monitor stops opening or closing and cannot be
closed automatically. In this case, press the POWER
button or the OPEN/CLOSE button again to close the
monitor.
• When the movable monitor is opened, do not place
any object on the monitor and be careful not to bump
or apply any pressure to the monitor while it is open.
This can cause damage to the mechanism.
• Under low ambient temperature conditions, the
display may be dark for a short period of time
immediately after the power is turned on. Once the
LCD has warmed up, the display will return to
normal.
• The TMX-R705 draws minimal current even when its
power switch is turned off. If the switched power
(ignition) lead of the TMX-R705 is connected directly
to the positive (+) post of the vehicle's battery, the
battery may be discharged. If this lead is unswitched,
it must be disconnected from the battery post should
the vehicle be left unused for an extended period of
time.
1
Press the OPEN/CLOSE button of the main unit
or press the POWER button, press and hold the
OPEN/CLOSE button of the supplied remote
control for at least 2 seconds.
The unit beeps 3 times and closes the monitor
automatically.
Then the power of the monitor turns off.
NOTE
Since this is an overhead monitor, the display will be
lowered when opened and raised when closed.
If the monitor touches an obstacle while it is being
raised, the unit will stop immediately.
Should this occur, remove the obstacle and press the
OPEN/CLOSE button again to close the monitor.
FR
ES
DE
IT
SE
5-EN
Basic Operations
Adjusting the Volume
1
Press the
or
button to adjust the volume.
NOTE
The volume changes continuously if the
or
button
is held down. This operation will affect the
headphone and External Audio outputs only. The
IR signal for the wireless headphones are not
affected.
Audio Mute Function
Activating this function will instantly lower the
volume level by 20 dB.
Adjusting the Monitor Viewing
Angle
1
Adjust the monitor's angle for better visibility.
9
2
While viewing the screen that is shown press the
ANGLE 9 or 8 button to adjust the display to the
ideal viewing angle.
The display viewing angle can be adjusted
between 80 and 105 degrees.
Press the
or
button to adjust the right-left
viewing angle. It is possible to adjust the display
viewing angle up to 15 degrees to the left or
right.
Press and hold the OPEN/CLOSE button of the
main unit for at least 2 second. This will return
the monitor quickly to its center viewing position.
9
9
NOTES
• The angle changes continuously if the ANGLE 9 and
8 buttons or the and buttons are held down.
• If there are any obstructions to the monitor when
adjusting the angle, first remove the obstruction and
then readjust the angle.
• The screen color will vary when viewed at certain
angles. Adjust the screen angle for the best viewing
position.
• If the voltage of the vehicle's battery power is low,
the screen may blink when the screen angle is
changed. This is normal and not a malfunction.
• The adjusted angle is stored in the memory.
6-EN
Switching the Source
1
Press the SOURCE button. Each press of the
button will switch through the modes as follows:
AUX1
AUX2
9
1
Press the MUTE button to activate the MUTE
mode. The audio level will decrease by about 20
dB.
Pressing the MUTE button again will bring the
audio back to its previous level.
NOTES
• If nothing is connected to AUX 1 or AUX 2, raising
the volume while these inputs are selected, may result
in excessive noise.
• In addition to the Remote Control Source button,
each AUX input has its own wired select trigger. This
is called the External AV Select (Pink/Blue) wire.
• The External AV Select trigger is a pulsed signal
(Active Low, 500ms or more). If this input remains
low, switching to other sources is not possible
(Switching sources using the Remote Control is still
possible). This is useful if you don’t want an AV
source to be interrupted. Playing a video is a good
example of this scenario. This function is mainly
used for connecting with other ALPINE products.
Switching Display Modes
1
Press the DISPLAY button or press and hold the
SETUP button for at least 2 seconds. Each press
changes the display modes as follows:
MODE 1
(WIDE)
MODE 2
(ZOOM)
MODE 3
(CINEMA)
MODE 4
(NORMAL)
MODE 4 (NORMAL)
A normal television broadcasting (4:3) image is
displayed in the center (normal image).
FR
MODE 1 (WIDE)
Stretches the normal image evenly in a
horizontal direction so that it is displayed on the
entire screen.
ES
MODE 2 (ZOOM)
Stretches the normal image evenly in a
horizontal direction so that it is displayed on the
entire screen. The stretching ratio increases the
closer to the left or right edge of the screen.
DE
IT
MODE 3 (CINEMA)
Stretches the normal image horizontally and
vertically.
The top and bottom of the screen is cut slightly
to adapt it to a cinema size image with a
proportion of 16:9.
SE
7-EN
Other Useful Features
Adjusting Tint of Picture
Press the 9 or 8 button within 10 seconds and
select TINT.
Press the
or
adjust the tint.
9
3
Press the SETUP button.
button within 10 seconds to
9
1
2
SET UP
AUX1
BRIGHT
COLOR
TINT
PAGE 1
0
0
0
R
4
Adjusting Brightness of Picture
Press the 9 or 8 button within 10 seconds and
select BRIGHT.
SET UP
AUX1
PAGE 1
BRIGHT
COLOR
TINT
0
0
0
MIN
4
MAX
Press the SETUP button to finish adjustments.
Press the 9 or 8 button within 10 seconds and
select COLOR.
9
3
Press the SETUP button.
Press the
or
button within 10 seconds to
adjust the color density.
9
1
2
SET UP
AUX1
BRIGHT
COLOR
TINT
–
4
PAGE 1
0
0
0
The brightness of the LCD panel’s backlighting is
adjustable to more closely match the vehicle’s
interior lighting. This makes the screen easier to
view.
1
2
3
Press the SETUP button.
Press the 9 or 8 button within 10 seconds and
select DIMMER.
Press the
the value.
or
9
Adjusting Color Density of Picture
Setting the Brightness of the
Backlight
button within 10 seconds to set
9
Press the
or
button within 10 seconds to
adjust the brightness.
9
3
Press the SETUP button to finish adjustments.
NOTE
The TINT adjustment is not possible when the PAL is
setted.
Press the SETUP button.
9
1
2
G
AUTO:
The screen brightness will dim when the headlight
switch is turned on (if proper connections are
made).
HIGH:
Maximum screen brightness.
LOW:
The preset screen brightness that was set when
adjusting the minimum backlight level.
SET UP
+
AUX1
PAGE 2
DIMMER AUTO
DIMMER Lv. AT CLOSE OFF
Press the SETUP button to finish adjustments.
AUTO HIGH LOW
4
8-EN
Press the SETUP button to finish adjustments.
The minimum brightness level for the
backlighting (LOW) is adjustable. This is used to
match the screen brightness to the dashboard
(especially at night). This setting is recalled
whenever the vehicle’s headlight switch is turned
on in the AUTO Dimmer mode.
Press the 9 or 8 button within 10 seconds and
select DIMMER Lv.
or
button within 10 seconds to set
9
Press the
the value.
9
3
Press the SETUP button.
SET UP
AUX1
PAGE 2
DIMMER AUTO
DIMMER Lv. AT CLOSE OFF
LOW
4
HIGH
Simply turn the ignition key to OFF to
automatically close the monitor display.
1
2
3
Press the SETUP button.
Press the 9 or 8 button within 10 seconds to
select AT CLOSE.
Press the
the value.
or
9
1
2
Setting Automatic Closing of
Monitor
button within 10 seconds to set
9
Adjusting the Lowest Level of the
Backlight
AUTO:
Automatic closing of the display in depending upon
whether the ignition switch is ON or OFF.
If you press the POWER button or the OPEN/
CLOSE button while the monitor is being opened or
closed, the monitor stops opening or closing, even if
AUTO setting is on, and cannot be closed
automatically.
In this case, press the POWER button or the OPEN/
CLOSE button again to close the monitor.
FR
ES
Press the SETUP button to finish adjustments.
OFF:
Manual closing of the display.
SET UP
AUX1
PAGE 2
DIMMER AUTO
DIMMER Lv. AT CLOSE OFF
DE
AUTO OFF
4
Press the SETUP button to finish adjustments.
IT
SE
9-EN
Other Useful Features
Dome Light Settings
1
NTSC/PAL Switching Function
You can switch the NTSC/PAL setting in the
AUX1 or AUX2 mode.
Press the 9 or 8 button within 10 seconds and
select AUX 1 SIG. or AUX 2 SIG.
9
3
Press the SETUP button.
Press the
or
the selection.
button within 10 seconds to set
9
1
2
SET UP
AUX1
AUX 1 SIG.
AUX 2 SIG.
NTSC
PAL
PAGE3
1
3
NTSC PAL
4
Press the SETUP button to finish adjustments.
NOTE
The TINT adjustment is not possible when the PAL is
setted.
TIPS
NTSC and PAL can be directly switched when the DISP
button is pressed for at least 2 seconds.
10-EN
Press the DOME LIGHT button to turn the Dome
Light ON or OFF regardless of whether the
vehicle's doors are open or closed.
Door Closed: The dome light will remain lit until
the vehicle's door is opened and
closed. The dome light will return
to Auto mode. To switch OFF the
dome light manually, press the
DOME LIGHT button again.
Door Open: The dome light will remain OFF
until the vehicle's door is closed
and re-opened. The dome light will
return to Auto mode.
To switch ON the dome light
manually, press the DOME LIGHT
button again.
• With the dome light ON and the vehicle's door
OPEN, press and hold the DOME LIGHT button
for at least 3 seconds. The dome light will be
switched OFF permanently regardless of the
opening and closing of the vehicle's doors. To
cancel, with the vehicle's door open, press and
hold the DOME LIGHT button for at least 3
seconds.
NOTE
If the Override button is connected, it will always work
regardless of the Remote Dome Light Status.
Battery Replacement
Replacing the Dome Light Bulb
Applicable battery: Use two “AAA” sized dry
batteries or equivalent.
• Point the remote control transmitter toward the
remote sensor on the TMX-R705 and use the
remote control within 2 meters from the TMXR705.
1
Opening the battery cover.
Slide out the battery cover while firmly pressing
in the direction of arrow.
NOTE
When replacing the dome light bulb, replace with one
of the specified 12V, 5W capacity. Use of a different
capacity bulb may cause damage to the unit. Please
note that no guarantee is carried out if this is the
case.
1
2
3
4
5
2
Use 12V, 5W rated bulb (End Cap Base: T8 x 28)
available at any autoparts store or consult your
authorized Alpine Mobile Multimedia dealer for
further information.
Use a flat-bladed screwdriver to release the
hooks and open the lense, being careful not to
scratch the product.
Pry at two recessed points at rear of lense.
FR
Be careful not to crack the lense.
Change the bad bulb and press the lense back in
place.
4 Hooks
Lense
4 Hooks
Replacing the battery.
Put the batteries in the case observing the
polarities as illustrated.
ES
DE
3
Closing the cover.
Push the cover as illustrated until a click is heard.
IT
SE
11-EN
Information
In Case of Difficulty
If you encounter a problem, please turn the power off,
then on again. If the unit is still not functioning normaly,
please review the items in the following checklist. This
guide will help you isolate the problem if the unit is at
fault. Otherwise, make sure the rest of your system is
properly connected or consult your authorized Alpine
dealer.
Specifications
MONITOR SECTION
Screen Size
LCD Type
Operation System
Number of Picture Elements
Effective Number of
Picture Elements
Illumination System
No function or display.
• Car's ignition is off.
- Turn the ignition on.
• No fuse or blown fuse.
- Check the cause and replace the fuse.
• Incorrect connections.
- Check connection and remedy.
• Vehicle's battery is weak.
- Check the voltage of vehicle's battery.
Unclear picture display.
• Fluorescent tube is exhausted.
- Replace the fluorescent tube.*
No picture display.
• Brightness control is set for minimum brightness control.
- Adjust the brightness.
• Incorrect setting of the VCR mode.
- Switch to the correct mode.
• Protective circuit is on because of high temperature.
- Wait until the temperature inside the vehicle comes
down to the operating temperature range (45°C).
Picture color is poor.
• Brightness/Color/Tint control are not set to the proper
positions.
- Check each control.
Spots or dotted lines/stripes appear.
• Caused by neon signs, high-voltage power lines, CB
transmitter, other vehicle's ignition plugs, etc.
- Change the location of your vehicle.
The display angle cannot be adjusted or the
adjustment screen does not appear.
• Mechanism error.
- Press the OPEN/CLOSE button to stow away the
display, and raise the display again.
Noise is picked up by the Wireless Headphone
(available separately) or the sound is inaudible.
• Wireless Headphone is being used in a place exposed to
direct sunlight.
- Use in an environment that is not exposed to direct
sunlight.
• Wireless Headphone batteries are exhausted.
- Replace the batteries.
* The fluorescent tube replacement is not free of charge
even within the warranty period, for the tube is an article
of consumption.
12-EN
7.0"
Transparent type TN LCD
TFT active matrix
336,960 pcs. (1,440 x 234)
99.99% or more
Cold cathode
fluorescent tube
GENERAL
Power Requirement
Operating temperature
Weight
14.4V DC (11-15 V allowable)
+32ºF to +113ºF (0ºC to + 45ºC)
2.0 kg (4 lbs. 7 oz)
DIMENSIONS
Width
Height
Depth
228 mm (8-15/16")
55 mm (2-3/16")
267mm (10-1/2")
NOTES
• Due to continuous product improvement, specifications
and design are subject to change without notice.
• The LCD panel is manufactured using an extremely high
precision manufacturing technology. Its effective pixel
ratio is over 99.99%. This means that there is a possibility
that 0.01% of the pixels could be either always ON or
OFF.
Installation and Connections
Before installing or connecting the unit, please
read the following and pages 2 and 3 of this
manual thoroughly for proper use.
Warning
Caution
HAVE THE WIRING AND INSTALLATION DONE BY
EXPERTS.
Failure to make the proper connections may result in fire
or product damage.
The wiring and installation of this unit requires special
technical skill and experience. To ensure safety, always
contact the dealer where you purchased this product to
have the work done.
USE ONLY IN CARS WITH A 12 VOLT NEGATIVE
GROUND.
USE SPECIFIED ACCESSORY PARTS AND INSTALL
THEM SECURELY.
(Check with your dealer if you are not sure.) Failure to do
so may result in fire, etc.
Be sure to use only the specified accessory parts. Use of
other than designated parts may damage this unit
internally or may not securely install the unit in place.
This may cause parts to become loose resulting in hazards
or product failure.
MAKE THE CORRECT CONNECTIONS.
BEFORE WIRING, DISCONNECT THE CABLE FROM
THE NEGATIVE BATTERY TERMINAL.
Failure to do so may result in electric shock or injury due
to electrical shorts.
DO NOT SPLICE INTO ELECTRICAL CABLES.
Never cut away cable insulation to supply power to other
equipment. Doing so will exceed the current carrying
capacity of the wire and result in fire or electric shock.
DO NOT USE BOLTS OR NUTS IN THE BRAKE OR
STEERING SYSTEMS TO MAKE GROUND
CONNECTIONS.
Bolts or nuts used for the brake or steering systems (or
any other safety-related system), or tanks should NEVER
be used for installations or ground connections. Using
such parts could disable control of the vehicle and cause
fire etc.
KEEP SMALL OBJECTS SUCH AS BATTERY OUT OF
THE REACH OF CHILDREN.
FR
ARRANGE THE WIRING SO IT IS NOT CRIMPED OR
PINCHED BY A SHARP METAL EDGE.
Route the cables and wiring away from moving parts (like
the seat rails) or sharp or pointed edges. This will prevent
crimping and damage to the wiring. If wiring passes
through a hole in metal, use a rubber grommet to prevent
the wire’s insulation from being cut by the metal edge of
the hole.
ES
DO NOT INSTALL IN LOCATIONS WITH HIGH
MOISTURE OR DUST.
Avoid installing the unit in locations with high incidence
of moisture or dust. Moisture or dust that penetrates into
this unit may result in product failure.
.
DE
Swallowing them may result in serious injury. If
swallowed, consult a physician immediately.
DO NOT INSTALL IN LOCATIONS WHICH MIGHT
HINDER VEHICLE OPERATION, SUCH AS THE
STEERING WHEEL OR SHIFT LEVER.
IT
Doing so may obstruct forward vision or hamper
movement etc. and results in serious accident.
DO NOT INSTALL THE MONITOR NEAR THE
PASSENGER SEAT AIR BAG.
If the unit is not installed correctly the air bag may not
function correctly and when triggered the air bag may
cause the monitor to spring upwards causing an accident
and injuries.
SE
13-EN
Installation and Connections
Precautions
IMPORTANT
• Be sure to disconnect the cable from the (–) battery
post before installing your TMX-R705. This will
reduce any chance of damage to the unit in case of a
short-circuit.
• Be sure to connect the color coded leads according to
the diagram. Incorrect connections may cause the unit
to malfunction or damage the vehicle's electrical
system.
• When making connections to the car’s electrical
system, be aware of the factory installed components
(e.g. on-board computer). Do not tap into these leads to
provide power for this unit. When connecting the
TMX-R705 to the fuse box, make sure the fuse for the
intended circuit of the TMX-R705 has the appropriate
amperage. Failure to do so may result in damage to the
unit and/or the vehicle. When in doubt, consult your
ALPINE dealer.
• The TMX-R705 uses female RCA-type jacks for
connection to other units (e.g. amplifier) having RCA
connectors. You may need an adaptor to connect other
units. If so, please contact your authorized ALPINE
dealer for assistance.
Please record the serial number of your unit in
the space provided below and keep it as a
permanent record. The serial number plate is
located on the bottom of the unit.
14-EN
SERIAL NUMBER:
INSTALLATION DATE:
INSTALLATION TECHNICIAN:
PLACE OF PURCHASE:
Mounting Instruction
This Motorized Overhead Monitor requires a 12V
DC power supply for the Monitor Display to open
and close.
Please DO NOT OPEN and CLOSE BY HAND and
handle it with care.
Please follow these steps carefully!
1
Remove the transportation screw from the unit.
4
After opening the monitor display and
adjusting the viewing angle, move the battery
line off before installing the unit.
5
Use 4 screws and attach to the mounting
plate.
(Screw holes are hidden under the panel.
Therefore, the panel has to be opened.)
(Two rear side screw holes are located under
the mechanism cover plate.)
After installing the unit, reconnect the battery
line which you moved off before.
Transportation Screw
Screws
2
Connect the main power connector (8-pin
connector) as well as one of the AUX input,
mini-DIN to RCA Interface connectors (refer to
“Installation and Connections” on page 16).
Also, refer to the same page showing 5m miniDIN Extension Cable (to AUX-IN 1 connector)
for further details. Make the proper Battery,
ACC (ignition) and Ground connections to
make the unit operational.
Screws
FR
Console
If you have any problem for the installation,
please contact to ALPINE Tech Support.
3-1 Turn the unit upside down. With both hands
hold the edges of this unit so as not to interfere
with the opening and closing the monitor.
Open the monitor according to the following
procedure. (Two persons may be needed.)
1) Press the OPEN/CLOSE button of this unit,
or press the POWER button, press and hold
the OPEN/CLOSE button of the supplied
remote control for at least 2 seconds. The
monitor will automatically open and close
with each press.
ES
DE
IT
NOTES
• Do not forcibly open or close the monitor. Doing so
will cause damage.
• The monitor cannot be opened or closed unless the
unit is turned upside down.
3-2 Use the supplied remote control to adjust the
view angle of the monitor as required.
(See Page 6 “Adjusting the Monitor Viewing
Angle”)
SE
NOTE
Do not forcibly change the view angle of the monitor.
Doing so may cause damage.
15-EN
Installation and Connections
Connections
Common Ground (Black)
Left Positive (Blue)
Audio/Video
output
connector
AUX-IN 1
connector
AUX-IN 2
connector
5m Mini-DIN Extension Cable
5m Mini-DIN Extension Cable
To other
monitor
Connect to the cable
of the vehicle side
Right Positive (Green)
(Rear View)
Dome Light-Always OFF (Gray/Green) 1
p
5
9
Dome Light-Always ON (Red/Green)
Accessory/Ignition (Red)
GND (Black)
q
Mini-DIN to RCA Interface
Mini-DIN to RCA Interface
Dome Light-Door (Blue/Green)
Remote Turn-on (Blue/White)
Accessory/Ignition (Red)
q
GND (Black)
Dome Light Battery (Yellow/Green)
w
Ext. A/V Select (Pink/Blue)
e
IR Remote Out (White/Brown)
r
Battery (Yellow)
e
7
(CVA-1006R etc.)
Ai-NET
Connector
To AUX Input
(AUX 1)
i
To Audio/Video
Output Terminals
Remote Out Aux 1
(White/Brown)
i
To Audio/Video
Output
o
Video Player
(Sold Separately)
u
y
Remote IN
(White/Brown)
DVD Changer
(Sold Separately)
Ai-NET
Connector
16-EN
6
Dome Light
Rocker switch is
located on Alpine
overhead console
For Front
Monitor
(Sold Separately)
For Front
Monitor
Tune Box
r
Video Game
Console
(Sold Separately)
4
To AUX Output
To AUX Input (AUX 2)
To Audio/Video
Output Terminals
3
3
t
IR Remote Out (White/Brown)
t
2
2
8
w
Ext. A/V Select (Pink/Blue)
1
w
GND (Black)
1 Dome Override (Always OFF) (Gray/Green)
Connecting to Pin #1 of the external dome light
SW. When it is grounded, the Dome light remains
off all the time.
2 Dome Override (Always ON) (Red/Green)
Connect to Pin #3 of the external dome light SW.
When it is grounded, the Dome light remains on
all the time.
3 Dome Light (Door Trigger) (Blue/Green)
This is a constant + 12V for the main unit. It is
recommended that separate connections from
the Dome light battery line are used to avoid
noise and over-current.
8 Fuse Holder (5A)
9 KWE-508V (Included)
p KWE-508V (Sold Separately)
Connect to the factory door switch.
NOTES
• Have the switching done being the power cord taken
off.
• Have the switching done accurately. If you make
mistakes in setting, the dome light remains lit, and it
may cause running down of the battery.
• Vehicle Door polarity depending on the vehicle type
can be changed by the "Door SW polarity" where is
located on the left side of the main unit. (Default:
Negative Switched System)
q IGN/ACC (Red)
This wire connects to the ignition or accessory
line of the vehicle. This triggers main power to
turn the unit on. Although both DIN cables have
this wire, only one of them should be connected
to the IGN/ACC line.
NEG
e External AV Select (Pink/Blue)
ES
External AV Select forces the TMX-R705 to
switch to the A/V input sending the AV Select
trigger.
r IR Remote Out (White/Brown)
Positive Switched System
+12V
FR
w GND (Black)
This is the shield GND. It should connect to the
vehicle's chassis for reducing any noise.
POS
DOOR SW POLARITY
7 BATT (Main Unit) (Yellow)
Negative Switched System
GND
GND
+12V
4 Remote Turn ON (Blue/White)
Connecting to other device such as a small
amplifier to turn them ON synchronizing with the
TMX-R705 power ON. It gives +12V when the
power is ON.
5 GND (Black)
This is a common Ground for the main unit and
the Dome light. Another GND line connects to Pin
#2 of the external dome light SW.
6 BATT (Dome Light) (Yellow/Green)
This is a constant +12V for the Dome light.
Connect to the Dome light +12V line on the
vehicle.
The Remote Out wire connects to any ALPINE
Mobile Video product which has an external
remote input function. For example, products
such as a DVD, VCR and TV Tuner.
DE
t AV RCA Connector (Video, Audio R, Audio L)
These RCA-type connectors connect to any
video source. This connector is used as an A/V
input for the TMX-R705, however it may also be
used as an output for other units.
IT
y Remote Control Lead (White/Brown)
u RCA Extension Cable (Included with DVD
changer)
i RCA Extension Cable (Sold Separately)
o Ai-NET Cable (Included with DVD changer)
17-EN
SE
Händlerstemple
Tipps der Polizei:
●
●
●
●
●
●
Stellen Sie Ihr Fahrzeug stets gut sichtbar ab.
Verschließen Sie Türen, Fenster, Schiebedach und Kofferraum immer, auch bei nur kurzer Abwesenheit.
Lassen Sie keine Wertsachen sichtbar im Auto liegen.
Wird Ihr Fahrzeug aufgebrochen, wenden Sie sich sofort an die nächste Polizeidienststelle.
Belassen Sie Ihr Fahrzeug nach einem Aufbruch im Originalzustand.
Informieren Sie sich über technische Sicherungsmöglichkeiten bei einer Kriminalpolizeilichen
Beratungsstelle.
Gerät 1
Modell-Nr.:
Hersteller:
Seriennummer:
A
L
Kaufdatum:
Preis:
R
Car Audio and Navigation Systems
GERÄTE-PASS
AUDIO SYSTEME
Fahrzeugmarke:
Typ:
Amtl. Kennzeichen:
Name des Halters:
Straße:
Wohnort:
Bitte füllen Sie diesen Pass vollständig aus und bewahren Sie ihn
außerhalb des Fahrzeugs auf:
Im Falle eines Diebstahls wird für Sie die Schadensabwicklung mit der
Versicherung einfacher, und Sie erleichtern der Polizei die Fahndung
nach den Tätern.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
