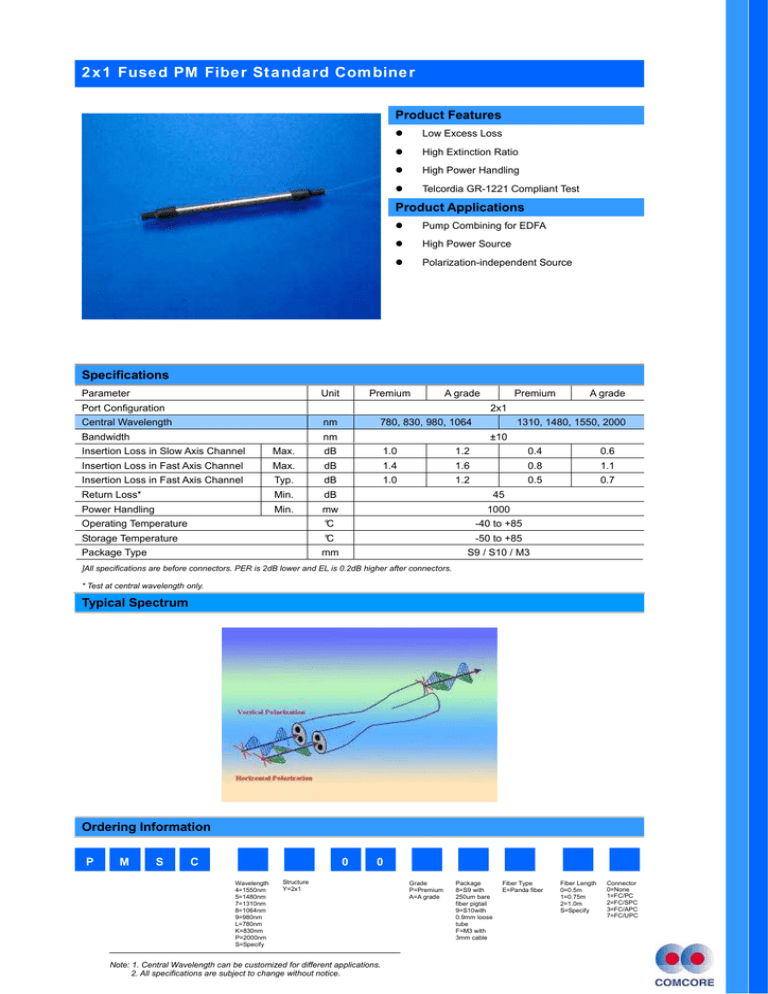

2 x 1 Fuse d PM Fibe r St a nda rd Com bine r Product Features Low Excess Loss High Extinction Ratio High Power Handling Telcordia GR-1221 Compliant Test Product Applications Pump Combining for EDFA High Power Source Polarization-independent Source Specifications Parameter Unit Premium A grade Port Configuration Premium A grade 2x1 Central Wavelength nm Bandwidth nm 780, 830, 980, 1064 1310, 1480, 1550, 2000 ±10 Insertion Loss in Slow Axis Channel Max. dB 1.0 1.2 0.4 0.6 Insertion Loss in Fast Axis Channel Max. dB 1.4 1.6 0.8 1.1 Insertion Loss in Fast Axis Channel Typ. dB 1.0 1.2 0.5 0.7 Return Loss* Min. dB Power Handling Min. mw 1000 °C -40 to +85 Operating Temperature 45 Storage Temperature °C -50 to +85 Package Type mm S9 / S10 / M3 ]All specifications are before connectors. PER is 2dB lower and EL is 0.2dB higher after connectors. * Test at central wavelength only. Typical Spectrum Ordering Information P M S C 0 Wavelength 4=1550nm 5=1480nm 7=1310nm 8=1064nm 9=980nm L=780nm K=830nm P=2000nm S=Specify 0 Structure Y=2x1 Note: 1. Central Wavelength can be customized for different applications. 2. All specifications are subject to change without notice. Grade P=Premium A=A grade Package 8=S9 with 250um bare fiber pigtail 9=S10with 0.9mm loose tube F=M3 with 3mm cable Fiber Type E=Panda fiber Fiber Length 0=0.5m 1=0.75m 2=1.0m S=Specify Connector 0=None 1=FC/PC 2=FC/SPC 3=FC/APC 7=FC/UPC
