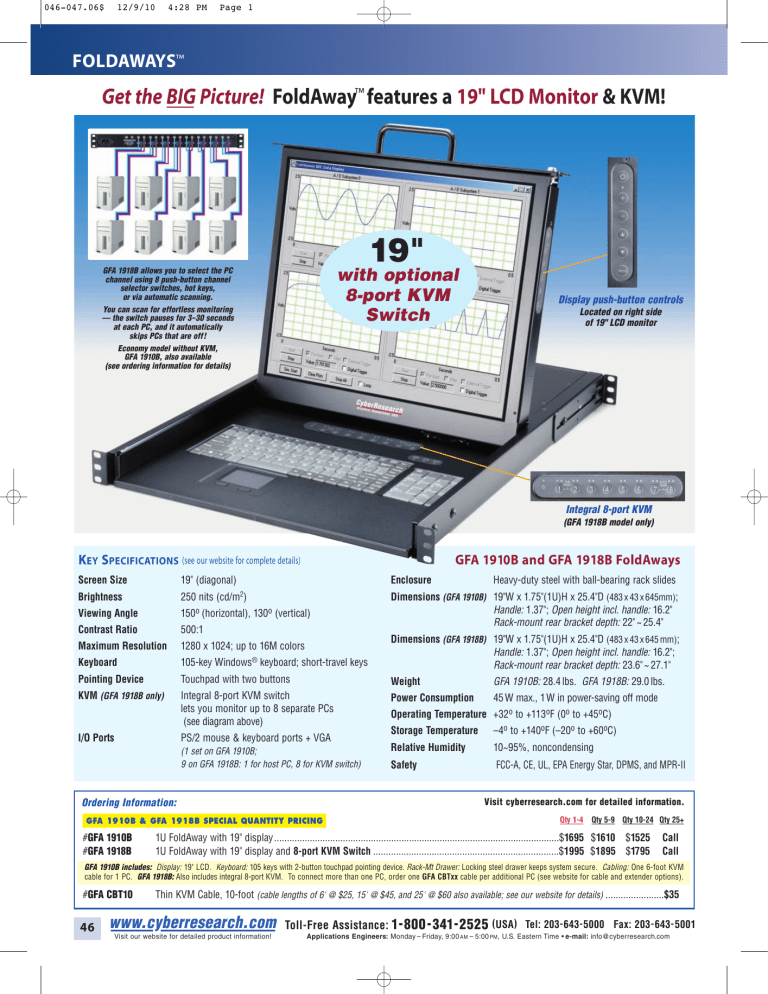

FOLDAWAYS™
Get the BIG Picture! FoldAway™ features a 19" LCD Monitor & KVM!
19"
GFA 1918B allows you to select the PC
channel using 8 push-button channel
selector switches, hot keys,
or via automatic scanning.
with optional
8-port KVM
Switch
You can scan for effortless monitoring
— the switch pauses for 3~30 seconds
at each PC, and it automatically
skips PCs that are off!
Display push-button controls
Located on right side
of 19" LCD monitor
Economy model without KVM,
GFA 1910B, also available
(see ordering information for details)
Integral 8-port KVM
(GFA 1918B model only)
KEY SPECIFICATIONS (see our website for complete details)
GFA 1910B and GFA 1918B FoldAways
Screen Size
19" (diagonal)
Enclosure
Brightness
250 nits (cd/m2)
Viewing Angle
150o (horizontal), 130o (vertical)
Contrast Ratio
500:1
Dimensions (GFA 1910B) 19"W x 1.75"(1U)H x 25.4"D (483 x 43 x 645mm);
Handle: 1.37"; Open height incl. handle: 16.2"
Rack-mount rear bracket depth: 22" ~ 25.4"
Maximum Resolution
1280 x 1024; up to 16M colors
Keyboard
105-key Windows® keyboard; short-travel keys
Dimensions (GFA 1918B) 19"W x 1.75"(1U)H x 25.4"D (483 x 43 x 645 mm);
Handle: 1.37"; Open height incl. handle: 16.2";
Rack-mount rear bracket depth: 23.6" ~ 27.1"
Pointing Device
Touchpad with two buttons
Weight
GFA 1910B: 28.4 lbs. GFA 1918B: 29.0 lbs.
KVM (GFA 1918B only)
Integral 8-port KVM switch
lets you monitor up to 8 separate PCs
(see diagram above)
Power Consumption
45 W max., 1W in power-saving off mode
I/O Ports
PS/2 mouse & keyboard ports + VGA
(1 set on GFA 1910B;
9 on GFA 1918B: 1 for host PC, 8 for KVM switch)
Operating Temperature +32o to +113oF (0o to +45oC)
Storage Temperature
–4o to +140oF (–20o to +60oC)
Relative Humidity
10~95%, noncondensing
Safety
FCC-A, CE, UL, EPA Energy Star, DPMS, and MPR-II
Visit cyberresearch.com for detailed information.
Ordering Information:
GFA 1910B & GFA 1918B SPECIAL QUANTITY PRICING
#GFA 1910B
#GFA 1918B
Heavy-duty steel with ball-bearing rack slides
Qty 1-4
Qty 5-9 Qty 10-24 Qty 25+
1U FoldAway with 19" display ................................................................................................................$1695 $1610 $1525
1U FoldAway with 19" display and 8-port KVM Switch .........................................................................$1995 $1895 $1795
Call
Call
GFA 1910B includes: Display: 19" LCD. Keyboard: 105 keys with 2-button touchpad pointing device. Rack-Mt Drawer: Locking steel drawer keeps system secure. Cabling: One 6-foot KVM
cable for 1 PC. GFA 1918B: Also includes integral 8-port KVM. To connect more than one PC, order one GFA CBTxx cable per additional PC (see website for cable and extender options).
#GFA CBT10
46
Thin KVM Cable, 10-foot (cable lengths of 6' @ $25, 15' @ $45, and 25' @ $60 also available; see our website for details) .......................$35
www.cyberresearch.com
Toll-Free Assistance: 1- 800 - 341- 2525 (USA) Tel: 203- 643- 5000 Fax: 203 - 643- 5001
Visit our website for detailed product information!
Applications Engineers: Monday – Friday, 9:00 AM – 5:00 PM, U.S. Eastern Time • e-mail: info@cyberresearch.com
046-047.06$
12/9/10
4:29 PM
Page 2
FOLDAWAYS™
GFC 1716B: 1U FoldAway™ with 17" LCD & 16-Port KVM Switch!
NEW!
Now control
any mix of
remote USB
& PS/2 PCs —
just pick
cables to match
the remote
PC ports!
17"
with 16-port
KVM Switch
Easy-access rear I/O ports!
The GFC 1716B cuts down setup time and cable clutter
by compositing KVM signals through specialized
KVM cables that support either PS/2 or USB!
Just choose cables to match the ports on your PCs.
✔ RoHS
Visit our website
for an overview of
all FoldAways with
complete technical
details.
KVM push-button controls
Display push-button controls
Bank and 1~16
KEY SPECIFICATIONS (see our website for complete details)
Screen Size
17" (diagonal)
Brightness/Contrast Ratio 300 nits (cd/m2) / 500:1
Viewing Angle
160o (horizontal
Maximum Resolution
1280 x 1024; up to 16M colors (dithering)
GFC 1716B FoldAway
Enclosure
Heavy-duty steel with ball-bearing rack slides
Dimensions
19"W x 1.75"(1U)H x 24.5"D (483 x 43 x 622mm);
Depth behind panel: 23.8" (605 mm)
Weight
38.2 lbs. (17.3 kg)
Power Consumption
60W max., 1W in power-saving off mode
& vertical)
Windows®
Keyboard
105-key
Pointing Device
Touchpad with two mouse buttons
Operating Temperature +32o to +113oF (0o to +45oC)
KVM
16-port KVM lets you monitor 16 PCs w/ any
mix of PS/2 or USB kbd./mouse connectors
Storage Temperature
–4o to +140oF (–20o to +60oC)
I/O Ports
1 set of PS/2 mouse and keyboard ports +
VGA for host PC; KVM uses 16 HD15 ports
that allow KVM signals to be combined
onto a single 15-pin connector.
Relative Humidity
10~85%, noncondensing
keyboard; short-travel keys
Safety
CE, FCC, UL, RoHS
Cabling
Use GFC CBLxxA cables for PS/2 PCs;
Use GFC CBLxxU cables for USB PCs.
Ordering Information:
GFC 1716B SPECIAL QUANTITY PRICING
#GFC 1716B
#GFC 1716B-KP
#GFC 1716B-KP10
#GFC 1716B-KU
#GFC 1716B-KU10
#GFC IPM
Visit cyberresearch.com for detailed information.
Qty 1-4
1U FoldAway w/ 17" display & 16-port KVM Switch (use any mix of USB or PS/2 cables for remote PCs!) ....$2175
GFC 1716B plus qty. 16 GFC CBL06A to connect to remote PCs (6-foot KVM with PS/2 cables).........$2495
GFC 1716B plus qty. 16 GFC CBL10A to connect to remote PCs (10-foot KVM with PS/2 cables) ......$2655
GFC 1716B plus qty. 16 GFC CBL06U to connect to remote PCs (6-foot KVM with USB cables) ........$2495
GFC 1716B plus qty. 16 GFC CBL10U to connect to remote PCs (10-foot KVM with USB cables) ........$2655
Module converts KVM signals from GFC Series FoldAways to Internet Protocol (details on website) ....$800
Qty 5-9 Qty 10-24 Qty 25+
$2065
$2370
$2520
$2370
$2520
$760
$1955
$2245
$2390
$2245
$2390
$720
Call
Call
Call
Call
Call
Call
GFC 1716B includes: Display: 17" LCD. Keyboard: 105 keys with 2-button touchpad pointing device. KVM: Integral 16-port KVM. Rack-Mt Drawer: Rugged steel drawer with thumbscrews.
Please note that GFA- or GFM-series KVM cables do not function with the GFC 1716B. The GFC CBLxxA / U cables cited above are available separately, please visit our website.
Toll-Free Assistance: 1- 800 - 341- 2525 (USA) Tel: 203- 643- 5000 Fax: 203 - 643- 5001
www.cyberresearch.com
Applications Engineers: Monday – Friday, 9:00 AM – 5:00 PM, U.S. Eastern Time • e-mail: info@cyberresearch.com
Visit our website for detailed product information!
47
048-049.06$
12/14/10
1:38 PM
Page 1
FOLDAWAYS™
Rack-Mount a 17" Monitor, Keyboard, and KVM in Only 1U!
NEW
r
Lowe !
s
Price
17"
Easy-to-open fold-up display!
with optional
8-port KVM
Switch
Display turns off when LCD display is folded down.
Integral 8-port KVM
(GFA 1718B model only)
GFA 1718B rear view
KEY SPECIFICATIONS (see our website for complete details)
Screen Size
GFA 1710B and GFA 1718B FoldAways
17" (diagonal)
Enclosure
(cd/m2)
Heavy-duty steel with ball-bearing rack slides
Brightness
250 nits
Viewing Angle
120o (horizontal), 110o (vertical)
Contrast Ratio
400:1
Maximum Resolution
1280 x 1024; up to 16M colors
Keyboard
104-key Windows® keyboard; short-travel keys
Dimensions (GFA 1718B) 19"W x 1.75"(1U)H x 24.9"D (483 x 43 x 633 mm);
Handle: 1.625"; Open height incl. handle: 14.0";
Rack-mount rear bracket depth: 23.9" ~ 27.1"
Pointing Device
Touchpad with two buttons
Weight
GFA 1710B: 30.0 lbs. GFA 1718B: 30.56 lbs.
KVM (GFA 1718B only)
Integral 8-port KVM switch
lets you monitor up to 8 separate PCs
(see diagram on page 49)
Power Consumption
45 W max., 1W in power-saving off mode
I/O Ports
PS/2 mouse & keyboard ports + VGA
(1 set on GFA 1710B;
9 on GFA 1718B: 1 for host PC, 8 for KVM switch)
Operating Temperature +32o to +113oF (0o to +45oC)
Storage Temperature
–4o to +140oF (–20o to +60oC)
Relative Humidity
10~95%, noncondensing
Safety
FCC-A, CE, UL, EPA Energy Star, DPMS, and MPR-II
Visit cyberresearch.com for detailed information.
Ordering Information:
GFA 1710B & GFA 1718B SPECIAL QUANTITY PRICING
#GFA 1710B
#GFA 1718B
Dimensions (GFA 1710B) 19"W x 1.75"(1U)H x 25.4"D (483 x 43 x 645 mm);
Handle: 1.625"; Open height incl. handle: 15.1";
Rack-mount rear bracket depth: 22" ~ 25.4"
Qty 1-4
Qty 5-9 Qty 10-24 Qty 25+
1U FoldAway with 17" display ................................................................................................................$1495 $1420 $1345
1U FoldAway with 17" display and 8-port KVM Switch..........................................................................$1795 $1705 $1615
Call
Call
GFA 1710B includes: Display: 17" LCD. Keyboard: 104 keys with 2-button touchpad pointing device. Rack-Mt Drawer: Locking steel drawer keeps system secure. Cabling: One 6-foot KVM
cable for 1 PC. GFA 1718B: Includes integral 8-port KVM. To connect more than one PC, order one GFA CBTxx cable per additional PC (see website for cable and extender options).
#GFA CBT10
48
Thin KVM Cable, 10-foot (cable lengths of 6' @ $25, 15' @ $45, and 25' @ $60 also available; see our website for details) .......................$35
www.cyberresearch.com
Toll-Free Assistance: 1- 800 - 341- 2525 (USA) Tel: 203- 643- 5000 Fax: 203 - 643- 5001
Visit our website for detailed product information!
Applications Engineers: Monday – Friday, 9:00 AM – 5:00 PM, U.S. Eastern Time • e-mail: info@cyberresearch.com
048-049.06$
12/14/10
1:50 PM
Page 2
FOLDAWAYS™
GFA 1518B: 1U FoldAway™ with Integral 8-Port KVM Switch!
NE
Low W
Pri er
ces
!
15"
Select the PC channel using the
8 push-button channel selector switches,
hot keys, or via automatic scanning.
with 8-port
KVM Switch
You can scan for effortless monitoring
— the switch pauses for 3~30 seconds
at each PC, and it automatically
skips PCs that are off!
KEY SPECIFICATIONS (see our website for complete details)
Screen Size
15" (diagonal)
(cd/m2)
Brightness
230 nits
Viewing Angle
160o (horizontal & vertical)
Contrast Ratio
300:1
Maximum Resolution
1024 x 768; up to 16M colors (dithering)
Keyboard
104-key Windows® keyboard; short-travel keys
Pointing Device
Touchpad with two buttons
KVM (GFA 1518B only)
Integral 8-port KVM switch
lets you monitor up to 8 separate PCs
(see diagram above)
I/O Ports
9 sets of PS/2 mouse & keyboard ports + VGA
(1 for host PC; 8 for KVM switch)
Cooling
Convection cooled — runs in silence
GFA 1518B FoldAway
Enclosure
Heavy-duty steel with ball-bearing rack slides
Dimensions
19"W x 1.75"(1U)H x 23.6"D (483 x 43 x 599 mm);
Open height incl. handle: 13.8"; Travel: 16.0";
Rack-mount rear bracket depth: 20" ~ 26"
Weight
28.9 lbs. (13.11 kg)
Power Consumption
45 W max., 1W in power-saving off mode
Operating Temperature +32o to +113oF (0o to +45oC)
Storage Temperature
–4o to +140oF (–20o to +60oC)
Relative Humidity
10~85%, noncondensing
Compliance
Meets FCC Part 15-A, CE, UL, EPA Energy Star & DPMS
Cabling
Includes one 5' KVM extender cable for host PC;
requires 1 KVM cable per attached PC
Ordering Information:
GFA 1518B SPECIAL QUANTITY PRICING
#GFA 1518B
(see Ordering Information below)
Visit cyberresearch.com for detailed information.
Qty 1-4
Qty 5-9 Qty 10-24 Qty 25+
1U FoldAway with 8-port KVM Switch...................................................................................................$1495 $1420 $1345
Call
GFA 1518B includes: Display: 15" LCD. Keyboard: 104 keys with 2-button touchpad pointing device. KVM: Integral 8-port KVM. Rack-Mt Drawer: Locking steel drawer keeps system secure.
Cabling: One 5-foot KVM cable for 1 PC. For longer cable runs, use GFA CBTxxx cables & KVM MFxxx extenders (see below; visit our website for complete selection and full details).
#GFA CBT10
#KVM MF010
Thin KVM Cable, 10-foot (cable lengths of 6' @ $25, 15' @ $45, and 25' @ $60 also available; see our website for details) .......................$35
KVM Extender Cable (M-F), 10-foot (5', 20', 25', 50', and 100' lengths also available; see our website for details) ...................................$69
Toll-Free Assistance: 1- 800 - 341- 2525 (USA) Tel: 203- 643- 5000 Fax: 203 - 643- 5001
www.cyberresearch.com
Applications Engineers: Monday – Friday, 9:00 AM – 5:00 PM, U.S. Eastern Time • e-mail: info@cyberresearch.com
Visit our website for detailed product information!
49
050-051.04$
12/9/10
1:45 PM
Page 1
FOLDAWAYS™
GFA 1510A: Finally. . . a FoldAway™ with a Touchscreen Option!
15"
with optional
Touchscreen!
Our GFA 1510A FoldAway saves
you valuable rack space!!
Display
turns off
when LCD
display is folded down.
Easy-to-open fold-up display!
KEY SPECIFICATIONS (see our website for complete details)
Screen Size
GFA 1510A FoldAways
15" (diagonal)
(cd/m2)
Enclosure
Heavy-duty steel with ball-bearing rack slides
Dimensions
19"W x 1.75"(1U)H x 22.2"D (483 x 43 x 564 mm);
Open height incl. handle: 14.43"; Travel: 15.1";
Rack-mount rear bracket depth: 19.7" ~ 26.6"
Brightness
230 nits
Viewing Angle
160o (horizontal & vertical)
Contrast Ratio
400:1
Maximum Resolution
1024 x 768; up to 16M colors (dithering)
Weight
19.54 lbs. (8.86 kg)
Touchscreen Option
Analog resistive (USB or RS-232 serial)
Power Consumption
35 W max., 1W in power-saving off mode
Keyboard
104-key Windows® keyboard; short-travel keys
Operating Temperature +32o to +113oF (0o to +45oC)
Pointing Device
Touchpad with two mouse buttons
Storage Temperature
–4o to +140oF (–20o to +60oC)
I/O Ports
PS/2 mouse & keyboard ports; VGA
Relative Humidity
10~85%, noncondensing
Cooling
Convection cooled — runs in silence
Compliance
Ordering Information:
GFA 1510A SPECIAL QUANTITY PRICING
Meets FCC Part 15-A, CE, UL, EPA Energy Star & DPMS
Visit cyberresearch.com for detailed information.
Qty 1-4
Qty 5-9 Qty 10-24 Qty 25+
#GFA 1510A-TRS 1U FoldAway with Touchscreen (RS-232) ...................................................................................................$1995 $1895 $1795
#GFA 1510A-TRU 1U FoldAway with Touchscreen (USB) .......................................................................................................$1995 $1895 $1795
#GFA 1510A
1U FoldAway with 15" LCD (no touchscreen) .............................................................................................$1195 $1135 $1075
Call
Call
Call
GFA 1510A includes: Display: 15" LCD. Keyboard: 104 keys with 2-button touchpad pointing device. Rack-Mt Drawer: Locking steel drawer keeps system secure.
Touchscreen Models: Analog resistive; RS-232 or USB connector. Cabling: One 5-foot KVM cable for 1 PC. For longer cable runs, use GFA CBTxxx cables (see website for details).
50
www.cyberresearch.com
Toll-Free Assistance: 1- 800 - 341- 2525 (USA) Tel: 203- 643- 5000 Fax: 203 - 643- 5001
Visit our website for detailed product information!
Applications Engineers: Monday – Friday, 9:00 AM – 5:00 PM, U.S. Eastern Time • e-mail: info@cyberresearch.com
050-051.04$
12/9/10
2:06 PM
Page 2
FOLDAWAYS™
GFC 1508B: A 15" LCD, Keyboard, Trackball, and KVM in 1U!
KVM push-button controls
15"
Bank and 1~8
with 8-port
KVM Switch
Easy-access rear I/O ports!
The GFC 1508B cuts down on your
setup time and minimizes cable clutter
by compositing KVM signals through
one specialized HD15 connector
and unique KVM cables!
NEW!
See pg. 47 or visit
our website for
16-port version!
3-button
trackball
Economy version
(GFM 1501)
without 8-port KVM
also available!
See ordering
information below
Keylock
for added security
GFC 1508B rear view
(GFM 1501 rear panel does not include 8 composite KVM ports)
KEY SPECIFICATIONS (see our website for complete details)
GFC 1508B and GFM 1501 FoldAways
Screen Size / Brightness
15" (diagonal); 250 nits (cd/m2)
Enclosure
Heavy-duty steel with ball-bearing rack slides
Viewing Angle
120o (horizontal),
Dimensions
GFC 1508B: 19"W x 1.75"(1U)H x 23.2"D;
GFM 1501: 19"W x 1.75"(1U)H x 20.2"D;
Rack-Mt Rear Bracket Depths : 22.4" ~ 35.5"
Contrast Ratio
100o
(vertical)
350:1
Maximum Resolution
1024 x 768; up to 16M colors
105-key Windows® keyboard w/ full-travel keys
Keyboard
Pointing Device
Plastic trackball with three mouse buttons
KVM (GFC 1508B only)
I/O Ports
Integral 8-port KVM lets you
monitor up to 8 separate PCs
Host PC: PS/2 mouse & keyboard ports + VGA;
GFC 1508B: KVM uses 8 HD15 ports
that allow KVM signals to be combined
onto a single 15-pin connector.
Weight
53 W typ. active, 1W in power-saving off mode
Operating Temperature
+32o to +122oF (0o to +50oC)
Storage Temperature
–4o to +140oF (–20o to +60oC)
Relative Humidity
Cabling
10~90%, noncondensing
Includes one 6' KVM extender cable for host PC;
other KVM cable options shown below
(additional cables can be found on our website)
Visit cyberresearch.com for detailed information.
Ordering Information:
Qty 1-4
GFC 1508B & GFM 1501 SPECIAL QUANTITY PRICING
#GFC 1508B
#GFM 1501
GFC 1508B: 25.02 lbs.; GFM 1501: 21.28 lbs.
Power Consumption
Qty 5-9 Qty 10-24 Qty 25+
1U FoldAway with 15" display (1024 x 786), trackball, and 8-port KVM switch..........................$1795 $1705 $1615
1U FoldAway with 15" display (1024 x 786) and trackball; no KVM...............................................$1395 $1325 $1255
Call
Call
Units Include: 1U rack-mount FoldAway unit with 15" display, keyboard, and trackball pointing device, and one 6-foot KVM cable for 1 PC. Cabling: Please note that the
GFC 1508B uses specialized single connector KVM cables. Traditional KVM cables with 3 connectors on each end (GFA- or GFM-series) will not function with the GFC 1508B.
#GFC CBL06A KVM Cable, 6 ft. (KVM from 1 PC to GFC 1508B) ......$25/ea.
#GFC CBL010A KVM Cable, 10 ft. (KVM from 1 PC to GFC 1508B) ....$40/ea.
#GFM CBL10 KVM Cable, 10 ft. (KVM from 1 PC to GFM 1501)......$35/ea.
#GFM CBL25 KVM Cable, 25 ft. (KVM from 1 PC to GFM 1501) .....$65/ea.
Toll-Free Assistance: 1- 800 - 341- 2525 (USA) Tel: 203- 643- 5000 Fax: 203 - 643- 5001
www.cyberresearch.com
Applications Engineers: Monday – Friday, 9:00 AM – 5:00 PM, U.S. Eastern Time • e-mail: info@cyberresearch.com
Visit our website for detailed product information!
51
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
