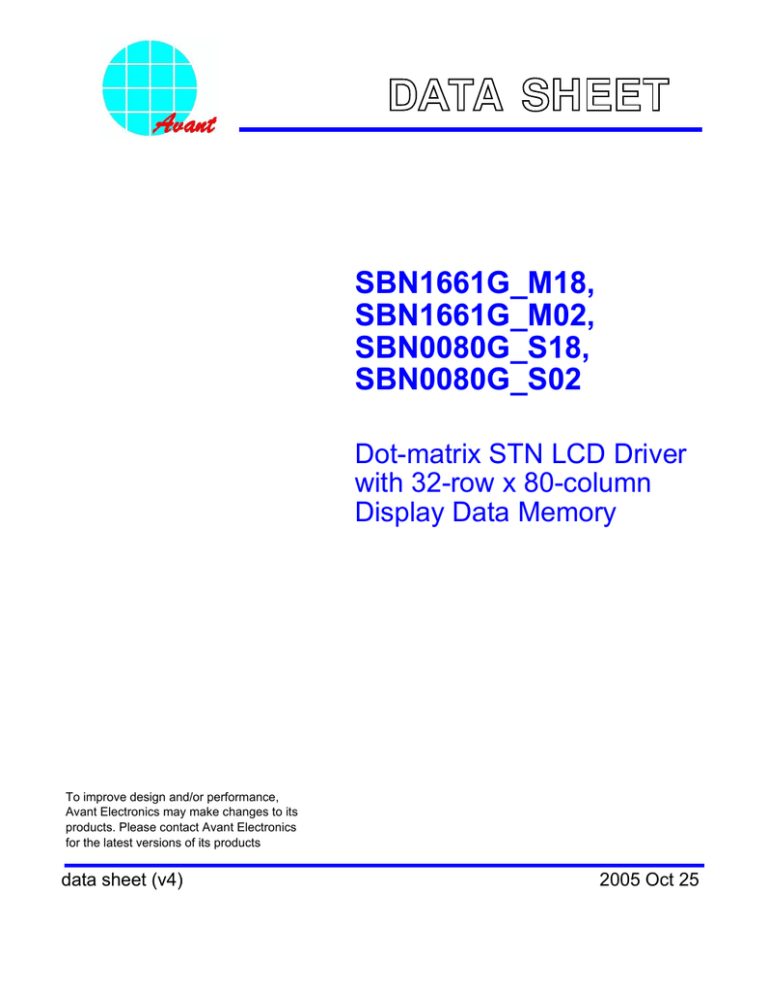

DAT

SBN1661G_M18,

SBN1661G_M02,

SBN0080G_S18,

SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

Display Data Memory

To improve design and/or performance,

Avant Electronics may make changes to its products. Please contact Avant Electronics for the latest versions of its products

data sheet (v4) 2005 Oct 25

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

1 GENERAL

1.1

Description

The SBN1661G_X is a series of STN LCD SEGMENT/COMMON drivers. The series has four members:

• the SBN1661G_M18,

• the SBN1661G_M02,

• the SBN0080G_S18, and

• the SBN0080G_S02.

Both the SBN1661G_M18 and the SBN1661G_M02 can drive 16 COMMONs and 61 SEGMENTs and can be used as master in a master-slave connection. They both have 32-row x 80-column Display Data Memory. Functionally, their only difference is that the SBN1661G_M18 has an on-chip RC-type oscillator and can provide clock to slave, while the

SBN1661G_M02 does not have an on-chip oscillator and needs external clock source.

Both the SBN0080G_S18 and the SBN0080G_S02 are purely SEGMENT drivers. They do not have COMMON outputs and are used for segment expansion in a master-slave connection. Both devices need either a master or an external clock source to provide clock. The only difference between these two chips is their operating frequency. The

SBN0080G_S18’s operating frequency is 18 KHz, while the SBN0080G_S02’s operating frequency is 2KHz.

All four devices have on-chip Display Data Memory of 32-rows x 80-columns, for storing display data. Dot-matrix mapping method is used to drive the LCD panel. Therefore, a bit of the Display Data Memory corresponds to a pixel on the LCD panel. SEGMENT drivers provide display data to the LCD panel and COMMON drivers provide row-scanning signal.

All four devices have a set of internal registers. These internal registers must be properly programmed to ensure proper operation of the devices.

Display on the LCD panel is controlled by a host microcontroller. All four devices communicate with the host microcontroller via data bus and control bus. The data bus is 8-bit wide. The control bus are READ, WRITE, and

Chip Select. The host microcontroller can perform READ/WRITE operations to the internal registers and Display Data

RAM of all four devices. A wide variety of microcontrollers can easily interface with the devices, as the devices can accept both 80-type interface timing and 68-type interface timing. The selection of interface timing is via the dual-function

RESET/IF pin.

2005 Oct 25 2 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

1.2

Features

• Four members of the SBN1661G_X series:

– the SBN1661G_M18,

– the SBN1661G_M02,

– the SBN0080G_S18, and

– the SBN0080G_S02

• 16 COMMON, 61 SEGMENT STN LCD driver (the SBN1661G_M18 and the SBN1661G_M02).

• 80 SEGMENT STN LCD driver for expanding segment number (the SBN0080G_S18 and the SBN0080G_S02).

• On-chip Display Data Memory: 32-row x 80-column (totally 2560 bits).

• Dot Matrix Mapping between the Display Data Memory bit and LCD pixel.

• A “0” stored in the Display Data Memory bit corresponds to an OFF-pixel on the LCD panel; a “1” stored in the Display

Data Memory bit corresponds to an ON-pixel on the LCD panel.

• 5-level external LCD bias.

• Display duty cycle: 1/16, 1/32 for all four devices.

• Two types of interface timing with a host microcontroller: the 80-type microcontroller and the 68-type microcontroller.

• Dual function RESET/IF input for chip reset and selection of microcontroller interface timing.

• 8-bit parrallel data bus; READ, WRITE, CHIP SELECT control bus.

• A set of internal registers: Display ON/OFF, Display Start Line, Static Drive ON/OFF, Memory Page Address, Memory

Column Address, Duty Selection, Memory Column/Segment mapping, and Status.

• Display Data Read/Write commands and Software Reset command.

• Read-Modify-Write command for block data transfer from the host microcontroller to the Display Data Memory.

• Power-saving mode.

• On-chip RC-type oscillator, requiring only an external resistor (the SBN1661G_M18).

• Operating voltage range (V

DD

): 2.7 ~ 5.5 volts.

• LCD bias voltage (V

LCD

=V5-V

DD

): -13 volts (max.).

• Operating frequency range: 2 KHz, 18 KHz.

• Operating temperature range: -20 to +75 °C.

• Storage temperature range: -55 to +125 °C.

2005 Oct 25 3 of 52 data sheet (v4)

Avant Electronics

1.3

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

Ordering information

Table 1

Product types

duty cycle Product Name

SBN1661G_M18

SBN1661G_M02

SBN0080G_S18

SBN0080G_S02

Table 2

Ordering information

Clock frequency on-chip

18 KHz

External

18 KHz

2 KHz

18 KHz

2 KHz

PRODUCT TYPE

SBN1661G_M18-LQFPG

SBN1661G_M18-QFPG

SBN1661G_M18-LQFP

SBN1661G_M18-QFP

SBN1661G_M18-D

SBN1661G_M02-LQFPG

SBN1661G_M02-QFPG

SBN1661G_M02-LQFP

SBN1661G_M02-QFP

SBN1661G_M02-D

SBN0080G_S18-LQFPG

SBN0080G_S18-QFPG

SBN0080G_S18-LQFP

SBN0080G_S18-QFP

SBN0080G_S18-D

SBN0080G_S02-LQFPG

SBN0080G_S02-QFPG

SBN0080G_S02-LQFP

SBN0080G_S02-QFP

SBN0080G_S02-D

Number of segment driver

61

80

Number of common driver

16

0

DESCRIPTION

LQFP100 Pb-free package.

QFP100 Pb-free package.

LQFP100 general package.

QFP100 general package.

tested die.

LQFP100 Pb-free package.

QFP100 Pb-free package.

LQFP100 general package.

QFP100 general package.

tested die.

LQFP100 Pb-free package.

QFP100 Pb-free package.

LQFP100 general package.

QFP100 general package.

tested die.

LQFP100 Pb-free package.

QFP100 Pb-free package.

LQFP100 general package.

QFP100 general package.

tested die.

1/16, 1/32

2005 Oct 25 4 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

2 FUNCTIONAL BLOCK DIAGRAM AND DESCRIPTION

2.1

Funtional block diagram (SBN1661G_M18, SBN1661G_M02)

V5

V4

V3

V2

V1 High Voltage Circuit

Output Driver

Level Shifter

MUX

Display

Control

Time Gen.

COMMON Counter

C/S Mappig Register

Display ON/OFF Register

Display Start Line Register

Page Address Register

Column Address Register

Status Register

Duty Select Register

Static Drive ON/OFF

Register

Command

Decoder

Mapping Circuit

Display Data RAM Buffer

32 row x 80 column

(2560 bits)

Display Data RAM

Column Address Decoder

Display Data RAM Access Control

Display

Control

Display Data

Read/Write

Control

Microcontroller

Interface

OSC and

Timing Gen.

2005 Oct 25 5 of 52

Fig.1 Functional Block Diagram data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

3 PIN(PAD) ASSIGNMENT, PAD COORDINATES, SIGNAL DESCRIPTION

3.1

The SBN1661G_M18 and SBN1661G_M02 pinning diagram (LQFP100)

DB2

DB3

DB4

DB5

DB6

DB7

V

DD

RESET/IF

M/S

V4

V1

COM0

FR

V5

V3

V2

COM1

COM2

COM3

COM4

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51

SBN1661G_M18

SBN1661G_M02

(Master/Slave Driver)

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

38

37

36

35

34

33

32

31

42

41

40

39

50

49

48

47

46

45

44

43

SEG22

SEG23

SEG24

SEG25

SEG26

SEG27

SEG28

SEG29

SEG30

SEG31

SEG32

SEG33

SEG34

SEG35

SEG36

SEG37

SEG38

SEG39

SEG40

SEG41

Note:

(1) For the SBN1661G_M18, pin 74 is OSC1 and pin 75 is OSC2.

(2) For the SBN1661G_M02, pin 74 is CS and pin 75 is CL.

(3) All other pins of both devices have the same pin(pad) assignment.

(4) Both devices can be used as master or slave, by setting their M/S pin.

Fig.2 The SBN1661G_M18 , the SBN1661G_M02 pin assignment of LQFP100 package.

2005 Oct 25 6 of 52 data sheet (v4)

Avant Electronics

3.2

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

The SBN0080G_S18, the SBN0080G_S02 pinning diagram (LQFP100)

DB2

DB3

DB4

DB5

DB6

DB7

V

DD

RESET/IF

FR

V5

V3

V2

SEG79

SEG78

SEG77

SEG76

SEG75

SEG74

SEG73

SEG72

87

88

89

90

91

92

81

82

83

84

85

86

93

94

95

96

97

98

99

100

80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51

SBN0080G_S18

SBN0080G_S02

(Slave Segment Driver)

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

42

41

40

39

38

37

36

35

34

33

32

31

50

49

48

47

46

45

44

43

SEG22

SEG23

SEG24

SEG25

SEG26

SEG27

SEG28

SEG29

SEG30

SEG31

SEG32

SEG33

SEG34

SEG35

SEG36

SEG37

SEG38

SEG39

SEG40

SEG41

Note:

(1) Both devices have the same pin(pad) assignment.

(2) Both devices can be used only as Slave Segment Driver.

Fig.3 The SBN0080G_S18, the SBN0080G_S02 pin assignment of LQFP100 package.

2005 Oct 25 7 of 52 data sheet (v4)

Avant Electronics

3.3

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

The SBN1661G_M18 , SBN1661G_M02 pad placement

COM5

COM9

COM10

1

COM6 2

COM7

COM8

3

4

5

6

COM11

COM12

7

8

COM13 9

COM14

10

COM15 11

SEG60 12

SEG59

13

SEG58 14

SEG57 15

SEG56

16

SEG55

17

SEG54 18

SEG53 19

SEG52

20

SEG51 21

SEG50 22

SEG49

23

SEG48 24

SEG47 25

SEG46 26

SEG45

27

SEG44 28

SEG43 29

SEG42

30

Y

(0,0) X chip size : 4162

µm x 3000 µm.

Pad size: 90

µm x 90 µm.

Note:

(1) The SBN1661G_M18 and the SBN1661G_M02 have the same pad placement.

(2) The chip ID of the SBN1661G_M18 is AT18001-01.

(3) The chip ID of the SBN1661G_M02 is AT18001-02.

(4) The die origin is at the center of the chip.

(5) For chip_on_board_bonding, chip carrier should be connected to VDD or left open. Chip carrier is the metal pad to which the die is attached.

Fig.4 The SBN1661G_M18, SBN1661G_M02 pad placement

79

78

77

76

75

74

73

DB0

VSS

R/W(WR)

E/RD

OSC2(CL)

OSC1(CS)

C/D

72

71

SEG0

SEG1

70

69

68

67

SEG2

SEG3

SEG4

SEG5

56

55

54

53

60

59

58

57

64

63

62

61

66

65

SEG6

SEG7

SEG8

SEG9

SEG10

SEG11

SEG12

SEG13

SEG14

SEG15

SEG16

SEG17

SEG18

52

51

SEG19

SEG20

SEG21

2005 Oct 25 8 of 52 data sheet (v4)

Avant Electronics

3.4

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

The SBN0080G_S18 , SBN0080G_S02 pad placement

SEG71

SEG67

SEG66

1

SEG70 2

SEG69

SEG68

3

4

5

6

SEG65

SEG64

7

8

SEG63 9

SEG62

10

SEG61 11

SEG60 12

SEG59

13

SEG58 14

SEG57 15

SEG56

16

SEG55

17

SEG54 18

SEG53 19

SEG52

20

SEG51 21

SEG50 22

SEG49

23

SEG48 24

SEG47 25

SEG46 26

SEG45

27

SEG44 28

SEG43 29

SEG42

30

Y

(0,0) X chip size : 4162

µm x 3000 µm.

Pad size: 90

µm x 90 µm.

Note:

(1) The SBN0080G_S18 and the SBN0080G_S02 have the same pad placement.

(2) The chip ID of the SBN0080G_S18 is AT18001-03

(3) The chip ID of the SBN0080G_S02 is AT18001-04.

(4) The die origin is at the center of the chip.

(5) For chip_on_board_bonding, chip carrier should be connected to VDD or left open. Chip carrier is the metal pad to which the die is attached.

Fig.5 The SBN0080G_S18, SBN0080G_S02 pad placement

79

78

77

76

75

74

73

DB0

VSS

R/W(WR)

E/RD

CL

CS

C/D

72

71

SEG0

SEG1

70

69

68

67

SEG2

SEG3

SEG4

SEG5

56

55

54

53

60

59

58

57

64

63

62

61

66

65

SEG6

SEG7

SEG8

SEG9

SEG10

SEG11

SEG12

SEG13

SEG14

SEG15

SEG16

SEG17

SEG18

52

51

SEG19

SEG20

SEG21

2005 Oct 25 9 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

3.5

The SBN1661G_M18, SBN1661G_M02 pad coordinates

Table 3

The SBN1661G_M18, SBN1661G_M02 pad coordinates (unit:

µm)

PAD

NAME

X Y

SEG55 277

SEG54 410

SEG53 543

SEG52 676

SEG51 809

SEG50 942

SEG49 1075

SEG48 1208

SEG47 1341

SEG46 1474

SEG45 1607

SEG44 1740

SEG43 1873

SEG42 2006

SEG41 2011

SEG40 2011

SEG39 2011

SEG38 2011

COM5 -1824 -1430

COM6 -1694 -1430

COM7 -1569 -1430

COM8 -1444 -1430

COM9 -1319 -1430

COM10 -1186 -1430

COM11 -1053 -1430

COM12 -920 -1430

COM13 -787

COM14 -654

COM15 -521

SEG60 -388

SEG59 -255

SEG58 -122

SEG57 11

SEG56 144

-1430

-1430

-1430

-1430

-1430

-1430

-1430

-1430

-1430

-1430

-1430

-1430

-1430

-1430

-1272

-1137

-1002

-867

-1430

-1430

-1430

-1430

-1430

-1430

-1430

-1430

PAD

NO.

29

30

31

32

25

26

27

28

33

34

21

22

23

24

17

18

19

20

13

14

15

16

9

10

11

12

7

8

5

6

3

4

1

2

PAD

NAME

X

SEG21 1842

SEG20 1712

SEG19 1582

SEG18 1452

SEG17 1322

SEG16 1192

SEG15 1062

SEG14 932

SEG13 802

SEG12 672

SEG11 542

SEG10 412

SEG9

SEG8

SEG7

SEG6

SEG5

SEG4

282

152

22

-108

-238

-368

SEG37 2011

SEG36 2011

SEG35 2011

SEG34 2011

SEG33 2011

SEG32 2011

SEG31 2011

SEG30 2011

SEG29 2011

SEG28 2011

SEG27 2011

SEG26 2011

SEG25 2011

SEG24 2011

SEG23 2011

SEG22 2011

PAD

NO.

63

64

65

66

59

60

61

62

67

68

55

56

57

58

51

52

53

54

47

48

49

50

43

44

45

46

39

40

41

42

35

36

37

38

Y

1430

1430

1430

1430

1430

1430

1430

1430

1430

1430

1430

1430

1430

1430

1430

1430

1430

1430

348

483

618

753

883

1013

1143

1273

-732

-597

-462

-327

-192

-57

78

213

PAD

NO.

PAD

NAME

X Y

81

82

83

84

77

78

79

80

73

74

75

76

69

70

71

72

SEG3

SEG2

SEG1

SEG0

C/D

OSC1

OSC2

E/RD

-498

-628

-758

-888

1430

1430

1430

1430

-1062 1430

-1194 1430

-1326 1430

-1458 1430

R/W(WR) -1590 1430

VSS -1722 1430

DB0

DB1

-1854

-2011

1430

1358

DB2

DB3

DB4

DB5

-2011

-2011

-2011

-2011

1176

1044

909

771

89

90

91

92

85

86

87

88

93

94

95

96

M/S

V4

V1

COM0

97

98

COM1

COM2

99 COM3

100 COM4

FR

V5

V3

V2

DB6

DB7

-2011

-2011

VDD -2011

RESET/IF -2011

-2011

-2011

-2011

-2011

-2011

-2011

-2011

-2011

-2011

-2011

-2011

-2011

-456

-586

-716

-846

-976

-1106

-1236

-1388

635

497

358

212

81

-50

-180

-326

2005 Oct 25 10 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

SEG57 11

SEG56 144

SEG55 277

SEG54 410

SEG53 543

SEG52 676

SEG51 809

SEG50 942

SEG49 1075

SEG48 1208

SEG47 1341

SEG46 1474

SEG45 1607

SEG44 1740

SEG43 1873

SEG42 2006

SEG41 2011

SEG40 2011

SEG39 2011

SEG38 2011

Pad

Name

X

SEG71 -1824

SEG70 -1694

SEG69 -1569

SEG68 -1444

SEG67 -1319

SEG66 -1186

SEG65 -1053

SEG64 -920

SEG63 -787

SEG62 -654

SEG61 -521

SEG60 -388

SEG59 -255

SEG58 -122

3.6

The SBN0080G_S18, SBN0080G_S02 pad coordinates

Table 4

The SBN0080G_S18, SBN0080G_S02 pad coordinates ( unit:

µm )

27

28

29

30

23

24

25

26

31

32

33

34

19

20

21

22

15

16

17

18

11

12

13

14

7

8

9

10

5

6

3

4

1

2

Pad

No.

Y Y

61

62

63

64

57

58

59

60

65

66

67

68

53

54

55

56

49

50

51

52

45

46

47

48

41

42

43

44

37

38

39

40

Pad

No.

35

36

SEG23 2011

SEG22 2011

SEG21 1842

SEG20 1712

SEG19 1582

SEG18 1452

SEG17 1322

SEG16 1192

SEG15 1062

SEG14 932

SEG13 802

SEG12 672

SEG11 542

SEG10 412

SEG9

SEG8

282

152

SEG7

SEG6

SEG5

SEG4

22

-108

-238

-368

Pad

Name

X

SEG37 2011

SEG36 2011

SEG35 2011

SEG34 2011

SEG33 2011

SEG32 2011

SEG31 2011

SEG30 2011

SEG29 2011

SEG28 2011

SEG27 2011

SEG26 2011

SEG25 2011

SEG24 2011

-1430

-1430

-1430

-1430

-1430

-1430

-1272

-1137

-1002

-867

-1430

-1430

-1430

-1430

-1430

-1430

-1430

-1430

-1430

-1430

-1430

-1430

-1430

-1430

-1430

-1430

-1430

-1430

-1430

-1430

-1430

-1430

-1430

-1430

1430

1430

1430

1430

1430

1430

1430

1430

1430

1430

1430

1430

1430

1430

1430

1430

1430

1430

348

483

618

753

883

1013

1143

1273

-732

-597

-462

-327

-192

-57

78

213

Y

Pad

No.

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

Pad Name

SEG3

SEG2

SEG1

SEG0

C/D

CS

CL

E/RD

X

-498

-628

-758

-888

-1062

-1194

-1326

-1458

R/W(WR) -1590

VSS -1722

DB0

DB1

DB2

DB3

DB4

DB5

DB6

DB7

VDD

RESET/IF

91

92

93

94

FR

V5

V3

V2

95

96

97

98

SEG79

SEG78

SEG77

SEG76

SEG75

SEG74

99 SEG73

100 SEG72

-1854

-2011

-2011

-2011

-2011

-2011

-2011

-2011

-2011

-2011

-2011

-2011

-2011

-2011

-2011

-2011

-2011

-2011

-2011

-2011

-2011

-2011

-456

-586

-716

-846

-976

-1106

-1236

-1388

635

497

358

212

81

-50

-180

-326

1430

1430

1430

1358

1176

1044

909

771

1430

1430

1430

1430

1430

1430

1430

1430

2005 Oct 25 11 of 52 data sheet (v4)

Avant Electronics

3.7

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

Pin(pad) signal difference among the four members of the SBN1661G_X

All four members of the SBN1661G_X series have the same pad sequence and placement. However, some pins(pads) have different signals for different types. A comparison is given in Table 5.

Table 5

Comparison of pin(pad) signals

Type Pin(pad)

1~11

SBN1661G_M18 COM5~15

SBN1661G_M02 COM5~15

SBN0080G_S18

SBN0080G_S02

SEG71~61

Pin(pad)

74

OSC1

CS

CS

Pin(pad)

75

OSC2

CL

CL

Pin(pad)

93

M/S

M/S

SEG79

Pin(pad)

94

V4

V4

SEG78

Pin(pad)

95

V1

V1

SEG77

Pin(pad)

96~100

COM0~4

COM0~4

SEG76~72

3.8

Pin (pad) states after hardware RESET

Table 6

Pin(pad) states after RESET

SBN1661G_M18, SBN1661G_M02 signal

DB0~DB7

COM0~COM15

SEG0~SEG61

FR(SBN1661G_M18)

OSC2 (SBN1661G_M18)

states after RESET

tri-state

V

DD

V

DD tri-state tri-state

SBN0080G_S18, SBN0080G_S02 signal

DB0~DB7

states after RESET

tri-state

SEG0~SEG79 V

DD

2005 Oct 25 12 of 52 data sheet (v4)

Avant Electronics

3.9

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

The SBN1661G_M18 and the SBN1661G_M02 signal description

Table 7

Pin (pad) signal description

To avoid a latch-up effect at power-on: V

SS

− 0.5 V < voltage at any pin at any time < V

DD

+ 0.5 V .

Pin number

SYMBOL I/O DESCRIPTION

COMMON driver outputs.

The output voltage level of COMMON outputs are decided by the combination of the alternating frame signal (FR) and the internal COMMON COUNTER, which generates raster-scanning COMMON signals. Depending on the value of the frame signal and the COMMON counter output, a single voltage level is selected from

VDD, V1, V4, or V5 for COMMON driver , as shown in Fig. 6.

1~11,

96~100

COM5~15,

COM0~4

Output

FR

0

Common

Counter output

COMMON output

0

V4

1

0

1

V5

0

V1

1

VDD

0

V4

1

V5

1 0

0

V1

1

VDD

Fig.6 COMMON driver utput voltage level

SEGNENT driver outputs.

The output voltage level of SEGMENT outputs are decided by the combination of the alternating frame signal (FR) and display data. Depending on the value of the frame signal and the display data, a sinlge voltage level is selected from VDD, V2,

V3, or V5 for SEGMENT driver, as shown in Fig. 7.

12~72 SEG60~0 Output

FR 0

1

0 1

0

Display

Data bit

0

SEG output

V3

1

VDD

0

V2

1

V5

0

V3

1

VDD

0

V2

1

V5

Fig.7 SEGMENT driver output voltage level

73 C/D Input

Selection of command or data.

When C/D=0, the data on the 8-bit data bus (DB0~DB7) are either COMMAMD, data to be written to an internal register, or data read from the internal Status

Register.

When C/D=1, the data on the 8-bit data bus (DB0~DB7) are related to the Display

Data Memory. They are the data to be written to or read from the Display Data

Memory.

2005 Oct 25 13 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

Pin number

74

75

76

77

78

79~86

87

SYMBOL

OSC1

CS

OSC2

CL

E/(RD)

R/W(WR)

V

DB0~DB7

V

SS

DD

I/O DESCRIPTION

Input

Output

Input

For the SBN1661G_M18, pin 74 is the OSC1 pin of the on-chip RC oscillator. It is the input pin to the oscillator. An external resistor should be connected across the

OSC1 and the OSC2.

For the SBN1661G_M02, pin 74 is the CS pin. Usually, a signal decoded from the host microcontroller address lines or a port line (C51) is connected to this pin.

For the SBN1661G_M18, pin 75 is the OSC2 pin. It is the output pin of the on-chip

RC oscillator.

For the SBN1661G_M02, pin 75 is the CL pin. Clock from master or an external clock source should be added to this pin.

Enable signal (E) for the 68-type microcontroller, or READ (RD) signal for the

80-type microcontroller.

Input

If a 68-type microcotroller is selected as the host microcontroller, this pin should be connected to the ENABLE output of the microcontroller. A HIGH level on this pin indicates that the microcontroller intends to select the SBN1661G_X series.

If a 80-type microcontroller is selected as the host microcontroller, this pin should be connected to the RD output of the microcontroller. A LOW level on this pin indicates that the microcontroller intends to read from the SBN1661G_X series..

Read/Write (R/W) signal for the 68-type microcontroller, or WRITE(WR) signal for the 80-type microcontroller.

Input

I/O

Input

If a 68-type microcotroller is selected as the host microcontroller, this pin should be connected to the R/W output of the microcontroller. A HIGH level on this pin indicates that the microcontroller intends to read from the SBN1661G_X series. A

LOW level on this pin indicates that the microcontroller intends to write to the

SBN1661G_X series.

If a 80-type microcontroller is selected as the host microcontroller, this pin should be connected to the WR output of the microcontroller. A LOW level on this pin indicates that the microcontroller intends to write to the SBN1661G_X series.

Ground pin.

Bi-direction, tri-state 8-bit parallel data bus for interface with a host microcontroller.

This data bus is for data transfer between the host microcontroller and the

SBN1661G_X.

Power supply for logic part of the chip.

The V

DD

should be in the range from 2.7 volts to 5.5 volts.

2005 Oct 25 14 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

Pin number

88

SYMBOL

RESET/IF

I/O

Input

DESCRIPTION

Hardware RESET and interface type selection.

This pin is a dual function pin. It can be used to reset the SBN1661G_X and select the type of interface timing.

The hardware RESET is edge-sensitive. It is not level-sensitive. That is, either a falling edge or a rising edge on this pin can reset the chip. The voltage level after the reset pulse selects the type of interface timing. If the voltage level after the reset pulse stays at HIGH, interface timing for the 68-type microcontroller is selected. If the voltage level after the reset pulse stays at LOW, then interface timing for the

80-type microcontroller is selected.

Therefore, a positive RESET pulse selects the 80-type microcontroller for interface and a negative RESET pulse selects the 68-type microcontroller for interface.

The following diagram illustrates the reset pulse and the selected type of microcontroller.

Interface timing for the 80-type microcontroller is selected.

Positive RESET pulse

Negative RESET pulse

Interface timing for the 68-type microcontroller is selected.

89

90, 91,

92, 94,

95

93

FR

V5, V3, V2,

V4, V1

M/S

I/O

Input

Input

Fig.8 RESET pulse interface timing selection

Frame output or input.

The frame signal is the AC siganl for generating alternating bias voltage of reverse polarities for LCD cell. When the chip is used as Master in a Master-Slave connection, this pin is an output pin and sends frame signal to the slave. When the chip is used as Slave, this pin is an input pin and accepts frame signal from the master.

External LCD Bias voltage.

The condition VDD

≥V1≥V2≥V3≥V4≥V5 must always be met. In addition,

V

LCD

(V5-V

DD

) should not exceed -13 volts.

Selection for Master or Slave in a master-slave conneciton.

When this pin is connected to V

DD

(hardwired-connection), the chip is used as

Master. When this pin is connected to V

SS

, the chip is used as Slave.

2005 Oct 25 15 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

4 A SBN1661G_X-BASED DISPLAY SYSTEM

A SBN1661G_X-based display system is shown in Fig. 9.

The SBN1661G_X , on the one side, interfaces with a host microcontroller via address bus , data bus, and control bus.

The address bus from the microcontroller needs to be further decoded to generate Chip Select signal. The host microcontroller can perform READ/WRITE operation to the on-chip Display Data Memory, can send commands to the

SBN1661G_X, and can program the internal registers to congifure the SBN1661G_X. How data is to be displayed on the

LCD panel is completely controlled by the host microcontroller.

On the other side, the SBN1661G_X provides 15 COMMON drivers and 61 SEGMENT drivers to drive the LCD panel.

To expand the COMMON number and SEGMENT number, both the SBN1661G_M18 and SBN1661G_M02 can be used either as a master or as a slave in a master-slave connection. The synchronization between the master and the slave is via the FR (frame) signal and the CL (clock) signal supplied from the master to the slave.

If only segment number needs to be expanded, then the SBN0080G_S18 or the SBN0080G_S02 can be used as slave.

Address bus

Host microcontroller

Data bus

Control bus

Decoder

68-series

80-seris

C51-series

RESET

LCD Bias Power

Supply

SBN1661G_X

(master)

Display Data

Memory

Registers

SBN1661G_X

(slave)

Display Data

Memory

Registers

COM0

COM15

SEG1

SEG61

LCD Panel

COM0

COM15

SEG1

SEG16

Fig.9 A SBN1661G_X series-based display system

2005 Oct 25 16 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

5 INTERFACE WITH A HOST MICROCONTROLLER

5.1

Selection of interface type by use of the RESET/IF pin(pad)

The SBN1661G_X series can accept two types of interface timing for two types of microconftroller: the 68-type micrcontrollers and the 80-type microcontrollers. Selection of interface type is by use of the dual-function RESET/IF pin(pad). If the voltage at the RESET/IF pin(pad) stays at HIGH after RESET pulse, then the 68-type interface timing is selected. If the voltage at the RESET/IF pin(pad) stays at LOW after RESET pulse, then the 80-type interface timing is selected.

The RESET of the SBN1661G_X is edge-sensitive, instead of level-sensitive. That is, a pulse on the RESET/IF input triggers reset only on the rising edge and falling edge of the pulse. The voltage level after the RESET pulse is used to select interface type.

5.2

Interface signal and operation

The interface signal between the host microcontroller and the SBN1661G_X are data bus and control bus. The data bus is an 8-bit (DB0~DB7) bi-directional bus. The control bus is composed of the following siganls: C/D, E/(RD), and

R/W(WR).

By means of data bus and control bus, the host microcontroller can write data to the on-chip Display Data Memory, can read data from the Display Data Memory, can program the internal registers, can send commands, and can read status of the chip.

It is the host microcontroller’s responsibility to put proper data and timing on the data bus and control bus to ensure proper communication.

Table 8 lists the setting for control bus and the types of interface operation.

Table 8

Interface signal and microcontroller operation

COMMAN

/DATA

C/D

68-type interface

R/W

80-type interface

RD WR

1 1 0 1

Operation

1

0

0

0

1

0

1

0

1

0

1

0

The host microcontroller reads data from the Display Data

Memory.

The host microcontroller writes data to the Display Data

Memory

The host microcontroller reads the Status Register.

The host microcontroller issues a command or writes data to an internal register.

5.3

Interface Timing

Please refer to Fig. 22 and Fig. 24 for interface timing diagram and Table 42 , Table 43, Table 44, and Table 45 for AC characteristics of interface timing.

5.4

Interface Circuit

Please refer to Fig. 24, Fig. 25, and Fig. 26 for interface circuit examples.

2005 Oct 25 17 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

6 DISPLAY DATA MEMORY AND LCD DISPLAY

The Display Data Memory is a static memory bit(cell) array of 32-row x 80-column. So, the total bit number of the Display

Data Memory is 32 x 80 = 2560 bits. Each bit of the memory is mapped to a single pixel (dot) on the LCD panel. A “1” stored in the Display Data Memory bit corresponds to an ON pixel (black dot in normal display) of the LCD panel. A “0” stored in the Display Data Memory bit corresponds to an OFF pixel (background dot in normal display) of the LCD panel.

Column outputs(Column 0~79) of the Display Data Memory is mapped to SEG 0~79 outputs of the SBN1661G_X. The mapping can be normal mapping or inverse mapping. Normal mapping means that Column0 is mapped to SEG0,

Column1 to SEG1, Column2 to SEG2, and so on. Inverse mapping means that Column0 is mapped to SEG79, Column1 to SEG78, Column2 to SEG77, and so on. The mapping relation is decided by the Column/Segment Mapping Register.

Any row (80 bits) of the Display Data Memory can be selected as the first row (COM0) to be displayed on the LCD panel.

This is decided by the Display Start Line Register. The Display Start Line Register points at the first row of a block of the

Display Data Memory, which will be mapped to COM0 of the LCD display. The length of the block of the memory can be

32 rows or 16 rows, which is decided by the Duty Select Register.

Row 0

Row 1

Row 2

Row 3

COM 0

COM 1

COM 2

COM 3

Row 28

Row 29

Row 30

Row 31

Display Data Memory Cell Array

COM 15

LCD panel pixel array

Fig.10 Memory cell array and LCD pixel array

2005 Oct 25 18 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

7 DISPLAY CONTROL INSTRUCTIONS AND REGISTERS

7.1

Registers and their states after hardware RESET

The SBN1661G_X has a set of registers. To ensure proper operation of the devices, these registers must be programmed with proper values after hardware reset.

The registers and their states after RESET is given in Table 9.

Table 9

Registers and their states after RESET

Register Name

Display ON/OFF Register

Display Start Line Register

Page Addres Register

Column Address Register

Static Drive ON/OFF Register

Duty Select Register

Column/Segment Mapping

Register

Status Register

Description States after

RESET

The Display ON/OFF Register is a 1-bit register. After RESET, its value is LOW and, therefore, the LCD display is turned OFF.

The Display Start Line Register is a 6-bit register. After RESET, its value is 0 0000 and Row0 of the Display Data Memory is mapped to COM0.

The Page Address Register is a 3-bit register. After RESET, its value is 11 and, therefore, it points to Page 7 of the Display

Data Memory.

The Column Address Register is a 7-bit register. After RESET, its value is 000 0000 and, therefore, it points to column 0 of the

Display Data Memory.

The Static Drive ON/OFF Register is a 1-bit register. After

RESET, its value is LOW and static display is turned OFF.

The Duty Select Register is a 1-bit register. After RESET, its value is HIGH and 1/32 display duty is selected.

The Column/Segment Mapping Register is a 1-bit register.

After RESET, its value is LOW and normal mapping is selected.

The Status Register shows the current state of the

SBN1661G_X. It is a 4-bit register, with each bit showing the status of a programmed function.

0

00 0000

111

000 0000

0

1

0

0000 0000

7.2

Display ON/OFF and the Display ON/OFF Register

The Display ON/OFF Register is a 1-bit Register. When this bit is progammed to HIGH, the display is turned ON.

When this bit is programmed to LOW, the display is turned OFF. When display is turned OFF, SEG0~SEG60 will stay at either V2 or V3, and COM0~COM15 will stay at their previous value before the Display OFF command is issued.

To program this register, the setting of control bus is given in Table 10 and the setting of the data bus is given in Table 11.

Table 10 Setting of the control bus for programming the Display ON/OFF Register

C/D

0

E/(RD)

1

R/W(WR)

0

Table 11 Setting of the data bus for programming the Display ON/OFF Register

D7(MSB)

1

D6

0

D5

1

D4

0

D3

1

D2

1

D1

1

D0(LSB)

D0

When D0=1, the code is AF(Hex) and the display is turned ON. When D0=0, the code is AE(Hex) and the display is turned

OFF.

2005 Oct 25 19 of 52 data sheet (v4)

Avant Electronics

7.3

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

Display Start Line and the Display Start Line Register

The Display Start Line Register is a 5-bit Register. It points at the first row of a block of the Display Data Memory, which will be mapped to COM0. The length of the block of the memory can be 32 rows or 16 rows, which is decided by the Duty

Select Register. For example, if the Display Start Line Register is programmed with 00010 ( decimal 2) and display duty is 1/32, then Row2 of the Display Data Memory will be mapped to COM0 of LCD panel, Row3 to COM1, Row4 to COM2,

Row30 to COM28, Row31 to COM29, Row0 to COM30, and finally Row1 to COM31, as illustrated in Fig. 11. However, in this case, only Row2~Row17 can be displayed on COM0~COM15, as COM16~COM31 are not availabe from the chip.

COM 0

COM 1

COM 2

COM 3

Row 0

Row 1

Row 2

Row 3

0 0 0 1 0

A4 A3 A2 A1 A0

Display Start Line Register

Row 28

Row 29

Row 30

Row 31

COM 28

COM 29

COM 30

COM 31

LCD panel

Display Data Memory

Fig.11 Display Start Line Register

To program this register, the setting of the control bus is given in Table 12 and the setting of the data bus is given in

Table 13.

Table 12 The setting of the control bus for programming the Display Start Line Register

C/D

0

E/(RD)

1

R/W(WR)

0

Table 13 The setting of the data bus for programming the Display Start Line Register

D7(MSB)

1

D6

1

D5

0

D4

A4

D3

A3

D2

A2

D1

A1

D0(LSB)

A0

A4, A3, A2, A1, and A0 are Start Line address bits and they can be programmed with a value in the range from 0 to 31.

Therefore, the code can be from 1100 0000 (C0 Hex) to 1101 1111 (DF Hex).

2005 Oct 25 20 of 52 data sheet (v4)

Avant Electronics

7.4

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

Display Data Memory Page and the Page Address Register

The on-chip Display Data Memory is divided into 4 pages: Page 0, Page 1, Page 2, and Page 3, with each page having

80 bytes in horizontal direction. Page 0 is from Row 0 to Row 7, Page 1 from Row 8 to Row 15, Page 2 from Row 16 to

Row 23, and Page 3 from Row 24 to Row 31, as shown in Fig 12. When the host microtroller intends to perform a

READ/WRITE operation to the Display Data Memory, it has to program the Page Adrress Register to indicate which page it intends to access.

Page 0

Page 1

Page 2

Page 3

Bit7

Bit0

Bit1

Bit2

Bit3

Bit4

Bit5

Bit6

Bit7

Bit0

Bit1

Bit2

Bit3

Bit4

Bit5

Bit6

Bit7

Bit7

Bit0

Bit1

Bit2

Bit3

Bit4

Bit5

Bit6

Bit0

Bit1

Bit2

Bit3

Bit4

Bit5

Bit6

Row24

Row25

Row26

Row27

Row28

Row29

Row30

Row31

Row16

Row17

Row18

Row19

Row20

Row21

Row22

Row23

Row0

Row1

Row2

Row3

Row4

Row5

Row6

Row7

Row8

Row9

Row10

Row11

Row12

Row13

Row14

Row15

Fig.12 Page/Column allocation of the Display Data Memory

To program this register, the setting of the control bus is given in Table 14 and the setting of the data bus is given in Table

15.

Table 14 The setting of the control bus for programming the Page Address Register

C/D

0

E/(RD)

1

R/W(WR)

0

Table 15 The setting of the data bus for programming the Page Address Register

D7(MSB)

1

D6

0

D5

1

D4

1

D3

1

D2

0

D1

A1

D0(LSB)

A0

A1and A0 are page address bits and can be programmed with a value in the range from 0 to 3. A1A0=00 selects Page 0,

A1A0=01 selects Page 1, A1A0=10 selects Page 2, and A1A0=11 selects Page 3. Therefore, the code can be from 1011

1000 (B8 Hex) to 1011 1011 (BB Hex).

2005 Oct 25 21 of 52 data sheet (v4)

Avant Electronics

7.5

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

Column address and the Column Address Register

The Column Address Register points at a column of the Display Data Memory which the host microcontroller intends to perform a READ/WRITE operation. The Column Address Register automatically increments by 1 after a READ or WRITE operation is finished. When the Column Address Register reaches 79, it overflows to 0. Please refer to Fig.12 for the column sequence in a page of the Display Data Memory.

To program this register, the setting of the control bus is given in Table 16 and the setting of the data bus is given in Table

17.

Table 16 The setting of the control bus for programming the Column Address Register

C/D

0

E/(RD)

1

R/W(WR)

0

Table 17 The setting of the data bus for programming the Column Address Register

D7(MSB)

0

D6

A6

D5

A5

D4

A4

D3

A3

D2

A2

D1

A1

D0(LSB)

A0

A6~A0 are column address bits and can be programmed with a value in the range from 0 to 79. Therefore, the code can be from 0000 0000 (00 Hex) to 0100 1111 (4F Hex).

2005 Oct 25 22 of 52 data sheet (v4)

Avant Electronics

7.6

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

Mapping between Memory Cloumns and Segments and the Column/Segment Mapping Register

The Column/Segment Mapping Register is a 1-bit register and selects the mapping relation between the column outputs of the Display Data Memory and the Segment outputs SEG0~SEG79.

If this register is programmed with HIGH, then the data from column 79 of the Display Data Memory will be output from

SEG0. This type of mapping is called inverted mapping.

If this register is programmed with LOW, then data from column 0 of the Display Data Memory will be output from SEG0.

This type of mapping is called normal mapping.

By use of this register, the flexibility of component placement and routing on a PCB can be increased.

Segment Driver Segment Driver

Normal Mapping

(D=0)

Row 0

Row 1

Row 2

Row 3

Inverted mapping

(D=1)

Row 0

Row 1

Row 2

Row 3

Row 28

Row 29

Row 30

Row 31

Display Data Memory

Row 28

Row 29

Row 30

Row 31

Display Data Memory

Fig.13 Column/Segment Mapping Register.

To program this register, the setting of the control bus is given in Table 18 and the setting of the data bus is given in

Table 19.

Table 18 The setting of the control bus for programming the Column/Segment Mapping Register

C/D

0

E/(RD)

1

R/W(WR)

0

Table 19 The setting of the data bus for programming the Memory/Segment Mapping Register

D7(MSB)

1

D6

0

D5

1

D4

0

D3

0

D2

0

D1

0

The least significant bit D can be programmed with either 0 or 1. Therefore, the codes are A0 Hex or A1 Hex.

D0(LSB)

D

2005 Oct 25 23 of 52 data sheet (v4)

Avant Electronics

7.7

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

Static Drive ON/OFF and the Static Drive ON/OFF register

The Static Drive ON/OFF Register is a 1-bit register. It is used to turn ON or OFF the Static Drive Mode of the

SBN1661G_X.

When this register is programmed with HIGH, Static Drive Mode is turned ON and the device enters into Static Drive

Mode, in which the internal clock circuitry is disabled and the switching of the internal logic is suspended. When this register is programmed with LOW, Static Drive Mode is turned OFF and the chip returns to normal operation.

This register is used in combination with the Display ON/OFF register to make the current consumption of the LCD module reduced to almost static level. By turning OFF the display and turning ON the static drive mode,the chip is configured into the following state:

• all COMMON and SEGMENT outputs are set to V

DD

,

• on-chip oscillator or external clock is inhibited and internal logic circuit stays idle,

• OSC2 is in floating state (please refer to Section 11 , On-chip RC Oscillator), and

• the state of registers and the data of the Display Data Memory are kept unchanged.

In addition to turning ON the static drive mode and turning OFF the display, to really reduce the power consumption of the LCD module, the host microcontroller should also send out a power-save signal to turn off the PNP transistor in the bias circuit, such that the current flow from V

DD

to V

EE

can be cut off, as shown in Fig. 14.

Microcontroller

V

DD

C

C

C

C

C

V0

V1

V2

V3

V4

V5

V

DD

V0

V

DD

V4

V5

V1

V2

V3

V

SS

SEG0~SEG60

COM0~COM15

Power Save Signal

V

EE

Fig.14 Power Save Mode

To program this register, the setting of the control bus is given in Table 20 and the setting of the data bus is given in

Table 21.

Table 20 The setting of the control bus for programming the Static Drive ON/OFF Register

C/D

0

E/(RD)

1

R/W(WR)

0

Table 21 The setting of the data bus for programming the Static Drive ON/OFF Register

D7(MSB)

1

D6

0

D5

1

D4

0

D3

0

D2

1

D1

0

The least significant bit D0 can be programmed with either 0 or 1. Therefore, the code is A4 Hex or A5 Hex.

D0(LSB)

D

2005 Oct 25 24 of 52 data sheet (v4)

Avant Electronics

7.8

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

Select Duty and the Select Duty Register

The Select Duty Register is a 1-bit register. If it is programmed with HIGH, 1/32 display duty is selected. If it is programmed with LOW, 1/16 display duty is selected.

To program this register, the setting of the control bus is given in Table 22 and the setting of the data bus is given in

Table 23.

Table 22 The setting of the control bus for programming the Select Duty Register

C/D

0

E/(RD)

1

R/W(WR)

0

Table 23 The setting of the data bus for programming the Select Duty Register

D7(MSB)

1

D6

0

D5

1

D4

0

D3

1

D2

0

D1

0

D0(LSB)

D

The least significant bit D can be programmed with either 0 or 1. Therefore, the code is A8 Hex or A9 Hex.

In a Master-Slave connection using the SBN1661G_M18 or the SBN1661G_M02 as the master, COM0~COM15 will be from the master and COM16~COM31 will be from the slave. The Select Duty Register of both the Master and the Slave should be programmed with HIGH to select 1/32 duty. Fig.15 shows the COMMON sequence of this connection.

Frame Signal

(From Master)

COM0~COM15

(From Master)

COM16~COM31

(From Slave)

0

1 2 13 14 15

16 17 18

29 30 31

0 1

2

13 14 15

16 17 18 29 30 31

Fig.15 COMMON sequence of Master-Slave connection

This register is not available in the SBN0080G_S18 and the SBN0080G_S02, because both the devices are purely

Segment Drivers and their duty cycle is decided by the FR and the CL from the master.

2005 Oct 25 25 of 52 data sheet (v4)

Avant Electronics

7.9

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

Status Read and Status Register

The Status Register shows the current state of the SBN1661G_X. It can be read by the host microcontroller. Bit 7~4 shows the status and Bit 3~0 are always fixed at 0.

To read the Status Register, the setting of the control bus is given in Table 24, the bit allocation is given in Table 25 and the description for each bit is given in Table 26.

Table 24 The setting of the control bus for reading the Status Register

C/D

0

E/(RD)

0

R/W(WR)

1

Table 25 The Status Register bit allocation

D7(MSB)

BUSY

D6

MAPPING

D5

ON/OFF

D4

RESET

D3

0

D2

0

D1

0

D0(LSB)

0

Table 26 The Status Register bit description

Bit

BUSY

Description

BUSY=1 indicates that the SBN1661G_X is currently busy and can not accept new command or data.

The SBN1661G_X is executing a command or is in the process of reset.

BUSY=0 indicates that the SBN1661G_X is not busy and is ready to accept new command or data.

MAPPING MAPPING=1 indicates that the Column/Segment Mapping Register has been programmed with a value of “1” and the SEG0 is mapped to Column 79 of the Display Data Memory (inverted mapping).

ON/OFF

RESET

MAPPING=0 indicates that the Column/Segment Mapping Register has been programmed with a value of “0” and the SEG0 is mapped to Column 0 of the Display Data Memory (normal mapping).

The ON/OFF bit indicates the current of status of display.

If ON/OFF=0, then the display has been turned ON.

If ON/OFF=1, then the display has been turned OFF.

Note that the polarity of this bit is inverse to that of the Display ON/OFF Register.

RESET=1 indicates that the SBN1661G_X is currently in the process of being reset.

RESET=0 indicates that the SBN1661G_X is currently in normal operation.

2005 Oct 25 26 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

8 COMMANDS

The host microcontroller can issue commands to the SBN1661G_X. Table 27 lists all the commands. When issuing a command, the host microcontroller should put the command code on the data bus. The host microcontroller should also give the control bus C/D, E(RD), and R/W(WR) proper value and timing.

Table 27 Commands

COMMAND CODE

COMMAND

D7 D6 D5 D4 D3 D2 D1 D0

Write Display Data

Read Display Data

Read-Modify-Write 1

END 1

Software Reset 1

Data to be written into the Display Data

Memory.

Data read from the Display Data

Memory.

1

1

1

1

1

1

0

0

0

0

1

0

0

1

0

0

1

1

0

0

0

FUNCTION

Write a byte of data to the Display Data Memory.

Read a byte of data from the Display Data Memory.

Start Read-Modify-Write operation.

Stop Read-Modify-Write operation.

Software Reset.

8.1

Write Display Data

The Write Display Data command writes a byte (8 bits) of data to the Display Data Memory. Data is put on the data bus by the host microcontroller. The location which accepts this byte of data is pointed to by the Page Address Register and the Column Address Register. At the end of the command operation, the content of the Column Address Register is automatically incremented by 1.

For page address and column address of the Display Data Memory, please refer to Fig. 12.

Table 28 gives the control bus setting for this command.

Table 28 The setting of the control bus for issuing Write Display Data command

C/D

1

E/(RD)

1

R/W(WR)

0

2005 Oct 25 27 of 52 data sheet (v4)

Avant Electronics

8.2

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

Read Display Data

The Read Display Data command starts a 3-step operation.

1. First, the current data of the internal 8-bit output latch of the Display Data Memory is read by the microcontroller, via the 8-bit data bus DB0~DB7.

2. Then, a byte of data of the Display Data Memory is transferred to the 8-bit output latch from a location specified by the Page Address Register and the Column Address Register,

3. Finally, the content of the Column Address Register is automatically incremented by one.

Fig. 16 shows the internal 8-bit ouptut latch located between the 8-bit I/O data bus and the Display Data Memory cell array. Because of this internal 8-bit output latch, a dummy read is needed to obtain correct data from the Display Data

Memory.

For Display Data Write operation, a dummy write is not needed, because data can be directly written from the data bus to internal memory cells.

(8-bit bi-directional data bus)

Read Display Data

8-bit output latch

Display Data Memory cell array

( 32 row x 80 column )

Column Address Decoder

Write Display Data

Table 29 gives the control bus setting for this command.

Table 29 The setting of the control bus for issuing Read Display Data command

C/D

1

E/(RD)

0

R/W(WR)

1

Fig.16 Read Display Data Memory

2005 Oct 25 28 of 52 data sheet (v4)

Avant Electronics

8.3

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

Read-Modify-Write

When the Read-Modify-Write command is issued, the SBN1661G_X enters into Read-Modify-Write mode.

In normal operation, when a Read Display Data command or a Write Display Data command is issued, the content of the

Column Address Register is automatically incremented by one after the command operation is finished. However, during

Read-Modify-Write mode, the content of the Column Address Register is not incremented by one after a Read Display

Data command is finished; only the Write Display Data command can make the content of the Column Address Register automatically incremented by one after the command operation is finished.

During Read-Modify-Write mode, any other registers, except the Column Address Register, can be modified. This command is useful when a block of the Display Data Memory needs to be repeatedly read and updated.

Fig. 17 gives the change sequence of the Column Address Register during Read-Modify-Write mode. Figure 18 gives the flow chart for Read-Modify-Write command.

END command issued.

Read-Modify-Write command issued.

Column Address

N

Read-Modify-Write duration

N+1 N+2 N+3 N+m N

Internal Buffer Register

Re-load column address by issuing the END command

Fig.17 Column address change during Read-Modify-Write

2005 Oct 25 29 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

Set Page Address Register

Set Column Address Register

Read-Modify-Write command

Dummy Read

Read Display Data Memory

Write Display Data Memory

No

Finish Modifying ?

Yes

END

Fig.18 The flowchart for Read-Modify-Write

Table 30 gives the setting for the control bus and the setting of the data bus is given in Table 31.

Table 30 The setting of the control bus for the Read-Modify-Write command

C/D

0

E/(RD)

1

R/W(WR)

0

Table 31 The setting of the data bus for the Read-Modify-Write command

D7(MSB)

1

D6

1

The command code is E0 Hex.

D5

1

D4

0

D3

0

D2

0

D1

0

D0(LSB)

0

8.4

The END command

The END command releases the Read-Modify-Write mode and re-loads the Column Address Register with the value previously stored in the internal buffer (refer to Fig. 17) when the Read-Modify-Write command was issued.

Table 32 gives the setting for the control bus and the setting of the data bus is given in Table 33.

2005 Oct 25 30 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

Table 32 The setting of the control bus for the END command

C/D

0

E/(RD)

1

R/W(WR)

0

Table 33 The setting of the data bus for the END command

D7(MSB)

1

D6

1

The command code is EE Hex.

D5

1

D4

0

D3

1

D2

1

D1

1

D0(LSB)

0

8.5

Software RESET command

The Software Reset command is different from the hardware reset and can not be used to replace hardware reset.

When Software Reset is issued by the host microcontroller,

• the content of the Display Start Line Register is cleared to zero(A4~A0=00000),

• the Page Address Register is set to 3 (A1 A0 = 11),

• the content of the Display Data Memory remains unchanged, and

• the content of all other registers remains unchanged.

Table 34 gives the setting for the control bus and the setting of the data bus is given in Table 35.

Table 34 The setting of the control bus for Software RESET

C/D

0

E/(RD)

1

R/W(WR)

Table 35 The setting of the data bus for Software RESET

0

D7(MSB)

1

D6

1

The command code is E2 Hex.

D5

1

D4

0

D3

0

D2

0

D1

1

D0(LSB)

0

2005 Oct 25 31 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

9 LCD BIAS CIRCUIT

A typical LCD bias circuit is shownin Fig. 19. The condition VDD

≥ V1 ≥ V2 ≥ V3 ≥ V4 ≥ V5 must always be met. The maximum allowed voltage for LCD bias (V

LCD

=V

DD

-V

5

) should not exceed 13 volts.

C

OMPONENT

R

ECOMMENDED

V

ALUE

C

0.1

µF, electrolytic

R1

R2

2.2K

7.5K

R3

TR1

10K

PNP

V

DD

Microcontroller

C

C

C

C

C

Power Save Signal

V0

R1

R1

R2

R1

V1

V2

V3

V4

R1

R3

V5

TR1

V

EE

V

DD

V0

V

DD

V1

V2

V3

V4

V5

V

SS

SEG0~SEG60

COM0~COM15

Fig.19 LCD Bias circuit

2005 Oct 25 32 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

10 COMMON, SEGMENT OUTPUT VOLTAGE

The output voltage level of COMMON driver and SEGMENT driver is given in Table 36.

The output voltage level of COMMON driver is decided by the combination of Frame signal, internal COMMON

COUNTER output, and the Display ON/OFF register.

The output voltage level of SEGMENT driver is decided by the combination of Frame signal, Display Data, and the

Display ON/OFF register.

Table 36 COMMON/SEGMENT ouptut voltage level

FR

L

L

H

H x(don’t care)

Data

L

H

L

H x(don’t care)

DISPLAY

ON/OFF

ON

ON

ON

ON

OFF

SEG0~SEG60

(SEG0~SEG79)

V3

V5

V2

V

DD

V2 or V3

COM0~COM15

V4

V

DD

V1

V5 previous voltage

Note that, in the above table, “Data” for the COM0~COM15 is actually the output of the internal COMMON COUNTER, which generates horizontal raster scanning signal.

During RESET, both SEGMENT and COMMON outputs are at V

DD

.

2005 Oct 25 33 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

11 ON-CHIP RC OSCILLATOR

The SBN1661G_M18 has an on-chip RC-type oscillator. All other three members of the family do not have on-chip oscillator and need external clock source. The output CLK of the oscillator is the basic timing clock of the internal control logic, display pixel rate, and is also used to generate frame signal.

The capacitor of the RC-oscillator is fabricated on-chip. Only an external resistor Rf needs to be connected across OSC1 and OSC2. The recommended value of Rf is in the range from 1000K ohm to 1200K ohm. During PCB layout, this resistor should be placed as close to the SBN1661G_M18 as possible, such that stray capacitance, inductance, and resistance can be minimized.

VDD

CLK

VDD

OSC1

OSC2

Disable Disable Disable

VSS VSS

R f 1.0 M

Ω(typical)

The characteristics of the oscillator is given is Table. 37.

Table 37 On-chip RC oscillator characteristics, T amb

=

−20 to +75 °C

Oscillation min.

Oscillation frequency at V

DD

=5V, R f

= 1.0 M

Ω ±20% 17.6

Oscillation frequency at V

DD

=3V, R f

= 1.0 M

Ω ±20% 15.7

typ.

21.5

19.1

Fig.20 On-chip RC oscillator

max.

25.9

22.8

unit

KHz

KHz

2005 Oct 25 34 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

12 ELECTRICAL CHARACTERISTICS

12.1

Absolute maximum rating

Table 38 Absolute maximum rating

SYMBOL

V

DD

V

LCD

(note 2)

V

I

P

D

T stg

T amb

Tsol (note 3)

PARAMETER

voltage on the V

DD

pin(pad)

LCD bias voltage, V

LCD

=V

DD

-V5 input voltage on any pin with respect to V

SS power dissipation storage temperature range operating ambient temperature range soldering temperature/time at pin

MIN.

−0.3

−0.3

−55

-40

MAX.

+7.0

13

V

DD

+ 0.3

250

+125

+ 85

260

°C,

10 Second

UNIT

Volts

Volts

Volts mW

°C

°C

Notes

1. The following applies to the Absolute Maximum Rating: a) Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device.

b) The SBN1661G_X series includes circuitry specifically designed for the protection of its internal devices from the damaging effect of excessive static charge (ESD). However, it is suggested that conventional precautions be taken to avoid applying greater than the rated maxima.

c) Parameters are valid over operating temperature range unless otherwise specified.

d) All voltages are with respect to V

SS,

unless otherwise noted.

2. The condition VDD

≥ V1 ≥ V2 ≥ V3 ≥ V4 ≥ V5 must always be met.

3. QFP-type packages are sensitive to moisture of the enviroment, please check the drypack indicator on the tray package before soldering. Exposure to moisture longer than the rated drypack level may lead to cracking of the plastic package or broken bonding wiring inside the chip.

2005 Oct 25 35 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

13 DC CHARACTERISTICS

Table 39 DC Characteristics

V

DD

= 5 V

±10%; V

SS

= 0 V; all voltages with respect to V

SS,

unless otherwise specified; T amb

=

−20 to +75 °C.

V

DD

V

LCD

V

IL

V

IH

V

OL

V

OH

I

STBY

I

DD(1)

I

I

I

I

I

I

I

SYMBOL

DD(2)

DD(3)

DD(4)

DD(5)

DD(6)

DD(7)

DD(8)

PARAMETER

Supply voltage for logic

CONDITIONS MIN.

2.7

LCD bias voltage V

LCD

= V

DD

-V5

LOW level input voltage

HIGH level input voltage

LOW level output voltage

HIGH level output voltage

For all inputs

For all inputs

For all outputs

For all outputs

Standby current at V

DD

=5 volts

Operating current at V

DD

=5 volts and f

CL

=2KHz, V

LCD

=10 volts

Operating current at V

DD and Rf=1 M

Ω, V

LCD

=5 volts

=10 volts

Operating current at V

DD

=5 volts and f

CL

=18 KHz, V

LCD

=10 volts

Operating current at V

DD

=3 volts and f

CL

=2KHz, V

LCD

=6 volts

Note 1

Note 2 & Note 3

Operating current at V

DD and Rf=1 M

Ω, V

LCD

=3 volts

=6 volts

Operating current at V

DD

=3 volts and f

CL

=18 KHz, V

LCD

=6 volts

Operating current at V

DD

=5 volts and t

CYC

=200 KHz, V

LCD

=10 volts

Note 4

Operating current at V

DD

=3 volts and t

CYC

=200 KHz, V

LCD

=6 volts

Please refer to Table 37, On-chip RC oscillator characteristics.

0

V

DD

-2.2

0.0

V

DD

− 0.3

TYP.

5.0

2.0

9.5

5.0

1.5

6.0

4.2

300

150

5.0

15.0

10.0

4.5

12.0

8.8

500

300 f osc(VDD=5V), f osc(VDD=3V)

C in

R

ON t

R

Input capacitance of all input pins

LCD driver ON resistance

Reset time

Note 5

Note 6 1.0

5.0

5.0

MAX.

5.5

13

0.8

V

DD

0.3

V

DD

3.0

8.0

7.5

µA

µA

µA

µA

µA

µA

µA pF

ΚΩ

µS

UNIT

V

V

V

V

V

V

µA

µA

Notes:

1. Conditions for the measurement: OSC1=OSC2=VDD, measured at the V

DD

pin.

2. These values are measured when the microcontroller does not perform any READ/WRITE operation to the chip.

3. These meaurements are for different members of the series: a) I

DD(1)

and I

DD(4)

are measured for the SBN1661G_M02 and the SBN0080G_S02, b) I

DD(2)

and I

DD(5)

are measured for the SBN1661G_M18, and c) I

DD(3)

and I

DD(6)

are measured for the SBN0080G_S18.

4. These values are measured when the microcontroller continuously performs READ/WRITE operation to the chip.

5. This measurement is for the transmission high-voltage PMOS or NMOS of COM0~15 and SEG0~60(79). Please refer to Section 18 for these driver circuit. The meaurement is for the case when the voltage differential between the source and the drain of the high voltage PMOS or NMOS is 0.1 volts.

6. The value is relative to the RESET pulse edge. That is, 1.0

µS after the last RESET edge, the device is completely reset.

2005 Oct 25 36 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

14 AC TIMING CHARACTERISTICS

14.1

CL and FR timing

CL

FR

0.1 x VDD

T

WLCL

T

F

T

WHCL

0.9 x VDD

0.1 x VDD

T

DFR

0.9 x VDD

0.1 x VDD

0.1 x VDD

T

R

0.9 x VDD

0.1 x VDD

Fig.21 Display Control Signal Timing

Table 40 CL and FR timing characteristics at V

DD

=5 volts

V

DD

= 5 V

±10%; V

SS

= 0 V; all voltages with respect to V

SS

unless otherwise specified; T amb

=

−20 to +75 °C.

CONDITIONS TYP.

MAX.

SYMBOL

T

WHCL

T

WLCL

T

R

T

F

PARAMETER

CL clock high pulse width

CL cock low pulse width

CL clock rise time

CL clock fall time

MIN.

33

33

28

28

120

120

T

T

DFR(input)

DFR(output)

FR delay time (input)

FR delay time (output)

When used as input in

Slave Mode application

When used as output in

Master Mode application, with CL= 100 pF.

-2.0

0.2

0.2

1.6

0.36

µS

UNIT

µs

µs ns ns

µS

Table 41 CL and FR timing characteristics at V

DD

=3 volts

V

DD

= 3 V

±10%; V

SS

= 0 V; all voltages with respect to V

SS

unless otherwise specified; T amb

=

−20 to +75 °C.

CONDITIONS TYP.

MAX.

SYMBOL

T

WHCL

T

WLCL

T

R

T

F

PARAMETER

CL clock high pulse width

CL cock low pulse width

CL clock rise time

CL clock fall time

MIN.

65

65

50

50

220

220

T

T

DFR(input)

DFR(output)

FR delay time (input)

FR delay time (output)

When used as input in

Slave Mode application

When used as output in

Master Mode application, with CL= 100 pF.

-3.6

0.36

0.32

3.6

0.6

µS

UNIT

µs

µs ns ns

µS

2005 Oct 25 37 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

14.2

AC timing for interface with an 80-type microcontroller

C/D, CS

RD, WR

D0 to D7

(WRITE)

D0 to D7

(READ)

0.9 x VDD

0.1 x VDD t

AS

0.9 x VDD

Hi-Z

0.9 x VDD

0.1 x VDD t

AH t

F t

R t

RWPW

0.1 x VDD

0.9 x VDD

0.1 x VDD t

DS

0.1 x VDD

0.9 x VDD t

CYC t

DH

0.9 x VDD

Hi-Z

0.1 x VDD

Hi-Z t

ACC

0.9 x VDD

0.1 x VDD t

OH

0.9 x VDD

Hi-Z

0.1 x VDD

Fig.22 AC timing for interface with a 80-type microcontroller

Table 42 AC timing for interface with a 80-type microcontorller at V

DD

=5 volts

V

DD

= 5 V

±10%; V

SS

= 0 V; T amb

= -20

°C to +75°C.

max.

symbol

t

AS t

AH t

F

, t

R t

RWPW t

CYC t

DS t

DH t

ACC t

OH

parameter

Address set-up time

Address hold time

Read/Write pulse falling/rising time

Read/Write pulse width

System cycle time

Data setup time

Data hold time

Data READ access time

Data READ output hold time

min.

20

10

200

1000

80

10

10

15

90

60

test conditons unit

CL= 100 pF.

Refer to Fig. 23.

ns ns ns ns ns ns ns ns ns

Table 43 AC timing for interface with an 80-type microcontorller at V

DD

=3 volts

V

DD

= 3 V

±10%; V

SS

= 0 V; T amb

= -20

°C to +75°C.

max.

t

symbol

t

AS t

AH t

F

, t

R t

RWPW t

CYC

DS

parameter

Address set-up time

Address hold time

Read/Write pulse falling/rising time

Read/Write pulse width

System cycle time

Data setup time

min.

40

20

400

2000

160

15

test conditons unit

ns ns ns ns ns ns

2005 Oct 25 38 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column t t

symbol

t

DH

ACC

OH

parameter

Data hold time

Data READ access time

Data READ output hold time

min.

20

20

max.

180

120

Note:

The measurement is with the load circuit connected. The load circuit is shown in Fig. 23.

test conditons unit

CL= 100 pF, ns ns

Refer to 23.

ns

Pin

C

L

C

L

= 100 pF (including wiring and probe capacitance).

VSS

Fig.23 Load circuit.

2005 Oct 25 39 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

14.3

AC timing for interface with a 68-type microcontroller

t

CYC t

R t

F

E

0.1 x VDD t

AS1

0.1 x VDD

0.9 x VDD t

EW

0.9 x VDD

0.1 x VDD t

AH1

R/W

0.9 x VDD

0.1 x VDD t

AS2

0.9 x VDD

0.1 x VDD t

AH2

C/D, CS

0.9 x VDD

0.1 x VDD

0.9 x VDD

0.1 x VDD t

DH

D0 to D7

(WRITE)

D0 to D7

(READ)

Hi-Z

Hi-Z t

DS t

ACC

0.9 x VDD

0.1 x VDD

0.9 x VDD

0.1 x VDD

0.9 x VDD

0.1 x VDD

Hi-Z t

OH

0.9 x VDD

0.1 x VDD

Hi-Z

Fig.24 AC timing for interface with a 68-type microcontroller

Table 44 AC timing for interface with a 68-type microcontroller at V

DD

=5 volts

V

DD

= 5 V

±10%; V

SS

= 0 V; T amb

= -20

°C to +75°C.

max.

symbol

t

AS1 t

AS2 t

AH1 t

AH2 t

F

, t

R t

CYC t

EWR t

EWW t

DS t

DH t

ACC t

OH

parameter min.

Address set-up time with respect to R/W

20

Address set-up time with respect to C/D, CS

20

Address hold time with respect to R/W 10

10 Address hold time respect with to C/D, CS

Enable (E) pulse falling/rising time

System cycle time

Enable pulse width for READ

1000

100

Enable pulse width for WRITE

Data setup time

Data hold time

Data access time

Data output hold time

80

80

10

10

15

90

60

test conditons

Note 1

CL= 100 pF.

Refer to Fig. 23.

unit

ns ns ns ns ns ns ns ns ns ns ns ns

2005 Oct 25 40 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

Table 45 AC timing for interface with a 68-type microcontroller at V

DD

=3 volts

V

DD

= 3 V

±10%; V

SS

= 0 V; T amb

= -20

°C to +75°C.

symbol

t

AS1 t

AS2 t

AH1 t

AH2 t

F

, t

R t

CYC t

EWR t

EWW t

DS t

DH t

ACC t

OH

parameter

Address set-up time with respect to R/W

40

Address set-up time with respect to C/D, CS

40

Address hold time with respect to R/W 20

min.

Address hold time respect with to C/D, CS

Enable (E) pulse falling/rising time

20

System cycle time

Enable pulse width for READ

Enable pulse width for WRITE

Data setup time

Data hold time

Data access time

Data output hold time

2000

200

160

160

20

20

15

max.

180

120

test conditons

Note 1

CL= 100 pF.

Refer to Fig. 23.

ns ns ns ns ns ns ns ns ns ns ns ns

unit

Note:

1. The system cycle time(t

CYC

) is the time duration from the time when Chip Enable is enabled to the time when Chip

Select is released.

2005 Oct 25 41 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

15 MICROCONTROLLER INTERFACE CIRCUIT

15.1

Example for interface with a 80-family microcontroller

VDD

Note:

This example is applicable to the SBN1661G_M02.

VDD

A0

A1~A7

80-family

IORQ

Microcontroller

D0~D7

RD

WR

RES

GND

VDD

C/D

DECODER CS

SBN1661G_M02

DB0~DB7

RD

WR

RESET/IF

VSS

V5

RESET

Negative

LCD bias voltage

Fig.25 Interface example with an 80-family microcontroller

15.2

Example for interface with a 68-family microcontroller

VDD

VDD

A0

Note:

This example is applicable to the SBN1661G_M02.

The CS selection for the

SBN0080G_S18 and the

SBN0080G_S02 can be decoded from the address lines in the same way. For application with the

SBN1661G_M18, which does not have a CS input, the CS output from the decoder must be ORed with

C/D, E, and R/W.

A1~A15

68-family

Microcontroller

VMA

D0~D7

E

R/W

GND

RES

C/D

VDD

DECODER CS

SBN1661G_M02

DB0~DB7

E

R/W

RESET/IF

VSS

V5

RESET

Negative

LCD bias voltage

Fig.26 Interface example with a 68-family microcontroller

2005 Oct 25 42 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

15.3

Example for interface with other types of 8-bit microcontroller

VDD

VDD

C/D

(indicating commad/data)

Note:

This example is applicable only to the SBN1661G_M18, which does not have a CS input and the CS output from the address or I/O space decoding circut must be

ORed with C/D, RD(E), and

(WR)R/W.

Address

8-bit

Microcontroller

D0~D7

E

R/W

RES

GND

Address or

I/O space decoding

RESET

C/D

VDD

SBN1661G_M18

DB0~DB7

RD(E)

WR(R/W)

RESET/IF

VSS

V5

Negative

LCD bias voltage

Fig.27 Interface example with an 8-bit microcontroller

2005 Oct 25 43 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

16 SYNCHRONIZATION OF CLOCK AND FRAME IN MASTER/SLAVE CONNECTIONS

To expand COMMON/SEGMENT number, both the SBN1661G_M18 and the SBN1661G_M02 can be used Master.

They can also be used as Slave. However, if the SBN1661G_M02 is used as Master, external clock source is needed, as it has no on-chip oscillator.

In master/slave connections, clock and frame between the master and its slaves must be in synchronization.

The SBN0080G_S18 and the SBN0080G_S02 can be used only as Slave for SEGMENT expansion.

16.1

SBN1661G_M18 connected with a SBN1661G_M18

To LCD SEGMENT

To LCD SEGMENT

V

DD

SBN1661G_M18

Master

M/S

OSC1 OSC2 FR

To LCD COMMON

V

SS

SBN1661G_M18

Slave

M/S

OSC1 OSC2 FR

To LCD COMMON

R f

Fig.28 SBN1661G_M18 connected with a SBN1661G_M18.

16.2

SBN1661G_M18 connected with more than two SBN0080G_S18

To LCD SEGMENT To LCD SEGMENT To LCD SEGMENT

V

DD

SBN1661G_M18

Master

M/S

OSC1 OSC2 FR

To LCD COMMON

SBN0080G_S18

Slave

CL FR

R f

CMOS buffer

Note: when more than two slaves are connected, a CMOS clock buffer is needed to drive all the slaves. The duty and phase of the clock to all the slaves must be the same as that for the master.

SBN0080G_S18

Slave

CL FR

Fig.29 SBN1661G_M18 connected with more than two SBN0080G_S18

2005 Oct 25 44 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

16.3

SBN1661G_M02 connected with a SBN1661G_M02

To LCD SEGMENT

To LCD SEGMENT

V

DD

SBN1661G_M02

M/S

Master

CL FR

To LCD COMMON

V

SS

SBN1661G_M02

Slave

M/S

CL FR

To LCD COMMON

External clock source

Fig.30 SBN1661G_M02 connected with a SBN1661G_M02.

16.4

SBN1661G_M02 connected with a SBN0080G_S02

To LCD SEGMENT

To LCD SEGMENT

V

DD

SBN1661G_M02

Master

M/S

CL FR

To LCD COMMON

SBN0080G_S02

Slave

CL FR

External clock source

Fig.31 SBN1661G_M02 connected with a SBN0080G_S02.

2005 Oct 25 45 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

17 TYPICAL APPLICATIONS

17.1

1/16 duty, 10 characters x 2 lines

In this application,

10-characters x 2-lines can be displayed, if the format of character font is 6 x 8 pixels.

COM0

COM15

16 x 61 LCD Panel

SEG0 SEG60

SEG0 SEG60

COM15

SBN1661G_M18

COM0

Fig.32 1/16 duty, 10 characters x 2 lines

17.2

1/16 duty, 23 characters x 2 rows

In this application,

23-characters x 2-lines can be displayed, if the format of character font is

6 x 8 pixels.

COM0

COM15

16 x 141 LCD Panel

SEG0 SEG60

SEG0 SEG60

COM15

COM0

SBN1661G_M18

(master)

SEG61 SEG140

FR

CL

SEG0 SEG79

SBN1661G_S18

(slave)

Fig.33 1/16 duty, 23 characters x 2 lines

17.3

1/32 duty, 33 characters x 4 lines

COM0

COM15

SEG0 SEG60

32 x 202 LCD Panel

SEG61 SEG140

COM16

COM31

SEG141 SEG201

SEG0 SEG60

COM15

SBN1661G_M18

COM0

(master)

FR

CL

SEG0 SEG79

SBN1661G_S18

(slave)

In this application, 33-characters x 4-lines can be displayed, if the format of character font is 6 x 8 pixels.

FR

CL

SEG0 SEG60

COM15

SBN1661G_M18

(slave)

COM0

Fig.34 1/32 duty, 33 characters x 4 lines

2005 Oct 25 46 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

18 PIN CIRCUITS

Table 46 MOS-level schematics of all input, output, and I/O pins.

SYMBOL

Input/ output

CIRCUIT NOTES

VDD

C/D,

R/W(WR),

E/RD,

RESET/IF

Inputs

VSS

VDD

M/S Input

OSC1, OSC2

VSS

OSC1

VDD

VSS

Disable Disable Disable

CLK

VDD

OSC2

The circuit encircled inside the red dashed frame is the oscillator circut.

VSS

Enable

VDD

VDD

D0~D7, FR I/O

Output Enable

Data out

VSS

VSS

Data in

2005 Oct 25 47 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

SYMBOL

Input/ output

CIRCUIT NOTES

SEG0~79

VDD

EN1

VDD

V2

V5

VDD

EN2

V5

VDD

EN3

V3

V5

VDD

EN4

V5

V5

VDD

SEG0~79

V5

COM0~15

VDD

VDD

V5

VDD

V1

V5

VDD

V4

V5

V5

VDD

V5

EN1

EN2

EN3

EN4

VDD

V5

COM0~15

2005 Oct 25 48 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

19 APPLICATION NOTES

1. It is recommended that the following power-up sequence be followed to ensure reliable operation of your display system. As the ICs are fabricated in CMOS and there is intrinsic latch-up problem associated with any CMOS devices, proper power-up sequence can reduce the danger of triggering latch-up. When powering up the system, control logic power must be powered on first. When powering down the system, control logic must be shut off later than or at the same time with the LCD bias (V

EE

).

1 second (minimum)

1 second (minimum)

5V

VDD

0V

0~50 ms

0~50 ms

Signal

0 second

(minimum)

0 second

(minimum)

VEE

-30V

Fig.35 Recommended power up/down sequence

2. The metal frame of the LCD panel should be grounded.

3. A 0.1

µF ceramic capacitor should be connected between V

DD

and V

SS

.

4. A 0.1 mF ceramic capacitor should be connected between V

DD

(or V

SS

) and each of V1, V2, V3, V4, and V5.

5. If the length of the cable connecting the host microcontroller and the LCD module is longer than 45 cm, a ceramic capacitor of 20P~150P should be connected between V

DD

(or V

SS

) and each of the R/WR(WR), the E/RD, and the

CS.

2005 Oct 25 49 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

20 PACKAGE INFORMATION

Pakage information is provided in another document. Please contact Avant Electronics for package information.

2005 Oct 25 50 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

21 SOLDERING

21.1

Introduction

There is no soldering method that is ideal for all IC packages. Wave soldering is often preferred when through-hole and surface mounted components are mixed on one printed-circuit board. However, wave soldering is not always suitable for surface mounted ICs, or for printed-circuits with high population densities. In these situations reflow soldering is often used.

This text gives a very brief insight to a complex technology. For more in-depth account of soldering ICs, please refer to dedicated reference materials.

21.2

Reflow soldering

Reflow soldering techniques are suitable for all QFP packages.

The choice of heating method may be influenced by larger plastic QFP packages (44 leads, or more). If infrared or vapour phase heating is used and the large packages are not absolutely dry (less than 0.1% moisture content by weight), vaporization of the small amount of moisture in them can cause cracking of the plastic body. For more information, please contact Avant for drypack information.

Reflow soldering requires solder paste (a suspension of fine solder particles, flux and binding agent) to be applied to the printed-circuit board by screen printing, stencilling or pressure-syringe dispensing before package placement.

Several techniques exist for reflowing; for example, thermal conduction by heated belt. Dwell times vary between

50 and 300 seconds depending on heating method. Typical reflow temperatures range from 215 to 250

°C.

Preheating is necessary to dry the paste and evaporate the binding agent. Preheating duration: 45 minutes at 45

°C.

21.3

Wave soldering

Wave soldering is not recommended for QFP packages. This is because of the likelihood of solder bridging due to closely-spaced leads and the possibility of incomplete solder penetration in multi-lead devices.

If wave soldering cannot be avoided, the following conditions must be observed:

A double-wave (a turbulent wave with high upward pressure followed by a smooth laminar wave) soldering

technique should be used.

The footprint must be at an angle of 45° to the board direction and must incorporate solder thieves

downstream and at the side corners.

During placement and before soldering, the package must be fixed with a droplet of adhesive. The adhesive can be applied by screen printing, pin transfer or syringe dispensing. The package can be soldered after the adhesive is cured.

Maximum permissible solder temperature is 260

°C, and maximum duration of package immersion in solder is

10 seconds, if cooled to less than 150

°C within 6 seconds. Typical dwell time is 4 seconds at 250 °C.

A mildly-activated flux will eliminate the need for removal of corrosive residues in most applications.

21.4

Repairing soldered joints

Fix the component by first soldering two diagonally- opposite end leads. Use only a low voltage soldering iron (less than 24 V) applied to the flat part of the lead. Contact time must be limited to 10 seconds at up to 300

°C. When using a dedicated tool, all other leads can be soldered in one operation within 2 to 5 seconds between 270 and 320

°C.

2005 Oct 25 51 of 52 data sheet (v4)

Avant Electronics

SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02

Dot-matrix STN LCD Driver with 32-row x 80-column

22 LIFE SUPPORT APPLICATIONS

Avant’s products, unless specifically specified, are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Avant customers using or selling Avant’s products for use in such applications do so at their own risk and agree to fully indemnify Avant for any damages resulting from such improper use or sale.

2005 Oct 25 52 of 52 data sheet (v4)

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
