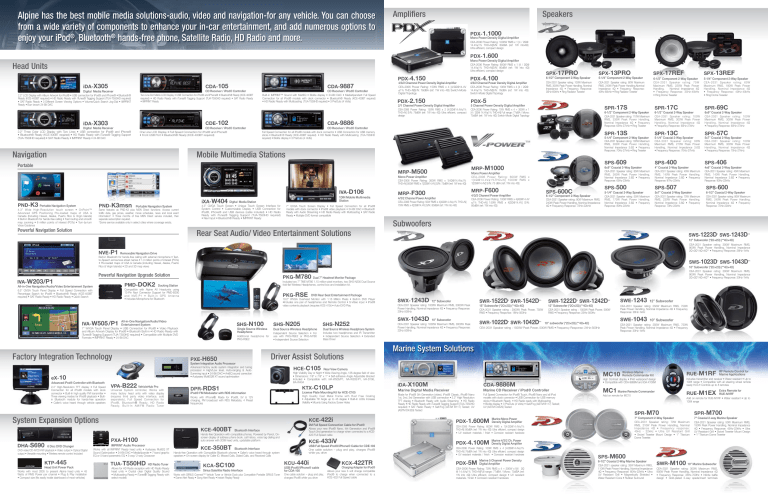

Alpine has the best mobile media solutions-audio, video and navigation-for any vehicle. You can choose
from a wide variety of components to enhance your in-car entertainment, and add numerous options to
enjoy your iPod®, Bluetooth® hands-free phone, Satellite Radio, HD Radio and more.
Amplifiers
Speakers
PDX-1.1000
Mono Power Density Digital Amplifier
CEA-2006 Power Rating: 1000W RMS x 1 [4 / 2Ω@
14.4V≤1% THD+N]S/N: 80dBA (ref: 1W into4Ω)
Ultra efficient, compact design
PDX-1.600
Mono Power Density Digital Amplifier
Head Units
CEA-2006 Power Rating: 600W RMS x 1 [4 / 2Ω@
14.4V≤1% THD+N]S/N: 80dBA (ref: 1W into 4Ω)
Ultra efficient, compact design
iDA-X305
CDA-105
CDA-9887
CD Receiver / iPod® Controller
Digital Media Receiver
Two Line Dot Matrix LCD Display • USB Connection for iPod® and iPhone® • Bluetooth® Ready (KCE-400BT
required) • HD Radio Ready with iTunes® Tagging Support (TUA-T550HD required) • SAT Radio Ready
• IMPRINT Ready
2.2” LCD Display with Album Artwork for iPod® • USB connection for iPod® and iPhone® • Bluetooth®
Ready (KCE-400BT required) • HD Radio Ready with iTunes® Tagging Support (TUA-T550HD required)
• SAT Radio Ready • 3 Different Screen Viewing Options • Volume/Quick Search Jog-Dial • IMPRINT
Ready • Burr brown 24-Bit DAC
CD Receiver / iPod® Controller
Built-in IMPRINT™ Sound with MultEQ • Biolite display • 24-Bit DAC • MediaXpander• Full Speed
Connection for all iPod® models with dock connector • Bluetooth® Ready (KCE-400BT required)
• HD Radio Ready with Multicasting (TUA-T550HD required) • 3 PreOuts (4 Volts)
PDX-4.150
PDX-4.100
CEA-2006 Power Rating: 150W RMS x 4 [4/2Ω@14.4V
≤1% THD+N]S/N: 78dBA (ref: 1W into 4Ω) Switch-Mode
Digital Topology
CEA-2006 Power Rating: 100W RMS x 4 [4 / 2Ω@
14.4V≤1% THD+N]S/N: 76dBA (ref: 1W into 4Ω)
Switch-Mode Digital Topology
PDX-2.150
PDX-5
CEA-2006 Power Rating: 150W RMS x 2 [4/2Ω@14.4V≤1%
THD+N] S/N: 76dBA (ref: 1W into 4Ω) Ultra efficient, compact
design
CEA-2006 Power Rating: 75W RMS x 4 + 300W x 1
[4 / 2Ω@ 14.4V≤1% THD+N] Full range: 77dBA / Mono:
75dBA (ref: 1W into 4Ω) Switch-Mode Digital Topology
4/3/2 Channnel Power Density Digital Amplifier
4/3/2 Channel Power Density Digital Amplifier
2/1 Channel Power Density Digital Amplifier
CDE-102
iDA-X303
One Line LCD Display • Full Speed Connection for iPod® and iPhone®
• Front USB Port • Bluetooth® Ready (KCE-400BT required)
CEA-2031 Speaker rating: 100W Maximum
RMS, 300W Peak Power Handling, Nominal
Impedance 4Ω • Frequency Response:
35Hz-60kHz • Ring Radiator Tweeter
SPX-13PRO
5-1/4” Component 2-Way Speaker
CEA-2031 Speaker rating: 80W Maximum
RMS, 240W Peak Power Handling,Nominal
Impedance 4Ω • Frequency Response:
40Hz-60kHz • Ring Radiator Tweeter
5 Channel Power Density Digital Amplifier
CD Receiver / iPod® Controller
Full Speed Connection for all iPod® models with dock connector • USB Connection for USB memory
sticks • Bluetooth® Ready (KCE-400BT required) • HD Radio Ready with Multicasting (TUA-T550HD
required) • Biolite display • 3 PreOuts (4 Volts)
Portable
MRP-M1000
CEA-2006 Power Rating: 300W RMS x 1[4Ω@14.4V≤1%
THD+N] 500W RMS x 1[2Ω@14.4V] S/N: 75dBA (ref: 1W into 4Ω)
PND-K3msn
Portable Navigation System
4.3” Wide High-Resolution touch screen • OnPoint™
Advanced GPS Positioning Pre-loaded maps of USA &
Canada (Including Hawaii, Alaska, Puerto Rico & Virgin Islands)
• Built-in Bluetooth for hands-free calling • Fast routing and smooth
map zooming • 6 million points of interest (POI’s) • Turn-by-turn
Voice Guidance
iXA-W404
Portable Navigation System
Same features as PND-K3 plus MSN Direct functions: Access current
traffic data, gas prices, weather, movie schedules, news and local event
information* • Three months of free MSN Direct service included, then
separate subscription required.
*Some service available only in select cities where coverage exists.
Powerful Navigation Solution
1DIN Mobile Multimedia
Station
4.3” QVGA Touch Screen • Unique Touch Screen Interface for
System Control • Customizable Display • USB Connection for
iPod®, iPhone® and USB devices (cable included) • HD Radio
Ready with iTunes® Tagging Support (TUA-T550HD required)
• Navi Input • Bluetooth® Ready • IMPRINT Ready
7” QVGA Touch Screen Display • Full Speed Connection for all iPod®
models with dock connector • iPod® video playback • 24-Bit DAC • Bluetooth
Ready with Audio Streaming • HD Radio Ready with Multicasting • SAT Radio
Ready • Multiple DVD format compatible
5-1/4” Component 2-Way Speaker
CEA-2031 Speaker rating: 75W
Maximum RMS, 225W Peak Power
Handling,
Nominal Impedance 4Ω
• Frequency Response: 35Hz-40kHz
• Ring Dome Tweeter
CEA-2031 Speaker rating: 60W
Maximum RMS, 180W Peak Power
Handling, Nominal Impedance 4Ω
• Frequency Response: 40Hz-40kHz
• Ring Dome Tweeter
SPR-17S
SPR-17C
SPR-69C
CEA-2031 Speaker rating: 110W Maximum
RMS, 330W Peak Power Handling,
Nominal Impedance 4Ω • Frequency
Response: 65Hz-27kHz • Ring Tweeter
CEA-2031 Speaker rating: 100W
Maximum RMS, 300W Peak Power
Handling, Nominal Impedance 4Ω
• Frequency Response: 65Hz-27kHz
CEA-2031 Speaker rating: 100W
Maximum RMS, 300W Peak Power
Handling, Nominal Impedance 4Ω
• Frequency Response: 60Hz-27kHz
SPR-13S
SPR-13C
SPR-57C
CEA-2031 Speaker rating: 100W Maximum
RMS, 300W Peak Power Handling,
Nominal Impedance 3.6Ω • Frequency
Response: 70Hz-27kHz • Ring Tweeter
CEA-2031 Speaker rating: 90W
Maximum RMS, 270W Peak Power
Handling, Nominal Impedance 3.6Ω
• Frequency Response: 70Hz-27kHz
CEA-2031 Speaker rating: 100W
Maximum RMS, 300W Peak Power
Handling, Nominal Impedance 4Ω
• Frequency Response: 70Hz-27kHz
SPS-609
SPS-400
SPS-406
CEA-2031 Speaker rating: 85W Maximum
RMS, 260W Peak Power Handling,
Nominal Impedance 3.6Ω • Frequency
Response: 65Hz-23kHz
CEA-2031 Speaker rating: 45W Maximum
RMS, 140W Peak Power Handling,
Nominal Impedance 3.6Ω • Frequency
Response: 97Hz-22kHz
CEA-2031 Speaker rating: 45W Maximum
RMS, 140W Peak Power Handling,
Nominal Impedance 3.6Ω • Frequency
Response: 93Hz-22kHz
SPS-500
SPS-507
SPS-600
CEA-2031 Speaker rating: 55W Maximum
RMS, 170W Peak Power Handling,
Nominal Impedance 3.6Ω • Frequency
Response: 80Hz-22kHz
CEA-2031 Speaker rating: 75W Maximum
RMS, 230W Peak Power Handling,
Nominal Impedance 3.6Ω • Frequency
Response: 73Hz-22kHz
CEA-2031 Speaker rating: 80W Maximum
RMS, 240W Peak Power Handling,
Nominal Impedance 4Ω • Frequency
Response: 70Hz-22kHz
6-1/2” Coaxial 2-Way Speaker
CEA-2006 Power Rating: 600W RMS x
1[4Ω@14.4V≤1%THD+N] 1000W RMS x
1[2Ω@14.4V] S/N: 75 dBA (ref: 1W into 4Ω)
MRP-F600
MRP-F300
4/3/2 Channel Power Amplifier
4/3/2 Channel Power Amplifier
CEA-2006 Power Rating: 50W RMS x 4[4Ω@14.4V≤1% THD+N]
75W RMS x 4[2Ω@14.4V] S/N: 80dBA (ref: 1W into 4Ω)
CEA-2006 Power Rating: 100W RMS x 4[4Ω@14.4V
≤1% THD+N] 150W RMS x 4[2Ω@14.4V] S/N:
80dBA (ref: 1W into 4Ω)
SPS-600C
CEA-2031 Speaker rating: 80W Maximum RMS,
240W Peak Power Handling, Nominal Impedance
4Ω • Frequency Response: 70Hz-22kHz
5x7” Coaxial 2-Way Speaker
4” Coaxial 2-Way Speaker
5-1/4” Coaxial 2-Way Speaker
6-1/2” Component 2-Way Speaker
6x9” Coaxial 2-Way Speaker
5-1/4” Coaxial 2-Way Speaker
6x9” Coaxial 3-Way Speaker
Mono Power Amplifier
Mono Power Amplifier
Digital Media Station
SPX-13REF
6-1/2” Component 2-Way Speaker
5-1/4” Component 2-Way Speaker
MRP-M500
IVA-D106
SPX-17REF
6-1/2” Component 2-Way Speaker
Mobile Multimedia Stations
Navigation
PND-K3
6-1/2” Component 2-Way Speaker
CDA-9886
CD Receiver / iPod® Controller
Digital Media Receiver
2.2” Three Color LCD Display with Two Lines • USB connection for iPod® and iPhone®
• Bluetooth® Ready (KCE-400BT required) • HD Radio Ready with iTunes® Tagging Support
(TUA-T550HD required) • SAT Radio Ready • IMPRINT Ready • 24-Bit DAC
SPX-17PRO
4x6” Coaxial 2-Way Speaker
5x7” Coaxial 2-Way Speaker
6-1/2” Coaxial 2-Way Speaker
Subwoofers
Rear Seat Audio/ Video Entertainment Solutions
SWS-1223D* SWS-1243D**
12” Subwoofer (*2Ω+2Ω) (**4Ω+4Ω)
NVE-P1
CEA-2031 Speaker rating: 300W Maximum RMS,
900W Peak Power Handling, Nominal Impedance
2Ω+2Ω*/4Ω+4Ω** • Frequency Response: 26Hz-1kHz
Removable Navigation Drive
Built-in Bluetooth for hands-free calling with external microphone • Textto-Speech announces street names • 1.3 million points of interest (POI’s)
• Pre-loaded maps of USA & Canada (including Hawaii, Alaska, Puerto
Rico & Virgin Islands) • 2D and 3D map views
SWS-1023D* SWS-1043D**
10” Subwoofer (*2Ω+2Ω) (**4Ω+4Ω)
PKG-M780
Powerful Navigation Upgrade Solution
IVA-W203/P1
PMD-DOK2
All-in-One Navigation/Audio/Video Entertainment System
Includes two 7” TME-M780 1.15 million-pixel monitors, two SHS-N205 Dual Source
fold-flat Wireless Headphones, control box and installation kit.
Docking Station
Compatible with Alpine AV Headunits using
13-Pin Navi Connector Support for PMD-B200
and NVE-P1 • Built-in GPS Antenna
• Includes Microphone for Bluetooth
6.5” QVGA Touch Panel Display • Full Speed Connection with
Percentage Search for iPod® • Bluetooth® Ready (KCE-400BT
required) • SAT Radio Ready • HD Radio Ready • Quick Search
IVA-W505 /P1
CEA-2031 Speaker rating: 300W Maximum RMS,
900W Peak Power Handling, Nominal Impedance
2Ω+2Ω*/4Ω+4Ω** • Frequency Response: 30Hz-1kHz
Dual 7” Headrest Monitor Package
PKG-RSE
DVD Rear Seat Entertainment Package
10.2” WVGA Overhead Monitor with 1.15 Million Pixels • Built-In DVD Player
•Includes one pair of headphones and Remote Control • S-Video input • iPod®
video contents playback (requires KCE-415i) • Auto-DVD Play
All-in-One Navigation/Audio/Video
Entertainment System
7” WVGA Touch Panel Display • USB Connection for iPod® • Video Playback
and Album Artwork Display for iPod® • Bluetooth Built-in • HD Radio Ready with
iTunes® Tagging Support (TUA-T550HD required) • Compatible with Multiple DVD
Formats • IMPRINT Ready • 24-Bit DAC
SHS-N100
SHS-N205
SHS-N252
Additional headphone for
PKG-RSE2
Independent Source Selection • For
use with PKG-RSE2 or PKG-M780
• Independent Source Selection
Includes two headphones and IR Transmitter
• Independent Source Selection • Extended
Bass Driver
Single Source Wireless
Headphone
Dual Source Wireless Headphone
Dual Source Wireless Headphone System
SWX-1243D
12” Subwoofer
CEA-2031 Speaker rating: 1000W Maximum RMS, 3000W Peak
Power Handling, Nominal Impedance 4Ω • Frequency Response:
20Hz-500Hz
SWX-1043D
10” Subwoofer
CEA-2031 Speaker rating: 1000W Maximum RMS, 3000W Peak
Power Handling, Nominal Impedance 4Ω • Frequency Response:
22Hz-500Hz
SWR-1522D* SWR-1542D**
SWR-1222D* SWR-1242D**
15” Subwoofer (*2Ω+2Ω) (**4Ω+4Ω)
12” Subwoofer (*2Ω+2Ω) (**4Ω+4Ω)
CEA-2031 Speaker rating : 2000W Peak Power, 750W
RMS • Frequency Response: 18Hz-500Hz
CEA-2031 Speaker rating : 1500W Peak Power, 500W
RMS • Frequency Response: 23Hz-500Hz
SWR-1022D* SWR-1042D**
SWE-1243
SWE-1043
10” subwoofer (*2Ω+2Ω) (**4Ω+4Ω)
12” Subwoofer
CEA-2031 Speaker rating: 250W Maximum RMS, 750W
Peak Power Handling, Nominal Impedance 4Ω • Frequency
Response: 28Hz-1kHz
10” Subwoofer
CEA-2031 Speaker rating: 250W Maximum RMS, 750W
Peak Power Handling, Nominal Impedance 4Ω • Frequency
Response: 30Hz-1kHz
CEA-2031 Speaker rating : 1500W Peak Power, 500W RMS • Frequency Response: 24Hz-500Hz
Marine System Solutions
Factoryy Integration Technology
Driver Assist Solutions
PXE-H650
System Integration Audio Processor
Advanced factory audio system integration and tuning
processor • High/Low level, Auto-ranging & AutoSumming input • 24-Bit DAC • AntEQ sound correction
• Audyssey MultEQ® XT sound optimization
eX-10
Advanced iPod® Controller with Bluetooth
2.4” High-Resolution TFT display • Full Speed
Connection for all iPod® models with dock
connector • Built-In high quality FM transmitter •
Three viewing modes for iPod® playback • Builtin Bluetooth module for hands-free operation
• Caller’s voice heard through vehicle speakers
VPA-B222 VehicleHub Pro
Universal System controller, Works with
many factory head units with video display
(requires third party video interface, sold
separately), Full Speed Connection for
iPod®, Bluetooth ® Ready, HD Radio
R e a d y , B u i l t - I n A M / F M R a d i o Tu n e r
iPod® FM Modulator with RDS information
Works with iPhone®, Made for iPod®, 5V & 12V
charging, FM broadcast with RDS Metadata, 4 Preset
frequencies
KTP-445
Head Unit Power Pack
Works with most 2005 to present Alpine head units • 45
Watts of RMS Power per channel • Plug & Play installation
• Compact size (fits easily inside dashboard of most vehicles)
License Plate Mounting Kit for HCE-C105
High Quality Cast Metal Frame with Rust Free Coating
• Adjustable Tilt Angle up to 45 degree • Built–In LEDs Increase
Visibility • Mounts Using Factory Screw Holes
KCE-422i
IMPRINT Audio Processor
Works with all IMPRINT Ready head units • Audyssey MultEQ XT
Sound Optimization • 24-Bit DAC • MediaXpander • 7-band graphic
EQ or 5-band parametric EQ • 3-way/ 2-way Crossover
TUA-T550HD
2M Full Speed Connection Cable for iPod®
KCE-400BT
Bluetooth Interface
KCE-350BT
Bluetooth Interface
Hands-free Operation with compatible phones, Powered by Parrot, Onscreen display of address phone book, call history, voice tag dialing and
auto answer with 2009 head units, updatable platform
PXA-H100
6 Disc DVD Changer
DVD-video/CD-R/CD-RW playback • Video output • Optical Digital
output • Versatile mounting • Wireless remote control included
Rear View Camera
KTX-C10LP
DPR-RDS1
System Expansion Options
DHA-S690
HCE-C105
High Visibility Day or Night • Wide Viewing Angle, 138-degree field of view
• Dimensions: 7/8” x 7/8” x 1” • Self-adhesive Angle Adjustable Bracket
Included • Compatible with: iVA-W505/P1, iVA-W203/P1, iVA-D106,
iXA-W404
HD Radio Tuner
Allows for HD Radio reception with HD Radio Ready
head units • Crystal clear Digital Quality Sound
• Multicasting Ready • iTunes® Tagging Ready with
select models
Hands-free Operation with Compatible Bluetooth phones • Caller’s voice heard through system
speakers • On-screen display for Caller ID, Missed Calls, Dialed Calls, and Received Calls
KCA-SC100
Sirius Satelitte Radio Interface
Works with SIRIUS Connect™ Vehicle Tuner or Vehicle Dock plus Compatible Portable SIRIUS Tuner
• Game Alert Ready • Song Alert Ready • Instant Replay Ready
Allows your new iPod® Nano, 4th Generation and iPod®
Touch 2nd generation to charge when connected to a KCE422i Full Speed cable
KCE-433iV
USB Full Speed iPod®/iPhone® Cable for CDE-102
One cable solution – plug and play, charges iPod®
while you drive
KCU-440i
USB iPod®/iPhone® cable
for CDA-105
One cable solution – plug and play,
charges iPod® while you drive
KCX-422TR
Charging Adapter for iPod®
Allows your new 5 volt charge compatible
iPod® to charge when connected to a
KCE-422i Full Speed cable
MC10
iDA-X100M
CDA-9886M
Marine Digital Media Receiver
Marine CD Receiver / iPod® Controller
Made for iPod® 5th Generation (video), iPod® Classic, iPod® Nano
1st, 2nd, 3rd Generation with USB connection • 2.2” High Resolution
TFT display • Bluetooth Ready with Audio Streaming • HD Radio
Ready • HD Radio Ready with iTunes® Tagging Support (TUA-T550HD
required) • SAT Radio Ready • Salt/Fog (ASTM B117) Tested; UV
(ASTM D4329) Tested
Full Speed Connection for iPod® Touch, iPod® Nano and all iPod
models with dock connector • USB Connection for USB memory
sticks • Bluetooth Ready • HD Radio ready with Multicasting
• Biolite display • 3 PreOuts (4 Volts) • Salt/Fog (ASTM B117) Tested;
UV (ASTM D4329) Tested
PDX-1.600M
PDX-5M
Marine 5 Channel Power Density
Digital Amplifier
CEA-2006 Power Rating: 75W RMS x 4 + 300W x1[4/ 2Ω
@ 14.4V≤1% THD+N]Full range: 77dBA / Mono: 75dBA (ref:
1W into 4Ω) Ultra efficient, compact design • UV resistant
materials / finish • Corrosion resistant hardware
Extra Remote for
RUE-M1RF
Add on remote for RUE-M1RF • Water resistant • Up to
100ft range
SPR-M70
SPR-M700
CEA-2031 Speaker rating: 70W Maximum
RMS, 210W Peak Power Handling, Nominal
Impedance 4Ω • Frequency response:
45Hz - 22kHz • Ultra UV Resistant Grill
• Swivel Tweeter Mount Design • 1” Titanium
Dome Tweeter.
CEA-2031 Speaker rating: 50W Maximum RMS,
150W Peak Power Handling, Nominal Impedance
4Ω • Frequency Response: 45Hz-22kHz • Ultra
UV Resistant Grill • Swivel Tweeter Mount Design
• 1" Titanium Dome Tweeter
7" Component 2-Way Speaker
Marine 4/3/2 Ch. Power
Density Digital Amplifier
CEA-2006 Power Rating: 100W RMS x 4 [4/2Ω@14.4V≤1%
THD+N] 76dBA (ref: 1W into 4Ω) Ultra efficient, compact design
• UV resistant materials / finish • Corrosion resistant hardware
RUE-M1EX
Add on remote for MC10
Marine Mono Power
Density Digital Amplifier
RF Remote Control for
Marine Applications
Includes transmitter and receiver • Water resistant • Up to
100ft range • Compatible with all steering wheel remote
ready HU’s • Controls up to 8 remotes
MC1 Marine Remote Commander
CEA-2006 Power Rating: 600W RMS x 1[4/2Ω@14.4V≤1%
THD+N] 80dBA (ref: 1W into 4Ω) Ultra efficient, compact design
• UV resistant materials / finish • Corrosion resistant hardware
PDX-4.100M
RUE-M1RF
Wireless Marine
Remote Commander Kit
High Contrast display • IPx6 waterproof design
• Compatible with CDA-9886M and iDA-X100M
SPS-M600
6-1/2” Coaxial 2-Way Marine Speaker
CEA-2031 speaker rating: 35W Maximum RMS,
110W Peak Power Handling, Nominal Impedance
4Ω • Frequency Response: 60Hz-22kHz • Ultra
UV Resistant Grill • Magnetically Shielded •
Water Resistant Cone • Rubber Surround
SWR-M100
7" Coaxial 2-way Marine Speaker
10” Marine Subwoofer
CEA-2031 Speaker rating: 300W Maximum RMS,
900W Peak Power Handling, Nominal Impedance 4Ω
• Frequency Response: 35Hz-700Hz • Infinite baffle
design • Gold-plated 2-way spade/insert terminals
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
