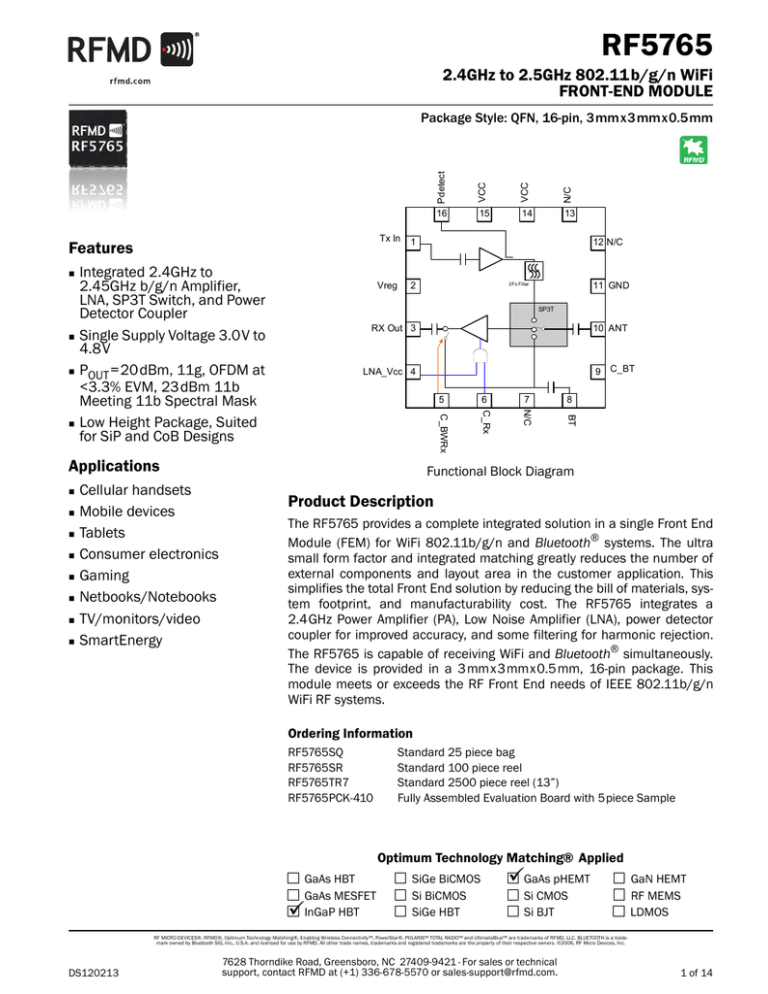

RF5765

2.4GHz to 2.5GHz 802.11b/g/n WiFi

FRONT-END MODULE

Package Style: QFN, 16-pin, 3mmx3mmx0.5mm

16 15 14 13

Features

Integrated 2.4GHz to

2.45GHz b/g/n Amplifier,

LNA, SP3T Switch, and Power

Detector Coupler

Single Supply Voltage 3.0V to

4.8V

P

OUT

=20dBm, 11g, OFDM at

<3.3% EVM, 23dBm 11b

Meeting 11b Spectral Mask

Low Height Package, Suited for SiP and CoB Designs

Applications

Cellular handsets

Mobile devices

Tablets

Consumer electronics

Gaming

Netbooks/Notebooks

TV/monitors/video

SmartEnergy

Tx In

1

Vreg 2

RX Out 3

LNA_Vcc 4

5 6

2Fo Filter

7

SP3T

8

12 N/C

11 GND

10 ANT

9

C_BT

Functional Block Diagram

Product Description

The RF5765 provides a complete integrated solution in a single Front End

Module (FEM) for WiFi 802.11b/g/n and Bluetooth

®

systems. The ultra small form factor and integrated matching greatly reduces the number of external components and layout area in the customer application. This simplifies the total Front End solution by reducing the bill of materials, system footprint, and manufacturability cost. The RF5765 integrates a

2.4GHz Power Amplifier (PA), Low Noise Amplifier (LNA), power detector coupler for improved accuracy, and some filtering for harmonic rejection.

The RF5765 is capable of receiving WiFi and Bluetooth

®

simultaneously.

The device is provided in a 3mmx3mmx0.5mm, 16-pin package. This module meets or exceeds the RF Front End needs of IEEE 802.11b/g/n

WiFi RF systems.

Ordering Information

RF5765SQ

RF5765SR

RF5765TR7

RF5765PCK-410

Standard 25 piece bag

Standard 100 piece reel

Standard 2500 piece reel (13”)

Fully Assembled Evaluation Board with 5piece Sample

DS120213

GaAs HBT

GaAs MESFET

InGaP HBT

Optimum Technology Matching® Applied

SiGe BiCMOS

GaAs pHEMT

Si BiCMOS Si CMOS

SiGe HBT Si BJT

GaN HEMT

RF MEMS

LDMOS

RF MICRO DEVICES®, RFMD®, Optimum Technology Matching®, Enabling Wireless Connectivity™, PowerStar®, POLARIS™ TOTAL RADIO™ and UltimateBlue™ are trademarks of RFMD, LLC. BLUETOOTH is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed for use by RFMD. All other trade names, trademarks and registered trademarks are the property of their respective owners. ©2006, RF Micro Devices, Inc.

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

1 of 14

RF5765

Absolute Maximum Ratings

Parameter

DC Supply Voltage

(Continuous with No Damage)

DC Supply Current

Full Specification Temp Range

(Full Spec. Compliant)

Extreme Operating

(Reduced Performance)

Storage Temperature

Antenna Port Nominal Impedance

Maximum TX Input Power into 50

 Load for 11b/g/n (No Damage)

Maximum RX Input Power (No Damage)

Moisture Sensitivity

Rating

5.4

500

-10 to +70

-40 to -10

+70 to +85

-40 to +150

50

0

0

MSL2

Unit

V mA

°C

°C

°C

 dBm dBm

ESD sensitive device.

Exceeding any one or a combination of the Absolute Maximum Rating conditions may cause permanent damage to the device. Extended application of Absolute Maximum

Rating conditions to the device may reduce device reliability. Specified typical performance or functional operation of the device under Absolute Maximum Rating conditions is not implied.

RoHS status based on EUDirective2002/95/EC (at time of this document revision).

The information in this publication is believed to be accurate and reliable. However, no responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any infringement of patents, or other rights of third parties, resulting from its use. No license is granted by implication or otherwise under any patent or patent rights of

RFMD. RFMD reserves the right to change component circuitry, recommended application circuitry and specifications at any time without prior notice.

Parameter

2.4GHz Transmit Parameters

Compliance

Operating Conditions

Min.

Specification

Typ.

Max.

Frequency

Power Supply

V

REG

Voltage

2.4

3.0

ON

OFF

3.0

Output Power

11g

11b

18

19

20

EVM

Adjacent Channel Power

ACP1

ACP2

Gain

Gain Variation Slope

Range

V

CC

(Average)

V

CC

(Instantaneous)

Frequency

Over Temperature

26

3.0

-0.5

-1.75

3.3

3.1

0.00

19.5

20

23

3.3

-36

-56

30

Unit Condition

2.5

4.2

3.2

0.20

4.0

-33

-51

34.5

4.8

0.5

1

+0.5

+1.75

GHz

V

IEEE802.11b, IEEE802.11g,

FCC CFG 15.247, .205, .209, EN, and JDEC

V

CC

=3.0V to 4.2V (Spec Compliant); V

CC

> 4.2V to 4.8V

(Reduced Performance); V

REG

=3.0V to 3.2V; Switch Control voltage=3.0 V to 3.6V; Temp=-10 °C to +70°C

(Spec Compliant); Temp=-30°C to -10 °C and +70°C to

+85°C (Reduced Performance). Unless noted otherwise.

Power Amplifier Voltage Supply (V

CC

)

V

V

PA in “ON” state

PA in “OFF” state dBm dBm dBm

%

54Mbps OFDM 64QAM, V

CC

> 3.0V, Temp=25°C

54Mbps OFDM 64QAM, V

CC

> 3.3V, Temp=25°C

11Mbps CCK signal, BT=0.45, V

CC

>=3.3V, Temp=25°C

P

OUT

(g)=Rated Output Power, 54Mbps OFDM, 50

, see note 1

P

OUT

(b)=23dBm, 11Mbps CCK signal, V

CC

>=3.3V, see note 4

+/- 11 MHz Offset from carrier

+/- 22MHz Offset from carrier dBc dBc dB

At rated power and a given supply voltage

V dB/V dB/V dB dB

2.4GHz to 2.5GHz

V

CC

=3.3V, V

REG

=3.1V, Freq=2.45GHz

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

2 of 14

DS120213

RF5765

Parameter

2.4GHz Transmit Parameters, continued

Typical Input Power

11g

11b

Power Detect

Power Range

Voltage Range

Resistance

Capacitance

Sensitivity

0<P

OUT

<6dBm

6<P

OUT

<23dBm

Current Consumption (I

CC

)

Quiescent Current

11g

11b

I

REG

V

CC

Leakage Current

Input Port Impedance

Input Port Return Loss

Ruggedness

Output VSWR

Input Power

Stability

Output VSWR

Out-of-Band Emissions 2310MHz to

2390MHz and 2483.5MHz to

2500MHz (FCC restricted bands)

Min.

Specification

Typ.

Max.

0

0.1

3

8

10

6:1

-9

-5

10

90

170

220

2

50

15

23

1.5

10

Unit dBm dBm dBm

V k

 pF

Condition mV/dB

350 mV/dB

200

290 mA mA mA

V

CC

=3.3V, V

REG

=3.1V, T=25°C

RF=“OFF” I

CQ

variation from nominal +/- 20mA

RF P

OUT

=18.5 dBm, 11g, 50

11Mbps CCK signal, BT=0.45, Rated Output Power,

V

CC

=3.3V, Temp=25°C, 50

V

REG

>3.0V

V

CC

=4.8V, V

REG

=C_BT=C_RX=C_BWRX < 0.2 V

3

10 mA

A

 dB

No Damage Conditions: max operating voltage, max input power, max temperature

10:1

-5 dBm

PA must be stable from 0dBm to 20dBm. No spurs above -41.25dBm for non-harmonic related signals.

CW signal, P

OUT

=20dBm, all phases

-41.25

dBm/MHz P

OUT

=16.5dBm, 54Mbps OFDM Modulation, 64QAM,

RBW=1MHz, VBW=100kHz, V

CC

=3.3V, V

REG

=3.1V

Thermal Resistance

Harmonics

Turn-on/off Time

Second

Third

20

0.5

-41.25

dBm/MHz P

OUT

=20.5dBm, 11Mbps CCK Modulation, BT=0.45,

RBW=1MHz, VBW=100kHz, V

CC

=3.3V, V

REG

=3.1V

V

CC

=4.8V, V

REG

=3.2, P

OUT

=20dBm, T

REF

=85°C

11b modulation, 1Mbps, BW=1MHz, up to 3:1 load,

P

OUT

=20dBm

-23

-20

1.0

dBm dBm

S

4.80GHz to 5.00GHz

7.20GHz to 7.50GHz

Output stable to within 90% of final gain, Note 1

DS120213

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

3 of 14

RF5765

Parameter

2.4GHz Receive Parameters

Compliance

Frequency

LNA Voltage Supply (LNA V

CC

)

LNA Current

Min.

2.4

3.0

LNA Input P1dB

Gain

WiFi RX Gain

Simultaneous WiFi/BT RX Mode

Noise Figure

WiFi RX

Simultaneous WiFi/BT RX Mode

Passband Ripple

WiFi RX Port Return Loss

0

-8

16

11

-0.2

-0.5

9.6

5

WiFi RX Port Impedance

Bluetooth Parameters

Frequency

Insertion Loss

BT TX/RX only

BT/WiFi RX GAIN

(simultaneous mode)

Passband Ripple

2.4

Input P1dB

Bluetooth Port Return Loss

11

-0.2

-0.5

27

9.6

7

Other Requirements

Antenna Port Impedance

Output

Return Loss

Isolation

Antenna to Receive

Antenna to Bluetooth

®

Antenna to Receive

Switch Control Voltage

Low

High

Switch Control Current

C_RX Current

Switch Control Speed

Switch P1dB

20

20

20

1.7

Specification

Typ.

Max.

3.3

10

-7

18

13

2.1

3

50

1.2

13

30

50

10

0

3.3

2

28

2.5

4.2

5

20

15

3.5

4

+0.2

+0.5

2.5

0.2

3.6

10

100

100

1.5

15

+0.2

+0.5

Unit Condition dB dB dB dB dB dB

IEEE802.11b, IEEE802.11g,

FCC CFG 15.247,.205,.209, EN, and JDEC

GHz

V mA

A dBm

LNA V

CC

can be tied to V

BATT

at all times

LNA in “ON” state

LNA in “OFF” state (C_RX=low, LNA V

CC

=ON) dB dB

WiFi RX mode

WiFi RX/BT Mode, LNA “ON”

V

CC

>3.3V, including switch

WiFi RX mode (LNA “ON”)

WiFi RX/BT Mode (LNA “ON”)

WiFi RX Mode

WiFi RX/BT Mode

Switch in WiFi RX/Bluetooth Mode

No external matching

GHz dB dB dB dB dB dB dB

Bluetooth mode

WiFi RX/BT Mode, LNA “ON”

Bluetooth mode

WiFi RX/BT mode

BT Mode, over temp, C_BT=3.3V to 3.6V

Switch in Bluetooth Mode

Switch in WiFi RX/Bluetooth Mode

 dB dB dB dB

V

V

A

A

s dBm

In BT Mode (measured from ANT to RX port)

In TX Mode (measured from ANT to BT port)

In TX Mode (measured from ANT to RX port)

C RX, C BT, and C BW RX control lines

Switch is in the low state (L)

Switch is in the high state (H)

Per control line (C_BT, C_BWRX)

Over V

CC

, Frequency and Temperature.

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

4 of 14

DS120213

RF5765

Parameter

Min.

Specification

Typ.

Max.

Unit Condition

Other Requirements, continued

ESD

Human Body Model 500

1000

V

V

EIA/JESD22-114A RF pins

EIA/JESD22-114A DC pins

Charge Device Model 500 V JESD22-C101C all pins

Note 1: The PA module must operate with gated bias voltage input at 1% to 99% duty cycle.

Note 3: Values to be agreed to upon characterization data review: current, gain, return loss, detector sensitivity and output power.

Note 4: The output power for channels 1 and 11 may be reduced to meet FCC restricted band requirements.

Switch Control Logic

Mode VREG C RX C BT C BWRx

Standby

WiFi TX

WiFi RX

WiFi RX/BT*

BT RX

BT TX

L

L

L

L

H

L

H

L

L

L

L

H

L

H

H

L

L

L

H

L

L

L

L

L

*The FEM can be placed in receive WiFi and Bluetooth

®

modes simultaneously with increased insertion loss.

DS120213

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

5 of 14

RF5765

Pin

1

2

11

12

13

14

15

16

7

8

9

10

5

6

3

4

Function Description

TX_IN

RF input for the 802.11b/g PA. Input is matched to 50

 and DC block is provided.

VREG

RX OUT

Regulated voltage for the bias control circuit, and the TX control port of the SP3T which is also tied to this pin. An external bypass capacitor may be needed on the V

REG

line for decoupling purposes.

Receive port for 802.11b/g band. Internally matched to 50

. DC block provided.

LNA VDD

Voltage supply for the LNA.

C_BWRX

SPST switch control pin. (Simultaneous WiFi and BT receive.) See truth table for proper level.

C RX

Receive switch control pin. See switch truth table for proper level.

N/C

BT

No connect.

C_BT

ANT

RF bidirectional port for Bluetooth

®

. Input is matched to 50

 and DC block is provided.

Bluetooth

®

switch control pin. See truth table for proper level.

Port matched to 50

 and is DC blocked internally.

Ground.

GND

N/C

N/C

VCC

No connect.

No connect.

Supply voltage for the PA.

VCC

Supply voltage for the bias circuit of the PA.

PDETECT

Power detector voltage for TX section. PDET voltage varies with output power. May need external decoupling capacitor for noise bypassing. May need external circuitry to bring output voltage to desired level.

Pin Out

TX IN 1

VREG 2

RX OUT 3

LNA_VCC 4

16 15 14 13

12 N/C

11 GND

10 ANT

9 C_BT

5 6 7 8

6 of 14

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

DS120213

RF5765

3.000 ± 0.1

Package Drawing

1.900

0.152±.05

0.030±.05

1

NOTES:

Shaded Area is Pin 1 Indicator

0.238

3.000 ± 0.1

0.500

0.550

0.300

0.062

0.450 ± 0.05

0.25

0.230

1.900

PIN 1 INDICATOR

DS120213

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

7 of 14

RF5765

RF5765 PCB Footprint and Stencil Recommendations

8 of 14

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

DS120213

RF5765

TX_IN

RX_OUT

Vreg

Application Schematic

Pdet

VCC

C2

1uF

C3

180pF

C1

0.1uF

L1

1.1nH

1

2

3

4

16 15

14 13

10

9

12

NC

11

5 6 7 8

R1

5.6 k

LNA VDD C_BWRx C_RX BT C_BT

ANT

DS120213

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

9 of 14

RF5765

Theory of Operation

The RF5765 Front End Module (FEM) is designed for WiFi applications in the 2.5GHz ISM band. It can be applied in many portable applications such as handsets, Portable Media Players, and portable battery power equipment. This highly integrated module can be connected directly to the battery without additional voltage regulators.

WiFi TRANSMIT MODE

The RF5765 requires a single positive supply (V

CC

), a positive supply for switch controls, and a regulated supply for the V

REG

to maintain nominal bias current. The RF5765 transmit path has a typical gain of 30dB from 2.4GHz to 2.5GHz, and delivers

20dBm typical output power under 54Mbps OFDM modulation and 23dBm under 1Mbps 11b modulation. The RF5765 contains basic filter components to produce a bandpass response for the transmit path. Due to space constraints inside the module, filtering is limited to a few resonant poles and additional filters may be required depending upon the end-user’s application. While in transmit mode, the active components are the Power Amplifier (PA) and the TX branch of the SP3T switch.

Refer to the logic control table for proper settings.

TX Biasing Instructions

• Connect the TX input (pin-1) to a signal generator and a spectrum analyzer at the Antenna output (pin-10)

• Set V

CC

to 3.3V with V

REG

set to 0V

• Turn V

REG

ON and set voltage to 3.1V. V

REG

controls the current drawn by the PA and it should quickly reach a quiescent current of approximately 90mA±20mA. Care must be exercised not to exceed 3.5V on the V

REG

pin or the part may be damaged.

• Control bias to the transmit branch of the SP3T switch is tied directly to V

REG

• The SP3T controls for the off branches (C_RX and C_BT) must be set to a logic “low” (0.2V max) or grounded. In the event that one of these branches is left floating or in a logic “high” the performance of the PA will degrade significantly. Likewise, unused RF Ports must be terminated in 50

Ω to simulate actual system conditions and prevent RF signals from coupling back to the PA.

• Turn RF ON

WiFi RECEIVE MODE

Within the frequency band of operation 2.4GHz to 2.5GHz, the RF5765 WiFi receive path has a typical gain of 18dB and a NF of 2.1dB with about 10mA of current. In RX mode, only the RX branch of the SP3T and the LNA are active. Refer to the logic control table for proper settings.

RX Biasing Instructions

• Connect the RX input (ANT/pin-10) to a signal generator and a spectrum analyzer at the RX output (pin-3). A VNA may be used as well.

• Turn the LNA bias ON (pin-4) and set the voltage to 3.3V

• Set C_RX (pin-6) high. This turns ON the receive branch of the SP3T.

• The SP3T controls for the off branches (V

REG

and C_BT) must be set to a logic “low” (0.2V max) or grounded. In the event that one of these branches is left floating or in a logic “high” the performance will degrade. It is recommended to terminate unused RF Ports in 50

Ω.

• Set the control bias for the SPST switch (C_BWRX/pin-5) “low” during WiFi RX only mode.

• Turn RF ON

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

10 of 14

DS120213

RF5765

WiFi and BLUETOOTH

®

RECEIVE (SIMULTANEOUS MODE)

The RF765 WiFi and Bluetooth

®

receive circuits were specifically designed to address issues of simultaneous operation. In this mode both signals can be received at the same time when the C_BWRX (pin-5) is set high. The typical gain for each RF path is approximately 13dB and a NF of 3dB. During simultaneous mode the active components are the LNA, the SPST switch, and only the RX branch of the SP3T. Refer to the logic control table for proper settings.

Simultaneous Mode Biasing Instructions

• Connect the RF input (ANT/pin-10) to a signal generator and a spectrum analyzer at the RX (pin-3) and BT (pin-8) RF ports. A multiport VNA may be used as well.

• Turn the LNA bias ON (pin-4) and set the voltage to 3.3V

• Set C_RX and C_BWRX high. This turns ON the receive branch of the SP3T and the SPST switch.

• The SP3T controls for the off branches (V

REG

and C_BT) must be set to a logic “low” (0.2V max) or grounded. In the event that one of these branches is left floating or in a logic “high” the performance will degrade. It is recommended to terminate unused RF Ports in 50

Ω.

• Turn RF ON

BLUETOOTH

®

MODE

The RF765 Bluetooth

®

only mode is implemented through the SP3T switch by setting C_BT “high.” Typical insertion loss is about 1.2dB.

Bluetooth

®

Biasing Instructions

• Connect the RF input (ANT/pin-10) to a signal generator and a spectrum analyzer at the BT RF port. A VNA may be used in place of the Sig

Gen and SA.

• Set C_BT (pin-9) “high.” This turns the Bluetooth

®

branch of the SP3T switch ON.

• The SP3T controls for the off branches (V

REG

and C_RX) must be set to a logic “low” (0.2V max) or grounded. Do not leave floating.

• Terminate unused RF Ports in 50

• Turn RF ON

APPLICATION CIRCUIT AND LAYOUT RECOMMENDATIONS

The RF5765 integrates the matching networks and DC blocking capacitors for all RF ports. This greatly reduces the number of external components and layout area needed to implement this FEM. Typically only a total of four external components are required to achieve nominal performance. However, depending on board layout and the many noise signals that could potentially couple to the RF5765, additional bypassing capacitors may be required to properly filter out unwanted signals that might degrade performance.

The LNA bias components consist of an inductor and a decoupling capacitor. The inductor value is critical to optimize NF and return loss at the RX output. For best performance and trade off between critical parameters such as NF, Gain, and IP3, the total inductance including board trace should be approximately 1.2nH. The 5.6k

Ω series resistor for the Bluetooth ®

control line helps to prevent unwanted signal from coupling to this pin. The resistor should be place as close as possible to the package pin. The last component needed in the application circuit is a low frequency bypass capacitor on the V

CC

line. In general, it is good RF practice to have proper decoupling of supply lines to filter out noise. Occasionally, depending on the level of coupling or parasitics of the board, a high frequency bypass capacitor must be added as well.

In order to optimize performance for both the Transmit and Receive paths, a good layout design must be implemented. In addition to designing 50

 RF lines, proper grounding along the RF traces and on the FEM ground slug must be exercised. This will minimize coupling and provide good thermal dissipation when the PA is operating at high power. For reference, the RFMD evaluation board uses 9 thermal ground vias (hole/capture pad 12/22mil) on the ground slug. Additionally, if space permitted, V

CC and control lines must be isolated from each other with ground vias in between them. RFMD evaluation board gerbers are available upon request.

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

DS120213

11 of 14

RF5765

RF5765 Transmit Performance Graphs

RF5765: EVM vs. Output Power at Temp=-10°C

(Vcc=3.3v; Vreg=3.1v)

12

10

EVM

(%)

6

4

8

2

0

0.23

1 2 3 4

2400MHz

2450MHz

2500MHz

5 6 7 8 9 10 11 12 13 14 15

Output Power (dBm)

16 17 18 19 20 21 22 23

RF5765: EVM vs. Output Power at Temp=+70°C

(Vcc=3.3v; Vreg=3.1v)

14

12

10

EVM

(%)

6

8

4

2

2400MHz

2450MHz

2500MHz

0

0.75

1.5

2.5

3.5

4.5

5.5

6.5

7.5

8.5

9.5

10.5 11.5 12.5 13.5 14.5 15.5 16.5 17.5 18.5 19.5 20.5 21.5 22.5 23.34

Output Power (dBm)

RF5765: OperaƟng Current and GAIN vs. Output Power vs. Temperature

(Vcc=3.3v; Vreg=3.1v; Freq=2450MHz)

0.35

34

0.3

32

0.25

30

OperaƟng

Current

(A)

0.2

0.15

0.1

24

0.05

0

0.23 1 2 3 4 5 6 7

-10C

22

+25C

+70C

20

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 8

Output Power (dBm)

28

GAIN

(dB)

26

RF5765: EVM vs. Output Power at Temp=+25°C

(Vcc=3.3v; Vreg=3.1v)

12

10

EVM

(%)

6

4

8

2

2400MHz

2450MHz

2500MHz

0

0.19

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

Output Power (dBm)

19 20 21 22 23

RF5765: EVM and GAIN vs. Output Power vs. Temperature

(Vcc=3.3v; Vreg=3.1v; Freq=2450MHz)

14

12

34

32

10

EVM

(%)

6

8

4 24

2

0

0.23

1 2 3 4 5 6 7 9 10 11 12 13 14 15 16 17 18 19 20

-10C

22

+25C

21 22 23

+70C

20

8

Output Power (dBm)

30

28

26

GAIN

(dB)

RF5765: OperaƟng Current and GAIN vs. Output Power vs. Frequency

(Vcc=3.3v; Vreg=3.1v; Temp=25°C)

0.35

34

0.3

32

0.25

30

OperaƟng

Current

(A)

0.2

0.15

0.1

24

0.05

0

0.23

1 2 3 4 5 6 7

2400MHz

22

2450MHz

2500MH

20

10 11 12 13 14 15 16 17 18 19 20 21 22 23 8 9

Output Power (dBm)

28

26

GAIN

(dB)

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

DS120213

12 of 14

RF5765

RF5765 Transmit Performance Graphs (continued)

RF5765: OperaƟng Current and GAIN vs. Output Power vs. Vreg

(Vcc=3.3v; Freq=2450MHz; Temp=25°C)

0.35

34

0.3

32

0.25

30

OperaƟng

Current

(A)

0.2

0.15

0.1

24

0.05

0

0.23

1 2 3 4 5 6 7

Vreg=3.0v

22

Vreg=3.1v

Vreg=3.2v

20

10 11 12 13 14 15 16 17 18 19 20 21 22 23 8 9

Output Power (dBm)

28

GAIN

(dB)

26

0.005

RF5765: Ireg Current vs. Output Power vs. Vreg Voltage

(Vcc=3.3v; Freq=2450MHz; Temp=25°C)

0.004

Ireg

(A)

0.003

0.002

0.001

Vreg=3.0v

Vreg=3.1v

Vreg=3.2v

0

0.23

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Output Power (dBm)

16 17 18 19 20 21 22 23

0.005

0.004

Ireg

(A)

0.003

0.002

0.001

RF5765: Ireg Current vs. Output Power vs. Temperature

(Vcc=3.3v; Vreg=3.1v; Freq=2450MHz)

0

0.23

1 2 3 4 5 6 7

-10C

+25C

+70C

8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

Output Power (dBm)

-35

ACP1

-40

(dBc)

-45

-50

-55

-20

-25

-30

-60

0.15

2

RF5765: ACP1 vs. Output Power vs. Temperature

(Vcc=3.3v; Vreg=3.1v; Freq=2450MHz)

4 6 8 10 12 14

Output Power (dBm)

16 18 20 22

-10C

+25C

+70C

-50

ACP2

-55

(dBc)

-60

-65

-70

-75

-80

0.15

-30

-35

-40

-45

2

RF5765: ACP2 vs. Output Power vs. Temperature

(Vcc=3.3v; Vreg=3.1v; Freq=2450MHz)

4 6 8 10 12 14

Output Power (dBm)

16 18 20 22

-10C

+25C

+70C

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

DS120213

13 of 14

4

3.5

3

2.5

2

1.5

1

0.5

0

2 4 0 0

RF5765

25

22.5

20

17.5

15

12.5

10

2 4 0 0

RF5765 Receive Performance Graphs

RF5765: W iFi RECEIVER GAIN

(LNA Vdd=3.3v; C_RX=3.3v)

RF5765: WiFi RECEIVER OPERATING CURRENT

(LNA Vdd=3.3v; C_RX=3.3v)

-10C

+25C

+70C

2 5 0 0

20

17.5

15

12.5

10

7.5

5

2 4 0 0 2 4 5 0

FREQUENCY (MHz)

RF5765: WiFi RECEIVER NOISE FIGURE

(LNA Vdd=3.3v; C_RX=3.3v)

2 4 5 0

FREQUENCY (MHz)

WiFi

-30C

+25C

+70C

2 5 0 0 2 4 5 0

FREQUENCY (MHz)

WiFi

-10C

+25C

+70C

2 5 0 0

14 of 14

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

DS120213

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
