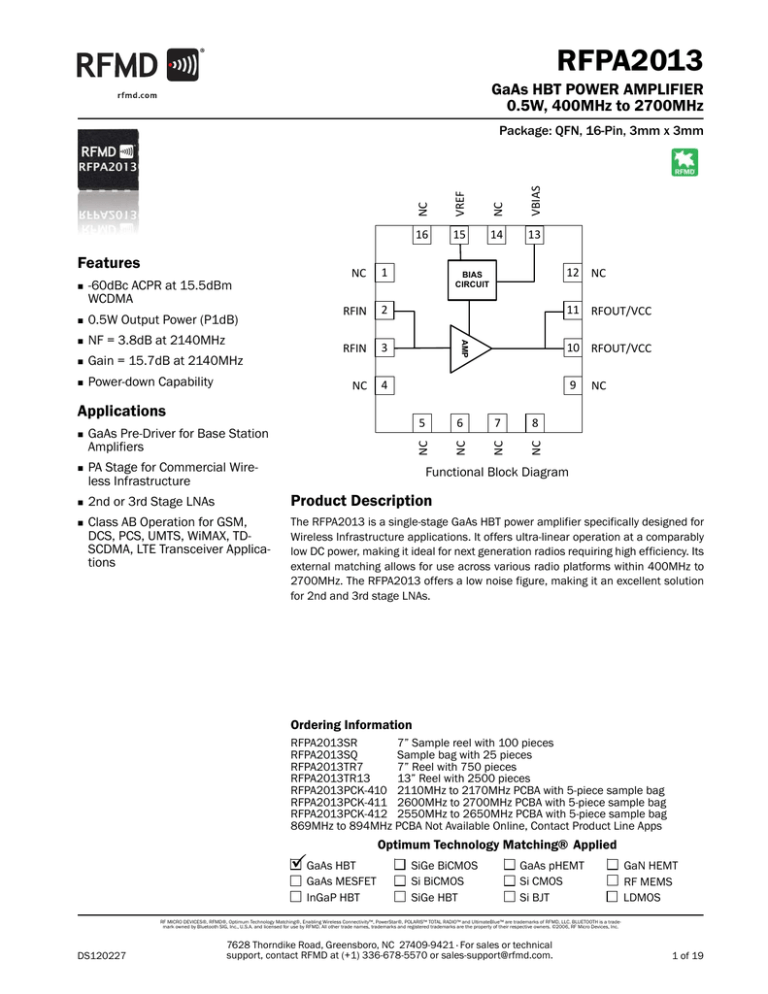

RFPA2013Preliminary

RFPA2013

GaAs HBT POWER AMPLIFIER

0.5W, 400MHz to 2700MHz

Package: QFN, 16-Pin, 3mm x 3mm

16 15 14 13

Features

-60dBc ACPR at 15.5dBm

WCDMA

0.5W Output Power (P1dB)

NF = 3.8dB at 2140MHz

Gain = 15.7dB at 2140MHz

Power-down Capability

Applications

GaAs Pre-Driver for Base Station

Amplifiers

PA Stage for Commercial Wireless Infrastructure

2nd or 3rd Stage LNAs

Class AB Operation for GSM,

DCS, PCS, UMTS, WiMAX, TD-

SCDMA, LTE Transceiver Applications

NC 1

RFIN

2

RFIN

3

NC 4

5

BIAS

CIRCUIT

6 7 8

12

NC

11

RFOUT/VCC

10

RFOUT/VCC

9 NC

Functional Block Diagram

Product Description

The RFPA2013 is a single-stage GaAs HBT power amplifier specifically designed for

Wireless Infrastructure applications. It offers ultra-linear operation at a comparably low DC power, making it ideal for next generation radios requiring high efficiency. Its external matching allows for use across various radio platforms within 400MHz to

2700MHz. The RFPA2013 offers a low noise figure, making it an excellent solution for 2nd and 3rd stage LNAs.

DS120227

Ordering Information

RFPA2013SR

RFPA2013SQ

RFPA2013TR7

RFPA2013TR13

7” Sample reel with 100 pieces

Sample bag with 25 pieces

7” Reel with 750 pieces

13” Reel with 2500 pieces

RFPA2013PCK-410 2110MHz to 2170MHz PCBA with 5-piece sample bag

RFPA2013PCK-411 2600MHz to 2700MHz PCBA with 5-piece sample bag

RFPA2013PCK-412 2550MHz to 2650MHz PCBA with 5-piece sample bag

869MHz to 894MHz PCBA Not Available Online, Contact Product Line Apps

GaAs HBT

GaAs MESFET

Optimum Technology Matching® Applied

SiGe BiCMOS

Si BiCMOS

GaAs pHEMT

Si CMOS

InGaP HBT SiGe HBT Si BJT

GaN HEMT

RF MEMS

LDMOS

RF MICRO DEVICES®, RFMD®, Optimum Technology Matching®, Enabling Wireless Connectivity™, PowerStar®, POLARIS™ TOTAL RADIO™ and UltimateBlue™ are trademarks of RFMD, LLC. BLUETOOTH is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed for use by RFMD. All other trade names, trademarks and registered trademarks are the property of their respective owners. ©2006, RF Micro Devices, Inc.

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

1 of 19

RFPA2013

Absolute Maximum Ratings

Parameter Rating

Supply Voltage (V

CC

, V

BIAS

)

DC Supply Current (I

CC

)

6.0

380

CW Input Power, 2:1 Output VSWR

Output Load VSWR at P3dB

Operating Junction Temperature

Operating Temperature Range (T

L

)

Storage Temperature

ESD Rating – Human Body Model (HBM)

20

5:1

160

-40 to +85

-40 to +150

Class 1C

Moisture Sensitivity Level MSL-1

Notes:

1. The maximum ratings must all be met simultaneously.

2. P

DISS

= P

DC

+ P

RFIN

- P

RFOUT

3. T

J

= T

L

+ P

DISS

* R

TH

Unit

V mA dBm

°C

°C

°C

ESD sensitive device.

Exceeding any one or a combination of the Absolute Maximum Rating conditions may cause permanent damage to the device. Extended application of Absolute Maximum

Rating conditions to the device may reduce device reliability. Specified typical performance or functional operation of the device under Absolute Maximum Rating conditions is not implied.

The information in this publication is believed to be accurate and reliable. However, no responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any infringement of patents, or other rights of third parties, resulting from its use. No license is granted by implication or otherwise under any patent or patent rights of

RFMD. RFMD reserves the right to change component circuitry, recommended application circuitry and specifications at any time without prior notice.

RFMD Green: RoHS compliant per EU Directive 2002/95/EC, halogen free per IEC 61249-2-21, < 1000ppm each of antimony trioxide in polymeric materials and red phosphorus as a flame retardant, and <2% antimony in solder.

Parameter

869MHz to 894MHz

Frequency

Input Power (P

IN

)

Gain (S21)

OIP3

P1dB

Input Return Loss (S11)

Output Return Loss (S22)

Noise Figure

WCDMA Channel Power at -55dBc

ACPR

2110MHz to 2170MHz

Frequency

Input Power (P

IN

)

Gain (S21)

OIP3

P1dB

Input Return Loss (S11)

Output Return Loss (S22)

Noise Figure

WCDMA Channel Power at -55dBc

ACPR

Min.

Specification

Typ.

Max.

880

15.7

41.5

27

14

10.5

3.8

16.5

21.8

41

27.5

14

8

3.8

16.5

2140

10

16

MHz dBm dB dBm dBm dB dB dB dBm

MHz dBm dB dBm dBm dB dB dB dBm

Unit Condition

V

CC

= 5.0V, I

CQ

= 165mA, linear tune

EVB tuned for WCDMA 60dBc linear operation

Max recommended continuous input power,

V

CC

< 6.0V, load VSWR < 2:1

15dBm/tone, tone spacing = 1MHz

EVB tuned for linear operation

3GPP 3.5, test model 1, 64 DPCH

V

CC

= 5.0V, I

CQ

= 165mA, linear tune

EVB tuned for WCDMA 60dBc linear operation

Max recommended continuous input power,

V

CC

< 6.0V, load VSWR < 2:1

15dBm/tone, tone spacing = 1MHz

EVB tuned for linear operation

3GPP 3.5, test model 1, 64 DPCH

2 of 19

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

DS120227

RFPA2013

Parameter

2550MHz to 2650MHz

Frequency

Input Power (P

IN

)

Gain (S21)

OIP3

P1dB

Input Return Loss (S11)

Output Return Loss (S22)

Noise Figure

WCDMA Channel Power at -55dBc

ACPR

2600MHz to 2700MHz

Frequency

Input Power (P

IN

)

Gain (S21)

OIP3

P1dB

Input Return Loss (S11)

Output Return Loss (S22)

Noise Figure

WCDMA Channel Power at -55dBc

ACPR

Power Supply

Operating Current (Quiescent)

Operating Voltage (V

CC

)

Operating Voltage (V

BIAS

)

Power Down Current

Thermal Resistance (R

TH

) (Junction to EPAD)

Min.

Specification

Typ.

Max.

2600

2650

165

5.0

5.0

10

60

14.4

40

27

13.5

13.5

3.4

16.0

14.1

41

26.8

12.5

12

3.4

16.0

17

17

6.0

6.0

MHz dBm dB dBm dBm dB dB dB dBm

MHz dBm dB dBm dBm dB dB dB dBm

Unit Condition

V

CC

= 5.0V, I

CQ

= 165mA, linear tune

EVB tuned for WCDMA 60dBc linear operation

Max recommended continuous input power,

V

CC

< 6.0V, load VSWR < 2:1

15dBm/tone, tone spacing = 1MHz

EVB tuned for linear operation

3GPP 3.5, test model 1, 64 DPCH

V

CC

= 5.0V, I

CQ

= 165mA, linear tune

EVB tuned for WCDMA 60dBc linear operation

Max recommended continuous input power,

V

CC

< 6.0V, load VSWR < 2:1

15dBm/tone, tone spacing = 1MHz

EVB tuned for linear operation

3GPP 3.5, test model 1, 64 DPCH mA

V

V

A

C/W

At V

BIAS

= V

CC

= 5.0V

Max recommended collector voltage

V

BIAS

= V

CC

under normal operating conditions

V

REF

= 0V, V

BIAS

= V

CC

= 5.0V

Quiescent conditions

DS120227

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

3 of 19

RFPA2013

Typical Performance: 869MHz to 894MHz Application Circuit

4 of 19

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

DS120227

RFPA2013

Typical Performance: 869MHz to 894MHz Application Circuit

DS120227

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

5 of 19

RFPA2013

Evaluation Board Schematic

869MHz to 894MHz Application Circuit

Evaluation Board Bill of Materials (BOM)

869MHz to 894MHz Application Circuit

Reference Designator Manufacturer Description

Evaluation Board

GaAs HBT Power Amplifier

CAP, 10

F, 20%, 10V, TANT-A

CAP, 0.1

F, 10%, 16V, X7R, 0402

CAP, 1000pF, 10%, 50V, X7R, 0402

CAP, 10pF, 5%, 50V, C0G, 0402

CAP, 100pF, 5%, 50V, C0G, 0402

CAP, 3.6pF, ±0.25pF, 50V, C0G, 0402

CONN, SMA, END LNCH, MINI, FLT, 0.068”

IND, 24nH, 5%, W/W, 0603

IND, 12nH, 10%, M/L, 0402

IND, 5.6nH, ±0.3nH, M/L, 0402

IND, 47nH, 5%, M/L, 0402

IND, 1.8nH, ±0.3nH, M/L, 0402

CONN, HDR, ST, PLRZD, 4-PIN, 0.100”

RES, 0

, 0402

RES, 365

, 1%, 1/16W, 0402

RES, 1.0K, 1%, 1/16W, 0402

RES, 130

, 5%, 1/16W, 0402

R2

R3

R4

L4

L5

P1

R1

C4, C6

C5, C8

C7

J1, J2

L1

L2

L3

U1

C1

C2

C3

RFMD

Kemet

Murata Electronics

Murata Electronics

Murata Electronics

Murata Electronics

Murata Electronics

Emerson Networks

Coilcraft, Inc.

TOKO Inc.

TOKO Inc.

TOKO Inc.

TOKO Inc.

ITW Pancon

KAMAYA, INC

PANASONIC INDUSTRIAL CO

PANASONIC INDUSTRIAL CO

PANASONIC INDUSTRIAL CO

Manufacturer's P/N

PA2013411(A)

RFPA2013

T491A106M010AT

GRM155R71C104KA88D

GRM155R71H102KA01D

GRM1555C1H100JZ01E

GRM1555C1H101JA01D

GRM1555C1H3R6CZ01E

142-0741-851

0603HC-24NXJLW

LL1005-FHL12NJ

LL1005-FH5N6S

LL1005-FH47NJ

LL1005-FH1N8S

MPSS100-4-C

RMC1/16SJPTH

ERJ-2RKF3650

ERJ-2RKF1001

ERJ-2GEJ131

6 of 19

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

DS120227

Evaluation Board Assembly Drawing

869MHz to 894MHz Application Circuit

RFPA2013

DS120227

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

7 of 19

RFPA2013

Typical Performance: 2110MHz to 2170MHz Application Circuit

8 of 19

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

DS120227

RFPA2013

47

46

45

44

43

42

41

40

39

38

37

2.11

Typical Performance: 2110MHz to 2170MHz Application Circuit

OIP3 versus Frequency (15dBm tones)

30

Output Power & Icc versus Input Power @ 2140MHz

25

Pout_25C

Pout_85C

Icc_-40C

Pout_-40C

Icc_25C

Icc_85C

20

2.12

+25°C

-40°C

+85°C

2.16

2.17

15

10

5

2.13

2.14

Frequency (GHz)

2.15

260

240

220

200

180

160

0

-10 -8 -6 -4 -2 0 2 4 6

Input Power (dBm)

8 10 12 14 16

140

OIP3 versus Output Power (2140MHz)

47

46

45

44

43

42

41

40

39

38

37

10 11

+25°C

-40°C

+85°C

12 13 14 15 16

Output Power per Tone (dBm)

17 18 19 20

ACPR versus WCDMA Output Power (25C)

-40

-45

-50

-55

-60

-65

-70

-75

-80

8

WCDMA_TM1_64DPCH_1C

9 10 11 12 13 14 15

Channel Power Out (dBm)

16

2.11GHz

2.14GHz

2.17GHz

17 18 19

ACPR versus WCDMA Output Power (2140MHz)

-40

-45

-50

-55

-60

-65

-70

-75

-80

8

WCDMA_TM1_64DPCH_1C

9 10 11 12 13 14 15

Channel Power Out (dBm)

16

+25°C

-40°C

+85°C

17 18 19

DS120227

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

9 of 19

RFPA2013

Evaluation Board Schematic

2110MHz to 2170MHz Application Circuit

Evaluation Board Bill of Materials (BOM)

2110MHz to 2170MHz Application Circuit

Reference Designator Manufacturer Description

Evaluation Board

GaAs HBT Power Amplifier

CAP, 10

F, 20%, 10V, TANT-A

CAP, 0.1

F, 10%, 16V, X7R, 0402

CAP, 1000pF, 10%, 50V, X7R, 0402

CAP, 10pF, 5%, 50V, C0G, 0402

CAP, 1.2pF, ±1pF, 50V, HI-Q, 0402

CAP, 2pF, ±0.1pF, 50V, C0G, 0402

CAP, 3pF, ±.1pF, 50V, C0G, 0402

CAP, 3.9pF, ±0.25pF, 50V, C0G, 0402

CONN, SMA, END LNCH, MINI, FLT, 0.068”

IND, 24nH, 5%, W/W, 0603

CONN, HDR, ST, PLRZD, 4-PIN, 0.100”

RES, 0

, 0402

RES, 56

, 5%, 1/16W, 0402

RES, 1.0K, 1%, 1/16W, 0402

RES, 365

, 1%, 1/16W, 0402

DO NOT PLACE (DNP)

C3

C4

C5

C6

U1

C1

C2

C7

C8

J1, J2

L1

P1

R1

R2

R3

R4

R5, R6, C9-C21

RFMD

Kemet

Murata Electronics

Murata Electronics

Murata Electronics

Johanson Technology

Murata Electronics

Murata Electronics

Murata Electronics

Emerson Networks

Coilcraft, Inc.

ITW Pancon

KAMAYA, INC

PANASONIC INDUSTRIAL CO

PANASONIC INDUSTRIAL CO

PANASONIC INDUSTRIAL CO

Manufacturer's P/N

PA2013410(B)

RFPA2013

T491A106M010AT

GRM155R71C104KA88D

GRM155R71H102KA01D

GRM1555C1H100JZ01E

500R07S1R2BV4TD

GRM1555C1H2R0BZ01E

GRM1555C1H3R0BZ01E

GRM1555C1H3R9CZ01E

142-0741-851

0603HC-24NXJLW

MPSS100-4-C

RMC1/16SJPTH

ERJ-2GEJ560

ERJ-2RKF1001

ERJ-2RKF3650

10 of 19

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

DS120227

RFPA2013

Typical Performance: 2550MHz to 2650MHz Application Circuit

DS120227

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

11 of 19

RFPA2013

43

42

41

40

47

46

45

44

39

38

37

2.55

Typical Performance: 2550MHz to 2650MHz Application Circuit

OIP3 versus Frequency (15dBm Tones)

Output Power & Icc versus Input Power @ 2600MHz

30

+25°C

-40°C

+85°C

25

Pout_25C

Pout_85C

Icc_-40C

Pout_-40C

Icc_25C

Icc_85C

20

2.57

2.63

2.65

15

10

5

2.59

2.61

Frequency (GHz)

260

240

220

200

180

160

0

-10 -8 -6 -4 -2 0 2 4 6

Input Power (dBm)

8 10 12 14 16

140

OIP3 versus Output Power (2600MHz)

47

46

45

44

43

42

41

40

39

38

37

10 11 12 13 14 15 16 17

Output Power Per Tone (dBm)

18

+25°C

-40°C

+85°C

19 20

ACPR versus WCDMA Output Power (25C)

-40

-45

-50

-55

-60

-65

-70

-75

-80

8

WCDMA_TM1_64DPCH_1C

10.3dB PAR at 0.01%

9 10 11 12 13 14 15

Channel Power Out (dBm)

16

2.57GHz

2.6GHz

2.62GHz

17 18 19

ACPR versus WCDMA Output Power (2600MHz)

WCDMA_TM1_64DPCH_1C

10.3dB PAR at 0.01%

-60

-65

-70

-75

-80

8

-40

-45

-50

-55

+25°C

-40°C

+85°C

9 10 11 12 13 14 15

Channel Power Out (dBm)

16 17 18 19

12 of 19

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

DS120227

Evaluation Board Schematic

2550MHz to 2650MHz Application Circuit

RFPA2013

Evaluation Board Bill of Materials (BOM)

2550MHz to 2650MHz Application Circuit

Reference Designator Manufacturer Description

Evaluation Board

GaAs HBT Power Amplifier

CAP, 10

F, 20%, 10V, TANT-A

CAP, 0.1

F, 10%, 16V, X7R, 0402

CAP, 1000pF, 10%, 50V, X7R, 0402

CAP, 10pF, 5%, 50V, C0G, 0402

CAP, 33pF, 5%, 50V, C0G, 0402

CAP, 0.8pF, +/-0.1pF, 50V, HI-Q, 0402

CAP, 1.2pF, +/-0.1pF, 50V, HI-Q, 0402

CAP, 1.8pF, +/-0.1pF, 50V, HI-Q, 0402

CONN, SMA, END LNCH, MINI, FLT, 0.068"

IND, 24nH, 5%, W/W, 0603

CONN, HDR, ST, PLRZD, 4-PIN, 0.100"

RES, 0

Ω, 0402

RES, 470

Ω, 5%, 1/16W, 0402

RES, 1K, 5%, 1/16W, 0402

RES, 365

Ω, 1%, 1/16W, 0402

DO NOT PLACE (DNP)

C3

C4

C6

C7

U1

C1

C2

C8

C9, C18

J1-J2

L1

P1

R1

R2

R3

R4

C5, C10-C17, C19-C23, R5-R6

DDI

RFMD

Kemet

Murata Electronics

Murata Electronics

Murata Electronics

Murata Electronics

Johanson Technology

Johanson Technology

Johanson Technology

Emerson Networks

Coilcraft, Inc.

ITW Pancon

Kamaya, Inc

Kamaya, Inc

Kamaya, Inc

Panasonic Industrial Co.

Manufacturer's P/N

PA2013410(B)

RFPA2013

T491A106M010AT

GRM155R71C104KA88D

GRM155R71H102KA01D

GRM1555C1H100JZ01E

GRM1555C1H330JZ01E

500R07S0R8BV4TD

500R07S1R2BV4TD

500R07S1R8BV4TD

142-0741-851

0603HC-24NXJLW

MPSS100-4-C

RMC1/16SJPTH

RMC1/16S-471JTH

RMC1/16S-102JTH

ERJ-2RKF3650X

DS120227

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

13 of 19

RFPA2013

Typical Performance: 2600MHz to 2700MHz Application Circuit

14 of 19

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

DS120227

RFPA2013

44

43

42

41

47

46

45

40

39

38

37

2.60

Typical Performance: 2600MHz to 2700MHz Application Circuit

OIP3 versus Frequency (15dBm Tones)

+25°C

-40°C

+85°C

42

41

40

39

38

37

10

47

46

45

44

43

11

2.62

2.64

2.66

Frequency (GHz)

2.68

OIP3 versus Output Power (2650MHz)

+25°C

-40°C

+85°C

12 13 14 15 16 17

Output Power Per Tone (dBm)

18 19

2.70

20

30

25

20

15

10

5

Output Power & Icc versus Input Power @ 2650MHz

Pout_25C

Pout_85C

Icc_-40C

Pout_-40C

Icc_25C

Icc_85C

260

240

220

200

180

160

0

-10 -8 -6 -4 -2 0 2 4 6

Input Power (dBm)

8 10 12 14 16

140

ACPR versus WCDMA Output Power (25C)

-40

-45

-50

-55

-60

-65

-70

-75

-80

8

WCDMA_TM1_64DPCH_1C

9 10 11 12 13 14

Channel Power Out (dBm)

15 16

2.62GHz

2.65GHz

2.69GHz

17 18 19

ACPR versus WCDMA Output Power (2650MHz)

-60

-65

-70

-75

-80

8

-40

-45

-50

-55

+25°C

-40°C

+85°C

9 10 11 12 13 14 15

Channel Power Out (dBm)

16 17 18 19

DS120227

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

15 of 19

RFPA2013

Evaluation Board Schematic

2600MHz to 2700MHz Application Circuit

Evaluation Board Bill of Materials (BOM)

2600MHz to 2700MHz Application Circuit

Reference Designator Manufacturer Description

Evaluation Board

GaAs HBT Power Amplifier

CAP, 10

F, 20%, 10V, TANT-A

CAP, 0.1

F, 10%, 16V, X7R, 0402

CAP, 1000pF, 10%, 50V, X7R, 0402

CAP, 10pF, 5%, 50V, C0G, 0402

CAP, 1.8pF, +/-0.1PF, 50V, Hi-Q, 0402

CAP, 33pF, 5%, 50V, C0G, 0402

CAP, 0.9pF, +/-0.1pF, 50V, HI-Q, 0402

CAP, 2.7pF, +/-0.1pF, 50V, HI-Q, 0402

CONN, SMA, END LNCH, MINI, FLT, 0.068"

IND, 24nH, 5%, W/W, 0603

CONN, HDR, ST, PLRZD, 4-PIN, 0.100"

RES, 0

Ω, 0402

RES, 470

Ω, 5%, 1/16W, 0402

RES, 1K, 5%, 1/16W, 0402

RES, 365

Ω, 1%, 1/16W, 0402

DO NOT PLACE (DNP)

C4

C18

C6

C7

U1

C1

C2

C3

C9

J1-J2

L1

P1

R1

R2

R3

R4

C5, C8, C10-C17, C19-C23, R5-R6

DDI

RFMD

Kemet

Murata Electronics

Murata Electronics

Murata Electronics

Johanson Technology

Murata Electronics

Johanson Technology

Johanson Technology

Emerson Networks

Coilcraft, Inc.

ITW Pancon

Kamaya, Inc

Kamaya, Inc

Kamaya, Inc

Panasonic Industrial Co.

Manufacturer's P/N

PA2013410(B)

RFPA2013

T491A106M010AT

GRM155R71C104KA88D

GRM155R71H102KA01D

GRM1555C1H100JZ01E

500R07S1R8BV4TD

GRM1555C1H330JZ01E

500R07S0R9BV4TD

500R07S2R7BV4TD

142-0741-851

0603HC-24NXJLW

MPSS100-4-C

RMC1/16SJPTH

RMC1/16S-471JTH

RMC1/16S-102JTH

ERJ-2RKF3650X

16 of 19

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

DS120227

Evaluation Board Assembly Drawing

For 2140MHz, 2600MHz, 2650MHz Application Circuits

RFPA2013

Note: See schematic and BOM for band-specific component requirements. Many components in the drawing above are Do-Not-

Place.

DS120227

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

17 of 19

RFPA2013

7

8

9

10

4

5

6

Pin

1

2

3

11

12

13

14

15

16

EPAD

Function

NC

RFIN

RFIN

Pin Names and Description

Description

No internal connection. EVB can be ground or no connect.

RF input. External DC block is required.

RF input. External DC block is required.

NC

NC

NC

No internal connection. EVB can be ground or no connect.

No internal connection. EVB can be ground or no connect.

No internal connection. EVB can be ground or no connect.

NC

NC

No internal connection. EVB can be ground or no connect.

No internal connection. EVB can be ground or no connect.

NC No internal connection. EVB can be ground or no connect.

RFOUT/VCC

RF output and collector bias

RFOUT/VCC RF output and collector bias

NC No internal connection. EVB can be ground or no connect.

VBIAS

Supply voltage for the active bias circuit

No internal connection. EVB can be ground or no connect.

NC

VREF

NC

Bias control pin. Can also be used as a power-down pin.

No internal connection. EVB can be ground or no connect.

GND DC and RF ground. Must be soldered to EVB ground plane over a bed of vias for thermal and RF performance. Solder/epoxy voids under the EPAD will result in excessive junction temperatures causing permanent damage.

Pin Out

NC

1

RFIN

2

RFIN

3

NC

4

16 15 14 13

BIAS

CIRCUIT

12

NC

11

RFOUT/VCC

10

RFOUT/VCC

9 NC

5 6 7 8

18 of 19

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

DS120227

RFPA2013

PIN 1 DOT

BY MARKING

Package Drawing

Dimensions in millimeters [inches]

Refer to drawing posted at www.rfmd.com for tolerances.

3.000±0.050

1.700±0.050

Exp.DAP

3.000±0.050

PA2013

YYWW

Trace Code

.500 Bsc

TOP VIEW

.850±0.05

.230±0.050

1.500

Ref.

BOTTOM VIEW

PIN #1 IDENTIFICATION

CHAMFER 0.300 X 45°

.375±0.050

1.700±0.050

Exp.DAP

0.000-0.050

TOP VIEW

.203 Ref.

YYWW = date code, YY = year, WW = week

Trace Code assigned by SubCon

DS120227

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical support, contact RFMD at (+1) 336-678-5570 or [email protected]

19 of 19

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
