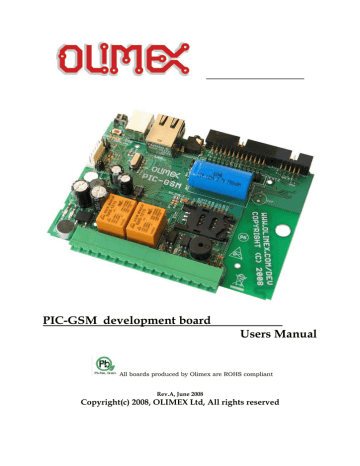

PIC-GSM development board

Users Manual

All boards produced by Olimex are ROHS compliant

Rev.A, June 2008

Copyright(c) 2008, OLIMEX Ltd, All rights reserved

INTRODUCTION:

PIC-GSM is excellent board for adding remote monitoring and control in remote places by GSM cellular network or ethernet or internet network. Do you want to switch on/off your local heating in your mountain house? To monitor the temperature at up to 8 remote points up to 30 meters away from the module? To listen what happens in your house with silent call after you get message for alarm status? Then PIC-GSM is the board for you! It contains PIC18F97J60 microcontroller and 3-band GSM GPRS module 900/1800/1900Mhz inside which covers most used GSM networks around the world. The GSM antenna is build in the board so no need for external expensive GSM antennas. PIC-GSM have two relays 240VAC/10A, two opto-isolated inputs which could be connected to alarm sensors or just buttons for user actions (like call pre-loaded phone numbers), on-board temperature sensor and connector for additional up to 8 addressable remote temperature sensors at up to 30 meter distance from the module.

Normal phone hook can be connected to this board and to allow user to speak, listen, taking and placing phone calls as normal stand alone cellular phone. PIC-GSM can be connected to PC with the USB connector it have and it is recognized as modem which could be used to add internet via GPRS to your computer (imagine how useful is this for your mountain house if there is no internet but only cellular network!). If you have internet connection you can monitor the same parameters on the WEB page.

BOARD FEATURES:

ICSP/ICD connector for programming and debugging with PIC-

ICD2, PIC-ICD2-POCKET, PIC-ICD2-TINY;

USB 2.0 type B connector allow board to be interfaced to PC host;

GSM/GPRS module 900/1800/1900Mhz;

Li-ion backup battery;

PIC18F97J60-I/PT;

Ethernet RJ45 isolated connector.

GSM Audio In and Out;

RS232 connector;

Quartz crystal 20Mhz;

Two relays 10A/250VAC;

Two digital inputs;

Analog input;

Temperature sensor;

5V voltage regulator;

EXT connector for available GPIO;

Four mounting holes 3,3 mm (0,13");

FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print;

Dimensions 124x90 mm (4880 x 3540 mils);

ELECTROSTATIC WARNING:

The PIC-GSM board is shipped in protective anti-static packaging. The board must not be subject to high electrostatic potentials. General practice for working with static sensitive devices should be applied when working with this board.

BOARD USE REQUIREMENTS:

Cables:

1.8 meter USB A-B cable to connect to USB host on PC.

Crossed ethernet cable if the PIC-GSM module is connected to

PC or straight if the module is connected to router or ethernet switch.

Hardware: PIC-ICD2 , PIC-ICD2-POCKET , PIC-ICD2-TINY

Or any compatible tool for programming and/or debugging

!!!Warning!!!

When you want to program this microcontroller with PIC-ICD2, PIC-ICD2-POCKET or PIC-ICD2-TINY, before connecting the programmer to your target board, you should first connect the programmer to your computer and open

MPLAB. There, first from menu Configure – Select Device – choose the microcontroller you are about to program, then from menu Programmer – Select Programmer – choose MPLAB

ICD 2, wait while MPLAB is downloading operation system, and after ICD2 is connected – check in menu Programmer –

Settings – Power – there is option – Power target circuit from

MPLAB ICD 2 – this option should be forbidden, you could not select it. Now it is safe to connect the programmer to your target board.

Software:

Microchip MPLAB IDE + C18 C compiler for developing your own applications

The demo software show basic functionality and how to place / take phone calls (C source and HEX) or how to remote control via SMS and WEB page(C source and HEX)

Important: If your board does not work, first try to charge the battery as you power supply the board for few hours.

PROCESSOR FEATURES:

Ethernet Features:

IEEE 802.3 compatible Ethernet Controller

Integrated MAC and 10Base-T PHY

8-Kbyte Transmit/Receive Packet Buffer SRAM

Supports One 10Base-T Port

Programmable Automatic Retransmit on Collision

Programmable Padding and CRC Generation

Programmable Automatic Rejection of Erroneous Packets

Activity Outputs for 2 LED Indicators

Buffer:

Configurable transmit/receive buffer size

Hardware-managed circular receive FIFO

Byte-wide random and sequential access

Internal DMA for fast memory copying

Hardware assisted checksum calculation for various protocols

MAC:

Support for Unicast, Multicast and Broadcast packets

Programmable Pattern Match of up to 64 bytes within packet at

– user-defined offset

Programmable wake-up on multiple packet formats

PHY:

Wave shaping output filter

Flexible Oscillator Structure:

Selectable System Clock derived from Single 25 MHz External

Source:

2.778 to 41.667 MHz

Internal 31 kHz Oscillator

Secondary Oscillator using Timer1 @ 32 kHz

Fail-Safe Clock Monitor:

Allows for safe shutdown if oscillator stops

Two-Speed Oscillator Start-up

External Memory Bus:

Address Capability of up to 2 Mbytes

8-Bit or 16-Bit Interface

12-Bit, 16-Bit and 20-Bit Addressing modes

Peripheral Highlights:

High-Current Sink/Source: 25 mA/25 mA on PORTB and PORTC

Five Timer modules (Timer0 to Timer4)

Four External Interrupt pins

Two Capture/Compare/PWM (CCP) modules

Three Enhanced Capture/Compare/PWM (ECCP) modules:

One, two or four PWM outputs

Selectable polarity

Programmable dead time

Auto-shutdown and auto-restart

Up to Two Master Synchronous Serial Port (MSSP) modules supporting SPI and I2C™ Master and Slave modes

Up to Two Enhanced USART modules:

Supports RS-485, RS-232 and LIN 1.2

Auto-wake-up on Start bit

Auto-Baud Detect (ABD)

10-Bit, Up to 16-Channel Analog-to-Digital Converter module (A/D):

Auto-acquisition capability

Conversion available during Sleep

Dual Analog Comparators with Input Multiplexing

Parallel Slave Port (PSP) module (100-pin devices only)

Special Microcontroller Features:

5.5V Tolerant Inputs (digital-only pins)

Low-Power, High-Speed CMOS Flash Technology:

Self-reprogrammable under software control

C compiler Optimized Architecture for Reentrant Code

Power Management Features:

Run: CPU on, peripherals on

Idle: CPU off, peripherals on

Sleep: CPU off, peripherals off

Priority Levels for Interrupts

8 x 8 Single-Cycle Hardware Multiplier

Extended Watchdog Timer (WDT):

Programmable period from 4 ms to 134s

Single-Supply 3.3V In-Circuit Serial Programming™ (ICSP™) via

Two Pins

In-Circuit Debug (ICD) with 3 Breakpoints via Two Pins

Operating Voltage Range of 2.35V to 3.6V (3.1V to 3.6V using

Ethernet module)

On-Chip 2.5V Regulator

BLOCK DIAGRAM:

PIC18F97J60 (100-PIN) BLOCK DIAGRAM

MEMORY MAP:

MEMORY MAPS FOR PIC18F97J60 FAMILY DEVICES
