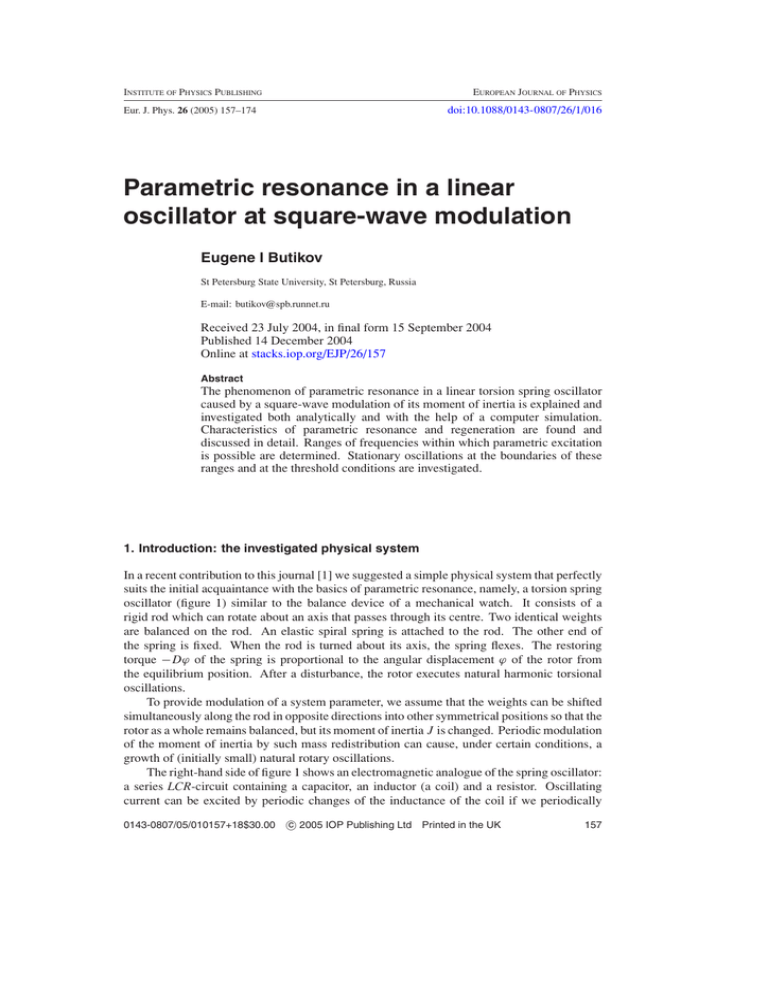

INSTITUTE OF PHYSICS PUBLISHING
Eur. J. Phys. 26 (2005) 157–174
EUROPEAN JOURNAL OF PHYSICS
doi:10.1088/0143-0807/26/1/016
Parametric resonance in a linear
oscillator at square-wave modulation
Eugene I Butikov
St Petersburg State University, St Petersburg, Russia
E-mail: [email protected]
Received 23 July 2004, in final form 15 September 2004
Published 14 December 2004
Online at stacks.iop.org/EJP/26/157
Abstract
The phenomenon of parametric resonance in a linear torsion spring oscillator
caused by a square-wave modulation of its moment of inertia is explained and
investigated both analytically and with the help of a computer simulation.
Characteristics of parametric resonance and regeneration are found and
discussed in detail. Ranges of frequencies within which parametric excitation
is possible are determined. Stationary oscillations at the boundaries of these
ranges and at the threshold conditions are investigated.
1. Introduction: the investigated physical system
In a recent contribution to this journal [1] we suggested a simple physical system that perfectly
suits the initial acquaintance with the basics of parametric resonance, namely, a torsion spring
oscillator (figure 1) similar to the balance device of a mechanical watch. It consists of a
rigid rod which can rotate about an axis that passes through its centre. Two identical weights
are balanced on the rod. An elastic spiral spring is attached to the rod. The other end of
the spring is fixed. When the rod is turned about its axis, the spring flexes. The restoring
torque −Dϕ of the spring is proportional to the angular displacement ϕ of the rotor from
the equilibrium position. After a disturbance, the rotor executes natural harmonic torsional
oscillations.
To provide modulation of a system parameter, we assume that the weights can be shifted
simultaneously along the rod in opposite directions into other symmetrical positions so that the
rotor as a whole remains balanced, but its moment of inertia J is changed. Periodic modulation
of the moment of inertia by such mass redistribution can cause, under certain conditions, a
growth of (initially small) natural rotary oscillations.
The right-hand side of figure 1 shows an electromagnetic analogue of the spring oscillator:
a series LCR-circuit containing a capacitor, an inductor (a coil) and a resistor. Oscillating
current can be excited by periodic changes of the inductance of the coil if we periodically
c 2005 IOP Publishing Ltd Printed in the UK
0143-0807/05/010157+18$30.00 157
158
E I Butikov
Figure 1. Schematic image of the torsion spring oscillator with a rotor whose moment of inertia
is forced to vary periodically (left), and an analogous LCR-circuit with a coil whose inductance is
modulated (right).
move an iron core in and out of the coil. Such periodic changes of the inductance are quite
similar to the changes of the moment of inertia by mass redistribution
in the mechanical system,
√
which cause modulation of the natural frequency ω0 = D/J of the torsional oscillations of
the rotor.
The suggested physical system is linear and hence has the advantage of simplicity
compared, say, with a pendulum whose length is modulated (see, for example, [2–4]) or
whose pivot is forced to move periodically up and down [5]. We have explained and
quantitatively investigated in [1] the parametric excitation in this linear system caused by
a smooth (sinusoidal) forced motion of the weights.
2. The square-wave modulation of the moment of inertia
This paper is concerned with a periodic square-wave modulation of the moment of inertia.
The square-wave modulation provides an alternative and maybe a more straightforward way to
understand and describe quantitatively the phenomenon of parametric resonance. A computer
program [6] developed by the author simulates such a physical system and aids greatly in
explaining the phenomenon.
In the case of the square-wave modulation, abrupt, almost instantaneous increments and
decrements in the moment of inertia occur sequentially, separated by equal time intervals. We
denote these intervals by T /2, so that T equals the period of the variation in the moment of
inertia (the period of modulation). We can easily understand how the square-wave modulation
can produce considerable oscillation of the rotor, if the period and phase of modulation are
chosen properly.
For example, suppose that the weights are drawn closer to each other (and to the axis)
at the instant at which the oscillating rotor passes through the equilibrium position, when its
angular velocity is almost maximal. While the weights are being radially moved, the angular
momentum of the system remains constant. Thus, the resulting reduction in the moment of
inertia is accompanied by an increment in the angular velocity, and the rotor acquires additional
energy. The greater the angular velocity, the greater the increment in energy. This additional
energy is supplied by the source that moves the weights along the rod.
On the other hand, if the weights are instantly moved apart along the rotating rod, the
angular velocity and the energy of the rotor diminish. The decrease in energy is transmitted
back to the source. In order that increments in energy occur regularly and exceed the amounts
of energy returned, i.e., in order that, as a whole, the modulation of the moment of inertia
Parametric resonance in a linear oscillator at square-wave modulation
159
regularly feeds the oscillator with energy, the period and phase of modulation must satisfy
certain conditions.
For instance, let the weights be drawn closer to and moved apart from one another twice
during one mean period of the natural oscillation. Furthermore, let the weights be drawn
closer at the instant of maximal angular velocity, so that the rotor gains energy. After quarter
period of the natural rotary oscillation the weights are moved apart, and this occurs almost
at the instant of extreme deflection, when the angular velocity is nearly zero. Therefore, this
particular motion causes no change in the angular velocity and kinetic energy of the rotor. Thus
modulating the moment of inertia at a frequency twice the mean natural frequency generates
the greatest growth of the amplitude, provided that the phase of the modulation is chosen in
the way described above.
It is evident that the energy of the oscillator is increased not only when two full cycles of
variation in the parameter occur during one natural period of oscillation, but also when two
cycles occur during three, five or any odd number of natural periods. We shall see later that
the delivery of energy, though less efficient, is also possible if two cycles of modulation occur
during an even number of natural periods.
3. Conditions and peculiarities of parametric resonance
There are several important differences that distinguish parametric resonance from the ordinary
resonance caused by an external force exerted directly on the system. Parametric resonance is
possible when one of the following conditions for the frequency ω (or for the period T ) of a
parameter modulation is fulfilled:
ω = 2ω0 /n,
T = nT0 /2,
n = 1, 2, . . . .
(1)
Parametric resonance is possible not only at the frequencies ωn given in equation (1),
but also in ranges of frequencies ω lying on either side of the values ωn (in the ranges of
instability). These intervals become wider as the depth of modulation is increased. An
important difference between parametric excitation and forced oscillations is related to the
dependence of the growth of energy on the energy already stored in the system. While for
forced excitation the increment in energy during one period is proportional to the amplitude
of oscillations, i.e., to the square root of the energy, at parametric resonance the increment in
energy is proportional to the energy stored in the system.
Energy losses caused by friction are also proportional to the energy already stored. In the
case of direct forced excitation energy losses restrict the growth of the amplitude because these
losses grow with the energy faster than does the investment in energy arising from the work
done by the external force. In the case of parametric resonance, both the investment in energy
caused by the modulation of a parameter and the frictional losses are proportional to the energy
stored, and so their ratio does not depend on the amplitude. Therefore, parametric resonance
is possible only when a threshold is exceeded, that is, when the increment in energy during
a period (caused by the parameter variation) is larger than the amount of energy dissipated
during the same time. The critical (threshold) value of the modulation depth depends on
friction. However, if the threshold is exceeded, the frictional losses of energy in a linear
system cannot restrict the growth of the amplitude.
In a nonlinear system, the natural period depends on the amplitude of oscillations. If
conditions for parametric resonance are fulfilled at small oscillations and the amplitude is
growing, the conditions of resonance become violated at large amplitudes. In a real system
the growth of the amplitude is restricted by nonlinear effects.
160
E I Butikov
4. The threshold of parametric excitation
We can use arguments employing the conservation laws to evaluate the modulation depth
which corresponds to the threshold of parametric excitation. Let the changes in the moment
of inertia J of the rotor occur between maximal J1 and minimal J2 values equal to J0 (1 + m)
and J0 (1 − m), respectively, where m is the dimensionless depth of modulation. During abrupt
radial displacements of the weights along the rod, the angular momentum L = J ω of the rotor
is conserved. Therefore, it is convenient to use the expression Ekin = L2 /(2J ), which gives
the kinetic energy of the rotor in terms of L and J . For the increment E in the rotor kinetic
energy which occurs during an abrupt shift of the weights towards the axis, when the moment
of inertia decreases from the value J1 = J0 (1 + m) to the value J2 = J0 (1 − m), we can write
1
1
L2
L2
−
≈ 2m
≈ 2mEkin .
(2)
E =
2J0 1 − m 1 + m
2J0
The approximate expressions in (2) are valid for small values of the modulation depth (m 1).
If the event occurs near the equilibrium position of the rotor, when the total energy E of the
pendulum is approximately its kinetic energy Ekin , equation (2) shows that the fractional
increment in the total energy E/E approximately equals twice the value of the modulation
depth m: E/E ≈ 2m.
When the frequencies and phases have those values which are favourable for the most
effective delivery of energy, the abrupt displacement of the weights toward the ends of the rod
occurs at the instant when the rotor attains its greatest deflection (more precisely, when the
rotor is very near it). At this instant the angular velocity of the rotor is almost zero, and so this
radial displacement of the weights into their previous positions causes nearly no decrement in
the energy.
For the principal resonance (n = 1) the investment in energy occurs twice during the
natural period T0 of oscillations. That is, the fractional increment in energy E/E during
one period approximately equals 4m. A process in which the increment in energy E during
a period is proportional to the energy stored E (E ≈ 4mE) is characterized on average by
the exponential growth of the energy with time:
E(t) = E0 exp(αt).
(3)
In this case, the index of growth α is proportional to the depth of modulation m of the
moment of inertia: α = 4m/T0 . When the modulation is exactly tuned to the principal
resonance (T = T0 /2), the decrease of energy is caused almost only by friction. Dissipation
of energy due to viscous friction during an integral number of natural cycles (for t = nT0 ) is
described by the following expression:
E(t) = E0 exp(−2γ t).
(4)
Comparing equations (3) and (4), we obtain the following estimate for the threshold
(minimal) value mmin of the depth of modulation corresponding to the excitation of the
principal parametric resonance:
mmin =
1
π
γ T0 =
.
2
2Q
(5)
Here, we introduced the dimensionless quality factor Q = ω0 /(2γ ) to characterize friction in
the system.
The plot of the angular velocity and the phase trajectory of parametric oscillations
occurring at the threshold conditions, equation (5), are shown in figure 2. This mode of
Parametric resonance in a linear oscillator at square-wave modulation
161
Figure 2. The time-dependent graphs and the phase trajectory of stationary oscillations at the
threshold condition m ≈ π/2Q for T = T0 /2.
Figure 3. Exponential growth of the amplitude of oscillations at parametric resonance of the first
order (n = 1).
steady oscillations (which have a constant amplitude in spite of the dissipation of energy) is
called parametric regeneration.
For the third resonance (T = 3T0 /2) the threshold value of the depth of modulation is
three times greater than its value for the principal resonance: mmin = 3π/(2Q). In this instance
two cycles of the parametric variation occur during three full periods of natural oscillations.
Radial displacements of the weights again happen at the most favourable moments, and so the
same investment in energy occurs during an interval that is three times longer than the interval
for the principal resonance.
When the depth of modulation exceeds the threshold value, the energy of oscillations
increases exponentially with time. The growth of the energy again is described by equation (3).
However, now the index of growth α is determined by the amount by which the energy
delivered through parametric modulation exceeds the simultaneous losses of energy caused
by friction: α = 4m/T0 − 2γ . The amplitude of parametrically excited oscillations also
increases exponentially with time (figure 3): a(t) = a0 exp(βt). The index β in the growth
of amplitude is one-half the index of the growth in energy. For the principal resonance,
162
E I Butikov
when the investment in energy occurs twice during one natural period of oscillation, we have
β = 2m/T0 − γ = mω0 /π − γ .
5. Differential equation for parametric oscillations
We next consider a more rigorous mathematical treatment of parametric resonance under
square-wave modulation of the parameter. During the time intervals (0, T /2) and (T /2, T ),
the value of the moment of inertia is constant, and the motion of the rotor can be considered
as a free oscillation described by a linear differential equation. However, the coefficients in
this equation are different for the adjacent time intervals (0, T /2) and (T /2, T ):
1 2
ω0 ϕ + 2γ ϕ̇
1+m
1 2
ω0 ϕ + 2γ ϕ̇
ϕ̈ = −
1−m
ϕ̈ = −
for
0 < t < T /2,
(6)
for
T /2 < t < T .
(7)
√
Here, ω0 = D/J0 is the natural frequency of the oscillator and γ is the damping constant
characterizing the strength of viscous friction. Both these quantities correspond to the mean
value J0 = 12 (J1 + J2 ) of the moment of inertia. For small and moderate values of m the
moment of inertia equals J0 when the weights are near the half-way point between their
extreme positions on the rod. For large m this is not the case because the moment of inertia
depends on the square of the distance of the weights from the axis of rotation.
At each instant tn = nT /2 (n = 1, 2, . . .) of an abrupt change in the moment of inertia
we must make a transition from one of these linear equations (6) and (7) to the other. During
each half-period T /2 the motion of the oscillator is a segment of some harmonic (or damped)
natural oscillation. An analytical investigation of parametric excitation can be carried out by
fitting to one or another known solution to the linear equations (6) and (7) for consecutive
adjacent time intervals.
The initial conditions for each subsequent time interval are chosen according to the
physical model in the following way. Each initial value of the angular displacement ϕ equals
the value ϕ(t) reached by the oscillator at the end of the preceding time interval. The initial
value of the angular velocity ϕ̇ is related to the angular velocity at the end of the preceding
time interval by the law of conservation of the angular momentum:
(1 + m)ϕ̇1 = (1 − m)ϕ̇2 .
(8)
In equation (8) ϕ̇1 is the angular velocity at the end of the preceding time interval, when
the moment of inertia of the rotor has the value J1 = J0 (1 + m), and ϕ̇2 is the initial value for
the following time interval, during which the moment of inertia is equal to J2 = J0 (1 − m).
The change in the angular velocity at an abrupt variation of the inertia moment from the value
J2 to J1 can be found in the same way.
That we may use the conservation of angular momentum, as expressed in equation (8),
is allowed because, at sufficiently rapid displacement of the weights along the rotor, we can
neglect the influence of the spring and consider the rotor as if it were freely rotating about its
axis. This assumption is valid provided the duration of the displacement of the weights is a
small portion of the natural period.
Considering conditions for which equations (6) and (7) yield solutions with increasing
amplitudes, we can determine the ranges of frequency ω near the values ωn = 2ω0 /n, within
which the state of rest is unstable for a given modulation depth m. In these ranges of instability
an arbitrarily small deflection from equilibrium is sufficient for the progressive growth of small
initial oscillations.
Parametric resonance in a linear oscillator at square-wave modulation
163
6. The mean natural period at large depth of modulation
The threshold for the parametric excitation of the torsion pendulum is determined above
for the resonant situations in which two cycles of the parametric modulation occur during
one natural period or during three natural periods of oscillation. The estimate obtained,
equation (5), is valid for small values of the modulation depth m.
For large values of the modulation depth m, √
the notion of a natural period needs a
more precise definition. Let T0 = 2π/ω0 = 2π J0 /D be the period of oscillation of
the rotor when the weights are fixed in some middle positions, for which the moment of
inertia equals
J0 . The period is somewhat longer when the weights are moved further apart:
√
(1 + m/2). The period is shorter when the weights are moved closer to
T1 = T0 1 + m ≈ T0√
one another: T2 = T0 1 − m ≈ T0 (1 − m/2).
It is convenient to define the average period Tav not as the arithmetic mean 12 (T1 + T2 ),
but rather as the period that corresponds to the arithmetic mean frequency ωav = 12 (ω1 + ω2 ),
where ω1 = 2π/T1 and ω2 = 2π/T2 . So we define Tav by the relation
2π
2T1 T2
.
(9)
=
ωav
(T1 + T2 )
The period T of the parametric modulation which is exactly tuned to any of the parametric
resonances is determined not only by the order n of the resonance, but also by the depth of
modulation m. In order to satisfy the resonant conditions, the increment in the phase of natural
oscillations during one cycle of modulation must be equal to π, 2π, 3π, . . . , nπ, . . . . During
the first half-cycle the phase increases by ω1 T /2, and during the second half-cycle by ω2 T /2.
Consequently, instead of the approximate condition expressed by equation (1), we obtain
Tav =
π
ω1 + ω2
Tav
T = nπ,
or
T =n
(10)
=n .
2
ωav
2
Thus, for a parametric resonance of some definite order n, the condition for exact tuning
can be expressed in terms of the two natural periods, T1 and T2 . This condition is T = nTav /2,
where Tav is defined by equation (9). For moderate values of m it is possible to use approximate
expressions for the average frequency and period:
3
3
1
ω0
1
≈ ω0 1 + m2 ,
Tav ≈ T0 1 − m2 .
ωav =
+√
√
2
8
8
1−m
1+m
The difference between Tav and T0 reveals itself in terms proportional to the square of the
depth of modulation m.
7. Frequency ranges for parametric resonances of odd orders
In order to determine the boundaries of the frequency ranges of parametric instability
surrounding the resonant values T = Tav /2, T = Tav , T = 3Tav /2, . . . , we can consider
stationary oscillations that occur when the period of modulation T corresponds to one of
the boundaries. These stationary oscillations can be represented as an alternation of natural
oscillations with the periods T1 and T2 . In the absence of friction, the graphs of such oscillations
are formed by segments of non-damped sine curves with the corresponding periods.
7.1. Main interval of parametric instability
We examine first the vicinity of the principal resonance occurring at T = Tav /2. Suppose that
the period T of the parametric variation is a little shorter than the resonant value T = Tav /2,
164
E I Butikov
Figure 4. Stationary parametric oscillations at the lower boundary of the principal interval of
instability (near T = Tav /2).
so that T corresponds to the left boundary of the interval of instability. In this case, a little less
than a quarter of the mean natural period Tav elapses between consecutive abrupt increases and
decreases of the moment of inertia. The graph of the angular velocity ϕ̇(t) for this periodic
stationary process has the characteristic pattern shown in figure 4. The segments of the graphs
of free oscillations (which occur during time intervals during which the moment of inertia
is constant) are alternating parts of sine or cosine curves with the periods T1 and T2 . These
segments are symmetrically truncated on both sides.
To find conditions at which such stationary oscillations take place, we can write the
expressions for ϕ(t) and ϕ̇(t) during the adjacent intervals in which the oscillator executes
natural oscillations, and then fit these expressions to one another at the boundaries. Such
fitting must provide a periodic stationary process.
We let the origin of time, t = 0, be the instant when the weights are shifted apart.
The angular velocity is abruptly decreased in magnitude at this instant (see figure 4). Then
during the√interval (0, T /2) the graph describes a natural oscillation with the frequency
ω1 = ω0 / 1 + m. It is convenient to represent this motion as a superposition of sine and
cosine waves whose constant amplitudes are A1 and B1 :
ϕ1 (t) = (A1 sin ω1 t + B1 cos ω1 t),
(11)
ϕ̇1 (t) = (A1 ω1 cos ω1 t − B1 ω1 sin ω1 t).
Similarly, during the interval (−T /2,
√ 0) the graph in figure 4 is a segment of natural
oscillation with the frequency ω2 = ω0 / 1 − m:
ϕ2 (t) = (A2 sin ω2 t + B2 cos ω2 t),
(12)
ϕ̇2 (t) = (A2 ω2 cos ω2 t − B2 ω2 sin ω2 t).
To determine the values of constants A1 , B1 and A2 , B2 , we can use the conditions that
must be satisfied when the segments of the graph are joined together, taking into account the
periodicity of the stationary process. At t = 0 the angle of deflection is the same for both ϕ1
and ϕ2 : ϕ1 (0) = ϕ2 (0). From this condition, we find that B1 = B2 . We later denote these
equal constants simply by B. The angular velocity at t = 0 undergoes a sudden change:
(1 + m)ϕ̇1 (0) = (1 − m)ϕ̇2 (0).
This condition gives us the following relation between A2 and A1 : A2 = kA1 = kA
(further on we denote A1 simply as A), where we have introduced a dimensionless quantity k
which depends on the depth of modulation m:
1+m
.
k=
1−m
Parametric resonance in a linear oscillator at square-wave modulation
165
Equations for the constants A and B are determined by the conditions at the instants −T /2
and T /2. For stationary periodic oscillations, corresponding to the principal resonance (and
to all resonances of odd numbers n = 1, 3, . . . in equation (10)), these conditions are
ϕ1 (T /2) = −ϕ2 (−T /2),
(1 + m)ϕ̇1 (T /2) = −(1 − m)ϕ̇2 (−T /2). (13)
Substituting ϕ and ϕ̇ from equation (12) into equation (13), we obtain the system of
homogeneous equations for the unknown quantities A and B:
(S1 − kS2 )A + (C1 + C2 )B = 0,
k(C1 + C2 )A − (kS1 − S2 )B = 0.
(14)
In equation (14), the following notation is used:
C1 = cos(ω1 T /2),
C2 = cos(ω2 T /2),
S1 = sin(ω1 T /2),
S2 = sin(ω2 T /2).
(15)
The homogeneous system of equations (14) for A and B has a non-trivial (non-zero)
solution only if its determinant is zero:
2kC1 C2 − (1 + k 2 )S1 S2 + 2k = 0.
(16)
This condition for the existence of a non-zero solution to equation (14) gives us an
equation for the unknown variable T, which enters equation (16) as the arguments of sine and
cosine functions in S1 , S2 and C1 , C2 . This equation determines the desired boundaries of the
interval of instability. These boundaries T− and T+ are given by the roots of equation (16).
To find approximate solutions T to this transcendental equation, we transform it into a more
convenient form. We first represent in equation (16) the products C1 C2 and S1 S2 as follows:
ωT
ωT
1
1
cos
+ cos ωav T ,
cos
− cos ωav T ,
S1 S2 =
C1 C 2 =
2
2
2
2
where ω = ω2 − ω1 . Then, using the identity cos α = 2 cos2 (α/2) − 1, we reduce
equation (16) to the following form:
ωav T
ωT
= ±|1 − k| cos
.
(17)
2
4
For the boundaries of the instability interval which contains the principal resonance, we
search for a solution T of equation (17) in the vicinity of T = T0 /2. For a given value of the
depth of modulation m, equation (17) in the neighbourhood of T0 /2 ≈ Tav /2 has two solutions
which correspond to the boundaries T− and T+ of the instability interval. The graph of the
angular velocity and the phase diagram for the right boundary of the main interval (n = 1) are
shown in figure 5.
To find the boundaries T− and T+ of the instability interval, we replace T in the argument
of the cosine on the left-hand side of equation (17) by Tav /2 + T , where T T0 . Since
ωav Tav = 2π , we can write the cosine as −sin(ωav T /2). Then equation (17) becomes
(1 + k) cos
ωav T
|1 − k|
ω(Tav /2 + T )
=∓
cos
.
(18)
2
1+k
4
This equation for T can be solved numerically by iteration. We start with T = 0 as
an approximation of the zeroth order, substituting it into the right-hand side of equation (18),
taken, say, with the upper sign. Then the left-hand side of equation (18) gives us the value of T
to the first order. We substitute this first-order value into the right-hand side of equation (18),
and on the left-hand side we obtain T to the second order. This procedure is iterated until a
self-consistent value of T for the left boundary is obtained.
sin
166
E I Butikov
Depth of modulation,%
Figure 5. Stationary parametric oscillations at the upper boundary of the principal interval of
instability (near T = Tav /2).
Period of modulation (natural periods)
Figure 6. Intervals of parametric instability at square-wave modulation of the inertia moment in
the absence of friction.
To determine T for the right boundary (see figure 5), we use the same procedure, taking
the lower sign on the right-hand side of equation (18).
After the substitution of one of the roots T− or T+ of equation (18) into (14) both equations
for A and B become equivalent and allow us to find only the ratio A/B. This limitation means
that the amplitude of stationary oscillations at the boundary of the instability interval can
be arbitrarily large. This amplitude depends on the initial conditions. Nevertheless, these
oscillations have a definite shape which is determined by the ratio of the amplitudes A and B
of the sine and cosine functions whose segments form the pattern of the stationary parametric
oscillation (see figures 4 and 5).
The intervals of instability for the first five parametric resonances are shown in figure 6
for various values of the modulation depth m. The diagram is obtained by the above-discussed
numerical solution by iterations.
To obtain an approximate analytical solution to equation (18) that is valid for small values
of the modulation depth m, we can simplify the expression on the right-hand side by assuming
that k ≈ 1 + m, |1 − k| ≈ m. We may also assume the value of the cosine to be 1. On
the left-hand side of equation (18), the sine can be replaced by its small argument, where
ωav = 2π/Tav . Thus, we obtain the following approximate expression that is valid up to terms
to the second order in m:
m
m 3m2
1
1
1∓
Tav =
1∓ −
T0 .
(19)
T∓ =
2
π
2
π
8
Parametric resonance in a linear oscillator at square-wave modulation
167
Figure 7. The graph of the angular velocity and the phase trajectory of stationary parametric
oscillations at the left boundary of the interval of instability near T = 3Tav /2.
7.2. Third-order interval of parametric instability
In a similar way we can determine the boundaries of the instability interval in the vicinity of a
resonance of the higher order n = 3. At this resonance two cycles of the parametric variation
occur during three natural periods of oscillation (T = 3Tav /2). Considering stationary
oscillations at the boundaries of the third interval (figure 7), we get the same equations (14)
for A and B, as well as equation (17) for the values of the period of modulation. However,
now we should search for a solution to equations (14) in the vicinity of T = 3Tav /2. The
boundaries of this interval, obtained by a numerical solution, are also shown in figure 6.
For small values of the depth of modulation m, we can find approximate analytic
expressions for the lower and the upper boundaries of the interval that are valid up to quadratic
terms in m:
m
m
9m2
3
3
∓
Tav =
∓
−
T0 .
T∓ =
(20)
2 2π
2 2π
16
In this approximation, the third interval has the same width (m/π )T0 as does the interval
of instability in the vicinity of the principal resonance. However, this interval is distinguished
9
m 2 T0 .
by greater asymmetry: its central point is displaced to the left of the value T = 32 T0 by 16
8. Frequency ranges for parametric resonances of even orders
For small and moderate square-wave modulation of the moment of inertia, parametric
resonance of the order n = 2 (one cycle of the parametric variation during one natural period
of oscillation) is relatively weak compared to the resonances n = 1 and n = 3 considered
above. In the case in which n = 2 the abrupt changes of the moment of inertia induce both
an increase and a decrease of the energy only once during each natural period. The growth
of oscillations occurs only if the increase in energy at the instant when the weights are drawn
closer is greater than the decrease in energy when the weights are drawn apart. This is possible
only if the weights are shifted towards the axis when the angular velocity of the rotor is greater
in magnitude than it is when they are shifted apart. For T ≈ Tav , these conditions can be
fulfilled only because there is a small difference between the natural periods T1 and T2 of the
rotor, where T1 is the period with the weights shifted apart and T2 is the period with them
shifted together. This difference is proportional to m.
The growth of oscillations at parametric resonance of the second order is shown in
figure 8. In this case, the investment in energy during a period is proportional to the square
of the depth of modulation m, while in the cases of resonances with n = 1 and n = 3 the
investment in energy is proportional to the first power of m. Therefore, for the same value of
168
E I Butikov
Figure 8. The graph of the angular velocity and the phase trajectory of oscillations corresponding
to parametric resonance of the second order (T = Tav ).
Figure 9. Stationary parametric oscillations at one of the boundaries of the interval of instability
of the second order (near T = Tav ≈ T0 ).
the damping constant γ (the same quality factor Q), a considerably greater depth of modulation
is required here to exceed the threshold of parametric excitation.
The interval of instability in the vicinity of resonance with n = 2 is considerably narrower
compared to the corresponding intervals of the resonances with n = 1 and n = 3. Its width is
also proportional only to the square of m (for small values of m).
To determine the boundaries of this interval of instability, we can consider, as is done
above for other resonances, stationary oscillations for T ≈ T0 formed by alternating segments
of free sinusoidal oscillations with the periods T1 and T2 . The graph of the angular velocity
and the phase trajectory of such stationary periodic oscillations for one of the boundaries are
shown in figure 9. During oscillations occurring at the boundary of the instability interval, the
abrupt increment and decrement in the angular velocity exactly compensate each other.
To describe these stationary oscillations, we can use the same expressions for ϕ(t) and
ϕ̇(t) as we use in equations (11) and (12). The conditions for joining the graphs at t = 0 are
also the same. However, differences begin with the equations for the constants A and B. They
are determined by the conditions of periodicity at the instants −T /2 and T /2. For stationary
periodic oscillations, corresponding to resonance with n = 2 (and for all resonances of even
orders in equation (10)), these conditions are
ϕ1 (T /2) = ϕ2 (−T /2),
(1 + m)ϕ̇1 (T /2) = (1 − m)ϕ̇2 (−T /2),
(21)
and we obtain the system of equations for the amplitudes A and B:
(S1 + kS2 )A + (C1 − C2 )B = 0,
k(C1 − C2 )A − (kS1 + S2 )B = 0,
(22)
Parametric resonance in a linear oscillator at square-wave modulation
169
Figure 10. Stationary parametric oscillations at the other boundary of the interval of instability of
the second order (near T = Tav ≈ T0 ).
where S1 , C1 and S2 , C2 are defined by the same equations (15). The homogeneous system of
equations for A and B, equations (22), has a non-trivial solution if its determinant is zero:
2kC1 C2 − (1 + k 2 )S1 S2 − 2k = 0.
(23)
In order to find the values T∓ = Tav + T for the instability interval with n = 2 from
equation (23), we transform the products C1 C2 and S1 S2 in equation (23) by using the identity
cos α = 1 − 2 sin2 (α/2):
ωT
ωav T
= ±|1 − k| sin
.
(24)
2
4
We next replace T in the argument of the sine on the left-hand side of equation (24) by
Tav + T , where T T0 . Since ωav Tav = 2π , we can write this sine as − sin(ωav T /2).
Then equation (17) becomes
(1 + k) sin
|1 − k|
ω(Tav + T )
ωav T
=∓
sin
.
(25)
2
1+k
4
This equation gives the left boundary T− of the instability interval when we take the upper
sign in its right-hand side, and the right boundary T+ when we take the lower sign. Stationary
oscillations, which correspond to the right boundary, are shown in figure 10.
Equation (25) for T can also be solved numerically by iteration. Substituting T− or T+
obtained from (25) into one of the equations (14), we get the ratio of the amplitudes A and
B that determines the pattern of stationary oscillations at the corresponding boundary of the
instability interval. We note how narrow the intervals of even resonances (n = 2, 4) are for
small values of m. With the growth of m the intervals expand and become comparable with
the intervals of odd orders.
For small and moderate values of the depth of modulation, it is possible to find an
approximate analytical solution to equation (25):
(26)
T∓ = 1 ∓ 14 m2 Tav = T0 + ∓ 14 − 38 m2 T0 ,
sin
i.e., T− = T0 − 58 m2 T0 , T+ = T0 − 18 m2 T0 . As mentioned above, the width T+ − T− = 12 m2 T0
of this interval of instability is proportional to the square of the modulation depth.
9. Intersections of the boundaries at large modulation
Figure 6 shows that at some definite values of m both boundaries of intervals with n > 2
coincide (we may consider that they intersect). Thus, at these values of m the corresponding
170
E I Butikov
Figure 11. Time-dependent graph of the angular velocity and the phase trajectory for stationary
oscillations at the intersection of both boundaries of the third interval.
intervals of parametric resonance disappear. These values of m correspond to the natural
periods T1 and T2 of oscillation (associated with the weights far apart and close to each other),
whose ratio is 2:1, 3:1 and 3:2.
For the first intersection (ratio 2:1) exactly one half of the natural oscillation with period
T1 is completed during the first half of the modulation cycle (see figure 11). On the phase
diagram, the representing point traces a half of the smaller ellipse, and then abruptly jumps
down to the larger ellipse. During the second half of the modulation cycle the oscillator
executes exactly a whole natural oscillation with period T2 = T1 /2, so that the representing
point passes in the phase plane along the whole larger ellipse, and then jumps up to the smaller
ellipse along the same vertical segment.
During the next modulation cycle the representing point generates first the other half of
the smaller ellipse, and then again the whole larger ellipse. Therefore during any two adjacent
cycles of modulation, the representing point passes once along the closed smaller ellipse and
twice along the larger one, returning finally to the initial point of the phase plane. We see
that such an oscillation is periodic for arbitrary initial conditions. This means that for the
corresponding values of the modulation depth m and the period of modulation T the growth of
amplitude is impossible even in the absence of friction (the instability interval vanishes).
Similar explanations can be suggested for other cases in figure 6 in which the boundaries
intersect.
10. Intervals of parametric excitation in the presence of friction
When there is friction in the system, the intervals of the period of modulation become narrower,
and for strong enough friction (below the threshold) the intervals disappear. Above the
threshold, approximate values for the boundaries
of the first interval are given by equation (19)
provided we substitute for m the expression m2 − m2min with the threshold value mmin =
π/(2Q) defined by equation (5). The proof
can be found in appendix A. For the third interval,
we can use equation (20), substituting m2 − m2min for m, with mmin = 3π/(2Q). When
m is equal to the corresponding threshold value mmin , the interval of parametric resonance
disappears.
The boundaries of the second interval of parametric resonance in the presence of friction
2
are
approximately
given by equation (26) provided
√ we substitute for m the expression
4
4
m − mmin with the threshold value mmin = 2/Q, which corresponds to the second
parametric resonance (see appendix B).
Parametric resonance in a linear oscillator at square-wave modulation
171
Figure 12. Intervals of parametric excitation at square-wave modulation of the moment of inertia
without friction, for Q = 20 and for Q = 10.
The diagram in figure 12 shows the boundaries of the first three intervals of parametric
resonance for Q = 20 and Q = 10 (and also in the absence of friction). Note the ‘island’ of
parametric resonance for n = 3 and Q = 20. This resonance disappears when the depth of
modulation exceeds 45% and reappears when m exceeds approximately 66%.
In the presence of friction, for any given value m of the depth of modulation, only several
first intervals of parametric resonance (where m exceeds the threshold) can exist. We note that
in case when the equilibrium of the system is unstable due to modulation of the parameter,
parametric resonance can occur only if at least small oscillations are already excited. Indeed,
when the initial values of ϕ and ϕ̇ are exactly zero, they remain zero over the course of time.
This behaviour is in contrast to that of resonance arising from forced oscillations, when the
amplitude increases with time even if initially the system is at rest in the equilibrium position
(if the initial conditions are zero).
11. Concluding remarks
We have shown above that a linear torsion oscillator whose moment of inertia is subjected to
square-wave modulation by mass reconfiguration gives a very convenient example in which
the phenomenon of parametric resonance can be clearly explained physically with all its
peculiarities and even investigated quantitatively by rather modest mathematical means.
In a linear system, if the threshold of parametric excitation is exceeded, the amplitude
of oscillations increases exponentially with time. In contrast to forced oscillations, linear
viscous friction is unable to restrict the growth of the amplitude at parametric resonance. In
real systems, the growth of the amplitude is restricted by nonlinear effects that cause the period
to depend on the amplitude. During parametric excitation the growth of the amplitude causes
variation of the natural period and thereby violates the conditions of resonance.
Appendix A. The principal interval of instability in the presence of friction
Stationary oscillations occurring at the left boundary of the instability interval in the vicinity of
the principal parametric resonance in the presence of friction are shown in figure 13 (compare
with figure 4). Twice during the full cycle the angular velocity abruptly increases, and twice
it decreases. The increments are greater than the decrements, so that as a whole the energy
received by the rotor exceeds the energy given away. This surplus compensates for the
172
E I Butikov
Figure 13. Stationary oscillations in the presence of friction at the left boundary of the principal
instability interval.
dissipation of the energy which occurs for natural oscillation during the intervals between the
abrupt displacements of the weights along the rod.
To find conditions at which such stationary oscillations take place, we can write the
expressions for ϕ(t) and ϕ̇(t) during the adjacent intervals when the oscillator executes damped
natural oscillations, and then fit these expressions to one another at the boundaries. We choose
as the time origin t = 0 the instant when the weights are shifted apart, and the angular
velocity is decreased in magnitude. Then during the interval
√ (0, T /2) the graph describes a
damped natural oscillation with the frequency ω1 = ω0 / 1 + m. Similarly to equation (11),
it is convenient to represent this motion as a superposition of damped oscillations of sine and
cosine types with some constants A1 and B1 :
ϕ1 (t) = (A1 sin ω1 t + B1 cos ω1 t) e−γ t ,
ϕ̇1 (t) ≈ (A1 ω1 cos ω1 t − B1 ω1 sin ω1 t) e−γ t .
(A.1)
The latter expression for ϕ̇(t) is valid for relatively weak friction (γ ω0 ). To obtain
it, we differentiate ϕ(t) with respect to the time, considering the exponential factor e−γ t to be
approximately constant. Indeed, at weak damping the main contribution to the time derivative
originates from the oscillating factors sin ω1 t and cos ω1 t in the expression for ϕ(t). Similarly,
during the interval (−T /2, 0) the graph in figure 13 is a segment of damped natural oscillation
with the frequency ω2 :
ϕ2 (t) = (A2 sin ω2 t + B2 cos ω2 t) e−γ t ,
(A.2)
ϕ̇2 (t) ≈ (A2 ω2 cos ω2 t − B2 ω2 sin ω2 t) e−γ t .
Further calculations are similar to those leading from equations (11) and (12) to (16), but
instead of equation (16) we get the following equation:
2kC1 C2 − (1 + k 2 )S1 S2 + k(p + 1/p) = 0,
(A.3)
where the notation p = e−γ T is used. This condition of existence of a non-zero solution for
constants A1 and B1 gives us an equation which determines the desirable boundaries of the
interval of instability. These boundaries are given by the values of the unknown variable T
(the roots of the equation), which enters equation (A.3) as the arguments of sine and cosine
functions in S1 , S2 and C1 , C2 , and also as the argument of the exponent in p = e−γ T . To find
approximate solutions T to this transcendental equation, we transform it into a more convenient
form in the same way as in section 5:
ωT
ωav T
(1 + k) cos
= ± (1 − k)2 cos2
− k (p + 1/p − 2).
(A.4)
2
4
To find the boundaries of the interval which contains the principal resonance, we should
search for a solution T of equation (A.4) in the vicinity of T = T0 /2 ≈ Tav /2. If for a given
Parametric resonance in a linear oscillator at square-wave modulation
173
value of the quality factor Q (Q enters p = e−γ T ) the depth of modulation m exceeds the
threshold value, equation (A.4) has two solutions which correspond to the desirable boundaries
T− and T+ of the instability interval. These solutions exist if the expression under the radical
sign in equation (A.4) is positive. Its zero value corresponds to the threshold conditions:
ωT
(1 − k)2
cos2
= p + 1/p − 2.
(A.5)
k
4
To evaluate the threshold value of Q for small values of the modulation depth m,
we may assume here k ≈ 1 + m, and cos(ωT /4) ≈ 1. On the right-hand side of
equation (A.5), in p = e−γ T , we can consider γ T ≈ γ T0 /2 = π/(2Q) 1, so that
p+1/p−2 ≈ (γ T )2 = (π/2Q)2 . Thus, for the threshold of the principal parametric resonance
we obtain
m
π
π
π
π π
1+
≈
,
mmin ≈
1+
≈
.
(A.6)
Qmin ≈
2m
2
2m
2Q
4Q
2Q
At the threshold the expression under the radical sign in equation (A.5) is zero. Both its
roots (the boundaries of the instability interval) merge. This occurs when the cosine on the
left-hand side of equation (A.5) is zero, that is, when its argument equals π/2:
T
1
π
π
= Tav ,
= ,
or
T =
2
2
ωav
2
so that the threshold conditions (A.6) correspond to exact tuning to resonance, when T = Tav /2.
To find the boundaries T− and T+ of the instability interval, we represent T in the argument
of the cosine function on the left-hand side of equation (A.4) as Tav /2 + T , where T T0 .
Since ωav Tav = 2π , this cosine can be written as − sin(ωav T /2). Then equation (A.4)
becomes
1
ω
T
+
T
ωav T
1
(p − 1)2
av
2
sin
(k − 1)2 cos2
=∓
−k
. (A.7)
2
1+k
4
p
ωav
For zero friction p = 1, and equation (A.7) coincides with (18). The diagram in figure 12
is obtained by numerically solving this equation for T by iteration.
To obtain an approximate solution of equation (A.7), that is valid for small values of the
modulation depth m up to terms to the second order of m, we can simplify the expression under
the radical sign on the right-hand side of equation (A.4), assuming k ≈ 1 + m, (1 − k)2 ≈ m2 ,
and the value of the cosine function to be 1. The last term of the radicand can be represented
as (π/2Q)2 ≈ m2min . On the left-hand side the sine can be replaced with its small argument,
where ωav = 2π/Tav . Thus, we obtain
1
T
1
Tav
2
2
2
2
1∓
(A.8)
≈∓
m − mmin ,
or
T∓ =
m − mmin .
Tav
2π
2
π
For the case of zero friction mmin = 0, and these approximate expressions for the
boundaries of the instability interval reduce to equation (19). For the threshold conditions
m = mmin , and both boundaries of the interval merge, that is, the interval disappears.
Appendix B. The second interval of instability in the presence of friction
When friction is taken into account, we arrive at, instead of equation (24), the following
equation for the boundaries of the second interval of parametric instability:
ωav T
= ± (1 − k)2 sin2 (ωT /4) − k(p + 1/p − 2).
(B.1)
(1 + k) sin
2
174
E I Butikov
We should search for its solution T in the vicinity of T = T0 ≈ Tav . If for a given
value of the quality factor Q (Q enters p = e−γ T ) the depth of modulation m exceeds the
threshold value, equation (B.1) has two solutions which correspond to the boundaries T− and
T+ of the instability interval. These solutions exist if the expression under the radical sign in
equation (B.1) is positive. Its zero value corresponds to the threshold conditions:
(p − 1)2
(k − 1)2
sin2 (ωTav /4) =
.
(B.2)
k
p
To estimate the threshold value of Q for small values of the modulation depth m,
we may assume here k ≈ 1 + m, and sin(ωT /4) ≈ ωT /4. On the right-hand side
of equation (B.2), in p = e−γ T , we can consider γ T ≈ γ T0 = π/Q 1, so that
p+1/p−2 = (p−1)2 /p ≈ (γ T )2 = (π/Q)2 . Thus, for the threshold of the second parametric
resonance we obtain
2
2
mmin ≈
Qmin ≈ 2 ,
.
(B.3)
m
Q
The threshold conditions correspond to exact tuning to resonance, when T = Tav .
To find the boundaries T− and T+ of the instability interval, we represent T in the argument
of the sine function on the left-hand side of equation (B.1) as Tav +T , where T Tav ≈ T0 .
Since ωav Tav = 2π , we can write this sine as − sin(ωav T /2). Then equation (B.1) becomes
ωav T
1
(p − 1)2
ω(Tav + T )
sin
=∓
−k
.
(B.4)
(k − 1)2 sin2
2
1+k
4
p
This form of the equation is convenient for numerical solution by iteration. For the zero
friction p = 1, and equation (B.4) coincides with equation (25). To obtain an approximate
solution of equation (B.4), valid for small values of the modulation depth m up to the terms of
the second order of m, we can simplify the expression under the radical sign on the right-hand
side of equation (B.4), assuming k ≈ 1+m, (1−k)2 ≈ m2 , and sin ω(Tav +T )/4 ≈ ωTav .
The last term of the radicand can be represented as (2/Q)2 ≈ m4min . On the left-hand side the
sine can be replaced by its small argument, where ωav = 2π/Tav . Thus, for the boundaries of
the second instability interval we obtain
1
1
T
4
4
4
4
≈∓
m − mmin ,
or
T∓ = 1 ∓
m − mmin Tav .
(B.5)
Tav
4
4
References
[1] Butikov E 2004 Parametric excitation of a linear oscillator Eur. J. Phys. 25 535–54
[2] Case W 1996 The pumping of a swing from the standing position Am. J. Phys. 64 215–20
[3] Pinsky M and Zevin A 1999 Oscillations of a pendulum with a periodically varying length and a model of swing
Int. J. Non-Linear Mech. 34 105–9
[4] Stilling D and Szyskowski W 2002 Controlling angular oscillations through mass reconfiguration: a variable
length pendulum case Int. J. Non-Linear Mech. 37 89–99
[5] Butikov E I 2001 On the dynamic stabilization of an inverted pendulum Am. J. Phys. 69 755–68
[6] Butikov E I 1996 Educational software package Physics of Oscillations ed J S Risley and R W Brehme (New
York: American Institute of Physics)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
