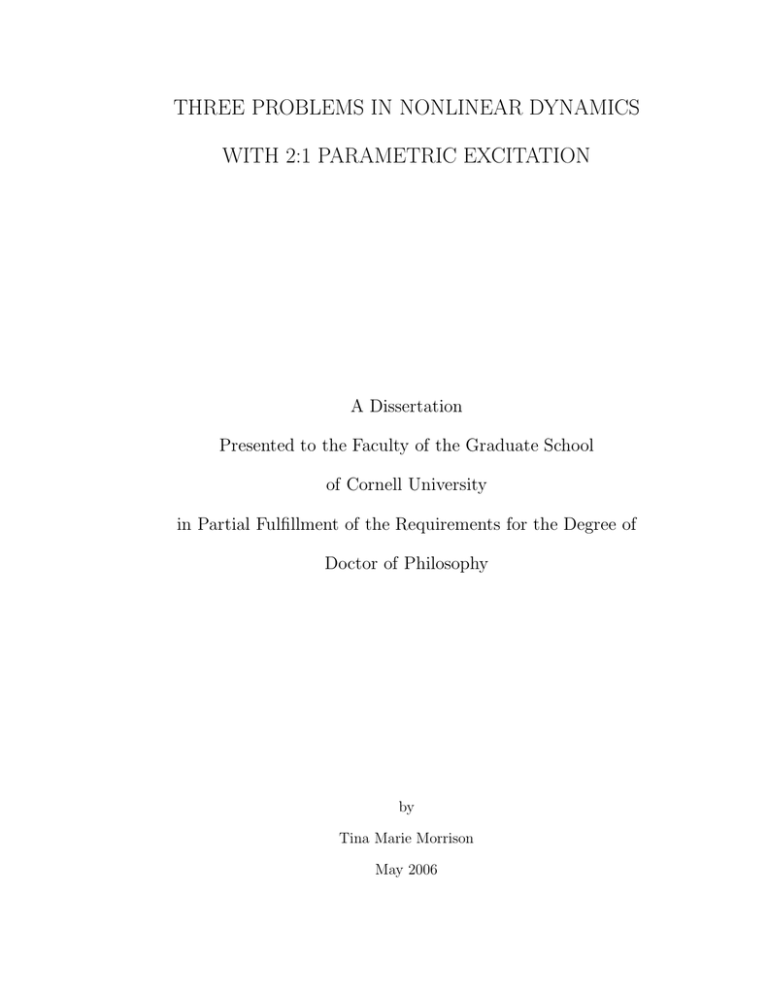

THREE PROBLEMS IN NONLINEAR DYNAMICS
WITH 2:1 PARAMETRIC EXCITATION
A Dissertation
Presented to the Faculty of the Graduate School
of Cornell University
in Partial Fulfillment of the Requirements for the Degree of
Doctor of Philosophy
by
Tina Marie Morrison
May 2006
c 2006 Tina Marie Morrison
ALL RIGHTS RESERVED
THREE PROBLEMS IN NONLINEAR DYNAMICS
WITH 2:1 PARAMETRIC EXCITATION
Tina Marie Morrison, Ph.D.
Cornell University 2006
Parametric excitation is epitomized by the Mathieu equation, ẍ+(δ +ε cos t)x = 0,
which involves the characteristic feature of 2:1 resonance. This thesis investigates
three generalizations of the Mathieu equation:
1) the effect of combining 2:1 and 1:1 parametric drivers:
ẍ + (δ + ε cos t + ε cos ωt)x = 0
2) the effect of combining parametric excitation near a Hopf bifurcation:
ẍ + (δ + ε cos t)x + εAẋ + ε(β1x3 + β2x2 ẋ + β3 xẋ2 + β4ẋ3 ) = 0
3) the effect of combining delay with cubic nonlinearity:
ẍ + (δ + ε cos t)x + εγx3 = εβx(t − T )
Chapter 3 examines the first of these systems in the neighborhood of 2:1:1
resonance. The method of multiple time scales is used including terms of O(ε2 )
with three time scales. By comparing our results with those of a previous work on
2:2:1 resonance, we are able to approximate scaling factors which determine the
size of the instability regions as we move from one resonance to another in the δ-ω
plane.
Chapter 4 treats the second system which involves the parametric excitation of
a Hopf bifurcation. The slow flow obtained from a perturbation method is investigated analytically and numerically. A wide variety of bifurcations are observed,
including pitchforks, saddle-nodes, Hopfs, limit cycle folds, symmetry-breaking,
homoclinic and heteroclinic bifurcations. Approximate analytic expressions for bifurcation curves are obtained using a variety of methods, including normal forms.
We show that for large positive damping, the origin is stable, whereas for large
negative damping, a quasiperiodic behavior occurs. These two steady states are
connected by a complicated series of bifurcations which occur as the damping is
varied.
Chapter 5 examines the third system listed. Three different types of phenomenon are combined in this system: 2:1 parametric excitation, cubic nonlinearity, and delay. The method of averaging is used to obtain a slow flow which
is analyzed for stability and bifurcations. We show that certain combinations of
the delay parameters β and T cause the 2:1 instability region in the δ-ε plane to
become significantly smaller, and in some cases to disappear. We also show that
the delay term behaves like effective damping, adding dissipation to a conservative
system.
