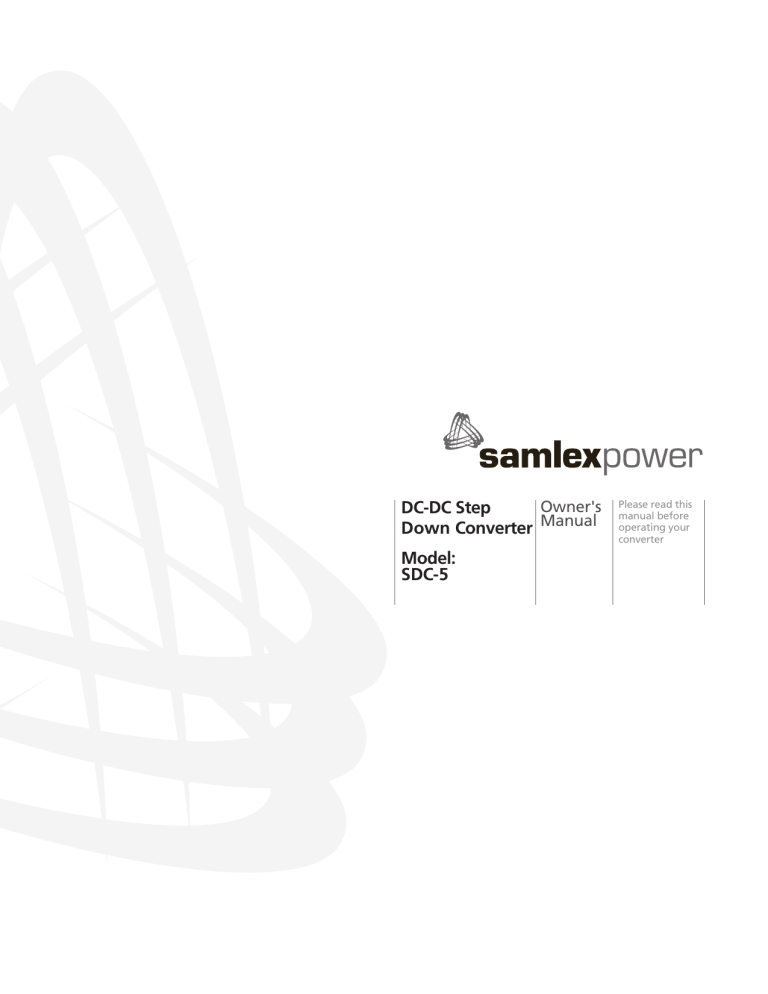

Owner's
DC-DC Step
Down Converter Manual
Model:
SDC-5
Please read this
manual before
operating your
converter
INSTRUCTION MANUAL
24 VDC TO 12VDC CONVERTER - MODEL NO. SDC-5
ITEM NO. 06034
SDC-5 is a 24 VDC (nominal) to 12 VDC (nominal) converter based on a high performance fixed frequency power switching regulator. It is designed to deliver a maximum current of 5 A at 13.8 VDC.
Features:
•
•
•
•
High efficiency switching regulator
Small size and light weight
Cycle by cycle current limiting
Over voltage , short circuit and reverse polarity protections
INSTALLATION AND OPERATION
General installation requirements
- Install the unit in a cool, dry, protected and well ventilated space
- The unit may be installed on top of a horizontal surface or on the bottom of a horizontal surface. The unit can be installed horizontally on a vertical surface
Input and output connections
The unit has a terminal block with 4 male flat tabs (6.3 mm) for quick connection. One is for positive 24 VDC input (marked +24 V),
two are common negative for input and output (marked 0 V) and one is for positive 12 VDC output (marked +13.8 V).
CAUTION ! Please ensure that the polarity of the input connection is not reversed. Always connect the positive of the 24 V
battery to the positive terminal marked +24V and the negative terminal to any one of the two common negative terminals
marked 0 V. A reverse polarity connection will blow the fuse inside the unit
Sizing of input and output conductors. Conductors have resistance that opposes the current flow and produces voltage drop and
heating. The resistance is directly proportional to the length of the conductor and is inversely proportional to the thickness (area of
cross-section). Thus, a longer and thinner conductor will have higher resistance and will, therefore, produce higher voltage drop and
more heating. The size of a conductor for a particular application will depend upon the maximum current it is required to carry and for
what distance. The size of a conductor is designated by AWG (American Wire Gauge) number. The smaller the AWG number, the
thicker the conductor. The conductors should be sized for a maximum voltage drop of 2%. The cables should be multistranded insulated copper cable rated for at least 90 º C and preferably oil resistant. The cables can be bought at a welding /
marine supply store.
Cables for 24 VDC input and 12 VDC output connections. The cables on the 24 VDC input side should be able to carry a maximum
current of approximately 4.2 A (for extreme conditions when delivering 5.5 A on the output at current limit at lowest 24 V input battery voltage of 20 V). To limit the voltage drop to 2%, use # 14 AWG for distance up to 6 ft. and # 12 AWG for up to 10 ft. The
cables on the 12 VDC output side should be able to carry the full 5.5 A current under current limit conditions. To limit the drop in
voltage to 2%, use # 14 AWG multi stranded cables to connect to the load for a distance of up to 6 ft. and # 12 AWG for a distance of
up to 10 ft. Use female quick connect terminals (tab size 6.3 mm) on the ends of the cables to enable connection to the male tabs
of the terminal block
External fuses on the input and output sides: The input and output connections should be made through 32 V, 5A fast blow fuses
(For example “Bussmann” Type ATC-5 or ATM-5 automotive type fuses). The fuses should be connected in series with the positive
input and output cables. The fuse on the 24 V input side should be as close to the battery positive terminal as possible. This will prevent the possibility of overheating / melting of the input side cables in case of short circuit on the input side cabling (A battery can
provide very large currents during short circuit condition)
WARNING: The warranty will be voided if the above external fuses are not used
SPECIFICATIONS
CAUTION! : THERE IS NO ISOLATION BETWEEN THE INPUT AND THE OUTPUT.
INPUT AND OUTPUT HAVE A COMMON NEGATIVE
Input to output isolation
Input voltage
Output voltage
Output voltage regulation
Input current at no load
Output current
Continuous
Current limit *
Not isolated. Input and output connections have a common negative
20 to 32 VDC
13.8 VDC ± 0.1 V
3%
< 5 mA
5A
5.5A
*Note: In current limit condition, the output voltage will drop if the
current drawn increases beyond the current limit value of 5.5 A
Output ripple and noise
Efficiency
Operating ambient temperature
Humidity
Protections:
- Overload
- Over heating
- Reverse polarity
- Over voltage
Input side fuse
Safety and EMC Standards:
- Emission
- Immunity
- Automotive directive
Input / output connections
Weight
Dimensions (H x W x D)
Warranty
-
less than 50 mV RMS
Approx. 92%
-20 to +30oC (derate linearly to zero at 70º C)
Max. 95%, non condensing
By current limiting
Drop in output voltage
Fuse protection, 5 A
Varistor (also protects against load dump)
5 A (inside the unit)
EN50081-1
EN50082-1
95/45/EC
Terminal Block - 6.3 mm male flat tab, quick connect
0.4 lbs / .17 Kg
1.9” x 3.5” x 2.7” / 49 x 88 x 68 mm
2 years
NOTE: Specifications are subject to change without notice
Samlex America Inc.
110-17 Fawcett Road
Coquitlam BC Canada V3K 6V2
Telephone: (604) 525-3836
110-17 Fawcett Rd
T: 604 525 3836
Coquitlam, B.C.
F: 604 525 5221
Canada V3K 6V2
SDC-5_Manual_Aug2006
e-mail: [email protected]
website: www.samlexamerica.com
