Projectors

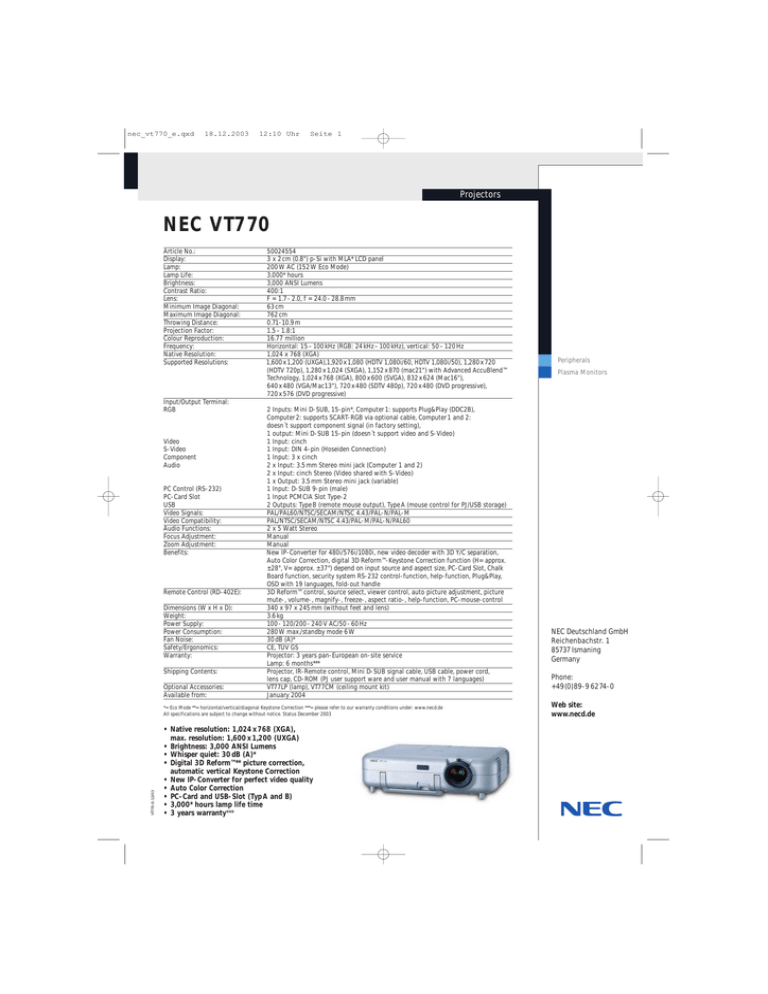

NEC VT770
Article No.:
Display:
Lamp:
Lamp Life:
Brightness:
Contrast Ratio:
Lens:
Minimum Image Diagonal:
Maximum Image Diagonal:
Throwing Distance:
Projection Factor:
Colour Reproduction:
Frequency:
Native Resolution:
Supported Resolutions:
Input/Output Terminal:
RGB
Video
S-Video
Component
Audio
PC Control (RS-232)
PC-Card Slot
USB
Video Signals:
Video Compatibility:
Audio Functions:
Focus Adjustment:
Zoom Adjustment:
Benefits:
Remote Control (RD-402E):
Dimensions (W x H x D):
Weight:
Power Supply:
Power Consumption:
Fan Noise:
Safety/Ergonomics:
Warranty:
Shipping Contents:
Optional Accessories:
Available from:
50024554
3 x 2 cm (0.8") p-Si with MLA* LCD panel
200 W AC (152 W Eco Mode)
3,000* hours
3,000 ANSI Lumens
400:1
F = 1.7 - 2.0, f = 24.0 - 28.8 mm
63 cm
762 cm
0.71-10.9 m
1.5 – 1.8:1
16.77 million
Horizontal: 15 – 100 kHz (RGB: 24 kHz – 100 kHz), vertical: 50 – 120 Hz
1,024 x 768 (XGA)
1,600 x 1,200 (UXGA),1,920 x 1,080 (HDTV 1,080i/60, HDTV 1,080i/50), 1,280 x 720
(HDTV 720p), 1,280 x 1,024 (SXGA), 1,152 x 870 (mac21") with Advanced AccuBlend™
Technology, 1,024 x 768 (XGA), 800 x 600 (SVGA), 832 x 624 (Mac16"),
640 x 480 (VGA/Mac13"), 720 x 480 (SDTV 480p), 720 x 480 (DVD progressive),
720 x 576 (DVD progressive)
2 Inputs: Mini D-SUB, 15-pin*, Computer 1: supports Plug&Play (DDC2B),
Computer 2: supports SCART-RGB via optional cable, Computer 1 and 2:
doesn´t support component signal (in factory setting),
1 output: Mini D-SUB 15-pin (doesn´t support video and S-Video)
1 Input: cinch
1 Input: DIN 4-pin (Hoseiden Connection)
1 Input: 3 x cinch
2 x Input: 3.5 mm Stereo mini jack (Computer 1 and 2)
2 x Input: cinch Stereo (Video shared with S-Video)
1 x Output: 3.5 mm Stereo mini jack (variable)
1 Input: D-SUB 9-pin (male)
1 Input PCMCIA Slot Type-2
2 Outputs: Type B (remote mouse output), Type A (mouse control for PJ/USB storage)
PAL/PAL60/NTSC/SECAM/NTSC 4.43/PAL-N/PAL-M
PAL/NTSC/SECAM/NTSC 4.43/PAL-M/PAL-N/PAL60
2 x 5 Watt Stereo
Manual
Manual
New IP-Converter for 480i/576i/1080i, new video decoder with 3D Y/C separation,
Auto Color Correction, digital 3D Reform™-Keystone Correction function (H= approx.
±28°, V= approx. ±37°) depend on input source and aspect size, PC-Card Slot, Chalk
Board function, security system RS-232 control-function, help-function, Plug&Play,
OSD with 19 languages, fold-out handle
3D Reform™ control, source select, viewer control, auto picture adjustment, picture
mute-, volume-, magnify-, freeze-, aspect ratio-, help-function, PC-mouse-control
340 x 97 x 245 mm (without feet and lens)
3.6 kg
100 - 120/200 - 240 V AC/50 - 60 Hz
280 W max./standby mode 6 W
30 dB (A)*
CE, TÜV GS
Projector: 3 years pan-European on-site service
Lamp: 6 months***
Projector, IR-Remote control, Mini D-SUB signal cable, USB cable, power cord,
lens cap, CD-ROM (PJ user support ware and user manual with 7 languages)
VT77LP (lamp), VT77CM (ceiling mount kit)
January 2004
VT770-E-12/03
*= Eco Mode **= horizontal/vertical/diagonal Keystone Correction ***= please refer to our warranty conditions under: www.necd.de
All specifications are subject to change without notice. Status December 2003
• Native resolution: 1,024 x 768 (XGA),
max. resolution: 1,600 x 1,200 (UXGA)
• Brightness: 3,000 ANSI Lumens
• Whisper quiet: 30 dB (A)*
• Digital 3D Reform™** picture correction,
automatic vertical Keystone Correction
• New IP-Converter for perfect video quality
• Auto Color Correction
• PC-Card and USB-Slot (Typ A and B)
• 3,000* hours lamp life time
• 3 years warranty***
Peripherals
Plasma Monitors
NEC Deutschland GmbH
Reichenbachstr. 1
85737 Ismaning
Germany
Phone:
+49(0)89-9 6274-0
Web site:
www.necd.de
