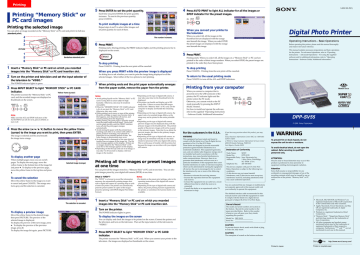

Printing
5
Printing “Memory Stick” or
PC card images
4
Press ENTER to set the print quantity.
Each time you press ENTER, the print quantity
increases. To reset to the previous quantity,
press CANCEL.
3-205-183-11(1)
Press AUTO PRINT to light ALL indicator for all the images or
DPOF indicator for the preset images.
AUTO
ALL DPOF PRINT
To print multiple images at a time
Printing the selected image
Repeat steps 4 and 5 to select other images and
set print quantity for each of them.
You can select an image recorded on the “Memory Stick” or PC card and print it in full-size
(standard print).
4
3
2
6
1
2
Printing starts. During printing, the PRINT indicator lights and the printing process bar is
displayed on the screen.
Turn on the printer and television and set the input selector of
the television to “VIDEO.”
Press INPUT SELECT to light “MEMORY STICK” or PC CARD
indicator.
Yellow frame (cursor)
Note
Make sure that ALL and DPOF indicators of the
AUTO PRINT are off. If it is lit, press CANCEL to
turn it off.
4
Press the arrow (B/b/V/v) button to move the yellow frame
(cursor) to the image you want to print, then press ENTER.
The image is selected and the area beneath
the image turns orange.
ENTER
PRINT QTY
Selected image (orange)
An dialog box to ask whether you want to print the image being displayed or all the
selected images. Select either of the two options to start printing.
To return to the usual printing mode
When printing ends and the print paper automatically emerges
from the paper outlet, remove the paper from the printer.
•Avoid getting liquids on the “Memory Stick” or PC
card or using them in areas subject to high
humidity. Otherwise, data may be rendered
unreadable.
•When the “MEMORY STICK”/PC CARD indicator
is lit, do not eject the “Memory Stick” or PC card.
Otherwise, they may crash.
•While printing, never move or turn off the printer;
the print cartridge or paper may become stuck. If
this happens, turn the printer off and on, and
resume printing from the beginning.
•While printing, the print paper is partially ejected
from the paper outlet several times. Never pull
out the paper forcibly until the PRINT indicator
turns off and the print paper emerges
automatically.
•Avoid storing the paper with the printed faces
touching each other or in contact with rubber or
plastic products including vinyl chloride or
plasticizer for an extended period of time; the
color change or deterioration may occur.
•An image which is damaged or has some kind of
trouble does not appear in the image list. The file
error message appears on the display. If there are
no images stored in the “Memory Stick” or PC
card, the no file message appears on the display.
•Depending on the file type and size of an image, it
may take 5 to 60 seconds to display a full-size
image on the monitor.
•Depending on the type of digital still camera, it
may take some time for the thumbnail list to be
displayed.
•The printer can handle and display up to 999
image files. If there are more than 999 images
stored in the “Memory Stick” or PC card, use the
computer to display and handle the remaining
images.
•Depending on the type of digital still camera, the
aspect ratio of a recorded image differs, so the
image may not be printed in the entire printable
area.
•Depending on the type of digital still camera,
preview images may be displayed along with the
primary images in the thumbnail list. The printed
quality of the preview images will not be as good
as the primary images. Note that if you delete the
preview images, the data for the primary images
may be damaged.
•Depending on the type of digital still camera, an
image may be stretched vertically if it has been
rotated or processed with your digital still camera.
This is not because of trouble with the printer, but
because the image was rewritten with your digital
still camera.
Printing all the images or preset images
at one time
You can print all the images stored in a “Memory Stick” or PC card at one time. You can also
print images preset by your digital still camera (DPOF) at one time.
To cancel the selection
Move the yellow frame to the image you want
to cancel and press CANCEL. The orange area
turns gray and the selection is canceled.
What is “DPOF”?
Notes
The “DPOF” is a format to record the information
necessary for automatically printing images shot
with a digital still camera at a printing shop or with
a home-use printer. The printer can automatically
print the preset number of copies of the images
preset for printing with DPOF (Digital Print Order
Format).
•For details on the preset print settings, refer to the
operating instructions of the digital still camera
you are using.
•Depending on the type of digital still camera and
others, the preset printing function supported by
the printer, or sometimes the function itself, is not
available.
1
The selection is canceled.
To display a preview image
Move the yellow frame to the desired image,
then press PICTURE. The preview of the
selected image is displayed.
To display the preview of the next image, press
b. To display the preview of the previous
image, press B.
To display the image list again, press PICTURE.
To stop printing
Press CANCEL. Printing from the next print will be canceled.
To display another page
When multiple pages exist, you can switch
pages. To display the next page, move the
yellow frame to the bottom line of the image list
and press v. To display to the previous page,
move the yellow frame to the top line and press
V.
This manual explains necessary preparations and basic operations
for the printer. For advanced operations, refer to “Operating
Instructions – Advanced Operations.” For using the supplied
software and for additional infromation, refer to “Operating
Instructions – Software Guide/Additional Information.”
Press PRINT.
When you press PRINT while the preview image is displayed
Notes
INPUT
SELECT
Before operating this printer, please read this manual thoroughly
and retain it for future reference.
Press CANCEL to turn off the ALL and DPOF indicators.
7
The printer accesses the “Memory Stick” or PC
card, and the recorded images are displayed as
thumbnails on the screen.
Operating Instructions – Basic Operations
Printing starts. When you select All, all the images on a “Memory Stick” or PC card are
printed in the order of their image numbers. When you select DPOF, the preset images are
printed in the order they have been preset.
Press CANCEL. Printing from the next print will be canceled.
Insert a “Memory Stick” or PC card on which you recorded
images into the “Memory Stick” or PC card insertion slot.
MEMORY PC
STICK CARD PC
5
PRINT
To stop printing
The POWER indicator lights in green.
3
Press PRINT.
Borderless standard print
Digital Photo Printer
When you select All, all the images in the
thumbnail list are displayed with the orange
area beneath the image. When you select DPOF,
the preset images are displayed with the orange
area beneath the image.
The number increases.
1
5
6
When you connect your printer to
the television
2
Insert a “Memory Stick” or PC card on which you recorded
images into the “Memory Stick” or PC card insertion slot.
Turn on the printer.
The POWER indicator lights in green.
To display the images on the screen
You can display and check the images to be printed on the screen. Connect the printer and
the television and turn on the television. Then set the input selector of the television to
“VIDEO.”
3
Printing from your computer
When you connect a computer that is
powered on to the USB connector of the
printer, the PC indicator lights and the
printer enters the PC mode.
Otherwise, you cannot switch to the PC
mode manually by pressing the INPUT
SELECT button.
For how to install and operate the software,
refer to the supplied “Operating Instructions
– Software Guide/Additional Information.”
MEMORY PC
STICK CARD PC
INPUT
SELECT
DPP-SV55
 2000 Sony Corporation
