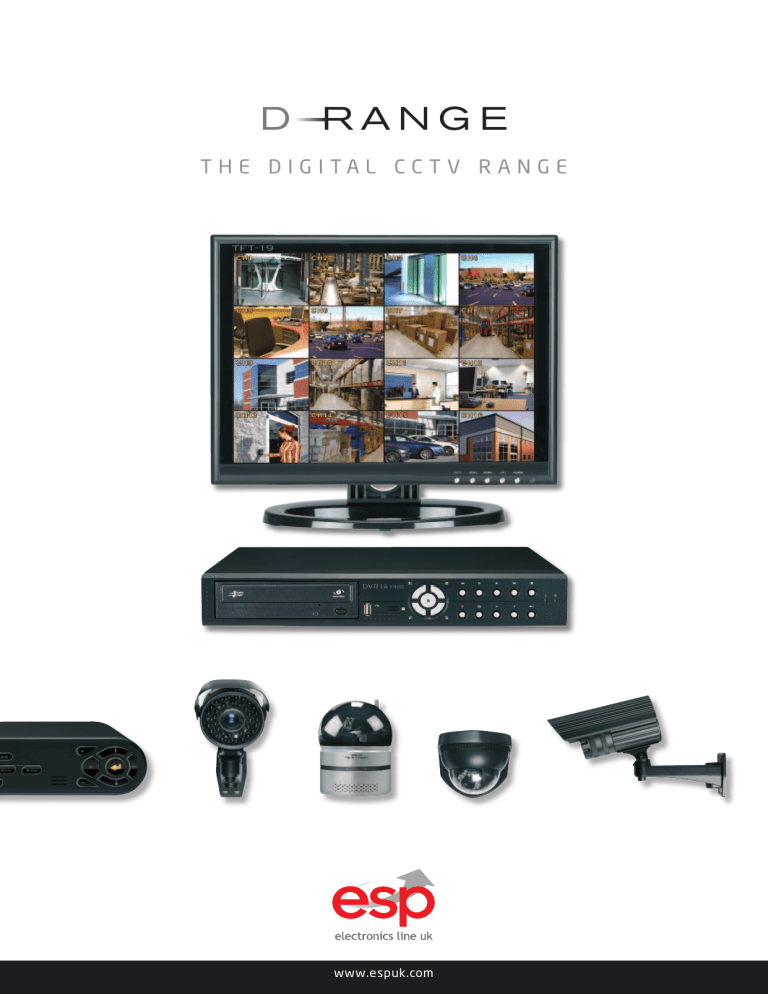

D RANGE
T H E D I G I TA L C C T V R A N G E
www.espuk.com
Contents
High Resolution Cameras
3
Medium Resolution Cameras
4
Dome Cameras
6
Digital Video Recorders
8
Digiview Systems
9
Monitors
10
Witness Systems
11
Accessories
12
CCTV Survey Form
13
IP Cameras
14
The recently expanded D-range meets the demands of the experienced installer whilst continuing to offer
attractive, cost effective plug and play solutions for the novice wishing to move into the exciting world of CCTV.
D-range now includes full feature 8 and 16 channel DVR’s, an increased selection of cameras up to 580TVL and
4 models of top quality true CCTV monitors.
Next generation technology is represented by IP, internet protocol cameras. CCTV meets IT to create PC based
systems of up to 36 cameras with full remote control and surveillance.
2
HIGH RESOLUTION CAMERAS
IRCAM600 External Day / Night Camera
■
■
■
■
■
580 TVL
4-9mm varifocal lens
Up to 30m Infra Red illumination
12v DC 400mA (IR-on)
Weatherproof IP66 rating
Day and
Night
Signal System
Effective Pixels
Image sensor
Sensing Area
Shutter Speed
Video Output
Scanning Frequency
Scanning System
PAL
752(H) — 582(V)
1/3" SONY Super HAD CCD
4.9mm x 3.7mm
1/50(1/60) ~ 1/100,000 SEC
1.0Vp-p,75Ω
Horz: 15.62KHz / Vert: 50Hz
2:1 interlace / internal
Horizontal Resolution
Minimum Illumination
Gamma Correction
S/N Ratio
White Balance
AGC
BLC
IR Capability
InfraRed
Illumination
360º
Rotation
580 TV Lines
0.01Lux (F1.2)/0.00LUX(inIR Mode)
0.45
≥ 50dB (AGC OFF)
Automatic White Balance
ON
ON
42 pcs 5 IR-LED
Weatherproof
IP65
Varifocal
Lens
IR Illumination Distance More than 30m
Operating Temperature -10~50ºC
IP 66
Water Resistance
4 to 9mm Manual Varifocal
Lens
145(L) x 85(W) x 82(¢)
Dimensions (mm)
0.65
Weight (kgs)
DC12V
Power Source
120mA (IR OFF), 400mA (IR ON)
Power Consumption
IRCAM700 External Day / Night Camera
■
■
■
■
■
580 TVL
9-22mm varifocal lens
Up to 50m Infra Red illumination
12v DC 500mA (IR-on)
Weatherproof IP66 rating
Day and
Night
InfraRed
Illumination
360º
Rotation
Weatherproof
IP65
Varifocal
Lens
Signal System
PAL
Horizontal Resolution
580 TV Lines
IR Illumination Distance More than 50m
Effective Pixels
Image sensor
Sensing Area
Shutter Speed
Video Output
Scanning Frequency
Scanning System
752(H) x 582(V)
1/3" SONY Super HAD CCD
4.9mm x 3.7mm
1/50(1/60) ~ 1/100,000 SEC
1.0Vp-p,75Ω
Horz: 15.625KHz / Vert: 50Hz
2:1 interlace / internal
Minimum Illumination
Gamma Correction
S/N Ratio
White Balance
AGC
BLC
IR Capability
0.01Lux (F1.2) / 0LUX (IN IR MODE)
0.45
More than ≥ 50dB (AGC OFF)
Automatic White Balance
ON
ON
36 pcs 5 IR-LED
Operating Temperature
Water Resistance
Lens
Dimensions (mm)
Weight (kgs)
Power Source
Power Consumption
-10~50ºC
IP 66
9 to 22mm Manual Varifocal
255(L) x 100(W) x 185(H)
1.05
DC12V
120mA (IR OFF), 500mA (IR ON)
IRCAM1000 External Day / Night Camera
■
■
■
■
■
560 TVL
5-50mm varifocal lens
Up to 50m Infra Red illumination
12v DC 800mA (IR-on)
Weatherproof IP66 rating
Day and
Night
Signal System
Effective Pixels
Image sensor
Shutter Speed
Video Output
Scanning Frequency
Scanning System
Horizontal Resolution
PAL
752(H) — 582(V)
1/3" SONY Super HAD CCD
1/50(1/60) ~ 1/12 0,000 SEC
1.0Vp-p,75Ω
Horz: 15.62KHz / Vert: 50Hz
2:1 interlace / internal
560 TV Lines
Minimum Illumination
Gamma Correction
S/N Ratio
White Balance
AGC
BLC
IR Capability
IR Illumination Distance
InfraRed
Illumination
360º
Rotation
0.00006(LUX) /0.00LUX(inIR Mode)
0.45
More than ≥ 50dB (AGC OFF)
Automatic White Balance
ON
ON
15 pcs 5 IR-LED
50m
Weatherproof
IP65
Varifocal
Lens
Operating Temperature
Water Resistance
Lens
Dimensions (mm)
Weight (kgs)
Power Source
Power Consumption
-10~50ºC
IP 66
5 to 50mm Manual Varifocal
97(¢) x 200(L)
2
DC12V
800mA max
D RANGE
3
MEDIUM RESOLUTION CAMERAS
IRCAM20 External Day / Night Camera
■
■
■
■
■
■
Day / night CCTV camera c/w 15m cable
420 TVL
4mm fixed lens
Up to 8m Infra Red illumination
12v DC 300mA (IR-on)
Weatherproof IP65 rating
Day and
Night
Signal System
Effective Pixels
Image sensor
Shutter Speed
Video Output
Scanning System
Horizontal Resolution
Minimum Illumination
PAL
500(H) x 582(V)
1/4" SONY Super HAD CCD
1/50(1/60) ~ 1/1 00,000 SEC
1.0Vp-p,75Ω
520:1Hz 2:1 interlace / internal
420 TV Lines
0.1LUX (F1.2)/0 LUX (in IR mode)
InfraRed
Illumination
360º
Rotation
Gamma Correction
S/N Ratio
White Balance
0.45
≥ 48dB (AGC OFF)
Automatic White Balance
ON
AGC
ON
BLC
14 pcs IR-LED
IR Capability
IR Illumination Distance More than 5-8m
Operating Temperature -10~50ºC
Weatherproof
IP65
Water Resistance
Lens
Dimensions (mm)
Weight (kgs)
Power Source
Power Consumption
IP 65
4mm
50(¢) x 71.5(L)
0.6
DC12V
300mA ma
IRCAM100 External Day / Night Camera
■
■
■
■
■
420 TVL
6mm fixed lens
Up to 15m Infra Red illumination
12v DC 350mA (IR-on)
Weatherproof IP66 rating
Day and
Night
InfraRed
Illumination
360º
Rotation
Weatherproof
IP65
Signal System
PAL
Horizontal Resolution
420 TV Lines
IR Illumination Distance More than 15m
Effective Pixels
Image sensor
Sensing Area
Shutter Speed
Video Output
Scanning Frequency
Scanning System
500(H) x 582(V)
1/3" SONY Super HAD CCD
4.9mm x 3.7mm
1/50(1/60) ~ 1/100,000 SEC
1.0Vp-p,75Ω
HorZ:15.625KHz /Vert: 50Hz
2:1 interlace / internal
Minimum Illumination
Gamma Correction
S/N Ratio
White Balance
AGC
BLC
IR Capability
0.1LUX (F1.2)/0 LUX (in IR mode)
0.45
≥ 48dB (AGC OFF)
Automatic White Balance
ON
ON
24 pcs IR-LED
Operating Temperature
Water Resistance
Lens
Dimensions (mm)
Weight (kgs)
Power Source
Power Consumption
-10~50ºC
IP 66
6mm/F2.0
66(¢) x 134(L)
0.5
DC12V
120mA (IR OFF), 350mA (IR ON)
IRCAM500 External Day / Night Camera
■
■
■
■
■
420 TVL
4-9mm varifocal lens
Up to 25m Infra Red illumination
12v DC 500mA (IR-on)
Weatherproof IP65 rating
Day and
Night
Signal System
Effective Pixels
Image sensor
Shutter Speed
Video Output
Scanning System
Horizontal Resolution
Minimum Illumination
4
PAL
500(H) x 582(V)
1/3" SONY Super HAD CCD
1/50(1/60) ~ 1/10 0,000 SEC
1.0Vp-p,75Ω
2:1 interlace / internal
420 TV Lines
0.1(LUX) /0.00LU X( IR Moinde)
Gamma Correction
S/N Ratio
White Balance
AGC
BLC
IR Capability
IR Illumination Distance
Operating Temperature
InfraRed
Illumination
0.45
More than ≥ 48 d B (AGC OFF)
Automatic White Balance
ON
ON
48 pcs 5 IR-LED
25m
-10~50ºC
360º
Rotation
Weatherproof
IP65
Varifocal
Lens
Water Resistance
Lens
Dimensions (mm)
Weight (kgs)
Power Source
Power Consumption
IP 65
4 to 9mm Manual Varifocal
99(¢) x 160(L)
1.3
DC12V
500mA max
IRCAM900 External Day / Night Camera
480 TVL
6-50mm varifocal lens
Up to 50m Infra Red illumination
12v DC 500mA (IR-on)
Weatherproof IP66 rating
■
■
■
■
■
Day and
Night
Signal System
Effective Pixels
Image sensor
Sensing Area
Shutter Speed
Video Output
Scanning Frequency
Scanning System
PAL
752(H) x 582(V)
1/3" SONY Super HAD CCD
4.9mm x 3.7mm
1/50(1/60) ~ 1/100,000 SEC
1.0Vp-p,75Ω
Horz: 15.625KHz / Vert: 50Hz
2:1 interlace / internal
Horizontal Resolution
Minimum Illumination
Gamma Correction
S/N Ratio
White Balance
AGC
BLC
IR Capability
InfraRed
Illumination
360º
Rotation
480 TV Lines
0.2Lux (F1.2)/ 0LUX (in IR mode)
0.45
≥ 50dB (AGC OFF)
Automatic White Balance
ON
ON
36 pcs IR-LED
Weatherproof
IP65
Varifocal
Lens
IR Illumination Distance More than 50m
Operating Temperature -10~50ºC
IP 66
Water Resistance
6 to 50mm Manual Varifocal
Lens
290(L)x 105(W)x 185(H)
Dimensions (mm)
1.05
Weight (kgs)
DC12V
Power Source
120mA (IR OFF), 500mA (IR ON)
Power Consumption
SPYCAM Spy Camera
420TVL
3.6mm fixed lens
12v DC 120mA
For Covert Surveillance applications
Complete with optional pin hole lens
■
■
■
■
■
Fixed
Lens
Signal
PAL
Horizontal Resolution
420 TV Lines
Operating Temperature -10~50•C
Effective Pixels
Image sensor
Sensing Area
Shutter Speed
Video Output
Scanning Frequency
Scanning System
500(H) x 582(V)
1/3" SONY Super HAD CCD
4.9mm x 3.7mm
1/50(1/60) ~ 1/100,000 SEC
1.0Vp-p,75Ω
Horz: 15.625KHz / Vert: 50Hz
2:1 interlace / internal
Minimum Illumination
Gamma Correction
S/N Ratio
White Balance
AGC
BLC
IR Illumination Distance
0.1LUX (F1.2)/0 LUX (in IR mode)
0.45
≥ 48dB (AGC OFF)
Automatic White Balance
ON
ON
More than 15m
Water Resistance
Lens
Option Pinhole Lens
Dimensions (mm)
Weight (kgs)
Power Source
Power Consumption
IP 66
3.6mm/F2.0
3.7mm/F2.0
38(L) x 38(W)
0.02
DC12V
120mA
DLC Downlighter Camera
■
■
■
■
■
420 TVL
3.6mm fixed lens
Up to 10m Infra Red illumination
12v DC 400mA (IR-on)
Available in Chrome, Brass, White or Grey
InfraRed
Illumination
Image Sensor
Effective Pixels
Resolution
Min. Illumination
Syncronising System
Scanning System
Video Output
S/N Ratio
1/3” Sony Colour
500(H) x 582(V)
420TV Lines
0.5LUX (F:1.2) / 0.1LUX (in IR Mode)
Internal
625 Lines, 2:1 Interlace
1.0V P-P Composite, 75Ω
More than 48DB (AGC Off)
IR LED On/Off
Electronic Shutter
Smear Effect
Gain Control
Gamma Correction
MTBF
Power Source
Lens
Fixed
Lens
On/Off
1/50~100,00Sec
0.005%
4DB~32DB Auto (Max/Off)
R-0.45
80,000 Hours
DC 12V (Tolerence: 9V~15V)
3.6mm (Board Lens)
360º
Rotation
Operation Temperature
Operating Current
Humidity
Dimension (mm)
Function Key
Finish
-20ºC~+50ºC
400MA/Regulated Power Input
Within 90% RH (IP Rating: IP+67)
75 x 110
BLC, ESC, AWB, AGC, F/L
Chrome, Brass, White or Grey
D RANGE
5
DOME CAMERAS
DOMEMICRO Internal Dome Camera
■
■
■
■
Internal colour mini dome camera
420 TVL
3.6mm fixed lens
12v DC 120mA
Fixed
Lens
360º
Rotation
Signal system
PAL
Scanning System
2:1 interlace / internal
BLC
Effective Pixels
500(H) x 582(V)
Horizontal Resolution
420 TV Lines
Operating Temperature
ON
-10~50ºC
Image sensor
1/3" SONY Super HAD CCD
Minimum Illumination
0.1LUX (F1.2)
Lens
3.6mm/F2.0
Sensing Area
4.9mm x 3.7mm
Gamma Correction
0.45
Dimensions (mm)
70(¢) x 52(H)
Shutter Speed
1/50(1/60) ~1/100,000 SEC
S/N Ratio
≥ 48dB (AGC OFF)
Weight (kgs)
0.08
Video Output
1.0 Vp-p , 75Ω
White Balance
Automatic White Balance
Power Source
DC12V
Scanning Frequency
Horz: 15.625KHz / Vert: 50Hz
AGC
ON
Power Consumption
120mA
IRDOME Internal Dome Camera
■
■
■
■
420 TVL
4mm fixed lens
Up to 10m Infra Red illumination
12v DC 350mA (IR-on)
InfraRed
Illumination
Fixed
Lens
360º
Rotation
Image Sensor
1/3” Color SONY CCD
Exposure Mode
EE
Infrared Luminary
24 pcs IR-LED
Effective Pixels
PAL: 500(H) x 582(V)
NTSC: 510(H) x 492(V)
Electronic Shutter Speed
PAL:1/50-1/100,000(sec)
NTSC: 1/60 – 1/100,000 (sec)
Illumination Distance
10m
Video Output
1.0Vp-p,75Ω
Signal System
PAL/NTSC
Gamma
0.45
Power Requirement
DC12V
Resolution
420TVL
White Balance
ATM
Power Consumption
120mA(IR OFF), 350±5%mA(IR ON)
Minimum Illumination
0.2Lux/F2.0, 0Lux (IR On)
AGC Gain Control
Auto
Operation Temp.
-10ºC ~50ºC
LENS
Board Lens 4mm
Day & Night
Auto
Dimensions (mm)
95(¢) x 85(H)
S/N Ratio
More than 48dB (AGC OFF)
SYNC System
Internal
Weight
Approx 170g
DOMEVF Internal Dome Camera
■
■
■
■
Internal colour dome camera
420 TVL
4-9mm varifocal lens
12v DC 120mA
Fixed
Lens
6
360º
Rotation
Signal System
PAL
Horizontal Resolution
420 TV Lines
Operating Temperature
Effective Pixels
500(H) x 582(V)
Minimum Illumination
0.1 LUX (F1.2)
Water Resistance
-10~50ºC
IP 66
Image sensor
1/3" SONY Super HAD CCD
Gamma Correction
0.45
Lens
4-9mm Manual Varifocal
Sensing Area
4.9mm x 3.7mm
S/N Ratio
≥ 48dB (AGC OFF)
Dimensions (mm)
105(¢) x 75(H)
Shutter Speed
1/50(1/60) ~1/100,000 SEC
White Balance
Automatic White Balance
Weight (kgs)
0.4
Video Output
1.0 Vp-p , 75Ω
AGC
ON
Power Source
DC12V
Scanning Frequency
Horz: 15.625KHz / Vert: 50Hz
BLC
ON
Power Consumption
120mA
Scanning System
2:1 interlace / internal
Burst Level
1/50
IRDOMEXT External Dome Camera
■
■
■
■
420 TVL
4mm fixed lens
Up to 8m Infra Red illumination
12v DC 300mA (IR-on)
InfraRed
Illumination
Fixed
Lens
Weatherproof
IP65
360º
Rotation
Effective Pixels
500(H) X 582(V)
Minimum Illumination
0.5LUX(F1.2) / 0.00LUX (IN IR MODE)
Water Resistance
IP 65
Image sensor
1/3" SONY Super HAD CCD
Gamma Correction
0.45
Lens Board Lens
3.6mm/F2.0
Sensing Area
4.9mm X 3.7mm
S/N Ratio
≥ 48dB (AGC OFF)
Dimensions (mm)
107(¢) x 76(H)
Shutter Speed
1/50(1/60) ~1/100,000 SEC
White Balance
Automatic White Balance
Weight
730g approx.
Video Output
1.0 V P-P OHMS
IR Capability
14 pieces IR-LED
Power Source
DC12V
Scanning Frequency
Horz: 15.625KHz /vert: 50Hz
IR Illum. Distance
More than 8m
Power Consumption
120mA (IR OFF) 300mA (IR ON)
Scanning System
2:1 interlace / internal
Burst Level
1/50
Horizontal Resolution
420 TV Lines
Operating Temp.
-10~50ºC
IRDOMEXTVF External Dome Camera
■
■
■
■
■
580 TVL
4-9mm varifocal lens
Up to 30M Infra Red illumination
12v DC 450mA (IR-on)
Weatherproof IP66 rating
InfraRed
Illumination
Varifocal
Lens
Weatherproof
IP65
360º
Rotation
Signal System
PAL
Horizontal Resolution
580 TV Lines
IR Illumination Distance
More than 30m
Effective Pixels
752(H) x 582(V)
Minimum Illumination
0.01Lu x (F1.2)/0.00LUX(IN IRMode)
Operating Tempperature
-10~50ºC
Image sensor
1/3" SONY Super HAD CCD
Gamma Correction
0.45
Water Resistance I
P 66
Sensing Area
4.9mm x 3.7mm
S/N Ratio
≥ 50dB (AGC OFF)
Lens
4 to 9mm Manual Varifocal
Shutter Speed
1/50(1/60) ~ 1/100,000 SEC
White Balance
Automatic White Balance
Dimensions (mm)
120(¢) x 80(H)
Video Output
1.0Vp-p,75Ω
AGC
ON
Weight (kgs)
0.7
Scanning Frequency
Horizontal: 15.625KHz /Vert: 50Hz
BLC
ON
Power Source
DC12V
Scanning System
2:1 interlace / internal
IR Capability
42 pcs ¢ IR-LED
Power Consumption
120mA (IR OFF), 450mA (IR ON)
DOMEDUMMY Dummy Dome Camera
■ Medium external dummy camera
■ Optional red LED
■ Battery housed internally
D RANGE
7
D I G I TAL V I D E O RE CO R D E RS
DVR8 8 Channel
Digital Recorder
■
■
■
■
■
USB back up
Network capability
VGA output
Remote control included
Complete with 250Gb HDD
Video Input Format
NTSC / PAL
TCP/IP (Network Model Only)
8CH. Composite
Recording Frame Rate Quad Mode - PAL Max. 25 fps
Each Mode - PAL Max. 6.25 fps
Network Protocol
Video Input Channel
Ethernet
RJ-45 10M / 100M
Video Output Channel
2CH. BNC, S-VIDEO & VGA
Recording Mode
Continuous, Motion Detection,
and Alarm Event
Browser
IE 5.0 or above version
Audio Input
2CH. In, 2CH. Out; RCA
Display Resolution
PAL 725 x 576
OS
Windows 2000 / XP / Vista
Motion Detector
Yes
Remote Control Interface Yes
Recording Software
Yes
Recording Resolution
PAL 704 x 576
Compression Format
Modified M-JPEG / MPEG4
H.244 Video Compression
(For H.264 DVR Model Only)
Video Adjustment
Yes
Watch-dog Function
Auto Recovery Capability After
Power Outage
USB Serial Port (PC-Link) Yes
Built-in Buzzer
Yes
Display Mode
Each, Quad, PIP, Sequence
HDD Interface
One HDD Rack - Max: 1TB
Dimensions (mm)
290 x 300 x 56
PAL 100 fps
Search Mode
Time, Event (Motion, Alarm, Video Loss)
Weight
3.8kg (Without HDD)
Display Frame
DVR8Pro 8 Channel
Digital Recorder
■
■
■
■
■
DVD and USB back up
Network capability
VGA output
Complete with 250Gb HDD
Remote control included
Video Input Format
NTSC / PAL
Display Frame Rate
NTSC 240 fps - PAL 200 fps
Serial Connectors
Video Compression
Enhanced Motion JPEG
Recording Frame Rate
60/50 fps
Network Connection 10/100MB Ethernet (RJ-45)
USB Port x 2, RS485 x 1 (optional)
Video Input Channel
BNC x 8
Display Resolution
640 x 448/640 x 544
Network Protocol
Static IP, DHCP, PPPoE, DDNS
Video Output Channel
BNC x 1
Recording Resolution
640 x 224/640 x 272
Network Remote
Remote Client Software and IE Browser
VGA Output
Yes
Search Function Mode
Date and Time
Remote Controller
Yes
Audio In/Out
1/1
HDD Interface
SATA HDD - Max: 1TB
Power Supply
Alarm In/Out
8/1
OSD Language
Multi-Language Support
Input: AC 100-240V 50/60 Hz
Output: DC 12V/5A
Recording Frame Rate
60/50 fps
Back-up (Archive Device) USB Flash Disc/CD-RW/DVD+RW
Dimensions (mm)
380 x 280 x 70
Weight
3.3kg
DVR16Pro 16 Channel
Digital Recorder
■
■
■
■
■
8
DVD and USB back up
Network capability
VGA output
Complete with 500Gb HDD
Remote control included
Video Input Format
NTSC / PAL
Display Frame Rate
NTSC 480 fps - PAL 400 fps
Serial Connectors
Video Compression
Enhanced Motion JPEG
Recording Frame Rate
120/100 fps
Network Connection 10/100MB Ethernet (RJ-45)
USB Port x 2, RS485 x 1 (optional)
Video Input Channel
BNC x 16
Display Resolution
640 x 448/640 x 544
Network Protocol
Static IP, DHCP, PPPoE, DDNS
Video Output Channel
BNC x 1
Recording Resolution
640 x 224/640 x 272
Network Remote
Remote Client Software and IE Browser
VGA Output
Yes
Search Function Mode
Date and Time
Remote Controller
Yes
Audio In/Out
1/1
HDD Interface
SATA HDD - Max: 2TB
Power Supply
Alarm In/Out
8/1
OSD Language
Multi-Language Support
Input: AC 100-240V 50/60 Hz
Output: DC 12V/5A
Recording Frame Rate
120/100 fps
Back-up (Archive Device) USB Flash Disc/CD-RW/DVD+RW
Dimensions (mm)
380 x 280 x 70
Weight
4.3kg
DVR-EZPRO 4 Channel Recorder
■
■
■
■
■
■
■
■
■
■
Video Input Format
NTSC / PAL
Video Input Channel
4CH. Composite
Video Output Channel
2CH. BNC & VGA (Optional)
Audio Input
2CH. In, 2CH. Out; RCA
Motion Detector
Yes
Remote Control Interface Yes
Picture in picture viewing
Improved search and review facility
Simple backup to USB memory stick
USB output for easy PC linkage with
new software
Integral power for 12VdC cameras up to
2000ma (500ma/channel)
Built in ‘on-screen’ motion detection no PIR required
Up to 7 months continuous recording
Networkable version DVR-EZPRON available
with enhanced remote viewing software
Compatible with XP, Vista and Windows 2000
Slow motion facility in forward and reverse
Recording Frame Rate
(quad mode)
NTSC Max. 30 fps
PAL Max. 25 fps
Search Mode
Time, Event (Motion, Alarm, Video Loss)
Network Protocol
TCP/IP (Network Model Only)
Recording Frame Rate
(each mode)
NTSC Max. 7.5 fps
PAL Max. 6.25 fps
Ethernet
RJ-45 10M / 100M
Recording Mode
Continuous, Motion Detection,
and Alarm Event
Browser
IE 5.0 or above version
OS
Windows 2000 / XP / Vista
Resolution (Display)
NTSC 720 x 480 - PAL 725 x 576
Recording Software Yes
USB Serial Port (PC-Link) Yes
Resolution (Recording)
NTSC 704 x 480 - PAL 704 x 576
Video Adjustment
Built-in Buzzer
Yes
Compression Format
Display Mode
Each, Quad, PIP, Sequence
Watch-dog Function Auto Recovery Capability After
Power Outage
Display Frame
NTSC 120 fps - PAL 100 fps
Modified M-JPEG / MPEG4
H.244 Video Compression
(For H.264 DVR Model Only)
Yes
Dimensions (mm)
290 x 300 x 56
HDD
160GB
Weight
3.8kg (Without HDD)
DIGIVIEW 4 channel day/night CCTV
system with 160GB hard drive
SYSTEM
■ Day/Night cameras with LED illumination
■ Digital full screen recording
■ Built in on-screen motion detection
■ Up to 16 weeks continuous recording
■ Compatible with CCTV monitor or standard TV
■ Cameras suitable for indoor or outdoor use
■ USB output for captured image transfer
■ Network version available - Digi-View4PRON
Digiview 4 Pro offers a comprehensive digital CCTV solution for home or
business use. The cameras, suitable for exterior or interior use without
any additional housing, offer clear colour images during the day and crisp
infra red illuminated mono images at night. Also included in the system is
a high capacity digital video recorder which allows simple control,
recording and viewing of images whilst also providing power for the
cameras. To complete the system a cable is included for direct connection
to a standard television or an optional dedicated CCTV TFT monitor.
DVR
Description
Hard drive
CONTENTS
■ 1 x DVR c/w 160GB hard drive
■ 4 x IRCAM-20 Day Night cameras
■ 4 x 15m camera cables
■ 1 x lead for monitor or TV connection
■ 1 x Software for image transfer
■ 1 x USB lead
CAMERA
4 channel stand
alone DVR
Display frame rate
100 frames per sec.
Description
Record frame rate
Max 25 frames per
second adjustable
1/4”Colour Day &
Night Infrared Camera
Minimum illumination 0.92 Lux. F /2.0
(0 Lux with IR)
Pick up Element
Adjustable - Super,
High, Normal, Standard
SHARP 1/4” CCD
Image Sensor
Horz. Sync Frequency <PAL> 28.3 KHz
Record quality
Video Output
1.0Vp.p. 75ohm
Number of Pixels
NTSC 510(H) x 492(V)
PAL 500(H) x 582(V)
Power Source
DC 12V
(Supplied from DVR)
Water Resistance
IP65
IR LED
14PCS
Removable 160GB
Max HDD supported 750GB in single bay
Video input format
PAL/NTSC
Video input
4 channel
composite
Recording modes
Continuous, motion,
manual, scheduled
Video output
4 channel
composite
Display resolution
720 x 576
Power output
500ma 12VDC each
channel
Compression format
Motion detection
Area selectable Sensitivity adjustable
Alarm input
4 selectable no/nc
Alarm outputs
Alarm buzzer
Back Light
Compensation
ON
Auto Electronics
Shutter
ON
Night Viewable Range 5-8 meters
Selectable MJPEG
or MPEG4
AGC
ON
Power Consumption
Search facility
Time/Date or Event
Sync Mode
Internal Sync
Operating Temperature -10ºC to + 50ºC
Recorded
image back up
USB flash stick or
direct to PC Laptop
Scanning System
2:1 Interlace
Lens
4mm lens
Auto White Balance
ON
Shutter Control
1 selectable
Resolution
420 TV Lines
<PAL> 1/50
1/110,000 sec
Yes
S/N Ratio
> 48 dB
Dimensions (mm)
50 (D) x 71.5 (H)
Net Weight
0.6kg
Recording resolution 704 x 576
Gamma
0.45
300mA max
D RANGE
9
MONITORS
TFT 19 - 19” LCD TFT CCTV Monitor
■
■
■
■
Full composite video input (BNC)
Sleek black design
Anti-Glare technology
Easy to clean glass screen
Panel Type
Video Signal
Audio Signal
PC Input
19"(5:4) LCD
Video Input x 1 (BNC); S-video x 1
RCA Jack x 2 (L/R)
15 pin D-Sub (Analog RGB) for VGA Input
SXGA (1280x1024)
Resolution
500:1 Typical
Contrast
350 cd/m2 Typical
Brightness
Viewing Angle H: 160 degrees - V: 150 degrees
Screen Control OSD Multi-language Menu
Response Time 6ms Typical
DC 12V Adaptor Supplied, AC100V~240V
Power Supply
Dimensions (mm) 360H x 425L x 65D
4.2kg
Weight (kg)
TFT 17 - 17” LCD TFT CCTV Monitor
■
■
■
■
Full composite video input (BNC)
Sleek black design
Anti-Glare technology
Easy to clean glass screen
Panel Type
17"(5:4) LCD
Video Signal
Video Input x 1 (BNC); S-video x 1
Audio Signal
RCA Jack x 2 (L/R)
PC Input
15 pin D-Sub (Analog RGB) for VGA Input
Resolution
SXGA (1280x1024)
Contrast
450:1 Typical
Brightness
350 cd/m2 Typical
Viewing Angle H: 160 degrees - V: 150 degrees
Screen Control OSD Multi-language Menu
Response Time 6ms Typical
Power Supply
DC 12V Adaptor Supplied, AC100V~240V
Dimensions (mm) 320H x 380L x 55D
Weight (kg)
3.4kg
TFT 15 - 15” LCD TFT CCTV Monitor
■
■
■
■
Full composite video input (BNC)
Sleek black design
Anti-Glare technology
Easy to clean screen
Panel Type
15"(4:3) LCD
Video Signal
Video Input x 1 (BNC); S-video x 1
Audio Signal
RCA Jack x 2 (L/R)
PC Input
15 pin D-Sub (Analog RGB) for VGA Input
Resolution
XGA (1024x768)
Contrast
350:1 Typical
Brightness
300 cd/m2 Typical
Viewing Angle H: 160 degrees - V: 150 degrees
Screen Control OSD Multi-language Menu
Response Time 8ms Typical
Power Supply
DC 12V Adaptor Supplied, AC100V~240V
Dimensions (mm) 280H x 350L x 55D
Weight (kg)
2.6kg
TFT 10 - 10.4” LCD TFT CCTV Monitor
■ Full composite video input (BNC)
■ Sleek black design
■ Anti-Glare technology
Panel Type
10"(4:3) LCD
Video Signal
Video Input x 1 (BNC); S-video x 1
Audio Signal
RCA Jack x 2 (L/R)
PC Input
15 pin D-Sub (Analog RGB) for VGA Input
Resolution
XGA (1024x768)
Contrast
300:1 Typical
Brightness
300 cd/m2 Typical
Viewing Angle H: 160 degrees - V: 150 degrees
Screen Control OSD Multi-language Menu
Response Time 8ms Typical
Power Supply
DC 12V Adaptor Supplied, AC100V~240V
Dimensions (mm) 240H x 285L x 45D
Weight (kg)
1.2kg
TEST1 - 3.5” LCD TFT CCTV Test Monitor
■
■
■
■
10
Battery Powered
Enables easy camera set up
Hands free operation
3.5” screen size
Display Format
Active Area (mm)
Dot Picth (mm)
View Angle
Colour
Video Input
Power Input
Luminance
Contrast Ratio
Display Mode
Operating Temp.
Dimensions (mm)
Weight
480 x 234 dots
72(H) x 50.54(V)
0.150(W) x 0.216(H)
(V)+15º/-35º, (H)+50º/-50º
Full Colour
2 Video Input / 1 Vp-p Ohms
DC12V-DC14V / 300 mA(Max)
250 cd/m2
350:1
NTSC/PAL AUTO
-20ºC~+70ºC
88(H) x 82(V) x 22(D)
150g
WITNESS
WITNESS CCTV combination units
Witness 4, 9 and 16 are high specification triplex digital video
recorders combined with a super thin TFT monitor in a single
attractive piano black housing. Suitable for use with virtually all
BNC terminated cameras, Witness is an ideal upgrade partner to
existing cameras or new system solution when coupled with
cameras from the D Range.
SYSTEM
■ Triplex operation (record, view live, view remotely at the same time)
■ Full remote viewing capability via fixed or dynamic IP address
■ Password protection
■ Save / Load system settings via USB
■ E-mail alert of trigger events
■ Integral PTZ with most popular protocols
■ Complete with remote control
DISPLAY
■ 17” super thin TFT monitor
■ View in single channel, quad or multi screen mode
■ Monitor standby facility
■ Separate control of brightness / contrast / colour on each channel
RECORDING
■ Record all cameras in full screen all the time
■ Search recordings by event or specified time and date
■ Integral 500GB hard drive (Witness 16) 250GB HD (Witness 9 /4)
■ Record by schedule / event / on-screen motion or external trigger
■ Pre (5 seconds) and post (up to 30 seconds) event recording
■ Back up of recorded data to USB stick or external R/W CD
■ Up to four channels of audio
WITNESS 4
17" TFT monitor combined with 4 channel DVR c/w 250GB hard drive,
space for further drive, network output, USB port, motion detection
WITNESS 9
17" TFT monitor combined with 9 channel DVR c/w 250GB hard drive,
space for further drive, network output, USB port, motion detection
WITNESS 16
17" TFT monitor combined with 16 channel DVR c/w 500GB hard
drive, space for further drive, network output, USB port,
motion detection
Video Input
Witness 4
Witness 9
Witmness 16
4 composite BNC -1.0v p-p
9 composite BNC -1.0v p-p
16 composite BNC -1.0v p-p
Multi Task Triplex
Record, Playback & Transfer
Control Unit
IR remote control & front keys
Serial Port Console
IRS-232C
Serial Port Camera Control
IRS-485
Network Interface
ADSL, LAN
Video Output
1 VGA
Audio Input & Output
4CH line in & 1 CH line out
Alarm Input & Output
4Ch Input. By Alarm, Motion,HDD Error, Fan & Power Loss
OS
Real Time Operating System
Record Compression
MPEG 4
Record Video Format
PAL
Record Resolution
Witness 4
Witness 9
Witness 16
360 x 288, 720 x 576
360 x 288, 720 x 576
352 x 288, 704 x 575
Recording Speed
Witness 4 & 9
MAX. 100 FPS 360 x 228
MAX. 25 FPS 720 x 576
MAX. 100 FPS 352x288
MAX. 25 FPS 704x575
Power Consumption
About 25W
Environment Temperature
5ºC~ 40ºC
Recording Speed
Witness 16
Record Mode
Manual, Motion, Sensor, Schedule
Record Method
By Resolution, fps & Quality
Netwrok Dynamic IP
DDNS
Netwrok LAN Port
1 10/100-Base T Ethernet
Network Functions
Live, Search, P/T/Z/F
HDD Capacity
Witness 4 & 9
Witness 16
Back Up Network
Still image & video data
Back Up USB Stick
Still image & video data
Power Adaptor
Input: AC100-240v, 50/60Hz 1.5 A
250GB
500GB
Environment Humidity
30%-90%
Dimensions (mm)
388(W) x 170(D) x 430 (H)
D RANGE
11
ACCESSORIES
Boxed power supplies
■
■
■
■
■
■
■
■
■
■
Dual Function Cables
■
■
■
■
■
CAB10 - 10m cable
CAB20 - 20m cable
CAB40 - 40m cable
CAB80 - 80m cable
Power and BNC video cables for
use with digital CCTV equipment
Fixed Bracket
■
■
■
■
■
■
TFT-BRA1
Closest to wall fit
Picture style finish
To fit screens 12-23" (30-58cm)
Supports 25kg (55lbs)
For use with Witness kits only
Tilt, Pivot & Rotate Bracket
■
■
■
■
■
CCTV Cable Coupler Kit
■ CAB-COUP
■ Power and BNC connector
for use with CCTV dual
function cables (above)
Tilt & Pivot Bracket
■
■
■
■
■
TFT-BRA2
30º tilt 180º swivel
Close to wall fit
To fit screens 12-23" (30-58cm)
Supports 15kg (33lbs)
Anti Vandal Cages
■
■
■
■
CAGE 1 - 360W x 360D x 460H
CAGE 2 - 210W x 255D x 305H
Galvanized steel
Easily wall mountable
External Dummy Camera
Dome Dummy Camera
■
■
■
■
CAM2001
Medium external dummy cameras
Optional red LED
Dimensions (mm)
245L x 100W x 185H
■ Battery housed in junction box
■
■
■
■
External Warning Sign
Camera Power Supply
■
■
■
■
12
TFT-BRA3
2 swivel points
Tilts for better viewing position
To fit screens 12-23" (30-58cm)
Supports 15kg (33lbs)
CPS4 - 4 way 4 Amp
CPS9 - 9 way 9 Amp
CPS16 - 16 way 16 Amp
12VDC power limited output
Protected outputs
100VAC-240VAC (50/60Hz) universal input
Filtered and electronically regulated output
Short circuit and thermal overload protection
AC input and DC output LED indicators
Dimensions: 322(W) x 322(H) x 86(D)mm
WARN1
External durable use
Dimensions 420mm x 300mm
Space available to add scheme
ownership details
■
■
■
■
DOMEDUMMY
Medium external dummy camera
Optional red LED
Battery housed internally
PSIL-1
For use with CCTV cameras
12 volt
1 amp
CCTV SURVEY FORM
This form is designed to help you, help us, to choose to the best of our ability the items from our range that will create a CCTV
system that operates to the end users satisfaction. Take a copy of the form, complete as many sections as possible, and return it to
us for quotation Fax 01527 51 51 43 or E-mail [email protected]
G E N E R A L I N F O R M AT I O N
Wholesaler name & contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Tel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installer name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Tel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Job Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brief description of system location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
..............................................................................................................................
If possible a simple sketch of the area to be protected showing location of cameras can also be very helpful.
Internal
or
External
I or E
Subject to be viewed
i.e. entrance to car park,
grounds, room, corridor etc
Size of
subject
dimensions
in metres
CAMERA 1
W
H
CAMERA 2
W
H
CAMERA 3
W
H
CAMERA 4
W
H
CAMERA 5
W
H
CAMERA 6
W
H
CAMERA 7
W
H
CAMERA 8
W
H
CAMERA 9
W
H
CAMERA 10
W
H
CAMERA 11
W
H
CAMERA 12
W
H
CAMERA 13
W
H
CAMERA 14
W
H
CAMERA 15
W
H
CAMERA 16
W
H
Distance
to subject
in metres
Level of detail
required ie faces,
number plates,
general activity etc
Distance
between
camera &
recorder(m)
RECORDING
VIEWING
Maximum record time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Weeks
Main monitor size - 10”, 15”, 17” or 19” . . . . . . . . . . . . . . . . . . . . . . .
Slave monitors - Quantity . . . . . . . . . . . . . and Size . . . . . . . . . . . . .
D RANGE
13
IP CAMERAS
IP (internet protocol) cameras have been successfully integrated into the world of CCTV for a number of years. They offer an
unbeatable solution for users requiring an effective remote viewing capability across the globe using their existing IT
facilities. To date the installer has required a level of IT knowledge to create a stable connection that copes with the
computer networks in built anti virus security.
The new IP cams put the world of IP CCTV in the hands of the relative novice. There’s no need for port forwarding, router
configuration or firewall opening. As with many of ESPs products the IPcams are very much plug and play.
Easy 3 step configuration
Plug the camera into a spare port on
the back of the broadband router.
Load and launch the software on any
computer which has network or
internet access.
Then simply enter the unique
registration code of the camera to
complete the linking process.
Within minutes a remote viewing, recording IP based CCTV system is created. The software will allow connection and
recording of up to 32 cameras. The attractive user interface allows separate image control , motion record settings and of
course viewing of all cameras simultaneously. There’s even control capability of the wire free IPCAMPT pan and tilt unit.
IPCAM-EXT
■ External or internal use
■ Day/night 20m IR coverage
■ System software included
Internet
Based
Image Sensor
Video Compression
Video Streams
No. of Effective Pixels
Resolution
Frame Rate
Min. Illumination 0
Gamma
S/N Ratio
1/3” Sony CCD
MPEG4
2
NTSC: 510(H) * 492(V)
PAL: 500(H) * 582(V)
176 x 120, 352 x 240, 720 x 480
Up to 30 FPS in all resolution
.5 Lux, 50 IRE, F1.4
0.45
>48 dB
Plug and
Play
InfraRed
Illumination
Sync. Mode
Scanning System
Shutter Control
Weatherproof
IP65
Internal Sync
2:1 Interlace
NTSC: 1/60-1/100,000 sec.
PAL: 1/50-1/100,000 sec.
BNC Video Output
Composite Video 1.0Vpp. 75 ohm
Night Mode
Auto
White Balance
ATW
IR LED Quantity
28
IR LED Peak Wavelength 850 nm
IR LED Radiant Distance 20 meters
Power Supply
12V DC
Power Consumption
18W
Audio
Audio Streaming
Audio
Input/Output
Lens Standard
6.0mm board lens
Lens Optional
8mm
Dimensions (mm)
118(L) x 78(Ø)
Weight
0.45 kg
Ingress Protection Rating IP66
Operating Temperature -10°C ~ +60°C
IPCAM-DOME
■ Internal use
■ Low profile
■ System software included
Internet
Based
Image Sensor
Effective No. of Pixels
Video Compression
Video Streams
Resolution
Frame Rate
Min. Illumination
Gamma
14
1/3” Sony CCD
NTSC:510(H)*492(V)
PAL:500(H)*582(V)
MPEG4
2
176x120, 352x240, 720x480
Up to 30FPS in all resolution
0.3 Lux, F1.2
0.45
S/N Ratio
Sync. Mode
Scanning System
Shutter Control
BNC Video Output
Night Mode
Auto Electronics Shutter
Auto Gain Control
Plug and
Play
360º
Rotation
>48 dB
Internal Sync
2:1 Interlace
NTSC: 1/60-1/100,000 sec.
PAL: 1/50-1/100,000 sec.
1.0Vpp.75ohm
Auto
ON
ON
Back Light Compensation
White Balance
Power Supply
Power Consumption
Lens Standard
Lens Optional
Lens Dimensions (mm)
Weight
Operating Temperature
ON
ATW
DC12V
3.6W
3.6mm Board Lens (standard)
4.0/6.0/8.0 mm Board Lens
82.6(H) x 117.5(Ø)
0.5kg
-10ºc to 60ºc
REMOTE VIEWING
LOCAL IP CAMERAS
REMOTE VIEWING
■ No router
programming
■ No fixed IP
address required
■ No firewall issues
■ No port forwarding
■ No PC required at
camera location
■ Simple plug and play
INTERNET
ROUTER
ROUTER
LOCAL NETWORK
REMOTE IP CAMERAS
IPCAM-PT
■
■
■
■
■
Wired or wireless
Integral microphone
Various mounting options
System software included
Micro-SD card for video storage
Internet
Based
Power
Pan/Tilt control
Image sensor
Light sensitivity
DC 5V, 2A
Pan range 130° ( -65° ~ 65°), Tilt range 90° (0° ~ 90°),
Auto pan mode, Auto patrol mode
RGB VGA 1/4 inch CMOS
Automatic exposure control, automatic white balance,
automatic gain control, automatic brightness control
0.2 Lux
Plug and
Play
Pan and
Tilt
Lens
Micro SD card slot
Audio
Dimensions (mm)
Weight
3.2 mm
One micro SD card slot for micro SD card insertion
Built-in microphone for audio monitoring
120(H) x 91(W) x 84(D)
350 g camera body only
IPCAM-SA
■ Converts standard camera to IP
■ Additional built in local recording
■ System software included
Power
Micro-SD card interface
Audio
Input DC 12V, 300 mA
Micro-SD card interface for up to
2G bytes for local video storage
Built-in audio line-in for audio monitoring
Dimensions (mm)
Weight
Operating conditions
40(H) x 81(W) x 92(D)
300 g
0-50 °C
Humidity 20 - 80% RH (non-condensing)
D RANGE
15
D-RANGE PRODUCT CODES
IR-DOMEXT-VF DAY/NIGHT EXTERNAL use DOME CAMERA with INTEGRAL IR
ILLUMINATORS, variable 4-9mm
COMBINATION UNITS
TFT MONITORS WITH FULLY INTEGRATED DVR
SPYCAM
COLOUR BOARD CAMERA c/w FULL or PINHOLE lens option
WITNESS 4
17" TFT monitor combined with 4 CHANNEL DVR c/w 250GB hard drive,
NETWORK OUTPUT, USB PORT, MOTION DETECTION
DLC-BRASS
DAY/NIGHT INTERNAL use CAMERA in BRASS downlighter housing with
4mm lens and IR Leds
WITNESS 9
17" TFT monitor combined with 9 CHANNEL DVR c/w 250GB hard drive
space for further drive, NETWORK OUTPUT, USB PORT, MOTION
DETECTION
DLC-CHROME
DAY/NIGHT INTERNAL use CAMERA in CHROME downlighter housing
with 4mm lens and IR Leds
DLC-WHITE
WITNESS 16
17" TFT monitor combined with 16 CHANNEL DVR, 1 X 500GB hard
drive, NETWORK OUTPUT, USB PORT, MOTION DETECTION
DAY/NIGHT INTERNAL use CAMERA in WHITE downlighter housing with
4mm lens and IR Leds
DLC-GREY
DAY/NIGHT INTERNAL use CAMERA in GREY downlighter housing with
4mm lens and IR Leds
SYSTEMS
IP CAMERA SYSTEMS WITH REMOTE VIEWING CAPABILITY
NB REQUIRES ADDITIONAL MONITOR OR TV
DIGI-VIEW4PRO 4 DAY/NIGHT weatherproof cameras with integral IR ILLUMINATION ,
4 X 15M cables, 1 X 4 channel DVR c/w 160GB HD & POWER OUTPUTS
for cameras, 1 X CONNECTION CABLE for CCTV monitor or standard
television
DIGI-VIEW4PRON 4 DAY/NIGHT weatherproof cameras with integral IR ILLUMINATION ,
4 X 15M cables, 1 X NETWORKABLE 4 channel DVR c/w 160GB HD &
POWER OUTPUTS for cameras, 1 X CONNECTION CABLE for CCTV
monitor or standard television
IP-CAMEXT
IR ILLUMINATORS, external IP camera with remote viewing capability,
fixed 4mm lens
IP-DOME
internal DOME IP camera sytem with remote viewing capability, fixed
4mm lens
IP-CAMPT
WIRELESS colour internal PAN & TILIT IP camera with remote viewing
capability
IP-CAMSA
IP CONVERTER for standard cctv cameras
RECORDING
TFT MONITORS
TRUE CCTV MONITORS WITH BNC VIDEO LOOP THROUGH AND GLASS SCREEN
NB ESP DVR'S FEATURE INTEGRAL POWER FOR CAMERAS AT 350MA PER CHANNEL
TFT10
10" TFT LCD CCTV monitor with BNC VIDEO LOOP THROUGH
DVR-EZPRO
4 channel DVR c/w 160GB HD and INTEGRAL CAMERA POWER SUPPLY
TFT15
15" TFT LCD CCTV monitor with BNC VIDEO LOOP THROUGH and
GLASS SCREEN
DVR-EZPRON
4 channel NETWORKABLE DVR c/w 160GB HD and INTEGRAL CAMERA
POWER SUPPLY
TFT17
17" TFT LCD CCTV monitor with BNC VIDEO LOOP THROUGH and
GLASS SCREEN
DVR8
8 channel NETWORKABLE DVR c/w 250GB HD
DVR8PRO
8 channel NETWORKABLE DVR c/w 250GB HD & DVD-RW
19" TFT LCD CCTV monitor with BNC VIDEO LOOP THROUGH and
GLASS SCREEN
DVR16PRO
16 channel NETWORKABLE DVR c/w 500GB HD & DVD -RW
TFT19
POWER SUPPLIES
CAMERAS
NB ALL CAMERAS REQUIRE A CABLE - SUPPLIED SEPARATELY
CPS4
boxed power supply 4 WAY / 4 AMP
CPS9
boxed power supply 9 WAY / 9 AMP
CPS16
boxed power supply 16 WAY / 16 AMP
PSIL-1
12v DC 1.0A in line POWER SUPPLY
IRCAM20
DAY/NIGHT weatherproof external/internal use CCTV CAMERA fixed
4MM lens c/w 15m cable
IRCAM100
DAY/NIGHT weatherproof external/internal use CCTV CAMERA with
INTEGRAL 15M IR ILLUMINATORS, fixed 6mm lens
IRCAM500
DAY/NIGHT weatherproof external/internal use CCTV CAMERA with
INTEGRAL 25M IR ILLUMINATORS, variable 4-9mm lens - requires PSIL-1
CAB - 10
IRCAM600
DAY/NIGHT weatherproof external/internal use CCTV CAMERA with
INTEGRAL 30M IR ILLUMINATORS, variable 4-9mm lens - requires PSIL-1
10M dual function (power & video) CAMERA CABLE c/w BNC and
PHONO connectors
CAB - 20
IRCAM700
DAY/NIGHT weatherproof external/internal use CCTV CAMERA with
INTEGRAL 50M IR ILLUMINATORS, variable 9-22mm lens - requires PSIL-1
20M dual function (power & video) CAMERA CABLE c/w BNC and
PHONO connectors
CAB - 40
IRCAM900
DAY/NIGHT weatherproof external/internal use CCTV CAMERA with
INTEGRAL 50M IR ILLUMINATORS, variable 6-50mm lens, 480TVL requires PSIL-1
40M dual function (power & video) CAMERA CABLE c/w BNC and
PHONO connectors
CAB - 80
80M dual function (power & video) CAMERA CABLE c/w BNC and
PHONO connectors
IRCAM1000
DAY/NIGHT weatherproof external/internal use CCTV CAMERA with
INTEGRAL 50M IR ILLUMINATORS, variable 5-50mm lens - requires PSIL-1
CAB-COUP
dual function (power & video) CABLE COUPLER kit
IRDOME
DAY/NIGHT INTERNAL use DOME CAMERA with INTEGRAL IR
ILLUMINATORS, fixed 4mm lens
DUAL FUNCTION POWER VIDEO CABLES
ACCESSORIES
TFT-BRA1
FIXED wall mount for TFT monitors (for use with Witness 4/9/16 only)
TFT-BRA2
TILT & PIVOT wall mount for TFT monitors
IRDOMEXT
DAY/NIGHT EXTERNAL use DOME CAMERA with INTEGRAL IR
ILLUMINATORS, fixed 3.6mm lens
DOME-MICRO
COLOUR INTERNAL MINI DOME CAMERA with fixed 3.6mm lens
TFT-BRA3
TILT, PIVOT & ROTATE wall mount for TFT monitors
DOME-VF
COLOUR INTERNAL use DOME CAMERA with variable 4-9mm lens
CAGE1
ANTI VANDAL CAGE for use with IRCAM500 / IRCAM700 / IRCAM900 /
IRCAM1000 & ALL DOME CAMERAS
CAGE2
ANTI VANDAL CAGE for use with IRCAM20 / IRCAM100 / IRCAM600 &
ALL DOME CAMERAS
CAM2001
MEDIUM external dummy camera
DOMEDUMMY
DUMMY camera in DOME housing
WARN1
recording in progress WARNING SIGN, black/yellow, 420 x 300MM.
TEST1
TFT LCD 3.5" CCTV TEST monitor
E&OA. OCTOBER 2009
www.espuk.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
