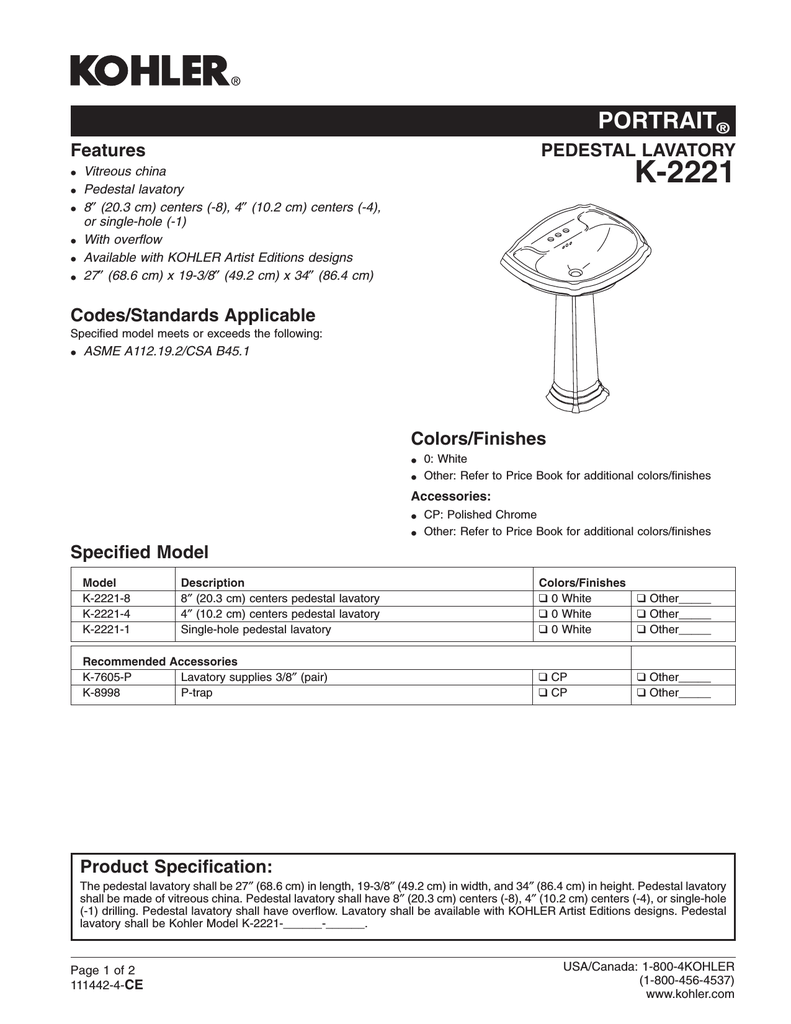

PORTRAIT®
Features
•
•
•
•
•
•
PEDESTAL LAVATORY
K-2221
Vitreous china
Pedestal lavatory
8″ (20.3 cm) centers (-8), 4″ (10.2 cm) centers (-4),
or single-hole (-1)
With overflow
Available with KOHLER Artist Editions designs
27″ (68.6 cm) x 19-3/8″ (49.2 cm) x 34″ (86.4 cm)
Codes/Standards Applicable
Specified model meets or exceeds the following:
• ASME A112.19.2/CSA B45.1
Colors/Finishes
• 0: White
• Other: Refer to Price Book for additional colors/finishes
Accessories:
• CP: Polished Chrome
• Other: Refer to Price Book for additional colors/finishes
Specified Model
Model
K-2221-8
K-2221-4
K-2221-1
Description
8″ (20.3 cm) centers pedestal lavatory
4″ (10.2 cm) centers pedestal lavatory
Single-hole pedestal lavatory
Recommended Accessories
K-7605-P
Lavatory supplies 3/8″ (pair)
K-8998
P-trap
Colors/Finishes
❑ 0 White
❑ Other_____
❑ 0 White
❑ Other_____
❑ 0 White
❑ Other_____
❑ CP
❑ CP
❑ Other_____
❑ Other_____
Product Specification:
The pedestal lavatory shall be 27″ (68.6 cm) in length, 19-3/8″ (49.2 cm) in width, and 34″ (86.4 cm) in height. Pedestal lavatory
shall be made of vitreous china. Pedestal lavatory shall have 8″ (20.3 cm) centers (-8), 4″ (10.2 cm) centers (-4), or single-hole
(-1) drilling. Pedestal lavatory shall have overflow. Lavatory shall be available with KOHLER Artist Editions designs. Pedestal
lavatory shall be Kohler Model K-2221-______-______.
Page 1 of 2
111442-4-CE
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
PORTRAIT®
Technical Information
Optional Components:
Hollow wall pedestal lavatory mounting kit
Fixture*:
Lavatory
basin area
water depth
22″ (55.9 cm) x
7-1/4″ (18.4 cm)
12″ (30.5 cm)
Drain hole
1-3/4″ (4.4 cm) D.
* Approximate measurements for comparison only.
Holes
Spout
Faucet
K-2221-8
1-3/8″
(3.5 cm) D.
1-3/8″
(3.5 cm) D.
K-2221-4
1-1/4″
(3.2 cm) D.
1-1/4″
(3.2 cm) D.
Included Components:
Lavatory basin, 8″ (20.3 cm) centers
Lavatory basin, 4″ (10.2 cm) centers
Lavatory basin, single-hole
Pedestal
Hanger
Rubber pads
Installation Notes
Install this product according to the installation guide.
K-2221-1
1-3/8″
(3.5 cm) D.
K-2222-8
K-2222-4
K-2222-1
K-2283
64839
63069
K-2221-8
24-3/8"
(61.9 cm)
Finished Wall
K-2221-1
4" (10.2 cm)
6-1/2" (16.5 cm)
2-3/4" (7 cm)
2-3/4" (7 cm)
7-1/4"
(18.4 cm)
19-3/8"
(49.2 cm)
27" (68.6 cm)
8-1/4"
(21 cm)
1041816
14-5/8" (37.1 cm)
9-1/4"
10"
13"
(25.4 cm) (23.5 cm)
(33 cm)
3/8" Hot
1-1/4" OD
4" (10.2 cm)
Finished Floor
1/2" (1.3 cm) D.
Mounting Hole 2-3/4" (7 cm)
in Pedestal
Hanger
CL of Backing
3-1/4"
(8.3 cm)
1/2" (1.3 cm) D.
Anchor Holes
3/8" Cold
34"
(86.4 cm)
31"
(78.7 cm)
Product Diagram
PORTRAIT® PEDESTAL LAVATORY
Page 2 of 2
111442-4-CE
K-2221-4
4"
(10.2 cm)
36-1/2"
(92.7 cm)
4"
(10.2 cm)
