Weslo WLTL19306.0, G-30 Treadmill, Cadence 55 User manual

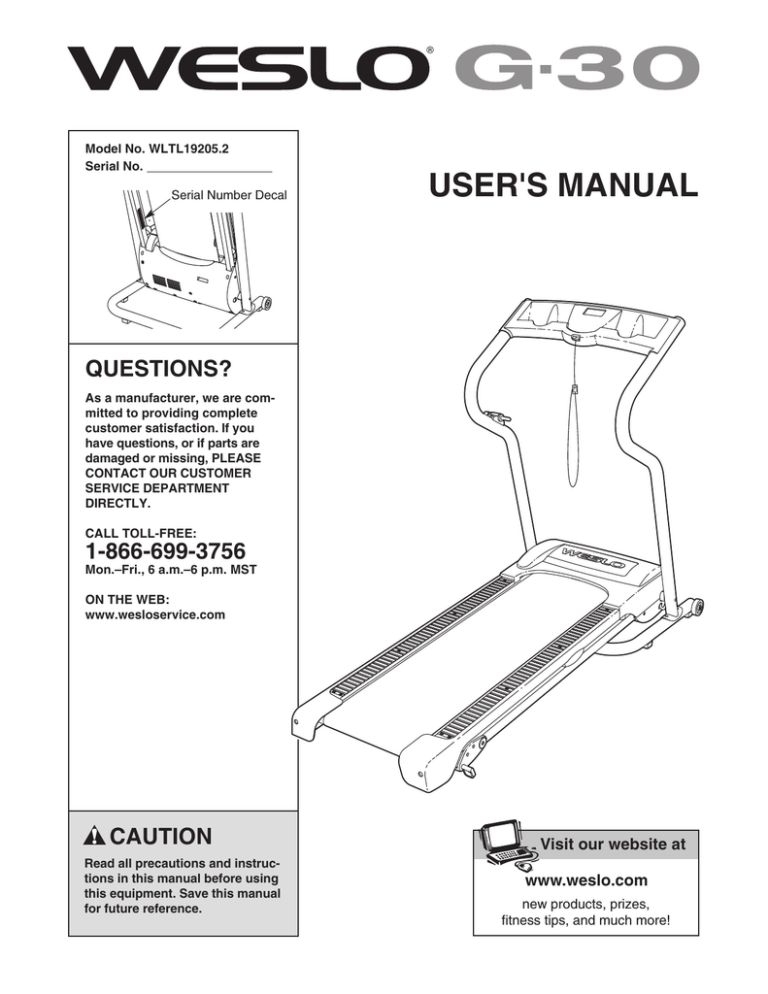

Model No. WLTL19205.2 Serial No. Serial Number Decal USER'S MANUAL QUESTIONS? As a manufacturer, we are committed to providing complete customer satisfaction. If you have questions, or if parts are damaged or missing, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT DIRECTLY. CALL TOLL-FREE: 1-866-699-3756 Mon.–Fri., 6 a.m.–6 p.m. MST ON THE WEB: www.wesloservice.com CAUTION Read all precautions and instructions in this manual before using this equipment. Save this manual for future reference. Visit our website at www.weslo.com new products, prizes, fitness tips, and much more! TABLE OF CONTENTS IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover Note: A PART IDENTIFICATION CHART, an EXPLODED DRAWING, and a PART LIST are attached in the center of this manual. WESLO is a registered trademark of ICON IP, Inc. 2 IMPORTANT PRECAUTIONS WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and information before operating the treadmill. 1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions. telephone number on the front cover of this manual and order part number 146148, or see your local electronics store. 2. Use the treadmill only as described. 12. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed, accelerate, or stop unexpectedly, which may result in a fall and serious injury. 3. Place the treadmill on a level surface, with at least eight feet of clearance behind it and two feet on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill. 13. Keep the power cord and the surge suppressor away from heated surfaces. 4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or near water. 14. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See MAINTENANCE AND TROUBLESHOOTING on page 13 if the treadmill is not working properly.) 5. Do not operate the treadmill where aerosol products are used or where oxygen is being administered. 6. Keep children under the age of 12 and pets away from the treadmill at all times. 15. Read, understand, and test the emergency stop procedure before using the treadmill (see OPERATION AND ADJUSTMENT on page 9). 7. The treadmill should not be used by persons weighing more than 250 pounds. 16. Never start the treadmill while you are standing on the walking belt. Always hold the handrails while using the treadmill. 8. Never allow more than one person on the treadmill at a time. 17. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed. 9. Wear appropriate exercise clothes when using the treadmill. Do not wear loose clothes that could become caught in the treadmill. Athletic support clothes are recommended for both men and women. Always wear athletic shoes; never use the treadmill with bare feet, wearing only stockings, or in sandals. 18. Never leave the treadmill unattended while it is running. Always remove the key and unplug the power cord when the treadmill is not in use. 19. Do not attempt to raise, lower, or move the treadmill until it is properly assembled. (See ASSEMBLY on page 5 and HOW TO FOLD AND MOVE THE TREADMILL on page 12.) You must be able to safely lift 45 pounds (20 kg) to raise, lower, or move the treadmill. 10. When connecting the power cord (see page 9), plug the power cord into a surge suppressor (not included) and plug the surge suppressor into a grounded circuit capable of carrying 15 or more amps. No other appliance should be on the same circuit. Do not use an extension cord. 20. When folding or moving the treadmill, make sure that the storage latch is fully closed. 11. Use only a single-outlet surge suppressor that meets all of the specifications described on page 9. To purchase a surge suppressor, see your local WESLO dealer or call the toll-free 21. Do not change the incline of the treadmill by placing objects under the treadmill. 3 22. Inspect and properly tighten all parts of the treadmill regularly. scribed in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only. 23. Never drop or insert any object into any opening. 24. DANGER: Always unplug the power 25. This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, or institutional setting. cord immediately after use, before cleaning the treadmill, and before performing the maintenance and adjustment procedures de- WARNING: Before beginning this or any exercise program, consult your physician. This is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product. SAVE THESE INSTRUCTIONS The decals shown here have been placed on the treadmill. If a decal is missing, or if it is not legible, call the toll-free telephone number on the front cover of this manual and order a free replacement decal. Apply the decal in the location shown. Note: The decals are not shown at actual size. ¥Hazardous Voltage ¥Risk of Electric Shock ¥Unplug Treadmill before Assembly /Disassembly. 4 BEFORE YOU BEGIN Thank you for selecting the WESLO® G-30 treadmill. The G-30 treadmill combines advanced technology with innovative design to let you enjoy an excellent form of cardiovascular exercise in the convenience and privacy of your home. And when you’re not exercising, the unique G-30 treadmill can be folded up, requiring less than half the floor space of other treadmills. number and serial number before contacting us. The model number of the treadmill is WLTL19205.2. The serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the location). To avoid a registration fee for any service needed under warranty, you must register the treadmill at www.wesloservice.com/registration. For your benefit, read this manual carefully before using the treadmill. If you have questions after reading this manual, please see the front cover of this manual. To help us assist you, note the product model Before reading further, please review the drawing below and familiarize yourself with the labeled parts. Water Bottle Holder (Bottle not included) Console Handrail Key/Clip Storage Latch RIGHT SIDE LEFT SIDE Hood Circuit Breaker Walking Belt Power Cord Wheel Foot Rail Incline Leg Rear Roller Adjustment Bolts 5 ASSEMBLY To hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480. Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not dispose of the packing materials until assembly is completed. Do not remove the long wire is inside the Right Handrail until told to. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner. Assembly requires the included allen wrench and your own phillips screwdriver adjustable wrenches , and wire cutters . , Note: To identify small parts used during assembly, see the PART IDENTIFICATION CHART in the center of this manual. Some parts may be preassembled. To avoid damaging plastic parts, do not use power tools for assembly. 1. Attach the six Base Pads (19) to the bottom of the Base (71) with six Base Pad Screws (42). 1 ¥Hazardous Voltage ¥Risk of Electric Shock ¥Unplug Treadmill before Assembly /Disassembly. 71 19 42 19 42 19 Note: The Base Pads may be preassembled. 2. Have a second person hold the Base (71) in the position shown. 42 42 19 42 19 2 Bend Identify the Right Handrail (6), which has a large hole near the lower end. Hold the Right Handrail so the bend is in the position shown. Attach the Right Handrail to the Base (71) with two Handrail Bolts (12), two Handrail Washers (30) and two Nuts (17). Do not tighten the Handrail Bolts yet. 7 6 Attach the Left Handrail (7) to the Base (71) in the same way. 71 12 Large Hole 30 17 12 6 3. With the help of a second person, raise the Handrails (6, 7) so the Base (71) is flat on the floor as shown. 3 Attach the Wheels (15) to the outer sides of the Base (71) with two Wheel Bolts (14) and two Nuts (17) as shown. Do not overtighten the Nuts; the Wheels should turn freely. 7 6 17 55 15 22 Position the front of the treadmill Frame (55) between the Handrails (6, 7) as shown. Next, locate the long wire inside of the lower end of the Right Handrail (see the inset drawing). Secure the end of the wire to the end of the Wire Harness (22). Then, pull the other end of the wire until the end of the Wire Harness is extending from the upper end of the Right Handrail. 14 71 Wire 22 4. Have a second person lift and hold the front end of the Frame (55). Hold a Frame Spacer (13) between the Right Handrail (6) and the Frame. Attach the Right Handrail to the Frame with a Frame Bolt (10), a Handrail Washer (30), and a Handrail Star Washer (60). 6 4 6 13 Repeat this step on the left side of the treadmill. 30 10 60 55 5. Hold the Console Base (1) near the Right Handrail (6). Touch the Right Handrail to discharge any static. 5 1 Remove the wire from the end of the Wire Harness (22). Insert the end of the Wire Harness through the three looped plastic ties. Next, press the end of the Wire Harness into the connector on the back of the Console Base (1) in the location shown. The end of the Wire Harness should slide easily into the connector and snap into place. If it does not, turn the end of the Wire Harness and then try again. IF THE CONNECTORS ARE NOT CONNECTED PROPERLY, THE CONSOLE MAY BE DAMAGED WHEN THE POWER IS TURNED ON. Connector 22 6 Plastic Ties 22 7 6. Set the Console (1) on the Right Handrail (6) and the Left Handrail (not shown). Start four Console Screws (70) (only two are shown) into the Console. After you have started all four Console Screws, tighten them. 6 1 Insert the excess Wire Harness (22) down into the Right Handrail (6). Tighten the three plastic ties around the Wire Harness, and then cut off the ends of the plastic ties. 22 Plastic Ties 70 6 7. Attach the Console Back (4) to the Console (1) with four 16mm Screws (58). There is a slot in the side of the Console Back for the wire. Make sure that no wires are pinched. 7 1 58 58 4 Slot 58 8. Carefully lower the Handrails (6, 7) to the floor. Center the Frame (55) between the Handrails, and tighten the four Handrail Bolts (12). Then, raise the Handrails to the vertical position. 8 12 55 See drawing 8a. Attach the Latch Assembly (41) to the Left Handrail (7) with two 16mm Screws (58). Make sure that the Latch Assembly is oriented as shown. Insert the Incline Pins at the desired incline level (see HOW TO CHANGE THE INCLINE OF THE TREADMILL on page 11). 6, 7 8a 58 7 9. Make sure that all parts are properly tightened before you use the treadmill. Keep the included allen wrench in a secure place. The allen wrench is used to adjust the walking belt (see page 14). To protect the floor or carpet, place a mat under the treadmill. 8 41 OPERATION AND ADJUSTMENT THE PRE-LUBRICATED WALKING BELT tric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. Plug the power cord into a surge suppressor, and plug the surge suppressor into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. Important: The treadmill is not compatible with GFCI-equipped outlets. Your treadmill features a walking belt coated with highperformance lubricant. IMPORTANT: Never apply silicone spray or other substances to the walking belt or the walking platform. Such substances will deteriorate the walking belt and cause excessive wear. HOW TO PLUG IN THE POWER CORD This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that looks like the adapter illustrated in drawing 2 may be used to connect the surge suppressor to a 2-pole receptacle as shown in drawing 2 if a properly grounded outlet is not available. DANGER: Improper connection of the equipment-grounding conductor can result in an increased risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician. 1 Grounded Outlet Box Surge Suppressor Grounding Pin Your treadmill, like any other type of sophisticated electronic equipment, can be seriously damaged by sudden voltage changes in your home’s power. Voltage surges, spikes, and noise interference can result from weather conditions or from other appliances being turned on or off. To decrease the possibility of your treadmill being damaged, always use a surge suppressor with your treadmill (see drawing 1 at the right). To purchase a surge suppressor, see your local WESLO dealer or call the toll-free telephone number on the front cover of this manual and order part number 146148, or see your local electronics store. Grounding Pin Grounded Outlet Grounding Plug 2 Grounded Outlet Box Adapter Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indicate whether it is functioning properly. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed, accelerate or stop unexpectedly, which may result in a fall and serious injury. Surge Suppressor Lug Metal Screw The temporary adapter should be used only until a properly grounded outlet (drawing 1) can be installed by a qualified electrician. The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used it must be held in place by a metal screw. Some 2-pole receptacle outlet box covers are not grounded. Contact a qualified electrician to determine if the outlet box cover is grounded before using an adapter. This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of elec- 9 DIAGRAM OF THE CONSOLE Note: If there is a sheet of clear plastic on the console, remove the plastic. Clip Key CAUTION: Before operating the console, read the following precautions. • Do not stand on the walking belt when turning on the power. • Always wear the clip (see the drawing above) while operating the treadmill. • Adjust the speed in small increments to avoid sudden jumps in speed. Next, stand on the foot rails of the treadmill. Find the clip attached to the key (see the drawing above), and slide the clip securely onto the waistband of your clothes. Then, insert the key fully into the console. After a moment, the display will light. Important: In an emergency situation, the key can be pulled from the console, causing the walking belt to slow to a stop. Test the clip by carefully taking a few steps backward; if the key is not pulled from the console, adjust the position of the clip. Follow the steps below to operate the console. • To reduce the possibility of electric shock, keep the console dry. Avoid spilling liquids on the console and place only sealed water bottles in the water bottle holders. 1 Insert the key fully into the console. A moment after the key is inserted, the display will light. 2 STEP-BY-STEP CONSOLE OPERATION Before operating the console, make sure that the power cord is properly plugged in (see page 9). Reset Next, locate the reset/off circuit breaker on the treadmill frame near the power cord, and make sure that the circuit breaker is in the reset position. Press the Digital Speed increase button to start the walking belt. A moment after the button is pressed, the walking belt will begin to move at 1 mph. Hold the handrails and begin walking. As you exercise, change the speed of the walking belt as desired by pressing the Digital Speed buttons. Each time a button is pressed, the speed setting will change by 0.1 mph; if a button is held down, the speed setting will change in increments of 0.5 mph. 10 secure place. Then, switch the reset/off circuit breaker to the “off” position and unplug the power cord. To stop the walking belt, press the Stop button. If the elapsed time is shown in the display (see step 3), the time will begin to flash. HOW TO CHANGE THE INCLINE OF THE TREADMILL Note: The first time the treadmill is used, observe the alignment of the walking belt, and center the walking belt if necessary (see page 14). 3 To vary the intensity of your exercise, the incline of the treadmill can be changed. There are three incline levels. Before changing the incline, remove the key and unplug the power cord. Next, fold the treadmill to the storage position (see page 12). Monitor your progress with the display. As you exercise, the lower left corner of the display can show the elapsed time and the distance (in miles) that you have walked or run. The lower right corner of the display can show the speed of the walking belt (in miles per hour) and the approximate number of calories you have burned. To change the incline, first remove Incline Pin the incline pin from one of the incline Incline legs. Adjust Leg the incline leg to the desired Incline height, and Pin fully reinsert the incline pin. Adjust the other incline leg in the same way. CAUTION: Before using the treadmill, make sure that both incline legs are at the same height and that both incline pins are fully inserted into the incline legs. The upper half of the display is the priority display. The priority display can show the elapsed time, the distance that you have walked or run, the speed of the walking belt, or the approximate number of calories you have burned. Press the Priority Display button repeatedly until the priority display shows the information that you are most interested in viewing. Note: While information is shown in the priority display, the information will not be shown in the lower left or right corner of the display. After you have adjusted the incline legs, lower the treadmill (see page 12). To reset the display, press the Stop button, remove the key, and then reinsert the key. 4 When you are finished exercising, remove the key from the console. Step onto the foot rails, press the Stop button, and remove the key from the console. Keep the key in a 11 HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE 1 Unplug the power cord. CAUTION: You must be able to safely lift 45 pounds (20 kg) to raise, lower, or move the treadmill. 1. Hold the metal frame firmly in the location shown by the arrow at the right. CAUTION: To decrease the possibility of injury, do not lift the frame by the plastic foot rails. Make sure to bend your legs and keep your back straight. As you raise the frame, make sure to lift with your legs rather than your back. Raise the frame about halfway to the vertical position. 2. Move your right hand to the position shown and hold the treadmill firmly. Using your left hand, pull the latch knob to the left and hold it. Raise the frame until the hole in the catch is aligned with the latch pin. Slowly release the latch knob; make sure that the latch pin is fully inserted into the catch. Frame 2 To protect the floor or carpet from damage, place a mat under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage position in temperatures above 85° Fahrenheit. Latch Pin Knob Catch HOW TO MOVE THE TREADMILL Before moving the treadmill, convert the treadmill to the storage position as described above. Make sure that the latch pin is fully inserted into the catch. Handrail 1. Hold the handrails and place one foot against a wheel. 2. Tilt the treadmill back until it rolls freely on the wheels. Carefully move the treadmill to the desired location. Never move the treadmill without tipping it back. To reduce the risk of injury, use extreme caution while moving the treadmill. Do not attempt to move the treadmill over an uneven surface. Wheel 3. Place one foot against one of the wheels, and carefully lower the treadmill until it is in the storage position. HOW TO LOWER THE TREADMILL FOR USE 1. See drawing 2 above. Hold the treadmill with your right hand as shown. Pull the latch knob to the left and hold it. Pivot the frame down until it is past the latch pin. 2. See drawing 1 above. Hold the metal frame firmly with both hands, and lower it to the floor. CAUTION: To decrease the possibility of injury, do not lower the frame by gripping only the plastic foot rails. Do not drop the frame to the floor. Make sure to bend your legs and keep your back straight. 12 MAINTENANCE AND TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please see the front cover of this manual. PROBLEM: The power does not turn on SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor is plugged into a properly grounded outlet (see page 9). Use only a single-outlet surge suppressor that meets all of the specifications described on page 9. Important: The treadmill is not compatible with GFCI-equipped outlets. b. After the power cord has been plugged in, make sure that the key is fully inserted into the console. c. Check the reset/off circuit breaker located on the treadmill frame near the power cord. If the switch protrudes as shown, the circuit breaker has tripped. To reset the circuit breaker, wait for five minutes, and then press the switch back in. c Reset Tripped PROBLEM: The power turns off during use SOLUTION: a. Check the reset/off circuit breaker (see the drawing above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in. b. Make sure that the power cord is plugged in. c. Remove the key from the console. Reinsert the key fully into the console. d. If the treadmill still will not run, please see the front cover of this manual. PROBLEM: The displays of the console do not function properly SOLUTION: a. Remove the key from the console and UNPLUG THE POWER CORD. Remove the four indicated Screws (20) and two Foot Rail Screws (52). Remove the Hood (8). Carefully remove the Hood. a 23 52 8 8 8 52 8 b. Locate the Reed Switch (46) and the Magnet (49) on the left side of the Pulley (53). Turn the Pulley until the Magnet is aligned with the Reed Switch. Make sure that the gap between the Magnet and the Reed Switch is about 1/8”. If necessary, loosen the Screw (5), move the Reed Switch slightly, and then retighten the Screw. Reattach the Hood, and run the treadmill for a few minutes to check for a correct speed reading. 13 b 1/8” 5 46 Top View 53 49 PROBLEM: The walking belt slows when walked on SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 9. b. If the walking belt is overtightened, treadmill performance may decrease and the walking belt may become damaged. Remove the key and UNPLUG THE POWER CORD. Using the allen wrench, turn both rear roller bolts counterclockwise, 1/4 of a turn. When the walking belt is properly tightened, you should be able to lift each edge of the walking belt 2 to 3 inches off the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is properly tightened. b 2”–3” Rear Roller Bolts c. If the walking belt still slows when walked on, see the front cover of this manual. PROBLEM: The walking belt is off-center or slips when walked on SOLUTION: a. If the walking belt has shifted to the left, first remove the key and UNPLUG THE POWER CORD. Using the allen wrench, turn the left rear roller bolt clockwise 1/2 of a turn. Be careful not to overtighten the walking belt. If the walking belt has shifted to the right, turn the left rear roller bolt counterclockwise 1/2 of a turn. Then, plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is centered. SOLUTION: a. If the walking belt slips when walked on, first remove the key and UNPLUG THE POWER CORD. Using the allen wrench, turn both rear roller bolts clockwise, 1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each edge of the walking belt 3 to 4 inches off the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key, and carefully walk on the treadmill for a few minutes. Repeat until the walking belt is properly tightened. 14 a b CONDITIONING GUIDELINES is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the speed and incline of the treadmill until your heart rate is near the highest number in your training zone. WARNING: Before beginning this or any exercise program, consult your physician. This is especially important for individuals over the age of 35 or individuals with pre-existing health problems. HOW TO MEASURE YOUR HEART RATE The following guidelines will help you to plan your exercise program. For more detailed exercise information, obtain a reputable book or consult your physician. To measure your heart rate, stop exercising and place two fingers on your wrist as shown. Take a sixsecond heartbeat count, and then multiply the result by ten to find your heart rate. (A six-second count is used because your heart rate will begin to slow when you stop exercising.) EXERCISE INTENSITY Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recommended heart rates for fat burning and aerobic exercise. WORKOUT GUIDELINES Each workout should include three important parts: A Warm-up—Warming up prepares the body for exercise by increasing circulation, delivering more oxygen to the muscles, and raising the body temperature. Begin each workout with 5 to 10 minutes of stretching and light exercise to warm up. To find the proper heart rate for you, first find your age at the top of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers below your age. The three numbers are your “training zone.” The lower two numbers are recommended heart rates for fat burning; the highest number is the recommended heart rate for aerobic exercise. Training Zone Exercise—After warming up, increase the intensity of your exercise until your heart rate is in your training zone for 20 to 60 minutes. (During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise—never hold your breath. Fat Burning A Cool-down—Finish each workout with 5 to 10 minutes of stretching to cool down. This will increase the flexibility of your muscles and will help to prevent postexercise problems. To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses easily accessible carbohydrate calories for energy. Only after the first few minutes does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the speed and incline of the treadmill until your heart rate is near one of the lower two numbers in your training zone. EXERCISE FREQUENCY To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months, you may complete up to five workouts each week if desired. The key to success is to make exercise a regular and enjoyable part of your everyday life. Aerobic Exercise If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise 15 PART LIST—Model No. WLTL19205.2 Key No. Qty. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 1 4 1 1 8 1 1 5 2 2 2 4 2 2 2 1 6 1 6 23 1 1 1 1 1 4 2 1 1 6 2 1 1 1 1 1 1 2 1 2 1 6 1 1 Qty. R0606A Description Key No. Description Console Round Endcap Key/Clip Console Back Electronics Screw Right Handrail Left Handrail Hood Screw Motor Tension Bolt Frame Bolt Rear Roller Bracket Screw Handrail Bolt Frame Spacer Wheel Bolt Wheel Right Rear Roller Bracket Nut Belly Pan Grommet Base Pad 13mm Screw Latch Warning Decal Wire Harness Hood Left Rear Roller Bracket Belly Pan Belt Guide Screw Belt Guide 6mm Allen Wrench 4mm Allen Wrench Handrail Washer Platform Bolt, Front Controller Bracket Front Roller Star Washer Front Roller Adj. Bolt Controller Motor Bolt Left Foot Rail Motor Tension Nut Motor Star Washer Outlet Plate Screw Storage Latch Assembly Base Pad Screw Drive Motor Assembly Power Cord Assembly 45 4 Incline Leg Washer 46 1 Reed Switch 47 2 Platform Bolt, Rear 48 1 Reed Switch Clip 49 1 Magnet 50 1 Motor Belt 51 2 Roller Adj. Bolt 52 10 Foot Rail Screw 53 1 Front Roller/Pulley 54 1 Right Foot Rail 55 1 Frame 56 1 Walking Belt 57 1 Walking Platform 58 6 16mm Screw 59 2 Motor Bolt 60 2 Handrail Star Washer 61 8 8” Cable Tie 62 1 Dust Guard 63 2 Incline Leg 64 2 Incline Pin 65 1 Voltage Warning Decal 66 2 Rear Roller Star Washer 67 2 Frame Endcap 68 2 U-nut 69 2 Cushion Fastener 70 4 Console Screw/Latch Screw 71 1 Base 72 1 Rear Roller 73 2 Outlet Plate Washer 74 2 Outlet Plate Nut 75 5 Nut 76 2 Platform Cushion 77 2 Front Isolator 78 1 Latch Catch 79 1 Motor Bracket 80 1 Choke 3 Plastic Tie 81 Bracket Star Washer 82 4 Incline Leg Bolt 2 83 84 2 Incline Leg Nut 8” White Wire, Male/Female 1 # 4” Black Wire, Male/Flag 1 # # 1 User’s Manual Specifications are subject to change without notice. PART IDENTIFICATION CHART Remove this chart and use it to identify small parts during assembly. Save this chart and the EXPLODED DRAWING/PART LIST for future reference. Handrail Washer (30)–6 16mm Screw (58)–6 Handrail Star Washer (60)–2 Nut (17)–6 Console Screw (70)–4 Base Pad Screw (42)–6 Handrail Bolt (12)–4 Wheel Bolt (14)–2 Frame Bolt (10)–2 51 83 64 67 63 45 75 11 20 82 24 66 47 52 21 51 45 20 37 52 29 28 26 27 63 11 47 84 67 16 85 66 75 84 76 69 20 82 72 78 52 52 64 85 57 83 52 20 54 31 77 52 52 49 48 55 56 46 53 69 68 50 5 75 76 31 43 59 61 26 33 38 36 79 39 27 68 52 34 5 9 77 20 80 38 20 8 20 62 35 20 25 5 32 82 8 74 5 EXPLODED DRAWING—Model No. WLTL19205.2 20 74 8 8 8 23 18 20 40 73 3 8 73 44 40 R0606A 30 30 10 58 42 19 7 58 19 42 60 41 4 17 15 13 70 2 42 2 12 22 71 19 42 19 17 14 58 58 30 22 13 6 19 42 65 17 60 1 17 30 70 2 81 42 19 10 2 15 14 20 12 20 ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to give the following information: • the MODEL NUMBER of the product (WLTL19205.2) • the NAME of the product (WESLO G-30 treadmill) • the SERIAL NUMBER of the product (see the front cover of this manual) • the KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST and the EXPLODED DRAWING in the center of this manual) LIMITED WARRANTY ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped to a service center, freight charges to and from the service center will be the customer’s responsibility. For inhome service, the customer will be responsible for a minimal trip charge. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center; products used for commercial or rental purposes; or products used as store display models. No other warranty beyond that specifically set forth above is authorized by ICON. ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you. The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you. This warranty gives you specific legal rights. You may also have other rights which vary from state to state. ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813 Part No. 238523 R0606A Printed in China © 2006 ICON IP, Inc.
