HP Compaq Business PC
dx7200 Series Personal Computer
© 2005 Hewlett-Packard Development Company, L.P.
HP and the HP logo are trademarks of Hewlett-Packard
Development Company, L.P.

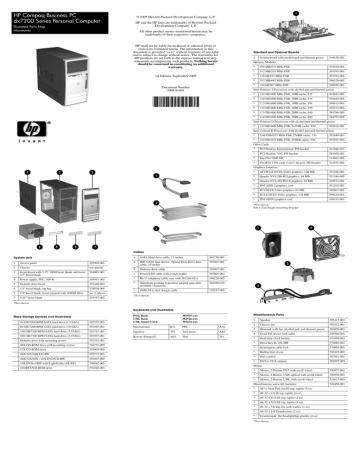

Illustrated Parts Map
Microtower
All other product names mentioned herein may be
trademarks of their respective companies.
HP shall not be liable for technical or editorial errors or
omissions contained herein. The information in this
document is provided “as is” without warranty of any kind
and is subject to change without notice. The warranties for
HP products are set forth in the express limited warranty
statements accompanying such products. Nothing herein
should be construed as constituting an additional
warranty.
Standard and Optional Boards
1
System board with alcohol pad and thermal grease
395430-001
Memory Modules
1st Edition, September 2005
Document Number
390810-001
*
256 MB/533 MHz FSB
393392-001
*
512 MB/533 MHz FSB
393393-001
*
1.0 GB/533 MHZ FSB
393394-001
*
512 MB/667 MHz FSB
396520-001
*
1.0 GB/667 MHz FSB
398038-001
Intel Pentium 4 Processors with alcohol pad and thermal grease
*
2.8 GHz\800 MHz FSB, 1MB cache, 521
394643-001
*
3.0 GHz\800 MHz FSB, 1MB cache, 531
394642-001
*
3.2 GHz\800 MHz FSB, 1MB cache, 541
394812-001
*
3.0 GHz\800 MHz FSB, 2MB cache, 630
392273-001
*
3.2 GHz\800 MHz FSB, 2MB cache, 640
384786-005
*
3.4 GHz\800 MHz FSB, 2MB cache, 650
384787-005
Intel Pentium D Processors with alcohol pad and thermal grease
*
2.8 GHz\800 MHz FSB, 2x1MB cache, 820
392419-001
Intel Celeron D Processors with alcohol pad and thermal grease
*
2.66 GHz\533 MHz FSB, 256KB cache, 331
391940-001
*
2.8 GHz\533 MHz FSB, 256KB cache, 336
391941-001
Other Cards
*
PCI Modem, International, FH bracket
361286-021
*
PCI Modem, V92, FH bracket
383050-001
*
Intel Pro/1000 NIC
314901-005
*
FireWire 1394 card, 2 ext/1 int port, FH bracket
361552-001
Graphics Solutions
*
ATI PCI-E DVI/S-Video graphics, 128 MB
*
Quadro NVS 280 PCI graphics, 64 MB
361266-001
351384-005
*
Quadro NVS 280 PCI-E graphics, 64 MB
365934-001
*
DVI ADD 2 graphics card
361265-001
*
PCI DVI/S-Video graphics, 64 MB
382667-001
*
PCI-E DVI/S-Video graphics, 128 MB
398332-001
*
DVI SDVO graphics card
398333-001
*Not shown
FH = Full height mounting bracket
Cables
System Unit
1
SATA Hard drive cable, 13 inches
391738-001
1
Access panel
2
IDE UATA dual device, Optical Disk Drive data
cable, 14 inches
395964-001
2
Chassis
not spared
3
Diskette drive cable
395967-001
3
Front Bezel with 5.25” ODD bezel blank and lower
3.5” bezel blank
368085-001
*
Power/LED cable with switch holder
395965-001
4
Power supply, PFC, 300 W
385941-001
*
RJ-11 telephone cable (use with 361286-021)
198220-005
Diskette drive bezel
372448-001
*
Telephone modular 6-position adapter and cable
assembly (Australia)
304398-015
6
3.5” bezel blank, top bay
335938-005
*
DMS-59 to dual dongle cable
339257-005
7
3.5” bezel blank, lower (spared with 368085-001)
see 3, above
*
5.25” bezel blank
335937-005
5
395969-001
*Not shown
*Not shown
Keyboards (not illustrated)
Mass Storage Devices (not illustrated)
40 GB\7200 RPM SATA hard drive (1.5 Gb/s)
80 GB\7200 RPM SATA hard drive (3.0 Gb/s)
365555-001
391945-001
PS/2, Basic
USB, Basic
USB, Smart Card
Miscellaneous Parts
382925-xxx
382926-xxx
393670-xxx
International
-B31
PRC
-AA1
160 GB\7200 RPM SATA hard drive (3.0 Gb/s)
391741-001
Japanese
-291
Taiwanese
-AB1
250 GB\7200 RPM SATA hard drive (3.0 Gb/s)
391937-001
Korean (Hanguel)
-AD1
Thai
-281
Diskette drive with mounting screws
392415-001
48X CD-ROM drive with mounting screws
326773-005
52X CD-ROM drive
333969-005
48X/32X/48X CD-RW
395272-001
48X/32X/48X +16X DVD/CD-RW
359493-005
16X DVD+/-RW with LightScribe (DL/DF)
390882-001
16/48X DVD-ROM drive
391946-001
1
Speaker
2
Chassis fan
392413-001
392412-001
3
Heatsink with fan, alcohol pad, and thermal grease
382026-001
4
Front I/O device with cable
395966-001
*
Real-time clock battery
153099-001
*
Drive Key II, 256 MB
372889-001
*
Kensington cable lock
370856-001
*
Rubber feet (4 ea)
336445-001
*
Port control
367861-001
*
DVI to VGA adapter
202997-005
Mouse
*
Mouse, 2-Button, PS/2 with scroll wheel
390937-001
*
Mouse, 2-Button, USB, optical with scroll wheel
390938-001
*
Mouse, 2-Button, USB, with scroll wheel
323615-005
Miscellaneous screw kit, includes:
*
M3 x 5mm Full slot Hi top, taptite (4 ea)
*
#6-32 x 1/4 Hi top, taptite (4 ea)
*
#6-32 x 5/16 Hi top, taptite (2 ea)
*
#6-32 x 3/16 Hi top, taptite (4 ea)
*
#6-32 x 3/8 Tap tite with washer (1 ea)
*
#6-32 x 1/4 Thumbscrew (1 ea)
*
Countersunk, flat head/phillips plastite (4 ea)
*Not shown
330458-001
Clearing CMOS
The computer's configuration (CMOS) may occasionally be corrupted. If it is, it is necessary to clear the CMOS
memory using switch SW50.
To clear and reset the configuration, perform the following procedure:
1. Turn off the computer and any external devices, and disconnect the power cord from the power outlet.
Ä
2.
3.
4.
5.
CAUTION: The power cord must be disconnected from the power source before pushing the Clear CMOS
Button (NOTE: All LEDs on the board should be OFF). Failure to do so may damage the system board.
Remove the access panel.
Press the CMOS button located on the system board.
Replace the access panel.
Turn the computer on and run Computer Setup (F10 Setup Utility) to reconfigure the system.
Disabling or Clearing the Power-On and Setup Passwords
1.
2.
3.
4.
5.
6.
7.
8.
System Board Connectors and Jumpers (position of some untitled components may vary in location)
CMOS
CMOS button
P10
Diskette drive
CR1
5V_AUX LED
P11
Aux audio in
E14
Boot block
P20
Primary IDE
E49
Password jumper
P23
Front audio
J20
PCI slot 1
P24
Front panel USB
J21
PCI slot 2
P60
Primary Serial ATA (SATA) Port connector
J31
PCI Express slot x1
P61
Secondary Serial ATA (SATA) Port connector
J41
PCI Express slot x16
P70
CPU fan
P1
Main power (24 pin)
XBT2
Battery
P3
Processor 12V header
XMM1
Memory socket
P5
Front panel
XMM2
Memory socket
P6
Internal chassis speaker
XMM3
Memory socket
P8
Chassis fan
XMM4
Memory socket
P9
Secondary chassis fan
XU1
Microprocessor socket
System Hardware Interrupts
IRQ
System Function
IRQ
System Function
0
Timer Interrupt
8
Real-Time Clock
1
Keyboard
9
Unused
2
Interrupt Controller Cascade
10
Unused, available for PCI
3
Serial Port (COM B)
11
Unused, available for PCI
4
Serial Port (COM A)
12
Mouse
5
Unused, available for PCI
13
Coprocessor
6
Diskette Drive
14
Primary ATA (IDE) Controller
7
Parallel Port (LPT 1)
Computer Diagnostic LEDs (on front of computer)
LED
Color
LED/Beep Activity
State/Message
Power
Green
On
(S0) Computer on
Power
Green
1 blink every 2 seconds
(S1) Suspend Mode
Power
Green
1 blink every 2 seconds
(S3) Suspend to RAM
Power
Clear
Off
(S4) Hibernation Mode
Power
Clear
Off
(S5) Computer off
Power
Red*
2 blinks 1 second apart
CPU thermal shutdown
Power
Red*
3 blinks 1 second apart
CPU not installed
Power
Red*
4 blinks 1 second apart
Power supply overload (crow bar)
Power
Red*
5 blinks 1 second apart
Defective or missing memory
Power
Red*
6 blinks 1 second apart
Defective or missing graphics
Power
Red*
7 blinks 1 second apart
System board failure (detected prior to video)
Power
Red*
8 blinks 1 second apart
Invalid ROM based on checksum
Power
Red*
9 blinks 1 second apart
System not fetching code
Power
Red*
10 blinks 1 second apart
System hang while loading an option ROM
Hard Drive
Green
Blinking
Hard drive activity
*Blinking codes are repeated after a 2 second pause. Beeps stop after fifth iteration but LEDs continue until problem is
resolved.
Turn off the computer and any external devices, and disconnect the power cord from the power outlet.
Remove the access panel.
Locate the header and jumper labeled E49.
Remove the jumper from pins 1 and 2. Place the jumper over pin 2 only, in order to avoid losing it.
Replace the access panel.
Plug in the computer and turn on power. Allow the operating system to start.
NOTE: Placing the jumper on pin 2 clears the current passwords and disables the password features.
To re-enable the password features, repeat steps 1-3, then replace the jumper on pins 1 and 2.
Repeat steps 5-6, then establish new passwords.
Refer to the Desktop Management Guide and the Computer Setup (F10) Utility Guide for instructions on
establishing new passwords.
Computer Setup (F10) Utility Features (not all features may be available)
Apply Defaults and Exit
Ignore Changes and Exit
Save Changes and Exit
File
System Information
About
Set Time and date
Flash system ROM
Replicated Setup
Default Setup
Storage
Device Configuration
Storage Options
DPS Self-Test
Boot Order
Security
Smart Card Options
Setup Password
Power-On Password
Password Options
Smart Cover
Embedded Security
Device Security
Network Service Boot
System IDs
Drivelock Security
OS Security
Data Execution Prevention
Power
OS Power Management
Hardware Power Management
Thermal
Advanced
Power-On Options
Execute Memory Test
BIOS Power On
Onboard Devices
PCI Devices
PCI VGA Configuration
Bus Options
Device Options
Note: See the Computer Setup (F10) Utility Guide on the Documentation and Diagnostics CD.
