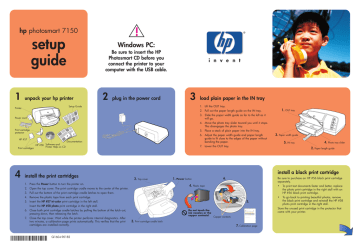

HP Photosmart 7150 Printer series Setup Guide

HP Photosmart 7150 Printer series Setup Guide
!
hp photosmart 7150
setup
guide
1
Windows PC:
Be sure to insert the HP
Photosmart CD before you
connect the printer to your
computer with the USB cable.
unpack your hp printer
2
plug in the power cord
3
1. Lift the OUT tray.
Setup Guide
Printer
load plain paper in the IN tray
1. OUT tray
2. Pull out the paper length guide on the IN tray.
3. Slide the paper width guide as far to the left as it
will go.
Power cord
4. Move the photo tray slider toward you until it stops.
This disengages the photo tray.
Print cartridge
protector
5. Place a stack of plain paper into the IN tray.
HP #57
Print cartridges
4
HP #58 Software and
Printer Help on CD
6. Adjust the paper width guide and paper length
guide to fit close to the edges of the paper without
bending the paper.
Documentation
install the print cartridges
1. Power button
2. Top cover
2. Paper length guide
6.
Be sure to purchase an HP #56 black print cartridge
separately.
4. Plastic tape
3. Pull out the bottom of the print cartridge cradle latches to open them.
56
•
To print text documents faster and better, replace
the photo print cartridge in the right stall with an
HP #56 black print cartridge.
•
To go back to printing beautiful photos, remove
the black print cartridge and reinstall the HP #58
photo print cartridge in the right stall.
58
57
5.
5. Insert the HP #57 tri-color print cartridge in the left stall.
Insert the HP #58 photo print cartridge in the right stall.
6. Close both print cartridge cradle latches by pulling the bottom of the latch out,
pressing down, then releasing the latch.
Q1604-90182
4. Photo tray slider
install a black print cartridge
2. Open the top cover. The print cartridge cradle moves to the center of the printer.
7. Close the top cover. Wait while the printer performs internal diagnostics. After
two minutes, a calibration page prints automatically. This verifies that the print
cartridges are installed correctly.
5. IN tray
7. Lower the OUT tray.
1. Press the Power button to turn the printer on.
4. Remove the plastic tape from each print cartridge.
3. Paper width guide
Do not touch the
ink nozzles or the
copper contacts!
Store the unused print cartridge in the protector that
came with your printer.
Copper contacts
3. Print cartridge cradle latch
7. Calibration page
5
install the hp photosmart printer software
!
Important: You must insert the HP Photosmart
CD to install the printer software.
Note: For more detailed instructions or troubleshooting
information, see the HP Photosmart Software Setup &
Product Support booklet.
Windows PC
Macintosh
1. Be sure you have completed steps 1 through 4. If
your computer is off, turn it on.
1. Be sure you have completed steps 1
through 4. If your computer is off, turn it on.
Important: Do not connect the printer to your
computer until prompted. Disable virus-checking
software before you install the printer software.
2. Insert the HP Photosmart CD into your computer’s
CD-ROM drive. The following dialog box appears.
6
1. Purchase a USB-compliant interface cable separately. The cable must
be less than 3 meters long.
2. Plug one end of the USB cable into your computer’s USB port.
3. Plug the other end of the USB cable into the USB port on the back of
your printer.
Important: Be sure the printer is connected directly to your computer.
Installing the printer software when the printer is connected to the
computer through a USB hub can cause errors and prevent a successful
installation.
Important: Disable virus-checking software before
you install the printer software.
2. Continue with step 6 to connect the printer to your
computer.
4. Continue with step 7 to finish the software installation.
2. At the end of the installation, the computer restarts. A welcome window
appears. Click where it says Click here to print a test page.
Macintosh
Important: Do not connect the printer to your
computer until prompted.
1. After connecting the printer to your computer, insert the HP Photosmart CD into your computer’s CD-ROM drive.
Double-click the HP Photosmart CD icon.
4. Continue with step 6 to connect the printer to your
computer.
Resume light — When this
light is on or flashing, the
printer is out of paper or has
a paper jam.
Resume light
Print light
Print light — When this
light is on, the power is on.
When this light flashes green, the printer is busy.
When all three lights are flashing, turn off the printer
and unplug the power cord. Wait one minute, then
plug the power cord back in and turn the printer on.
finish installing the hp photosmart printer software
1. After connecting the printer to your computer, continue following the onscreen
instructions to finish installing the HP Photosmart Printer Software and the HP
Photo & Imaging Software.
Note: If the dialog box does not appear, use
Windows Explorer or My Computer to locate your
CD-ROM drive, then double-click setup.exe. The
HP Photosmart printer dialog box appears. Click
Install hp photosmart printers software.
Print cartridge
status light
Macintosh
Windows PC
3. Click Install hp photosmart printers software.
Follow the onscreen instructions to install the
printer software.
Print cartridge status light —
When this light is on or
flashing, check the print
cartridges.
Windows PC
Note: Do not plug the USB cable into the camera port on the front of
your printer. That port is for your HP direct-printing digital camera.
7
printer lights
connect the printer to your computer
2. Double-click the HP Photosmart install icon. Follow the onscreen instructions to install the printer software.
fun features
getting assistance
The HP Photosmart Printer Help tells you how to:
•
HP Photosmart 7150 Basics Guide
•
Print photos directly from your digital camera
without using your computer
•
HP Photosmart Software Setup & Product
Support booklet
•
Use the included software to improve the quality of
your photos
•
HP Photosmart Printer Help
•
Print high-quality photos using 4 x 6 inch
(10 x 15 cm) photo paper in the photo tray
•
www.hp.com/support
•
208.323.2551 (U.S.)
•
Print photo album pages, transparencies, and
other documents from your computer
Printed in USA 08/02 v3 • Printed on recycled paper
© 2002 Hewlett-Packard Company
Windows is a registered trademark of Microsoft Corporation
Macintosh is a registered trademark of Apple Computer, Inc.
