Stainless Panel PC MODEL #: R15ID3S-65FTE-Ex Stainless Flat Touch Panel PC

Stainless Panel PC MODEL #: R15ID3S-65FTE-Ex Stainless Flat Touch Panel PC
Stainless Panel PC
(Intel R ATOM N2600 Platform)
Stainless Flat Touch Panel PC
MODEL #: R15ID3S-65FTE-Ex
Mechanical Design
I.T.E FOR USE IN
HAZ.LOC.
E361897
I.T.E
E213998
Features
•This Equipment is ATEX Zone 2 certified and is suitable for use in
Class I, Division 2, Hazardous area applications
•Wide power input 9-36V DC with isolation protection
•Special IP65 connectors with cover plate
•Designed with NEMA 4 (IP65) dust proof and water protection
•Robust and fanless design for reliable operation
•Fanless Cooling System and Ultra Low power consumption
•Support Intel Atom N2600 processor
•E LO 5W Resistive Touch ( Explosion-proof )
198
179,6
152,56
49
20,5
100
1
100
245,5
264,8
310
114,55
136,83
155
17,5
198
179,6
152,56
2
114,55
136,83
155
1.
2.
3.
4.
5.
UNIT: mm
Viewing Angles
: 700 : 1(typ.)
: -80~80(H);-60~80(V)
Max Colors
: 16.2M
Power Input
Power Consumption
Cooling System
Dimension(W x H x D)
Fanless design
396 x 310 x 49mm (w/o cable gland)
396 x 310 x 123.2mm (with cable gland)
:
:
R
: Intel Atom N2600 1.6GHz
AMI BIOS
R
System Chipset
: Intel
Memory Slot
: 1x DDR3 SO-DIMM 1333 MHz, 2GB default
Option up to 4GB
: mSATA SSD 32GB, Option up to 128GB
Storage
NM10
Input/ Output Connectors :
Ethernet LAN
COM
USB
Power
:
:
:
:
1
1
2
1
x
x
x
x
RJ45-10/100/1000 Mbps
RS232(Optional RS422/RS485)
USB Type-A Receptacle
9-36 VDC
* with special cable gland
Order Information (optional)
Memory
Storage
OS
9-36V DC in
25W (typ.)(Max.backlight & high CPU load)
Safety
: UL60950-1, CSA C22.2 No. 60950-1-07,
EN60950-1, IEC60950-1
Hazardous Location
: ATEX zone 2
EX II 3 G Ex ic nA IIC T4 Gc
UL Class I, Div.2, Groups ABCD T4
ANSI/ISA12.12.01
CAN/CSA C22.2 No. 213-M1987
System Specifications :
BIOS
:
:
Standards and Certifications
Mechanical Specification :
Processor
Ground
Power (9~36V DC input)
LAN
RS232
2 x USB
Power Specifications :
: 1024 x 768
: 600 cd/m2 (typ.)
Contrast Ratio
5
representative if you need further product information.
TFT Characteristics :
Brightness
4
this is a simplified drawing and some components
* Note:
are not marked in detail. Please contact our sales
System Specifications
Resolutions
3
: SO DIMM DDR3 2GB / 4GB
: 32GB / 64GB /128GB mSATA SSD
: Windows Embedded Standard 7
Windows 7 Pro for Embedded Systems
Hazardous Location
Operating Temp.
Operating Humidity
Shock
Vibration
Transit Drop
CE
: 10 °C ~50°C (Tamb)
: 1 0% to 95% (non condensing)
: MIL-STD-810G Method 516.6
: MIL-STD-810G Method 514.6
: MIL-STD-810G Method 516.6
FCC
CSA
UL60950-1
Accessories :
1
1
1
1
1
x
x
x
x
x
M21
M12
M12
M21
M21
to
to
to
to
to
DC power cable with Power Adapter / Power cord
RJ45 cable
RS232 cable
2 x USB cable
DC power Cable
Device is tntended for mounting in a tool-accessible ATEX-certified or IECEx-certified
* This
IP54 enclosure and used in an area of not more than pollution degree 2 as define by
IEC 60664-1.
Note: All Specifications are subject to change without prior notice!
Revised Date:03/30/2015

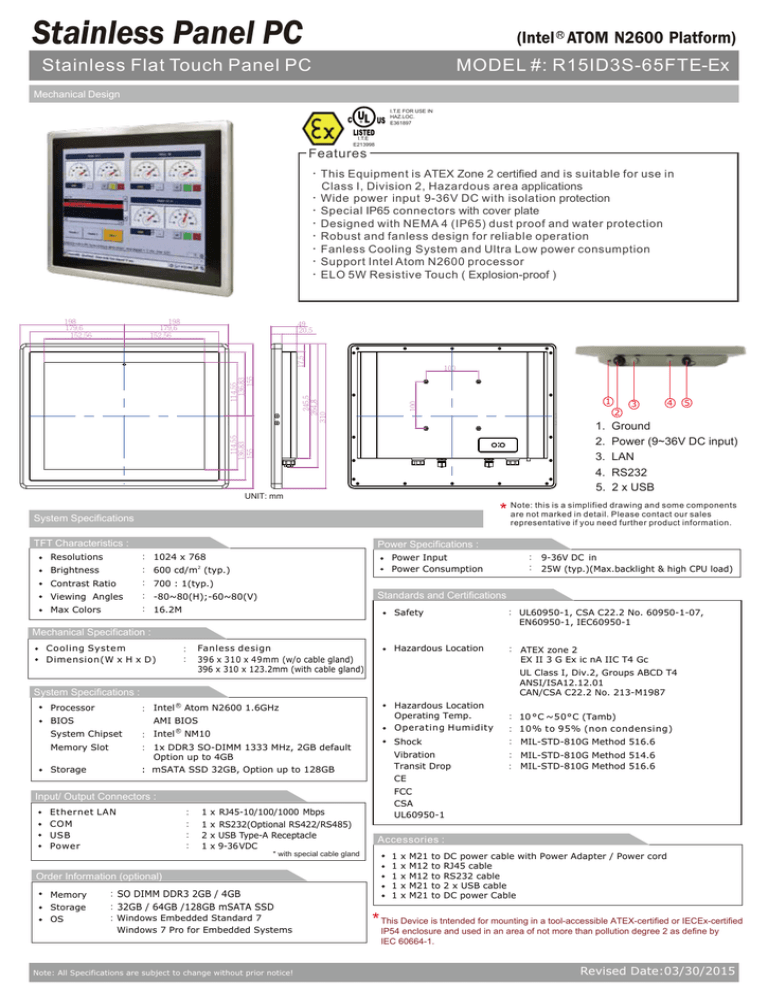

Stainless Panel PC
(Intel R ATOM N2600 Platform)
Stainless Flat Touch Panel PC
MODEL #: R15ID3S-65FTE-Ex
Mechanical Design
I.T.E FOR USE IN
HAZ.LOC.
E361897
I.T.E
E213998
Features
•This Equipment is ATEX Zone 2 certified and is suitable for use in
Class I, Division 2, Hazardous area applications
•Wide power input 9-36V DC with isolation protection
•Special IP65 connectors with cover plate
•Designed with NEMA 4 (IP65) dust proof and water protection
•Robust and fanless design for reliable operation
•Fanless Cooling System and Ultra Low power consumption
•Support Intel Atom N2600 processor
•ELO 5W Resistive Touch ( Explosion-proof )
Accessories Cables Pin assignments
Ethernet (LAN) cable
USB cable
2
1
10
9
3
8
4
1
10
9
5
6
3
Pin No.
CN1-1
CN1-2
CN1-3
CN1-4
CN1-5
CN1-6
CN1-7
CN1-8
CN1-9
7
5
2
6
Symbols
Color
VCC
RED
VCC
RED
DWHITE
DWHITE
D+
GREEN
D+
GREEN
GND
BLACK
GND
BLACK
Braid
8
4
7
3
1
2
4
11
5
12
9
8
7
6
Pin No.
CN2-1
CN2-2
CN2-3
Symbols
VCC
GND
GND
Color
Follow Adapter
Follow Adapter
Follow Adapter
DC power cable
3
2
10
Color
White/Orange
Orange
White/Green
Blue
White/Blue
Green
White/Brown
Brown
Power adapter
RS-232 cable
1
Pin No.
CN2-1
CN2-2
CN2-3
CN2-4
CN2-5
CN2-6
CN2-7
CN2-8
Pin No.
CN2-1
CN2-2
CN2-3
CN2-4
CN2-5
CN2-6
CN2-7
CN2-8
CN2-9
Symbols
DCD-CON2
DSR-CON2
RXD-CON2
RTS-CON2
TXD-CON2
CTS-CON2
DTR-CON2
RI-CON2
GND-CON2
Color
Green
Brown
Red
Orange
Blue
White
Purple
Yellow
Black
3
1
2
Pin No.
CN2-1
CN2-2
CN2-3
Symbols
VCC
Shield
GND
Color
Red
Black
WARNING
Ensure that the external power source is OFF before connecting or
disconnecting the DC IN jack.
Rev.
1.1
1.2
1.3
Reasons
spec change
spec change
spec change
Revised Date
Oct-28-2014
Nov-26-2014
Mar-19-2015
