HARRIS
BROADCAST
DIVISION

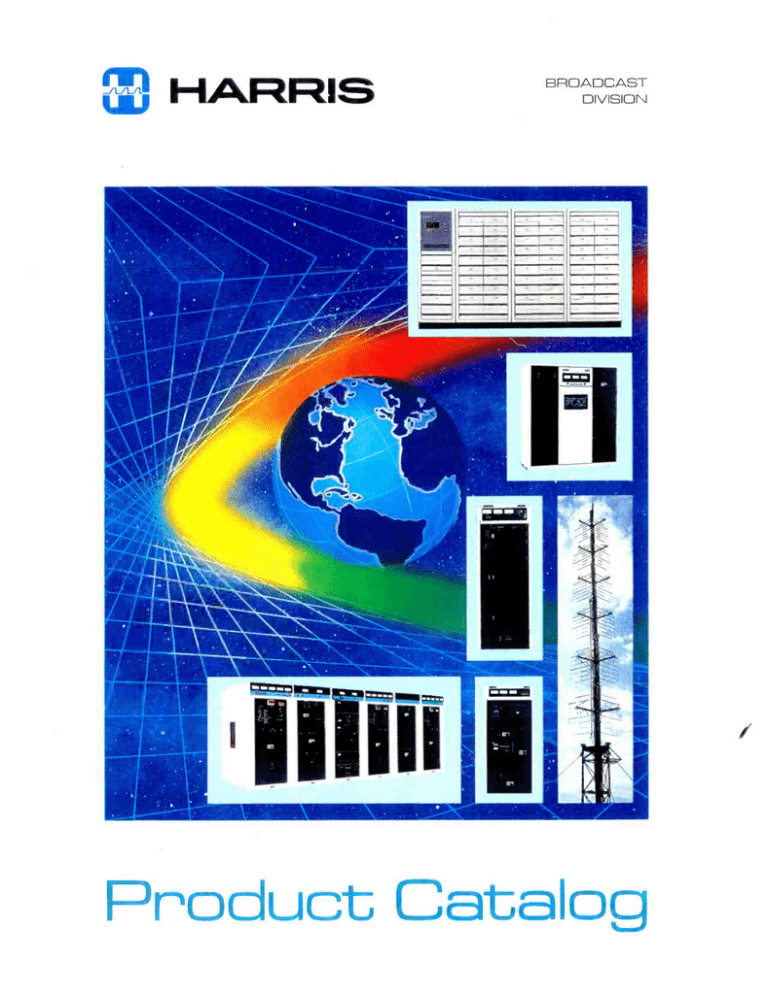

Product Catalog
-
I
Harris Broadcast Division
The Broadcasters' Company
For over 66 years, one American company has represented the
best in broadcast equipment technology.
That company is Harris Corporation's Broadcast Division.
Founded in 1922 as Gates Radio and Supply Company in Quincy,
Illinois, Harris Broadcast Division has distinguished itself over the
years for innovation in products and services, and an enduring
commitment to the broadcast industry.
The result? A continuous stream of advanced products and services
which have firmly established Harris as the leading manufacturer
of radio and television equipment worldwide. To date, Harris has
pioneered over 50 engineering breakthroughs
products that
virtually have changed the way our world sees and hears itself
and holds more than 150 current patents. Backing these products
is a commitment to unparalleled service and parts support and
-
Want more
information
about a specific
Harris product
or training
seminar?
-
technical training.
Today, Harris Broadcast Division is the largest company dedicated
solely to broadcast equipment manufacturing in the free world. In
addition to manufacturing, engineering, training and test facilities
which occupy approximately 250,000 square feet at the Broadcast
Division's headquarters in Quincy, Illinois, Harris operates a
40 -acre antenna test range optimally situated on the bluffs of
the Mississippi River.
While broadcast equipment manufacturers have come and gone
over the years, Harris Broadcast Division's commitment to products
and service has remained a number one priority. From product
design and manufacturing to installation and after-sale service and
training, no one company is more dedicated to keeping you on the
air than Harris
the Broadcasters' Company.
-
Fill out and return an Information
Request Card in the back of this catalog.
TABLE OF CONTENTS
AM /Shortwave
PAGE
2 -10
FM
11 -17
Audio
18 -19
VHF
20-25
UHF
26-31
Remote Control
32
AM transmitters have set the industry standards for performance
and reliability virtually since the beginning of radio itself. Today, Harris offers a
complete line of AM transmitters from 1 kW to 200 kW, as well as 50 kW and
100 kW shortwave transmitters.
Lí-'barris
XII
Improved audio performance
with advanced technology
i_, State -of- the -art modular design with
socketed MOSFETs greatly simplifies
routine maintenance.
Ei Extensive front-panel fingertip
diagnostic system gives easy access to
status information.
Overall power amplifier efficiency
typically exceeds 85%.
El The SX transmitter line typically
yields overall efficiencies of up to 72%
for reduced AC power costs.
IN Designed for +125% peak capability and 100% continuous tone modulation. Capable of delivering greater
average audio power for louder sound.
i Efficient, 100% solid -state design
eliminates costly tube replacement.
Engineered for low -cost ownership.
SX "A" transmitters are provided
stereo-capable from the factory.
.
SX-5A
2
Power Levels Available:
Single
SX "A" Series of Solid -State AM
Dual
SX-1A
100 W-1.1 kW
SXD-2A
100 W-2.2 kW
SX-2.5A
250 W-2.75 kW
SXD-5A
250 W-5.5 kW
SX-5A
500 W-5.6 kW
SXD-10A
500 W-11 kW
Transmitters
Single Phase
SunWatchT" ... An SX exclusive for
daytime stations!
--
-
The 1 kilowatt and
2.5 kilowatt SX "A" transmitters are
available for single phase installation.
The 5 kilowatt model is available in
either the standard three -phase model
or for single phase installation. The single phase 5 kilowatt SX "A" transmitter
is ideal for AM stations planning a
power increase and wanting to avoid
the high cost of running three -phase
power to the transmitter.
Microprocessor Keypad on Front Panel
PA Amplifier
SX "A" Series of Solid -State AM Transmif '1--
The Harris SunWatch option
available only on SX transmitters allows
daytime-only stations to conveniently
extend their broadcast day while meeting the requirements of PSA /PSSA
operation.
SunWatch provides easy, straightforward programming for pre -sunrise, daytime and multiple post-sunset operating
schedules. It will accommodate up to
ten programmed power levels per
month, for an effective 120 power
levels per year. Programming is easily
reviewed and edited on the front -panel
keypad.
r
Unsurpassed performance and
efficiency with Harris' exclusive
digital modulator
The world's first digital solid-state
transmitters, featuring Harris' exclusive, patented design.
Near perfect audio quality with
virtually no overshoot, tilt or
ringing, and the lowest distortion of
any transmitter.
The DX -10 typically operates at
86% overall power efficiency .. .
unmatched in the industry ... for the
lowest possible utility costs.
The DX -10 provides maximum
loudness with 125% peak capability at
full 11 kW power level for improved
fringe coverage. 140% peak capability
at 10 kW.
100% solid -state design eliminates
tube replacement costs.
Harris' FlexPatch' permits operator
to manually patch around a failure in
the power amplifier section while continuing on -air operation.
Extensive remote control and
monitoring capabilities for ease of control and data retrieval.
Low heat dissipation minimizes
cooling costs.
T matching network allows adjustment for optimum performance into
real-world loads.
Standard front -panel ColorStatT"
monitors key operational stages; simplifies troubleshooting.
Identical and interchangeable
PA modules minimize spares
requirements.
Power Levels Available:
DX-10
to
DX-25
to 27 kW
DX-50
to 60 kW
11
kW
Modules are key to high efficiency, easy
serviceability with the Harris DX-10.
Dual: DX transmitters may also be combined
for double power and redundancy.
DX Module
The DX Family of Digital Solid -State AM Transmitters
DX-10
5
OP-
The DX Family of Digital Solid -State AM Transmitters
Power Levels Available:
Designed for high efficiency and
top signal clarity
6
Exceptional signal clarity and excellent mono or stereo performance, with
2.4% THD (total harmonic distortion)
at 95%, and 2.4% IMD (intermodulation distortion) at 90% modulation.
Offers high AC to RF overall efficiency typically exceeding 60 %.
Two rugged, long-life ceramic
tetrodes operate in the power amplifier
and modulator at close to 90 % efficiency. Use of only three tubes
and two tube types minimizes
spares requirements.
100% continuous sine wave modulation capability allows transmission
at higher average levels. More power
in the sidebands means greater
signal coverage.
f.: Complete overload protection with
major components protected by circuit
breakers. Tubes and transistors are
protected by overload relays or current limiting devices. A quick-acting circuit
protects against damage from high voltage arcs.
Designed for easy monitoring and
maintenance. Standard front panel
includes meters and LED fault status to
indicate overloads and monitor forward and reflected power. Easy front
and rear access is provided.
Automatic modulation tracking circuit maintains desired modulation
level over a ± 20% change in
output power.
Solid-State Modulator Upgrade
for MW- 50 /MW- 50A /MW-50B/
MW-50C AM Transmitters
Replaces the tube-type modulator
driver with a solid -state version.
MW-50C3 AM Transmitter
MW-50C3
10 kW-60 kW
MWD-100C3
10 kW-110 kW
Engineered for top performance in
all types of climates, from hot and
humid to dry and dusty.
The MWD- 100C3, for 100 kW operations, is also available.
KEY OPTIONS
Stereo Capability
-
The MW-50C3
can be ordered stereo-capable from
the factory.
Extended Control Panel
-
Allows
control and metering of transmitter
from an adjacent room.
Reduces IMD and THD.
® Reduces power consumption as
well as maintenance costs.
.11111111
T...-«__ ...
T
Power Levels Available:
Reduced operating costs ..
exceptional signal clarity
.
Typical overall efficiency exceeds
65 % for reduced power costs.
Harris' Pulse Duration Modulation
system provides PA efficiency of
almost 90 %; eliminates costly, inefficient modulation transformer and
offers superb audio performance.
Uses only four tubes and three tube
types for reduced spares requirements.
Provides circuit breaker protection
for all major components. Tubes and
transistors are protected by overload
relays or current -limiting devices.
Built -in protection against damage
from high -voltage arcs, voltage standing wave ratios greater than 1.2:1 and
momentary RF overloads.
Dual oscillator and modulator for
redundancy in all transistor sections.
L. Automatic modulation tracking
circuit maintains desired modulation
level over a ± 20% change in
output power.
Offers regulated voltage supply for
all low -voltage applications.
Vapor-phase cooling eliminates
need for large blowers; extends tube
life by maintaining tube anode temperatures far below those attained by
other cooling methods.
Rugged design ensures top performance in a wide variety of climates.
The VP -200B, for 200 kW operations, is also available.
VP -100B Medium Wave AM Transmitter
VP-100B
20 kW-100 kW
VP-200B
20 kW-200 kW
Remote Control
-
Allows control of
transmitter from virtually anywhere.
Extended Control Allows control
and metering of the transmitter from
an adjacent room.
50 ohm Output and Tri-Level
Power 230 ohm output and bi -level
power standard.
-
-
High Frequency Stability
-
High stability oscillators can be supplied for
critical applications.
Harris Water Purification Unit
-
This five-filter system, available for use
with Harris vapor-cooled VP and SW
Transmitters, makes any water supply
suitably pure for transmitter cooling.
Features a safety interlock syslem for
extended pump life and an LED meter
for monitoring purity levels. Can be
easily moved for convenient use in
multiple- transmitter installations.
Power Levels Available:
Offering superior performance
and efficiency to shortwave
50 kW
SW-100B
100 kW
Standard solid -state power line control automatically ensures uniform
broadcasters
transmitter operation during moderate
swings in incoming AC line voltage.
Designed for a wide range of
climates, from hot and humid to dry
and dusty.
Use of only four tubes and three
tube types minimizes spares inventory requirements.
Ten- channel pre -set tuning facilitates operation. Up to ten different frequencies
from 3.2 to 22 MHz can
be remembered, allowing pushbutton
retuning to any pre -set frequency.
F± The SW -50B, for 50 kW operations,
Designed for low operating costs
with PA efficiency approaching
90% and typical overall efficiency
over 55%.
Harris' Pulse Duration Modulator
eliminates need for modulation transformer and reactor items which can
limit modulation performance and
prove costly if necessary to replace.
-
-
8
is also available.
SW-100B Shortwave
SW-50B
i
ansi
-
External Frequency Synthesizer
Input Port Allows operation of
-
transmitter with an external frequency
synthesizer.
.300
COIN
+
+
+
+
+
+
+++ + +
+
t+
+
+
+
+
+
+
Several exclusive computer
programs developed by Harris
allow computer modeling of
antenna systems for special
applications such as bandwidth predictions.
Power Levels Available:
2E0 W-200 kW
Medium: Wave Phasing Systems
Computer-aided design and analysis
of complete phasing system to ensure
best bandwidth for chosen pattern.
Factory pre -tuning to predicted
values w th a network analyzer and
vector impedance meter for accuracy
in impedance match and desired
phase shaft. Greatly reduces initial
setup tirr e.
Media m- and low -power phasor
line features a removable front panel
and rear lift -off door in a new 36"
cabinet. Front and rear accessibility
ensures easy setup and maintenance.
Silver-plated coils and copper
ground straps the features most
requested by professional consultants
are standard.
A Delta common point meter, standard on Harris phasors, provides
accurate readings with modulation and
access for remote metering sample.
-
-
111
-
KEY OPTIONS
Common Point Impedance Bridge
-point bridge and theammetercommon
Harris features
RF
Delta
on a
very attractive panel.
Main /Auxiliary /Dummy Load
Switching Provides convenient
-
control of two transmitters while terminating the standby transmitter into
the dummy load.
Delta Base Current Meters
-
Pro-
vide accurate readings unaffected by
modulation, plus DC remote output
for monitoring.
I kW Antenna Coupling U
Antenna Coupling Units
Standard 1, 5 and 10 kilowatt ACUs for
quarter -wave antennas, and special
250 watt through 200 kilowatt ACUs
for various antenna heights, are
available.
Medium Wave Phasing Systems and Antenna Couplers
Medium Wave Antenna Accessories
,.
i
L
r
Tower Light
Isolation
Chokes
i
-
Heavy-Duty
Sampling
Loop
Diode-Type
Remote Meter
Sampler
{
HS-4P 30 Amp
RF Contactor
Tower Light Isolation Chokes
-
Provide power to insulated towers for
tower lighting requirements. Available
in two- or three -wire models.
Isolation Coils
- 1/2"
or 3/8"
phase-stabilized foam transmission
line coils are available with optional
resonating capacitor. Can be mounted
on flat aluminum panel or in a
weatherproof enclosure.
Diode -Type Remote Meter
Heavy-Duty Sampling Loop
current.
Sampler
For remote indication of
Used primarily in attaining
RF
RF remote metering samples when
thermocouple base meters are used.
-
HS-4P 30 Amp RF Contactor
Motorized medium wave RF contactor.
DPDT. Requires 208/230 VAC, 50 -60 Hz
at one ampere. Microswitches provided
for external indicators or interlocks.
Hams also offers phase monitors, operating impedance bridges with
the optional RF frequency synthesizer detector, and field intensity
measuring equipment.
-
Rugged, fixed, non-shielded RF sampling loop is heavily galvanized after
welding. Fitted with large steatite insulators and heavy-duty tower leg clamps
for easy, positive mounting. Has "N"
female connector input.
rrr.,.,e-1/,!:MÿYM^:,,,
r!1 'rr r!r
:ta.
r.- ta lfl.1r.
.
.
.,a
,-ri:a.,
a
rr
r.:-
-r...
._L:
IMO
rr
rrr`'!
7-¡irarrrrrN'
'
s-
arr,'M!
-
rrlN11wrw.--..c.-:_ .
;.tiQ+rrrrrrrrlParn.:++tlllrrirrrrMKr
prlrrr!!rrlrrrrrrrrrrr!rr'
'!P
""1;;;111
Arlrr
Dummy Load
AM-90
AM-90 Medium Wave Modulation
Monitor
Designed for continuous monitoring
of the amplitude modulation envelope
in the 450 KHz to 30 MHz frequency
range.
Easy -to-read neon bar display
accurately measures carrier and modulation levels.
Two fixed flashers adjusted to
+125% and -100% for constant
monitoring of modulation levels.
AM Accessories
Carrier and modulation alarms
illuminate when carrier amplitude
drops below 50% of the pre -set level
or when modulation remains under
10% for ten seconds.
KEY OPTION
-
AM Remote Meter Panel
Provides accurate monitoring and measurement readings at operator's position
in transmitter facility.
1100 Watt Dummy Load
he A low -cost maintenance accessory
that provides a proper termination for
the transmitter for testing.
Ten non -inductive resistors provide
a nominal 50 ohm impedance from
0.5 to 1.7 MHz and have a power rating of 1100 watts at carrier with full
100% tone modulation.
No cooling fan required. Unit is
convection cooled.
Female "N" connector input provides easy and convenient hookup
during transmitter maintenance.
amis has revolutionized FM broadcasting with the addition of new,
technologically -advanced products to its line of 55 watt to 70 kW FM
broadcast transmitters.
Power Levels Available:
THE-1
3 W-55 W
FM-100K
40 W-100 W
FM-300K
135 W-300 W
FM-1K
500 W-1.1 kW
THE-1 FM Exciter
Superior on -air reliability with
low power consumption
Harris' THE -1 FM Excitef *, rated at
55 watts or 15 watts RF output, is stan-
FM-IK
dard on all Harris FM transmitters and
ideal as a low -power transmitter.
Advanced solid-state design
(FM -100K, FM -300K) for top reliability
and no tube replacement.
The FM -1 K's one tube power
amplifier is operated well within its
ratings for long tube life.
Single phase power supply
eliminates the need for costly three phase AC service.
111 With full remote control interfacing
standard on all models, and monaural
input standard on THE-1, Harris saves
you money on costly options.
Low-Power FM Transmitters
AIL
Easy accessibility means quicker
servicing and lower costs.
Easy-to-read control and status indicators aid operation and servicing, and
minimize downtime.
`For further information on THE-1 FM
Exciter, see page 15.
KEY OPTION
Stereo /SCA Generators
-
Space
available in the FM-300K and FM -1K
transmitters for addition of stereo and
SCA generators.
is
Power Levels Available:
HT 3.5FM
800 W-4 kW
HT 5FM
1.5 kW-5 kW
HT lOFM
5 kW-10 kW
The power you want .. .
the durability you need
KEY OPTIONS
Stereo Generator
-
Space is available in transmitter for addition of
stereo generator.
AC Power
-
Single phase power
is standard on the HT 3.5FM and HT
5FM, and optional on the HT l OFM.
Three-phase power is standard on the
HT IOFM.
HT 3.5FVI /HT 5FM /HT 10FM Transmitters
Single tube design with long- lasting,
high-efficiency tetrode operating in
wideband, quarter -wave cavity.
Harris' high -power 55 watt THE-1 FM
Exciter delivers outstanding reliability
and super -clean signals. Monaural,
composite and SCA subcarrier
inputs standard.
RF patch- around capability keeps
you on the air at reduced power
during emergencies.
Automatic AC restart feature
immediately returns transmitter to service when power has been restored
after an outage.
Automatic VSWR foldback helps
keep transmitter on the air during
antenna icing conditions.
Front -panel block diagram display
helps isolate problems and minimize
downtime. LED indicators signal circuit status in each major functional
stage and have fault memory in case
of power failure.
Automatic power control minimizes
operator adjustment and maintains
output power to within ± 5%.
Full remote control interface
included.
Modular design ensures easy access
for maintenance and repair.
Power Levels Available:
Single
Dual
HT 20FM
8 kW-20 kW
HTD 40FM
16 kW-40 kW
HT 25FM
8 kW-25 kW
HTD 50FM
16 kW-50 kW
-i=
High efficiency ... wide RF bandwidth ... single tube design
Quarter -wave PA cavity for best
stereo and SCA performance, and
lowest synchronous AM.
PA efficiency exceeds 77% for
substantially greater savings over
other designs.
Wide RF bandwidth (greater than
2.8 MHz) provides signal transparency.
Harris' high -performance THE-1 FM
Exciter provides exceptional audio performance. Rated at 55 watts or 15
watts RF output.
Automatic VSWR foldback keeps
station on the air during antenna icing
conditions.
Low -noise air system for extremely
quiet operation.
Rugged, long -life tetrode means
lower maintenance cost.
Automatic AC restart provides built in protection against total AC failure
and loss of phase. Will restart automatically following a total power failure.
FlexPatchN capabilities allow
bypassing defective stage for maximum on -air reliability.
Status and overload LEDs provide
fast evaluation of transmitter conditions.
Built -in remote control interface for
easy operation and monitoring.
Full featured, yet easy to maintain.
Small cabinet design allows you
to make more efficient use of station
floor space.
NM
e
J
ö
- -_
111111
p
ïI
'-
., r
-- --
-
J
LL
HTD 40FM /HTD 50FM Dual
Combined Transmitters
Dual combined transmitter configuration allows transmitter maintenance
at any time with minimal loss of coverage. Totally redundant system
minimizes off -air time.
13
KEY OPTIONS
For Dual Combined Transmitters:
Automatic Output Switching
-
Provides the capability of switching
either transmitter directly to the
antenna, supplying one-half normal
operating power in the event of transmitter malfunction.
Automatic Exciter Switching
-
For automatic backup exciter protection.
HT 20FM /HT 25FM Transmitters
Power Levels Available:
Single
Dual
HT 30FM
10 kW-30
kW
HTD 60 FM
20 kW-60 kw
HT 35FM
10 kW-35 kW
HTD 70 FM
20 kW-70 kW
The right choice in high-power,
high-performance FM transmitters
Quarter -wave PA cavity for best
stereo and SCA performance and
lowest synchronous AM.
PA stage is 80% efficient over a
wide power range for low operating
costs and longer tube life.
Built -in FlexPatchTm capability permits the preamplifier, IPA or even the
final PA to be bypassed for continued
operation at reduced power during
emergency conditions.
Low -noise blower provides ample
cooling to 10,000-foot altitudes.
ColorStat' front -panel signal flow
diagram immediately identifies problem stage, aiding repair and minimizing downtime.
Main controller works in parallel
with a discrete logic backup controller,
assuring basic operation should the
main controller require service.
Both transmitters feature Harris'
THE -1 55 or 15 watt solid -state FM
Exciter
providing a high -power,
high -performance signal source.
-
2
14
HTD 60FM /HTD 70FM Dual
Combined Transmitters
Dual combined transmitter configuration allows transmitter maintenance
at any time with minimal loss of coverage. Totally redundant system
minimizes off-air time.
HT 30FM /HT 35FM Transmitters
KEY OPTIONS
For Dual Combined Transmitters:
Automatic Output Switching
-
Automatic Exciter Switching
-
Provides the capability of switching
either transmitter directly to the
antenna, supplying one -half normal
operating power in the event of transmitter malfunction.
For automatic backup exciter protection.
i
-
II Wide RF bandwidth provides signal
transparency to exciter's performance.
Automatic VSWR foldback keeps
station on the air during antenna icing
conditions.
High gain, single tube design
minimizes tube maintenance costs.
All signal input and output connections are made on a conveniently
located interface panel.
AC restart feature provides built -in
protection against total AC failure and
loss of phase. Will restart automatically
i
following a total failure.
Standard remote control and
extended control designed to interface
with simple or full-featured remote
control systems.
Front -panel StatusPlus' automatically logs the date and time when
any of seven major overloads occur.
Information is stored continuously
and can be recalled easily. Helpful in
isolating problems.
---
citer
,- aa Fatt
x
N
5a
VN
For top performance in any FM
transmitter ... and ideal as a lowpower FM transmitter
Switch-selectable dual power ranges
watts or 3 to 55 watts) and lowprofile, slide -out drawer construction
ensure easy, direct use in any FM
transmitter old or new.
Approved as a low-power (5.5 to
watts) FM transmitter.
_
(3 to 15
-
5
!
RFI and transient protection on all
inputs and remote outputs for maximum reliability in less- than -ideal
environments.
Ultra- linear, voltage controlled
oscillator (VCO) has superb linearity
for virtually transparent passage of
stereo and multiple subcarriers.
Modular design and conveniently
located controls make adjustment and
servicing easy. Broadband modular
output amplifier requires no tuning.
Comprehensive metering, status and
control functions are provided.
Other standard features include
monaural input with selectable pre emphasis, front -panel composite test
input /output, built -in remote control
interface, two composite and two SCA
inputs for use with optional external
generators.
Power Levels Available:
3W-15W
3 W-55 W
THE-1 FM Exciter
HT 30 /35FM
THE -1 55 Watt Solid -State FM Exciter
FML Low Power
A complete line of FM
antennas
for every application
Multi -station CBR allows up to ten
stations to share expense.
No. of Bays
Superb axial ratio and pattern circularity for optimum coverage.
Excellent bandwidth for best
stereo /SCA performance.
Power ratings to meet every
application.
Rugged brass and stainless steel
construction for long, trouble-free life.
Fully assembled and tested to
ensure top performance.
Brackets included for face or leg
mount on typical tower.
KEY OPTIONS
Pattern Testing /Optimization
Custom measurements for your
frequency and tower size.
Half-Wave Element Spacing
-
-
Minimizes radiation levels near tower
and reduces local interference.
Electrical De -icers or Radomes
Reduce effects of antenna icing.
Cavity Backed Radiator (CBR))
6
FM Antennas
FM High Power
FMC
All standard Harris FM antennas* hav
the same published gain for equivaler
number of bays, as shown below.
-
Power Gain
1
0.4611
2
0.9971
3
1.5588
4
2.1322
5
2.7154
6
3.3028
7
3.8935
8
4.4872
9
5.0826
10
5.6800
11
6.2783
12
6.8781
13
7.4785
14
8.0800
*Omnidirectional, circularly polarized mode
without beam tilt and null fill, and with one
wavelength vertical element spacing.
1
1
Automatic Changeover Panel
Automatic switching for minimum
off-air time in the event of a power
failure.
Full ON sequencing means standby
transmitter may be a hot or cold unit.
All transfer functions are provided
by the panel ... no direct control of
the transfer switch is required.
All ON -OFF and MODE commands
remote controllable. Full control of
both transmitters and the switcher
panel from the remote control point.
Dry contacts provided for control of
transmitters and the transfer switch.
Compatible with virtually all
transmitters.
Constant Voltage Filament
Regulator Option
Designed for any Harris FM transmitter with PA tube* that operates in
an environment where the AC power
source is subject to fluctuation.
Provides tight voltage regulation for
the PA tube's filament, resulting in
controlled filament heat, controlled
peak filament emission and extended
tube life.
'Except the FM-1K which already has a builtin constant voltage filament regulator.
FM Accessories
Calculation of Transmitter Output Power
Transmitter output power may be calculated by the following formula:
Licensed ERP (max.)
Transmitter Output
Antenna Gain x Coax Efficiency Factor
Antenna gain for standard Harris FM antennas may be found on page
16 of this catalog.
EXAMPLE:
-
What transmitter power is required for
50 kW ERP at 98.1 MHz with a six-bay
antenna and 550' of 3 " Andrew Heliax?
Coax Efficiency Factor at approximately 98 MHz for various lengths of
transmission line may be taken from the table below. Consult
manufacturer's data for loss for other line lengths and frequencies.
FM
50,000
3.3028 x .839
-
18,044 watts (ANSWER)
Transmission Line Efficiency
The chart below shows approximate efficiency factors for various lengths
and types of commonly used coaxial
transmission line (98 MHz).
Efficiency
Factor for:
Semi -Flexible Coax (Andrew)
74,,
350'
.745
-
550'
1050'
2050'
/
Rigid Coax (Dielectric)
/4 I,
1h
1s/8"
21/4"
3 ",
4
5
154"
.803
.848
.874
.894
.914
.939
.709
.771
.809
.839
.868
.906
.668
.715
.763
.828
.589
-
-
-
-
31/8"
4'/18"
6"
.859
.927
.948
.961
.787
.888
.920
.940
.797
.853
.888
.692
-
.642
.732
.794
Loss 100' (dB)
.366
.272
.205
.167
.139
.112
.078
.189
.094
.066
.049
Power Rating **
5.2
7.5
11.7
16.2
29.9
45.4
59
8.7
33
62.6
131
rating to kilowatts at
1. 5.1
VSWR, 104 °C ambient, 1 atmosphere
FM Applications Information
dry air pressure.
17
-a
-
perfect blend of engineering advances, noamis audio equipment
compromise performance and user-friendly designs all at a competitive price.
DAT Specifications
16 -bit digital audio.
Three sampling frequencies.
Unmeasurable wow and flutter.
92 dB S /N.
Hz-22 kHz ± .5 dB.
---2
Digital Audio
Tape Recorder
(DAT)
Digital Audio Tape Recorder/
Playback Unit (DAT)
Superior sound quality from digitizing and accurately processing the
with an extremely
audio signal
wide dynamic range, practically
unmeasurable distortion and ruler-flat
...
frequency response.
High -speed cue /review, accessible
from the front panel, allows fast, easy
access to any cut on a cassette.
Can be rack mounted to save space.
Cassette tapes are about half the size of
conventional cassettes.
Digital playback /record capabilities
at 48 kHz. Digital playback at 44.1 kHz.
The forward /backskip function permits rapid re-cue to the previous cut or
next cut.
KEY OPTIONS
Hard Wired Remote Control
Medalists" Dual Stereo
Audio Consoles
(8, 10 or 12 Channel Models)
-
Allows you to easily cue any cut on a
cassette. Start-ID and program numbers can be automatically placed in the
sub -code field of the tape to locate a
desired cut.
Rack Mount 7" x 19".
-
DT60 /DT120 Digital Cassettes
-
Choice of 60- or 120- minute durable,
long- playing cassettes.
A user -friendly design to minimize
user error, with color-coded switching,
wide attenuator spacing, and choice of
plug -in and interchangeable rotary or
linear attenuators.
Superb audio performance ensured
with excellent RFI and EMI immunity
and signal -to -noise performance, and
extremely low THD and IMD.
Console includes three inputs into
each channel. Optional fader modules
can expand inputs to six per channel.
KEY OPTIONS
Mono /Sum Output Channel
-
Standard on Medalist Au and Medalist
12. Provides a mono sum channel for
Medalist 8 and 10.
Microphone Pre -amps Two are
included with each Medalist console.
Additional pre -amps can be added, up
to the maximum of 8, 10 or 12 per
console style.
Nose Cone For mounting up to
three source start switches per channel
on the 8 channel, 10 channel and 12
channel Medalist.
-
18
Medalist Aut 12 Channel
Dual Stereo Audio Console
off switching eliminates
Five VU meters provide full visibility of all critical output levels.
Thirty-six inputs with logiccontrolled switching provide START
and STOP control of up to three
noise and extraneous signals from the
program output channel.
Choice of various fader modules in
both linear and rotary models to match
your station requirements.
End -of- message controlled channel -
sources per input channel.
Up to 72 sources into 12 input
channels expand total input capacity to
six sources per input channel with
optional four input linear fader
modules.
DAT and
Medalist' Consoles
unwanted
-
Momentary or Alternate Action
Switches Provide dry contacts to
-
control your sources.
Clock and Timer
-
Mounting
provided for optional clock and timer
on the Medalist Au and Medalist 12.
Rack Cabinet
Phase Fixer
Phase Fixer Specifications
Digital Audio Time Base
Corrector
Improves stereo on -air sound by
eliminating audible phasing errors on
encoded stereo carts and tapes.
Reduces flutter to insignificant
levels on encoded stereo carts and
tapes.
One Phase Fixer at the output of
the studio console will handle all the
encoded carts played back. Additional
encoders are available for each cart
record studio.
Uses 16 -bit digital audio delay to
achieve low- noise, high -fidelity audio
time base error correction.
Audio Input: Active balanced
600 ohms or bridging.
Input Level: +26 dBv max.
Output Level: +24 dBm into
600 ohms max.
Distortion: THD less than .2%,
30 Hz to 15 kHz.
Noise: 64 dBm, 3 Hz to 30 kHz
measurement bandwidth.
Power Requirements: 117 or
234 volts AC, 50/60 Hz.
Flutter Reduction: Greater than 4:1.
Delay Corrections: To within
16.6 microseconds.
Meters: Two VU and one multimeter.
Ulti-Mate 91 Lt!
Ulti -Mate 91n" Tri -Band
AGC Compressor
For AM, FM or TV.
Improves performance of leading
audio processors.
True linear VCA gain control for
consistent sound.
110 dB dynamic range for ultraquiet operation.
PX -91 Mastering Quality
Phono Preamplifier
Extremely low transient intermod,
dynamic distortion and noise assuring faithful reproduction of even the
most demanding disc cuts.
Precisely accurate RIAA response
curve to less than ±.25 dB error.
Ultra -clean high -end audio sound
quality.
PO Conservative operation of all components provides excellent reliability.
-
PX-91
Audio Equipment
Rack Cabinets
RAK -90
19" x 70" panel mounting space/
25-1/2" deep, 78" high.
RAK-9 1
19" x 70" panel mounting space/
22" deep, 78" high.
RAK -80B
19" x 64-3/4" panel mounting
space /25 -1 /2" deep, 72" high.
RAK -7
19" x 71 -3/4" panel mounting
space/19-1/2 " deep, 78" high.
Complete with side panels.
Rack Accessories
Side Panel Kits Available for
Front Trim Kits three
Plugmold equipment.
Blank Panels -
RAK-90, RAK-91 and RAK -80B, two
panels per kit.
For one, two,
or four racks. Fits RAK -90,
RAK-91 and RAK-80B.
Provides 10 AC outlets
for rack
19" rack panels
have modern, black pebbletex finish
and are available in standard 1 -3/4"
through 10-1/2 " sizes.
market.
Harris has VHF TV transmitters on the air in every top ten U.S.
Why? Because in critical performance parameters, Harris transmitters
outperform the competition.
my
-4
HT 30Lî
'p
Platinum Series' of Solid -State VHF TV Transmitters
Revolutionizing VHF TV
technology
Designed for on -air removal and
insertion, all visual and aural PA
modules are identical and fully
interchangeable.
Multiple power supplies ensure
highest on -air reliability. High efficiency
means less heat to manage and lower
operating costs. Compact, roll-out design
integral to each cabinet for service
accessibility.
Parallel power amplifier cabinets
further enhance on -air reliability.
Separate AC feeds for each cabinet
provide a degree of serviceability
never possible with conventional
single tube final amplifiers.
Separate fans provide cooling for
each cabinet.
A state -of- the-art visual /aural
exciter, designed specifically for the
transmitter, provides exceptional
visual performance, and audio performance comparable to that in a top
FM exciter.
PA modules designed for very
high MTBF.
A display screen provides both bar
graph and digital readout of power,
VSWR, voltage and current parameters, plus other data.
Simple, straightforward control of
transmitter on /off, remote /local control and power raise /lower functions is
provided by front -panel pushbuttons.
Status indicators provide a simple
means to observe the condition of all
overload and interlock circuits.
The main control logic circuit provides a central point for control and
monitoring of the entire transmitter.
Individual cabinet logic circuitry
provides control and monitoring of the
solid-state amplifier modules.
Interchangeable visual and aural
driver modules for user convenience.
A full range of power levels is available (high band and low band) up to
KEY OPTION
Dual Exciters
-
=s-
r
For the ultimate in
on -air reliability, a fully redundant
exciter and exciter switcher system
are available.
60 kW.
=
z
a s-
Control Panel/User Display
Solid-State PA Module
Platinum Series' of Solid -State VHF TV Transmitters
=.
gr.
eas
W.3011
7V-30H
IV-39li
LOW
BAND
----I HIGH
J BAND
L
CHANNELS
7-13
CHANNELS
2-6
7VD-601.]
1--
IVD-60H
TVD-70H
I
TVD-100H
O
10
20
30
VHF TV (Tube) Transmitters/Exciters
50
70
so
90
100
11111MING
7VD -60L
The choice of the top ten
U.S.
markets
It IF modulation, introduced in the
U.S. by Harris over 20 years ago,
provides superior visual and audio
performance.
Rugged, straightforward construction with less complicated circuitry for
top on -air reliability.
The visual and aural exciters are in
independent, slide -out drawers and
can be operated outside of the transmitter for test purposes.
The MCP -2V visual exciter uses
Harris' VIDEO* SAW filter for vestigial
sideband shaping and FCC group
delay pre-correction. Conventional
receiver equalizers that require periodic maintenance with special test
equipment are eliminated.
The ultra- linear driver stage
minimizes the amount of correction
required and allows the transmitter to
operate over extended periods of time
without adjustment.
Harris VHF TV transmitters outperform the competition in all critical
performance parameters affecting
picture quality.
-
20% Aural Power Standard on all
low band transmitters. Available as a
low -cost option for high band transmitters to eliminate distortion and noise
problems in fringe reception areas.
20 kW, 30 kW
Low Band Dual
-
60 kW
MCP-2V
Visual
Exciter
High Band -10 kW, 30 kW, 35 kW, 50 kW
High Band Dual
-
Available
visual and aural signals through the
visual RF amplifier chain should any
stage of the aural amplifier chain fail.
Notch Diplexers Dual -cavity
stereo notch diplexers ensure the
highest quality stereo sound reaches
today's discerning viewers.
Dual Operation Offers total
redundancy for flexible maintenance
scheduling and no lost air time in the
event of component failure.
-
Precise Frequency Control (PFC)
-
Allows visual carrier to be locked to
a precision external frequency reference. Frequency stability is within
±2
Power Levels Available:
-
-
in single transmitter configurations.
Permits common amplification of the
-
*Visual IF Delay Equalized Output.
Low Band
Emergency Multiplex
60 kW, 70 kW, 100 kW
VHF TV (Tube) Transmitters /Exciters
Hz.
1
Designed for long life, Harris
VHF antennas feature rugged
mechanical construction.
Corrosion -resistant materials and
copper feedlines virtually eliminate reharnessing requirements.
All Harris VHF TV antennas are
factory- assembled and tested on
Harris' unique far -field test
range *.
*Does not include the TAD Dehawing
antenna.
Horizontally Polarized
TAB Batwing
Capable of handling high powers:
High Band
up to 77 kW.
Low Band
up to 120 kW.
High Band Models
through
-TAB Batwing
VHF
W
Antenna
TAV CPV
VHF TV
Antenna
--
12 bays.
Low Band Models
6 bays.
Top mount design.
-2
-
1
through
Optimum coverage with selection of
horizontal and vertical patterns
available.
Dual 3 -1/8 ", 50 ohm input requires
only a simple hybrid diplexer.
Specially modified TAB-2HP, with
50 kW rating, is available for emergency /standby operation.
Harris maintains a stock of TAB
one- and two-bay antennas for emergency shipment.
Multiplex (Two or Three Channels) Allows stations to share
Electrical De-icing
-
Top-Half /Bottom-Half Feed
Single Line Input
diplexer.
-
-2
bays.
Low Band Models
1 through
8 bays.
Economical
mounts on new or
existing tower in stacked configuration.
Low windload design.
Three -around design ideal for
triangular-faced towers.
Excellent horizontal pattern control
allows you to place the power where
you want for omnidirectional and
directional applications.
Single line input.
-
-
KEY OPTIONS
-
Pro-
Requires notch
-
Calrod heating elements factory- assembled in
each radiator.
Multiplex (Two or Three
Channels) Allows stations to share
expense.
Calrod heating elements factory-assembled in
each radiator.
vides for emergency operation.
-
Electrical De -icing
KEY OPTIONS
expense.
TAD Deltawing
Power rating depends on number of
bays, frequency and feed harness:
High Band Models
through 12
-
Slot Cover Radomes.
Four -Around Design
for square-faced towers.
Support Brackets
on existing towers.
-
Available
For mounting
Pattern:
-
-
Directional azimuth and wide selection of vertical pattern beam tilt and
null fill.
Pattern measurement of azimuthal
and vertical patterns on Harris'
far -field range.
Horizontally and Circularly Polarized VHF
TV Antennas
d
Notch
Ny
a
and
Circularly Polarized [tF:g)
Apex
TAV -CPV
Li Capable of handling high powers up
TAC CBR
Notch Diplexers
(Cavity Backed Radiator)
-
Power rating depends on number of
bays, frequency and feed harness:
High Band Models
l through 12
bays.
Low Band Models
1 through 6
bays.
L Economical ideal for mounting
on new or existing tower in stacked
configuration. Two channels can be
multiplexed on same antenna to share
expense.
E. Excellent horizontal pattern control
allows you to place the power where
you want for omnidirectional and
directional applications.
Harris' original, proven CP antenna.
fl Dual aural notch cavities for wider
bandwidth and excellent BTSC performance.
No requirement for forced air
cooling means increased reliability.
Designed with minimum insertion
loss and low VSWR for optimum picture and sound quality.
Minimal temperature drift of cavity
tuning. Maintains optimum stereo
performance with ambient temperature changes.
at Compact design with smaller footprint than previous diplexers. Fits
easily into small rooms.
Notch diplexer equalizer uses all pass networks. Simple to adjust and
provides stable operation.
to 100 kW:
High Band Models
bays.
Low Band Models
6 bays.
-8 through 16
-4 through
Top mount design.
CP provides improved coverage,
optimized by excellent axial ratio and
pattern circularity.
Multiple elements provide excellent
control of vertical pattern.
Single line input on high band, dual
line input on low band.
M Requires no electrical de- icers.
fly
KEY OPTIONS.
Dual Line Input.
Extended Five -Bay Mast
center equivalent
radiation
low band Batwing.
For
to six -bay,
WI
-
-
-
-
Hybrid Diplexers
Radomes For ice protection.
Support Brackets For mounting
on existing towers.
-
Low insertion loss for significantly
higher efficiencies.
IA Low VSWR for best system
optimization.
Compact design fits easily into
smaller area.
Power Levels Available:
(Notch and Hybrid Diplexers)
High Band: 10 kW through 100 kW,
peak of sync, 20% aural power
Low Band: 20 kW through 60 kW,
peak of sync, 20% aural power
VHF' TV
Anten.ia
Diplexers
eveloped in response to the needs of today's UHF broadcasters, Harris'
is
full line of 60 kW to 240 kW UHF transmitters, antennas and accessories
engineered to deliver exceptional year -in, year-out performance.
7V-120UX
120 kW
60 kW VISUAL
EXCITER /IPA
DRIVER
60 kW VISU
AMPLIFIER
CONTROL
AMPLIFIER
2f
The UX Family of UHF TV Transmitters (External Cavity Klystron)
Top on -air reliability, efficiency
and serviceability from day one
ell
60 kW
AURAL
AMPLIFIER
Superior reliability to keep you on
the air.
Excellent visual and aural performance.
Klystron availability from three
sources to ensure lower initial and
replacement costs.
Harris' exclusive two-stage glycol
and vapor -phase shell and tube heat
exchanger, used to cool the klystron
collectors, maximizes reliability, efficiency and tube life.
Annular ring pulser and exciter
sync reduction circuitry for reduced
AC power consumption.
II Complete at- a-glance status displays
are standard.
Clear and easy access to all parts
and components. Visual and aural
exciters self- contained in pull -out
drawers.
Magic "T" Combiners
-
Available
with 120 kW, 180 kW and 240 kW
models. Provide on -air switching,
enabling maximum power during
failure modes.
CONTROL
Power Levels Available *:
TV-60UX
60 kW
TV-120UX
120 kW
TV-180UX
180 kW
TV-240UX
240 kW
The klystron cavity cooling blower features an
air filter for reduced tube maintenance. A separate blower cools the final cavity drift tube.
These features provide maximum tube protection and enhance reliability.
*70 kW, 140 kW, 210 kW and 280 kW
models available on request.
The UX Family of UHF TV Transmitters (External Cavity Klystron)
27
IE
MI
Ill
MI MI
WE-120S
Power Levels Available:
28
TVE -60S
60 kW
TVE-120S
120 kW
TVE -180S*
180 kW
TVE-240S
240 kW
*Available on request.
The "S" Family of UHF TV Transmitters
(Integral Cavity Klystron)
i
Using the latest efficiency improving technologies to help
keep operating costs down
All TVE -S transmitters are stereo ready. Excellent ICPM correction to
within ± 2° ensures optimum performance.
High -efficiency "S" klystron, variable visual coupler and mod anode
pulser substantially reduce operating
costs.
Conservative design, parallel solidstate devices, spare heat exchanger . .
.
for maximum on -air reliability.
Harris' MCP-2 Maximum Color Visual Exciter and VIDEO* SAW filter
the best in the industry
offer excellent performance year after year, with
outstanding video and color specifications and absolutely no realignment.
Unique LED status panel indicates
at a glance whether all IPA modules
are operating properly. Integral cavity
klystrons are easily tuned and
replaced.
Modular, unitized construction
greatly reduces installation time.
Emergency multiplex is standard on
all models. Motorized notch detuners
enable local or remote multiplex operation without any RF patching.
*Visual IF Delay Equalized Output.
-
KEY OPTIONS
60 kW Diplexer /RF System
Highly efficient shell and tube heat
exchanger system provides the advantages of vapor -phase cooling of klystron collectors with the reliability of a
glycol /water, thermostaticallycontrolled outdoor fan unit.
-
-
-
-- Spare Parts Kits:
Choice of Three RF Systems for
the
REC
Semiconducter and Fuse Kit.
Recommended Service Parts Kit.
P.C. Boards Kit.
TVE -120S:
Standard combiner /diplexer RF
system.
Magic "T" RF system with aural
emergency.
Magic "T" RF system without aural
emergency.
The solid-state ¡PAs and aural and visual
exciters are housed in a separate cabinet.
Space is available for a spare set of exciters
in this cabinet.
The "S" Family of UHF TV Transmitters
Notch
diplexer and RF interconnecting line.
Spare Exciter Additional visual
and aural exciters, and automatic
exciter switcher.
(Integral Cavity Klystron)
Harris TWS Wavestar® and TAZ
Quadrapower Horizontally
Polarized UHF TV Antennas
Harris UHF TV antennas are
designed for long life ... featuring rugged construction and corrosionresistant materials.
To ensure maximum performance,
each Harris UHF antenna is fully
assembled and tested at Harris' unique
facility, featuring both far- and nearfield test ranges.
TWS Wavestar
Proven reliability with the
the
waveguide design from Harris
techantenna
innovator of waveguide
nology and still the leader.
Capable of high -power handling.
Standard rating of 240 kW; modified
ratings to 360 kW and more; 5
megawatt ERP with ease.
Wide range of horizontal patterns
omni, trilobe and cardioid.
Vertical pattern:
Omni, Trilobe Gain of 30 or 25,
30% first null fill, .75° beam tilt.
Cardioid Gain of 30, 15% first
null fill, .75° beam tilt.
No -cost ice protection, with radome
covers or full-pressurized radomes
included (depending on model).
Low windload.
May be top or side mounted.
-
-
-
-
KEY OPTIONS
-
Coax or rectangular
waveguide.
Inputs
Full Radome Enclosure for
-
Cardioid Extra protection for areas
that experience extreme icing.
Vertical Patterns Designs for
-
your specific application.
9C
i9C
UHF Antennas
TAZ Quadrapower
For applications where a slotted
antenna is unsuitable, Harris' TAZ
Quadrapower Antenna offers
unlimited horizontal pattern control.
High reliability with a proven
design.
Standard radome covers offer
no-cost ice protection.
Capable of handling powers of
110 kW or greater.
KEY OPTIONS
-
Coax or rectangular
waveguide.
Electrical De-icers Available on
Inputs
-
non-radomed Quadrapower antennas.
Medium -Power UHF Antennas
-
Available in three patterns
narrow cardioid, peanut and
omnidirectional.
Offer input power rating of 60 kW.
Designed for side mounting on
tower.
Cardioid Pattern *:
Uses rectangular waveguide as
main structure.
Horizontal gain: 3; Vertical gain: 10;
Input power rating: 60 kW, with
6-1/8" input.
Peanut Pattern *:
Uses rectangular waveguide as
main structure.
Horizontal gain: 2; Vertical gain: 10;
Input power rating: 60 kW, with
6-1/8" input.
Omnidirectional Pattern *:
Uses thin, circular waveguide as
main structure.
Circularity: ± 1 dB; Vertical gain: 8;
Input power rating: 60 kW, with
6-1/8" input.
-
-
-
*Gain and Circularity values are approximate.
UHF Diplexer Systems
120 kW Magic "T" RF systems
allow you to select V1 or V2 half-
power mode without going off the
air. Enable half -power operation during a visual klystron failure, instead
of quarter power.
Motorized notch detuners allow
multiplex operation at the touch of a
button (standard on all UHF diplexer
systems).
120 kW waveguide loads provide
higher power capability than with
coaxial loads, and higher reliability
with no load resistor elements.
Unitized construction and compact
size make installation into an existing room easy.
Capable of operation using the
BTSC stereo system. Allows high performance stereo operation with
no additional cost or modifications.
Available in 60 kW, 120 kW, 180
kW and 240 kW power levels.
KEY OPTION
Magic "T" Waveguide Combiner/
Diplexer with Aural Emergency
-
Allows one visual klystron to
replace aural klystron if aural klystron
fails, for continued on -air operation at
half power.
Magic "T" RF Systems
L Provide multiple modes of operation and hot switching capability.
patching.
Combines the visual and aural signals and amplifies them through the
visual klystrons at reduced operating
power.
Aural Emergency (transmitters
with three or more klystrons)
Aural emergency mode allows one
visual klystron to operate as an aural
klystron and enables continued operation at half power.
Selectable locally or by remote
control at the push of a button.
UHF Exciter Retrofit Package
Updates all makes of older transmitters to state -of-the-art performance.
Wideband, linear aural exciter for
high-fidelity audio transmission.
Provides high stability, low
maintenance.
Excellent for stereo operation.
Special configurations available.
Output power is 10 watts visual,
Shell and Tube Heat Exchanger
Retrofit Package
watts aural.
KEY OPTIONS
Dual Exciters with Automatic
Switcher
-
For automatic backup
exciter protection.
Mod Anode Pulser Reduces
operating costs.
-
Emergency Aural Multiplex
UHF Accessories
Allows continued on -air operation
following loss of the aural klystron at
the push of a button or by remote
control.
Use of motorized notch detuners
eliminates the requirement for manual
Feature a built -in logic interface
between RF system and transmitter.
All functions of RF system are
remote controllable.
5
UHF Exciter
Retrofit Package
Emergency Multiplex (all
transmitters)
-
Combines the visual and aural signals
and amplifies them through the visual
klystron at less than half of normal
operating power.
Eliminates freeze -up on older
UHF TV transmitters by replacing
the steam cooling system with
Harris' Shell and Tube Heat
Exchanger.
Based on a water-glycol cooling
system, cooling coils can be
mounted outdoors, no matter how
cold the weather.
Outdoor mounting eliminates the
need for costly air ducting, exhaust
and louver systems, and typically
saves 65 square feet of floor space
occupied by the exchanger and
plenum.
Offers built -in redundancy with
two pumps and two fans included.
Single kit can effectively cool any
transmitter up to 140 kW.
Includes complete installation by
Harris factory representatives.
I
Transmitter
Site Unit
Sentinel 48
Remote Control System
An intelligent system that can
control changes in your environment
without operator intervention.
Designed for ease of use with
simple light -pen operation.
Competitively priced with flexibility
to expand from 16 to 48 channels,
status and control points.
Standard color status indicators provide a simple, visual way to monitor
your system.
Available in a single-site model or
multi-site model which can monitor up
to six locations from studio.
Performs up to 50 discrete time
functions to allow customized control
action.
Ten programmable series functions
for use in handling custom sequence
logic in the transmitter plant.
Four programmable user-display
screens available.
Analog channels can have dual limits monitoring and alarms with
corrective action.
9100 Facilities Control
32
Microcomputer "building block"
system tailored to meet specific applications, from complete automatic facilities control with ATS to simple remote
or local control.
Available in configurations to provide intelligent remote control: automatic transmitter control, automatic
logging, plant protection, exercising of
standby equipment, and automatic
control of items such as tower lights
and building temperature.
Automated transmission system
uses automatic control unit for ATS
operation with power and modulation
control.
Facilities control handles up to
three remote sites from single studio
unit, offering control of transmitter,
heating, cooling and ventilation equipment, backup equipment exercising
and logging, and temperature and
intrusion alarms.
Status channels can have state
monitoring and alarms with corrective
action.
Dual disk drive provides long -term
backup of all user -entered programming data for all sites in a system.
KEY OPTIONS
Logging
-
Automatic logging is
available at the studio and remote site.
Auxiliary Sample Units Sample
units are available for line voltage,
temperature and tower current.
-
Potomac AM -19Th' Interface Software Package Allows you to
-
monitor up to six towers while providing for multiple databases, alarm and
failure level limits monitoring, and full
logging.
9100 Facilities Control
KEY OPTIONS
Dual Disk Drive Memory
-
Eliminates manual loading for reduced
operational time. Provides greater system
redundancy with hardware backup.
Disk Memory Reduces operational display time. Provides greater
software security from having
a non-volatile memory in the form of
diskettes, which can be reproduced
for storage.
-
9100 High-Speed
Communications Option
Provides 400% improvement in
communications speed for Harris 9100
Facility Controllers.
Information on monitored alarms
and inputs is communicated rapidly to
the studio control site for display.
Commands are returned with equal
speed and accuracy.
Easy to install.
Reliable transmission of control
information.
Choice of conditioned or unconditioned telephone lines, two- or four wire circuits.
RS -232C industry standard communication interface.
Sentinel 48 Remote Control /9100 Facilities Control
Z
CL)
Q
Ñ
0
Ñ
Cr,
t-.
CCI
'
bo
.
o
ONC
Ñ
Q
tx a,
fn
Ea.
X Ci-i
ce
:i.
O C
áQÓ'
O
V
Q
;r E
w
f/c
t..
0
vÑ
A'r
Q ÓO
Q 15 Ñ
Q x
OO c~c'O
:40,
mNc
,n
C=-.
x
:ir
O
SáQÓ'
W
67.d
z
o
_
z
o
X
a.
a
w
w
z
Ú
z
W
z
w
z
o
2
o
T
a
a
w
¢
z
U
F
Ú
z
No one company in the broadcast
industry offers more total customer
support than Harris ... no one.
From helping you select the right
equipment for your needs, to
providing program management
or installation assistance you
require, to offering around -theclock technical assistance, parts
support and ongoing training,
Harris is committed to keeping
you on the air.
Close monitoring of each emergency parts shipment to ensure fastest
possible delivery.
Support Before the Sale
Comprehensive Training
Programs
Ili International distributors world-
Program Management,
Installation, Check -Outs
Complete program management
services available for turnkey
installations.
Equipment installation available
from Harris factory representatives.
After -installation proof-ofperformance and check -outs available.
wide, on every continent.
The largest field sales force of radio
and television RF specialists in the
United States.
Experienced technical applications
engineers in AM, FM and television.
Regularly scheduled technical training on transmission systems and products offered at our 7500 square -foot
Broadcast Technology Training Center
in Quincy, Illinois.
Five specialized, regularly scheduled courses on RF transmission
Around -the -Clock
Technical Service
systems:
RF Circuits I.
RF Circuits II.
Telephone technical service
assistance staffed by service engineers,
24 hours a day, 365 days a year.
Experienced service engineers to
provide prompt, on -site technical
assistance.
24 -Hour Service Parts Support
Telephone service parts line staffed
24 hours a day, 365 days a year.
Computerized parts inventory for
prompt response.
---
AM Transmission Workshop.
FM Transmission Workshop.
TV Transmission Workshop.
Training conducted by dedicated
staff of degreed and experienced senior
service engineers.
Annual sponsorship of two-week
program for international broadcasters
through the United States Telecommunications and Technology Institute
(USTTI).
Programs designed to combine
theory with practical, hands -on
training.
Programs can be customized and
offered at site of customer's choosing
... anywhere in the world.
Important Harris Numbers:
Radio RF Sales U.S. and Canada:
217/222-8200, Ext. 3110
Television Sales U.S. and Canada:
217/222-8200, Ext. 3415
International Sales:
217/222 -8200, Ext. 3458
Radio Service (24 hours a day)
217/222 -8200, Ext. 3529
Television Service (24 hours a day):
217/222 -8200, Ext. 3178
Service Parts Domestic U.S.
(24 hours a day):
-
-
1/800/422-2218
International Parts
217/222 -8200, Ext. 3498
Program Management /Installation:
217/222 -8200, Ext. 3170
Proof-of-Performance/Check-Outs:
217/222 -8200, Ext. 3529
Training Programs:
217/222 -8200, Ext. 3508
o
o
a
a
cn
o
z
4
W
v
>
o
W
(I)
Harris Corporation,
Broadcast Division
P.O. Box 4290
Quincy, Illinois 62305 -4290 U.S.A.
TELEX: 247319 HARIS UR
FAX: 217/222 -704'
Unmatched Service and Support ...Worldwide
33
On The
Air with Harris
Since its founding in 1922, Harris Corporation's
Broadcast Division has set the pace for
the broadcast equipment industry worldwide.
From the company's introduction of the transcription turntable in 1926 to its introduction of
a digital, solid -state AM transmitter in 1987,
Harris has pioneered over 50 technology and
service innovations. A rich tradition of providing
cutting -edge products and services to broadcasters distinguishes Harris from its competitors.
The Harris difference begins with commitment.
Harris Broadcast Division has the largest investment in plants and equipment of any U.S.
broadcast equipment manufacturer. But the
Harris investment goes far beyond its facilities.
Committed to keeping broadcasters on the air,
Harris has the largest domestic field sales force
of problem -solving radio and television
specialists. Harris provides twenty -four hour
technical service and parts assistance
an
innovation it introduced in 1975. Harris also
-
sponsors the industry's only Broadcast Technology Training Center at its Quincy, Illinois, headquarters. Offering regularly scheduled programs
on major Harris broadcast equipment, a two
year degreed college program in broadcast technology, and annual training for foreign broadcasters through the U.S. Telecommunications
Training Institute, the Harris Broadcast Technology Training Center attracts broadcasters
from around the world. Harris training is also
available at the site of a customer's choosing.
With installations in more than 100 countries
worldwide, Harris Broadcast Division is a leading supplier of radio and television transmission
equipment, including transmitters, antennas,
and audio and video production systems. The
Broadcast Division is part of Harris Corporation,
a $2.1 billion producer of state -of- the-art information processing, communication and microelectronic products for the worldwide
information technology market.
1 HARRIS
Harris Corporation, Broadcast Division
P.O. Box 4290, Quincy, Illinois 62305 -4290 U.S.A.
217/222 -8200
CP-20M-1188
© Harris Corporation
1988
ADV 742 Nd. in USA
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
