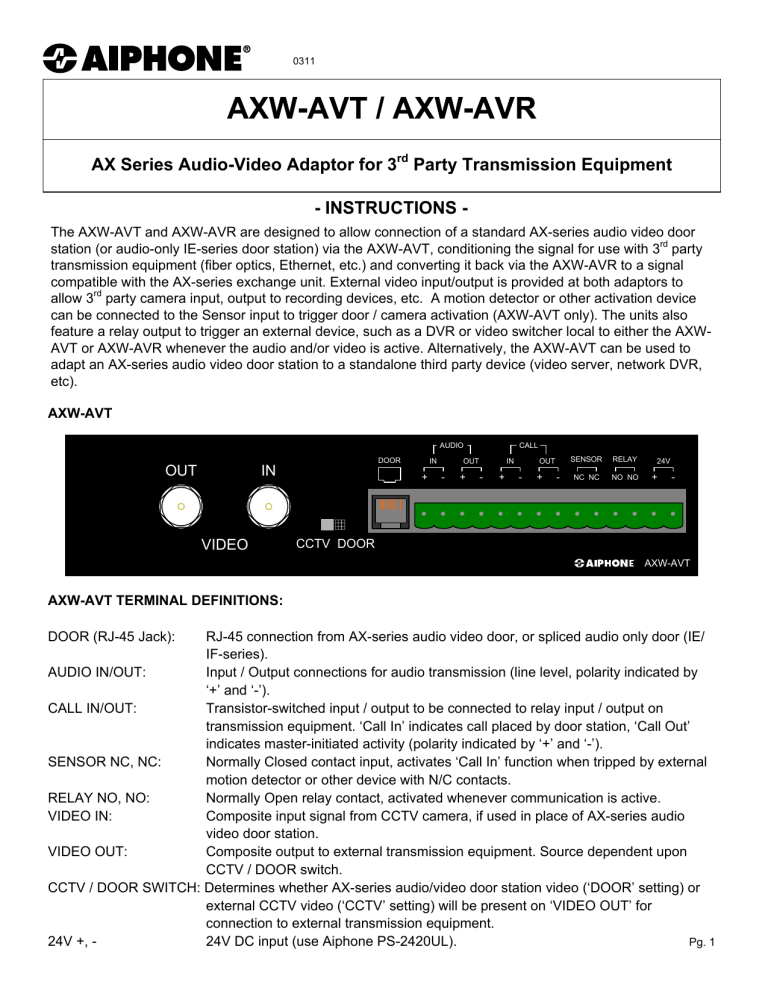

AX Series Audio-Video Adaptor for 3rd Party Transmission Equipment
- INSTRUCTIONS The AXW-AVT and AXW-AVR are designed to allow connection of a standard AX-series audio video door
station (or audio-only IE-series door station) via the AXW-AVT, conditioning the signal for use with 3rd party
transmission equipment (fiber optics, Ethernet, etc.) and converting it back via the AXW-AVR to a signal
compatible with the AX-series exchange unit. External video input/output is provided at both adaptors to
allow 3rd party camera input, output to recording devices, etc. A motion detector or other activation device
can be connected to the Sensor input to trigger door / camera activation (AXW-AVT only). The units also
feature a relay output to trigger an external device, such as a DVR or video switcher local to either the AXWAVT or AXW-AVR whenever the audio and/or video is active. Alternatively, the AXW-AVT can be used to
adapt an AX-series audio video door station to a standalone third party device (video server, network DVR,
etc).
AXW-AVT
AUDIO
DOOR
OUT
IN
VIDEO
IN
+
CALL
OUT
-
+
IN
-
+
OUT
-
+
-
SENSOR
RELAY
NC NC
NO NO
24V
+
-
CCTV DOOR
AXW-AVT
AXW-AVT TERMINAL DEFINITIONS:
DOOR (RJ-45 Jack):
RJ-45 connection from AX-series audio video door, or spliced audio only door (IE/
IF-series).
AUDIO IN/OUT:
Input / Output connections for audio transmission (line level, polarity indicated by
‘+’ and ‘-’).
CALL IN/OUT:
Transistor-switched input / output to be connected to relay input / output on
transmission equipment. ‘Call In’ indicates call placed by door station, ‘Call Out’
indicates master-initiated activity (polarity indicated by ‘+’ and ‘-’).
SENSOR NC, NC:
Normally Closed contact input, activates ‘Call In’ function when tripped by external
motion detector or other device with N/C contacts.
RELAY NO, NO:
Normally Open relay contact, activated whenever communication is active.
VIDEO IN:
Composite input signal from CCTV camera, if used in place of AX-series audio
video door station.
VIDEO OUT:
Composite output to external transmission equipment. Source dependent upon
CCTV / DOOR switch.
CCTV / DOOR SWITCH: Determines whether AX-series audio/video door station video (‘DOOR’ setting) or
external CCTV video (‘CCTV’ setting) will be present on ‘VIDEO OUT’ for
connection to external transmission equipment.
Pg. 1
24V +, 24V DC input (use Aiphone PS-2420UL).
AXW-AVR
CALL
RELAY
OUT
IN
NO NO
OUT
+
AUDIO
IN
-
+
OUT
-
+
CEU
IN
-
+
-
75 OHM
VIDEO
OFF ON
AXW-AVR
AXW-AVR TERMINAL DEFINITIONS:
RELAY NO, NO:
CALL IN/OUT:
AUDIO IN/OUT:
VIDEO IN:
VIDEO OUT:
OFF/ON SWITCH:
CEU (RJ-45 Jack):
Normally Open relay contact, activated whenever communication is active.
Transistor-switched input / output to be connected to relay input / output on
transmission equipment. ‘Call In’ indicates call placed by door station, ‘Call Out’
indicates master-initiated activity (polarity of input / output indicated by ‘+’ and ‘-’).
Input / Output connections for audio transmission (line level, polarity indicated by
‘+’ and ‘-’).
Composite input signal from CCTV camera, if used in place of AX-series audio
video door station.
Composite output to external transmission equipment. Source dependent upon
CCTV / DOOR switch.
Determines whether AX-series audio video door station video (‘DOOR’ setting) or
external CCTV video (‘CCTV’ setting) will be present on ‘VIDEO OUT’ for
connection to external transmission equipment.
RJ-45 connection from AXW-AVR to CEU, simulating a standard AX-series Audio/
Video door station.
COMPATIBLE DOOR STATIONS (AXW-AVT):
AX-DV
AX-DVF
AX-DM
IF-DA
IE-DC
IE-JA
IE-SS
IE-SSR
Surface mount, die cast zinc, vandal resistant, Audio-Video
Flush mount, stainless steel, vandal resistant, Audio-Video
Mullion mount, black plastic, Audio Only
Surface mount, brown plastic, Audio Only
Surface mount, brown plastic w/aluminum, Audio Only
Flush mount, 2 gang, stainless steel faceplate, Audio Only
Flush mount, 2-gang, stainless steel, vandal resistant, Audio Only
Flush mount, 2-gang, stainless steel, vandal resistant w/red mushroom call button, Audio Only
PROGRAMMING:
1. Follow standard AX programming procedures as
described in the AX Installation & Operation
manual (included on CD with the AX CEU).
2. When configuring door stations, be sure to set the
station number corresponding to the AXW-AVT / AVR to “Video” in the AX setup utility.
Typical configuration selection
Pg. 2
CONFIGURATION DIAGRAM:
AXW-AVT / AXW-AVR with Meridian Technology Fiber (ST/SR-AiphoneAX1-XS), 1 of 2
AX-DM or IE/IF-Series
Audio Door Station
AXW-AVT
24V
+
RELAY
NO
NO
SENSOR
NC
NC
Configuration Notes (1 of 2, continued):
4. When the SENSOR input is used, the door station will be turned on
whenever the sensor device is activated (Normally Closed contact from
3rd party supplied device).
PS-2420UL
+
-
Normally Open contact for remote device activation
(i.e. video switcher, DVR, etc.)
Normally Closed input for remote activation
(i.e. motion sensor, loop detector, etc.)
CALL IN
+
-
6. Configure AXW-AVT internal jumpers as necessary (see Pg. 21).
CALL OUT
+
-
CCTV Camera
75 Ohm, 1V Peak-to-peak
(Independently powered)
5. The RELAY output provides an optional Normally Open dry contact
output which is activated whenever the AX-series door station is in use.
This can be used to activate any device local to the AXW-AVT (DVR
trigger, video switcher activation, local call indication, etc.).
Meridian
ST-AiphoneAX1-XS
AUDIO IN
+
AUDIO OUT
+
-
*
Optic Fiber
(to SR-AiphoneAX1-XS, Pg. 5)
DOOR
AX-DV
PWR
DIAG
CAT-5e
VIDEO IN
TX C/L
RX C/E
OPTICAL
Coax
VIDEO OUT
Connection details from
Coaxial Video Cable
SYN
AXW-AVT to ST-AiphoneAX1-XS
VID
DR1
1
DR2
3
AR1
AR2
CR1
5
Audio Out +
Call Out +
4
Pin 3
Call In +
1
Pin 4
Call In -
3
‘DATA’ Connector Detail:
Pin 1 & 2
CT1
5
3. Connect the Call In / Call Out and Audio In / Audio Out connections on
the AXW-AVT to the Meridian fiber transmitter module (as detailed at
right, Fig. 1). For complete pin definitions, consult the Meridian
installation document.
Audio Out -
Pin 4
Call Out -
DATA
AT2
Audio In +
Pin 3
Pin 2
C.C.
AT1
Audio In -
Pin 2
Pin 1
DT2
To Door
Release
Pin 1
‘C.C.’ Connector Detail:
1
CR2
DT1
AUDIO
Configuration Notes (1 of 2):
1. AX-series video door station connects to ‘DOOR’ input of AXW-AVT.
Ensure that the “CCTV / DOOR’ switch on the AXW-AVT is in the ‘DOOR’
position.
*2. Alternatively, an IE/IF-series or AX-DM audio door may be used, along
with 3rd party CCTV camera. Connect audio door station to ‘Door’ input
(following the wiring method shown in the AX-series installation manual,
pg. 12). Connect the camera to ‘Video In’ and put the ‘CCTV / DOOR’
switch in the ‘CCTV’ position.
‘Audio’ Connector Detail:
VIDEO
Optional Door
release contact
output
CT2
RX
TX
Fig. 1
Please Note:
Only information pertaining to the connection and operation of the AXW-AVT / AXW-AVR and listed 3rd party devices interfacing with it are included here. Aiphone is not
responsible for attempts to connect the AXW-AVT / AXW-AVR to untested 3rd party transmission hardware. Consult the installation manual for the 3rd party device being utilized
for further information regarding physical mounting, base functionality, power requirements, etc. For the most up-to-date compatibility information, please consult http://
www.aiphone.com or contact Aiphone Technical Support.
Pg. 3
For complete AX system installation, wiring, and programming information, please consult the AX Installation Manual (included on CD with AX Central Exchange Unit, or
available at http://www.aiphone.com).
Pg. 4
CONFIGURATION DIAGRAM:
AXW-AVT / AXW-AVR with Meridian Technology Fiber (ST/SR-AiphoneAX1-XS), 2 of 2
Configuration Notes (2 of 2):
1. Connect the AXW-AVR ‘CEU’ connection to an unused Door station input on the AX-CEU and ensure that
the AX-CEU has been programmed to accept a video door station on that input (see Pg. 2).
2. Connect the Call In / Call Out and Audio In / Audio Out connections on the AXW-AVR to the Meridian fiber
receiver module (as detailed below, Fig. 2). For complete pin definitions, consult the Meridian installation
document.
3. The RELAY output on the AXW-AVR provides a Normally Open dry contact output whenever the door
station connection is active. This can be used to activate any device local to the AXW-AVT (DVR trigger,
video switcher activation, local call indication, etc.).
Meridian
SR-AiphoneAX1-XS
AXW-AVR
CEU
To AX-CEU
(Door Input)
AUDIO IN
+
AUDIO OUT
+
CALL IN
+
-
Optic Fiber
(to ST-AiphoneAX1-XS, Pg. 4)
CALL OUT
+
-
PWR
DIAG
RELAY
NO
NO
TX C/L
RX C/E
OPTICAL
Coaxial Video Cable
Normally Open contact for remote device activation
(i.e. video switcher, DVR, etc.)
VIDEO IN
SYN
AXW-AVT to SR-AiphoneAX1-XS
VID
Pin 2
Audio In +
DR2
Pin 3
Audio Out -
AR1
Pin 4
Audio Out +
Call Out -
Pin 2
Call Out +
Pin 3
Call In +
Pin 4
Call In -
CR1
DT1
4
DT2
AT1
AT2
CT1
Pin 3 & 4
CT2
Fig. 2
1
CR2
‘DATA’ Connector Detail:
Optional Door
release contact
input (from CEU)
5
1
3
DATA
Pin 1
3
AR2
C.C.
‘C.C.’ Connector Detail:
1
AUDIO
Audio In -
DR1
Pin 1
VIDEO OUT
VIDEO
‘Audio’ Connector Detail:
5
RX
TX
From AX CEU Door
Release Output
Composite Video Output*
(for CCTV monitor, DVR, etc.)
Application Considerations:
The Meridian fiber modules shown include extra contact closures
which may be used for door release output local to the door station
(using dry contact output of the AX-CEU as a trigger)
Power supply connections to the Meridian fiber modules are not
shown, and are dictated by the mounting method chosen
(standalone, rack mount, etc). Contact Meridian Technologies for
available options.
AXW-AVT / AXW-AVR should be mounted as close as possible
to their corresponding Meridian fiber modules. Avoid mounting
units near high voltage AC devices, or other sources of inductive
noise.
Please Note:
Only information pertaining to the connection and operation of the AXW-AVT / AXW-AVR and listed 3rd party devices interfacing with it are included here. Aiphone is not
responsible for attempts to connect the AXW-AVT / AXW-AVR to untested 3rd party transmission hardware. Consult the installation manual for the 3rd party device being utilized
for further information regarding physical mounting, base functionality, power requirements, etc. For the most up-to-date compatibility information, please consult http://
www.aiphone.com or contact Aiphone Technical Support.
Pg. 5
For complete AX system installation, wiring, and programming information, please consult the AX Installation Manual (included on CD with AX Central Exchange Unit, or
available at http://www.aiphone.com).
Pg. 6
CONFIGURATION DIAGRAM:
AXW-AVT / AXW-AVR with Infinova Fiber (N3732TA-M/-R, N3732RA-M/-R), 1 of 2
AX-DM or IE/IF-Series
Audio Door Station
AXW-AVT
24V
+
-
PS-2420UL
+
-
RELAY
NO
NO
Normally Open contact for remote device activation
(i.e. video switcher, DVR, etc.)
SENSOR
NC
NC
Normally Closed input for remote activation
(i.e. motion sensor, loop detector, etc.)
CALL IN
+
CALL OUT
+
-
CCTV Camera
75 Ohm, 1V Peak-to-peak
(Independently powered)
Configuration Notes (1 of 2, continued):
4. When the SENSOR input is used, the
door station will be turned on whenever
the sensor device is activated (Normally
Closed contact from 3rd party supplied
device).
**
Infinova
N3732TA-M
**
AUDIO IN
+
PWR
AUDIO OUT
+
-
*
6. Configure AXW-AVT internal jumpers as
necessary (see Pg. 21).
V
DOOR
AX-DV
5. The RELAY output provides an optional
Normally Open dry contact output which
is activated whenever the AX-series door
station is in use. This can be used to
activate any device local to the AXW-AVT
(DVR trigger, video switcher activation,
local call indication, etc.).
CAT-5e
Optic Fiber
(to N3732TA-M, Pg. 9)
OP
VIDEO IN
Coax
VIDEO OUT
Coaxial Video Cable
1
2
Configuration Notes (1 of 2):
1. AX-series video door station connects to ‘DOOR’ input of AXW-AVT. Ensure
that the “CCTV / DOOR’ switch on the AXW-AVT is in the ‘DOOR’ position.
3
4
5
6
7
*2. Alternatively, an IE/IF-series or AX-DM audio door may be used, along with
3rd party CCTV camera. Connect audio door station to ‘Door’ input (following
the wiring method shown in the AX-series installation manual, pg. 12).
Connect the camera to ‘Video In’ and put the ‘CCTV / DOOR’ switch in the
‘CCTV’ position.
8
9
10
11
12
13
14
15
16
3. Connect the Call In / Call Out and Audio In / Audio Out connections on the
AXW-AVR to the terminal block of the Infinova N3732TA-M, as shown. For
detailed terminal definitions, consult the Infinova installation document.
**The Infinova N3732TA provides only a
single relay output, which may be used to
control the door station’s standby mode
(when connected to the ‘Call Out’ terminals
on the AXW-AVT), or for door release. If
utilized for door release, ensure that the
‘Call Out’ terminals on the AXW-AVT are
shorted together. Note: This will cause
the door station to be in a constant-on
state, which may reduce the lifespan of
the AX-series door station.
Please Note:
Only information pertaining to the connection and operation of the AXW-AVT / AXW-AVR and listed 3rd party devices interfacing with it are included here. Aiphone is not
responsible for attempts to connect the AXW-AVT / AXW-AVR to untested 3rd party transmission hardware. Consult the installation manual for the 3rd party device being utilized
for further information regarding physical mounting, base functionality, power requirements, etc. For the most up-to-date compatibility information, please consult http://
www.aiphone.com or contact Aiphone Technical Support.
Pg. 7
For complete AX system installation, wiring, and programming information, please consult the AX Installation Manual (included on CD with AX Central Exchange Unit, or
available at http://www.aiphone.com).
Pg. 8
CONFIGURATION DIAGRAM:
AXW-AVT / AXW-AVR with Infinova Fiber (N3732TA-M/-R, N3732RA-M/-R), 2 of 2
Configuration Notes (2 of 2):
1. Connect the AXW-AVR ‘CEU’ connection to an unused Door station input on the AX-CEU and ensure that the
AX-CEU has been programmed to accept a video door station on that input (see Pg. 2).
2. Connect the Call In / Call Out and Audio In / Audio Out connections on the AXW-AVR to the terminal block of the
Infinova N3732RA-M, as shown. For detailed terminal definitions, consult the Infinova installation document.
AXW-AVR
3. Per the Infinova installation manual, set JP11 and JP21 for “600-Ohm, Balanced” audio connection.
4. The RELAY output on the AXW-AVR
provides a Normally Open dry contact
output whenever the door station
connection is active. This can be used
to activate any device local to the
AXW-AVT (DVR trigger, video switcher
activation, local call indication, etc.).
To AX-CEU
(Door Input)
AUDIO IN
+
-
Infinova
N3732RA-M
AUDIO OUT
+
CALL IN
+
-
PWR
**
V
Optic Fiber
(to N3732TA-M, Pg. 8)
CEU
CALL OUT
+
RELAY
NO
NO
OP
Coaxial Video Cable
Normally Open contact for remote device activation
(i.e. video switcher, DVR, etc.)
VIDEO IN
VIDEO OUT
Composite Video Output
(for CCTV monitor, DVR, etc.)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Application Consideratison:
**If the Infinova fiber modules relay is to be used for door release, the
‘Call Out’ connection on the AXW-AVR will not be used. Instead,
connect pins 15/16 from the fiber module to the appropriate door release
output on the AX-CEU. Be sure to short together the ‘Call Out’
terminations on the AXW-AVT, as noted on Pg. 8-9.
Power supply connections to the Infinova fiber modules are not shown,
and are dictated by the mounting method chosen (standalone, rack
mount, etc.). Contact Infinova for available options.
AXW-AVT / AXW-AVR should be mounted as close as possible to their
corresponding Infinova fiber modules. Avoid mounting units near high
voltage AC devices, or other sources of inductive noise.
Please Note:
Only information pertaining to the connection and operation of the AXW-AVT / AXW-AVR and listed 3rd party devices interfacing with it are included here. Aiphone is not
responsible for attempts to connect the AXW-AVT / AXW-AVR to untested 3rd party transmission hardware. Consult the installation manual for the 3rd party device being utilized
for further information regarding physical mounting, base functionality, power requirements, etc. For the most up-to-date compatibility information, please consult http://
www.aiphone.com or contact Aiphone Technical Support.
Pg. 9
For complete AX system installation, wiring, and programming information, please consult the AX Installation Manual (included on CD with AX Central Exchange Unit, or
available at http://www.aiphone.com).
Pg. 10
Configuration Notes (1 of 2, continued):
4. When the SENSOR input is used, the door
station will be turned on whenever the sensor
device is activated (Normally Closed contact
from 3rd party supplied device).
CONFIGURATION DIAGRAM:
AXW-AVT / AXW-AVR with AFI (American Fibertek) Fiber (MT/MR-89A-AX), 1 of 2
AX-DM or IE/IF-Series
Audio Door Station
AXW-AVT
24V
+
RELAY
NO
NO
SENSOR
NC
NC
PS-2420UL
+
-
5. The RELAY output provides an optional
Normally Open dry contact output which is
activated whenever the AX-series door station
is in use. This can be used to activate any
device local to the AXW-AVT (DVR trigger,
video switcher activation, local call indication,
etc.).
Normally Open contact for remote device activation
(i.e. video switcher, DVR, etc.)
Normally Closed input for remote activation
(i.e. motion sensor, loop detector, etc.)
CALL IN
+
-
6. Configure AXW-AVT internal jumpers as
necessary (see Pg. 21).
CALL OUT
+
-
CCTV Camera
75 Ohm, 1V Peak-to-peak
(Independently powered)
AUDIO IN
+
-
To AFI specified/supplied
power source
AUDIO OUT
+
-
*
DOOR
AX-DV
Contact
CAT-5e
+
+
-
VIDEO IN
Coax
VIDEO OUT
Audio
+
-
Video
IN
Optical
I/O
+
-
12VDC
AFI MT-89A-AX
Door Release/
Contact Out (optional)
Configuration Notes (1 of 2):
1. AX-series video door station connects to ‘DOOR’ input of AXW-AVT. Ensure
that the “CCTV / DOOR’ switch on the AXW-AVT is in the ‘DOOR’ position.
*2. Alternatively, an IE/IF-series or AX-DM audio door may be used, along with
3rd party CCTV camera. Connect audio door station to ‘Door’ input (following
the wiring method shown in the AX-series installation manual, pg. 12).
Connect the camera to ‘Video In’ and put the ‘CCTV / DOOR’ switch in the
‘CCTV’ position.
Contact
Coaxial Video Cable
Optic Fiber
(to MR-89A-AX, Pg. 13)
3. Connect the Call In / Call Out and Audio In / Audio Out connections on the
AXW-AVT to the terminal block of the AFI MT-89A-AX, as shown. For
detailed terminal definitions, consult the AFI MT-89A-AX installation sheet.
Please Note:
Only information pertaining to the connection and operation of the AXW-AVT / AXW-AVR and listed 3rd party devices interfacing with it are included here. Aiphone is not
responsible for attempts to connect the AXW-AVT / AXW-AVR to untested 3rd party transmission hardware. Consult the installation manual for the 3rd party device being utilized
for further information regarding physical mounting, base functionality, power requirements, etc. For the most up-to-date compatibility information, please consult http://
www.aiphone.com or contact Aiphone Technical Support.
Pg. 11
For complete AX system installation, wiring, and programming information, please consult the AX Installation Manual (included on CD with AX Central Exchange Unit, or
available at http://www.aiphone.com).
Pg. 12
CONFIGURATION DIAGRAM:
AXW-AVT / AXW-AVR with AFI (American Fibertek) Fiber (MT/MR-89A-AX), 2 of 2
Configuration Notes (2 of 2):
1. Connect the Call In / Call Out and Audio In / Audio Out connections on the AXW-AVR to the terminal block of the
AFI MR-89A-AX, as shown. For detailed terminal definitions, consult the AFI MR-89A-AX installation sheet.
2. Connect the AXW-AVR ‘CEU’ connection to an unused Door station input on the AX-CEU and ensure that the
AX-CEU has been programmed to accept a video door station on that input (see Pg. 2).
3. The RELAY output on the AXW-AVR provides a Normally Open dry contact output whenever the door station
connection is active. This can be used to activate any device local to the AXW-AVT (DVR trigger, video switcher
activation, local call indication, etc.)
AXW-AVR
CEU
To AX-CEU
(Door Input)
AUDIO IN
+
AUDIO OUT
+
-
To AFI-specified /supplied
power source
Contact
Contact
+
+
-
Audio
+
+
-
Video
OUT
CALL IN
+
-
Optical
I/O
CALL OUT
+
RELAY
NO
NO
12VDC
Normally Open contact for remote device activation
(i.e. video switcher, DVR, etc.)
VIDEO IN
AFI MR-89A-AX
VIDEO OUT
Composite Video Output
(for CCTV monitor, DVR, etc.)
Coaxial Video Cable
Door Release/
Contact In (Optional)
Optic Fiber
(to MT-89A-AX, Pg. 12)
Application Considerations:
AXW-AVT / AXW-AVR should be mounted as close as possible to their corresponding AFI fiber
modules. Avoid mounting units near high voltage AC devices, or other sources of inductive noise.
Please Note:
Only information pertaining to the connection and operation of the AXW-AVT / AXW-AVR and listed 3rd party devices interfacing with it are included here. Aiphone is not
responsible for attempts to connect the AXW-AVT / AXW-AVR to untested 3rd party transmission hardware. Consult the installation manual for the 3rd party device being utilized
for further information regarding physical mounting, base functionality, power requirements, etc. For the most up-to-date compatibility information, please consult http://
www.aiphone.com or contact Aiphone Technical Support.
Pg. 13
For complete AX system installation, wiring, and programming information, please consult the AX Installation Manual (included on CD with AX Central Exchange Unit, or
available at http://www.aiphone.com).
Pg. 14
CONFIGURATION DIAGRAM:
AXW-AVT / AXW-AVR with KBC Networks (FPVB1-AB1-IB2-ST, FPVB1-AB1-IB2-SR), 1 of 2
Configuration Notes (1 of 2):
1. AX-series video door station connects to ‘DOOR’ input of AXW-AVT.
Ensure that the “CCTV / DOOR’ switch on the AXW-AVT is in the ‘DOOR’
position.
Configuration Notes (1 of 2, continued):
4. When the SENSOR input is used, the door station will be turned on
whenever the sensor device is activated (Normally Closed contact from
3rd party supplied device).
*2. Alternatively, an IE/IF-series or AX-DM audio door may be used, along
with 3rd party CCTV camera. Connect audio door station to ‘Door’ input
(following the wiring method shown in the AX-series installation manual,
pg. 12). Connect the camera to ‘Video In’ and put the ‘CCTV / DOOR’
switch in the ‘CCTV’ position.
5. The RELAY output provides an optional Normally Open dry contact
output which is activated whenever the AX-series door station is in use.
This can be used to activate any device local to the AXW-AVT (DVR
trigger, video switcher activation, local call indication, etc.).
3. Connect the Call In / Call Out and Audio In / Audio Out connections on
the AXW-AVT to the Meridian fiber transmitter module (as detailed at
right, Fig. 1). For complete pin definitions, consult the Meridian
installation document.
AX-DM or IE/IF-Series
Audio Door Station
AXW-AVT
24V
+
RELAY
NO
NO
SENSOR
NC
NC
CALL IN
+
-
6. Configure AXW-AVT internal jumpers as necessary (see Pg. 21).
KBC: FPVB1-AB1-IB2-ST
PS-2420UL
A+ A- GND A+ A- GND
+
-
Normally Open contact for
remote device activation
(i.e. video switcher, DVR, etc.)
V1
AUDIO 1 AUDIO 2
C1
C2
C3
C4
Normally Closed input for remote
activation
(i.e. motion sensor, loop detector, etc.)
To Door
Release
CALL OUT
+
-
CCTV Camera
75 Ohm, 1V Peak-to-peak
(Independently powered)
AUDIO IN
+
AUDIO OUT
+
-
*
DOOR
AX-DV
CAT-5e
VIDEO IN
Coax
VIDEO OUT
Coaxial Video Cable
Please Note:
Only information pertaining to the connection and operation of the AXW-AVT / AXW-AVR and listed 3rd party devices interfacing with it are included here. Aiphone is not
responsible for attempts to connect the AXW-AVT / AXW-AVR to untested 3rd party transmission hardware. Consult the installation manual for the 3rd party device being utilized
for further information regarding physical mounting, base functionality, power requirements, etc. For the most up-to-date compatibility information, please consult http://
www.aiphone.com or contact Aiphone Technical Support.
Pg. 15
For complete AX system installation, wiring, and programming information, please consult the AX Installation Manual (included on CD with AX Central Exchange Unit, or
available at http://www.aiphone.com).
Pg. 16
CONFIGURATION DIAGRAM:
AXW-AVT / AXW-AVR with KBC Networks (FPVB1-AB1-IB2-ST, FPVB1-AB1-IB2-SR), 1 of 2
Configuration Notes (2 of 2):
1. Connect the Call In / Call Out and Audio In / Audio Out connections on the AXW-AVR to the terminal block of the
AFI MR-1890, as shown. For detailed terminal definitions, consult the AFI MR-1890 installation sheet.
2. Connect the AXW-AVR ‘CEU’ connection to an unused Door station input on the AX-CEU and ensure that the
AX-CEU has been programmed to accept a video door station on that input (see Pg. 2).
3. The RELAY output on the AXW-AVR
provides a Normally Open dry contact
output whenever the door station
connection is active. This can be used to
activate any device local to the AXWAVT (DVR trigger, video switcher
activation, local call indication, etc.).
KBC: FPVB1-AB1-IB2-SR
A+ A- GND A+ A- GND
AXW-AVR
To AX-CEU
(Door Input)
CEU
V1
AUDIO 1 AUDIO 2
C1
C2
C3
C4
AUDIO IN
+
AUDIO OUT
+
-
To AX-CEU
(Door Release Output)
CALL IN
+
CALL OUT
+
-
Normally Open contact for remote device activation
(i.e. video switcher, DVR, etc.)
RELAY
NO
NO
VIDEO IN
Composite Video Output
(for CCTV monitor, DVR, etc.)
VIDEO OUT
Application Considerations:
Power supply connections to the KBC fiber modules are not shown, and are dictated by the mounting method chosen (standalone, rack mount, etc.). Contact KBC
for available options.
AXW-AVT / AXW-AVR should be mounted as close as possible to their corresponding KBC fiber modules. Avoid mounting units near high voltage AC devices, or
other sources of inductive noise.
Please Note:
Only information pertaining to the connection and operation of the AXW-AVT / AXW-AVR and listed 3rd party devices interfacing with it are included here. Aiphone is not
responsible for attempts to connect the AXW-AVT / AXW-AVR to untested 3rd party transmission hardware. Consult the installation manual for the 3rd party device being utilized
for further information regarding physical mounting, base functionality, power requirements, etc. For the most up-to-date compatibility information, please consult http://
www.aiphone.com or contact Aiphone Technical Support.
Pg. 17
For complete AX system installation, wiring, and programming information, please consult the AX Installation Manual (included on CD with AX Central Exchange Unit, or
available at http://www.aiphone.com).
Pg. 18
CONFIGURATION DIAGRAM:
AXW-AVT with Axis 243SA Video Server (Standalone Only)
AX-DM or IE/IF-Series
Audio Door Station
AXW-AVT
24V
+
RELAY
NO
NO
SENSOR
NC
NC
PS-2420UL
+
-
Normally Open contact for remote device activation
(i.e. video switcher, DVR, etc.)
Axis 243SA Application Considerations:
The Axis 243SA can only be used in ‘Standalone’ configuration (i.e.,
utilizing a PC as a master station).
When used in standalone configuration, Aiphone recommends
Controlware’s VIPDoorControl software. For further details, see
http://www.vipdoorcontrol.com.
Consult the Axis 243SA Installation and User manuals for further
information pertaining to video server installation and configuration.
Normally Closed input for remote activation
(i.e. motion sensor, loop detector, etc.)
CALL IN
+
CALL OUT
+
-
CCTV Camera
75 Ohm, 1V Peak-to-peak
(Independently powered)
AUDIO IN
+
AUDIO OUT
+
-
*
NETWORK
POWER
1
2
3
4
5
6
7
8
RS-232
Axis 243SA
(Back View)
9 10 11 12
DOOR
AX-DV
CAT-5e
VIDEO IN
Coax
VIDEO OUT
Coaxial Video Cable
To Axis-supplied
power source
Configuration Notes:
1. AX-series video door station connects to ‘DOOR’ input of AXW-AVT.
Ensure that the “CCTV / DOOR’ switch on the AXW-AVT is in the ‘DOOR’
position.
*2. Alternatively, an IE/IF-series or AX-DM audio door may be used, along
with 3rd party CCTV camera. Connect audio door station to ‘Door’ input
(following the wiring method shown in the AX-series installation manual,
pg. 12). Connect the camera to ‘Video In’ and put the ‘CCTV / DOOR’
switch in the ‘CCTV’ position.
To Network
LINE
OUT
1 2 3 4
75Ω ON
STATUS
IN OUT
3. Connect the Call In / Call Out and Audio In / Audio Out connections on
the AXW-AVT to the Axis 243SA connectors, as shown.
AXIS 243SA
Video Server
VIDEO
LINE/MIC
IN
NETWORK
Axis 243SA
(Front View)
POWER
4. Configure AXW-AVT internal jumpers as necessary (see Pg. 21).
Please Note:
Only information pertaining to the connection and operation of the AXW-AVT / AXW-AVR and listed 3rd party devices interfacing with it are included here. Aiphone is not
responsible for attempts to connect the AXW-AVT / AXW-AVR to untested 3rd party transmission hardware. Consult the installation manual for the 3rd party device being utilized
for further information regarding physical mounting, base functionality, power requirements, etc. For the most up-to-date compatibility information, please consult http://
www.aiphone.com or contact Aiphone Technical Support.
Pg. 19
For complete AX system installation, wiring, and programming information, please consult the AX Installation Manual (included on CD with AX Central Exchange Unit, or
available at http://www.aiphone.com).
Pg. 20
AXW-AVT Internal Jumper Settings:
The AXW-AVT has three internal jumper settings to control the functionality and conditioning of the audio
circuitry. These should be adjusted as necessary, based on the selection of fiber / Ethernet equipment used.
To access these jumpers, the chassis of the AXW-AVT will need to be opened. Adjusting these jumper
settings will NOT invalidate the AXW-AVT’s warranty.
Transmitting Gain (CN3):
Controls the amount of amplification applied to the outgoing audio (‘Audio Out’)
connection of the AXW-AVT. A ‘Low’ setting provides no gain, whereas a ‘Hi’
setting applies approximately +10db of amplification. Default position is ‘Low.’
Receive Gain (CN4):
Controls the amount of amplification applied to the incoming audio (‘Audio In’)
connection of the AXW-AVT. A ‘Low’ setting provides no gain, whereas a ‘Hi’
setting applies approximately +10db of amplification. Default position is ‘Low.’
Muting Circuit (CN5):
The ‘Muting Circuit’ controls whether audio to/from the door station is
completely full-duplex, or limited to one direction or the other (semi-duplex).
This adjustment is required in situations where latency may be present between
audio transmission and reception (i.e., Ethernet). In such situations, the muting
circuit should be set to ‘On’ to reduce audible echoing. In situations where
latency is not an issue (i.e., fiber, direct connections, etc.), this should be left in
the default ‘Off’ position.
CN5:
CN3:
Transmitting Gain
High / Low
Muting Circuit
On / Off
CN4:
Receive Gain
High / Low
Pg. 21
SPECIFICATIONS:
Power:
AXW-AVT
AXW-AVR
24V DC, 500mA (use Aiphone PS-2420UL)
Supplied by AX CEU
Video Input & Output:
Composite 1V Peak-to-Peak, NTSC
Video Connectors:
BNC
Door input:
RJ-45
Relay:
Normally Open contact output; 30V DC, 1A
Sensor:
Normally Closed contact input
Wire:
CAT-5e, 24AWG UTP-4
Wiring distance:
AXW-AVT to Door,
AXW-AVR to CEU
Max. 980' cumulative
AXW-AVT / -AVR to
As close as possible; do not exceed 16'
3rd party devices
AXW-AVT + AXW-AVR
1-5/8"H x 7"W x 4"D
Dimensions:
FCC Class B Verification
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device , pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
and correct the interference by one or more of the following measures:
— Reorient or locate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
Note:
Only information pertaining to the connection and operation of the AXW-AVT, AXW-AVR and devices interfacing with it
are included here. Aiphone is not responsible for attempts to connect the AXW-AVT / AXW-AVR to untested 3rd party
transmission hardware. For the most up-to-date compatibility information, please consult http://www.aiphone.com or
contact Aiphone Technical Support. For complete installation, wiring, and programming information regarding the AX
system, please refer to the AX Installation Manual, which is included on the CD provided with the AX CEU, or available
for download at http://www.aiphone.com.
Aiphone Communication Systems
1700 130th Ave. N.E.
Bellevue, WA 98005
(425) 455-0510
FAX (425) 455-0071
Toll Free Technical Support:
(800) 692-0200
E-mail [email protected]
Pg. 22
AXW-AVT,AVR Instr.
0311JD
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
