PSB42YSH GE Profile Series 42" Built-In Stainless Side-By-Side Refrigerator with Dispenser

PSB42YSH GE Profile Series 42" Built-In Stainless Side-By-Side Refrigerator with Dispenser
PSB42YSH

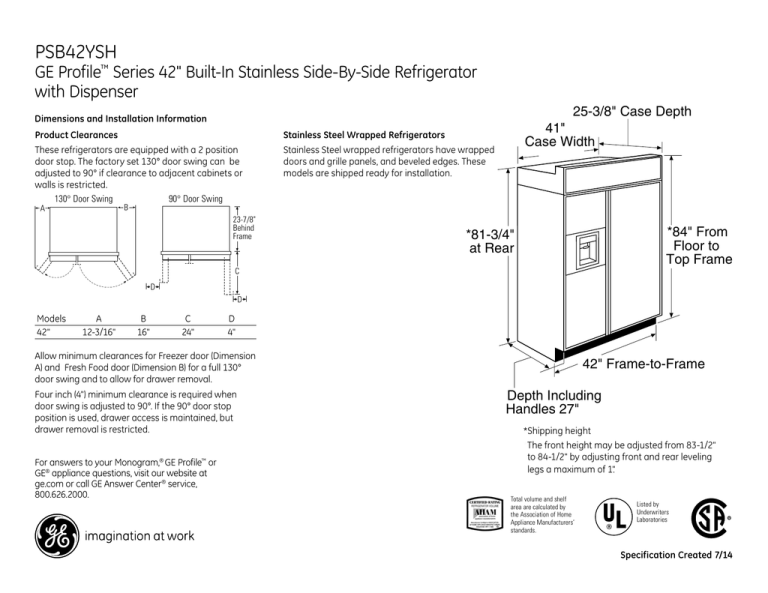

GE Profile™ Series 42" Built-In Stainless Side-By-Side Refrigerator
with Dispenser
25-3/8" Case Depth
Dimensions and Installation Information
Product Clearances
These refrigerators are equipped with a 2 position
door stop. The factory set 130° door swing can be
adjusted to 90° if clearance to adjacent cabinets or
walls is restricted.
130° Door Swing
90° Door Swing
A
41"
Case Width
Stainless Steel Wrapped Refrigerators
Stainless Steel wrapped refrigerators have wrapped
doors and grille panels, and beveled edges. These
models are shipped ready for installation.
B
23-7/8"
Behind
Frame
*84" From
Floor to
Top Frame
*81-3/4"
at Rear
C
D
D
ModelsA B C D
42" 12-3/16"16" 24" 4"
Allow minimum clearances for Freezer door (Dimension
A) and Fresh Food door (Dimension B) for a full 130°
door swing and to allow for drawer removal.
Four inch (4") minimum clearance is required when
door swing is adjusted to 90°. If the 90° door stop
position is used, drawer access is maintained, but
drawer removal is restricted.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
42" Frame-to-Frame
Depth Including
Handles 27"
*Shipping height
*The front height may be adjusted from 83-1/2"
to 84-1/2" by adjusting front and rear leveling
legs a maximum of 1".
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
Specification Created 7/14
The Installation Space
PSB42YSH
GE Profile™ Series 42" Built-In Stainless Side-By-Side Refrigerator
with Dispenser
Grounding the Refrigerator
important—Please read carefully
for personal safety, this appliance must be
properly grounded.
The power supply cord of this appliance is equipped
with a three-prong (grounding) plug which mates with
a standard three-prong (grounding) wall receptacle to
minimize the possibility of electric shock hazard from
this appliance.
Have the wall outlet and circuit checked by a qualified
electrician to make sure the outlet is properly grounded.
Where a standard 2-prong wall outlet is encountered, it
is your personal responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.
do not, under any
circumstances, cut
or remove the third
(ground) prong from
the power cord.
do not use an adapter plug
to connect the refrigerator
to a 2-prong outlet.
do not use an extension cord
with this appliance.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
7"
Electrical
Area
84 1/2" max
83 1/2" min
Finished
Opening
Dimensions and Installation Information
Side Panels
Side panels (not supplied)
must be used whenever
the sides of the refrigerator
will be exposed. The 1/4"
side panels will slip into the
side case trim. Order side
*84"
panels from your cabinet
manufacturer.
*Depending on
installation height.
24"
3"
*Finished Width
7"
74"
From Floor
to Bottom
of Electrical
24"
5"
Water Supply 5"
3 1/2"
3 1/2"
*3" to 4"
1-1/2"
Flooring
For proper installation, this refrigerator must be placed
on a level surface of hard material that is at the same
height as the rest of the flooring. This surface should be
strong enough to support a fully loaded refrigerator, or
approximately 1500 lbs.
NOTE: Protect the finish of the flooring. Cut a large
section of the cardboard carton and place under the
refrigerator where you are working.
*The finished cutout width must be: 41-1/2" for 42" models
Water and Electrical Locations
The opening must be prepared with the electrical and
water supply located as shown.
The cutout depth must be 24"
The refrigerator will project forward, slightly beyond
adjacent cabinets, depending on your installation.
Additional Specifications
•A
120 volt, 60Hz, 15 or 20 amp power supply is required.
An individual properly grounded branch circuit or circuit
breaker is recommended. Install a properly grounded 3prong electrical receptacle recessed into the back wall.
Electrical must be located on rear wall as shown.
Note: GFI (ground fault interrupter) is not recommended.
•W
ater line can enter the opening through the floor or
rear wall. The water line installed should be 1/4" O.D.
copper tubing or GE SmartConnect™ tubing between
the cold water line and water connection location. The
line should be long enough to extend to the front of the
refrigerator. Installation of an easily accessible shutoff
valve in the water line is required.
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
Specification Created 7/14
PSB42YSH
GE Profile™ Series 42" Built-In Stainless Side-By-Side Refrigerator
with Dispenser
Features and Benefits
• 42" built-in configuration
• T winChill™ evaporators - Separate climates in the fresh food and freezer sections
help maintain temperature and humidity levels to keep foods fresh
• External controls with actual-temperature display, child lock and door alarm - Take
the guesswork out of setting your refrigerator and enjoy additional peace of mind
• Quick Ice setting - Create ice up to 50% faster than normal settings
• Clear Look adjustable bins - Hold gallon-size containers with style and ease
Refrigerator: 37˚ F Recommended
Colder
• Wire slide-out full-extension freezer baskets - Allow quick access to frozen foods
Warmer
Colder
Display
Temp
Warmer
Light
Freezer: 0˚ F Recommended
Hold 3 sec to
Lock Control
Door
Alarm
Water
Crushed
Cubed
Quick Ice
Reset
Filter
Hold 3 sec to Reset
• Advanced filtration - Removes trace pharmaceuticals from water and ice* and uses
replacement filter MWF
(*Removes ibuprofen, atenolol, fluoxetine, progesterone and trimethoprim. These
pharmaceuticals are not necessarily in all users’ water)
• Model PSB42YSHSS - Stainless steel
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
PSB42YSHSS_PSB48YSHSS
Specification Created 7/14
