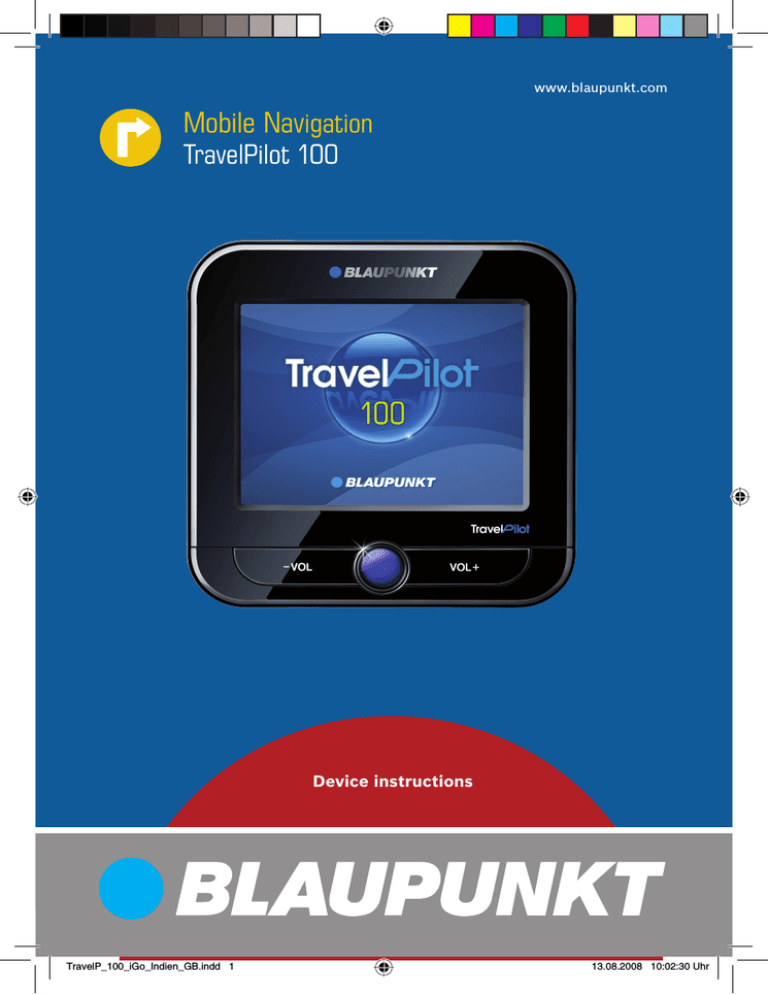

www.blaupunkt.com
Mobile Navigation
TravelPilot 100
Device instructions
TravelP_100_iGo_Indien_GB.indd 1
13.08.2008 10:02:30 Uhr
Device overview
Device overview
2
1
3
4
5
6
8
9
7
10
2
TravelP_100_iGo_Indien_GB.indd 2
13.08.2008 10:02:35 Uhr
Device overview
1 Display (touchscreen): Simple and intuitive
operation by touching the buttons on the display.
2 VOL -: Decreases the volume
3 On/Off switch:
• Long press (longer than 3 seconds):
Switches the device on or off.
• Short press: Opens the main menu.
4 VOL +: Increases the volume
5 Memory card slot
6 Socket for power supply (battery charger or
charger cable for the cigarette lighter)
7 Battery compartment cover
8 Light sensor for automatically adjustment of
display brightness (top side)
9 USB port for data transfer
: Serial port
(for future expansions)
3
TravelP_100_iGo_Indien_GB.indd 3
13.08.2008 10:02:39 Uhr
Contents
Device overview ..................................2
Safety notes ........................................5
Use as directed .....................................5
Road safety ..........................................5
General safety notes ..............................5
Cleaning notes ......................................5
Disposal notes ......................................5
First use ..............................................6
Scope of delivery ..................................6
Protective screen film ............................6
Charging the battery ..............................6
Switching on the device..........................6
Setting the language ..............................6
Select simple mode/expert mode ............7
Installation in the vehicle .....................7
Attaching the suction cup holder .............7
Attaching the mounting cup ....................7
Inserting the device in the mounting cup ...8
Removing the device ..............................8
Removing the suction cup holder .............8
Switching on/off ..................................8
Switch-on ............................................8
Switch-off ............................................8
Reset ...................................................8
Technical data .....................................9
Troubleshooting table ........................10
Warranty...........................................13
Instructions for the customer ................13
Terms and condition ............................13
4
TravelP_100_iGo_Indien_GB.indd 4
13.08.2008 10:02:39 Uhr
Safety notes
Safety notes
•
For your personal benefit, carefully read the following safety notes before operating the device
for the first time.
•
Use as directed
The device is designed for mobile use in vehicles.
Special information about the navigation of trucks,
busses and campers, such as altitude and width
limitations or maximum permissible road load, is
not included in the navigation data!
Navigation off the roads (offroad route guidance)
is not possible with this navigation device.
Road safety
The navigation device does not release you from
your responsibility as a driver for correct and prudent behaviour in traffic. Always observe the applicable traffic rules.
Use your device in such a way that you can always
safely control your vehicle. If in doubt, stop and
operate the device while the vehicle is standing.
General safety notes
If battery liquid comes into contact with
your eyes or skin, immediately flush with water and consult a doctor.
Remove the device from the power supply
when you park your vehicle since it continues to use battery power and could deplete
the vehicle battery. Do not unplug the connector of the power supply by pulling on the
wire. The wire could be damaged and cause
electrical shock.
Cleaning notes
Clean the display with a dry, soft cloth.
Water and other liquids could damage the
display.
Do not use strong detergents for cleaning
the housing. Use only a moistened, lintfree cloth.
Disposal notes
Use the return and collection systems available to dispose of the old device.
Do not discard any batteries in the household trash; instead, return them to the corresponding collection sites.
Observe the following notes to protect the device
against defects and yourself against injuries and
life-threatening dangers from an ignition or explosion:
• Protect the device against moisture since it
is not waterproof and not splashproof.
• Do not modify or open the device. Otherwise, it could be damaged and then ignite or
explode. Or acidic, flammable liquid could
run out of the battery.
• Do not expose the device to very low (below
-20 °C) and very high temperatures (above
60 °C), e.g. close to fire, heating devices or in
a parked car with direct exposure to the sun.
Moisture could form inside the device or the
device could overheat. The device or battery
could deform and even ignite or explode. Or
acidic, flammable liquid could run out of the
battery.
5
TravelP_100_iGo_Indien_GB.indd 5
13.08.2008 10:02:39 Uhr
First use
First use
Scope of delivery
The scope of delivery contains the following components:
• Navigation device
• Suction cup bracket
• Charger cable for cigarette lighter
• Device and navigation instructions
• Licensing contract (EULA)
쏅 Connect the battery charger or the charger
cable for the cigarette lighter to the charging
socket.
Note:
The battery is equipped with a protection
against overheating from excessive current
flow. The protection prevents charging the
battery starting at an ambient temperature
above 45 °C.
Switching on the device
Note:
We recommend the use of original Blaupunkt
accessories (www.blaupunkt.com).
Protective screen film
Prior to the initial use, carefully remove the
protective film from the display.
Upon purchasing the navigation device, the
battery could be discharged. Please charge the
battery before using the device.
CAUTION!
Unapproved chargers could damage batteries
Use only the original chargers from Blaupunkt for
operating and charging to correctly charge the
battery and protect it against overvoltage.
Depending on the type of use, you can operate
the device up to 3 hours with the built-in battery.
The charging time is 5 to 6 hours. The charge state
indicator is located at the bottom left on the map
display:
The device is supplied by an exter•
nal power source.
The device is supplied by its inter•
nal battery. The charge state of the
battery is sufficient.
The device is supplied by its inter•
nal battery. The charge state of the
battery is low.
A
Charging the battery
쏅 Press and hold the On/Off switch for longer
than 3 seconds.
Setting the language
If you switch on the device for the first time, a dialogue menu is displayed in which you can select
the language and the voice for the navigation.
쏅 Select your preferred language and voice in
the dialogue menu.
쏅 Please follow the instructions.
The language is being loaded. The licensing
contract (EULA) is displayed.
쏅 Touch the arrow keys to scroll through the
contract.
쏅 At the end of the contract, touch the Accept
button to confirm it.
6
TravelP_100_iGo_Indien_GB.indd 6
13.08.2008 10:02:40 Uhr
First use | Installation in the vehicle
Select simple mode/expert mode
Installation in the vehicle
After setting up the language and confirming the
licensing contract, 2 modes are offered for operation.
For temporary installation in a vehicle, the navigation device features a holder to attach it to the
windshield.
Note:
The mode can be switched at any time (for operation see chapter "2.1 Simple and Advanced
modes" in separate navigation instructions).
쏅 Touch one of the buttons:
– Simple mode: Clear operation for quick
destination entry. Access to the most important functions and settings. For the
remaining settings, values are predefined
that are optimized for the device.
– Advanced mode: Access to additional
functions and settings of the device.
DANGER!
The installation at an unsuitable
location can cause accidents
Install the navigation device so that it does not
block your view and does not distract from the
traffic.
Do not install the device in the airbag deployment
area.
Ensure that the device does not pose a threat to
passengers in the vehicle in case of emergency
braking.
Attaching the suction cup holder
쏅 Locate a suitable place inside the vehicle for
the installation.
To ensure a perfect hold, the glass must be
free of dust and oil. If necessary, clean the
glass using a lens cleaning tissue.
쏅 Press the suction cup of the holder against
the windshield.
쏅 Push the lever on the support towards the
glass.
Attaching the mounting cup
The suction cup holder features two mounts for
the mounting cup.
쏅 Push the mounting cup onto the mount until
it engages.
7
TravelP_100_iGo_Indien_GB.indd 7
13.08.2008 10:02:41 Uhr
Installation in the vehicle | Switching on/off
Switching on/off
The On/Off switch is used to switch the device
on and off.
Switch-on
쏅 Press and hold the On/Off switch for longer
than 3 seconds.
Switch-off
Inserting the device in the mounting
cup
The device features 2 recesses on the underside
and one recess on the rear side for the mounting
cup.
쏅 Place the device onto mounting cup with the
underside first and push it to the back.
The clamping holder of the mounting cup
must engage in the rear side of the housing
with a click.
쏅 Align the bracket.
쏅 Press and hold the On/Off switch for longer
than 3 seconds.
The device is first placed in idle state and
remains ready for operation. All functions will
be completely switched off after 20 minutes.
Note:
The device continues to use a small amount of
energy even if it is switched off. If you use the
device again after an extended period of time,
it may be necessary to recharge the battery.
Reset
If the device does not work properly, a simple
reset may help.
쏅 Press and hold the On/Off switch for longer
than 14 seconds.
The device is switched off and restarted.
Removing the device
쏅 Push the clamping holder down.
The device disengages from the bracket.
쏅 Remove the device.
Removing the suction cup holder
If you change vehicles, you can simply remove the
support.
쏅 Push the lever on the support away from the
glass.
쏅 Carefully loosen the suction cup at the edge
from the glass so that air can enter between
suction cup and glass.
쏅 Carefully pull the suction cup off of the glass.
8
TravelP_100_iGo_Indien_GB.indd 8
13.08.2008 10:02:41 Uhr
Technical data
Technical data
Dimensions (W x H x D)
99 x 99 x 16.9 mm
Weight
approx. 175 g
Operating temperature
-20 °C ... 60 °C
Storage temperature
-30 °C ... 70 °C
Power supply
Battery: Li-ion, 3.7 V/850 mAh
Charger cable for cigarette lighter:
Input 12 V
Battery charger: Input 100 to 240 V (50/60 Hz),
output 12 V /max. 1 A
Display
3.5˝ touchscreen TFT LCD color display 4:3,
320 x 240 pixel
Audio
Built-in loudspeaker, min. 1 W
GPS receiver
Integrated, QuickFind technology Centrality GPS,
32 channels
Platform
Dual Core Centrality Atlas III Processor
(400 MHz)
Internal 64 MB SDRAM Memory
1 GB NAND Flash Memory
Memory card slot: SD cards, MMC and SDHC max.
4 GB
USB
USB 2.0
Operating system
Microsoft Windows CE 5.0
Subject to changes
9
TravelP_100_iGo_Indien_GB.indd 9
13.08.2008 10:02:45 Uhr
Troubleshooting table
Troubleshooting table
Problem
Cause
Measure
The device does not work or The operating system is over- Perform a reset (Ch. "Switching
does not work correctly.
loaded.
on/off")
Reset the factory settings (ch.
"4.4.7 User Data Management"
in separate navigation instructions).
The display remains dark if I The display may temporarily Place the device in the shade for
switch on the device.
loose its contrast after long and approximately 10 minutes and
heavy exposure to the sun and switch it on again.
high temperatures.
At very high temperatures, the
device switches off to protect
against overheating.
The battery is not sufficiently Fully charge the battery. (Ch.
charged.
"Charging the battery")
The battery is empty, even The device continues to use a
though I did not use the device small amount of energy if it is
for some time.
switched off. Hence, the battery could be discharged after
a few days.
To obtain battery operation
of up to 3 hours in navigation
mode, completely charge the
battery.
During short driving times, Always operate the device in the
the battery is not completely vehicle together with the chargcharged.
er cable via the cigarette lighter.
The device does not respond The operating system is over- Perform a reset (Ch. "Switching
when I touch the buttons.
loaded.
on/off")
The device does not output any The voice instructions are deac- Activate the voice output (ch.
turn-by-turn directions via voice tivated.
"4.1.8 Quick menu" in separate
output.
navigation instructions).
The volume of the voice instruc- Increase the volume during a
tions is too low.
voice output with the VOL +
button.
10
TravelP_100_iGo_Indien_GB.indd 10
13.08.2008 10:02:45 Uhr
Troubleshooting table
Problem
Cause
Measure
The device has no or only a very After switch-on, the device repoor GPS reception.
quires approx. 1 minute until it
is ready for navigation. During
the initial switch-on, it requires
a longer time and a strong GPS
signal.
Move to the outside and place
the device on high ground. Your
device is operational again after
no more than 2 to 5 minutes. At
that time, the navigation is also
possible under less than perfect
The GPS reception is generally conditions.
limited inside of buildings.
Heavily metal-evaporated wind- You may attempt to install the
shields can interfere with the device in a different location in
GPS reception.
the vehicle.
Connect an external GPS antenna.
Reflection and separation, The device must have a clear
e.g. due to high-rises, tunnels, path to the sky. Wait until the
mountains or heavy foliage
GPS reception is available again.
Heavy snowfall and (thunder) The route guidance is then continued automatically.
storms
Transport of the vehicle by carsleeper train or ferry
The device does not recognise The memory card is not compat- Use compatible memory cards.
my memory card.
ible with this device.
(Ch. "Technical data")
The memory card was format- Format the memory card with
ted using the wrong file system. the file system FAT16 or FAT32.
Due to continued technical developments, Blaupunkt cannot guarantee the correct functioning of memory cards from different manufacturers and different types of cards. Try a memory card from a
different manufacturer or with a different capacity.
11
TravelP_100_iGo_Indien_GB.indd 11
13.08.2008 10:02:45 Uhr
12
TravelP_100_iGo_Indien_GB.indd 12
13.08.2008 10:02:46 Uhr
Warranty
Warranty
Dear Customer,
Thank you for buying Blaupunkt Navigation system. This unit comes with 12 months warranty on the
product from the date of purchase against defective material or workmanship. In case of a defect,
Blaupunkt undertakes to get the set repaired / replaced as per company’s discretion.
Instructions for the customer
1. This warranty card has 2 parts. Kindly ensure that the dealer fills all parts correctly.
2. Part A must be returned to the dealer at the time of purchase of the product. Dealer need to send
this part to the distributor.
3. Part B is the customer’s copy. It should be retained by you for record.
4. In the event of a complaint, contact the customer care centre or the nearest Blaupunkt Service
Centre and inform the defect, Model No. & Serial. No., for obtaining service.
Terms and condition
1. Warranty will be entertained only when completed customer and dealers copy of warranty card and
invoice copy is presented together with the product.
2. Warranty does not cover damage to the equipment caused by accidents, misuse , repair, additions
and modifications carried out by unauthorised dealers or if tampered with , in any other manner.
3. Warranty will not apply if the type or serial number on the product has been altered , deleted ,
removed or made illegible.
4. Warranty does not cover user attached antennas and damages by negligence and abuse
5. Warranty does not cover accessories (e.g. Cables, mounting equipment etc).
Cut here
PART A
DEALER’S COPY
MODEL No: ___________________________________
UNIT Sr. No.: ___________________________________
DATE OF PURCHASE:
__________________________
CUSTOMER NAME & ADDRESS
_______________________________________________
_______________________________________________
TEL. _________________________________________
DEALER NAME & ADDRESS (SEAL)
_______________________________________________
_______________________________________________
TEL. _________________________________________
Customer’s Signature
Dealer’s Signature
This card is valid only if it is filled in and stamped by our authorised dealer on the date of purchase.
13
TravelP_100_iGo_Indien_GB.indd 13
13.08.2008 10:02:46 Uhr
Warranty
PART B
CUSTOMER’S COPY
MODEL No: ___________________________________
UNIT Sr. No.: ___________________________________
DATE OF PURCHASE:
__________________________
CUSTOMER NAME & ADDRESS
_______________________________________________
_______________________________________________
TEL. _________________________________________
DEALER NAME & ADDRESS (SEAL)
_______________________________________________
_______________________________________________
TEL. _________________________________________
Customer’s Signature
Dealer’s Signature
This card is valid only if it is filled in and stamped by our authorised dealer on the date of purchase.
For any further information, please contact.
Customer Care Centre:
Toll free number: 1-800-425-2528 (for BSNL/MTNL callers)
For callers using mobile: 080-22293001 (from 9 am to 5 pm)
Monday to Friday
14
TravelP_100_iGo_Indien_GB.indd 14
13.08.2008 10:02:46 Uhr
___________________________________________________________________________________
___________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
15
TravelP_100_iGo_Indien_GB.indd 15
13.08.2008 10:02:46 Uhr
Authorised Service Centers
SERVICE DEALER
CITY
CONTACT
PHONE 1
Asthaa marketing
Ahmedabad
Naveen
079-6858975
MOBILE
9825037377
Sound reflex
Anand
Bharath
02692-256868
9825160605
Mandovi
Bangalore
Shashi
080-22233763
9845473044
Sunil distributor
Bhopal
Anil
0755-4270228
9827069388
Mickey electronics
Bhubaneshwar
Dilip
0674-6535012
9437032813
MD electronics
Calicut
Babu
0495-2770007
9447276820
Mount electronics
Chennai
Suresh
044-28410965
9840059917
Classic auto liners
Coimbatore
Kannan
0422-2231569
9843433338
Angad agencies
Dehradun
Arivinder
0135-2746999
9837000313
AS electronics
Ernakulam
Salath
0484-2805601
9847084286
Sai kirpa
Gaziabad
Harish
0120-4165682
9810496690
Elegant
Gurgaon
Bobby
0124-6521746
9811006770
Blue strings
Indore
Abha
0731-3266898
9302101961
Today electronics
Jaipur
Vipin
0141-2361275
9828017772
Voice and Vision
Kanpur
Awasthi
0512-2549793
9839809644
Engineer syndicate
Kolkatta
Sujjan
9830333536
9830777410
Audio video centre
Kollam
Gerald
0474-2748192
9846104001
Electro electrics
Kottayam
Babu
0481-2571447
9349501091
Madhav enterprises
Lucknow
Pal
0522-2206267
9839809644
9872400438
Reliable service
Ludhiana
Gurmeet
0161-4640438
Auto sonics
Mumbai
Renu
022-26406726
9930310905
Jaika automobiles
Nagpur
Rishikesh
0712-2546741
9822228287
LMC enterprises
New Delhi
Sudhir
011-41726977
9811528785
Vishwakarma sounds
Patna
Pradeep
9934035353
9234887043
Ekco electronic
Pune
Suhas
020-25436127
9822496733
Ambika services
Rajkot
Bala
0281-2465615
9998141494
Ambika auto agencies
Secunderabad
Ashok
040-27893942
9246522002
Royal sales & services
Surat
Rakesh
0261-3225634
9898578787
Rounak electricals
Vadodra
Jayesh
0265-2336233
9898401902
Ganga marketing
Vishakhapatnam
Murthy
0091-2505805
9849004688
© 2008 All rights reserved by Blaupunkt. This material may be reproduced, copied or distributed
for personal use only.
This product is protected by certain intellectual property rights of Microsoft. Use or distribution of
such technology outside of this product is prohibited without a license from Microsoft.
Bosch Limited (Blaupunkt),
P.B. No. 3000, Hosur Road, Adugodi, Bangalore 560 030.
Visit us at : www.blaupunkt.com
Write to us at : [email protected]
Toll Free No.: 1-800-425-2528 (for BSNL/MTNL callers)
For callers using mobile: 080-22293001 (from 9 am - 5 pm)
Monday to Friday
Blaupunkt GmbH,
Robert-Bosch-Straße 200, D-31139 Hildesheim
07/08 CM-AS/SCS (GB)
TravelP_100_iGo_Indien_GB.indd 16
8 622 406 205
13.08.2008 10:02:46 Uhr
www.blaupunkt.com
Mobile Navigation
TravelPilot 100
TravelPilot 300
TravelPilot Lucca 3.5
Navigation instructions
NaviManual_iGo_India_GB.indd 1
20.08.2008 15:46:39 Uhr
Table of contents
1 Warnings and Safety information .................................................... 6
2 Getting started with TravelPilot ...................................................... 7
2.1 Simple and Advanced modes ................................................................ 8
2.2 Hardware buttons................................................................................ 9
2.3 Buttons and other controls on the screen .............................................. 10
2.3.1 Using keyboards.....................................................................................11
2.4 Using the map................................................................................... 12
2.4.1 Checking the details of a map location .......................................................12
2.4.2 Manipulating the map .............................................................................12
2.4.3 Status information and hidden controls on the map .....................................15
2.4.4 Using the Cursor (the selected map location) .............................................18
2.5 TravelPilot concepts........................................................................... 19
2.5.1 Smart Zoom ..........................................................................................19
2.5.2 Position markers ....................................................................................19
2.5.2.1 Current GPS position and Lock-on-Road ...........................................................19
2.5.2.2 Returning to normal navigation........................................................................20
2.5.2.3 Selected location (Cursor) .............................................................................20
2.5.2.4 Original position in the Cursor menu ................................................................21
2.5.3 Daytime and night colour schemes ............................................................21
2.5.4 Colour scheme in tunnels ........................................................................21
2.5.5 Route calculation and recalculation ...........................................................21
2.5.6 Itinerary ................................................................................................22
2.5.7 Track Logs .............................................................................................23
2.5.8 Route demonstration ..............................................................................24
2.5.9 POI (Points of Interest)............................................................................24
2.5.10 Road Safety Cameras ............................................................................24
2.5.10.1 Camera types .............................................................................................25
2.5.10.2 Camera directions .......................................................................................26
2
NaviManual_iGo_India_GB.indd 2
20.08.2008 15:46:53 Uhr
Table of contents
3 Navigating with TravelPilot ........................................................... 27
3.1 Selecting the destination of a route ...................................................... 27
3.1.1 Selecting the Cursor as the destination ......................................................27
3.1.2 Entering an address or part of an address ..................................................28
3.1.2.1 Selecting a midpoint of a street as the destination..............................................28
3.1.2.2 Selecting an intersection as the destination ......................................................29
3.1.2.3 Selecting a city centre as the destination ..........................................................30
3.1.2.4 Tips on entering addresses quickly ..................................................................31
3.1.3 Selecting the destination from your Favourites ............................................31
3.1.4 Selecting the destination from the POIs .....................................................31
3.1.5 Selecting the destination with a saved POI search criteria .............................33
3.1.6 Selecting the destination from the History..................................................33
3.1.7 Selecting the destination by entering its coordinate .....................................33
3.2 Creating a multi-point route (inserting a via point) .................................. 34
3.3 Creating a multi-point route (appending a new destination) ..................... 35
3.4 Editing the route ............................................................................... 35
3.5 Viewing the whole route on the map (Fit-to-Screen) ................................ 36
3.6 Watching the simulation of the route .................................................... 36
3.7 Enabling Safety Mode ........................................................................ 36
3.8 Pausing the active route ..................................................................... 36
3.9 Deleting the next via point from the route .............................................. 37
3.10 Deleting the active route ................................................................... 37
3.11 Using Track Logs ............................................................................. 37
3.12 Saving a route ................................................................................. 38
3.13 Loading a saved route ...................................................................... 38
3
NaviManual_iGo_India_GB.indd 3
20.08.2008 15:46:53 Uhr
Table of contents
4 Reference book (Advanced mode)................................................. 40
4.1 Map screen ...................................................................................... 40
4.1.1 Icons on the map ....................................................................................43
4.1.1.1 Battery, GPS position quality and Vehicle type indicator......................................43
4.1.1.2 Status indicator strip .....................................................................................45
4.1.1.3 Next two route events (Turn Preview fields) .......................................................45
4.1.2 Objects on the map ................................................................................46
4.1.2.1 Streets and roads ..........................................................................................46
4.1.2.2 Elements of the active route............................................................................46
4.1.3 Detour menu .........................................................................................48
4.1.4 Cursor menu..........................................................................................48
4.1.5 Position menu ........................................................................................50
4.1.6 Route Information screen ........................................................................50
4.1.7 Trip Information screen ...........................................................................52
4.1.7.1 Trip Computer screen ....................................................................................54
4.1.8 Quick menu ...........................................................................................54
4.1.9 GPS data screen ....................................................................................56
4.2 Find menu ........................................................................................ 57
4.3 Route menu ...................................................................................... 58
4.4 Manage menu ................................................................................... 58
4.4.1 Manage Saved Routes .............................................................................59
4.4.2 Manage History ......................................................................................59
4.4.3 Manage Track Logs .................................................................................60
4.4.4 Manage Favourites..................................................................................61
4.4.5 Manage POIs .........................................................................................61
4.4.6 Manage Saved Search Criteria ..................................................................63
4.4.7 User Data Management ...........................................................................63
4
NaviManual_iGo_India_GB.indd 4
20.08.2008 15:46:53 Uhr
Table of contents
4.5 Settings menu................................................................................... 64
4.5.1 Map Screen settings ...............................................................................65
4.5.2 Sound settings .......................................................................................65
4.5.3 Route Planning options ...........................................................................66
4.5.4 Regional settings ....................................................................................68
4.5.5 Navigation settings .................................................................................69
4.5.6 Warning settings ....................................................................................70
4.5.7 GPS settings ..........................................................................................70
4.5.8 Menu settings ........................................................................................71
4.5.9 Track Log settings...................................................................................71
5 Glossary ...................................................................................... 73
6 End User Licence Agreement ........................................................ 75
5
NaviManual_iGo_India_GB.indd 5
20.08.2008 15:46:54 Uhr
1 Warnings and Safety information
1 Warnings and Safety information
The navigation device does not release you from your responsibility as a driver for correct and prudent
behaviour in traffic.
DANGER!
Distraction from the traffic can cause accidents
Do not operate the device while driving.
View the display only during safe traffic situations.
Routes are best planned before starting your trip.
Disregarding traffic rules can lead to accidents
DANGER!
Follow the turn-by-turn directions only if the street routing and traffic rules allow
it. The navigation device will bring you to your destination even if you have to
deviate from the planned route.
Disregarding the street routing can lead to accidents
DANGER!
The information on the digital road maps may no longer be current due to shortterm changes (construction, etc.).
The signposts and local street routing always have priority over the information of
the navigation device.
6
NaviManual_iGo_India_GB.indd 6
20.08.2008 15:46:54 Uhr
2 Getting started with TravelPilot
2 Getting started with TravelPilot
TravelPilot is optimised for in-car use. You can use it easily by tapping the screen buttons and the map
with your fingertips.
Tasks
Instructions
Using the retractable
stylus
You do not need a stylus to use TravelPilot. Tap the buttons and the map
with your fingertips.
Double tapping the
screen
You do not need to tap the screen twice for any action. With buttons and
controls, a single tap is enough.
Tapping and holding
the screen
You do not need this to access the basic navigation functions. Tap and keep
pressing the following buttons to reach extra functions:
•
on the Map screen: you can set the minimum and
Tap and hold
maximum zoom level of Smart Zoom.
•
buttons on the Map
Tap and hold any of the
screen: you can set or reset the zoom value of the button (2D map).
•
buttons on the Map
Tap and hold any of the
screen: you can set or reset the tilt and zoom values of the button (3D
map).
•
Tap and hold
menu appears.
•
buttons on
Tap and hold any of the
the Map screen: you can rotate, tilt or scale the map continuously.
•
Tap and hold
characters quickly.
•
Tap and hold
continuously.
•
Tap and hold the buttons in the Quick menu to open screens from the
Manage menu or the Settings menu related with the function of the
button.
on list and menu screens: the Navigation
or
on keyboard screens: you can delete several
in long lists: you can turn the page
7
NaviManual_iGo_India_GB.indd 7
20.08.2008 15:46:54 Uhr
2 Getting started with TravelPilot
Tasks
Instructions
Gestures
(drag&drop)
You do not need gestures to access the basic navigation features. You need
to drag and drop the screen only in cases like:
•
Moving the handle on a slider.
•
Moving the map: grab the map, and move it in the desired direction.
•
Shortcut to open the Map screen: slide your finger from the bottom
right corner to the bottom left corner on any screen.
•
Shortcut to open the Navigation menu: slide your finger from the top
left corner to the bottom left corner on any screen.
2.1 Simple and Advanced modes
The two operating modes of TravelPilot mainly differ in the menu structure and the number of available
features. The controls and screen layouts are the same.
•
Simple mode: you have easy access to the most important navigation functions and the basic
settings only. The rest of the settings are set to values that are optimal for typical use.
The Navigation menu in Simple mode:
•
Advanced mode: you have access to the full functionality of TravelPilot.
The Navigation menu in Advanced mode:
To switch from Simple mode to Advanced mode: on the startup screen (Navigation Menu), tap
,
.
To switch from Advanced mode to Simple mode: on the startup screen (Navigation Menu), tap
,
.
8
NaviManual_iGo_India_GB.indd 8
20.08.2008 15:46:55 Uhr
2 Getting started with TravelPilot
The features and settings available in each mode are as follows:
Type of action
Available in
Simple mode
Available in
Advanced
mode
Explanation
Navigating to a selected map point
Yes
Yes
See page 27
Navigating to a street address
Yes
Yes
See page 28
Navigating to an incomplete address
Yes
Yes
See page 28
Navigating to an intersection
Yes
Yes
See page 29
Navigating to recent destinations (History)
Yes
Yes
See page 33
Navigating to Favourites
Yes
Yes
See page 31
Navigating to a POI
Yes
Yes
See page 31
Navigating to coordinates
No
Yes
See page 33
Creating a multi-point route
No
Yes
See page 34
Saving a map point as a Favourite destination
Yes
Yes
See page 48
Saving a map point as a POI
No
Yes
See page 48
Saving a map point as a location of a Road
Safety Camera
No
Yes
See page 48
Mark a map point with a Pin
No
Yes
See page 48
Saving the active route
No
Yes
See page 38
Saving Track Logs
No
Yes
See page 23
Map Screen settings
No
Yes
See page 65
Menu settings
Only background
Yes
See page 71
Sound settings
Only Master
volume
Yes
See page 65
Route Planning options
Yes
Yes
See page 66
Regional settings
Only language
selection
Yes
See page 68
Warnings
No
Yes
See page 70
2.2 Hardware buttons
You can use TravelPilot mostly by tapping the touch screen. The device has only a few hardware
buttons.
9
NaviManual_iGo_India_GB.indd 9
20.08.2008 15:46:55 Uhr
2 Getting started with TravelPilot
You can turn mobile devices on or off at any time. When mobile devices is switched off, TravelPilot does
not calculate your GPS position and it does not update the route or the driving instructions.
When you turn the device on again, TravelPilot continues navigating as soon as the GPS receiver has
determined your position.
2.3 Buttons and other controls on the screen
When you are using TravelPilot, you usually tap buttons on the touch screen.
You only need to confirm selections or changes in TravelPilot if the application needs to restart, it needs
to perform a major reconfiguration, or you are about to lose some of your data or settings. Otherwise,
TravelPilot saves your selections and applies the new settings without confirmation as soon as you use
the controls.
Type
Example
Description
How to use it
Button
Tap it to initiate a
function, to open a
new screen, or to
set a parameter.
Tap it once.
Icon
Shows status
information.
Some icons also
function as a
button. Tap them
once.
List
When you need to
select from several
options, they
appear in a list.
Turn the page with
Slider
and
the
buttons and tap
the value that you
want.
When a feature has •
several different
unnamed values,
TravelPilot shows
an indicator on a
•
gauge that displays
and sets a value
from a range.
Drag the
handle to move
the slider to its
new position.
Tap the slider
where you
want the
handle to
appear; the
thumb jumps
there.
10
NaviManual_iGo_India_GB.indd 10
20.08.2008 15:46:56 Uhr
2 Getting started with TravelPilot
Type
Example
Description
How to use it
Switch
When there are
only two choices,
a checkmark
shows whether the
feature is enabled.
Tap it to turn the
switch on or off.
Virtual
keyboard
Alphabetic and
alphanumeric
keyboards to enter
text and numbers.
Each key is a touch
screen button.
2.3.1 Using keyboards
You only need to enter letters or numbers in TravelPilot when you cannot avoid it. You can type with
your fingertips on the full-screen keyboards and you can switch between various keyboard layouts, for
example ABC, QWERTY, or numerical.
Task
Switching to another keyboard
layout, for example from a Latin
QWERTY keyboard to a Greek
keyboard
Correcting your entry on the
keyboard
Details
, and select from the list of available
Tap
keyboard types.
TravelPilot remembers your last keyboard choice and offers it
the next time you need to enter data.
Remove the unneeded character(s): tap
.
Tap and hold the button to delete the entire input string.
Entering a space, for example
between a first name and a family
name or in multi-word street names
Tap
.
Entering small or capital letters
to cycle through entering lower case letters, capital
Tap
initials or all capitals.
Entering symbols
Tap
to switch to a keyboard of symbol characters.
Finalising the keyboard entry
Tap
.
11
NaviManual_iGo_India_GB.indd 11
20.08.2008 15:46:56 Uhr
2 Getting started with TravelPilot
2.4 Using the map
The map screen is the most frequently used screen of TravelPilot. It can be accessed from the Navigation
.
menu by tapping
For further information about the map screen, see page 40.
2.4.1 Checking the details of a map location
•
If you are interested in the details of your current position during navigation:
1. Check the bottom line of the map. It shows the current street.
2. For further details, tap
3. Tap
•
to open the Position menu.
. The address, the coordinate and the list of nearby POIs will be displayed.
You can check the details of any other location by selecting it on the map:
1. Tap the map anywhere to open the map control buttons.
2. Tap the desired location on the map. The Cursor (
location is displayed at the bottom of the map.
to open the Cursor menu.
3. For further details, tap
4. Tap
•
) appears there. The address of the
. The address, the coordinate and the list of nearby POIs will be displayed.
It is even easier if you select the desired point in the Find menu. Then the Cursor menu opens
automatically. You only need to tap the
button.
2.4.2 Manipulating the map
Position markers on the map:
•
Current GPS position:
•
Selected location (Cursor):
(page 19)
(page 20)
The following controls help you modify the map view to best suit your actual needs. Most of these controls
appear only if you tap the map once, and disappear after a few seconds of inactivity.
12
NaviManual_iGo_India_GB.indd 12
20.08.2008 15:46:57 Uhr
2 Getting started with TravelPilot
Action
Moving the
map with
drag&drop
Button(s)
No buttons
Description
You can move the map into any direction: tap and hold the
map, and move your finger to the direction in which you
want to move the map.
If GPS position is available and you have moved the map,
button appears. Tap this button to return to the
the
GPS position.
Opening/
closing map
control
buttons
Zooming in
and out
Tap this button to show or hide the following map control
buttons:
•
Zoom in/out
•
Rotate left/right (3D map only)
•
Tilt up/down (3D map only)
•
Zoom preset buttons (2D map only)
•
Tilt and zoom preset buttons (3D map only)
•
Return to GPS position button
•
Smart Zoom button
Changes how much of the map is displayed on the screen.
TravelPilot uses high-quality vector maps that let you see the
map at various zoom levels, always with optimised content.
It always displays street names and other text with the same
font size, never upside-down, and you only see the streets
and objects that you need.
Map scaling has different limits in 2D and in 3D map view
modes.
Tilting up
and down
Changes the vertical view angle of the map in 3D mode.
Rotating left
and right
Changes the horizontal view angle of the map in 3D mode.
When GPS position is available, TravelPilot always rotates
the map so its top faces your direction of travel (Track-Up
orientation). You can turn away from Track-Up with these
buttons.
If GPS position is available and you have rotated the map,
button appears. Tap this button to re-enable the
the
automatic map rotation.
13
NaviManual_iGo_India_GB.indd 13
20.08.2008 15:46:57 Uhr
2 Getting started with TravelPilot
Action
Button(s)
Viewing
modes
Description
Gives you the following map perspectives in TravelPilot:
•
classic top-down view (2D)
•
perspective view (3D)
The value always shows the mode the button switches to: If
you are in 2D mode, you can see the
need to tap it to switch to 3D mode.
Smart Zoom
button and you
TravelPilot can automatically rotate, scale and tilt the map
and give you the optimal view:
•
When you are approaching a turn, TravelPilot zooms in
and raises the view angle to let you easily recognise your
manoeuvre at the next junction.
•
If the next turn is at a distance, TravelPilot zooms out
and lowers the view angle to show you the road in front
of you.
Tap this button once to enable Smart Zoom.
Tap&hold the button to set the zoom limits of Smart Zoom.
Returning
to normal
navigation
(back to
the GPS
position with
automatic
map
rotation)
Tap this button to move the map back to the current GPS
position. If the map has been rotated in 3D mode, automatic
map rotation is also re-enabled.
Zoom preset
buttons
(available in
Advanced
mode only)
Tap one of the preset buttons to set the zoom level to a fix,
predefined value. Smart Zoom is disabled. These buttons
are available in 2D mode.
Tilt and
zoom preset
buttons
(available in
Advanced
mode only)
Tap one of the preset buttons to set the tilt and zoom levels
to fix, predefined values. Smart Zoom is disabled. These
buttons are available in 3D mode.
Map scale
TravelPilot shows the scale of the map in 2D mode.
Tap&hold any of the buttons to set its value to the current
zoom level, or to reset it to its original value.
Tap&hold any of the buttons to set its value to the current tilt
and zoom levels, or to reset it to its original value.
14
NaviManual_iGo_India_GB.indd 14
20.08.2008 15:46:57 Uhr
2 Getting started with TravelPilot
Action
Button(s)
Description
This button does not appear on the Map screen. It is
available on the following screens:
Fit-to-screen
•
Plan on Map screen: When you have an active route, you
can display it in its full length on the map.
•
Track Information screen: A track log can be displayed
in its full length on the map.
2.4.3 Status information and hidden controls on the map
The following information appears in the rounded field in the top left corner, the Turn Preview field. When
tapping this area, the result depends on the information currently shown.
Icon
,
Information
Details
Action
There is no active
route in Simple
mode
If there is no route to
be navigated in Simple
mode, this icon appears
in the Turn Preview field.
Tap this area to open Find Address.
There is no active
route in Advanced
mode
If there is no route to be
navigated in Advanced
mode, this icon appears
in the Turn Preview field.
Tap this area to open Find.
There is no valid
GPS position.
If an active route exists,
Tap this area to open the Route
and there is no valid GPS Information screen.
position, the view of the
sky above you is shown
with coloured dots for
each satellite. Some dots
need to turn green to be
able to navigate.
If the icon is a
static picture,
route calculation is
needed
GPS position and
an active route are
available, but automatic
off-route recalculation
is switched off, and you
deviated from the route.
Tap this area to make TravelPilot
recalculate the recommended route.
If the icon is
animated, route
calculation is in
progress
TravelPilot is calculating
or recalculating the
route.
Nothing happens if you tap this area of
the screen.
15
NaviManual_iGo_India_GB.indd 15
20.08.2008 15:46:58 Uhr
2 Getting started with TravelPilot
Icon
,
Information
Next route event
(next manoeuvre)
Details
GPS position and
an active route
are available, and
you navigate the
recommended route.
This area gives you
information about the
type and distance of the
next route event.
Action
Tap this area to open the Route
Information screen.
The following area appears next to the above described rounded area. When tapping this area, the result
depends on the information currently shown.
Icon
,
Information
Details
Action
There is no valid
GPS position
If there is no valid GPS
position, this symbol appears
here.
Tap this area to open the GPS
Data screen to check the
signal status or the connection
settings.
Traffic restriction
When GPS position is
Nothing happens if you tap this
available, but there is no route area of the screen.
to be navigated, the traffic
restriction of the upcoming
intersection is shown here if
there is any.
Second route
event (manoeuvre
after the next
manoeuvre)
When GPS position and
an active route are both
available, this field shows the
route event that follows the
next route event shown in the
above described area.
Tap this area to open the
Itinerary screen with the turn by
turn guidance instructions.
Approaching a Road
Safety Camera
This icon appears when
you are approaching a
Road Safety Camera, and
the warning for cameras is
enabled in Settings.
Tap this area to suppress the
audible camera warning.
Stops the running
simulation
This icon appears during
Route Fly Over, Route
Simulation, and Track Log
playback.
Tap this area to stop the
simulation.
16
NaviManual_iGo_India_GB.indd 16
20.08.2008 15:46:58 Uhr
2 Getting started with TravelPilot
Icon
Information
Route recalculation
progress
Details
Action
During route recalculation,
this field shows the
recalculation progress
between 0% and 100%.
Indicator strip
- sounds muted/enabled
Nothing happens if you tap this
area of the screen.
Nothing happens if you tap this
area of the screen.
- Track Log recording
The following symbols appear in the Indicator strip:
Icon
Description
The sound output of TravelPilot is muted.
The sound output of TravelPilot is enabled.
TravelPilot records a Track log when GPS position is available.
Track log recording is disabled.
The following information can be seen in the three data fields shown on the map screen. Tap this area to
open the Trip Information screen where you can select which values to be shown in these three fields.
When there is no active route, these fields show the following information: current speed, compass and
the current time of day.
Icon
Type
More information
Compass
Shows the direction of your heading both when the map is
automatically rotated (3D) and when the map is always facing
North (2D).
Speed
information
Current speed
Time
information
There are time values that can be shown:
•
Current GPS time
•
Time remaining to reach the destination
•
Time remaining to reach the next via point
•
Estimated arrival time at the destination
•
Estimated arrival time at the next via point
17
NaviManual_iGo_India_GB.indd 17
20.08.2008 15:46:58 Uhr
2 Getting started with TravelPilot
Icon
Type
More information
Distance
information
There are distance type values that can be shown:
•
Distance remaining to reach the destination
•
Distance remaining to reach the next via point
•
Current altitude
The next area is a combined status field. Tap this area to open the Quick menu (page 54).
Icon
Status for
More information
GPS position
quality
The more lit bars, the better is the GPS position.
Battery status
The device is running on battery power. The number of lit bars
represent the remaining capacity.
The battery is
being charged
The device is running on external power. The battery is being
charged.
Vehicle type
The symbol displays the vehicle type used for route calculation.
2.4.4 Using the Cursor (the selected map location)
First, place the Cursor at the desired map location with one of the following options:
•
Use the Find menu to select a location. The map returns with the selected point (the Cursor) in the
middle, and the Cursor menu appears with the available options.
•
Tap the screen and tap again to place the Cursor at the desired location. Now tap
Cursor menu.
to open the
You can perform the following actions:
Button
Action
In the active route, uses the Cursor as the start point by replacing the
current GPS position (available in Advanced mode only)
In the active route, uses the Cursor as the destination by replacing the
previous destination
In the active route, uses the Cursor as a via point (an intermediate
destination) preceding the destination (available in Advanced mode only)
In the active route, uses the Cursor as the destination while keeping the
previous destination as a via point (available in Advanced mode only)
Shows the different routes calculated by the available routing methods.
Choose the one that suits your needs the best.(available in Advanced
mode only)
18
NaviManual_iGo_India_GB.indd 18
20.08.2008 15:46:59 Uhr
2 Getting started with TravelPilot
Button
Action
Saves the Cursor as a POI(available in Advanced mode only)
Saves the Cursor as a Favourite location
Saves the Cursor as a Road Safety Camera location (available in Advanced
mode only)
Marks the map with a Pin at the Cursor (available in Advanced mode only)
Opens a screen with the name, address and coordinate information of the
Cursor, and the list of POIs near it
2.5 TravelPilot concepts
2.5.1 Smart Zoom
Smart Zoom is a lot more than just a usual automatic zoom:
•
While following a route calculated by TravelPilot: when approaching a turn, it will zoom in and
raise the view angle to let you easily recognise your manoeuvre at the next junction. If the next turn
is at a distance, it will zoom out and lower the view angle to be flat so you can see the road in front
of you.
•
While driving without an active route in TravelPilot: Smart Zoom will zoom in if you drive slowly
and zoom out to the limit set here when you drive at high speed.
Enabling Smart Zoom
Tap the map to let the map control buttons appear, and then tap
to enable Smart Zoom.
Fine-tuning Smart Zoom
Tap the map to let the map control buttons appear, and then tap and hold
Settings window. Modify the zoom limits of Smart Zoom if necessary.
to open the Smart Zoom
2.5.2 Position markers
2.5.2.1 Current GPS position and Lock-on-Road
When your GPS position is available, TravelPilot marks your current position with the
icon on the
map. The exact location of the position marker depends on the vehicle type used for route calculation.
The vehicle type can be selected in Route settings (page 66) or in the Quick Menu (page 54).
19
NaviManual_iGo_India_GB.indd 19
20.08.2008 15:46:59 Uhr
2 Getting started with TravelPilot
•
If you choose pedestrian: The
shows your actual heading.
•
If you choose any of the vehicles: The
icon is aligned to the nearest road to suppress GPS
position errors. The direction of the icon is one of the directions of the route.
To use the current GPS position, tap
as one of the following:
•
a Favourite
•
a Road Safety Camera
•
a POI
•
a map marker Pin
icon is at your exact GPS position. The direction of the icon
. The Position menu appears and you can save the GPS position
2.5.2.2 Returning to normal navigation
When GPS position is available, and you have moved the map (the
icon is moving or is not even
button appears. Tap it to move the map back
visible), or you have rotated the map in 3D mode, the
to the GPS position and re-enable Track-up map orientation (automatic map rotation).
Note!
Even if you move the map while you are driving, TravelPilot continues navigating if
there is an active route: it plays the voice instructions and displays the turn preview
icons according to your current GPS position.
2.5.2.3 Selected location (Cursor)
If you select a location in the Find menu, or you tap the map when the map control buttons are visible,
the Cursor appears at the selected point on the map. TravelPilot displays the Cursor with a radiating red
dot (
) to make it visible at all zoom levels.
When the Cursor is set, tap
following:
•
the start point of a route
•
a via point in a route
•
the destination of a route
. The Cursor menu appears and you can use the Cursor as one of the
You can also search for POIs around the Cursor.
Or you can save the location of the Cursor as:
•
a Favourite
•
a Road Safety Camera
•
a POI
•
a map marker Pin
20
NaviManual_iGo_India_GB.indd 20
20.08.2008 15:47:00 Uhr
2 Getting started with TravelPilot
2.5.2.4 Original position in the Cursor menu
When the Cursor menu is open, a special icon (
with.
) shows the Cursor position the menu was opened
You can move and zoom the map, and you can set the Cursor to a different place. The usual Cursor
) appears, and the buttons of the Cursor menu initiate actions for this new location.
(
To return to the original Cursor position, tap
Cursor menu was opened, and the
. The map jumps back to the position with which the
icon appears again.
2.5.3 Daytime and night colour schemes
TravelPilot uses different colour schemes during the day and during the night.
•
Daytime colours are similar to paper road maps.
•
The night colour schemes use dark colours for large objects to keep the average brightness of the
screen low.
TravelPilot offers different daytime and night colour schemes. It can also switch automatically between
the daytime and the night scheme based on the current time and GPS position a few minutes before
sunrise, when the sky has already turned bright, and a few minutes after sunset, before it becomes
dark.
2.5.4 Colour scheme in tunnels
When entering a tunnel, the colours of the map change. All buildings disappear, the large objects (such
as surface waters or forests) and the empty areas between roads become black.
However roads and streets keep their original colours from the daytime or night colour scheme currently
used.
After leaving the tunnel, the original colours return.
2.5.5 Route calculation and recalculation
TravelPilot calculates the route based on your preferences:
•
•
Route calculation method:
•
Fast
•
Short
•
Economical
•
Easy
Vehicle types:
•
Car
•
Taxi
•
Bus
21
NaviManual_iGo_India_GB.indd 21
20.08.2008 15:47:00 Uhr
2 Getting started with TravelPilot
•
•
Emergency vehicles
•
Bicycle
•
Pedestrian
Road types
•
Unpaved Roads
•
Permit Needed
•
Motorways
•
Toll Roads
•
Charge Roads
•
Ferries
•
Cross-border Planning
•
Carpool Lanes (appears only when used in the USA)
TravelPilot automatically recalculates the route if you deviate from the proposed itinerary.
For further information about Route Planning options, see page 66.
2.5.6 Itinerary
The Itinerary is the list of the route events, that is, the driving instructions.
When you are on the Map screen, you can display the Itinerary in one of the following ways:
•
Tap the area between the Turn preview and the Travel data fields where the symbol of the second
next manoeuvre is displayed (for example
•
In Advanced mode, tap the following buttons:
).
,
,
.
22
NaviManual_iGo_India_GB.indd 22
20.08.2008 15:47:00 Uhr
2 Getting started with TravelPilot
You have the following options on the Itinerary screen:
Button
Description
Any of the list items
Opens the map with the selected manoeuvre in the middle.
Changes the detail level of the Itinerary. The levels are as follows:
•
Detailed Instructions: all intersections are listed
•
Itinerary: only significant intersections (the ones announced in voice
guidance) are listed
•
Road list: the list of the roads used while navigating the route
Turns the page for additional list items.
,
When the map is open with a manoeuvre in the middle:
Button
Description
Zooms in the map.
Zooms out the map.
Moves the map to show the previous or next manoeuvre.
,
Opens a screen where you can avoid a part of the route starting from the
selected manoeuvre.
2.5.7 Track Logs
TravelPilot can log the track that you drive (page 37).
A Track Log is a recording of how your GPS position changed and it is independent of the route TravelPilot
calculated.
Track Logs can be recorded, renamed, replayed, shown on the map, exported to a memory card in GPX
format, and deleted. See page 60.
Independently of the normal track log, you can instruct TravelPilot to record the native GPS data received
from the GPS device. These logs are saved as separate text files on the memory card, and they cannot be
shown or replayed in TravelPilot.
To turn on NMEA/SIRF log saving, tap the following buttons:
,
,
,
.
23
NaviManual_iGo_India_GB.indd 23
20.08.2008 15:47:00 Uhr
2 Getting started with TravelPilot
2.5.8 Route demonstration
A simulation drives you through the route, following the driving instructions (page 36). You can choose
from a simulation at high speed or at normal driving speed.
You can use it, for example, to see which bridge TravelPilot planned for the route; if you do not want to
take that bridge, you can avoid it.
(high speed
Route demonstrations can be started from the Route menu by tapping the
(simulation at normal speed) button.
simulation) or the
2.5.9 POI (Points of Interest)
A point of interest (POI) is a location that someone might find useful or interesting. TravelPilot is delivered
with thousands of POIs and you can also create your own POIs in the application.
POI locations are marked on the map with special icons. POI icons are quite large so you can easily
recognise the symbol. The icons are also semi-transparent: they do not cover the streets and intersections
behind them.
POIs are grouped into several levels of categories and subcategories. The icon of a POI that comes with
the map shows the symbol of the POI category. If you save your own POI, you can select an icon for it
independently of the POI category you have put it in.
Saving POI
To save a POI, place the Cursor (
) at the desired location, then tap the following buttons:
,
,
.
Managing POI
You can select which POI groups to show and which ones to hide on the map, and from which zoom levels
POI icons are visible. At the same place you can manage your saved POIs. A saved POI can be renamed,
moved to a different POI group, its icon can be changed, or a phone number and additional information
can be added to it. Tap the following buttons:
,
,
.
2.5.10 Road Safety Cameras
The location of a Road Safety Camera is a special POI. They cannot be searched like other POIs, and there
is a special proximity warning only for cameras.
Is the device shipped with a built-in database of Road Safety Cameras?
No
Can you upload Road Safety Camera locations from POI Warner?
No
Can Road Safety Camera locations be uploaded in a text file?
No
Can you save the Cursor as the location of a Road Safety Camera?
Yes
24
NaviManual_iGo_India_GB.indd 24
20.08.2008 15:47:01 Uhr
2 Getting started with TravelPilot
Saving Road Safety Cameras
To save the location of a Road Safety Camera, place the Cursor (
,
the following buttons:
,
) at the desired location, then tap
.
Camera warning
The warning for Road Safety Cameras can be turned on in Warning Settings. Tap the following buttons:
,
,
,
.
When you approach a Road Safety Camera with the warning enabled, the following happens:
•
Visible Warning: The type of the camera is displayed in the secondary Turn Preview field (for example
•
Audible Warning: If there is no speed limit given for the camera, or your speed is under the given
speed limit, single beeps warn you about the camera.
•
If you exceed the speed limit of the camera, the following also happens:
).
•
Visible Warning: A symbol with the speed limit appears in the corner of the map (for example:
),
•
Audible Warning: A special alert sound is played.
2.5.10.1 Camera types
There are different types of Road Safety Cameras.
Symbol
Type
Description
Fixed
Some speed cameras stand by the roadside, looking in one direction,
measuring one or both directions of the traffic. They measure your current
speed. For these speed cameras you can specify the controlled traffic direction
and the speed limit. TravelPilot warns you when you approach these speed
cameras in the measured direction. If your speed exceeds the speed limit near
the speed camera, TravelPilot plays a special warning sound.
Mobile
Some speed cameras are operated from vehicles. They do not always work
and they are not set to check a preset speed limit. The warning is similar to
fixed speed cameras, but as there is no speed limit given, only the proximity is
announced.
Built-in
Some speed cameras are built into traffic lights. They work like fixed speed
cameras, but they are difficult to spot. The warning for proximity and speeding
is the same as for the fixed speed cameras.
25
NaviManual_iGo_India_GB.indd 25
20.08.2008 15:47:01 Uhr
2 Getting started with TravelPilot
Symbol
Type
Description
Section
control
These speed cameras work in pairs, and do not measure your current speed
but your average speed between the two speed cameras. Both identify your car
and record the exact time you pass them. They use the difference between the
two points in time to calculate your average speed.
TravelPilot warns you when you approach one of these speed cameras, but as
you pass by, the warning stays on, and your average speed is measured until
you reach another speed camera of this type. If your average speed exceeds
the speed limit between the two speed cameras, you receive the same special
warning sound as with the other speed camera types.
In the rare case TravelPilot cannot register the moment you pass the second
speed camera (for example, it is placed at the exit of a tunnel where GPS
position is not yet available) the warning continues. Just tap the speed camera
symbol displayed on the screen to stop the warning.
Red
light
These cameras check if you obey traffic lights. The warning is similar to
mobile speed cameras: as there is no speed limit given, only the proximity is
announced.
2.5.10.2 Camera directions
A speed camera can measure the speed of one direction of the traffic, both directions, or even several
directions in an intersection, when they are mounted on a rotating base. The same directions apply to
red light cameras. TravelPilot warns you only if you drive in a measured or possibly measured direction.
The measured direction of the camera appears with the following symbols:
Symbol
Description
The camera checks the speed of the direction into which you are driving.
The camera checks the speed of the opposite driving direction.
The camera checks the speed in both directions on the road.
The camera can check the speed in any direction.
26
NaviManual_iGo_India_GB.indd 26
20.08.2008 15:47:02 Uhr
3 Navigating with TravelPilot
3 Navigating with TravelPilot
You can set up your route in TravelPilot in several ways:
•
if you need a simple route (a route with only one destination, without any intermediate via points),
you can select the destination and start navigating to it right away
•
you can plan a multi-point route (available in Advanced mode only)
•
you can also plan a route independently of your current GPS position or even without GPS reception
(available in Advanced mode only)
3.1 Selecting the destination of a route
TravelPilot offers you several ways of choosing your destination and via points (intermediate
destinations):
•
Use the selected location on the map (the Cursor) (page 27).
•
Enter an address or a part of an address (page 28).
•
Use a coordinate (page 33)
•
Use a saved location:
•
a Favourite (page 31)
•
a POI (page 31)
•
the History of previously set destinations and waypoints (page 33)
If you are going to use a route later, save it before you start navigating. Tap the following
Tip!
buttons:
,
,
.
3.1.1 Selecting the Cursor as the destination
1. Locate your destination on the map: move and scale the map as needed (page 12).
2. Tap the location that you want to select as your destination. The Cursor (
) appears.
to open the Cursor menu.
3. Tap
4. The map appears with the selected point in the middle. Tap
(Simple mode)
(Advanced mode) from the Cursor menu. The route is then automatically
or
calculated, and you can start navigating.
Tip!
If you know that you will use a destination later, when the Cursor menu appears,
save it as a POI, or put it on the list of your Favourites first. The Cursor menu returns
automatically with the same point. Now you can use it as a route point.
27
NaviManual_iGo_India_GB.indd 27
20.08.2008 15:47:02 Uhr
3 Navigating with TravelPilot
3.1.2 Entering an address or part of an address
If you know at least a part of the address, it is the quickest way to select the destination of the route.
Using the same screen, you can find an address by entering:
•
the midpoint of a street
•
an intersection
•
the centre of a settlement
Note!
Entering an exact address including house number and entering an address with a
postal code are not supported in this device.
3.1.2.1 Selecting a midpoint of a street as the destination
The procedure is explained starting from the Navigation menu.
(Simple mode), or
1. Tap the following buttons:
,
(Advanced mode).
2. By default, TravelPilot proposes the country, state and settlement where you are. If needed, tap
the button with the name of the country, and select a different one from the list. If you select a new
country, you also need to select the state, or tap
of the state it is in.
to search for a settlement regardless
3. If you have not changed the country, you still have the possibility to change the state. Tap the button
with the name of the state, and select from the list.
4. If needed, change the settlement:
•
To select the settlement from the list of recently used ones, tap the
•
To enter a new settlement:
button.
1. Tap the button with the name of the settlement, or if you have changed the country/state,
.
tap
2. Start entering the settlement name on the keyboard.
3. Get to the list of search results:
•
After entering a couple of characters, the names that match the string appear in a list.
•
Tap
to open the list of results before it appears automatically.
28
NaviManual_iGo_India_GB.indd 28
20.08.2008 15:47:02 Uhr
3 Navigating with TravelPilot
4. Pick the settlement from the list.
5. Enter the street name:
.
1. Tap
2. Start entering the street name on the keyboard.
3. Get to the list of results:
•
After entering a couple of characters, the names that match the string appear in a list.
•
Tap
to open the list of results before it appears automatically.
4. Pick the street from the list.
button.
6. Tap the
(Simple mode)
7. The map appears with the selected point in the middle. Tap
(Advanced mode) from the Cursor menu. The route is then automatically
or
calculated, and you can start navigating.
3.1.2.2 Selecting an intersection as the destination
The procedure is explained starting from the Navigation menu.
(Simple mode), or
1. Tap the following buttons:
,
(Advanced mode).
2. By default, TravelPilot proposes the country/state and settlement where you are. If needed, tap the
button with the name of the country/state, and select a different one from the list.
3. If needed, change the settlement:
•
•
To select the settlement from the list of recently used ones, tap the
button.
To enter a new settlement:
1. Tap the button with the name of the settlement, or if you have changed the country/state,
.
tap
2. Start entering the settlement name on the keyboard.
3. Get to the list of search results:
•
After entering a couple of characters, the names that match the string appear in a list.
•
Tap
to open the list of results before it appears automatically.
4. Pick the settlement from the list.
4. Enter the street name:
1. Tap
.
2. Start entering the street name on the keyboard.
29
NaviManual_iGo_India_GB.indd 29
20.08.2008 15:47:03 Uhr
3 Navigating with TravelPilot
3. Get to the list of results:
•
After entering a couple of characters, the names that match the string appear in a list.
•
Tap
to open the list of results before it appears automatically.
4. Pick the street from the list.
button.
5. Tap the
•
If only a few intersecting streets exist, their list appears immediately.
•
In case of a longer street, a keyboard screen appears. Start entering the name of the intersecting
street on the keyboard. As you type, if the matching streets can be shown on one screen, their
list appears automatically.
6. Tap the desired intersecting street in the list.
(Simple mode)
7. The map appears with the selected point in the middle. Tap
(Advanced mode) from the Cursor menu. The route is then automatically
or
calculated, and you can start navigating.
3.1.2.3 Selecting a city centre as the destination
The City Centre is not the geometric centre of the settlement but an arbitrary point the map creators
have chosen. In towns and villages, it is usually the most important intersection; in larger cities, it is an
important intersection.
The procedure is explained starting from the Navigation menu.
(Simple mode), or
1. Tap the following buttons:
,
(Advanced mode).
2. By default, TravelPilot proposes the country/state and settlement where you are. If needed, tap the
button with the name of the country/state, and select a different one from the list.
3. If needed, change the settlement:
•
To select the settlement from the list of recently used ones, tap the
•
To enter a new settlement:
button.
1. Tap the button with the name of the settlement, or if you have changed the country/state,
.
tap
2. Start entering the settlement name on the keyboard.
3. Get to the list of search results:
•
After entering a couple of characters, the names that match the string appear in a list.
•
Tap
to open the list of results before it appears automatically.
4. Pick the settlement from the list.
4. Tap the
button.
30
NaviManual_iGo_India_GB.indd 30
20.08.2008 15:47:03 Uhr
3 Navigating with TravelPilot
5. The map appears with the selected point in the middle. Tap
(Simple mode)
(Advanced mode) from the Cursor menu. The route is then automatically
or
calculated, and you can start navigating.
3.1.2.4 Tips on entering addresses quickly
•
When you are entering the name of a settlement or a street, TravelPilot only displays those characters
that appear in possible search results. The other characters are greyed out.
•
When entering the settlement name or the street name, tap the
of letters; TravelPilot lists the items that contain the character set.
•
•
button after a couple
You can speed up finding an intersection:
•
Search first for the street with a less common or less usual name; fewer letters are enough to
find it.
•
If one of the streets is shorter, search for that one first. You can then find the second one faster.
You can search for both the type and the name of a road. If the same word appears in several names,
for example in the name of streets, roads and avenues, you can obtain the result faster if you enter
the first letter of the street type: For example, enter Pi A to obtain Pine Avenue and skip all Pine
Streets and Pickwick Roads.
3.1.3 Selecting the destination from your Favourites
You can select a location that you have already saved as a Favourite to be your destination.
The procedure is explained starting from the Navigation menu.
1. Tap the following buttons:
(Simple mode) or
,
(Advanced mode).
2. Tap the Favourite that you want to set as your destination.
(Simple mode)
3. The map appears with the selected point in the middle. Tap
(Advanced mode) from the Cursor menu. The route is then automatically
or
calculated, and you can start navigating.
3.1.4 Selecting the destination from the POIs
You can select your destination from the POIs included with TravelPilot or from the ones you have
previously created.
The procedure is explained starting from the Navigation menu.
1. Tap the following buttons:
(Simple mode), or
,
(Advanced mode).
2. Select the area around which the POI should be searched:
•
: The POI will be searched around a given address.
31
NaviManual_iGo_India_GB.indd 31
20.08.2008 15:47:04 Uhr
3 Navigating with TravelPilot
•
: The map appears with the Cursor in the middle. Modify the location of the Cursor if
necessary, then tap
. The POI will be searched around the given location.
•
: The POI will be searched around the current GPS position.
•
: The POI will be searched around the destination of the active route.
•
: The POI will be searched not around a given point but by the size of the detour it
means from the active route. This can be useful if you search for a later stopover that causes only
a minimal detour. For example upcoming petrol stations or restaurants.
3. You can narrow the search with the following:
•
Select the POI group (e.g. Accomodation), and after that, if needed, select the POI subgroup
(e.g. Hotel or Motel).
•
To find the POI by its name, tap
name.
•
To list all POIs in a given POI group, tap
, and use the keyboard to enter a part of the
.
4. [optional] When finally the list of results appear, you can sort the list:
•
: sort the list alphabetically (available when you search around a single location)
•
: sort the list by the distance from your current position in a straight line (available
when you search around a single location)
•
: sort the list by the distance to drive on route from your current position (available when
you search along the active route)
•
: sort the list by the size of the needed detour (available when you search along the active
route)
5. Tap the desired POI in the list.
Additional information will be displayed in a menu (if available).
6. Tap the
button.
7. The map appears with the selected point in the middle. Tap
(Simple mode)
(Advanced mode) from the Cursor menu. The route is then automatically
or
calculated, and you can start navigating.
32
NaviManual_iGo_India_GB.indd 32
20.08.2008 15:47:04 Uhr
3 Navigating with TravelPilot
3.1.5 Selecting the destination with a saved POI search criteria
POI search criteria can be saved in the POI section of the Manage menu, but TravelPilot is already shipped
with some saved criteria you can use instantly when searching for a POI.
The procedure is explained starting from the Navigation menu.
(Simple mode), or
1. Tap the following buttons:
2. Tap
,
(Advanced mode).
.
3. Select one of the saved criteria, and the list of matching POIs appear.
4. Tap the desired POI in the list.
(Simple mode)
5. The map appears with the selected point in the middle. Tap
(Advanced mode) from the Cursor menu. The route is then automatically
or
calculated, and you can start navigating.
3.1.6 Selecting the destination from the History
The destinations that you have set earlier appear in the History.
The procedure is explained starting from the Navigation menu.
(Simple mode), or
1. Tap the following buttons:
mode).
,
(Advanced
to see earlier destinations.
2. If necessary, turn the page with
3. Tap the desired item.
4. The map appears with the selected point in the middle. Tap
(Simple mode)
(Advanced mode) from the Cursor menu. The route is then automatically
or
calculated, and you can start navigating.
3.1.7 Selecting the destination by entering its coordinate
This feature is available in Advanced mode only.
The procedure is explained starting from the Navigation menu.
1. Tap the following buttons:
2. [optional] Tap
,
.
to change the format of the displayed coordinates.
3. Tap the latitude or longitude value to change the coordinate.
4. Enter the coordinate values in WGS84 format on the keyboard: the latitude (N or S) and the longitude
(E or W).
33
NaviManual_iGo_India_GB.indd 33
20.08.2008 15:47:05 Uhr
3 Navigating with TravelPilot
5. Tap
.
6. The map appears with the selected point in the middle. Tap
(Simple mode)
(Advanced mode) from the Cursor menu. The route is then automatically
or
calculated, and you can start navigating.
3.2 Creating a multi-point route (inserting a via point)
Multi-point routes are created from simple routes, so a route must be active first. One of the ways of
expanding the route is to keep the destination, and to add via points (intermediate destinations).
This feature is available in Advanced mode only.
1. Select a new location as you did in the previous sections. This will be the additional destination in
the route.
2. The map appears with the selected point in the middle, and the Cursor menu opens automatically.
3. Tap
destination of the route.
to add the point as an intermediate destination preceding the final
4. [optional] To add more points to the route, repeat the above steps as many times as you like.
If you insert a via point in a route that is already a multi-point route, you will automatically be taken to the
Edit Route screen where you can determine the position of the intermediate route point. When you enter
the screen, the new via point is placed as the last via point before the final destination. The new point is
the selected point in the list.
You have the following options:
Button
Action
The selected point moves up in the list (becomes a via point to be reached earlier).
Tap this button repeatedly, and the point becomes the start point of the route.
The selected point moves down in the list (becomes a via point to be reached later).
Tap this button repeatedly, and the point becomes the final destination of the route.
The route is reversed. The start point becomes the destination, the destination
becomes the start point, and all via points are to be reached in the opposite order
than before.
The route is optimised. The start point and the destination remain at their position,
but the via points are reordered to make the shortest possible route.
The selected point is removed from the route. The route remains as it was before
adding the new point.
Every time a new point is added, the route is recalculated automatically, and you can start navigating
right away.
34
NaviManual_iGo_India_GB.indd 34
20.08.2008 15:47:05 Uhr
3 Navigating with TravelPilot
3.3 Creating a multi-point route (appending a new destination)
Multi-point routes are created from simple routes, so a route must be active first. One of the ways of
expanding the route is to add a new destination. The previous destination becomes the last via point of
the route.
This feature is available in Advanced mode only.
1. Select a new location as you did in the previous sections. This will be the additional destination in
the route.
2. The map appears with the selected point in the middle, and the Cursor menu opens automatically.
to open the full Cursor menu with the additional functions.
3. Tap
to add the point as a new final destination demoting the previous one to
4. Tap
the last intermediate destination.
5. [optional] To add more points to the route, repeat the above steps as many times as you like.
Every time a new point is added, the route is recalculated automatically, and you can start navigating
right away.
3.4 Editing the route
This feature is available in Advanced mode only.
Tap the following buttons:
,
,
.
The list of route points appear with the start point at the top of the list and the final destination at the
bottom. If several via points exist, you might need to turn the page.
Tap one of the route points in the list. You have the following options:
Button
Action
The selected point moves up in the list (becomes a via point to be reached earlier).
Tap this button repeatedly, and the point becomes the start point of the route.
The selected point moves down in the list (becomes a via point to be reached later).
Tap this button repeatedly, and the point becomes the final destination of the route.
The route is reversed. The start point becomes the destination, the destination
becomes the start point, and all via points are to be reached in the opposite order
than before.
The route is optimised. The start point and the destination remain at their position,
but the via points are reordered to make the shortest possible route.
The selected point is removed from the route.
As soon as you leave this screen, the route is recalculated automatically, and you can start navigating
right away.
35
NaviManual_iGo_India_GB.indd 35
20.08.2008 15:47:06 Uhr
3 Navigating with TravelPilot
3.5 Viewing the whole route on the map (Fit-to-Screen)
The map can be moved and scaled to show the whole line of the route. You do not need to manipulate the
map manually. The Plan on Map feature does it for you.
In Advanced mode you have the following options to enter Plan on Map:
•
Via the Find menu: tap
•
Via the Route Information screen: tap
•
Via the Route Information screen using a shortcut: tap
,
,
.
,
,
,
.
,
.
In Simple mode the last option is available only.
3.6 Watching the simulation of the route
This feature is available in Advanced mode only.
The procedure is explained starting from the Map screen.
,
1. Tap the following buttons:
.
2. The Route menu appears. There are two ways of running the route simulation:
•
Tap
•
to run the simulation at normal speed and with voice guidance instructions
Tap
announced. This option is for demonstration purposes, or for checking difficult parts of the
route in advance.
to run the simulation at high speed to give you a quick overview of the route.
3. The simulation can be aborted any time by tapping
.
3.7 Enabling Safety Mode
This feature is available in Advanced mode only.
Safety Mode disables the touch screen above 10 km/h (6 mph) to keep your attention on the road. While
driving, you will not be able to set a new destination or to change settings. The only screen control that
remains enabled is the gesture that puts you back on the Map screen.
The procedure is explained starting from the Map screen.
Tap the following buttons:
,
,
,
.
3.8 Pausing the active route
You do not need to pause the active route: when you start driving again, TravelPilot restarts the voice
instructions from your position.
36
NaviManual_iGo_India_GB.indd 36
20.08.2008 15:47:06 Uhr
3 Navigating with TravelPilot
3.9 Deleting the next via point from the route
The easiest way to delete the upcoming route point (the next via point) in both Simple mode and
Advanced mode is to open the Route Information screen by tapping the Turn Preview field (
) on the
.
Map screen, and then tapping
,
In Advanced mode, you have another option. Tap the following buttons:
,
,
.
3.10 Deleting the active route
The easiest way to delete the active route in both Simple mode and Advanced mode is to open the
Route Information screen by tapping the Turn Preview field (
) on the Map screen, and then tapping
.
In Advanced mode, you have another option. Tap the following buttons:
,
,
.
If via points exist in the active route, you cannot delete the route immediately on the
Note!
Route Information screen. Tap
repeatedly until all via points disappear
button appears. Tap it to cancel the whole route.
and the
3.11 Using Track Logs
TravelPilot can record the track (how your GPS position changed) that you drive.
Tip!
You do not need to select a destination and create a route for this; you can also record
your driving path while cruising.
This feature is available in Advanced mode only.
The procedure is explained starting from the Map screen.
Recording the travelled path (creating a Track Log)
1. Start driving.
2. Tap the following buttons:
3. Start the recording: tap the
,
,
.
button.
You return to the map and you can continue driving.
37
NaviManual_iGo_India_GB.indd 37
20.08.2008 15:47:06 Uhr
3 Navigating with TravelPilot
4. Repeat the above steps, then tap
Track Log with a time stamp.
(As an alternative, you can tap the
Log recording.)
later to stop the recording. TravelPilot labels the
button in the Quick menu to start, and later to stop the Track
Simulating a Track Log on the map
1. Tap the following buttons:
,
,
2. Locate the desired Track Log, and then tap the
.
button next to it.
3. The map returns, and the Track Log simulation (a life-like replay) begins.
4. You can stop the replay any time by tapping the
button.
Changing the colour of a Track Log
1. Tap the following buttons:
,
,
.
2. Tap the desired Track Log and then tap one of the colour buttons.
3.12 Saving a route
This feature is available in Advanced mode only.
The procedure is explained starting from the Map screen.
1. Tap the following buttons:
,
,
.
.
2. Enter a name for the saved route, and then tap
When you save a route, TravelPilot not only saves the route points but the whole itinerary:
•
If you updated your map since you first saved the route, TravelPilot recognises the change, and
recalculates the driving instructions according to the latest available map information.
•
TravelPilot deletes from the route the via points that you already left behind during navigation
together with the road segments used to reach it. To avoid this, if you want to save the route, you
need to save it before you start navigating.
3.13 Loading a saved route
This feature is available in Advanced mode only.
The procedure is explained starting from the Map screen.
1. Tap the following buttons:
,
,
.
2. Tap the route you wish to navigate.
38
NaviManual_iGo_India_GB.indd 38
20.08.2008 15:47:07 Uhr
3 Navigating with TravelPilot
3. In the very likely case when the start position of the saved route is different from the current GPS
position, you need to confirm whether you want to stop navigating from the current GPS position to
use the start point of the loaded route.
•
If you choose this option, the automatic off-route recalculation will be disabled.
•
If you choose to keep the current GPS position as the start point, the route will be recalculated
starting from your current position.
4. The map appears, and you can start navigating.
39
NaviManual_iGo_India_GB.indd 39
20.08.2008 15:47:08 Uhr
4 Reference book (Advanced mode)
4 Reference book (Advanced mode)
On the following pages you will find the description of the different menu screens of TravelPilot
in Advanced mode. In Simple mode, these functions work the same way, but only a few of them are
available.
The Navigation menu:
TravelPilot starts with the Navigation menu. From there you can access the following screens:
Screen
Button
Description
Map
The Map screen.
Find
Selecting the destination (for example an address or a POI) or
using the search engine of TravelPilot for any other reason (for
example to look for the phone number of a POI).
Route
Managing the active route (obtaining information about it,
changing or deleting it or parts of it) or planning a route without
GPS reception.
Manage
Managing user data, such as saved locations (POIs, Favourites,
Pins, and History items), Saved Routes, and Track Logs.
Settings
Managing the behaviour of TravelPilot, for example the map layout
during navigation, the used warnings.
4.1 Map screen
TravelPilot is primarily intended for land navigation. That is why maps in TravelPilot look similar to paper
road maps. However, TravelPilot provides much more than regular paper maps: you can customise the
look and the content of the map.
The most important and most often used screen of TravelPilot is the Map screen.
During navigation, the screen shows route information and trip data (left screenshot), but when you tap
the map, additional buttons and controls appear for a few seconds (right screenshot). Most parts of the
screen behave as buttons.
40
NaviManual_iGo_India_GB.indd 40
20.08.2008 15:47:08 Uhr
4 Reference book (Advanced mode)
Symbol
Name
Action
Turn Preview, that is, the next
route event
Opens the Route Information screen
Second upcoming route event
Opens the Itinerary
Trip data
Opens the Trip Information screen
Battery status
Opens the Quick menu
GPS position quality
Opens the Quick menu
Vehicle used in route calculation
Opens the Quick menu
Top row
Next street
n/a
Bottom row
Current street
n/a
Map view modes
Switches between 2D and 3D map
modes
Menu
Opens the Navigation menu
Detour
Opens the Detour screen, two ways
of modifying the route:
,
•
the list of Saved Search Criteria
•
a button to avoid parts of the
route
Position menu (appears when
navigating a route)
Opens the Position menu
Cursor menu (appears when
there is no GPS position or the
Cursor is not at the current GPS
position)
Opens the Cursor menu
41
NaviManual_iGo_India_GB.indd 41
20.08.2008 15:47:08 Uhr
4 Reference book (Advanced mode)
Symbol
Name
Open/Close Map control buttons
Action
Tap this button to show or hide the
following map control buttons:
•
Zoom in/out
•
Rotate left/right (3D map only)
•
Tilt up/down (3D map only)
•
Zoom preset buttons (2D map
only)
•
Tilt and zoom preset buttons (3D
map only)
•
Return to GPS position button
•
Smart Zoom button
Rotate left, rotate right
Rotates the 3D map left or right
Tilt up, tilt down
Tilts the 3D map
Zoom in, zoom out
Scales the map
Return to GPS position (appears
when GPS position is available
and you have moved the map)
Tap this button to move the map back
to the current GPS position. If the
map has been rotated in 3D mode,
automatic map rotation is also reenabled.
Enable Smart Zoom (replaces the
previous button if there is no GPS
position or the map has not been
moved)
Tap this button once to enable Smart
Zoom.
,
,
,
Tap&hold the button to set the zoom
limits of Smart Zoom.
Zoom preset buttons (available in Tap one of the preset buttons to set
Advanced mode only)
the zoom level to a fix, predefined
value. Smart Zoom is disabled. These
buttons are available in 2D mode.
Tap&hold any of the buttons to set its
value to the current zoom level, or to
reset it to its original value.
42
NaviManual_iGo_India_GB.indd 42
20.08.2008 15:47:08 Uhr
4 Reference book (Advanced mode)
Symbol
Name
Action
Tilt preset buttons (available in
Advanced mode only)
Tap one of the preset buttons to
set the tilt and zoom levels to fix,
predefined values. Smart Zoom is
disabled. These buttons are available
in 3D mode.
Tap&hold any of the buttons to set
its value to the current tilt and zoom
levels, or to reset it to its original
value.
Current GPS position (on nearest
road)
n/a
Cursor (selected map location)
n/a
Lane information
n/a
Note: This feature is only
available if the corresponding
data are present on the map
version.
Orange line
Active route
n/a
Map scale (2D map only)
n/a
4.1.1 Icons on the map
There are several status icons on the map. Most of them also function as a button. The information they
provide is as follows:
•
GPS position quality
•
Battery status
•
Vehicle type used for route calculation
•
Sound status (muted or enabled)
•
Track log recording status
4.1.1.1 Battery, GPS position quality and Vehicle type indicator
This is a complex indicator, and a button that opens the Quick menu.
The battery part shows information about the rechargeable battery of the device.
Icon
Description
The battery is charging. The device runs on external power.
43
NaviManual_iGo_India_GB.indd 43
20.08.2008 15:47:09 Uhr
4 Reference book (Advanced mode)
Icon
Description
The battery is not charging but it is full.
The battery is not full but it still has enough capacity.
You need to recharge the battery.
The GPS reception quality shows the current accuracy of the position information.
Icon
Description
TravelPilot is connected to the GPS receiver, but the signal is too weak and the
receiver cannot determine the GPS position.
GPS navigation is not possible.
Only a few satellites are received. Position information is available, but elevation
(altitude) cannot be calculated.
GPS navigation is possible, but the position error may be significant.
Altitude information is available, the position is a 3D position.
GPS navigation is possible.
The remaining part of the field shows the vehicle type used for route calculation.
Icon
Vehicle type
Car
Taxi
Bus
Emergency vehicles
Bicycle
Pedestrian
44
NaviManual_iGo_India_GB.indd 44
20.08.2008 15:47:09 Uhr
4 Reference book (Advanced mode)
4.1.1.2 Status indicator strip
This is a complex indicator. In one strip it indicates the following status information:
Icon
Description
The sound output of TravelPilot is muted.
The sound output of TravelPilot is enabled.
TravelPilot records a Track log when GPS position is available.
Track log recording is disabled.
4.1.1.3 Next two route events (Turn Preview fields)
There are two fields reserved on the Map screen to display the next two manoeuvres (route events that
are listed in the Itinerary). Both the type of the event (turn, roundabout, exiting motorway, etc.) and its
distance from the current GPS position is displayed.
Most of these icons are very intuitive and you also know them as road signs. The following table lists
some of the frequently shown route events. The same symbols are used in both fields:
Icon
Description
Turn left.
,
Turn right.
,
Turn back.
,
Bear right.
,
Turn sharp left.
,
Keep left.
,
Continue straight in the intersection.
,
,
Enter roundabout. The number of the exit is shown in the circle, but only for the
next turn.
45
NaviManual_iGo_India_GB.indd 45
20.08.2008 15:47:10 Uhr
4 Reference book (Advanced mode)
Icon
Description
Enter motorway.
,
Exit motorway.
,
Board ferry.
,
Leave ferry.
,
Approaching the next via point.
,
Approaching the destination.
,
In certain situations when route events are not important, these fields show other useful pieces of
information. They are described here: page 15.
4.1.2 Objects on the map
4.1.2.1 Streets and roads
TravelPilot shows the streets in a way that is similar to how the paper road maps show them. Their width
and colours correspond to their importance: you can easily tell a motorway from a small street.
If you prefer not to see street names during navigation, turn them off (page 65).
Tip!
4.1.2.2 Elements of the active route
TravelPilot shows the route in the following way:
Symbol
Name
Current GPS position
Cursor (selected map
location)
Description
Your current position displayed on the map.
•
In pedestrian mode it is the exact GPS position.
•
If a vehicle is selected for route calculation, the
arrow is put on the nearest road.
The location selected in the Find menu, or a map point
selected by tapping the map.
46
NaviManual_iGo_India_GB.indd 46
20.08.2008 15:47:10 Uhr
4 Reference book (Advanced mode)
Symbol
Name
Start point
Description
The first point of the route.
Normally, if GPS position is available, it is the start point
of the route. If there is no valid GPS position, TravelPilot
uses the last known GPS position as the start point.
When you are using a saved route, TravelPilot asks you if
you want to use your GPS position or the first point in the
saved route as the start point.
You can also modify the start point in the Cursor menu.
If you do so, the automatic off-route recalculation needs
to be turned off to keep the selected point as the start
point.
If the automatic off-route recalculation is disabled for any
icon in the Turn Preview
of the above, tapping the
field not only initiates a route recalculation from the
current GPS position, but it will re-enable the automatic
off-route recalculation as well.
Via point
A via point is an intermediate destination. You can place
as many via points as you want.
Destination (end point)
The last point of the route, the final destination.
Route colour
The route always stands out with its colour on the map,
both in daytime and in night colour mode. The active leg
of the route is always displayed in a brighter shade than
the inactive (upcoming) legs.
Active leg of the route
The section of the route on which you are driving.
If you have not added any via points (only a destination),
the entire route is the active leg. If you have added via
points, the active leg is the part of the route from your
current location to the next route point (the next via
point, or the destination if there are no more via points
to reach).
Inactive legs of the route
The future sections of the route; each of them becomes
active when you reach the via point at its beginning.
Streets and roads that
are excluded from the
navigation
You can choose whether you want to use or avoid certain
road types (page 66). However, when TravelPilot cannot
avoid such roads, the route will include them and it will
show them in a colour that is different from the route
colour.
47
NaviManual_iGo_India_GB.indd 47
20.08.2008 15:47:10 Uhr
4 Reference book (Advanced mode)
4.1.3 Detour menu
This screen contains quick detour possibilities during navigation. It can be opened directly from the Map
.
screen by tapping
You have the following options:
•
On the main part of the screen you can see the first page of Saved Search Criteria. Select any of the
criteria to quickly receive the list of nearest matching POIs, and instantly plan a new route to the
desired one, or insert it as a via point in your active route.
•
In Advanced mode more buttons appear at the bottom:
•
: If you want to bypass a part of the route starting from the next intersection, tap
this button, and select a distance to bypass.
•
: If you have used the above function before, tap this button to clear the restrictions
from the map.
4.1.4 Cursor menu
As soon as you select one point in the Find menu, the map appears with the Cursor menu, a menu with
possible actions for the selected point.
Alternatively, when you tap the map, control buttons appear. Tap again to place the Cursor, a radiating
red dot. Now tap
, and the Cursor menu opens with a list of options.
In order to show a part of the map with the Cursor menu, it contains only a few buttons first. Tap
to get all the options.
Button
Description
Closes the Cursor menu, and returns to the previous screen.
Zooms out the map.
Zooms in the map.
With the Cursor menu open, you can still move or scale the map, and tap
the map anywhere to place the Cursor to a new location, but when you use
this button, the Cursor jumps back to the place where it was at the time
when you opened the Cursor menu.
Displayed at the Cursor if it is at the same location with which the Cursor
menu was opened.
Displayed at the Cursor if it has been relocated since the Cursor menu was
opened.
48
NaviManual_iGo_India_GB.indd 48
20.08.2008 15:47:11 Uhr
4 Reference book (Advanced mode)
Button
Description
Opens a new screen with the address and coordinate of the Cursor, and the
list of nearby POIs.
Opens the full-screen Cursor menu with all the possible options.
A new route is calculated with the Cursor as the destination. The previous
route is deleted.
If the Cursor is at or near the destination, this button replaces the previous
one, and deletes the current destination from the route. The last via point is
promoted as destination, or if there are no via points, the route is deleted.
The Cursor is added to the active route as an intermediate route point, a
point to be reached before the destination. If there is already a via point in
the route, the Edit Route screen opens to let you decide where the new via
point is to appear in the route.
If the Cursor is at or near one of the via points, this button replaces the
previous one, and deletes the selected via point from the route. The route is
recalculated without the deleted point.
The Cursor is appended at the end of the route as the new destination. The
previous destination is demoted, and becomes the last via point.
This button is similar to the
button, but a new screen
opens, and the route is calculated with all the possible route calculation
methods (Fast, Short, Economical and Easy). Observe the results, and
choose one of the routes to navigate.
The Cursor becomes the start point of the route. This means that the route
will not be started from the current GPS position, and Automatic Off-route
Recalculation needs to be turned off to keep the start point the selected
one.
If the Cursor is at or near the selected start point, this button replaces
the previous one, and deletes the start point from the route. The current
GPS position is used again as the start point, and Automatic Off-route
Recalculation is re-enabled.
The Cursor is saved as a user POI. Select the POI group and give a name for
the POI, then select a suitable icon, enter a phone number, and additional
information if you like.
Map locations can be marked with Pins. Unlike POIs, a Pin has no name and
other details, only a colour to let you tell one from another on the map.
If the Cursor is at or near a Pin, this button replaces the previous one, and
deletes the Pin the Cursor is near to.
49
NaviManual_iGo_India_GB.indd 49
20.08.2008 15:47:11 Uhr
4 Reference book (Advanced mode)
Button
Description
The Cursor is saved as the location of a Road Safety Camera (speed camera
or red light camera). A new screen appears where you can set the type
of the camera, the direction of the measured traffic, and the speed limit
checked (if applicable).
If the Cursor is at or near a Road Safety Camera, this button replaces the
previous one, and opens a new screen where you can edit the details of the
camera.
The location of the Cursor is added to the list of frequently visited destinations,
the so called Favourites. You can give a name for the Favourite.
4.1.5 Position menu
When you follow the recommended route on the map (the Cursor is the current GPS position), the
Position menu replaces the Cursor menu. It does not contain buttons that modify the current route, as
the GPS position is not useful as a route point.
To open the Position menu, tap
.
4.1.6 Route Information screen
The Route Information screen has all the data and some of the functions you need while you navigate.
There are two ways to open this screen:
•
It can be opened directly from the Map screen by tapping the Turn Preview field (
•
In Advanced mode, from the Navigation menu tap the following buttons:
,
).
.
In the top section of the screen you see information about the current route. The fields on this screen are
continuously updated while you keep the screen open.
When you open the screen, all fields contain information about reaching your final destination. Tap any of
the fields to see data on the via points starting from the first one through the final destination again.
50
NaviManual_iGo_India_GB.indd 50
20.08.2008 15:47:12 Uhr
4 Reference book (Advanced mode)
You have the following data and functions on this screen:
Name
Description
Function
Route line
The upper part of this screen shows your planned
route as a horizontal line. Its leftmost point is
the start of the route, the rightmost one is the
final destination, and you can see your via point
flags along the line, spaced in proportion to their
distance.
Tap this field to change the
content of all data fields to
via point information.
Estimated
Arrival
Shows the estimated arrival time at the final
destination of the route based on information
available for the remaining segments of the route.
The calculation cannot take into account traffic
jams and other possible delays.
Tap this field to change the
content of all data fields to
via point information.
Distance Left
Shows the distance you need to travel on the route Tap this field to change the
before reaching your final destination.
content of all data fields to
via point information.
Time Left
Shows the time needed to reach the final
destination of the route based on information
available for the remaining segments of the route.
The calculation cannot take into account traffic
jams and other possible delays.
Tap this field to change the
content of all data fields to
via point information.
Method
This field shows how the route was calculated. It
either displays the Route Calculation Method or
the Vehicle field from the Route Planning options.
If you have chosen Car, Taxi or Bus, the type of the
route (Fast, Short, Easy or Economical) will be
displayed here; if you have selected Emergency,
Bicycle or Pedestrian, this information will be
displayed here.
Tap this field to change the
content of all data fields to
via point information.
Warning icons
In these square fields graphical symbol are
displayed in case warnings are attached to the
planned route. These are warnings, so icons
always show information for the whole route, even
if the data fields display values from your current
position to a via point only.
Tap any of the icons for an
explanation.
Opens the Route Planning
options screen from the
Settings menu.
Opens the map screen
designed for route planning.
51
NaviManual_iGo_India_GB.indd 51
20.08.2008 15:47:12 Uhr
4 Reference book (Advanced mode)
Name
Description
Appears only if at least one via point exists.
Function
Deletes the next via point
from the route.
Appears only if there are no via points in the route. Deletes the active route.
4.1.7 Trip Information screen
The Trip Information screen has both route and travel data you might need during your journey. It can be
opened directly from the Map screen by tapping the Trip Data field (
).
The fields on this screen are continuously updated while you keep the screen open.
When you open the screen, all route data fields contain information about reaching your final destination.
and the fields concerning your route display data for the next via point. Tap the button
Tap
repeatedly to toggle between the two possibilities.
You have the following data and functions on this screen:
Name
or
Description
Function
Shows whether the route data fields show
information about the final destination (checkered
flag) or about the next via point (yellow flag).
Field next to
the flag
Shows the name or number of the current street
or road.
Turn Preview
Shows the type and distance of the next route
event.
Compass
Shows the current heading.
Tap this field to show it on the
map screen in one of the Trip
Data fields.
Speedometer
Shows the current speed both graphically and as
a number.
Tap this field to show it on the
map screen in one of the Trip
Data fields.
52
NaviManual_iGo_India_GB.indd 52
20.08.2008 15:47:12 Uhr
4 Reference book (Advanced mode)
Name
Description
Function
Distance
Remaining
Shows the distance you need to travel on the route Tap this field to show it on the
before reaching your final destination.
map screen in one of the Trip
Data fields.
Time
Remaining
Shows the time needed to reach the final
destination of the route based on information
available for the remaining segments of the route.
The calculation cannot take into account traffic
jams and other possible delays.
Tap this field to show it on the
map screen in one of the Trip
Data fields.
Arrival Time
Shows the estimated arrival time at the final
destination of the route based on information
available for the remaining segments of the route.
The calculation cannot take into account traffic
jams and other possible delays.
Tap this field to show it on the
map screen in one of the Trip
Data fields.
GPS Time
Shows the current time corrected with time zone
offset. The accurate time comes from the GPS
satellites, and the time zone information comes
from the map or it can be set manually in Regional
settings.
Tap this field to show it on the
map screen in one of the Trip
Data fields.
Altitude
Shows the elevation if it is provided by the GPS
receiver.
Tap this field to show it on the
map screen in one of the Trip
Data fields.
Speed Limit
Shows the speed limit of the current street if the
map contains it.
Tap this field to show it on the
map screen in one of the Trip
Data fields.
Opens a new screen with
three resettable Trip
Computers.
Tap this button to change the
content of the Route Data
fields to show information
about the next via point.
If you tap the previous button, this one replaces it.
Tap this button and the Route
Data fields show information
about the final destination
again.
53
NaviManual_iGo_India_GB.indd 53
20.08.2008 15:47:13 Uhr
4 Reference book (Advanced mode)
Most of the fields on this screen have a symbol next to them. This symbol shows whether the field it is
attached to is shown on the map as a Trip Data. It also shows the position of the data as follows:
Symbol
Description
This value is not shown on the map screen.
This value appears on the map screen in the Trip Data area. This is the value at the
top.
This value appears on the map screen in the Trip Data area. This is the value in the
middle.
This value appears on the map screen in the Trip Data area. This is the value at the
bottom.
4.1.7.1 Trip Computer screen
The Trip Computer screen provides collected trip data. It can be opened from the Trip Information screen
.
by tapping
The fields on this screen are continuously updated while you keep the screen open.
You can switch between the trips, pause then resume them, or reset their data.
You have the following functions on this screen:
Name
Description
Pauses the trip currently shown on the screen. Values on the screen stop changing.
This button replaces the previous one if it has been activated. Tap it to resume
collecting trip data.
Resets all counters of the currently shown trip. Collecting trip data is restarted
only when TravelPilot receives a position from the GPS.
Cycles through all trips.
,
4.1.8 Quick menu
The Quick menu is a selection of controls that are frequently needed during navigation. It can be opened
directly from the Map screen by tapping
.
54
NaviManual_iGo_India_GB.indd 54
20.08.2008 15:47:13 Uhr
4 Reference book (Advanced mode)
If you tap any of the switches in the Quick menu except for the Vehicle type, the Map screen immediately
returns. A switch is on if its lamp is lit. The Vehicle type button is different. It is a multi-value button. It
opens a list of available choices, and the symbol of the selected vehicle is shown on the button.
Name
Master Volume
slider
Main function (single tap)
Function (tap and hold)
Adjusts the sound volume of the device. All
sounds of the application are involved.
No action.
If you only adjust the volume, you need to use this
button to return to the Map screen.
Opens the Navigation menu.
Mutes all sounds of TravelPilot.
Opens Sound settings.
Switches between the daytime and night colour
schemes manually. This will not disable the
automatic switching between the two schemes:
the other colour scheme returns at the next
scheduled time.
Opens Colour Profiles
settings.
This function is not supported by the map version in this device.
Tap this button and select the Vehicle type to be
used for route calculation. Otherwise it is selected
in Route Planning options in Settings (page 66).
Opens Route Planning
options.
Changing the Vehicle type triggers an automatic
route recalculation.
Turns track log recording on or off otherwise
controlled on the Manage Track Logs screen.
Opens Manage Track Logs.
Opens the GPS Data screen with satellite
information, data coming from the GPS receiver,
and a shortcut to the GPS Settings screen if
needed (GPS receiver detection is automatic).
No action.
This button is not available. TMC (Traffic Message Channel) is not supported in this
device.
55
NaviManual_iGo_India_GB.indd 55
20.08.2008 15:47:14 Uhr
4 Reference book (Advanced mode)
4.1.9 GPS data screen
Tap the following buttons:
of the GPS reception.
Icon
,
Colour
Green
to open the GPS Data screen and to see the status
Name
GPS
position
quality
indicator
Description
TravelPilot has a connection to the GPS
receiver and GPS position information is
available in 3D: TravelPilot can calculate
both your horizontal and vertical GPS
position.
Yellow
TravelPilot has a connection to the GPS
receiver and GPS position information
is available in 2D: only the horizontal
position is calculated, TravelPilot cannot
calculate your vertical GPS position.
Grey
TravelPilothas a connection to the GPS
receiver but GPS position information is
not available.
Red
TravelPilot has no connection to the GPS
receiver.
Green, blinking
Yellow, blinking
Red, blinking
GPS
connection
quality
indicator
TravelPilot is connected to the GPS
receiver.
TravelPilot has no connection to the GPS
receiver but it is still trying to establish a
connection.
TravelPilot has no connection to the GPS
receiver and does not try to establish a
connection.
56
NaviManual_iGo_India_GB.indd 56
20.08.2008 15:47:14 Uhr
4 Reference book (Advanced mode)
Icon
Colour
Name
Sky view circle
Description
The virtual sky shows the visible part of
the sky above you, with your position
as the centre. The satellites are shown
at their current positions. The GPS
receives data from both the green and
yellow satellites. Signals from the yellow
satellites are only received, while green
ones are used by the GPS to calculate
your current location.
n/a
Coordinates
Your current GPS position in WGS84
format.
n/a
Status bar for the satellites
Dark bars are for the yellow and lit bars
are for the green satellites. The more
satellites your GPS tracks (the green
ones), the better is your calculated
position.
4.2 Find menu
Select the destination of your route. Tap the following buttons:
Button
,
.
Description
Reference
If you know at least a part of the address, this is the quickest way to
find the location.
page 28
You can select your destination from the thousands of POIs
included with TravelPilot or from the ones you have previously
created.
page 31
The destinations that you have already entered in TravelPilot are
available in the History list.
page 33
You can select your destination by entering its coordinates.
page 33
You can select as your destination a location that you have already
saved as a Favourite.
page 31
Opens a special 2D map screen optimised for route planning. Only
the Zoom in and Zoom out buttons and the route modification
buttons of the Cursor menu appear.
57
NaviManual_iGo_India_GB.indd 57
20.08.2008 15:47:15 Uhr
4 Reference book (Advanced mode)
4.3 Route menu
Save, load and edit your routes. Tap the following buttons:
Button
,
.
Description
Reference
Opens a screen with useful route data.
page 50
You can browse the driving instructions that TravelPilot follows
during navigation. You can exclude manoeuvres or streets to adjust
the route to your preferences.
page 22
You can modify the route: remove route points or change their
order.
page 35
Erase the active route with all its route points (start point, via points
and destination). If you later decide that you need the same route,
you will have to rebuild it from scratch.
page 37
You can save the active route for later use.
page 38
You can load a previously saved route for navigation.
page 38
Opens the Route settings screen with controls to modify the
vehicle, the road types used for route calculation, or the route
calculation method.
page 66
You can run a demonstration of the route at high speed.
page 24
You can run a demonstration of the route at normal speed.
page 24
4.4 Manage menu
You can manage the content that TravelPilot stores. Tap the following buttons:
Button
,
Description
.
Reference
Renaming or deleting saved routes
page 59
Deleting History items
page 59
Recording, simulating, renaming or deleting track logs, assigning
colour to them to be shown on the map
page 60
58
NaviManual_iGo_India_GB.indd 58
20.08.2008 15:47:15 Uhr
4 Reference book (Advanced mode)
Button
Description
Reference
Renaming or deleting Favourites
page 61
Creating, updating or deleting POIs
page 61
Creating, updating or deleting POI groups
Modifying POI visibility settings
Creating, renaming or deleting Saved Search Criteria
page 63
4.4.1 Manage Saved Routes
You can manage the previously saved routes. Tap the following buttons:
Button
Button with the name
of the saved route
,
,
.
Description
Opens the selected route for editing.
Deletes the selected route.
Clears the list of saved routes.
Turns the page for additional list items.
,
4.4.2 Manage History
You can manage the list of locations you used lately. Tap the following buttons:
Button
,
,
.
Description
Deletes the selected item in the History.
Deletes the entire History.
Turns the page for additional list items.
,
59
NaviManual_iGo_India_GB.indd 59
20.08.2008 15:47:16 Uhr
4 Reference book (Advanced mode)
4.4.3 Manage Track Logs
You can record Track Logs, then play them back, display them on the map, and see their details. Tap the
following buttons:
,
,
.
Button
Description
Starts recording the track that you drive. (You can also start recording a
track log in the Quick menu.)
Stops the ongoing Track Log recording. (You can also stop the track log
recording in the Quick menu.)
Clears the list of saved Track Logs.
Button with the name
of the track log
Shows the details of the selected Track Log.
Starts a simulated playback of the selected Track Log on the map.
Turns the page for additional list items.
,
When track log details are shown:
Button
Button with the name
of the Track Log
Description
Opens a keyboard screen to let you rename the Track Log.
Tap this button to hide the Track Log on the map. No colour will be assigned
to the Track Log.
Tap one of the coloured buttons to assign a colour to the Track Log. The
Track Log will be shown on the map with this colour.
The map returns with the Track Log. The map is scaled to show the whole
Track Log.
Deletes the selected Track Log.
Saves the Track Log on the inserted memory card in GPX format.
60
NaviManual_iGo_India_GB.indd 60
20.08.2008 15:47:16 Uhr
4 Reference book (Advanced mode)
4.4.4 Manage Favourites
You can manage the list of your Favourites. Tap the following buttons:
Button
Button with the name
of the Favourite
,
,
.
Description
Opens the selected Favourite for editing.
Deletes the selected item in the list of Favourites.
Clears the list of Favourites.
Turns the page for additional list items.
,
4.4.5 Manage POIs
You can manage your POIs, and set the POI visibility for both your POIs and the ones that came with the
product. Tap the following buttons:
,
,
.
Button / Icon
Description
Button with the name
of the POI group
Opens the list of the subgroups of this POI group. The new list behaves the
same as this one.
Button with the name
and address of a POI
item
Opens the selected POI for editing. Only the POIs you have created appear
in this list.
Opens the selected POI group for editing.
Tap to filter the list to contain only the POIs that you saved.
Tap to see all POIs in the list.
Creates a new POI group at the given group level.
Turns the page for additional list items.
,
This POI group is not shown on the map.
61
NaviManual_iGo_India_GB.indd 61
20.08.2008 15:47:17 Uhr
4 Reference book (Advanced mode)
Button / Icon
Description
This POI group and all its subgroups are shown on the map.
This POI group and some of its subgroups are shown on the map.
When a POI group is open for editing:
Button
Description
Items in the POI group will not be shown on the map.
,
The distance buttons set the zoom level from which the items in the POI
group will be shown on the map.
, ...
Subgroups under the edited POI group will inherit its visibility settings.
Button with the icon of Tap this button to select a new icon for the POI group.
the POI group
Deletes the edited POI group. You are only allowed to remove POI groups
that you have created.
When a POI item is open for editing:
Button
Button with the name
of the POI
Description
Tap this button to rename the POI.
Button with the icon of Tap this button to select a new icon for the POI.
the POI
Tap this button to enter a telephone number for the POI.
Tap this button to enter additional information for the POI.
Tap this button to delete the selected POI.
Tap this button to move the POI to another POI group or subgroup.
62
NaviManual_iGo_India_GB.indd 62
20.08.2008 15:47:17 Uhr
4 Reference book (Advanced mode)
4.4.6 Manage Saved Search Criteria
You can manage the list of search criteria previously saved to easily find frequently searched POI types.
Tap the following buttons:
,
,
.
Button
Button with the name
of the Saved Search
Criteria
Description
Tap to rename the saved query.
Deletes the selected item in the list.
Deletes the entire list.
Turns the page for additional list items.
,
Tap to save a new search criteria. Similar to how you search for a POI,
select the search reference first, then select the POI group or subgroup to
search in.
4.4.7 User Data Management
You can manage the data you have saved (Pins, POIs, Favourites, History, and Track logs) and the settings
you have made in the program. Tap the following buttons:
Button
,
,
.
Description
Remove Pins
Map locations can be marked with Pins using the
button in the Cursor menu. Tap this button to remove all your Pins from the
map.
Backup User Data
All user data and the current settings will be saved on the inserted memory
card. There is always one backup file. If you perform a backup later, the
previous backup will be overwritten with the new information.
Restore User Data
All user data and settings will be overwritten with the information stored
in the backup file. Data and settings created after the latest backup will be
lost.
Delete User Data
All user data will be deleted, and settings will return to their factory
defaults.
Reset All Settings
All settings will return to their factory defaults, but no user data will be
deleted.
63
NaviManual_iGo_India_GB.indd 63
20.08.2008 15:47:18 Uhr
4 Reference book (Advanced mode)
4.5 Settings menu
You can configure the program settings, and modify the behaviour of TravelPilot. Tap the following
buttons:
,
.
The Settings menu has two pages of submenus. Tap
Button
to access the other options.
Description
Reference
You can fine-tune the appearance and content of the Map screen.
page 65
You can adjust the sounds of TravelPilot.
page 65
These settings determine how routes will be calculated.
page 66
These settings allow you to adjust the application to your local
language, measurement units, time and date and their formats, as
well as choose the voice guidance profile you prefer.
page 68
You can control how TravelPilot behaves during navigation.
page 69
You can enable some handy warnings, and disable the touch
screen in a moving vehicle with Safety Mode.
page 70
You can set up the connection to the GPS receiver.
page 70
This function is not supported in this device.
You can modify the look and behaviour of the Menu screens.
page 71
This function is not supported in this device.
You can set up an automatic Track Log saving, and fine-tune its
settings.
page 71
64
NaviManual_iGo_India_GB.indd 64
20.08.2008 15:47:18 Uhr
4 Reference book (Advanced mode)
Button
Description
Reference
This screen has no navigation feature. It merely provides
information about the maps and licenses included with your
navigation system.
You can switch to Simple mode. In Simple mode only a few of the
above settings are available. The rest of the settings are set to
values that are optimal for typical use.
page 8
4.5.1 Map Screen settings
You can fine-tune the appearance and content of the Map screen. Tap the following buttons:
,
,
.
Button
Description
3D Settings
This function is not supported by the map version in this device.
Colour Profiles
TravelPilot is able to show the map and the menus in different colours
during the day and during the night. Select the colour profiles to be used
in each mode, and select the automatic or manual switching between
the daytime and night colour profiles.
Elevation on 2D Map
This function is not supported by the map version in this device.
Show Street Names
Street names and POI icons can be disturbing on the map during
navigation. With this switch you can suppress these map elements when
TravelPilot is following your position on the map. If you move the map,
both the street names and POI icons reappear immediately.
Lane Information
Some maps contain lane information to help you position your car in the
upcoming intersection. This setting tells TravelPilot whether to display
this information at the top or at the bottom of the map.
Note: This feature is only available if the corresponding data are present
on the map version.
4.5.2 Sound settings
You can adjust the sounds of TravelPilot. Tap the following buttons:
Button
Master Volume
,
,
.
Description
Use the switch to mute all sounds of the device and then to re-enable
them again. The position of the fader determines the volume level.
The loudness of TravelPilot is independent of your device settings. When
you exit the program, the device default settings return.
65
NaviManual_iGo_India_GB.indd 65
20.08.2008 15:47:19 Uhr
4 Reference book (Advanced mode)
Button
Description
Voice Guidance Volume
The slider adjusts the loudness of voice prompts. In its leftmost
position, the voice guidance is suppressed; in its rightmost position, the
master volume applies.
Key Sounds
Key sounds are audible confirmation of either pressing hardware
buttons or tapping the touch screen.
The switch turns the key sounds on or off. Key sounds are played at the
master volume level.
Dynamic Volume
When driving at high speed, the noise in the car may be too loud to
clearly hear the voice guidance and other sounds. Using Dynamic
Volume you can instruct TravelPilot to increase the volume when your
speed exceeds a certain minimum, and reach its highest volume at the
given maximum speed.
4.5.3 Route Planning options
These settings determine how routes will be calculated. Tap the following buttons:
,
,
.
Button
Description
Vehicle
You can set the type of vehicle you will use to navigate the route. Based
upon this setting, some of the road types will be excluded from the
route (e.g. motorways for pedestrians), or some of the restrictions may
not be taken into account (e.g. emergency vehicles have only a few
restrictions).
Road Types Used for
Route Planning
To let the route fit your needs, you can also set which road types are to
be considered for or to be excluded from the route, if possible.
Excluding a route is a preference. It does not necessarily mean total
prohibition. If your destination can only be accessed using some of the
excluded road types, they will be used, but only as much as necessary.
In this case a warning icon will be shown on the Route Information
screen, and the part of the route not matching your preference will be
displayed in a different colour on the map.
Route Calculation
Method
You can choose from different route types. The routing method can also
be chosen while creating the route: when the destination is selected, tap
in the Cursor menu.
66
NaviManual_iGo_India_GB.indd 66
20.08.2008 15:47:19 Uhr
4 Reference book (Advanced mode)
Vehicle types:
•
Car
•
Taxi
•
Bus
•
Emergency vehicles
•
Bicycle
•
Pedestrian
Road Types Used for Route Planning:
Type
Description
Motorways
You might need to avoid motorways when you are driving a slow car or
you are towing another vehicle.
Unpaved roads
TravelPilot excludes unpaved roads by default: unpaved roads can be in
a bad condition and usually you cannot reach the speed limit on them.
Toll roads
By default TravelPilot includes toll roads (pay roads where there is a
per-use charge) in the routes. If you disable toll roads, TravelPilot plans
the best toll-free route.
Charge roads
Charge roads are pay roads where you can purchase a pass or vignette to
use the road for a longer period of time. They can be enabled or disabled
separately from toll roads.
Permit needed
You might need a permit or permission from the owners to use certain
roads or to enter certain areas. TravelPilot excludes these roads from the
route calculation by default.
Ferries
TravelPilot includes ferries in a planned route by default. However, a
map does not necessarily contain information about the accessibility of
temporary ferries. You might also need to pay a fare on ferries.
Cross-border planning
In some cases the route calculated according to your other navigation
and route preferences would lead through another country. If you wish
to always stay within the same country, turn this option off.
Route Calculation Method types:
Option
Description
Fast
Gives the quickest possible route if you can travel at or near the speed
limit on all roads. Usually the best selection for fast and normal cars.
Short
Gives a route that has the smallest total distance of all possible routes
between the route points. Usually practical for pedestrians, cyclists or
slow vehicles.
67
NaviManual_iGo_India_GB.indd 67
20.08.2008 15:47:20 Uhr
4 Reference book (Advanced mode)
Option
Description
Economical
Combines the benefits of Fast and Short: TravelPilot calculates as if it
were calculating the Fast route, but it takes other roads to save petrol.
Easy
Results in a route with fewer turns. With this option, you can make
TravelPilot to take, for example, the motorway instead of series of
smaller roads or streets.
4.5.4 Regional settings
These settings allow you to adjust the application for your local language, measurement units, time and
date and their formats, as well as choose the voice guidance profile you prefer. Tap the following buttons:
,
,
Button
.
Description
Program Language
This button displays the current written language of TravelPilot. By
tapping the button, you can select a new one from the list of available
languages. Just tap OK when you have selected the new spoken
language. The application will restart if you change this setting; you are
asked to confirm this.
Voice Profile
This button shows the current language of the voice guidance. By
tapping the button, you can select a new one from the list of available
languages and speakers. Tap any of these to hear a sample voice
prompt. Just tap OK when you have selected the new spoken language.
Units
You can set the distance units to be used by the program. TravelPilot
may not support all the listed units in some voice guidance languages.
If you select a measurement unit not supported by the chosen voice
guidance language, a warning message will appear.
Set Date & Time Format
You can set the date and time format. Various international formats are
available.
Time and Time Zone
Settings
You can access time and time zone settings. TravelPilot helps you with
correcting the device time to the ever accurate GPS time. TravelPilot can
also help you set the time zone based on your current GPS position.
68
NaviManual_iGo_India_GB.indd 68
20.08.2008 15:47:20 Uhr
4 Reference book (Advanced mode)
Time and Time Zone Settings:
Button
Description
Auto Time Correction
to GPS
Use this feature to synchronise the clock of your device to the very
accurate time provided by the GPS receiver.
Use Auto Time Zone
Use this feature to synchronise the time zone of the clock of your device
to the time zone based on your current GPS position. This is useful if you
travel abroad.
Set Time Zone
Set time zone manually if you do not want to synchronise the time zone
automatically. This allows you to use Auto Time Correction and apply a
time zone offset to obtain the desired time.
Compare GPS and device The current time of the GPS receiver and the device clock are displayed.
times
Please note that the GPS clock is only available with GPS reception. This
allows you to check whether any correction is needed.
4.5.5 Navigation settings
You can control how TravelPilot behaves during navigation. Tap the following buttons:
,
,
.
Button
Keep Position on Road
Description
This feature allows car drivers to always correct GPS position errors
by matching the vehicle position to the road network. For pedestrian
navigation, this feature is automatically disabled to let the software
show your exact position.
By turning off this feature you also turn off the GPS position error
filtering. The position shown on the map will be subject to all position
errors and position fluctuations.
Off-route Recalculation
This switch tells TravelPilot whether to automatically recalculate the
route when you deviate from it. If this feature is turned off, you need
to initiate route recalculation manually otherwise navigation will be
stopped until you return to the originally recommended route.
Setting another point than the current GPS position as the start point of
the active route will automatically disable this feature.
Restore Lock-to-Position
If you have moved or rotated the map during navigation, this feature
moves the map back to your current GPS position and re-enables
automatic map rotation after the given period of inactivity.
69
NaviManual_iGo_India_GB.indd 69
20.08.2008 15:47:20 Uhr
4 Reference book (Advanced mode)
Button
Automatic Overview
Description
This feature switches the map view to Overview mode when the next
route event is at a distance. Overview is a zoomed out 2D view to let you
see the surrounding area. You have the following controls for Automatic
Overview:
•
Turn Distance for Overview: The map view will be switched to
Overview mode if the next route even is at least as far as this value.
•
Default Zoom Level: Overview mode will appear with this zoom
level. You can scale the map in Overview mode but next time
Overview appears again, this zoom level will be applied.
4.5.6 Warning settings
You can enable some handy warnings, and disable the touch screen in a moving vehicle with Safety
Mode. Tap the following buttons:
Button
,
,
.
Description
Warn When Speeding
This function is not supported by the map version in this device.
Speed Camera Warning
This function is not supported by the map version in this device.
Warn if Too Fast for a
Pedestrian
Enable this warning to be alert if pedestrian mode is activated and you
drive fast. You are asked if you want to change to car navigation mode.
This way you can be sure you will not be routed via one-way roads in the
wrong direction as a pedestrian could, for example.
Safety Mode
Safety Mode disables the touch screen above 10 km/h (6 mph) to keep
your attention on the road. While driving, you will not be able to set
a new destination or to change settings. The only screen control that
remains enabled is the gesture that puts you back on the Map screen.
4.5.7 GPS settings
You can set up the connection to the GPS receiver. Tap the following buttons:
,
,
.
Button
GPS receiver ...
Description
The first line of the screen informs you about the connection status of
the GPS receiver.
Connecting the GPS receiver is automatic in TravelPilot, so normally you
will not need this screen of settings at all.
70
NaviManual_iGo_India_GB.indd 70
20.08.2008 15:47:20 Uhr
4 Reference book (Advanced mode)
Button
Description
GPS Enabled
Turn the connection to the GPS receiver on or off. Turning off the GPS
receiver can be useful for indoors use or demonstration purposes.
Port
The communication port used between the GPS receiver and the
application.
Baud Rate
The communication speed used between the GPS receiver and the
application.
Autodetect
Tap this button and let TravelPilot find and connect the GPS receiver.
4.5.8 Menu settings
You can modify the look and behaviour of the Menu screens. Tap the following buttons:
,
,
.
Button
Description
Animation
You can activate and deactivate the Menu animations. When animation
is turned on, buttons on Menu and keyboard screens appear in an
animated way.
Background
You can choose the image to be used as the menu background image.
Skin
This function is not supported in this device.
4.5.9 Track Log settings
You can set up an automatic Track Log saving, and fine-tune its settings. Tap the following buttons:
,
,
.
Button
Description
Update Interval
This is how often track points will be saved. Position information is
normally received once a second from the GPS. If you do not need such
a detailed log, you can increase this number to save track log space.
Enable Auto-saving
When auto-saving is enabled, you do not need to turn track log saving on
and off manually. TravelPilot will automatically start recording the track
log as soon as GPS position is available.
Track Log Database Size
This figure shows how much memory is used by the automatically saved
track logs.
71
NaviManual_iGo_India_GB.indd 71
20.08.2008 15:47:21 Uhr
4 Reference book (Advanced mode)
Button
Description
Track Logs Max. Size
You can set the maximum database size for the automatically saved
track logs. When the limit is reached, the oldest automatically saved
track logs will be deleted.
Create NMEA/SIRF Log
Independently of the normal track log, you can instruct TravelPilot to
record the native GPS data received from the GPS device. These logs
are saved as separate text files on the memory card, and they cannot be
shown or replayed in TravelPilot.
72
NaviManual_iGo_India_GB.indd 72
20.08.2008 15:47:21 Uhr
5 Glossary
5 Glossary
2D/3D GPS reception
The GPS receiver uses satellite signals to calculate its (your) position and need at least four signals to give
a three-dimensional position, including elevation. Because the satellites are moving and because objects
can block the signals, your GPS device might not receive four signals. If three satellites are available, the
receiver can calculate the horizontal GPS position but the accuracy is lower and the GPS device does not
give you elevation data: only 2D reception is possible.
Active route
The currently navigated route. You can save and load routes in TravelPilot, but only one route can be
active at any given time, and it is always active until you delete it, reach your destination or you quit
TravelPilot. See also: Route.
City Centre
The City Centre is not the geometric centre of the settlement but an arbitrary point the map creators
have chosen. In towns and villages, it is usually the most important intersection; in larger cities, it is an
important intersection.
GPS accuracy
Several factors have impact on the deviation between your real position and the one given by the GPS
device. For example, signal delay in the ionosphere or reflecting objects near the GPS device have a
different and varying impact on how accurately the GPS device can calculate your position.
Map
TravelPilot works with digital maps which are not simply the computerised versions of traditional paper
maps. Similarly to the paper road maps, the digital maps show you streets, roads, and elevation is also
shown by colours.
You can use digital maps interactively: you can zoom in and out (increase or decrease the scale), you can
tilt them up and down, and turn them left and right. In GPS-supported navigation, digital maps facilitate
route planning.
North-up map orientation
In North-up mode the map is rotated so its top always faces North. This is the orientation in 2D map view
mode and in Overview mode. See also: Track-up map orientation.
Overview mode
You can instruct TravelPilot to automatically switch to Overview mode if the next route event is in a
distance. In Overview mode the map is shown in 2D but scaled down to a predefined zoom level. When
you approach the next route event, the previous 2D or 3D map view returns automatically.
73
NaviManual_iGo_India_GB.indd 73
20.08.2008 15:47:21 Uhr
5 Glossary
Route
A series of destinations to be reached one after the other. A simple route contains one start point and
only one destination. Multi-point routes contain one or more via points (intermediate destinations). The
last route point is the final destination and the route is cut into different legs (from one destination to
the next).
Scheme
TravelPilot comes with different colour schemes for the map for daytime or night use. Schemes are
custom graphic settings for the map and they can have different colours for streets, blocks or surface
waters in 2D and 3D modes.
One daytime scheme and one night scheme is always selected. TravelPilot uses them when it switches
from day to night and back.
Track-up map orientation
In Track-up mode the map is rotated so its top always points in the currend driving direction. This is the
default orientation in 3D map view mode. See also: North-up map orientation.
74
NaviManual_iGo_India_GB.indd 74
20.08.2008 15:47:21 Uhr
6 End User Licence Agreement
6 End User Licence Agreement
1. The contracting parties
1.1. Contracting parties to present Agreement are, on the one hand:
Nav N Go Kft (23 Bérc utca, H-1016 Budapest, Hungary; Hungarian reg.no.: 03-09-111944) as
Licensor
and
the legal user (as defined in Section 2) of the object of present Agreement according to Section 4,
hereinafter referred to as User on the other hand (hereinafter jointly referred to as Parties).
2. Conclusion of the Agreement
2.1. The Parties hereby acknowledge that present Agreement shall be concluded by implicit conduct of
the Parties, without a signature of the Parties.
2.2. The User hereby acknowledges that following the lawful acquisition of the software product
constituting the object of present Agreement (Section 4), any degree of use, installation to a computer
or other hardware, installation of such hardware into a vehicle, pressing of the „Accept” button displayed
by the software during installation or use (hereinafter referred to as actions of use) shall be deemed as
implicit conduct resulting in the conclusion of the Agreement between the User and the Licensor.
2.3. Present Agreement shall by no means entitle persons who unlawfully acquire, use, install on a
computer, install in a vehicle or utilise in any manner whatsoever the software product.
2.4. The end user licence agreement between the Parties shall be concluded with terms set forth in
present Agreement.
2.5. The time of conclusion of present Agreement is the time of executing the first action of use
(commencement of use).
3. Applicable law
3.1. In issues not regulated by present Agreement the jurisdiction of the Republic of Hungary shall be
applicable, with specific reference to the Act No. 4 of 1959 on the Civil Code (CC) and to Act No 76 of
1999 on Copyrights (CA).
3.2. Present agreement is issued in English and in Hungarian. In case of dispute the Hungarian text shall
prevail.
4. The object of the Agreement
4.1. The object of present Agreement shall be the navigation guidance software product of Licensor
(hereinafter referred to as software product).
4.2. The software product shall include the operating computer program, its complete documentation,
and the map database belonging thereto.
4.3. Any form of display, storage, coding, including printed, electronic or graphic display, storage,
source or object code of the software product, or any other as yet indefinable form of display, storage, or
coding, or any medium thereof shall be deemed as part of the software product.
4.4. Error corrections, additions, updates used by the User as defined in Section 2 following the
conclusion of present contract shall also be deemed as part of the software product.
75
NaviManual_iGo_India_GB.indd 75
20.08.2008 15:47:21 Uhr
6 End User Licence Agreement
5. Owner of copyrights
5.1. The Licensor - unless contractual or legal regulations state otherwise - is the exclusive owner of all
material copyrights vested in the software product.
5.2. Copyrights extend to the whole software product and its parts separately as well.
5.3. The owner(s) of the copyrights of the map database forming part of the software product is
(are) natural person(s) or corporate entity(es) as listed in the appendix to present Agreement or in
the „About/Map” menu item of the operating computer program (hereinafter referred to as Database
Owner). Licensor hereby states that Licensor has obtained sufficient usage and representation rights
from the Database Owner in order to utilise and give into further utilisation the map database as set forth
in present Agreement.
5.4. In conclusion and execution of present Agreement the Database Owner is represented by Licensor
in relations to the User.
5.5. By concluding present Agreement, Licensor shall withhold all rights vested in the software product,
except for those that the User is entitled to according to explicit legal regulations or that of present
Agreement.
6. Rights of the User
6.1. The User is entitled to install the software product on one hardware device (desktop, handheld,
portable computer, navigation device) at a time, and to run and use one copy thereof.
6.2. The User is entitled to make one security copy of the software product. However, if the software
product is operational after installation without the use of the original media copy, then the original
media copy is deemed to be a security copy. In all other cases, the User is only entitled to use the security
copy if the original media copy of the software product has become unsuitable for proper and legal use
without any doubt, such state thereof being supported by acceptable proof.
7. Limitations of use
7.1. The User is not entitled
7.1.1. to multiply the software product (to make a copy thereof);
7.1.2. to lease, rent, lend, distribute, transfer it to a third person with or without a consideration;
7.1.3. to translate the software product (including translation (compilation) to other programming
languages);
7.1.4. to decompile the software product;
7.1.5. to modify, extend, transform the software product (in whole or in part), to separate it into parts,
compose it with other products, install it in other products, utilise it in other products, not even with the
aim of achieving a co-operation with other products;
7.1.6. apart from using the computer program, to obtain information from the map database included in
the software product, to decompile the map database, to use, copy, modify, extend, transform the map
database in whole or in part or the group of data stored therein, or to install it in other products, utilise it
in other products, not even with the aim of achieving a co-operation with other products;
8. Non-warranty, limitation of responsibility
8.1. Licensor hereby informs the User that although the greatest care was taken in producing the
software product, yet with respect to the essence of the software product and the technical limitations,
76
NaviManual_iGo_India_GB.indd 76
20.08.2008 15:47:22 Uhr
6 End User Licence Agreement
the Licensor does not warrant for the software product being completely error free, and the Licensor is
not bound by any contractual obligation by which the software product obtained by the User should be
completely error free.
8.2. The Licensor does not warrant that the software product is suitable for any purpose defined either
by the Licensor or the User, and does not warrant that the software product is capable of co-operating
with any other system, device or product (e.g. software or hardware).
8.3. The Licensor does not assume any responsibility for damages incurred due to an error in the software
product (including errors of the computer program, the documentation and the map database).
8.4. The Licensor does not assume any responsibility for damages incurred due to the software product
not being applicable for any defined purpose, or the error or lack of co-operation thereof with any other
system, device or product (e.g. software or hardware).
8.5. The Licensor shall hereby also draw the attention of the User with great emphasis to the fact that
while utilising the software product in any form of transportation, observing the traffic regulations
and rules (e.g. use of obligatory and/or reasonable and suitable security measures, proper and
generally expected care and attention in the given situation, and special care and attention required
due to utilising the software product) is the exclusive responsibility of the User; the Licensor shall not
assume any responsibility for any damages occurred in relation to utilising the software product during
transportation.
8.6. By concluding present Agreement the User shall especially acknowledge the information stated in
Section 8 above.
9. Sanctions
9.1. The Licensor hereby informs the User that according to regulations of the CA, should the Licensor
find its rights to be breached, the Licensor may
9.1.1. claim the acknowledgement of such breach by court;
9.1.2. claim ceasing the breach and ordering the person under breach from continuing such;
9.1.3. claim that the person under breach give proper compensation (even by way of publicity, to the
expense of the person under breach);
9.1.4. claim the return of the increase of assets due to the breach;
9.1.5. claim ceasing the breaching situation, the restitution of the state before the breach, to the expense
of the person in breach, and may claim the destruction of instruments and materials used for the breach,
and that of the objects created by the breach;
9.1.6. claim damages.
9.2. The Licensor hereby also informs the User that the breach of copyrights and related rights is a crime
according to Act IV of 1978 on the Criminal Code, which may draw as a sanction a sentence of two years
in prison in basic cases and up to eight years in prison in qualified cases.
9.3. For disputes arising from present Agreement the parties hereby agree on the exclusive competence
of - depending on value and title disputed - either the Central Court of Budapest Districts (Pesti Központi
Kerületi Bíróság) or the Municipal Court of Budapest (Fővárosi Bíróság).
77
NaviManual_iGo_India_GB.indd 77
20.08.2008 15:47:22 Uhr
© 2008 All rights reserved by Blaupunkt. This material may be reproduced, copied or distributed
for personal use only.
This product is protected by certain intellectual property rights of Microsoft. Use or distribution of
such technology outside of this product is prohibited without a license from Microsoft.
Bosch Limited (Blaupunkt),
P.B. No. 3000, Hosur Road, Adugodi, Bangalore 560 030.
Visit us at : www.blaupunkt.com
Write to us at : [email protected]
Toll Free No.: 1-800-425-2528 (for BSNL/MTNL callers)
For callers using mobile: 080-22293001 (from 9 am - 5 pm)
Monday to Friday
Blaupunkt GmbH,
Robert-Bosch-Straße 200, D-31139 Hildesheim
07/08 CM-AS/SCS (GB)
NaviManual_iGo_India_GB.indd 78
8 622 406 204
20.08.2008 15:47:22 Uhr
Mobile Navigation
TravelPilot 100
TravelPilot 300
TravelPilot Lucca 3.5
Powered by
Maps
MapmyIndia Maps End User License Agreement
This End-User License Agreement (EULA) is a legal agreement between you (either an individual or a
single entity) and CE INFO SYSTEMS PVT. LIMITED for the digital maps database and updates hereof that
run navigation in associated hardware collectively the "MapmyIndia Maps" or "Maps"). By installing or
using the MapmyIndia Maps, you agree to be bound by the terms of this Agreement. Use of the Maps
without acceptance of this Agreement is unauthorized and not permitted.
1. License Grant. CE INFO SYSTEMS PVT LIMITED grants you a non-exclusive license to use your purchased
copy of the MapmyIndia Maps for your own purposes of accessing the map database and navigation by
running the associated hardware and not for service bureau time-sharing, or other similar purposes.
2. Limitations On Use. You are not permitted to copy, modify, decompile, disassemble, or reverse
engineer any portion of the Maps.
3. Indemnity. You agree to indemnify, defend and hold free and harmless CE INFO SYSTEMS PVT LIMITED,
including its licensors, assignees, subsidiaries, affiliated companies, and the respective officers, directors,
employees, shareholders, agents, authorized dealers or sales agents, and representatives of each of
them from and against any liability, loss, injury, demand, cost, expense, or claim of any kind of character,
including but not limited to attorney's fees, arising out of (a) any use or possession of the Maps, or (b) any
breach of any warranties or representations made by you in this Agreement or of your obligations under
this Agreement.
4. Disclaimer of Warranty. CE INFO SYSTEMS PVT LIMITED does not make any warranties or
representations, either express or implied, with respect to the Maps, without limiting the foregoing,
CE INFO SYSTEMS PVT. LIMITED expressly disclaims any implied warranties of quality, performance,
merchantability, fitness for a particular purpose or non-infringement.
8 622 406 203
LicenseAgreement.indd 1
22.07.2008 15:32:44 Uhr
5. Limitation of Liability. CE INFO SYSTEMS PVT LIMITED shall not be held responsible for any actual,
anticipated or speculative loss of profit or direct, indirect, incidental, special, or consequential damages,
including, without limitation, loss of revenue, data, or use incurred by you or any third party arising out of
your use or possession of the Maps, whether in an action in contract or tort or based on a warranty, even
if CE INFO SYSTEMS PVT. LIMITED has been advised of the possibility of such damages.
6. Warnings.
A. Copies of the Maps reflect conditions as they existed at various points in time before your receipt of
such copies. Accordingly, copies of the Maps may contain inaccurate or incomplete data or information
due to inaccurate or incomplete source materials, the passage of time, road construction, changing
conditions, and otherwise.
B. Neither the Maps nor the Software include, analyze, process, consider or reflect any of the following
categories of information, i.e., neighborhood quality or safety; population density; availability or
proximity of law enforcement, emergency, rescue, medical or other assistance; construction work,
zones, or hazards; road and lane closures; various legal restrictions (such as vehicular type, weight,
load, height and speed restrictions); road slope or grade; bridge height, width, weight or other limits;
road, traffic or traffic facilities safety or conditions; weather conditions; pavement characteristics or
conditions; special events; traffic congestion; or travel time.
C. Maps are strictly meant for use in India and you are not allowed to export Maps or its copies
anywhere outside India.
7. Transfer. This Agreement, including all rights, obligations and representations may be transferred to
another individual or single entity, provided the same transfer includes the simultaneous transfer of the
associated hardware in which the Maps are installed, and further provided that such other individual
or single entity accepts all the terms of this Agreement. In the event such individual or single entity to
which the Software is transferred does not accept the terms of this agreement, then the License herein
automatically terminates. Further use of the Maps is unauthorized and not permitted.
8. Governing Law. This Agreement shall be governed by the laws of India without giving effect to its
conflict of laws provisions.
CE Info Systems Pvt. Limited Copyright Notice – MapmyIndia Maps
Copyright© 2007 CE Info Systems Pvt. Limited
All rights reserved. This document and the maps described in it are furnished under license and may be
used only in accordance with such license.
www.mapmyindia.com
LicenseAgreement.indd 2
22.07.2008 15:32:45 Uhr
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
