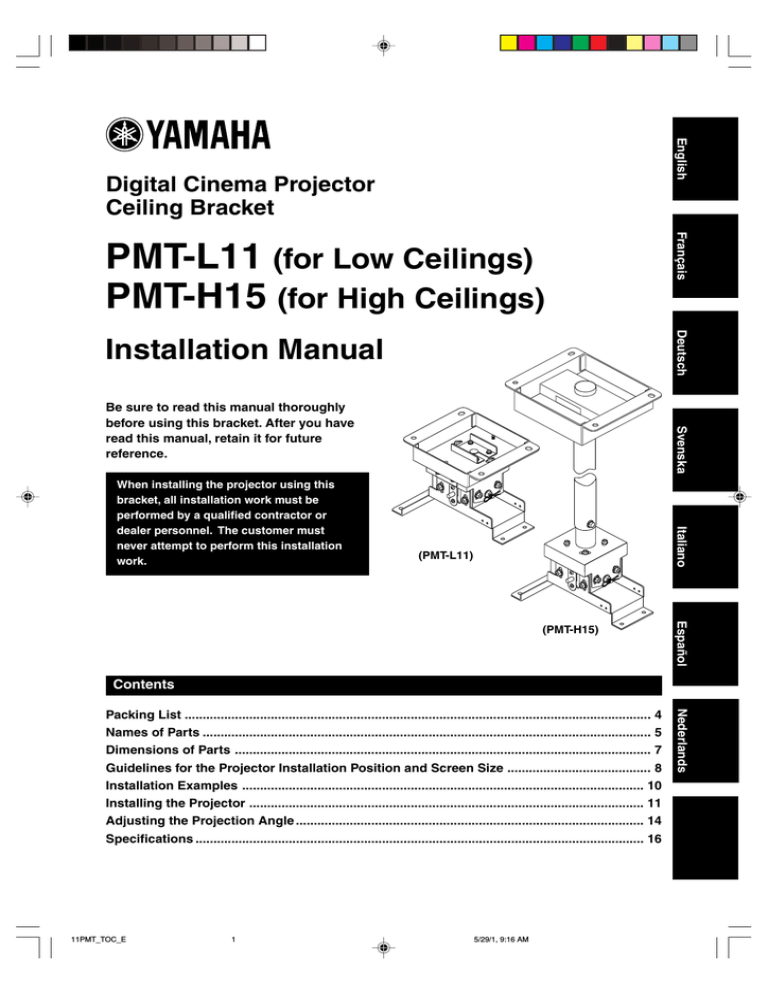

Yamaha PMT-L11 Owner's manual

English
Digital Cinema Projector
Ceiling Bracket
Deutsch
Installation Manual
Svenska
Be sure to read this manual thoroughly
before using this bracket. After you have
read this manual, retain it for future
reference.
Italiano
When installing the projector using this
bracket, all installation work must be
performed by a qualified contractor or
dealer personnel. The customer must
never attempt to perform this installation
work.
Français
PMT-L11 (for Low Ceilings)
PMT-H15 (for High Ceilings)
(PMT-L11)
Español
(PMT-H15)
Contents
11PMT_TOC_E
1
5/29/1, 9:16 AM
Nederlands
Packing List .................................................................................................................................. 4
Names of Parts ............................................................................................................................. 5
Dimensions of Parts .................................................................................................................... 7
Guidelines for the Projector Installation Position and Screen Size ........................................ 8
Installation Examples ................................................................................................................ 10
Installing the Projector .............................................................................................................. 11
Adjusting the Projection Angle ................................................................................................. 14
Specifications ............................................................................................................................. 16
Safety Instruction
1. Always follow the instructions set forth in this manual when installing the projector
using this bracket.
Improper or inadequate installation could cause the projector to fall and injure someone.
2. The installation must be secure enough to bear the weight of the projector, the ceiling
bracket, and other hardware indefinitely, and must also be secure enough to withstand
vibration.
Inadequate installation could cause the projector to fall and injure someone.
3. To ensure safety, all bolts and screws must be tightened securely.
Loose bolts or screws could cause the projector to fall and injure someone.
4. Use only the parts provided with the bracket, and any other parts (commrecially
available) that are specified in this manual.
Using other parts could cause the projector to fall and injure someone.
5. Do not modify the bracket or the parts provided with the bracket.
Modifying the bracket or the other parts could cause the projector to fall and injure someone.
6. Do not use damaged parts.
Using damaged parts could cause the projector to fall and injure someone.
If any parts become damaged, contact your dealer.
7. Make sure to leave enough open space around the unit to allow heat generated by the
projector to dissipate.
Failure to provide adequate space around the unit could cause the projector to overheat internally, causing a
fire.
8. Before replacing the lamp cartridge, always remove the projector (with the mounting
adapter attached) from the ceiling bracket.
Attempting to replace the lamp cartridge while the projector is attached to the ceiling bracket could cause
the projector or the ceiling bracket to fall and injure someone.
E-2
11PMT_TOC_E
2
5/29/1, 9:16 AM
9. Never hang from the projector or the ceiling bracket.
English
Hanging from the projector or the ceiling bracket could cause the projector or the ceiling bracket to fall and
injure someone.
10. Do not install the projector in a location near an air conditioning vent or in a location
subject to vibration.
11. Do not install the projector in a location that is subject to high levels of dust or
humidity.
Français
Such conditions could have an adverse effect on the projector, and could even cause a fire or electric shock.
Dust accumulating inside the projector could cause a short circuit that in turn could cause a fire or electric
shock.
Deutsch
12. Do not install the projector in a location that is exposed to direct sunlight or in a
location that is subject to extreme fluctuations in temperature (such as near an air
conditioner).
Such conditions can cause the projector housing to warp or to become discolored.
Doing so could damage the finish.
Improper installation could cause the ceiling bracket or the projector to fall and injure someone.
Italiano
14. Special techniques and experience are essential when installing the projector using
this bracket. Request that your dealer arrange to have the equipment installed. The
customer should never attempt to suspend the projector from the ceiling.
Svenska
13. Do not wipe the exterior of the ceiling bracket with benzene, paint thinner or cleaning
compounds.
15. Once the projector is installed, safety checks should be conducted on a regular basis.
Español
If the projector is used over an extended period of time, screws can become loose and the installation can
become weaker due to the passage of time, vibration, etc.
Nederlands
E-3
11PMT_TOC_E
3
5/29/1, 9:16 AM
Packing List
Confirm that all of the parts are present.
PMT-L11
PMT-H15
Ceiling bracket x 1
Ceiling bracket x 1
Adjustment pole locking screws (M5) x 4
Common Components (The following parts are provided with each bracket.)
Projector mounting adapter x 1
Projector mounting screws
(M6, pan head) x 4
Vertical angle adjustment screws
(M6, hexagonal head) x 4
Safety brackets x 2
Safety bracket mounting screws
(M4, pan head) x 4
Safety wires x 2
Safety wire mounting screws
(M4, pan head) x 4
E-4
12PMT_BODY_E
4
5/29/1, 9:16 AM
English
Names of Parts
PMT-L11
Français
Horizontal angle adjustment
screws
Deutsch
Ceiling bracket
Svenska
Mounting guide pin
Español
Vertical angle adjustment screws
(There are also screws on the
opposite side.)
Italiano
Tilt angle adjustment screws
(There are also screws on the
opposite side.)
Projector mounting adapter
Nederlands
E-5
12PMT_BODY_E
5
5/29/1, 9:16 AM
PMT-H15
Ceiling bracket
Horizontal angle adjustment screw
(four in total)
Height locking screw
Height adjustment pole
Mounting guide pin
Tilt angle adjustment screws
(There are also screws on the
opposite side.)
Vertical angle adjustment screws
(There are also screws on the
opposite side.)
Projector mounting adapter
E-6
12PMT_BODY_E
6
5/29/1, 9:16 AM
5/29/1, 9:16 AM
140 mm
5-1/2 inch
175 mm
6-7/8 inch
Ø9 mm
Ø3/8 inch
(hole)
Nederlands
7
Ø10 mm
Ø3/8 inch
(hole)
Ø10 x 13 mm
Ø3/8 x 1/2 inch
(elliptical hole)
[Top View]
Ø9 x 13 mm
Ø3/8 x 1/2 inch
(elliptical hole)
with the DPX-1 installed (lens center)
226 mm
8-7/8 inch
200 mm
7-7/8 inch
10˚ 10˚
Ø10 mm
Ø3/8 inch
(hole)
201.65 mm
7-15/16 inch
1-3/16 inch
30 mm
35-5/16 to 57-3/4 inch
896.65 to 1466.65 mm
777 to 1347 mm
30-9/16 to 53 inch
Ø8.8 mm
Ø3/16 inch
(fully penetrating holes)
[Front View]
Español
120 mm
4-3/4 inch
156 mm
6-1/8 inch
Ø9 mm
Ø3/8 inch
(hole)
Italiano
12PMT_BODY_E
Ø10 x 13 mm
Ø3/8 x 1/2 inch
(elliptical hole)
PMT-L11
Svenska
[Top View]
55 mm
2-3/16 inch
80 mm
3-1/8 inch
230 mm
9-9/16 inch
200 mm
7-7/8 inch
PMT-H15
E-7
Deutsch
Ø9 x 13 mm
Ø3/8 x 1/2 inch
(elliptical hole)
81 mm
3-3/16 inch
190 mm
7-1/2 inch
212 mm
8-3/8 inch
Français
196 mm
7-3/4 inch
170 mm
6-11/16 inch
140 mm
5-1/2 inch
Projector Mounting Adapter
English
Dimensions of Parts
[Front View]
10˚ 10˚
with the DPX-1 installed (lens center)
Guidelines for the Projector Installation Position and
Screen Size
• The relationship between the projection distance and the screen size is shown below. Use these values as
guidelines for determining the installation position.
Distance from ceiling installation surface to
center of lens
PMT-L11: 20 cm (7-7/8 inch)
PMT-H15: 90 to 147 cm (35-7/16 to 57-7/8 inch)
(can be adjusted in 3 cm (1-3/16 inch) steps)
Ceiling
Distance from the center of the
ceiling bracket to the front edge
of the projector:
approximately 20 cm (7-7/8 inch)
Distance from center of projector’s lens to top
edge of screen
(See the owner’s manual for the projector.)
Screen
Projection distance
(See the diagram below.)
When using a 4:3 Screen
Screen size
(inch)
60
80
100
120
150
200
Projection distance (Wide/Tele.)
(m)
(feet, inch)
2.4 – 2.9
7’ 10” – 9’ 6”
3.2 – 3.9
10’ 6” – 12’ 10”
4.0 – 4.9
13’ 1” – 16’
4.8 – 5.8
15’ 9” – 19’
6.1 – 7.3
20’ – 23’ 11”
8.1 – 9.8
26’ 7” – 32’ 2”
Projection distance
Wid Tele
.
e
Zoom function
Wi Tele.
de
Wi
de
Tel
e
.
Sma
ller ←
Scre
en s
ize →
Larg
er
When using a 16:9 Screen
Screen size
(inch)
60
80
100
120
150
200
Projection distance (Wide/Tele.)
(m)
(feet, inch)
2.6 – 3.2
8’ 6” – 10’ 6”
3.5 – 4.2
11’ 6” – 13’ 9”
4.4 – 5.3
14’ 5” – 17’ 5”
5.3 – 6.4
17’ 5” – 21’
6.6 – 8.0
21’ 8” – 26’ 3”
8.8 – 10.6
28’ 10” – 34’ 9”
Projection distance
Wid Tele.
Wi Tele
de .
e
Sma
ller ←
Scre
en s
ize →
Larg
er
Zoom function
Wi
de
Tel
e
.
Cautions
• The projection distance is the horizontal distance from the surface of the projector lens to the surface of the screen.
In the case of the DPX-1, the surface of the lens is recessed by approximately 4 cm (1-9/16 inch) from its exterior.
• Although the ceiling bracket permits adjustment of the vertical angle of the projector over a range of ±15˚, a large
angle adjustment will distort the projected image somewhat. Therefore, we recommend adjusting both the angle of
the projector and the angle of the screen.
Adjustment Through Digital Lens Shift
When “SCREEN ASPECT” is set to 16:9 in the
SETUP menu, it is possible to use the projector’s
digital shift function to adjust the distance from the
center of the projector’s lens to the top edge of the
screen. The range of adjustment is indicated at right.
E-8
12PMT_BODY_E
8
Screen size
(inch)
60
80
100
120
150
200
Distance to top edge of screen
(cm)
(inch)
19 – 44
7-1/2 to 17-5/16
26 – 59
10-1/4 to 23-1/4
32 – 74
12-5/8 to 29-1/8
39 – 89
15-3/8 to 35
49 – 111
19-3/8 to 43-3/4
65 – 145
25-5/8 to 57
5/29/1, 9:16 AM
PMT-H15 Height Adjustment
English
The height adjustment pole for the PMT-H15 has holes spaced 3 cm apart that can be used to adjust the
height. When the bracket is shipped from the factory, the pole is set at the shortest height.
Follow the procedure described below to adjust the pole to the appropriate height. For details on the
appropriate height, refer to “Guidelines for the Projector Installation Position and Screen Size” on page 8.
Français
[Adjustment Procedure]
1 Remove the safety pin.
2 Loosen the nut, and then remove the height locking
screw.
Ceiling bracket
Svenska
height of the screen, insert the height locking screw,
and then hand-tighten the nut.
4 Securely tighten the four height adjustment pole
locking screws (M5) provided.
5 Securely tighten the nut that was previously handtightened.
6 Be sure to insert the safety pin.
Deutsch
Removing the height locking screw will unlock the
height adjustment pole from the ceiling bracket. In
order to ensure that the height adjustment pole does
not fall, always hold the pole while performing this
work.
3 Determine the correct position in accordance with the
Italiano
Finally, after adjusting the height, make sure that the
adjustment pole locking screws and the nut are all
tightened securely. Also make sure that the safety
pin has been inserted properly.
Español
1
Safety pin
Nut
Adjustment pole locking screws
(Tighten the other side also.)
4
3
2
Hight adjustment pole
E-9
12PMT_BODY_E
9
5/29/1, 9:16 AM
Nederlands
Height
locking
screw
Installation Examples
When the ceiling is made of wood
1 Drill matching holes through the reinforcing
plate and the ceiling in the proper locations
and then pass bolts through the holes.
2 Tighten the bolts to secure the reinforcing
plate to a ceiling beam.
Washer
Reinforcing plate
Ceiling
beam
Cautions
• Make sure that the reinforcing plate is strong
enough to bear the weight of the projector and the
ceiling bracket.
• Use M8 bolts (commercially available).
Nut and
washer
Bolt (M8)
(Obtain the reinforcing plate, bolts, nuts and washers
commercially available.)
When the ceiling is made of concrete
1 Install anchor nuts in the ceiling.
2 Screw the bolts into the anchor nuts.
Anchor nut
Cautions
Ceiling
• Make sure that the anchor nuts are strong enough
to bear the weight of the projector and the ceiling
bracket.
• Use M8 bolts (commercially available).
Nut and
washer
Bolt (M8)
(Obtain the anchor nuts, bolts, nuts and washers
commercially available.)
E-10
12PMT_BODY_E
10
5/29/1, 9:16 AM
1
English
Installing the Projector
Mount the projector mounting adapter onto the projector.
Projector mounting screws (M6, pan head)
Français
Align the holes in the mounting adapter with the holes in the bottom of the projector, and then use the four
projector mounting screws (M6, pan head) provided to securely attach the mounting adapter to the
projector.
Projector mounting adapter
Deutsch
Svenska
Bottom of the projector
Caution
2
Attach the safety wire.
Nederlands
Band
Safety wire mounting screws
(M4, pan head)
Projector mounting adapter
Safety wire
E-11
12PMT_BODY_E
11
5/29/1, 9:16 AM
Español
Use the four safety wire mounting screws (M4, pan head) provided to attach the safety wires to the
projector mounting adapter. (Use two screws on the left side and two screws on the right.) After tightening
the screws, place the wire loops around the projector’s adjusters, and then tighten the band.
Italiano
• Do not tighten the projector mounting screws excessively. Excessive tightening could damage the mount and cause
the projector to fall.
3
Install the ceiling bracket on the ceiling.
First hand-tighten the four nuts, determine the position, and then tighten the nuts securely.
(PMT-L11)
(PMT-H15)
Pr
dir ojec
ec tio
tio n
n
Pr
dir ojec
ec tio
tio n
n
Caution
• Use M8 bolts (commercially available) to install the ceiling bracket. Using any bolts other than M8 bolts could
cause the projector to fall.
Note to Dealers and Installers
For the customer’s safety, make sure that the location where the projector is to be installed is strong
enough to bear the weight of the projector, the ceiling bracket, and the other hardware before
installing the ceiling bracket.
4
Hang the projector from the ceiling bracket.
Slide the mounting guide pin all of the way into the notch on the projector mounting adapter. This pin is
only meant to support the projector temporarily, and does not hold the projector securely. Make sure that
the projector does not fall.
Projector mounting adapter
(PMT-L11)
Mounting guide pin
E-12
12PMT_BODY_E
12
5/29/1, 9:16 AM
5
Install the safety brackets.
English
Align the safety brackets so that the mounting guide pin fits into the hole, and then use the four safety
bracket mounting screws (M4, pan head) to secure the brackets. (Use two screws on the left side and two
screws on the right.)
(PMT-L11)
Français
Safety bracket mounting screw
(M4, pan head)
Deutsch
Safety bracket
Svenska
6
Temporarily secure the projector mounting adapter.
Italiano
Use the four vertical angle adjustment screws (M6, hexagonal head) provided to temporarily secure the
projector mounting adapter. (Use two screws on the left side and two screws on the right.)
Español
(PMT-L11)
Nederlands
Vertical angle adjustment screw
(Hand-tighten the other side also.)
E-13
12PMT_BODY_E
13
5/29/1, 9:16 AM
Adjusting the Projection Angle
Prior to Adjustment
• After reading the owner’s manual for the projector, turn the projector on, and project an image.
• Check the INSTALLATION item in the SETUP menu, and set the installation status. If projecting from
the front of the unit, select “FRONT/CEILING;” if projecting from the rear of the unit, select “REAR/
CEILING.”
• Select a projection size using the zoom feature, and then adjust the angle.
1
Adjust the horizontal angle.
Adjust the projector so that the projected image is centered horizontally on the screen, and then tighten the
horizontal angle adjustment screws.
Right
Left
10˚
10˚
Maximum angle of
adjustment: ±10˚
(PMT-L11)
Horizontal angle adjustment screws
(PMT-H15)
E-14
12PMT_BODY_E
14
5/29/1, 9:16 AM
2
Adjust the vertical angle.
Français
Top
English
Adjust the projector so that the projected image is centered vertically on the screen, and then tighten the
four vertical angle adjustment screws.
15˚
15˚
Deutsch
Maximum angle of
adjustment: ±15˚
Bottom
(PMT-L11)
Svenska
Vertical angle adjustment screws
(There are also screws located on the opposite side.)
Adjust the tilt angle.
Adjust the projector so that the projected image is not tilted at all compared to the screen, and then tighten
the four tilt angle adjustment screws.
Italiano
3
Español
(PMT-L11)
Tilt angle adjustment screws
(There are also screws located on the opposite side.)
Maximum angle of adjustment: ±10˚
If the projector still needs further adjustment, start over from step 1.
After adjustment is completed, make sure that the projector is secured in place.
E-15
12PMT_BODY_E
15
5/29/1, 9:16 AM
Nederlands
10˚ 10˚
Specifications
Product Name
Digital Cinema Projector Ceiling Bracket
Model No.
PMT-L11
Height
Adjustment
range
94 mm (3-11/16 inch)
(fixed)
PMT-H15
789 to 1359 mm (31-1/16 to 53-1/2 inch)
(variable in 30-mm (1-3/16-inch) steps)
Vertical angle
±15˚
±15˚
Horizontal angle
±10˚
±10˚
Tilt angle
±10˚
±10˚
176 x 226 x 789 to 1359 mm
External dimensions of ceiling bracket 156 x 196 x 94 mm
(6-15/16 x 8-7/8 x 31-1/16 to 53-1/2 inch)
(w x d x h)
(6-1/8 x 7-3/4 x 3-11/16 inch) (Height is variable in 30-mm
(1-3/16-inch) steps)
External dimensions of adapter
(w x d x h)
Weight
230 x 212 x 80 mm (9-1/16 x 8-3/8 x 3-1/8 inch)
2.2 kg (4 lbs 14 oz)
4.0 kg (8 lbs 13 oz)
• Specifications are subject to change without notice.
E-16
12PMT_BODY_E
16
5/29/1, 9:16 AM

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
