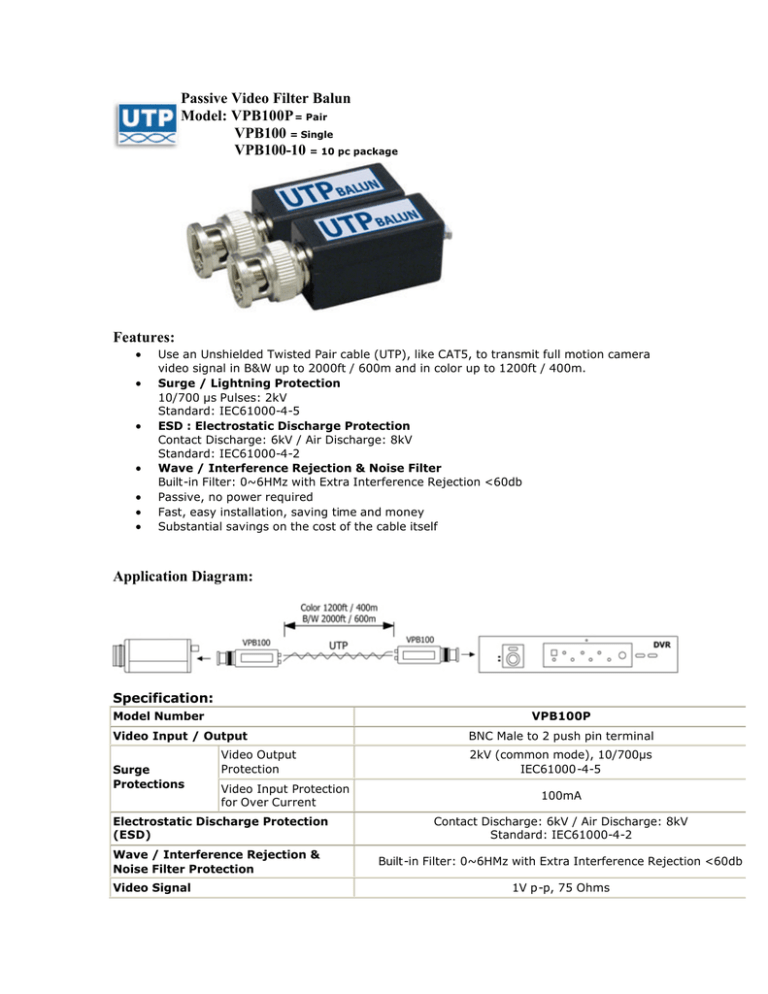

VPB100P OperationManual
Passive Video Filter Balun
Model: VPB100P = Pair
VPB100 = Single
VPB100-10 = 10 pc package
Features:
•
•
•
•
•
•
•
Use an Unshielded Twisted Pair cable (UTP), like CAT5, to transmit full motion camera
video signal in B&W up to 2000ft / 600m and in color up to 1200ft / 400m.
Surge / Lightning Protection
10/700 µs Pulses: 2kV
Standard: IEC61000-4-5
ESD : Electrostatic Discharge Protection
Contact Discharge: 6kV / Air Discharge: 8kV
Standard: IEC61000-4-2
Wave / Interference Rejection & Noise Filter
Built-in Filter: 0~6HMz with Extra Interference Rejection <60db
Passive, no power required
Fast, easy installation, saving time and money
Substantial savings on the cost of the cable itself
Application Diagram:
Specification:
Model Number
VPB100P
Video Input / Output
Surge
Protections
Video Output
Protection
Video Input Protection
for Over Current
Electrostatic Discharge Protection
(ESD)
Wave / Interference Rejection &
Noise Filter Protection
Video Signal
BNC Male to 2 push pin terminal
2kV (common mode), 10/700µs
IEC61000-4-5
100mA
Contact Discharge: 6kV / Air Discharge: 8kV
Standard: IEC61000-4-2
Built-in Filter: 0~6HMz with Extra Interference Rejection <60db
1V p-p, 75 Ohms
Transmission Distance
2000ft / 600m (B&W), 1200ft / 400m (Color)
Cable
UTP / Twisted Pair CAT5 (AWG24)
Power
No Power Required
Dimensions W x H x D
*Specifications are subject to change without notice.
15 x 19 x 54mm
A-1, A-1a, A-1
UTP Balun Cabling Systems and Solutions provides an answer for all your cabling
needs. Our complete line of baluns allows you to easily extend your current
audio/video/data system up to 1200ft and even up to 8000ft, with an active
balun.
UTP Baluns are perfectly suited for applications such as these:
CCTV Security Systems – Video Balun, CCTV Balun
CCTV Surveillance Systems – Video Balun, CCTV Balun
CCTV Camera – Video Balun, CCTV Balun
Home Theatre – DVI & HDMI Balun
LCD/CRT Monitors – VGA PC Balun, VGA Extender, and VGA Distributor
Televisions – DVI & HDMI
VGA Monitors – CCTV Balun, VGA Balun, VGA PC Balun, VGA Extender, and VGA
Distributor
DVD Players – DVI & HDMI Balun
PCs (Personal Computers) – VGA Monitor, Keyboard, & Mouse Long Range CAT5E
Extender
Laptops/Notebooks – VGA Monitor, Keyboard, & Mouse Long Range CAT5E
Extender
USB and PS/2 Devices – VGA Monitor, Keyboard, & Mouse Long Range CAT5E
Extender
UTP (Unshielded Twisted Pair Cable) – Cat5E, Cat6 for Extender Balun
BNC (Coaxial Cable) – Video Signal Filter.
How does a balun work?
Baluns are used to co nvert between “Balanced and Unbalanced” electrical
signals.
Baluns work by transforming the original unbalanced (video/power/data/etc.)
signal to a balanced frequency used by a different cable, like CAT5 UTP. Not only
does this reduce interference, but it also allows you to transmit a signal much
longer than the original application would allow. Baluns are always utilized in
pairs. One balun is needed to convert the original signal to a new frequency, and
another balun is used at the other end to revert to the original frequency.
“Passive” Video Baluns do not require power, and can extend a signal up to
2000ft (B/W).
“Active” Video Baluns require power, but can extend a signal up to 8000ft (B/W).
