A-5a VPB400TRJS

A-5a VPB400TRJS

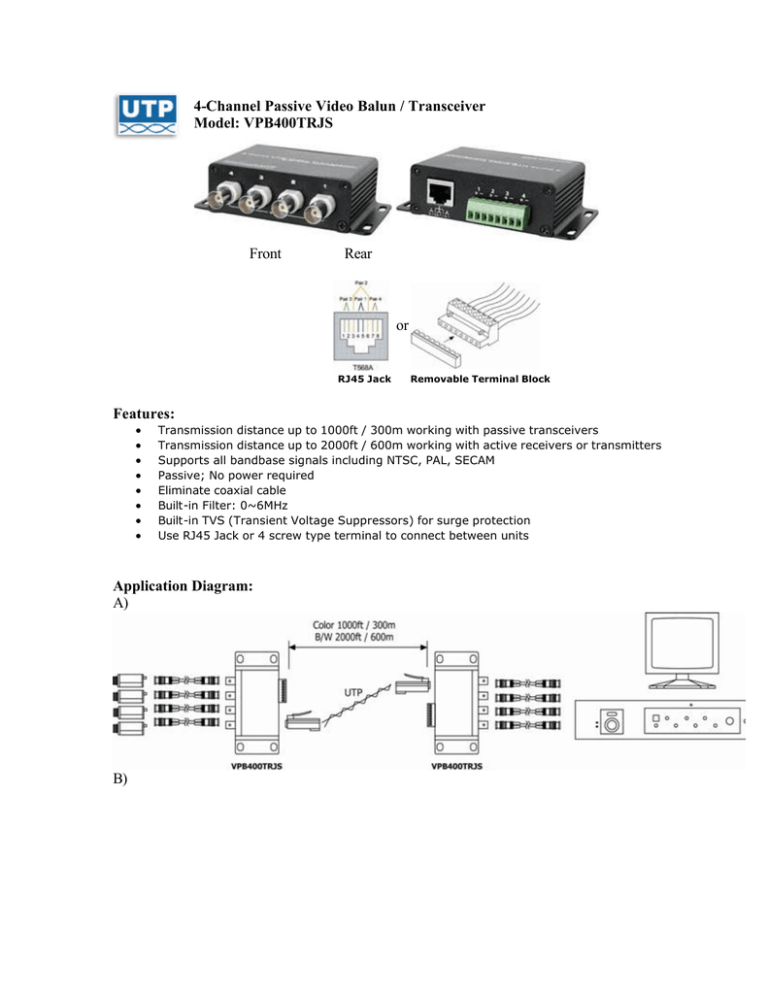

4-Channel Passive Video Balun / Transceiver
Model: VPB400TRJS
Front
Rear
or
RJ45 Jack
Removable Terminal Block
Features:
•
•
•
•
•
•
•
•
Transmission distance up to 1000ft / 300m working with passive transceivers
Transmission distance up to 2000ft / 600m working with active receivers or transmitters
Supports all bandbase signals including NTSC, PAL, SECAM
Passive; No power required
Eliminate coaxial cable
Built-in Filter: 0~6MHz
Built-in TVS (Transient Voltage Suppressors) for surge protection
Use RJ45 Jack or 4 screw type terminal to connect between units
Application Diagram:
A)
B)
Panel View:
Front
Rear
Specification:
Model Number
VPB400TRJS
Supporting Video Mode
Video Transmitting
Properties
Balance Band
Maximum Transmission
Distance
Interference Rejection
Connection
Properties
Video Output
Connectors
Connector for UTP
Transmission
Video Output
Protection
Surge Protections
All Baseband Signals including PAL, NTSC,
SECAM
5MHz Max.
1000ft / 300m with passive transceivers
2000ft / 600m with active transceivers
Transmitting UTP Cable
>60dB
4 Female BNC, Resistance 75 Ohms
Screw Terminal Set and RJ45, Resistance 50
Ohms
2kV (common mode), 10/700µs
IEC61000-4-5
Video Input Protection
2kV (different mode), 2kV (common mode)
IEC61000-4-5
Video Input Protection
for Over Current
100mA
Stability
MTBF
Physical Properties
Dimensions (L x W x
H)
Housing Material
>50,000 hours
4.09” x 3.15” x 1.06” / 104 x 80 x 27mm
Metal
Color
Weight
Operating Temperature
Environment
Relative Humidity
Storage Temperature
Black
0.35 lbs / 160 g
-4°F ~ 158°F / -20°C ~ 70°C
0~95%
-20F ~ 150°F / -40°C ~ 150°C
*Specifications are subject to change without notice.
RoHS
UTP Balun Cabling Systems and Solutions provides an answer for all your cabling
needs. Our complete line of baluns allows you to easily extend your current
audio/video/data system up to 1200ft and even up to 8000ft, with an active
balun.
UTP Baluns are perfectly suited for applications such as these:
CCTV Security Systems – Video Balun, CCTV Balun
CCTV Surveillance Systems – Video Balun, CCTV Balun
CCTV Camera – Video Balun, CCTV Balun
Home Theatre – DVI & HDMI Balun
LCD/CRT Monitors – VGA PC Balun, VGA Extender, and VGA Distributor
Televisions – DVI & HDMI
VGA Monitors – CCTV Balun, VGA Balun, VGA PC Balun, VGA Extender, and VGA
Distributor
DVD Players – DVI & HDMI Balun
PCs (Personal Computers) – VGA Monitor, Keyboard, & Mouse Long Range CAT5E
Extender
Laptops/Notebooks – VGA Monitor, Keyboard, & Mouse Long Range CAT5E
Extender
USB and PS/2 Devices – VGA Monitor, Keyboard, & Mouse Long Range CAT5E
Extender
UTP (Unshielded Twisted Pair Cable) – Cat5E, Cat6 for Extender Balun
BNC (Coaxial Cable) – Video Signal Filter.
How does a balun work?
Baluns are used to convert between “Balanced and Unbalanced” electrical
signals.
Baluns work by transforming the original unbalanced (video/power/data/etc.)
signal to a balanced frequency used by a different cable, like CAT5 UTP. Not only
does this reduce interference, but it also allows you to transmit a signal much
longer than the original application would allow. Baluns are always utilized in
pairs. One balun is needed to convert the original signal to a new frequency, and
another balun is used at the other end to revert to the original frequency.
“Passive” Video Baluns do not require power, and can extend a signal up to 2000ft
(B/W).
“Active” Video Baluns require power, but can extend a signal up to 8000ft (B/W).
A
