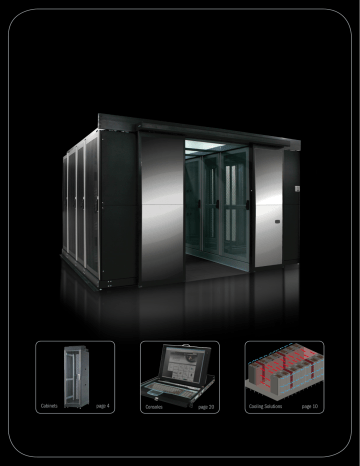

Cabinets
page 4
Consoles
page 20
Cooling Solutions
page 10 1
Contents
Cabinets
IP20 Data Center / IP54 Data Center.................................................................................................................................................. page 4-7
DMAX Datacenter Server Cabinets are designed for
providing Hot Aisle, Cold Aisle and its containment
structure, which has been widely used in enterprise
datacenters.
Design criterias serve to provide:
• Maximum performance for cooling of
IP20 and IP54 solutions.
• Wide Range of cabinet sizes and ample
variety accessories.
• Maximum inner space for servers
• Minimum environmental space
requirement
• Professional cable management
• Heavy duty structure
• Compatibility with all vendors’ servers
• High technical performance;
grounding continuity
• Power/Energy management
• Controllable and reliable security
by monitoring
• Aesthetic and professional view
Certified Standards:
Environment: EN 61587-1 / 4.2, IEC 60068-2-1,
IEC 60068-2-2, IEC 60068-2-30, IEC0917 and IEC 60297
Industrial Environment: EN 61587-1 / 4.3,
IEC 60068-2-42, IEC 60068-2-43 and IEC 60068-2-49,
IEC 60068-2-1, IEC60917 and IEC 60297
Statical Mechanic Structure Load Test:
EN 61587-1 / 5.2.1, IEC60917 and IEC 60297
Statical Mechanic Structure Stability: EN 61587-1 / 5.2.2,
IEC60917 and IEC 60297
Dynamic Load, Vibration and Mechanical Stroke:
EN 61587-1 / 5.3.1, EN 61587-1/5.3.3,
IEC 60917 and IEC 60297
Grounding Continuity: EN 61587-1/6.2, IEC 60917
and IEC 60297
Fire and Flame Resistance: EN 61587-1/6.3, IEC 60917
and IEC 60297
Corrosion: ISO 9227 and ASTM B 117-85, IEC 60917
and IEC 60297
IP Protection Degree: IP20 or IP54 accordingly
EN 61587-1/6.4 IEC 60529, IEC 60917 and IEC 60297
Quality System: ISO 9001
2
Cable Management
Inner and overhead cable management. .................................................................................................................................................. page 8
Cooling Solutions
Hot Aisle, Cold Aisle / Cold Aisle Containment / Hot Aisle Containment / Perforated Doors / Open & Closed Loop Cooling / Systems (In Row / Side Cooler). ................... page 9-13
Power Distribution
Basic PDUs / Metered PDUs / Managed PDUs. .................................................................................................................................... page 14-17
Power Management
Line interactive UPS / Online UPS ................................................................................................................................................. page 18-19
Datacom
KVM TFT Consoles / Desktop- and rackmountable KVMs / KVM Extenders / Video Solutions. ................................................................................... page 20-35
Active Network Components
Basic Switches / Managed Switches / Media Converter. ......................................................................................................................... page 36-40
Facility Surveillance
IP cameras / Enclosures. .......................................................................................................................................................... page 41-43
3
Solutions for Data Center
Cabinets
High
Rate
Perf
d
o
bett ration fo
er PA
r
S
VEN
TILA SIVE
TION
.
Type: Free-Standing IP20, Black RAL 9005
Width x Depth: 600x1000mm. / 600x1100mm. / 600x1200mm.
Width x Depth: 800x1000mm. / 800x1100mm. / 800x1200mm.
Heights:
42U, 47U
Material:
Sheet steel
Enclosure frame-closed form:1.5mm.,
Door(s):2mm.,
Top Cover:1.5mm.,
Bottom Cover:2mm,
Side panels:1.5mm.
Gland plates, three part:1.2mm.
Mounting angles:1.5mm.
C -rails:1.5mm.
Perforated panels:1.2mm
Protection Category:
IP20 to EN60529
Shipping Includes:
Enclosure of all-around solid construction(1ea.)
80% perforated front door(1ea.)
80% perforated rear door(1ea.)
Divided side panels(2ea.)
Top cover (1ea.)
Gland plate at bottom( 3parts=1set)
Door hinges(6set)
3point locking system at front and rear,
convenient to use half cylinder(2set)
mounting angles (2ea. at front, 2ea. at rear.)
All earthing points (on every panel.)
Fixing materials for inner parts(1set)
Surface Finish:
Enclosure frame, doors, cover, panels:
Powder coated RAL9005 textured.
Mounting angles, C-rails, cable trays:
Zinc-plated.
9
Optimum cooling and air flow to the
servers; with 80% honeycomb perforation as standard delivery.
1
9
100
1200
kg
100
80% Perforated
Cabinets
42U
Width
47U
Plinths
600mm
800mm
600mm
800mm
600mm
800mm
DN-97000
DN-97010
DN-97020
DN-97030
DN-97200
DN-97203
Depth
1000mm
4
1100mm
DN-97001
DN-97011
DN-97021
DN-97031
DN-97201
DN-97204
1200mm
DN-97002
DN-97012
DN-97022
DN-97032
DN-97202
DN-97205
Load
Carrying
Capacity
Solutions for Data Center
Cabinets
Type: Free-Standing IP54, Black RAL 9005
Exce
llent
Cool
Appl
ing
icati
ons
IP54
for
! Hig
h Pe
man
rforce b
y He
Duty
avy
Fram
ewo
rk!
Width x Depth: 600x1000mm. / 600x1100mm. / 600x1200mm.
Width x Depth: 800x1000mm. / 800x1100mm. / 800x1200mm.
Heights:
42U, 47U
Material:
Sheet steel
Enclosure frame-closed form:1.5mm.,
Door(s):2mm.,
Top Cover:1.5mm.,
Bottom Cover:2mm,
Side panels:1.5mm.
Gland plates, three part:1.2mm.
Mounting angles:1.5mm.
C-rails:1.5mm.
Glass: 4mm.
Shipping Includes:
Enclosure of all-around solid construction(1ea.)
Secure glass front door in solid metal frame or
completely solid front door (1ea.)
Rear door foamed with sealing gasket (1ea.)
Side panels foamed with sealing gasket (2ea.)
Top cover foamed with sealing gasket (1ea.)
Gland plate at bottom( 3parts=1set)
Door hinges(6set)
3point locking system at front and rear,
convenient to use half cylinder(2set)
mounting angles (2ea. at front, 2ea. at rear.)
All earthing points (on every panel.)
Fixing materials for inner parts(1set)
Castor Group, Levelling Feet(1set)
Surface Finish:
Enclosure frame, doors, cover, panels: Powder
coated RAL9005 textured.
Mounting angles, C-rails, cable trays: Zinc-plated.
Protection Category:
IP54 to EN60529; thanks to foamed-in door
sealing gasket and sturdy structure.
1200
kg
Excellent Cooling Applications for IP54
High Performance by Heavy Duty Framework
Side cooler unit for closed loop cooling system
up to 30kW. Individual applications by AC cooling
units.
The multi-folded frames are in closed structure form,
gives high level of stability and load carriying capacity,
fully welded front and rear frames to provide up to
1200kg. Load rating.
Cabinets
42U
Width
47U
Load
Carrying
Capacity
Plinths
600mm
800mm
600mm
800mm
600mm
800mm
DN-97100
DN-97110
DN-97120
DN-97130
DN-97200
DN-97203
Depth
1000mm
1100mm
DN-97101
DN-97111
DN-97121
DN-97131
DN-97201
DN-97204
1200mm
DN-97102
DN-97112
DN-97122
DN-97132
DN-97202
DN-97205
5
Solutions for Data Center
Cabinets
Feature Set
Door hinges are easily swapped from right to left
in all single door enclosures.
Modular solution for extensive system accessories.
Glazed front door of sheet steel with 4mm.
single-pane safety glass or 80% perforated steel door.
Two pair (1set at front / 1set at rear) of
mounting angles, adjustable in depth.
3-point locking mechanism in front and rear
door. Half cylinder with master key,
possible to use keypad, proximity etc...
Textured polyester coating
provides excellent resistance to
corrosion and chemical agents
The multi folded frames are closed
structure, gives high level of stability.
Concealed 130° hinges, easily
dismantled by pulling the pins.
Variable width and depth.
6
Bayable at all levels from
inside and/or outside of
cabinet.
Solutions for Data Center
Cabinets
Perforated single or double
door openning at rear.
Extra depth bring more space for
cable management and cooling.
Divided side panels for easy
mounting
Housing for recessed vertical
power strips and cable trays
Vertically arranged perforated
mounting strips at rear for quick, easy
attachment of cable supports, cable
trunking, stiffeners and covers.
Ready for PE conductor connection on the
enclosure and door with contact washers.
Adjustable levelling feets, and/
or castor group and plinth.
Thanks to design structure and hinges providing of more
inner cabinet space.
Options: special colour, special mounting plate, special
sizes, glazed door.
The roof plate is secured with removable eyebolts and/
or screws
Ample Variety for Accessories
U marking on mounting angles.
7
Solutions for Data Center
Cable Management
DIGITUS® Data Center Server Cabinets offer professional and highly secured management of high
density data and power cables. Separate cable inlet
for data and energy cables, and separate overhead
cable trays and dividers minimize the electromagnetic and physical interference.
Bottom cable entry is designed with gland plates,
which can be removed.
Cable rings can be used in all cable trays, vertical
and horizontal C-rails, framework of cabinet itself .
Simply the raceway for cables are created by fixing
cable rings on all profiles in front and rear part of
the cabinets.
By using cable rings, airflow is improved, installation
time and cost is reduced. It creates space savings
and flexibility inside the cabinet.
Overhead cable trays separate electrical and data
cables.
Cable Management on Cabinet Roof
DN-97603
Cable separator on Cabinet Roof (each) h=120mm. w=600mm.
DN-97604
Cable separator on Cabinet Roof (each) h=120mm. w=800mm.
DN-97605
Front Label Plate (each) h=120mm. w=600mm.
DN-97606
Front Label Plate (each) h=120mm. w=800mm.
DN-97607
Cable Tray on Cabinet Roof (each) h=200mm. w=600mm. (useful dimension for cabling: w=600mm. d=150mm. h=80mm. )
DN-97608
Cable Tray on Cabinet Roof (each) h=200mm. w=800mm. (useful dimension for cabling: w=800mm. d=150mm. h=80mm. )
Cable Management Inside Cabinet
DN-97640
42U Vertical Cable tray for Data Center cabinets
DN-97641
47U Vertical Cable tray for Data Center cabinets
DN-97642
42U Vertical Cable holder for Data Center cabinets
DN-97643
47U Vertical Cable holder for Data Center cabinets
DN-19 ORG-1
Ring for cable management 44 x 60mm (1 Set = 10 pieces)
DN-19 ORG-2
Ring for cable management 44 x 100mm (1 Set = 10 pieces)
8
Solutions for Data Center
Air Corridor System
Roof Modules
DN-97314
Polycarbonate, Black frame RAL 9005, 600x1200mm
DN-97315
Polycarbonate, Black frame RAL 9005, 800x1200mm
Door Modules
DN-97316
Door with Keypad controlled opening, 1200x2000mm
DN-97317
Door with Button controlled opening, 1200x2000mm
DN-97318
Door with manual opening, 1200x2000mm
9
Solutions for Data Center
IT Cooling
Energy efficient and proper cooling for
your datacenter
DIGITUS® Datacenter IT Cooling Solution ensures maximum IT availability at minimum running costs. The power usage effectiveness in the datacenter indicates
that approximately 45% of the total incoming power is utilised by cooling and
cooling related equipment.
By understanding the dynamics of the datacentre ecosystem, DIGITUS® Datacenter IT Cooling Solution offers the proper and energy efficient cooling with
its wide product range such as water chilled sidecoolers, in-row coolers, heat
removal units, cold aisle containment etc.
10
Solutions for Data Center
IT Cooling
Cold Corridor
Hot Corridor
In-Row Cooling (in a cold/hot aisle containment)
To serve for cooling and/or enhancing the cooling capacity of an cold aisle
containment, In Row Coolers are utilised. The water chilled solution increases
the cooling efficiency and can easily cope with thermal loads upto 30 kW. These
units are situated in-between the racks and provide proper airflow paths by preventing exhaust air recirculating to IT equipment. The unit captures heat directly
from the hot aisle and distributes cool air to the cold aisle. The heat rejection
can be handled by an existing chilled water system. The modular solution serve
scalable cooling capacity growth.
Benefits/Features:
• Liquid cooling
• Enhanced cooling capacity
• Easy installation / maintenance
• Managed cooling with integration availability
to any control system
Air-Conditioning-System
Units
42U
47U
12kW
DN-97300
DN-97303
20kW
DN-97301
DN-97304
30kW
DN-97302
DN-97315
Cooling Efficiency
11
Solutions for Data Center
IT Cooling
Direct Rack Cooling (Side Cooler)
Benefits/Features:
• Liquid cooling
• Total Heat Removal at Source
• Easy adaptation to any type of rack
• IP55 Closed system to prevent hot-cold air
intervention at inside and from outside the rack
• High cooling capacity (up to 30 kW per rack)
• Easy installation/maintenance
• Managed cooling with integration
availability to any control systems
With the advent of blades and high-density server infrastructures, high heat
emissions at certain specific points in the racks create hot spots which are
impossible to cool down either by any conventional systems or even by some
specific applications like cold-aisle solutions etc.
To prevent such formations of hot spots, direct rack cooling is the ideal solution. You can eliminate the heat at source and save a lot of energy. The heat
rejection can be handled by an existing chilled water system. The modular
solution serve scalable cooling capacity growth.
Air-Conditioning-System
Units
42U
47U
12kW
DN-97306
DN-97309
20kW
DN-97307
DN-97310
30kW
DN-97308
DN-97311
Cooling Efficiency
12
Solutions for Data Center
IT Cooling
Twist Air (hot air removal)
Twist Air is an airflow enhancer module, extremely compact, it was developed to be installed on the rear side
of server rack enclosure. Twist Air assure a proper airflow through the servers (up to 3000 m3/h) to avoid hot
spots. Twist Air action avoid servers malfunctioning and
shut down related to high temperature issue.
Twist Air is available in two different air flow configuration
to be suitable for different datacenter arrangement, the
air could be delivered on the rear side of the module
for applications in hot and cold aisle arrangement, for
datacenter with front to back arrangement the airflow is
delivered to the top side, thus to avoid dangerous mixing
of hot and cold air in front of the servers suction side
in the next row, in this way efficiency and reliability of
datacenter cooling system are strongly improved.
For all accessories, shelves, ventilation, power distributions/strips, cable management parts, castor, levelling
feet, plinths, please see our main catalogue or check our
website www.digitus-professional.com or contact sales
department.
DN-97312
42U Back Door Air Ventilation System 10kW 230/1/50-60, 3000m³/h
DN-97313
47U Back Door Air Ventilation System 10kW 230/1/50-60, 3000m³/h
13
DIGITUS® Outlet strip with aluminium profile,
8 outlets
• 8 Socket outlets 250VAC 50/60Hz / 16A / 4000W
• Aluminium profile
• 35° turned outlets
• Cable: 2m H05VV-F 3G1,5mm²
• Right angle Schuko plug with double earthing
• 1U
• Suitable for Rack Mount, inclusive 483mm (19“) mounting angles
266396 / DN-95401
Outlet strip with aluminium profile, 8 outlets
DIGITUS® Outlet strip with aluminium profile
with switch, 7 outlets
• 7 Socket outlets 250VAC 50/60Hz / 16A / 4000W
• Aluminium profile
• 35° turned outlets
• Illuminated switch - protected against accidental power off
• Cable: 2m H05VV-F 3G1,5mm²
• Right angle Schuko plug with double earthing
• 1U
• Suitable for Rack Mount, inclusive 483mm (19“) mounting angles
266402 / DN-95402
Outlet strip with aluminium profile with switch, 7 outlets
DIGITUS® Outlet strip with aluminium profile
with overload protection, 7 outlets
• 7 Socket outlets 250VAC 50/60Hz / 16A / 4000W
• Aluminium profile
• 35° turned outlets
• Overload protection
• Switch - protected against accidental power off
• Cable: 2m H05VV-F 3G1,5mm²
• Right angle Schuko plug with double earthing
• 1U
• Suitable for Rack Mount, inclusive 483mm (19“) mounting angles
266419 / DN-95403
Outlet strip with aluminium profile with overload protection, 7 outlets
14
DIGITUS® Outlet strip with aluminium profile,
10 outlets
• 10 IEC C13 Socket outlets 250VAC 50/60Hz / 10A / 2500W
• Aluminium profile
• Overload protection
• Cable: 2m H05VV-F 3G1,5mm²
• IEC C13 plug
• 1U
• Suitable for Rack Mount, inclusive 483mm (19“) mounting angles
266426 / DN-95404
Outlet strip with aluminium profile, 10 outlets
DIGITUS® Outlet strip with aluminium profile
with overload protection, 12 outlets
• 2 circuits with 12 socket outlets 250VAC 50/60Hz / 2x 16A
• Aluminium profile
• 35° turned outlets
• 2x Overload protection
• Cable: 2m H05VV-F 3G1,5mm²
• Right angle Schuko plug with double earthing
• Vertical installation
• 1U
• Suitable for Rack Mount
266433 / DN-95405
Outlet strip with aluminium profile with overload protection, 12 outlets
15
BlueNet Metered Power Outlet Strip
• Measures the current Power
• Built-in digital Ampèremeter
• Range of Measurement: 0-16 A
• Accuracy Class 1
• Blue LCD Display
• 2m Connection Cable with angled Schuko plug
• Line diameter 1,5 mm² for up to 16 A (3600 Watt)
• Color grey RAL 7035
• Torsion-resistant Aluminium Profile
• 1U
• Suitable for Rack Mount, inclusive 483mm (19“) mounting brackets
276807 / ASL-BN-100
Metered Power Outlet Strip, 7x Schuko Socket CEE 7/4
276814 / ASL-BN-101
Metered Power Outlet Strip, 8x IEC 320 C13
276821 / ASL-BN-102
Metered Power Outlet Strip, 7x IEC 320 C19
BlueNet Metered Plus Power Outlet Strip
• Shows current, voltage, phase shifting and appararent power
(dependent on phase shifting and frequency)
• Range of Measurement: 0-16 A
• Accuracy Class 1
• Blue LCD Display
• 2m Connection Cable with angled Schuko plug
• Line diameter 1,5 mm² for up to 16 A (3600 Watt)
• Color grey RAL 7035
• Torsion-resistant Aluminium Profile
• 1U
• Suitable for Rack Mount, inclusive 483mm (19“) mounting brackets
276845 / ASL-BN-200
Metered Plus Power Outlet Strip, 6x Schuko Socket CEE 7/4
276838 / ASL-BN-201
Metered Plus Power Outlet Strip, 8x IEC 320 C13
16
BlueNet Switched Power Outlet Strip
• Each single socket can be switched on or off over the network or internet
• Integrated Web Server
• Inclusive 3m patch cable
• Supports SNMP, DHCP, HTTP, HTTPS, SSH
• 2m Connection Cable with angled Schuko plug
• Line diameter 1,5 mm² for up to 16 A (3600 Watt)
• Color black RAL 9005
• Torsion-resistant Aluminium Profile
• 1U
• Suitable for Rack Mount
276852 / ASL-BN-300
Switched Power Outlet Strip, 8x IEC 320 C13
276869 / ASL-BN-301
Switched Power Outlet Strip, 16x IEC 320 C13
BlueNet Monitored Power Outlet Strip
• Shows current, voltage, phase shifting and appararent power (dependent on phase shifting and
frequency) over display, network or internet
• Range of Measurement: 0-16 A
• Accuracy Class 1
• Blue LCD Display
• Integrated Web Server
• Inclusive 3m patch cable
• Supports SNMP, DHCP, HTTP, HTTPS, SSH
• 2m Connection Cable with angled Schuko plug
• Line diameter 1,5 mm² for up to 16 A (3600 Watt)
• Color black RAL 9005
• Torsion-resistant Aluminium Profile
• 1U
• Suitable for Rack Mount, inclusive 483mm (19“) mounting brackets
276876 / ASL-BN-400
Monitored Power Outlet Strip, 5x Schuko Socket CEE 7/4
276883 / ASL-BN-401
Monitored Power Outlet Strip, 5x IEC 320 C13
276890 / ASL-BN-402
Monitored Power Outlet Strip, 5x IEC 320 C19
17
General Electric Line Interactive UPS
These UPS are line-interactive, intelligent and rugged, designed for cost-critical applications.
All units are microprocessor controlled and have standard RS232 communications. They are
used in a wide range of IT networking and telecommunications applications.
• Line Interactive UPS (VI-SS-333)
• Communication: RS232 port
• Automatic Voltage Regulation
• Excellent high voltage protection up to 350 Vac
• Low ‘green’ power consumption
• Optimised sine wave output, avoiding peak currents that can damage electronics and batteries
• Automatic battery test, automatic boost charge with two-hour recharge time and low battery
temperature
• Front accessible batteries for easy replacement
• Suitable for 483mm (19“) Rack Mount
• Only 440mm depth leaving space for connectors and cables
3 Year
Warra s
for UP nty
Sa
Batte nd
ry
277316 / A-17010
General Electric Line Interactive UPS, 1000 VA, 600 Watt, Min. Backup time at 75% load: 13 minutes, 6U, 6x IEC 320 C13
277330 / A-17011
General Electric Line Interactive UPS, 2200 VA, 1540 Watt, Min. Backup time at 75% load: 7 minutes, 6U, 8x IEC 320 C13, 1x IEC 320 C19
277323 / A-17012
General Electric Line Interactive UPS, 3000 VA, 2100 Watt, Min. Backup time at 75% load: 7 minutes, 6U, 8x IEC 320 C13, 1x IEC 320 C19
General Electric Online UPS
These UPS are true VFI (Voltage & Frequency Independent) on-line double conversion, intelligent and
high-performance UPS designed for all mission-critical applications. The UPS range is designed with
a unique failsafe bypass providing maximum security and reliability for the user. The range of UPS
has been designed also for maximum site flexibility. With an attractively designed modern common
483mm rackmountable design, the UPS can adapt as network configurations adapt. For communication, the Series is provided with USB and contact interface as standard; an easy to install option card
is available with RS232, USB and relay. A web-enabled SNMP card is available as an option.
• Online UPS (VFI-SS-111)
• Versatile communication with USB and contact interface, RS232, relays and SNMP
• Voltage and frequency independent (VFI) double conversion technology eliminates
power reliability problems
• Unique failsafe internal bypass for continued operation even in the event of UPS failure
• Simple battery replacement without disruption to supported load
• Wide input voltage window minimising battery usage
• Excellent short circuit protection
• GE’s unique Superior Battery Management enhancing battery performance and lifetime
• Easy plug-in connection of battery packs for extended run-time
• (Remote controlled) programmable computer shutdown
• Remote monitoring and control for unmanned or isolated sites
• Can be used as a 50/60Hz frequency converter
• Phase neutral reversal protection
• Precise output frequency regulation
• High efficiency
• 2U rack design for all ratings; all support elements included
• All components for Rack, Tower & Parallel installation are included with the UPS
• Combined tower / 483mm (19“) design for maximum flexibility
277347 / A-17020
General Electric Online UPS, 1000 VA, 700 Watt, 4x IEC 320 C13, Min. Backup time at 50% load: 24 minutes/at 75% load: 11 minutes
277354 / A-17021
General Electric Online UPS, 2000 VA, 1400 Watt, 6x IEC 320 C13, Min. Backup time at 50% load: 20 minutes/at 75% load: 11 minutes
277361 / A-17022
General Electric Online UPS, 3000 VA, 2100 Watt, 6x IEC 320 C13, Min. Backup time at 50% load: 16 minutes/at 75% load: 8 minutes
18
3 Year
Warra s
for UP nty
Sa
Batte nd
ry
General Electric Online UPS, 6000 VA
With this UPS your mission-critical equipment is protected from any fluctuation in your power source,
enabling you to concentrate on your core activities. It is a true VFI (Voltage & Frequency Independent)
on-line double conversion, transformerless, intelligent and high performance installable UPS. This UPS
provides critical power protection to suit a wide range of IT Networks, Telecom and other applications. It is easy to install and service, and is designed for maximum site flexibility. With an attractively
designed modern 483mm rack mount cabinet, the UPS can adapt as network configurations adapt.
Both the power and redundancy of the system can be expanded by adding units (N+2) to create
a parallel system. For communication, the UPS is equipped with RS232 and contact interface as
standard; a web-enabled SNMP card is available as an option. Operation in remote or unmanned
sites is simple to coordinate with the standard remote monitoring functionality. No load shutdown,
automatic frequency detection, settable minimum start-up runtime and extended runtime availability
with optional battery packs are additional features of this UPS.
• Online UPS (VFI-SS-111)
• 6000 VA
• 4200 Watt
• Min. Backup time at 50% load: 28 minutes
• Min. Backup time at 75% load: 17 minutes
• On-line double conversion technology assuring ultimate Power Quality
• (Remote controlled) programmable computer shutdown
• Wide input voltage window to minimize battery operation
• Small footprint & low weight, ideal for IT applications or sites with limited available space
• Hot swappable batteries for easy battery replacement without dropping the load
• Simple installation of paralleling cable for expanded power and redundancy of the system
• Backfeed protection as standard providing optimal safety for installation
• Frequency converter (50Hz – 60Hz) also in parallel operation
• All components for Rack, Tower & Parallel installation are included with the UPS
• Combined tower / 483mm (19“) design for maximum flexibility
• 6U
• 2x IEC 320 C19
277385 / A-17030
General Electric Online UPS, 6000 VA
19
DIGITUS® Professional KVM-TFT Konsolen
The professionally DIGITUS® KVM console offers through his absolute modular construction many of
possibly individual applications. The console can be composite for his intended application range.
Therefore this console is on the one hand cost-saving as well as upgrade- and rebuildable at every time
and warrants a high future-proof.
The console consists out of four main parts which can be ordered separately and comfortable and easy
are composed of following elements to match favored control element:
1. The main console, composed of the console-frame with monitor and touchpad
2. The mounting frames for the mounting parts in a cabinet
3. A keyboard
4. A KVM-module
The matching connecting cables for every KVM-module are also available.
mounting frame
The main console
The main console consists of a rugged metal mounting frame, one 43,2cm (17“)
or 48,3cm (19“) TFT-monitor and a built in touchpad.
Prominent features are:
• Rugged metal frame
• 1U construction
• Modular capability of connecting for touchpad, keyboard, monitor, mounting frame and KVM-module
• Touchpad with simulated scroll-wheel control
• Two selectable monitors:
• Monitor, 43,2cm (17“) (DS-75100)
• Resolution: • Active screen area: • Pixel-Pitch: • Brightness: • Contrast: • Maximum angle: 1280x1024 Pixel at 60/70/75Hz
337,9x270,3(mm)²
0,264(H)x0,264(V)(mm)
300(cd/m²)
800:1
~80°
• Monitor, 48,3cm (19“) (DS-76100)
• Resolution: • Active screen area: • Pixel-Pitch: • Brightness: • Contrast: • Maximum angle: 1280x1024 Pixel at 60/70/75Hz
376,3x301,1(mm)²
0,294(H)x0,294(V)(mm)
300(cd/m²)
800:1
~85°
The mounting frame
Depending on the cabinet installation depth are two several mounting frames selectable:
• DS-70100: For cabinet installation depth of 40cm (15"3/4) to 77cm (30" 5/16),
Lenght: 385mm (15" 3/20)
• DS-70101: For cabinet installation depth of 59cm (23" 7/32) to 96cm (37" 3/4),
Length: 575mm (22" 13/20)
Keyboards
The ergonomical keyboards are manufactured custom-fit for the console and will be connect easily via Mini-USB.
Layouts are available for the following countries:
Germany (DS-70000GE), United Kingdom (DS-70000UK), USA (DS-70000US),
France (DS-70000FR), Italy (DS-70000IT), Spain (DS-70000ES), Portugal (DS-70000PT)
More keyboard layouts after request.
detailed view
20
The KVM-modules
Several KVM-modules are available for the console which are close to leave nothing to be desired.
The connection uses a built in connector from the console frame to the KVM-module.
Available are six modules with an eight or sixteen KVM-ports and with or without IP access.
DS-11210: DS-11215: DS-13210 / DS-14210:
DS-13215 / DS-14215:
Combo-KVM module for USB and PS/2, 1-Port
• Direct connection to a server or to an already existing KVM
• Video resolution up to 1920x1440 pixels; supports DDC2B
• Dimensions (WxDxH): 40x404x114mm; 1.02x15.91x4.49"
Combo-KVM module for USB and PS/2, 1-port, with IP access possibility
• Direct connection to a server or to an already existing KVM
• TCP/IP access possibility via web browser or VNC client
• Own internal firewall and security management functions
• Special On-Screen-Display menu
• Video resolution up to 1600x1200 pixels at 85Hz
• Dimensions (WxDxH): 43x404x220mm; 1.69x15.91x8.66"
Combo-KVM module for USB and PS/2, 8-ports or 16-ports
• Direct connection to a server or to an already existing KVM
• Auto scan function
• Password protection
• Special On-Screen-Display menu
• Video resolution up to 1920x1440 pixels; supports DDC2B
• Dimensions (WxDxH): 40x404x114mm; 1.02x15.91x4.49"
Combo-KVM module for USB and PS/2, 8-ports or 16-ports, with IP access possibility
• Direct connection to a server or to an already existing KVM
• Auto scan function
• Password protection
• TCP/IP access possibility via web browser or VNC client
• Own internal firewall and security management functions
• Special On-Screen-Display menu
• Video resolution up to 1600x1200 pixels at 85Hz
• Dimensions (WxDxH): 43x404x220mm; 1.69x15.91x8.66"
PS/2 connection cable
The Cables
The KVM connection cables are available from 1.8m (6’) up to 6.0m (20’)
PS/2: DS-19111 (1,8m; 6’), DS-19112(3,0m; 10’), DS-19113(6,0m; 20’)
USB:
DS-19211 (1,8m; 6’), DS-19212(3,0m; 10’), DS-19213(5,0m; 20’)
Attention! Cable for DS-11210:
useable
cabletype:
P.: 28
For more details about the separate components please visit our website www.digitus.info.
Product overview:
258667 / DS-75100
258773 / DS-11210
LCD Console, with TFT 43,2cm (17“) basic frame
KVM module for modular based console, 1port
258674 / DS-76100
258780 / DS-11215
LCD Console, with TFT 48,3cm (19“) basic frame
KVM module for modular based console, 1-port, with IP access
258919 / DS-70100
258797 / DS-13210
Mounting frame for modular based console, 385mm
KVM module for modular based console, 8-port
258926 / DS-70101
258803 / DS-13215
Mounting frame for modular based console, 575mm
KVM module for modular based console, 8-port, with IP access
258681 / DS-70000GE
258810 / DS-14210
Keyboard for modular designed console, German
KVM module for modular based console, 16-port
258698 / DS-70000UK
258827 / DS-14215
Keyboard for modular designed console, English
KVM module for modular based console, 16-port, with IP access
258704 / DS-70000US
258834 / DS-19111
Keyboard for modular designed console, American
PS/2 connection cable for modular based console - 1,8m
258711 / DS-70000FR
258841 / DS-19112
Keyboard for modular designed console, French
PS/2 connection cable for modular based console - 3,0m
258728 / DS-70000IT
258858 / DS-19113
Keyboard for modular designed console, Italian
PS/2 connection cable for modular based console - 5,0m
258735 / DS-70000ES
258865 / DS-19211
Keyboard for modular designed console, Spanish
USB connection cable for modular based console - 1,8m
258742 / DS-70000PT
258841 / DS-19112
Keyboard for modular designed console, Portugal
PS/2 connection cable for modular based console - 3,0m
258858 / DS-19113
PS/2 connection cable for modular based console - 5,0m
21
DIGITUS® Console with TFT, 38cm (15“)
keyboard & touchpad
The DIGITUS® TFT consoles are a spacesaving and functional solution for a comfortable connection
to PCs, servers or KVM installations in a rack-mounting area. They combine three devices in one and
occupy only 1U in a rack.
• Non reflective and break-proof LCD monitor 38cm (15“)
• Active Matrix LCD Panel
• Max. resolution: 1024x768 pixels at 75Hz, Cl. II
• VGA/SVGA/XGA/SXGA Display Mode 16.2 Mio. colors
• Contrast rate 500:1, Brightness 250cd/m2, response time 12ms
• Audio Speaker support (1x3.5mm Stereo Plug)
• Requires no additional software or hardware
• Space saving steel sheet housing (1U height), black RAL 9005
• Dimensions (WxDxH): 447x600x48mm; Weight: 12.1kg
• Package content: 1x LCD Console, 1x USER Manual, 1x Power Cord, 2x Rack-Mount Brackets;
12x Screws (for Brackets); 2x Key
Consoles also available with other Keyboard layouts on request.
useable
cabletype:
P.: 28
Connection cable not in scope of delivery.
233534 / DC-71101GE
Console with TFT 38cm (15“), german keyboard
233558 / DC-71101US
Console with TFT 38cm (15“), US-keyboard
233541 / DC-71101FR
Console with TFT 38cm (15“), french keyboard
DIGITUS® Console with TFT, 43,2cm (17“)
keyboard & touchpad
The DIGITUS® TFT consoles are a spacesaving and functional solution for a comfortable connection
to PCs, servers or KVM installations in a rack-mounting area. They combine three devices in one and
occupy only 1U in a rack.
• Non reflective and break-proof LCD monitor 43,2cm (17‘‘)
• Active Matrix LCD Panel
• Max. resolution: 1280x1024 pixels at 60Hz, Cl.II
• VGA/SVGA/XGA/SXGA Display Mode 16.2 Mio. colors
• Contrast rate 500:1, Brightness 300cd/m², response time 8ms
• Audio Speaker support (1x3.5mm Stereo Plug)
• Requires no additional software or hardware
• Space saving steel sheet housing (1U height), black RAL 9005
• Dimensions (WxDxH): 447x600x48mm; Weight: 13.2kg
• Package content: 1x LCD Console, 1x USER Manual, 1x Power Cord, 2x Rack-Mount Brackets;
12x Screws (for Brackets); 2x Key
Consoles also available with other Keyboard layouts on request.
useable
cabletype:
P.: 28
Connection cable not in scope of delivery.
233749 / DC-72101GE
Console with TFT 43,2cm (17“), german keyboard
233763 / DC-72101US
Console with TFT 43,2cm (17“), US-keyboard
233756 / DC-72101FR
Console with TFT 43,2cm (17“), french keyboard
22
DIGITUS® Console with TFT 38cm (15"), 4-/8-/16-port KVM switch
The DIGITUS® TFT consoles with integrated KVM are a spacesaving and functional solution for a
comfortable connection to several PCs or servers in a rack-mounting area. They combine four devices
in one and occupy only 1U in a rack.
• Control Panel with TFT 38cm (15‘‘), keyboard, touchpad and built-in KVM switch
• Control up to 256 computers by cascading KVM
• PC selection via push button on front panel, hot key, mouse clicking or through OSD menue
• Monitors PC status by Auto Scan function
• Non reflective and break-proof LCD monitor 38cm (15‘‘)
• Active Matrix LCD Panel
• Max. resolution: 1024x768 pixels at 75Hz, Cl.II, and supports EDID & DDC2 of each PC
• VGA/SVGA/XGA/SXGA Display Mode 16.2 Mio. colors
• Contrast rate 500:1, Brightness 250cd/m², response time 12ms
• Requires no additional software or hardware
• Space saving steel sheet housing (1U height), black RAL 9005
• Dimensions (WxDxH): 447x600x48mm; Weight: 12.2 / 12.25 / 12.3kg
• Package content: 1x LCD Console with integrated KVM, 1x USER Manual, 1x Power Cord,
1x Firmware Upgrade cable; 2x Rack-Mount Brackets; 12x Screws (for Brackets); 2x Key
233657 / DC-71301GE
useable
cabletype:
P.: 29
useable
cabletype:
P.: 29
Consoles also available with other Keyboard layouts on request.
Connection cables not in scope of delivery.
Console with TFT 38cm (15“) with 4-port KVM, german keyboard
233671 / DC-71301US
Console with TFT 38cm (15“) with 4-port KVM, US-keyboard
233664 / DC-71301FR
Console with TFT 38cm (15“) with 4-port KVM, french keyboard
233688 / DC-71302GE
Console with TFT 38cm (15“) with 8-port KVM, german keyboard
233701 / DC-71302US
Console with TFT 38cm (15“) with 8-port KVM, US-keyboard
233695 / DC-71302FR
Console with TFT 38cm (15“) with 8-port KVM, french keyboard
233718 / DC-71401GE
Console with TFT 38cm (15“) with 16-port KVM, german keyboard
233732 / DC-71401US
Console with TFT 38cm (15“) with 16-port KVM, US-keyboard
233725 / DC-71401FR
Console with TFT 38cm (15“) with 16-port KVM, french keyboard
DIGITUS® Console with TFT 43,2cm (17“), 4-/8-/16-port KVM switch
The DIGITUS® TFT consoles with integrated KVM are a spacesaving and functional solution for a
comfortable connection to several PCs or servers in a rack-mounting area. They combine four devices
in one and occupy only 1U in a rack.
• Control Panel with TFT 43,2cm (17”), keyboard, touchpad and built-in KVM switch
• Control up to 256 computers by cascading KVM
• PC selection via push button on front panel, hot key, mouse clicking or through OSD menue
• Monitors PC status by Auto Scan function
• Non reflective and break-proof LCD monitor 43,2cm (17”)
• Active Matrix LCD Panel
• Max. resolution: 1280x1024 pixels at 75Hz, Cl.II, and supports EDID & DDC2 of each PC
• VGA/SVGA/XGA/SXGA Display Mode 16.2 Mio. colors
• Contrast rate 500:1, Brightness 300cd/m², response time 8ms
• Requires no additional software or hardware
• Space saving steel sheet housing (1U height), black RAL 9005
• Dimensions (WxDxH): 447x600x48mm; Weight: 13.3 / 13.35 / 13.4kg
• Package content: 1x LCD Console with integrated KVM, 1x USER Manual, 1x Power Cord,
1x Firmware Upgrade cable; 2x Rack-Mount Brackets; 12x Screws (for Brackets); 2x Key
useable
cabletype:
P.: 29
useable
cabletype:
P.: 29
Consoles also available with other Keyboard layouts on request.
Connection cables not in scope of delivery.
233770 / DC-72301GE
Console with TFT 43,2cm (17“) with 4-port KVM, german keyboard
233800 / DC-72301US
Console with TFT 43,2cm (17“) with 4-port KVM, US-keyboard
233787 / DC-72301FR
Console with TFT 43,2cm (17“) with 4-port KVM, french keyboard
233817 / DC-72302GE
Console with TFT 43,2cm (17“) with 8-port KVM, german keyboard
233831 / DC-72302US
Console with TFT 43,2cm (17“) with 8-port KVM, US-keyboard
233824 / DC-72302FR
Console with TFT 43,2cm (17“) with 8-port KVM, french keyboard
233848 / DC-72401GE
Console with TFT 43,2cm (17“) with 16-port KVM, german keyboard
233862 / DC-72401US
Console with TFT 43,2cm (17“) with 16-port KVM, US-keyboard
233855 / DC-72401FR
Console with TFT 43,2cm (17“) with 16-port KVM, french keyboard
23
DIGITUS® USB-PS/2 Combo-KVM switch with OSD, 8-port
This high quality KVM switch is ideal for using in small to middle sized server rooms and provides
direct connection to eight server. Due to the possibility to upgrade the firmware, it fits simply to all
new conditions.
• Controls up to eight PCs with one PS/2- or USB-keyboard, one PS/2- or USB-mouse and one monitor
• Extension via cascading possible
• Simple installation - no additional software needed
• PC-choice over push-buttons, Hot-Key or OSD (On Screen Display)
• Excellent video quality - up to 2048x1536 pixels at 85Hz
• Supports DDC, DDC2 monitors
• Hot plug and play
• Emulates a keyboard on each PC to allow your computers to boot normally without a keyboard error
• Autoscan (5 to 250 sec., selectable)
• Incl. external Power DC 5V 2A
• incl. Rack mounted iron panel with screw (DC-15002 => also separately available)
• Fully compliant with USB 1.1/2.0 specifications
• Upgradeable firmware
• Supports Windows®, Linux, Mac and Sun Micro Systems
• Dimension (LxWxH; Weight): 440x157x45mm (17.3x6.1x1.5inch); 1750g
• Package contents: 1x KVM switch; 1x user manual, 1x power adapter; 1x mounting frame
useable
cabletype:
P.: 29
useable
cabletype:
P.: 29
Connection cables not in scope of delivery.
258407 / DS-13202
USB-PS/2 Combo-KVM switch with OSD, 8-port
258414 / DS-14202
USB-PS/2 Combo-KVM switch with OSD, 16-port
DIGITUS® desktop KVM switch PS/2, OSD, 8-port
Controlls simply, comfortably and cost-saving several PCs with one console with one monitor, one
keyboard and one mouse. Simple usage with On-Screen-Display (OSD).
• Controls eight computer with one PS/2 keyboard, one PS/2 mouse and one monitor
• Simple installation - no additional software required
• PC selection via buttons, hot keys or mouse click (hot key function can be switched off)
• Clear On-Screen-Display (OSD)
• Excellent video quality - up to 1920x1440 pixels, 200MHz bandwidth
• Supports DDC, DDC2, DDC2B, DDC2AB
• Hot plug and play
• Keyboard and mouse emulation for error free booting of the computer
• Autoscan ( 5,10,15,20,25,30 sec. options) / autoskip function
• Power supply included
• Incl. installation bracket 1HE
• Supports Standard-PS/2-mouse, Microsoft IntelliMouse plus complete support for Microsoft IntelliPoint 5.0 mouse drivers & Logitech Mouse ware-drivers
• Supports Windows®, Linux, Mac and Sun Micro Systems
• Dimensions (LxWxH, Weight): 342x104x45mm; 1460g
• Package Contents: 1x KVM switch; 1x user manual; 1x power supply DC 9V 600mA; mounting frame
useable
cabletype:
P.: 28
useable
cabletype:
P.: 28
useable
cabletype:
P.: 28
Connection cables not in scope of delivery.
258186 / DS-13112
KVM switch PS/2 with mouseclicking, OSD, 8-port
24
DIGITUS® Desktop KVM switch PS/2
Controlls simply, comfortably and cost-saving several PCs with one console with one monitor, one
keyboard and one mouse.
• Controls up to six PCs via a PS/2 keyboard, a PS/2 mouse and a monitor
• Simple installation - no additional software required
• PC selection via buttons, hot keys or mouse click (hot key function can be switched off)
• Excellent video quality - up to 1920x1440 pixels, 200MHz bandwidth
• Supports DDC, DDC2, DDC2B, DDC2AB
• Hot plug and play
• Keyboard and mouse emulation for error free booting of the computer
• Autoscan ( 5,10,15,20,25,30 sec. options) / autoskip function
• Incl. installation bracket 1HE
• Supports Standard-PS/2-mouse, Microsoft IntelliMouse plus complete support for Microsoft IntelliPoint 5.0 mouse drivers & Logitech Mouse ware-drivers
• Supports Windows®, Linux, Mac and Sun Micro Systems
• Dimensions (LxWxH, Weight): 269x104x45mm; 1180g
• Package Contents: 1x KVM switch; 1x user manual; 1x power supply DC 9V 300mA; 1X mounting
frame with fixing material
useable
cabletype:
P.: 28
useable
cabletype:
P.: 28
useable
cabletype:
P.: 28
Connection cables not in scope of delivery.
258162 / DS-13110
KVM switch PS/2 with mouseclicking, 6-port
258179 / DS-13111
KVM switch PS/2 with mouseclicking, 8-port
DIGITUS® Combo KVM Extender
with USB and PS/2 connections
This Combo KVM Extender allows an extension of VGA video, USB, and PS/2 signals up to a distance
of 200 meters away from the signal source. With the built-in video and keyboard/mouse signal
amplifiers an excellent quality of video resolutions can be achieved.
• Extends keyboard, video, and mouse signals via Cat5 cables
• Dual console operation possible - control your system locally and remotely
• Push button at local side to select active console
• Options available to control console settings: local / remote / local and remote
• Local and remote consoles allow connections of USB and / or PS/2 keyboards / computer mouses
• Allows computer connections via USB and / or PS/2 interfaces at local console
• Supports high video resolutions of up to 1280x1024 pixels at 60Hz
• Remote monitor DDC2B supported
• Control of focus, brightness, and color skew at remote side ensures perfect video quality
• No software or driver installations required
• Supports access to BIOS level
• LEDs on both devices indicate active console and connection status
• Firmware upgradeable
• Operating systems supported: Windows 98SE / ME / 2000 / XP / Server 2003 / Vista / DOS/ Linux
/ MacOS 9.x and higher / Sun Microsystems
• Dimensions local / remote (L x W x H): 125mm x 78mm x 46mm
• Package contents: 1 x local unit; 1 x remote unit; 1 x user manual; 1 x VGA female to male cable, 2
x PS/2 male to male cable; 2 x power adaptor DC 5V 2A
263142 / DS-51110
Combo KVM Extender
25
DIGITUS® KVM extender over CAT 5
The extension of VGA, PS/2 keyboard, PS/2 mouse signal up to 300 meter away by using the KVM
Extender and one CAT 5 cable.
• Max. resolution 1280x1024 pixels
• Support Auto/Manual video quality adjustment
• Support video gain, equalization and RGB skew adjust
• Support three hot key to combine other equipment
• Two control privilege modes – „Share“ & „Local only“
• Extra console port is available on Local side
• Auto console selection between Local and Remote
223825 / DC-51101
KVM extender 300m, local + remote
232711 / DC-51102
KVM extender 180m, local + remote
DIGITUS® RS232 extender, 1000m
• Compatible with all RS232 protocols
• Full-duplex data communication
• Sends RS232 data at 230kbps up to 1000m (3300ft.)
• Pure hardware solution - real time data transfer, no software conflicts
• Transfer data or files between PCs, equipments
• Extension over CAT 5 cable
• Connections locale and remote side: 1x DB-9 Female; 1x RJ45 Female; power supply
223887 / DC-52101
RS232 extender
26
Product comparision table Desktop KVMs - Basic-Line
Consoles- / Working side
Monitor
Keyboard
Mouse
Supported PC connections
Sound
Number of PCs
Monitor
Keyboard
Mouse
useable cables *
Sound
Specifics
Switching by mouse clicking possible;
DS-11110
2
cables:
DS-12110
4
cables:
DS-13110
6
cables:
DS-13111
8
cables:
DS-11310
2
DS-12310
4
DS-13112
8
cables:
DC-11403
2
cables:
Switching by mouse clicking possible
DC-12402
4
cables:
Switching by mouse clicking possible
DS-11510
2
cables:
DS-12510
4
cables:
with adapter cable
also usable with USB-PCs
Switching by mouse clicking possible;
with adapter cable
also usable with USB-PCs
Switching by mouse clicking possible;
with adapter cable
also usable with USB-PCs
Switching by mouse clicking possible;
with adapter cable
also usable with USB-PCs
cables:
Switching by mouse clicking possible;
(2 cable sets included)
with adapter cable
cables:
Switching by mouse clicking possible;
(4 cable sets included)
with adapter cable
also usable with USB-PCs
also usable with USB-PCs
Switching by mouse clicking possible;
with adapter cable
also usable with USB-PCs; OSD
* cable-types on page 28/29
Product comparision table Desktop KVMs - Combo-Line
Consoles- / Working side
Monitor Keyboard
Mouse
Supported PC connections
Sound
Number of
PCs
Monitor Keyboard
Mouse
useable cables *
Sound
Specifics
DC-11202-1
2
PS/2 and / or USB
(Combo-switch)
cables
(2 x 1,8m cable sets included)
Keyboard and mouse connections freely selectable
DC-12202-1
4
PS/2 and / or USB
(Combo-switch)
cables
(2 x 1,8m cable sets included)
Keyboard and mouse connections freely selectable
DS-13202
8
PS/2 and / or USB
(Combo-switch)
cables
Keyboard and mouse connections freely selectable; firmware upgadeable
DS-14202
16
PS/2 and / or USB
(Combo-switch)
cables
Keyboard and mouse connections freely selectable; firmware upgadeable
DC-11401-1
2
PS/2 and / or USB
(Combo-switch)
cables
(2 x 1,8m cable sets included)
Keyboard and mouse connections freely selectable; audio support, audio
separately switchable
DC-12401-1
4
PS/2 and / or USB
(Combo-switch)
cables
(2 x 1,8m cable sets included)
Keyboard and mouse connections freely selectable; audio support, audio
separately switchable
DC-11201-1
2
cables
(2 x 1,8m cable sets included)
Keyboard and mouse connections freely selectable at the KVM;
incl. 3-port USB 2.0 Hub
DC-12201-1
4
cables
(2 x 1,8m cable sets included)
Keyboard and mouse connections freely selectable at the KVM;
incl. 3-port USB 2.0 Hub
DS-12403
4
cables
(2 x 1,8m cable sets included)
Keyboard and mouse connections freely selectable at the KVM; audio
support, audio separately switchable; incl. 2-port USB 2.0 Hub
cables
(2 x 1,8m cable sets included)
Keyboard and mouse connections freely selectable at the KVM; audio support,
audio separately switchable; incl. 2-port USB 2.0 Hub, supports 2 monitors
DS-12404
2x
4
2x
DC-11801-1
3
cables
(2 x 1,8m cable sets included)
Keyboard and mouse connections freely selectable at the KVM; audio
support, audio separately switchable
DS-12800
4
cables
(2 x 1,8m cable sets included)
Keyboard and mouse connections freely selectable at the KVM; audio
support, audio separately switchable; incl. 2-port USB 2.0 Hub
* cable-types on page 28/29
27
KVM cable
for e.g. manual switches
and KVM consoles
Octopus cable set for KVM switches with PS/2-connectors and VGA-female connectors
2x MiniDIN6 (PS/2) male <-> 2x MiniDIN6 (PS/2) male
1x HDB15 male <-> 1x HDB15 male
KVM cable
for DIGITUS® KVM switches,
(Basic-Line)
2x MiniDIN6 (PS/2) M <-> 2x MiniDIN6 (PS/2) M
1x HDB15 M <-> 1x HDB15 F
Color: black
Colored plugs: keyboard (purple), mouse (green), monitor (blue)
Cable Type
112822 / AK OC018MM
Cable Type
1,8 m
112846 / AK OC030MM
183051 / AK 806/GR
3,0 m
1,5 m
112853 / AK OC050MM
189701 / AK 806/GR-2M
5,0 m
2,0 m
112860 / AK OC100MM
189718 / AK 806/GR-3M
10,0 m
3,0 m
KVM cable
for DIGITUS® KVM switches,
(Basic-Line)
DIGITUS® KVM switch cable
with PS/2 to USB converter
2x MiniDIN6 (PS/2) M <-> 2x MiniDIN6 (PS/2) M
1x HDB15 M <-> 1x HDB15 F
Color: beige
Connectors color coded: keyboard (violet), mouse (green), monitor (blue)
• Built-in PS/2 to USB converter
• Cable length: 3 m
• Requires no external power supply
• Compatible with USB 1.1/2.0 specification
• Supports UHCI, OHCI, & EHCI USB controller
• For PS/2 KVM switches
• Works with PC, notebooks, Macintosh, SUN Micro
• DA-70150 - for KVM switches with FEMALE monitor connection
• DA-70151 - for KVM switches with MALE monitor connection
=> For DIGITUS® KVMs (Basic-Line)
Cable Type
050995 / AK 806/LC
1,8 mKVM Kabel, 1,8 m
051039 / AK 807/LC
3,0 mKVM Kabel, 3,0 m
051008 / AK 80605
Cable Type
5,0 mKVM Kabel, 5,0 m
051015 / AK 80607
169789 / DA-70150
7,0 mKVM Kabel, 7,0 m
KVM cable PS/2 to USB (VGA male / male) 3,0 m
051022 / AK 80610
169796 / DA-70151
10,0 mKVM Kabel, 10,0 m
KVM cable PS/2 to USB (VGA female / male) 3,0 m
28
KVM cable
for DIGITUS® KVM switches,
(Combo-series)
PS/2 and USB long cable
for DIGITUS® KVM switches,
(Combo-series)
HDDB15/M <=> HDDB15/M, 2 x MiniDIN6/M, 1 x USB-A/M
color: black
Extra long connection cable length 10m for DIGITUS® Combo KVM switches
AK 82004:
HDDB15/M <=> HDDB15/M, 2 x MiniDIN6/M
color: black
AK 82304:
HDDB15/M < = > HDDB15/M, 1x USB-AIM
color: black
Cable Type
201151 / AK 82001
Cable Type
1.8mKVM Cable, 1.8m
201168 / AK 82002
223788 / AK 82004
3.0mKVM Cable, 3.0m
long cable only PS/2, 10m
201175 / AK 82003
223795 / AK 82304
5.0mKVM Cable, 5.0m
long cable only USB, 10m
DIGITUS® KVM cable PS/2
for DIGITUS® KVM consoles
DIGITUS® KVM cable USB
for DIGITUS® KVM consoles
2x MiniDIN6 (PS/2) male, 1x HDB15 male <-> 1x SPHD15 male
1x USB/A male, 1x HDB15 male <-> 1x SPHD15 male
• Suitable for DIGITUS® TFT consoles with integrated KVM
• Suitable for DIGITUS® TFT consoles with integrated KVM
• Built in PS/2 to USB converter
• Compatibel for USB specifications 1.0 , 1.1 and 2.0
• Support of UHCI, OHCI and EHCI host controller
Cable Type
Cable Type
254782 / DC-19101
255536 / DC-19201
1,8m
1,8m
254799 / DC-19102
255543 / DC-19202
3,0m
3,0m
254805 / DC-19103
255550 / DC-19203
5,0m
5,0m
29
DIGITUS® DVI splitter
DIGITUS® VGA splitter 400MHz
With a DVI video splitter it is possible to display a signal from a DVI video source on several monitors at
the same time.
Using a video splitter you can use one video source to display identical images on 8 or 16 monitors - or on
even more screens by means of cascading. Featuring a video bandwidth of 400MHz and a consequently
high video resolution these video splitters can ideally be used in various application fields, e.g. test bench
facilities, data centers, help desks, video broadcasting, presentations, and educational facilities.
• Splits one DVI video input signal into eight DVI video outputs
• Maximum resolution 1600x1200 pixels at 60Hz
• Due to Panel Link Digital technology highest video resolutions, up to UXGA
• UXGA 25 - 165MHz
• Input: DVI-I, jack
• Outputs: DVI-I, jacks
• Cable lenght between monitor and splitter up to 10m
• Dimensions (L x W x H, weight): 440mm x 185mm x 42mm, 2530g
• Package contents: 1 x video splitter, 1 x user manual; 1 x power cord; 1 x mounting frame with fittings
• Video bandwidth: 400MHz
• Maximum resolution 2048x1536 pixels at 60Hz
• Built-in line amplifier, up to 65m
• DDC, DDC2, DDC2B support
• Cascadable
• Metal housing for better EMI shielding
• Video IN/OUT: HD DSUB, 15-pin, jacks
• Accessories: 1x video splitter; 1x manual; 1x power adaptor
255659 / DC-43110
VGA splitter 400MHz, 8-port
258391 / DS-43200
255666 / DC-43115
DVI splitter, 8-port
VGA splitter 400MHz, 16-port
DIGITUS® VGA Matrix splitter, 250MHz
DIGITUS® Video/Audio Matrix
With this video matrix splitter it is possible to choose one video signal out of two video source and to
display the signal on several monitors.
Through the video/audio matrix DC-48101, you can display / play different images / audio signals to 4
screens / speakers (or earphones) through 4 PC. And you can also control the source of image / audio by
selecting PC signal source 1 ~ 4 or turning off source input.
Video/Audio matrix is ideal for ,test bench facilities, data center, help desks, video broadcasting, presentation, stock quotes, timetables, educational facilities, etc.
• 2 switchable inputs (PC) , 4 outputs (Monitor)
• Built-in line amplifier, up to 65m
• Maximum resolution 1920x1440 pixels at 60Hz
• Video bandwidth 250MHz
• DDC, DDC2, DDC2B support
• Cascadable
• Video input connections: HDSUB15/female
• Video output connections: HDSUB15/female
• Dimensions (LxWxH; Weight): 130x75x42mm; 455g
• Package Contents: 1x video matrix splitter; 1x user manual; 1x power adapterAC 7.5V 800mA
VGA Video matrix, 2 inputs, 8 outputs
• Intelligent functionality
• Can be cascaded
• With 350 MHz pixel frequency, supports DDC, DDC2, DDC2B
• Supports VGA, SVGA, UXGA, QXGA resolutions
• Support Multi-Sync video type include RGBHV, RGsB, RGBS
• Support synchronous Include positive, negative; TTL or 1Vpp level
• Four sets of 7-Segment LED can indicate the input setting status of input port quickly
• The output is compatible with standard VGA card
• Extends the video signal up to 65 meter (213 feet)
• The switches on panel can select PC signal source 1 ~ 4 as OUT 1 ~ 4 or turning off any signal I/O port /
all I/O ports
258292 / DS-49115
233350 / DC-48101
258278 / DS-48110
VGA Video matrix, 2 inputs, 4 outputs
258285 / DS-49110
VGA Video matrix, 2 inputs, 16 outputs
30
Matrix switch 4x4
DIGITUS® VGA Selector 250MHz, 8-Port
DIGITUS® Active DVI to VGA or VGA to DVI conversion boxes
DC-40100
A video selector allows you to choose and display one video signal out of several video sources.
• 8 inputs (PC), 1 output (monitor, beamer, etc.)
• Ideal for school classes, workshops, training rooms, etc.
• Maximum resolution 1920x1440 pixels at 60Hz
• Video bandwidth: 250MHz
• DDC, DDC2, DDC2B support
• OSD and remote control allow easy selection of PC
• Video input connections: HDSUB15/female
• Video output connection: HDSUB15/female
• Dimensions (L x W x H, weight): 200mm x 75mm x 45mm, 420g
• Package contents: 1 x video selector; 1 x user manual; 1 x power adaptor DC 9V 300mA
DC-40200
This conversion box converts a digital signal from a DVI video source to an analog signal. So it is for
example possible to use an old analog monitor with a new DVI graphic card.
DC-40100: DVI to VGA converter – connect a video source with DVI connector to a monitor or
projector with standard VGA connection (HD DSUB-15)
DC-40200: VGA to DVI converter – connect a video source with standard VGA connection
(HD DSUB-15) to a monitor or projector with DVI connector
• Compliant with the specification of DVI 1.0
• Max. cable length: 12m (single end)
• Max. resolution: 1600x1200 pixels at 60Hz
• Support high-resolution display up to UXGA (25-165MHz)
• Use PanelLink digital technology
255574 / DC-40100
DVI to VGA conversion box
258254 / DS-46100
255598 / DC-40200
Video selector 250MHz, 8 inputs, 1x output
VGA to DVI conversion box
Example of use - Example of an appliation with cascaded videosplitters:
31
DIGITUS® VGA extender over CAT5
DIGITUS® VGA-RS232 extender over CAT5
Through the VGA Extender, you can use one PC to display identical image and extension of VGA signal
up to 180 meter on monitor.
• VGA extension over Cat5 cable
• Distance up to 180m between PC and monitor
• Video resolution up to 12801x1024 pixel at 60Hz
• VGA extension over Cat5 cable
• Connection of one remote display
• Connection of one Local display (only DC-53401)
• Equalization length is adjustable
• VGA signal gain is adjustable
• Package contents: 1x VGA Extender Local Unit, 1x VGA Extender Remote Unit, 1x user manual,
1x power adapter DC 12V/600mA, 1x VGA cable 1.2m cable (HD-15 Male to Male)
Example of use on P. 34/35
255710 / DC-53100
VGA extender, 80m, single port
223894 / DC-53101
Through the VGA-RS232 extender you can receive a video an a RS232-control signal on a
display in a distance up to 300m.
• VGA amd RS232 extension over Cat5 cable
• Distance up to 300m between PC and monitor
• Video resolution up to 12801x1024 pixel at 60Hz
• Connection of one remote display
• Equalization length is adjustable
• VGA signal gain is adjustable
• Support RS232 pin: Tx, Rx, DTR, DSR, CTS, RTS (Expect CD, RI)
• RS232 support full-duplex data communication with Baudrate up to 19200bps
• Pure hardware solution - real time data transfer, no software conflicts
• Transfer data or files between PCs, equipments
• Dimensions (LxWxH, Weight): 93.5x74x26mm, 235g+240g (local+remote)
• Package contents: 1x VGA-RS232 extender local unit, 1x VGA-RS232 extender remote unit,
1x user manual, 1x power adapter DC 9V/600mA
VGA extender, 180m, single port
258124 / DS-52110
223900 / DC-53401
VGA-RS232 extender, 300m, single port
VGA extender, local and remote port
DIGITUS® VGA extender / splitter over CAT5
Through the VGA Extender, you can use one PC to display indentical image and extension of VGA signal
up to 300m meter on monitors
• VGA extension over Cat5 cable
• Distance up to 300m between PC and monitor
• Video resolution up to 1280x1024 pixel at 60Hz
• Possibility to conect one local monitor
• Connection of two four or eight remote displays over remote units (not in scope of delivery)
• Equalization length is adjustable
• VGA signal gain is adjustable
DIGITUS® VGA extender-Remote unit
• Remoteunit for video-extender for a reach up to 180m or even up to 300m
• Dimensions (LxWxH, Weight): 92x34x22mm, 140g
• Package contents: 1x Remote Unit, 1x user manual, 1x power adapter DC 12V/600mA
Example of use on P. 34/35
223917 / DC-53501
Example of use on P. 34/35
VGA extender, 2-port
223924 / DC-53601
223948 / DC-59301
VGA extender, 4-port
Remote unit for video-extender, 180m
223931 / DC-53701
255796 / DC-59302
VGA extender, 8-port
Remoteunit for video-extender, 300m
32
DIGITUS® CAT 5 VGA Video distribution amplifier
DIGITUS® CAT 5 VGA Video/Audio Selector
These products are suitable for dividing a signal from a CAT 5 VGA video extender as source to
one local monitor connection and one, four or eight CAT 5 splitting ports.
Through a CAT 5 VGA video selector it is possible to connect several local units of VGA-Extender or of AV-Extender with CAT 5 cable and to select one of the different Video/Audio signals for an output to a
VGA monitor/audio amplifier.
• Distributes a CAT 5 VGA video signal
• Input: 1x RJ-45 jack Connector
• Output: 1x VGA HD DSUB jack connector, 1x, 4x or 8x RJ-45 jack connector
• Max. Resolution 1280x1024 pixels at 60Hz
• Cable distance up to 300m
• Equalization length is adjustable
• VGA signal gain is adjustable
• Aluminum Housing
• Dimension (LxWxH, Weight): DC-53402: 130x110,5x25mm, 285g, DC-53602/DC-53702: 200x111x25mm, 322g/340g
• Package contents: 1x VGA Video Distribution Amplifier, 1x user manual, 1x power adapter DC 12V/600mA
• Cat5 VGA video/audio selector
• Support video resolution up to 1280x1024 pixels at 60Hz
• Equalization length is adjustable
• VGA signal gain is adjustable
• Support stereo audio digital transfer
• Total delay: 62ns
• Delay step increments: 2ns
• Memorize function
• Button locked function
• Max. Cable Distance: 300m
• Dimensions (LxWxH, Weight): DC-44400: 200x86x29mm, 320g - DC-45400: 200x86x29mm, 332g
• Package Contents: 1x Cat5 VGA video selector, 1x user manual, 1x power adapter DC 12V/600mA
Example of use on P. 34/35
255727 / DC-53402
Example of use on P. 34/35
CAT 5 VGA Video distribution amplifier, 1+1 port
255741 / DC-53602
255673 / DC-44400
CAT 5 VGA Video distribution amplifier, 1+4 port
CAT 5 VGA video/audio selector, 2-port
255758 / DC-53702
255680 / DC-45400
CAT 5 VGA Video distribution amplifier, 1+8 Port
CAT 5 VGA video/audio selector, 4-port
DIGITUS® Video RGB Skew calibrating unit
For transmitted RGB signals over CAT 5 cable with more than 150 meter the skew delay becomes
significant and a correction is necessary. Below 150 meter the delay is negligible.
This unit allows a perfect skew delay correction of the video signals for a brilliant and sharp picture.
• Perfect RGB video skew delay correction
• Max. Resolution 1280x1024 60Hz
• Total delay: 62ns
• Delay step increments: 2ns
• Memorize function
• Button locked function
• Aluminum housing
• Dimensions (LxWxH, Weight): 130x85x29.5mm, 225g
• Package contents: 1x calibrating unit, 1x user manual, 1x power adapter DC 12V/600mA,
1x VGA cable 1.2m (HD-15 Male to Male)
Example of use on P. 34/35
255765 / DC-59100
Video RGB Skew calibrating unit
33
Examples of use 1 - Cat5 VGA extender:
Kabel
VGA-Extender, lokale Einheit
DC-53100/ DC-53101
/ 180M
VGA-Extender, Remote Einheit
DC-53100/ DC-53101
Kabel
Examples of use 2 - Cat5 VGA extender/splitter and Cat5 VGA video selector:
VGA Kabel
CAT 5 VGA Video/Audio Selector
DC-44400/ DC-45400
VGA Kabel
DC-53501/
DC-53601/
DC-53701
VGA Kabel
VGA Kabel
CAt 5 VGA Extender/Splitter
DC-53501/ DC-53601/ DC-53701
DC-53501/
DC-53601/
DC-53701
VGA Kabel
VG
AK
ab
el
VGA Kabel
VGA Kabel
34
VGA Kabel
DC-53501/ DC-53601/
DC-53701
Example of use 3 -
Cat5 VGA extender and extender/splitter with
Cat5 VGA video distributation amplifier
and RGB skew calibrating unit:
VGA Kabel
CAT 5 Extender, Remote Einheit
DC-59301/ DC-59302
VGA Kabel
VGA Kabel
RGB Bildkalibrierung
DC-59100
VGA Kabel
DC-59301/ DC-59302
CAT 5 VGA VideoDistribution Amplifier
DC-53602/ DC-53702
VGA Kabel
DC-59301/ DC-59302
VGA Kabel
CAT 5 VGA Extender, lokale Einheit
DC-53401
DC-59301/ DC-59302
CAT 5 VGA Extender/Splitter
DC-53501/ DC-53601/ DC53701
VGA Kabel
VGA Kabel
VGA Kabel
DC-59301/ DC-59302
35
DIGITUS® Layer 2+ managed Gigabit Ethernet 24 port Switch, 2 SFP ports
The DIGITUS® Gigabit Switches are perfect business solutions. The Quality of Service function allows
a dynamic bandwith usage. The Flow-Control and the Store and Forward technology as well as the
integrated Access Control List (ACL) ensure a safe data transmission. Two Gigabit combo ports, where
RJ45 ports or fiber SFP ports can be chosen to use and a data throughput of 48 Gigabit per second
offer enough power for now and for the future.
• Layer 2+ managed Switch
• 24 RJ45 Ports
• 2 shared SFP Ports
• Compatible to the following standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x and 802.3z
• Flow Control
• Store and Forward technology
• Auto MDI / MDI-X function
• 8K MAC addresses
• 9KB Jumbo Frames
• 512KB buffer memory
• 48 Gbps throughput
• QoS support
• Port Mirroring for efficient network surveillance
• Port Trunk for Bandwith Aggregation
• Management via console, web or telnet.
• SNMP, RMON Support
• Suitable for rack mount (incl. mounting bracket)
• Access Control List (ACL)
SNMP
Layer 2+
Access Control List
SNMP
Layer 2+
Access Control List
252801 / DN-80231
Layer 2+ managed Gigabit Ethernet 24 port Switch, 2 SFP ports
DIGITUS® Layer 2+ managed Gigabit Ethernet 48 port Switch, 4 SFP ports
The DIGITUS® Gigabit Switches are perfect business solutions. The support of the Simple Network
Management Protocol and the Remote Monitoring standard is the easy way of integration into the
existing network and the existing surveillance software. The Quality of Service function allows a dynamic bandwith usage. The Flow-Control and the Store and Forward technology as well as the integrated
Access Control List (ACL) ensure a safe data transmission. Four Gigabit combo ports, where RJ45
ports or fiber SFP ports can be chosen to use and a data throughput of 96 Gigabit per second offer
enough power for now and for the future.
• Layer 2+ managed Switch
• 48 RJ45 Ports
• 4 shared SFP Ports
• Compatible to the following standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x and 802.3z
• Flow Control
• Store and Forward technology
• Auto MDI / MDI-X function
• 8K MAC
• 9KB Jumbo Frames
• 512KB buffer memory
• 96 Gbps throughput
• QoS support
• Port Mirroring for efficient network surveillance
• Port Trunk for Bandwith Aggregation
• Management via console, web or telnet.
• SNMP, RMON support
• Suitable for rack mount (incl. mounting bracket)
• Access Control List (ACL)
252818 / DN-80232
Layer 2+ managed Gigabit Ethernet 48 port Switch, 4 SFP ports
36
DIGITUS® Layer 2 managed Gigabit Ethernet 24 SFP port Switch, 4 RJ45 ports
The DIGITUS® SFP Switches are optimized for telecommunication businesses with high flexibility. The
support of the Simple Network Management Protocol and the Remote Monitoring standard is the easiest way of integration into the existing network and the existing surveillance software. The Management
ability makes the administration of your network more efficient. The Quality of Service function allows
a dynamic bandwith usage. The Flow-Control and the integrated Access Control List (ACL) ensure a safe
data transmission. Four Gigabit combo ports, where RJ45 ports or fiber SFP ports can be chosen. These
ports offer enough power for now and for the future.
• Layer 2 managed Switch
• 24 SFP ports
• 4 shared RJ45 ports
• Flow Control technology
• Auto MDI / MDI-X function
• 16K MAC addresses
• 9KB Jumbo Frames
• 48 Gbps throughput
• 1MB buffer memory
• QoS support
• Port Mirroring for efficient network surveillance
• Port Trunk for Bandwith Aggregation
• Management via web or telnet.
• SNMP, RMON support
• Suitable for rack mount (incl. mounting bracket)
• Access Control List (ACL)
• VLAN for Performance and Security
SNMP
252825 / DN-80233
Layer 2 managed Gigabit Ethernet 24 SFP port Switch, 4 RJ45 ports
DIGITUS® Layer 2 Gigabit Ethernet Web-Smart switch
with 4 SFP slots
DIGITUS® SFP fiber optic transceiver module
• Compliant with IEEE 802.3z Gigabit Ethernet Standard
• Class 1 Laser product compliant with EN 60825-1
• Differential LVPECL input and output
• Hot pluggable
• TTL Signal detect indicator
190752 / DN-8100
Duplex SFP module Multimode, LC 850nm / 0.55km
• IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE 802.3x compatible
• Automatic speed and half/full duplex detection / configuration
• Auto MDI / MDI-X function
• 8K MAC addresses, 340KB on chip frame buffer
• QoS support layer 4 classification
• Port Mirroring
• VLAN for Performance & Security
• Port Trunking
• 4 SFP Ports
• Built-in Web-based management
• Built-in switched power supply
190769 / DN-8101
Duplex SFP module Singlemode, LC 1310nm / 10km
190776 / DN-8102
Duplex SFP module Singlemode, LC 1550nm / 30km
190783 / DN-8103
Simplex SFP module BiDi Singlemode, LC 1550nm / 20km
190813 / DN-8104
Simplex SFP module BiDi Singlemode, LC 1310nm / 20km
254553 / DN-8105
Duplex SFP module Multimode, LC 1310nm / 2km
254560 / DN-8106
Simplex SFP module BiDi Singlemode, LC 1550nm / 10km
254577 / DN-8107
Simplex SFP module BiDi Singlemode, LC 1310nm / 10km
229131 / DN-8021B
254621 / DN-8108
Layer 2 managed Gigabit Ethernet 16 Port Switch, 4 SFP Ports
Simplex SFP module BiDi Singlemode, SC 1550nm / 10km
229148 / DN-8022B
254638 / DN-8109
Layer 2 managed Gigabit Ethernet 24 Port Switch, 4 SFP Ports
Simplex SFP Modul BiDi Singlemode, SC 1310nm / 10km
37
DIGITUS® Layer 2 managed Fast Ethernet 24 port Switch, 2 Combo ports
The DIGITUS® Workgroup Switches are easy to install and optimized for growing businesses. The
support of the Simple Network Management Protocol and the Remote Monitoring standard is the
easiest way of integration into the existing network and the existing surveillance software. The Quality
of Service function allows a dynamic bandwith usage and the Flow-Control as well as the Store and
Forward Technology ensure a safe data transmission. Two Gigabit combo ports, where RJ45 ports or
fiber SFP ports can be chosen to use and a data throughput of 8.8 Gigabit per second offer enough
power for now and for the future.
• Layer 2 managed Switch
• 24 x RJ45 Ports
• 2 x Gigabit combo Ports (RJ45 or Fiber SFP modules)
• Compatible to the following standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x and 802.3z
• Flow Control
• Store and Forward technology
• Auto MDI / MDI-X function
• 8K MAC addresses
• 384KB buffer memory
• 8.8 Gbps throughput
• QoS support
• Port Mirroring for efficient network surveillance
• Port Trunk for Bandwith Aggregation
• Management via Console, Web or Telnet
• SNMP, RMON support
• Suitable for rack mount (inlc. mounting bracket)
SNMP
252771 / DN-60031
Layer 2 managed Fast Ethernet 24 port Switch, 2 Combo ports
DIGITUS® Layer 2+ managed Fast Ethernet 24 port Switch, 2 Combo ports
The DIGITUS® Workgroup Switches are easy to install and optimized for growing businesses. The
support of the Simple Network Management Protocol and the Remote Monitoring standard is the
easiest way of integration into the existing network and the existing surveillance software. The Quality
of Service function allows a dynamic bandwith usage. The Flow-Control and the Store and Forward
Technology as well as the integrated Access Control List (ACL) ensure a safe data transmission. Two
Gigabit combo ports, where RJ45 ports or fiber SFP ports can be chosen to use and a data throughput of 8.8 Gigabit per second offer enough power for now and for the future.
• Layer 2+ managed Switch
• 24 x RJ45 Ports
• 2 x Gigabit combo Ports (RJ45 or Fiber SFP modules)
• Compatible to the following standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x and 802.3z
• Flow Control Store and Forward technology
• Auto MDI / MDI-X function
• 8K MAC addresses
• 384KB buffer memory
• 8.8 Gbps throughput
• QoS support
• Port Mirroring for efficient network surveillance
• Port Trunk for Bandwith Aggregation
• Management via console, web or telnet.
• SNMP, RMON support
• Suitable for rack mount (inlc. mounting bracket)
• Access Control List (ACL)
SNMP
252788 / DN-60041
Layer 2+ managed Fast Ethernet 24 port Switch, 2 Combo ports
38
Layer 2+
Access Control List
DIGITUS® Layer 2+ managed Fast Ethernet 48 port Switch, 2 SFP ports
The DIGITUS® Workgroup Switches are easy to install and optimized for growing businesses. The
support of the Simple Network Management Protocol and the Remote Monitoring standard is the
easiest way of integration into the existing network and the existing surveillance software. The Quality
of Service function allows a dynamic bandwith usage. The Flow-Control and the Store and Forward
technology as well as the integrated Access Control List (ACL) ensure a safe data transmission. Two
Gigabit combo ports, where RJ45 ports or fiber SFP ports can be chosen to use and a data throughput of 17.6 Gigabit per second offer enough power for now and for the future.
• Layer 2+ managed Switch
• 48 RJ45 ports
• 2 Gigabit Combo ports (RJ45 or Fiber SFP modules)
• 2 Gigabit RJ45 ports
• Compatible to the following standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x and 802.3z
• Flow Control
• Store and Forward technology
• Auto MDI / MDI-X function
• 8K MAC addresses
• 512KB buffer memory
• 17.6 Gbps throughput
• QoS support
• Port Mirroring for efficient network surveillance
• Port Trunk for Bandwith Aggregation
• Management via console, web or telnet.
• SNMP, RMON support
• Suitable for rack mount (incl. mounting bracket)
• Access Control List (ACL)
SNMP
Layer 2+
252795 / DN-60051
Layer 2+ managed Fast Ethernet 48 port Switch, 2 SFP ports
DIGITUS® Fast Ethernet rack-mount switch
DIGITUS® SFP fiber optic transceiver module
• Compliant with IEEE 802.3z Gigabit Ethernet Standard
• Class 1 Laser product compliant with EN 60825-1
• Differential LVPECL input and output
• Hot pluggable
• TTL Signal detect indicator
• IEEE 802.3 and IEEE 802.3u compatible
• 20/200 MBit full duplex
• Automatic speed and half / full duplex detection / configuration
• Store and forward architecture
• Auto MDI / MDI-X function
• Internal power supply
190752 / DN-8100
Duplex SFP module Multimode, LC 850nm / 0.55km
190769 / DN-8101
Duplex SFP module Simglemode, LC 1310nm / 10km
190776 / DN-8102
Duplex SFP module Singlemode, LC 1550nm / 30km
190783 / DN-8103
Simplex SFP module BiDi Singlemode, LC 1550nm / 20km
190813 / DN-8104
Simplex SFP module BiDi SM, LC 1310nm / 20km
254553 / DN-8105
Duplex SFP module Multimode, LC 1310nm / 2km
254560 / DN-8106
Simplex SFP module BiDi Singlemode, LC 1550nm / 10km
254577 / DN-8107
Simplex SFP module BiDi Singlemode, LC 1310nm / 10km
193241 / DN-6001D
254621 / DN-8108
Fast Ethernet N-Way 16-port switch
Simplex SFP module BiDi Singlemode, SC 1550nm / 10km
136781 / DN-6002C
254638 / DN-8109
Fast Ethernet N-Way 24-port switch
Simplex SFP Modul BiDi Singlemode, SC 1310nm / 10km
39
DIGITUS® Fast Ethernet Media Converter
•
•
•
•
•
•
•
•
•
10/100Base-TX to 100Base-FX
Multimode Dual Fiber
Distance up to 2km
Transforms wire based network media to fiber optic
High quality and excellent reliability
Auto MDI/MDI-X
Auto-negotiation of Full- and Half-duplex
Diagnostic and monitoring LEDs for the status of power, link and act of the ports
Standalone Converter with external power supply
Multimode
256212 / DN-82020
Fast Ethernet Media Converter, SC / RJ45
256229 / DN-82010
Fast Ethernet Medienkonverter, ST / RJ45
DIGITUS® Gigabit Ethernet Media Converter
•
•
•
•
•
•
•
•
•
10/100/1000Base-TX to 1000Base-SX
Multimode Dual Fiber
Distance up to 0.5km
Transforms wire based network media to fiber optic
High quality and excellent reliability
Auto MDI/MDI-X
Auto-negotiation of Full- and Half-duplex
Diagnostic and monitoring LEDs for the status of power, link and act of the ports
Standalone Converter with external power supply
Multimode
256236 / DN-82120
Gigabit Ethernet Media Converter, SC / RJ45
256267 / DN-82110
Gigabit Ethernet Medien Converter, ST / RJ45
DIGITUS® Gigabit Ethernet Media Converter, SC / RJ45
• 10/100/1000Base-TX to 1000Base-LX
• Singlemode Dual Fiber
• Distance up to 10km • SC Connector / RJ45 Connector
• Transforms wire based network media to fiber optic
• High quality and excellent reliability
• Auto MDI/MDI-X
• Auto-negotiation of Full- and Half-duplex
• Diagnostic and monitoring LEDs for the status of power, link and act of the ports
• Standalone Converter with external power supply
Singlemode
256250 / DN-82121
Gigabit Ethernet Media Converter, SC / RJ45
40
DIGITUS® IP / CCTV Outdoor Speed Dome Camera
• 22x optical zoom with auto focus
• Intelligent auto tracking function to follow intruders
• Area Zoom functions – Draw a square in the live view with your mouse and the PTZ network camera
will zoom in the assigned area.
• Supports low light environment of 1 Lux
• External microphone input
• Motion detection and alarm notification
• Real time MPEG4 or MJPEG network transmission
• Low-latency video streaming for sharp and clear images
• Hybrid digital / analog video output
• Control camera via Central Management System (CMS) software - up to 16 cameras simultaneously.
• Mobile Surveillance with a J2ME supporting Cell phone
• Pan 360°, Tilt 90°
• Resolution: 752x582 pixel (480 TV-Lines)
• Wall mount accessory exclusive
• Power supply not included
MPEG4
22x
Zoom
249573 / DN-16055
IP / CCTV Outdoor Speed Dome Camera
251712 / DN-16056
Mounting bracket for the DN-16055 Speed dome camera
252696 / DN-16057
Power Supply
The incorruptible security guards.
41
DIGITUS® IP / Analog Surveillance Camera
• Motion detection and alarm notification
• Real time MPEG4 or MJPEG network transmission
• Low-latency video streaming for sharp and clear images
• Hybrid digital / analog video output
• Control camera via Central Management System (CMS) software - up to 16 cameras simultaneously.
• Mobile Surveillance with a J2ME supporting Cell phone
• Resolution: 738x480 (420 TV-Lines)
MPEG4
249504 / DN-16050
IP / Analog Surveillance Camera
DIGITUS® IP / Analog Day & Night Surveillance Camera
• Day & Night vision (IR)
• Built-in microphone & External microphone input
• Motion detection and alarm notification
• Real time MPEG4 or MJPEG network transmission
• Low-latency video streaming for sharp and clear images
• Hybrid digital / analog video output
• Control camera via Central Management System (CMS) software - up to 16 cameras simultaneously
• Mobile Surveillance with a J2ME supporting Cell phone
• Resolution: 738x480 (420 TV-Lines)
• External audio out
MPEG4
Day&Night
249535 / DN-16051
IP / Analog Day & Night Surveillance Camera
DIGITUS® IP / Analog Day & Night Surveillance Camera, H.264
• Day & Night vision (IR)
• Built-in microphone & External microphone input
• Motion detection and alarm notification
• Real time H.264, MPEG4 or MJPEG network transmission
• Low-latency video streaming for sharp and clear images
• Hybrid digital / analog video output
• Control camera via Central Management System (CMS) software - up to 16 cameras simultaneously.
• Mobile Surveillance with a J2ME supporting Cell phone
• Resolution: 512 x 582 pixel (480 TV-Lines)
• External audio out
H.264
Day&Night
258568 / DN-16052
IP / Analog Day & Night Surveillance Camera, H.264
42
DIGITUS® Outdoor Camera Housing
DIGITUS® Mounting bracket for camera housing
• Outdoor Camera Housing
• Aluminium die casting
• Beige color
• Dimension: 157x155x428mm
• Window: 99x99mm
• Input Voltage: 220V
• Weight: 2,3kg
• Fan: on at 35°C +- 3°C, off at 25°C +- 3°C
• Heater: on at 15°C +- 3°C, off at 25°C +-3°C
• Protection class IP67
• Suitable for DN-16050, DN-16051, DN-16052 or smaller cameras
• Suitable bracket DN-16056-2
• Mounting bracket for camera housing
• Integrated cable duct
• Aluminium die casting
• Beige color
• Length: 210mm
• Maximum carrying capacity: 10kg
• Swivel angle: 360°
• Weight: 0,45kg
• Suitable for camera housing DN-16056-1
261513 / DN-16056-1
261520 / DN-16056-2
Outdoor Camera Housing with heater and fan
Mounting bracket for camera housing
DIGITUS® Inner corner bracket
DIGITUS® Outer Corner bracket
• Bracket for inner corner
• Material: Iron, painted
• Maximum carrying capacity: 10kg
• Dimensions: 170x120x30mm
• Weight: 0.82kg
• Suitable for bracket DN-16056, DN-16056-2
• Bracket for outer corner
• Material: Iron, painted
• Maximum load capacity: 10kg
• Dimensions: 145x120x110mm
• Weight: 1.4kg
• Suitable for bracket DN-16056-2
261537 / DN-16056-3
261544 / DN-16056-4
Inner corner bracket
Corner bracket
43
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
