Acer Extensa 2700 notebook Service Guide

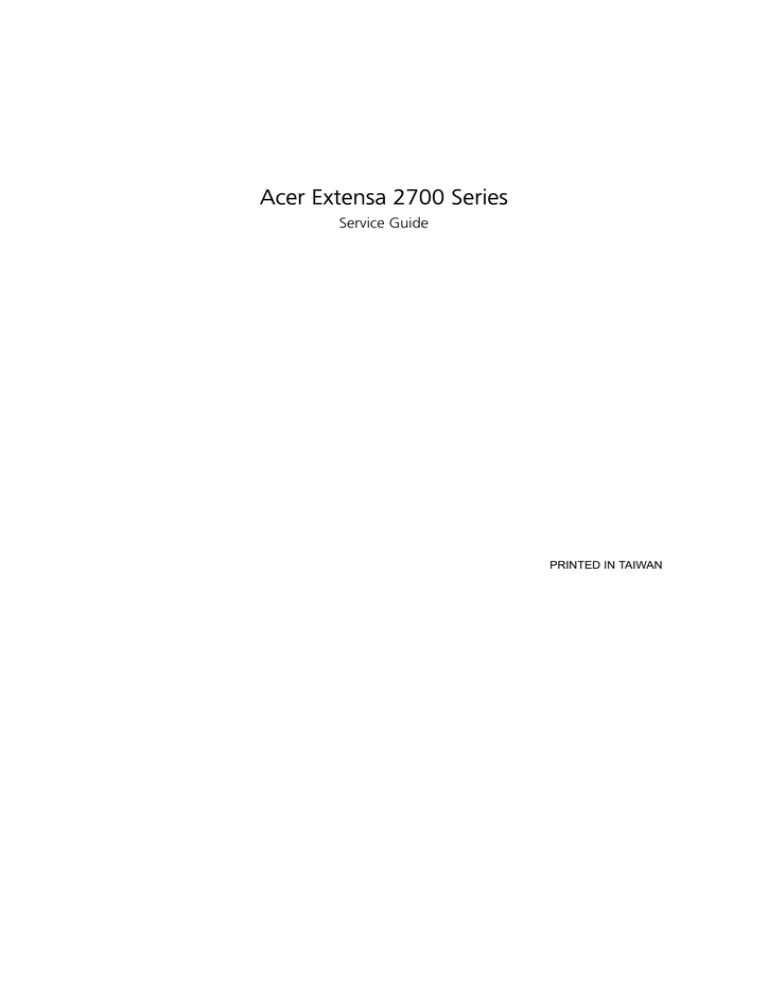

Acer Extensa 2700 Series

Service Guide

PRINTED IN TAIWAN

II

Revision History

Please refer to the table below for the updates made on Extensa 2700 service guide.

Date Chapter Updates

Copyright

Copyright © 2004 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of Acer Incorporated.

Disclaimer

The information in this guide is subject to change without notice.

Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software.

Intel is a registered trademark of Intel Corporation.

Pentium and Pentium II/III are trademarks of Intel Corporation.

Other brand and product names are trademarks and/or registered trademarks of their respective holders.

III

Conventions

The following conventions are used in this manual:

Screen messages

NOTE

WARNING

CAUTION

IMPORTANT

Denotes actual messages that appear on screen.

Gives bits and pieces of additional information related to the current topic.

Alerts you to any damage that might result from doing or not doing specific actions.

Gives precautionary measures to avoid possible hardware or software problems.

Reminds you to do specific actions relevant to the accomplishment of procedures.

IV

Preface

Before using this information and the product it supports, please read the following general information.

1.

This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION decided for Acer "global" product offering. To better fit local market requirements and enhance product competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g. add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered in this generic service guide. In such cases, please contact your regional offices or the responsible personnel/channel to provide you with further technical details.

2.

Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available on your regional web or channel. If, for whatever reason, a part number change is made, it will not be noted in the printed Service Guide. For ACER AUTHORIZED SERVICE PROVIDERS, your Acer office may have a DIFFERENT part number code to those given in the FRU list of this printed Service

Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

V

Table of Contents

Chapter 1 System Introduction 1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Board Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Left view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Right View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Understanding the icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Special keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Hot Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Hardware Specifications and Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Chapter 2 System Utilities 32

BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Navigating the BIOS Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Main . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Advanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

BIOS Flash Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Chapter 3 Machine Disassembly and Replacement 46

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Disassembly Procedure Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Removing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Removing the Memory Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Removing the Wireless LAN Board and the Modem Board . . . . . . . . . . . . . . . . . . . .52

Removing the Hard Disk Drive Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Disassembling the Hard Disk Drive Module . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Removing the LCD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Removing the Middle Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Removing the Launch Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Removing the LCD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Disassembling the LCD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Removing the LCD Bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Removing the Inverter Board (15” LCD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Removing the 15” TFT LCD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Removing the LCD Brackets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Removing the LCD Coaxial Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Removing the LCD Hinges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Disassembling the Main Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Removing the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

VI

Table of Contents

Removing the RTC Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Removing the Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Removing the Thermal Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

Removing the Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

Installing the Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Removing the Upper Case Assemly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Removing the Touchpad Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

Removing the Touchpad Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

Removing the VGA Thermal Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

Removing the CPU Heatsink Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

Removing the Second Fan Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Removing the ODD Module(1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Removing the ODD Module(2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Removing the HDD Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Removing the Main Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Removing the DC Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

Removing the I/O Port Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

Removing the PCMCIA Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Removing the Speaker Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

System Upgrade Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Base Unit to Wireless Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Chapter 4 Troubleshooting 72

System Check Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

External Diskette Drive Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

External CD-ROM Drive Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Keyboard or Auxiliary Input Device Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Memory check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Power System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Touchpad Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

Power-On Self-Test (POST) Error Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Index of Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Index of Symptom-to-FRU Error Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Intermittent Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

Undetermined Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

How to Build NAPP Master Hard Disc Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

CD to Disk Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

Disk to Disk Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89

Chapter 5 Jumper and Connector Locations 94

Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94

Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96

Chapter 6 FRU (Field Replaceable Unit) List 98

Extensa 2700 Exploded Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99

Appendix A Model Definition and Configuration 112

Model Name Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112

Appendix B Test Compatible Components 114

Microsoft Windows XP Environment Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115

VII

Appendix C Online Support Information

Index

120

VIII

IX

Chapter 1

System Introduction

Features

This computer was designed with the user in mind. Here are just a few of its many features:

Performance

T

Intel

®

Pentium

®

4 Processor 2.80 ~ 3.06GHz

Intel

®

Pentium

®

4 Processor 2.80 ~ 3.20GHz

Intel

®

Pentium

®

4 Prescott Processor 3.00 ~ 3.80GHz

T

T

T

Intel

®

Hyper-Threading

TM

Technology

256/512MB of DDR333 SDRAM, upgradeable to 2048 MB with dual soDIMM modules

High-capacity, Enhanced-IDE hard disk

Display

T

T

T

T

T

T

The 14.1” or 15” XGA (1024x768 resolution), or 15.0” SXGA+ (1400x1050 resolution) TFT LCD panel providing a large viewing area for maximum efficiency and ease-of-use

3D graphics support

Support simultanesous display between LCD and CRT

S-video for output to a television or display device that supports S-video input

“Automatic LCD dim” feature, automatically selecting the best setting for the display in order to conserve power

Dual independent display support

Multimedia

T

High-speed built-in optical drive:

DVD-RW, DVD/CD-RW Combo, or DVD-Dual

T

T

MS DirectSound compatible

Built-in dual speakers

Connectivity

T

T

T

T

T

T

Integrated 10/100 Mbps Fast Ethernet connection

Built-in 56Kbps fax/data modem

Four Universal Serial Bus (USB) 2.0 ports

One IEEE 1394 port

IEEE 802.11b or IEEE 802.11g Wireless LAN (manufacturing option)

Bluetooth (manufacturing option)

Expansion

T

T

PC Card slots enabling a range of add-on options

Upgradeable hard disk and memory modules

Human-centric design

T

Rugged, yet extremely portable, construction

Chapter 1 1

I/O Ports

T

T

T

T

T

T

T

T

T

T

T

T

T

T

T

Stylish appearance

Full-size keyboard with four programmable launch keys

Comfortable palm rest area with well-positioned touchpad

Two Type II or one Type III PC CardBus (PCMCIA) slot

One IEEE 1394 port

One FIR port

One RJ-11 modem jack (V.92, 56K)

One RJ-45 network jack

One DC-in jack

One parallel port (ECP/EPP)

One S-video port

One external monitor port

One microphone-in jack (3.5mm mini jack)

One headphone jack (3.5mm mini jack)

Four USB ports

2 Chapter 1

System Block Diagram

Line In

Mic In

23

Line Out

23

INT.SPKR

23

CLK GEN.

CY 28346

3

DDR*2

333MHz

9,10

266/333MHz

Mobile CPU

Portability

Mobile P4

4, 5

HOST BUS 133MHz

GMCH

Montara-GT

6,7,8

HUB I/F 66MHz

G768D

16

RGB

LVDS

CRT

CONN

12

LCD

XGA/SXGA+

11

AC'97

CODEC

CS4299XQ

22

AC-Link

PCI BUS

CARDBUS

PCI 1520

GHK

25/B/1

26

PWR SW

TPS2224A

27

CARDBUS

TWO SLOT

27

ICH4-M

LAN

RTL 8101L

21/D/4

19,20

OP AMP

G1421

23

PRN

Port

FIR

28

Mini-PCI

802.11A/B/G

21

MODEM+BT

MDC CARD

18

13,14,15

PIDE

HDD

17

CD ROM

17

USB

4 PORT 18

LPC BUS

NS SIO

PC87392

28

KBC

M38857

25

FWH

4MB

PLCC32

SOIC40 24

LPC

DEBUG

CONN.

24

Touch

Pad

25

INT KB

25

Chapter 1 3

Board Layout

Top View

1 2

3

4 5 6 7 8 9

12

13

4

25

24 23 22 21 19

20

18 17 16

15

14

7

8

5

6

3

4

1

2

9

10

11

12

13

CPU Socket

Fan Connector

14

15

SW1 (Please see Chapter 5 for detailed settings) 16

Touchpad Cable Connector 17

HDD Connector

Keyboard Connector

Speaker Cable Connector

Optical Drive Connector

18

19

20

21

South Bridge

FDD Connector

Launch Cable Connector

PCMCIA Slot

LCD Inverter Cable Connector

22

23

24

25

Line-in Port

Line-out Port

RJ45+RJ11

Four USB Ports

VGA Port

LCD Coaxial Cable Connector

Mini PCI Connector

RTC Battery Connector

North Bridge

Parallel Port

DC-in Port

LCD Lid Switch

Chapter 1

Bottom View

3

4

1

2

5

FIR Port

Modem Cable Connector

Modem Card Connector

DIMM Socket 2

DIMM Socket 1

Chapter 1 5

Panel

Ports allow you to connect peripheral devices to your computer as you would with a desktop PC.

Front View

6

5

6

3

4

1

2

7

8

9

#

Display screen

Status indicators

Item

Power button

Launch Keys

Palmrest

Click buttons (left, center and right)

Touchpad

Keyboard

Ventilation Slot

Description

Also called LCD (Liquid Crystal Display), displays computer output.

LEDs (Light Emitting Diodes) that turn on and off to show the status of the computer and its functions and components.

Turns the computer on and off.

Buttons for launching frequently used programs. See

“Launch keys” on page 17 for more details.

Comfortable support area for your hands when you use the computer.

The left and right buttons function like the left and right mouse buttons, the center button serves as a scroll up/ down button.

Touch-sensitive pointing device which functions like a computer mouse.

Inputs data into your computer.

Enables the computer to stay cool, even after the prolonged use.

Chapter 1

Left view

8

9

6

7

4

5

2

3

1

# Icon

PC Card slots

Item/ Port

Eject button

Optical drive

IEEE 1394 port

Infrared port

LED indicator

Emergency eject slot

Eject button

Speaker

Description

Supports two Type II or one Type III CardBus PC

Card(s).

Eject PC cards from the card slots.

Internal optical drive; accepts CDs or DVDs depending on the optical drive type.

Connects to IEEE 1394 devices.

Interfaces with infrared devices (e.g., infrared printer, IR-aware computer).

Lights up when the optical drive is active.

Ejects the optical drive tray when the computer is turned off. There is a mechancial eject button on the CD-ROM or DVD-ROM drive. Simply insert the tip of a pen or paperclip and push to eject the tray.

Ejects the optical drive tray from the drive.

Delivers stereo audio output.

Chapter 1 7

Right View

1

2

3

# Item/ Port

Speaker

Ventilation slots

Security keylock

Description

Delivers stereo audio output.

Enable the computer to stay cool, even after prolonged use.

Connects to a Kensington-compatible computer security lock.

8 Chapter 1

Rear Panel

l

8

9

6

7

2

3

4

5

1

#

10

Icon Port

Power Jack

Description

Connects to an AC adapter

Parallel port

Ventilation slots

S-video port

External display port

Enable the computer to stay cool, even after prolonged use.

Connects to a television or display device with S-video input.

Connects to a display device (e.g., external monitor, LCD projector).

Four USB 2.0 ports

Connects to a parallel device (e.g., parallel printer)

Network jack

Connects to any Universal Serial Bus devices(e.g., USB mouse, USB camera).

Connects to an Ethernet LAN network

Modem jack Connects to the phone line

Speaker/line-out/ headphone jack

Connects to audio line-out devices (e.g., speakers and headphones).

Line-in/mic-in jack Accepts audio line-in devices (e.g., audio

CD player and stereo walkman).

Chapter 1 9

Bottom View

1

2

3

# Item

Battery bay

Battery release latch

Memory compartment

Description

Houses the computer’s battery pack.

Unlatches the battery to remove the battery pack.

Houses the computer’s main memory.

10 Chapter 1

Indicators

The computer provides an array of seven indicators located below the display screen, showing the status of the computer and its components.

1

2

3

4

5

6

The Power and Sleep status icons are visible even when you close the display cover so you can see the status of the computer while the cover is closed.

# Icon Function

InviLink

Power

Description

Indicates status of wireless or Bluetooth

(optional) communications.

Orange--WLAN; Blue--Bluetooth

Lights when the computer is on.

Sleep

Media Activity

Battery Charge

Caps Lock

Num Lock

Lights when the computer enters Standby mode and blinks when it enters into or resumes from hibernation mode.

Lights when the floppy drive, hard disk or optical drive is active.

Lights when the battery is being charged.

Lights when Caps Lock is activated.

Lights when Numeric Lock is activated.

Chapter 1 11

Understanding the icons

When the cover of your computer is closed, 2 easy-to-read icons are shown, indicating which state or feature is enabled or disabled.

#

1

2

Icon

Power

Function

Sleep

Description

Lights up when the computer is on.

Lights when the computer enters Standby mode and blinks when it enters into or resumes from hibernation mode.

12 Chapter 1

Keyboard

The keyboard has full-sized keys and an embedded keypad, separate cursor keys, two Windows keys and twelve function keys.

Special keys

Lock keys

The keyboard has three lock keys which you can toggle on and off.

Lock key

Caps Lock

@

Num Lock (Fn-F11)

]

Scroll Lock (Fn-F12)

[

Description

When

@ is on, all alphabetic characters typed are in uppercase.

When ] is on, the embedded keypad is in numeric mode. The keys function as a calculator (complete with the arithmetic operators ), -, *, and /). Use this mode when you need to do a lot of numeric data entry. A better solution would be to connect an external keypad.

When [ is on, the screen moves one line up or down when you press the up or down arrow keys respectively.

[

does not work with some applications.

Chapter 1 13

Embedded numeric keypad

The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small characters located on the upper right corner of the keycaps. To simplify the keyboard legend, cursor-control key symbols are not printed on the keys.

Desired access

Number keys on embedded keypad

Cursor-control keys on embedded keypad

Main keyboard keys

Num lock on

Type numbers using embedded keypad in a normal manner.

Hold Shift while using cursor-control keys.

Hold Fn while typing letters on embedded keypad.

Num lock off

Hold Fn while using cursor-control keys.

Type the letters in a normal manner.

14 Chapter 1

Windows keys

The keyboard has two keys that perform Windows-specific functions.

Keys

Windows logo key

Application key

Description

Start button. Combinations with this key perform shortcut functions. Below are a few examples:

+ Tab (Activates next taskbar button)

+ E (Explores My Computer)

+ F (Finds Document)

+ M (Minimizes All) j

+ + M (Undoes Minimize All)

+ R (Displays the Run... dialog box)

Opens a context menu (same as a right-click).

Chapter 1 15

Hot Keys

The computer employs hot keys or key combinations to access most of the computer’s controls like screen contrast and brightness, volume output and the BIOS Utility.

To activate hot keys, press and hold the Fn key before pressing the other key in the hot key combination.

16

Fno

Fnp

Fnq

Fnr

Fns

Hot Key

Fnl

Fnm

Fnn

Fnw

Fny

Fnx

Icon Function

Hotkey help

Setup

Description

Displays a list of the hotkeys and their functions.

Accesses the notebook configuration utility.

Power Management

Scheme Toggle

Sleep

Switches the power management scheme used by the computer (function available if supported by operating system).

Puts the computer in Sleep mode.

Display toggle

Screen blank

Touchpad Toggle

Speaker on/off

Switches display output between the display screen, external monitor (if connected) and both the display screen and external monitor.

Turns the display screen backlight off to save power.

Press any key to return.

Turns the internal touchpad on and off.

Turns the speakers on and off; mutes the sound.

Volume up Increases the sound volume.

Volume down

Brightness up

Decreases the sound volume.

Increases the screen brightness.

Chapter 1

Hot Key

Fn-¨ z

Fn-

Fn-

{

} a Gr-Euro

Icon Function

Brightness down

Home

Description

Decreases the screen brightness.

Functions as the g key.

End

Euro

Functions as the d key.

Types the Euro symbol.

The Euro symbol

If your keyboard layout is set to United States-International or United Kingdom or if you have a keyboard with a

European layout, you can type the Euro symbol on your keyboard.

NOTE: for US keyboard users: The keyboard layout is set when you first set up Windows. For the Euro symbol to work, the keyboard layout has to be set to United States-international.

To verify the keyboard type:

1.

Click on Start, Control Panel.

2.

Double-click on Regional and Language Options.

3.

Click on the Language tab and click on Details.

4.

Verify that the keyboard layout used for “En English (United States) is set to United States-International.

If not, select and click on ADD; then select United States-International and click on OK.

5.

Click on OK.

To type the Euro symbol:

1.

Locate the Euro symbol on your keyboard.

2.

Open a text editor or word processor.

3.

Hold a Gr and press the Euro symbol.

Chapter 1 17

Launch Keys

Located at the top of the keyboard are six buttons. These buttons are called lauch keys. They are designated as mail button, Web browser button, P1, P2, Bluetooth and Wireless buttons. The Wireless and Bluetooth buttons cannot be set by the user. To set the other four launch keys, run the Acer Launch Manager.

18

3

4

5

1

#

2

6

Icon

Mail

Function

Web browser

P1

P2

Bluetooth

InviLink

Description

Launches email application

Launches Internet browser application

User-programmable

User-programmable

Enables your Bluetooth (manufacturing option).

Enables your 802.11b or 802.11g Wireless LAN.

Chapter 1

Hardware Specifications and Configurations

System Board Major Chips

Item

System core logic

Super I/O controller

Audio controller

Video controller

Hard disk drive controller

Keyboard controller

CardBus Controller

RTC

Processor

CPU type

CPU package

CPU core voltage

Item

CPU I/O voltage

Controller

Intel

®

Pentium

®

processor+ATI Radeon 9000IGP

NS PC87392

Cirrus CS4299-XQ

ATI Radeon 9000IGP

Embedded in Intel ICH4

Mitsubish LPC keyboard controller M38857

TI 1520

Intel ICH4

Intel

®

Pentium

®

processor

To 2.0GHz uFCBGA

High speed: 1.525V or 1.55V

Low speed: 1.2V

High speed: 1.525V or 1.55V

Low speed: 1.2V

Specification

BIOS

Item

BIOS vendor

BIOS Version

BIOS ROM type

BIOS ROM size

BIOS package

Supported protocols

BIOS password control

Specification

Phoenix BIOS

Flash ROM

512KB

32 Pin PLCC

ACPI 2.0 (if available, at least 1.0b), SMBIOS 2.3, PCI 2.2, Boot Block,

PXE 2.0, Mobile PC2001, Hard Disk Password, INT 13h Extensions, PCI

Bus Power Management interface Specification, EI Torito-Bootable CD-

ROM Format Specification V1.0, Simple Boot Flag 1.0( Please review)

Set by switch, see SW1 settings

Second Level Cache

Item

Cache controller

Cache size

1st level cache control

2nd level cache control

Cache scheme control

Built-in CPU

512KB

Always Enabled

Always Enabled

Fixed-in write back

Specification

Chapter 1 19

20

System Memory

Item

Memory controller

Onboard memory size

DIMM socket number

Supports memory size per socket

Supports maximum memory size

Supports DIMM type

Supports DIMM Speed

Supports DIMM voltage

Supports DIMM package

Memory module combinations

Specification

0MB

2 Sockets

128MB

2048MB (Please confirm if 1024MB has passed the test or not)

DDR-DRAM

333 MHz

2.5 V

200-pin so-DIMM

You can install memory modules in any combinations as long as they match the above specifications.

Memory Combinations

Slot 1

0MB

512MB

256MB

128MB

512MB

256MB

512MB

0MB

0MB

128MB

128MB

256MB

0MB

256MB

128MB

256MB

1024MB

1024MB

1024MB

1024MB

0MB

128MB

256MB

512MB

Slot 2 Total Memory

512MB

128MB

512MB

512MB

256MB

128MB

512MB

512MB

128MB

0MB

128MB

0MB

256MB

128MB

256MB

256MB

0MB

128MB

256MB

512MB

1024MB

1024MB

1024MB

1024MB

512MB

640MB

768MB

640MB

768MB

384MB

1024MB

512MB

128 MB

128 MB

256 MB

256MB

256MB

384MB

384MB

512MB

1024MB

1152MB

1280MB

1536MB

1024MB

1152MB

1280MB

1536MB

Above table lists some system memory configurations. You may combine DIMMs with various capacities to form other combinations. Please confirm if I can insert different size memory on slot 1 and slot 2. For example, slot 1 uses 128MB, slot 2 uses 256MB or 512MB.

Chapter 1

LAN Interface

Chipset

Supports LAN protocol

LAN connector type

LAN connector location

Item

RealTek 8101L

10/100Mbps

RJ45

Rear side

Specification

Modem Interface

Item

Chipset

Fax modem data baud rate (bps)

Data modem data baud rate (bps)

Supports modem protocol

Modem connector type

Modem connector location

.

Hard Disk Drive Interface

Item

Vendor & Model

Name

HGST Moraga

IC25N030ATMR04

Fujitsu V-40 MHT2030AT

Seagate N1 ST93015A

Specification

Internal Agere Scorpio chipset (Scorpio+CSP1037B)

14.4K

56K

V.90/V.92MDC

RJ11

Rear side

HGST Moraga

IC25N040ATMR04-

TOSHIBA Pluto 40G

MK4025GAS

Fujitsu V40+ MHT2040AT

Seagate N1 ST94019A

40000

512

16

63

HGST Moraga

IC25N060ATMR04-0

HGST Fresno DK23FA-60

TOSHIBA Neptune

MK6021GAS

60000

512

16

63

Capacity (MB)

Bytes per sector

Logical heads

Logical sectors

Drive Format

Logical cylinders

Physical read/write heads

30000

512

16

63

16383

2/Not show/2

Disks 1/Not show/1

Spindle speed (RPM) 4200RPM

Performance Specifications

Buffer size 2MB

Interface ATA-5 for other vendors /ATA-

6 for HGST and Toshiba

16383

2/Not show/2/2

1/Not show/1/1

4200RPM

2MB/8MB for Toshiba

ATA-5 for other vendors /ATA-

6 for HGST

16383

3/

2

4200RPM

2MB

ATA-5 for other vendors /ATA-

6 for HGST

Data transfer rate

(disk-buffer, Mbytes/ s)

Data transfer, rate

(host~buffer, Mbytes/ s)

350

100 MB/Sec

DC Power Requirements

Voltage tolerance 5 +/- 5%

350

100 MB/Sec

5 +/- 5%

350

100MB/Sec

Chapter 1 21

22

CD-ROM Interface

Items

Vendor & Model Name

Specification

QSI SCR242

Mitsumi SR244W1

Performance Specification

Brust Data Transfer rate

Access time (typ.)

Rotation speed

Data Buffer Capacity

Interface

Applicable disc format

PIO mode 4:

16.7 MB/sec Max. (Mode 0~4)

Multi-word DMA mode 2:

16.7 MB/sec Max. (Mode 0~2)

Ultra DMA mode 2:

33.3MB/sec Max.

QSI-

Random: 90 ms

Full Stroke: 180 ms

Mitsumi-

Random: 100 ms

Full Stroke: 240 ms

5100 rpm for QSI

5400 rpm for Mitsumi 24X CAV mode

128 KB (built-in)

Compliant to ATA/ATAPI-6

QSI:

CD-DA, CD-ROM Mode-1, CD-ROM/XA Mode-2, Form-1 and Mode-2 Form-2, CD-i

Ready, Video-CD (MPEG-1), Karaoke CD, Photo-CD, Enhanced CD, CD Plus, CD

Extra, i-trax CD, CD-Text, CD-R and CD-RW

Mitsumi:

CD-DA, CD-ROM (Mode 1 and Mode2) CD-ROM XA (Mode 2 Form 1 and Form2),

CD-I (Mode2 Form 1 and Form 2), CD-I Bridge (Photo CD, CD EXTRA), Enhanced

CD, CD-RW, CD-R, CD-TEXT

Drawer with soft eject and emergency eject hole Loading mechanism

Power Requirement

Input Voltage +5V[DC]+/-5%

DVD-ROM Interface

Item

Vendor & model name

Performance Specification

Transfer rate (KB/sec)

Specification

MKE SR-8177

With CD Diskette

Average Sustained:

CAV mode

775~1800 blocks/sec

(10.3X to 24X)

1550~3600kBytes/sec (Mode 1)

1768~4106 kBytes/sec (Mode 2)

With DVD Diskette

DVD-5:

Normal Speed (1X) 11.08 Mbits/sec

CAV mode 36.67~88.64 Mbits/sec

DVD-9/DVD-R:

Normal Speed (1X) 11.08 Mbits/sec

CAV mode 36.67~88.64 Mbits/sec

Chapter 1

DVD-ROM Interface

Item

Average Full Access time (typ.)

Data Buffer Capacity

Interface

Applicable disc format

Loading mechanism

Power Requirement

Input Voltage

Combo Drive Interface

Item

Vendor & model name

Performance Specification

Specification

Random

CAV mode 110 msec typical 150 msec average max

Full Stroke

CAV mode 200 msec typical 260 msec average max

DVD-5:

Random

120 msec typical

160 msec average max

Full Stroke

270 msec typical

350 msec average max

DVD-9:

Random

150 msec typical

200 msec average max

Full Stroke

340 msec typical

450 msec average max

DVD-RAM (2.6G)

Random

200 msec typical

300 msec average max

Full Stroke

300 msec typical

600 msec average max

DVD-RAM (4.7G)

Random

180 msec typical

300 msec average max

Full Stroke

320 msec typical

700 msec average max

512 kBytes

IDE

DVD: DVD-5, DVD-9, DVD-10, DVD-R (3.95G), DVD-RAM (2.6G), DVD-

RAM (4.7G)

CD: CD-Audio, CD-ROM (mode 1 and mode 2), CD-ROM XA (mode 2, form

1 and form 2), CD-I (mode 2, form 1 and form 2), CD-I Ready, CD-I Bridge,

CD-WO, CD-RW, Photo CD, Video CD, Enhanced Music CD, CD-TEXT

Soft eject (with emergency eject hole)

+5V[DC]+/-5%

Specification

KME UJDA750

Chapter 1 23

24

Combo Drive Interface

Item

Transfer rate (KB/sec)

Buffer rate

Access time

Start up time

Stop time

Acoustic noise

Interface

Master/Slave

PC compatible

Applicable disc format

Slope

Dimensions, Weight

Eject

DVD Dual Interface

Item

Vendor & model name

Disc type for read/write application

Applicable Formats

Applicable Media Type

Specification

Read Sustained:

DVD-ROM MAX 8X CAV (MAX 10800 KB/sec)

CD-ROM MAX 24X CAV (MAX 3600 KB/sec)

Write:

CD-R 4X, 8X (CLV), Max 16X, MAX 24X (ZCLV)

CD-RW 4X (CLV)

HS-RW 4X,8X, 10X (CLV)

ATAPI Interface:

PIO mode 16.6 MB/sec :PIO Mode 4

DMA mode 16.6 MB/sec:Multi word mode 2

Ultra DMA mode 33.3MB/sec: Ultra DMA mode 2

2MB

DVD-ROM 180 ms typ. (1/3 stroke)

CD-ROM 130 ms typ. (1/3 stroke) less than 15s less than 6s less than 50 dBA

Enhanced IDE (ATAPI) compatible

Set by Cable Select (By host)

PC2001 compatible

CD:

CD-DA, CD-ROM, CD-ROM XA, CD-R, CD-RW, PhotoCD (multiSession),

Video CD, CD-Extra(CD+), CD-text

DVD: DVD-ROM, DVD-R, DVD-RW (Ver.1.1), DVD-VIDEO, DVD-RAM

(2.6GB, 4.7GB)

15 degree (Any direction)

128X129X12.7mm (WXDXH)

(except protrusion)

200g+- 10g

Soft Eject (with emergency eject hole)

Liteon DVD-Dual SDW-431S

Specification

CD-DA, CD-TEXT, CD ROM Mode-1, CD-ROM/XA Mode-2 Form-1 and

Form-2, CD-I Ready, Video-CD (MPEG-1), Karaoke-CD, Photo-CD,

Enhance CD, CD extra, I-Trax CD and UDF DVD-ROM, DVD-Video, DVD-

Audio,

DVD-R single/multi border(s)

DVD+R single/multi session(s)

DVD-RW

DVD+RW

CD-ROM, CD-R and CD-RW

DVD-ROM (4.7G/8.54G) single layer on single/double side (read only),

DVD-ROM dual layer (PTP/OTP) on single/double side (read only)

DVD-R (3.9G, 4.7G for General and Authoring),

DVD-RW, DVD+RW (4.7G)

DVD+R

Chapter 1

DVD Dual Interface

Disc Diameter

Capacity

Item Specification

12cm and 8cm

2048 bytes/sector (DVD)

2048 bytes/block (CD Mode-1 and Mode-2 Form-1)

2336 bytes/block (Mode-2)

2328 bytes/block (Mode-2 Form-2)

Operation environment for “write/rewrite” application

Host Machine IBM compatible PC (Pentium 166 MHz or above)

OS

Memory

Hard Disk

MS-Windows 90/ME/2000/XP/NT 4.0

Min. 128MB required

Disc Diameter

Recommended Media

Empty Storage Capacity:100 MB or more

Average access time: 20ms or less

12cm and 8cm

CD-R:

AMT, CMC, Csita, Delphi, EverMedia, Imation, LeadData(Silver-Sil),

Maxell, MCC (Bagdad), Mirage, Mitsui, MoserBaer(India), MPO, NanYa,

Plasmon, Prodisc, RAMedia, Ricoh, Ritek(JS, S, Richodye), SAST (ultra green), SKC(Korea), TDK, TY (DX dye)

Low Speed CD-RW:

CMC, Daxon, Fornet, Gigastorage, Imation, Infodisc, LeadData, MCC,

Nanya, Princo, Prodisc, Ricoh, Ritek

High Speed CD-RW:

AMT, CMC, Infodisc, Nanya, Postech, Prodisc, Ritek, Ricoh, MCC,

SKC(Korea)

Ultra Speed CD-RW:

Daxon, Imation, Infodisc, MCC, Prodisc, Ritek

DVD+R:

BEALL, CMC, Daxon, Fuji, HP, Maxell, MCC, Memorex, OPTODISC,

PRODISC, Ricoh, RICOH, Ritek, SONY, TDK, TYUDE

DVD+RW:

CMMC, Daxon, Imation, MCC, Philips, Ricoh, Ritek, Sony

DVD-R:

BeAll, CMMC, DAXON, DVSN Fornex, GSC, Imation, LeadData, Maxell,

Mitsubishi, Nanya, Pioneer, Princo, Prodisc, Ritec, Ritek, SKC, Sony,

That’s

DVD-RW:

CMC, Mitsubishi, Princo Ritek

Mechanism

Pick-up

Traverse mechanism

Spindle motor

NA: CD: 0.51

DVD: 0.65

Focusing: Astigmatism

Tracking: CD: DPP

DVD-ROM: DPD

DVD+R/RW: DPP

Wave length: CD: 785+/- 5 nm

DVD: 650+/- 15 nm

Output power:

Read CD: 1.5 mw max@objective lens

DVD: 1.0 mw max

Write CD: 65 mw max2@objective lens

DVD: 20 mw max

DC Stepping motor driven

DC burshless motor

Chapter 1 25

26

DVD Dual Interface

Item

Loading mechanism

Audio Interface

Item

Audio Controller

Audio onboard or optional

Mono or Stereo

Resolution

Compatibility

Mixed sound source

Voice channel

Sampling rate

Internal microphone

Internal speaker / Quantity

Supports PnP DMA channel

Supports PnP IRQ

Video Interface

Item

Vendor & Model Name

Chip voltage

Supports ZV (Zoomed Video) port

Graph interface

Maximum resolution (LCD)

Maximum resolution (CRT)

Specification

Manual load/DC brushless mortor system

Specification

Cirrus Logic CS4299-XQ (RTL ALC655 which one is correct?

Built-in

Stereo

20 bit stereo Digital to Analog converter

18 bit stereo Analog to Digital converter

Microsoft PC98/PC99, AC97 2.1

Line-in, CD, Video, AUX

8/16 bit, mono/stereo

44.1 KHz

Yes

Yes/2

DMA channel 0

DMA channel 1

IRQ10, IRQ11

ATI Radeon 9000 IGP

Specification

NO

4X AGP (Accelerated Graphic Port) Bus

1024 x768 (32bit colors)

1024x768 (32 bit colors)

1280x1024 (32 bit colors)

1600x1200 (32 bit colors)

Video Memory

Fixed or upgradeable

Item

Video memory size

LCD Display Resolution

Resolution

640x480

720x480

800x600

848x480

1024x768

8 bit

(256colors)

Yes

Yes

Yes

Yes

Yes

Specification

Fixed, share the system memory

64B(128MB optional)

16 bits

(Hi color)

Yes

Yes

Yes

Yes

Yes

24 bits

(True color)

Yes

Yes

Yes

Yes

Yes

32 bits

(True color)

Yes

Yes

Yes

Yes

Yes

Chapter 1

CRT Display Resolutions

Resolution

640x480

720x480

800x600

848x480

1024x768

1152x864

1280x1024

1400x1050

1600x1200

Yes

Yes

Yes

Yes

8 bit

(256colors)

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

16 bits

(Hi color)

Yes

Yes

Yes

Parallel Port

Item

Parallel port controller

Number of parallel port

Location

Connector type

Parallel port function control

Supports ECP/EPP

Optional ECP DMA channel

(in BIOS Setup)

Optional parallel port I/O address

(in BIOS Setup)

Optional parallel port IRQ

(in BIOS Setup)

USB Port

Item

USB Compliancy Level

OHCI

Number of USB port

PCMCIA Port

Item

PCMCIA controller

Supports card type

Number of slots

Access location

Supports ZV (Zoomed Video) port

Supports 32 bit CardBus

Yes

Yes

Yes

Yes

24 bits

(True color)

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

32 bits

(True color)

Yes

Yes

Yes

Yes

Yes

Specification

NS PC87392

1

Rear side

25-pin D-type

Enable/Disable by BIOS Setup

Yes (set by BIOS setup)

DMA channel 1 and 3

378, 278

IRQ5, IRQ7

2.0

USB 2.0

4

TZ 1520

Type II, Tpye III

Two type II, one type III

Left side

Yes

Yes (IRQ17)

Specification

Specification

Chapter 1 27

Keyboard

Item

Keyboard controller

Keyboard vendor & model name

Total number of keypads

Windows keys

Internal & external keyboard work simultaneously

Specification

Mitsubishi LPC keyboard controller M38857

Darfon/Sunrex

84-/85- key

Yes

Yes

Battery

Item

Vendor & model name

Battery Type

Pack capacity

Number of battery cell

Package configuration

Output voltage

Sanyo/Simplo

Li-ION

2000mAH per cell

8

4 serial 2 parallel

14.4Vdc (nominal)

Specification

28

LCD

Item

Vendor & model name

Specification

14.1” AU

B141XN04 V2

Physical Specifications

Display resolution(pixel)

Active area(mm)

Screen Size(inch)

Pixel pitch(mm)

1024(H) x 768(V)

285.7(H) x 214.3(V)

14.1

0.279(H)x 0.279(V)

Color configuration (Pixel Arrangement) R.G.B. Vertical stripe

Overall dimension(mm)

Weight(g)

Surface treatment

298.5(W)x226.7(H)x5.

2/5.5(D)

445+/-20

Power supply(input voltage)

Response time:Rising time/Falling time

Hard coating (3H), anti-glare of the front polarizer

3.6V(max)

20(typ.)40(max)/

30(typ.)50(max)

Contrast ratio

Support colors

Typical White Luminance

250

262K

150

15” Hitachi

TX38D85VC1CAB

1400(H) x1050(V)

304.1(H) x 228.1(V)

15.0

0.297(H)x 0.297(V)

317.3(w)x242.1(H)x6.

0(D)

580

Not show

15” AU B150PG01

SXGA+

1400(H) x1050(V)

304.5 (H) x228.375(V)

15.0

0.2175x 0.2175

550

Not show

3.3V(typ.) 3.6V(max) 3.3V

30(typ.)50(max)

30(typ.)50(max)

15(typ.)

35(typ.)

200

262k

180

250

262K

150

AC Adapter

Item

Vendor & model name

Input Requirements

Maximum input current (A,

@90Vac, full load)

Liton

1.5 A @ 110Vac

1.0 A @ 240Vac

Specification

Chapter 1

AC Adapter

Item

Nominal frequency (Hz)

Frequency variation range (Hz)

Input voltage range (Vrms)

Inrush current

Efficiency

Output Ratings (CV mode)

DC output voltage

Noise + Ripple

Specification

50-60

47-63

90-270

The maximum inrush current will be less than 50A and 100A when the adapter is connected to 115Vac and 230Vac respectively.

It should provide an efficiency of 80% minimum, when measured at maximum load under 115Vac.

19V

300mVp-pmax (20 MHz bandwidth)

Output Ratings (CC mode)

DC output voltage

Constant current mode

Dynamic Output Characteristics

Turn-on delay time

Hold up time

Over Voltage Protection (OVP)

Short circuit protection

Electrostatic discharge (ESD)

19V +/-1.0V for CV mode

3.6 +/- 0.3A

3 sec (@ 115Vac)

5ms (@115Vac, Full load)

24V

3.9A max can be protected and output can be shorted without damage

15KV (at air discharge)

8KV (at contact discharge)

Dielectric Withstand Voltage

Primary to secondary

Leakage current

Regulatory Requirements

Power Management

Power Saving Mode

Standby Mode

Enter Standby Mode when

1.Standby/Hibernation hot-key is pressed and system is not ready to enter Hibernation mode.

2.System standby/ Hibernation timer expires and system is not ready to enter Hibernation mode.

3000Vac

0.25 mA max. (@ 254Vac, 60Hz)

Safety Requirements:

1.The subject product rated 100-120V 60Hz must be listed under UL 1950 and certified with SCA Standard C22.2 No.950.

2.The subject product rated 200-240V 50Hz must comply with low voltage directive 73/23EEC.

EMI Requirements:

1.The subject product rated 100-120V 60Hz must meet the EMI requirements of FCC part 15, Subpart B for Class B Digital Device and get FCC Certification before marketing into USA and Canada.

2.The subject product rated 200-240V 50Hz must meet the EMC Directive 89/

336/EEC.

3.The subject product rated 100-120V must meet the VCCI-2 EMI requirements.

T

T

Phenomenon

The buzzer beeps

The Sleep indicator lights up

Chapter 1 29

30

Power Management

Power Saving Mode

Hibernation Mode

Enter Hibernation Mode (suspend to HDD) when

1.Hibernation hot-key is pressed and system is ready to enter Hibernation mode

2.System Hibernation timer expires and system is ready to enter Hibernation mode.

Display Standby Mode

Keyboard, built-in touchpad, and an external

PS/2 pointing device are idle for a specified period.

Hard Disk Standby Mode

Hard disk is idle within a specified period of time.

T All power shuts off

Phenomenon

T The display shuts off

T Hard disk drive is in standby mode.

(spindle turned-off)

Environmental Requirements

Temperature

Operating

Non-operating

Humidity

Operating

Item

Non-operating

Non-operating

Vibration

Operating

Non-operating (unpacked)

Non-operating (packed)

+5~+35

-20~+60

° C

° C

Specification

10% to 95% RH, non-condensing without disktte

10% to 80% RH, non-condensing with disktte

20% to 80% RH, non-condensing (Unpacked)

20% to 90% RH, non-condensing (Storage package)

5~250Hz 0.5Grms, 15mins per axis

1.04 Grms, 2-200Hz 15 mins per axis

1.04 Grms, 2-200Hz 15 mins per axis

Mechanical Specification

Item

Dimensions

Weight

I/O Ports

Drive Bays

Material

Specification

322(W) x 294(D) x 39.4~39.9(H)mm

7.2 Ibs for 14.1” TFT LCD model with battery/7.4 Ibs for 15”LCD model with battery

Two Type II or one Type III PC CardBus (PCMCIA) slot

One IEEE 1394 port

One FIR port

One RJ-11 modem jack (V.92, 56K)

One RJ-45 network jack

One DC-in jack

One parallel port (ECP/EPP)

One S-video port

One external monitor port

One microphone-in jack (3.5mm mini jack)

One headphone jack (3.5mm mini jack)

Four USB ports

One

Plastic

Chapter 1

Mechanical Specification

Item

Indicators

Switch

Specification

Power-on, Standby, Battery Status, Media Access, CapsLock and NumLock

Power

Chapter 1 31

Chapter 2

System Utilities

BIOS Setup Utility

The BIOS Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/

Output System).

Your computer is already properly configured and optimized, and you do not need to run this utility. However, if you encounter configuration problems, you may need to run Setup. Please also refer to Chapter 4

Troubleshooting when problem arises.

To activate the BIOS Utility, press m during POST (when “Press <F2> to enter Setup” message is prompted on the bottom of screen).

Press m to enter setup. The default parameter of F12 Boot Menu is set to “disabled”. If you want to change boot device without entering BIOS Setup Utility, please set the parameter to “enabled”.

Press <F12> during POST to enter multi-boot menu. In this menu, user can change boot device without entering BIOS SETUP Utility.

Chapter 2 32

Navigating the BIOS Utility

There are six menu options: Info., Main, System Devices, Security, Boot, and Exit.

Follow these instructions:

T

T

To choose a menu, use the cursor left/right keys (zx).

To choose a parameter, use the cursor up/down keys ( wy).

T

T

T

T

To change the value of a parameter, press por q.

A plus sign (+) indicates the item has sub-items. Press e to expand this item.

Press ^ while you are in any of the menu options to go to the Exit menu.

In any menu, you can load default settings by pressing t. You can also press u to save any changes made and exit the BIOS Setup Utility.

NOTE: You can change the value of a parameter if it is enclosed in square brackets. Navigation keys for a particular menu are shown on the bottom of the screen. Help for parameters are found in the Item

Specific Help part of the screen. Read this carefully when making changes to parameter values.

This menu provides you the information of the system.

33 Chapter 2

Information

NOTE: The system information is subject to different models.

Parameter

Floppy Disk Drive

HDD Model Name

HDD Serial Number

ATAPI Model Name

ATAPI Serial Number

Serial Number

UUID Number

Description

Shows floppy drive type informaiton.

Note: Aspre 1620, Extensa 2700, TravelMate 2500 and Extnesa 2500 series products do not have floppy disk drive; Extensa 2000 and TravelMate 2000 series have floppy disk drive.

This field shows the model name of HDD installed on primary IDE master.

This field displays the serial number of HDD installed on primary IDE master.

This field displays the mofel name of devices installed on secondary IDE master. The hard disk drive or optical drive model name is automatically detected by the system.

This field shows the serial number of devices installed on secondary IDE master.

This field displays the serial number of this unit.

This will be visible only when an internal LAN device is presenting.

UUID=32bytes

Chapter 2 34

Main

The Main screen displays a summary of your computer hardware information, and also includes basic setup parameters. It allows the user to specify standard IBM PC AT system parameters.

35

NOTE: The screen above is for reference only. Actual values may differ.

Chapter 2

The table below describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings.

Parameter

System Time

System Date

System Memory

Extended Memory

VGA Memory

Fast Boot

Power on display

LCD Auto Dim

PXE Boot from LAN

F12 Boot Menu

Description

Sets the system time. The hours are displayed with 24-hour format.

Sets the system date.

Format/Option

Format: HH:MM:SS

(hour:minute:second) System Time

Format MM/DD/YYYY (month/day/ year)

System Date

This field reports the memory size of the system.

Memory size is fixed to 640MB

This field reports the memory size of the extended memory in the system.

Extended Memory size=Total memory size-1MB

Shows the VGA memory size. VGA Memory size=64/128MB

Determines if Customer Logo will be displayed or not; shows Summary Screen is disabled or enabled.

Enabled: Customer Logo is displayed, and

Summary Screen is disabled.

Disabled: Customer Logo is not displayed, and

Summary Screen is enabled.

Auto: During power process, the system will detect if any display device is connected on external video port. If any external display device is connected, the power on display will be in CRT

(or projector) only mode. Otherwise it will be in

LCD only mode.

Both: Simultaneously enable both the integrated

LCD screen and the system’s external video port

(for an external CRT or projector).

Determines if the system will automatically dim the LCD brightness in order to save power when

AC is not present.

The system will support an automatic dimming of the LCD backlight when the AC power is NOT available (running on battery power).

Enables, disables the system boot from LAN

(remote server). PXE is the protocal.

Enables, disables Boot Menu during POST.

Option: Enabled or Disabled

Option: Auto or Both

Option: Enabled or Disabled

Option: Enabled or Disabled

Option: Disabled or Enabled

NOTE: The sub-items under each device will not be shown if the device control is set to disable or auto. This is because the user is not allowed to control the settings in these cases.

NOTE: If user disables “PXE Boot from LAN” option in BIOS Setup Utility, this item will be disappeared.

Chapter 2 36

Advanced

The Advanced menu screen contains parameters involving your hardware devices. It also provides advanced settings of the system.

37

The table below describes the parameters in the screen. Settings in boldface are the default and suggested parameter settings.

Parameter

Hyper-Threading

Technology

Infrared Port

Parallel Port

Mode

Base I/O address

Interrupt

DMA channel

Description

The function is supported only when the CPU installed is 3.06G or above. The system will automatically hide this selection when detecting the

CPU frequency is below 3.06G or the CPU does not support Hyper-Threading Technoloty.

Enables, disables or auto detects the infrared port.

Enables, disables or auto detects the parallel port.

Sets the operation mode of the parallel port.

Sets the I/O address of the parallel port.

Sets the interrupt request of the parallel port.

Sets a DMA channel for the printer to operate in

ECP mode. This parameter is enabled only if Mode is set to ECP.

Options

Enabled /Disabled

Disabled /Disabled/Auto

Enabled /Disabled/Auto

ECP , EPP, Output only or Bidirectional

378 /278

IRQ7 /IRQ5

DMA3 /DMA1

Chapter 2

Parameter

Legacy USB Support

Description

Enables, disables USB interface devices support under DOS mode.

Options

Option: Disabled or Enabled

Chapter 2 38

Security

The Security screen contains parameters that help safeguard and protect your computer from unauthorized use.

39 Chapter 2

The table below describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings.

Parameter

User Password is

Supervisor Password is

Set User Password

Set Supervisor Password

Primary Harddisk Security

Password on Boot

Description

Shows the setting of the user password.

Shows the setting of the Supervisor password

Press Enter to set the user password. When set, this password protects the BIOS Setup

Utility from unauthorized access.

Press Enter to set the supervisor password.

When set, this password protects the BIOS

Setup Utility from unauthorized access.

This feature is available to user when

Supervisor password is set. Password can be written on HDD only when Supervisor password or user password is set and password on HDD is set to enabled.

Supervisor Password is written to HDD only when Supervisor password is being set. User password is written to HDD when both passwords are set. When both Supervisor and user password are present, both passwords can unlock the HDD.

Defines whether a password is required or not while the events defined in this group happened. The following sub-options are all requires the Supervisor password for changes and should be grayed out if the user password was used to enter setup.

Option

Clear or Set

Clear or Set

Disabled

Disabled

or Enabled

or Enabled

NOTE: When you are prompted to enter a password, you have three tries before the system halts. Don’t forget your password. If you forget your password, you may have to return your notebook computer to your dealer to reset it.

Setting a Password

Follow these steps as you set the user or the supervisor password:

1.

Use the w andy keys to highlight the Set Supervisor Password parameter and press the e key. The

Set Supervisor Password box appears:

2.

Type a password in the “Enter New Password” field. The password length can not exceeds 8 alphanumeric characters (A-Z, a-z, 0-9, not case sensitive). Retype the password in the “Confirm New

Password” field.

IMPORTANT:Be very careful when typing your password because the characters do not appear on the screen.

3.

Press e.

After setting the password, the computer sets the User Password parameter to “Set”.

4.

If desired, you can opt to enable the Password on boot parameter.

5.

When you are done, press u to save the changes and exit the BIOS Setup Utility.

Chapter 2 40

Removing a Password

Follow these steps:

1.

Use the w and y keys to highlight the Set Supervisor Password parameter and press the e key. The

Set Password box appears:

2.

Type the current password in the Enter Current Password field and press e.

3.

Press e twice without typing anything in the Enter New Password and Confirm New Password fields.

The computer then sets the Supervisor Password parameter to “Clear”.

4.

When you have changed the settings, press u to save the changes and exit the BIOS Setup Utility.

Changing a Password

1.

Use the w and y keys to highlight the Set Supervisor Password parameter and press the e key. The

Set Password box appears:

2.

Type the current password in the Enter Current Password field and press e.

3.

Type a password in the Enter New Password field. Retype the password in the Confirm New Password field.

4.

Press e. After setting the password, the computer sets the User Password parameter to “Set”.

5.

If desired, you can enable the Password on boot parameter.

6.

When you are done, press u to save the changes and exit the BIOS Setup Utility.

If the verification is OK, the screen will display as following.

41

The password setting is complete after the user presses u.

Chapter 2

If the current password entered does not match the actual current password, the screen will show you the

Setup Warning.

If the new password and confirm new password strings do not match, the screen will display the following message.

Chapter 2 42

Boot

This menu allows the user to decide the order of boot devices to load the operating system. Bootable devices includes the distette drive in module bay, the onboard hard disk drive and the CD-ROM in module bay.

43 Chapter 2

Exit

The Exit screen contains parameters that help safeguard and protect your computer from unauthorized use.

The table below describes the parameters in this screen.

Parameter

Exit Saving Changes

Exit Discarding Changes

Load Setup Default

Discard Changes

Save Changes

Description

Exit System Setup and save your changes to CMOS.

Exit utility without saving setup data to CMOS.

Load default values for all SETUP item.

Load previous values from CMOS for all SETUP items.

Save Setup Data to CMOS.

BIOS Flash Utility

The BIOS flash memory update is required for the following conditions:

T

New versions of system programs

T

T

New features or options

Restore a BIOS when it becomes corrupted.

Use the Phlash utility to update the system BIOS flash ROM.

NOTE: If you do not have a crisis recovery diskette at hand, then you should create a Crisis Recovery

Chapter 2 44

Diskette before you use the Phlash utility.

NOTE: Do not install memory-related drivers (XMS, EMS, DPMI) when you use the Phlash.

NOTE: Please use the AC adaptor power supply when you run the Phlash utility. If the battery pack does not contain enough power to finish BIOS flash, you may not boot the system because the BIOS is not completely loaded.

Fellow the steps below to run the Phlash.

1.

Prepare a bootable diskette.

2.

Copy the Phlash utilities to the bootable diskette.

3.

Then boot the system from the bootable diskette. The Phlash utility has auto-execution function.

45 Chapter 2

Chapter 3

Machine Disassembly and Replacement

This chapter contains step-by-step procedures on how to disassemble the notebook computer for maintenance and troubleshooting.

To disassemble the computer, you need the following tools:

T

Wrist grounding strap and conductive mat for preventing electrostatic discharge

T

T

T

T

Flat-bladed screw driver

Phillips screw driver

Tweezers

Plastic Flat-bladed screw driver

T

Hexed Screw Driver

NOTE: The screws for the different components vary in size. During the disassembly process, group the screws with the corresponding components to avoid mismatch when putting back the components.

NOTE: This chapter has been revised from previous model (TravelMate 240/250). Please refer to the disassembling procedures instead of the images. Some of the images below contain the parts used in

TravelMate 240/250, but not in Extensa 2700.

Chapter 3 46

General Information

Before You Begin

Before proceeding with the disassembly procedure, make sure that you do the following:

1.

Turn off the power to the system and all peripherals.

2.

Unplug the AC adapter and all power and signal cables from the system.

47 Chapter 3

Disassembly Procedure Flowchart

The flowchart on the succeeding page gives you a graphic representation on the entire disassembly sequence and instructs you on the components that need to be removed during servicing. For example, if you want to remove the main board, you must first remove the keyboard, then disassemble the inside assembly frame in that order.

Start

Battery

HDD

HDD Module

G*2

HDD Holder

*2

DIMM Cover

Memory

Wireless LAN

Board

*2

Modem Cover Hinge Caps

D*2

Modem Board

J*2

Middle Cover

RTC Battery Keyboard

F*6

LCD Module

*2

Launch Board

Second Fan

Bracket

J*3

Lower Case

Assembly

J*2

FDD Module

J*5

F*10

D*4

D*4

Wireless LAN

Antenna

Upper Case

Assembly

Touchpad

Cover

J*3

Second Fan

*4

Thermal

Module

CPU

D*2

ODD Bracket

ODD Module

J*4

HDD Bracket

F*1

ODD Support

Bracket

*1

CPU Heatsink

Plate

J*7

VGA Thermal

Plate

ODD

*4

Main Board Touchpad

Touchpad

Button Pad

Touchpad

Scroll Key

D*2

DC Board

D*4

PCMCIA Slot

Touchpad

Cable

Upper Case

*2

Speaker Set

Chapter 3 48

LCD Module

4 LCD

Cushions

E*4

LCD Bezel

L*1

Inverter

L*4

LCD

49

LCD Coaxial

Cable

H*8 for 14.1"

H*6 for 15.0"

LCD Brackets

Screw List

K

L

I

J

G

H

E

F

C

D

A

B

Item Description

SCW HEX NYL I#R-40/O#4-40 L5.5(34.00015.081)

SCRW MACH PAN NYLOK M2.0*10 NI

(86.1A522.100)

SCRW CPU SCREW FORCE 5KGS(86.T30V1.001)

SCREW M2*3 NYLON 1JMCPC-

420325(86.9A352.3R0)

SCREW M2.5X6(86.9A353.6R0)

SRW M2.5*8L B/ZN NYLOK 700(86.9A353.8R0)

SCREW M3x4(86.9A524.4R0)

SCREW M2X2.0(86.9A552.2R0)

SCREW WAFER NYLOK NI 2ML3(86.9A552.3R0)

SCRW M2*4 WAFER NI(86.9A552.4R0)

SCRW M2.5*3 WAFER NI(86.9A553.3R0)

SCREW M2.5*4L NI(86.9A553.4R0)

LCD Panel

Chapter 3

Removing the Battery

1.

To remove the battery, push the battery release latch.

2.

Then slide the battery out from the machine.

Chapter 3 50

Removing the Memory Module

1.

See “Removing the Battery” on page 50.

2.

To remove the memory module from the machine, first remove the two screws holding the dimm cover.

3.

Remove the dimm cover.

4.

Pop up the memory.

5.

Then remove the memory.

51 Chapter 3

Removing the Wireless LAN Board and the Modem Board

1.

See “Removing the Battery” on page 50.

2.

To remove the wireless LAN board, first remove the two screws holding the modem cover.

3.

Remove the modem cover from the machine.

4.

Disconnect the wireless antennae.

5.

Pop out the wireless LAN board.

6.

To remove the modem board, first remove the two screws fastening the modem board.

7.

Detach the modem board and disconnect the modem cable carefully, then remove the modem board.

Chapter 3 52

Removing the Hard Disk Drive Module

1.

See “Removing the Battery” on page 50.

2.

To remove the hard disk drive, pull the hard disk dirve carefully.

3.

Then take the hard disk drive out of the main unit.

Disassembling the Hard Disk Drive Module

1.

See “Removing the Battery” on page 50.

2.

See “Removing the Hard Disk Drive Module” on page 53.

3.

Remove the two screws that fasten the HDD holder.

4.

Detach the hard disk drive from the HDD holder.

53 Chapter 3

Removing the LCD Module

Removing the Middle Cover

1.

See “Removing the Battery” on page 50.

2.

To remove the middle cover, first use a plastic flat screwdriver to remove the right hinge cap.

3.

Remove the screw that secures the middle cover.

4.

Remove the left hinge cap.

5.

Then remove the screw holding the middle cover on the other side.

6.

Detach the middle cover from the machine.

.

7.

Disconnect the launch board cable then remove the middle cover off the main unit.

Removing the Launch Board

1.

See “Removing the Battery” on page 50.

2.

See “Removing the Middle Cover” on page 54.

Chapter 3 54

3.

Remove the two screws and then detach the launch board from the middle cover.

Removing the LCD Module

1.

See “Removing the Battery” on page 50.

2.

See “Removing the Middle Cover” on page 54.

3.

See “Removing the Launch Board” on page 54.

4.

Remove the screw that fastens the LCD coaxial cable and disconnect the cable. Then disconnect the

LCD inverter cable.

5.

Remove the four screws holding the LCD hinge; two on the right and two on the left.Remove the four screws holding the LCD hinge; two on the right and two on the left.

6.

Remove the two screws on the bottom; one on the right and the other on the left.

55

7.

Then you can remove the entire LCD module from the main unit.

Chapter 3

Chapter 3 56

Disassembling the LCD Module

Removing the LCD Bezel

1.

See “Removing the Battery” on page 50.

2.

See “Removing the Middle Cover” on page 54.

3.

See “Removing the Launch Board” on page 54.

4.

See “Removing the LCD Module” on page 55.

5.

Use plastic tweezers to remove the four screw pads, and then remove the four screws that fasten the LCD bezel.

6.

Snap off the bezel carefully, and then remove the LCD bezel from the LCD module.

Removing the Inverter Board (15” LCD)

1.

See “Removing the Battery” on page 50.

2.

See “Removing the Middle Cover” on page 54.

3.

See “Removing the Launch Board” on page 54.

4.

See “Removing the LCD Module” on page 55.

5.

See “Removing the LCD Bezel” on page 57.

6.

To remove the inverter board, first remove one screw from the inverter board.

57

7.

Disconnect the LCD power cable then disconnect the inverter cable from the inverter board.

Chapter 3

NOTE: Please arrange the LCD inverter cable well to the LCD panel as the picture below shows when you reassemble the LCD module.

Removing the 15” TFT LCD

1.

See “Removing the Battery” on page 50.

2.

See “Removing the Middle Cover” on page 54.

3.

See “Removing the Launch Board” on page 54.

4.

See “Removing the LCD Module” on page 55.

5.

See “Removing the LCD Bezel” on page 57.

6.

See “Removing the Inverter Board (15” LCD)” on page 57.

7.

To remove the LCD, first remove the four screws that secure the LCD hinges.

8.

Then take the LCD out of the LCD panel.

Removing the LCD Brackets

1.

See “Removing the Battery” on page 50.

Chapter 3 58

2.

See “Removing the Middle Cover” on page 54.

3.

See “Removing the Launch Board” on page 54.

4.

See “Removing the LCD Module” on page 55.

5.

See “Removing the LCD Bezel” on page 57.

6.

See “Removing the Inverter Board (15” LCD)” on page 57.

7.

See “Removing the 15” TFT LCD” on page 58.

8.

Remove the four screws holding the right LCD bracket.Then remove the right bracket.

9.

Remove the four screws holding the left LCD bracket. Then remove the left bracket..

Removing the LCD Coaxial Cable

1.

See “Removing the Battery” on page 50.

2.

See “Removing the Middle Cover” on page 54.

3.

See “Removing the Launch Board” on page 54.

4.

See “Removing the LCD Module” on page 55.

5.

See “Removing the LCD Bezel” on page 57.

6.

See “Removing the Inverter Board (15” LCD)” on page 57.

7.

See “Removing the 15” TFT LCD” on page 58.

8.

Tear off the mylar fastening the LCD coaxial cable, then disconnect the coaxial cable.

Removing the LCD Hinges

1.

See “Removing the Battery” on page 50.

59 Chapter 3

2.

See “Removing the Middle Cover” on page 54.

3.

See “Removing the Launch Board” on page 54.

4.

See “Removing the LCD Module” on page 55.

5.

See “Removing the LCD Bezel” on page 57.

6.

See “Removing the Inverter Board (15” LCD)” on page 57.

7.

See “Removing the 15” TFT LCD” on page 58.

8.

Remove the screw holding the right hinge, then remove the right hinge.

9.

Remove the screw holding the left hinge, then remove the left hinge.

Chapter 3 60

Disassembling the Main Unit

Removing the Keyboard

1.

See “Removing the Battery” on page 50.

2.

See “Removing the Middle Cover” on page 54.

3.

To remove the keyboard, carefully pull the keyboard out and upwards as the pticute shows.

4.

Use a plastic tweezers or a plastic flat screwdriver to disconnect the keyboard cable from the main board carefully, then remove the keyboard.

Removing the RTC Battery

1.

See “Removing the Battery” on page 50.

2.

See “Removing the Middle Cover” on page 54.

3.

See “Removing the Keyboard” on page 61.

4.

Disconnect the RTC battery cable then remove it.

Removing the Fan

1.

See “Removing the Battery” on page 50.

2.

See “Removing the Middle Cover” on page 54.

3.

See “Removing the Keyboard” on page 61.

4.

Disconnect the fan cable and remove the three screws fastening the fan. Then remove the fan.

61 Chapter 3

Removing the Thermal Module

1.

See “Removing the Battery” on page 50.

2.

See “Removing the Middle Cover” on page 54.

3.

See “Removing the Keyboard” on page 61.

4.

See “Removing the Fan” on page 61.

5.

Disconnect the fan cable then remove the four screws fastening the thermal module.

6.

Then remove the thermal module.

Removing the Processor

1.

See “Removing the Battery” on page 50.

2.

See “Removing the Middle Cover” on page 54.

3.

See “Removing the Keyboard” on page 61.

4.

See “Removing the RTC Battery” on page 61.

5.

See “Removing the Fan” on page 61.

6.

See “Removing the Thermal Module” on page 62.

7.

Lift up the CPU socket lever. Then remove the CPU. Remember to press down the lever as the video shows after you remove the CPU.

Chapter 3 62

Installing the Processor

1.

See “Removing the Battery” on page 50.

2.

See “Removing the Middle Cover” on page 54.

3.

See “Removing the Keyboard” on page 61.

4.

See “Removing the RTC Battery” on page 61.

5.

See “Removing the Fan” on page 61.

6.

See “Removing the Thermal Module” on page 62.

7.

Lift up the CPU lever, then place the CPU back to the CPU socket. Please remember to press the CPU lever after you put the CPU back to the socket.

Removing the Upper Case Assemly

1.

See “Removing the Keyboard” on page 61.

2.

Disconnect the touchpad cable.

63

3.

Remove the 5 screws that secure the upper case to the lower case. Then turn over the main unit and remove the 15 screws holding the lower case to the upper case.

Chapter 3

4.

Then take the upper case assembly off the main unit.

Removing the Touchpad Board

1.

See “Removing the Battery” on page 50.

2.

See “Removing the Middle Cover” on page 54.

3.

See “Removing the Keyboard” on page 61.

4.

See “Removing the Upper Case Assemly” on page 63.

5.

To detach the touch pad board, first disconnect the touch pad cable from the touch pad board with a plastic tweezers.Then release the touchpad cover lock on the back as the picture shows.

6.

Remove the touchpad cover, the remove the touchpad button pad. Finally remove the touchpad board from the upper case.

Removing the Touchpad Cable

1.

See “Removing the Battery” on page 50.

2.

See “Removing the Middle Cover” on page 54.

Chapter 3 64

3.

See “Removing the LCD Module” on page 55.

4.

See “Removing the Keyboard” on page 61.

5.

See “Removing the Upper Case Assemly” on page 63.

6.

See “Removing the Touchpad Board” on page 64.

7.

Remove the touchpad scroll key then remove the touchpad cable.

Removing the VGA Thermal Plate

1.

See “Removing the Battery” on page 50.

2.

See “Removing the Middle Cover” on page 54.

3.

See “Removing the Keyboard” on page 61.

4.

See “Removing the Fan” on page 61.

5.

See “Removing the Thermal Module” on page 62.

6.

Remove the seven screws holding the VGA thermal plate then remove it.

Removing the CPU Heatsink Plate

1.

See “Removing the Battery” on page 50.

2.

See “Removing the Middle Cover” on page 54.

3.

See “Removing the Keyboard” on page 61.

4.

See “Removing the Fan” on page 61.

5.

See “Removing the Thermal Module” on page 62.

6.

Remove the screw that fastens the CPU heatsink plate then remove it.

65 Chapter 3

Removing the Second Fan Bracket

1.

See “Removing the Battery” on page 50.

2.

See “Removing the Middle Cover” on page 54.

3.

See “Removing the LCD Module” on page 55.

4.

See “Removing the RTC Battery” on page 61.

5.

See “Removing the Fan” on page 61.

6.

See “Removing the Thermal Module” on page 62.

7.

Remove the three screws that fasten the second fan bracket then remove the bracket.

Removing the ODD Module(1)

1.

See “Removing the Battery” on page 50.

2.

Remove the screw that fastens the ODD bracket on the bottom. Push the ODD module at the point the red arrow indicates hard.Then remove the ODD module from the lower case.

NOTE: If you need to replace the ODD module only, you can remove the ODD module as the steps above.

Removing the ODD Module(2)

1.

See “Removing the Battery” on page 50.

2.

See “Removing the Middle Cover” on page 54.

3.

See “Removing the Keyboard” on page 61.

4.

See “Removing the Upper Case Assemly” on page 63.

5.

See “Removing the Thermal Module” on page 62.

6.

See “Removing the VGA Thermal Plate” on page 65.

7.

Push the ODD module outwards then take the ODD out of the support bracket. Remove the screw that fastens the ODD support bracket then remove it.

Chapter 3 66

Removing the HDD Bracket

1.

See “Removing the Battery” on page 50.

2.

See “Removing the Middle Cover” on page 54.

3.

See “Removing the Keyboard” on page 61.

4.

See “Removing the Upper Case Assemly” on page 63.

5.

Remove the four screws holding the HDD bracket, then remove the HDD bracket.

Removing the Main Board

1.

See “Removing the Battery” on page 50.

2.

See “Removing the Middle Cover” on page 54.

3.

See “Removing the Keyboard” on page 61.

4.

See “Removing the Upper Case Assemly” on page 63.

5.

See “Removing the Fan” on page 61.

6.

See “Removing the Thermal Module” on page 62.

7.

See “Removing the VGA Thermal Plate” on page 65.

8.

See “Removing the CPU Heatsink Plate” on page 65.

9.

See “Removing the Second Fan Bracket” on page 66.

10. See “Removing the ODD Module(2)” on page 66.

11. See “Removing the HDD Bracket” on page 67.

12. Disconnect the launch board cable. Tear off the tape that fastens the speaker set cable. Then disconnect the speaker set cable.

67 Chapter 3

.

13. Remove the two screws holding the main board as the picture shows. Remove another two screws that fasten the main board. Then detach the main board from the lower case carefully.

Removing the DC Board

1.

See “Removing the Battery” on page 50.

2.

See “Removing the Middle Cover” on page 54.

3.

See “Removing the Keyboard” on page 61.

4.

See “Removing the Upper Case Assemly” on page 63.

5.

See “Removing the Fan” on page 61.

6.

See “Removing the Thermal Module” on page 62.

7.

See “Removing the VGA Thermal Plate” on page 65.

8.

See “Removing the CPU Heatsink Plate” on page 65.

9.

See “Removing the Second Fan Bracket” on page 66.

10. See “Removing the ODD Module(2)” on page 66.

11. See “Removing the HDD Bracket” on page 67.

12. See “Removing the Main Board” on page 67.

13. Remove the two screws that fasten the DC board. Then detach the DC board from the lower case.

Removing the I/O Port Bracket

1.

See “Removing the Battery” on page 50.

2.

See “Removing the Middle Cover” on page 54.

Chapter 3 68

3.

See “Removing the Keyboard” on page 61.

4.

See “Removing the Upper Case Assemly” on page 63.

5.

See “Removing the Fan” on page 61.

6.

See “Removing the Thermal Module” on page 62.

7.

See “Removing the VGA Thermal Plate” on page 65.

8.

See “Removing the CPU Heatsink Plate” on page 65.

9.

See “Removing the Second Fan Bracket” on page 66.

10. See “Removing the ODD Module(2)” on page 66.

11. See “Removing the HDD Bracket” on page 67.

12. See “Removing the Main Board” on page 67.

13. Remove the four hex screws to detach the I/O port bracket from the main board.

Removing the PCMCIA Slot

1.

See “Removing the Battery” on page 50.

2.

See “Removing the Middle Cover” on page 54.

3.

See “Removing the Keyboard” on page 61.

4.

See “Removing the Upper Case Assemly” on page 63.

5.

See “Removing the Fan” on page 61.

6.

See “Removing the Thermal Module” on page 62.

7.

See “Removing the VGA Thermal Plate” on page 65.

8.

See “Removing the CPU Heatsink Plate” on page 65.

9.

See “Removing the Second Fan Bracket” on page 66.

10. See “Removing the ODD Module(2)” on page 66.

11. See “Removing the HDD Bracket” on page 67.

12. See “Removing the Main Board” on page 67.

13. Remove the four screws that secure the PCMCIA slot, then remove the PCMCIA slot from the lower case.

69 Chapter 3

Removing the Speaker Set

1.

See “Removing the Battery” on page 50.

2.

See “Removing the Middle Cover” on page 54.

3.

See “Removing the Keyboard” on page 61.

4.

See “Removing the Upper Case Assemly” on page 63.

5.

See “Removing the Fan” on page 61.

6.

See “Removing the Thermal Module” on page 62.

7.

See “Removing the VGA Thermal Plate” on page 65.

8.

See “Removing the CPU Heatsink Plate” on page 65.

9.

See “Removing the Second Fan Bracket” on page 66.

10. See “Removing the ODD Module(2)” on page 66.

11. See “Removing the HDD Bracket” on page 67.

12. See “Removing the Main Board” on page 67.

13. See “Removing the DC Board” on page 68.

14. Tear off the tape fastening the speaker set cable. Then remove the four screws that secure the speaker set. Remove the speaker set from the lower case.

Chapter 3 70

System Upgrade Procedure

Base Unit to Wireless Unit

1.

Turn out the two screws fastening the modem cover then open the cover.

2.

Connect the wirless antennae.

3.

Insert the wireless LAN board to the wireless socket on the main board.

4.

Close the modem cover and fasten the cover with the two screws.

NOTE: You must connect the wireless antennae before you insert the wireless LAN board to the socket. If you insert the wireless LAN card first, the pressure you press to fasten the wireless antennae may damage the main board.

71 Chapter 3

Chapter 4

Troubleshooting

Use the following procedure as a guide for computer problems.

NOTE: The diagnostic tests are intended to test only Acer products. Non-Acer products, prototype cards, or modified options can give false errors and invalid system responses.

1.

Obtain the failing symptoms in as much detail as possible.

2.

Verify the symptoms by attempting to re-create the failure by running the diagnostic test or by repeating the same operation.

3.

Use the following table with the verified symptom to determine which page to go to.

Symptoms (Verified)

Power failure. (The power indicator does not go on or stay on.)

POST does not complete. No beep or error codes are indicated.

POST detects an error and displayed messages on screen.

Other symptoms (i.e. LCD display problems or others).

Symptoms cannot be re-created (intermittent problems).

Go To

“Power System Check” on page 74.

“Power-On Self-Test (POST) Error Message” on page 77

“Undetermined Problems” on page 85

“Error Message List” on page 78

“Power-On Self-Test (POST) Error Message” on page 77

Use the customer-reported symptoms and go to

“Power-On Self-Test (POST) Error Message” on page 77

“Intermittent Problems” on page 84

“Undetermined Problems” on page 85

Chapter 4 72

System Check Procedures

External Diskette Drive Check

Do the following to isolate the problem to a controller, driver, or diskette. A write-enabled, diagnostic diskette is required.

NOTE: Make sure that the diskette does not have more than one label attached to it. Multiple labels can cause damage to the drive or cause the drive to fail.

Do the following to select the test device.

1.

Boot from the diagnostics diskette and start the diagnostics program.

2.

See if FDD Test is passed as the program runs to FDD Test.

3.

Follow the instructions in the message window.

If an error occurs with the internal diskette drive, reconnect the diskette connector on the system board.

If the error still remains:

1.

Reconnect the external diskette drive/DVD-ROM module.

2.

Replace the external diskette drive/CD-ROM module.

3.

Replace the main board.

External CD-ROM Drive Check

Do the following to isolate the problem to a controller, drive, or CD-ROM. Make sure that the CD-ROM does not have any label attached to it. The label can cause damage to the drive or can cause the drive to fail.

Do the following to select the test device:

1.

Boot from the diagnostics diskette and start the diagnostics program.

2.

See if CD-ROM Test is passed when the program runs to CD-ROM Test.

3.

Follow the instructions in the message window.

If an error occurs, reconnect the connector on the System board. If the error still remains:

1.

Reconnect the external diskette drive/CD-ROM module.

2.

Replace the external diskette drive/CD-ROM module.

3.

Replace the main board.

Keyboard or Auxiliary Input Device Check

Remove the external keyboard if the internal keyboard is to be tested.

If the internal keyboard does not work or an unexpected character appears, make sure that the flexible cable extending from the keyboard is correctly seated in the connector on the system board.

If the keyboard cable connection is correct, run the Keyboard Test.

If the tests detect a keyboard problem, do the following one at a time to correct the problem. Do not replace a non-defective FRU:

1.

Reconnect the keyboard cables.

2.

Replace the keyboard.

3.

Replace the main board.

73

The following auxiliary input devices are supported by this computer:

T

Numeric keypad

T

External keyboard

If any of these devices do not work, reconnect the cable connector and repeat the failing operation.

Chapter 4

Memory check

Memory errors might stop system operations, show error messages on the screen, or hang the system.

1.

Boot from the diagnostics diskette and start the doagmpstotics program (please refer to main board.

2.

Go to the diagnostic memory in the test items.

3.

Press F2 in the test items.

4.

Follow the instructions in the message window.

NOTE: Make sure that the DIMM is fully installed into the connector. A loose connection can cause an error.

Power System Check

To verify the symptom of the problem, power on the computer using each of the following power sources:

1.

Remove the battery pack.

2.

Connect the power adapter and check that power is supplied.

3.

Disconnect the power adapter and install the charged battery pack; then check that power is supplied by the battery pack.

If you suspect a power problem, see the appropriate power supply check in the following list:

T

“Check the Power Adapter” on page 75

T

“Check the Battery Pack” on page 76

Chapter 4 74

Check the Power Adapter

Unplug the power adapter cable from the computer and measure the output voltage at the plug of the power adapter cable. See the following figure

Pin 1: +19 to +20.5V

Pin 2: 0V, Ground

1.

If the voltage is not correct, replace the power adapter.

2.

If the voltage is within the range, do the following:

T

T

Replace the System board.

If the problem is not corrected, see “Undetermined Problems” on page 85.

T

If the voltage is not correct, go to the next step.

NOTE: An audible noise from the power adapter does not always indicate a defect.

3.

If the power-on indicator does not light up, check the power cord of the power adapter for correct continuity and installation.

4.

If the operational charge does not work, see “Check the Battery Pack” on page 76.

75 Chapter 4

Check the Battery Pack

To check the battery pack, do the following:

From Software:

1.

Check out the Power Management in control Panel

2.

In Power Meter, confirm that if the parameters shown in the screen for Current Power Source and Total

Battery Power Remaining are correct.

3.

Repeat the steps 1 and 2, for both battery and adapter.

4.

This helps you identify first the problem is on recharging or discharging.

From Hardware:

1.

Power off the computer.

2.

Remove the battery pack and measure the voltage between battery terminals 1(+) and 6(ground). See the following figure

3.

If the voltage is still less than 7.5 Vdc after recharging, replace the battery.

To check the battery charge operation, use a discharged battery pack or a battery pack that has less than 50% of the total power remaining when installed in the computer.

If the battery status indicator does not light up, remove the battery pack and let it return to room temperature.

Re-install the battery pack.

If the charge indicator still does not light up, replace the battery pack. If the charge indicator still does not light up, replace the DC/DC charger board.

Touchpad Check

If the touchpad doesn’t work, do the following actions one at a time to correct the problem. Do not replace a non-defective FRU:

1.

Reconnect the touchpad cables.

2.

Replace the touchpad.

3.

Replace the system board.

After you use the touchpad, the pointer drifts on the screen for a short time. This self-acting pointer movement can occur when a slight, steady pressure is applied to the touchpad pointer. This symptom is not a hardware problem. No service actions are necessary if the pointer movement stops in a short period of time.

Chapter 4 76

Power-On Self-Test (POST) Error Message

The POST error message index lists the error message and their possible causes. The most likely cause is listed first.

NOTE: Perform the FRU replacement or actions in the sequence shown in FRU/Action column, if the FRU replacement does not solve the problem, put the original part back in the computer. Do not replace a non-defective FRU.

This index can also help you determine the next possible FRU to be replaced when servicing a computer.

If the symptom is not listed, see “Undetermined Problems” on page 85.

The following lists the error messages that the BIOS displays on the screen and the error symptoms classified by function.

NOTE: Most of the error messages occur during POST. Some of them display information about a hardware device, e.g., the amount of memory installed. Others may indicate a problem with a device, such as the way it has been configured.

NOTE: If the system fails after you make changes in the BIOS Setup Utility menus, reset the computer, enter

Setup and install Setup defaults or correct the error.

77 Chapter 4

Index of Error Messages

Error Code List

Error Codes

006

010

070

071

072

110

<No error code>

<No error code>

Error Messages

Equipment Configuration Error

Causes:

1. CPU BIOS Update Code Mismatch

2. IDE Primary Channel Master Drive Error

(THe causes will be shown before “Equipment Configuration

Error”)

Memory Error at xxxx:xxxx:xxxxh (R:xxxxh, W:xxxxh)

Real Time Clock Error

CMOS Battery Bad

CMOS Checksum Error

System disabled.

Incorrect password is specified.

Battery critical LOW

In this situation BIOS will issue 4 short beeps then shut down system, no message will show.

Thermal critical High

In this situation BIOS will shut down system, not show message.

Error Message List

Error Messages

Failure Fixed Disk

Stuck Key

Keyboard error

Keyboard Controller Failed

Keyboard locked - Unlock key switch

FRU/Action in Sequence

Reconnect hard disk drive connector.

“Load Default Settings” in BIOS Setup Utility.

Hard disk drive

System board

see “Keyboard or Auxiliary Input Device Check” on page 73. see “Keyboard or Auxiliary Input Device Check” on page 73. see “Keyboard or Auxiliary Input Device Check” on page 73.

Unlock external keyboard

Monitor type does not match CMOS - Run Setup Run “Load Default Settings” in BIOS Setup Utility.

Shadow RAM Failed at offset: nnnn BIOS ROM

System board

System RAM Failed at offset: nnnn

Extended RAM Failed at offset: nnnn

DIMM

System board

DIMM

System board

System battery is dead - Replace and run Setup Replace RTC battery and Run BIOS Setup Utility to reconfigure system time, then reboot system.

System CMOS checksum bad - Default configuration used

RTC battery

Run BIOS Setup Utility to reconfigure system time, then reboot system.

System timer error RTC battery

Run BIOS Setup Utility to reconfigure system time, then reboot system.

System board

Chapter 4 78

79

Error Message List

CMOS

Error Messages

Real time clock error

Previous boot incomplete - Default configuration used

Memory size found by POST differed from

Diskette drive A error

Incorrect Drive A type - run SETUP

System cache error - Cache disabled

CPU ID:

DMA Test Failed

Software NMI Failed

Fail-Safe Timer NMI Failed

Device Address Conflict

Allocation Error for device

Failing Bits: nnnn

Fixed Disk n

Invalid System Configuration Data

I/O device IRQ conflict

Operating system not found

FRU/Action in Sequence

RTC battery

Run BIOS Setup Utility to reconfigure system time, then reboot system.

System board

Run “Load Default Settings” in BIOS Setup Utility.

RTC battery

System board

Run “Load Default Settings” in BIOS Setup Utility.

DIMM

System board

Check the drive is defined with the proper diskette type in BIOS

Setup Utility

See “External Diskette Drive Check” on page 73.

Check the drive is defined with the proper diskette type in BIOS

Setup Utility

System board

System board

DIMM

System board

DIMM

System board

DIMM

System board

Run “Load Default Settings” in BIOS Setup Utility.

RTC battery

System board

Run “Load Default Settings” in BIOS Setup Utility.

RTC battery

System board

DIMM

BIOS ROM

System board

None

BIOS ROM

System board

Run “Load Default Settings” in BIOS Setup Utility.

RTC battery

System board

Enter Setup and see if fixed disk and drive A: are properly identified.

Diskette drive

Hard disk drive

System board

Chapter 4

Error Message List

No beep, power-on indicator turns off and LCD is blank.

No beep Error Messages

No beep, power-on indicator turns on and LCD is blank.

No beep, power-on indicator turns on and LCD is blank. But you can see POST on an external

CRT.

FRU/Action in Sequence

Power source (battery pack and power adapter). See “Power

System Check” on page 74.

Ensure every connector is connected tightly and correctly.

Reconnect the DIMM.

LED board.

System board.

Power source (battery pack and power adapter). See “Power

System Check” on page 74.

Reconnect the LCD connector

Hard disk drive

LCD inverter ID

LCD cable

LCD Inverter

LCD

System board

Reconnect the LCD connectors.

LCD inverter ID

LCD cable

LCD inverter

LCD

System board

No beep, power-on indicator turns on and a blinking cursor shown on LCD during POST.

Ensure every connector is connected tightly and correctly.

System board

No beep during POST but system runs correctly. Speaker

System board

Chapter 4 80

Index of Symptom-to-FRU Error Message

LCD-Related Symptoms

Symptom / Error

LCD backlight doesn't work

LCD is too dark

LCD brightness cannot be adjusted

LCD contrast cannot be adjusted

Unreadable LCD screen

Missing pels in characters

Abnormal screen

Wrong color displayed

LCD has extra horizontal or vertical lines displayed.

Action in Sequence

Enter BIOS Utility to execute “Load Setup Default Settings”, then reboot system.

Reconnect the LCD connectors.

Keyboard (if contrast and brightness function key doesn't work).

LCD inverter ID

LCD cable

LCD inverter

LCD

System board

Reconnect the LCD connector

LCD inverter ID

LCD cable

LCD inverter

LCD

System board

LCD inverter ID

LCD inverter

LCD cable

LCD

System board

81

Indicator-Related Symptoms

Symptom / Error

Indicator incorrectly remains off or on, but system runs correctly

Action in Sequence

Reconnect the inverter board

Inverter board

System board

Power-Related Symptoms

Symptom / Error

Power shuts down during operation

The system doesn’t power-on.

The system doesn’t power-off.

Battery can’t be charged

Action in Sequence

Power source (battery pack and power adapter). See “Power

System Check” on page 74.

Battery pack

Power adapter

Hard drive & battery connection board

System board

Power source (battery pack and power adapter). See “Power

System Check” on page 74.

Battery pack

Power adapter

Hard drive & battery connection board

System board

Power source (battery pack and power adapter). See “Power

System Check” on page 74.

Hold and press the power switch for more than 4 seconds.

System board

See “Check the Battery Pack” on page 76.

Battery pack

System board

Chapter 4

PCMCIA-Related Symptoms

Symptom / Error

System cannot detect the PC Card (PCMCIA) PCMCIA slot assembly

System board

PCMCIA slot assembly

Action in Sequence

PCMCIA slot pin is damaged.

Memory-Related Symptoms

Symptom / Error

Memory count (size) appears different from actual size.

Action in Sequence

Enter BIOS Setup Utility to execute “Load Default Settings, then reboot system.

DIMM

System board

Speaker-Related Symptoms

Symptom / Error

In Windows, multimedia programs, no sound comes from the computer.

Audio driver

Speaker

System board

Internal speakers make noise or emit no sound.

Speaker

System board

Action in Sequence

Power Management-Related Symptoms

Symptom / Error

The system will not enter hibernation

The system doesn't enter hibernation mode and four short beeps every minute.

The system doesn’t enter standby mode after closing the LCD

The system doesn't resume from hibernation mode.

The system doesn't resume from standby mode after opening the LCD.

Battery fuel gauge in Windows doesn’t go higher than 90%.

Action in Sequence

Keyboard (if control is from the keyboard)

Hard disk drive

System board

See “Hibernation Mode” on page 30.

Press Fn+ o and see if the computer enters hibernation mode.

Touchpad

Keyboard

Hard disk connection board

Hard disk drive

System board

See “Hibernation Mode” on page 30.

LCD cover switch

System board

See “Hibernation Mode” on page 30.

Hard disk connection board

Hard disk drive

System board

See “Hibernation Mode” on page 30.

LCD cover switch

System board

Remove battery pack and let it cool for 2 hours.

Refresh battery (continue use battery until power off, then charge battery).

Battery pack

System board

Chapter 4 82

83

Power Management-Related Symptoms

Symptom / Error

System hangs intermittently.

Action in Sequence

Reconnect hard disk/CD-ROM drives.

Hard disk connection board

System board

Peripheral-Related Symptoms

Symptom / Error

System configuration does not match the installed devices.

External display does not work correctly.

USB does not work correctly

Print problems.

Serial or parallel port device problems.

Action in Sequence

Enter BIOS Setup Utility to execute “Load Default Settings”, then reboot system.

Reconnect hard disk/CD-ROM/diskette drives.

Press Fn+F5, LCD/CRT/Both display switching

System board

System board

Ensure the “Parallel Port” in the “Onboard Devices Configuration” of

BIOS Setup Utility is set to Enabled.

Onboard Devices Configuration

Run printer self-test.

Printer driver

Printer cable

Printer

System Board

Ensure the “Serial Port” in the Devices Configuration” of BIOS Setup

Utility is set to Enabled.

Device driver

Device cable

Device

System board

Keyboard/Touchpad-Related Symptoms

Symptom / Error

Keyboard (one or more keys) does not work.

Touchpad does not work.

Action in Sequence

Reconnect the keyboard cable.

Keyboard

System board

Reconnect touchpad cable.

Touchpad board

System board

Modem-Related Symptoms

Symptom / Error

Internal modem does not work correctly.

Modem phone port modem combo board

System board

Action in Sequence

NOTE: If you cannot find a symptom or an error in this list and the problem remains, see “Undetermined

Problems” on page 85.

Chapter 4

Intermittent Problems

Intermittent system hang problems can be caused by a variety of reasons that have nothing to do with a hardware defect, such as: cosmic radiation, electrostatic discharge, or software errors. FRU replacement should be considered only when a recurring problem exists.

When analyzing an intermittent problem, do the following:

1.

Run the advanced diagnostic test for the system board in loop mode at least 10 times.

2.

If no error is detected, do not replace any FRU.

3.

If any error is detected, replace the FRU. Rerun the test to verify that there are no more errors.

Chapter 4 84

Undetermined Problems

The diagnostic problems does not identify which adapter or device failed, which installed devices are incorrect, whether a short circuit is suspected, or whether the system is inoperative.

Follow these procedures to isolate the failing FRU (do not isolate non-defective FRU).

NOTE: Verify that all attached devices are supported by the computer.

NOTE: Verify that the power supply being used at the time of the failure is operating correctly. (See “Power

System Check” on page 74):

1.

Power-off the computer.

2.

Visually check them for damage. If any problems are found, replace the FRU.

3.

Remove or disconnect all of the following devices:

T

Non-Acer devices

T

T

T

T

Printer, mouse, and other external devices

Battery pack

Hard disk drive

DIMM

T

T

CD-ROM/Diskette drive Module

PC Cards

4.

Power-on the computer.

5.

Determine if the problem has changed.

6.

If the problem does not recur, reconnect the removed devices one at a time until you find the failing FRU.

7.

If the problem remains, replace the following FRU one at a time. Do not replace a non-defective FRU:

T

T

System board

LCD assembly

85 Chapter 4

How to Build NAPP Master Hard Disc Drive

CD to Disk Recovery

1.

Prepare NAPP CD, Recovery CD and System CD.

2.

Put NAPP CD into the optical drive. Then boot up the system.

3.

The system will ask you if you want to build NAPP Master HDD. Please press any key to continue.

4.

NAPP CD will start to preload the system, please click [Y].

5.

Select CD to Disk Revocery.

Chapter 4 86

6.

Put the Recovery CD to the optical drive. This step is to create image files to the system, you do not have to put the Recovery CD to the optical drive in order. Place one Recovery CD to the drive at one time till you finish all Recovery CDs.

87

After you place the Recovery CD to the optical drive, you will see the display below.

Chapter 4

7.

Then insert the System CD to the optical drive.

8.

You will see the screen displaying “PASS” when the system has buit NAPP Master hard disc drive.

Chapter 4 88

Disk to Disk Recovery

1.

Prepare NAPP CD, Recovery CD and System CD.

2.

Put NAPP CD into the optical drive. Then boot up the system.

3.

The system will ask you if you want to build NAPP Master HDD. Please press any key to continue.

89

4.

NAPP CD will start to preload the system, please click [Y].

Chapter 4

5.

Select Disk to Disk Recovery. Then choose Single Language or Multi-Languages Recovery.

NOTE: For Multi-Languages Recovery, not more than five languages could be loaded to the system.

6.

Put the Recovery CD to the optical drive. This step is to create image files to the system, you do not have to put the Recovery CD to the optical drive in order. Place one Recovery CD to the drive at one time till you finish all Recovery CDs.

Chapter 4 90

After you place the Recovery CD to the optical drive, you will see the display below.

91

7.

Then insert the System CD to the optical drive.

Chapter 4

8.

You will see the screen displaying “PASS” when the system has buit NAPP Master hard disc drive.

Chapter 4 92

93 Chapter 4

Jumper and Connector Locations

Top View

1 2

3

4 5 6 7 8 9

Chapter 5

25

24 23 22 21 19

20

18 17 16

15

14

12

13

Chapter 5 94

7

8

5

6

3

4

1

2

9

10

11

12

13

U12

FAN1

SW1

TPAD1

HDD1

KB1

SPK1

IDE1

CPU Socket

Fan Connector

SW1

Touchpad Cable Connector

HDD Connector

Keyboard Connector

Speaker Cable Connector

Optical Drive Connector

U23

FDD1

South Bridge

FDD Connector

CN1 Launch Cable Connector

CBUS1,2 PCMCIA Slot

INV1 LCD Inverter Cable Connector

18

19

20

21

14

15

16

17

22

23

24

25

LIN1

LOUT1

RJ1

USB1-4

CRT1

LCD1

MINI1

RTC1

U15

PRT1

DCIN1

CVR1

Line-in Port

Line-out Port

RJ45+RJ11

Four USB Ports

VGA Port

LCD Coaxial Cable Connector

Mini PCI Connector

RTC Battery Connector

North Bridge

Parallel Port

DC-in Port

LCD Lid Switch

95 Chapter 5

Bottom View

3

4

1

2

5

U7 FIR Port

RING1 Modem Cable Connector

MDC1 Modem Card Connector

DM1 DIMM Socket 1

DM2 DIMM Socket 2

SW1 Settings

Password

Enable

Password

Disable

Bootblock

Enable

Bootblock

Disable

Adapter 90W

Adapter 120W

X

X

X

X

ON

OFF

1

X

X

X

X

ON

OFF

2

Chapter 5

X

X

X

X

ON

OFF

3

X

X

X

X

X

X

4

96

97 Chapter 5

Chapter 6

FRU (Field Replaceable Unit) List

This chapter gives you the FRU (Field Replaceable Unit) listing in global configurations of Extensa 2700. Refer to this chapter whenever ordering for parts to repair or for RMA (Return Merchandise Authorization).

Please note that WHEN ORDERING FRU PARTS, you should check the most up-to-date information available on your regional web or channel. For whatever reasons a part number change is made, it will not be noted on the printed Service Guide. For ACER AUTHORIZED SERVICE PROVIDERS, your Acer office may have a

DIFFERENT part number code from those given in the FRU list of this printed Service Guide. You MUST use the local FRU list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

NOTE: To scrap or to return the defective parts, you should follow the local government ordinance or regulations on how to dispose it properly, or follow the rules set by your regional Acer office on how to return it.

Chapter 6 98

Extensa 2700 Exploded Diagram

99 Chapter 6

Adapter

Picture No.

Partname And Description Part Number

ADAPTER 120W 3PIN LITEON PA-

1121-02AC REV.A

AP.T3003.002

Battery

RTC BATTERY 23.T30V1.001

18 BATTERY MODULE LI-ION 8CELL

2.0 MAH SIMPLO W/ COVER

6M.T30V1.009

BATTERY LI-ION 8CELL 2.0 MAH

LI-ION SIMPLO BTP-58A1

BT.T3007.001

CASE/COVER/BRACKET ASSEMBLY

BATTERY COVER 42.T30V1.001

Boards

DC BOARD 55.T30V1.001

WIRELESS LAN BOARD 802.11B

AMBIT T60H656.02 REV.03

54.T30V1.001

Chapter 6 100

Cables

Picture No.

Partname And Description

LAUNCH BOARD

Part Number

55.T30V1.002

MODEM BOARD 56K AMBIT

T60M283.10

54.09011.542

TOUCHPAD CABLE 50.T30V1.001

COVER SWITCH CABLE 50.T30V1.002

LAUNCH CABLE 50.T30V1.011

MODEM CABLE 50.41T11.002

Case/Cover/Bracket Assembly

3

POWER CORD US (3 pin) 27.01618.051

MINI PCI CARD PLATE W/RTC

HOLDER

60.T30V1.003

6 HINGE CAP RIGHT 42.T30V1.002

101 Chapter 6

Chapter 6


8

No.

Partname And Description

HINGE CAP LEFT

Part Number

42.T30V1.003

10 OPTICAL DRIVE SUPPORT

BRACKET

33.T30V1.001

15 HDD BRACKET 33.T30V1.002

16 HDD HOLDER 33.T30V1.003

17 LOWER CASE W/ DIMM COVER &

MODEM COVER & SPEAKERS

60.T30V1.004

MODEM COVER W/SCREW 42.T30V1.004

DIMM COVER W/SCREW 42.T30V1.005

19 UPPER CASE W/O COVER

SWITCH CABLE & TOUCHPAD

MODULE

60.T30V1.001

102


Communication Module

CPU

No.

Partname And Description

TOUCHPAD COVER

Part Number

42.T30V1.006

MIDDLE COVE W/LAUNCH

BOARD

60.T30V1.005

WIRELESS ANTENNA RIGHT

(BLACK)

50.T30V1.004

WIRELESS ANTENNA LEFT

(GRAY)

50.T30V1.005

INTEL CELERON PORTABILITY

2.6 GHZ 128K 400FSB for TM240

INTEL CELERON PORTABILITY

2.5 GHZ 128K 400FSB for TM240

INTEL CELERON PORTABILITY

2.4 GHZ 128K 400FSB for TM240

INTEL CELERON PORTABILITY

2.3 GHZ 128K 400FSB for TM240

INTEL CELERON PORTABILITY

2.2 GHZ 128K 400FSB for TM240

INTEL CELERON PORTABILITY

2.0GHZ 128K 400FSB for TM240

INTEL MOBILE PENTIUM 4

PORTABILITY 3.06GHZ 512K

1.53V for TM250

INTEL MOBILE PENTIUM 4

PORTABILITY 2.8GHZ 512K 1.53V for TM250

INTEL MOBILE PENTIUM 4

PORTABILITY 2.66GHZ 512K

1.53V for TM250

INTEL MOBILE PENTIUM 4

PORTABILITY 2.4GHZ 512K 1.53V for TM250

KC.NCP01.26G

KC.NCP01.25G

KC.NCP01.24G

KC.NCP01.23G

KC.NCP01.22G

KC.NCP01.20G

KC.NP001.306

KC.NP001.2G8

KC.NP001.266

KC.NP001.2G4

FDD/Floppy Disk Drive

103 Chapter 6


13

No.

Partname And Description

FDD MODULE 1.44M MCI JU-

226A033FC

FDD MODULE 1.44M MITSUMI

D353G 4515

Part Number

6M.T30V1.003

6M.T30V1.004

FDD DRIVE 1.44M MCI JU-

226A033FC

FDD DRIVE 1.44M MITSUMI

D353G 4515

KF.T3007.001

KF.T3006.001

FDD BRACKET 33.T30V1.005

FDD CABLE 50.T30V1.003

HDD/ Hard Disk Drive

HDD 20GB 2.5" 4200RPM HGST

MORAGA IC25N020ATMR04-0

08K0632

HDD 20GB/2.5 IN./4200 RPM/IBM

CASCADE IC25N020ATCS04-0

07N8325

HDD 20GB/2.5 IN./4200RPM/

HITACHI EUCALYPTUS DK23EA

HDD 20GB 2.5" 4200RPM

TOSHIBA NEPTUNEV20

MK2023GAS

HDD 30GB/2.5 IN./4200RPM/

HITACHI EUCALYPTUS DK23EA/

30

HDD 30GB 2.5" 4200RPM

FUJITSU V-40 MHT2030AT

HDD 30GB 2.5" 4200RPM HGST

MORAGA IC25N030ATMR04-0

HDD 30GB/2.5 IN./4200RPM/

TOSHIBA NEPTUNE MK3021GAS

HDD 40GB/2.5 IN./4200RPM/

HITACHI EUCALYPTUS DK23EA-

40

KH.02007.002

KH.25202.001

KH.32005.002

KH.02004.001

KH.33005.002

KH.03006.002

KH.03007.002

KH.33004.001

KH.34005.002

Chapter 6 104

Heatsink


4

No.

Partname And Description

HDD 40GB 2.5" 4200RPM HGST

MORAGA IC25N040ATMR04-0

08K0633

HDD 40GB/2.5” IN./4200RPM/

TOSHIBA NEPTUNE MK4021GAS

HDD 40GB 2.5" 5400RPM

SEAGATE ST94011A

HDD 40GB 2.5" 4200RPM

FUJITSU V-40 MHT2040AT

HDD 60GB/2.5 IN./4200RPM/

HITACHI EUCALYPTUS DK23EA-

60

HDD 60GB 2.5" 4200RPM HGST

MORAGA IC25N060ATMR04-0

08K0634

HDD 60GB/2.5 IN./4200RPM/

TOSHIBA NEPTUNE MK6021GAS

HDD 60GB 2.5" 4200RPM

FUJITSU V-40 MHT2060AT

HDD 80GB 2.5" 4200RPM HGST

MORAGA IC25N080ATMR04-0

08K0635

Part Number

KH.04007.004

KH.34004.001

KH.04001.004

KH.04006.002

KH.06005.001

KH.06007.002

KH.36004.001

KH.06006.002

KH.08007.002

CPU FANSINK 34.T30V1.001

VGA HEATSINK PLATE 34.T30V1.002

CPU HEATSINK PLATE 34.T30V1.003

Keyboard

105 Chapter 6

LCD


2

No.

Partname And Description

KEYBOARD 84KEY DARFON

NSK-AC61D US-INT

KEYBOARD 84KEY DARFON

NSK-AC602 TAIWAN

KEYBOARD 85KEY DARFON

NSK-AC60S SPANISH

KEYBOARD 84KEY DARFON

NSK-AC603 THAI

KEYBOARD 85KEY DARFON

NSK-AC60U UK

KEYBOARD 85KEY DARFON

NSK-AC60G GERMAN

KEYBOARD 85KEY DARFON

NSK-AC606 PORTUGUESE

KEYBOARD 84KEY DARFON

NSK-AC60C CZECH

7 LCD MODULE 14.1" TFT XGA

CHIMEI N141X6-L01/08

LCD MODULE 15" TFT XGA

CHIMEI N150X3-L05

LCD MODULE 15" TFT XGA

HITACHI TX38D81VC1CAB

LCD MODULE 15" TFT XGA AU

B150XG01 V.2

LCD 14.1" TFT XGA AU B141XN04

V2/5AXXX

LCD 14.1" TFT XGA CHIMEI

N141X6-L01/08

LCD 15" TFT XGA CHIMEI

N150X3-L05

LCD 15" TFT XGA HITACHI

TX38D81VC1CAB

LCD 15" TFT XGA AU B150XG01

V.2

INVERTER BOARD 14"/15"

DARFON V0.21071.001

6M.T30V1.005

6M.T30V1.006

6M.T30V1.007

6M.T30V1.008

LK.14105.005

LK.1410D.001

LK.1500H.001

LK.15004.004

LK.15005.001

19.T30V1.001

Part Number

KB.T3007.001

KB.T3007.002

KB.T3007.003

KB.T3007.004

KB.T3007.006

KB.T3007.007

KB.T3007.011

KB.T3007.015

LCD BRACKET RIGHT FOR 14.1" 33.T30V1.006

LCD BRACKET RIGHT FOR 15" 33.T30V1.009

NS LCD BRACKET LEFT FOR 14.1"

LCD BRACKET LEFT FOR 15"

33.T30V1.007

33.T30V1.008

Chapter 6 106

Main Board

Picture No.

Partname And Description

INVERTER CABLE

Part Number

50.T30V1.007

LCD COAXIAL CABLE 50.T30V1.008

NS LCD PANEL W/HINGE & LOGO 60.T30V1.008

NS LCD BEZEL 14.1" W/ICON LABEL 60.T30V1.006

LCD BEZEL 15" W/ICON LABEL 60.T30V1.007

HINGE PACK 6K.T30V1.001

Miscellaneous

MAINBOARD W/LAUNCH CABLE

& MODEM & MODEM CABLE &

PCMCIA SLOT & RTC BATTERY

MB.T3001.001

LOGO 31.42S08.001

ICON LABEL

TOUCHPAD SCROLL KEY

40.T30V1.001

42.T30V1.007

107 Chapter 6

Memory

Picture No.

Partname And Description

TOUCHPAD KNOB

Part Number

42.T30V1.008

LCD SCREW RUBBER UPPER

LCD SCREW RUBBER LOWER

RUBBER FOOT

LCD BEZEL RUBBER UPPER

NAME PLATE TM250

NAME PLATE TM240

47.T30V1.001

47.T30V1.002

47.T30V1.003

47.T30V1.004

40.T30V1.003

40.T30V1.002

NS MEMORY SO-DIMM DDR266/

128MB /INFINEON

HYS64D16000GDL-7-B

KN.12802.004

MEMORY SO-DIMM DDR266/

128MB/0.14U /NANYA

NT128D64SH4B0GM-75B

MEMORY DDR266 128MB NANYA

NT128D64SH4BBGM-75B

MEMORY DDR266 128MB

MICRON MT4VDDT1664HG-

265B2

MEMORY DDR266 128MB

MICRON MT4VDDT1664HG-

265C2

MEMORY SO-DIMM DDR266/

256MB/0.14U /INFINEON

HYS64D32020 GDL-7-B

MEMORY DDR266 256MB NANYA

NT256D64SH8BAGM-75B

MEMORY SO-DIMM DDR266/

256MB/0.15U /MICRON

MT8VDDT3264HDG-256B3

MEMORY SO-DIMM DDR266

256MB MICRON

MT8VDDT3264HDG-265C3

MEMORY SO-DIMM DDR266/

512MB/0.14U /INFINEON

HYS64D64020GBDL-7-B

MEMORY DDR333 128MB

INFINEON HYS64D16000GDL-6-B

MEMORY DDR333 256MB

INFINEON HYS64D32020GDL-6-B

MEMORY DDR333 256MB NANYA

NT256D64SH8BAGM-6K

KN.12803.003

KN.12803.007

KN.12804.004

KN.12804.005

KN.25602.001

KN.25603.010

KN.25604.003

KN.25604.004

KN.51202.003

KN.12802.006

KN.25602.009

KN.25603.009

Chapter 6 108

Optical Drive


PCMCIA slot/PC card slot

No.

Partname And Description

MEMORY DDR333 256MB

ELPEDIA W30256AAEPI652A

MEMORY DDR333 256MB

MOCRON MT8VDDT3264HDG-

335C3

MEMORY DDR333 512MB

INFINEON HYS64D64020GBDL-6-

B

Part Number

KN.25609.002

KN.25604.009

KN.51202.007

CD-ROM MODULE 24X MITSUMI

SR244W1

DVD-ROM MODULE 8X MKE SR-

8177

6M.T30V1.001

6M.T30V1.002

CD-ROM DRIVE 24X W/ BEZEL

MITSUMI SR244W1

DVD-ROM DRIVE 8X W/ BEZEL

MKE SR-8177

KD.24X04.002

KV.08X02.004

OPTICAL DRIVE BRACKET 33.T30V1.004

PCMCIA SLOT 22.T30V1.001

Pointing Device

NS TOUCHPAD SYNAPTICS TM41P-

357

56.17001.001

Speaker

SPEAKER SET 23.T30V1.002

Screws

109

NS

NS

SCREW

SCREW

86.T30V1.001

86.T30V1.002

Chapter 6

Picture No.

NS

NS

NS

NS

NS

NS

NS

NS

NS

Partname And Description

SCREW

SCREW

SCREW

SCREW

SCREW

SCREW

SCREW

SCREW

SCREW

Part Number

86.9A352.3R0

86.9A353.6R0

86.9A524.4R0

86.9A552.2R0

86.9A552.3R0

86.9A552.4R0

86.9A553.3R0

86.9A553.4R0

34.00015.081

Chapter 6 110

111 Chapter 6

Appendix A

Model Definition and Configuration

Model Name Definition

Model

Number

2703LMi

LCD

15.0"

XGA

CPU

DT P4

3.2GHz/

512K

Memory

DDR333

2x256MB

HDD

60GB

CD/DVD

4x DVD-Dual

Battery

Li-ion

Wireless

LAN

11g

Appendix A 112

113 Appendix A

Appendix B

Test Compatible Components

This computer’s compatibility is a test plan released by Acer Internal Testing Department. Once the final report is available, this chapter will be revised accordingly.

Appendix B 114

Microsoft Windows XP Environment Test

Item

Processor

Memory

LCD

Hard Disk Drive

DVD-ROM Drive 8X

CD-ROM Drive 24X

DVD/CD-RW Combo

Specifications

Northwood 2.60GHz/.13m/512K L2/400Mhz FSB

Northwood 2.80GHz/.13m/512K L2/533Mhz FSB/HT

Northwood 3.06GHz/.13m/512K L2/533Mhz FSB/HT

Northwood 3.0GHz/.13m/512K L2/800Mhz FSB/HT

Northwood 3.20GHz/.13m/512K L2/800Mhz FSB/HT

Northwood 3.4Ghz/.13m/512K/800FSB/HT

Precott 3 GHz/1MB L2/800 FSB/HT

Precott 3.2GHz/1MB L2/800 FSB/HT

Precott 3.4GHz/1MB L2/800 FSB/HT

Precott 3.6GHz/1MB L2/800 FSB/HT

Precott 3.8GHz/1MB L2/800 FSB/HT

Mobile Pentium 4 3.06GHz/512K/533 Mhz/HT

Mobile Pentium 4 3.20 GHz/512K/533 Mhz/HT

128MB Infineon SO-DIMM HY64D16000GDL-6-B

256MB Infineon SO-DIMM HY64D32000GDL-6-B

256MB Nanya SO-DIMM NT256D64SH8BAGN-6KE

256MB Micron SO-DIMM MT8VDDT3264HDG-35C3

512MB Infineon SO-DIMM HYS64D64020GBDL-6-B

512MB Nanya SO-DIMM NT512D64S8HBAFM-6K

14.1” XGA TFT

AU B141XN04

15” XGA TFT

AUO B150XG01

LG LP150X08-A5

15” SXGA+ TFT

AU B150PG01 V0

20G HGST Moraga IC25N020ATMR04 f/w:AD4A

20GB Toshiba Neptune MK2023GAP

30GB HGST Moraga IC25N030ATMR04

30GB Toshiba Neptune MK3021GAS

30G Fujitsu V-40 MHT2030AT

30G Seagate N1 ST93015A

40GB IBM HGST Moraga IC25N040ATMR04-0

40GB TOSHIBA Pluto 40G MK4025GAS

40G Fujitsu V40+ MHT2040AT

40G Seagate N1 ST94019A

60G HGST Moraga IC25N060ATMR04-0

60G HGST Fresno DK23FA-60 HT

60G TOSHIBA Neptune MK6021GAS

80G HGST Moraga IC25N080ATMR04

80G Pluto MK8025GAS

MKE SR-8177

Mitsumi SR-224W1

QSI SCR242

KME UJDA750

QSI SBW-242B

115 Extensa 2700

DVD-dual

Modem Adapters

Modem (up to 56K)

ISDN

I/O Peripheral

I/O - Display

Item

DVD-RW

DVD-Super Multi

AC Adapter (3 pin)

Power Cord

Battery Li-Ion, 8 cells

Network Adapters

LAN Ethernet/10baseT/100baseT

Multifunction Card (Combo)

LAN Token Ring

Wireless LAN Card

I/O - Projector

I/O - Legacy (Parallel) Printer/

Scanner

I/O - IR Printer

Specifications

DVD-Dual SDW-042

DVD-Dual SDW-431S

DVD-Dual GWA-4040N

DVD-Dual DVR K13RA

DVD-RW SD-R6112

UJ820 DVD super multi

Liteon Adapter 135W

ADT 135W 3P 19V 0317A19135

HiPro Adapter 135W

King Cord

SANYO BTP-60A1

SIMPLO BTY PK Panasonic

3Com Etherlink III 3C589D

IBM EtherJet CardBus Adapter 10/100

Intel Ether Express Pro/100 Mobile Adapter MBLA3200

Xircom CardBus Ethernet 10/100 32 Bit CBE-10/100BTX

3Com Megahertz 10/100 LAN + 56K Modem PC Card

Xircom RealPort CardBus Ethenet 10/100 + Modem 56

IBM Token Ring 16/4 Adapter II

IBM Wireless LAN Cardbus Adapter

Intel Pro-Wireless LAN PC Card

Proxim Skyline 802.11a Cardbus PC Card

Cisco Aironet 350 series Wireless Lan Card

NeWeb Wireless Lan Card 802.11b

3Com Megahertz 56K Modem PC Card

Xircom Credit Card Modem 56

IBM 56K Double Jack Modem

US Robotics Megahertz 128K ISDN Card 405R17T7117M

IBM OBI International ISDN PC Card

Acer 211c 21”

Viewsonic PF790 19”

Acer FP751 17” TFT LCD

IBM Color TFT LCD 14”

Compaq Color Monitor

NET Color Monitor 20”

Mozo 17” TFT LCD (DVI)

NEC MultiSync MT-1040

Canon BJC-600J

Epson Stylus Color 740 Parallel Interface

HP DeskJet 890C

HP DeskJet 880C Parallel Interface

HP LaserJet 6MP

HP LaserJet 2200

HP LaserJet 6MP use IR

HP LaserJet 2200 use IR

Appendix B 116

117

Item

I/O - USB Keyboard/Mouse

I/O - Legacy (PS2/Serial) Keyboard/

Mouse

I/O - USB (Printer/Scanner)

I/O - USB (Speaker/Joystick))

I/O - USB Camera

I/O - USB Storage Drive

I/O-USB Flash Drive

I/O - USB Hub

I/O - Access Point (802.11b)

I/O Acess Point (802.11a/b)

I/O Acess Point (802.11a)

Specifications

Chicony USB Keyboard KU-8933

Microsoft Natural Keyboard Pro

Acer Aspire USB mouse

Logicool US Mouse

Logitech Cordless Mouseman Wheel USB Interface

Logitech USB Wheel Mouse M-BB48

Microsoft IntelliMouse Optical USB Interface

IBM 101 key keyboard

IBM 109 key keyboard

Acer PS2 keyboard

Acer KB-101A

IBM Numeric Keypad III

IBM Numeric Keypad

Acer Mouse

IBM PS2 Mini Mouse

IBM PS2 Mouse

Logitech Cordless MouseMan Wheel PS2 interface

Logitech Serial Mouse M-M35

Microsoft InteliMouse PS2 interface

Microsoft InteliMouse Optical PS2 interface

Logitech First Mouse Three Button Serial Mouse

Epson Stylus Color 740 USB interface

HP DeskJet 880C USB interface

Canon CanonScan D1250 (USB 2.0, JP OS only)

HP ScanJet 3300C Color Scanner

JS USB Digital Speaker

Panasonic USB Speaker EAB-MPC57USB

AIWA Multimedia Digital Speaker

Microsoft SideWinder Precision Pro Joystick

Logitech WingMan RumblePad

Intel Easy PC Camera

Logitech QuickCam Express Internet

Logitech QuickCam Home PC Video Camera

Orange Micro USB 2.0 Web Cam

Logitech CDRW +DVDROM combo USB interface

Iomega USB Zip 250MB

IBM 32MB USB Memory key

Apacer USB Handy Drive 32MB

Apacer USB Handy Drive 256MB

Belkin 4 Port USB Hub

Eizo I Station USB Hub

Elecom USB Hub 4 Port

Sanwa USB Hub 4 Port

4 Port Hub USB 2.0

Hitachi DC-CN3300

Lucent RG-1000

Lucent WavePoint-II

Cisco Aironet 350

Orinoco AP-500

Intel Dual Pro/Wireless 5000

Intel Pro/Wireless 5000

Extensa 2700

PCMCIA

PCMCIA - ATA

Item

PCMCIA - USB 2.0

PCMCIA - 1394

PCMCIA-SCSI

PCMCIA - Bluetooth

Specifications

IBM Microdrive 340MB

IBM Microdrive 1G

Iomega Click! 40MB

Sony Memory Stick 64MB

Sandisk Flash Card 20MB

Apacer SD Flash Card 128MB

Apacer SD Flash Card 256MB

Transcend SD Card 32MB

Transcend SD Card 256MB

Hagiwara sys-com SD Card 256MBT

Apricorn EZ-USB2.0 Cardbus PC Card

DTK USB 2.0 2Port CardBus Host Controller

Adaptec USB2CONNECT

Buffalo 1394 Interface Cardbus IFC-ILCB/DV

I-O Data 1394 Interface Cardbus CB1394/DVC

Pixela 1394 Cardbus PC Card PIX-PCMC/FW1

Adaptec 1408 or B SCSI CB

NewMedia Bus Toaster SCSI II

IBM Community Bluetooth PC Card

Toshiba Bluetooth PC Card

Appendix B 118

119 Extensa 2700

Appendix C

Online Support Information

This section describes online technical support services available to help you repair your Acer Systems.

If you are a distributor, dealer, ASP or TPM, please refer your technical queries to your local Acer branch office. Acer Branch Offices and Regional Business Units may access our website. However some information sources will require a user i.d. and password. These can be obtained directly from Acer CSD Taiwan.

Acer's Website offers you convenient and valuable support resources whenever you need them.

In the Technical Information section you can download information on all of Acer's Notebook, Desktop and

Server models including:

T

T

T

T

T

T

T

T

Service guides

User's manuals

Training materials

Main manuals

Bios updates

Software utilities

Spare parts lists

Chips

T

TABs (Technical Announcement Bulletin)

For these purposes, we have included an Acrobat File to facilitate the problem-free downloading of our technical material.

Also contained on this website are:

T

Detailed information on Acer's International Traveller’s Warranty (ITW)

T

T

Returned material authorization procedures

An overview of all the support services we offer, accompanied by a list of telephone, fax and email contacts for all your technical queries.

We are always looking for ways to optimize and improve our services, so if you have any suggestions or comments, please do not hesitate to communicate these to us.

Appendix C 120

A

AC Adapter 28

AFLASH Utility 44

Audio 19

B

Battery 28

BIOS 19 package 19

ROM size 19

ROM type 19 vendor 19

Version 19

BIOS Supports protocol 19

BIOS Utility 32

Basic System Settings 37

Navigating 33

Onboard Device Configuration 40

Startup Configuration 39

System Information 33

System Security 44

Board Layout

Bottom View 5

Top View 4 brightness hotkeys 16

C

D

CardBus 27

CD-ROM Interface 22

Chipsets 19 contrast hotkeys 16

Controllers 19

Core logic 19

CPU core voltage 19

I/O voltage 19 package 19 type 19

Disassembly Flowchart 48 display hotkeys 16

Display Standby Mode 30

DVD-ROM Interface 22

Index

E

Environmental Requirements 30

Error Symptom-to-Spare Part Index 77

External CD-ROM Drive Check 73

F

Flash Utility 44

FRU (Field Replaceable Unit) List 98

H

Hard disk 19, 21

Hard Disk Drive Module

Disassembly 53

Hard Disk Standby Mode 30

Hardware Specifications and Configurations 19

HDD 19, 21

Hibernation Mode 30

Hibernation mode hotkey 16

Hot Keys 16

I

Intermittent Problems 84

J

Jumper and Connector Locations

Bottom View 96

Top View 95

K

L

M

L2 cache 19

LCD 28

Mechanical Specification 30

Memory Check 74

Modem 21

N

Keyboard 19, 28

Keyboard or Auxiliary Input Device Check 73

Notebook Manager hotkey 16

Index

122

O

Online Support Information 120

P

Panel 5, 96

Bottom 10

Parallel Port 27

PC Card 27

PCMCIA 27

Power Management 29

Power System Check 74

Battery Pack 76

Power Adapter 75

R

RTC 19

S

T

U

Temperature 30

Test Compatible Components 114

Touchpad 19 touchpad hotkey 16

Touchpad Check 76

Troubleshooting 72

Undetermined Problems 85

USB 27 utility

BIOS 32

V

Second Level Cache 19 speakers hotkey 16

Standby Mode 29

Super I/O 19

System Check Procedures 73

System Diagnostic Diskette 45

System Memory 20

System Utilities 32

System Utility Diskette 45

Video 26

Resolutions 26, 27

123

Video controller 19

Index
