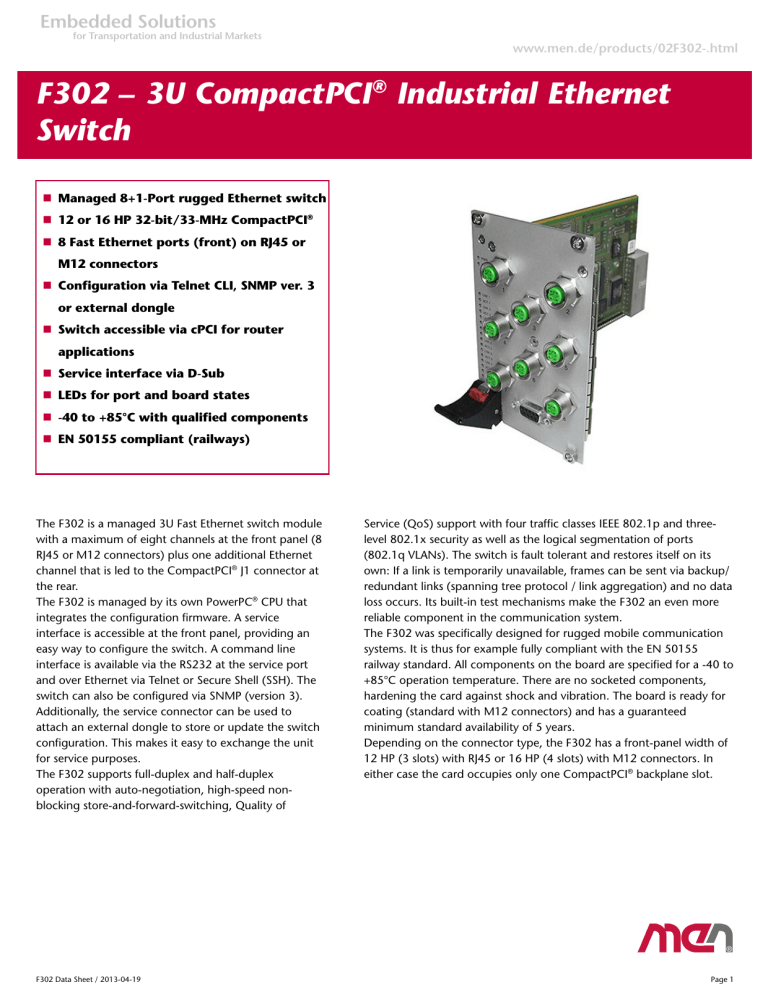

F302 – 3U CompactPCI® Industrial Ethernet
Switch
n Managed 8+1-Port rugged Ethernet switch
n 12 or 16 HP 32-bit/33-MHz CompactPCI®
n 8 Fast Ethernet ports (front) on RJ45 or
M12 connectors
n Configuration via Telnet CLI, SNMP ver. 3
or external dongle
n Switch accessible via cPCI for router
applications
n Service interface via D-Sub
n LEDs for port and board states
n -40 to +85°C with qualified components
n EN 50155 compliant (railways)
The F302 is a managed 3U Fast Ethernet switch module
with a maximum of eight channels at the front panel (8
RJ45 or M12 connectors) plus one additional Ethernet
channel that is led to the CompactPCI® J1 connector at
the rear.
The F302 is managed by its own PowerPC® CPU that
integrates the configuration firmware. A service
interface is accessible at the front panel, providing an
easy way to configure the switch. A command line
interface is available via the RS232 at the service port
and over Ethernet via Telnet or Secure Shell (SSH). The
switch can also be configured via SNMP (version 3).
Additionally, the service connector can be used to
attach an external dongle to store or update the switch
configuration. This makes it easy to exchange the unit
for service purposes.
The F302 supports full-duplex and half-duplex
operation with auto-negotiation, high-speed nonblocking store-and-forward-switching, Quality of
F302 Data Sheet / 2013-04-19
Service (QoS) support with four traffic classes IEEE 802.1p and threelevel 802.1x security as well as the logical segmentation of ports
(802.1q VLANs). The switch is fault tolerant and restores itself on its
own: If a link is temporarily unavailable, frames can be sent via backup/
redundant links (spanning tree protocol / link aggregation) and no data
loss occurs. Its built-in test mechanisms make the F302 an even more
reliable component in the communication system.
The F302 was specifically designed for rugged mobile communication
systems. It is thus for example fully compliant with the EN 50155
railway standard. All components on the board are specified for a -40 to
+85°C operation temperature. There are no socketed components,
hardening the card against shock and vibration. The board is ready for
coating (standard with M12 connectors) and has a guaranteed
minimum standard availability of 5 years.
Depending on the connector type, the F302 has a front-panel width of
12 HP (3 slots) with RJ45 or 16 HP (4 slots) with M12 connectors. In
either case the card occupies only one CompactPCI® backplane slot.
Page 1
Embedded Solutions
for Transportation and Industrial Markets
www.men.de/products/02F302-.html
Diagram
F
Front connector
R
Rear I/O connector
Port 9
Ethernet
PHY
PCI-Ethernet
Controller
CompactPCI® J1
Options
MII
Port 1
F
Port 2
Port 3
Port 5
Port 7
Service
Port
F
Config
EEPROM
F
Port 4
F
Port 6
F
Port 8
F
F
Switch Device
10/100Base-T
R
Management
CPU
Flash
F
DDR2
SDRAM
F
F302 Data Sheet / 2013-04-19
Page 2
Embedded Solutions
for Transportation and Industrial Markets
www.men.de/products/02F302-.html
Technical Data
Key Features
n
n
n
n
n
n
n
n
n
n
n
Management Firmware System
Features
n
n
n
n
n
n
n
Management Firmware Security
Features
n
n
n
n
Supported Protocols and
Standards
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
Service Interface
n
n
n
Front I/O
User authentication using IEEE 802.1x
Controlling management access through SNMP and CLI only from authorized managers
MAC based access list (ACL) for traffic filtering
Rate-limiting and storm control to prevent packet flooding from malicious peers
DHCP client / server / relay (IEEE 1394)
GVRP/GMRP support (IEEE 802.1D, 2004)
Hypertext Transport Protocol (HTTP) Server for Remote Management and Monitoring (RFC2626)
HTTP Secure (HTTPS) - HTTP-based Remote Management over encrypted data channel (RFC2818)
IGMP snooping / IGMP proxy / IGMP Querier / MLD Discovery (RFC 4541)
Link aggregation LACP / EtherChannel (IEEE 802.3ad, 2005)
Link Layer Discovery Protocol LLDP (IEEE 802.1ab, 2005)
Multiple Spanning Tree (MSTP) (IEEE 802.1s)
Priority-based switching, Quality of Service/DiffServ, tagged frames, Layer2-based 801.1Q VLAN-ID packet
routing (IEEE 802.1p)
Port-based authentication with EAP (IEEE 802.1x - REV2004/RFC3748)
Rapid Spanning Tree Protocol (RSTP IEEE 802.1w)
Secure Shell (SSH) for Remote Configuration (CLI) over secure channel
SNMP v1, v2c, v3 management
Syslog (RFC 5424)
TCP/IP v4 and v6
TFTP (RFC 1350)
VLAN/port-based VLANs GVRP/MVRP (IEEE 802.1Q Rev D5.0, 2005)
9-pin D-Sub connector at front
RS232 / V24
I2C interface for external dongle
n
n
One 10/100Base-T port via CompactPCI® J1 (rear)
n
F302 Data Sheet / 2013-04-19
Saving and restoring user configurations
Software upgrades through TFTP
System logs (syslog) and e-mail alerts for critical events
Remote monitoring (RMON) and alarm generation
Displaying the running configuration in the form of CLI commands
Management interfaces through
o CLI (RS232 console, Telnet, SSH)
o SNMP v3
Switch configuration can be loaded from external dongle
Eight Ethernet ports on RJ45 or M12 connectors
One service interface via 9-pin D-Sub connector
16 link and activity Ethernet status LEDs (2 per channel)
Status LEDs for power, reset and error codes
n
n
Rear I/O
Simple Switch replacement: configuration can be done via external dongle without any tools
High-speed non-blocking, store-and-forward switching
Up to eight 10/100Base-T ports at front panel (Electrical isolation: 1500 Vrms)
One 10/100Base-T port at rear connector
Port configuration: copper, 10/100 Mbit/s
Auto-negotiation / Auto MDI/MDIX crossover on all ports / manual configuration possible
Layer2-based Policy Control List
8K MAC address lookup table with automatic learning and aging
Up to 4096 VLANs
Rapid Spanning Tree Protocol and Multiple Spanning Tree Protocol to ensure loop free topology formation
Reducing multicast traffic in the network through multicast snooping - IGS (IPv4) and MLDS (IPv6)
Page 3
Embedded Solutions
for Transportation and Industrial Markets
www.men.de/products/02F302-.html
Technical Data
CompactPCI® Bus
n
n
n
n
n
n
Electrical Specifications
Mechanical Specifications
n
Supply voltage/power consumption:
o +3.3 V (-3%/+5%), 5 W
o +5 V (-3%/+5%), 5 W
n
Dimensions: conforming to CompactPCI® specification for 3U boards
Weight: 316 g (16HP model with M12 connectors)
n
Environmental Specifications
Compliance with CompactPCI® Specification 2.0 R3.0
Only one slot required on the 3U CompactPCI® bus
Peripheral slot
Compliance with PCI Specification 2.1
V(I/O): +3.3 V
Ninth Fast Ethernet port via CompactPCI® J1
n
Temperature range (operation):
o -40..+85°C (qualified components)
o Airflow: min. 10 m³/h
Temperature range (storage): -40..+85°C
Relative humidity (operation): max. 95% non-condensing
Relative humidity (storage): max. 95% non-condensing
Altitude: -300 m to + 3000 m
Shock: according to EN 60068-2-27
Bump: according to EN 60068-2-29
Vibration (sinusoidal): according to EN 60068-2-6
Conformal coating on request (standard with M12 connectors)
MTBF
n
778 505 h (RJ45 model) or 752 506 h (M12 model) @ 40°C according to IEC/TR 62380 (RDF 2000)
Safety
n
Flammability
o PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers
EMC Conformity
n
n
EN 55022 (radio disturbance)
EN61000-4-2 (ESD Immunity)
IEC 61000-4-4 (burst)
n
Firmware for configuration and management included
n
n
n
n
n
n
n
n
n
Software Support
F302 Data Sheet / 2013-04-19
Page 4
Embedded Solutions
for Transportation and Industrial Markets
www.men.de/products/02F302-.html
Configuration & Options
Standard Configurations
Article No.
Channels
Connector
Front Panel
Operation
Temperature
Conformal coating
02F302-00
8
RJ45
12 HP
-40..+85°C
On request
02F302-02
8
M12
16 HP
-40..+85°C
Yes
Options
Front Connectors / Mechanical
n
n
RJ45 connectors
o 12 HP (3-slot) front panel
M12 D connectors
o 16 HP (4-slot) front panel
Environmental specifications
n
Conformal coating for RJ45 models (standard with M12 connectors)
Cooling Concept
n
Also available with conduction cooling in MEN CCA frame
Please note that some of these options may only be available for large volumes. Please ask our sales staff for more information.
Ordering Information
Standard F302 Models
02F302-00
Managed Switch with 8 Fast Ethernet ports, 1 Fast Ethernet controller, RJ45 connectors,
12HP, -40..+85°C with qualified components
02F302-02
Managed Switch with 8 Fast Ethernet ports, 1 Fast Ethernet controller, M12 connectors,
16HP, -40..+85°C with qualified components, conformal coating
Related Hardware
05SF02-00
I2C dongle for F302, G302 and managed SFxx switches, 512Kb, D-Sub, -40..+85°C
Software: Firmware/BIOS
14ETSW-00
Ethernet Switch Firmware for managed RSx, SFx, F302 and G302 models
For operating systems not mentioned here contact MEN sales.
Documentation
Compare Chart 3U CompactPCI® / PlusIO CPU cards » Download
Compare Chart 3U CompactPCI® / PlusIO peripheral cards » Download
Compare Chart Industrial Ethernet switches for different platforms » Download
F302 Data Sheet / 2013-04-19
20F302-00
F302 User Manual
21ETSW-00
Managed Ethernet Switch Quick Start Guide
21ETSW-01
Managed Ethernet Switch Command Line Interface User Manual - Command Reference
21ETSW-ER
14ETSW-00 Managed Ethernet Switch Firmware Errata
Page 5
Embedded Solutions
for Transportation and Industrial Markets
www.men.de/products/02F302-.html
Contact Information
Germany
France
USA
MEN Mikro Elektronik GmbH
Neuwieder Straße 3-7
90411 Nuremberg
Phone +49-911-99 33 5-0
Fax +49-911-99 33 5-901
MEN Mikro Elektronik SAS
18, rue René Cassin
ZA de la Châtelaine
74240 Gaillard
Phone +33 (0) 450-955-312
Fax +33 (0) 450-955-211
MEN Micro Inc.
860 Penllyn Blue Bell Pike
Blue Bell, PA 19422
Phone (215) 542-9575
Fax (215) 542-9577
[email protected]
www.men.de
[email protected]
www.men-france.fr
[email protected]
www.menmicro.com
The date of issue stated in this data sheet refers to the Technical Data only. Changes in ordering information given herein do not affect the date of issue. All brand or product names are
trademarks or registered trademarks of their respective holders.
MEN is not responsible for the results of any actions taken on the basis of information in the publication, nor for any error in or omission from the publication.
MEN expressly disclaims all and any liability and responsibility to any person, whether a reader of the publication or not, in respect of anything, and of the consequences of anything,
done or omitted to be done by any such person in reliance, whether wholly or partially, on the whole or any part of the contents of the publication.
The correct function of MEN products in mission-critical and life-critical applications is limited to the environmental specification given for each product in the technical user manual.The
correct function of MEN products under extended environmental conditions is limited to the individual requirement specification and subsequent validation documents for each product
for the applicable use case and has to be agreed upon in writing by MEN and the customer.Should the customer purchase or use MEN products for any unintended or unauthorized
application, the customer shall indemnify and hold MEN and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses,
and reasonable attorney fees arising out of, directly or indirectly, any claim or personal injury or death associated with such unintended or unauthorized use, even if such claim alleges
that MEN was negligent regarding the design or manufacture of the part.
In no case is MEN liable for the correct function of the technical installation where MEN products are a part of.
Copyright © 2015 MEN Mikro Elektronik GmbH. All rights reserved.
F302 Data Sheet / 2013-04-19
Page 6
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
