En

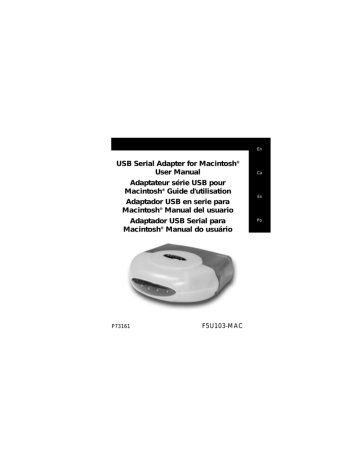

USB Serial Adapter for Macintosh®
User Manual
Adaptateur série USB pour
Macintosh® Guide d'utilisation
Adaptador USB en serie para
Macintosh® Manual del usuario
Adaptador USB Serial para
Macintosh® Manual do usuário
P73161
F5U103-MAC
Ca
Es
Po
Table of Contents
En
English . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Ca
Français (Canada) . . . . . . . . . . . . . . . . . . 13
Es
Español . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Portuguese . . . . . . . . . . . . . . . . . . . . . . . 37
Po
Introduction
En
The Belkin USB Serial Adapter for Macintosh® is the easiest
way to connect additional serial devices to your Mac® or
iMac™ computer.
Features
• Connect serial modems, digital cameras, graphic tablets,
printers, hand-held computers and other serial devices
• Supports serial communications up to 230 kbps
• Easy to use setup program makes installation simple
• Supports either the Macintosh® modem port or printer port
• Use either DB9 or MiniDIN 8 port to connect serial devices
• Compatible with Mac® OS 8.1 or higher
• Fully compliant with current USB specifications
• Includes 5 colored sleeves to match the color of your iMac™
or G3
• Can be used as a module to the Belkin BusStation™
• Lifetime Warranty
Note:
The DB9 and MiniDIN 8 port cannot be used at the
same time. Connect only one device to either port.
Do not attempt to connect devices on each port at
the same time.
1
Software and Hardware Installation
Step 1: Insert the CD into your CD-ROM drive
Place the CD into your CD-ROM drive. When the CD icon
named “Belkin USB to Serial” appears on your desktop, double
click on the icon to display its contents.
Step 2: Install the Software
2.1. Double click on the icon named “Belkin® USB
Serial Installer”.
2.2. On the Belkin USB Serial Adapter screen click
on “Continue”.
2
Software and Hardware Installation (continued)
En
2.3. Please read the next screen regarding the software license
agreement. If you agree to the terms of the license
agreement, click “Continue”.
2.4. The screen that follows will now prompt you to commence
installation. Click on “Install”.
2.5. A message will appear warning you to restart your
computer after installation. Click “Continue”.
2.6. Click “Restart” to complete the installation. This will
restart your computer.
The Belkin USB Serial Installer application will place 4 items on
the “Extensions” folder (located in your hard drive’s “System”
folder), namely: 1) Belkin USB Serial driver, 2) Belkin USB Serial
Shim, 3) Belkin USB Serial Hal, 4) Serial Shim Lib.
Note:
The installer will not run unless you have the Mac® OS
USB version 1.0.1 (or later) drivers installed.
3
Software and Hardware Installation (continued)
If you have an iMac™ computer running Mac® OS 8.1, the
Mac® OS USB drivers version 1.0.1 can be installed by
installing the iMac™ Update 1.0. This update can be
downloaded from Apple®’s web site at www.apple.com.
If you have an iMac™ or a blue and white G3 running Mac® OS
8.5, the Mac® OS USB drivers version 1.0.1 (or later) is already
installed. You do not need to install any further software.
Step 3: Connect the adapter to your USB port.
After restarting the computer, attach the Belkin USB Serial
Adapter for Macintosh® to your Macintosh® computer by
connecting the adapter and the USB device cable (Part#
F3U133-06) to any built-in USB port on your Macintosh®
computer or any USB hub. It is not necessary to turn off your
Mac® when attaching the Belkin USB Serial Adapter.
Note:
The DB9 and MiniDIN 8 port cannot be used at the
same time. Connect only one device to either port.
Do not attempt to connect devices on each port at
the same time.
After installing the USB Serial Adapter driver and restarting
the computer, you can connect the USB Serial Adapter. First
connect the USB Serial Adapter to the computer, then
connect a Serial device to the USB Serial Adapter. The Serial
device is now ready for use.
Step 4: Installation Complete!
Your Belkin USB Serial Adapter for Macintosh® is now ready
for use.
4
Connecting Serial Devices
En
Special instructions for users using Mac® OS 8.1 and 8.5
If you are using Mac® OS 8.1 or 8.5, you will need to specify the
port required by your device, which is either Printer Port or
Modem Port. Some serial devices require Printer Port Emulation
to work (some examples are HP DeskWriter Printers and Kodak
and Epson Cameras). These devices require Printer Port
Emulation to work because their drivers can only recognize the
Macintosh® computer printer port. For these devices the
following connection procedure should be followed:
1.
2.
3.
4.
5.
Hold down the “Option” key on the keyboard while
connecting the USB Serial Adapter to the Mac®/
iMac™ computer.
After the USB Serial Adapter for Macintosh® is connected,
then release the “Option” key.
Connect the printer, camera or serial device to the USB
Serial Adapter.
Run the printer or serial device software and the devices
should begin working.
In some cases, after restarting the computer, the printer or
camera may disconnect or stop working. To reconnect,
repeat steps 1 through 4.
5
Connecting Serial Devices (continued)
Note:
If you do not know whether your device requires
Printer Port Emulation, simply connect your serial
device normally after the USB Serial Adapter driver
installation. If it does not work initially, it is possible
that the serial device requires Printer Port Emulation.
If so, follow steps 1 through 4 listed above.
For Mac® 8.6 users you do not need to do the above
instructions. Mac® OS 8.6 has advanced USB support, it
automatically detects and installs the port emulation needed
by your device. After the installation of the Belkin USB Serial
Adapter, just connect the USB Serial Adapter to the
computer, then connect a Serial device to the USB Serial
Adapter and you are ready to use it.
6
Belkin Printer Patcher
En
This version of the driver includes the Belkin Printer Patcher
that patches certain printer drivers to make them compatible
with the Belkin USB Serial Adapter. These printer drivers are the
HP DeskWriter 600 Series, HP DeskJet 800 Series, and Apple®
Color StyleWriter 4000. Do the following: (Note: For all other
serial devices, please refer to the User Guide for Installation.)
1.
2.
3.
4.
5.
6.
7.
Double-click on the “Hard Drive” icon on the desktop to
open it.
Double-click on the “Belkin® Printer Patcher” located in
the root directory.
Click on “Patch” from the menu bar, and then select
“Patch Another Printer Driver”.
Select the Printer driver from the list, and then click
on the “Choose” button.
A dialog box “Modification was successful” will appear.
Click OK.
The Belkin Printer Patch installation is now complete.
Now you can start printing.
Note:
Upgrading to Mac® OS 8.6 is recommended as it has
advanced USB support.
.
7
Belkin Printer Patcher (continued)
1.
2.
3.
4.
5.
Double click the “Hard Drive” icon on your desktop.
Double click the “System Folder”.
Double click the “Extensions” folder.
Look for the following files listed below then drag to
the “Trash”:
a) Belkin USB Serial Driver
b) Belkin USB Serial Shim
c) Belkin USB Serial Hal
d) Serial Shim Lib
The Belkin USB Serial Adapter is removed. Restart
your computer.
Known Issues
Palm HotSync: The iMac™ will pause for a minute during
HotSync. The manufacturer has identified this problem. An
updated driver is available for download at www.palmpilot.com.
Zoom Modem: Zoom Modem has newer modem scripts on
their web site. If the printer port emulation is enabled, Apple®’s
Control will not list the adapter because Apple®’s Open
Transport Networking does not support dial-up Internet
connections via the printer port. Note that modem cables used
with the adapter must support the DCD (carrier detect) signal
on its own pin.
Kodak DC-210: Transferring a FlashFix image using the Kodak
Picture transfer application can often lead to a message about
losing communication with the camera. The printer port
emulation must be used with the camera.
8
Compatible Devices
En
PDA Devices
Palm V
Palm III
Palm Pilot
Newton
Psion
Digital Cameras
AGFA
Apple Quicktake
Epson
Modems and
ISDN Tas
Graphic Tablets
All Brands
Wacom Intous
(serial)
Ricochet Wireless
Modem
Wacom Artz II
(serial)
Fujifilm
Kodak
Leica
Nikon CoolPix
Olympus
Sanyo
Toshiba
HP
HP
HP
HP
HP
HP
HP
HP
HP
HP
Printers
Apple Style Writer I
Apple Style Writer II
Apple Style Writer 1200
Apple Style Writer 4100
Apple Style Writer 4500
Epson 300 series
Epson 500 series
HP DeskJet 850
HP DeskJet 855C
HP DeskJet 870Cse
HP DeskWriter
HP DeskWriter 520
HP DeskWriter 550C
DeskWriter 600
DeskWriter 680C
DeskJet 855Cse
DeskJet 870C
DeskJet 870Cxi
DeskWriter 510
DeskWriter 540
DeskWriter 560C
DeskWriter 660C
DeskWriter 690
Note: We are constantly
adding support to serial
devices, especially printers.
Please visit our Web site at www.belkin.com for an updated
listing of compatible devices and for any future updates to our
current driver.
9
Using the Adapter on a Belkin BusStation™
The USB Serial Adapter for Macintosh® can be used as a
module to the Belkin BusStation™ (Part# F5U100). To connect
the adapter, simply remove the sleeve and slide the adapter
into one of the BusStation™ bays as shown below. For more
details about the BusStation™, please check the BusStation™
users manual or visit our Web site at www.belkin.com.
sleeve
BusStation™
10
Information
FCC Statement
DECLARATION OF CONFORMITY WITH FCC RULES FOR
ELECTROMAGNETIC COMPATIBILITY
We, Belkin Components, of 501 West Walnut Street, Compton CA 90220,
declare under our sole responsibility that the product:
F5U103-MAC
to which this declaration relates:
Complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may
cause undesired operation.
CE Declaration of Conformity
We, Belkin Components, declare under our sole responsibility that the F5U103-MAC, to
which this declaration relates, is in conformity with Generic Emissions Standard EN50081-1
and with Generic Immunity Standard EN50082-1 1992.
ICES Statement
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de
la classe B est conforme à la norme NMB-003 du Canada.
Belkin Components Limited Lifetime Product Warranty
Belkin Components warrants this product against defects in materials and workmanship for
its lifetime. If a defect is discovered, Belkin will, at its option, repair or replace the product at
no charge, provided it is returned during the warranty period, with transportation charges
prepaid, to the authorized Belkin dealer from whom you purchased the product. Proof of
purchase may be required.
This warranty does not apply if the product has been damaged by accident, abuse, misuse,
or misapplication; if the product has been modified without the written permission of Belkin;
or if any Belkin serial number has been removed or defaced.
THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE IN LIEU OF ALL OTHERS,
WHETHER ORAL OR WRITTEN, EXPRESSED OR IMPLIED. BELKIN SPECIFICALLY DISCLAIMS
ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
No Belkin dealer, agent, or employee is authorized to make any modification, extension, or
addition to this warranty.
BELKIN IS NOT RESPONSIBLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES RESULTING FROM ANY BREACH OF WARRANTY, OR UNDER ANY OTHER
LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOST PROFITS, DOWNTIME,
GOODWILL, DAMAGE TO OR REPROGRAMMING, OR REPRODUCING ANY PROGRAM
OR DATA STORED IN OR USED WITH BELKIN PRODUCTS.
En
belkin.com
Belkin Components
501 West Walnut Street
Compton • CA • 90220 • USA
Tel: 310.898.1100
Fax: 310.898.1111
Belkin Components, Ltd.
Unit 13 • Gatelodge Close • Round Spinney
Northampton • Northants • NN3 8RX • UK
Tel: +44 (0) 1604678300
Fax: +44 (0) 1604678330
Belkin Components B.V.
Diamantlaan 8 • 2132 WV
Hoofddorp • The Netherlands
Tel: +31 (0) 235698765
Fax: +31 (0) 235612694
© 1999 Belkin Components. All rights reserved. All trade names are registered trademarks of
respective manufacturers listed. Macintosh® is a trademark of Macintosh Laboratory, Inc., licensed to
Apple Computer, Inc., and is being used with express permission of its owner.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
