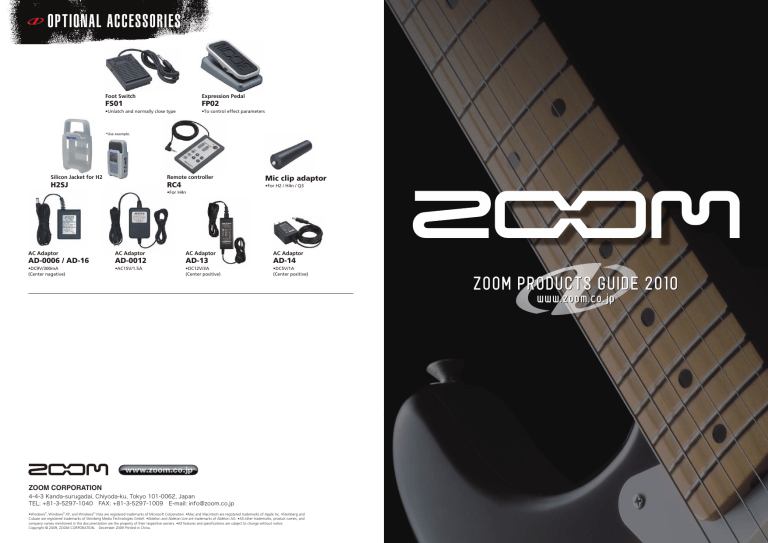

OPTIONAL ACCESSORIES
Foot Switch
Expression Pedal
•Unlatch and normally close type
•To control effect parameters
FS01
FP02
*Use example.
Silicon Jacket for H2
Remote controller
H2SJ
RC4
Mic clip adaptor
•For H2 / H4n / Q3
•For H4n
AC Adaptor
AC Adaptor
AC Adaptor
AC Adaptor
•DC9V/300mA
(Center nagative)
•AC15V/1.5A
•DC12V/3A
(Center positive)
•DC5V/1A
(Center positive)
AD-0006 / AD-16
AD-0012
AD-13
AD-14
Z O O M P R O D U C T S G U ID E 2 0 10
w w w .z oom.co.j p
ZOOM CORPORATION
4-4-3 Kanda-surugadai, Chiyoda-ku, Tokyo 101-0062, Japan
TEL: +81-3-5297-1040 FAX: +81-3-5297-1009 E-mail: [email protected]
•Windows®, Windows® XP, and Windows® Vista are registered trademarks of Microsoft Corporation. •Mac and Macintosh are registered trademarks of Apple Inc. •Steinberg and
Cubase are registered trademarks of Steinberg Media Technologies GmbH. •Ableton and Ableton Live are trademarks of Ableton AG. •All other trademarks, product names, and
company names mentioned in this documentation are the property of their respective owners. •All features and specifications are subject to change without notice
Copyright © 2009, ZOOM CORPORATION. December 2009 Printed in China.
HANDY VIDEO RECORDER
Q3
■ Superb Video Quality
Sound makes the movie.
Anyone who's ever experienced a film with great audio knows how vital sound is to the movie.
The Q3 Handy Video Recorder brings our renowned audio technology to the camcorder,
making it the best sounding video camcorder you've ever heard.
The Q3 supports QuickTime (MOV) format. With
MPEG-4 SP compression in VGA size (640 x 480 pixel)
at 30 frames per second, you can record very smooth
video shots anywhere, anytime. Plus, integrated digital 2 times zoom
function enables you to get up close and personal.
■ Built-in 2.4” LCD Screen and Speaker
The Q3's large, 2.4" LCD screen with a resolution of 320 x 240 makes
viewing easy on the go. And its built-in monitor speaker enables you
to check video with audio right after shooting.
■ True Stereo Sound
Quick Shooting
Quick Editing
Quick Sharing
Shoot your videos with
incredible stereo sound.
Use built-in software to make
movies on your computer.
Publish to all your favorite video
sites or watch on your TV at home.
Brilliant Stereo Recording... Now on your videos.
The Q3 uses the same microphone capsules as our industry-leading H4n Handy Recorder and
is perfect for recording anything where great audio and video are a must. From live musical
performances and rehearsals, interviews, conferences to video podcasts, journalism, education,
recitals, weddings or sports, the Q3's pristine audio quality takes your videos to another level.
Get Started Right Away
Designed with everything you need to make your movies right out
of the box, the Q3 includes HandyShare software for editing, and a
2GB SD card for up to 1 hour of video recording time. And the Q3
will also accept up to 32GB SDHC cards for a staggering 16 hours
of moviemaking!
Cutting Room and Distribution included...
When your shoot is complete, the Q3's cleverly designed USB cable lets you upload your
movies to your computer. Then use HandyShare to edit and share them on your favorite
websites including YouTube, Facebook and MySpace. Or, plug in the included TV cable and
watch your videos on television.
■ Get Closer to the Action
Use the on-board audio meters to set
the gain to Low, High or Auto so you
can record in very loud or very soft
environments. Or use the Q3's Auto
Record Level function to
automatically set the appropriate
recording levels for the situation.
■ Go Shoot Outside.
With an on-board low-cut filter to reduce
background noise and an included
windscreen that prevents wind noise
from being picked up by the Q3’s highly
sensitive microphones as a standard
accessory, you can make movies with
incredible audio clarity, even outdoors.
And because the Q3 has a standard
tripod mount, you can put it just about
anywhere for the perfect shot in any
environment.
*A tripod is not included.
To play music better, seeing your
performance can be almost as
important as hearing yourself. With
the Q3, you get both capabilities.
Music educators and students alike
will find a plethora of applications
for the Q3 from the classroom to
the practice room.
■ Dress Up Your Videography
The Q3 makes an excellent
accessory for anyone who does
videography as a full-time
occupation or as a hobby. Imagine
being able to use the Q3 for
individualized video shoots of the
bride and groom before a wedding.
Or give a Q3 to everyone in the
wedding party for personalized
video clips. Capture the wedding
music with ease. The possibilities
are truly endless.
■ Sound Matters on YouTube
Ideal for shooting any kind of
musical performance from jazz to
classical to metal, solo to
orchestral, the Q3 will make it fun
and easy to shoot your music
videos anywhere, anytime. The
Q3 also makes it easy to share
your videos with your friends on YouTube. Simply plug the Q3 into
your computer, launch the onboard HandyShare software and select
the videos you want to put on the web.
■ Turn On the Audio
The Q3 is the only portable camcorder that allows you to turn off the
video and record audio only. The Q3 supports audio recording at
96kHz / 24-bit resolution which is superior to CD quality. You can also
record in MP3 format for handy uploading to your website or email.
■ Two AA Batteries… Standard
For added convenience, the Q3 includes two standard AA/LR6
batteries that give you about two hours of battery life with
continuous video recording. Or use two AA-sized Ni-MH
rechargeable batteries with dedicated charger, or an AC adaptor
(option AD-14 sold separately).
2010 ZOOM PRODUCTS GUIDE
2010 ZOOM PRODUCTS GUIDE
02
*Video shooting time is based on audio quality setting of video at 320kbps MP3.
The Q3 has two condenser mics
on-board, engineered in the same
X/Y pattern as the H4n Handy
Recorder that gives recording pros
the best stereo recording possible.
Arranged with the right and left mics
on the same axis, this design ensures
Q3 built-in mic image
that the mics are always an equal
distance from the sound source for perfect localization without
phase shifting. The result is a great sounding recording with natural
depth and highly accurate stereo imaging every time.
■ Reduce the Learning Curve
03
RECORDER : INTERFACE : CONTROLLER
R16
Bundled software:
Steinberg Cubase LE 4
One recorder with everything to go.
Built-in
high-sensitivity
stereo microphones
When you want to quickly
record anything from
songwriting ideas to ambient
room audio, the R16’s built-in set
of stereo mics will come in handy.
Vocals and acoustic instruments
can be captured with
excellent clarity.
SLIM & PORTABLE DESIGN
Three-in-one studio takes your session anywhere.
Seamlessly combines multi-track recording, audio interface and control surface capability in a mobile production studio.
The R16 provides three production solutions for making great recordings: a portable, multi-track recorder,
USB audio interface and controller surface. Record tracks with the MTR and mix them with DAW software.
Lightweight and battery operated, the R16 goes everywhere you need it.
Recorder
Record 8 tracks simultaneously with 16-track playback
Audio interface with 8-in / 2-out capability
Capture audio in any setting, from
live music performance, drums
with multiple mics to music
rehearsals and songwriting, even
audio for film and video. The
R16’s simultaneous 8-track
capability makes professionalism
easy. Playback up to 16 tracks
using its 16/24-bit linear WAV
format and 44.1kHz sampling rate.
The R16 functions as an audio interface
enabling direct input of sound to a
computer. Support for high quality
24-bit/96kHz encoding ensures great sound.
Eight input channels and two output
channels can be used simultaneously. If you
use the sampling rate of 44.1kHz, the internal DSP effects of the R16 are
also usable on your computer tracks. A dedicated control lets you
adjust the mixing balance between the DAW playback sound and the
direct sound for monitoring.
Controller
Synchro REC
Control surface for all major DAW functions
Sync two R16s for 16 tracks of simultaneous recording
Transport and mixing operations
of the DAW software can be
controlled using the R16. This
gives you greater control and a
better feel for mixing. In Mackie
Control emulation mode, major
DAW applications such as Cubase,
Logic, and Sonar are supported.
The R16 is the first recorder that
incorporates the ability to generate a
synchronization signal based on USB data
transfer timing*. By connecting two R16
units via USB, you can designate one to
function as a USB host and the other as a
USB slave, allowing synchronized
transport operation. This lets you record on up to 16 tracks
simultaneously to competently handle a live performance.
*Synchronization accuracy has a tolerance of about 1 to 2 milliseconds.
Its eight combination mic/line input jacks can handle mics or line-level
signals. Phantom power is provided on channels 5 and 6 for use with
condenser mics, and the Hi-Z switch for channel 1 accommodates a
guitar or bass. The R16 is ready for any kind of input source.
■ Use master track for final mix
A dedicated master track lets you do the final mixdown right on the
R16 without a separate master recorder. With sequence play, several
projects can be mastered together and played automatically. And you
can create playlists for finished songs in any order.
■ 135 DSP effects including guitar amp simulations
The R16 comes preprogrammed with 135 types of digital effects for
recording, mixing, and mastering. The insert effect has seven
modules with algorithms optimized for guitar, bass and vocals. In
addition, two send/return effects are also available, so that you can
use up to three effects simultaneously. The R16 also comes with
models of 18 different guitar amps such as Fender, Marshall, Vox and
Mesa Boogie, and 6 bass amps such as Ampeg, Bassman and Hartke.
A compressor and equalizer effect that handles 8 channels
simultaneously provides further flexibility.
■ Tuner and metronome onboard
The R16’s built-in tuner is great for quickly tuning an instrument or
checking the pitch of vocals. During recording, the metronome
provides a click track for your drummer and is also handy for
practice. The metronome sound can be sent to the headphones,
letting you use a previously recorded backing track on stage during a
performance.
■ Locate function makes editing easy
Set up to 100 marker points and directly locate them whenever you
want. Other convenient functions for editing include A-B repeat
playback and auto punch-in/out, making it easy to re-track part of the
recording.
■ Supports SDHC cards up to 32GB
Because the R16 utilizes compact and
readily available SD and SDHC
memory cards as its recording media,
there is no motor that can cause noise
as with tape or discs. And you never
need to worry about problems caused
by external vibrations that can crash
hard drives.
■ Power options
The R16 can be powered from the
supplied AC adaptor or six AA/LR6
batteries. A set of batteries will last for
about four and a half hours, and because
they are standard batteries, changing
them is always easy and convenient. The audio interface and
control surface functions can also be operated on USB bus
power, providing another power option.
■ USB 2.0 Hi-Speed mode for fast file transfer
Because the R16 has a USB 2.0 Hi-Speed compatible port, file
transfer to a computer is quick and painless. Computer-based tasks
such as editing with DAW software, burning your original CDs and
importing WAV files are integrated smoothly into your workflow.
■ USB host capability for connecting USB memory
A USB flash drive or large-capacity
external hard disk* can be plugged into
the USB port of the R16. This lets you
quickly distribute a recording to band
members after a rehearsal session or
make a backup of your recordings even
when you're not near a computer.
*Because USB bus power for external hard disks is not supplied,
a separate power source is required.
*Manufacturer names and product names mentioned in this table are trademarks or registered trademarks of their respective owners.
The names are used only to illustrate sonic characteristics and do not indicate any affiliation with the Zoom Corporation.
2010 ZOOM PRODUCTS GUIDE
2010 ZOOM PRODUCTS GUIDE
04
Interface
■ Versatile inputs for guitars, mics and line sources
05
HANDY RECORDER
H4n
Unique X/Y mic arrangement captures perfect stereo images
Its onboard X/Y stereo condenser mics are arranged with the right and left mics on the same
axis. This design ensures that the mics are always an equal distance from the sound source
for perfect localization without phase shifting. The result is great stereo recording with
natural depth and accurate imaging every time.
L
L
R
R
Time lag
L
R
Phase difference
H4n X/Y Stereo Mic
Unmatched versatility from selectable
recording patterns
Conventional Stereo Mic
H4n X/Y Stereo Mic
Conventional Stereo Mic
120°
90°
7°
Custom designed, onboard X/Y stereo condenser mics allow
variable recording patterns at either 90° or 120°. Our unique
design lets you rotate each mic capsule from 90° (standard)
to 120° (wide-angle) stereo for the ultimate versatility in any
recording situation.
World-Class Recording for Everyone.
Turn your world into a world-class recording studio with the H4n,
the next level of portable recording from Zoom.
■ High resolution, 24-bit/96-kHz linear PCM recording
Choose up to 24-bit/96-kHz linear PCM files for audio resolution
that surpasses CD quality. Or, when maximum recording time
with smaller file size is desired, select a variety of MP3 formats to
produce smaller files suitable for web or e-mail distribution.
■ Secure your digital memories on SD and SDHC cards
The H4n uses compact SD or high-capacity
SDHC memory cards of up to 32GB. Unlike
other media such as tape or discs, SD cards
produce no mechanical noise, are not
disturbed by vibrations and are readily
available for your convenience.
■ We’re all about the preamp…
Our new, high-quality preamplifier renders audio so precise,
you’ll sound like you recorded in a world-class studio. And it
means you can make recording level adjustments on the fly.
■ Phrase trainer with speed control playback
Learning new songs is now a
50% Slow Playback Fast Playback 150 %
breeze with the H4n’s adjustable
playback speed that ranges from
Original 100%
50 to 150 percent, while keeping pitch the same.
■ Low-cut filter and limiter for better recordings
With this feature, creating songs by
overdubbing vocals and instruments is
a snap. Level and panning can be
adjusted individually for each track on
the built-in mixer.
*In the MTR mode, the recording format is fixed to 16-bit/44.1kHz WAV files.
■ Why four channels are better than two.
Center cancel and pitch control functions
Proper miking is essential to making
a great recording. The H4n is the
only handheld recorder that allows
recording on four channels
simultaneously by using your own
external mics with its onboard mics.
With its center cancel function, the H4n even lets you
suppress audio that is recorded with center imaging.
And the H4n also lets you alter pitch without changing
playback speed.
Onboard effects include studio effects and guitar amp models
■ Capture everything with automatic recording
You can set your H4n to automatically record whenever sound
above your designated level is detected.
■ Pre-record feature means no surprises
The H4n can also be set to
continuously record the most
recent two seconds of audio
in memory.
REC Start
ON
2 seconds pre-record
OFF
With its low-cut filter, the H4n effectively reduces unwanted
background noise like wind or air-conditioning noise. A variety of
compressors and limiters help to optimize the dynamic range
while preventing distortion.
■ Edit audio, even without a computer
■ Stamina mode extends battery life to 11 hours
■ Versatile playback options
For situations where you require maximized, continuous
recording operation you can select stamina mode which
effectively doubles battery life, letting you record continuously
for about 11 hours in 16-bit/44.1-kHz linear PCM format.
■ Four-track MTR mode
The H4n features built-in combination
XLR/Phone connectors with phantom
voltage source capability. With its Hi-Z
inputs, you can record guitars or other line
output sources. A separate external mic
input supports plug-in power microphones.
A built-in normalizing feature lets you optimize the volume level, and
you can convert WAV files into MP3 directly on the unit as well.
You can choose between single-song playback, single-song repeat,
all-songs playback, or all-songs repeat. This is great when you want
to use the H4n as a personal trainer for learning new music. A-B
repeat even lets you zoom in on a specified section of a song.
The H4n offers a choice of 50 studio-quality DSP effects
including compressor, chorus, phaser, delay, and reverb.
In addition, 12 famous guitar amp models are included.
■ Integrated reference speaker
The H4n even has a built-in reference
speaker to let you check recordings without
earphones.
■ Large display and rubberized chassis
A large, 1.9 inch LCD screen with backlit graphic display shows
all the tracking information at a glance and makes it easy to
navigate the functions of the unit. And its new rubberized, shock
resistant chassis also improves durability while reducing
handling noise.
■ USB 2.0 Hi-Speed support for
faster file transfer
The H4n is now a USB 2.0 Hi-Speed device,
meaning that files can be transferred to a
computer at the highest rate available.
■ It’s still a USB audio interface!
■ Broadcast ready with time stamping and track markers
Recorded files carry time stamp information and you can set
markers (cue points) during recording or playback.
Use your favorite recording software
or the bundled Cubase LE 4 from
Steinberg, so you can start to
produce and edit music right away.
■ Monaural mix function great for interviews
A stereo input signal can be mixed down to mono to reduce
unwanted sound source position shifts between right and left
channels. This is ideal for recording interviews.
■ Musician friendly tools for better practice
The built-in tuner allows for quickly checking the pitch of a
vocalist or tuning an instrument. The selectable metronome
sound can serve as a guide rhythm during recording.
■ Mid-Side stereo decoder
The built-in M/S stereo decoder allows the use of an external
Mid-Side microphone setups.
■ Power from battery, AC adaptor, or USB bus power
The H4n can record continuously for about six hours on a set of
two AA / LR6 alkaline batteries. Use the supplied AC adaptor
when working at home. The H4n also runs on USB bus power
when using the H4n as an audio interface.
■ Everything you need to get started
A 1GB SD card, windscreen, mic clip adapter, AC adaptor, USB
cable, protective case and Cubase LE 4 recording software are
included. You can also use the built-in tripod mount with a
standard camera tripod.
2010 ZOOM PRODUCTS GUIDE
2010 ZOOM PRODUCTS GUIDE
06
■ Combined XLR/Phone connectors
07
HANDY RECORDER
CONFERENCE
H2
Simplicity is a beautiful thing.
EDUCATION
INTERVIEWS
BAND REHEARSALS
PIANO
■ Built-in normalizing and file
splitting functions
ACOUSTIC GUITAR
Even without an external waveform editor or
other software, you can divide a recorded file
at any desired point, right on the H2. The
built-in normalizing feature lets you optimize
the volume level, and can even convert WAV
files into MP3s. The H2 offers a post-encoding
function as well.
PODCASTING
BRASS
■ Versatile playback modes
NATURE SOUNDS
ORCHESTRA
The H2 begins with a simple idea: provide brilliant stereo recording in an easy-to-use, ultra-portable device.
Now everyone can record pristine audio in an infinite variety of applications.
From seminars and conferences, to electronic news gathering(ENG),interviews and podcasting,
to musical performances, songwriting sessions and rehearsals, the H2 provides amazing recording quality.
And no matter what kind of recording you want to make, the H2 can effortlessly record it.
■ Why four mics are better than two.
Built-in W-XY Stereo Mic
Recording an exceptionally realistic
stereo image can be a challenge with
a conventional mic pair. The H2 has
dual X/Y configured stereo mics
facing front and rear. This is ideal for
capturing a wide and contiguous
stereo image. There are two sets of
mics - one pair facing the front and
one pair facing the rear - allowing you to record at 90° from the
front or 120° from the rear. You can even use both two pairs to
produce a four-channel recording with 360° coverage. After
recording, the built-in 3D panning function gives you full control
over the front / rear / left / right balance. Or use commonly available
authoring software to create 5.1 surround recordings. No other
portable digital recorder has this ability.
R
120
Drums
❶ Front 90 Cardioid
❷ Rear 120 Cardioid
Front
p
Rear
am
B
am
as
s
ar
p
08
R
❸ Surround 360
The H2 records on Secure Digital(SD)media and a 1GB SD card
is included. Compact and readily available, SD memory cards are
immune to vibrations and produce no mechanical noise, unlike
motordriven media such as tape or discs. The H2 can
accomodate up to a 32GB card, allowing up to 15 hours of
recording time using the 24bit / 96kHz WAV format. At 128kbps
MP3, you get an amazing 550 hours of stereo recording. And
with the onboard USB port, you can move your recordings to
your computer and use recording software to edit the audio,
create mixes, burn CDs or distribute your recordings by email or
on your website. You can even move MP3 files to your H2 and
use it as a music player.
■ BWF compatible time stamping and track markers
The H2 supports BWF(Broadcast Wave Format)used by
broadcasting studios and for other professional applications.
Your files can be set with timestamp information and markers
(cue points)during recording. This makes playback and editing
much more efficient.
■ Support for plug-in power type
external mics
STRINGS
CONCERTS
The input jack for external stereo mics
supports plug-in power, letting you select
suitable equipment for any situation. A stereo
line input for analog sources such as cassette
tapes or LP records is also provided.
■ Automatic recording function
■ Tuner & metronome enhance practice sessions
■ Pre-record feature means no surprises
The H2 has a number of useful tools that will
be welcomed by musicians. The built-in tuner
allows you to quickly check the pitch of a
vocalist or tune an instrument. The onboard
metronome can serve as a click-track during recording.
You can also set the H2 to automatically start recording when
audio is detected and stop when audio ceases. This allows you to
capture all the important audio you want during a conference or
lecture while minimizing the total recording time.
Sometimes the audio you want to record begins suddenly. But
with the H2 you’ll never miss a beat. It can be set to continuously
record the most recent two seconds of audio in memory. Record
with the confidence that you’ve captured every moment.
■ Auto Gain Control and Low-Cut Filter
Capturing the moment with a pristine recording can be a
challenge... but not with the H2. Its sophisticated Auto Gain
Control(AGC)function and Low-Cut Filter means the H2 can
automatically record at the right level while eliminating
unwanted low frequency noise. Or, you can manually control the
gain levels with the Low/Mid/High selector and then fine-tune the
levels with gain control buttons on the front panel. Get clear
recordings with very low noise and no distortion.
■ It’s also a USB mic...
The H2 can also function as a USB
microphone, letting you record directly to
your computer. Using almost any
recording software, you can create a
podcast with ease. And its direct
monitoring feature means that you can
monitor with no latency during recording.
■ Intuitive design
Thanks to its simple and logical user interface, the H2 is easy to
use from the moment you pick it up. Most functions can be
controlled with one hand. The backlit 128×64 pixel LCD makes
navigating the graphical menus quick and easy. You can check
level meters and time elapsed, check the battery status and
remaining recording time at a glance.
■ Four hours of continuous operation
The low-power circuitry in the H2 makes it possible to run the
unit continuously for about 4 hours on two AA alkaline batteries.
For longer sessions, simply plug in the AC adaptor(AD-0006).
When using the unit as an SD card reader or USB mic, it will
operate on USB bus power.
■ Accessories for any application
It comes with a 1GB SD card, a windscreen, a USB cable, so you
can begin recording from the moment you open the package. A
desktop stand as well as a mic clip adapter for attaching the unit
to a mic stand are sold separately.
2010 ZOOM PRODUCTS GUIDE
90
uit
G
2010 ZOOM PRODUCTS GUIDE
L
The H2 gives you amazing versatility with its wide variety of
recording formats. Choose 24bit/96kHz linear PCM(WAV files)
format for the highest audio quality that surpasses CDs. Or
record in MP3 format in an almost any bit rate when long
recording capability and smaller file sizes are your goals. Even
4-channel, 360° recordings can be made in 24bit/48kHz format.
Capture the fine nuances of an acoustic instrument or the
realistic ambience of a venue with the H2’s utterly transparent,
high-resolution recording capability.
■ Secure Your Digital Memories
Flexible po lar patterns
L
■ 24bit/96kHz linear PCM and MP3 recording
Choose between single-file playback,
single-file repeat, all-file playback, or all-file
repeat. This is great when using the H2 as an
MP3 player. A-B repeat even lets you “zoom
in” on a specified section of a file.
09
GUITAR EFFECTS PEDAL
G2Nu & G2.1Nu
s
d
n
u
o
s
e
v
i
r
d
w
e
e
c
a
N
f
r
e
t
n
i
o
i
d
u
a
b
s
U
&
30 AMP / STOMP BOX MODELS
FD Combo, VX Combo, US Blues,
BG Crunch, HW Stack, MS Crunch,
MS Drive, PV Drive, DZ Drive, BG Drive,
Over Drive, T Scream, Governor, Dist+,
Dist1, Squeak, Fuzz Smile, Great Muff,
Metal World, Hot Box, Z Clean, Z Wild,
Z MP1, Z Bottom, Z Dream, Z Scream,
Z Neos, Lead, Extreme DS, Aco.Sim
G2.1Nu
Legendary Tone. Extreme Power. Intuitive Control.
With 30 models of amazing amplifier sounds, a USB audio interface for PC recording,
and a rhythm machine, looper function and more, G2Nu/G2.1Nu gives you everything
you need for live performance, studio session or productive practice.
G2Nu
Get premium performance in an all-in-one pedal.
■ Redesigned models create the ultimate tone purity
There are 20 models of legendary guitar amps and stomp boxes,
with accurately fine-tuned sonic aspects. In addition, you can
choose from 10 original sounds created by ZOOM, designed for
excellent clarity and presence, capturing your dynamic range
adjustments and picking nuances that give you that truly
expressive tone that you crave.
■ Direct mode optimized for recording
All 30 drive sounds have a special modeling algorithm designed
specifically for line recording. Simply turn on the DIRECT key on
the top panel and enjoy dynamic amp sounds that recreate the
ideal speaker cabinet characteristics over a flat response audio
system or headphones.
■ Smooth tube distortion models made possible by ZFX-3
To recreate the rich blend of harmonics in the upper frequency
ranges that are unique to tube amplifiers, you need a powerful,
fast processor. The advanced ZFX-3 sound engine implements
complex digital modeling technology to convincingly recreate
those subtle tube amp characteristics.
■ A “collectors edition” of 83 guitar effect types
Choose effects like the MXR Dynacomp, famed for its peculiar
compression, Vox Crybaby and other renowned wah pedals, four
types of chorus with great depth and ambience and six types of
reverb providing transparent clarity. Or let your tonal
imagination run free with dynamic flangers, tremolo with
selectable modulation waveform, harmonized pitch shifter,
multi-tap delay, reverse delay and many more.
The frequency bands of the built-in 6-band graphic equalizer
were designed specifically for electric guitar. This gives you the
complete tone control capability normally found on high-end
studio gear.
The G2Nu/G2.1Nu operate as an
audio interface, letting you record
directly to a computer connected
via USB cable. All your sound
settings used during rehearsal or a
live performance can be recorded
onto your DAW software. And
because the G2Nu/G2.1Nu comes
bundled with Cubase LE 4, you can
start creating professional
recordings right out of the box.
■ Edit & Share makes it easy to share your creativity
Our Edit & Share software is available
through a free download and allows
you to use your computer to intuitively
create, edit and save your own,
personalized amp and effect settings.
Use our “radar charts” to show a
visual representation of the tone
characteristics. And amp/effect type
sorting helps you quickly find the tone
you are after. Using drag and drop to
rearrange patches makes editing easy
and fun, and you can even download
the latest patches online.
■ Auto-chromatic tuner with LED indication
The LCD display and LED indicators
make its auto-chromatic tuner easy to
use on a dark stage. Its mute tuning
capability is also very useful on stage.
■ Integrated drum machine with PCM sound sources
Choose from 40 different rhythm patterns including 8-beat and
16-beat as well as 4-beat, shuffle and many other variations.
Start a jam session anytime, anywhere.
Specifications such as a signal-to-noise ratio of 120 dB and noise
floor of -100 dB provide a level of performance that is unsurpassed.
Background noise is effectively eliminated, and ZOOM's
proprietary ZNR noise reduction also removes unwanted noise.
■ Looper function records 5-second phrases
■ Optional foot switch allows versatile remote operation
Use its 5 second looper function to
record, playback and overdub guitar
phrases that can be controlled with your
pedal. This “sound-on-sound” feature lets
you lay down phrases in real time, and
during a live solo, you can use the looped
sound as backing.
■ Large LCD panel supports intuitive operation
One of the most important and useful new additions to the
G2Nu/G2.1Nu is its large 1.9 inch display. This new screen makes
creating your own sounds a breeze. But we also have simplified
the interface with three large control knobs to make changing
your tone similar to a stomp box, making the overall operation
easy and intuitive.
The optional foot switch (FS01) allows tap tempo input for
rhythm, looper, and effects. Other selectable functions include
rhythm pattern start/stop, bank switching, delay input muting,
and delay hold on/off switching.
■ Expression pedal adds further versatility to your guitar play
You can connect an optional expression pedal (FP02) to control
effect parameters such as wah, pitch shift, volume, or delay/reverb
mix in real time. The G2.1Nu has a built-in expression pedal and a
dedicated PEDAL ASSIGN key which makes it easy to select the
effect you want control on any patch setting.
■ Heavy-duty construction and slim size
While offering performance and functions far beyond its class,
the G2Nu/G2.1Nu has a sturdy metal chassis that can stand up to
the rigors of the road, yet, it’s still compact enough to fit into the
pocket of a guitar case.
■ Runs on batteries, AC adaptor, or USB bus power
■ 100 preset guitar sounds straight out of the box
The G2Nu/G2.1Nu features 10 highly creative and versatile
patches produced under the supervision of master guitarist Steve
Vai. Also included are dozens of presets that authentically
recreate the vintage rock sounds of the sixties and seventies, plus
the styles of many famous artists.
■ Ultra low noise design on a par with studio equipment
【Module selection】
【Effect setting】
The G2Nu/G2.1Nu can use three different power sources: AC
adaptor, batteries or USB bus power when plugged into your
computer. Four AA / LR6 alkaline batteries are good for 6.5 hours
of continuous use.
■ Extremely fast 5 ms patch change speed
2010 ZOOM PRODUCTS GUIDE
2010 ZOOM PRODUCTS GUIDE
10
■ Studio quality 6-band graphic equalizer on-board
■ Directly record to a computer via USB
11
GUITAR EFFECTS PEDAL
L E G E ND A R Y
G1u
GUITAR EFFECTS PEDAL
G1N & G1XN
S OUND S
A ND
FOR STUDIO
STAGE
THE
NEXT
30 AMP / STOMP BOX MODELS
FD Combo, VX Combo, US Blues,
BG Crunch, HW Stack, MS Crunch,
MS Drive, PV Drive, DZ Drive, BG Drive,
Over Drive, T Scream, Governor,
Dist+, Dist1, Squeak, Fuzz Smile,
Great Muff, Metal World, Hot Box,
Z Clean, Z Wild, Z MP1, Z Bottom,
Z Dream, Z Scream, Z Neos, Lead,
Extreme DS, Aco.Sim
The G1u not only gives you 67 amazing guitar
effects, it also features full USB audio interface
capability. Whether you're practicing, performing
or recording, the G1u has endless tone possibilities
for any style of playing.
■ Dozens of tube amps at your feet
The sound modeling technology developed for our Plug-in effect
came in handy when redesigning drive sounds for the G1u.
Parameters such as gain setting range and harmonics
component characteristics were fine-tuned to convincingly
recreate 20 types of guitar amps and stomp boxes. And there are
10 original drive types settings as well, producing quality sound
and dynamic presence.
■ USB means you can record directly to your computer
Simply hooking up the G1u to a computer with a USB cable
turns it into an audio interface. Our direct monitoring design
eliminates any latency problems, allowing real amp sound to
carry through into the recording.
■ Optional remote operation accessories
Connect the foot switch (FS01) to quickly change banks or
specify the tempo for the drum machine by tapping your foot.
Alternatively, you can use the expression pedal (FP02) and vary
parameters such as wah, pitch shift, and volume with your foot.
■ Runs on batteries, AC adaptor, or USB bus power
The G1u supports three different power sources: AC adaptor,
batteries, and USB bus power. Four AA/LR6 alkaline batteries are
good for 10 hours of continuous use.
■ Easy to carry in a gigbag
■ Advanced ZFX-3 audio engine
■ Ultra-low noise design with 110db SNR and -98dBm noise floor
■ 67 Stage-ready Effects
Eight modules offer a collection of 67 different effects that can
be put to use straight away. There's even a Harmonized Pitch
Shifter in key and long delay with settings of up to five seconds.
Bundle Software
■ Modern to legendary straight out of the box
From the legendary sounds of the sixties and seventies to the latest
modern metal sounds and famous artist styles, the G1u gives you a
tremendous range of tones with 100 patches ready to play.
■ Looping function records 5-second phrases
■ Integrated drum machine with PCM sound sources
Choose from 40 different rhythm patterns including 8-beat and
16-beat as well as 4-beat, shuffle and many other variations.
Start a jam session anytime, anywhere.
Create music with Live Lite 7
Use the Session View designed for
real-time operation or select Arrange
View when you want a more conventional
interface. Recording, editing, mixing -you can do it all with this intuitive and
capable DAW application.
Since introducing 505 in 1996,
ZOOM compact multi-effect processors are
always highly acclaimed by every guitarist
G1N
all over the world. Until now, and also from now on,
they are always beside you and your guitar.
New Drive Sounds
Featuring 15 amp and stomp-box
models that faithfully replicate
every detail of the classics from
gain settings to harmonic
character, the G1N / G1XN
delivers natural expression from
nuanced playing to total
bone-sizzling shreds.
Easy Operation
It’s never been easier to edit
effects. Simply select the effect
module with the selector knob
then edit the value with the
value knob. That’s all there is to
it. You can easily design your
own tones to suit to your music.
A chromatic tuner is available
simply by stepping on the two
pedal buttons simultaneously.
Xtreme Artist Patches Tube Amp Modeling
The G1N / G1XN has 9 types of
presets that simulate the sounds of
‘Rock Legends’ like Jimi Hendrix,
Jimmy Page, Eric Clapton and
many more. Plus, there are 21
types of the artist patches
designed by amazing guitar heroes
like Michael Amott, Kiko Loureiro,
Richie Kotzen, Rob Caggiano, Mike
Stone and Matt Bachand.
Replicating the high frequency
overtones created by the
distortion effect of tube
amplifiers is made possible by
Zoom’s original 32-bit, ZFX-3
processor. You get the rich
harmonics of distortion specific
to various types of tube amps.
G1XN
■ 54 Studio quality effects
A total of eight modules provide 54 effect types ranging from
‘must-have’ historic sounds of DynaComp, Vox Wah, Crybaby Wah, to
Harmonized Pitch Shifter to let you play along in key, long delay and
echo settings of up to 5 seconds, and many more.
■ Ultra low noise design on a par with studio equipment
Specifications such as a signal-to-noise ratio of 110dB and noise floor
of -98dBm demonstrate a level of performance that's not usually seen
in units of this class.
■ Drum machine with PCM sound sources
The 40 rhythm variations include the steady 8-beat of Rock and Pop,
funky 16-beat, a ''Jazzy'' 4-beat, some great shuffle for Blues sessions,
and many more choices.
■ Easy to carry in a gig bag
Its compact size and light weight make the G1N / G1XN ideal for those
who want plenty of effects and great performance without having to
carry a lot of gear.
■ AC/DC power operation
You get 12 hours of continuous operation with four AA / LR6 alkaline
batteries for using the G1N / G1XN anywhere from studio to live stage.
■ Optional foot switch allows remote operation (G1N only)
When you connect the optional foot switch (FS01), you can switch
patch banks or perform tap tempo input with your foot.
■ Expression pedal adds new dimensions (G1XN only)
When you connect the optional expression pedal (FP02) you can
control effect parameters such as wah, pitch shift, volume, drive gain,
modulation rate, mixing balance of delay and reverb in real time. The
choice is yours. The G1XN comes with a built-in expression pedal
and a PEDAL ASSIGN key that makes it a snap to select the function
operated by the pedal. Plus, you can switch the effect assigned to the
expression pedal on and off by pressing up the pedal.
*Manufacturer names and product names mentioned in this table are trademarks or registered trademarks of their respective owners.
The names are used only to illustrate sonic characteristics and do not indicate any affiliation with the Zoom Corporation.
2010 ZOOM PRODUCTS GUIDE
2010 ZOOM PRODUCTS GUIDE
12
Record/playback/overdub guitar phrases with the looping
function that can be controlled with the foot switches. This
feature lets you lay down phrases in real time, and during a live
performance, you can use the looping sound as a backing track.
ZFX Tools makes guitar practice fun
Utilities such as a phrase recorder, drum
& bass machine, editor/librarian, and
tuner make your practice sessions more
productive and musical.
STANDARD
13
GUITAR EFFECTS CONSOLE
G7.1ut & G9.2tt
ACOUSTIC EFFECTS PEDAL
A2 & A2.1u
USB & TWIN TUBE
G9.2tt
er
e Highest Ord
th
f
o
s
ic
n
o
Explore Harm
A2.1u
A2
USB & TUBE
G7.1ut
Analog circuitry using a 12AX7 tube adds that classic
warmth and sonic impact to the DSP sound.
The result combines the best of the digital and analog
worlds: distortion so advanced and sophisticated it
elevates your guitar playing to the next level.
■ Energizer using 12AX7 tube
Turning up the TUBE control to drive the 12AX7
produces warm crunch with rich harmonics.
■ Preamp section with two channels
The preamp section, comprised of the
amp/drive-modeling, and EQ modules offers
two channels per patch. You can easily select a
channel by simple foot switch operation.
■ Guitar amplifier/stomp box modeling
The amp/drive-modeling blocks have two dedicated algorithms for
each amp/drive type, designed for live playing and direct
recording. The CABINET effect simulates amp and mic recording
characteristics as well, and the algorithm is automatically switched
according to the CABINET on/off setting.
GUITAR AMP models
Fender Twin Reverb '65、
Fender Tweed Deluxe '53, Fender BASSMAN,
VOX AC30TBX, Marshall 1959 SupreLead 100*, Marshall 1962 Bluesbreaker,
Marshall JCM800, Marshall JCM2000, Roland JAZZ CHORUS,
HIWATT Custom100, MESA/BOOGIE MarkIII, MESA/BOOGIE Dual Rectifier,
ENGL E650 Ritchie Blackmore Signature 100*, PEAVEY 5150 STACK,
Hughes & Kettner TriAmp MK2, Diezel Herbert, Z Combo
(ZOOM original)
,
Z Stack
(ZOOM original) *G9.2tt only
■ A wide choice of high-quality guitar sound effects
The effect collection of the G7.1ut comprises 92 effects in 9
modules, while the G9.2tt boasts 120 effects in 10 modules.
The past and the future of guitar sound is right there at your
fingertips. The G7.1ut comes preprogrammed with a total of 80
preset patches and the G9.2tt with 100.
■ Intuitive interface great for stage use
On stage, the foot switches allows easy effect bank selection,
module and hold delay on/off switching or tap tempo input.
■ Real-time modulation for 4 simultaneous parameters
Common pedal effects such as wah, pitch, and volume control are
ofcourse supported, but you can also opt to adjust drive gain,
modulationrate, delay/reverb mix level, and other parameters.
■ USB based audio interface functions
The high-performance DAW application
"Cubase LE 4" comes bundled with the
unit, so you can start creating sophisticated
music straight away.
■ Remote patch editor available
By connecting the MIDI interface to a computer, you may use a
dedicated editor/librarian application to edit and store patch data.
■ Advanced ZFX-3 audio engine
■ 7 ms high-speed patch switching
■ 6-band graphic equalizer
■ Ultra low noise design with 120dB S/N ratio
GUITAR EFFECTS CONSOLE G9.2tt ONLY
■ Accelerator blends tube and solid state sound
The analog input section incorporates an Accelerator that can
amplify the signal in a 12AX7 tube or a solid-state based circuit.
■ Z-pedal takes pedal performance to the next level
The pedal on the right side of the G9.2tt supports 3D action by
sensing not only up/down but also sideways movement.
■ External send/return loop connectors
The rich, detailed tone of an acoustic guitar is created by a delicate
triple harmony of strings, neck, and body..The A2 series incorporates
24-bit / 96 kHz sampling and sophisticated sound modeling technology
to process the line signal from the pickup, adding a lush body tone and
the spatial ambience that is created by mic recording.
■ 12 acoustic guitar/preamp sound character simulations
A simulation module lets you choose among a number of very
famous and popular acoustic guitar tones. The different sonic
characteristics that depend on body size and shape as well as on
the materials used are faithfully reproduced.
12 ACOUSTIC GUITAR / PREAMP MODELS*
MARTIN D-28, MARTIN OOO-18, TACOMA C3C, NYLON, DOBRO MODEL 27,
RESOPHONIC, GIBSON SJ-200, GIBSON J-45, OVATION ADAMAS,
SELMER MACCAFERRI, NATIONAL RESO-PHONIC STYLE O, TUBE PREAMP
■ Select optimum characteristics to match pickup and amp model
AMP SELECT and PICKUP SELECT parameters let you optimize
frequency response for the type of pickup and amp that you are using.
■ Feedback control feature
The feedback control feature allows automatic detection of the
constantly changing feedback point, and an effective notch filter is
then brought into action to provide the required attenuation.
■ 47 high-quality effects implemented with 32-bit processing
■ Integrated drum machine with PCM sound sources
The 40 rhythm variations include the steady 8-beat of Rock and
Pop, funky 16-beat, a "Jazzy" 4-beat, and many more choices.
■ Optional foot switch allows versatile remote operation
Tap tempo input of settings such as delay time and modulation
rate is possible. Other selectable functions include bank switching,
and delay hold on/off switching.
■ Two-way power allows use just about anywhere
The unit will run for more than 6.0 hours on a set of four AA / LR6
batteries. A separately available AC adaptor (AD-0006) can be
plugged in for extended studio work.
■ The ZOOM ZFX-3 32-bit DSP chip
■ 6 band EQ or 2 band parametric EQ provide ambience control
■ 40 ready to use preset patches for stage and studio
■ 8 ms high-speed patch switching
■ Ultra low noise design with 100dB S/N ratio
The air effect simulates the ambience in a room, the detune effect
adds pitch-shifted harmony components for that fleeting 12-string
guitar sound. Or emphasize a specific frequency range with the
resonator. All of these effects are optimized for acoustic guitar.
■ Expression pedal adds further versatility to your guitar play
[3 types of chorus] Add just the right amount of body and depth to
the sound when you need it. The choice is yours: warm and mild
mono chorus, clear and transparent stereo chorus, expansive and
three-dimensional chorus ensemble, and more.
■ XLR output allows direct connection to PA mixer for stage work
[9 types of reverb] The A2 / A2.1u has nine types of reverb designed
specifically for acoustic guitar including Hall, Room, Arena, Tiled
Room. The A2 / A2.1u also features a reverb setting called "Early
Reflections" and a Slap Reverb that is a first for this class.
ACOUSTIC EFFECTS PEDAL A2.1u ONLY
Besides adjusting the volume or the tone of a simulation effect,
the pedal can be used for controlling the modulation rate, or
adjusting the delay/reverb mix level.
There is no need to use a DI box, even when you want to directly
hook the unit up to a mixing console or PA system.
■ USB port enables computer recording
The superb "Cubase LE 4" DAW software comes bundled with the
unit, so you can start creating sophisticated music straight away.
*Model names mentioned in this table are trademarks or registered trademarks of their respective owners.
The names are used only to illustrate sonic characteristics and do not indicate any affiliation with the Zoom Corporation.
2010 ZOOM PRODUCTS GUIDE
2010 ZOOM PRODUCTS GUIDE
14
*Model names mentioned in this table are trademarks or registered trademarks of their
respective owners. The names are used only to illustrate sonic characteristics and do not indicate
any affiliation with the Zoom Corporation.
■ Preset patches ready to use for recording or live performance
Explore A New World of
Natural Acoustic Sound
15
BASS EFFECTS CONSOLE
B9.1ut
BASS EFFECTS PEDAL
B2 & B2.1u
13 AMP / STOMP BOX MODELS*
AMPEG SVT, Marshall 1992 Super Bass,
SWR SM-900, Acoustic 360, Hartke
HA3500, Fender Bassman 100,
Trace Elliot AH-500, Tube Preamp,
SANSAMP BASS DRIVER DI,
Ibanez TS9 Tube Screamer, BOSS ODB-3,
MXR BASS D.I.+, Dallas-Arbiter FUZZ FACE
B2.1u
Richer Colors, Deeper Tones
Modern Classics for Today’
s Bassist
The Zoom B9.1ut bass effects console combines the most technically advanced audio
engine with the warmth of a classic 12AU7 tube to produce the richest tones imaginable.
Its ultra fast ZFX-3 processor means all the world s most famous amplifiers, cabinets and
effects are modeled with stunning accuracy. For the discerning bassist, the B9.1ut
represents an impressive and powerful solution for creating rich, detailed bass tone.
■ Accelerator Features 12AU7 Tube
The 12AU7 tube accelerator produces richer harmonics and
organic tone. By adjusting the mix balance, the thick
characteristics of the 12AU7 tube and the striking clarity of the
ZXF-3 can be adjusted so that saturation is natural and focused.
■ The world of bass at your feet
From Ampeg, Fender, and Marshall as well as more recent
models such as Hartke, SWR, and Aguilar, a whole world of bass
tone comes complete on the B9.1ut.
■ 112 effects specially tuned for bass
The effect selection includes limiter/compressor for controlling
peak levels and ensuring uniformity, auto wah and resonance
filter, octaver to produce ultra low notes, defret to simulate a
fretless bass, detune for a chorus effect and other eminently
usable choices.
■ Create the perfect bass tone for any situation
The B9.1ut’s cabinet simulator emulates the low-frequency
characteristics and sonic behavior of vintage and modern bass
speaker cabinets.
■ Onboard 6-band semi-parametric equalizer
Center frequencies can be adjusted for each band, and the EQ
curve can be set to peaking (narrow/wide), shelving, low-pass, or
high-pass. Dedicated knobs in the preamp section make it easy
adjust the boost or cut amount for each band.
■ Versatile bass synthesizer for additional flexibility
■ Advanced ZFX-3 Audio Engine
■ 96kHz Sampling Provides High Resolution for Sonic Accuracy
■ Z-Pedal opens up new dimensions
The built-in Z-type expression pedal developed by Zoom
captures up/down and sideways movement for controlling more
effect parameters with subtle changes.
■ 80 artist preset patches for stage and studio
The B9.1ut comes preprogrammed with artist-created bass
sound settings from major genres such as Rock, Jazz, and Funk.
Doug Wimbish (Living Color), JD DeServio (Black Label Society)
and Eric Struthers (Aaron Neville) have each provided
customized preset patches.
B2
The Ideal Tool For Bass Players Devoted to True Sound
24-bit resolution and a sampling frequency of 96 kHz ensure signal processing power on a par with the best
rack-mount devices. The dynamic, wide-range bass signal retains its full impact, and the result is clear,
powerful sound that remains a distinct presence also when playing in a band ensemble.
■ 13 different bass amp and stomp box modeling choices
■ Looping function records phrases of up to 5.4 seconds
With its looping feature, the B9.1ut lets you record a bass line
and create additional layers over the loop.
Sophisticated bass amp modeling allows you to adjust parameters
such as speaker cabinet characteristics and low-range response in
three levels. Get the dynamic, high-impact bass sound of a large
cabinet even with flat-response systems such as headphones or
studio monitors.
■ DI Functionality with Stereo XLR Connectors
■ 6 band linear EQ or 2 band parametric EQ
The B9.1ut has a built-in set of stereo XLR outputs that lets you
establish a balanced signal path for clean sound. Go directly to a
mixing console or PA system without additional gear.
■ USB audio interface
To utilize the sounds of the B9.1ut in a computer-based recording
environment, simply connect the unit via USB to your computer.
The B9.1ut comes bundled with Steinberg "Cubase LE 4" so you
can start creating music right away.
■
■
■
■
■
■
■
■
■
World's fastest patch change: 7ms
Built-in auto-chromatic tuner also supports multi-string bass
Zoom Noise Reduction (ZNR) Onboard
Low noise: 120dB S/N ratio and -100dB noise floor
Sturdy metal chassis and tough enclosure
MIDI Interface Onboard
Editor/librarian software to edit and store patch data
AUX IN jacks accommodate external sources
External send/return loop connectors
*Model names mentioned in this table are trademarks or registered trademarks of their respective owners.
The names are used only to illustrate sonic characteristics and do not indicate any affiliation with the Zoom Corporation.
Center frequency allocation and filter slopes of the built-in
six-band EQ are optimized for bass guitar. Further flexibility is
offered by the possibility to switch to a two-band parametric EQ.
■ 47 high-quality Bass effects
A limiter/compressor lets you control peaks and ensure that levels
are matched. The auto wah and resonance filter are indispensable
for playing that funky sound. The octaver creates a wave of energy
in the ultra-low range. The defret effect gives you the sweet tone
and smooth transients of a fretless bass. The built-in full-fledged
bass synthesizer and creates deep, punchy bass synth lines.
■ Integrated drum machine with PCM sound sources
The 40 rhythm variations include the steady 8-beat of Rock and
Pop, funky 16-beat, a "Jazzy" 4-beat, and many more choices.
■ Optional foot switch allows versatile remote operation
Tap tempo input of settings such as delay time and modulation
rate is possible. Other selectable functions include bank switching
and delay hold on/off switching.
■ Two-way power allows use just about anywhere
The unit will run for more than 6 hours on a set of four AA / LR6
batteries. A separately available AC adaptor (AD-0006) can be
plugged in for extended studio work.
■ ZOOM original 32-bit DSP ZFX-3
■ 40 ready to use preset patches for stage and studio
■ 8 ms high-speed patch switching
■ Ultra low noise design with 120dB S/N ratio
BASS EFFECTS PEDAL B2.1u ONLY
■ Expression pedal adds further versatility to your play
Set the mode with vintage wah, play a pitch shift. Or go beyond
conventional pedal effects: adjust the mixing ratio of direct sound
and drive sound, or control the modulation rate.
■ XLR output allows direct connection to PA mixer
There is no need to use a DI box, even when you want to directly
hook the unit up to a mixing console or PA system.
■ USB port enables computer recording
The superb "Cubase LE 4" DAW software
comes bundled with the unit, so you can
start creating sophisticated music
straight away.
*Model names mentioned in this table are trademarks or registered trademarks of their respective owners.
The names are used only to illustrate sonic characteristics and do not indicate any affiliation with the Zoom Corporation.
2010 ZOOM PRODUCTS GUIDE
2010 ZOOM PRODUCTS GUIDE
16
With its full bass synthesizer onboard, the B9.1ut provides
modern, fully editable synth sounds. Its mono synthesizer offers
a choice of three waveform settings: sawtooth, square and PWM.
The 4-voice synthesizer creates rich and deep harmonic voicings.
21 AMP / STOMP BOX MODELS*
AMPEG SVT, Marshall 1992 Super Bass,
SWR SM-900, AMPEG B-15, Acoustic 360,
Aguilar DB750, Hartke HA3500,
POLYTONE Mini Brute III, Gallien Krueger
800RB, Fender Bassman 100, Trace Elliot
AH-500, WALTER WOODS M300, Tube
Preamp, SANSAMP BASS DRIVER DI,
Ibanez TS9 Tube Screamer, BOSS ODB-3,
MXR BASS D.I.+, Dallas-Arbiter FUZZ
FACE, BOSS MT-2, Electro-Harmonix BIG
MUFF, Digital Fuzz
17
BASS EFFECTS PEDAL
B1 & B1X
RHYTHMTRAK
Coordinate B
RT-223
DRUM KITS
Rock ×5
R&B ×6
Voice Percussion ×5
Funk ×7
Zoom Classic ×6
Hip Hop ×4
Dance Groove ×5
Jazz ×5
Pop ×6
Hard Rock ×5
Fusion ×6
World ×10
B1
Take the sound quality of the B2, plus the convenience
of the 506II. Add optimized design to the mix. The
result is an amazingly affordable package with
knockout performance. The new B1 from Zoom.
13 AMP / STOMP BOX MODELS*
AMPEG, SUPER BASS, SWR, ACOUSTIC,
BASSMAN, HARTKE, TRACE ELLIOT,
TUBE PRE, SANSAMP, TS9, ODB-3,
MXR BASS DI, FUZZFACE
■ Clear and solid bass sound thanks to 96 kHz sampling
The sonic frequencies generated by an electric bass are about 40
to 600 Hz, but harmonics go all the way up to the ultrasonic
frequency range. The B1 / B1X offers ultra-high resolution signal
processing with 24 bit/96 kHz sampling, rivaling the best
rack-mount processors. The dynamic, wide-range bass signal
retains its full impact resulting in clear, powerful tone that retains
a distinct presence.
■ 13 different bass amp and stomp box modeling choices
Whether you want the massive sonic push of an all-tube amp or
the sound of a high-power wide-range modern amp, the choice is
yours. There are seven bass amp settings that range from Rock
and Pop to Fusion and Jazz. Plus, five unique distortion pedal
sounds as well as a tube preamp for adding warmth are also
available, letting you create exactly the bass sound that you want.
■ 46 dedicated bass effects
■ Drum machine with PCM sound sources
B1X
The 40 rhythm variations include the steady 8-beat of Rock and
Pop, funky 16-beat, a "Jazzy" 4-beat, some great shuffle for Blues
sessions, and many more choices.
■ Fits in the pocket of a gig bag
The compact size and light weight of the B1/B1X make it ideal for
those who want plenty of effects and great performance without
having to carry a lot of gear. The reinforced plastic body can
withstand the rigors of use on stage and on the road.
■ Optional foot switch allows remote operation (B1 only)
When you connect the optional foot switch (FS01), you can switch
patch banks or perform tap tempo input with your foot.
A limiter/compressor lets you control peaks and ensure that levels
are matched, while the three-band equalizer makes it easy to taylor
your sound further. Auto wah is indispensable for playing that funky
sound, and the octaver impressively enhances the low range. A
defret effect gives you the special tone of a fretless bass. Detune
produces a chorus effect with moderate amounts of modulation.
■ Expression pedal support adds further versatility
■ Bass synthesizer
The unit will run for 12 hours continuously on a set of four AA / LR6
batteries. The AC adaptor (AD-0006) can be plugged in for extended
studio work.
The built-in full-fledged bass synthesizer uses an internal DSP
sound source with triggered operation. Select one of three
waveform settings (sawtooth, square, PWM) and create deep,
punchy bass synth lines.
■ 40 presets give you the sound of the pros
Utilize settings for duplicating the tone of well-known amps and
stomp boxes, settings that are modeled on the signature sound of
famous guitarists, as well as completely original ZOOM effect
sound creations. And when creativity strikes, another 40 user
patches is also provided.
Connecting an optional expression pedal (FP02) lets you adjust
volume, wah, pitch shift the modulation rate or other delay and
reverb effect parameters in real time.
■ AC/DC allows use just about anywhere
■ Simple and friendly user interface
Editing an effect is as simple as choosing the target with the
selector knob and adjusting the parameter with the value knob. Let
your imagination roam free without being hampered by
cumbersome controls.
■ ZFX-3 -- the new-generation 32-bit DSP
■ Auto-chromatic tuner
■ Ultra low noise design with 110dB SNR and -98dBm noise floor
*Model names mentioned in this table are trademarks or registered trademarks of their respective owners.
The names are used only to illustrate sonic characteristics and do not indicate any affiliation with the Zoom Corporation.
The RT-223 is a drum & bass machine for any kind of rhythm play.
Small in size and light in weight, this low-profile unit will go with
you anywhere. You can get a session going with your very own
rhythm section in a flash, even on your desktop.
■ Seventy different kits from Rock Drum to Voice Percussion
A total of 70 drum kits are built-in, with acoustic drum sounds for
rock, R&B, funk, and jazz. Add an analog rhythm machine great for
Techno and Hip Hop. There are also five Human Voice "Beat Box"
Percussion kits that are currently all the rage in Hip Hop.
■ Create your own drum kits
■ Two types of effects to control EQ and Ambience
The overall EQ and tonal quality of a drum kit can be adjusted with the
COMP EQ effect. The REVERB effects can be used simultaneously. Up to
40 settings for each effect can be stored as patches.
■ Total control with a foot switch
A drum kit consists of 13 pads x 3 banks = 39 sounds. Sound
sources can be freely selected and assigned to the pads. Fine-tune
parameters such as pitch, level, and panning to create your own
original drum kits. The RT-223 lets you store up to 127
user-programmed kits.
Intro, pattern 1, fill-in, pattern 2, ... ending. Imagine controlling such a
sequence just with a foot switch. With a Zoom FS01 Foot Switch
(sold separately) you can rock out live, triggering patterns with your
foot. You can also use the switch to start or stop a pattern, perform
tap input to specify the tempo, trigger the bass drum sounds, switch
between hi-hat open/close, and much more.
■ Twelve built-in bass sound sources
■ Groove play mode lets you play patterns like a DJ
Choose from electric bass styles such as Pick, Finger, and Slap.
Or select Acoustic Bass, Synthesizer Bass, or one of the other bass
sources, 12 in total.
■ Touch Sensitive Pads for Creating Original Patterns
The built-in drum pads are touch-sensitive, so you can enter finely
nuanced dynamics when creating your own patterns. Up to 511
patterns can be stored, and 440 preset patterns are included,
representing various music styles.
■ Program Rhythm Tracks FAST
In addition to conventional step input, the RT-223 also supports
the innovative FAST (Formula Assisted Song Translator) method.
Using the drum pad as a numeric keypad, you can quickly build a
rhythm track using formula-style input.
Assigning patterns to pads allows you to trigger patterns simply by
tapping the pads. This is great for live performances and for DJ use.
■ MIDI IN connector and external line input
The MIDI IN connector allows synchronized play with an external
device. By receiving note messages, the RT-223 can serve as drum
sound source module in a MIDI-based system. The line input
accepts the signal from a CD player or other line-level source,
or from a guitar or bass via an effect. Seamlessly integrate the
RT-223 into any session.
■ Real-time song programming with remix feel
■ 2-way power circuit for batteries or AC adaptor
■ 8 hours continuous operation on four AA batteries
2010 ZOOM PRODUCTS GUIDE
2010 ZOOM PRODUCTS GUIDE
18
The Perfect Session Partner
19
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
