Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs

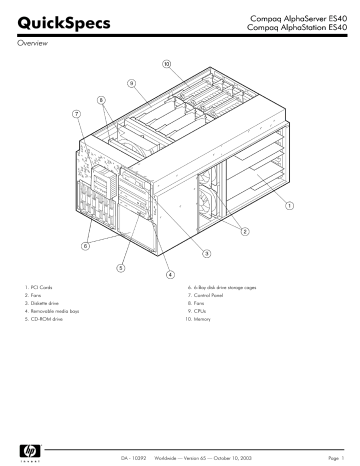

Overview
1. PCI Cards
6. 6-Bay disk drive storage cages
2. Fans
7. Control Panel
3. Diskette drive
8. Fans
4. Removable media bays
9. CPUs
5. CD-ROM drive
10. Memory
DA - 10392
Worldwide — Version 65 — October 10, 2003
Page 1
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Overview
At A Glance
AlphaServer/AlphaStation ES40 Systems include:
Alpha 21264 68/833-MHz CPU with 8-MB L2 Dual Data Rate Cache
6-10 64-bit PCI I/O expansion slots
512-MB, 1-GB, 2-GB, or 4-GB memory options (AlphaServers)
512-MB memory option (AlphaStations)
1.44-MB diskette drive
600-MB 48X IDE CD-ROM drive
Two 9-pin serial ports
One 25-pin parallel port
RMC dedicated serial port, 6-pin MMJ connector
Dual USB ports
Keyboard and mouse port
Knockouts for two 68-pin SCSI connections
Auto-sensing power supply
Integral remote system management console
Customer documentation
Tru64 UNIX or OpenVMS Factory Installed Software
90-day software warranty
Protected by HP Services, including three-year hardware warranty, on-site with 5 x 9 next business day response
DA - 10392
Worldwide — Version 65 — October 10, 2003
Page 2
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Standard Features
Processor
Alpha 21264 68/833-MHz CPU
Cache Memory
8-MB L2 Dual Data Rate Backup Cache (68/833-MHz CPU)
Upgradability
Supports additional processors and upgrades of memory and hard drives
Memory
Minimum
512 MB – AlphaServer ES40 Model 1
512 MB – AlphaStation ES40
1 GB – AlphaServer ES40 Model 2
Maximum
16 GB (16 DIMM slots) Model 1; 32 GB (32 DIMM slots) Model 2 (see Step 3)
Network Controller
Choice of Ethernet controllers
Expansion
PCI I/O slots
6 slots Model 1; 10 slots Model 2
Storage
Diskette Drive
1.44-MB diskette drive in dedicated slot
CD-ROM
600-MB 48X IDE CD-ROM
Hard Drives
Choice of 18.2-GB, 36.4-GB, 72.8-GB, or 146-GB drives
Parallel
1 25-pin parallel port
Serial
2 9-pin serial ports
USB
Dual USB ports
Keyboard
1 port
Mouse
1 port
Remote systems
management
1 dedicated remote systems management port
SCSI connections
Two 68-pin SCSI connections knockouts
Interfaces
Graphics
Optional
Form Factor
Tower, Pedestal, Rackmount (M-Series Cabinet)
Power Supply
Auto-sensing power supply, hot swappable, N+1 (see Step 4)
Manageability
Insight Manager
DA - 10392
Worldwide — Version 65 — October 10, 2003
Page 3
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Standard Features
OS Support
AlphaServer ES40 Tru64 UNIX systems include pre-installed software, Base license, Unlimited User license, Server Extension
license, Internet Express, and Secure Web Server
AlphaStation ES40 Tru64 UNIX systems include pre-installed software, 2-user Base license and Open3D traditional license
AlphaServer ES40 OpenVMS systems include pre-installed software, Base license with System Manager license and
Enterprise Integration Server License Package for OpenVMS V3.1
AlphaStation ES40 OpenVMS systems include pre-installed software, Base license, Concurrent Use 1-user license, NAS 150
Client license, MMS RT license, and Open3D traditional license
Minimum OS support - Tru64 UNIX V4.0F, OpenVMS V7.2-2, Linux RedHat V6.2, Linux SuSE V6.3 or greater
Service and Support
Protected by HP Services including a three-year on-site hardware warranty with next business day response. Software warranty
is a 90-day telephone advisory. Training, consulting, network integration, software support, comprehensive system
maintenance and guaranteed uptime services are also available for customers requiring higher levels of service and
support.
DA - 10392
Worldwide — Version 65 — October 10, 2003
Page 4
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Systems
Step 1 – Select system
AlphaServer ES40 systems require the mandatory selection of the following items:
Disk drive cage or StorageWorks shelf (Step 5)
System disk drive (Step 5)
System enclosures: Tower, Pedestal, or Rack Kit (Step 6)
Ethernet adapter (Step 8)
Storage adapter (Step 10)
Software media and documentation for first system onsite
NOTES: ES40 Model 1 to Model 2 Upgrade Kit available - see Step 16.
NOTES
Only 2-5-2 part numbers are factory integrated.
AlphaServer ES40 Systems
ES40
Model 1
Model 1
Model 1
OS
Tru64 UNIX
Tru64 UNIX
Tru64 UNIX
CPU
833 MHz
833 MHz
833 MHz
PCI I/O Slots
6
6
6
Memory/Cache
512 MB/8 MB
1 GB/8 MB
2 GB/8 MB
Order Number
DA-62CAA-CA
DA-62CAA-DA
DA-62CAA-EA
Model 2
Model 2
Model 2
Model 2
Tru64 UNIX
Tru64 UNIX
Tru64 UNIX
Tru64 UNIX
833 MHz
833 MHz
833 MHz
833 MHz
10
10
10
10
512 MB/8 MB
1 GB/8 MB
2 GB/8 MB
4 GB/8 MB
DA-64CAA-CA
DA-64CAA-DA
DA-64CAA-EA
DA-64CAA-FA
Model 1
Model 1
Model 1
OpenVMS
OpenVMS
OpenVMS
833 MHz
833 MHz
833 MHz
6
6
6
512 MB/8 MB
1 GB/8 MB
2 GB/8 MB
DY-62CAA-CA
DY-62CAA-DA
DY-62CAA-EA
Model 2
Model 2
Model 2
Model 2
OpenVMS
OpenVMS
OpenVMS
OpenVMS
833 MHz
833 MHz
833 MHz
833 MHz
10
10
10
10
512 MB/8 MB
1 GB/8 MB
2 GB/8 MB
4 GB/8 MB
DY-64CAA-CA
DY-64CAA-DA
DY-64CAA-EA
DY-64CAA-FA
Tru64 UNIX
OpenVMS
833 MHz
833 MHz
10
10
512 MB/8 MB
512 MB/8 MB
DA-64CAA-CW
DY-64CAA-CW
AlphaStation ES40 Systems
Model 2
Model 2
DA - 10392
Worldwide — Version 65 — October 10, 2003
Page 5
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Systems
Step 2 - Additional CPU Modules - Optional
One CPU included, three additional CPUs are supported
SMP upgrade, includes one 67/667-MHz CPU with 8-MB cache and Tru64 UNIX
SMP license
SMP upgrade, includes one 67/667-MHz CPU with 8-MB cache and OpenVMS
SMP license
SMP upgrade, includes one 68/833-MHz CPU with 8-MB cache and Tru64 UNIX
SMP license
SMP upgrade, includes one 68/833-MHz CPU with 8-MB cache and OpenVMS
SMP license
From:
EV67 667-MHz CPU
EV6 500-MHz CPU
KN610-BB
KN610-BC
KN610-CB
KN610-CC
To:
EV68 833-MHz CPU
Upgrade console firmware to V5.9-24 as minimum revision
Upgrade system hardware with EV68 CPUs
Ensure all system firmware matches console version V5.9-24
EV68 833-MHz CPU
Upgrade console firmware to V5.9-24 as minimum revision
Upgrade system hardware with EV68 CPUs
Re-install V5.9-24 console firmware
Ensure all system firmware matches console version V5.9-24
Step 3 - Memory - Optional
Systems include one memory option
Model 1 systems supports four memory options (total of 16 DIMMs)
Model 2 systems support eight memory options (total of 32 DIMMs - see Note below)
Memory performance considerations: Interleaved operations reduce the average latency and increase the memory throughput over non-interleaved
operations. With one memory option (4 DIMMs) installed, memory interleaving will not occur. With two identical memory options (8 DIMMs)
installed, memory read-write operations are two-way interleaved. With four identical memory options (16 DIMMs) installed, memory read-write
operations are four-way interleaved, maximizing memory throughput.
DA - 10392
Worldwide — Version 65 — October 10, 2003
Page 6
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Systems
512-MB memory option (4 x 128-MB DIMMs)
MS610-CA
1-GB memory option (4 x 256-MB DIMMs)
MS610-DA
2-GB memory option (4 x 512-MB DIMMs)
MS610-EA
4-GB memory option (4 x 1024-MB DIMMs)
MS610-FA
NOTE: ES40 configurations that require maximum N+1 power (three power supplies) are restricted to a
maximum of 24-GB of mixed memory (sixteen 1-GB DIMMs and sixteen 512-MB DIMMs). If N+1 maximum
power is not required, 32-GB of memory is supported.
NOTE:
NOTE
Linux configurations with large memory require the installation of a patch.
The patch to support greater than 2 GB of memory per system is located at:
http://www.kernel.org/pub/linux/kernel/people/andrea/patches/v2.2/2.2.17 (patch name: bigmem2.2.18pre2-18.bz2)
The following minimum operating system versions require the patch:
Linux RedHat V6.2
Linux SuSE V6.3 (Kernel V2.2.17)
The following operating system minimum versions support greater than 2 GB of memory:
Linux RedHat V7.0 (installs Kernel V2.2.17)
Linux SuSE V7.0 (installs Kernel V2.2.16)
When installing Linux SuSE V7.0 on a system with more than 2 GB of memory, user will be prompted for a
(ramdisk) floppy. To create a floppy:
Mount the SuSE V7.0 installation CD-ROM #1 on the system.
Mount a blank formatted floppy (if not formatted, execute the following command:
fdformat/dev/fd0H1440).
Change directory, to the "disks" directory on the install CD-ROM.
Execute the following command to create the floppy contents:
dd if=install of=/dev/fd0.
Use this floppy when prompted by the install procedure for a floppy.
DA - 10392
Worldwide — Version 65 — October 10, 2003
Page 7
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
Step 4 - Additional Power Supplies - Required for third and fourth CPUs and/or second Disk Drive Cage
One power supply supports two CPUs, up to 12 memory DIMMs, and one disk card cage; order second power supply if N+1 power is required.
Two power supplies support third and fourth CPU, 13 to 32 memory DIMMs (up to 24-GB of memory), and/or two disk card cages; order third power
supply if N+1 power is required for third and fourth CPUs, 24-GB of memory, and/or two disk card cages.
Three power supplies support 32 GB of memory without N+1 power.
Three power supplies support a maximum of 24 GB of memory with full N+1 power.
Each additional power supply ordered with a tower system requires an additional country-specific power cord.
Pedestal system and Rack kit include three internal power cords regardless of the number of power supplies ordered; Pedestal systems support 120 V
and 240 V power cords.
ES40 720W power supply
H7906-A9
Step 5 - Disk Drive Cage or StorageWorks Shelf - Mandatory
Tower enclosure supports one system and two disk drive cages
Pedestal enclosure supports one system and two disk drive cages, two Universal 42xx/43xx StorageWorks shelves or three BA36R StorageWorks shelves
M-Series cabinets support five systems each with two disk drive cages and up to six StorageWorks shelves
Step 5a - Disk Drive Cage - Requires selection of system disk drive
Disk Drive Cages
6-bay disk drive cage with cable for use with 1-inch Universal drives – requires mandatory selection of
UltraSCSI adapter and SCSI cable (Step 10) per disk drive cage
6-bay disk drive cage with embedded Ultra2 LVD adapter; supports internal SCSI
1-inch Universal drives or tapes only
OpenVMS V7.2-2 requires OpenVMS Tima Kit located at:
- http://ftp.support.compaq.com/patches/.new/openvms.shtml
Tru64 UNIX V4.0F requires Patch Kit 2 (BL13):
- DUV40FAS0002-19991116.tar
NOTE: See AlphaServer ES40 Configuration Chart for Storage Adapters in Step 10.
System Disk Drives
18.2-GB Ultra320 SCSI 15,000 rpm 1-inch Universal disk drive
(Supported in Disk Drive Cage 36.4-GB Ultra320 SCSI 10,000 rpm 1-inch Universal disk drive
and Universal StorageWorks
36.4-GB Ultra320 SCSI 15,000 rpm 1-inch Universal disk drive
Shelves)
72.8-GB Ultra320 SCSI 10,000 rpm 1-inch Universal disk drive
72.8-GB Ultra320 SCSI 15,000 rpm 1-inch Universal disk drive
146-GB Ultra320 SCSI 10,000 rpm 1-inch Universal disk drive
DA - 10392
Worldwide — Version 65 — October 10, 2003
BA610-6D
BA610-6E
3R-A3848-AA
3R-A3838-AA
3R-A3849-AA
3R-A3839-AA
3R-A3851-AA
3R-A3841-AA
Page 8
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
Step 5b - StorageWorks Model 4314R and Model 4354R Universal Drive Shelves
StorageWorks Model 4314R and 4354R Ultra2 SCSI (LVD) single-bus and split-bus Universal
drive shelves; refer to StorageWorks Enclosure 4300 Family QuickSpecs when configuring
shelves. When selecting a DS-SL13R-xx split-bus shelf, order two UltraSCSI adapters. Model
43xx shelves are compatible with Wide Ultra2 (LVD) adapters only.
BN38C-05 cable is required per channel if the connection is not VHDCI/VHDCI. DS-SL13R
shelves include one 12-foot VHDCI/VHDCI SCSI cable.
Note that the depth of a DS-SL13R-xx shelf does not allow front and rear mounting.
StorageWorks Model 4314R Ultra3 SCSI (LVD) single-bus Universal drive rackmount shelf, includes
one power supply, U.S. (190209-0011)
StorageWorks Model 4314R Ultra3 SCSI (LVD) single-bus Universal drive rackmount shelf, includes
one power supply, Japan (190209-291)
StorageWorks Model 4354R Ultra3 SCSI (LVD) split-bus Universal drive rackmount shelf, includes two
redundant power supplies, U.S. (190211-0011)
StorageWorks Model 4354R Ultra3 SCSI (LVD) split-bus Universal drive rackmount shelf, includes two
redundant power supplies, Japan (190211-291)
To add additional power supply for single-bus Universal shelf, U.S. (338296-B21)
To add additional power supply for single-bus Universal shelf, International
(338296-B22)
StorageWorks Model
4314T Standalone
Enclosure for Universal
Drives
DS-SL13R-AA
DS-SL13R-AJ
DS-SL13R-BA
DS-SL13R-BJ
DS-SE2UP-BA
DS-SE2UP-BI
Model 4314T Ultra3 SCSI, single-bus tower enclosure, U.S. (190210-001)
DS-SL13T-AA
Model 4314T Ultra3 SCSI, single-bus tower enclosure, International (190210-B31)
DS-SL13T-AB
Model 4314T Ultra3 SCSI, single-bus tower enclosure, Japan (190210-291)
DS-SL13T-AJ
Step 6 - System Enclosures - Mandatory selection of Tower, Pedestal, or Rack Kit
Step 6a - Tower Enclosure
Tower enclosure supports one system
Tower enclosure ordered in North America includes 120V power cord; country-specific power cord mandatory for all non-North American systems;
additional power cord mandatory for each power supply ordered with a system installed in a tower enclosure
Tower Enclosure
BA61M-MT
Step 6b - Pedestal Enclosure
Pedestal enclosure supports one system, two Universal 43xx StorageWorks shelves or three UltraSCSI BA36R StorageWorks shelves
Pedestal enclosures (BA61P-PA, 120V/BA61P-PB, 240V) support Universal shelves
120V pedestal enclosure includes two external 120V power cords; 240V pedestal enclosure requires two country-specific power cords
Pedestal enclosure includes two factory-configured power strips that provide five available outlets; if the number of BA356-RC/RD power supplies
requires a sixth outlet, this can be accommodated only if the system chassis is limited to two H7906-A9 power supplies
120V Pedestal Enclosure, includes two external power cords
BA61P-PA
240V Pedestal Enclosure, requires two country-specific power cords
BA61P-PB
DA - 10392
Worldwide — Version 65 — October 10, 2003
Page 9
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
Step 6c - Rack Kit for M-Series Cabinet
Rack Kit required for each AlphaServer ES40 system installed in a new or existing M-Series Cabinet
Rack Kit supports one system
Rack kit for AlphaServer ES40, includes dress bezel, slides, three internal power cords, all bracketry and
BA61R-RM
hardware for mounting in M-Series cabinets
NOTE: Factory integration of an ES40 system drawer in a 9000 rackmount cabinet using rack kit, 3X-BA61R-RC, is not supported. Contact Custom Systems
or Certified Integration Partner.
Step 7 - M-Series Cabinets
M-Series cabinet enclosures support up to four systems, up to six StorageWorks shelves, and/or two BA370 enclosures; M-Series Enclosures require selection of
the following items:
H9A10 or H9A15 cabinet, 120V or 240V
Rack kit for each system
H9A10 or H9A15 rear cabinet extender
Cabinet front door based on cabinet height
Factory integration
Ballast kit if only one system is ordered for the H9A15 cabinet
NOTE: For configurations beyond those listed in the following charts, contact CustomSystems.
Cabinet
Cabinet Configuration Chart for AlphaServer ES40 (8U) with StorageWorks Shelves (4U)
Rack Kit Cabinet Extender Cabinet Height/Space Systems BA356 Shelves DS-SL13R 120V Shelves(2)
H9A10-MC/MD(1) BA61R-RM
H9C10-TE
67-inches/34U
H9A15-MC/MD(4) BA61R-RM
BA61R-RM
79-inches/41U
1
2
3
4(1)
1
2
3
4
5(5)
6
6
2
0
6
6
6
2
0
8
5
2
0
8
5
2
0
0
BA356/
DS-SL13R(3)
BA356 DS-SL13R
6
4
6
1
4
0
0
0
6
5
6
2
6
0
2
0
0
0
NOTES:
NOTES
1. Contact CustomSystems for cabinet configurations with four AlphaServer ES40 systems installed in H9C10-MC/MD cabinet.
2. Japan only – 240V cabinet required when using Universal shelves
3. When using a combination of BA356 and DS-SL13R shelves in the same cabinet, do not remove the top fan (only remove fan when using DS-SL13R
shelves exclusively)
4. Installation of one AlphaServer ES40 system in an H9A15 cabinet requires the mandatory selection of a ballast kit.
5. When adding the 5th system drawer, replace H7600-AA or -DB power controller with H7602-EA or -DB power controller. When replacing H7600
controllers, replace all associated power cords; order BN35S-4E power cords for H7602-EA and H7602–DB power controllers.
DA - 10392
Worldwide — Version 65 — October 10, 2003
Page 10
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
M-Series Cabinets
Rear Cabinet Extender
Cabinet Front Door
Factory Integration
Ballast Kit
Required selection of one cabinet
Two H7600-xx power distribution units are standard in the M-Series cabinet
For cabinet configurations that require a third power distribution unit (H7600-xx), contact
CustomSystems at 1-800-282-6672.
67-inch cabinet with 59.5-inch or 34U of usable vertical space, 120V dual-24A controller, each with
10 NEMA 5-15R outlets, input power plug NEMA L5-30P, Americas, Asia Pacific; includes rear door
and top fan tray
67-inch cabinet with 59.5-inch or 34U of usable vertical space, 240V dual-16A controller, each with
12 IEC C13 outlets, input power plug IEC 309, 16A, Europe; includes rear door and top fan tray
79-inch cabinet with 71.7-inch or 41U of usable vertical space, 120V dual-24A controller, each with
10 NEMA 5-15R outlets, input power plug NEMA L5-30P, Americas, Asia Pacific; includes rear door
and top fan tray
79-inch cabinet with 71.7-inch or 41U of usable vertical space, 240V dual-16A controller, each with
12 IEC C13 outlets, input power plug IEC 309, 16A, Europe; includes rear door and top fan tray
H9A10-MC
H9A10-MD
H9A15-MC
H9A15-MD
Required selection of one cabinet extender for each H9A10 or H9A15 cabinet
Rear cabinet extender, top gun blue, for H9A10-MC/MD cabinets
Rear cabinet extender, top gun blue, for H9A15-MC/MD cabinets
H9C10-TE
H9C15-TE
Required selection of door based on cabinet height
Front door, top gun blue, for H9A10-MC/MD cabinet enclosure
Front door, top gun blue, for H9A15-MC/MD cabinet enclosure
H9C10-TF
H9C15-TF
Required
Factory Integration of systems and storage devices assembled and configured in cabinet enclosure in
predefined locations
Required only if one system is ordered for the H9A15 cabinet
Ballast is added to a cabinet at particular locations for specific configurations to meet safety
regulations for installation, operation, and service; see Cabinet Configuration Charts.
Two 35 to 40 lb steel plates
DA - 10392
Worldwide — Version 65 — October 10, 2003
YS-ASCAA-AA
H9C10-MC
Page 11
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
Step 8 - Networking Adapters/Controllers
Step 8a - Networking Adapters/Controllers - Mandatory
Select mandatory Ethernet adapter
Adapters require a minimum of Tru64 UNIX V4.0F or OpenVMS V7.2-2
Each adapter uses one PCI slot
NOTE: Ethernet adapter is not required if 3X-DEPVZ-AA or KZPCM is selected as SCSI adapter for StorageWorks shelf.
DA - 10392
Worldwide — Version 65 — October 10, 2003
Page 12
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
Ethernet 10/100/1000
Multi-function Module
10/100
Maximum #
Supported
Tru64 Open Linux
UNIX VMS
4
4
-
PCI (32-/64-bit, 33-/66-MHz) dual-port 10/100 Ethernet (UTP/RJ45s) NIC
and Base Module. (One 3X-DE602-TA or 3X-DE602-FA optional add-on
daughter card can be combined with this module.)
Use BN25G, BN26M, BN24Q, or BN28Q twisted pair RJ45 cables.
PCI single-port 1000 Mbps (MMF with duplex-SC) Gigabit Ethernet; Tru64
4 per
UNIX V5.1B/TruCluster V5.1B supports up to eight nodes and requires: bus
T64V51BB22AS0002-20030415.tar
Requires Early Release Patch to update driver to V1.0.21:
T64V51BB22-C0019200-19212-E-20030710.tar
http://ftp1.support.compaq.com/public/unix/v5.1b/t64v51bb1-000300016672-e-20030130.README
Tru64 UNIX V5.1A/TruCluster V5.1A supports up to eight nodes and requires
Early Release Patch: - T64V51AB21-C0127901-19213-E-20030710.tar
OpenVMS V7.301 support as a standalone network interface and as a
cluster interconnect requires that users download and install the following
two ECO Kits:
DEC-AXPVMS-VMS731_PCSI_V0100-4.PCSI
DEC-AXPVMS-VMS731_LAN_V0600-4.PCSI
NOTE: Use BN34A, BN34B, or equivalent cables with SC connectors.
PCI single-port 10/100/1000 Mbps (Twisted-Pair Copper with RJ45)
4 per
Gigabit Ethernet; Tru64 UNIX V5.1B/TruCluster V5.1B supports up to eight
bus
nodes and requires: - T64V51BB22AS0002-20030415.tar
Requires Early Release Patch to update driver to V1.0.21:
T64V51BB22-C0019200-19212-E-20030710.tar
http://ftp1.support.compaq.com/public/unix/v5.1b/t64v51bb1-000300016672-e-20030130.README
Tru64 UNIX V5.1A/TruCluster V5.1A supports up to eight nodes and requires
Early Release Patch: - T64V51AB21-C0127901-19213-E-20030710.tar
OpenVMS V7.301 support as a standalone network interface and as a
cluster interconnect requires that users download and install the following
two ECO Kits:
DEC-AXPVMS-VMS731_PCSI_V0100-4.PCSI
DEC-AXPVMS-VMS731_LAN_V0600-4.PCSI
NOTE: Use BN34A, BN34B, or equivalent cables with SC connectors
PCI (32-bit, 33-MHz) multi-function (single-port 10/100 Ethernet
UTP/RJ45, Ultra2 LVD SCSI, and 2D graphics) adapter
NOTE: No support for multi-head graphics.
OpenVMS V7.2-2 requires OpenVMS Tima Kit located at:
- http://ftp.support.compaq.com/patches/.new/openvms.shtml
Tru64 UNIX V5.1 requires Patch Kit 3: - T64V51AS0003-20010413.tar
Tru64 UNIX V4.0F with NHD2 TruCluster V5.1 support restricted to non-shared buses
Use BN25G, BN26M, BN24Q, or BN28Q twisted pair RJ45 cables.
3X-DEPVZ-AA specific-use 3-meter LVD2 SCSI cable
DA - 10392
Worldwide — Version 65 — October 10, 2003
1
3X-DE602-BB
4 per
bus
-
3X-DEGXA-SA
4 per
bus
-
3X-DEGXA-TA
1
Requires
Slot 0
-
3X-DEPVZ-AA
BN37A-03
Page 13
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
Step 8b – Networking Adapters/Controllers - Optional
Ethernet 10/100
FDDI
ATM
PCI (32-/64-bit, 33-/66-MHz) single-port 1000 Mbps (MMF/SC) NIC; no
on-board Boot-ROM support.
Use BN34A or BN34B cables.
PCI (32-/64-bit, 33-/66-MHz) single-port 10/100/1000 (UTP/RJ45) Gigabit
NIC, copper; no on-board Boot-ROM support.
NOTE: Requires minimum version of Tru64 UNIX V5.0A, Patch kit 2: T64V50AAS0002-20001004.tar
Requires minimum version of OpenVMS V7.2-2; OpenVMS V7.3 requires
Patch kit:- DEC-AXPVMS-VMS73_LAN-V0100-4.PCSI
Use BN25G, BN26M, BN24Q, or BN28Q twisted pair RJ45 cables.
Dual-port 10/100 Ethernet (UTP/RJ45) add-on daughter card for use with
the 3X-DE602-BB only. The combined 3X-DE602-BB and 3X-DE602-TA
modules provide four 10/100 (UTP/RJ45s) ports in a single PCI slot option;
allows for a maximum of 16 ports per system.
NOTE: The 3X-DE602-TA cannot be used as standalone.
OpenVMS V7.3 requires Tima Kit:
- DEC-AXPVMS-VMS73_LAN-V0100—4.PCSI
OpenVMS V7.2-2H1 requires OpenVMS Tima Kit located at:
http://ftp.support.compaq.com/patches/.new/openvms.shtml
Use BN25G, BN26M, BN24Q, or BN28Q twisted pair RJ45 cables.
Maximum #
Supported
Tru64 Open Linux
UNIX VMS
4
4
-
DEGPA-SA
4
4
4
DEGPA-TA
4
4
-
3X-DE602-TA
Single-port 100Mbps (MMF/duplex-SC) add-on daughter card for use with
4 per
1 per
3X-DE602-BB. The combined 3X-DE602-BB 3X-DE602-FA provides two
system adapter
10/100 (UTP/RJ45s) and one 100Mbps (MMF/SC) ports in a single PCI slot 1 per
option.
adapter
NOTE: The 3X-DE602-TA cannot be used standalone.
Use BN34A or BN34B cables.
PCI (32-bit, 33-MHz) to FDDI SAS (MMF/duplex-SC) NIC.
4
4
Use BN34A, BN34B, or BN34D cables.
PCI (32-bit, 33-MHz) to FDDI DAS (MMF/duplex-SC) NIC.
4
4
Use BN34A, BN34B, or BN34D cables.
PCI (32-bit, 33-MHz) to FDDI DAS (UTP/RJ45s) NIC.
4
4
Use BN25G, BN26M, BN24Q, or BN28Q twisted pair RJ45 cables.
PCI (32-bit, 33-MHz) to FDDI SAS (UTP/RJ45) NIC.
4
4
Use BN25G, BN26M, BN24Q, or BN28Q twisted pair RJ45 cables.
FDDI - specific cable - Multimode fiber optic (MMF) 62.5/125um duplex
cable with SC-to-MIC connectors.
-xx = available lengths: (01, 03, 10) for 1, 3, 10 meters
-
3X-DE602-FA
-
3X-DEFPA-AC
-
3X-DEFPA-DC
-
3X-DEFPA-MC
-
3X-DEFPA-UC
PCI (32-bit, 33-MHz) to 155 Mbps ATM, copper NIC with RJ45 connector.
Use BN25G-xx, or BN26M-xx cables.
PCI (32-bit, 33-MHz) to 155 Mbps ATM fiber NIC with SC connector.
Use BN34B-xx cable.
DA - 10392
Worldwide — Version 65 — October 10, 2003
BN34D-xx
6
6
-
3X-DAPBA-UA
6
6
-
3X-DAPBA-FA
Page 14
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
Synchronous
Communications (SYNC)
Asynchronous
Communications (ASYNC)
PCI (32-bit, 33-MHz) to dual-port intelligent synchronous communications
NIC. Requires at least one (maximum two) 3X-BC34x synchronous cable
listed below.
PCI (32-bit, 33-MHz) to quad-port intelligent synchronous communications
NIC. Requires at least one (max four) 3X-BCN34x synchronous cable listed
below.
Synchronous-Specific Cables
EIA-530 single-port cable
V.24/EIA-232 single-port cable
V.11/x.21 single-port cable
V.35 single-port cable
4
4
-
3X-PBXDD-AA
4
4
-
3X-PBXDD-AB
PCI (32-bit, 33-MHz) to quad-port Async Communications NIC with DB-25
octopus cable
PCI (32-bit, 33-MHz) to 8-port Async Communications NIC with DB-25
octopus cables
PCI (32-bit, 33-MHz) to 16-port Async Communications Controller and
tabletop16-port distribution box with RJ45 connectors
PBXDA-AC Asynchronous Connector Adapters
RJ45 to DB-25 converter cable
RJ45 to DEC MJ11 converter cable (8 pack)
4
4
-
PBXDA-BA
4
4
-
PBXDA-BB
2
2
-
PBXDA-AC
3X-BC34G-06
3X-BC34L-06
3X-BC34S-06
3X-BC34T-06
CXI01-AC
CXI01-AF
Step 8c– Multi-use Cables
Maximum #
Supported
Tru64 Open Linux
UNIX VMS
Ethernet, FDDI, ATM
Multimode fiber optic (MMF) 62.5/125um duplex cable, with SC-to-ST
connectors.
-xx = available lengths: (2E, 4E, 01, 03, 10, 20, 30) for 2.4, 4.5, 1, 3, 10,
20, 30 meters
Multimode fiber optic (MMF) 62.5/125um duplex cable, with SC-to-SC
connectors.
-xx = available lengths: (2E, 4E, 01, 03, 10, 20, 30) for 2.4, 4.5, 1, 3, 10,
20,0 meters
Category 5e (4-Unshielded Twisted Pairs / UTP) straight-through cable with
RJ45-to-RJ45 connectors for system to switch, repeater, or hub connectivity.
-xx = available lengths: (0B, 0E, 01, 03, 04, 07) for 0.2, 0.5, 1, 3, 4, 7
meters
Category 5e (4-Twisted Pairs, Screened/ ScTP) straight-through cable with
RJ45-to-RJ45 connectors for system to switch, repeater, or hub connectivity.
-xx = available lengths: (0E, 01, 03, 04, 07) for 0.5, 1, 3, 4, 7 meters
Category 5e (4-Unshielded Twisted Pairs / UTP) Xover cable with RJ45-toRJ45 connectors for system to switch, repeater, or hub connectivity.
-xx = available lengths: (0E, 01, 03, 04, 07) for 0.5, 1, 3, 4, 7 meters
Category 5e (4-Twisted Pairs, Screened / ScTP) Xover cable with RJ45-toRJ45 connectors for system to switch, repeater, or hub connectivity.
-xx = available lengths: (0E, 01, 03, 04, 07) for 0.5, 1, 3, 4, 7 meters
DA - 10392
Worldwide — Version 65 — October 10, 2003
BN34A-xx
BN34B-xx
BN25G-xx
BN26M-xx
BN24Q-xx
BN28Q-xx
Page 15
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
Step 9 - MEMORY CHANNEL - Optional
NOTE: When using MEMORY CHANNEL, refer to the TruCluster QuickSpecs for configuration guidelines and restrictions:
http://www.compaq.com/products/quickspecs/Division/10657.html
The MEMORY CHANNEL controller, CCMAB-AA, must be revision C1 or later.
Tru64 UNIX Systems
(V5.0A and later)
Each system node in the cluster requires a TruCluster software license (QL-6BRAE-AA)
Tru64 UNIX Systems (V4.0F)
Requires a minimum of Tru64 UNIX V4.0F with TruCluster V1.6 or later
Each system node in the cluster requires a TruCluster Production Server
(QB-3RLAE-AA) or TruCluster MEMORY CHANNEL software license (QB-4ZCAE-AA)
TruCluster MEMORY CHANNEL license (QB-4ZCAG-AA), normally used for high performance technical
computing applications, not required if systems include a TruCluster Production Server license (QB3RLAE-AA)
OpenVMS Systems
OpenVMS V7.2-2 or later and OpenVMS Cluster license (QL-MUZAE-AA) are required
Configuring Information
Up to two PCI-to-System Area Network adapters (CCMAB-AA) are supported in a single system.
Two-node clusters can be configured by ordering a CCMAB-AA for each node and one BN39B-04 or
BN39B-10 cable; cable connects directly to CCMAB-AA in each node
For a two-node cluster that will not be rebooted when adding additional members, order one CCMABAA adapter and one BN39B-04 or BN39B-10 cable for each node and one CCMHB-AA hub for the
cluster
Two-node clusters can also be configured by ordering two CCMAB-AA adapters for each node and two
BN39B-04 or BN39B-10 cables; cables connect directly to CCMAB-AA in each node.
For three or four node clusters, order one CCMAB-AA adapter and one BN39B-04 or BN39B-10 cable for
each node, and one CCMHB-AA hub for the cluster If two CCMAB-AAs are configured in each system, a
second CCMHB-AA is required.
CCMHB-AA includes four CCMLB-AA line cards and supports up to four nodes; expansion up to eight
system nodes can be achieved by adding up to four CCMLB-AA line cards.
If nodes must be separated by a distance longer than standard copper cables allow the CCMFB option
converts the output of the standard CCMAB controller or CCMLB line card to single-mode fiber optic
cable. The fiber optic connection may be up to 2,000 meters long between two CCMAB controllers
connected in virtual hub mode, or 3,000 meters between a CCMAB controller and a CCMHB hub. (The
connection from the CCMHB hub to a second system may also be 3,000 meters.) The CCMFB option
requires a second PCI slot in the system from which it draws power only. It is normally connected to the
corresponding CCMAB controller with the short BN39B-01 cable. The CCMFB is also used in the
CCMHB hub where it occupies a slot normally used by the CCMLB line card, limiting expansion to four
radial fiber optic connections.
CCMHB-BA hub expansion box provides additional slots for up to eight fiber optic connections. Two
standard length single-mode fiber optic cables are available (BN34R-10 and BN34R-31); however, users
normally provide this fiber optic connection. Fiber optic connectivity is completely transparent to the
systems using it and has no performance impact.
DA - 10392
Worldwide — Version 65 — October 10, 2003
Page 16
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
MEMORY CHANNEL
Controller/System Area
Network Hub
MEMORY CHANNEL
Power Cords
PCI-to-System Area Network Controller, maximum two
System Area Network Hub with four line cards; includes BN19P-2E power cord for Canada, Japan,
and U.S. - for other regions, order appropriate power cord from the following list:
Hub expansion box with no line cards
Expansion line card for CCMHB hub
1-meter cable for CCMAB and CCMHB
4-meter cable for CCMAB and CCMHB
10-meter cable for CCMAB and CCMHB
Copper-to-single mode fiber optic converter
Rackmount kit (3U) for CCMHB (MEMORY CHANNEL Hub II); required for mounting in
H9A1x cabinets.
Power cord for rackmount CCMHB hub
Australia, New Zealand (103541-011)
Central Europe
Denmark (103541-481)
Egypt, India (103541-AR1)
Ireland, United Kingdom
Israel
Italy (103541-461)
Japan, 2.5-meter, Dentori approved
Switzerland (103541-511)
DA - 10392
Worldwide — Version 65 — October 10, 2003
CCMAB-AA
CCMHB-AA
CCMHB-BA
CCMLB-AA
BN39B-01
BN39B-04
BN39B-10
CCMFB-AA
3X-BA61R-MC
BN35S-02
BN19H-2E
BN19C-2E
BN19K-2E
BN19S-2E
BN19A-2E
BN18L-2E
BN19M-2E
3X-BN46F-02
BN19E-2E
Page 17
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
Step 10 - Storage Adapters/Controllers
NOTE: Refer to the following chart when configuring adapters, shelves, and disks.
AlphaServer ES40 Configuration Chart for Storage Adapters
Shelf
Storage Adapters
Disk Drives
3X-KZPCA-AA
BA610-6D
3R-A0xxx-AA 1-inch Universal
DS-SSL14-Rx
3R-A1xxx-AA 1-inch Universal
DS-SL13R-xx
3R-A3xxx-AA 1-inch Universal
3X-KZPEA-DB
BA610-6D
3R-A0xxx-AA 1-inch Universal
DS-SSL14-Rx
3R-A1xxx-AA 1-inch Universal
3R-A3xxx-AA 1-inch Universal
DS-KGPSA-EA
See external storage
3R-A0xxx-AA 1-inch Universal
options
3R-A1xxx-AA 1-inch Universal
3R-A3xxx-AA 1-inch Universal
DS-KGPSA-DA
See external storage
3R-A0xxx-AA 1-inch Universal
options
3R-A1xxx-AA 1-inch Universal
3R-A3xxx-AA 1-inch Universal
3X-DEPVZ-AA
DS-SL13R-xx
3R-A1xxx-AA 1-inch Universal
KZPCM-DA
BA36R-xx
(Installed base only)
Tru64 UNIX
V4.0F or higher
OpenVMS
V7.2-2 or higher
V5.1A only
V7.2-2 or higher
Linux
RedHat V6.2
SuSE V6.3
(Requires BA610)
-
V5.1A
V7.3-1
-
V5.1
V7.2-2 or higher
-
V4.0F with NHD2 or
higher
V4.0F or higher
V7.2-2 or higher
-
DS-RZ1ED-VW
V7.2-2 or higher
DS-RZ1FC-VW
(Installed base only)
3X-KZPBA-CC
BA36R-xx
DS-RZ1ED-VW
V4.0F or higher
V7.2-2 or higher
RedHat V6.2
(Installed base only)
DS-RZ1FC-VW
SuSE V6.3
(Installed base only)
DS-SWLA4-PD
BA36R-xx
DS-RZ1ED-VW
RedHat V6.2
(Installed base only)
DS-RZ1FC-VW
SuSE V6.3
(Installed base only)
NOTE: Ethernet adapter is not required if 3X-DEPVZ-AA or KZPCM-DA is selected as SCSI adapter for StorageWorks shelf.
External RAID Controllers
Controllers
Shelf
Disk Drives
Tru64 UNIX
OpenVMS
Linux
3X-KZPDC-BE/DF
DS-SL13R-xx
3R-A0xxx-AA 1-inch Universal
V5.1B/V5.1A
V7.3-1
3R-A1xxx-AA 1-inch Universal
EV68 only
3R-A3xxx-AA 1-inch Universal
DS-KZPCC-AC/CE
BA36R-xx*
DS-RZ1ED-VW
V4.0F or higher
Not supported
(Installed base only)
DS-RZ1FC-VW
(Installed base only)
KZPAC-AA/CA/CB
BA36R-xx*
DS-RZ1DD-VW
V4.0F or higher
V7.2-2 or higher
(Installed base only)
(Installed base only)
DS-SWLA4-PD
BA36R-xx*
DS-RZ1ED-VW
RedHat V6.2
(Installed base only)
DS-RZ1FC-VW
SuSE V6.3
(Installed base only)
NOTE: * = BA36R-xx shelves require DOC2 I/O module, DS-BA35X-FC; order DS-BA35X-FC as an independent option (will not be factory installed).
Internal RAID Controllers
Controllers
Shelf
Disk Drives
Tru64 UNIX
OpenVMS
3X-KZPDC-BE/DF
BA610-6D
3R-A0xxx-AA 1-inch Universal
V5.1B/V5.1A
V7.3-1
3R-A1xxx-AA 1-inch Universal
EV68 only
3R-A3xxx-AA 1-inch Universal
DS-KZPCC-AC/CE
BA610-6D (3)
3R-A0xxx-AA 1-inch Universal
EV6 V4.0F
Not supported
(see NOTES)
3R-A1xxx-AA 1-inch Universal
EV67 V5.1 (2)
3R-A3xxx-AA 1-inch Universal
EV68 (1)
DA - 10392
Worldwide — Version 65 — October 10, 2003
Page 18
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
NOTES:
NOTES
1. DS-KZPCC-AC/CE RAID controllers can be used with Universal shelves and drives in ES40 Pedestal and Rackmount configurations. Configuration
rules are restricted to specific CPU speeds and OS versions:
- Tru64 UNIX V4.0F requires NHD3 and Patch Kit 4 (BL15) or later (for EV6, EV67, EV68 systems)
- Tru64 UNIX V5.1 requires Patch Kit 3 (BL17) and Early Release Patch C462.02 (for EV68 and specific EV67 systems)
2. EV67 systems (54-30362-01) on V5.1 must be at Revision C01 or Revision D01
- Patch Kit 3 (BL17) is located at: T64V5117-C0046202-11060-Manual-ER-20010615.tar
- Patch C462.02 is located at: http://ftp1.support.compaq.com/public/unix/v5.1/
3. DS-KZPCC-AC/CE RAID controllers support standalone and cluster configurations
- No support as boot device in cluster configurations
- TruCluster V5.1 (restricted to non-shared buses only)
Only BA610-6D cages (with Nile Cards Rev –0B) shipped after 1 October 2001 support internal RAID. Contact Customer Services to replace Nile
Cards shipped in BA610-6D disk card cages prior to 1 October 2001 where internal RAID is required.
SCSI
PCI 2-port PCI to Ultra3, 64-bit LVD SCSI adapter, uses one PCI slot;
includes internal 68-pin and external 68-pin VHDCI connectors; requires
3X-BC56J-xx cable to connect adapter to Universal shelf; supports internal
SDLT tape drives and external SDLT tape libraries; supports dual-bus (Model
4354R) and single-bus (Model 4314R) shelves; support restricted to EV68
833-MHz systems only and Tru64 UNIX V5.1A as a minimum. See Step 12
for graphics restrictions.
The 3X-KZPEA-DB adapter supports shared SCSI under Tru64 UNIX.
NOTE: Two-node maximum per shared bus; each shared bus requires 3XBN55A-01 Y-cable and 3X-H32CT-AA external LVD terminator; Tru64 UNIX
supports single and dual-bus disk shelves. Requires Tru64 UNIX V5.1A as
minimum revision with Patch
Kit 4:
- T64V51AB21AS0004-20030206.tar
Requires Tru64 UNIX V5.1B and Patch Kit:
- T64V51BB03AS0001-20021229.
OpenVMS V7.2-2 requires Tima kit:
- DEC-AXPVMS-V722_FIBRE_SCSI-V0100-4.PCSI
OpenVMS V7.3 requires Tima kit:
- DEC-AXPVMS-V73_FIBRE_SCSI-V0100-4.PCSI
OpenVMS supports dual-bus disk shelves only.
PCI 1-port Ultra2 (LVD) SCSI adapter, 32-bit, single-channel (uses one PCI
slot); includes internal 68-pin and external 68-pin HD connectors; order
BN38C-xx cable to connect adapter to Ultra3 shelf, or order VHDCI
converter (BN38E-0B) for use with included cable; HSZxx RAID controllers
not supported.
OpenVMS V7.2-2 requires OpenVMS Tima Kit located at:
http://ftp.support.compaq.com/patches/.new/openvms.shtml
Tru64 UNIX V4.0F requires Patch Kit2 BL13:
- DUV40FAS0002-19991116.tar
68-pin HD male-to-VHDCI male UltraSCSI cable;
-xx = 02, 03, 05, 10, 20 meters
PCI 1-port UltraSCSI differential adapter (uses one PCI slot); includes
external 68-pin HD connector, requires BN38C-xx cable (2 to 220 meters) to
connect adapter to differential UltraSCSI shelf or RAID controller
68-pin HD male-to-VHDCI male UltraSCSI cable;
-xx = 02, 03, 05, 10, 20 meters
DA - 10392
Maximum #
Supported
Tru64 Open Linux
UNIX VMS
4
-
Worldwide — Version 65 — October 10, 2003
6
6
6
3X-KZPEA-DB
3X-KZPCA-AA
BN38C-xx
5
5
5
3X-KZPBA-CC
BN38C-xx
Page 19
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
Fibre Channel
Multi-function
Module
PCI-X to 2-Gb Fibre Channel adapter, 64-bit/66-MHz, single-channel
6 per
(302784-B21)
system
OpenVMS V7.3-1 requires TIMA Kit: VMS73_1_SCSI_FIBRE_V0300
OpenVMS V7.3-1 clusters require TIMA Kit:
VMS73_1_CLUSTER_V0100
Tru64 UNIX V5.1A requires NHD 6 and
T64V51AB21AS0004-20030206.tar
Tru64 UNIX V5.1B requires Patch Kit 1:
T64V51BB03AS0001-20021229.tar
DS-KGPSA-EA does not support MSA 1000
PCI to 2-Gbit Fibre Channel adapter, 64-bit, single-channel (uses one PCI
See
slot) (261329-B21)
Note
NOTE: When used in standalone or TruCluster environment
(with Fibre Channel Switches, Step 11), a maximum of six adapters is
supported. Arbitrated loop is not supported.
Tru64 UNIX V5.1 requires Patch Kit:
- T64V51B18AS0004-20011114.tar
OpenVMS V7.2-2 requires Tima Kit:
- DEC-AXPVMS-VMS722_FIBRE_SCSI-V0100
OpenVMS V7.3 requires Tima Kit:
- DEC-AXPVMS-VMS73_FIBRE-SCSI-V0200
PCI to 1-Gbit Fibre Channel adapter, 64-bit, single-channel (uses one PCI
4
slot); direct attach supports a maximum of four adapters; TruCluster
supports a maximum of two adapters
See Fibre Channel cables – Step 11
PCI-to-Fibre Channel adapter, 64-bit single channel (uses one PCI slot);
includes cable to HSG80 controller; requires Linux RedHat V6.2 and Linux
SuSE V6.3; for details, refer to:
http://www.compaq.com/products/storageworks/
adapters/fchba-linux.html
PCI (32-bit, 33-MHz) multi-function (single-port 10/100 Ethernet
UTP/RJ45, Ultra2 LVD SCSI, and 2D graphics) adapter. See Step 8.
PCI 2-port UltraSCSI single-ended adapter and 10/100 Mb Ethernet combo
adapter (uses one PCI slot); includes internal 68-pin and 50-pin HD
connectors and two external 68-pin VHDCI SCSI connectors, requires
BN37A-xx cable to connect to single-ended UltraSCSI shelf
DA - 10392
Worldwide — Version 65 — October 10, 2003
6 per
system
-
DS-KGPSA-EA
See
Note
-
DS-KGPSA-DA
4
-
DS-KGPSA-CA
-
3
DS-SWLA4-PD
1
1
-
3X-DEPVZ-AA
4
4
-
KZPCM-DA
Page 20
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
RAID
RAID (Linux)
PCI 3-port PCI to Ultra2, 64-bit, LVD backplane RAID controller with 648
MB cache (uses one PCI slot); requires connection to DS-SSL14-Rx
(maximum seven disks supported per channel) or to DS-SL13R-xx (maximum
14 disks with single channel); requires graphics adapter to run console
utilities (SMOR).
PCI 1-port PCI to Ultra2, 64-bit, LVD backplane RAID controller with 168
MB cache (uses one PCI slot); requires connection to DS-SSL14-Rx
(maximum seven disks supported per channel) or to DS-SL13R-xx (maximum
14 disks with single channel); requires graphics adapter to run console
utilities (SMOR).
PCI 2-port PCI to Ultra3, 64-bit, 66 MHz, LVD backplane RAID controller 6 per
with 128-MB cache (uses one PCI slot); requires connection to DS-SL13R-xx system
shelves or BA610-6D card cage.
3 - PCI
NOTE: Tru64 UNIX requires V5.1B and TruCluster V5.1B
bus 0
(non-shared buses only) with Initial Patch Kit:
4 - PCI
T64V51BV1AS0001-20021229.tar
bus 1
Tru64 UNIX requires V5.1A with Initial Patch Kit:
T64V51AV21AS0004-20030206.tar
NOTE: Supports EV68 systems only; no host-based volume shadowing or
shared bus support under OpenVMS
PCI 4-port PCI to Ultra3, 64-bit, 66 MHz, LVD backplane RAID controller 6 per
with 256-MB cache (uses one PCI slot); requires connection to DS-SL13R-xx system
shelves or BA610-6D card cage.
3 - PCI
NOTE: Tru64 UNIX requires V5.1B and TruCluster V5.1B (non-shared
bus 0
buses only) with Initial Patch Kit:T64V51BV1AS0001-20021229.tar
4 - PCI
Tru64 UNIX requires V5.1A with Initial Patch Kit:
bus 1
T64V51AV21AS0004-20030206.tar
NOTE: Supports EV68 systems only; no host-based volume shadowing or
shared bus support under OpenVMS
PCI 1-port UltraSCSI RAID controller with 4-MB cache memory (uses one
4
PCI slot), includes RAID Array 230/Plus Subsystem software and
documentation kit; includes VHDCI female connector; tape drives not
supported; only 9.1-GB disk drives supported, requires BN37A-xx cable (0.3
to 20 meters) to connect to single-ended UltraSCSI shelf
PCI 3-port UltraSCSI RAID controller with 4-MB cache memory (uses one
4
PCI slot), includes RAID Array 230/Plus Subsystem Software and
documentation kit; tape drives not supported; only 9.1-GB disk drives
supported; SCSI cable required for each active port; requires BN37X-xx cable
(0.3 to 20 meters) to connect to single-ended UltraSCSI shelf, and BN31K0E for external third port connection
Same as KZPAC-CA with 8-MB cache memory
4
Cache battery backup for KZPAC controller
VHDCI male-to-VHDCI male UltraSCSI cable;
-xx = 02, 2E [2.5], 03, 05, 10, 20, 25 meters
NOTE: Manufacturing may substitute BN37A-02 cable for specific cabinet
configurations.
SCSI cable/bulkhead assembly kit, supports one third-port connection from
KZPAC-CA/CB, allows external connection of one third port
SCSI cable/bulkhead assembly kit, supports two third-port connections from
KZPAC-CA/CB, allows external connection of two third ports
PCI 1-port Ultra SCSI RAID controller with 4-MB cache; supports disk drives
only and external support only in BA356 StorageWorks shelves; requires
RedHat V6.2, SuSE V6.3
PCI 3-port Ultra SCSI RAID controller with 32-MB cache; supports disk
drives only and external support only in BA356 StorageWorks shelves;
requires RedHat V6.2, SuSE V6.3
PCI 3-port Ultra SCSI RAID controller with 64-MB cache; supports disk
drives only and external support only in BA356 StorageWorks shelves;
requires RedHat V6.2, SuSE V6.3
DA - 10392
Worldwide — Version 65 — October 10, 2003
8
-
DS-KZPCC-CE
8
-
DS-KZPCC-AC
6 per
system
3 - PCI
bus 0
4 - PCI
bus 1
-
3X-KZPDC-BE
6 per
system
3 - PCI
bus 0
4 - PCI
bus 1
-
3X-KZPDC-DF
4
-
KZPAC-AA
4
-
KZPAC-CA
4
-
KZPAC-CB
KZPSC-UB
BN37A-xx
BN31K-0E
KZPAC-SB
-
4
SN-KZPBC-AA
-
4
FR-PCTAR-IB
-
4
FR-PCTAR-IC
Page 21
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
CI
DSSI
HVD to LVD Converters
PCI CI adapter for OpenVMS systems only; requires two PCI slots and CI
cable for each adapter
CI cable
-
PCI DSSI controller for OpenVMS systems only; requires HSDxx controller to
connect directly to StorageWorks shelf; requires BC29S-xx cable
6-foot DSSI cable for connection to HSD10 installed in BA36R pedestal
shelf
9-foot DSSI cable for connection to HSD10 installed in BA36R cabinet shelf
-
2
-
CIPCA-BA
BNCIA-xx
4
-
KFPSA-AA
BC29S-06
BC29S-09
HVD (High Voltage Differential) adapters and LVD (Low Voltage Differential) devices are normally incompatible due to their
different signaling voltage levels. This incompatibility does not allow direct communication between the different
technologies. The HVD to LVD converter allows connectivity between legacy HVD Host Bus Adapters and today's LVD
devices. The converter provides:
Connectivity in direct attach or shared configurations of all currently available LVD devices, including disks, tapes,
libraries, and shelves (4314 or 4354) when used with the KZPBA-CB and 3X-KZPBA-CC HVD adapters. With the
retirement of StorageWorks 1 disks and HVD shelves (BA36R), converters are desirable where upgrades to LVD HBAs,
or upgrades to current operating system versions are not possible.
Shared and direct attach configurations are interconnected much the same as those previously configured with
homogeneous HVD solutions, except that the HVD output is now passed through the converter before proceeding to
the LVD device. Where required, Y cables (BN21W-0B), terminators (H879-AA), cables (BN38C-10, BN37A-20), one
or two HVD/LVD converters (one-port, two-port), Memory Channel adapters (CCMAB), one Memory Channel cable
(BN39B-10), are used in conjunction with the LVD device of choice.
HVD to LVD one-port converter
3X-DWZCV-BA
HVD to LVD two-port converter
3X-DWZCV-CA
Step 11 - Storage Devices - Optional
Step 11a - Tape Devices
Tape Drives
System includes embedded 1.44-MB diskette drive
System includes embedded 5.25-inch half-height 600-MB 16X IDE CD-ROM drive
Removable media slots provide support for up to two 5.25-inch half-height devices, or one 5.25-inch
full-height (remove slot separator) removable media device; select up to two AIT or DAT devices or one
DLT/SDLT tape device
For maximum performance, tape libraries must be configured with Fast Wide Differential (FWD)
controllers for tape backup
For more information on tape drives, see
http://www.compaq.com/products/StorageWorks/sitemap.html#tapedrives
NOTE: This Web site is available in English only.
DA - 10392
Worldwide — Version 65 — October 10, 2003
Page 22
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
AIT Tape Drives (Internal)
AIT Tabletop Tape Drives
The following AIT tape drives are supported with 3X-KZPCA-AA adapter.
AIT 5.25-inch half-height 35/70-GB 8-mm Wide UltraSCSI tape drive, top gun blue; requires SCSI
cable (3X-BN46M-01)
AIT 5.25-inch half-height 35/70-GB 8-mm LVD UltraSCSI tape drive, carbon black; requires SCSI
cable (3X-BN46M-01)
AIT 5.25-inch half-height 50/100-GB 8-mm Ultra2 (LVD) SCSI tape drive, top gun blue; requires SCSI
cable (3X-BN46M-01)
AIT 5.25-inch half-height 50/100-GB 8-mm Ultra2 (LVD) SCSI tape drive; carbon black; requires SCSI
cable (3X-BN46M-01) (157766-B22)
AIT 5.25-inch half-height 100/200-GB 8-mm Ultra3 SCSI tape drive; supported with 3X-KZPEA-DB,
3X-KZPCA-AA, or 3X-DEPVZ-AA LVD adapters, carbon black, requires SCSI cable (3X-BN46M-01)
1-meter Ultra2 68-pin LVD cable with two connectors, multimode terminator and two wide-to-narrow
adapters
AIT 35/70-GB 8-mm LVD tabletop tape drive, carbon black, North America
Same as above, International
Same as above, Japan
AIT 50/100-GB 8-mm SCSI tabletop tape drive with 120V North American
power cord
Same as above, International
Same as above, Japan
AIT 100/200-GB 8-mm Ultra3 SCSI tabletop tape drive; supported with 3X-KZPEA-DB, 3X-KZPCAAA, or 3X-DEPVZ-AA LVD adapters, North America, carbon black
Same as above, International
AIT Hot-plug Tape Drives The following AIT hot-plug tape drives use two Universal (BA610) slots:
AIT 35/70-GB hot-plug LVD Universal tape drive, uses two slots in BA610-6D or 43xxx shelves
AIT 50/100-GB hot-plug LVD Universal tape drive, uses two slots in BA610-6D or 43xxx shelves
AIT 100/200-GB hot-plug LVD Universal tape drive, uses two slots in BA610-6D or 43xxx shelves;
supported with 3X-KZPEA-DB, 3X-KZPCA-AA, or 3X-DEPVZ-AA LVD adapters
3X-SZ35X-LB
3R-A2392-AA
3X-SZ50X-LB
3R-A3753-AA
3R-A3623-AA
3X-BN46M-01
216885-001
216885-B31
216885-291
157767-002
157767-B32
157767-292
249160-001
249160-B31
3R-A2396-AA
3R-A2779-AA
3R-A3621-AA
AIT Autoloaders
AIT 35-GB tabletop autoloader, 8 cartridge, U.S.
Same as above, International
AIT 35-GB rackmount autoloader, 8 cartridge, U.S.
Same as above, International
AIT Rail kit for autoloader
292355-001
292355-B31
280349-001
280349-B31
284930-001
AIT Tape Libraries
SSL2020 AIT tabletop library with one AIT 50-GB drive and 20 slots, LVD
SSL2020 AIT tabletop library with two AIT 50-GB drive and 20 slots, LVD
SSL2020 AIT rackmount library with one AIT 50-GB drive and 20 slots, LVD (Universal shelves)
SSL2020 AIT rackmount library with two AIT 50-GB drives and 20 slots, LVD (Universal shelves)
175195-B21
175195-B22
175196-B21
175196-B22
DA - 10392
Worldwide — Version 65 — October 10, 2003
Page 23
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
DAT Tape Drives (Internal)
Select up to two DAT devices
The following DAT tape drives are supported with 3X-KZPCA-AA, and 3X-DEPVZ-AA adapters.
TLZ10 tape drives support 3X-KZPEA-DB adapters on Tru64 UNIX and OpenVMS (4 per bus).
DAT 12/24-GB 4-mm 5.25-inch half-height SCSI tape drive, top gun blue; requires SCSI cable (3XBN46M-01) (Linux-supported option)
DAT 20/40-GB 4-mm 5.25-inch half-height Ultra2 (LVD) SCSI tape drive, top gun blue; requires SCSI
cable (3X-BN46M-01)
DAT 20/40-GB 4-mm 5.25-inch half-height Ultra2 (LVD) SCSI tape drive, carbon black; requires SCSI
cable (3X-BN46M-01) (157769-B22)
DAT 40-GB LVD internal tape drive (Q1553A)
DAT 72-GB LVD internal tape drive (Q1525A)
1-meter Ultra2 68-pin LVD cable with two connectors, multimode terminator and two wide-to-narrow
adapters
DAT 12/24-GB 4-mm narrow SCSI tape drive in StorageWorks carrier
DAT Tabletop Tape Drives DAT 20/40-GB 4-mm Wide Ultra2 (LVD) tabletop SCSI tape drive with 120V North American power
cord, carbon black
Same as above, International
Same as above, Japan
DAT 40-GB LVD tabletop tape drive with North America power cord (Q1554A)
Same as above, International (Q1555A)
DAT 36/72-GB LVD tabletop SCSI tape drive with 120V North America power cord, carbon black
(Q1527A)
DAT 72-GB LVD tabletop tape drive with North America power cord (Q1525A)
Same as above, International
Same as above, International (Q1528A)
DAT Hot-plug Tape Drive DAT 20/40-GB DDS4 hot-plug LVD Universal tape drive, uses two slots in BA610-6D or 43xxx shelves
(Linux-supported option)
DAT 40-GB hot-plug LVD tape drive (Q1546A)
DAT 36/72-GB hot-plug LVD tape drive, carbon black; uses two slots in BA610-6D or 43xxx shelves
(Q1529A)
DAT 72-GB hot-plug LVD tape drive (Q1529A)
DAT Autoloaders
SDLT Tape Drives (Internal)
DAT 20/40-GB auto loader external; requires VHDCI BN38A-0B adapter and BN23G-xx SCSI cable,
North America
Same as above, International
Same as above, Japan
Select one SDLT tape device
The following SDLT tape drives are supported with 3X-KZPCA-AA and
3X-KZPEA-DB adapters.
SDLT 110/220-GB 3U/5U tape drive (Linux-supported option)
SDLT 160/320-GB 3U/5U tape drive, carbon black
DA - 10392
Worldwide — Version 65 — October 10, 2003
TLZ10-LB
3X-SD20X-LB
3R-A3752-AA
3R-A4752-AA
3R-A4544-AA
3X-BN46M-01
DS-TLZ10-VA
157770-002
157770-B32
157770-292
3R-A4753-AA
3R-A4754-AA
3R-A4545-AA
3R-A4545-AA
3R-A4546-AA
3R-A4546-AA
3R-A2780-AA
3R-A4745-AA
3R-A4547-AA
3R-A4547-AA
166505-001
166505-B31
166505-291
192106-B25
257319-B21
Page 24
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
SDLT Tabletop Tape Drives SDLT tabletop 110/220-GB external tape drive, carbon black - TruCluster support restricted to nonshared buses only - U.S.
Same as above – International
Same as above – Japan
SDLT tabletop 160/320-GB external tape drive, carbon black- U.S.
Same as above – International
Same as above – Japan
DA - 10392
Worldwide — Version 65 — October 10, 2003
192103-002
192103-B32
192103-292
257319-001
257319-B31
257319-291
Page 25
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
DLT/SDLT Tape Libraries
Rackmount kit for H9Axx M-Series cabinets – required for mounting MSL5000 series in M-Series cabinets
MSL5026DLX, DLT tabletop library with one 40/80-GB DLT tape drive, LVD
MSL5026DLX, DLT tabletop library with two 40/80-GB DLT tape drives, LVD
MSL5026DLX or MSL5026SL, DLT/SDLT rackmount library, 0 drives – requires rackmount kit (254795-001)
MSL5026DLX, DLT rackmount library with one 40/80-GB DLT tape drive, LVD – requires rackmount kit
(254795-001)
MSL5026DLX, DLT rackmount library with two 40/80-GB DLT tape drives, LVD – requires rackmount kit
(254795-001)
254795-001
231821-B21
231821-B22
231979-B21
231891-B21
MSL5026S2, SDLT2 tabletop library with one 160/320-GB SDLT tape drive, LVD
MSL5026S2, SDLT2 tabletop library with two 160/320-GB SDLT tape drives, LVD
MSL5026S2 SDLT rackmount library, 0 drives, LVD – requires rackmount kit (254795-001)
MSL5026S2, SDLT2 rackmount library with one 160/320-GB SDLT tape drive, LVD
MSL5026S2, SDLT2 rackmount library with two 160/320-GB SDLT tape drive, LVD
MSL5026S2, SDLT2 rackmount library with one 160/320-GB SDLT tape drive with Fibre Channel, LVD
MSL5026S2, SDLT2 rackmount library with two 160/320-GB SDLT tape drive with Fibre Channel, LVD
293473-B21
293473-B22
293472-B21
293472-B22
293472-B23
293472-B24
293472-B25
MSL5052SL SDLT tabletop library with two 110/220-GB drives, LVD
MSL5052SL SDLT rackmount library, 0 drives, LVD – requires rackmount kit (254795-001)
MSL5052SL SDLT rackmount library with two 110/220-GB drives, LVD – requires rackmount kit (254795001)
MSL5052SL SDLT 110/220-GB drive field upgrade, LVD
249490-B21
255102-B21
249491-B21
MSL5052S2, SDLT2 tabletop library with two 160/320-GB SDLT tape drives, LVD, graphite
MSL5052S2, SDLT2 rackmount library with two 160/320-GB SDLT tape drive, LVD
MSL5052S2, SDLT2 rackmount library with two 160/320-GB SDLT tape drive with Fibre Channel, LVD
293476-B21
293474-B21
293474-B24
MSL6000 with LTO Gen2 Tape Libraries
MSL6000 LTO Gen2 add-on drive
MSL6030 with 0 drives, LTO, LVDS, rackmount
MSL6030 with one drive, LTO2, LVDS, rackmount
MSL6030 with two drives, LTO2, LVDS, rackmount
MSL6030 with one drive, LTO2, Fibre, rackmount
MSL6030 with two drives, LTO2, Fibre, rackmount
MSL6030 with one drive, LTO2, LVDS, tabletop
MSL6030 with two drives, LTO2, LVDS, tabletop
MSL6060 with 0 drives, LTO, LVDS, rackmount
MSL6060 with two drives, LTO2, LVDS, rackmount
MSL6060 with two drives, LTO2, Fibre, rackmount
MSL6060 with two drives, LTO2, LVDS, tabletop
330729-B21
330731-B21
330731-B22
330731-B23
330731-B24
330731-B25
330788-B21
330788-B22
331196-B23
331196-B21
331196-B22
331195-B21
ESL9198SL SDLT tape library with four 110/220-GB SDLT tape drives, 198 slots
ESL9198SL SDLT tape library with eight 110/220-GB SDLT tape drives, 198 slots
234618-B21
234618-B22
ESL9322S2 SDLT2 tape library, two 160/320GB SDLT tape drives, 222 slots
ESL9322S2 SDLT2 tape library, eight 160/320GB SDLT tape drives, 222 slots
ESL9322S2 SDLT2 tape library, two 160/320GB SDLT tape drives, 322 slots
ESL9322S2 SDLT2 tape library, eight 160/320GB SDLT tape drives, 322 slots
ESL9326SL SDLT tape library with six 110/220-GB SDLT tape drives, LVD
ESL9326SL SDLT tape library with eight 110/220-GB SDLT tape drives, LVD
ESL9326SL SDLT tape library with 16 110/220-GB SDLT tape drives, LVD
293409-B22
293409-B28
293410-B22
293410-B28
234615-B21
234615-B22
234615-B26
ESL9595S2 SDLT2 tape library, two 160/320-GB SDLT tape drives, 400 slots
ESL9595S2 SDLT2 tape library, 16 160/320-GB SDLT tape drives, 400 slots
ESL9595S2 SDLT2 tape library, two 160/320-GB SDLT tape drives, 500 slots
293411-B22
293411-B28
293412-B22
DA - 10392
Worldwide — Version 65 — October 10, 2003
231891-B22
231823-B22
Page 26
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
ESL9595S2 SDLT2 tape library, 16 160/320-GB SDLT tape drives, 500 slots
ESL9595S2 SDLT2 tape library, two 160/320-GB SDLT tape drives, 595 slots
ESL9595S2 SDLT2 tape library, 16 160/320-GB SDLT tape drives, 595 slots
293412-B28
293413-B22
293413-B28
ESL9595SL SDLT tape library, 0 drives, 400 slots
ESL9595SL SDLT tape library, 2 drives, 400 slots
ESL9595SL SDLT tape library, 16 drives, 400 slots
ESL9595SL SDLT tape library, 0 drives, 500 slots
ESL9595SL SDLT tape library, 2 drives, 500 slots
ESL9595SL SDLT tape library, 16 drives, 500 slots
ESL9595SL SDLT tape library, 0 drives, 595 slots
ESL9595SL SDLT tape library, 2 drives, 595 slots
ESL9595SL SDLT tape library, 16 drives, 595 slots
274672-B21
274672-B22
274672-B28
281627-B21
281627-B22
281627-B28
281628-B21
281628-B22
281628-B28
ESL9000 with LTO Gen2 Tape Libraries
ESL9322 library with 0 drives
ESL9595 library with 0 drives
ESL9000 Ultrium 460 drive upgrade kit
ESL9000 SDLT 110 drive upgrade kit
ESL9322 222 to 322 slot upgrade kit
ESL9000 5-MB memory module
ESL9595 400 to 500 slot upgrade kit
ESL9595 500 to 595 slot upgrade kit
ESL9595 400 to 595 slot upgrade kit
330832-B21
330833-B21
330834-B21
330837-B21
330840-B21
330841-B21
330842-B21
330842-B22
330842-B23
3U Rackmount Tape Drive NOTE: The following options are supported with 3X-KZPCA-AA or 3X-KZPEA-DB LVD adapters.
Enclosure
3U LVD Rackmount Tape Drive Enclosure for use in H9Axx M-Series Cabinets, carbon black, 0 drives
Rackmount Kit for H9Axx M-Series Cabinets, carbon black – required for mounting 3U Rackmount
Tape Drive Enclosure in M-Series cabinet
NOTE: The 3U Rackmount Tape Enclosure supports up to four internal half-height removable
devices, or up to two full-height devices; select up to four AIT or DAT devices or two DLT/SDLT devices
with 3U Rackmount Tape Enclosure (274338-B21) or choose one of the preconfigured configurations
listed below.
AIT 35/70-GB 3U tape drive, carbon black
AIT 50/100-GB 3U tape drive, carbon black (157766-B22)
DAT 20/40-GB 3U tape drive, carbon black (157769-B22)
DLT8000 40/80-GB tape drive
SDLT 110/220-GB tape drive
SDLT 160/320-GB tape drive, carbon black
Preconfigured Configurations
AIT 50-GB 3U rackmount kit, carbon black
DLT 40/80-GB, 3U rackmount kit, carbon black
DLT 40/80-GB, dual-drive, 3U rackmount kit, carbon black
SDLT 110/220-GB, 3U rackmount kit, carbon black
SDLT 110/220-GB, dual-drive, 3U rackmount kit, carbon black
DA - 10392
Worldwide — Version 65 — October 10, 2003
274338-B21
3R-A3804-AA
216884-B21
3R-A3753-AA
3R-A3752-AA
146196-B22
192106-B25
257319-B21
274333-B21
274332-B21
274335-B21
274331-B21
274334-B21
Page 27
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
5U Rackmount Tape Drive 5U LVD Rackmount Tape Drive Enclosure for use in H9Axx M-Series Cabinets, 0 drives, carbon black
Enclosure
Rackmount Kit for H9Axx M-Series Cabinets, carbon black - required for mounting 5U Rackmount
Tape Drive Enclosure in M-Series Cabinet
NOTE: The 5U Rackmount Tape Enclosure supports four full-height removable devices; select up to
four DLT or SDLT devices with 5U Rackmount Tape Enclosure (274339-B21) or choose one of the
preconfigured configurations listed below.
DLT8000 40/80-GB tape drive
SDLT 110/220-GB tape drive
SDLT 160/320-GB tape drive, carbon black
Preconfigured configurations
SDLT 110/220-GB Tape Array III, 5U rackmount kit, carbon black
DLT 40/80-GB Tape Array III, 5U rackmount kit, carbon black
DLT Tape Array III Model 0 enclosure, U.S.
Same as above, International
Same as above, Japan
274339-B21
254795-001
146196-B22
192106-B25
257319-B21
274336-B21
274337-B21
168047-001
168047-B31
168047-291
Step 11b – Network Storage Routers
Network Storage Routers
NOTE:
e2400 and e1200 support LVD tape drives and tape libraries
e2400 supports ESL family tape drives and tape libraries
e1200 supports MSL family tape drives and tape libraries
NSR M2402 Two Fibre Channel x 4 HVD FC to SCSI Data Router, Tru64 UNIX and OpenVMS
(262654-B21)
NSR M2402 Two Fibre Channel x 4 LVD FC to SCSI Data Router, Tru64 UNIX and OpenVMS
(262653-B21)
NSR e1200-160 One Fibre Channel x 2 LVD FC to SCSI Data Router, Tru64 UNIX and OpenVMS,
graphite
NSR e2400 Two Fibre Channel x 4 LVD FC to SCSI Data Router with card cage, Tru64 UNIX and
OpenVMS, carbon black (262665-B21)
NSR e2400 Two Fibre Channel x 4 LVD FC to SCSI Data Router without card cage, Tru64 UNIX and
OpenVMS, carbon black (262664-B21)
NSR N1200 One Fibre Channel x 2 LVD FC to SCSI Data Router, Tru64 UNIX and OpenVMS supports
tape drives and tape libraries (280823-B21)
3R-A3741-AA
3R-A3740-AA
330728-B21
3R-A3935-AA
3R-A3745-AA
3R-A3747-AA
Step 11c – External Storage Solutions/Controllers
Enterprise Virtual
Array 5000
ES40 servers support HP Enterprise Virtual Array 5000 (EVA5000) StorageWorks products running
Tru64 UNIX and OpenVMS.
The EVA5000 is available in pre-defined configurations with controllers and/or expansion
configurations without controllers. The EVA5000 also offers a pre-defined configuration that is
optimized for High Performance Technical Computing (HPTC) environments. For ordering
information and configuration rules, refer to the EVA5000 QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11006_div/11006_div.html
Enterprise Virtual
Array 3000
ES40 servers support HP Enterprise Virtual Array 3000 (EVA3000) StorageWorks products running
Tru64 UNIX and OpenVMS. Available in one of four integrated "independent bundle" configurations,
the EVA3000 includes one pair of HSV100 controllers, two Fibre Channel drive enclosures and 8 to 16
Fibre Channel disk drives (bundle dependent). The EVA3000 is a full 2-Gb end-to-end Fibre Channel
Array solution, which operates in 1-Gb, 2-Gb, or mixed 1-Gb/2-Gb SAN fabrics. For ordering
information and configuration rules, refer to the EVA3000 QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11619_div/11619_div.html
DA - 10392
Worldwide — Version 65 — October 10, 2003
Page 28
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
Modular SAN Array (msa
1000)
StorageWorks Modular SAN Array is supported on Tru64 UNIX and two-node clusters (maximum); it is
supported with DS-KGPSA-CA, DS-KGPSA-DA, and DS-KGPSA-EA adapters; requires connection via
a switch - no direct connect; no support for FC arbitrated loop
Tru64 UNIX V5.1A requires Patch Kit 4:T64V51AB21AS0004-20030206.tar
Tru64 UNIX V5.1B requires Patch Kit 1:T64V51BB03AS0001-20021229.tar
OpenVMS V7.3-1 requires TIMA Kit: VMS731_MSA1000-V0100 OpenVMS V7.3 requires TIMA Kit:
VMS73_FIBRE_SCSI-V0500
OpenVMS V7.2-2 requires TIMA Kit: VMS722_FIBRE_SCSI-V0400
HP recommends OpenVMS customers run the default msa1000 cache settings at 50% read cache and
50% write cache; if a change to the default cache is required, msa1000 cache must be set to 50%
write cache or higher (lower than 50% write cache is not supported)
NOTE: DS-KGPSA-EA is not supported with OpenVMS
StorageWorks Disk Array
Family
NOTE: The StorageWorks Disk Array Family, specifically the XP128 and XP1024,
are supported on AlphaServer ES40 systems. For product and ordering information, refer to the following Web pages:
http://www.hp.com/products1/storage/products/disk_arrays/highend/xp1024/index.html
http://www.hp.com/products1/storage/products/disk_arrays/highend/xp128/index.html
The following part numbers have been assigned for reference purposes only:
3R-A4417-AA
A7876A
XP128 Disk Array Control Frame
3R-A4418-AA
A7906A
XP1024 Disk Array Control Frame
3R-A4328-AA
Step 11d – Fibre Channel Options
The following hubs, data routers, switches, and cables are used in Fibre Channel configurations using the DS-KGPSA-xx
adapter.
Fibre Channel Disk Drives 36-GB 10K rpm dual-port 2-Gb/sec FC-AL 1-inch (25.4 mm) drive (238590-B21)
72-GB 10K rpm dual-port 2-Gb/sec FC-AL 1-inch (25.4 mm) drive (238921-B21)
146-GB 10K rpm dual-port 2-Gb/sec FC-AL 1-inch (25.4 mm) drive (293556-B21)
36-GB 15K rpm dual-port 2-Gb/sec FC-AL 1-inch (25.4 mm) drive (236205-B21)
72-GB 15K rpm dual-port 2-Gb/sec FC-AL 1-inch (2.54 cm) drive (293568-B21)
72-GB 15K rpm dual-port 2-Gb/sec FC-AL 1-inch (25.4 mm) drive (293568-B21)
3R-A3239-AA
3R-A3260-AA
3R-A3975-AA
3R-A3210-AA
3R-A3971-AA
3R-A3971-AA
Fibre Channel Hubs
Fibre Channel 7-port Storage Hub, International (Tru64 UNIX only) (234453-B31)
Fibre Channel 7-port Storage Hub, Japan (Tru64 UNIX only) (234453-291)
DS-SWXHB-17
DS-SWXHB-J7
Fibre Channel Data
Routers
1 Fibre Channel x 2 HVD data router (163082-B21)
1 Fibre Channel x 2 LVD data router (163083-B21)
2 x 4 LVD Fiber Channel to SCSI Network Storage Router (262653-B21)
2 x 4 HVD Fiber Channel to SCSI Network Storage Router (262654-B21)
3R-A2673-AA
3R-A2774-AA
3R-A3740-AA
3R-A3741-AA
Fibre Channel Switches
Fibre Channel 2-Gb 8-port SAN switch (Base) (322120-B21)
Fibre Channel 2-Gb 8-port SAN switch (Power pack) (322121-B21)
Fibre Channel 2-Gb 16-port SAN switch (Base); requires Tru64 UNIX V5.1A Patch Kit:
T64V51AB01AS0001-20020116.tar (322118-B21)
Fibre Channel 2-Gb 16-port SAN switch (Power pack) (322119-B21)
Fibre Channel 2-Gb 32-port SAN switch (Base) (240603-B21)
Fibre Channel 2-Gb 32-port SAN switch (Power pack) (333764-B21)
Fibre Channel 2-Gb 64-port Core Switch (Base) (332177-B21)
Fibre Channel 2-Gb 64-port Core Switch (Power pack) (332178-B21)
DA - 10392
Worldwide — Version 65 — October 10, 2003
DS-DSGGD-BC
DS-DSGGD-CC
DS-DSGGD-CA
DS-DSGGD-CB
DS-DSGGD-AB
DS-DSGGD-DB
DS-DSGGE-BA
DS-DSGGE-CA
Page 29
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
McData 64-port Fibre
Channel SAN Director
Class Switches
SAN Director 64 (1 Gb) 32 ports, base model
SAN Director (2 Gb) 64 ports (286809-B21)
SAN Director 64 (2 Gb) 140 ports
SAN Edge Switch 2 Gb, 32 ports (286810-B21)
SAN Edge Switch 2 Gb, 16 ports (286811-B21)
SAN Edge Switch 2 Gb, 24 ports
NOTE: Connection for, or between, 1-Gb and/or 2-Gb SAN switches requires different cables. Refer
to the Switches, Hubs, and Interconnects QuickSpecs at:
http://www.compaq.com/products/quickspecs/North_America/10490.html
Fibre Channel Cables
NOTE: The following LC-SC connector cables support connectivity between 1-Gb and 2-Gb devices.
2-meter LC-SC multi-mode Fibre Channel cable (221691-B21)
5-meter LC-SC multi-mode Fibre Channel cable (221691-B22)
15-meter LC-SC multi-mode Fibre Channel cable (221691-B23)
30-meter LC-SC multi-mode Fibre Channel cable (221691-B26)
50-meter LC-SC multi-mode Fibre Channel cable (221691-B27)
NOTE: The following LC-LC connector cables support connectivity between 2-Gb and 2-Gb devices.
2-meter LC-LC multi-mode Fibre Channel cable (221692-B21)
DA - 10392
Worldwide — Version 65 — October 10, 2003
DS-DMGGD-AA
DS-DMGGD-BA
DS-DMGGD-CA
DS-DMGGE-BC
DS-DMGGE-BB
DS-DMGGE-BD
3R-A2976-AA
3R-A2977-AA
3R-A2978-AA
3R-A3458-AA
3R-A3459-AA
3R-A2979-AA
Page 30
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
Step 12 - Graphics Adapters - Optional
RAID Configuration Utility is accessible via console port; optional graphics capability is available
Select graphics adapter, monitor, and country-specific keyboard for Tru64 UNIX and OpenVMS systems if required
2D Graphics
2D/3D
Graphics
PCI (32-bit, 33-MHz) multi-function (single-port 10/100 Ethernet UTP/RJ45, Ultra2
LVD SCSI, and 2D graphics) adapter
NOTE: No support for multi-head graphics.
OpenVMS V7.2-2 requires OpenVMS Tima Kit located at:
- http://ftp.support.compaq.com/patches/.new/openvms.shtml
Tru64 UNIX V5.1 requires Patch Kit 3:
- T64V51AS0003-20010413.tar
Tru64 UNIX V4.0F with NHD2 - TruCluster V5.1 support restricted to non-shared
buses
Use BN25G, BN26M, BN24Q, or BN28Q twisted pair RJ45 cables.
RADEON 7500 PCI 2D/3D graphics accelerator
Tru64 UNIX: Requires V5.1B with Patch Kit 1: T64V51BB03AS0001-20021229.TAR
OpenVMS: Requires V7.3-1 with TIMA Kit:
DEC-AXPVMS-VMS731_GRAPHICS-V0300-4.PCSI
NOTE: For multi-head support, refer to Read Me First document/Release Notes. Do
not mix with other graphics cards; 3D operation only functions with one card,
restricted to non-shared SCSI buses.
PowerStorm 300 3D multi-head graphics accelerator with 15-MB frame buffer
memory and 16-MB texture memory
NOTE: Graphics controllers must be the same type (PowerStorm);
no mixing.
NOTE: If using SN-PBXGD-AD graphics adapter on the same PCI bus with the 3XKZPEA-DB adapter, the SN-PBXGD-AD must be at minimum revision C06.
PowerStorm 350 3D multi-head graphics accelerator with 30-MB frame buffer
memory and 32-MB texture memory
NOTE: If using SN-PBXGD-AE graphics adapter on the same PCI bus with the 3XKZPEA-DB adapter, the SN-PBXGD-AE must be at minimum revision B05 or A03.
Maximum # Supported
Linux
Tru64
Open
UNIX
VMS
1
1
Requires
Slot 0
3X-DEPVZ-AA
1
4
-
3X-PBXGG-AA
8
4
-
SN-PBXGD-AD
8
4
-
SN-PBXGD-AE
NOTE: PowerStorm 300 and PowerStorm 350 adapters require the following:
OpenVMS V7.2-2 (minimum version required) requires OpenVMS Tima Kits located at:
http://ftp.support.compaq.com/patches/.new/openvms.shtml
Tru64 UNIX V4.0F (minimum version required) requires Patch Kit 1 with Environmental Patch
PowerStorm 300 and PowerStorm 350 adapters can be combined, provided the system maximum is not exceeded.
DA - 10392
Worldwide — Version 65 — October 10, 2003
Page 31
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
Step 13 - Monitors - Optional
Graphics monitors other than those listed can be used if compatible with SVGA graphics ordered with system
A video cable, 6-foot/1.8-meter length, is included with all variants of monitors.
Video extension cable required if monitor is located more than 1 meter from server
Monitors will ship with, but not be integrated with systems.
Carbon/Silver Monitors
Carbon/Silver Flat Panel
Monitors
Video Extension Cable
V7550 17-inch (16-inch viewable image size) flat-faced shadow mask color monitor, two-tone
(carbon/silver), 0.25mm dot pitch, VGA to 1024 x 768 @85 Hz, MPRII/TCO 99/Energy Star
Compliant, Northern Hemisphere with North America power cord, VGA cable
Same as above, with Euro power cord
Same as above, APD, no power cord
Same as above, Southern Hemisphere, with Australia/New Zealand power cord
3R-A4002-AA
S7500 17-inch (16-inch viewable image size) FST multi-frequency color monitor,
2-tone (carbon/silver), 0.24-mm dot pitch, VGA to 1024 x 768 @ 85 Hz, MPRII/TCO 99/Energy Star
Compliant, Northern Hemisphere with PRC power cord CCIB, VGA cable
3R-A4800-AA
P930 19-inch (18-inch viewable image size) auto-scanning color monitor, Diamondtron NF, 0.24mm aperture grille pitch, VGA to 1600 x 1200 @85 Hz, MPRII/TCO 99/Energy Star Compliant,
Northern Hemisphere with North America power cord, VGA cable,
Same as above, with Euro power cord
Same as above, Taiwan, with NA power cord
Same as above, Southern Hemisphere, 0.25 to 0.27 mm aperture grille pitch, with Australia/New
Zealand power cord
3R-A4215-AA
S9500 19-inch (18-inch viewable image size) FST multi-frequency color monitor, 2-tone
(carbon/silver), 0.22-mm dot pitch, VGA to 1280 x 1024 @85Hz, MPRII/TCO99/Energy Star
Compliant, Northern Hemisphere with PRC power cord CCIB, VGA cable
3R-A4801-AA
P1130 21-inch (19.8-inch viewable image size) FD Trinitron auto-scanning color monitor,
Diamondtron NF, 0.24-mm aperture grille pitch, VGA to 1792 x 1344 @85Hz, dual video input, USB
Hub, MPRII/TCO 99/Energy Star Compliant, Northern Hemisphere with North America power cord,
VGA cable
Same as above, with Euro power cord
Same as above, Taiwan, no power cord
Same as above, with PRC power cord, CCIB
Same as above, Southern Hemisphere, with Australia/New Zealand power cord
3R-A4216-AA
TFT1825, 18-inch (18-inch viewable image size) TFT flat panel monitor, 0.28mm pixel pitch, 1600 x
1200 @60Hz, multi-mode support, MPRII/TCO99/Energy Star compliant, one VGA, one DVI-I input
connector. North America power cord, VGA and DVI-I cables
L1530, 15-inch (15-inch viewable image size) TFT flat panel monitor, 0.297 mm pixel pitch, 1024 x
768 @60 Hz, multi-mode support, MPRII/TCO99/Energy Star compliant, two video input connectors
(one VGA and one DVI-I), North America power cord, VGA and DVI-I cables
L1530, 15-inch (15-inch viewable image size) TFT flat panel monitor, 0.297 mm pixel pitch, 1024 x
768 @60 Hz, multi-mode support, MPRII/TCO99/Energy Star compliant, two video input connectors
(one VGA and one DVI-I), Euro power cord, VGA and DVI-I cables
3R-A4292-AA
6-foot/1.8-meter video extension cable - optional
DA - 10392
Worldwide — Version 65 — October 10, 2003
3R-A4201-AA
3R-A4202-AA
3R-A4203-AA
3R-A4391-AA
3R-A4392-AA
3R-A4393-AA
3R-A4396-AA
3R-A4397-AA
3R-A4400-AA
3R-A4398-AA
3R-A4857-AA
3R-A4858-AA
BN39C-02
Page 32
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
Monitor Power Cords
North America, 120V, 75-inch
Australia, New Zealand, 2.5-meter (103541-011)
Central Europe, 2.5-meter
Denmark, 2.5-meter (103541-481)
Egypt, India, South Africa, 2.5-meter (103541-AR1)
Israel, 2.5-meter
Italy, 2.5-meter (103541-461)
Japan, 2.5-meter, Dentori approved
Switzerland, 2.5-meter (103541-511)
UK, Ireland, 2.5-meter
BN26J-1K
BN19H-2E
BN19C-2E
BN19K-2E
BN19S-2E
BN18L-2E
BN19M-2E
3X-BN46F-02
BN19E-2E
BN19A-2E
Step 14 - Keyboards, Mouse, Power Cords, Documentation
Step 14a - Keyboards - Optional
Select country-specific keyboard and mouse only if required.
All keyboards listed may not be available in all geographies.
Select an opal OpenVMS keyboard for use with VT5xx text terminals.
DA - 10392
Worldwide — Version 65 — October 10, 2003
Page 33
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
Opal
Keyboard/Language
U.S. keyboard
Arabic keyboard
Belgian keyboard
BHCSY keyboard
Canadian/English keyboard
Canadian/French keyboard
Cyrillic keyboard (Russian)
Czech keyboard
Danish keyboard
Dutch keyboard
Finnish keyboard
French keyboard
German keyboard
Greek keyboard
Hebrew keyboard
Hungarian keyboard
International keyboard
Italian keyboard
Japanese keyboard
Korean keyboard
Latin-American keyboard
Norwegian keyboard
Polish keyboard
Portuguese keyboard
Romanian keyboard
Simplified Chinese keyboard
Slovak keyboard
Spanish keyboard
Swedish keyboard
Swiss/French keyboard
Swiss/German keyboard
Traditional Chinese keyboard
Thai keyboard
Turkish Q keyboard
Turkish/F keyboard
UK keyboard
Yugoslavian keyboard
OpenVMS
LK461-A2
LK461-AB
LK461-AQ
LK461-AC
LK461-BT
LK461-BV
LK461-AD
LK461-AH
LK461-AF
LK461-AP
LK461-AG
LK461-BH
LK461-AT
LK461-BQ
LK461-AI
LK461-AN
LK461-BP
LK461-AV
LK461-BL
LK461-CZ
LK461-AS
LK461-AM
LK461-AK
LK461-AL
LK461-BU
LK461-BW
LK461-BY
DA - 10392
Tru64 UNIX and Linux
3R-A4362-AA
3R-LKQ48-BR
3R-LKQ48-AB
3R-LKQ48-AX
3R-LKQ48-AC
3R-LKQ48-BT
3R-LKQ48-BV
3R-LKQ48-AD
3R-LKQ48-AH
3R-LKQ48-AF
3R-LKQ48-AP
3R-A4358-AA
3R-LKQ48-BH
3R-LKQ48-AT
3R-LKQ48-BQ
3R-A4362-AA
3R-A4363-AA
3R-LKQ48-AJ
3R-LKQ48-BK
3R-LKQ48-AR
3R-LKQ48-AN
3R-LKQ48-BP
3R-LKQ48-AV
3R-A4370-AA
3R-LKQ48-CZ
3R-A4372-AA
3R-LKQ48-AM
3R-A4374-AA
3R-LKQ48-BI
3R-LKQ48-CB
3R-LKQ48-BU
3R-A4378-AA
-
Worldwide — Version 65 — October 10, 2003
Carbon
OpenVMS
3X-LK463-A2
3X-LK462-AB
3X-LK462-AQ
3X-LK462-AC
3X-LK462-BT
3X-LK462-BV
3X-LK462-AD
3X-LK462-AH
3X-LK462-AF
3X-LK462-AP
3X-LK462-AG
3X-LK462-BH
3X-LK462-AT
3X-LK462-BQ
3X-LK462-AI
3X-LK462-AN
3X-LK462-BP
3X-LK462-AV
3X-LK462-BL
3X-LK462-CZ
3X-LK462-AS
3X-LK462-AM
3X-LK462-AK
3X-LK462-AL
3X-LK462-BU
3X-LK462-BW
3X-LK462-BY
Page 34
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
Step 14b - Mouse - Optional
Keyboard or Mouse
Extension Cable
6-foot/1.8-meter keyboard or mouse extension cable; to extend both keyboard and mouse order two
cables
3X-BC34A-06
Mouse
3-button mouse – carbon
3R-A3480-AA
Step 14c - Power Cords
Tower Power Cords
Tower Power Cords
Tower enclosure ordered in North America includes 120V power cord; selection of country-specific power cord is
mandatory for all non-North American systems.
Each additional power supply ordered with a system installed in tower enclosure requires additional power cord
Pedestal systems ordered in North America include two 120V power cords; selection of two
country-specific power cords is mandatory for all non-North American systems.
North America, 120V, 75-inch
Australia, New Zealand, 2.5-meter (103541-011)
Central Europe, 2.5-meter
Denmark, 2.5-meter (103541-481)
Egypt, India, South Africa, 2.5-meter (103541-AR1)
Israel, 2.5-meter
Italy, 2.5-meter (103541-461)
Japan, 2.5-meter
Switzerland, 2.5-meter (103541-511)
UK, Ireland, 2.5-meter
BN26J-1K
BN19H-2E
BN19C-2E
BN19K-2E
BN19S-2E
BN18L-2E
BN19M-2E
3X-BN46F-02
BN19E-2E
BN19E-2E
Step 14d - Documentation
Additional AlphaServer ES40 System Information Kit (print and CD), Owners Guide, User Interface
Guide, and Release Notes
QA-6E88A-G8
Step 15 - Console Terminal - Optional
Any terminal can be used as a console device
Third-party console devices require an EIA-232 25-pin DSUB connector
VT510 video terminal; requires keyboard, H8575-x adapter, and BC16E-x cable
Console cable, female connector (25-pin passive adapter)
Console cable, male connector (adapter with EOS, ESD, 25 POS D-SUB)
VT510-xx
H8575-A
H8575-D
Step 16 - Upgrade Kit - Optional
Upgrades ES40 Model 1 with six I/O slots and support for four memory options to ES40 Model 2 with
10 I/O slots and support for eight memory options
DA - 10392
Worldwide — Version 65 — October 10, 2003
3X-KFPPA-AA
Page 35
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
Step 17 - Software - Required selection of media and documentation for first system on site
Software Processor Code = E
Tru64 UNIX
AlphaServer ES40 Tru64 UNIX systems include Unlimited User license, Server Extension license,
Internet Express, and Secure Web Server
AlphaStation ES40 Tru64 UNIX systems include preinstalled software, 2-user Base license and
Open3D traditional license
When using Tru64 UNIX
V5.0A or later
Tru64 UNIX media and online documentation on CD-ROM
Tru64 UNIX full hard copy documentation
StorageWorks Software Package, with licenses for Logical Storage Manager and AdvFS Utilities
TruCluster Server License
Advanced Server for Tru64 UNIX, 25 client concurrent use license
Advanced Server for Tru64 UNIX, 50 client concurrent use license
Advanced Server for Tru64 UNIX, 100 client concurrent use license
Advanced Server for Tru64 UNIX, 250 client concurrent use license
Advanced Server for Tru64 UNIX, 500 client concurrent use license
Layered products media and documentation for Tru64 UNIX on CD-ROM
DECnet/OSI extended function license for Tru64 UNIX
DECnet/OSI end-system license for Tru64 UNIX
Open3D for Tru64 UNIX on CD-ROM, includes graphics drivers
QA-6ADAA-H8
QA-6ADAA-GZ
QB-5RXAE-AA
QL-6BRAE-AA
QL-5U29M-3D
QL-5U29M-3E
QL-5U29M-3F
QL-5U29M-3G
QL-5U29M-3H
QA-054AA-H8
QL-MTKAE-AA
QL-MTJAE-AA
QA-OAFAA-H8
When using Tru64 UNIX
V4.0F
Tru64 UNIX media and online documentation on CD-ROM
Tru64 UNIX full hard copy documentation
StorageWorks Software Package, with licenses for Logical Storage Manager and AdvFS Utilities
TruCluster Available Server License
TruCluster Production Server License
Tru64 UNIX Driver for MEMORY CHANNEL license
Advanced Server for Tru64 UNIX, 25 client concurrent use license
Advanced Server for Tru64 UNIX, 50 client concurrent use license
Advanced Server for Tru64 UNIX, 100 client concurrent use license
Advanced Server for Tru64 UNIX, 250 client concurrent use license
Advanced Server for Tru64 UNIX, 500 client concurrent use license
Layered products media and documentation for Tru64 UNIX on CD-ROM
DECnet/OSI end-system license for Tru64 UNIX
DECnet/OSI extended function license for Tru64 UNIX
Open3D for Tru64 UNIX on CD-ROM, includes graphics drivers
QA-MT4AA-H8
QA-MT4AA-GZ
QB-5RXAE-AA
QL-05SAE-AA
QB-3RLAE-AA
QB-4ZCAE-AA
QL-5U29M-3D
QL-5U29M-3E
QL-5U29M-3F
QL-5U29M-3G
QL-5U29M-3H
QA-054AA-H8
QL-MTJAE-AA
QL-MTKAE-AA
QA-OAFAA-H8
DA - 10392
Worldwide — Version 65 — October 10, 2003
Page 36
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
OpenVMS
AlphaServer ES40 OpenVMS systems include Base license with System Manager license and
Enterprise Integration Server License Package for OpenVMS Revision V3.1
AlphaStation ES40 OpenVMS systems include pre-installed software, Base license, Concurrent
Use 1-user license, NAS 150 Client license, MMS RT license and Open3D traditional license
Enterprise Integration Package includes licenses for TCP/IP Services for OpenVMS,
DECwindows Motif for OpenVMS Alpha, DECprint Supervisor for OpenVMS Alpha Plus,
DECprint Supervisor for OpenVMS Open, DECnet-Plus for OpenVMS Alpha End System,
Archive/Backup System for OpenVMS Management Tools, Archive/Backup Agent for Windows
NT, OpenVMS Disk Services for Windows NT, Office Server for OpenVMS, PATHWORKS 32,
PATHWORKS V6 for OpenVMS – Advanced Server, and DIGITAL Office Server Client Access
License
OpenVMS Concurrent Use licenses provide the right to interactively use the operating system
by the specified number of concurrent users on a designated OpenVMS system. OpenVMS
Concurrent Use licenses can be moved from one system to another at user discretion and can
be shared in a mixed OpenVMS VAX and OpenVMS Alpha cluster.
OpenVMS Traditional Unlimited Use license is system specific and can only be used on one
system at a time. It cannot be shared between systems or in an OpenVMS VAX or OpenVMS
Alpha Cluster.
Concurrent Use 1-user license
Concurrent Use 2-user license
Concurrent Use 4-user license
Concurrent Use 8-user license
Concurrent Use 16-user license
Concurrent Use 32-user license
Concurrent Use 64-user license
Concurrent Use 128-user license
Concurrent Use 256-user license
Traditional unlimited user license
OpenVMS V7.2-2 media and online documentation on CD-ROM
OpenVMS V7.3 media and online documentation on CD-ROM
OpenVMS media and documentation on CD-ROM
OpenVMS full hard copy documentation
Layered products media and documentation for OpenVMS on CD-ROM, includes Enterprise
Integration Server for OpenVMS media and documentation.
DECnet extended function license for OpenVMS
DECnet end-system to extended function upgrade license for OpenVMS
OpenVMS Cluster license for Alpha systems
OpenVMS Volume Shadowing license
QL-MT3AA-3B
QL-MT3AA-3C
QL-MT3AA-3D
QL-MT3AA-3E
QL-MT3AA-3F
QL-MT3AA-3G
QL-MT3AA-3H
QL-MT3AA-3J
QL-MT3AA-3K
QL-MT2AE-AA
QA-MT1AR-H8
QA-MT1AT-H8
QA-MT1AA-H8
QA-001AA-GZ
QA-03XAA-H8
QL-MTGAE-AA
QL-MTHAE-AA
QL-MUZAE-AA
QL-2A1AE-AA
Step 18 - Hardware and Software Support Services for Tru64 UNIX and OpenVMS
Select one of the optional HP Care Pack Service Packages described below that best support the customer's operational requirements for system
availability.
HP Care Pack Services
HP Care Pack Services are available for AlphaServer systems running Tru64 UNIX or OpenVMS
operating systems. HP Care Pack Services are designed for customers who require support
beyond that provided by the hardware product warranty with coverage for both Principal server
systems and SSPs (Subsequent System Packages) - that meet a full range of customer support
requirements.
DA - 10392
Worldwide — Version 65 — October 10, 2003
Page 37
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
Program Features – Principal Server
HP Support Plus
13 x 5 HW/SW support
4-hour response on-site hardware support
2-hour response for software support
License Subscription for HP O/S software and embedded L/P (i.e., EIS for OpenVMS, unlimited
users, and server extensions for Tru64 UNIX
Consolidated Software Media Update Distribution for OpenVMS or Tru64 UNIX and their
layered products. (Some Layered products are not included on Consolidated Software Media
Update Distribution and can be ordered separately.)
HP Support Plus 24
24 x 7 HW/SW support
Named HW engineer
4-hour response on-site hardware support
2-hour response for software support
License Subscription for HP O/S software and embedded L/P (i.e., EIS for OpenVMS, unlimited
users and server extensions for Tru64 UNIX
Consolidated Software Media Update Distribution for OpenVMS or Tru64 UNIX and their
layered products. (Some Layered products are not included on Consolidated Software Media
Update Distribution and can be ordered separately.)
Program Features – Additional Services
SSPs (Subsequent System
Packages)
For HP Care Pack Support Plus and Support Plus 24
HW Support at same level as corresponding package for Principal server
License Subscription: HP O/S (where applicable)
Telephone support through Principal server covered by full support package
Installation
Pre-installation review
Unpacking of equipment
Assemble and test
Basic product usage info
No software installation added
Installation & Startup HP
O/S
Pre-installation review
Unpacking of equipment
Assemble and test
Basic product usage info
Install operating systems
Product configuration
Print & network access
Orientation
DA - 10392
Worldwide — Version 65 — October 10, 2003
Page 38
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
Options
Model/HP Care Pack
Principal Server
Services
1 year
AlphaServer ES40 Model 1 Pedestal
HP Support Plus
FP-F01AA-12
HP Support Plus 24
FP-F02AA-12
Installation
FP-FINST-AA
Installation & Startup
FP-FSTAR-AA
Principal Server
3 years
Subsequent Systems
1 year
Subsequent Systems
3 years
FP-F01AA-36
FP-F02AA-36
FP-FINST-AA
FP-FSTAR-AA
FP-F21AA-12
FP-F22AA-12
FP-FINST-AA
FP-FSTAR-AA
FP-F21AA-36
FP-F22AA-36
FP-FINST-AA
FP-FSTAR-AA
AlphaServer ES40 Model 2 Pedestal
HP Support Plus
FP-F01BA-12
HP Support Plus 24
FP-F02BA-12
Installation
FP-FINST-BA
Installation & Startup
FP-FSTAR-BA
FP-F01BA-36
FP-F02BA-36
FP-FINST-BA
FP-FSTAR-BA
FP-F21BA-12
FP-F22BA-12
FP-FINST-BA
FP-FSTAR-BA
FP-F21BA-36
FP-F22BA-36
FP-FINST-BA
FP-FSTAR-BA
AlphaServer ES40 Model 1 Tower/Drawer
HP Support Plus
FP-F01CA-12
HP Support Plus 24
FP-F02CA-12
Installation
FP-FINST-CA
Installation & Startup
FP-FSTAR-CA
FP-F01CA-36
FP-F02CA-36
FP-FINST-CA
FP-FSTAR-CA
FP-F21CA-12
FP-F22CA-12
FP-FINST-CA
FP-FSTAR-CA
FP-F21CA-36
FP-F22CA-36
FP-FINST-CA
FP-FSTAR-CA
AlphaServer ES40 Model 2 Tower/Drawer
HP Support Plus
FP-F01DA-12
HP Support Plus 24
FP-F02DA-12
Installation
FP-FINST-DA
Installation & Startup
FP-FSTAR-DA
FP-F01DA-36
FP-F02DA-36
FP-FINST-DA
FP-FSTAR-DA
FP-F21DA-12
FP-F22DA-12
FP-FINST-DA
FP-FSTAR-DA
FP-F21DA-36
FP-FINST-DA
FP-FINST-DA
FP-FSTAR-DA
NOTES:
NOTES
AlphaServer ES40 systems include three years hardware warranty with 5 x 9, on-site Next Business Day response.
HP Care Pack Services include support for new HP branded hardware options internal to the AlphaServer enclosure plus a monitor (17-inch or less
excluding flat panel models).
External storage devices/cabinets carry their own level of warranty and should be quoted separately for uplifted warranty services.
In addition to the HP Care Pack Services shown above, other service packages are available for separate hardware and software support. For more
information on Hardware and Software Upfront Services and other HP service options available for AlphaServers, consult your Sales Account
Manager, HP Services Principal, or visit http://www.compaq.com/services/ NOTE: This website is available in English only.
DA - 10392
Worldwide — Version 65 — October 10, 2003
Page 39
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
TechSpecs
Tower Configuration
Dimensions (H x W x D)
20 x 15.25 x 31 in (50.8 x 38.7 x 78.7 cm)
Shipping Dimensions
32.2 x 24 x 40 in (82.48 x 60.2 x 101.6 cm)
Weight
Typical Configuration
144.3 lb (65.6 kg)
Maximum Configuration
212.8 lb (96.7 kg)
Typical Configuration
172 lb (78 kg)
Shipping Weight
Maximum Configuration
Clearances
Pedestal Configuration
Service
Front
29.5 in (75 cm)
29.5 in (75 cm)
Rear
6 in (15 cm)
29.5 in (75 cm)
Left Side
None
29.5 in (75 cm)
Right Side
None
None
Dimensions (H x W x D)
30.8 x 20 x 31.75 in (78.2 x 50.8 x 80.6 cm)
Shipping Dimensions
42.4 x 39.5 x 23.9 in (107.7 x 100.3 x 60.7 cm)
Weight
Typical Configuration
280 lb (127 kg)
Maximum Configuration
350 lb (159 kg)
Typical Configuration
328 lb (149 kg)
Shipping Weight
Maximum Configuration
Clearances
Rackmount System
242 lb (110 kg)
Operating
407 lb (185 kg)
Operating
Service
Front
29.5 in (75 cm)
29.5 in (75 cm)
Rear
6 in (15 cm)
29.5 in (75 cm)
Left Side
None
None
Right Side
None
29.5 in (75 cm)
Dimensions (H x W x D)
13.87 x 17.6 x 30.1 in (35.2 x 44.7 x 76.5 cm)
(fits 14 in [8U] standard RETMA cabinet)
Shipping Dimensions
28.8 x 24 x 40 in (73.2 x 60.7 x 101.6 cm)
Weight
When lifting:
Nominal
110 lb (50 kg)
Maximum
167.2 lb (76 kg)
Total added to cabinet (brackets, slides, cables):
Shipping Weight
Clearances
DA - 10392
Nominal
130 lb (59 kg)
Maximum
202.4 lb (92 kg)
Nominal
158 lb (72 kg)
Maximum
233 lb (106 kg)
Operating
Service
See specific cabinet
requirements
Minimum 4 ft (121.9 cm),
30 in (76.3 cm) withdrawal on rails
Worldwide — Version 65 — October 10, 2003
Page 40
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
TechSpecs
Cabinet Configuration
System Unit
H9A10 M-Series
H9A15 M-Series
Dimensions
(H x W x D)
67 x 23.6 x 41.5 in
(170 x 60 x 105.4 cm)
79 x 23.6 x 41.5 in
(200 x 60 x 105.4 cm)
Shipping Dimensions
73 x 36 x 48 in
(185.5 x 91.5 x 122 cm)
85 x 36 x 48 in
(216 x 91.5 x 122 cm)
Weight
Configuration dependent
Configuration dependent
Shipping Weight
Nominal: 946 lb (430 kg)
Nominal: 1,056 lb (550 kg)
Maximum: 1,375 lb (625 kg)
Maximum: 1,408 lb (640 kg)
Operating (Tower, Pedestal,
Rackmount)
50° to 95° F (10° to 35° C)
Non-operating
–40° to 151° F (–40° to 66° C)
Storage (60 days)
–40° to 151° F (–40° to 66° C)
Rate of change
20° F/hr (11° C/hr)
Environmental
Temperature
NOTE: Maximum operating temperature at sea level; reduce by 1.8° F (1° C) for each
2,000 ft (600 m) above sea level.
Humidity
Maximum Wet Bulb
Temperature
Maximum Dew Point
Temperature
Operating
20% to 80%
Non-operating
20% to 80%
Storage (60 days)
10% to 95%
Rate of change
20% hr
Operating
82° F (28° C)
Storage (60 days)
115° F (46° C)
Operating
36° F (2° C)
Heat Dissipation
Air Flow and Quality
Maximum
Tower and Rack
1300 W, 4,440 BTU/hr
Pedestal
2400 W. 8,196 BTU/hr
H9A10/H9A15 Cabinets
4800 W, 16,392 BTU/hr
Intake location
Exhaust location
Rear Tower, Pedestal, Rack;
Rear/top H9A10/H9A15
Particle size
Concentration
Altitude (unpressurized)
Operating
10,000 ft (3,048 m)
Non-operating
40,000 ft (12,192 m)
NOTE: Higher altitudes are possible if maximum operating temperature is reduced (see
Temperature); other restrictions may apply such as maximum permissible altitude for hard
drives.
Acoustics (Declared values per ISO 9296 and ISO 7779)
Acoustics
LWAd3B
B
LnAm5dBA
dBA
(bystander position)
Idle
6.6
48
Operating
6.6
48
NOTE: Current values for specific configurations are available, 1 B = 10 dBA.
DA - 10392
Worldwide — Version 65 — October 10, 2003
Page 41
Compaq AlphaServer ES40
Compaq AlphaStation ES40
QuickSpecs
TechSpecs
Electrical (Power supplies are universal, PFC, auto ranging, 100/240 VAC)
Nominal Voltage (VAC)
100
120
200 to 240
Voltage Range (VAC)
(temporary condition)
90 to 100
110 to 128
180 to 250
Power Source Phase
Single
Single
Single
Nominal Frequency (Hz)
50/60
50/60
50/60
Frequency Range (Hz)
49 to 51/59 to 61
49 to 51/59 to 61
49 to 51/59 to 61
Maximum Inrush Current
Tower and Rackmount
Single power cord
11.0 A
8.5 A
5.0 A
Multiple power cords
6.5 A
5.3 A
3.0 A
Maximum VA
1,300
1,270
1,250
Each power cord
12.0 A
10.5 A
6.0 A
Maximum VA
1,960
1,900
1,880
100
120
220 to
240
Each power cord
24 A
24 A
16 A
Tower
Up to 3 (75 in (190 cm))
IEC 320 C13 to NEMA 5-15
(North America) or IEC 320
C13 to country-specific
Pedestal
2 (75 in (190 cm))
120V non-removable NEMA
5-15 (N. America) or
200-240V IEC 320 C13 to
country-specific
Rackmount
3 (14 ft 10 in (52 cm))
IEC 320 C13 to NEMA 5-15
(North America) or
IEC 320 C13 to IEC 320
C14
(other countries)
Cabinet
2 (10 ft 10 in (30 cm))
120V non-removable NEMA
L5-30P or 200-240V nonremovable IEC 309
Agency Approvals
UL: Listed to UL1950 (3rd edition)
Pedestal
M-Series Cabinet (configuration Nominal voltage (VAC)
dependent)
Power Cords
Regulatory
CSA: Certified to CAN/CSA-C22.2
No. 950-M95
TUV: EN 60950/A4: 1997 VDE 0805 GS marked
FCC: Part 15.B Class A
CE: EN55022, EN50082
VCCI Class II ITE
BCIQ: CISPR22, CNS13438
C-Tick: CISPR22, AS/NZS 3548
Reviewed to
AS/NZ 3260:1993 Australian/New Zealand Standard
EN 60950/A4: 1997 European Norm
IEC 950 (second edition, third amend)
© Copyright 2003 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
UNIX is a registered trademark or trademark of The Open Group in the U.S. and/or other countries. The only warranties for HP products and services are set
forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional
warranty. HP shall not be liable for technical or editorial errors or omissions contained
DA - 10392
Worldwide — Version 65 — October 10, 2003
Page 42
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
