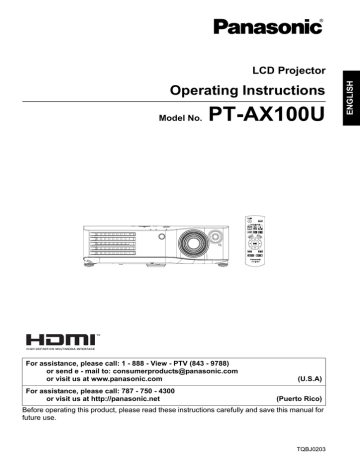

LCD Projector

Operating Instructions

Model No.

PT-AX100U

For assistance, please call: 1 - 888 - View - PTV (843 - 9788) or send e - mail to: [email protected]

or visit us at www.panasonic.com

(U.S.A)

For assistance, please call: 787 - 750 - 4300 or visit us at http://panasonic.net

(Puerto Rico)

Before operating this product, please read these instructions carefully and save this manual for future use.

TQBJ0203

Important Safety Notice

Dear Panasonic Customer:

This instruction booklet provides all the necessary operating information that you might require.

We hope it will help you to get the most out of your new product, and that you will be pleased with your Panasonic LCD projector.The serial number of your product may be found on its bottom. You should note it in the space provided below and retain this booklet in case service is required.

Model number:

Serial number:

PT-AX100U

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DONOT

EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

Power Supply: This LCD Projector is designed to operate on 100 V - 240 V, 50 Hz/

60 Hz AC, house current only.

CAUTION:

The AC power cord which is supplied with the projector as an accessory can only be used for power supplies up to 125 V, 7 A. If you need to use higher voltages or currents than this, you will need to obtain a separate 250 V power cord. If you use the accessory cord in such situations, fire may result.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

CAUTION:

This equipment is equipped with a three-pin grounding-type power plug. Do not remove the grounding pin on the power plug. This plug will only fit a grounding-type power outlet. This is a safety feature.

If you are unable to insert the plug into the outlet, contact an electrician. Do not defeat the purpose of the grounding plug.

Do not remove

2 - E

NGLISH

Important Safety Notice

WARNING:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to computers or peripheral devices. Any unauthorized changes or modifications to this equipment will void the users authority to operate.

If you use serial port to connect PC for external control of projector, you must use optional RS-232C serial interface cable with ferrite core. Any unauthorized changes or modifications to this equipment will void the user’s authority to operate.

Indication based on the German law "Geräte- und Produktsicherheitsgesetz”

Directive 2001/95/EC (Article 5);

Panasonic Marketing Europe GmbH

Hagenauer Str. 43 65203 Wiesbaden F.R.GERMANY

WARNING:

Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.

Declaration of Conformity

Model Number:

Trade Name:

PT-AX100U

Panasonic

Responsible party: Panasonic North America

Address: One Panasonic Way 4B - 9 Secaucus, New Jersey 07094

Telephone number: 1 - 888 - View - PTV (843 - 9788)

This device complies with Part 15 of the FCC Rules, Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

E

NGLISH

- 3

Contents

J

Quick Steps

1. Set up your projector

See “Setting up” on page 14.

2. Connect with other devices

See “Connections” on page 18.

3. Prepare the Remote control

See “Remote control” on page 11.

4. Start projecting

See “Switching the projector on/off” on page 19.

5. Adjust the image

See “Menu Navigation” on page 26.

Important Safety Notice.............................. 2

Preparation

Precautions with regard to safety ............. 6

WARNINGS ........................................................... 6

CAUTIONS............................................................. 8

Before use.................................................... 9

Accessories............................................................ 9

Cautions when transporting ................................... 9

Cautions when installing ........................................ 9

Cautions on use ................................................... 10

About Your Projector................................ 11

Remote control................................................... 11

Projector............................................................... 12

Getting Started

Setting up................................................... 14

Screen size and throw distance ........................... 14

Projection method ................................................ 15

Front leg adjuster and throwing angle.................. 15

Lens shift and positioning..................................... 16

Connections .............................................. 18

Before connection to the projector ....................... 18

Connecting with AV devices................................. 18

Connecting with HDMI/PC ................................... 18

Basic Operation

Switching the projector on/off ................. 19

Power cord ........................................................... 19

POWER indicator ................................................. 19

Switching on the projector.................................... 20

Switching off the projector.................................... 20

Projecting an image .................................. 21

Selecting the input signal ..................................... 21

Positioning the image........................................... 21

Remote control operation ........................ 22

Operating range ................................................... 22

Input switching ..................................................... 22

Capturing an image.............................................. 22

Switching the aspect ratio .................................... 23

Switching off the projector automatically.............. 23

Resetting to the factory default settings ............... 23

Turning on the button backlight............................ 23

Switching the picture mode .................................. 23

Adjusting the image.............................................. 24

Setting your own color profile............................... 24

4 - E

NGLISH

Settings

Menu Navigation........................................26

Navigating through the MENU ..............................26

Main menu ............................................................26

Sub-menu..............................................................27

PICTURE Menu ..........................................28

PICTURE MODE...................................................28

CONTRAST ..........................................................28

BRIGHTNESS.......................................................28

COLOR .................................................................28

TINT ......................................................................29

SHARPNESS ........................................................29

COLOR TEMPERATURE .....................................29

DYNAMIC IRIS......................................................29

LIGHT HARMONIZER ..........................................29

ADVANCED MENU...............................................29

FAVOURITE SAVE ...............................................30

FAVOURITE LOAD...............................................30

SIGNAL MODE .....................................................30

POSITION Menu.........................................31

H - POSITION .......................................................31

V - POSITION .......................................................31

DOT CLOCK .........................................................31

CLOCK PHASE.....................................................31

ASPECT................................................................32

WSS ......................................................................33

OVER SCAN .........................................................33

KEYSTONE...........................................................33

AUTO SETUP .......................................................33

OPTION Menu ............................................34

INPUT GUIDE .......................................................34

OSD DESIGN........................................................34

OSD POSITION ....................................................34

BACK COLOR.......................................................34

STARTUP LOGO ..................................................34

AUTO SEARCH ....................................................34

HDMI SIGNAL LEVEL...........................................34

INSTALLATION.....................................................35

SLEEP...................................................................35

ALTITUDE.............................................................35

LAMP POWER......................................................35

LAMP RUNTIME ...................................................35

TEST PATTERN ...................................................35

Maintenance

TEMP and LAMP Indicators ..................... 36

Controlling alerts .................................................. 36

Care and Replacement ............................. 37

Before cleaning .................................................... 37

Cleaning your projector ........................................ 37

Before replacing the Lamp unit ............................ 38

When to replace the Lamp unit ............................ 38

Replacing the lamp unit........................................ 39

Troubleshooting........................................ 40

Appendix

Technical Information............................... 41

List of compatible signals ..................................... 41

Serial terminal ...................................................... 42

Menu structure ..................................................... 45

Specifications............................................ 46

Dimensions................................................ 48

Trademark acknowledgements................ 49

Index........................................................... 50

E

NGLISH

- 5

Precautions with regard to safety

WARNINGS

If you notice smoke, strange smells or noise coming from the projector, disconnect the power cord plug from the wall outlet.

Do not continue to use the projector in such cases, otherwise fire or electric shocks could result.

Check that no more smoke is coming out, and then contact an Authorized Service Center for repairs.

Do not attempt to repair the projector yourself, as this can be dangerous.

Do not install this projector in a place which is not strong enough to take the full weight of the projector.

If the installation location is not strong enough, it may fall down or tip over, and severe injury or damage could result.

Installation work (such as ceiling suspension) should only be carried out by a qualified technician.

If installation is not carried out correctly, there is the danger that injury or electric shocks may occur.

Do not use other than an authorized ceiling mount bracket.

If foreign objects or water get inside the projector, or if the projector is dropped or the cabinet is broken, disconnect the power cord plug from the wall outlet.

Continued use of the projector in this condition may result in fire or electric shocks.

Contact an Authorized Service Center for repairs.

Do not overload the wall outlet.

If the power supply is overloaded (for example, by using too many adapters), overheating may occur and fire may result.

Do not remove the cover or modify it in any way.

High voltages can cause fire or electric shocks.

For any inspection, adjustment and repair work, please contact an Authorized Service Center.

Clean the power cord plug regularly to prevent it from becoming covered in dust.

If dust builds up on the power cord plug, the resulting humidity can damage the insulation, which could result in fire. Pull the power cord plug out from the wall outlet and wipe it with a dry cloth.

If not using the projector for an extended period of time, pull the power cord plug out from the wall outlet.

Do not do anything that might damage the power cord or the power cord plug.

Do not damage the power cord, make any modifications to it, place it near any hot objects, bend it excessively, twist it, pull it, place heavy objects on top of it or wrap it into a bundle.

If the power cord is used while damaged, electric shocks, short-circuits or fire may result.

Ask an Authorized Service Center to carry out any repairs to the power cord that might be necessary.

Do not handle the power cord plug with wet hands.

Failure to observe this may result in electric shocks.

Insert the power cord plug securely into the wall outlet.

If the plug is not inserted correctly, electric shocks or overheating could result.

Do not use plugs which are damaged or wall outlets which are coming loose from the wall.

Do not place the projector on top of surfaces which are unstable.

If the projector is placed on top of a surface which is sloped or unstable, it may fall down or tip over, and injury or damage could result.

Do not place the projector into water or let it become wet.

Failure to observe this may result in fire or electric shocks.

Do not place the projector on soft materials such as carpets or sponge mats.

Doing so may cause the projector to overheat, which can cause burns, fire or damage to the projector.

Do not place liquid containers on top of the projector.

If water spills onto the projector or gets inside it, fire or electric shocks could result.

If any water gets inside the projector, contact an

Authorized Service Center.

Do not insert any foreign objects into the projector.

Do not insert any metal objects or flammable objects into the projector or drop them onto the projector, as doing so can result in fire or electric shocks.

Do not allow the + and - terminals of the batteries to come into contact with metallic objects such as necklaces or hairpins.

Failure to observe this may cause the batteries to leak, overheat, explode or catch fire.

Store the batteries in a plastic bag and keep them away from metallic objects.

6 - E

NGLISH

Precautions with regard to safety

During a thunderstorm, do not touch the projector or the cable.

Electric shocks can result.

Do not use the projector in a bath or shower.

Fire or electric shocks can result.

Do not place your skin into the light beam while the projector is being used.

Strong light is emitted from the projector’s lens. If you place directly into this light, it can hurt or damage your skin.

Do not look into the lens while the projector is being used.

Strong light is emitted from the projector’s lens. If you look directly into this light, it can hurt and damage your eyes.

Be especially careful not to let young children look into the lens. In addition, turn off the power and disconnect the power cord plug when you are away from the projector.

Do not place your hands or other objects close to the air outlet port.

Heated air comes out of the air outlet port. Do not place your hands or face, or objects which cannot withstand heat close to this port [allow at least

10 cm (4") of space], otherwise burns or damage could result.

Replacement of the lamp is better to be carried out by a qualified technician.

The lamp has high internal pressure. If improperly handled, explosion might result.

The lamp can easily become damaged if struck against hard objects or dropped, and injury or malfunctions may result.

When replacing the lamp, allow it to cool for at least one hour before handling it.

The lamp cover gets very hot, and touching it can cause burns.

Before replacing the lamp, be sure to disconnect the power cord plug from the wall outlet.

Electric shocks or explosions can result if this is not done.

Do not allow infants or pets to touch the remote control unit.

The accessory remote control unit can be used to operate not only the projector but also other appliances such as air conditioners and electrical device by programing them using the learning function. If the remote control unit operated inappropriately, fire or injury may result.

Keep the remote control unit out of the reach of infants and pets after using it.

E

NGLISH

- 7

Precautions with regard to safety

CAUTIONS

Do not cover the air inlet port or the air outlet port.

Doing so may cause the projector to overheat, which can cause fire or damage to the projector.

Do not place the projector in narrow, badly ventilated places such as closets or bookshelves.

Do not place the projector on cloth or papers, as these materials could be drawn into the air inlet port.

Do not mix old and new batteries.

If the batteries are inserted incorrectly, they may explode or leak, and fire, injury or contamination of the battery compartment and surrounding area may result.

Do not set up the projector in humid or dusty places or in places where the projector may come into contact with oily smoke or steam.

Using the projector under such conditions may result in fire, electric shocks or plastic deterioration. The plastic deterioration may cause the falling down of the projector which is mounted in the ceiling.

When disconnecting the power cord, hold the plug, not the cord.

If the power cord itself is pulled, the cord will become damaged, and fire, short-circuits or serious electric shocks may result.

Always disconnect all cables before moving the projector.

Moving the projector with cables still attached can damage the cables, which could cause fire or electric shocks to occur.

Do not put your weight on this projector.

You could fall or the projector could break, and injury may result.

Be especially careful not to let young children stand or sit on the projector.

If not using the projector for an extended period of time, disconnect the power cord plug from the wall outlet.

If dust builds up on the power cord plug, the resulting humidity may damage the insulation, which could result in fire.

Disconnect the power cord plug from the wall outlet as a safety precaution before carrying out any cleaning.

Electric shocks can result if this is not done.

Do not place any heavy objects on top of the projector.

Failure to observe this may cause the projector to become unbalanced and fall, which could result in damage or injury.

Do not short-circuit, heat or disassemble the batteries or place them into water or fire.

Failure to observe this may cause the batteries to overheat, leak, explode or catch fire, and burns or other injury may result.

If the lamp has broken, ventilate the room immediately. Do not touch or bring your face close to the broken pieces.

Failure to observe this may cause the user to absorb the gas which was released when the lamp broke and which contains nearly the same amount of mercury as fluorescent lamps, and the broken pieces may cause injury.

If you believe that you have absorbed the gas or that the gas has got into your eyes or mouth, seek medical advice immediately.

Ask your dealer about the replacement of the lamp unit and check the inside of the projector.

When inserting the batteries, make sure the polarities (+ and -) are correct.

If the batteries are inserted incorrectly, they may explode or leak, and fire, injury or contamination of the battery compartment and surrounding area may result.

Ask an Authorized Service Center to clean inside the projector at least once a year.

If dust is left to build up inside the projector without being cleaned out, it can result in fire or problems with operation.

It is a good idea to clean the inside of the projector before the season for humid weather arrives. Ask your nearest Authorized Service Center to clean the projector when required. Please discuss with the

Authorized Service Center regarding cleaning costs.

Use only the specified batteries.

If incorrect batteries are used, they may explode or leak, and fire, injury or contamination of the battery compartment and surrounding area may result.

We are constantly making efforts to preserve and maintain a clean environment. Please take non repairable units back to your dealer or a recycling company.

8 - E

NGLISH

Before use

Accessories

Make sure the following accessories are provided with your projector.

Remote control (N2QAYB000064 x 1) AA batteries for Remote control (x 2)

Power cord for continental Europe (K2CG3FR00001 x 1)

Cautions when transporting

Do not subject the projector to excessive vibration or shocks.

The projector lens need to be handled with care.

Cover the lens with the lens cover when transporting the projector.

Cautions when installing

Avoid setting up in places which are subject to vibration or shocks.

The internal parts can be damaged, which may cause malfunctions or accidents.

Avoid setting up in places which are subject to sudden temperature changes, such as near an air conditioner.

The life of the lamp may be shortened or the projector may be turned off. See “TEMP indicator” on page 36.

Do not set up the projector near high-voltage power lines or near motors.

The projector may be subject to electromagnetic interference.

If installing the projector to the ceiling, ask a qualified technician to carry out all installation work.

You will need to purchase the separate installation kit

(Model No. ET-PKX100). Furthermore, all installation work should only be carried out by a qualified technician.

If using this projector at high elevations

(above 1 400 m), set the ALTITUDE to HIGH. See

“ALTITUDE” on page 35.

Failure to observe this may result in malfunctions or the life of the lamp or the other components may be shortened.

E

NGLISH

- 9

Before use

Cautions on use

In order to get the best picture quality

Draw curtains or blinds over any windows and turn off any lights near the screen to prevent outside light or light from indoor lamps from shining onto the screen.

Do not touch the surfaces of the lens with your bare hands.

If the surface of the lens becomes dirty from fingerprints or anything else, this will be magnified and projected onto the screen. Moreover, when not using the projector, cover it with the lens cover.

Screen

Do not apply any volatile substances which may cause discoloration to the screen, and do not let it become dirty or damaged.

Lamp

The lamp may need to be replaced earlier due to variables such as individual lamp characteristics, usage conditions and the installation environment, especially when the projector is subjected to continuous use for more than 10 hours or the power is frequently turned on and off.

Liquid crystal panel

Do not project the same image for long periods of time, as this may remain as an afterimage on the liquid crystal panel.

The liquid crystal panel of the projector is built with very high precision technology to provide fine picture details. Occasionally, a few stuck pixels may appear on the screen as fixed points of blue, green or red.

Please note that this does not affect the performance of your LCD.

10 - E

NGLISH

About Your Projector

Remote control

J

Front, back and top view

POWER

Turn the POWER on/off.

(page 19)

PICTURE MODE

THEATER ROOM

Switch to the best setting for a darker room.

LIVING ROOM

Switch to the best setting for a bright room.

FAVORITE

Display the FAVOURITE

LOAD menu.

(page 23)

ASPECT

Switch to cycle through the aspect ratio. (page 23)

MENU

Display the Main menu.

Return to the previous menu.

(page 26)

DEFAULT

Reset some of the settings to the factory default settings. (page 23)

INPUT SELECT

Switch to cycle through the input method. (page 22)

Battery compartment

1. Press the tab and lift up the cover.

2. Insert the batteries according to the polarity diagram indicated inside.

Remote control signal emitter

LIGHT

Turn the button backlight of

Remote control on/off. (page 23)

COLOR MANAGEMENT

Display the COLOR

MANAGEMENT menu. (page 24)

PICTURE ADJUSTMENT

Display the PICTURE menu.

(page 24)

Navigation buttons

Navigate through the menus with

F G H I

,

ENTER

and

RETURN. (page 26)

FREEZE

Capture the projected image and display it on a screen as a still picture. (page 22)

SLEEP

Turn off the POWER automatically by setting the duration. (page 23)

{

|

|

{

NOTE:

Do not drop the Remote control.

Avoid contact with liquids or moisture.

Remove the batteries if not using the Remote control for a long period of time.

Do not use rechargeable batteries.

Do not keep pressing the Remote control buttons as this may shorten battery life.

E

NGLISH

- 11

About Your Projector

Projector

J

Top and front view

Illuminates or flashes to indicate the status of the projector. (page 19)

POWER

Turn the POWER on/off.

(page 19)

POWER

Switch to cycle through the

INPUT SELECT method options. (page 22)

INPUT SELECT

Display the menu on screen.

Return to the previous menu in menu mode. (page 26)

MENU

Illuminates or flashes to indicate the status of the lamp unit. (page 36)

LAMP

Control panel

Illuminates or flashes to indicate the temperature status of the lamp unit. (page 36)

TEMP

Senses the luminance for the

LIGHT HARMONIZER feature.

(page 29)

LUMINANCE SENSOR

Navigate through the menu with F G H I

,

ENTER

and

RETURN. (page 26)

Navigation buttons

Heated air comes out of this opening.

Air exhaust port

Turn the outer ring to adjust the focus of the image.

(page 21)

Focus ring

Turn the inner ring to adjust the image size. (page 21)

Zoom ring

Intake fresh air to control the temperature inside.

Air intake port

Adjust the position of the projected image.

Shift lever

2.0 power zoom lens.

Projection lens

Protects the Projection lens from dust or dirt.

Lens cover

Remote control signal receptor

Receive a signal from the

Remote control. (page 22)

NOTE:

Do not cover the ventilation openings or place anything within 10 cm (4") of them as this may cause damage or injury.

While the projector is not in use, attach the Lens cover to protect the lens.

12 - E

NGLISH

About Your Projector

J

Back and bottom view

Connect an RS-232C compatible cable for controlling the projector remotely via your PC.

SERIAL

Connect an RGB signal cable from your PC.

PC IN

Connect a YP

B

P

R

signal cable.

S-VIDEO IN

Connect a S-VIDEO signal cable.

VIDEO IN

Connect an RCA composite video cable.

HDMI IN

Connect an HDMI signal cable.

Connecting terminals

Connect the Power cord to supply electronic power to the projector. (page 26)

AC IN

Switch the projector on/off.

(page 19)

MAIN POWER

Air intake port

Intake fresh air to control the temperature inside.

Lamp unit component

Houses the replaceable lamp unit. Contact the projector dealer or an authorized service center for replacement. (page 37)

Security lock

Attach the commercial shackle lock, manufactured by

Kensington, to protect your projector. Compatible with the

Kesington MicroSaver

Security System.

Front leg adjuster (L/R)

Screw up/down to adjust the projection angle. (page 15)

NOTE:

Do not cover the ventilation openings or place anything within 10 cm (4") of the vents as this may cause damage or injury.

This projector should only be used with the attached Power cord to ensure optimum performance and avoid damage to the projector.

E

NGLISH

- 13

Setting up

Screen size and throw distance

You can adjust the projection size with 2.0 power zoom lens. Calculate and define the throw distance as follows.

Screen

Projection size (16 : 9) Throw distance (L)

Diagonal length

(SD)

Screen height (SH) Screen width (SW)

Minimum distance

(LW)

Maximum distance

(LT)

1.01 m (40")

1.27 m (50")

1.52 m (60")

1.77 m (70")

2.03 m (80")

2.28 m (90")

2.54 m (100")

3.05 m (120")

3.81 m (150")

5.08 m (200")

0.50 m (1'7")

0.62 m

0.75 m (2'5")

0.87 m (2'10")

1.00 m (3'3")

1.12 m (3'8")

1.24 m

(2')

(4')

1.49 m (4'10")

1.87 m

2.49 m

(6'1")

(8'2")

0.89 m (2'11")

1.11 m (3'7")

1.33 m (4'4")

1.55 m (5'1")

1.77 m (5'9")

1.99 m

2.21 m

2.66 m

(6'6")

(7'3")

(8'8")

3.32 m (10'10")

4.43 m (14'6")

1.2 m (3'11")

1.5 m (4'11")

1.8 m (5'10")

2.1 m (6'10")

2.4 m (7'10")

2.7 m (8'10")

3.1 m (10'2")

3.7 m (12'1")

4.6 m (15'1")

6.2 m (20'4")

* All measurements above are approximate and may differ slightly from the actual measurements.

2.4 m (7'10")

3.0 m (9'10")

3.7 m (12'1")

4.3 m (14'1")

4.9 m (16')

5.5 m (18')

6.2 m (20'4")

7.4 m (24'3")

9.3 m (30'6")

12.4 m (40'8")

J

Calculation methods for screen dimensions

You can calculate more detailed screen dimensions from the screen diagonal.

SW = SD x 0.872

SH = SD x 0.490

LW = 1.2244 x SD - 0.056

LT = 2.4449 x SD - 0.056

Unit: m

* The results above are approximate and may differ slightly from the actual measurements.

NOTE:

Do not use the projector at a raised or a horizontally tilted position as it may cause malfunction of the projector.

Make sure the projector lens surface is parallel with the screen. You can tilt the projector body approximately ± 30 degrees vertically. Overtilting may result in shortening the component’s life.

For the best quality of the projection image, install a screen where sun light or room light does not shine directly onto the screen. Close window shades or curtains to block the lights.

14 - E

NGLISH

Setting up

Projection method

You can use the projector with any of the following 4 projection methods. To set the desired method in the projector, see “INSTALLATION” on page 35.

J

Setting on a desk/floor and projecting from front

J

Setting on a desk/floor and projecting from rear

INSTALLATION: FRONT/DESK

J

Mounting in the ceiling and projecting from front

INSTALLATION: REAR/DESK

J

Mounting in the ceiling and projecting from rear

INSTALLATION: FRONT/CEILING INSTALLATION: REAR/CEILING

NOTE:

A translucent screen is required for REAR projection.

When mounting the projector in the ceiling, the optional ceiling mount bracket (ET-PKX100) is required.

Front leg adjuster and throwing angle

You can adjust the throwing angle by screwing the front legs up/down.

This adjust the angle of the projector.

NOTE:

Heated air comes out of the Air exhaust port. Do not touch the Air exhaust port directly.

If keystone distortion occurs, see “KEYSTONE” on page 33.

E

NGLISH

- 15

Setting up

Lens shift and positioning

If the projector is not positioned right in front of the center of the screen, you can adjust the projected image position by moving the Shift lever within the shift range of the lens.

J

Adjusting the Shift lever

1. Screw the Shift lever counterclockwise to unlock.

Unlock

2. Move the Shift lever to adjust the projected image position

3. Screw the Shift lever clockwise to lock.

Q

Horizontal shift

You can place the projector where the projector lens is up to 25% horizontally off-center from the screen and then adjust the image position with the Lens shift feature.

Screen Shifting the lever left:

Moving to screen’s right

Up to about 25% of the projection

Up to about 25% of the projection

Shifting lever right:

Moving to screen’s left

Q

Vertical shift

You can place the projector where the projector lens is up to 63% vertically off-center from the screen and then adjust the image position with the Lens shift feature.

Screen

Shifting the lever down:

Moving to screen’s bottom

Up to about 63% of the projection

Up to about 63% of the projection

Shifting the lever up:

Moving to screen’s top

16 - E

NGLISH

Setting up

J

Projector location range

You can determine where to locate the projector by considering the Lens shift possibilities. See “Positioning the image” on page 21 for available placement.

Q

After fixing the screen position

Vertical center of screen

Placement

SH

SW

Q

The adjustable projection range

Shift range

Center of lens

Projection size

Standard position

Projection size

NOTE:

When the projector is located right in front of the screen and the Shift lever is centerd, you will get the best quality of the projection image.

When the Shift lever is at the vertical limit of the shift range, you cannot move the lever to the horizontal limit, likewise when the Shift lever is at the horizontal limit of the shift range, you cannot move the lever to the horizontal limit.

When the projector is tilting and you adjust KEYSTONE, the center of the screen and the lens need to be realigned.

Do not attempt to pull hard the Shift lever while adjusting.

E

NGLISH

- 17

Connections

Before connection to the projector

Read and follow the operating and connecting instructions of each peripheral device.

The peripheral devices must be turned off.

Use cables that match each peripheral device to be connected.

Confirm the type of video signals. See “List of compatible signals” on page 41.

Audio cables must be connected from each peripheral device directly to the audio reproduction system.

Connecting with AV devices

To component video output

DVD player

Connecting with HDMI/PC

To video output

Video player

To S-video output

DVD player

DVD player

HDMI cable

(RP-CDHG30: Optional)

To HDMI output

RGB signal cable

To RGB output

PC

NOTE:

Make sure the HDMI cable is adapted to your HDMI device for proper performance.

A compatible cable is required for an HDMI 1 080p signal.

It is possible to connect with DVI devices via a HDMI/DVI conversion adapter, but some equipment may not project the image properly or other problems could be encountered. See “Serial terminal” on page 42.

18 - E

NGLISH

Switching the projector on/off

Power cord

Ensure all the input devices are connected and turned off before connecting the Power cord.

J

Connecting

1. Make sure the shape of the power cord plug and the AC IN connector on the back of the projector match, then push the plug all the way in.

2. Connect the Power cord to a wall socket.

J

Disconnecting

1. Make sure the MAIN POWER is switched off and unplug the Power cord from the wall socket.

2. Hold the plug and unplug the Power cord from the AC IN connector on the back of the projector.

NOTE:

Do not use any other Power cord than the one supplied with the projector.

Do not force the connector as this may damage the projector and/or the power cord.

Dirt or dust build-up around plugs may cause fire or electrical hazards.

Switch off the power to the projector when not in use.

POWER indicator

POWER indicator

Indicator status

No illumination or flashing

RED Lit

Flashing

GREEN

ORANGE

Lit

Lit

Flashing

Status

The MAIN POWER is switched off.

The MAIN POWER is switched on and the projector is standby.

The POWER is switched on and the projector is getting ready to project.

The projector is ready to project.

The POWER is switched off and the projector is cooling the lamp.

The POWER is switched on again when cooling the lamp and recovering to projection mode. Recovery may take a while.

NOTE:

While the projector is cooling the lamp, do not switch the MAIN POWER off or unplug the Power cord.

E

NGLISH

- 19

Switching the projector on/off

Switching on the projector

Power indicator

1. Switch the MAIN POWER on.

The power indicator lights up in RED.

2. Remove the Lens cover from the lens.

3. Press the POWER button.

The power indicator lights up in GREEN after flashing for a while.

The STARTUP LOGO is displayed on the screen.

NOTE:

See page 34 about switching on/off the STARTUP LOGO.

Some small rattling or tinkling sound may be heard when starting up, but this is normal and does not affect the performance of the projector.

Switching off the projector

Power indicator

1. Press the POWER button.

The confirmation screen is displayed.

To return to the projection, press ENTER to select CANCEL or press MENU/RETURN.

2. Press I to select OK and press POWER or

ENTER.

The power indicator lights up in ORANGE while cooling the lamp, then illuminates RED when it is ready to switch off the MAIN POWER.

3. Switch off the MAIN POWER on the back of the projector.

NOTE:

Press the POWER twice or for a long duration to switch the power.

20 - E

NGLISH

Projecting an image

Selecting the input signal

1. Switch on the connected devices.

Press the play button of the required device.

2.

Press the

INPUT SELECT

button to select the required input method if needed.See "Input switching" on page 22.

The image will be projected on the screen.

NOTE:

AUTO SEARCH is ON as default and the signal from the connected devices is detected automatically. See

"AUTO SEARCH" on page 34.

Positioning the image

1. Press ASPECT to select the required aspect mode. See "ASPECT" on page 32.

2. Adjust the projected image with the Shift

lever. See "Lens shift and positioning" on page 16.

4. Adjust the focus and the projected image size.

Turn the Focus ring and Zoom ring to adjust the image.

You can confirm the result with TEST

PATTERN.

Focus ring

Zoom ring

Unlock

3. Adjust the angle of the projector.

Screw down the Front leg adjuster and adjust the angle vertically.

NOTE:

Do not touch the Air exhaust port as this may cause burns or injury.

If keystone distortion occurs, see “KEYSTONE” on page 33.

E

NGLISH

- 21

Remote control operation

Input switching

You can switch the input method manually by pressing the INPUT

SELECT button. Press the button several times or press I H to cycle through the input methods as follows.

The actual projected image will be changed in a while.

COMPONENT IN

I

H

S-VIDEO IN

FG FG

PC IN

I

H

HDMI IN

I

H

VIDEO IN

Operating range

You can operate the projector with the Remote control within the remote range 7 m.

Q

Facing to the projector

Ensure the Remote control emitter is facing to the Remote control signal receptor on front of the projector and press the required buttons to operate.

Q

Facing to the screen

Ensure the Remote control emitter is facing to the screen and press the required buttons to operate the projector. The signal will be reflected off the screen. The operating range may differ due to the screen material.

NOTE:

The Remote control may malfunction under strong light such as a fluorescent. Do not let strong light shine onto the signal receptor.

If there are any obstacles in between the remote control unit and the receptor, the Remote control may not operate correctly.

COMPONENT IN

S-VIDEO IN

VIDEO IN

Connected to COMPONENT

IN terminal equipment’s signal

Connected to S-VIDEO IN terminal equipment’s signal

Connected to VIDEO IN terminal equipment’s signal

HDMI IN

Connected to HDMI terminal equipment’s signal

PC IN

Connected to PC IN terminal equipment’s signal

Graphical guidance will be displayed on the upper right of the display and you can confirm the selected input method which is hilighted in yellow. See "INPUT

GUIDE" on page 34.

NOTE:

If you select an unplugged input method, the guidance will blink on and off several times.

See "List of compatible signals" on page 41.

See "Connecting terminals" on page 13.

Capturing an image

When projecting an image, press FREEZE to capture the projected image and display it on the screen as a still picture. Press again to escape.

NOTE:

Escaping from the freeze mode is available by pressing any button except the LIGHT button.

22 - E

NGLISH

Remote control operation

Switching the aspect ratio

The aspect ratio is selected automatically, or you can switch it manually by pressing the ASPECT button. Press the button several times to cycle through the different aspect type as follows. See "ASPECT" on page 32.

VIDEO/

S-VIDEO/

COMPONENT

(YP

B

P

R

)

4:3

I

H

FG

ZOOM2

I

H

16:9

I

H

14:9

FG

ZOOM1

I

H

JUST

PC (RGB)

4:3

FG

I

H

V SCROLL

16:9

FG

HDMI

4:3 automatically

I

H

16:9

NOTE:

If you project an image with an unmatched aspect ratio, the image may distort or some portions may be cropped. Select an aspect ratio which preserves the intention of the image creator.

The order of ASPECT types is defined not only by the input method but also by the input signals.

See "List of compatible signals" on page 41.

If you project a copyrighted image enlarged or distorted by using ASPECT function in commercial use in a public place, such as a restaurant or hotel, you might infringe on the copyright of the creator which is protected by copyright law.

Switching off the projector

You can switch off the POWER automatically by setting the SLEEP feature. Press the SLEEP button several times to cycle through the duration of time. See "SLEEP" on page 35.

OFF

I

H

60MIN.

I

H

90MIN. 120MIN.

FG FG

Resetting to the factory default settings

You can reset most of the customized settings to the factory defaults by pressing DEFAULT

button of the

Remote control

. Display the required sub menu or the menu items and press the button again.

NOTE:

Some menu items are not available to reset by pressing the DEFAULT button. Adjust each menu items manually.

Turning on the button backlight

In a dark room, you can turn on the button backlight to operate the

Remote control. Press the button on the upper right corner of the unit to turn on the backlight and enter the light-on mode. After 5 seconds without any operation, the backlight is faded, and it will go out after another 5 seconds. Press any but LIGHT to turn on again. To escape from the light-on mode, press the LIGHT button.

Switching the picture mode

You can switch the preset settings by pressing the

THEATER ROOM, LIVING ROOM and FAVORITE buttons. See "PICTURE MODE" on page 28.

CINEMA1

FG

NATURAL

I

H

I

H

CINEMA2

FG

VIDEO

NORMAL

FG

I

H

DYNAMIC

FG

VIVID CINEMA

Display the FAVOURITE LOAD menu.

See "FAVOURITE LOAD" on page 30.

E

NGLISH

- 23

Remote control operation

Adjusting the image

You can display one of the PICTURE or

ADVANCED menu items by pressing the PICTURE ADJUSTMENT button.

Press the button to switch between

PICTURE and ADVANCED menu.

Press F G to select the required menu item and I H to adjust.

Q

PICTURE menu items

PICTURE MODE, CONTRAST, BRIGHTNESS,

COLOR, TINT, SHARPNESS, COLOR

TEMPERATURE and DYNAMIC IRIS

Q

ADVANCED menu items

GAMMA, CONTRAST, BRIGHTNESS, COLOR

MANAGEMENT, NR, MPEG NR, CINEMA

REALITY and TV-SYSTEM

J

Create a new profile

Q

Adjusting the selected color

Select a color and adjust COLOR, TINT and

BRIGHTNESS.

1. Select the CURSOR menu and press

ENTER.

The projected image is captured, and the target cursor is displayed.

When the LOG is fully stored, the target cursor will not be displayed. See "Managing stored logs" on page 25.

Target cursor

NOTE:

For each menu items description, see “Menu

Navigation” on page 26.

The screen will be cleared after 7 seconds without any operation.

Setting your own color profile

You can adjust a selected color individually and save and retrieve under the PICTURE MODE setting.

Press the COLOR MANAGEMENT button to open the menu.

PROFILE

CURSOR

LOG

PROFILE SAVE

NORMAL

2. Move the cursor with F G I and H to the required place to select a color and press

ENTER.

The color at the center of the target cursor is sampled and the sample box is displayed on the left of the cursor. The menu items are displayed on the upper part of the screen.

CURSOR

RETURN

SELECT

ENTER

DEFAULT

COLOR

TINT

BRIGHTNESS

Sampled color

3. Select a menu item and the I H to adjust each item level.

The result box is displayed on the right of the cursor and shows the adjusted color.

CURSOR

RETURN

SELECT

ENTER

DEFAULT

COLOR

TINT

BRIGHTNESS

Adjusted color

24 - E

NGLISH

Remote control operation

COLOR

Adjust the vividness of the color.

Setting range: -30 to +30

Default: 0

TINT

BRIGHTNES

S

Adjust the color tone.

Setting range: -30 to +30

Default: 0

Adjust the brightness of the color.

Setting range: -20 to +20

Default: 0

4. Press ENTER to store the adjusted result.

PROCESSING” is displayed for a few seconds and the result is stored in LOG.

You can store up to 8 logs under LOG for each

PICTURE MODE setting.

5. Press MENU or RETURN to return to the previous menu.

Repeat the steps above to store more adjustment.

Q

Managing stored logs

You can edit or delete the stored logs of the selected PICTURE MODE.

1. Select LOG and press ENTER.

The LOG menu is displayed.

PICTURE MODE : CINEMA1

1. Select the PROFILE SAVE menu and press

ENTER

The PROFILE SAVE menu is displayed. You can save the profile as USER1, USER2 and

USER3.

USER1

USER2

USER3

2. Press ENTER to save the profile

The confirmation screen is displayed. Press

ENTER again to save.

J

Loading saved profiles

When profiles are loaded under the PICTURE

MODE setting, you can keep them as you defined until the PROFILE is set to NORMAL.

1. Select the required PICTURE MODE and press ENTER.

2. Press the COLOR MANAGEMENT button and select the PROFILE menu.

The profile settings of the selected PICTURE

MODE will be displayed.

3. Select the required profile and press ENTER.

NORMAL

Return to the default setting of the

PICTURE MODE

USER1

USER2

USER3

Defined profile settings.

POINT1

POINT2

POINT3

POINT4

POINT5

POINT6

POINT7

POINT8

ALL DELETE

Sampled color Adjusted color

2. Select the required log from 1 - 8 or ALL

DELETE, and press ENTER.

Select CHANGE to edit the log.

The cursor menu is displayed and you can readjust the color.

Select DELETE to delete the log.

The confirmation screen will be displayed.

Select OK to delete.

When you select ALL DELETE, the "DELETE

ALL LOG." screen is displayed. Select OK to delete all logs. The PROFILE setting will be set to NORMAL.

Q

Saving a log setting as a profile

Return to the COLOR MANAGEMENT menu and save the stored log as a profile. Make sure that the

PICTURE MODE is not switched.

NOTE:

LOG and PROFILE SAVE are not displayed before you apply COLOR MANAGEMENT.

If you load a profile with a different attribute mode of the profile, the CURSOR and PROFILE SAVE menus will not be displayed.

The approximate colors will be adjusted at the same time. If you adjust the exact same color differently, both colors will affect each other and you might get unexpected results.

White, Black and Grey are not adjustable.

If you escape the COLOR MANAGEMENT menu or attempt to perform another menu action before you save the adjusted profile, the confirmation screen will be displayed.

If you switch the input signal before you save the profile, the setting will be cancelled without notice.

E

NGLISH

- 25

Menu Navigation

The menu system allows you to access functions which do not have their own dedicated buttons on the Remote

control. The menu options are structured and categorized. You can navigate through the menu with

F G I H buttons.

Navigating through the

MENU

J

Displaying the Main menu

Press MENU button to display the Main

menu and the operating guidance.

3. Press I H to adjust or set the selected item.

For items using a bar scale, the current settings are displayed on the left of the bar scale.

You can cycle through the options of an item by pressing I H.


POSITION

ENGLISH

OPTION

H-POSITION

V-POSITION

ASPECT

WSS

OVER SCAN

KEYSTONE

ON

Main menu

Sub menu

Current settings

RETURN

SELECT

ENTER

DEFAULT


POSITION

LANGUAGE

OPTION

SELECT

RETURN

ENTER

PICTURE MODE

CONTRAST

BRIGHTNESS

COLOR

TINT

SHARPNESS

COLOR TEMPERATURE

DYNAMIC IRIS

LIGHT HARMONIZER

ADVANCED MENU

FAVORITE SAVE

FAVORITE LOAD

NORMAL

ON

OFF

Operating guidance

Contains the required buttons to adjust the settings.

J

Operating procedure

1. Press F G to scroll to the required Main menu item and press ENTER to select.

The selected item is highlighted in orange and the Sub-menu is displayed on the right. See

“Sub-menu” on page 27.

2. Press F G to scroll to the required Sub-menu item and press I H or ENTER to adjust.

The selected item is called up and the other menu items disappear from the screen.

If there is a lower level, the next level will be displayed.

4. Press MENU or RETURN to return to the previous menu.

To continue projection, press the button repeatedly until the menu disappears.

Q

About the bar scale items

The triangle mark under the bar indicates factory default setting and the square indicates the current setting.

Current setting

BRIGHTNESS

Default

Main menu

The Main menu has 4 options. Select the required option and press ENTER to display the Sub-menu.


POSITION

LANGUAGE

OPTION


POSITION

LANGUAGE

OPTION

H-POSITION

V-POSITION

ASPECT

WSS

OVER SCAN

KEYSTONE

ON

SELECT

RETURN

ENTER

26 - E

NGLISH

Menu Navigation

Sub-menu

Sub-menu items vary by the selected input signal.

J

PICTURE menu

See “PICTURE Menu” on page 28.

Sub-menu items

Default setting

1

PICTURE MODE

CONTRAST

BRIGHTNESS

COLOR

TINT

SHARPNESS

COLOR TEMPERATURE

DYNAMIC IRIS

LIGHT HARMONIZER

ADVANCED MENU

FAVOURITE SAVE

FAVOURITE LOAD

NORMAL

0

0

0

0

0

0

ON

AUTO

SIGNAL MODE

2

1. The default settings vary by the selected PICTURE MODE.

2. PC/COMPONENT/HDMI signals only

J

POSITION menu

See “POSITION Menu” on page 31.

Sub-menu items Default setting

V - POSITION

H - POSITION

0

0

DOT CLOCK

1

CLOCK PHASE

2

ASPECT

WSS

4

OVER SCAN

KEYSTONE

AUTO SETUP

5

0

0

AUTO

3

ON

+7

ON

1. PC signal only

2. COMPONENT/PC signals only

3. 16:9 for PC or HDMI signals

4. VIDEO/S-VIDEO/COMPONENT signals only

5. PC signal only

J

LANGUAGE menu

Select the required language option.

J

OPTION menu

See “OPTION Menu” on page 34.

Sub-menu items Default setting

INPUT GUIDE

OSD DESIGN

OSD POSITION

BACK COLOR

STARTUP LOGO

AUTO SEARCH

INSTALLATION

SLEEP

ALTITUDE

LAMP POWER

LAMP RUNTIME

TEST PATTERN

DETAILED

TYPE1

CENTRE

BLUE

ON

ON

FRONT/DESK

OFF

LOW

NORMAL

E

NGLISH

- 27

PICTURE Menu

J

Reproducing color of an sRGB image

For reproducing the original color of S-VIDEO images precisely, set as follows.

1. Press PICTURE ADJUSTMENT and select

NATURAL.

2. Press DEFAULT to reset the other Sub-menu menu items

3. Press RETURN once to return to the Main menu and select OPTION

4. Switch the LAMP POWER to NORMAL

NOTE:

It may take for a while until the selected mode is stabilized.

See “Navigating through the MENU” on page 26.

CONTRAST

You can adjust the contrast of the projected image.

Adjust the BRIGHTNESS in advance if necessary.

PICTURE MODE

Depending on the projection environment, you can use these preset parameter settings to optimise image projection. Press I H to cycle through the options.

For a bright room

NORMAL

Setting for a general image, such as sports or games

DYNAMIC

Bright and sharp setting

VIVID

CINEMA

Vivid and crisp color setting

For a dark room

CINEMA1

Hollywood style colors

CINEMA2

Deeper and more rich color setting

VIDEO

NATURAL

Setting for active images, such as music or concert

Reproduces the original color of the image

Lower

Setting range: -32 to +32

BRIGHTNESS

You can adjust the brightness of the projected image.

Darker

Setting range: -32 to +32

COLOR

You can adjust the color saturation of the projected image.

Lighter

Higher

Brighter

Darker

Setting range: -32 to +32

When PC is connected, this function is available with

1 125 (1 080)/60i, 1 125 (1 080)/50i,

1 125 (1 080)/60p and 1 125 (1 080)/50p signals only.

28 - E

NGLISH

PICTURE Menu

TINT

You can adjust the skin tone in the projected image.

More reddish

More greenish

Setting range: -32 to +32

When PC is connected, this function is available with

1 125 (1 080)/60i, 1 125 (1 080)/50i,

1 125 (1 080)/60p and 1 125 (1 080)/50p signals only.

SHARPNESS

You can adjust the sharpness of the projected image.

Less sharp

More sharp

Setting range is vary according to the selected input signal

COLOR TEMPERATURE

You can adjust the white balance of the projected image.

Less bluish

Less reddish

Setting range: -6 to +6

DYNAMIC IRIS

You can switch automatic adjustment of the lamp and the lens iris on/off.

ON:

OFF:

Automatic adjustment

No adjustment

LIGHT HARMONIZER

LUMINANCE SENSOR detects the brightness of the room and keeps the luminance in balance automatically. If needed, you can switch on/off this function or adjust it manually. Press I H to cycle through the options.

LIGHT HARMONIZER

MODE

MANUAL ADJUST

AUTO

OFF

AUTO:

No adjustment

Automatic adjustment

MANUAL: Manual adjustment (0 - +8)

NOTE:

To assure correct performance of the LIGHT

HARMONIZER, do not interrupt the light onto the

LUMINANCE SENSOR.

ADVANCED MENU

From the ADVANCED MENU, you can perform more detailed image adjustment manually.

J

GAMMA

You can adjust linear intensity at 3 levels. Press

I H to increase/decrease.

Levels Default setting

GAMMA HIGH

GAMMA MID

0

0

GAMMA LOW

0

Setting range: -8 to +8

J

CONTRAST

You can adjust the amount of contrast in RGB colors individually. Press I H to increase/decrease.

RGB Default setting

CONTRAST R

CONTRAST G

0

0

CONTRAST B

0

Setting range: -16 to +16

J

BRIGHTNESS

You can adjust the brightness in RGB colors individually. Press I H to increase/decrease.

RGB Default setting

BRIGHTNESS R

BRIGHTNESS G

0

0

BRIGHTNESS B

0

Setting range: -16 to +16

J

COLOR MANAGEMENT

You can manage your own defined color settings.

See “Setting your own color profile” on page 24.

E

NGLISH

- 29

PICTURE Menu

J

NR (Noise Reduction)

You can switch the automatic noise reduction system on/off. Press I H to select the required setting.

ON:

OFF:

Automatic noise reduction

No noise reduction

NOTE:

Applying noise reduction may affect image quality.

J

MPEG NR

You can switch the automatic noise reduction system for MPEG format images on/off. The system minimizes block noise and mosquito noise to eliminate jagged edges, providing an overall smoother image. Press I H to select the required setting.

ON:

OFF:

Active

Deactive

FAVOURITE SAVE

You can save the adjusted PICTURE settings with up to

3 in each of 2 signal groups.

1. Adjust the different items of the PICTURE menu.

2. Select FAVOURITE SAVE and press ENTER.

3. Select FAVOURITE 1, FAVOURITE 2 or

FAVOURITE 3 to save and press ENTER.

The confirmation screen is displayed.

4. Select OK and press ENTER.

To cancel, select CANCEL and press ENTER, or press the RETURN button.

VIDEO, S-VIDEO, COMPONENT,

HDMI (not including VGA480),

1 125 (1 080)/50i, 1 125 (1 080)/60i,

1 125 (1 080)/50p and

1 125 (1 080)/60p signals in PC connection

VGA480 in HDMI connection, PC not including 1 125 (1 080)/50i,

1 125 (1 080)/60i, 1 125 (1 080)/50p and 1 125 (1 080)/60p

FAVOURITE 1

FAVOURITE 2

FAVOURITE 3

FAVOURITE 1

FAVOURITE 2

FAVOURITE 3

NOTE:

MPEG NR is for MPEG images only.

MPEG NR is not available with PC and HDMI

(VGA480) signals.

J

CINEMA REALITY

You can switch the automatic image synchronizer on/off for 24 frames a second images, such as movies. Press I H to select the required setting.

ON:

OFF:

Active

Deactive

FAVOURITE LOAD

You can access saved FAVOURITE settings instantly.

1. Select the required setting from FAVOURITE 1,

FAVOURITE 2 or FAVOURITE 3.

Undefined setting will not be displayed.

2. Press ENTER to activate the selected setting.

NOTE:

S-VIDEO, VIDEO, PC. COMPONENT available signals are 525i (480i), 625i (576i),

1 125 (1 080)/50i, 1 125 (1 080)/60i,

1 125 (1 080)/50p and 1 125 (1 080)/60p, while

HDMI available signals are 1 125 (1 080)/60i,

1 125 (1 080)/50i.

If the CINEMA REALITY is different from the required setting of the image, select OFF.

J

TV-SYSTEM

When the video signal is changed, the setting switches automatically.

You can switch the setting manually to match the video data. Press I H to cycle through the options.

AUTO

FG

SECAM

FG

PAL-N

FG

PAL-M

IH

IH

NTSC

FG

NTSC 4.43

FG

PAL

NOTE:

If you have not saved any settings,

FAVOURITE 1

,

FAVOURITE 2

and

FAVOURITE 3 are not displayed.

SIGNAL MODE

The current selected signal is displayed when

PC/COMPONENT/HDMI equipment is connected.

NOTE:

See “List of compatible signals” on page 41.

30 - E

NGLISH

POSITION Menu

DOT CLOCK

If you have interference patterns on the projected image, which is sometimes referred to as moire or noise, you can minimize it by pressing I H to adjust the clock frequency.

NOTE:

If the projecting signal’s dot clock frequency is higher than 150 MHz, the adjustment may not make a difference.

See “Navigating through the MENU” on page 26.

H - POSITION

You can move the projected image horizontally for fine adjustment.

Move left

Move right

CLOCK PHASE

If you require further adjustment for the same reason as the DOT CLOCK adjustment, you can fine adjust the timing of the clock. Press I H to adjust.

NOTE:

If the projecting signal’s dot clock frequency is higher than 150 MHz, the adjustment may not make a difference.

CLOCK PHASE is not available with

1 125 (1 080)/50i, 1 125 (1 080)/60i,

1 125 (1 080)/50p, 1 125 (1 080)/60p,

1 125 (1 080)/24p, 750 (720)/50p and

750 (720)/60p signals using the COMPONENT connection.

V - POSITION

You can move the projected image vertically for fine adjustment.

Move down

Move up

E

NGLISH

- 31

POSITION Menu

ASPECT

You can switch the aspect ratio manually when needed.

J

Aspect ratio options and projection example

If you apply the aspect ratio options to the projected image, the result will be as follows. The result may differ due to the input signals. See “Switching the aspect ratio” on page 23.

Q

VIDEO/S-VIDEO/COMPONENT

Not available with 1 125 (1 080)/50i, 1 125 (1 080)/60i, 1 125 (1 080)/50p, 1 125 (1 080)/60p,

1 125 (1 080)/24p, 750 (720)/50p and 750 (720)/60p signals.

4:3

Squeeze signal

16:9

Letter box

14:9

Letter Box

Original size

2.35:1

Cinescope

4:3

Projects at 4:3.

16:9

JUST

ZOOM/ZOOM1

ZOOM2

Adjusts horizontally to

16:9.

Adjusts horizontally to fit

16:9. Closer to edge, more enlarged. Not available with PC signals.

Adjusts to 16:9 size including letter box.

Escape the menu mode and press FG to adjust vertically.

Adjusts to cinescope size not including letter box.

Escape the menu mode and press FG to adjust vertically.

14:9

Adjusts to 14:9.

Q

COMPONENT signals

Available with 1 125 (1 080)/50i, 1 125 (1 080)/60i, 1 125 (1 080)/50p, 1 125 (1 080)/60p, 1 125 (1 080)/24p,

750 (720)/50p and 750 (720)/60p signals

4:3 16:9 Cinescope

Original Size

H - FIT

Adjusts horizontally to 16:9.

V - FIT

Adjusts to 16:9 vertically. Escape and press F G to scroll the image to adjust the edge vertically.

V SCROLL: Escape and press F G to scroll the image of PC signals to adjust the edge vertically.

32 - E

NGLISH

POSITION Menu

J

Aspect ratio depend on signals

Press I H to cycle through the aspect ratio options. The cycle pattern depends on the connected signals.

VIDEO/

S-VIDEO

PC (RGB)

HDMI

YP

B

P

R

4:3 \ 16:9 \ 14:9 \ JUST \

ZOOM1 \ ZOOM2

AUTO \ 4:3 \ 16:9 \ JUST \

ZOOM

NTSC signal

4:3 \ 16:9 \ V SCROLL

4:3 \ 16:9

VGA or SVGA signals

V SCROLL only

WIDE768

Not switchable

WIDE480/600/720/768-2 signals

4:3 \ 16:9

16:9 \ H - FIT \ V - FIT \ ZOOM

1 125 (1 080)/50i, 1 125 (1 080)/60i,

1 125 (1 080)/50p, 1 125 (1 080)/60p,

1 125 (1 080)/24p, 750 (720)/50p and

750 (720)/60p signals

4:3 \ 16:9 \ JUST \ ZOOM

525p (480p) and 625p (576p) signals

4:3 \ 16:9 \ 14:9 \ JUST \

ZOOM1 \ ZOOM2

625i (576i), 625p (576p)

AUTO \ 4:3 \ 16:9 \ JUST \

ZOOM

525i (480i), 525p (480p)

16:9 \ H - FIT \ V - FIT

1 125 (1 080)/50i, 1 125 (1 080)/60i,

1 125 (1 080)/50p, 1 125 (1 080)/60p,

1 125 (1 080)/24p, 750 (720)/50p,

750 (720)/60p signals

KEYSTONE

If the projector is aligned non-perpendicularly to the screen, or if the projection screen has an angled surface, you can vertically correct keystone.

Image Operation

Setting range: -32 to 32

NOTE:

You can correct the distortion ± 30 degrees from the vertical plane. For a better quality image, installing the projector with a minimum of distortion is recommended.

Some distortion may be retained for Lens shift adjustment.

The distortion of the Main menu screen is not correctable.

The result of the keystone correction will affect on the aspect ratio and the size of the image.

WSS

If a PAL/625p (576p)/625i (576i) signal is input and that signal has an identification signal, the aspect ratio is automatically switched to the required setting. You can switch the system off manually.

OVER SCAN

If the 4 edges of an image is partly dropped, you can use this function to adjust and project it properly.

AUTO SETUP

You can adjust V - POSITION, H - POSITION, DOT

CLOCK and CLOCK PHASE automatically when connecting via PC. Press ENTER to adjust these at the same time.

Shrink

Enlarge

Setting range: 0 to +10

OVER SCAN is not available with PC signals.

E

NGLISH

- 33

OPTION Menu

OSD POSITION

You can change the position where to display the menu.

Press I H to cycle through the options.

UPPER

LEFT

UPPER

CENTRE

UPPER

RIGHT

CENTRE

LOWER

LEFT

LOWER

CENTRE

LOWER

RIGHT

See “Navigating through the MENU” on page 26.

INPUT GUIDE

When you press INPUT or the INPUT SELECT button to change the input method, the guidance is indicated in the upper right corner of the screen. The following display methods are available. Press I H to cycle through the options.

Options

OFF

SIMPLE

DETAILED

Function

Turn off the guidance.

Display the input method by text.

The INPUT GUIDE will go out after 5 seconds without any operation.

Display the input method by graphic.

The INPUT GUIDE will go out after 10 seconds without any operation.

BACK COLOR

You can choose a BLUE or BLACK screen for when the projector is idle. Press I H to select an option.

STARTUP LOGO

You can switch on/off the logo that is displayed when starting up. Press I H to select an option.

ON:

OFF:

Active

Deactive

AUTO SEARCH

When the projector is turned on, the input terminals are detected and an input signal is selected automatically.

You can switch on/off the system. Press I H to select an option.

ON:

OFF:

Active

Deactive

NOTE:

When no signal is detected, the last used input method will be selected.

OSD DESIGN

You can change the background color of the menu.

Press I H to cycle through the options.

Options Function

TYPE1

TYPE2

TYPE3

Semi transparent black

Solid blue

Semi transparent dark blue

HDMI SIGNAL LEVEL

You can switch the HDMI signal level NORMAL or

EXPAND when an HDMI (RGB) signal selected. Press

I H to select an option.

34 - E

NGLISH

OPTION Menu

INSTALLATION

When installing the projector, select the projection method according to the projector position. Press I H to cycle through the options. See “Projection method” on page 15.

FRONT/DESK

FRONT/CEILING

REAR/DESK

REAR/CEILING

Setting on a desk/floor and projecting from front

Mounting in the ceiling and projecting from front

Setting on a desk/floor and projecting from rear

Mounting in the ceiling and projecting from rear

LAMP RUNTIME

You can check how long time has been the lamp used.

NOTE:

LAMP RUNTIME is a relevant matter for lamp replacement timing. See “Care and Replacement” on page 37.

TEST PATTERN

You can use the 2 different of test pattern to adjust the focus of the image. The PICTURE MODE is switched to

DYNAMIC temporarily, and return to the last used setting when return to projection.

1. Press ENTER to display test pattern 1 and adjust the focus with the Focus ring.

SLEEP

You can select the required duration of time and set the off timer to turn off the POWER of the projector automatically. 3 minutes before turn-off, the countdown of minutes will be displayed in the lower right corner.

Press I H to cycle through the options. See “Switching off the projector automatically” on page 23.

ALTITUDE

If you use the projector at high elevations, set the fan speed to HIGH. Press I H to select HIGH or LOW.

2. Press ENTER to display test pattern 2 and adjust the focus with the Focus ring again.

NOTE:

At 1 400 m (4593 ft) above sea level, the setting must be HIGH.

3. Press MENU or RETURN to return to the previous menu, or press repeatedly to return to the screen.

LAMP POWER

You can adjust the power of the lamp to save on electricity, prolong the lamp life and reduce the noise.

Options

NORMAL

ECO - MODE

Function

When higher luminance is required such as movies

When lower luminance is sufficient such as in a small room

NOTE:

While a test pattern is displayed, the PICTURE

MODE is changed temporarily to DYNAMIC.

When the projector and/or the screen is tilted, adjust the focus at the center of the image. The upper and lower edge might be out of focus.

When the image is distorted in keystone, adjust the KEYSTONE in POSITION menu.

NOTE:

When no input signal is detected, the function is disabled.

E

NGLISH

- 35

TEMP and LAMP Indicators

Controlling alerts

If a problem should occur with the projector, the TEMP and/or LAMP indicators will alert you. Respond to the alert as follows.

1. Confirm the POWER indicator status and turn off the projector in the proper way.

2. Find out the cause of the problem.

3. Follow the instructions for each indication below and solve the problem.

4. Turn on the projector in the correct way and confirm the indicator is not indicating a problem any longer.

NOTE:

If no problem is found or the problem remains, do not turn on the projector. Instead contact an Authorized

Service Center.

LAMP indicator

TEMP indicator

J

TEMP indicator

Indicator and projector

Problem

Cause

Remedy

Illuminating RED and still projecting

Flashing RED and POWER is turned off

The temperature inside and/or outside the projector is abnormally high.

The ventilation ports are covered.

Remove the object(s) from the ventilation ports or clear around the projector.

The room temperature is too high.

Reinstall the projector at a temperature controlled place.

See “Setting up” on page 14.

The Air filter is excessively dirty and the ventilation is poor.

Clean or replace the Air filter in the proper way. See

“Cleaning the Air filter” on page 37.

J

LAMP indicator

Indicator

Problem

Cause

Remedy

Illuminating RED

LAMP RUNTIME has reached 1 800 hours

(with LAMP POWER set to NORMAL).

Lamp unit will run out soon and needs to be replaced.

Flashing RED

LAMP circuit failure or abnormal function.

The projector is switched off incorrectly.

Replace the Lamp unit. See “Before replacing the Lamp unit” on page 38.

Let the LAMP cool down and turn on the projector.

If the POWER does not turn on, contact an

Authorized Service Center.

36 - E

NGLISH

Care and Replacement

Before cleaning

Ensure the projector is switched off.

Unplug all the cables from the projector.

Cleaning your projector

J

Cleaning the outer surface of the projector

Wipe off dirt and dust gently with a soft cloth.

If it is difficult to remove the dirt, soak a cloth in a neutral detergent diluted with water, wring the cloth well and then wipe the projector. Dry off the projector with dry cloth.

If you use a chemical treated wipe, follow the instructions supplied with it.

J

Cleaning the lens surface

Wipe off dirt and dust gently with a lint-free cloth.

Make sure no dirt or dust remains on the surface of the lens. It will be enlarged and projected onto a screen.

J

Cleaning the Air filter

If the Air filter is excessively dirty, the internal temperature of the projector increases and may cause malfunction. Clean the Air filter regularly every 100 hours of usage.

1. Turn the projector upside down and place it gently on a soft cloth.

2. Press the tab and slightly slide up the Air filter to remove.

3. Vacuum dirt and dust from the Air filter.

Do not wash the Air filter.

4. Place and slightly slide in the Air filter in the Air intake port to attach.

Make sure the Air filter clicks into the place.

NOTE:

Do not use the projector without attaching the Air filter.

J

Replacing the Air filter

The Air filter should be replaced when cleaning is ineffective and when replacing the Lamp unit. An replacement Air filter is provided with a replacement lamp unit, ET - LAX100. Contact an Authorized Service

Center for the optional Air filter.

E

NGLISH

- 37

Care and Replacement

Before replacing the Lamp unit

Ensure the projector is switched off.

Unplug all the cables from the projector.

Prepare a Phillips-head screwdriver.

Contact an Authorized Service Center to purchase a replacement Lamp unit (ET-LAX100).

NOTE:

Prior to replacing the lamp unit, allow it to cool down to prevent the risk of burns, damage and other hazards.

Do not attempt replacement with an unauthorized lamp unit.

When to replace the Lamp unit

The Lamp unit is consumable and the brightness decreases by duration of usage. The LAMP indicator will alert you of the replacement timing at 1 800 hours, and at 2 000 hours, the projector will be turned off. 1 800 or

2 000 hours is a rough guidance and might be shortened by the usage conditions, characteristics of the lamp unit, environmental conditions, and so on. You can check the duration of usage time using LAMP RUNTIME in the

OPTION menu.

On screen

LAMP indicator

REPLACE LAMP

Indication

Over 1 800 hours

Over 2 000 hours

"REPLACE LAMP" is displayed on the upper left of the screen for 30 seconds.

To clear the screen immediately, press any button.

"REPLACE LAMP" is displayed on the upper left of the screen, and until you respond it will stay.

To clear the screen, press any button.

Illuminates RED

NOTE:

The guide times, 1 800 and 2 000 hours, are rough estimates based on certain conditions and is not a guaranteed time. The estimated condition is: LAMP POWER in OPTION menu set to NORMAL.

To prolong the lamp life, set the LAMP POWER in OPTION menu to ECO - MODE. See “LAMP POWER” on page 35.

For more information about the Lamp unit, such as guaranteed time, see the “Replacement Instructions” provided with the Lamp unit.

38 - E

NGLISH

Care and Replacement

Replacing the lamp unit

J

Replacing

1. Turn off the MAIN POWER switch according to the procedure

“Switching the projector on/off” on page 19, and then disconnect the power cord plug from the wall outlet and check that the area around the lamp unit has cooled down.

2. Use a Phillips screwdriver to turn the lamp unit cover fixing screws at the bottom of the projector, and then remove the lamp unit cover.

3. Use a Phillips screw driver to loosen the two lamp unit fixing screws until the screws turn freely. Then hold the handle of the lamp unit and gently pull it out from the projector.

4. Insert the new lamp unit while making sure that the direction of insertion is correct, and then use a Phillips screwdriver to securely tighten the lamp unit fixing screw.

5. Install the lamp unit cover, and then use a Phillips screwdriver to securely tighten the lamp unit cover fixing screws.

Lamp unit cover fixing screws

Press here

Lamp unit cover

Lamp unit fixing screws

Press here

Handle

NOTE:

Be sure to install the lamp unit and the lamp unit cover securely. If they are not securely installed, it may cause the protection circuit to operate so that the power cannot be turned on.

Grip the handle when you remove the lamp unit. Some parts of the lamp unit are sharpened and may cause injury.

J

Resetting the LAMP RUNTIME

If the lamp usage time has passed 2 000 hours (when LAMP POWER has been set to NORMAL), the projector will switch to standby mode after approximately 10 minutes of operation. The resetting procedure should thus be completed within 10 minutes.

1. Insert the power cord plug into the wall outlet and then press the MAIN POWER switch.

2. Press the POWER button so that a picture is projected onto the screen.

3. Press the MENU button to display the menu screen, and then press the F or G button to select the OPTION menu.

4. Press the ENTER button, and then press the F or G button to select LAMP RUNTIME.

5. Press and hold the ENTER button for approximately

3 seconds. The confirmation screen, “LAMP RUNTIME

RESET.” is displayed and select OK.

6. Turn off the power.

This will reset the cumulative usage time for the lamp unit to zero.

INPUT GUIDE

OSD DESIGN

OSD POSITION

BACK COLOUR

STARTUP LOGO

AUTO SEARCH

HDMI SIGNAL LEVEL

INSTALLATION

SLEEP

ALTITUDE

LAMP POWER

LAMP RUNTIME

TEST PATTERN

DETAILED

TYPE1

CENTRE

BLUE

ON

ON

NORMAL

FRONT/DESK

OFF

LOW

NORMAL

1820H

E

NGLISH

- 39

Troubleshooting

Should any problem persist, contact your dealer.

Problem Cause

Power does not turn on.

No picture appears.

The picture is fuzzy.

The color is pale or greyish.

The Remote control does not operate.

The picture does not display correctly.

Picture from a computer does not appear.

The power cord may not be connected.

The MAIN POWER switch is turned off.

No electric supply is at the wall outlet.

TEMP indicator is lit or flashes.

LAMP indicator is lit or flashes.

The lamp unit cover has not been securely installed.

The video signal input source may not be connected to a terminal properly.

The input selection setting may not be correct.

The BRIGHTNESS adjustment setting may be at the minimum setting.

The SHUTTER function may be in use.

The lens cover may still be attached to the lens.

The lens focus may not have been set correctly.

The projector may not be at the correct distance from the screen.

The lens may be dirty.

The projector may be tilted too much.

COLOR or TINT adjustment may be incorrect.

The input source which is connected to the projector may not be adjusted correctly.

The batteries may be weak.

The batteries may not have been inserted correctly.

The remote control signal receptor on the projector may be obstructed.

The remote control unit may be out of the operation range.

The signal format (TV-SYSTEM) may not have been set correctly.

There may be a problem with the VCR or other signal source.

A signal which is not compatible with the projector is being input.

The cable may be too long.

The external video output from a laptop computer may not be correct.

(You may be able to change the external output settings by pressing the [Fn] + [F3] or [Fn] + [F10] keys simultaneously.

The actual method varies depending on the type of computer; refer to the documentation provided with your computer for further details.)

Reference page

19

20

19

36

36

39

11

22

30

-

43

-

-

18

22

28

42

12

21

14

37

14

28

18

40 - E

NGLISH

Technical Information

List of compatible signals

Mode

NTSC/NTSC 4.43/

PAL-M/PAL60

PAL/PAL-N/SECAM

525i (480i)

625i (576i)

525p (480p)

625p (576p)

1 125 (1 080)/60i

1 125 (1 080)/50i

1 125 (1 080)/24p

1 125 (1 080)/60p

1 125 (1 080)/50p

750 (720)/60p

750 (720)/50p

VGA480

WIDE480

SVGA

WIDE600

WIDE720

XGA

WIDE768

MXGA

Display resolution

(dots)

1

720 x 480i

720 x 576i

720 x 480i

720 x 576i

720 x 483

720 x 576

1 920 x 1 080i

1 920 x 1 080i

1 920 x 1 080

1 920 x 1 080p

1 920 x 1 080p

1 280 x 720

1 280 x 720

640 x 480

640 x 480

640 x 480

640 x 480

856 x 480

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

1 072 x 600

1 280 x 720

1 024 x 768

1 024 x 768

1 024 x 768

1 024 x 768

1 024 x 768

1 280 x 768

1 152 x 864

1 152 x 864

1 280 x 1024

1 366 x 768

Scanning frequency

H

(kHz)

V

(kHz)

15.7

15.6

15.7

15.6

31.5

31.3

33.8

28.1

27.0

67.5

56.3

37.9

48.1

46.9

53.7

37.2

45.1

48.4

58.5

45.0

45.0

31.5

37.5

43.3

72.1

30.1

35.2

60.0

68.7

72.1

45.3

64.0

67.5

64.0

48.8

59.9

50.0

59.9

50.0

59.9

50.0

60.0

50.0

24.0

60.0

50.0

60.3

72.2

75.0

85.1

59.9

60.1

60.0

70.1

60.0

50.0

59.9

75.0

85.0

138.0

60.1

56.3

75.0

85.0

89.0

56.5

71.2

74.9

60.0

59.8

Dot clock frequency

(MHz)

13.5

13.5

27.0

27.0

74.3

74.3

74.3

148.5

148.5

40.0

50.0

49.5

56.3

51.4

76.5

65.0

75.0

74.3

74.3

25.2

31.5

36.0

62.3

31.5

36.0

78.8

94.5

99.2

76.2

94.2

108.0

108.0

73.8

Picture quality

A

A

A

A

A

A

AA

AA

AA

AA

AA

A

AA

A

A

A

A

A

A

A

A

A

A

AA

AA

A

A

A

A

A

A

A

A

A

A

2

SXGA

WIDE768-2

1. The “i” appearing after the resolution indicates an interlaced signal.

2. The following symbols are used to indicate picture quality.

AA Maximum picture quality can be obtained.

A Signals are converted by the image processing circuit before picture is projected.

Format

VIDEO/S-VIDEO

VIDEO/S-VIDEO

COMPONENT

COMPONENT

COMPONENT/HDMI

COMPONENT/HDMI

COMPONENT/PC/

HDMI

COMPONENT/PC/

HDMI

COMPONENT/HDMI

COMPONENT/PC

/HDMI

COMPONENT/PC/

HDMI

COMPONENT/HDMI

COMPONENT/HDMI

PC/HDMI

PC

PC

PC

PC

PC

PC

PC

PC

PC

PC

PC

PC

PC

PC

PC

PC

PC

PC

PC

PC

PC

E

NGLISH

- 41

Technical Information

Serial terminal

The serial connector which is on the connector panel of the projector conforms to the RS-232C interface specification, so that the projector can be controlled by a personal computer which is connected to this connecter.

J

Connection

DIN 8 pin (male)

PC

Serial terminal adapter

(ET-ADSER: Optional)

Serial terminal

(male)

NOTE:

You must use only an RS-232C Serial Interface Cable with a ferrite core, type ET-ADSER.

J

Pin assignments and signal names

Pin No.

J

Communication settings

B

F

G

H

C

D

E

A

Signal name

RXD

GND

TXD

Contents

Received data

Earth

Transmitted data

Connected internally

NC

NC

Signal level

Sync. method

Baud rate

Parity

RS-232C

Asynchronous

9 600 bps

None

Character length

Stop bit

X parameter

S parameter

8 bits

1 bit

None

None

42 - E

NGLISH

Technical Information

J

Basic format

STX

Start byte

(02h)

Command

3 bytes

:

1 byte

Parameter

1 byte -

4 bytes

ETX

End

(03h)

The data streaming from the computer will start with STX, and proceed to Command,

Parameter and end with ETX. You can add the required parameter.

The projector can not receive any command for 10 seconds after the lamp is switched on. Wait 10 seconds before sending the command.

If sending multiple commands, check that a response has been received from the projector for one command before sending the next command.

When a command which does not require parameters to be sent, the colon (:) is not required.

If an incorrect command is sent from the personal computer, the ER401 command will be sent from the projector to the personal computer.

J

Control commands

Command Control contents

PON

POF

IIS

OMN

OEN

OBK

OCU/OCD/

OCL/OCR

OST

OFZ

OSH

OVM

VS1

VPM

OOT

Power ON

Power OFF

Input signal selection

Menu screen

ENTER

RETURN

Navigation buttons

Returning to the default setting

Freeze function

Shutter function

MAIN

Aspect ratio selection

Picture mode selection

SLEEP selection

Remarks

In standby mode, all commands other than the PON command are ignored.

The PON command is ignored during lamp ON control.

If a PON command is received while the cooling fan is operating after the lamp has switched off, the lamp is not turned back on again straight away in order to protect the lamp.

Parameter:

VID = VIDEO IN

RG1 = PC IN

SVD = S-VIDEO IN

YUV = COMPONENT IN

HDM = HDMI IN

The menu screen will be displayed.

Use this command to accept and to activate items selected in the onscreen menus.

Use this command to return to a previous menu screen or to clear the menu screen.

OCU = F button

OCD = G button

OCL = I button

OCR = H button

Use this command to return the setting to the factory default. (page 23)

The picture being projected will be paused.

Parameter:

0 = OFF 1 = ON

Use this command to momentarily turn off the picture.

Operation will be switched between ON and OFF each time the command is sent. Do not switch operation ON and OFF after only short periods of time.

Use this command to display an item in the PICTURE menu. (page 28)

The aspect ratio will be switched each time the command is sent.

(page 23)

Parameter:

NAT=NATURAL

DYN=DYNAMIC

CN2=CINEMA2

VID=VIDEO (page 28)

NOR=NORMAL

CN1=CINEMA1

CN3=VIVID CINEMA

Setting the duration of time to turn off the power automatically.

0 = OFF 1 = 60 min.

2 = 90 min.

3 = 120 min. 4 = 150 min.

5 = 180 min. 6 = 210 min. 7 = 240 min. (page 23)

E

NGLISH

- 43

Technical Information

J

Inquiry commands

Command

QPW

QIN

QPM

QSH

QFZ

QOT

Control contents

Power condition

Input signal

Picture mode

Shutter function

Freeze function

SLEEP function

Parameter

000 = OFF

VID = VIDEO IN

RG1 = PC IN

001 = ON

SVD = S-VIDEO IN

YUV = COMPONENT IN

HDM = HDMI IN

Parameter:

NAT=NATURAL

DYN=DYNAMIC

CN2=CINEMA2

VID=VIDEO (See page 33)

0 = OFF

NOR=NORMAL

CN1=CINEMA1

CN3=VIVID CINEMA

1 = ON

0 = OFF 1 = ON

0 = OFF 1 = 60 min.

2 = 90 min.

3 = 120 min. 4 = 150 min.

5 = 180 min. 6 = 210 min. 7 = 240 min. (page 23)

J

Cable specifications

(When connected to a a personal computer)

Projector PC (DTE)

44 - E

NGLISH

Technical Information

Menu structure

PICTURE Menu ....................... 28 H

PICTURE MODE ................... 28 H

CONTRAST........................... 28 H

BRIGHTNESS ....................... 28 H

COLOR.................................. 28 H

TINT....................................... 29 H

SHARPNESS ........................ 29 H

COLOR TEMPERATURE...... 29 H

DYNAMIC IRIS ...................... 29 H

LIGHT HARMONIZER........... 29 H

ADVANCED MENU ............... 29 H

FAVOURITE SAVE ............... 30 H

FAVOURITE LOAD ............... 30 H

SIGNAL MODE...................... 30 H

POSITION Menu ...................... 31 H

H - POSITION........................ 31 H

V - POSITION........................ 31 H

DOT CLOCK.......................... 31 H

CLOCK PHASE ..................... 31 H

ASPECT ................................ 32 H

WSS ...................................... 33 H

OVER SCAN ......................... 33 H

KEYSTONE ........................... 33 H

AUTO SETUP........................ 33 H

OPTION Menu ......................... 34 H

INPUT GUIDE ....................... 34 H

OSD DESIGN ........................ 34 H

OSD POSITION..................... 34 H

BACK COLOR ....................... 34 H

STARTUP LOGO .................. 34 H

AUTO SEARCH..................... 34 H

HDMI SIGNAL LEVEL ........... 34 H

INSTALLATION ..................... 35 H

SLEEP ................................... 35 H

ALTITUDE ............................. 35 H

LAMP POWER ...................... 35 H

LAMP RUNTIME ................... 35 H

TEST PATTERN.................... 35 H

NORMAL

DYNAMIC

VIVID CINEMA

CINEMA1

CINEMA2

VIDEO

NATURAL

GAMMA

CONTRAST

BRIGHTNESS

COLOR MANAGEMENT

NR (Noise Reduction)

MPEG NR

CINEMA REALITY

TV-SYSTEM

4:3

16:9

JUST

ZOOM/ZOOM1

ZOOM2

14:9

V SCROLL

H - FIT

V - FIT

TYPE1

TYPE2

TYPE3

FRONT/DESK

FRONT/CEILING

REAR/DESK

REAR/CEILING

UPPER LEFT

LOWER LEFT

UPPER CENTRE

CENTRE

LOWER CENTRE

UPPER RIGHT

LOWER RIGHT

Sub-menu items vary according to the selected input signal.

E

NGLISH

- 45

Specifications

Power supply

Power consumption

Amps

LCD panel

Lens

Lamp

Luminosity

Scanning frequency

(for RGB signal)

COMPONENT (YP

Color system

Projection size

Throw distance

Screen aspect ratio

Installation

B

P

R

AC 100 - 240 V 50 Hz/60 Hz

290 W

During standby (when fan is stopped): 0.08 W

3.5 A - 1.5 A

Panel size (diagonal)

0.7 type (17.78 mm)

Aspect ratio

16 : 9

Display method

Drive method

Pixels

3 transparent LCD panels (RGB)

Active matrix method

921 600 (1 280 x 720) x 3 panels

Manual zoom (2 x)/Manual focus

F 1.9 - 3.1, f 21.7 mm - 43.1 mm

UHM lamp (220 W)

2 000 lm

Horizontal scanning frequency

Vertical scanning frequency

Dot clock frequency

30 kHz - 70 kHz

50 Hz - 87 Hz

) signals

Less than 150 MHz

525i (480i), 525p (480p), 625i (576i), 625p (576p),

1 125 (1 080)/24p, 750 (720)/50p, 750 (720)/60p,

1 125 (1 080)/50i, 1 125 (1 080)/60i, 1 125 (1 080)/50p,

1 125 (1 080)/60p

7 (NTSC/NTSC 4.43/PAL/PAL-M/PAL-N/SECAM)

1 016 mm - 5 080 mm (40" - 200")

1.2 m - 12.4 m (3'11" - 40'8")

16 : 9

Front/Rear/Ceiling/Desk (Menu selection method)

46 - E

NGLISH

Connectors

Certifications

Remote control

Options

S-VIDEO IN

VIDEO IN

PC IN

Cabinet

Dimensions

Weight

Operating environment

COMPONENT IN

HDMI IN

SERIAL

Power supply

Operating range

Weight

Dimensions

Ceiling bracket

Projection screen

Serial adapter

Specifications

Single - line, Mini DIN 4p

Y: 1.0 V [p-p], C: 0.286 V [p-p], 75

Single - line, RCA pin jack

1.0 V [p-p], 75

RGB

R.G.B.

G.SYNC

Single - line, D - sub HD 15-pin

(female)

0.7 V [p-p], 75

1.0 V [p-p], 75

HD/SYNC

VD

Y, P

B

/C

B

, P

R

/C

R

Y:

P

B

/C

B

, (P

R

/C

R)

TTL high impedance, automatic positive/negative polarity compatible

TTL high impedance, automatic positive/negative polarity compatible

Single - line, RCA pin jack x 3

1.0 V [p-p] (including sync), 75

0.7 V [p-p], 75

Single - line, 19-pin HDMI connector

DIN 8-pin RS-232C compatible

Moulded plastic (ABS/PC)

Width

Height

Length

4.9 kg (10.8 lbs.)

395 mm (15 -17/32")

112 mm (4 - 13/32")

300 mm (11 - 25/32")

Temperature 0 °C - 40 °C (32 °F - 104 °F)

When the ALTITUDE (page 35) is set to HIGH: 0 °C - 35 °C (32 °F - 95 °F)

Humidity

UL60950-1

FCC Class B

20% - 80% (no condensation)

C-UL

ICES-003

3 V DC (AA battery x 2)

Approx. 7 m (23') (when operated directly in front of signal receptor)

125 g (4.4 ozs.) (including batteries)

Width

Length

Height

48 mm (1 - 7/8")

138 mm (5 - 13/32")

28.35 mm (1-3/32") (not including projecting parts)

ET-PKX100

ET-SRW90CT

ET-ADSER (DIN 8-pin/D-sub 9-pin)

E

NGLISH

- 47

Dimensions

395 (15-17/32)

102.5 (4-1/32)

Units: mm (inch)

48 - E

NGLISH

Trademark acknowledgements

VGA and XGA are trademarks of International Business Machines Corporation.

S-VGA is a registered trademark of the Video Electronics Standards Association.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of

HDMI Licensing LLC.

The font used in the on-screen displays is a Ricoh bitmap font, which is manufactured and sold by Ricoh

Company, Ltd.

All other trademarks are the property of the various trademark owners.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

These Operating Instructions are printed on recycled paper.

E

NGLISH

- 49

Index

A

AC IN

............................................................13

Accessories

.....................................................9

ADVANCED MENU

........................................29

Air exhaust port

Air filter

.............................................12

.........................................................37

Air intake port

ALTITUDE

..........................................12, 13

.....................................................35

ASPECT

.......................................................32

Options

.....................................................32

Remote control button

Signals

..................................11

.....................................................33

Switching

..................................................23

AUTO SEARCH

AUTO SETUP

.............................................34

...............................................33

B

BACK COLOR

...............................................34

Battery

Accessory

...................................................9

Compartment

BRIGHTNESS

.............................................11

.........................................28, 29

C

CINEMA REALITY

Cleaning

.........................................30

.......................................................37

CLOCK PHASE

COLOR

.............................................31

.........................................................28

COLOR MANAGEMENT

Adjusting

................................29

...................................................24

Opening the menu

......................................24

Remote control button

..................................11

COLOR TEMPERATURE

...............................29

COMPONENT IN

Connecting

Terminal

CONTRAST

................................................18

...................................................13

............................................28, 29

D

DEFAULT

Remote control button

Resetting

DOT CLOCK

..................................11

..................................................23

.................................................31

DYNAMIC IRIS

..............................................29

E

ENTER

Button

......................................................12

Remote control button

..................................11

F

FAVOURITE

FAVOURITE LOAD

..................................... 30

Opening the menu

FAVOURITE SAVE

...................................... 23

Remote control button

................................. 11

........................................ 30

Focus ring

..................................................... 12

Image positioning

....................................... 21

FREEZE

Capturing

Adjusting

.................................................. 22

Remote control button

Front leg adjuster

................................. 11

.......................................... 13

.................................................. 15

Image positioning

....................................... 21

G

GAMMA

........................................................ 29

H

H- POSITION

................................................ 31

HDMI

Connecting

................................................ 18

SIGNAL LEVEL

.......................................... 34

Terminal

................................................... 13

I

INPUT

Button on the projector

INPUT GUIDE

................................ 12

........................................... 34

Remote control button

Selecting signal

INSTALLATION

................................. 11

.................................... 21, 22

............................................. 35

Projection method

....................................... 15

K

KEYSTONE

.................................................. 33

L

LAMP

Indicator

................................................... 12

Indicator status

.................................... 36, 38

LAMP POWER

.......................................... 35

LAMP RUNTIME

........................................ 35

Lamp unit component

Replacing

LANGUAGE

Lens cover

.................................. 13

................................................. 38

.................................................. 27

.................................................... 12

LIGHT

On/Off

...................................................... 23

Remote control button

LIGHT HARMONIZER

................................. 11

................................... 29

LIVING ROOM

Remote control button

Switching

................................. 11

.................................................. 23

LOG

Managing

.................................................. 25

Setting as a profile

...................................... 25

LUMINANCE SENSOR

.................................. 12

50 - E

NGLISH

Index

M

MAIN POWER

On/Off

......................................................19

Switch

......................................................13

MENU

Button on the projector

Main menu

.................................12

................................................26

Opening the menu

MPEG NR

......................................26

Remote control button

..................................11

.....................................................30

N

NR (Noise Reduction)

....................................30

O

OPTION

Operation

Sub-menu

..................................................34

.................................................27

OSD DESIGN

OVER SCAN

................................................34

OSD POSITION

.............................................34

.................................................33

P

PC IN

Connecting

Terminal

................................................18

...................................................13


Operation

Sub-menu

..................................................28

.................................................27

PICTURE ADJUSTMENT

Opening the menu

Remote control button

PICTURE MODE

Switching

POSITION

......................................24

..................................11

...........................................28

..................................................23

Operation

Sub-menu

..................................................31

.................................................27

POWER

Indicator

On/Off

....................................................12

Indicator status

...........................................19

......................................................20

Power cord

Accessory

Connection

...................................................9

................................................19

PROFILE

Create new

Loading

Projection lens

................................................24

....................................................25

...............................................12

R

Remote control

Operation

..............................................11

Operating range

.........................................22

..................................................22

Signal emitter

Signal receptor

RETURN

.............................................11

...........................................12

Button

......................................................12

Remote control button

..................................11

S

Screen size

Security lock

................................................... 14

................................................. 13

SERIAL

Connecting

................................................ 42

Terminal

................................................... 13

SHARPNESS

................................................ 29

Shift lens

Image positioning

Positioning

Shift lever

....................................... 21

................................................ 16

..................................................... 12

SIGNAL MODE

SLEEP

............................................. 30

......................................................... 35

Remote control button

Setting

STARTUP LOGO

................................. 11

..................................................... 23

.......................................... 34

S-VIDEO IN

Connecting

................................................ 18

Terminal

................................................... 13

T

TEMP

Indicator

................................................... 12

Indicator status

TEST PATTERN

.......................................... 36

........................................... 35

THEATER ROOM

Remote control button

Switching

................................. 11

.................................................. 23

Throw distance

Throwing angle

.............................................. 14

.............................................. 15

TINT

............................................................. 29

TV-SYSTEM

................................................. 30

V

V- POSITION

................................................ 31

VIDEO IN

Connecting

................................................ 18

Terminal

................................................... 13

W

WSS

............................................................. 33

Z

Zoom ring

..................................................... 12

Image positioning

....................................... 21

E

NGLISH

- 51
