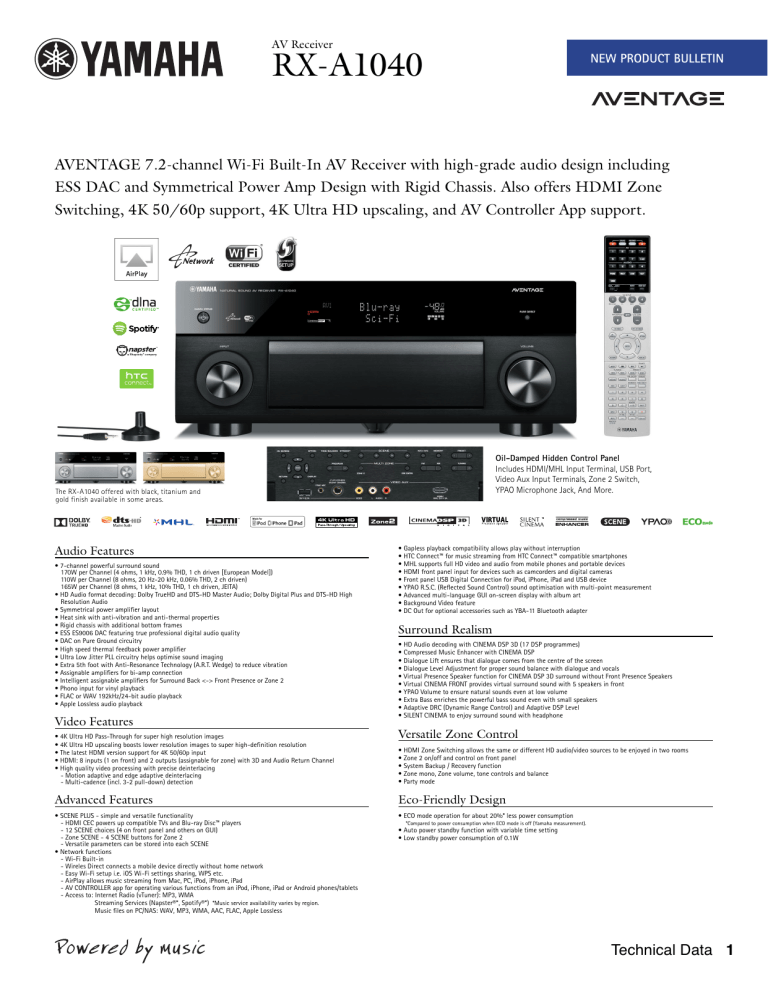

AV Receiver
AVENTAGE 7.2-channel Wi-Fi Built-In AV Receiver with high-grade audio design including
ESS DAC and Symmetrical Power Amp Design with Rigid Chassis. Also offers HDMI Zone
Switching, 4K 50/60p support, 4K Ultra HD upscaling, and AV Controller App support.
Oil-Damped Hidden Control Panel
Includes HDMI/MHL Input Terminal, USB Port,
Video Aux Input Terminals, Zone 2 Switch,
YPAO Microphone Jack, And More.
The RX-A1040 offered with black, titanium and
gold finish available in some areas.
Audio Features
• 7-channel powerful surround sound
170W per Channel (4 ohms, 1 kHz, 0.9% THD, 1 ch driven [European Model])
110W per Channel (8 ohms, 20 Hz-20 kHz, 0.06% THD, 2 ch driven)
165W per Channel (8 ohms, 1 kHz, 10% THD, 1 ch driven, JEITA)
• HD Audio format decoding: Dolby TrueHD and DTS-HD Master Audio; Dolby Digital Plus and DTS-HD High
Resolution Audio
• Symmetrical power amplifier layout
• Heat sink with anti-vibration and anti-thermal properties
• Rigid chassis with additional bottom frames
• ESS ES9006 DAC featuring true professional digital audio quality
• DAC on Pure Ground circuitry
• High speed thermal feedback power amplifier
• Ultra Low Jitter PLL circuitry helps optimise sound imaging
• Extra 5th foot with Anti-Resonance Technology (A.R.T. Wedge) to reduce vibration
• Assignable amplifiers for bi-amp connection
• Intelligent assignable amplifiers for Surround Back <-> Front Presence or Zone 2
• Phono input for vinyl playback
• FLAC or WAV 192kHz/24-bit audio playback
• Apple Lossless audio playback
Video Features
• 4K Ultra HD Pass-Through for super high resolution images
• 4K Ultra HD upscaling boosts lower resolution images to super high-definition resolution
• The latest HDMI version support for 4K 50/60p input
• HDMI: 8 inputs (1 on front) and 2 outputs (assignable for zone) with 3D and Audio Return Channel
• High quality video processing with precise deinterlacing
- Motion adaptive and edge adaptive deinterlacing
- Multi-cadence (incl. 3-2 pull-down) detection
• Gapless playback compatibility allows play without interruption
• HTC Connect™ for music streaming from HTC Connect™ compatible smartphones
• MHL supports full HD video and audio from mobile phones and portable devices
• HDMI front panel input for devices such as camcorders and digital cameras
• Front panel USB Digital Connection for iPod, iPhone, iPad and USB device
• YPAO R.S.C. (Reflected Sound Control) sound optimisation with multi-point measurement
• Advanced multi-language GUI on-screen display with album art
• Background Video feature
• DC Out for optional accessories such as YBA-11 Bluetooth adapter
Surround Realism
• HD Audio decoding with CINEMA DSP 3D (17 DSP programmes)
• Compressed Music Enhancer with CINEMA DSP
• Dialogue Lift ensures that dialogue comes from the centre of the screen
• Dialogue Level Adjustment for proper sound balance with dialogue and vocals
• Virtual Presence Speaker function for CINEMA DSP 3D surround without Front Presence Speakers
• Virtual CINEMA FRONT provides virtual surround sound with 5 speakers in front
• YPAO Volume to ensure natural sounds even at low volume
• Extra Bass enriches the powerful bass sound even with small speakers
• Adaptive DRC (Dynamic Range Control) and Adaptive DSP Level
• SILENT CINEMA to enjoy surround sound with headphone
Versatile Zone Control
• HDMI Zone Switching allows the same or different HD audio/video sources to be enjoyed in two rooms
• Zone 2 on/off and control on front panel
• System Backup / Recovery function
• Zone mono, Zone volume, tone controls and balance
• Party mode
Advanced Features
Eco-Friendly Design
• SCENE PLUS - simple and versatile functionality
- HDMI CEC powers up compatible TVs and Blu-ray Disc™ players
- 12 SCENE choices (4 on front panel and others on GUI)
- Zone SCENE - 4 SCENE buttons for Zone 2
- Versatile parameters can be stored into each SCENE
• Network functions
- Wi-Fi Built-in
- Wireles Direct connects a mobile device directly without home network
- Easy Wi-Fi setup i.e. iOS Wi-Fi settings sharing, WPS etc.
- AirPlay allows music streaming from Mac, PC, iPod, iPhone, iPad
- AV CONTROLLER app for operating various functions from an iPod, iPhone, iPad or Android phones/tablets
- Access to: Internet Radio (vTuner): MP3, WMA
Streaming Services (Napster®*, Spotify®*) *Music service availability varies by region.
Music files on PC/NAS: WAV, MP3, WMA, AAC, FLAC, Apple Lossless
• ECO mode operation for about 20%* less power consumption
*Compared to power consumption when ECO mode is off (Yamaha measurement).
• Auto power standby function with variable time setting
• Low standby power consumption of 0.1W
Technical Data 1
AV Receiver
Main Specifications
Audio Section
Rated Output Power (4 ohms, 1 kHz, 0.9% THD, 1 ch driven [European Model])
Front L/R
Rated Output Power (8 ohms, 20 Hz-20 kHz, 0.06% THD, 2 ch driven)
Front L/R
Surround L/R
Surround Back L/R
Maximum Effective Output Power (8 ohms, 1 kHz, 10% THD, 1 ch driven, JEITA)
Front L/R
Surround L/R
Surround Back L/R
Dynamic Power/Ch (Front L/R, 8/6/4/2 ohms)
Wi-Fi Built-in Provides Superior
Functionality with Easy Setup
YPAO R.S.C. with Multipoint
Measurement and YPAO Volume
Wi-Fi Built-in improves installation flexibility. WPS
and other types of Wi-Fi setup are supported. By using
Wireless Direct, you can connect the AV Receiver
wirelessly and directly
to a smartphone,
making it possible to
enjoy music files on
the phone via AirPlay
or HTC Connect™,
and to operate
the receiver via AV
Yamaha’s unique YPAO analyses room acoustics and the
speaker system, then precisely calibrates audio parameters to
achieve optimum sound at any of eight listening positions.
R.S.C. (Reflected Sound Control) removes the effects of
sound reflections for studio-grade audio quality. YPAO
Volume automatically adjusts high and low frequencies,
maintaining natural balance at all volume levels.
170 W / 170 W
110 W / 110 W
110 W
110 W / 110 W
110 W / 110 W
165 W / 165 W
165 W
165 W / 165 W
165 W / 165 W
135/165/210/280 W
Listening level at low volume
The RX-A1040 delivers the kind of superb audio
quality you expect from a high-end Yamaha receiver.
It incorporates the ES9006 Premier Audio DAC from
ESS Technology, a solution with exceptionally good S/N
ratio and dynamic range that provides true professional
digital audio quality.
The RX-A1040 also
uses Ultra-Low Jitter
PLL circuitry, which
prevents the type of
digital distortion known
as jitter from affecting
the sound quality.
YPAO Volume ON
Superlative Audio Quality
Standby Power Consumption
HDMI Control off, Standby Through off
HDMI Control on, Standby Through on
Network Standby on
Dimensions (W x H x D)
0.1 W
2.4 W
3.1 W (Wired)
435 x 182 x 432 mm
(with antenna: 435 x 242 x 439 mm)
17-1/8” x 7-1/8” x 17”
(with antenna: 17-1/8” x 9-1/2” x 17-1/4”)
14.9 kg; 32.8lbs.
European Model
Extensive Connections
HDMI*1 (Audio Input Assignable*2, Front HDMI : MHL input compatible)
Network (Ethernet / Wi-Fi)
Radio Antenna (FM/AM)*3
Optical Digital (Assignable)
Coaxial Digital (Assignable)
Analogue AV *1 / Audio (with Phono)
Component Video (Assignable)
Multi-Channel Input
Optical Digital
Analogue Audio
Pre Out
Component Video Monitor*4
Composite Monitor*4
AV Out (Composite )
DC Out*6
Headphone Jack
2 (Zone assignable)
7ch (9 terminals)
2 x mono
Zone 2 Out with Volume and Tone Controls
Remote In/Out
+12V / Total 100 mA Trigger Out*7
Terminal for Detachable Power Cable
front panel terminals.
*12 Including
HDMI input is not assignable.
*3 Front
FM antenna terminal varies according to area.
*4 Assignableoftothe
monitor out or Zone 2 out.
*5 Banana-plug compatible
*6 For optional accessories. speaker terminals are available in some areas.
*7 Yamaha subwoofer system control support.
• “Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not
responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance. AirPlay, iPhone, iPod, iPod classic, iPod nano, iPod touch, and
iTunes are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc. AirPlay works with iPhone, iPad, and iPod touch with iOS 4.3.3 or later, Mac with OS X Mountain Lion, and Mac and PC with iTunes 10.2.2 or later. • The
Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance. The Wi-Fi Protected Setup Identifier Mark is a mark of the Wi-Fi Alliance. • DLNA™ and DLNA CERTIFIED™ are trademarks or registered trademarks of Digital Living Network Alliance. All rights reserved.
Unauthorized use is strictly prohibited. • The HTC Connect™ Logo is a trademark of HTC Corporation. • Spotify and Spotify logo are registered trademarks of the Spotify Group. • Napster and the Napster logo are trademarks and registered trademarks of Rhapsody
International. • The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Yamaha Corporation is under license. Other trademarks and trade names are those of their respective owners. • Dolby and
the double-D symbol are registered trademarks of Dolby Laboratories. • DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks of DTS, Inc. • HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC in the United States and other countries. • MHL and the MHL logo are a trademark, registered trademark or service mark of MHL, LLC in the United States and/or other countries. • CINEMA DSP is a trademark of Yamaha
Corporation. • SILENT CINEMA is a trademark of Yamaha Corporation. • Product designs and specifications are subject to change without notice.
