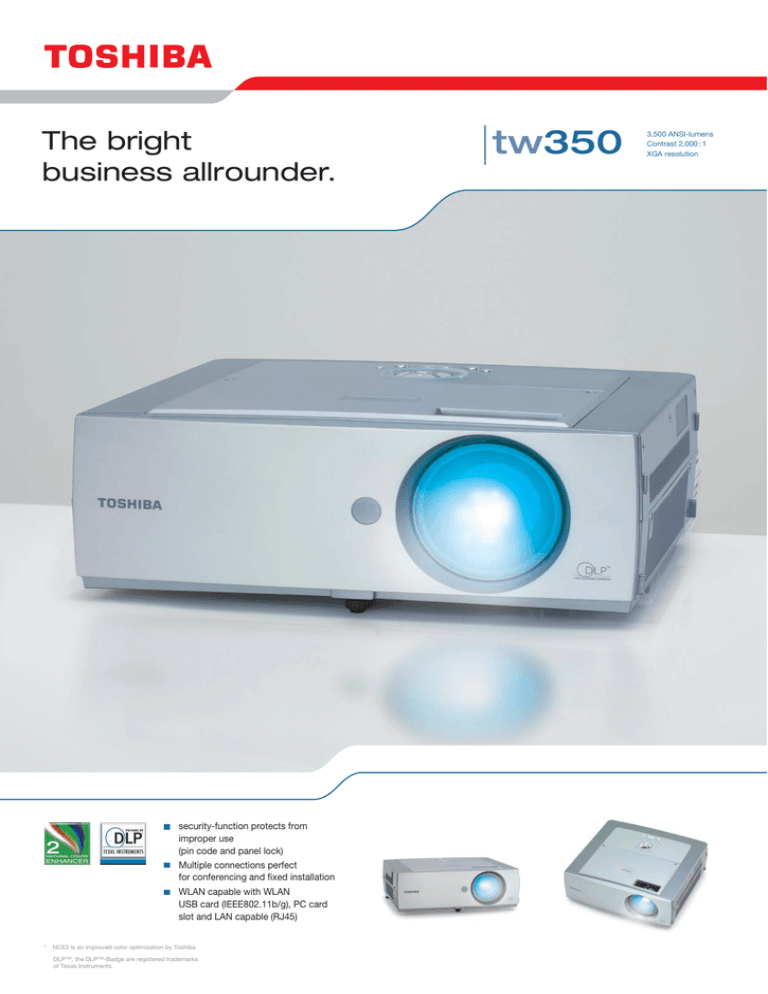

Toshiba TDP-TW350UK Product Sheet

The bright
business allrounder.
security-function protects from
improper use
(pin code and panel lock)
Multiple connections perfect
for conferencing and fixed installation
WLAN capable with WLAN
USB card (IEEE802.11b/g), PC card
slot and LAN capable (RJ45)
* NCE2 is an improved color optimization by Toshiba
DLP™, the DLP™-Badge are registered trademarks
of Texas Instruments.
tw350
3,500 ANSI-lumens
Contrast 2,000 : 1
XGA resolution
tw350
Display 0.7” DMD™* Chip (DLP* technology)
Resolution XGA 1024 x 768 (SXGA/UXGA compr.)
Brightness 3,500 ANSI-lumens
Colour reproduction 16.7 million colours
Contrast 2,000 : 1
Projection format 4 : 3 switchable to 16 : 9
Lamp 300 W (TLPLW13LAMP)
Max. lamp life up to max. 2,000 hours/
up to max. 3,000 hours in ECO mode
Lens F = 2.4 - 3.0 / f = 21 - 31.5 mm,
power zoom and auto focus
Zoom 1.5 x
Throw ratio 1.47 - 2.23:1
Frequency (hor. / vertical) 15 - 120 kHz / 30 - 150 Hz
Projection front, rear and ceiling
Keystone correction ver. +/- 45° hor. +/- 45°
Picture size (diagonal) 1.0 - 7.62 m
Projection distance 1.2 - 13.8 m
Input signals NTSC / PAL / SECAM, 480i, 480p, 576i, 576p,
720p, 1080i, VGA , SVGA, XGA , SXGA & UXGA (compr.)
Inputs DVI, 2 x RGB (D-sub 15), component video (1 x BNC),
2 x audio (RCA L/R), 1 x S-video, composite video (RCA),
3 x audio stereo mini jack
Outputs RGB (D-sub 15), audio (stereo mini jack)
Serial interface RS-232C (mini DIN8 pin), LAN (RJ45)
Power supply AC 100 - 240 V, 50 / 60 Hz
Loudspeaker 2 x 4 W stereo
Dimensions (W x H x D) 340 x 115 x 328 mm
Weight 5.5 kg
Accessories remote control with laserpointer and batteries, owners
manual (CD ROM), quick reference, RGB and power cable,
softcase
Wireless communication WLAN capable with WLAN USB card,
wireless LAN (IEEE802.11b / g), 64/128 bit encoding, wep+
Features
■
One button easy setup (Auto keystone, Auto focus & Auto zoom)
■
Natural Colour Enhancer 2 (for DLP)
■
Wireless Connectivity (IEEE802.11g)
■
Network management (RJ45 LAN connection)
■
Multiple inputs
■
User logo capture
■
Pincode security & panel lock
Picture size
www.toshiba.co.uk/projectors
PVP00051
A
B
C
D
E
0.84 m
1.52 m
2.54 m
5.08 m
7.62 m
Projection distance
1.45 m
2.21 - 2.66 m
3.72 - 4.47 m
7.51 - 9.01 m
11.29 m
projection distance (m)
projection size
(m)
min length
(zooming max)
max length
(zooming min)
1.02
1.17
1.79
1.52
1.77
2.71
2.54
2.99
4.55
5.08
6.03
9.16
7.62
9.06
13.76
Toshiba Information Systems (UK) Ltd
Projection & Display Technology
Toshiba Court
Weybridge Business Park
Addlestone Road
Weybridge
Surrey
KT15 2UL
E-mail: [email protected]
E&OE - Product design and specification subject to change or modification without notice.
